非常感谢 KPF 予gooood分享以下内容。更多关于他们：KPF on gooood.
Appreciation towards KPF for providing the following description:

Edge由KPF设计，是西半球最高的室外观景台，从哈德逊广场30号第100层的24米高度处悬挑而出。

Designed by KPF, Edge is the highest outdoor observation deck in the western hemisphere and cantilevers 80 feet from the 100^th floor of 30 Hudson Yards.

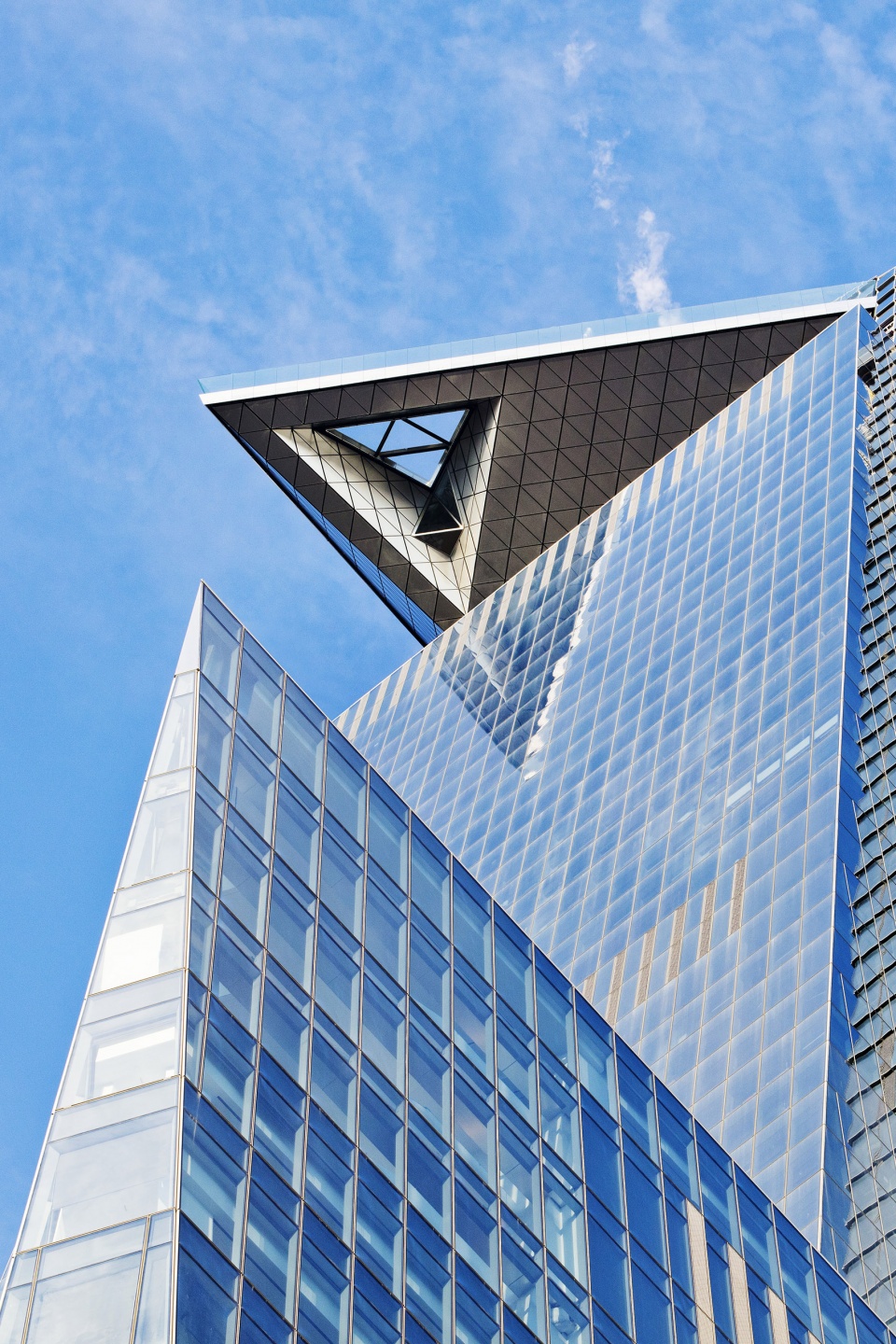

▼观景台外观，observation deck exterior view ©KPF+Connie Zhou

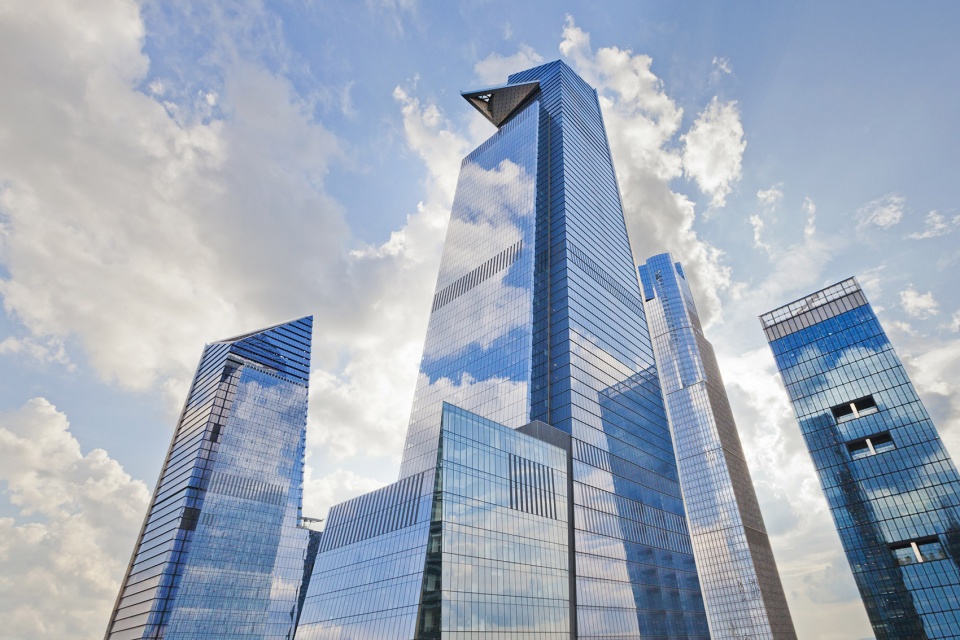

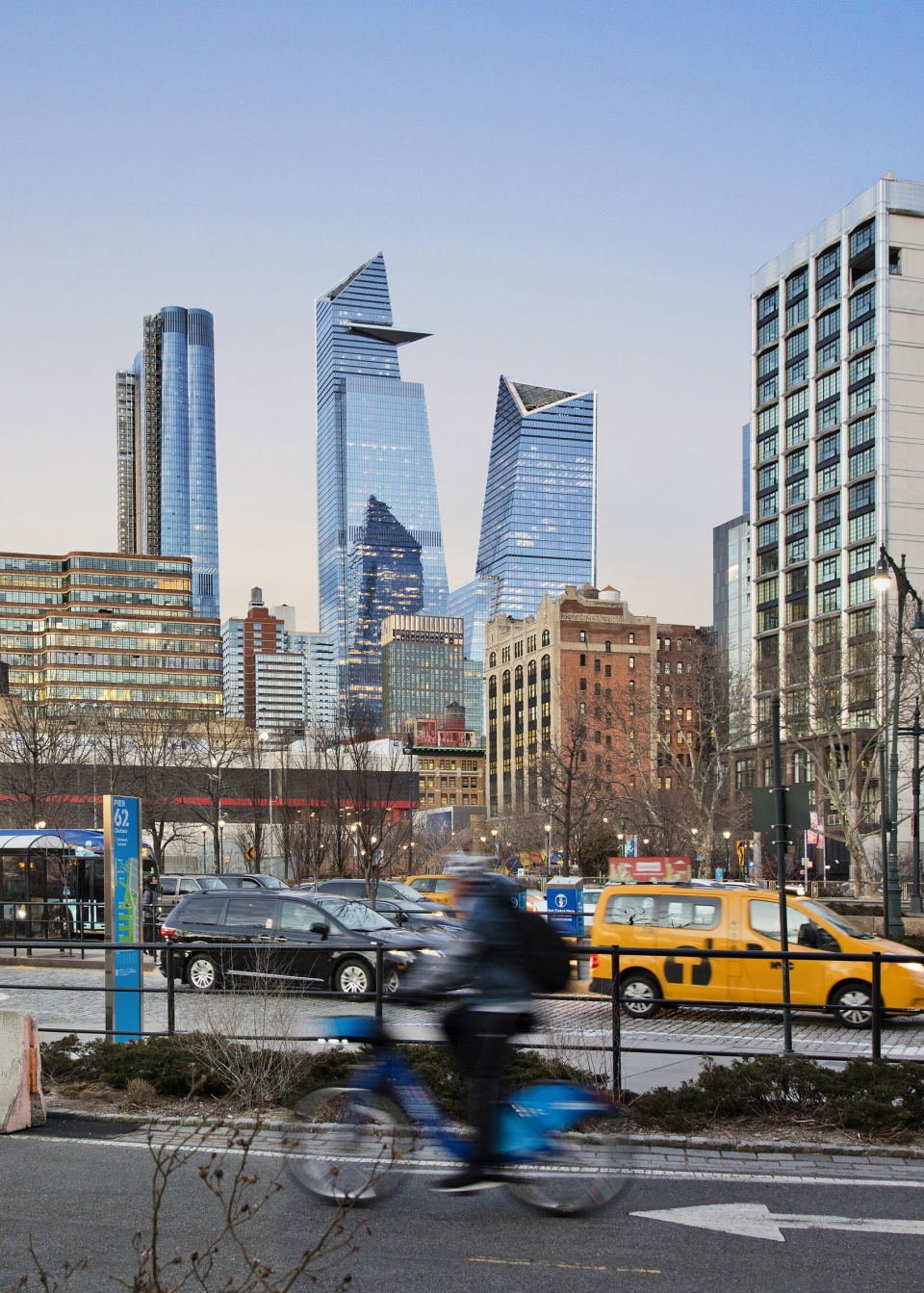

▼城市街道视角，view from the urban street ©KPF+Connie Zhou

高度创纪录的Edge观景台离地面335米，位于哈德逊广场30号第100层，直插云霄，它将让人们欣赏到前所未有的纽约街头、新泽西州西部和纽约州长达80英里的美景。无论是斜倚在城市上空倾斜的玻璃墙到步入悬空玻璃地板，亦或是在100层到101层的室外空中阶梯上欣赏美景，游客将体验到无比的刺激。

▼示意图，diagram

Piercing the sky at a soaring 100 floors from its record-setting height of 1,131 feet, Edge will reveal never-before-seen views of The City, Western New Jersey and New York State spanning up to 80 miles. Visitors will enjoy varying levels of thrill from leaning over the city up against the angled glass walls to stepping out onto the glass floor or taking in the view on the outdoor skyline steps from the 100th to 101st floor.

▼离地面335米的Edge观景台将使游客体验到无比的刺激，visitors will enjoy varying levels of thrill on Edge from its record-setting height of 1,131 feet ©KPF

▼位于哈德逊广场30号第100层的观景台，Edge cantilevers 80 feet from the 100^th floor of 30 Hudson Yards ©KPF

观景台的底部贴附三角形不锈钢面板，为了呈现多样生动的反射，设计师们从芬兰选择了一种浮雕感的“亚麻”纹理的不锈钢材料。对于高反射率的材料而言，表面细微的偏差都会变得很明显，设计团队现场仔细勘察每一片面板确保它们的平直度以及统一性。

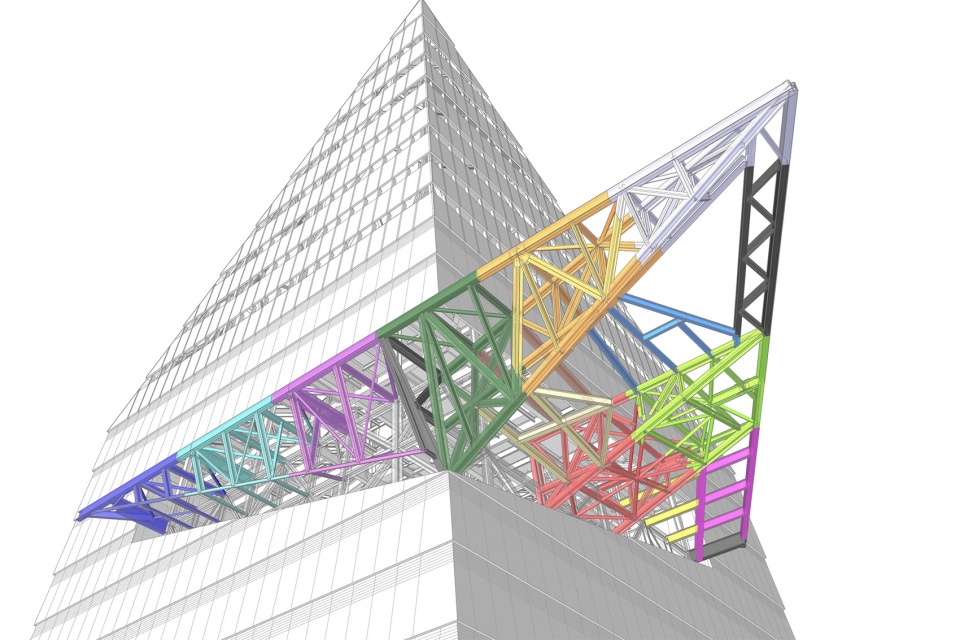

▼结构，structure

The underside of the observation deck is clad in triangular stainless steel panels. We selected a bright annealed stainless steel from Finland with an embossed “LINEN” finish for its vibrant and dynamic reflectivity. Even small deviations in the highly reflective material’s surface can be obvious, so we carefully reviewed each panel for flatness and consistency.

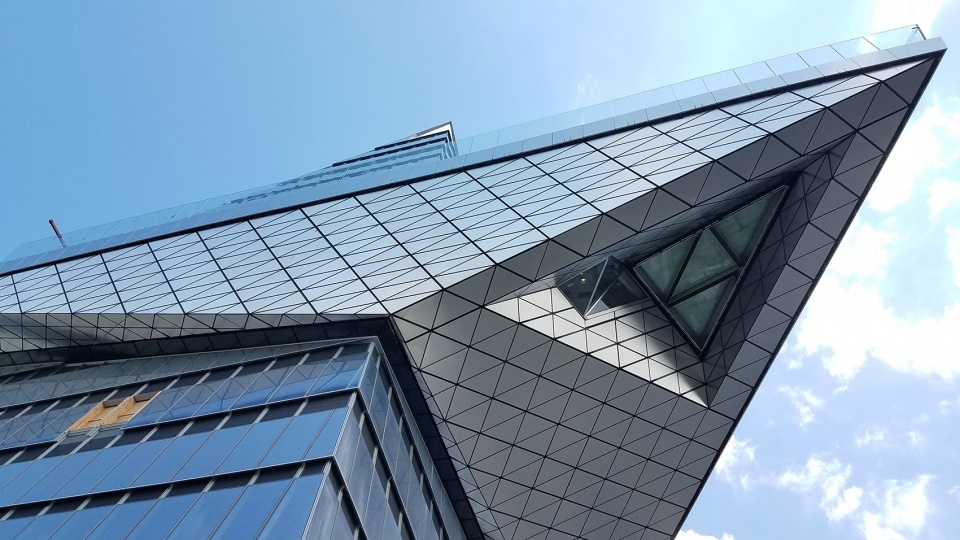

▼底部贴附三角形不锈钢面板，the underside of the observation deck is clad in triangular stainless steel panels ©KPF

Edge观景台是现代工程和结构设计的奇迹，它由15个部分组成，每一个模块重达1.6至4.5万公斤。所有部分都采用螺栓连接，并牢固固定在建筑的东侧和南侧。每一个模块都在意大利的工厂里测试安装过确保良好的吻合度，接下来再将这些模块拆分后运送到港口开始它们跨越大西洋的旅程，最终到达它们的目的地纽约。在安装现场，模块被小心翼翼的吊起并精确地固定在它对应的位置，通过这种方式观景台的实地安装变得特别高效快速。

A marvel of modern engineering and structural design, the observation deck is comprised of 15 sections, all bolted together and anchored to the east and south sides of the building. Each section was pre-assembled at the factory in Italy to ensure proper alignment and fit. Sections were then taken apart and moved to the port, ready to begin their long journey across the Atlantic and eventually to the New York City.

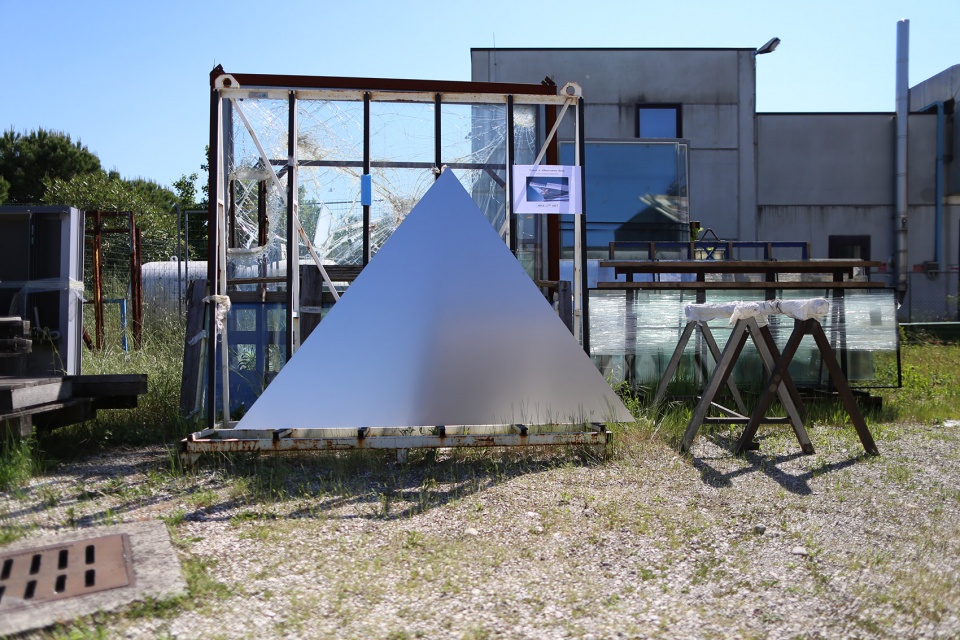

▼模块生产阶段，manufacture ©KPF

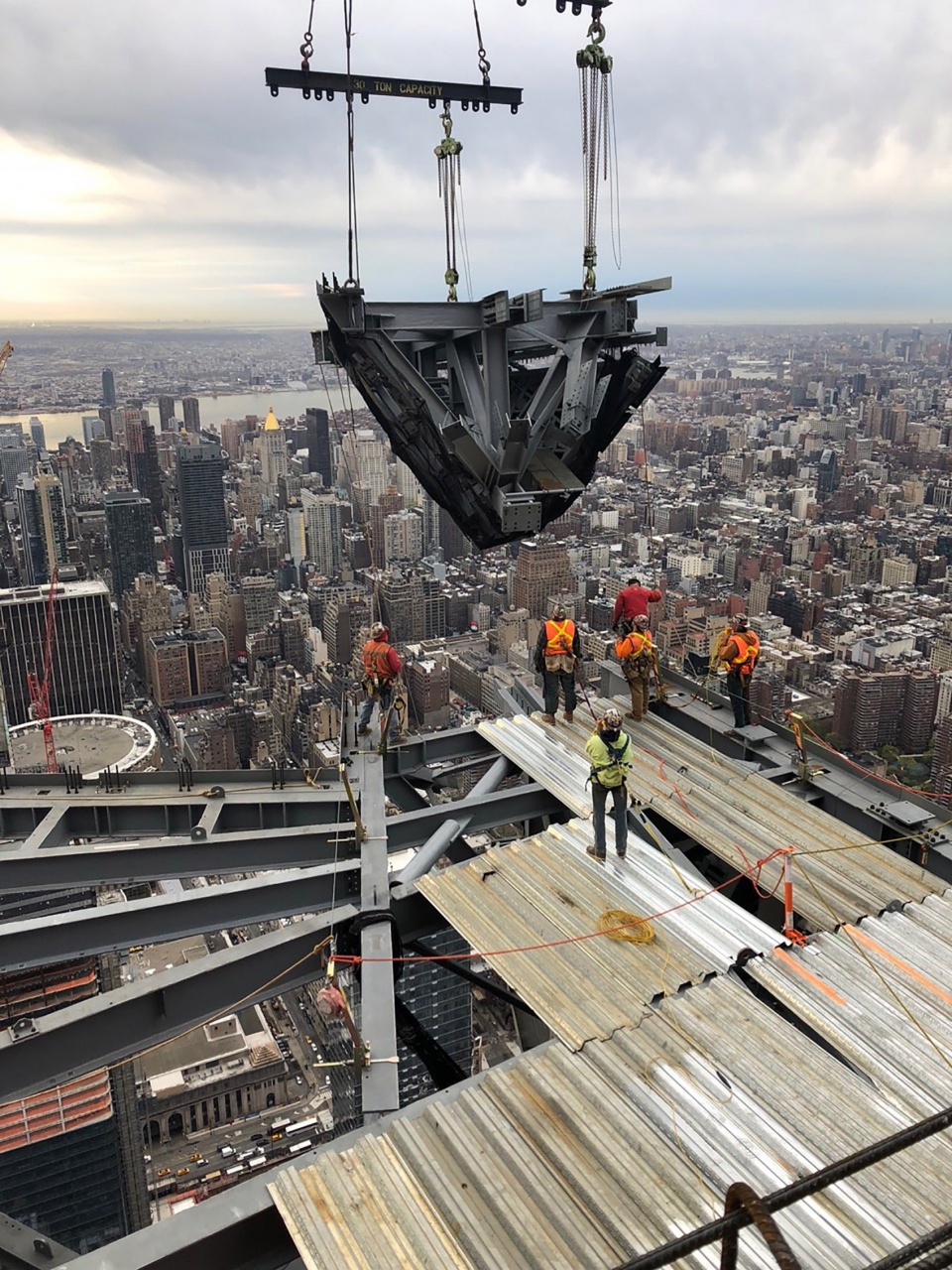

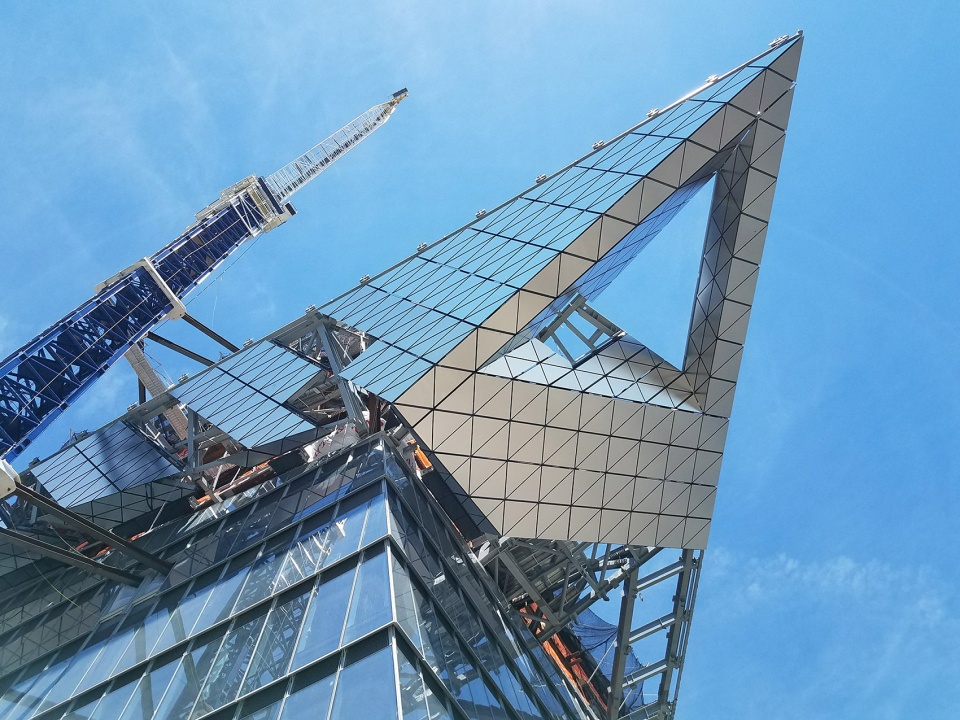

▼装配阶段，assemble ©Timothy Schenck

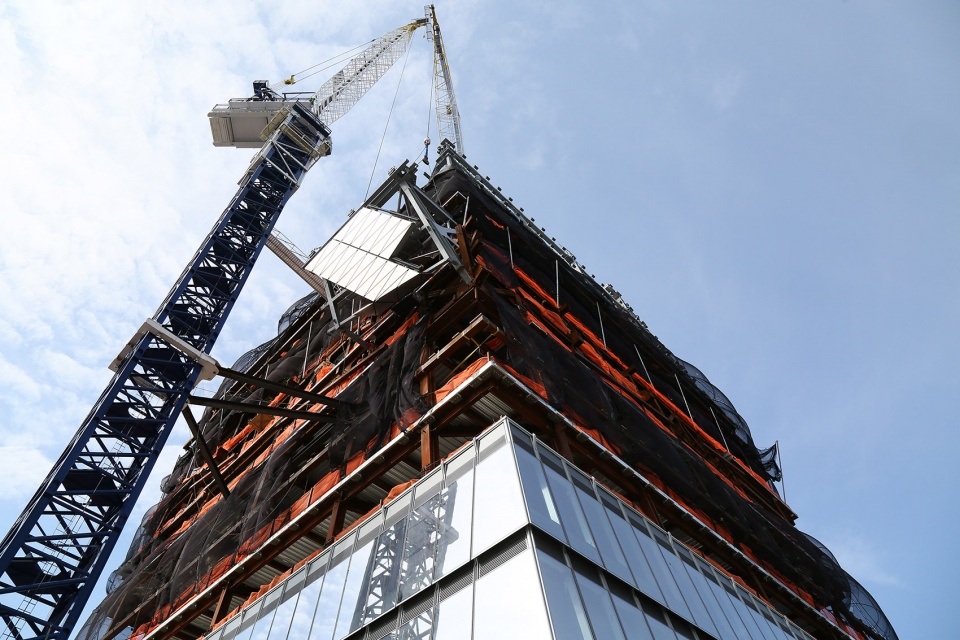

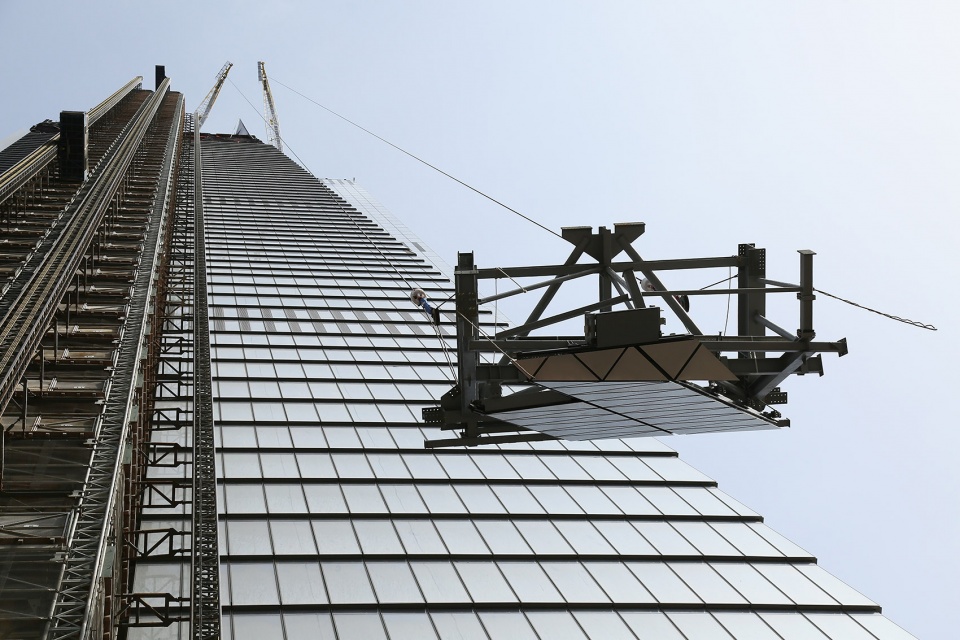

▼装配阶段，assemble ©Joe Woolhead

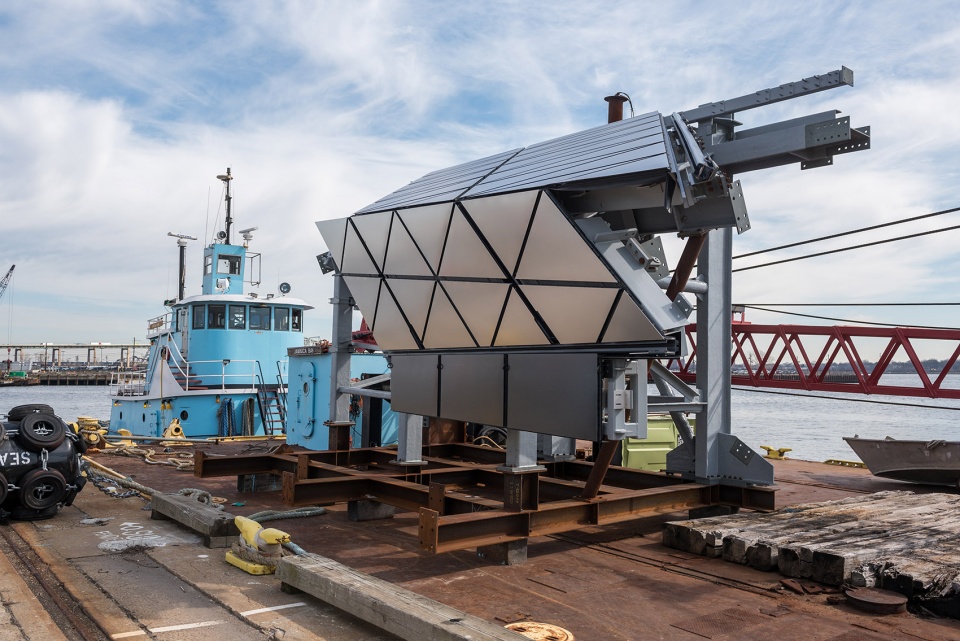

▼运送模块，module transporting ©KPF

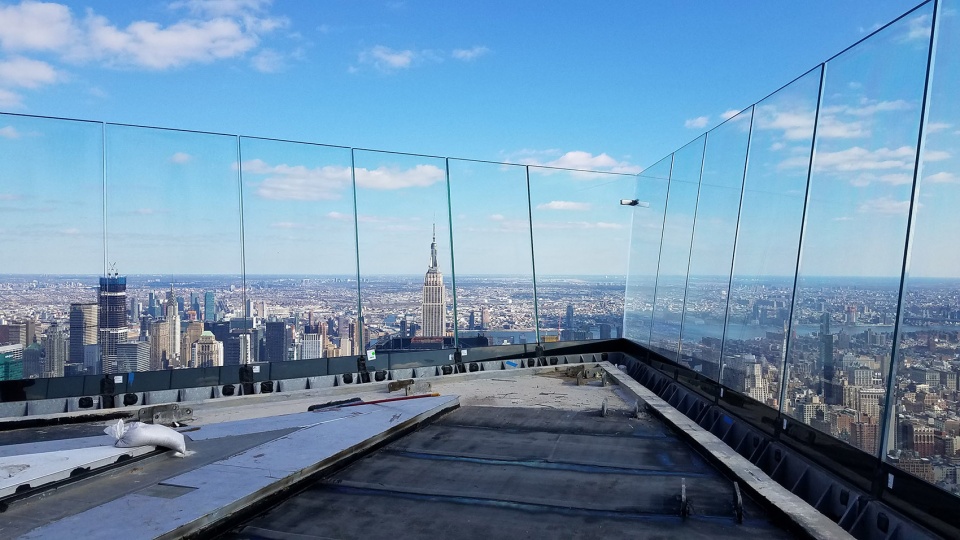

室外观景区面积为670平米，周围设置了79块德国制造并在意大利完成的玻璃面板护墙。观景台内部由David Rockwell和Rockwell Group进行设计。

The 7,500-square-foot outdoor viewing area is surrounded by 79 glass panels manufactured in Germany and finished in Italy. Interiors of Edge are being designed by David Rockwell and Rockwell Group.

▼效果图：室外观景区周围环绕着璃面板护墙，rendeing: the outdoor viewing area is surrounded by 79 glass panels ©Related-Oxford

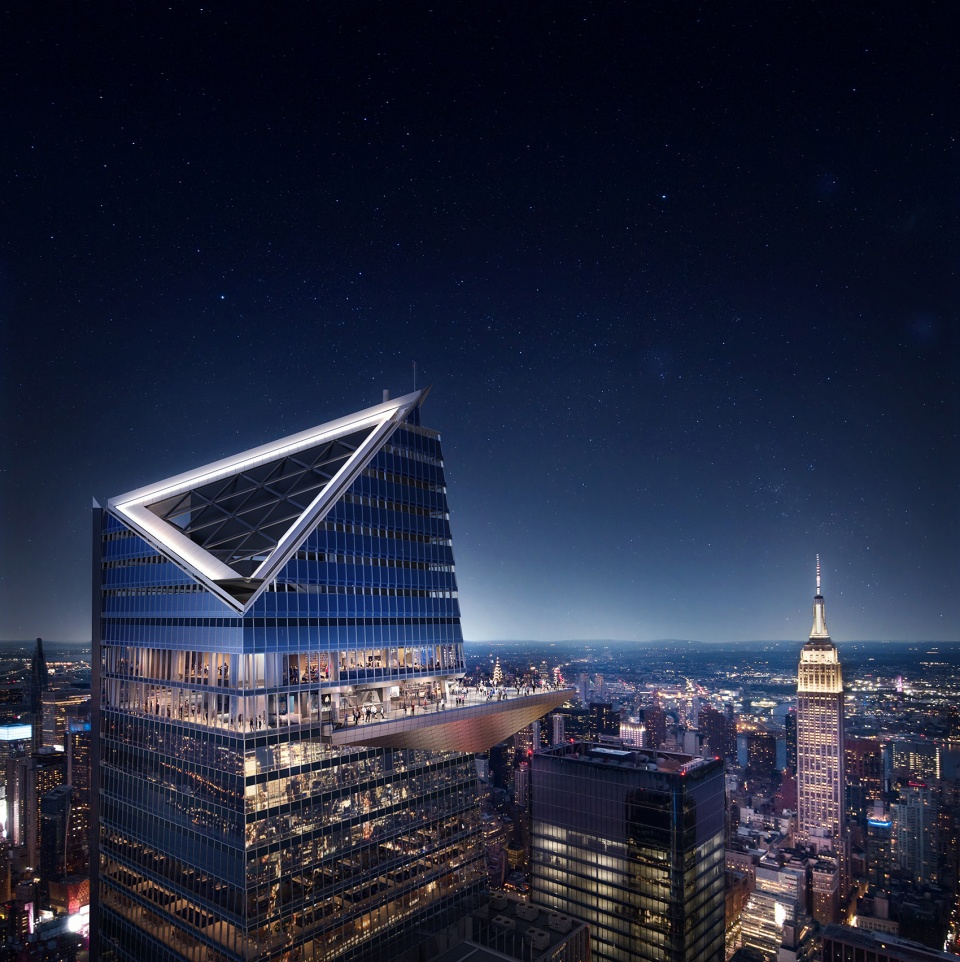

▼效果图：观景台和城市夜景，rendering: Edge in its context ©Related-Oxford

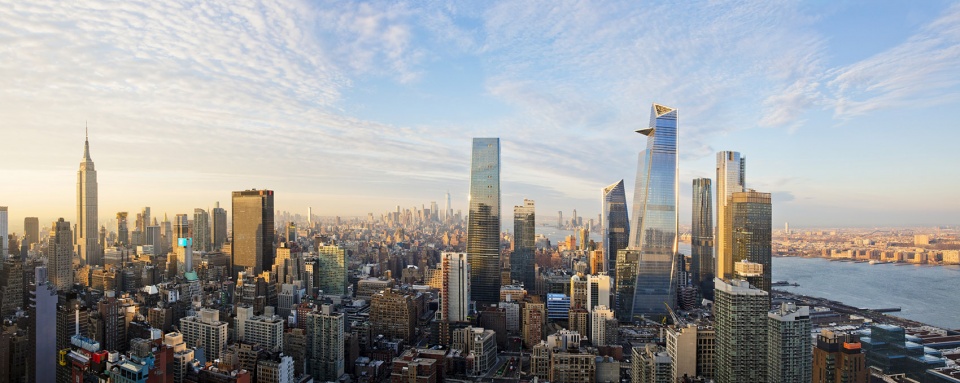

▼全景鸟瞰，aerial view ©KPF+Connie Zhou
