非常感谢 Walter Jack Studio 将项目介绍和项目图片授权gooood发行。更多请至：Walter Jack Studio on gooood
Appreciation towards Walter Jack Studio for providing the following description:

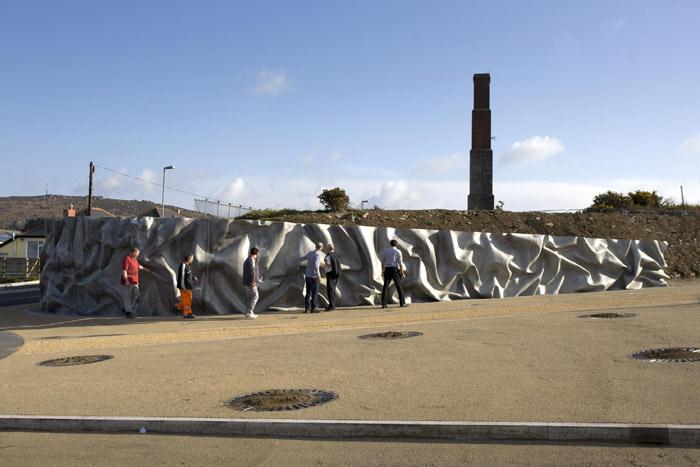

这个耸立在城镇上的新混凝土装置的灵感来自地质。当它建立好时，就连甲方也好奇的想要触摸。混凝土能做成这样，可谓史无前例。这个城镇的地址情况非常特殊，人们在穿透地下花岗岩层1000米后，发现了锡矿。政府庆祝这个秘密的发现，并在矿业世界和地上世界的边界之处耸立这个装置。

艺术家被玻璃吹制花瓶的工艺之美所吸引，他认为混凝土不应该是呆板的，也可以像流体一样呈现出柔软性。

墙长40米，最高处4米，逐渐下降，最低处只有2.5米。采用橡胶，胶合板等材料制成混凝土模板，模板共有6段。在距离现场只有半英里的地方进行制造，然后再将这些20吨重的大家伙运到场地，以毫米精确度进行安装，保证了形式的连续性。

这个墙作为这里发展的一个起始点。

Heartlands’ experimental new art installation brings concrete to life with inspiration fromunderground.

Artist Walter Jack says;

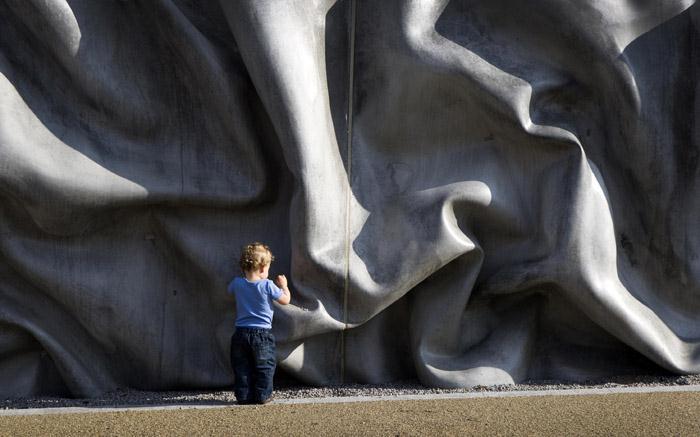

‘When we were installing it one of the client team asked if they could touch it. Concreteisn’t known for its tactile qualities. Maybe that’s a first!

‘Crushedwall is, for me, about two things. It’s about geology. And it’s about process,the way that things are made.’

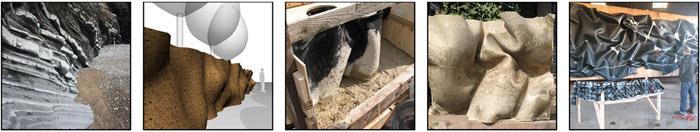

‘Geology first. Heartlands sits over a very special geology. C19th miners dug an astonishing 1000 metres down through granite to extract tin ore. This is one of the hidden stories that Heartlands will celebrate. When we were asked to design a retaining–wall the geological connection seemed serendipitious. Retaining walls hold back the geology. They are the boundary between our above-ground world and the world of mining.

‘And process. One of the things that interests me as a maker is the way in which made things are so much duller than the processes that got them there. Watch glass blowing and you’ll see more beauty there than you’ll ever see in the finished vase! Concrete is not noted for its fluid softness. And yet it is a liquid. We wanted our concrete to tell its own story – to retain the liquidness of its process.

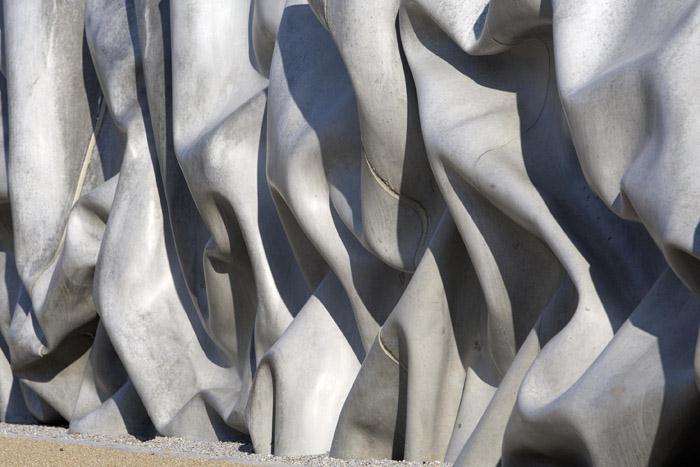

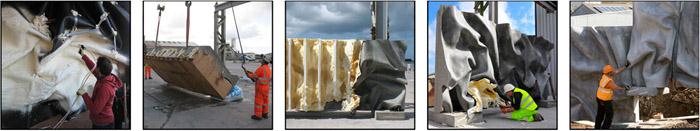

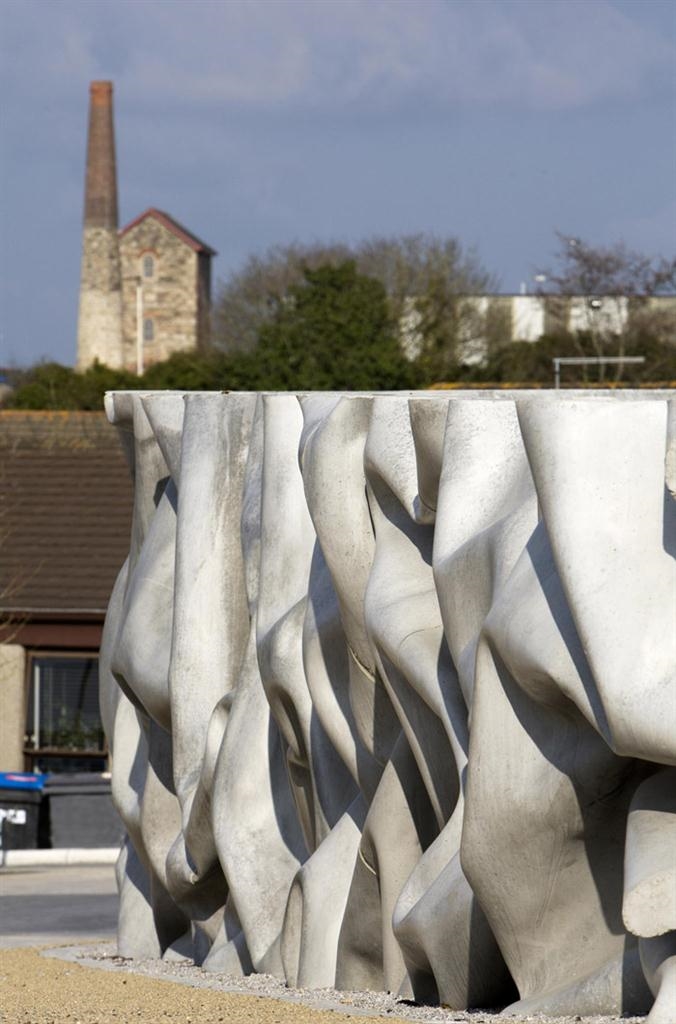

‘We started with a sheet of rubber, some plywood and a hired cement mixer in my back garden – and went from there. The final shutter was built in one piece – using a single sheet of rubber 40m long and 4 metres high – a tonne of rubber sheet. The wall needed more height at one end – so the rubber pretty much hangs like a curtain at that end. At the lower end 4 metres of rubber is crumpled down to 1.5 metres. The wall seems to change in mood – as well as shape. It become much stormier at the low end! ‘Once the shape was formed the shutter was carefully cut into six pieces. One of the challenges was to retain continuity of the fluid form between shutters. The 6 shutters (made by Richard Stump and John Hall) were then taken from the barn in Gloucestershire where they were made to Ladd’s Concrete – only half a mile from the site. We’d done prototypes – but at this point we still didn’t really know whether the plan would work on this scale. The parts, weighing up to 20 tonnes each, were cast offsite and installed with millimetre accuracy – again to ensure continuity of form.

The Heartland’s project is a community development which celebrates and enriches understanding of the local culture, heritage and natural environment.

Cornwall’s mining history, ecology, geology and folklore have all informed briefs for artists’ commissions, landscaping and architectural design. Walter Jack Studio designed and are building Crushedwall for one of the entrances to the development.

MORE: Walter Jack Studio，更多请至：Walter Jack Studio on gooood

Project Specs

Walter Jack Studio
