COVID-19 Mobile Test Unit by Nurus

Medical Sample Unit designed by Nurus, available open source for anyone who wants to produce it

Project Specs

Design:
Location:

感谢 Nurus 对gooood的分享。
Appreciation towards Nurus for providing the following description:

土耳其著名家具品牌Nurus为抗击COVID-19打造了可以移动的检测单元,旨在提供绝对安全且符合基本的健康及隐私规范的拭子检测环境。Nurus希望将这一创新性的解决方案分享给所有人:向全球所有需要生产COVID-19移动检测单元的国家和地区免费提供该装置的完整设计方案、施工细节、计算数据以及所有与装配相关的必要信息。

In order to contribute to the fight against Covid19, animated by the social responsibility embedded in its company values, Nurus has made its know-how in the design and creation of innovative professional furniture solutions, available to everyone. This is to design and engineer a mobile unit in which to perform swab testing in absolute safety, in full compliance with the necessary health and privacy regulations. The complete project with all the construction details, calculations and all the necessary information for its assembly is made available by Nurus free of charge for all those who intend to produce the Covid19 Mobile Test Unit in any country in the world.

▼可以移动的COVID-19检测单元,Covid19 Mobile Test Unit ©Nurus

该装置由金属和玻璃构成,其设计者为Nurus品牌合伙人Renan Gökyay,并由Serhat Ünlü在Nurus Design Lab的支持下进行开发,能够以简单、迅速且经济的方式实现制造和组装。每个检测单元包含两个可交替使用的隔间,隔间的一侧用于进行检测,另一侧是专业医疗人员的工作区,拥有完全与外界隔离的安全环境。基于持续的消毒处理,每个单元均得以保持封闭且无菌的状态,确保每天可进行400次以上的检测。

The metal and glass structure was designed by Renan Gökyay, partner of Nurus, and developed by Serhat Ünlü with the support of the whole team of the Nurus Design Lab, to be made and assembled in a simple, fast and cost-effective way.  Each unit consists of 2 booths to be alternately used for carrying out tests and an area reserved for healthcare professionals who can work safely in a totally separate environment. Each unit, pressurized and sterilized thanks to continuous disinfecting, is able to guarantee the carrying out of over 400 test processes per day.

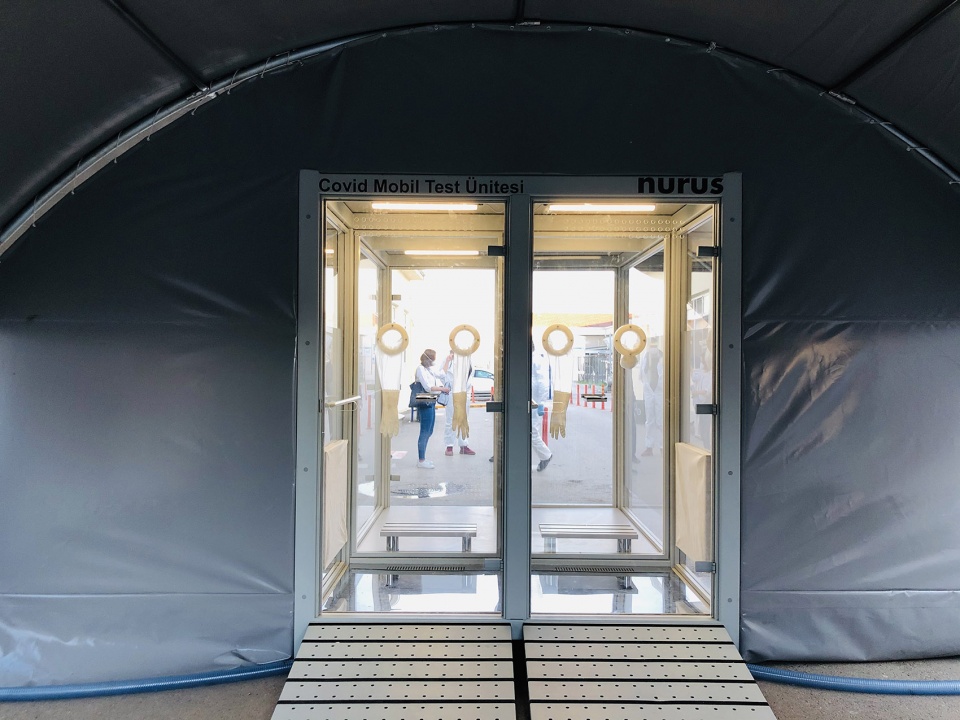

▼每个检测单元包含两个可交替使用的隔间 ©Nurus
Each unit consists of 2 booths to be alternately used for carrying out tests and an area reserved for healthcare professionals

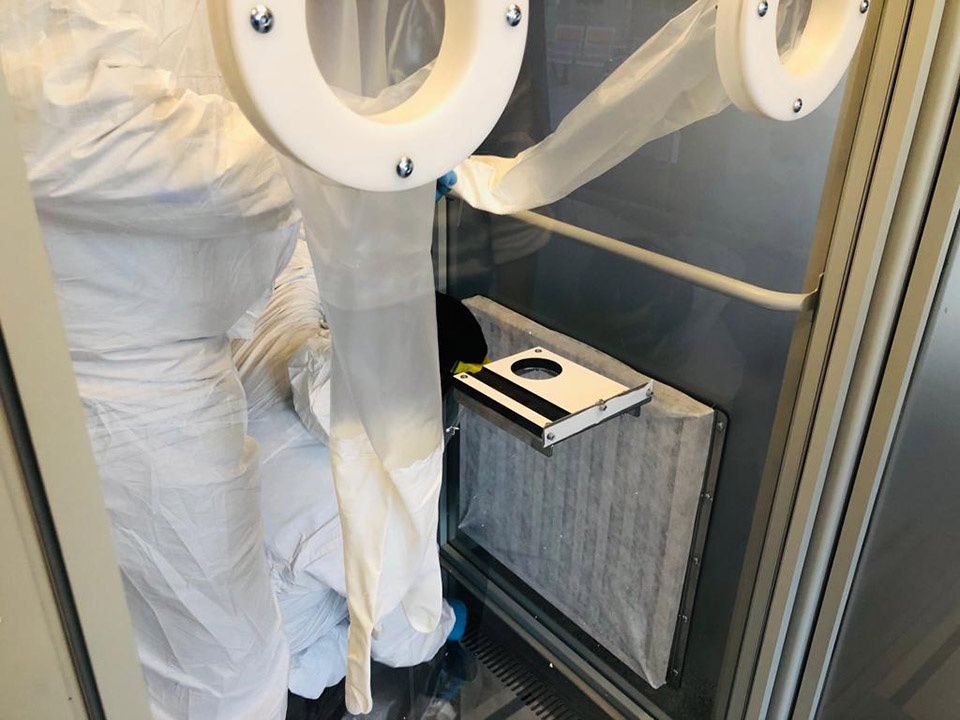

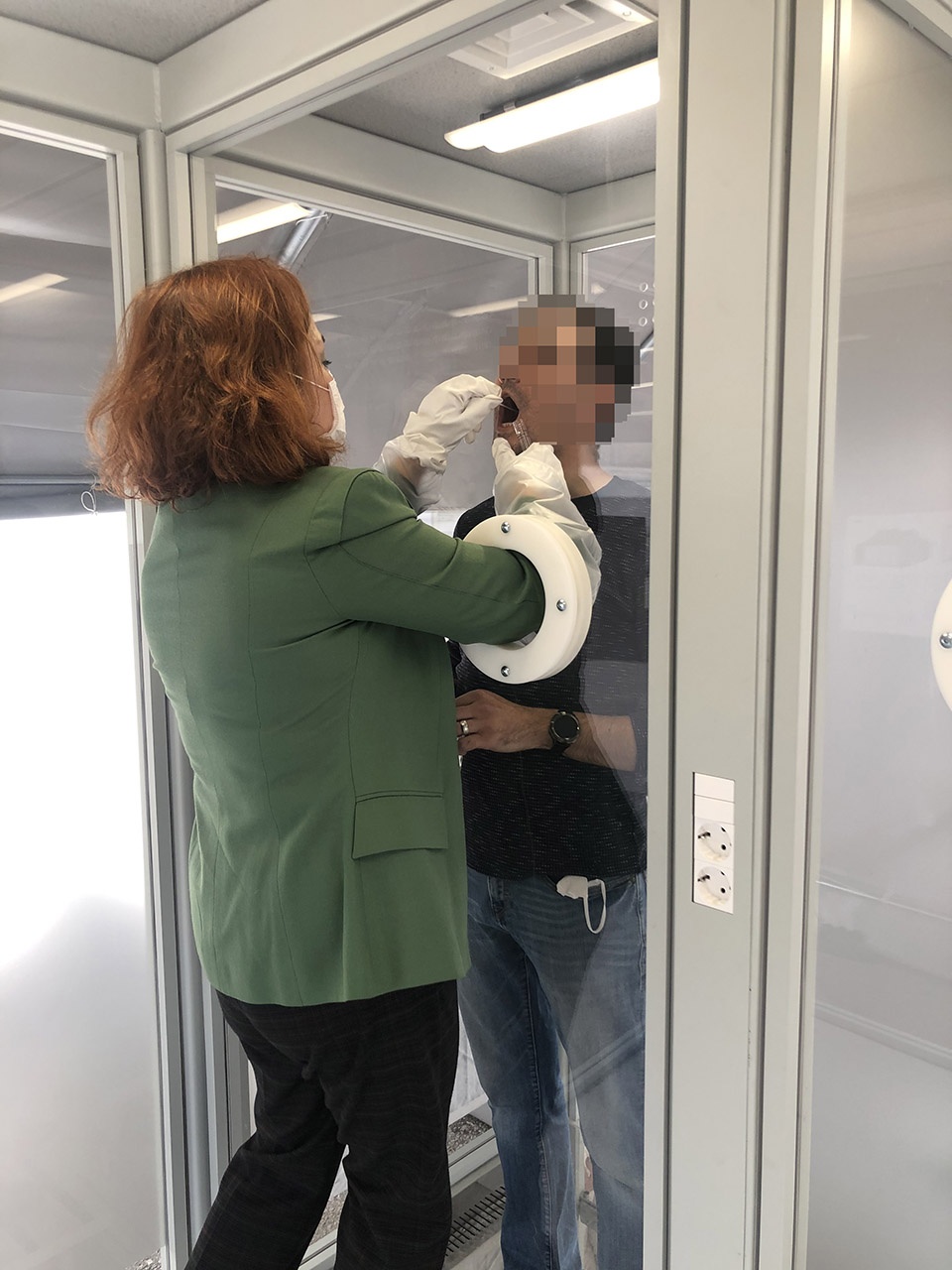

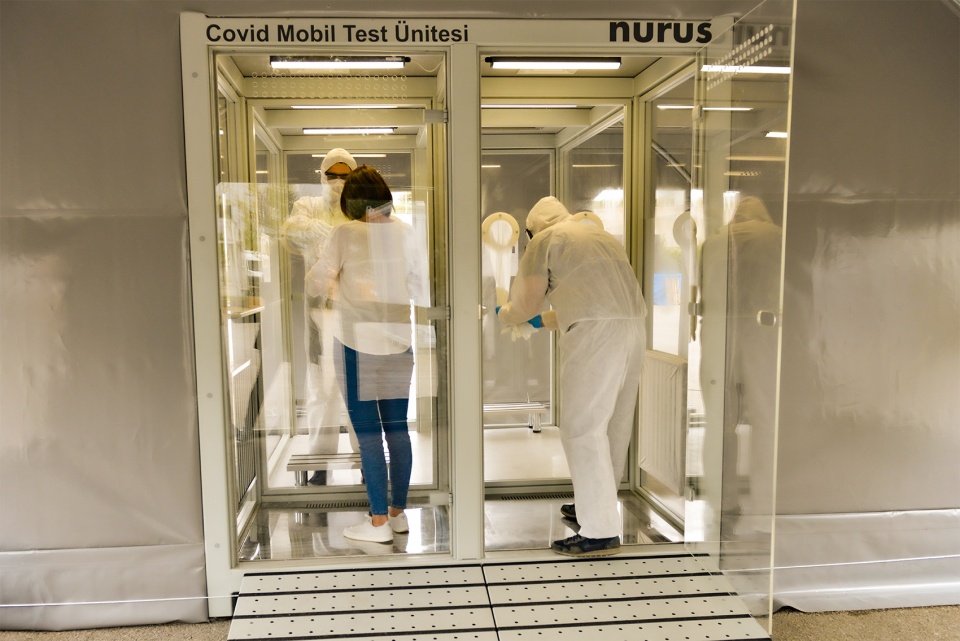

▼检测场景,during the test ©Nurus

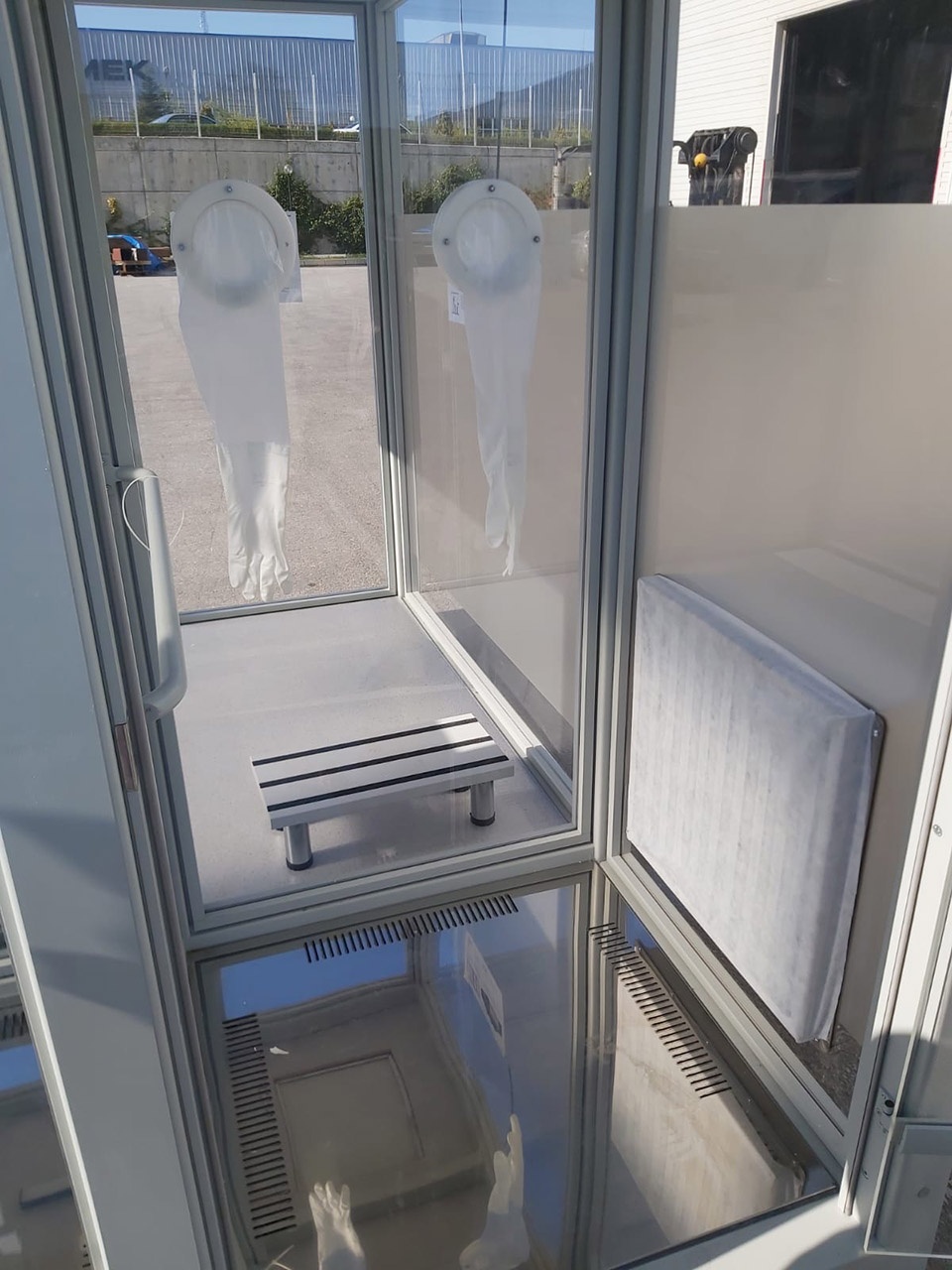

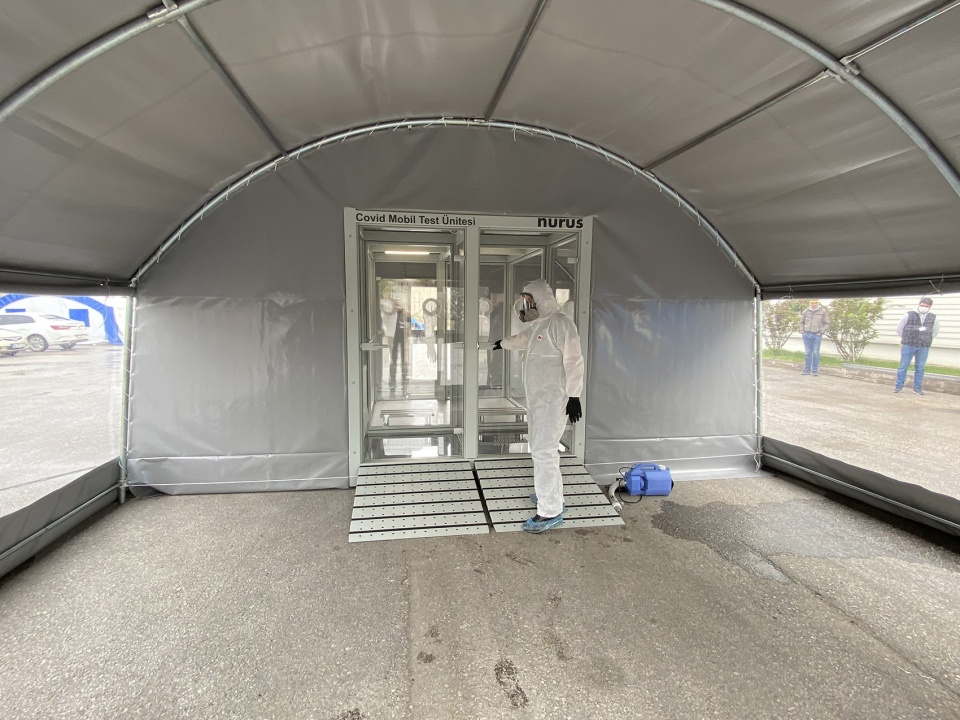

▼安全无菌的环境,a pressurized and sterilized environment ©Nurus

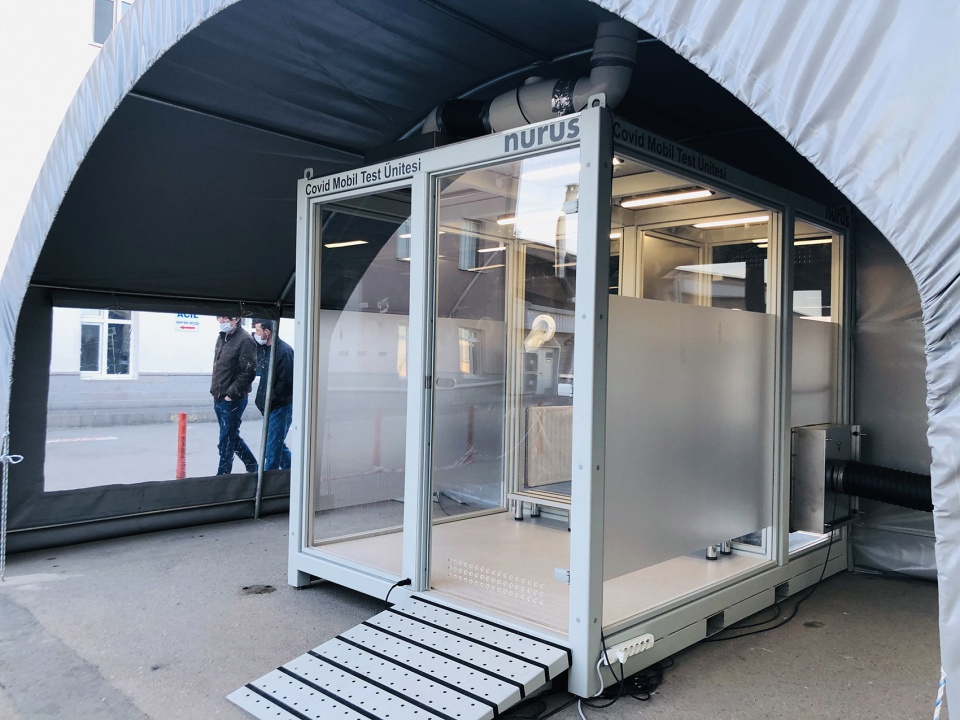

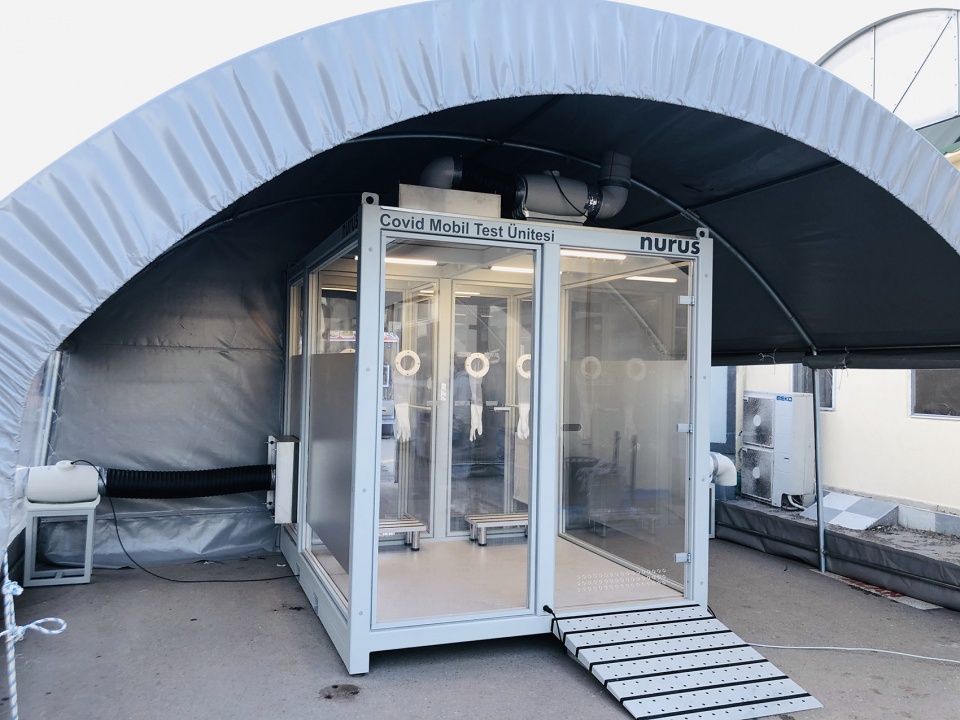

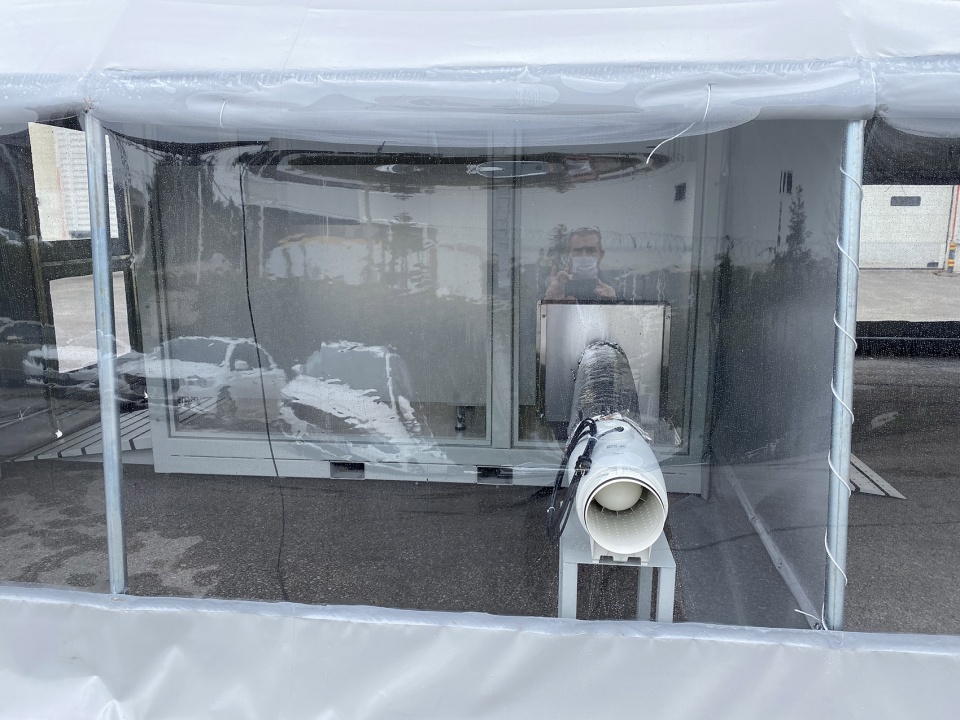

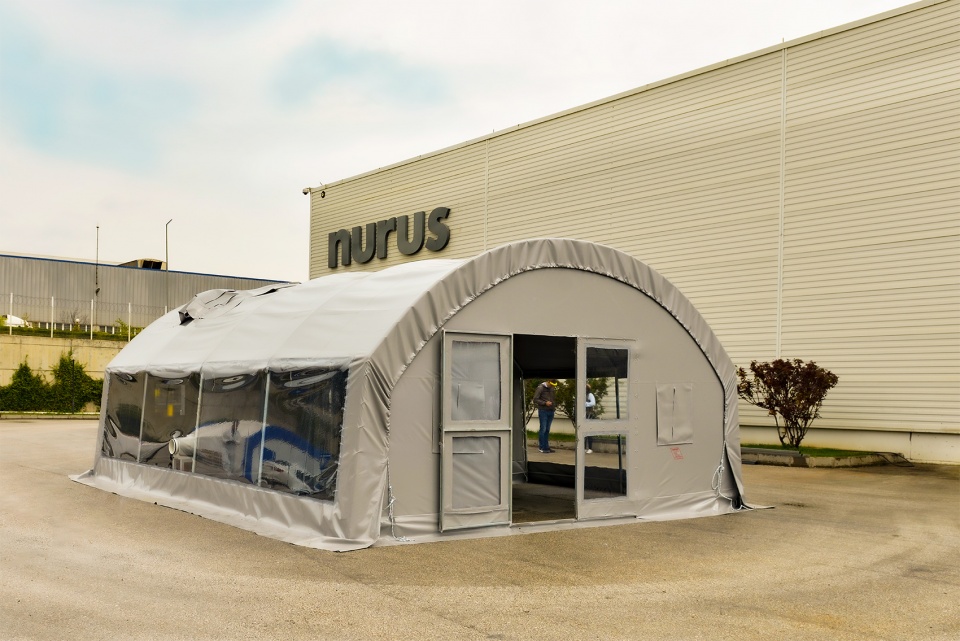

▼现场,site ©Nurus

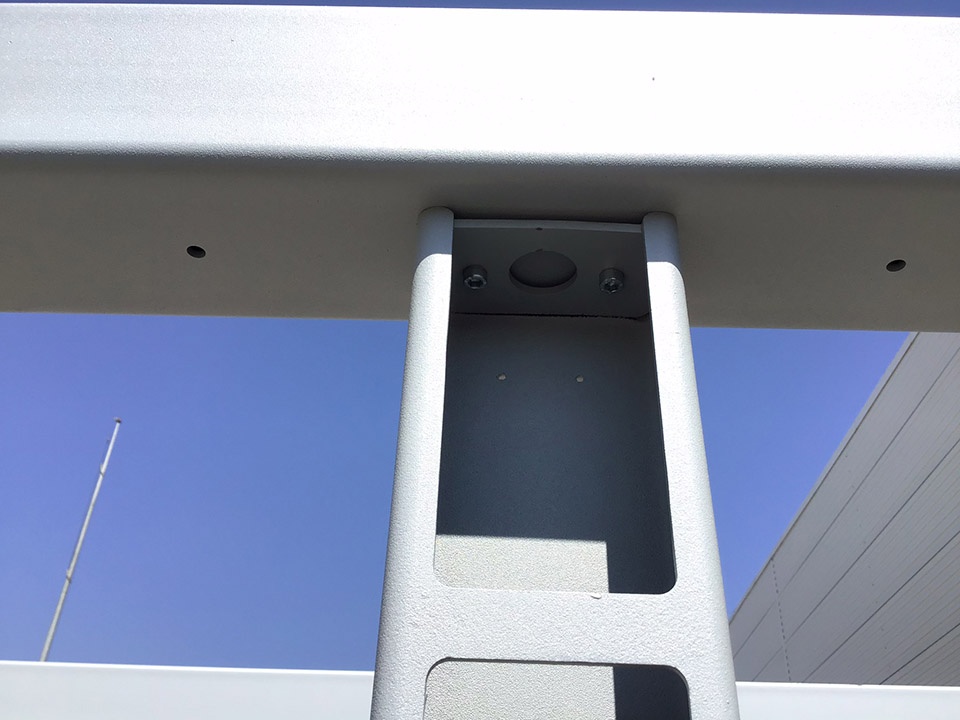

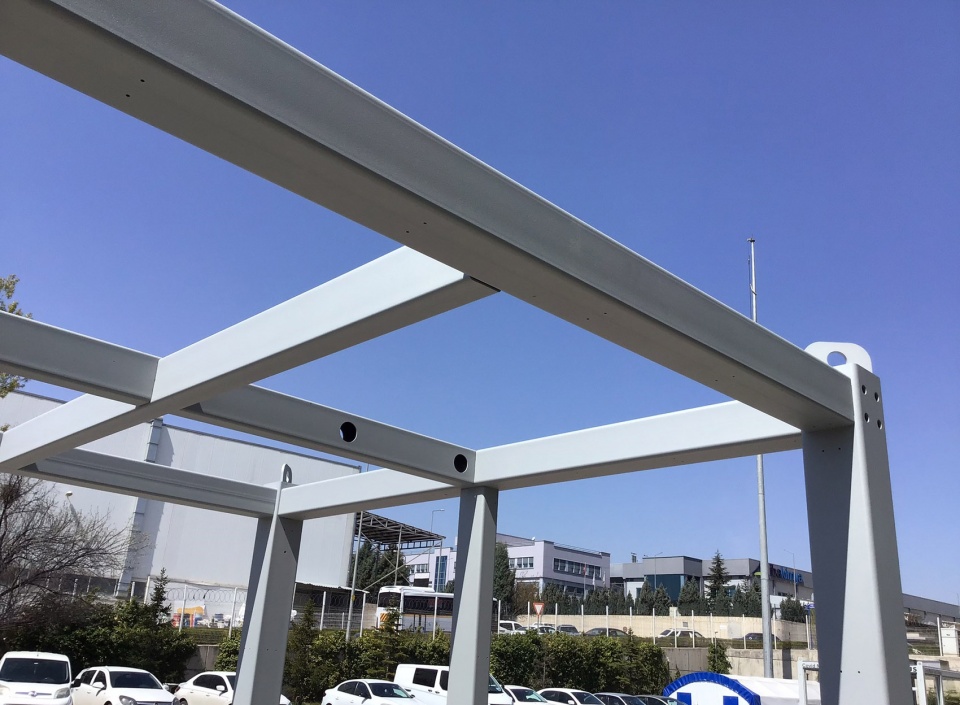

▼安装细节,production photos ©Nurus

▼装置单元渲染图,Test Unit render ©Nurus

▼结构示意图,diagram ©Nurus

MEDICAL SAMPLING UNIT
Supervisor and Chief Designer: Renan Gökyay
Industrial Designer: Serhat Ünlü
Developed for the diagnosis of COVID-19 Disease.
