感谢 Dominique Coulon & Associés 予gooood的分享。更多关于：Dominique Coulon & Associés on gooood
Appreciation towards Dominique Coulon & Associés for providing the following description:
媒体图书馆和音乐学校依偎着一面赭黄色的悬崖而建，这赋予了它们独特的个性。这里的目标，是在欧洲最美丽的中世纪城镇之一置入一座现代建筑。这座被列入联合国教科文组织世界遗产名录的城镇，以金色调为特征，古老的联排住宅与古朴的小巷交织成迷宫般的城市肌理。因此，我们需要在不破坏法国佩里戈尔黑区首府萨拉拉卡内达自身特质的前提下，创造一座重要、独特且经久不衰的建筑。为此，我们与法国国家认证的资深遗产建筑师紧密合作。这一合作帮助我们充分吸纳并回应场地丰富的历史遗产。
▼项目区位，Location © Dominique Coulon & Associés
The media library and music school are built against an ochre cliff, which gives them unique character. The aim here was to place a modern construction in one of Europe’s most beautiful medieval towns, listed as a UNESCO World Heritage Site and characterised by the golden hue of its maze of quaint alleyways with old townhouses. So, it was up to us to offer a major, unique, lasting work of architecture without spoiling the identity of Sarlat-la-Canéda, the capital of France’s Périgord Noir area. For this reason, we worked closely with a member of France’s elite group of state-accredited heritage architects. This partnership helped us integrate the site’s wealth of heritage.

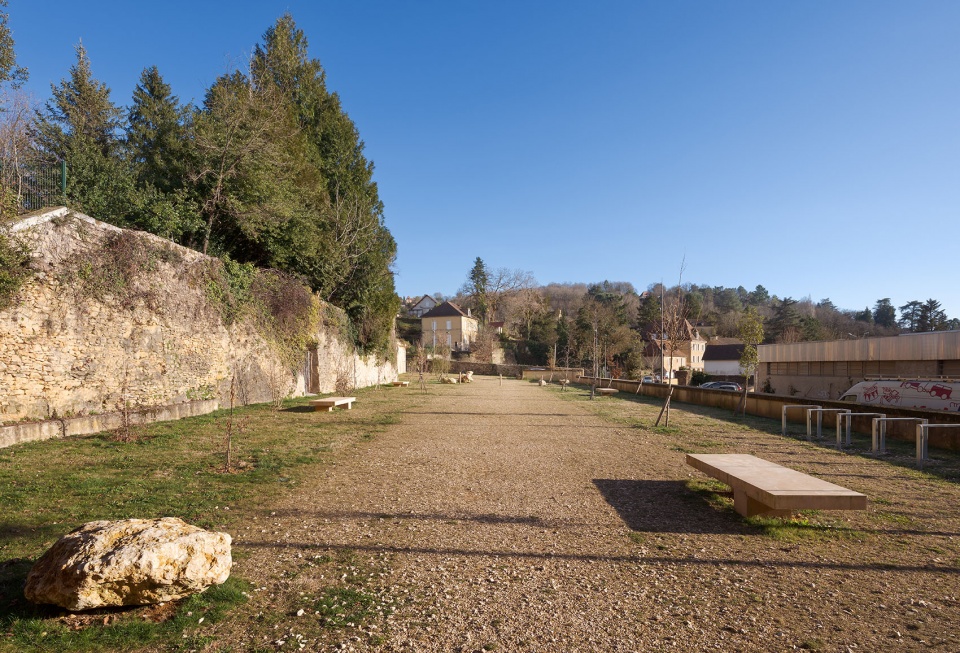

▼场地与岩壁，Site and Rock Face © Eugeni Pons
▼老城中的新建筑，New Building in the Old Town © Eugeni Pons

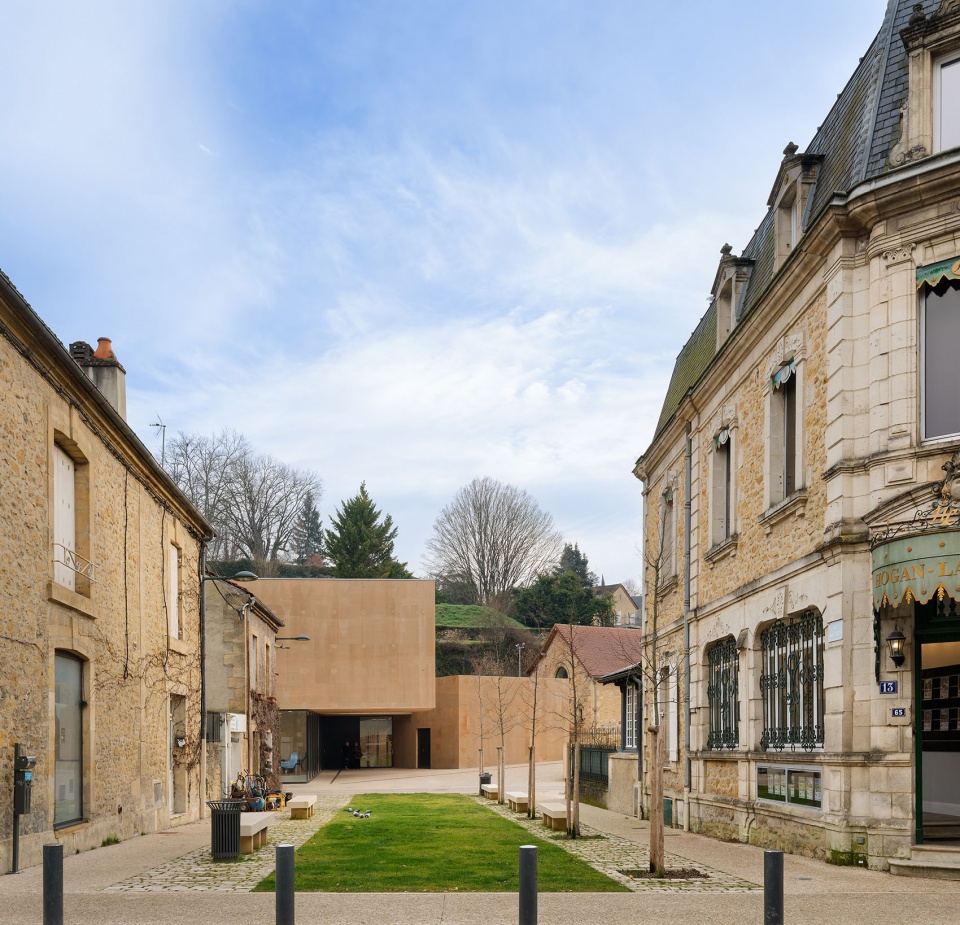

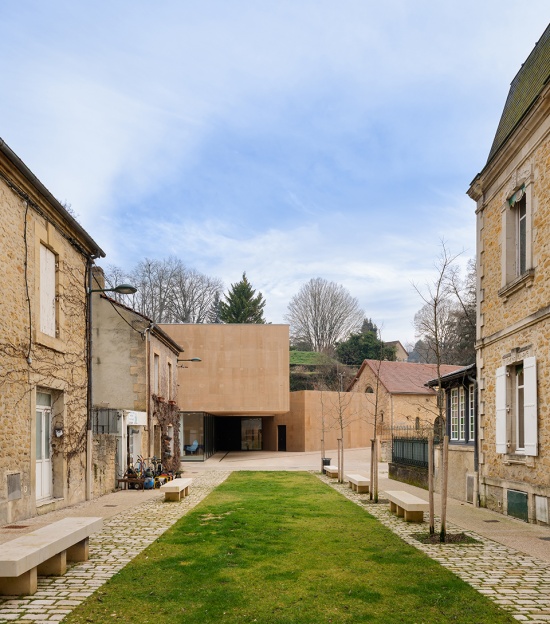

▼老城望向新建筑，Old Town towards New Building © Eugeni Pons

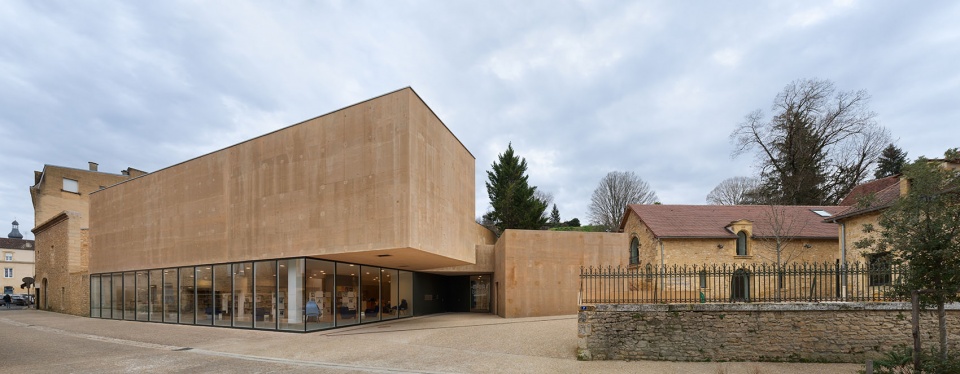

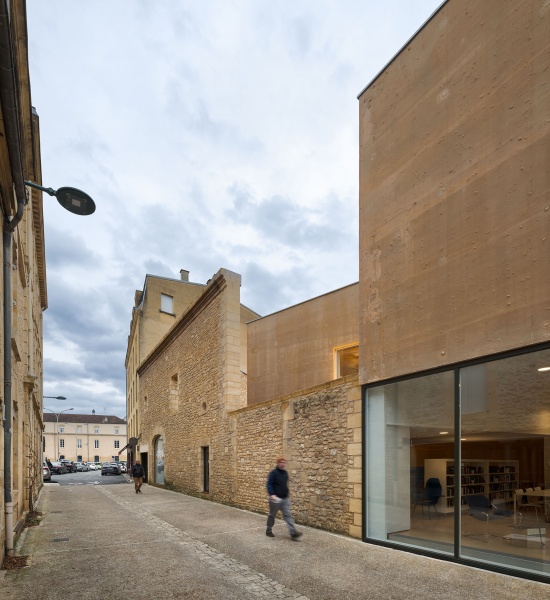

▼沿街立面，Street Facade © Eugeni Pons
场地上曾矗立着一座拥有百年历史的鹅肝酱工厂。我们决定保留其中一面石墙。如今，这面墙界定了媒体图书馆的背侧，并沿让-巴蒂斯特·德尔佩拉街（Rue Jean-Baptiste Delpeyrat）延伸。街道得名于1890年创立的同名企业，其厂房此前已闲置30余年。我们作出这一决定，是基于尊重场地环境、重视当地工艺与地方材料特性的设计思路。
A century-old foie gras factory used to stand on the site. We decided to keep one of its stone walls. It now marks the back of the media library and runs alongside the street Rue Jean-Baptiste Delpeyrat, which owes its name to the namesake company founded in 1890 and whose premises had been disused for over 30 years. We made this decision as part of an approach based on respect for the site’s environment and on a focus on local know-how and local materiality.

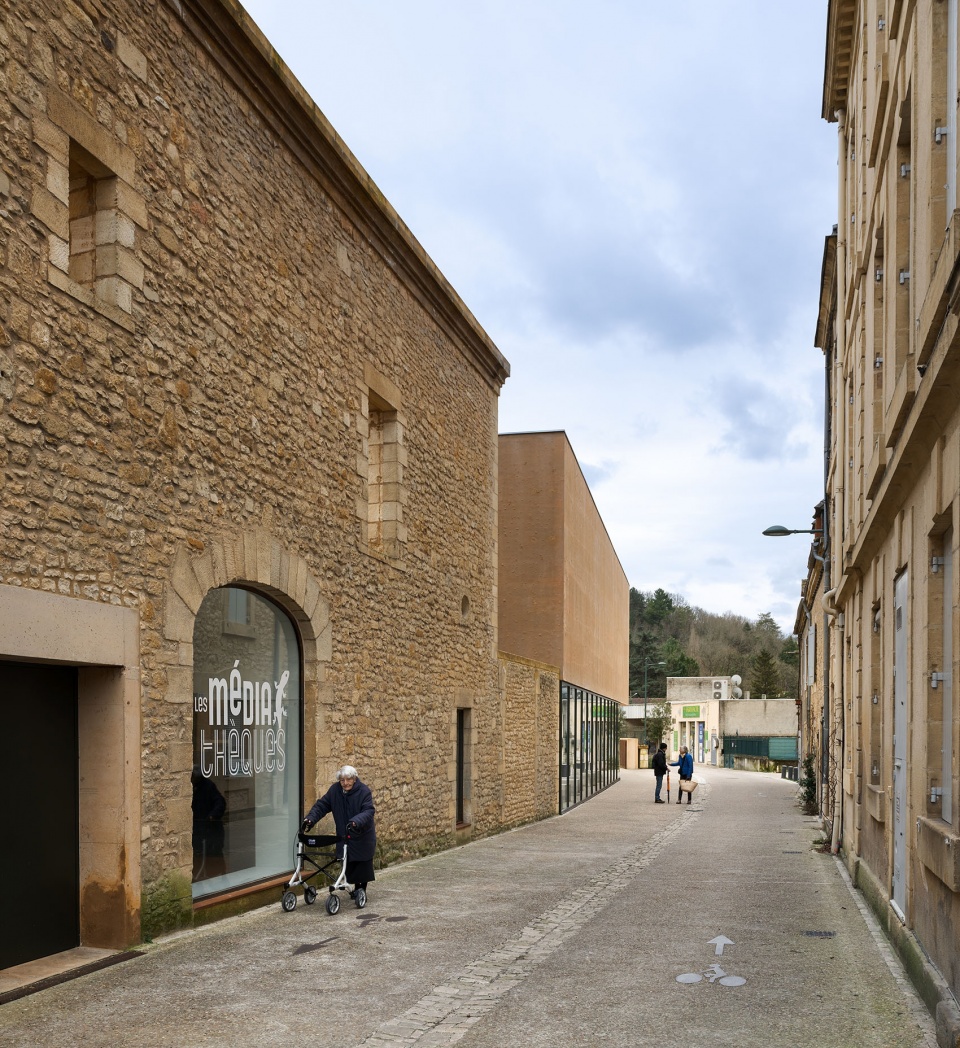

▼历史建筑立面，Historic Building Facade © Eugeni Pons
事实上，我们尤其注重对材料的处理，使项目能够真正融入场地，与之浑然一体。媒体图书馆立面的分段处理呼应了小镇历史中心的城市肌理。建筑的色调与立面肌理则令人联想到塑造这座城镇风貌的古老石墙。
Indeed, we paid special attention to working with materials so that the project could truly blend into its site, becoming one with it. The fragmentation of the media library’s elevations mirrors the historical heart of the town. The hue of the building and the texture of its elevations recall the old stone walls that shape the town.

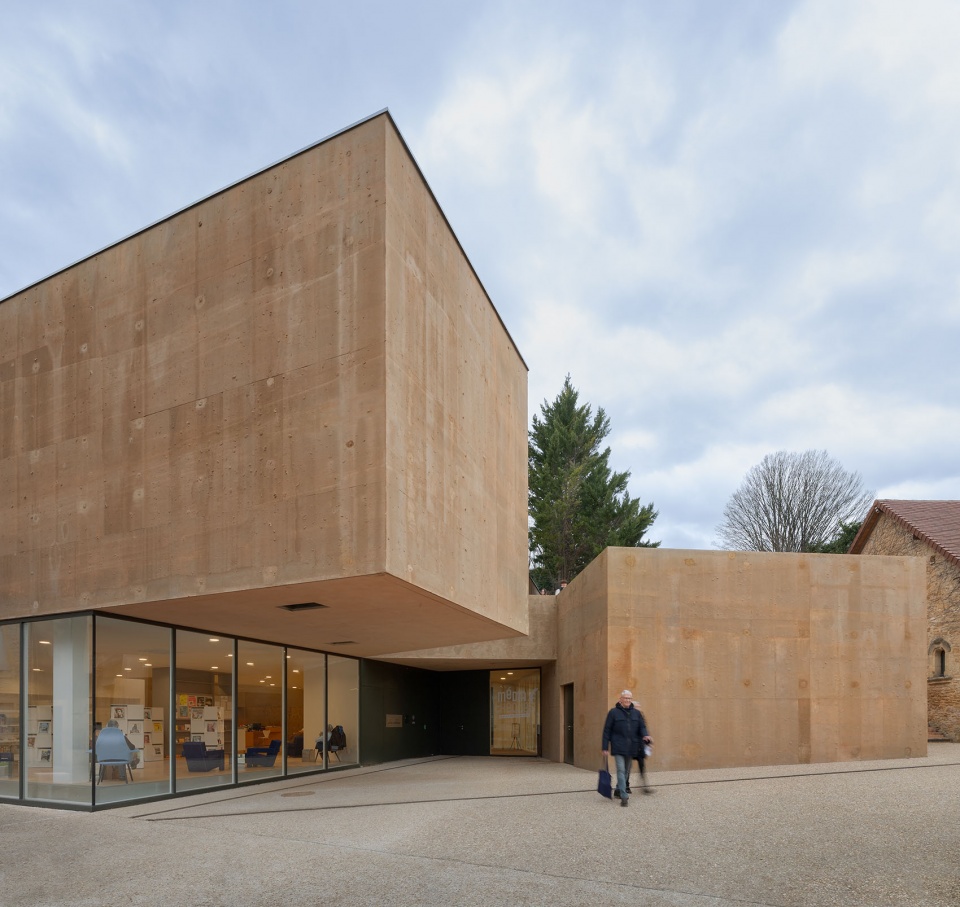

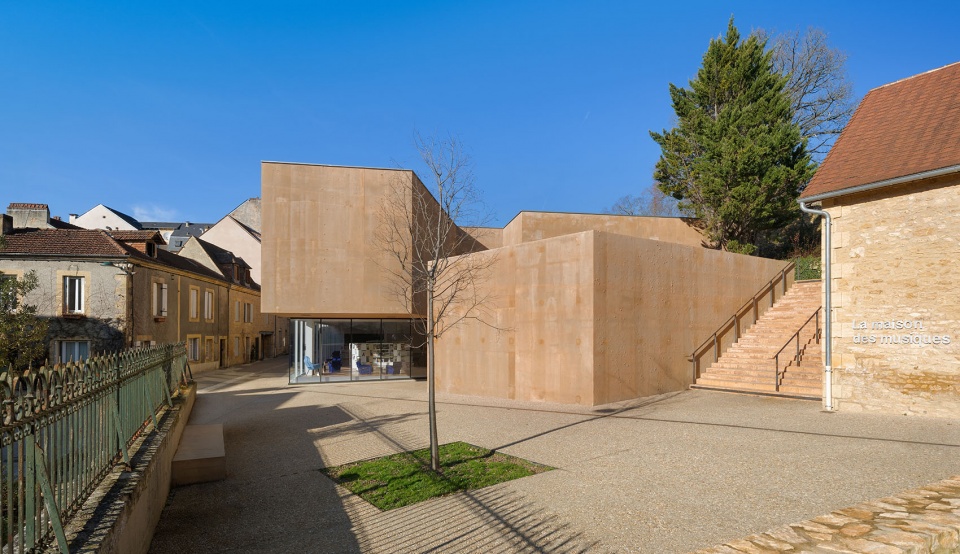

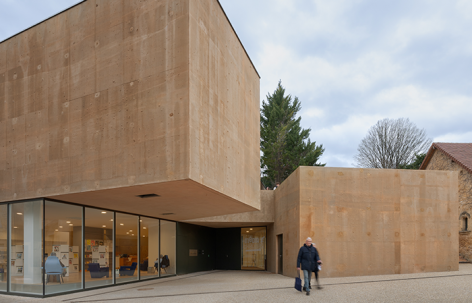

▼整体外观，Overall Exterior © Eugeni Pons

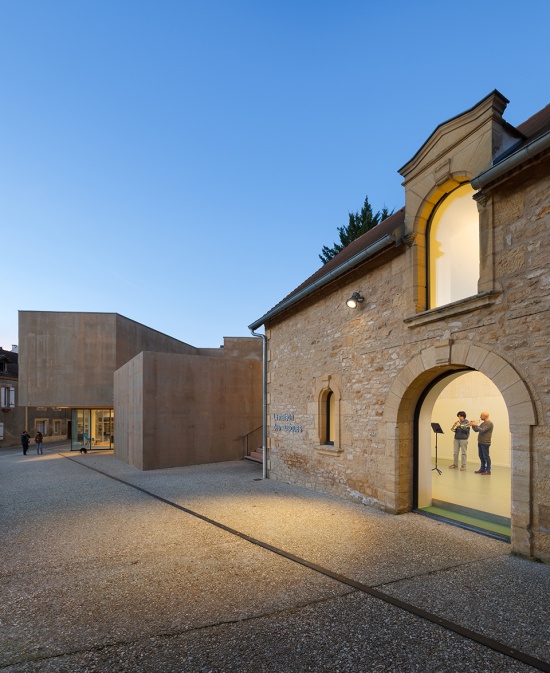

▼建筑与内院，Building and Courtyard © Eugeni Pons

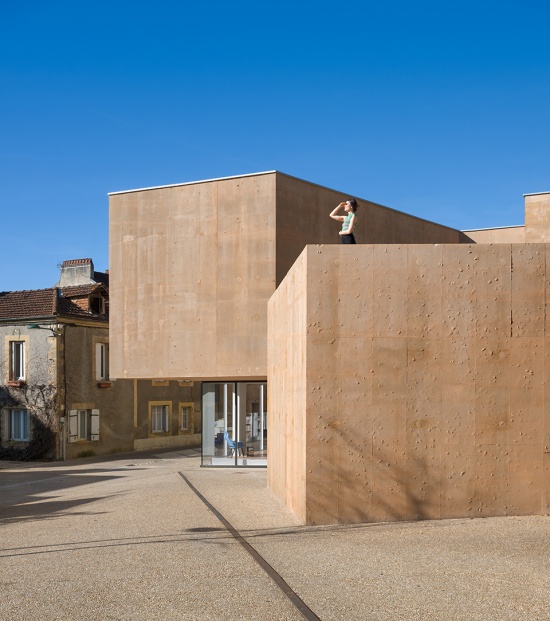

▼建筑外观近景，Building Exterior Close View © Eugeni Pons
媒体图书馆与音乐学校通过一座内院相连。在南侧，两者共享一处宽阔而开放的有顶庭院，面向自然背景，可用于举办各种户外活动。通过在两座建筑之间留出一定距离，我们使城镇得以从这一空间中获得启发。由此形成的空间显露出俯瞰建筑的树木，并凸显了场地非凡的自然地形。
The media library and music school are linked together by an inner court. On the south side, they benefit from a vast, open-sided courtyard that gazes out at the natural backdrop and could be used for all kinds of open-air events. By creating a certain distance between the two buildings, we made it possible for the town to draw inspiration from it. The space created in this way reveals trees that look down at the construction and showcases the site’s remarkable natural topography.

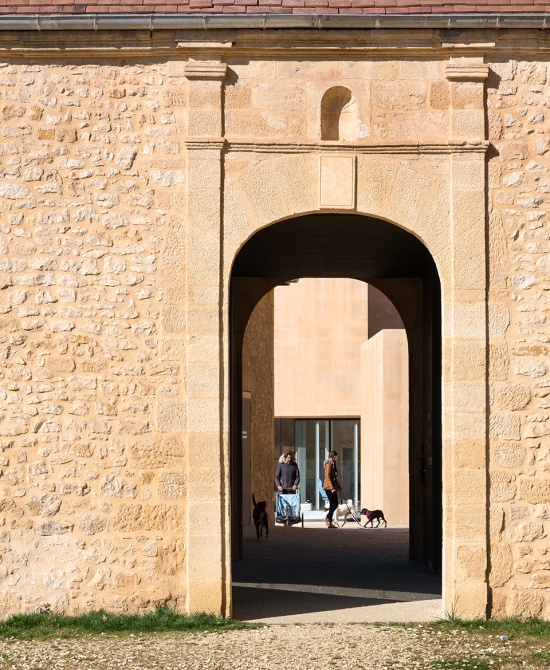

▼拱门望向新建筑，Archway toward New Building © Eugeni Pons

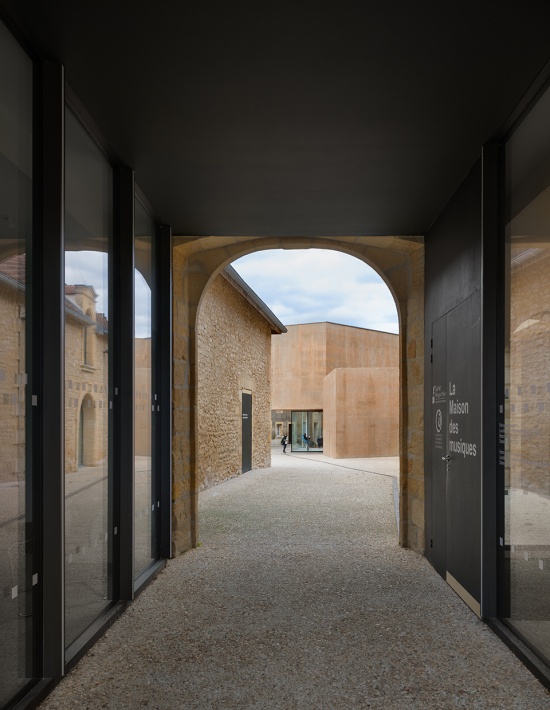

▼入口通廊，Entrance Passage © Eugeni Pons

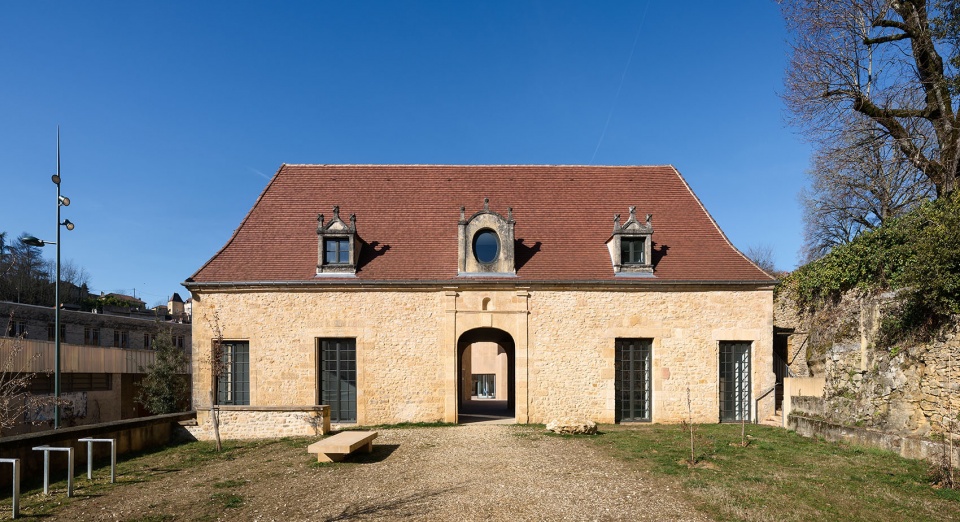

音乐学校设于原鹅肝酱工厂的行政办公楼内——这是一座精致的中上阶层住宅。一处公共入口空间贯穿建筑，与宽阔的开放式有顶庭院相连，并在城镇中形成一个开口。我们决定保留并重新改造这座历史建筑，以尽可能保护这一拥有不可否认魅力的建筑遗产。
The music school is housed in the old foie gras factory’s former administrative building – a fine upper-middle-class house through which a public entrance area runs, connecting to the vast, open-sided courtyard and forming an opening in the town. Indeed, we decided to preserve this historical edifice and redevelop it to protect all we could of this built heritage with its undeniable charm.

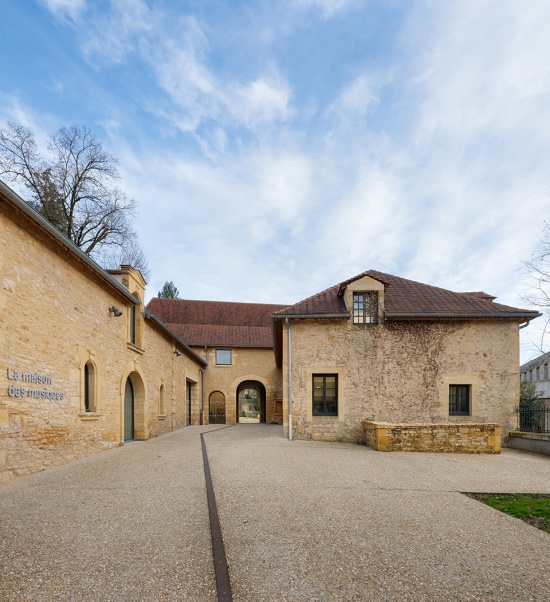

▼音乐学校公共入口空间，Music School Public Entrance Area © Eugeni Pons

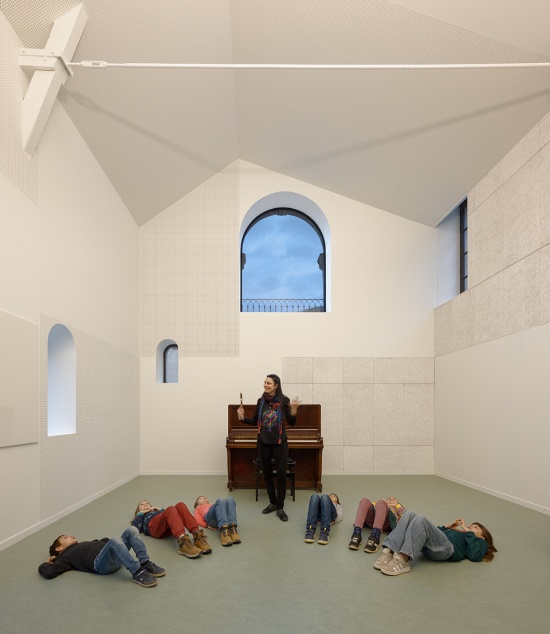

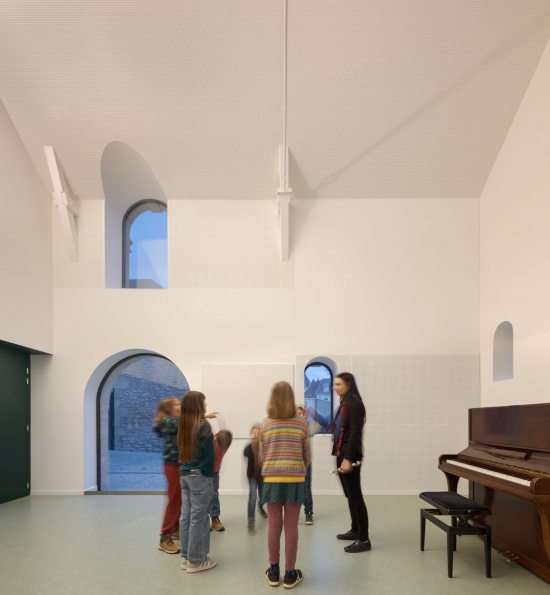

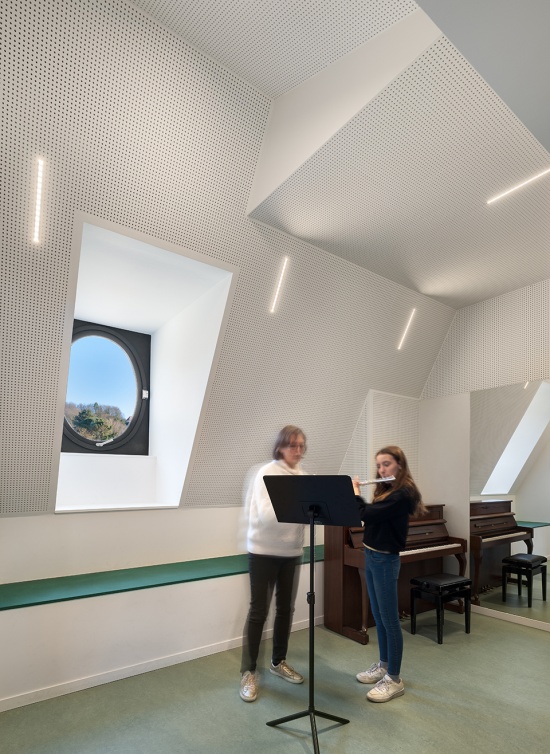

▼音乐教室，Music Classroom © Eugeni Pons

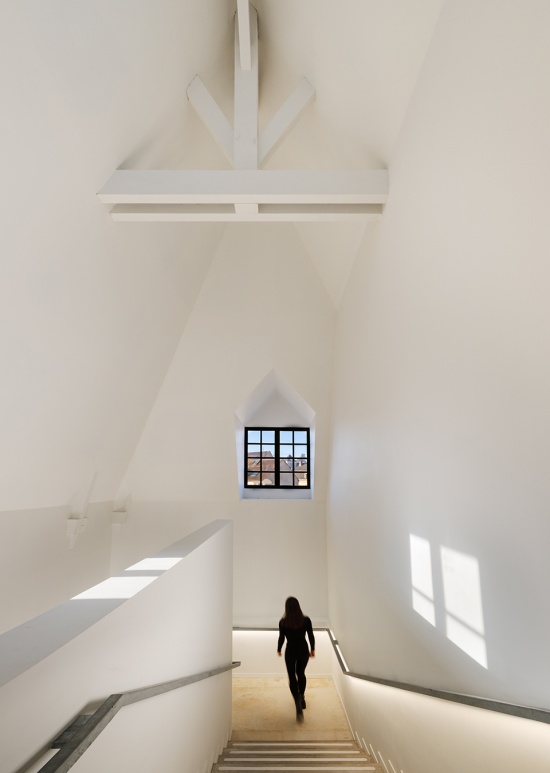

▼音乐学校楼梯空间，Music School Staircase space © Eugeni Pons
我们采取了以再利用和本地采购为基础的策略。两种材料直接从场地中回收：一是毛石，用于修缮媒体图书馆既有立面；二是石块，将其组合后压在保温板上，在手工模板上留下石材印迹，再以该模板作为新立面混凝土浇筑的模具。混凝土所使用的材料则取自附近的采石场。场地边缘的岩石与自然公园促使我们将媒体图书馆依崖而建，使其能够受益于巨大岩体所提供的被动热惰性。因此，建筑平面的几何变形源自场地主要的地形特征。事实上，我们甚至将岩壁引入媒体图书馆内部，从中凿出了一处阅读洞穴。天然岩石在图书馆室内的存在，为空间带来了宜人的湿度与热舒适性。岩体由钢筋混凝土结构承托，并设置了专门设计的线性承重支撑。结构的立面与楼板在维持整体稳定性方面发挥着关键作用。局部采用悬挑的承重墙遵循成熟的钢筋混凝土结构原理，同时营造出无遮挡、可供人静心观赏的空间。

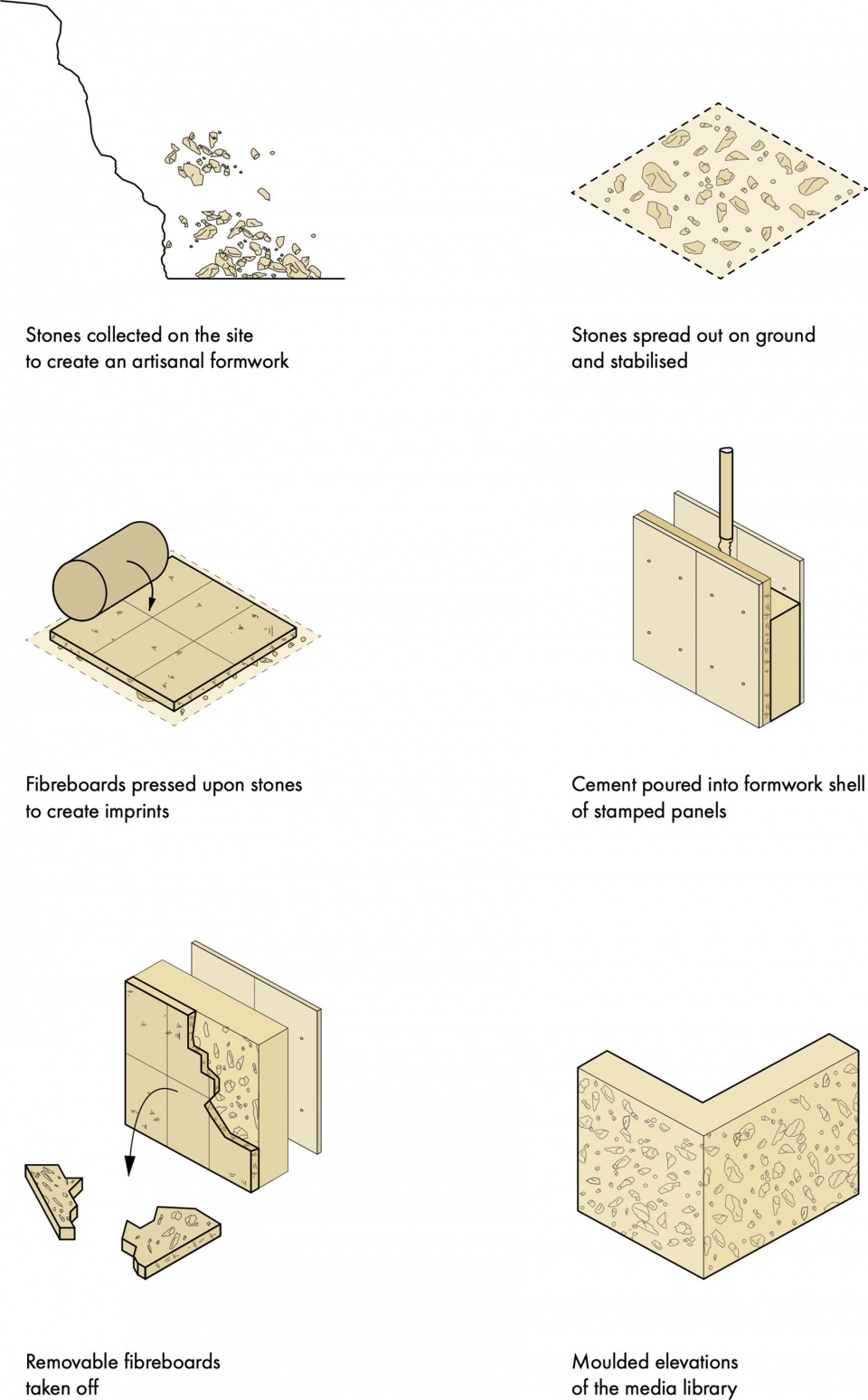

▼石材印模混凝土立面工艺，
Stone-Imprinted Concrete Facade Process © Dominique Coulon & Associés
We adopted an approach based on reuse and local supplies. Two materials were salvaged on site: rubble, used to renovate the media library’s existing facade, and stones, brought together and pressed against insulating panels to leave their imprint in artisanal formwork that was then used as a mould for the poured concrete of the new elevation. This concrete was made from materials sourced from nearby quarries. The stone and the natural park that edge the site prompted us to build the media library against the cliff face so that it could benefit from the passive resistance of the imposing mass of rock. So, the geometric distortions of the building plan are based on the site’s main topographical features. Indeed, we even invited the rock face to enter the media library, digging out a reading cave from it. The presence of the natural rock inside the library brings a pleasant level of humidity and thermal comfort inside. The rock rests upon a structure of reinforced concrete with ad hoc and linear load-bearing supports. The structure’s elevations and floors play a key role in keeping it stable. Load-bearing walls, sometimes corbelled, follow the proven principles of reinforced concrete and showcase a space you can contemplate without obstacles.

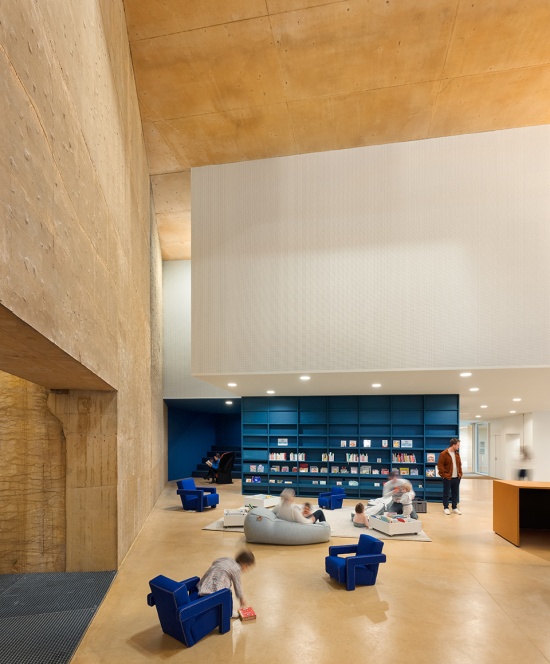

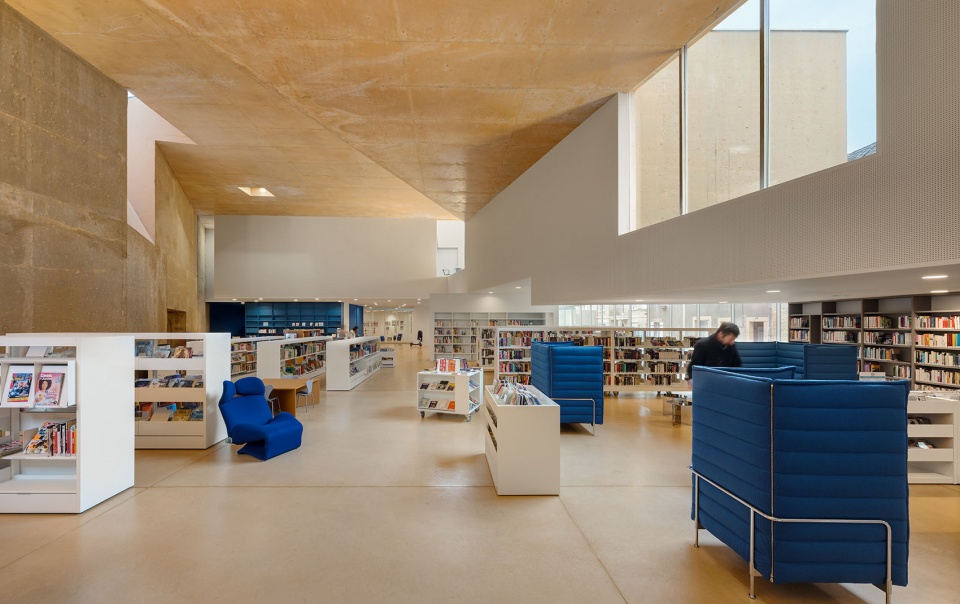

▼双层通高阅读空间，Double-height Reading Space © Eugeni Pons
▼阅读空间一角，Corner of Reading Space © Eugeni Pons

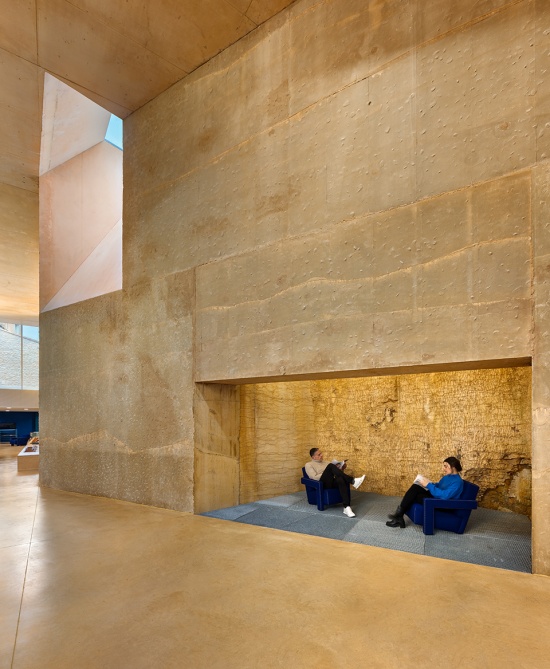

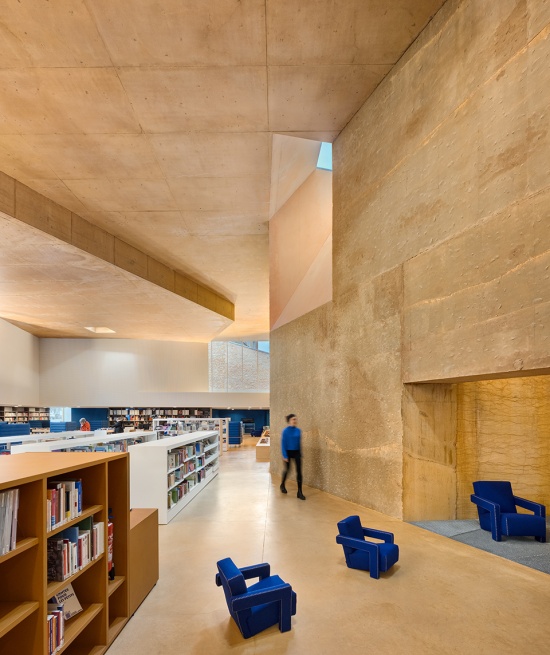

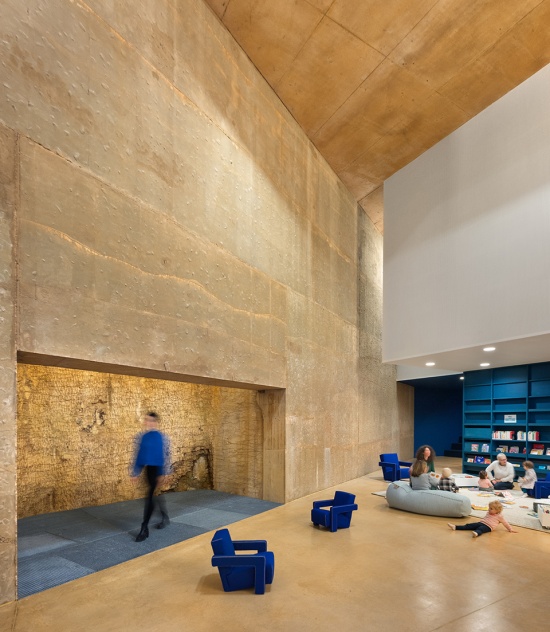

▼岩壁阅读空间，Rock-Face Reading Space © Eugeni Pons
萨拉的赭黄色调为阅读空间赋予色彩；宽敞的双层通高空间以多种方式引入自然光。透过高窗与玻璃窗，可以看到悬崖顶部的树木，也能望见老城的一隅与蓝天。位于一层的员工庭院透过玻璃俯瞰首层走廊，同时将光线引入阅读空间。充裕的层高以及空气的分层作用确保了夏季的最佳舒适度。
Sarlat ochre gives colour to the reading spaces that extend with a generous double height to capture natural light in many ways. Through the high windows and glazing, you can see the trees that crown the cliff, but also parts of the old town and blue sky. The staff patio on the first floor looks down at the ground-floor hallway through glazing that spreads light into the reading spaces. The considerable ceiling height and stratification of the air ensure optimal comfort in the summer.

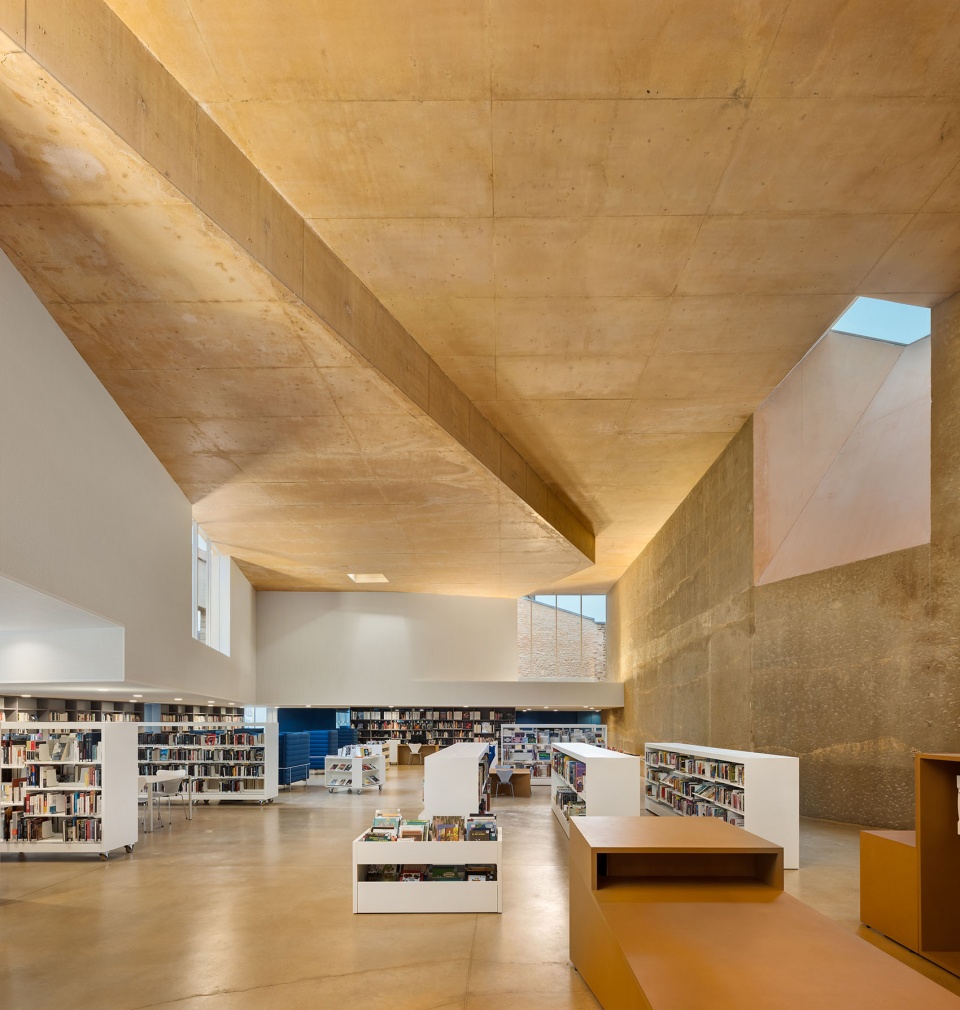

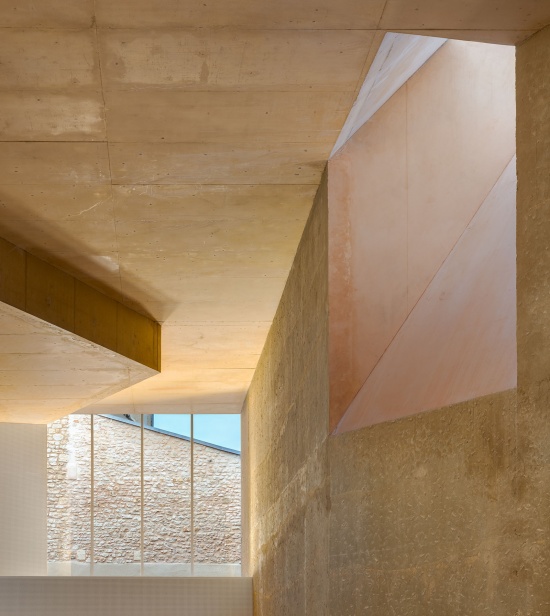

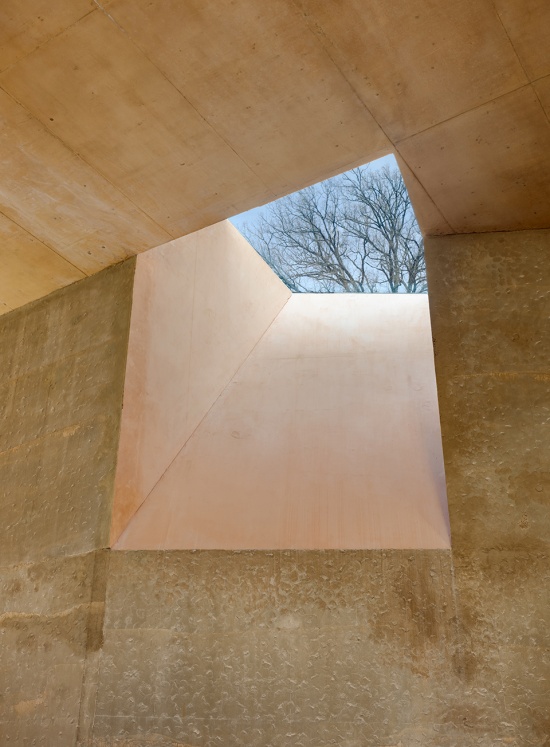

▼媒体图书馆自然采光，Natural Lighting of Media Library © Eugeni Pons
从内院或员工空间均可到达位于一层、沐浴阳光的公共露台。露台眺望城镇，并设置了宽大的座椅，人们可以在此暂别日常生活，享受片刻沉思。
You can reach a sun-kissed public terrace up on the first floor from the inner court or the staff rooms. This terrace looks out at the town and offers large seats where you can enjoy a meditative break from everyday life.

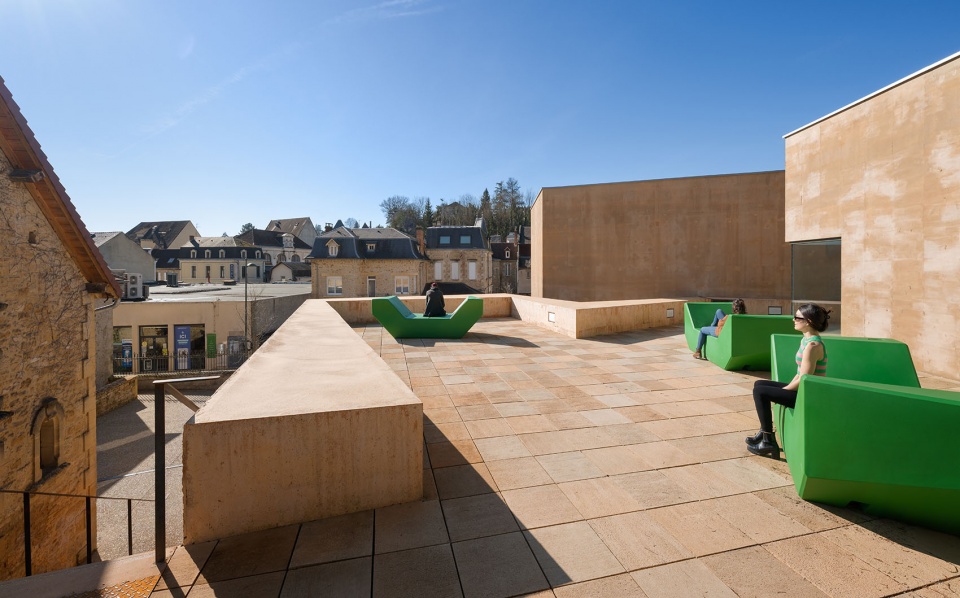

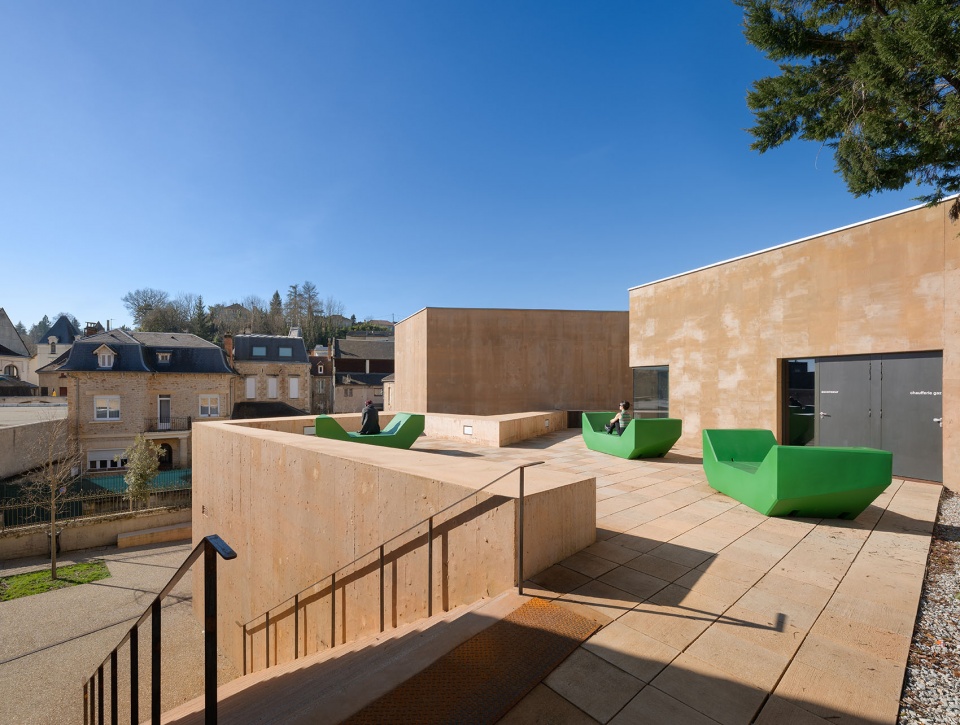

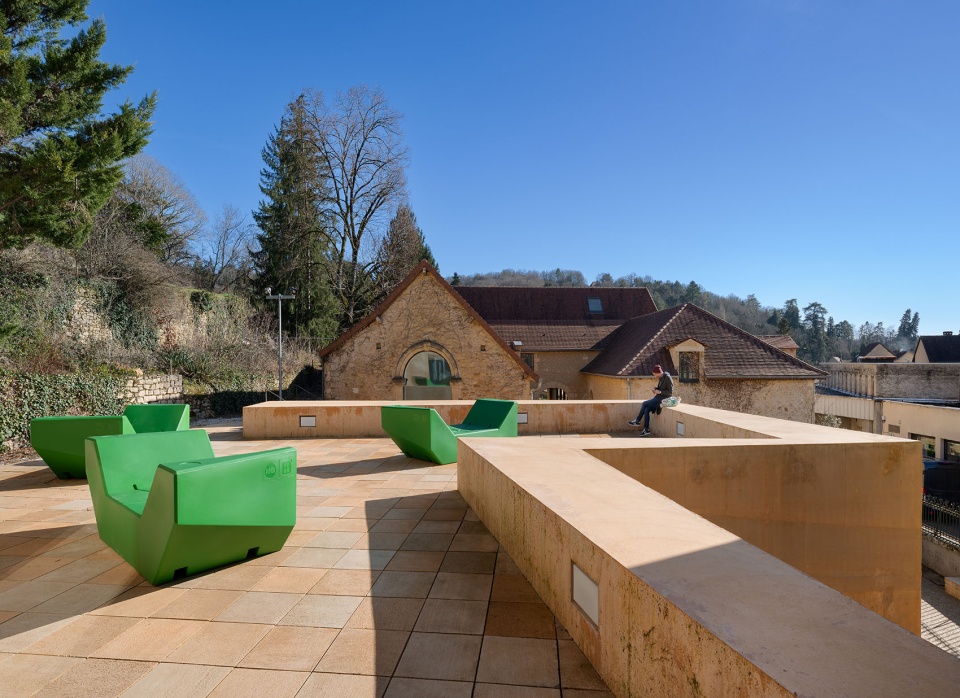

▼公共露台概览，Public Terrace Overview © Eugeni Pons
▼公共露台近景，Public Terrace Close View © Eugeni Pons
▼从露台眺望，Looking out from the Terrace © Eugeni Pons
媒体图书馆的开放式平面，以及内院、露台和宽阔的开放式有顶庭院，使这座新建筑群成为一个坚定面向当地居民、邀请人们在此相聚的场所。这里让文化得以与所有人共享，也是一处庇护所，人们可以在这里共同参与塑造一个以发现与分享为核心、充满吸引力的世界。
The open plan of the media library and its inner court, terrace and vast open-sided court make this new complex a place that is resolutely focussed on the local inhabitants and that invites you to enjoy meet-ups here. The site helps share culture with everyone. It is a refuge where you can contribute to an appealing world centred on discovery and sharing.

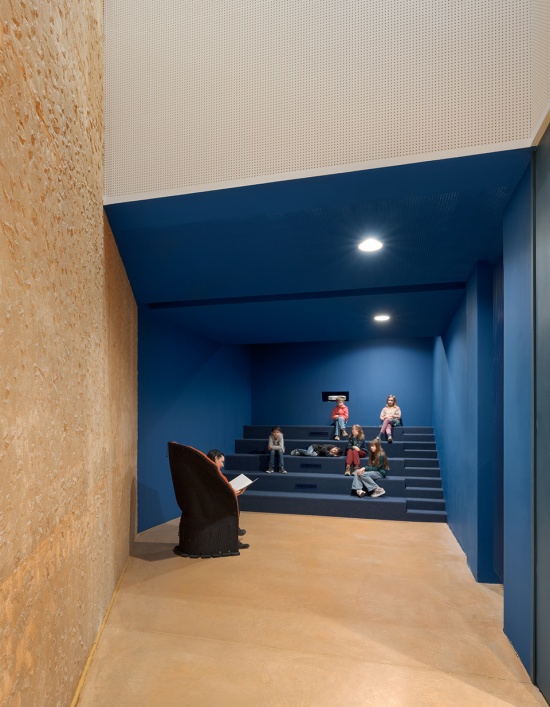

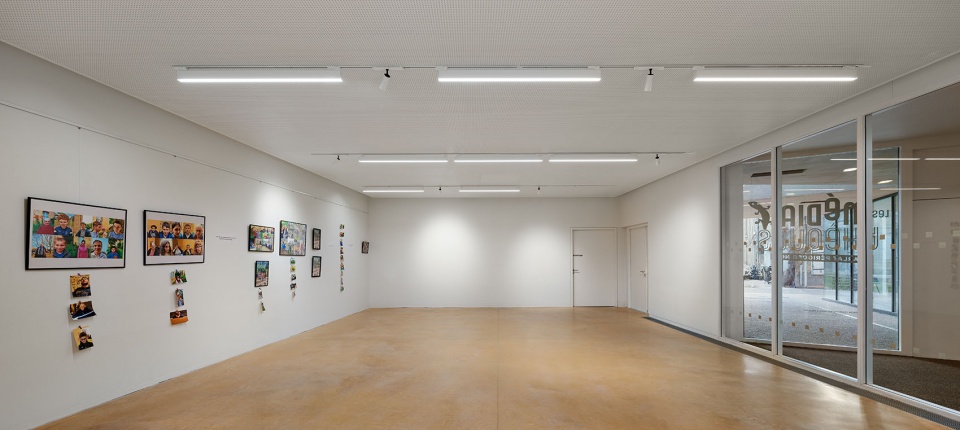

▼多功能空间，Multipurpose Space © Eugeni Pons

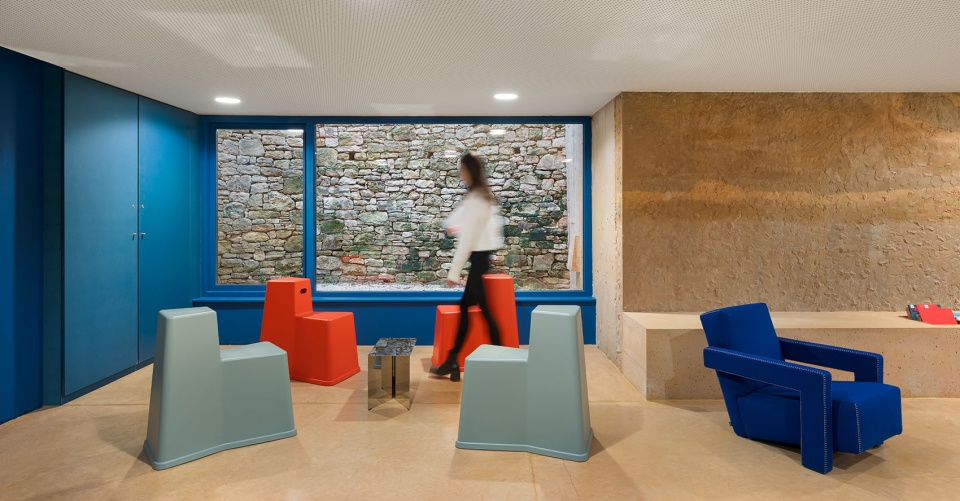

▼休憩空间，Lounge Area © Eugeni Pons
▼教学空间，Teaching Space © Eugeni Pons

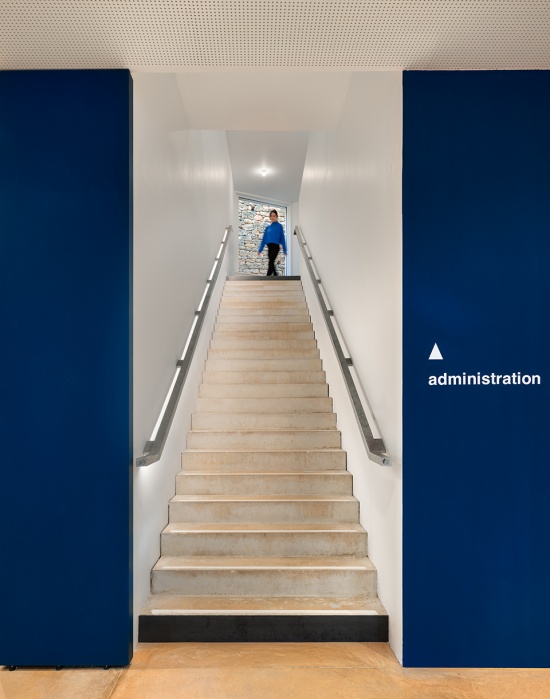

▼楼梯空间，Staircase space © Eugeni Pons

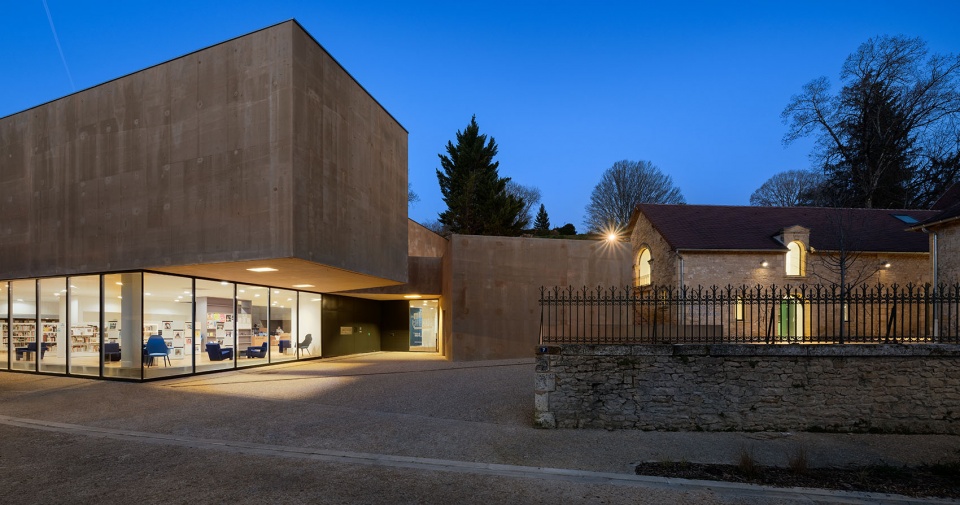

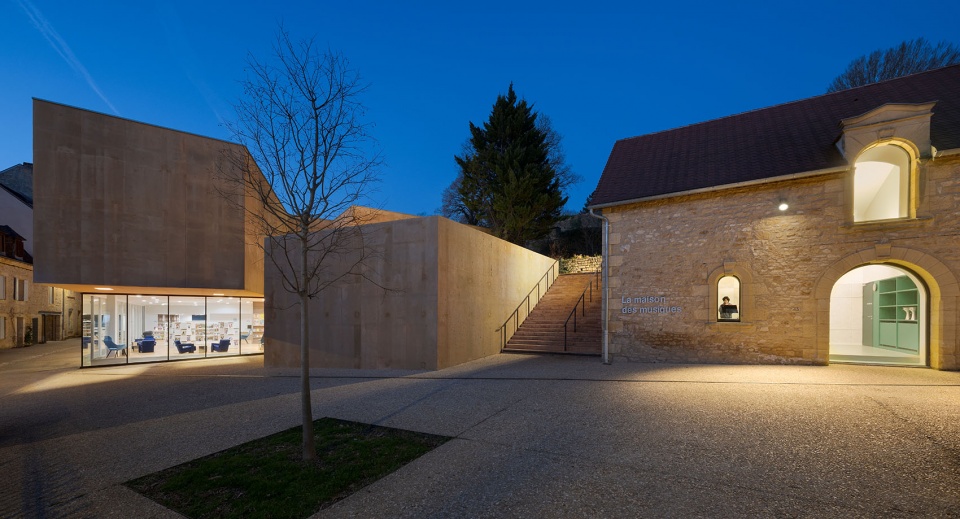

▼夜景概览，Overall Night View © Eugeni Pons

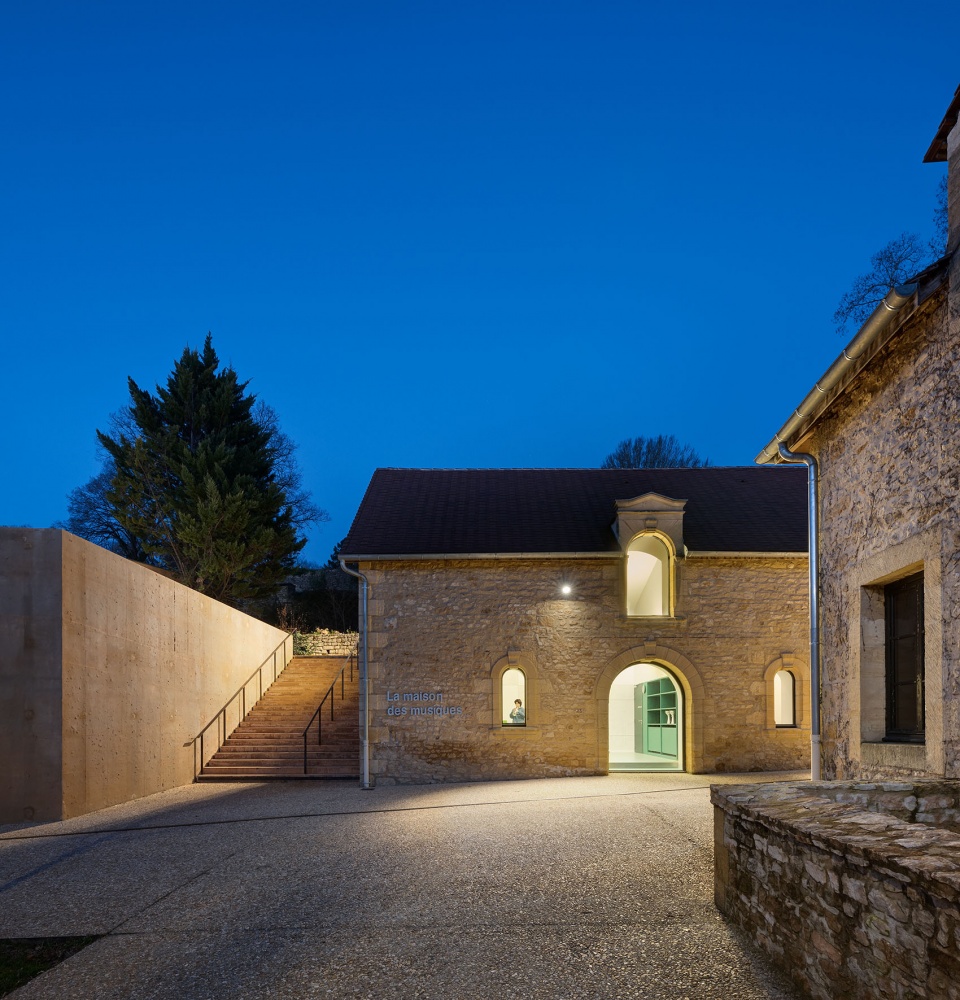

▼音乐学校夜景，Music School Night Overview © Eugeni Pons
▼音乐学校入口夜景，Music School Entrance Night Overview © Eugeni Pons

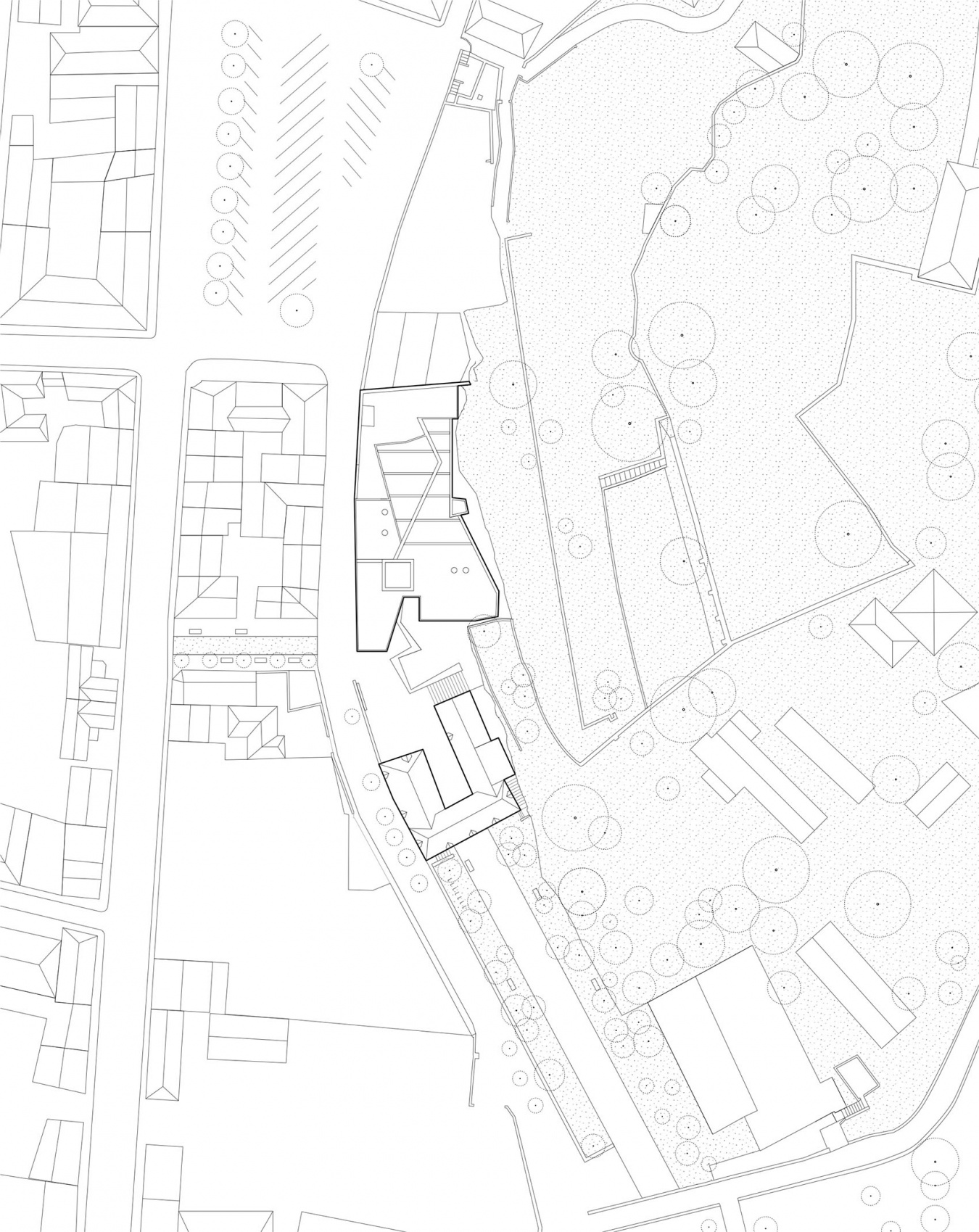

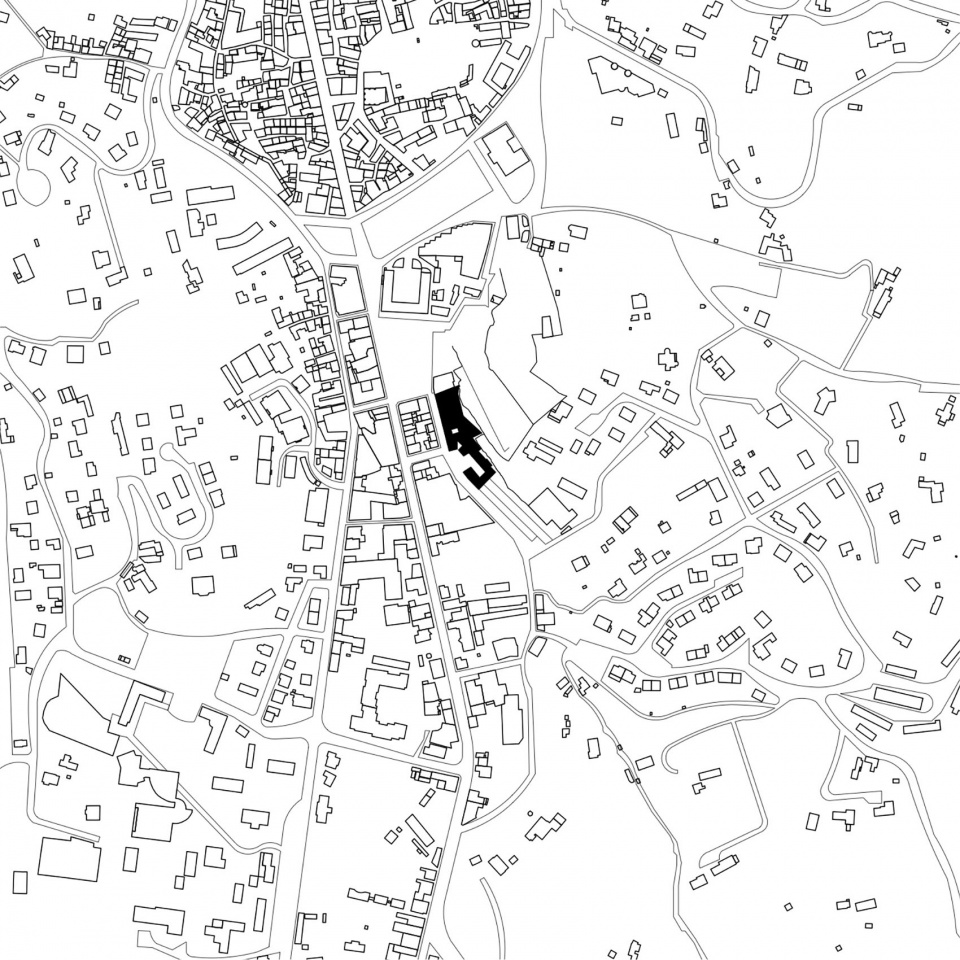

▼总平面图，Site Plan © Dominique Coulon & Associés

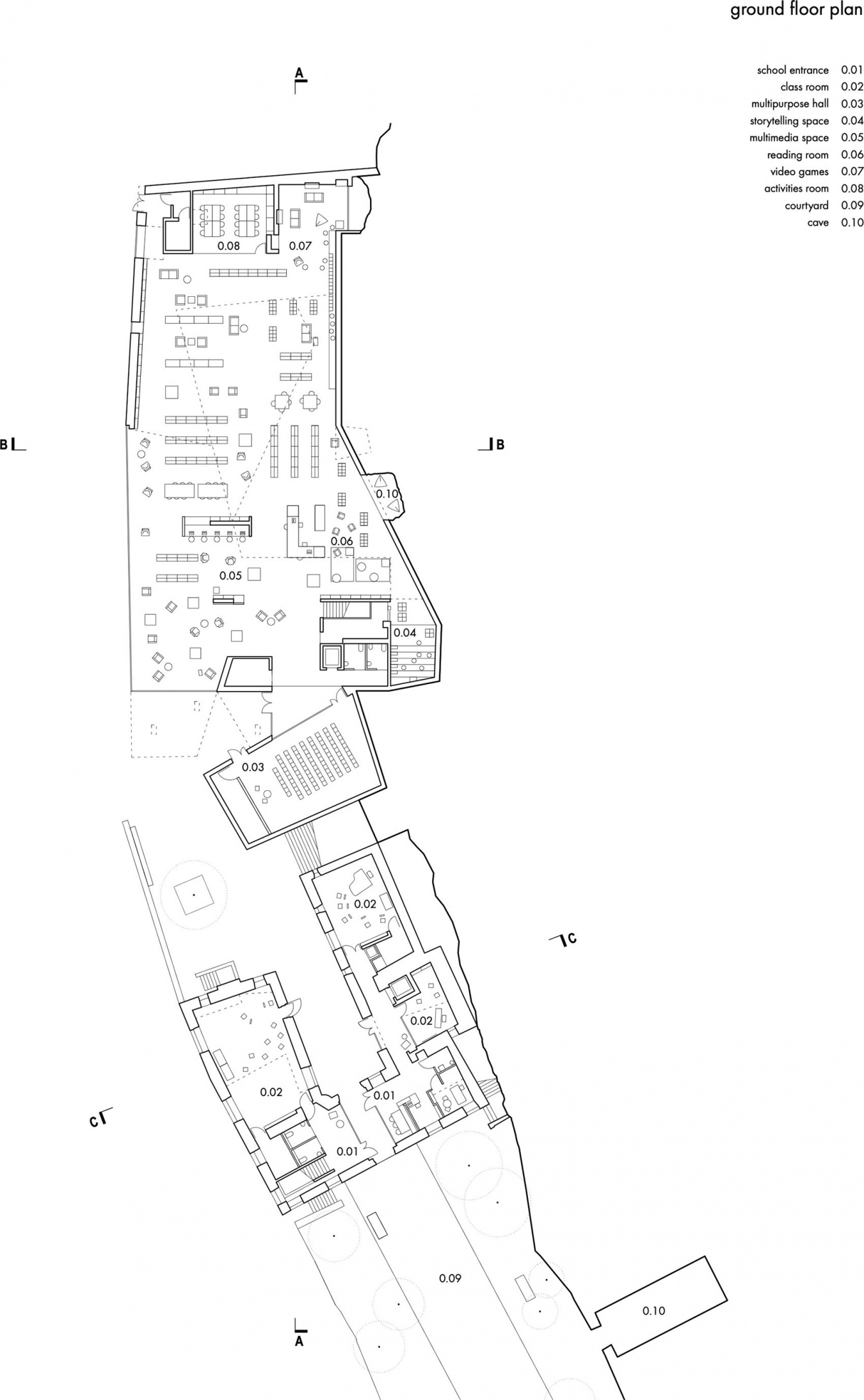

▼首层平面图，Ground Floor Plan © Dominique Coulon & Associés

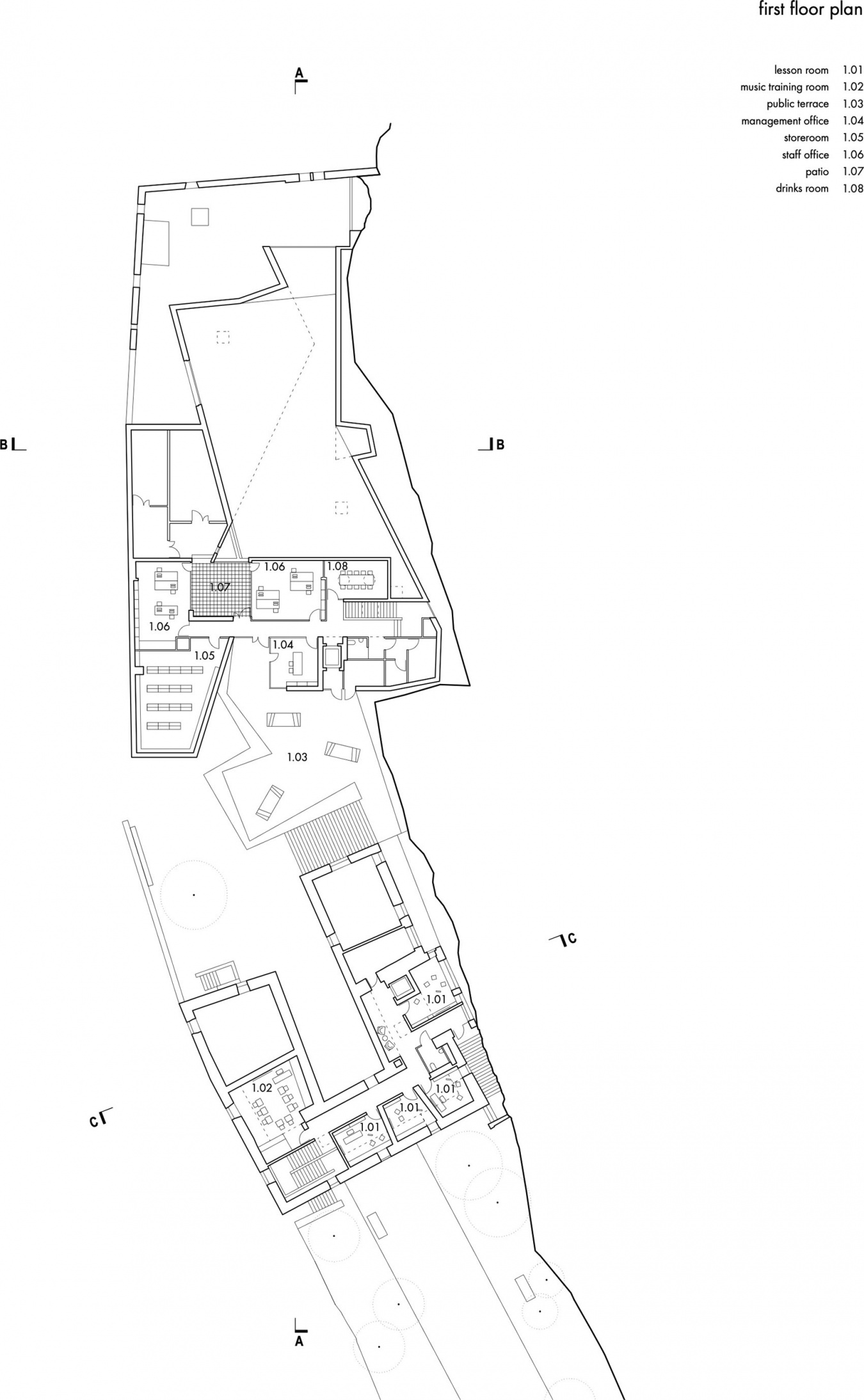

▼一层平面图，First Floor Plan © Dominique Coulon & Associés

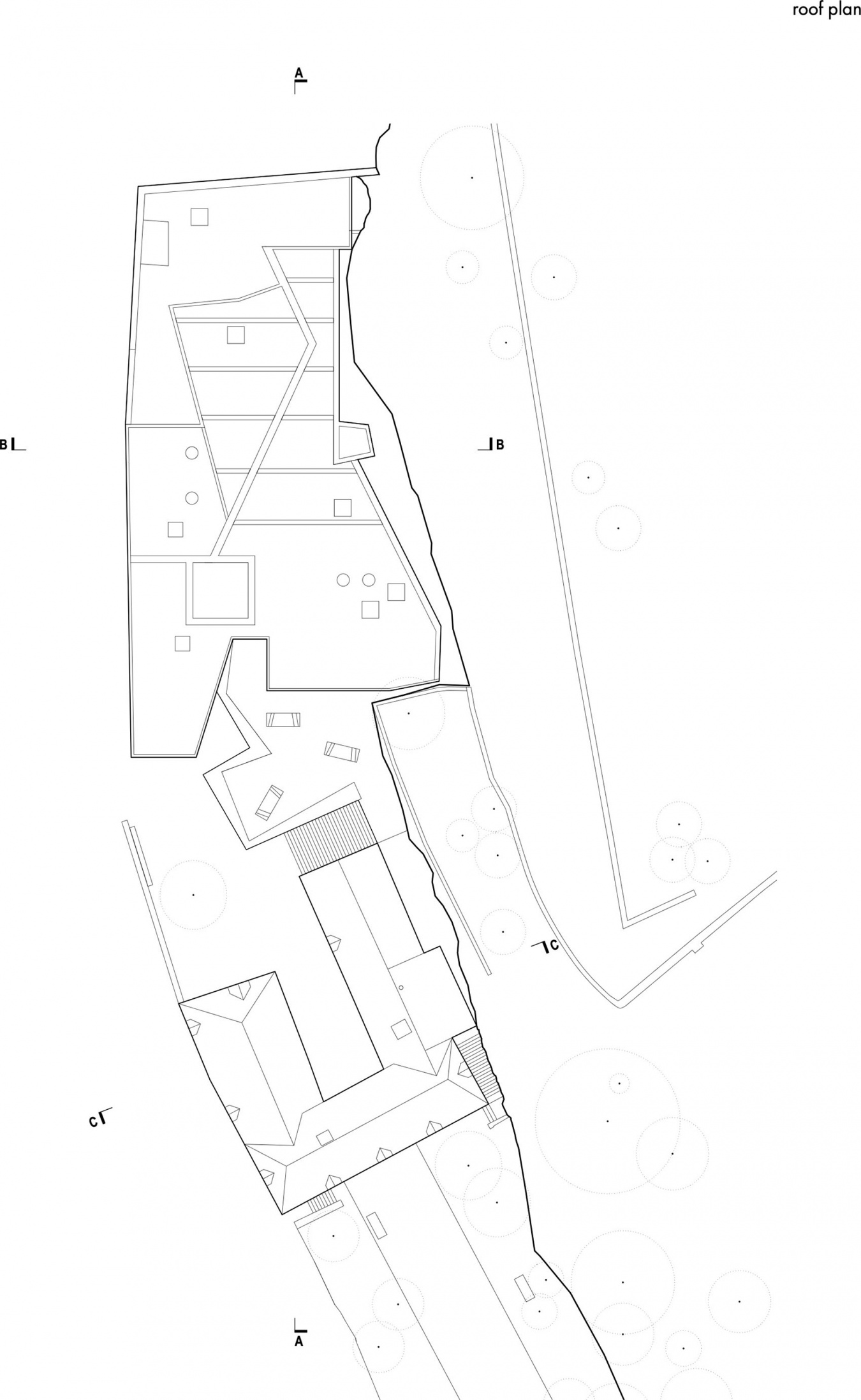

▼屋顶平面图，Roof Plan © Dominique Coulon & Associés

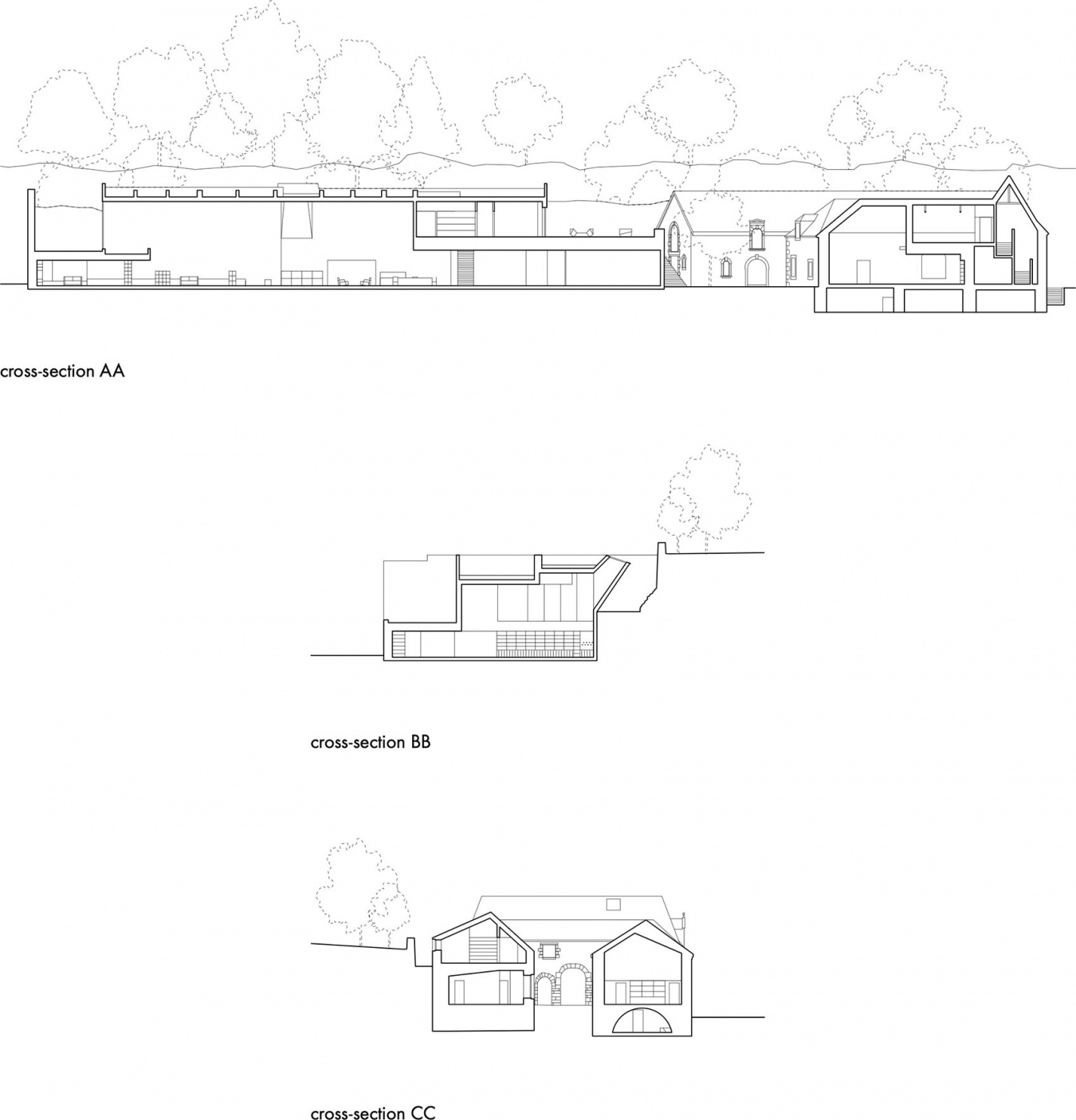

▼剖面图，Cross Sections © Dominique Coulon & Associés

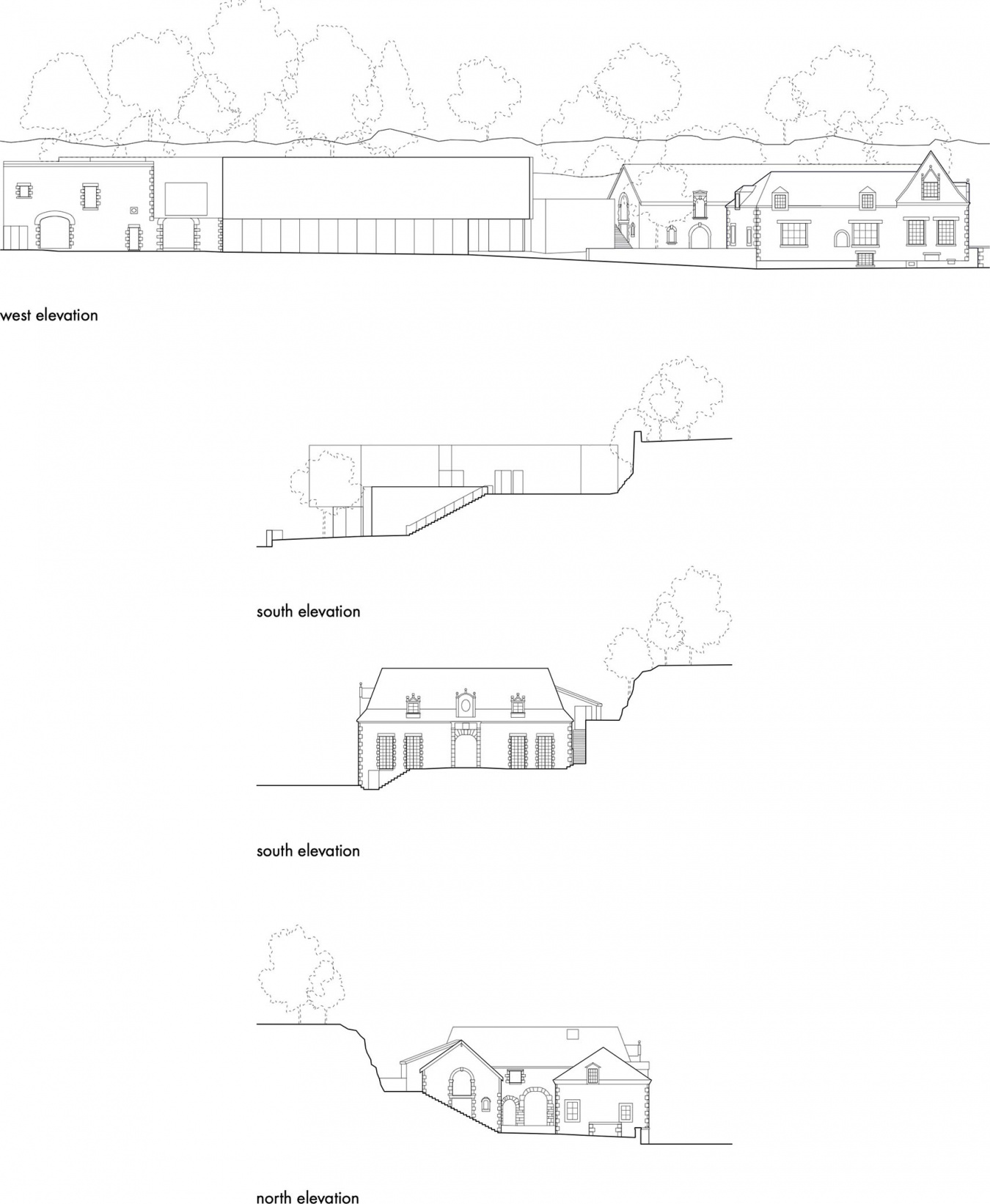

▼立面图，Elevations © Dominique Coulon & Associés

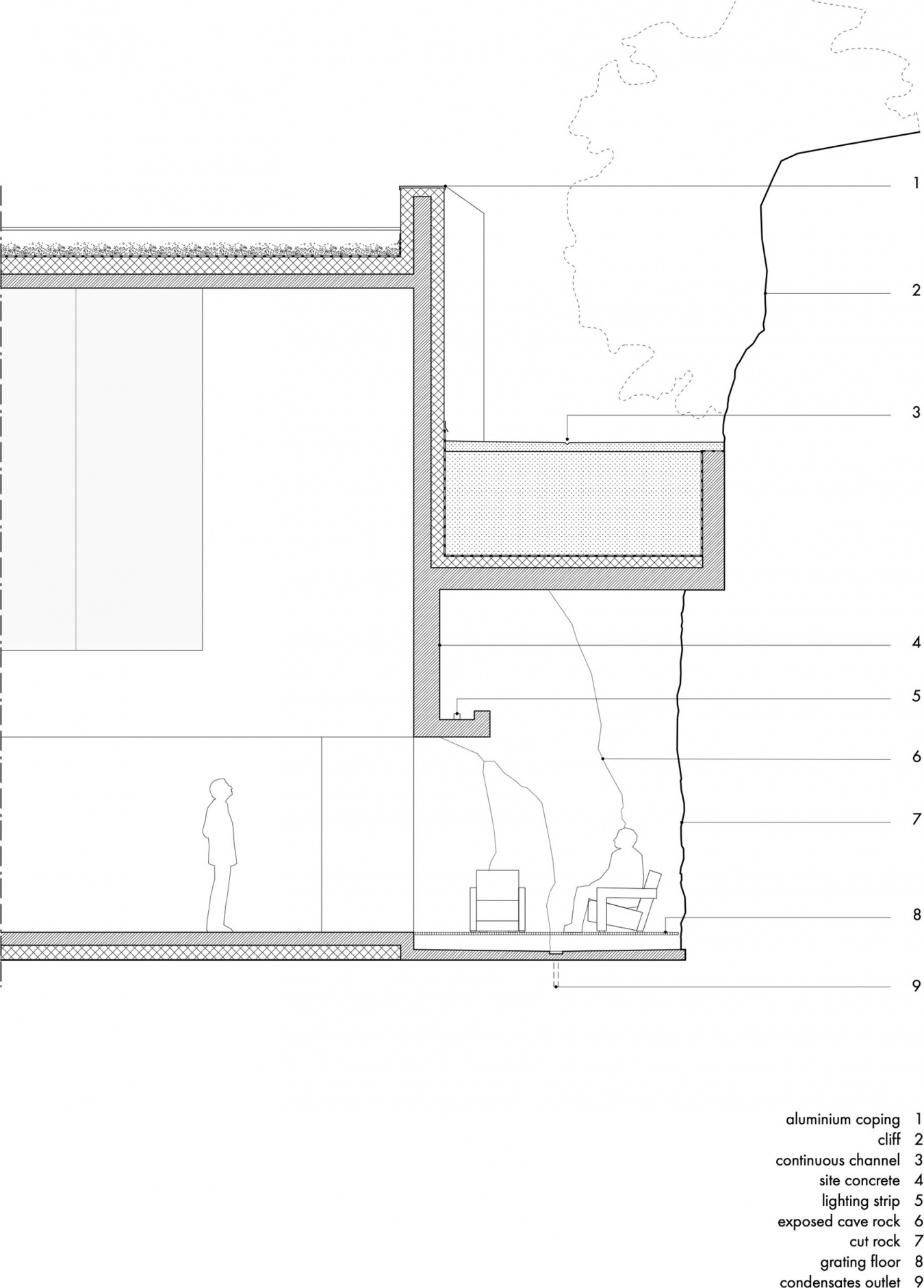

▼阅读空间详图，Reading Room Detail © Dominique Coulon & Associés
Contracting owner: Sarlat Périgord Noir Intermunicipal Community
Project manager: Dominique Coulon & Associés
Architects: Dominique Coulon
Assistant architects: Guillaume Wittmann, Olivier Poulat, Mathilde Blum, Alexandre Puech
Worksite supervision: Steve Letho Duclos, Mathilde Blum
Engineering consulting firm for structure: Batiserf Ingénierie
Engineering consulting firm for electricity: BET Gilbert Jost
Engineering consulting firm for fluids: Solares Bauen
Economics: E3 Économie
Acoustics: ESP-DB Silence
Scheduling, Oversight and Coordination: Cabinet Piquet
Perspectives: Denis Gabillat / Radio-imageworks
Planning: Emergence Sud
Inspection: Bureau Veritas
Health and safety coordination: Apave
Programme: Media library (940m2 reading space, 105m2 cultural activities space, 190m2 administration space); Music school (200m2 for classroom, percussion room and music training room, 50m2 practice room, 40m2 administration space).
Location: 7 rue Jean Baptiste Delpeyrat, 24200 Sarlat-la-Canéda, France
Google Maps location
Floor area: media library 1,442m2, school 593m2
New floor area: 1,442m2
Renovated floor area: 593m2
Cost of work: €3,600,000 excl. VAT
Schedule:
Competition: July 2014
Studies: September 2015 to July 2018
Project execution: February 2019 to January 2025
Firms: Vaunac, NGE Fondations, STP, ARB Façades, Sols 16, Passerieux (earthworks, structural works, metal frameworks, rubble-stone elevation treatment, external insulation), Espitbois (wooden frameworks), Bouyssou Couvertures (zinc roofing), MAE (watertightness), Lavergne (external wooden door and window frames, indoor door and window frames, glazing, sun protection, furniture), Lacoste (locks), Sudrie (plastering, lining, suspended ceiling), Brel (tiling, glued-down floors, indoor and external paintwork), Perigord Nettoyage (end-of-project cleaning), Otis (lift), STP (landscaping, underground networks), Allez (electrics – strong and weak currents), ATSE Bordes (heating, ventilation, plumbing, sanitary installations), Seabra Paulo (solar panels).
Photographer: Eugeni Pons
More: Dominique Coulon & Associés 更多关于：Dominique Coulon & Associés on gooood
