感谢 Jaque Studio 予gooood分享以下内容。更多关于他们： Jaque Studio on gooood
Appreciations towards Jaque Studio for providing the following description:

本项目采取了单层建筑的形式，整体呈“L”形布局，长边朝向北侧，建筑的设计将场地中的天然泉水或“天然井”也纳入到考虑之中，并充分利用了周围丛林的自然景观。建筑的进深较小，进而保证了住宅内的每个空间都能享有充足的自然采光与良好的交叉通风。四间卧室套房均设有独立的浴室，且浴室均坐落在半室外私人庭院中，进而将热带环境无缝地融入到建筑中。

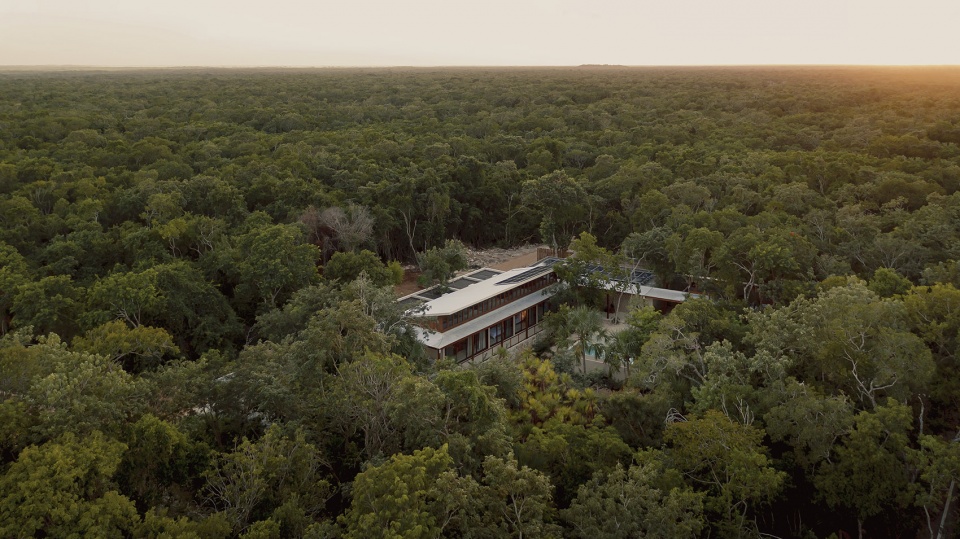

▼项目与周边环境鸟瞰，aerial view of the project and surrounding environment © César Béjar

Designed on a single level with an “L” layout and a north orientation, the house was built to embrace the existing natural spring or “cenote ” and take full advantage of the views of the surrounding jungle. The design incorporates a mostly narrow section, allowing ample natural light and cross ventilation in each of its spaces. Even the bathrooms of each of the four bedrooms are designed in indoor-outdoor private patios, seamlessly blending the tropical environment into the house’s architecture.

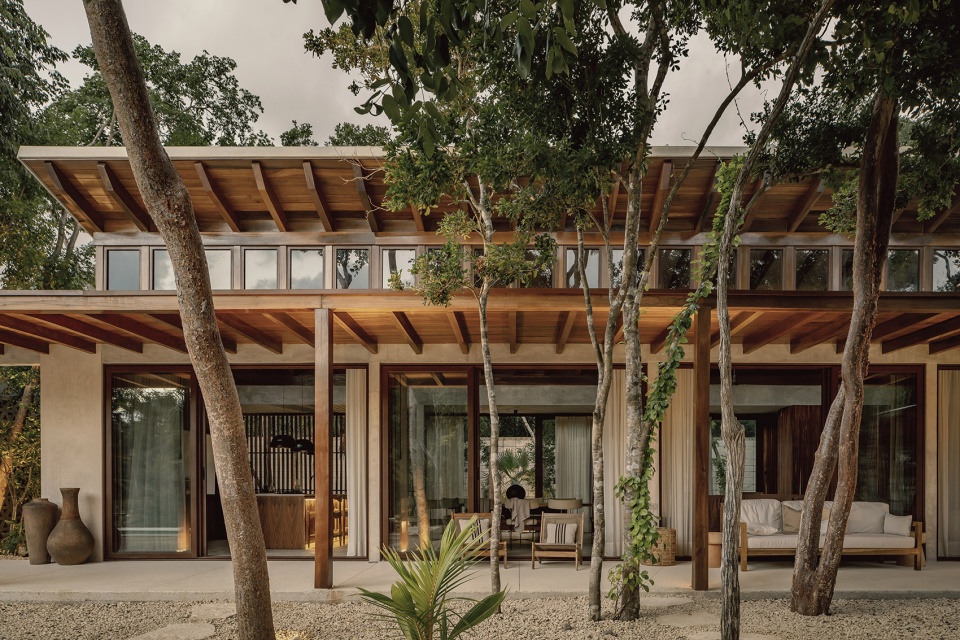

▼项目概览，overall of the project © Jaque Studio

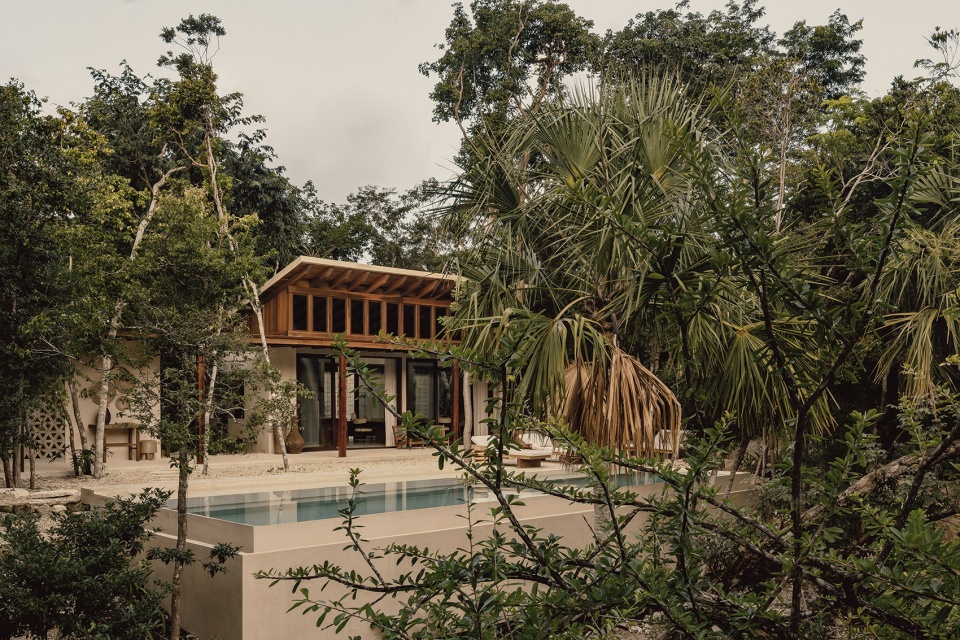

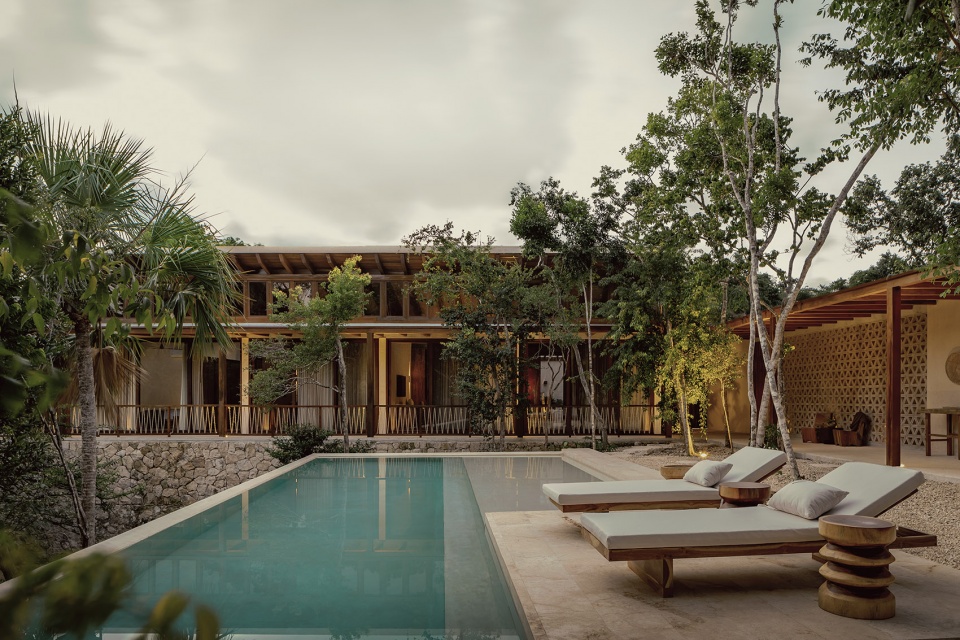

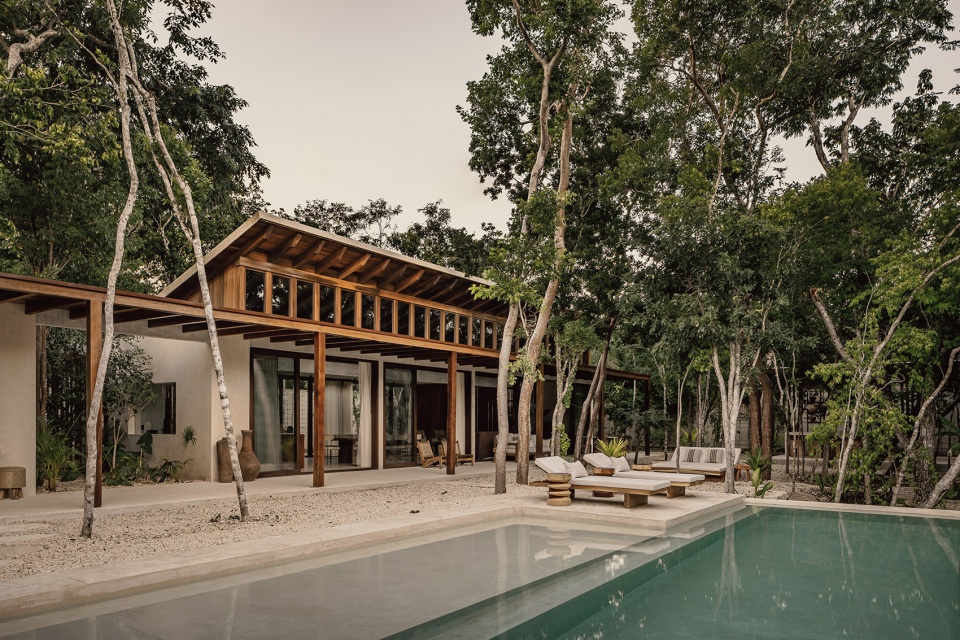

▼由泳池看住宅，viewing the house from the pool © Jaque Studio

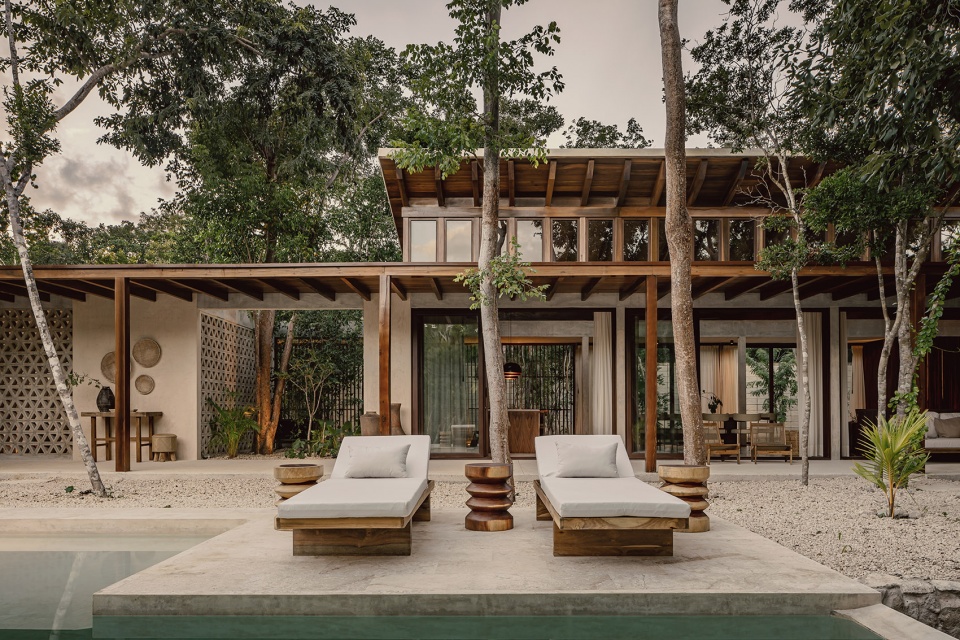

▼泳池平台，terrace of the pool © Jaque Studio

串联整座住宅空间的主走廊也以大型露台的形式呈现出来，让人不禁联想到墨西哥庄园和乡村别墅，这种类型的空间在传统的墨西哥住宅中通常用作生活区域。单层的建筑形式为住宅创造出可观的层高，进而为室内营造出凉爽舒适的体感环境，同时也引入了朝向外部的广阔视野。

The main hallway, which connects the entire house, also serves as a large terrace, reminiscent of Mexican haciendas and country houses, where this type of space typically functions as a living area. The house, being designed on a single floor, allows for high ceilings, providing cooler interior spaces and offering wide views towards the exterior.

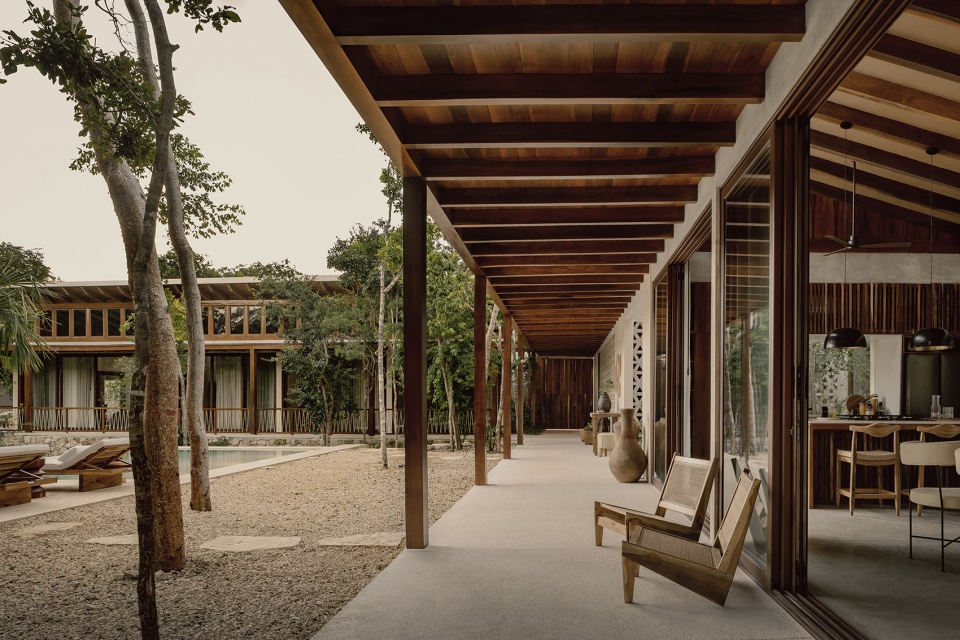

▼大型露台空间作为主走廊串联了所有住宅空间，the main hallway, which connects the entire house, also serves as a large terrace © César Béjar

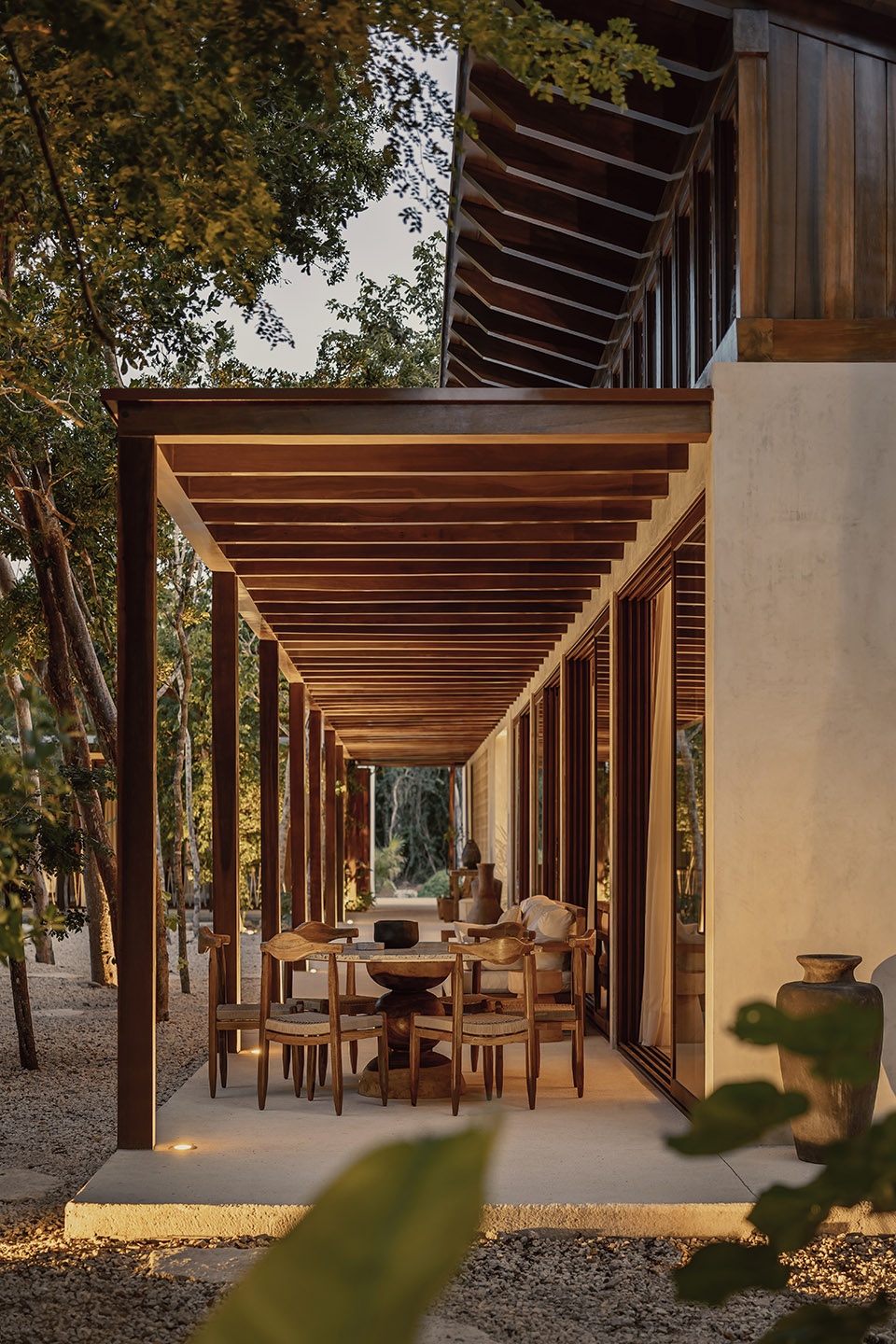

▼生活露台，terrace with living area © César Béjar

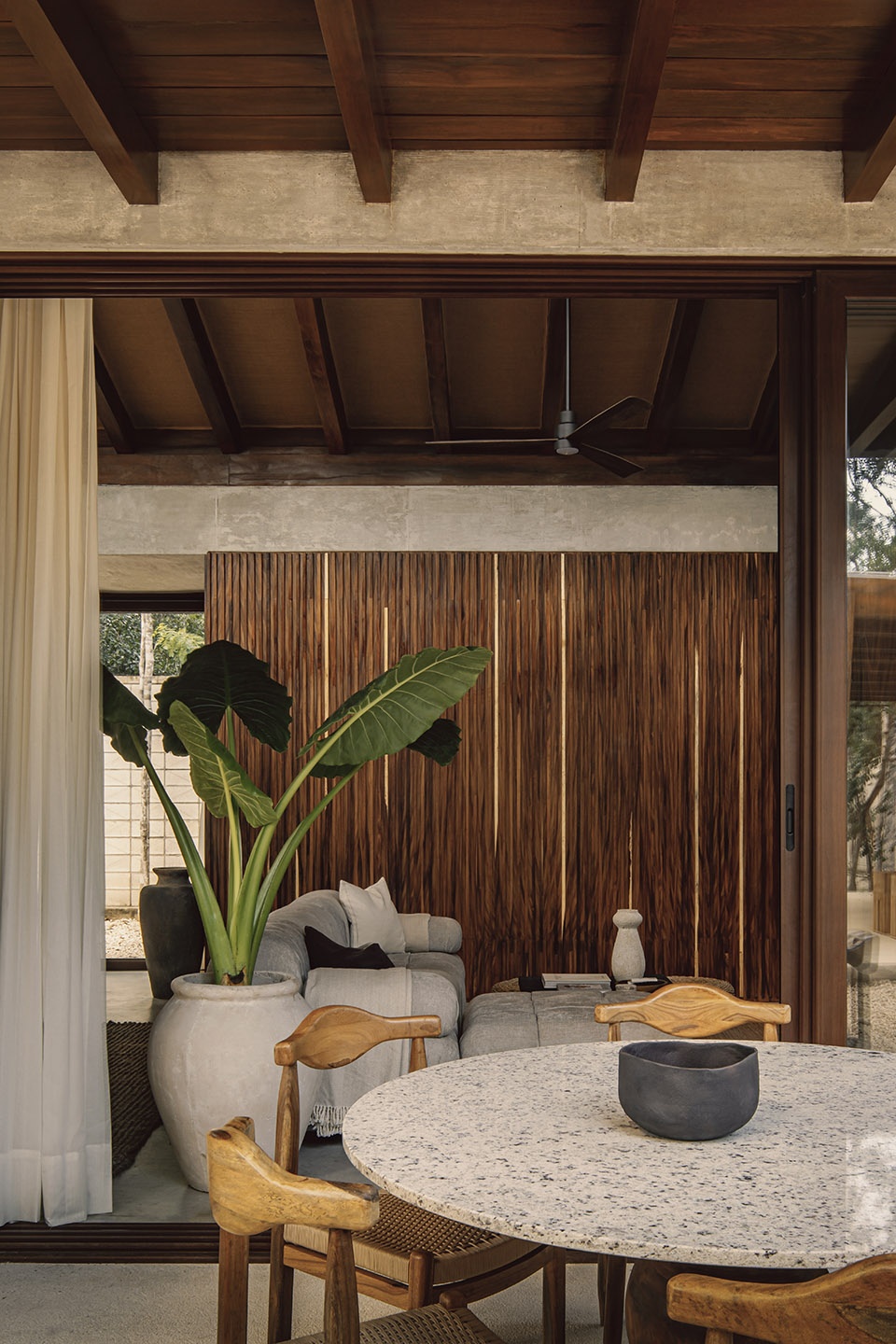

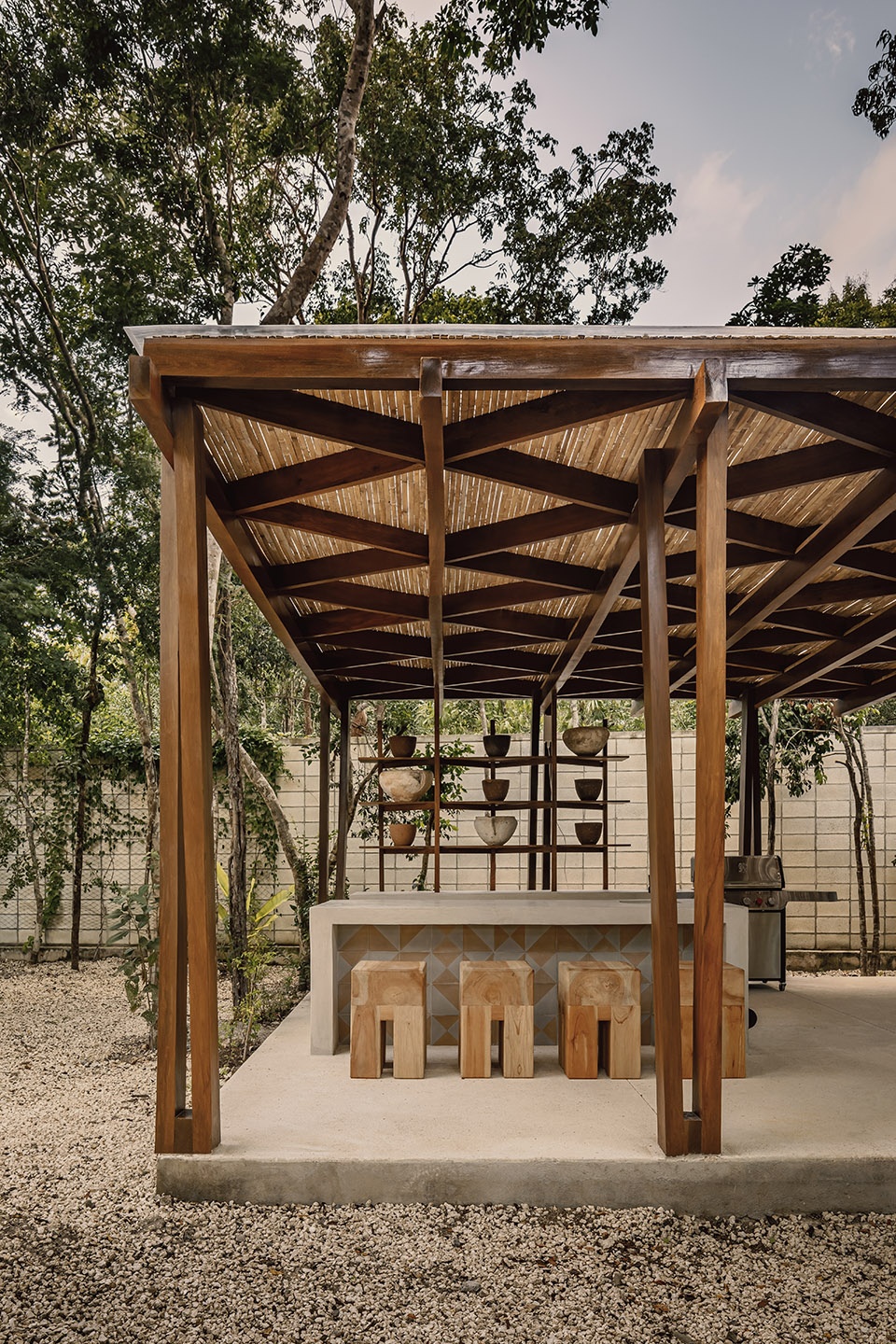

▼半户外用餐空间，semi-door dining area © César Béjar

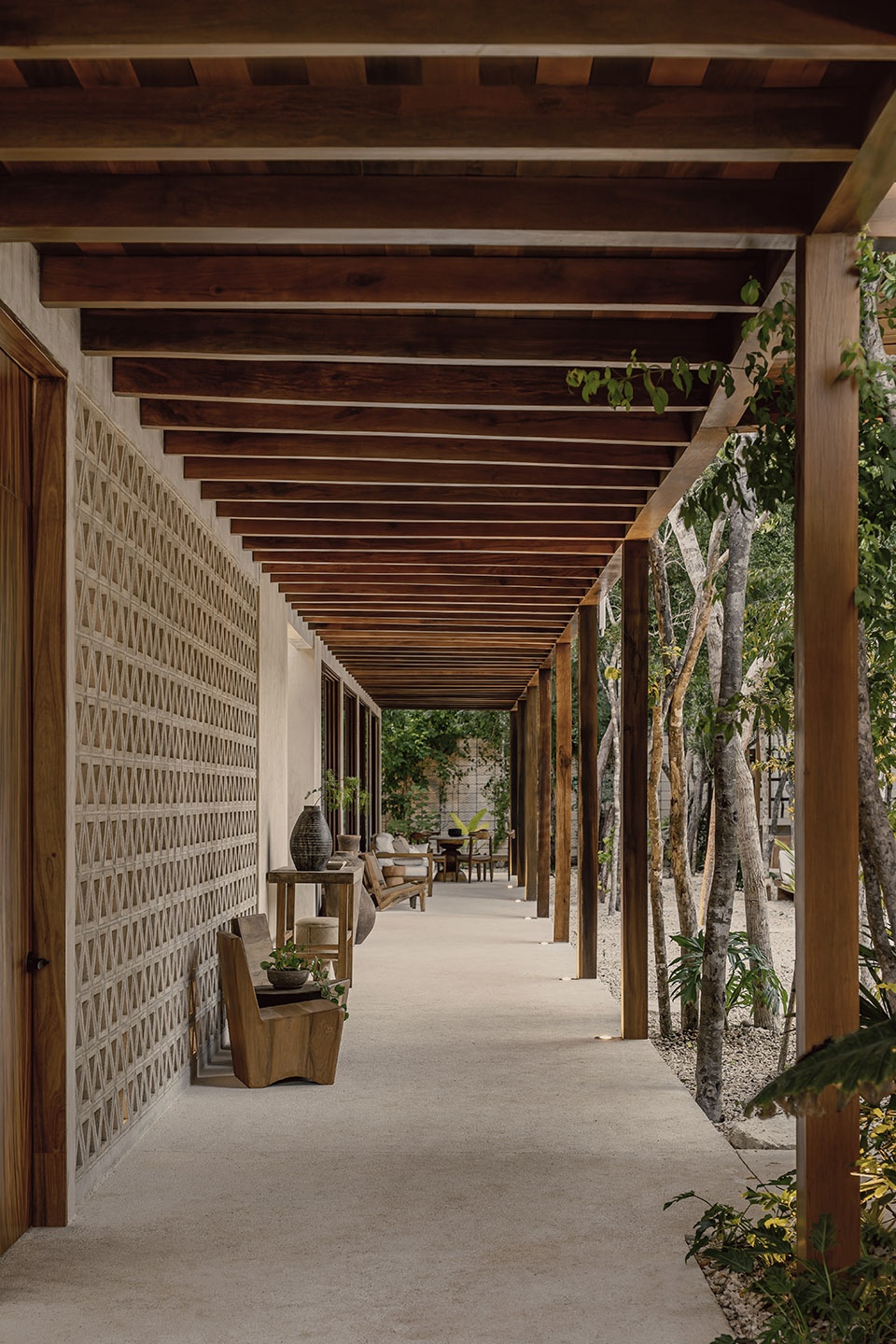

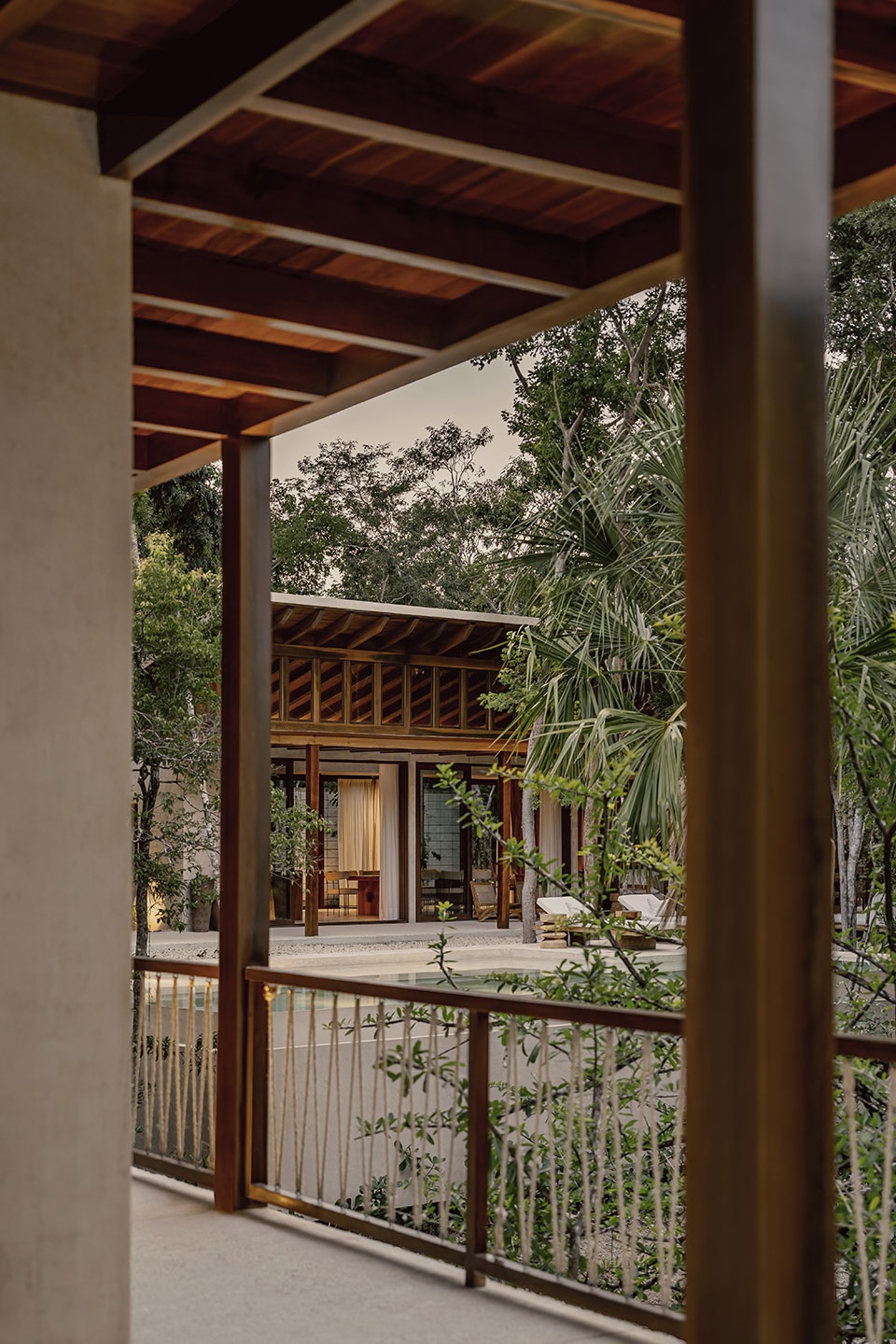

▼露台走廊，semi-outdoor hallway © César Béjar

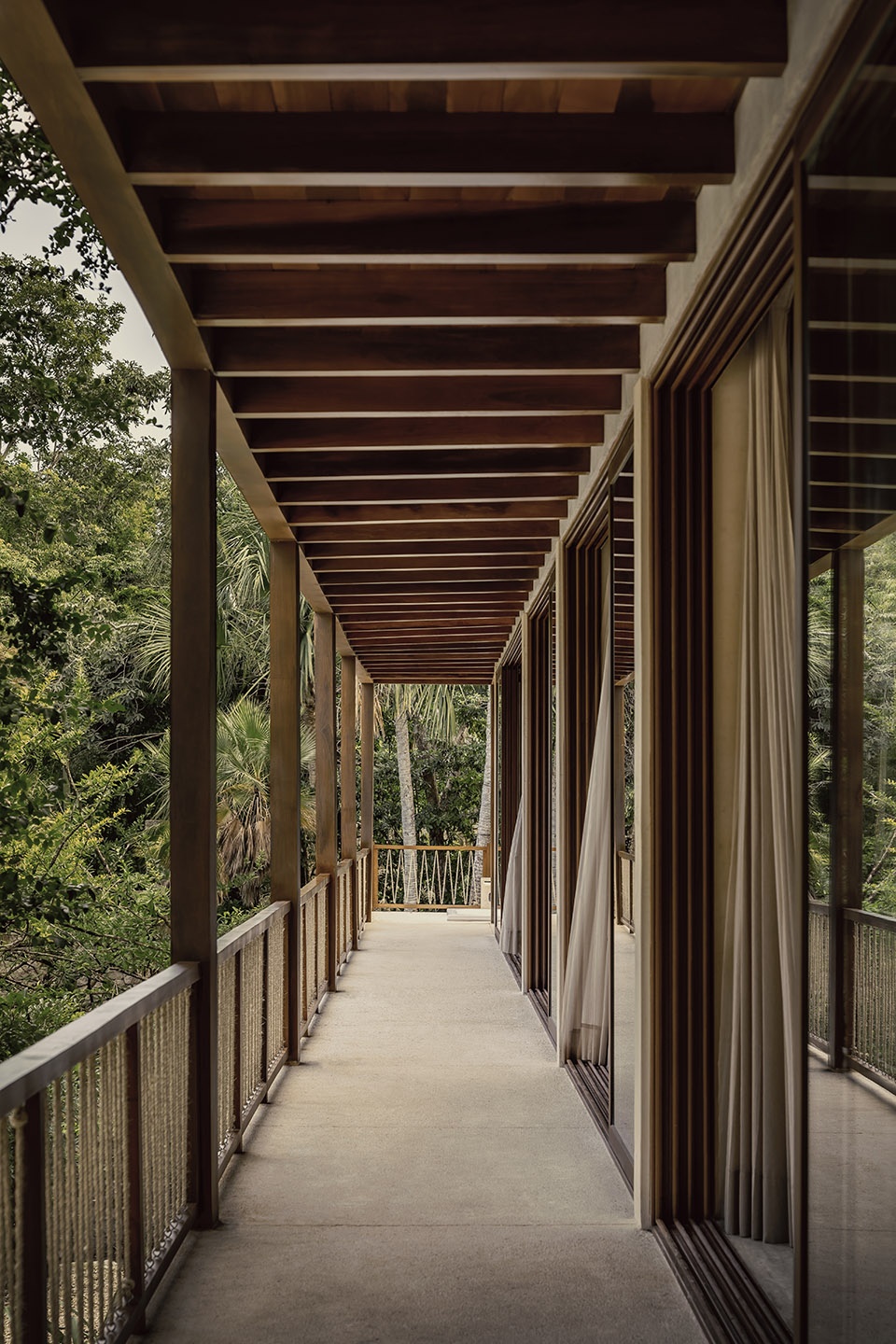

▼卧室区域走廊，hallway of the bedrooms area © César Béjar

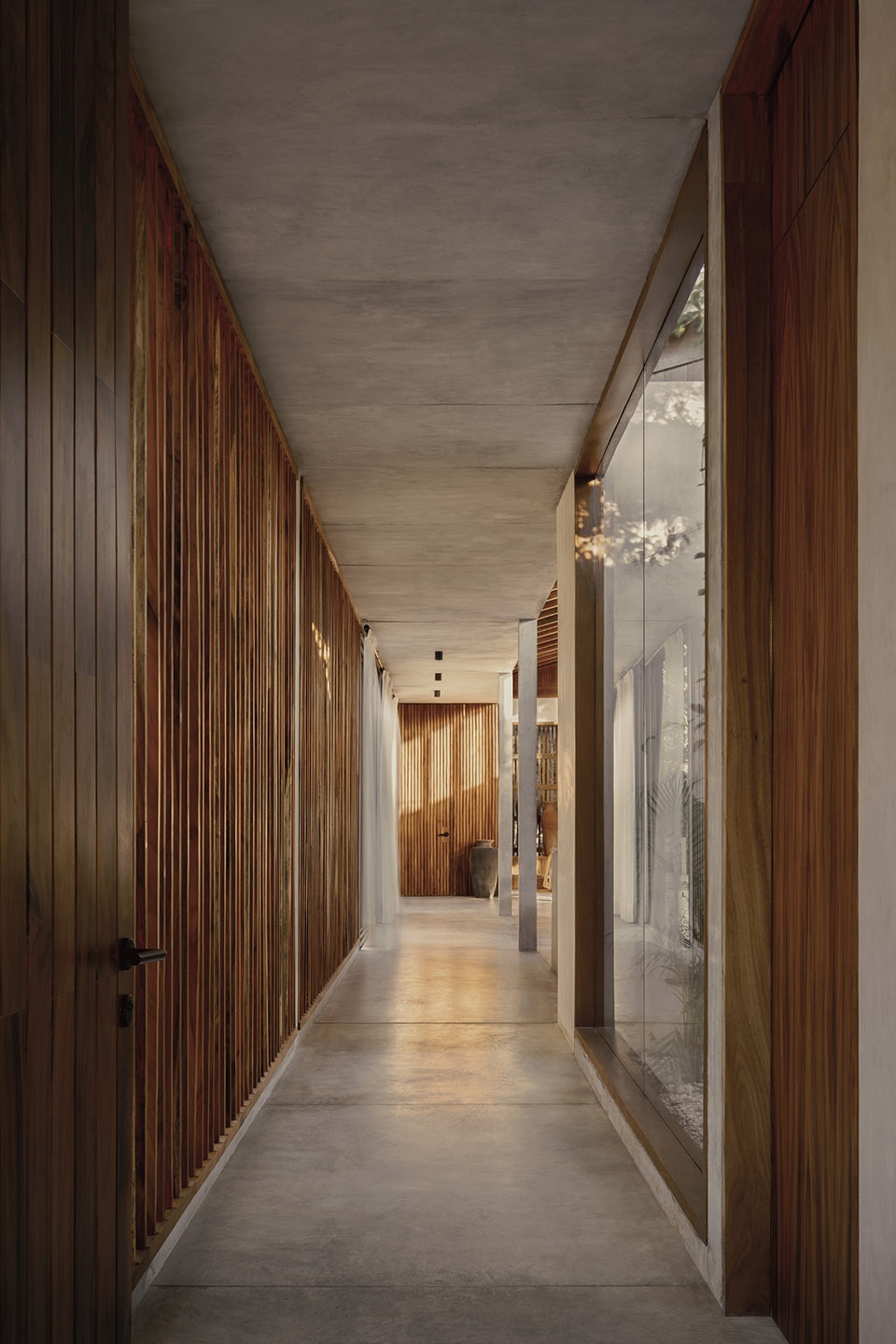

▼室内走廊，interior hallway © César Béjar

项目采用了太阳能电池板与储电电池系统，能够产生并贮存清洁能源，实现自给自足，不依赖电网设施。此外，设计还通过湿地网络系统处理黑水，并通过过滤和软化设备使整个场地内的水资源得到良性的循环。最令人印象深刻的是，场地77%的地表面积保留了原有的树木和植被，在最大程度上减少了建筑对于环境的影响。

The property is completely self-sufficient and off the grid, producing its own energy with a battery and solar panel system. It also treats its black water with a network of wetlands and takes advantage of on-site water through filtration and softening equipment. In addition, an impressive 77% of the surface area of the property has been preserved with pre-existing trees and vegetation.

▼室内概览，overall of interior © César Béjar

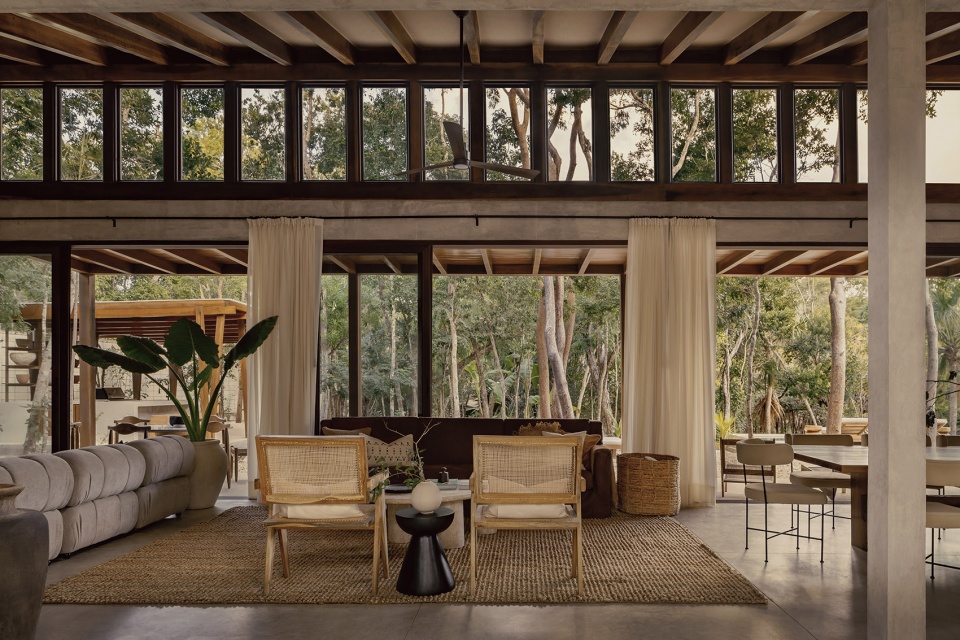

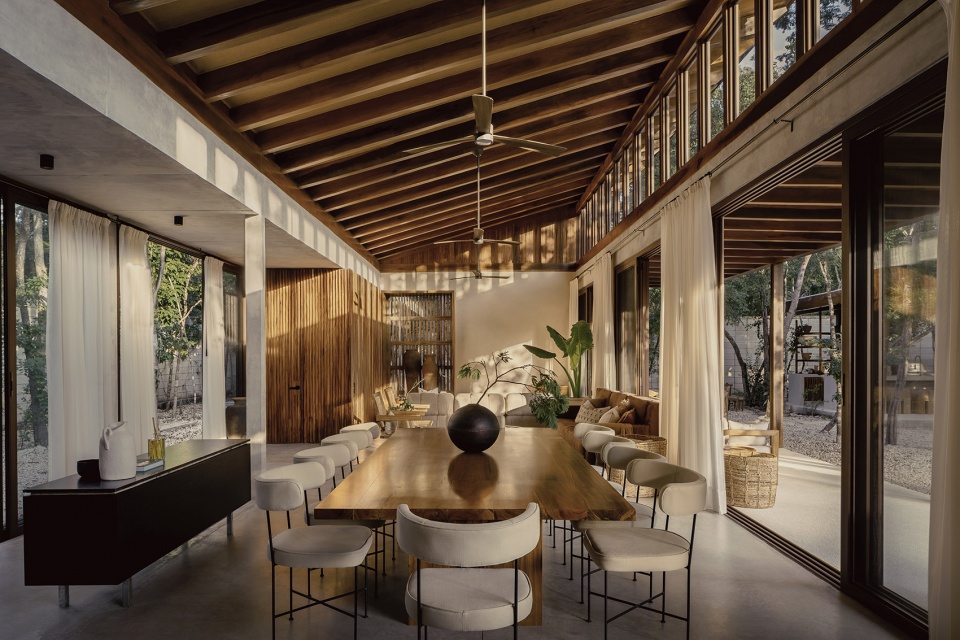

▼由餐厅看客厅，viewing the living room from the dining table © César Béjar

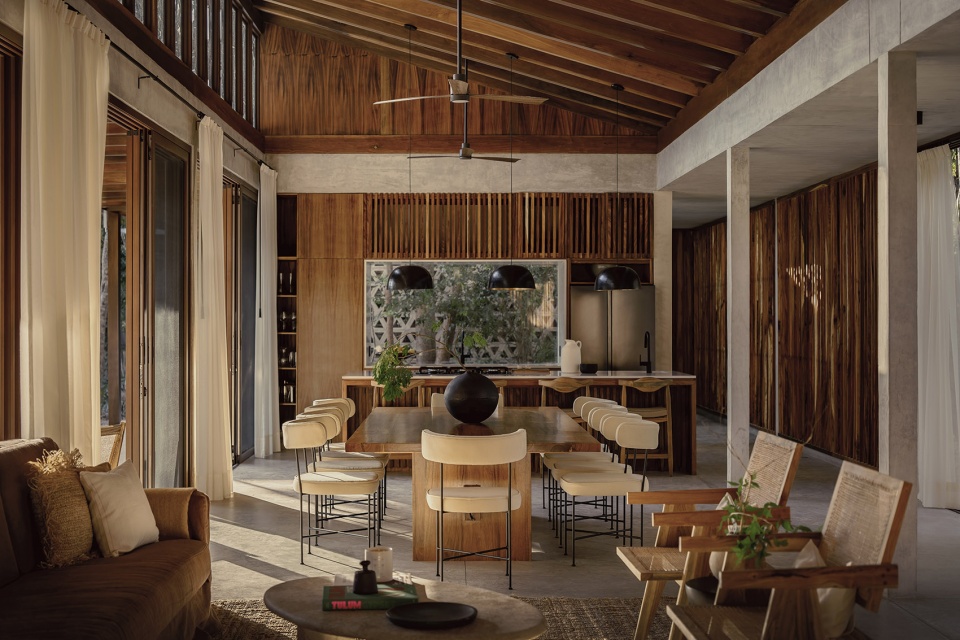

▼由客厅看餐厅厨房，viewing the dining- kitchen from the living room © César Béjar

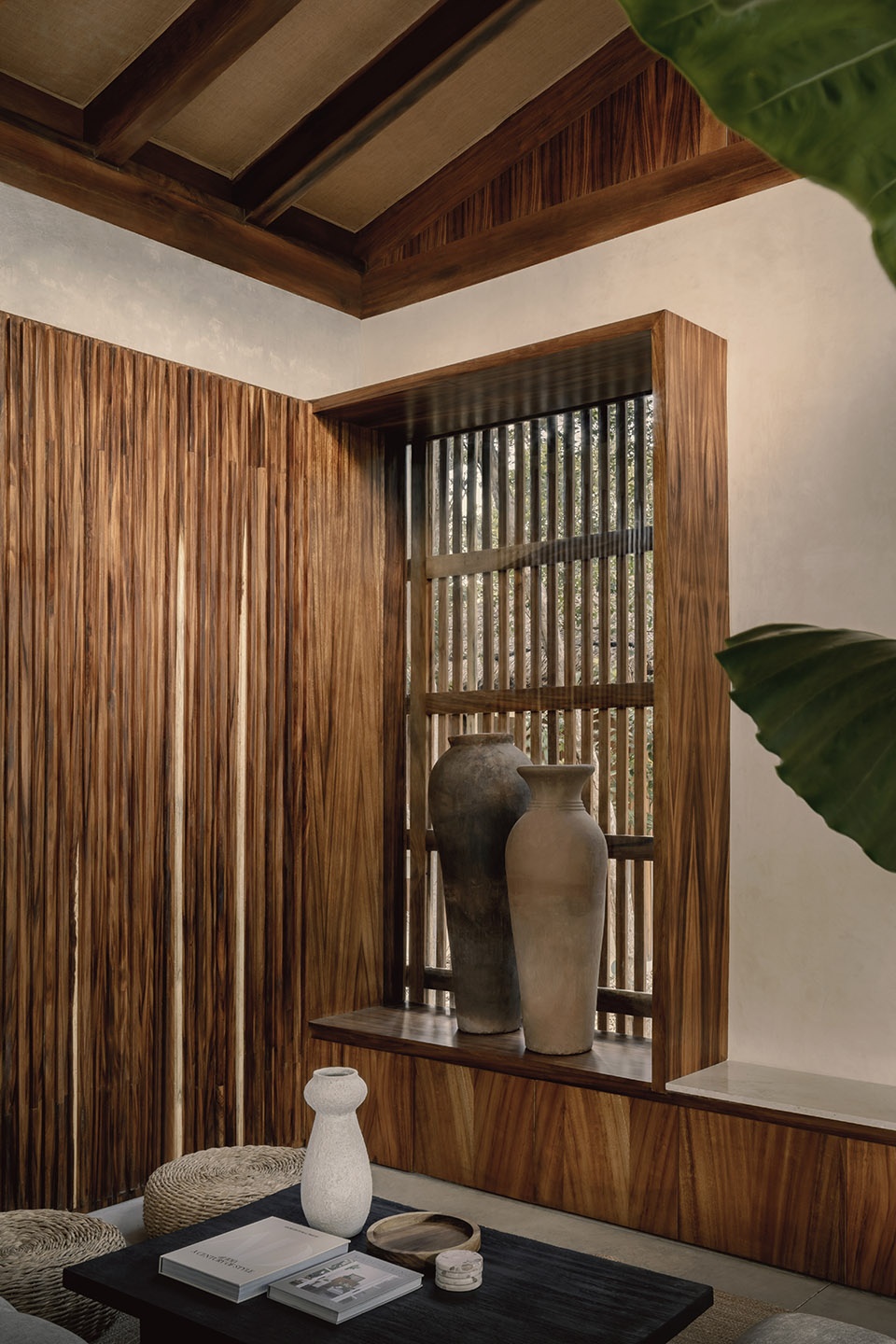

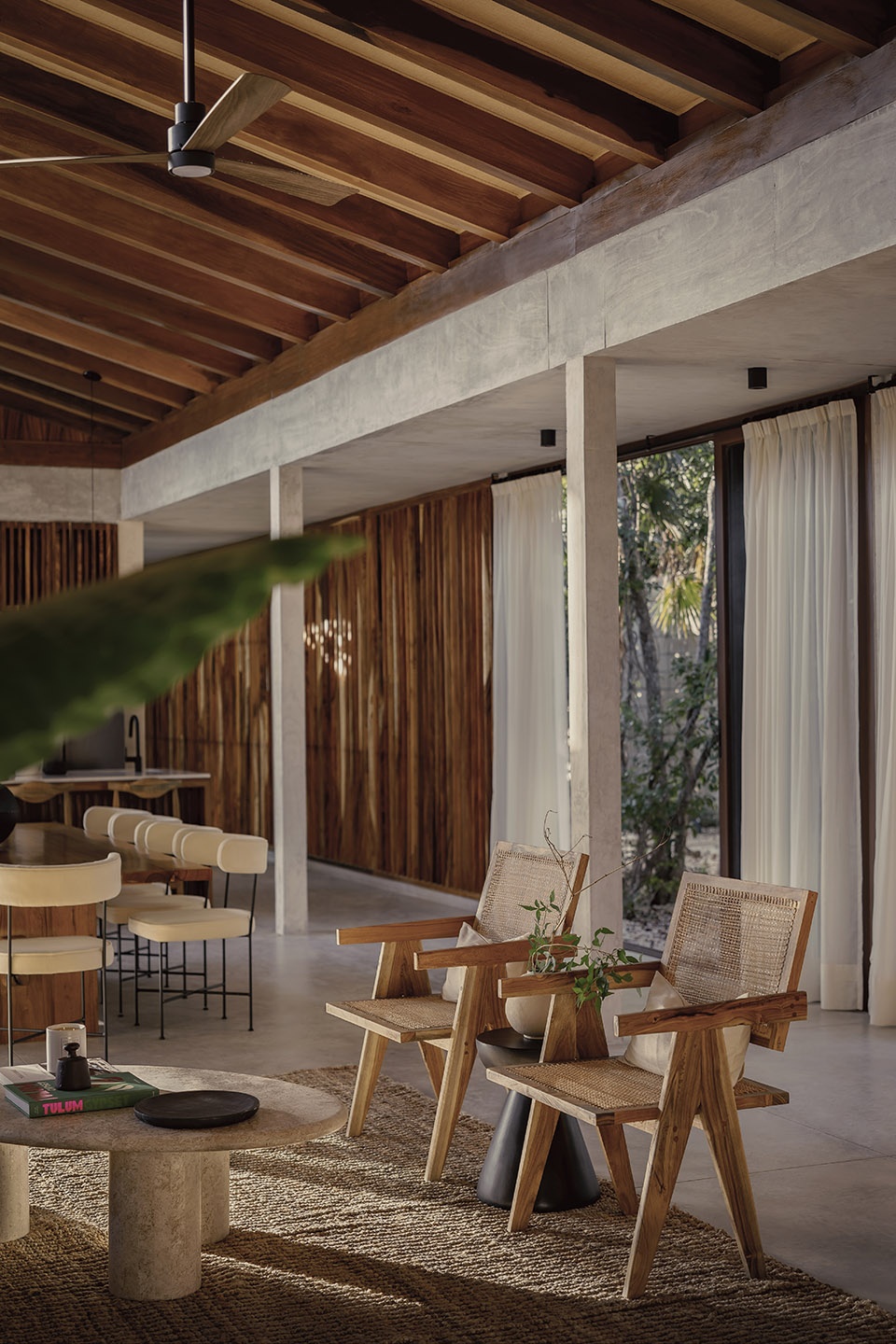

▼客厅细部，details of the living room © César Béjar

▼茶室，tearoom © César Béjar

项目采用了当地建造技术与材料，如石灰石和chukum灰泥，但其主要材料元素为木材。Jaque Studio相信在未来木材将成为21世纪的主要建筑材料。它不仅是一种可再生资源，同时具有重量轻，碳足迹低的特点，这些物理特性使木材成为本项目迎合地区气候条件的最佳选择。木材的使用也有助于创造出温暖舒适的室内环境，为居住者营造出健康自然的空间氛围。

For the construction of this project, local construction solutions and finishes such as limestone and chukum were used, but the main element is wood. As we look to the future, we believe that timber will become the dominant building material in the 21st century. It is a renewable resource, lightweight, with a lower carbon footprint, and physical properties that make it ideal for withstanding the climate conditions of the region. The use of wood also contributes to creating a warm and comfortable environment, with proven benefits for the health of those who inhabit these types of spaces.

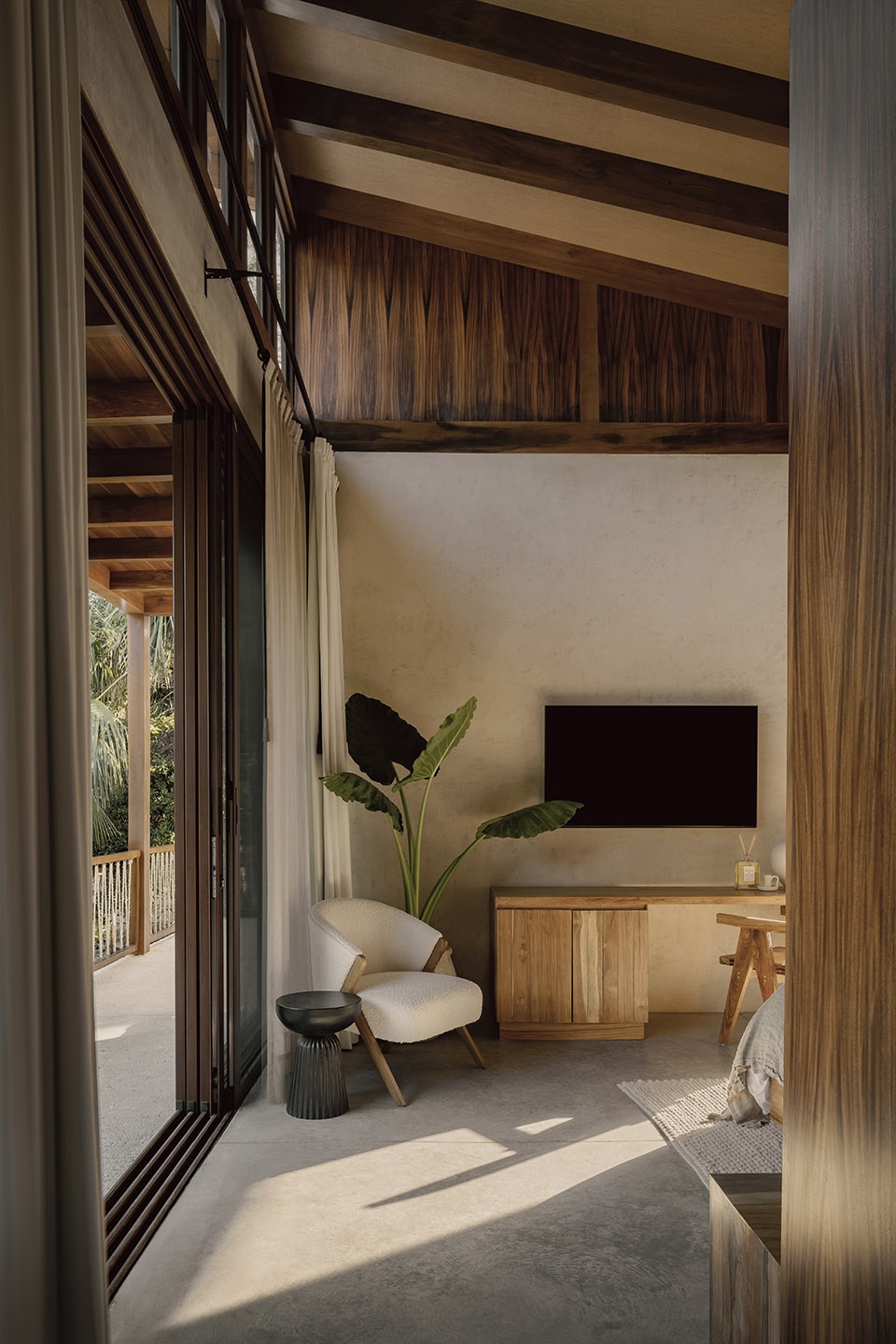

▼卧室走廊，hallway inside the bedroom © César Béjar

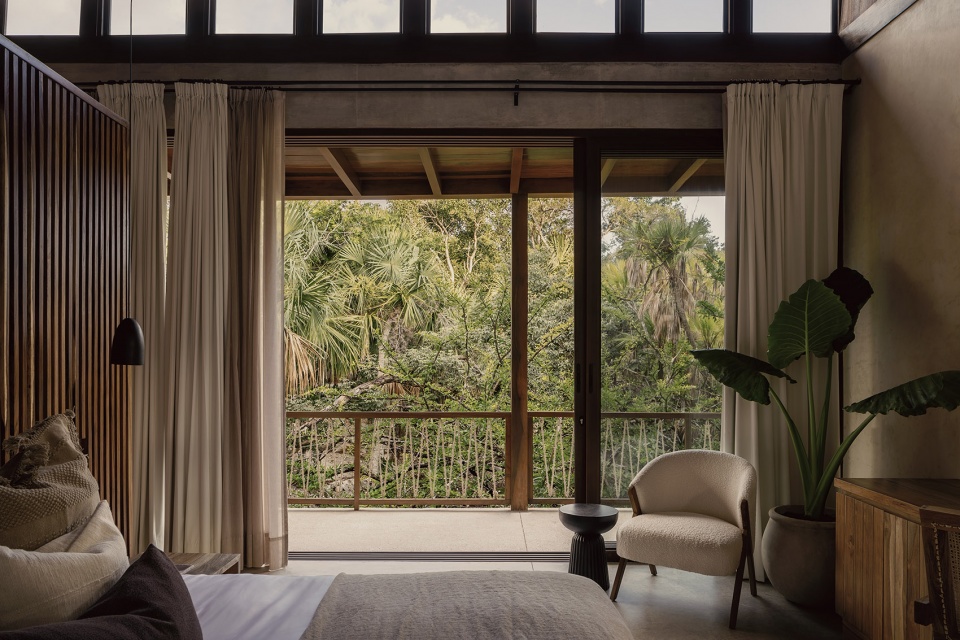

▼由卧室看户外环境，viewing the landscape from the bedroom © César Béjar

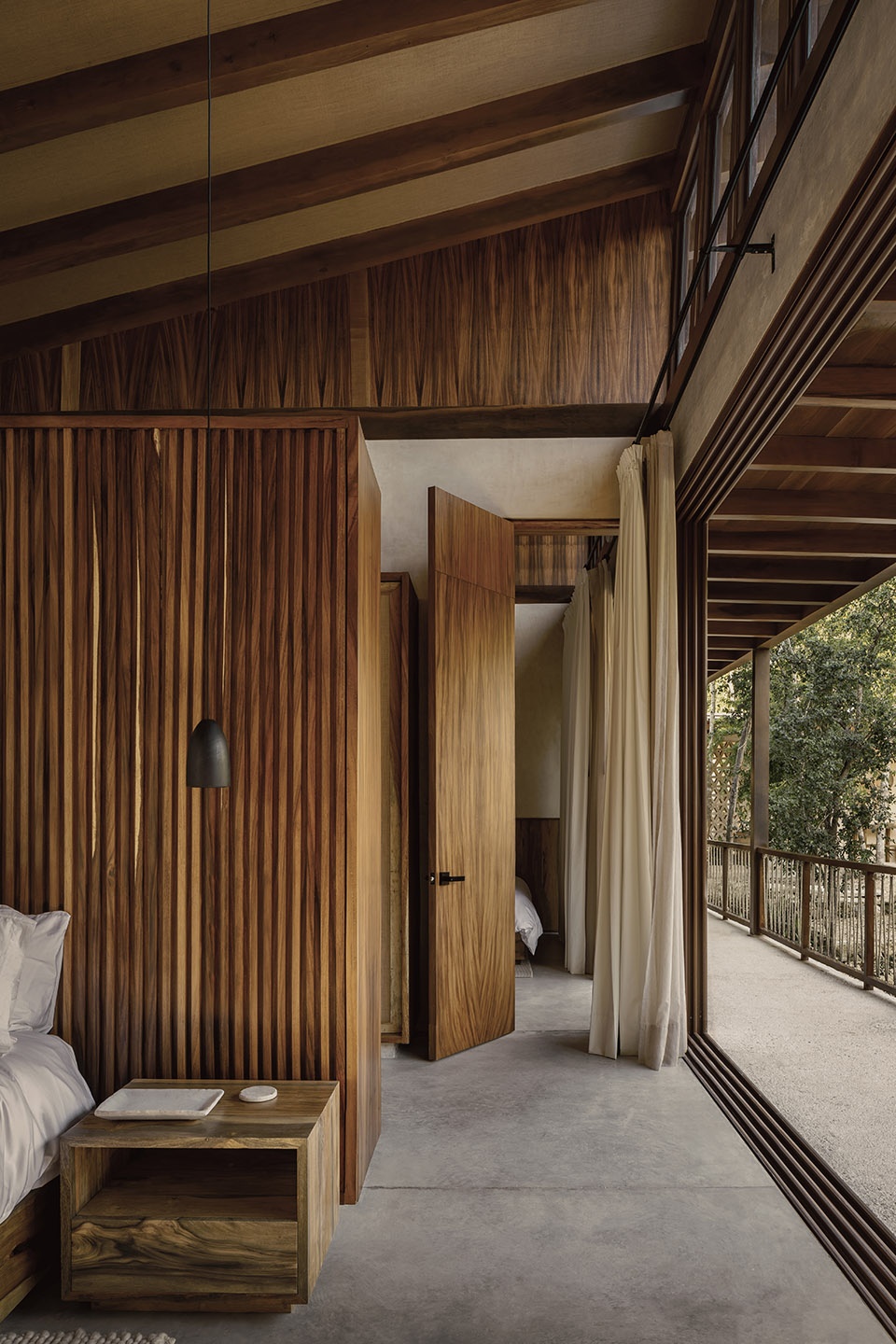

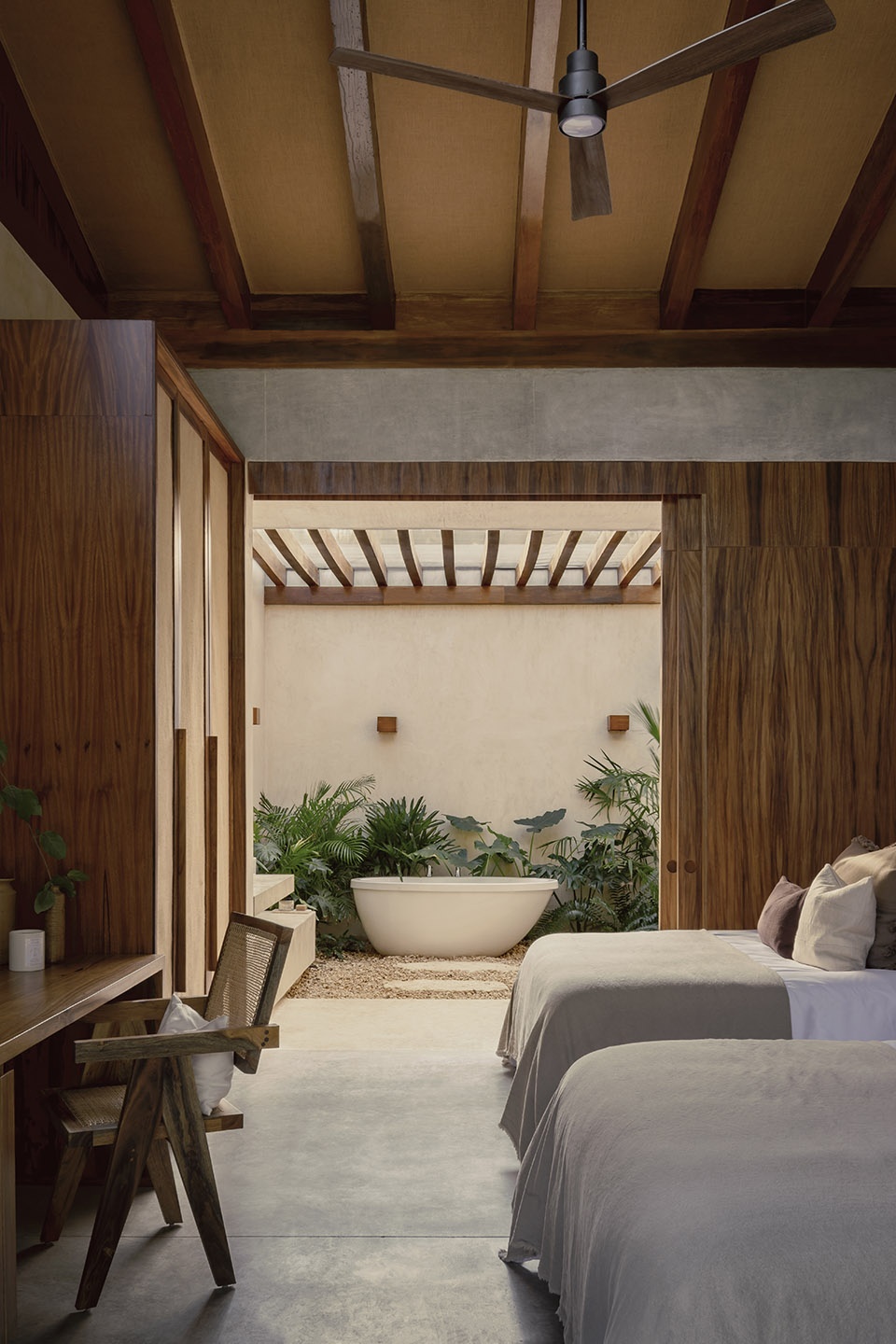

▼由卧室看浴室，viewing the bathroom from the sleeping area © César Béjar

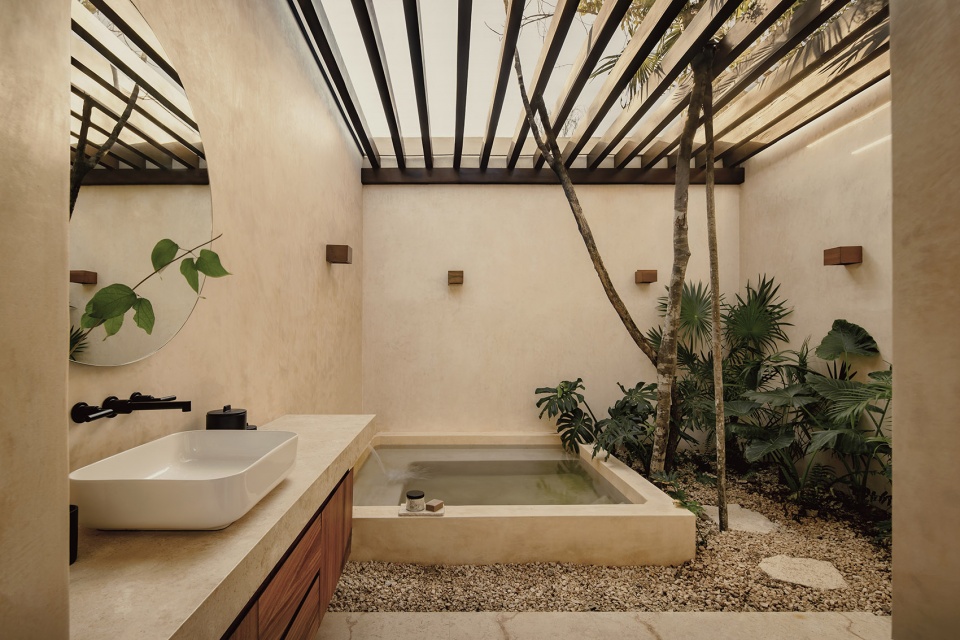

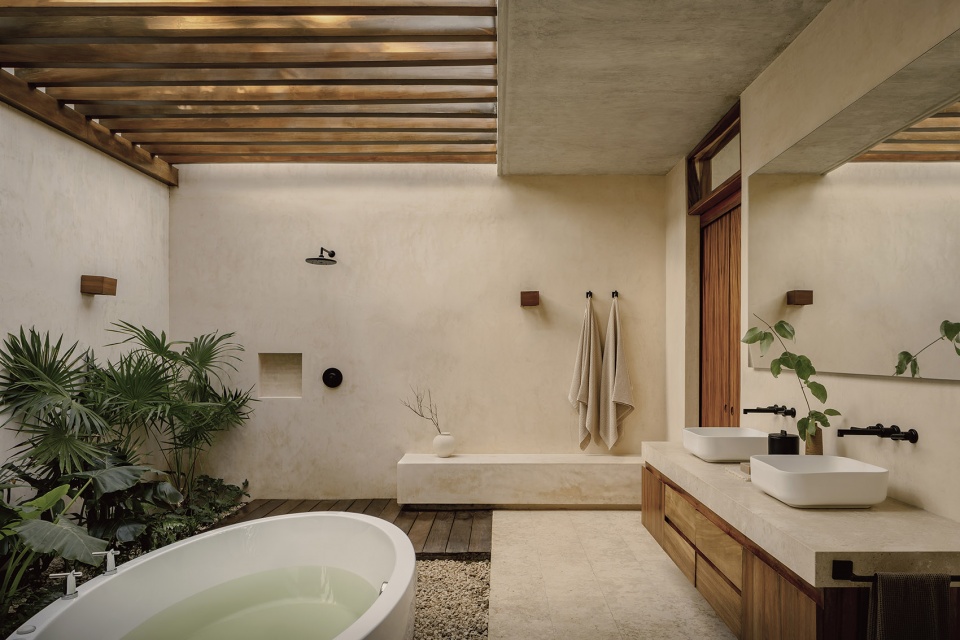

▼浴室，bathroom © César Béjar

热带住宅是一座横跨景观的建筑，设计旨在捕捉场地的自然之美。这座建筑就如同放置在自然环境中的旁观者，以材料和色彩与自然融为一体，同时住宅的每个空间也都保持了自己独立的个性，让居住者能够在舒适而私密的环境中尽情放松和享受。

Casa Tropical is a project that extends across the landscape, seeking to capture the beauty that the site offers. It is a building that is placed on the terrain as a spectator of the natural context, with materials and finishes that blend in with the environment and where each space offers an opportunity to disconnect, relax and enjoy.

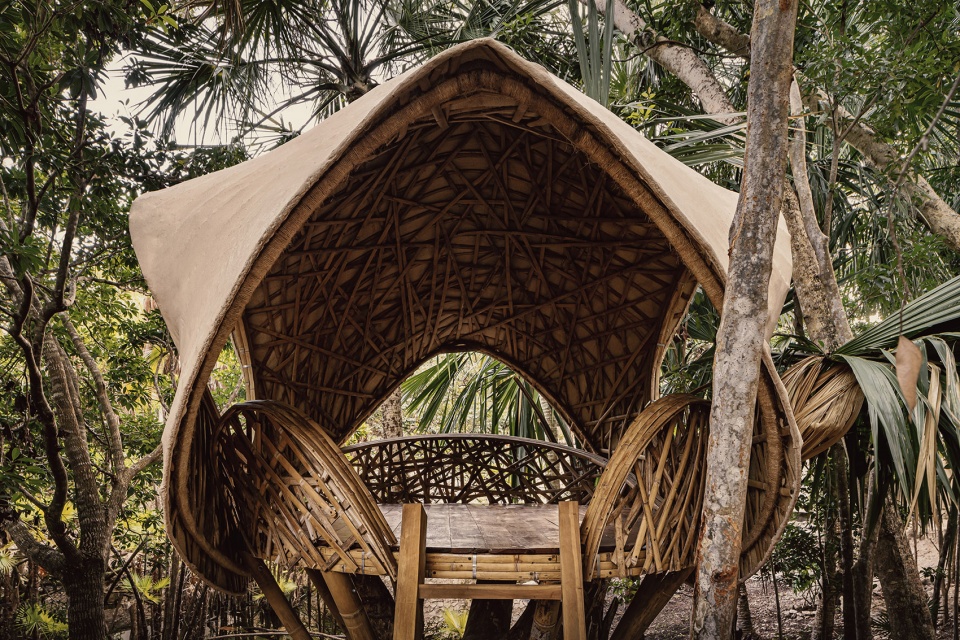

▼树屋，treehouse © César Béjar

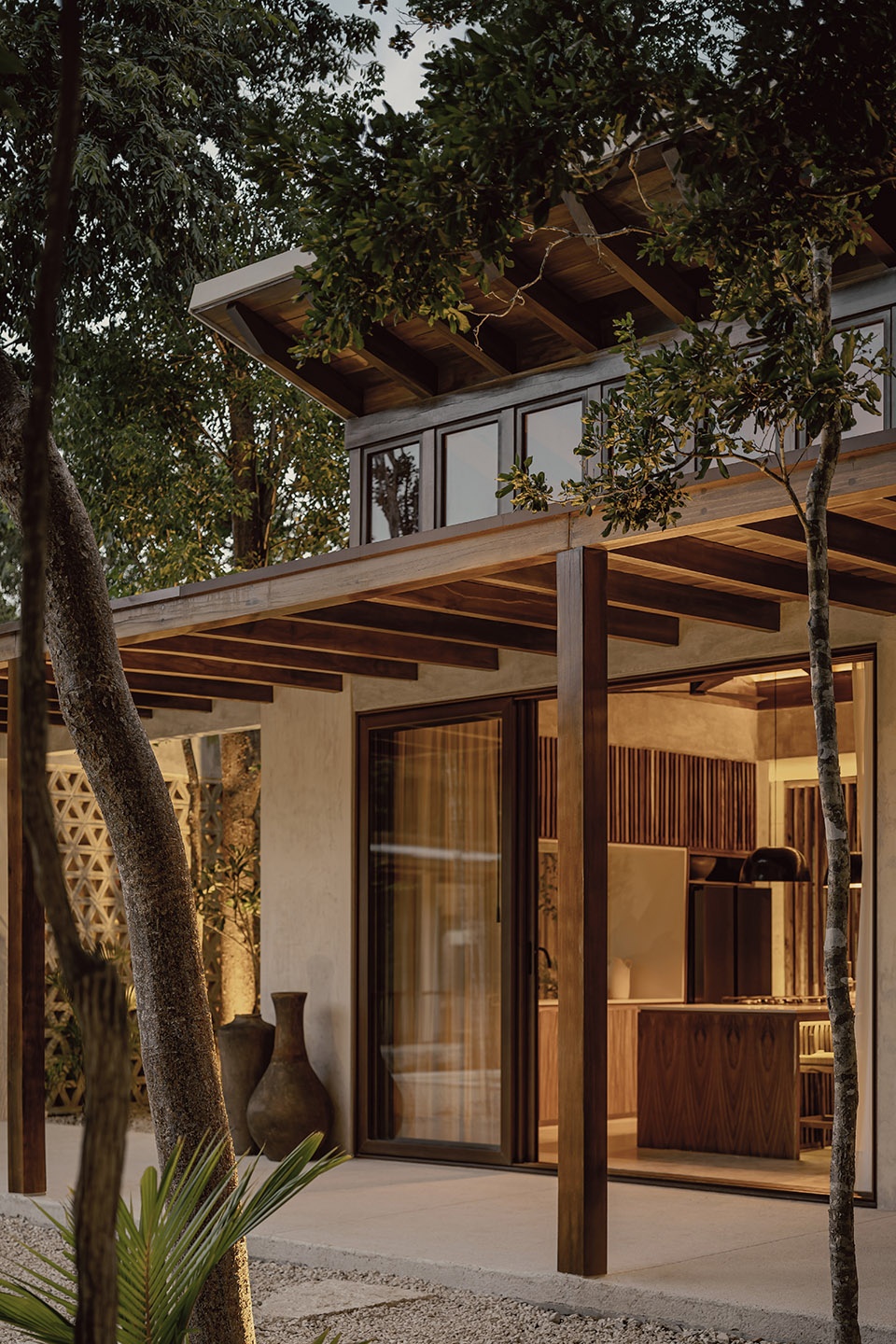

▼夜间灯光效果，light effect at night © César Béjar

▼平面图，plan © Jaque Studio

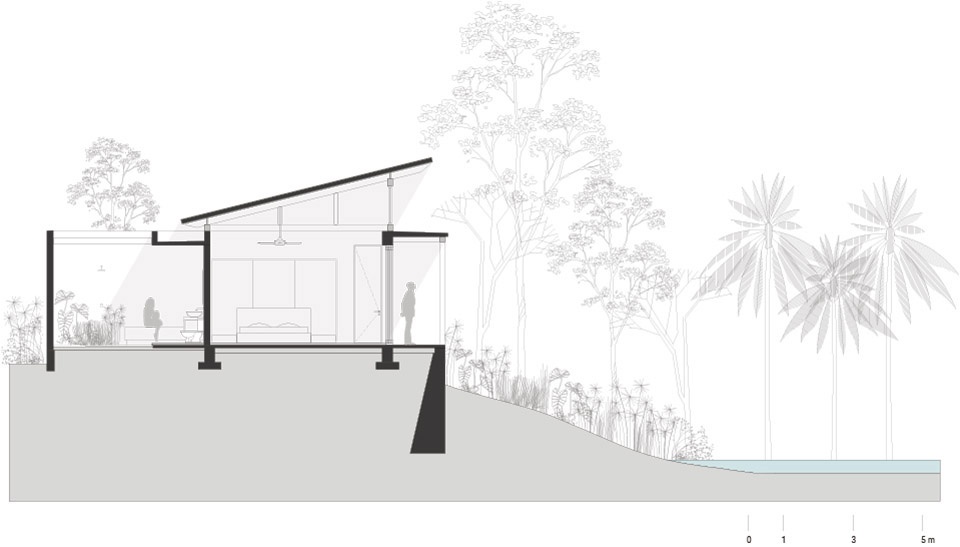

▼剖面图，sections © Jaque Studio

Project Name: Casa Tropical
Architectural Design: Jaque Studio
Design Team: Jesús G Acosta, Simona Lasauskaite, Miguel Carrillo
Website: http://www.jaquestudio.com/
E-mail: info@jaquestudio.com
Instagram: jaquestudio
Client : Fatima Villareal
Builder : Jorge Kelleher
Interior design: Daniela Parra
Landscape design: Rosario Ojeda
Furniture : Daniel Orozco
Current Status: Built
Construction surface: 580m2
Construction completion date: November 2022
Location: Tulum, Quintana Roo, México
Photography : César Béjar
