挪威建筑工作室Atelier Oslo给gooood分享了他们最新的项目：Cabin at Norderhov。更多请至：Atelier Oslo on gooood

项目位于Hønefoss镇外森林中一个陡峭的斜坡上，面对着美丽的Steinsfjorden湖。因为场地的风较大，建筑形体被设计成在室外形成几个避风空间，这些不同的空间在一天中不同的时间内能都被太阳照射。相较之，内部空间是一个连续的整体。4mm的桦木胶合板将天花和墙面覆盖成连续的曲面。地面功能区根据不同的房间和高差划分，同时台阶延生并变成了坐卧区。

The project is located in Krokskogen forests, outside the town of Hønefoss. Its location on a steep slope gives a fantastic view over the lake Steinsfjorden.

The site is often exposed to strong winds, so the cabin is organized around several outdoors spaces that provide shelter from the wind and receives the sun at different times of the day.

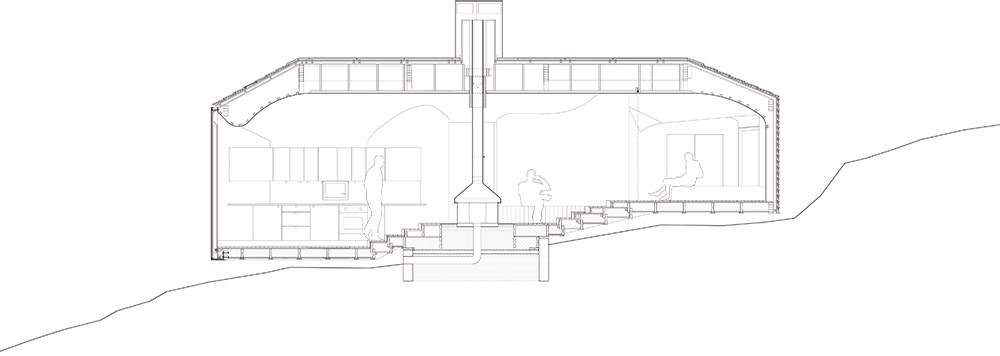

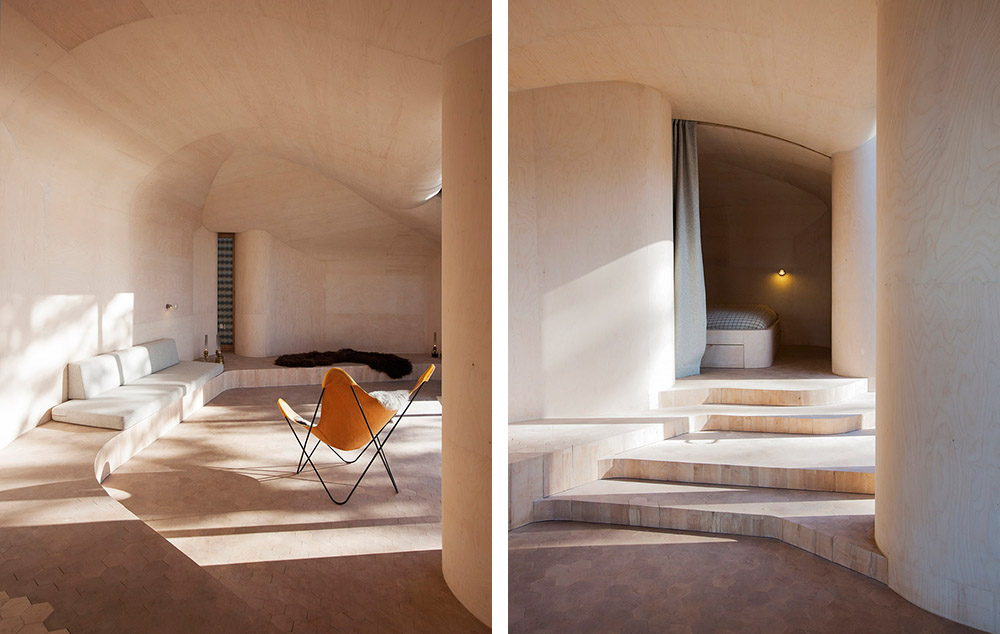

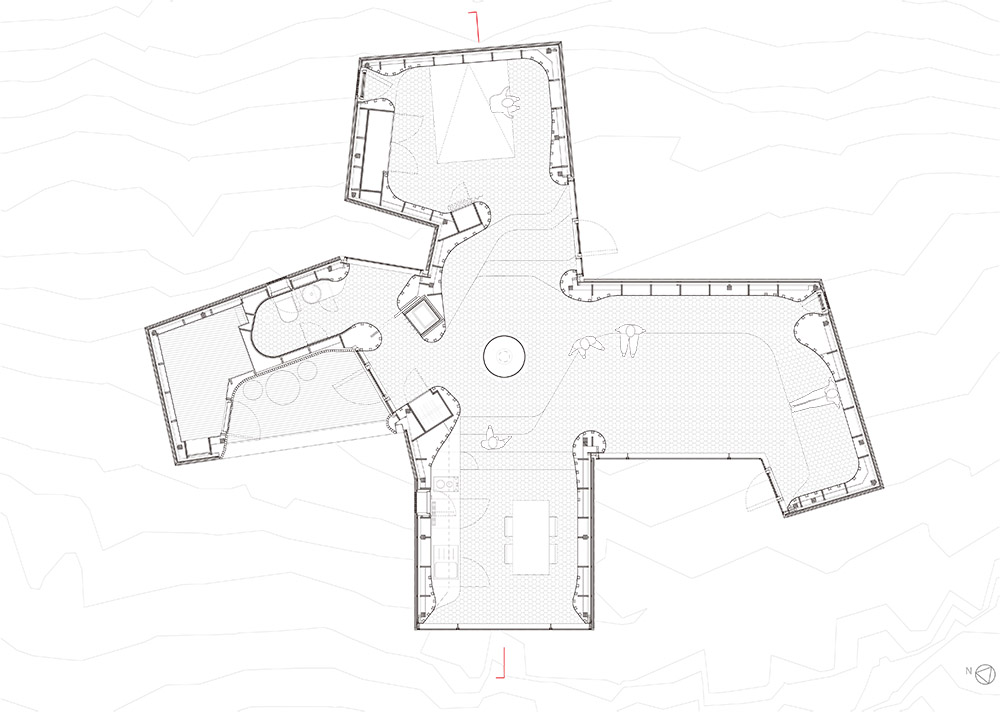

The interior is a shaped as a continuous space. The curved walls and ceilings form continuous surfaces clad with 4mm birch plywood. The floor follows the terrain and divides the plan into several levels that also defines the different functional zones of the cabin. The transitions between these levels create steps that provide varies places for sitting and lying down.

位于整个房间中心的壁炉能够从房间各个地方远近观赏到。客厅和餐厅的大玻璃窗面对着无敌的湖景，建立于自然更直接的联系。几何形体的建筑外表皮覆盖着类似挪威传统木瓦构造的20毫米玄武岩石板。

小屋为预制房屋，现场组装，与钢筋结合固定在混凝土地基之上。结构为数控设计与切割的层压胶合板。

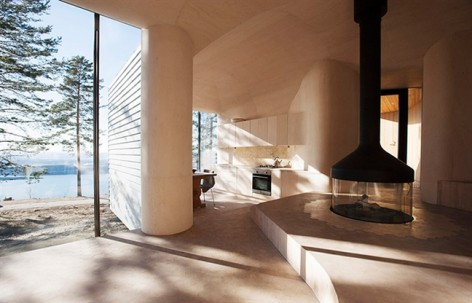

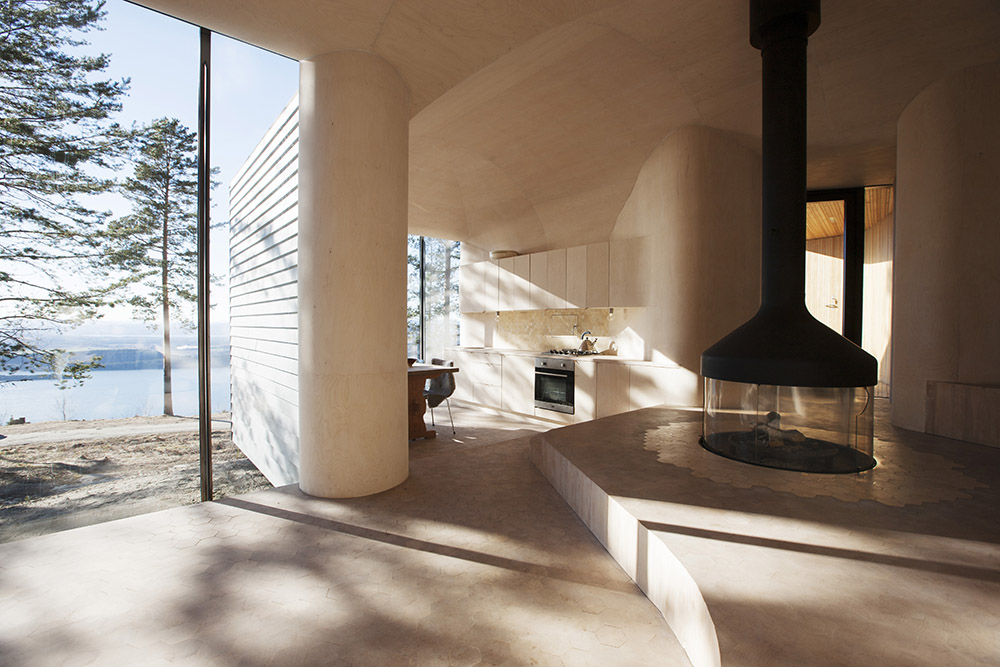

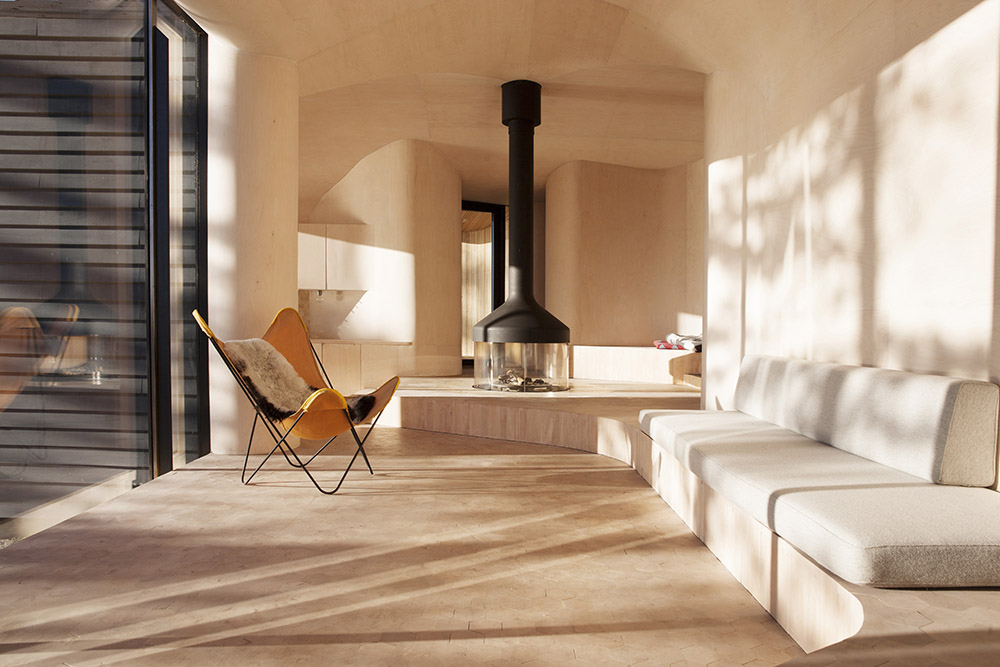

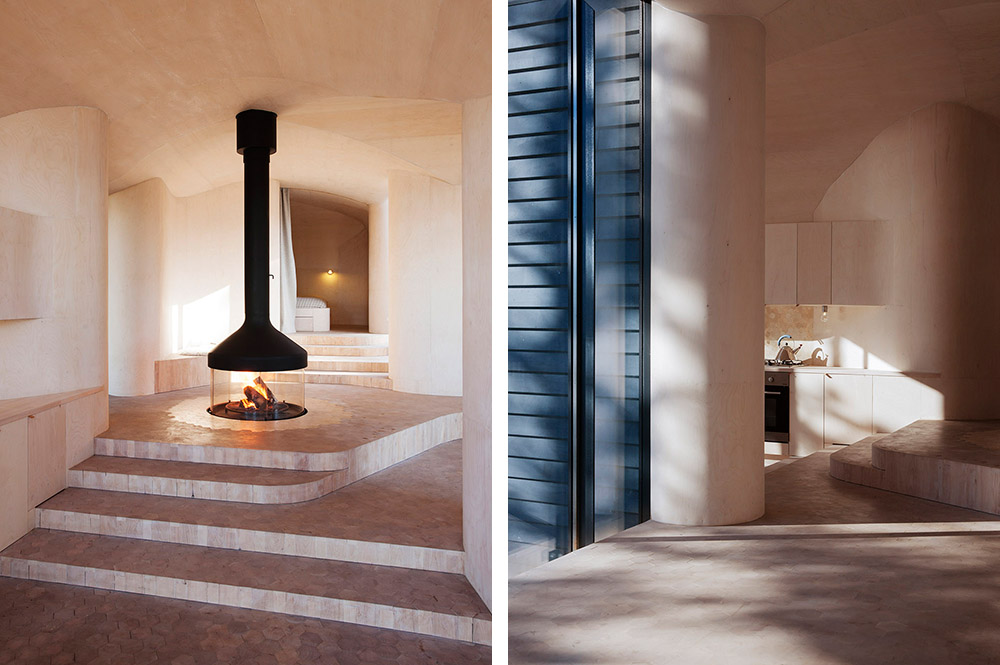

The fireplace is located at the center of the cabin, set down in the floor of the main access level. This provides the feeling of a campfire in the landscape. Seen from all levels in the cabin, you can enjoy the fireplace from far away or lying down next to it.

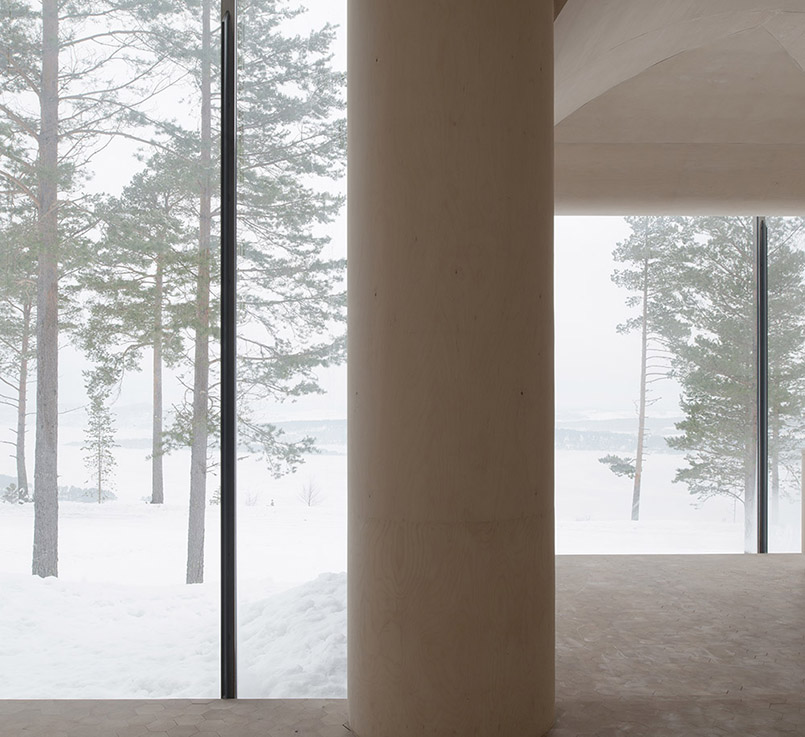

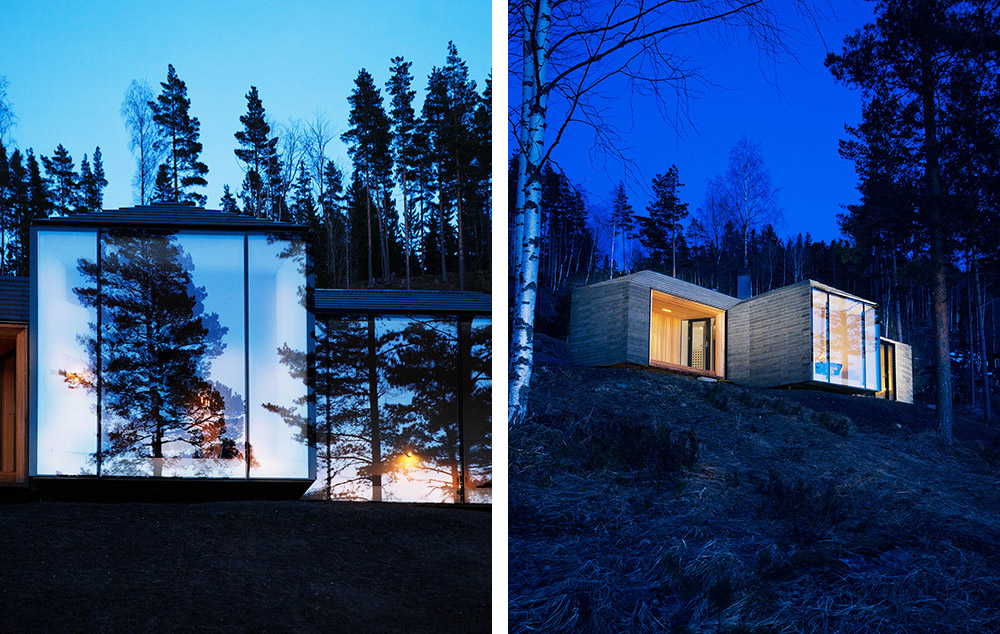

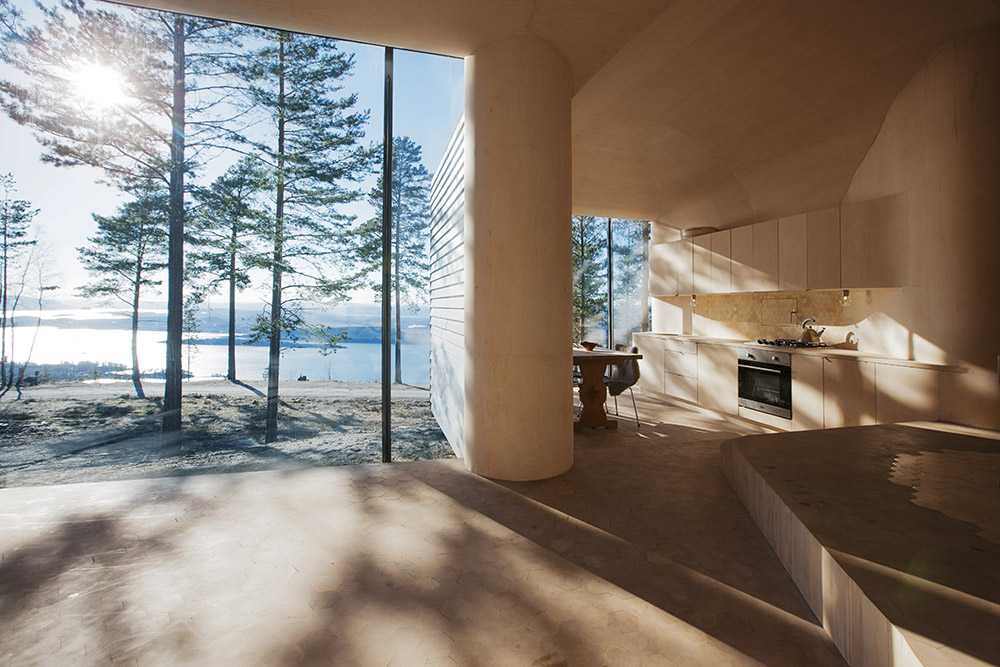

Large glass walls are located in the living and dining areas. The frames of the glass are detailed carefully to avoid seeing it from the inside. This creates a more direct relationship with the nature outside.

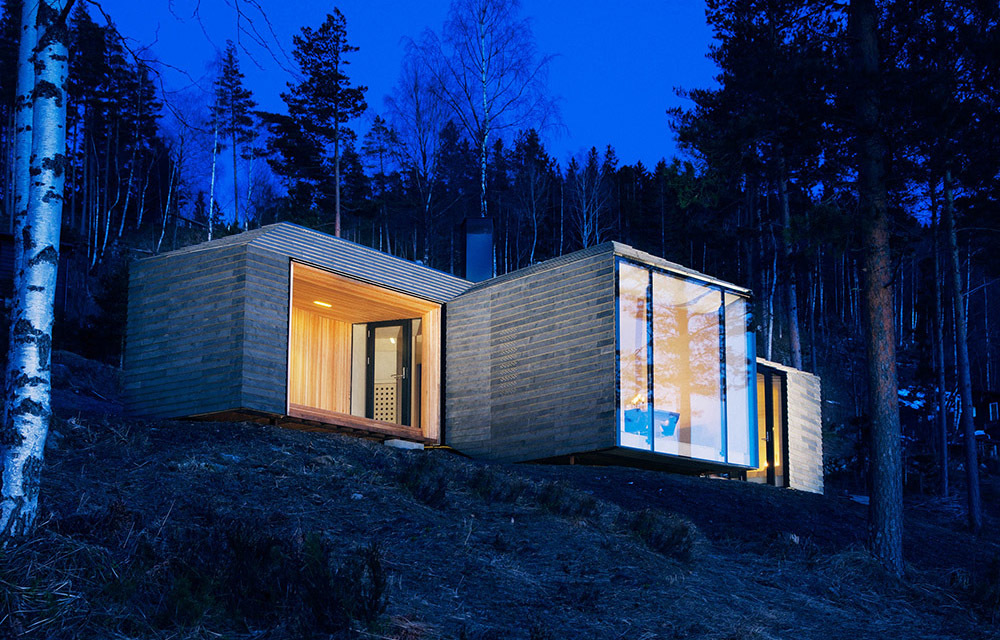

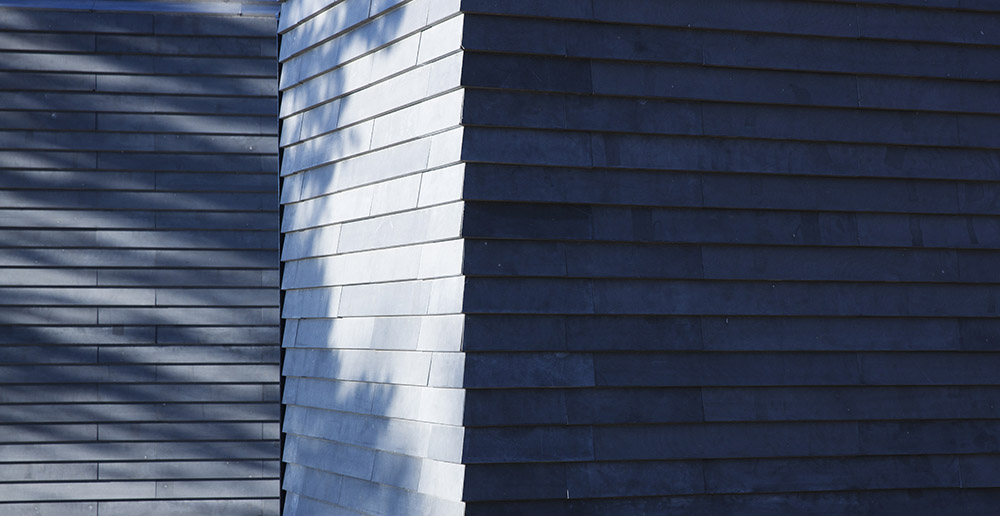

Outside, the cottage has a more rectangular geometry and the walls and roofs are covered with 20mm basalt stone slabs laid in a pattern similar the ones often used for traditional wooden claddings in Norway.

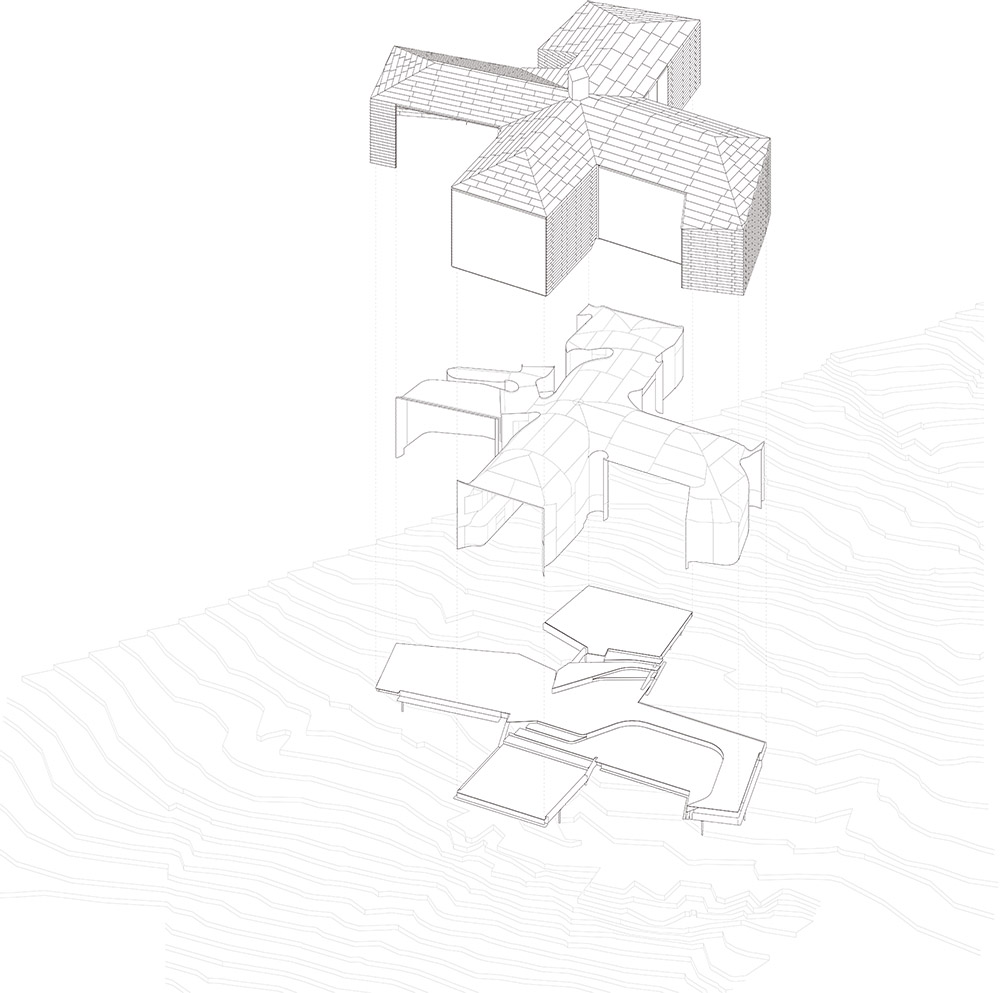

The lodge consists mainly of prefabricated elements. The main structure is laminated timber completed with a substructure of Kerto construction plywood. The Kerto boards are CNC milled and defines the geometry both externally and internally. The cabin is supported by steel rods drilled directly into the rock, supplemented with a small concrete foundation under the fireplace for stabilization.

Name of project:Cabin Norderhov
Completed: 2014
Client:Private
Architect: Atelier Oslo
Team:Nils Ole Bae Brandtzæg, Thomas Liu, Marius Mowe, Jonas Norsted, Juan Ruiz, Bosheng Gan, Sveinn Thorarinsson, Emmanuel Ferm
Consultants:Estatikk AS v/Sivilingeniør Ole Morten Braathen, Aps AS v/KåreWærnes, MoelvenLimtre AS v/ Rolf Evensen, Concept design
v/Fredrik Eng,
Main conctractor:Byggmester Bård Bredesen
Gross area: 80 kvm
Photo credits: Lars Petter Pettersen, Jonas Adolfsen

MORE: Atelier Oslo，更多请至：Atelier Oslo on gooood
