成立于2005年的BigRock动画学院是欧洲3D动画领域最负盛名的教育机构之一，这所魔法技术学院，每年能够培训出数百名新生。在ZAA事务所的精心设计下，两座旧仓库变身为BigRock动画学院的全新总部。项目位于Ca’Tron Estate综合农业区，占地面积超过1200公顷，被公认为是威尼托地区最大的农业综合体。

Founded in 2005, BigRock is one of the most prestigious realities in the European 3D animation scene, a school – Institute of Magic Technologies – that “trains” hundreds of new students every year. The project for the new headquarters consists in the recovery and set-up of two former warehouses of the Ca’ Tron Estate, an agricultural complex that extends over an area of 1200 hectares and is considered the largest agricultural estate in the Veneto region.

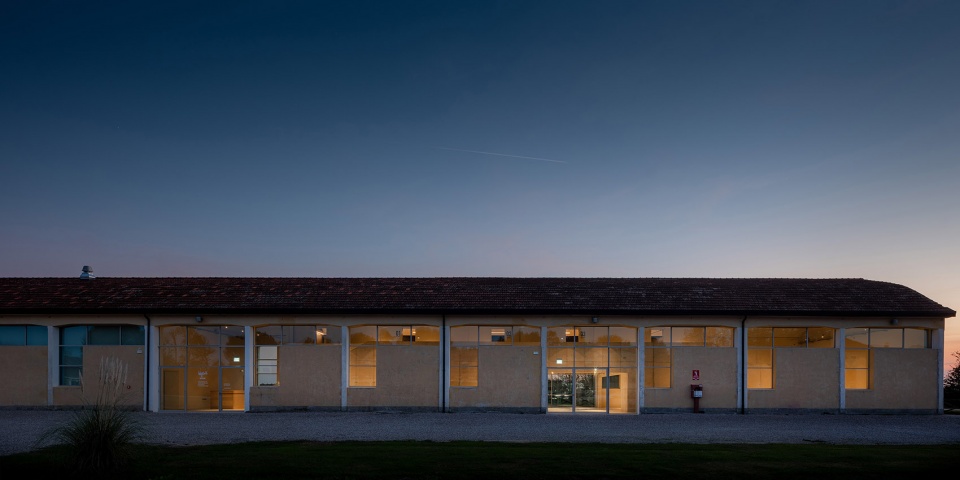

▼外观夜景，night view of the exterior © ZAA Zanon Architetti Associati

两座仓库被分别改造成BigRock短期培训教学楼与正式教学楼。在短期培训教学楼中，设计理念旨在赋予原仓库的巨型拱顶空间更高的包容性与灵活性，封闭的体量避免了室内空间受到外部坏境的干扰，而建筑内部的空间系统则是灵活可变且经济实用的。为了达到这一目标，建筑师采用了轻金属结构与隔音板幕墙的组合。按功能划分的区域，由一条非线性的长廊串联起来，形成流线清晰分区明确的平面布局。

In the first intervention (Temporary BigRock) the system used to divide the large vaulted spaces into more contained and adequately insulated environments is flexible, economical and removable: it consists of a light metal structure combined with a soundproofing panel curtain wall. The articulated layout of the plan has made it possible to define areas differentiated by function, connected by a long, non-straight corridor.

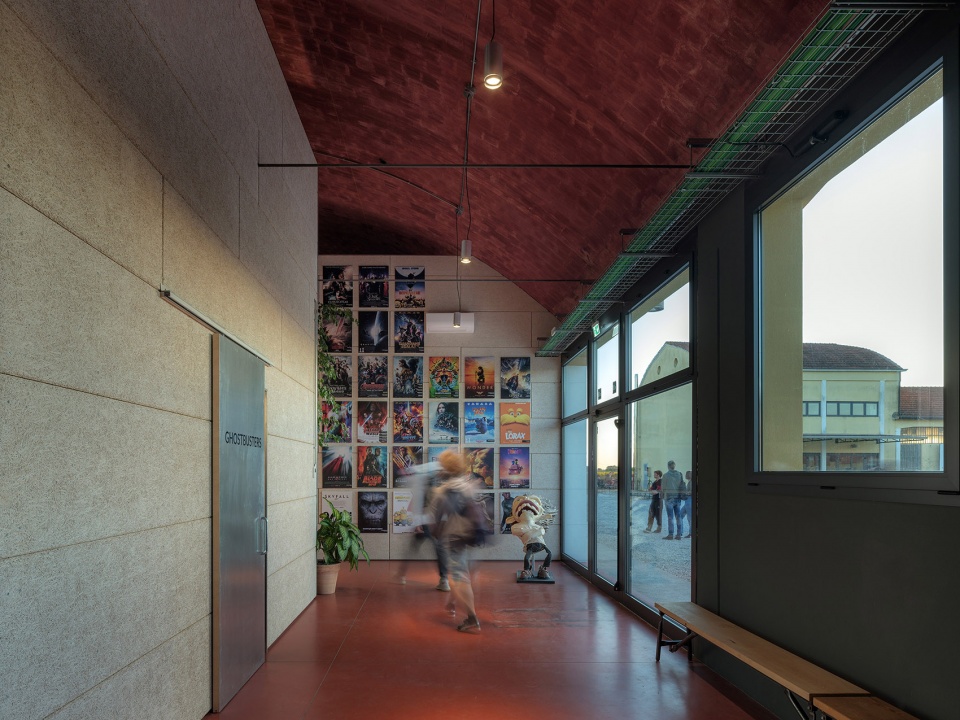

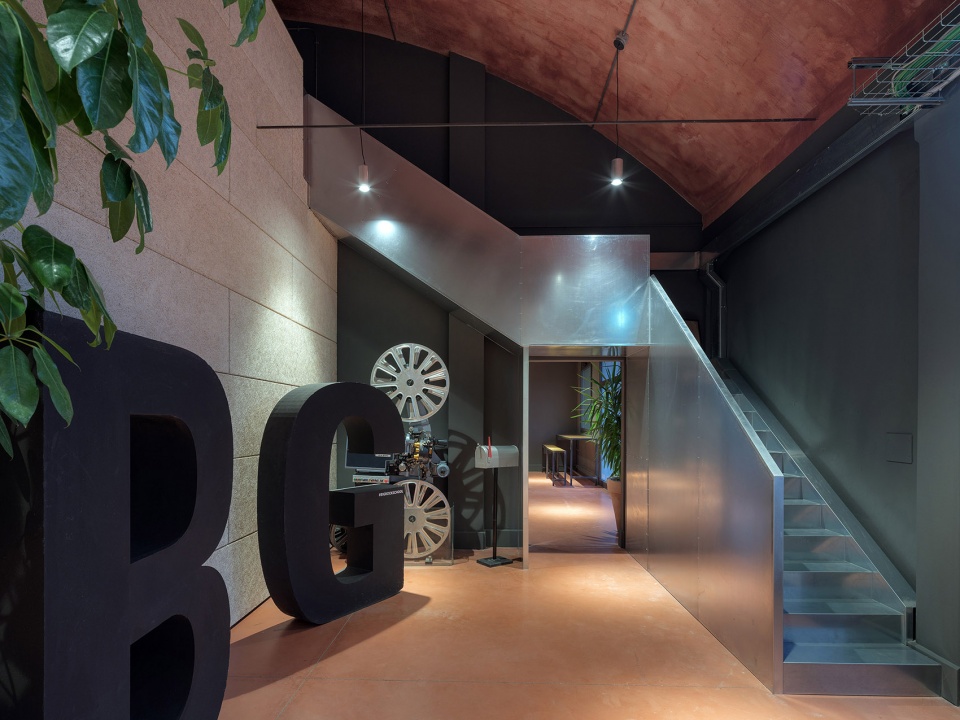

▼短期培训教学楼门厅，entrance hall of the Temporary BigRock © ZAA Zanon Architetti Associati

▼轻金属结构与隔音板幕墙组合，light metal structure combined with a soundproofing panel curtain wall © ZAA Zanon Architetti Associati

▼教学空间，training space © ZAA Zanon Architetti Associati

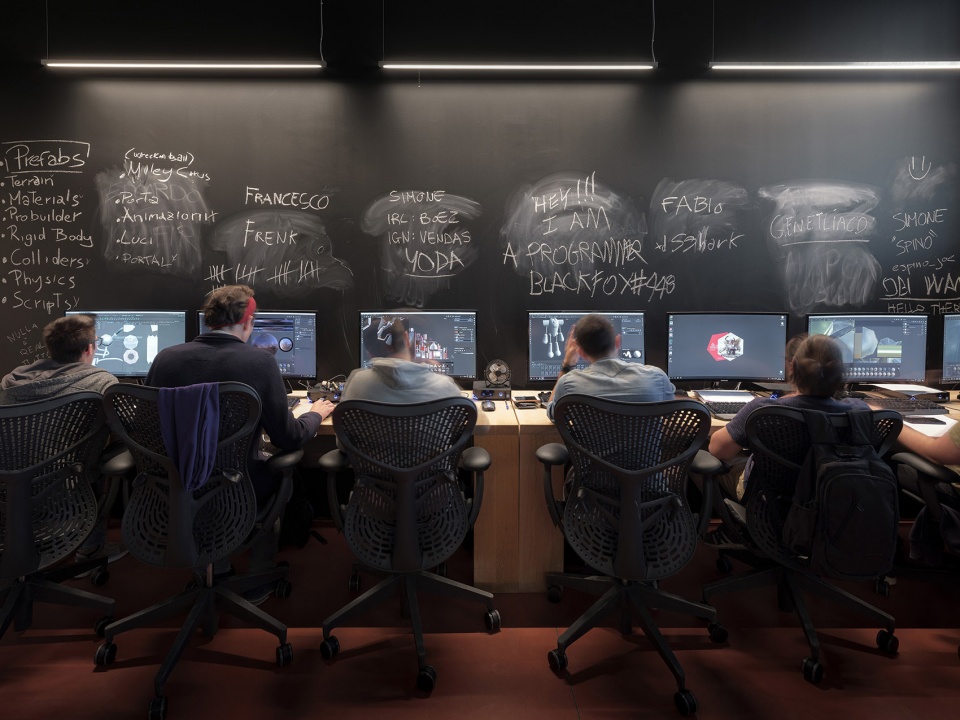

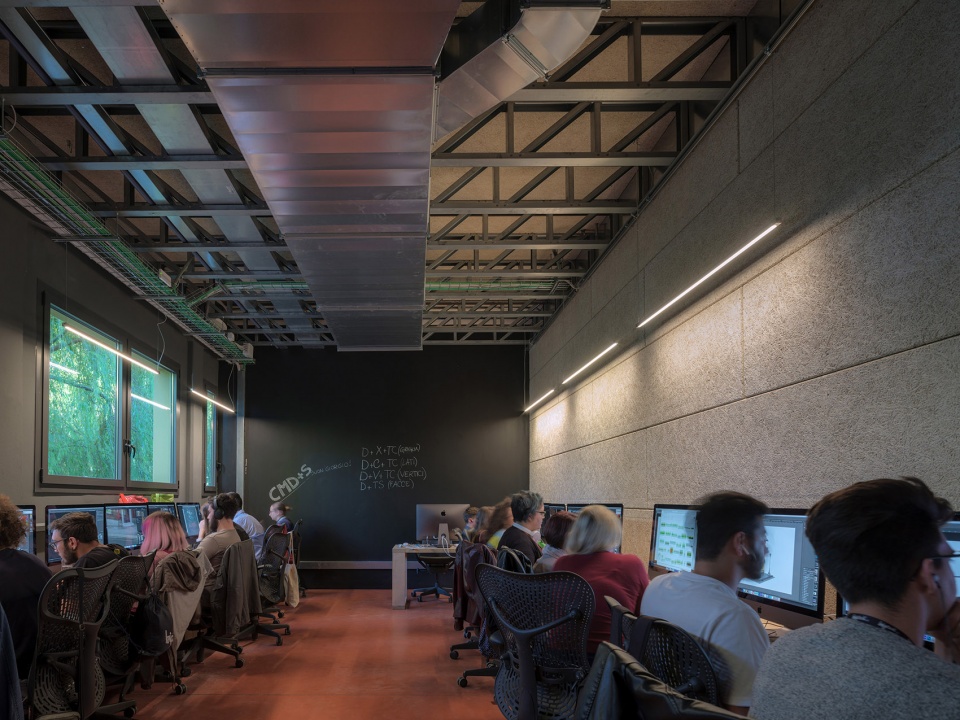

▼学生进行动画培训的场景，Scene where students are being trained in animation © ZAA Zanon Architetti Associati

功能体块的顶部形成夹层，可由三部金属楼梯到达，这些夹层空间成为主要空间的延伸，为人们提供了更为丰富的活动场地。沿着走廊漫步，底楼与夹层之间形成一系列连续的视觉交流，为人们展示出一幕幕生动的生活与教学场景。

The mezzanine, reachable by three metal staircases, leans on these “rooms” becoming a further floor where different activities take place. Walking along the corridor a succession of views put the ground floor in a continuous visual communication with the mezzanine floor.

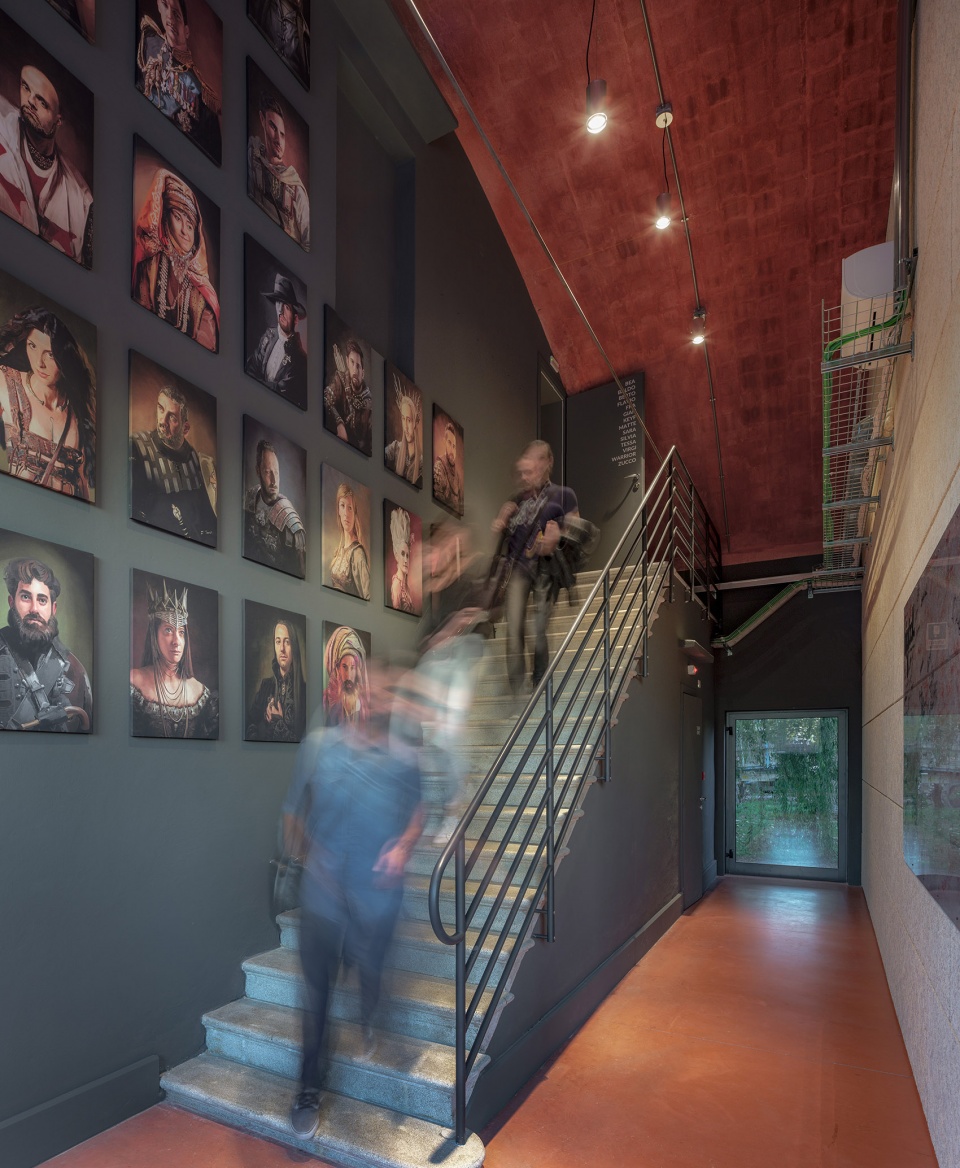

▼金属楼梯连接了底层与夹层空间，The mezzanine reachable by three metal staircases © ZAA Zanon Architetti Associati

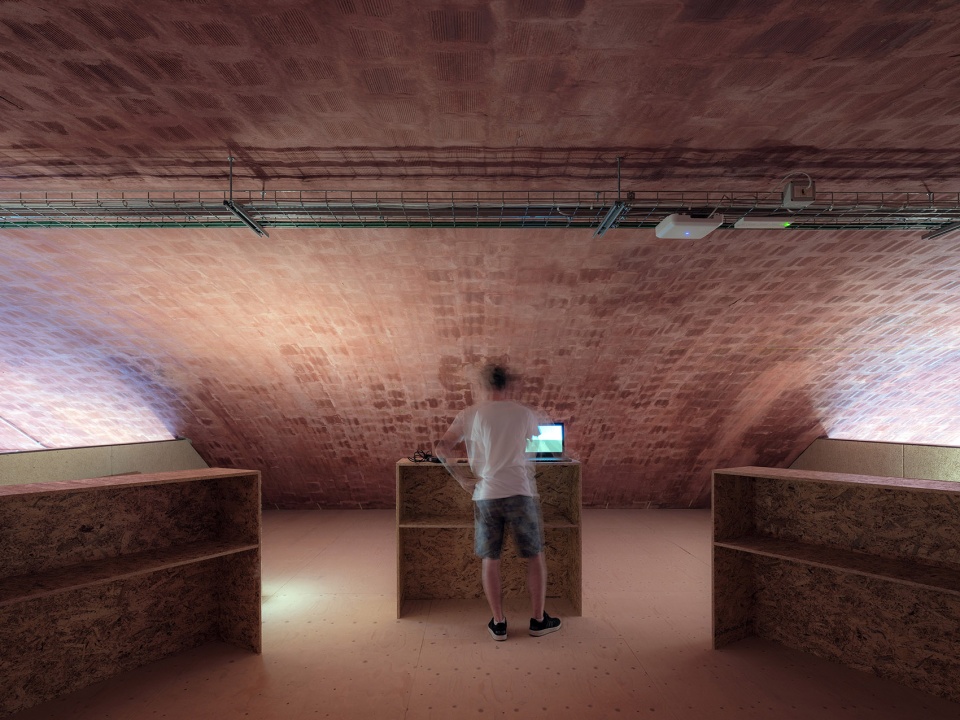

▼夹层概览，overall of the mezzanine © ZAA Zanon Architetti Associati

在正式教学楼中，全新的办公空间从原厂房结构中独立出来。首先，建筑师充分利用了原仓库的整个高度，将由混凝土构成的功能体块插入带有连续拱顶的大型开放空间中，使新建部分与现有建筑的石膏饰面形成鲜明对比。

In the second building (BigRock) the new office functions are divided into two separate sections of the space. The first, a large open space with barrel vault, takes advantage of the entire heigh of the former warehouse through the insertion of an reinforced fair face concrete block, contrasting with the plaster surfaces of the existing building.

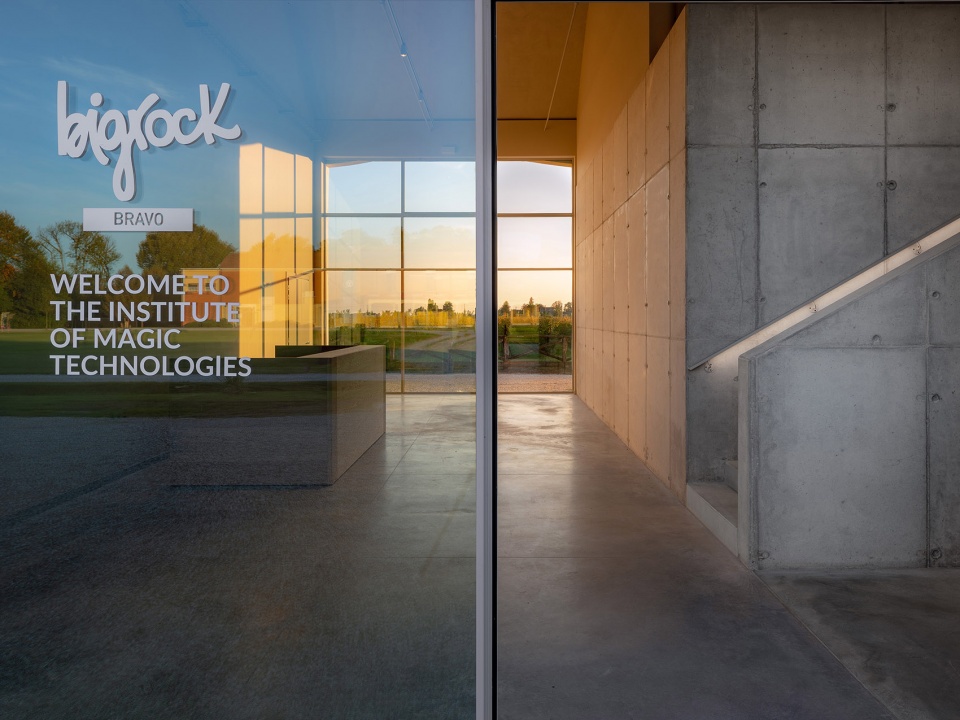

▼正式教学楼入口，entrance of the second building (BigRock) © ZAA Zanon Architetti Associati

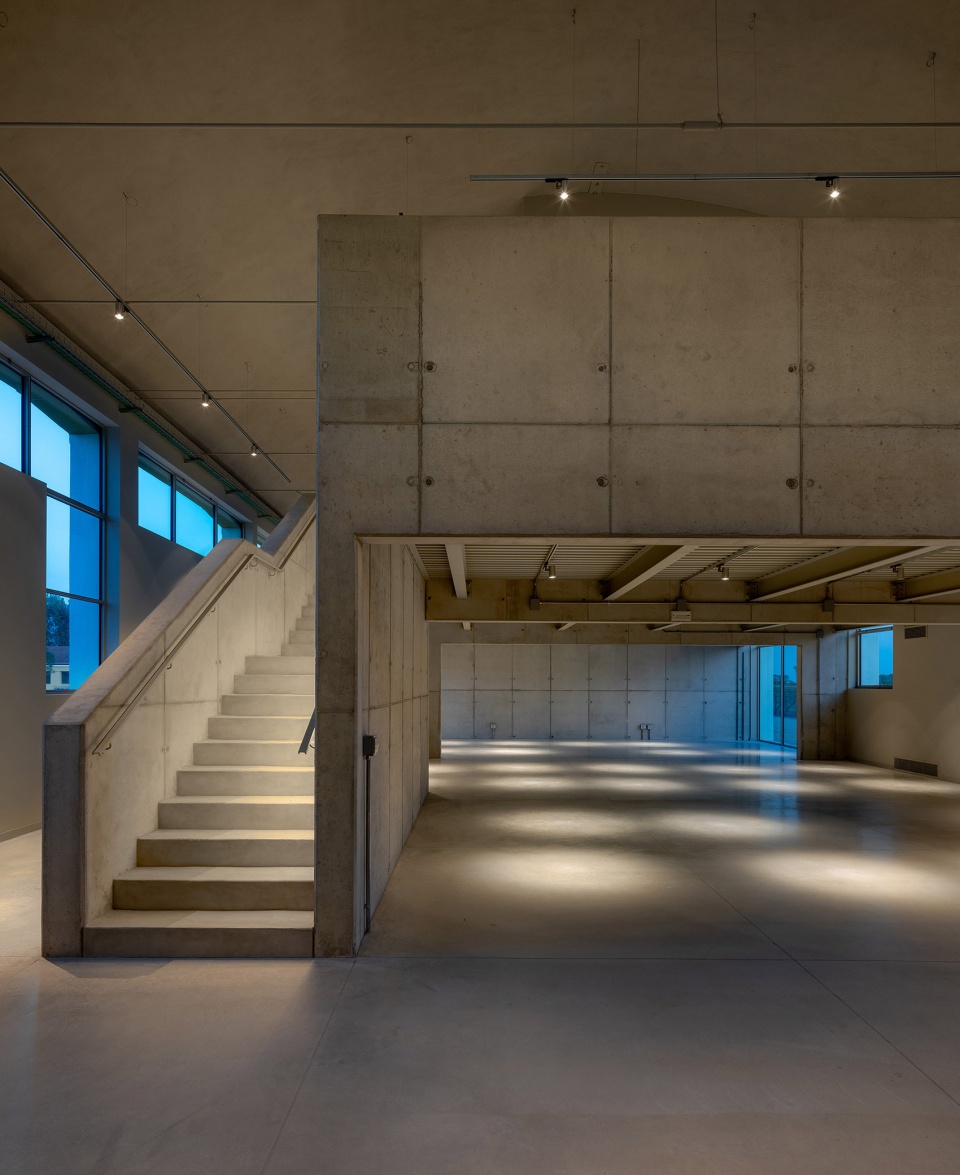

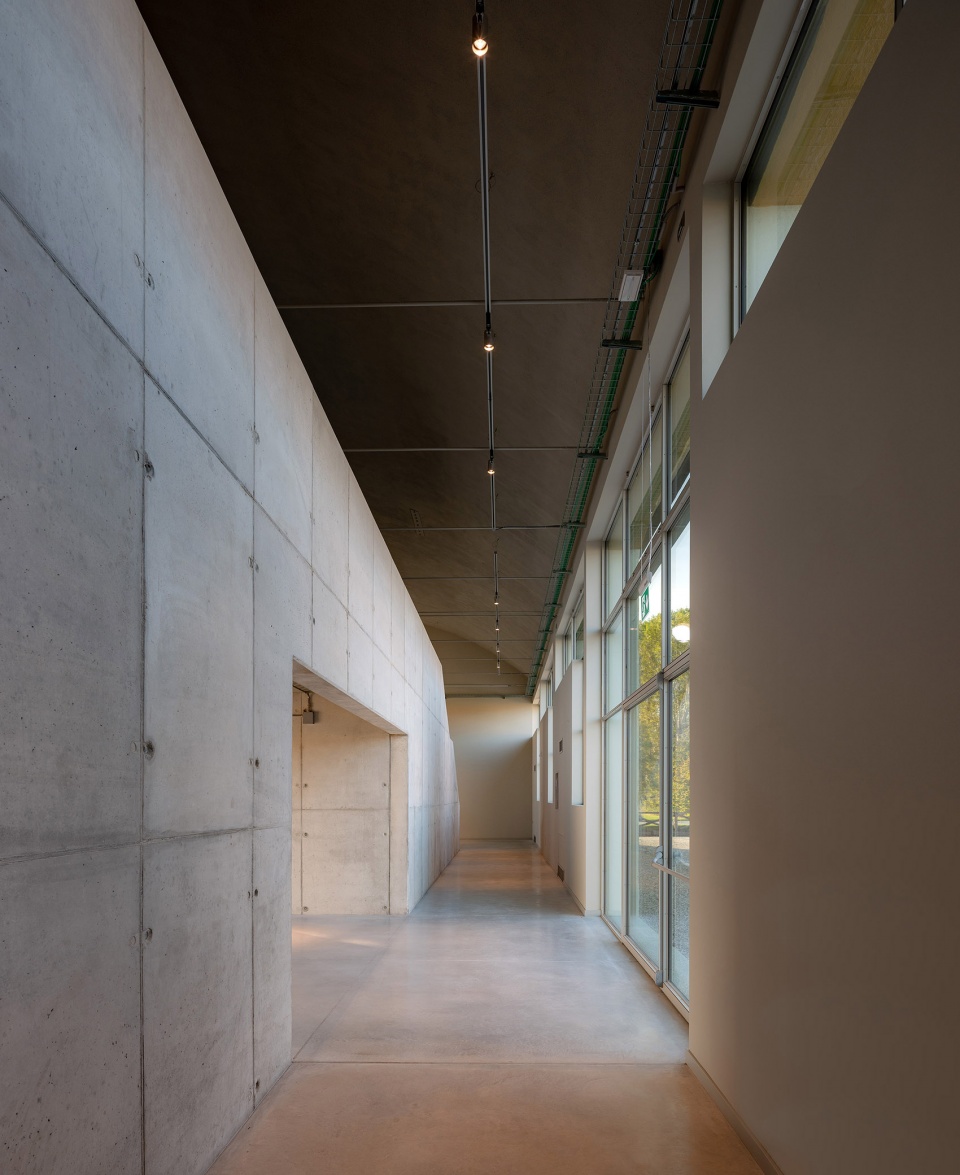

▼混凝土与石膏的对比，concrete block contrasting with the plaster surfaces © ZAA Zanon Architetti Associati

独立的夹层结构将底层的服务空间与上层的封闭工作区分开，底层服务空间包括休息室、技术室和储藏室等。这种设置还在最大程度上发挥出屋顶高度的优势，提高空间利用率的同时，将人们的视线引向南立面的巨大开窗，为人们提供了极佳的景观视野。位于夹层边缘的楼梯对称而笔直，由清水混凝土与功能空间体块整体浇筑而成，是建筑结构与项目设计中的重要组成部分。

This mezzanine structure, structurally independent, houses service spaces on the ground floor, such as lounges, technical and storage rooms and closed working areas on the upper floor, making the most of the roof’s height and overlooking the large windows of the south facade. The symmetrical and straight fair face concrete stairs located on the edges of the mezzanine are an integral part of the block.

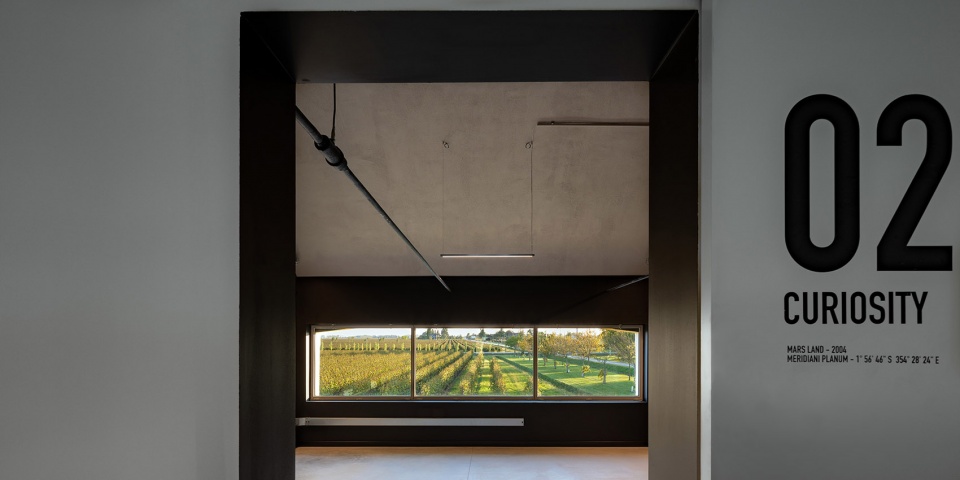

▼南立面的巨大开窗为人们提供了极佳的景观视野， the large windows of the south facade provide great views © ZAA Zanon Architetti Associati

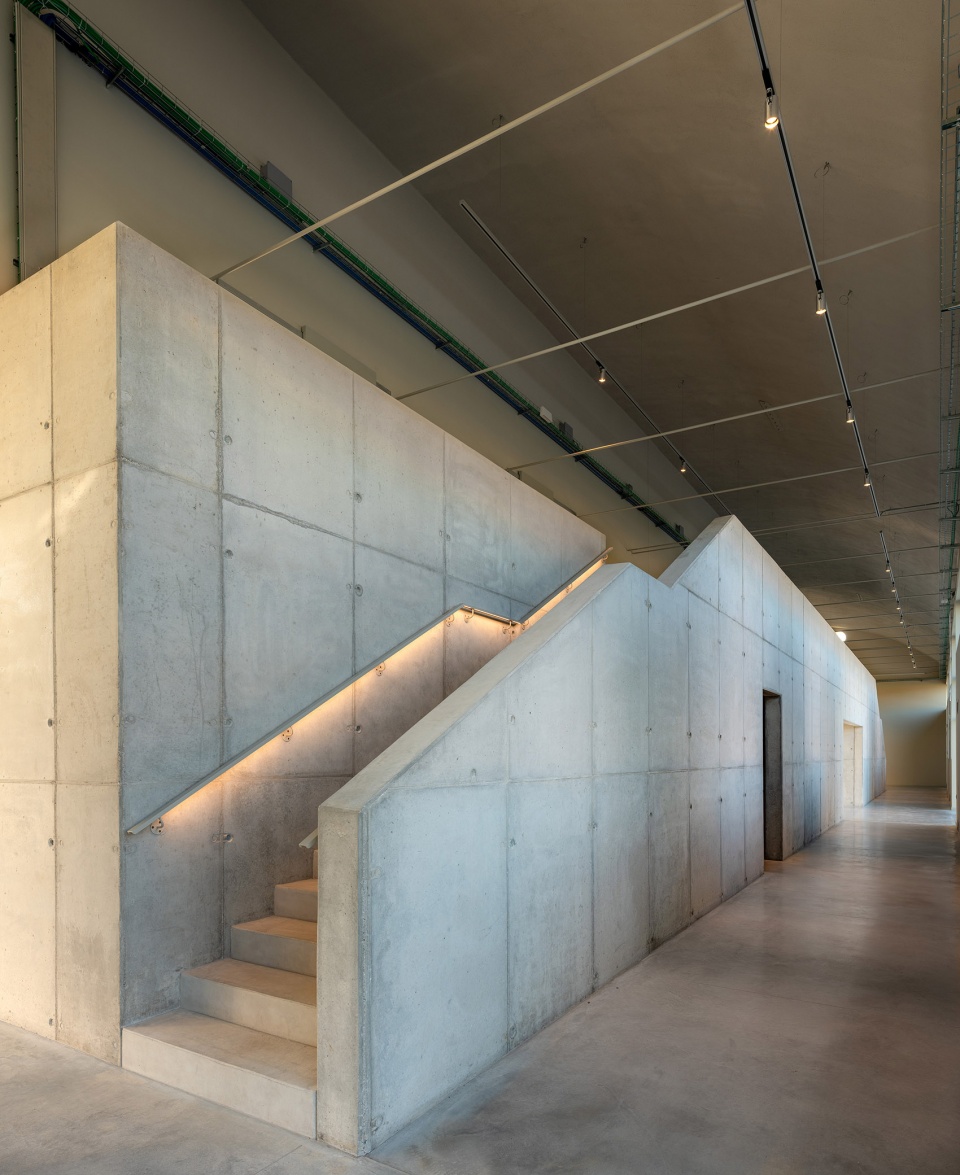

▼清水混凝土楼梯与功能体块整体浇筑，concrete stairs located on the edges of the mezzanine are an integral part of the block © ZAA Zanon Architetti Associati

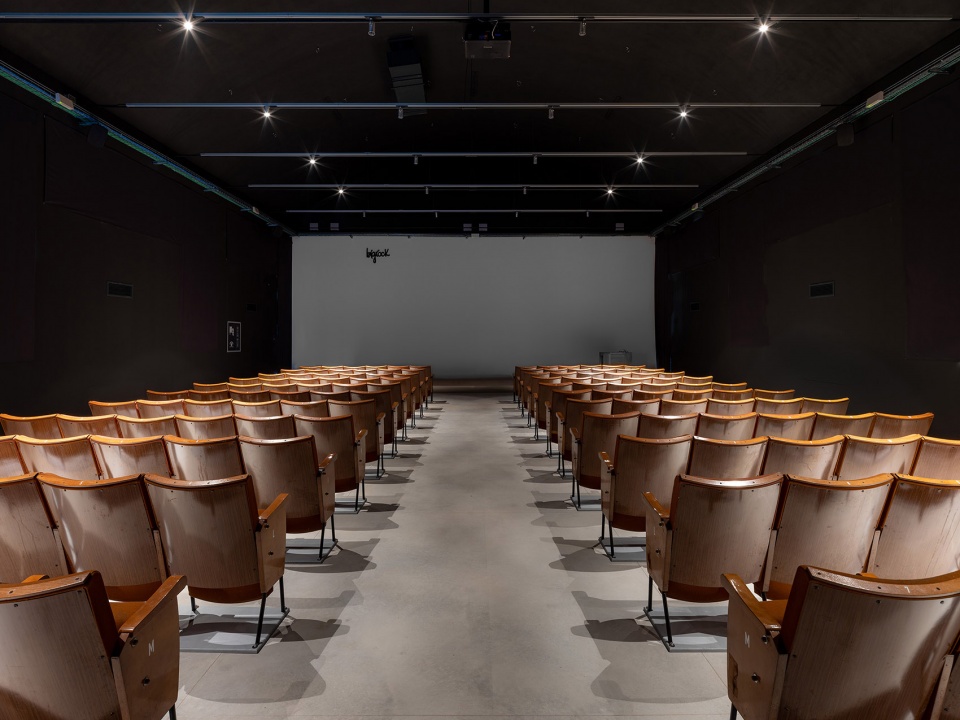

▼报告厅，auditorium © ZAA Zanon Architetti Associati

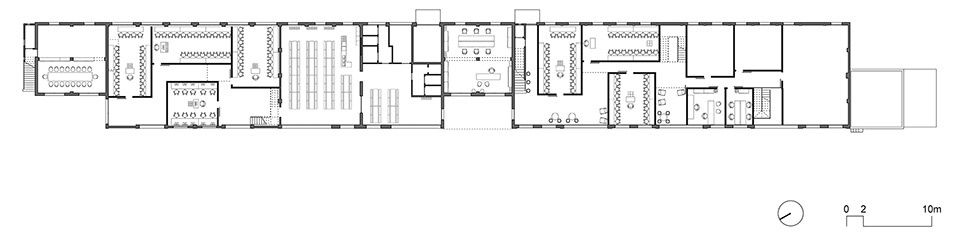

▼短期教学楼底层平面，ground floor of the temporary BigRock © ZAA Zanon Architetti Associati

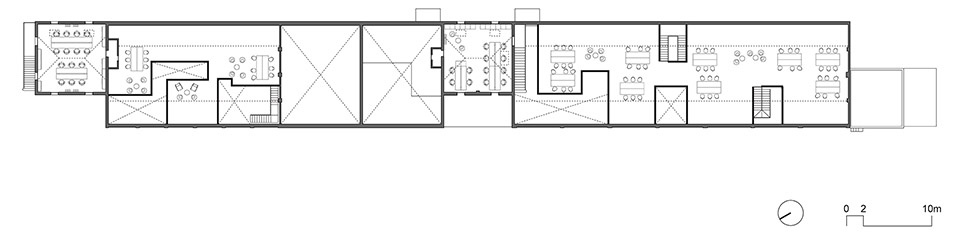

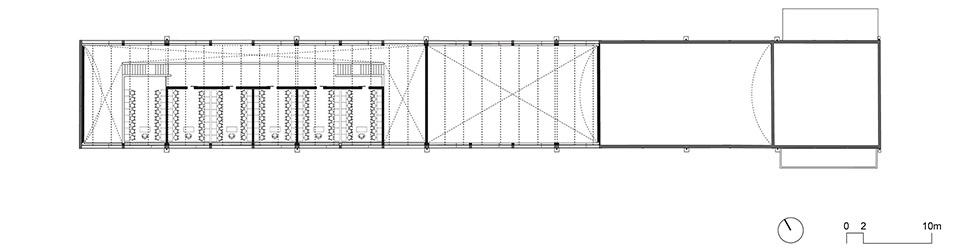

▼短期教学楼夹层平面，mezzanine floor of the temporary BigRock © ZAA Zanon Architetti Associati

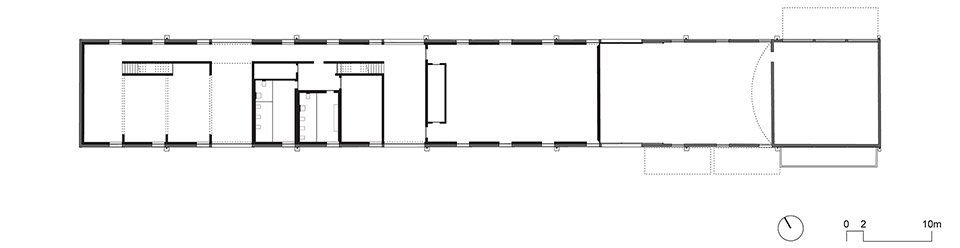

▼正式教学楼夹层平面，ground floor of the BigRock © ZAA Zanon Architetti Associati

▼正式教学楼夹层平面，mezzanine floor of the BigRock © ZAA Zanon Architetti Associati

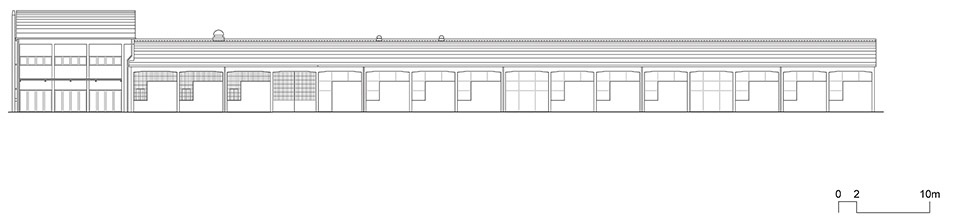

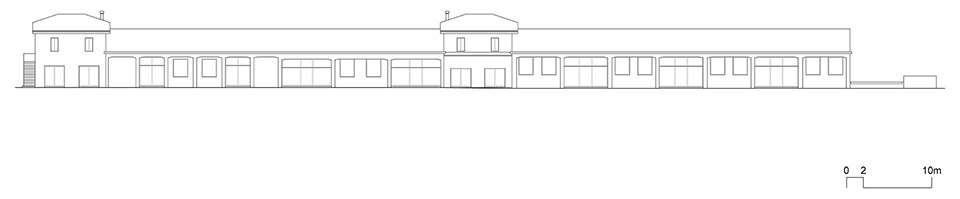

▼短期教学楼立面，elevation of the temporary BigRock © ZAA Zanon Architetti Associati

▼正式教学楼立面，elevation of the BigRock © ZAA Zanon Architetti Associati

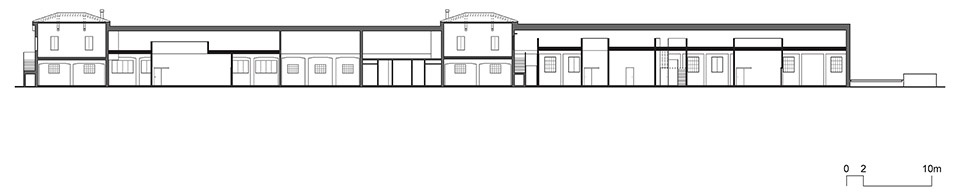

▼短期教学楼剖面，section of the temporary BigRock © ZAA Zanon Architetti Associati

Location: Roncade, Treviso
