感谢 NWLND Rogiers Vandeputte 对gooood的分享。更多关于他们： NWLND Rogiers Vandeputte on gooood
Appreciation towards NWLND Rogiers Vandeputte for providing the following description:

Atelier PPW 位于一所学校的校园内，地处城市化区域。该项目旨在通过设计，将复杂的环境简化为一个清晰而直观的建筑形式。项目要求包含一个用于建筑课程的工作室和一个用于绘画课程的画室。这两个功能空间被整合在一个柱状结构系统内，彼此垂直叠加，从而在地面层的建筑工作坊和一层的绘画画室中创造出开放且灵活的工作空间。

Atelier PPW is located on a school campus in an urbanized area. The project is an exercise in the reduction of context into a simple and clear building. The brief called for one workshop space to accommodate building courses and one studio for painting courses. These volumes are held within a column system, that allows the two volumes to be stacked to create an open and flexible workspace on both the ground floor building atelier and the first-floor painting atelier.

▼项目鸟瞰，Ariel view of the project ©Johnny Umans

▼建筑外观，exterior of the building ©Johnny Umans

在地面层，结构系统设置了一个宽敞的开口朝向街道。这一设计形成了一个带遮蔽功能的入口区域，将街道与通往学校入口的庭院连接起来。建筑的立面清晰展现了两种功能空间的框架，同时抽象化地反映了与周围建筑立面之间的关系。

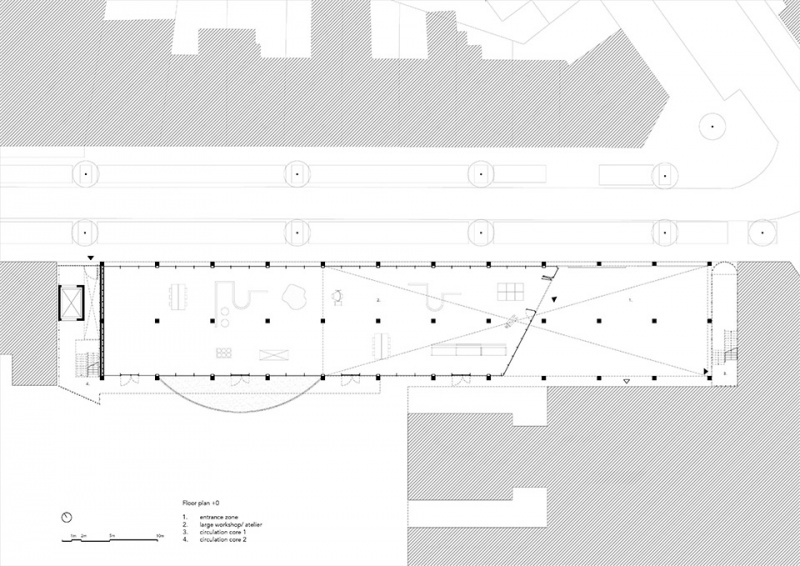

▼一层平面，ground floor plan ©NWLND Rogiers Vandeputte

On the ground floor, the structural system also allows for a generous opening towards the street. This creates a covered entrance zone that establishes a connection between the street and the adjacent courtyard that leads to the school’s entrance. The structural system can be best understood in the building’s elevation as one can see the framing of two spaces and the relationship and abstraction of the neighbouring elevations.

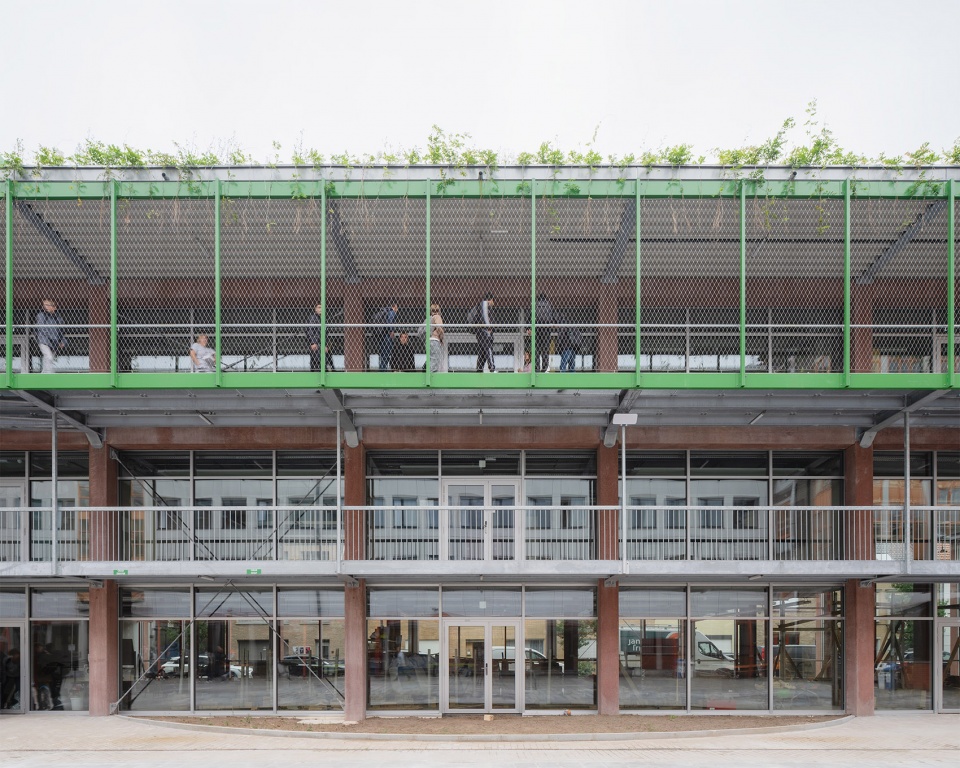

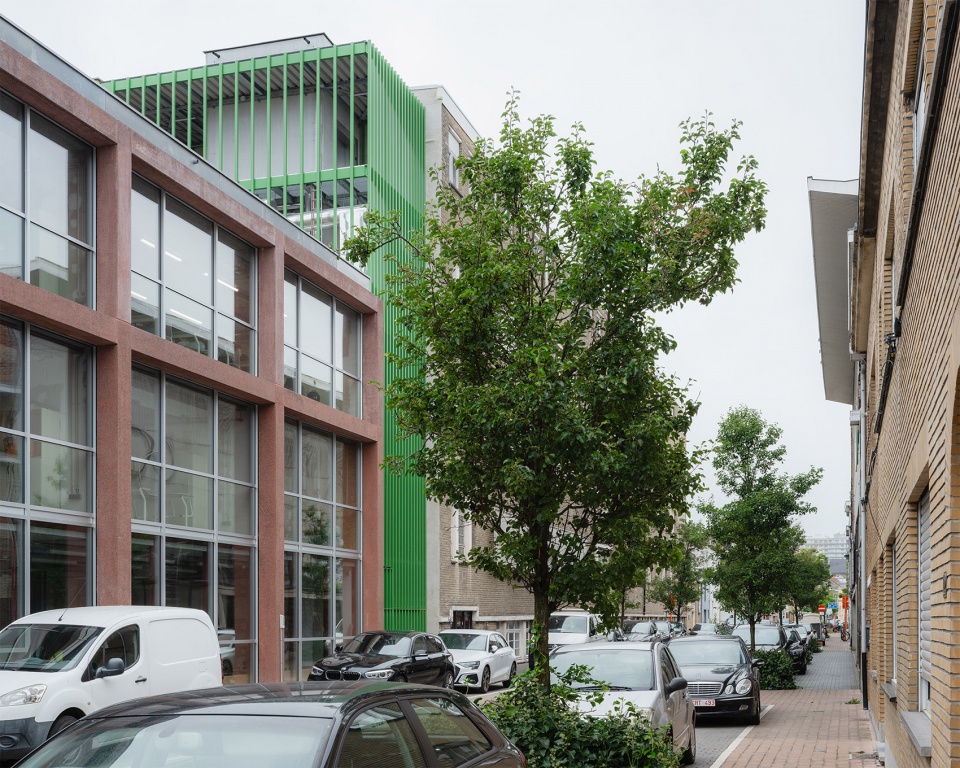

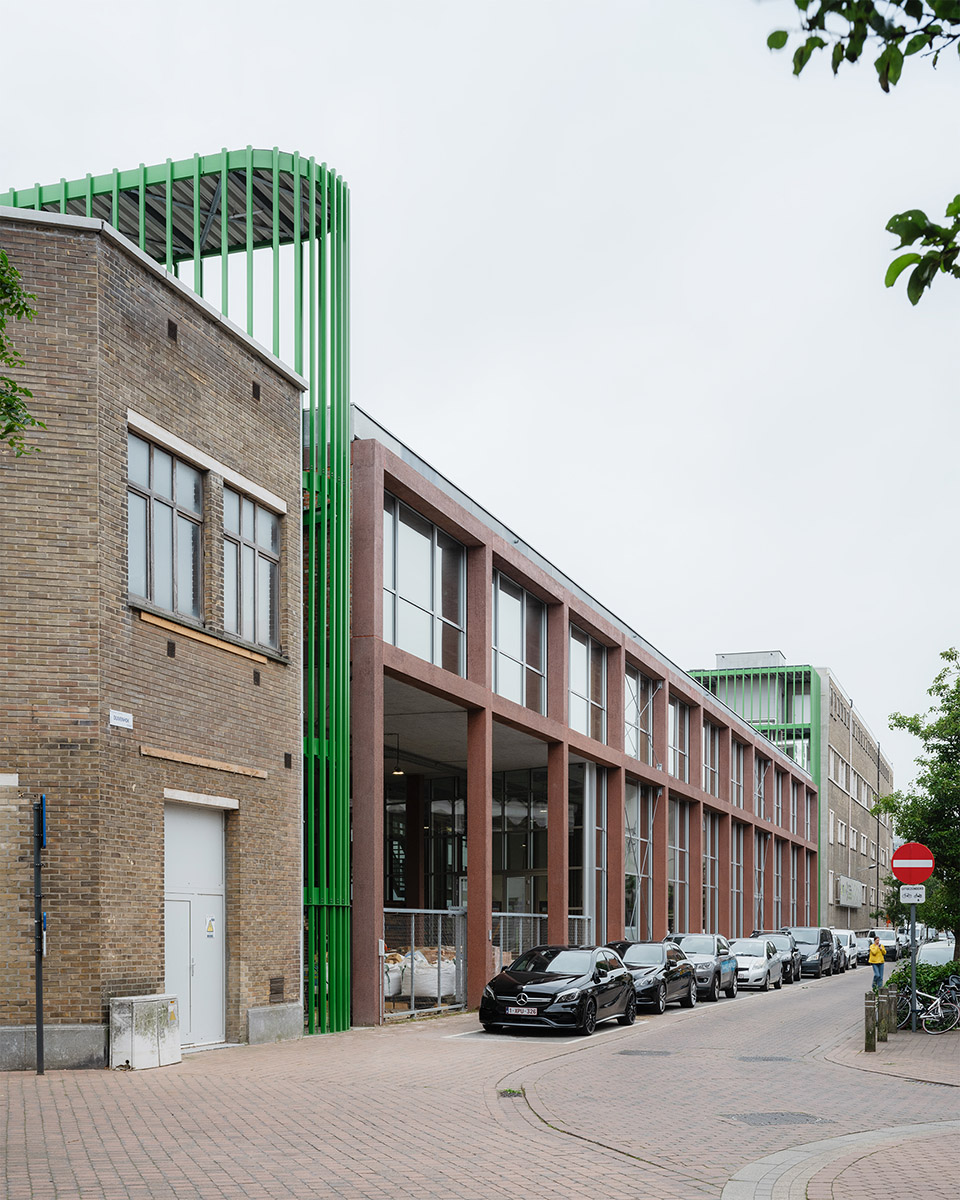

▼建筑街景，street view of the building ©Johnny Umans

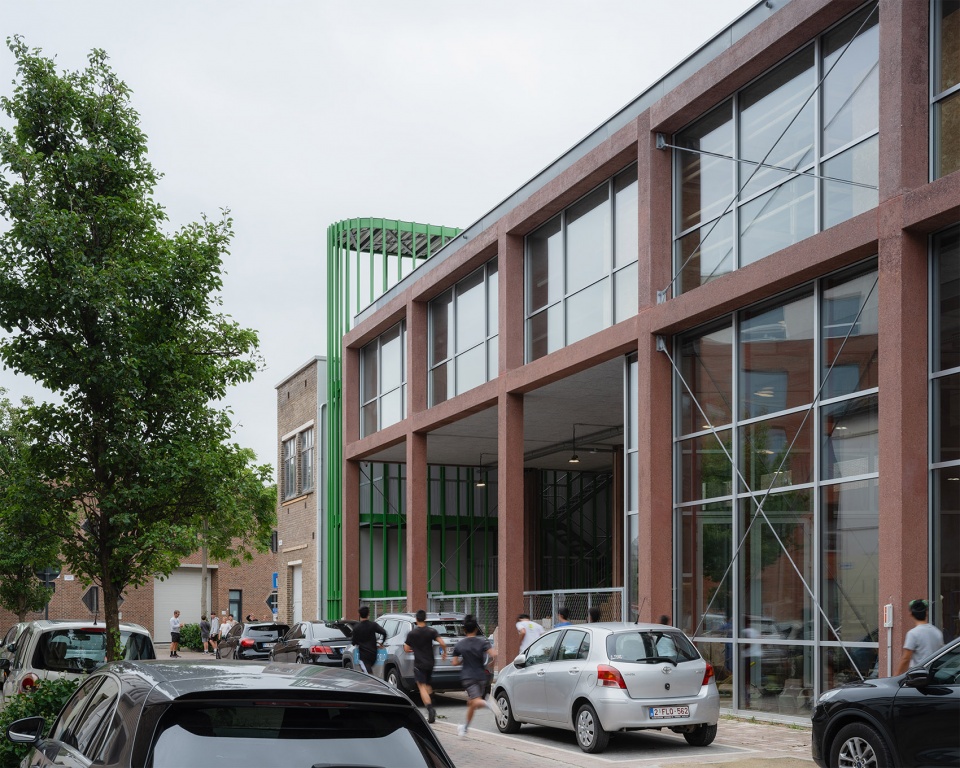

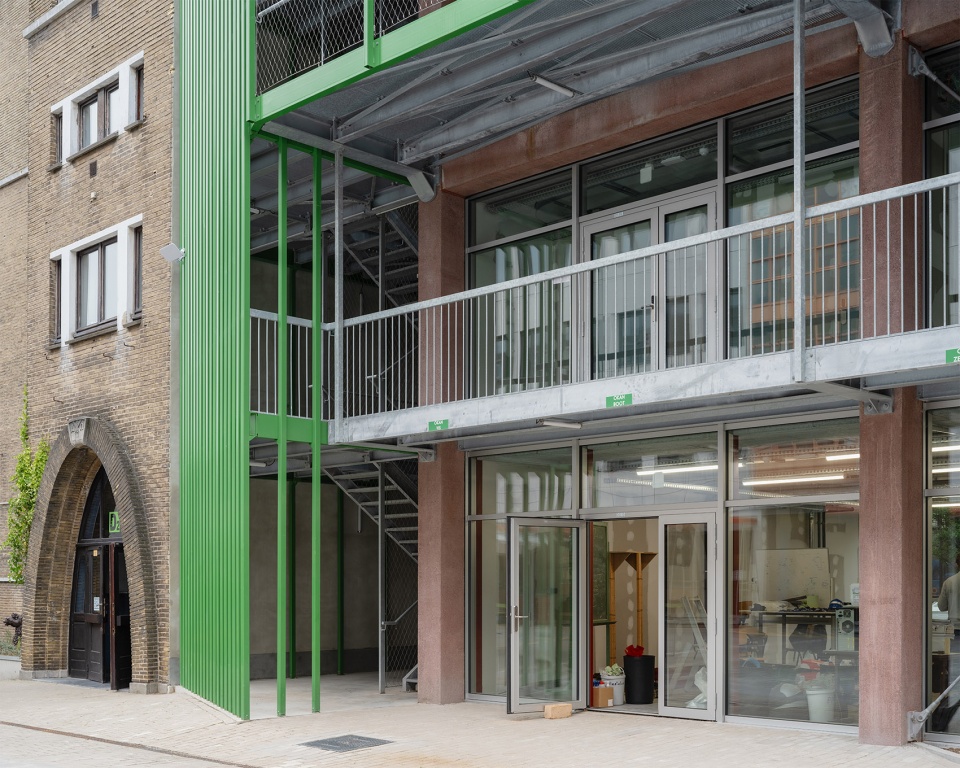

▼地面层的开口，the opening on the ground level ©Johnny Umans

▼地面层的开口，the opening on the ground level ©Johnny Umans

在南侧，结构向外延伸，形成了一个通向操场的雨篷。雨篷不仅能够减少太阳热量的直接辐射，还引入了一道绿植景墙，作为将现有硬质操场转变为绿色景观的第一步。雨篷同时充当了一层画室的外部走廊。建筑的所有交通核心，包括垂直和水平流线通道，均位于主玻璃体量之外，从而赋予项目简洁清晰的外观。此外，我们还建议在屋顶设置一个可供通行和社区聚会的公共空间。

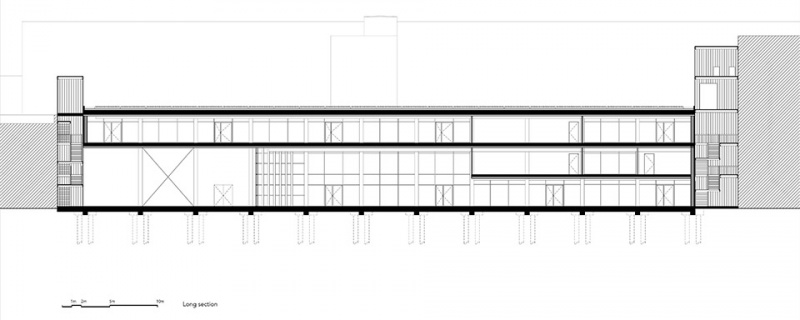

▼剖面，section ©NWLND Rogiers Vandeputte

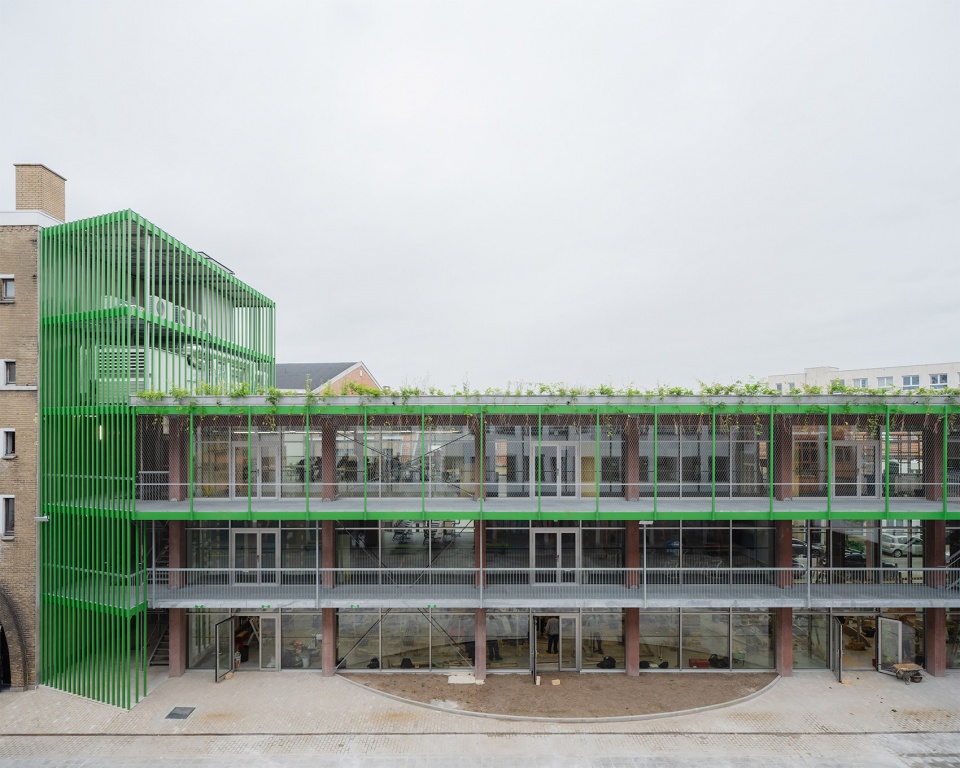

Towards the south, the structure extends to create a canopy that reaches towards the playground. This manages the solar gains and introduces a planted screen as a first step in converting the existing mineral playground into a green landscape. The canopy functions as an external corridor for the ateliers on the first floor. All circulatory cores both, vertical and horizontal are external from the main glass volumes to allow for a clear and simple appearance to the project. Moreover, we propose an accessible rooftop for circulation and as a communal gathering space.

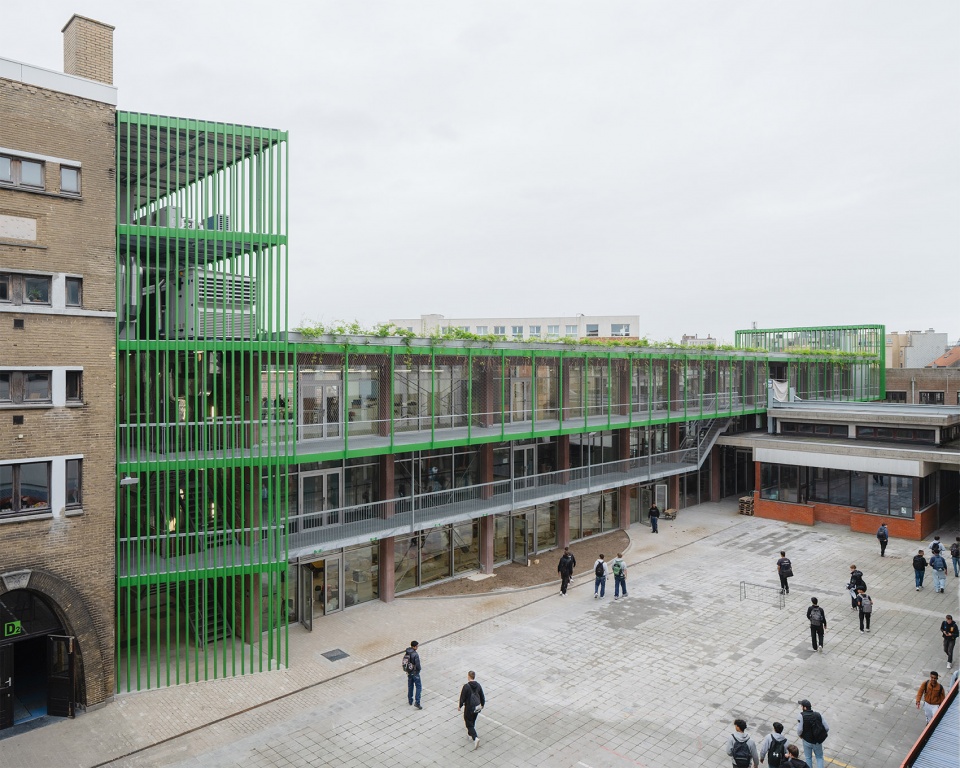

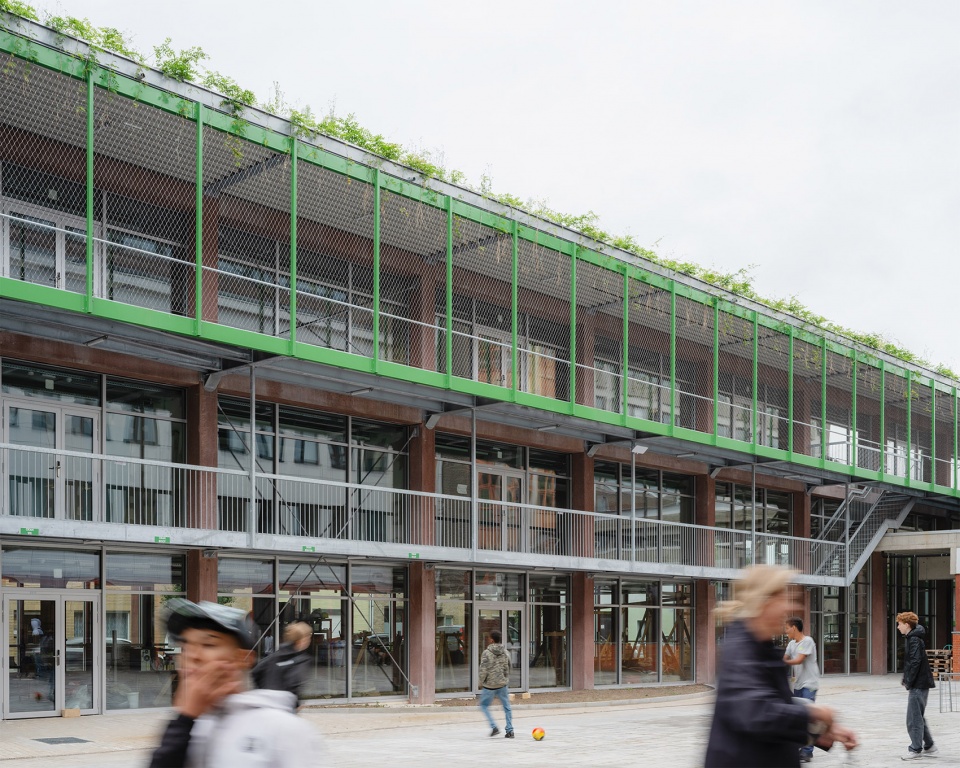

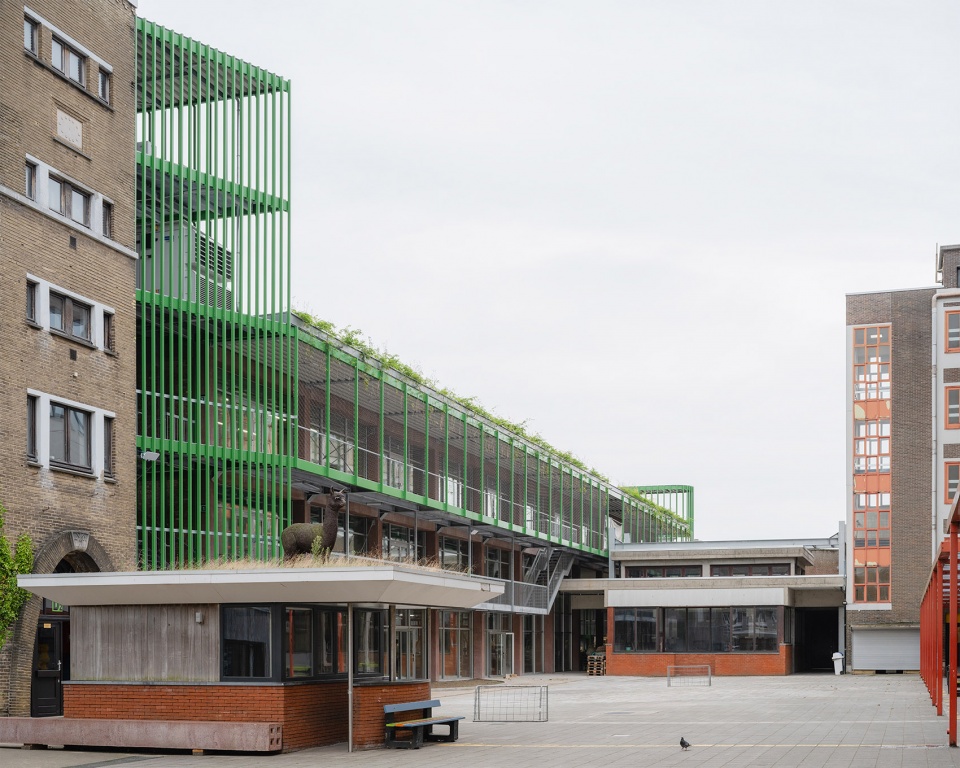

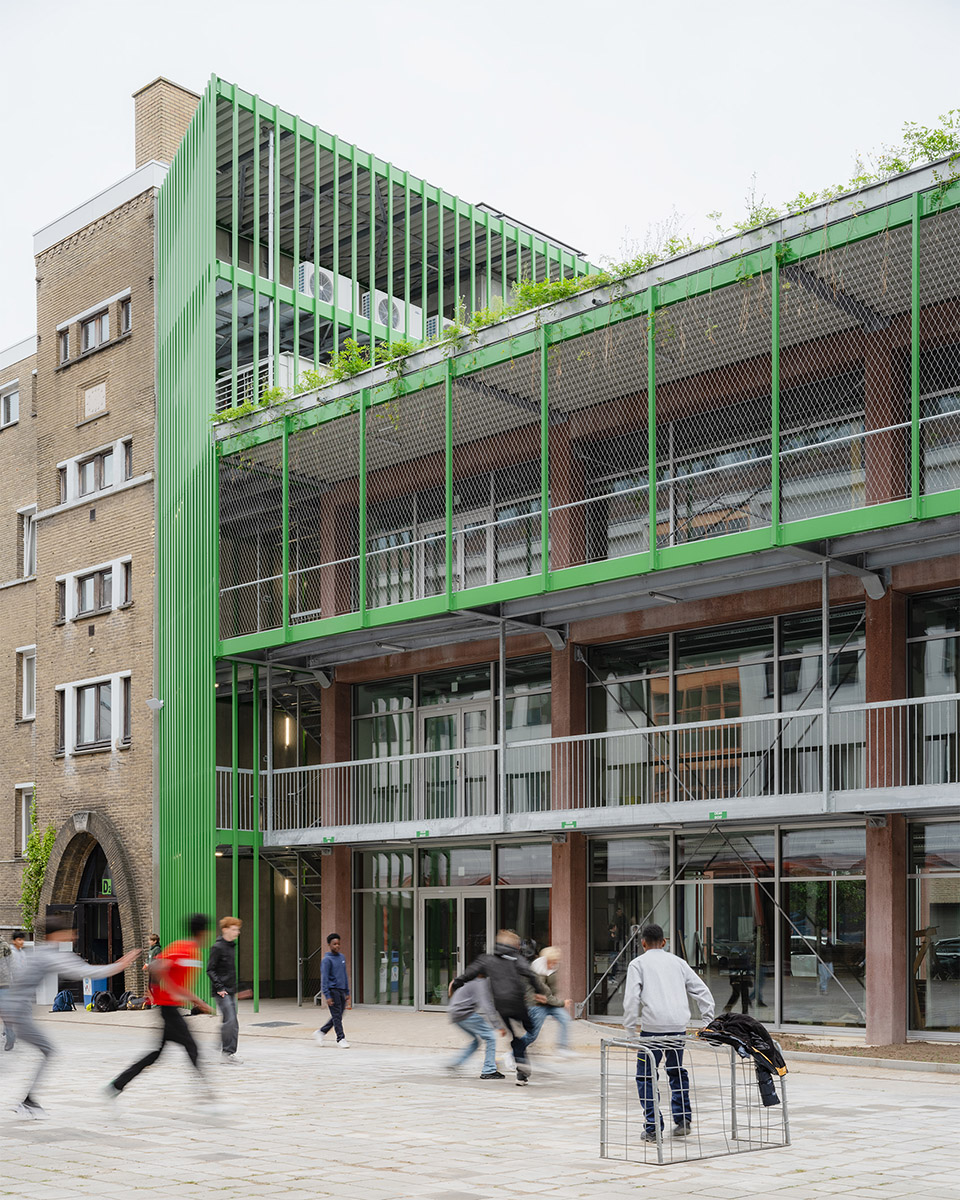

▼通向操场的雨篷，create a canopy that reaches towards the playground ©Johnny Umans

▼通向操场的雨篷，create a canopy that reaches towards the playground ©Johnny Umans

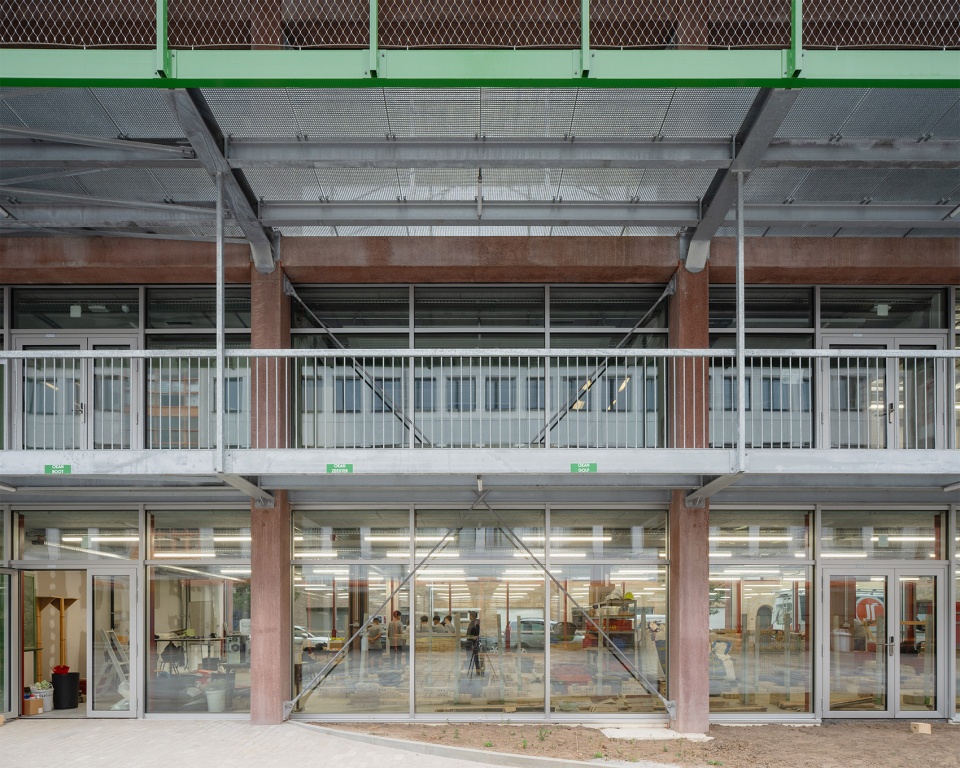

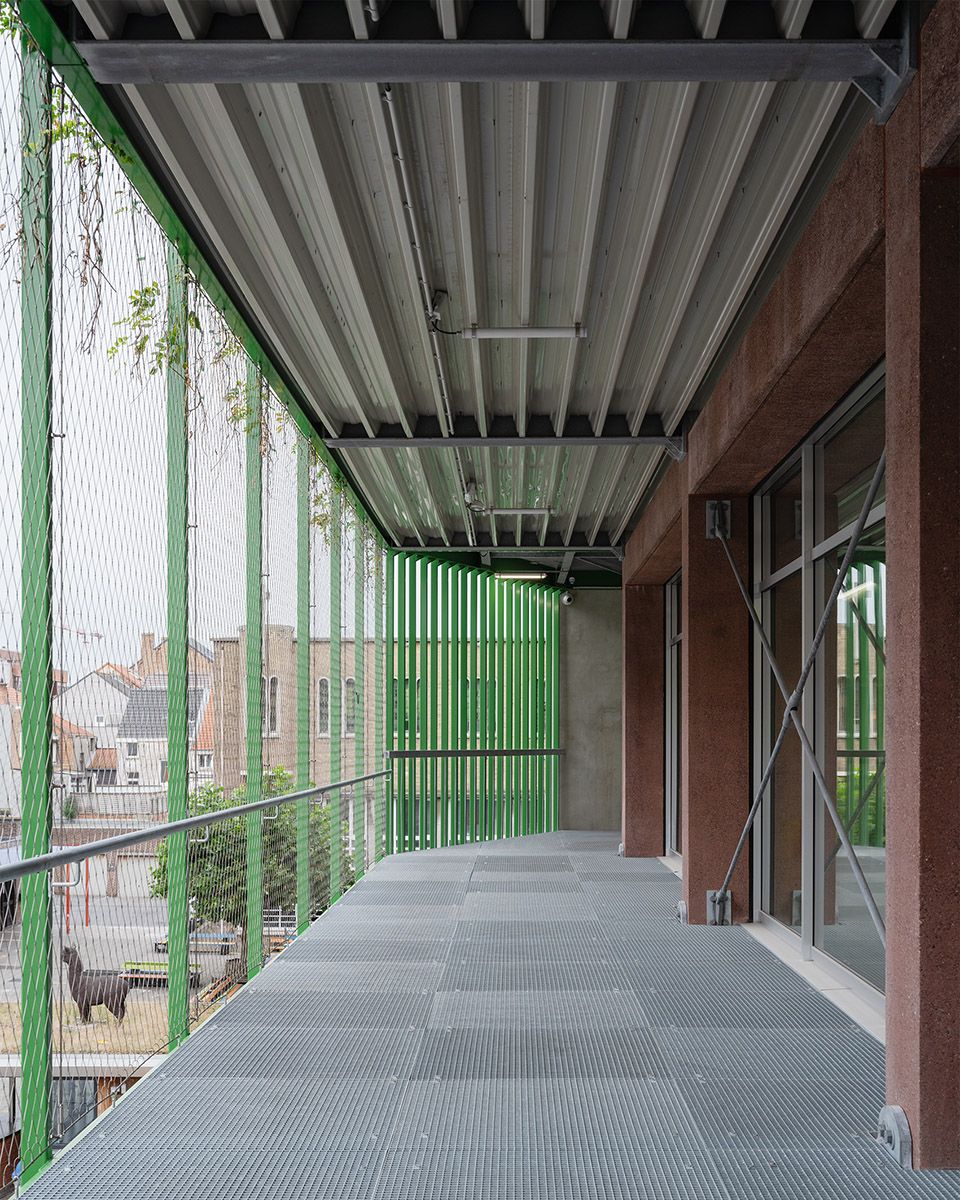

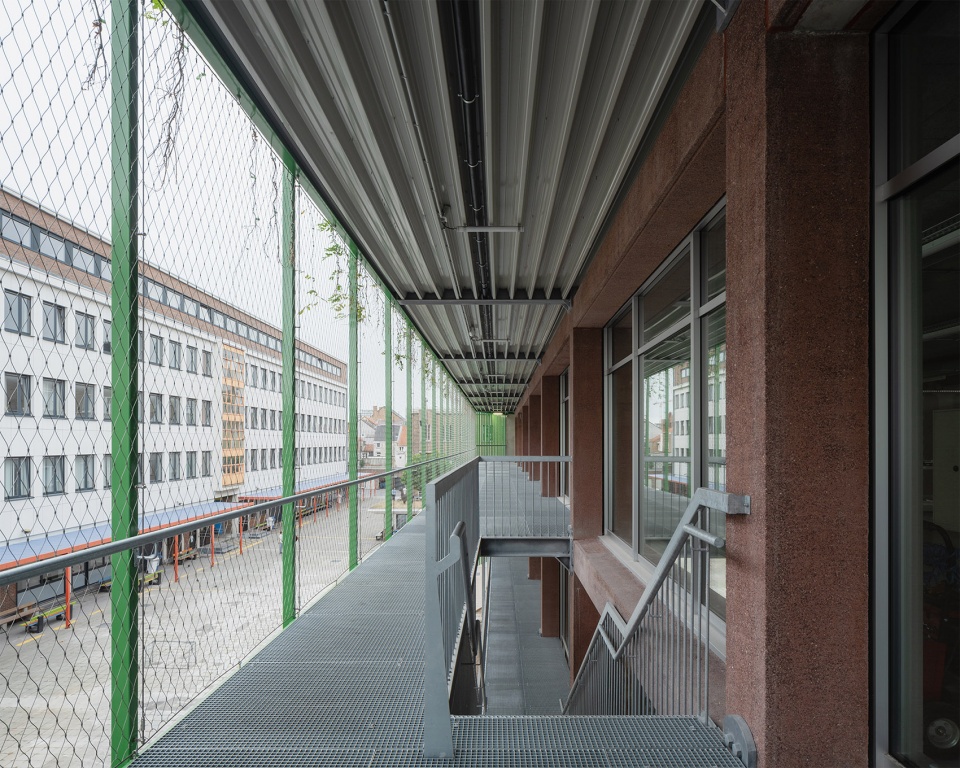

▼外部走廊，an external corridor ©Johnny Umans

▼外部走廊，an external corridor ©Johnny Umans

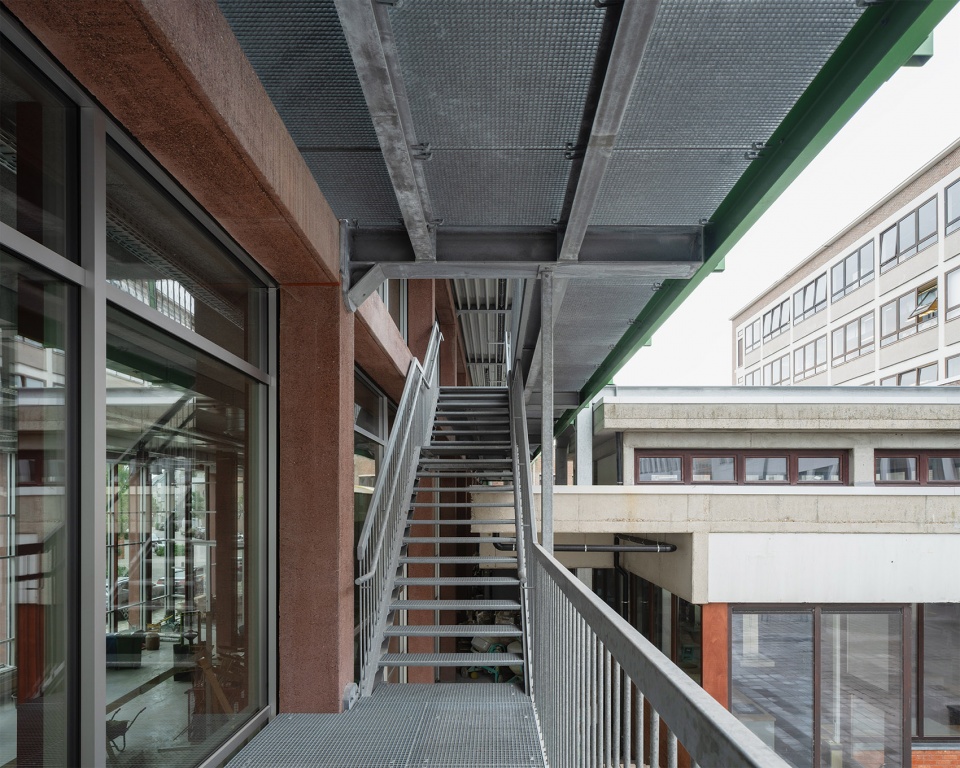

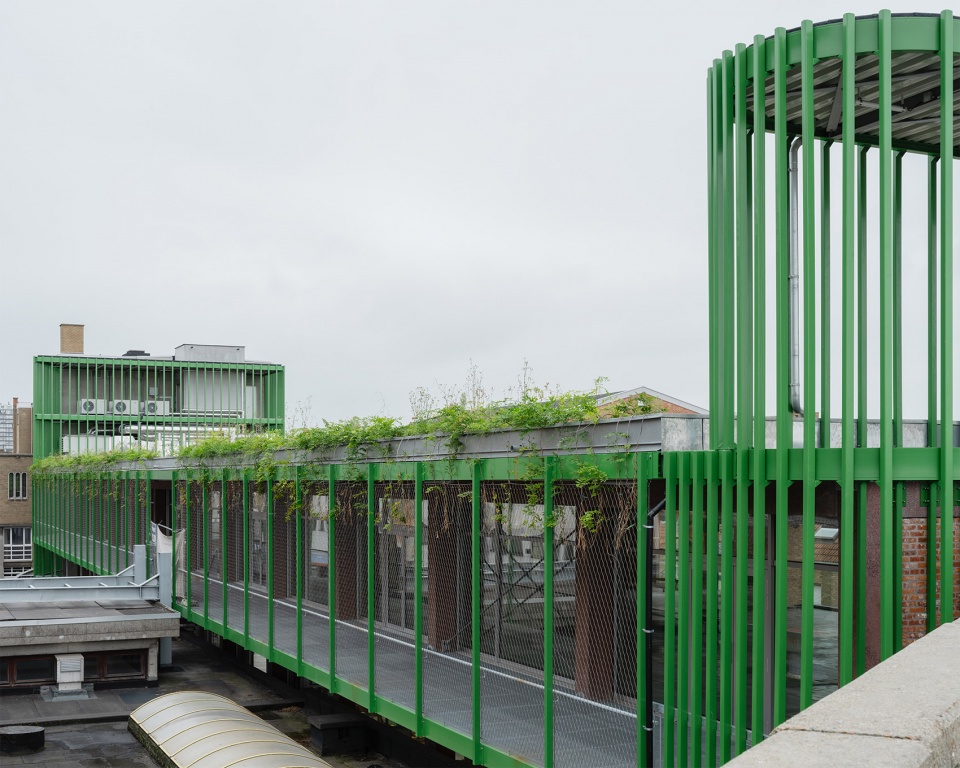

▼外廊通道，external corridor connection ©Johnny Umans

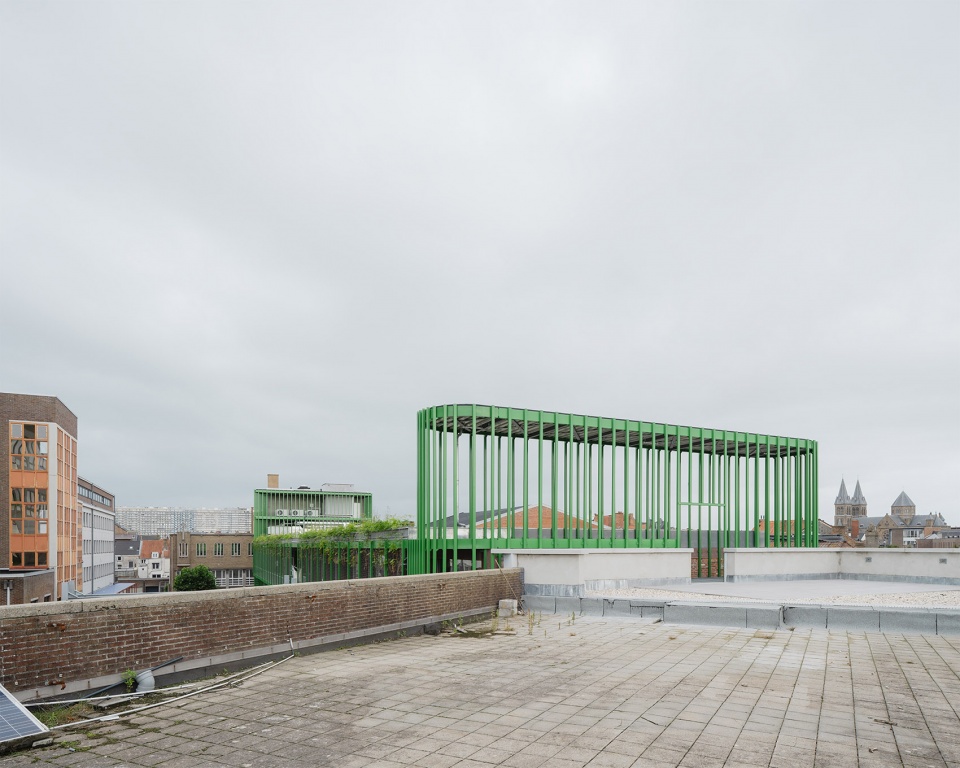

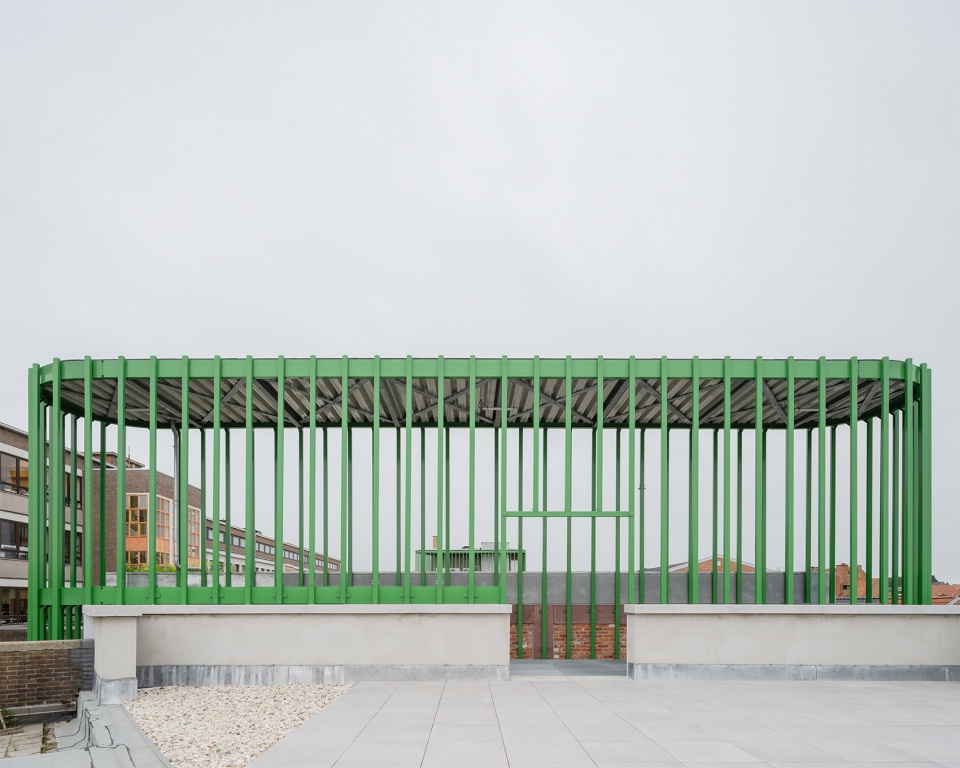

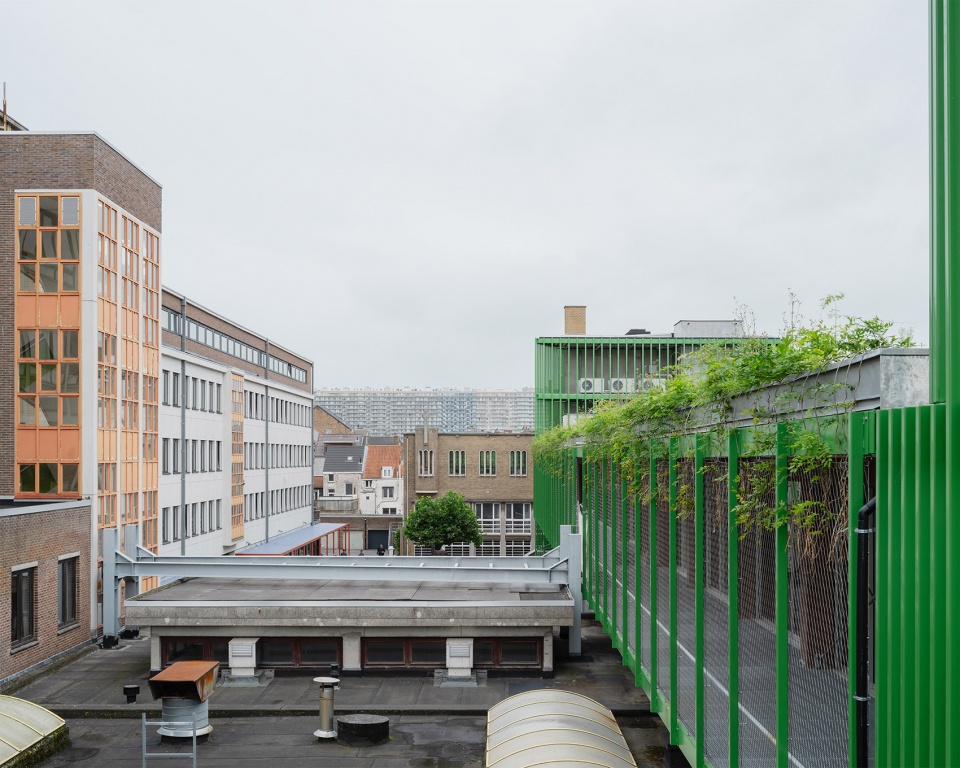

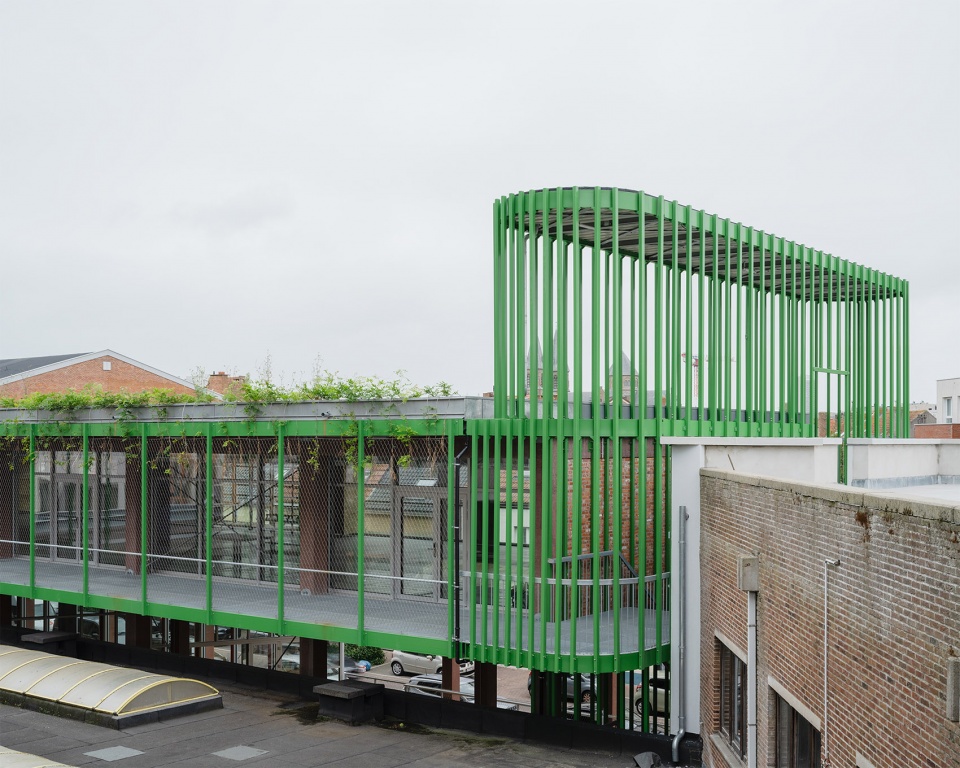

▼屋顶社交空间，communication space on the roof ©Johnny Umans

混凝土结构与轻质玻璃填充之间留有空隙，与两侧现有的邻近建筑分隔开来。在这些空隙中，设置了两个垂直交通核心，用以解决 Atelier PPW 与现有建筑之间的高度差问题。这些垂直结构具有未来适应性的潜力，可为未来可能需要替换邻近老旧建筑体量提供灵活性。本项目由我们与建筑师 Kris Broidioi 密切合作完成。

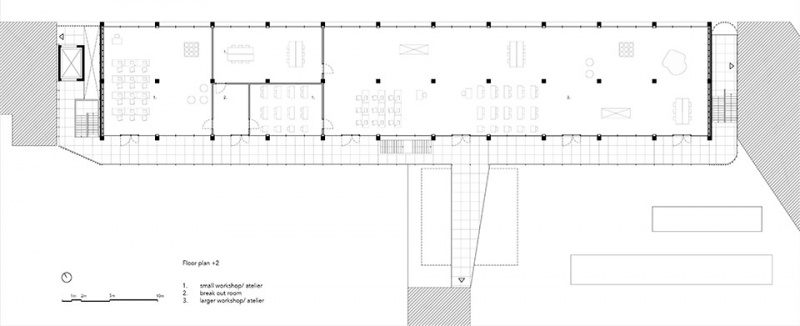

▼三层平面，2nd floor plan ©NWLND Rogiers Vandeputte

The concrete structure with light glass infill leaves a gap from the existing neighbouring buildings on both sides. Here two vertical circulation cores are integrated to solving the complex height difference between the existing buildings and Atelier PPW. These vertical structures can be adaptable for future developments, as one might consider replacing the outdated neighbouring volumes in the future.
In close collaboration with Architect Kris Broidioi.

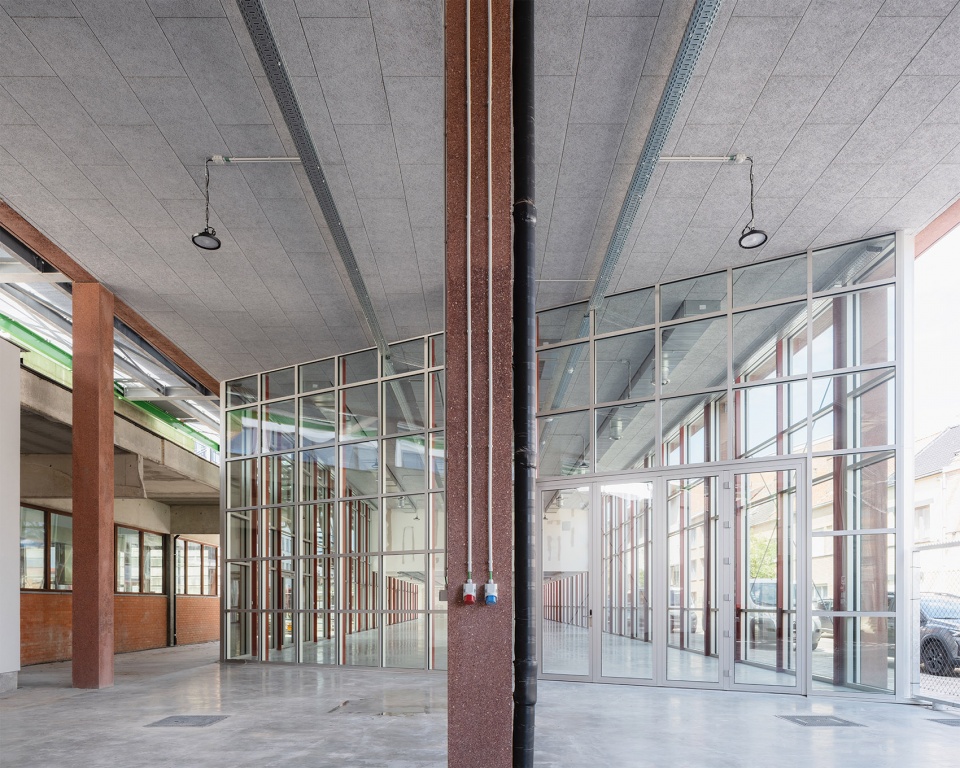

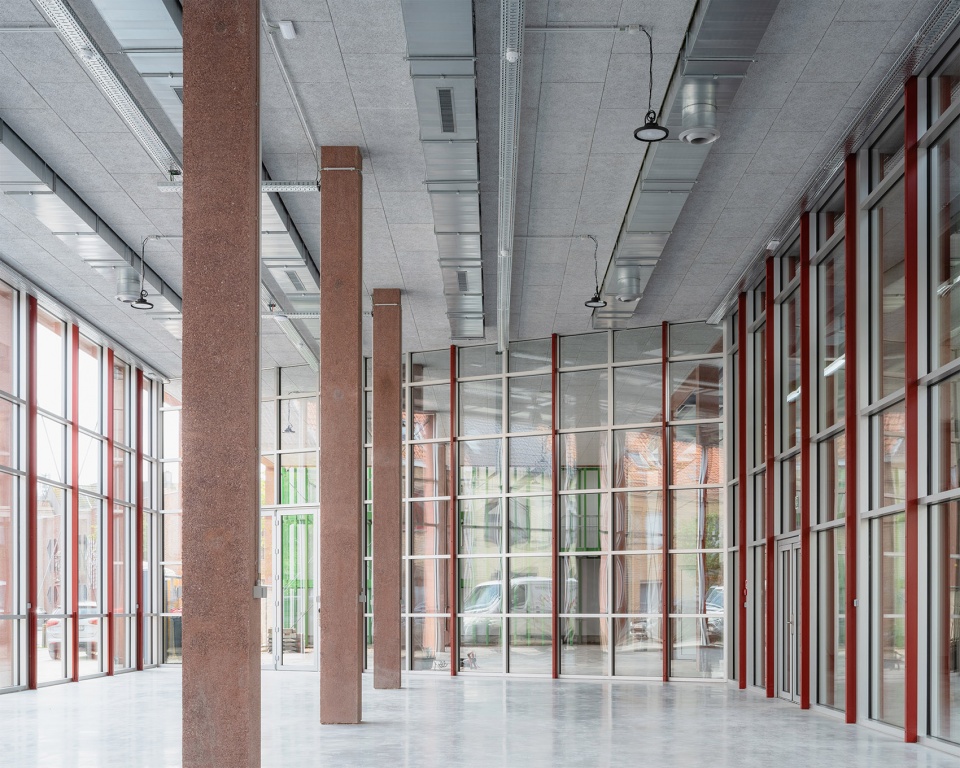

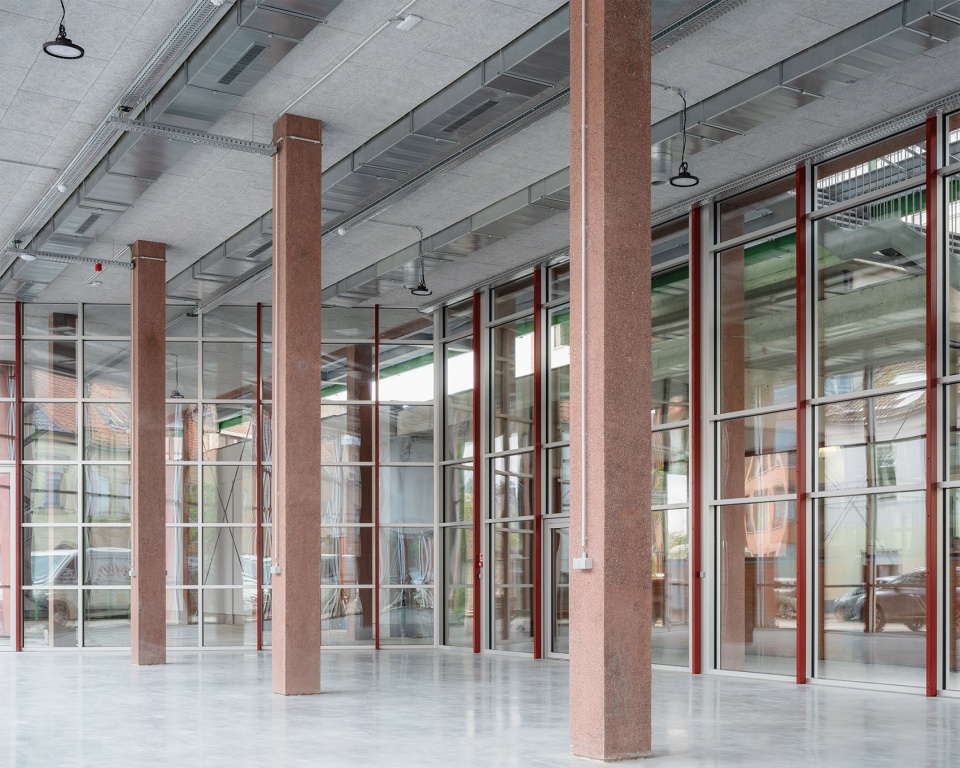

▼内部空间，internal space ©Johnny Umans

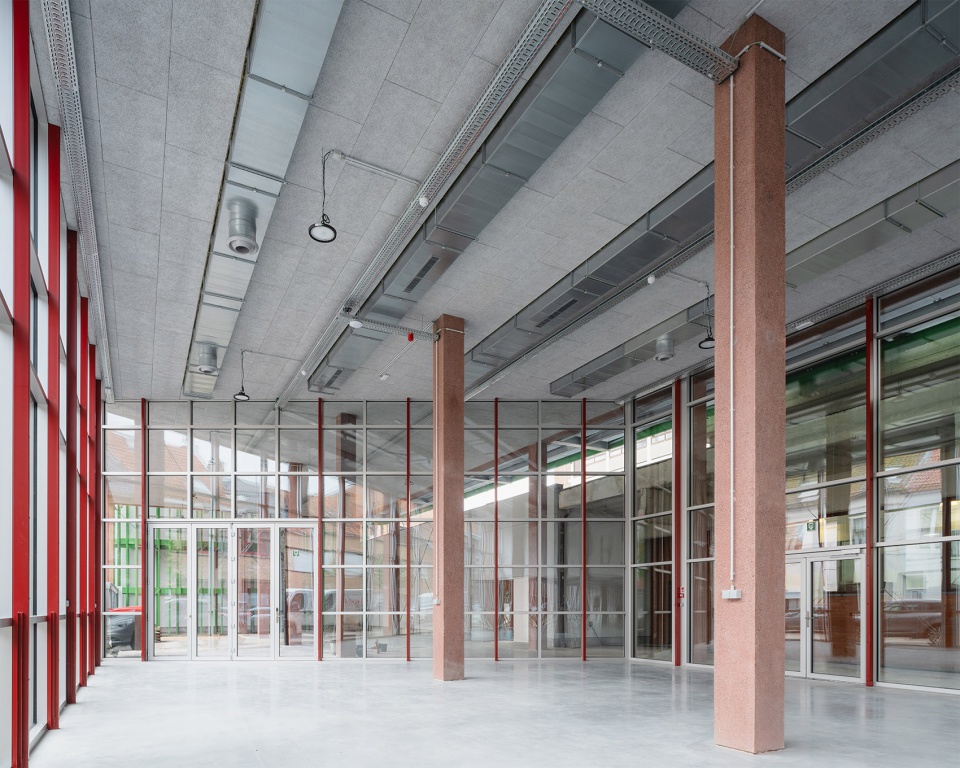

▼内部空间，internal space ©Johnny Umans

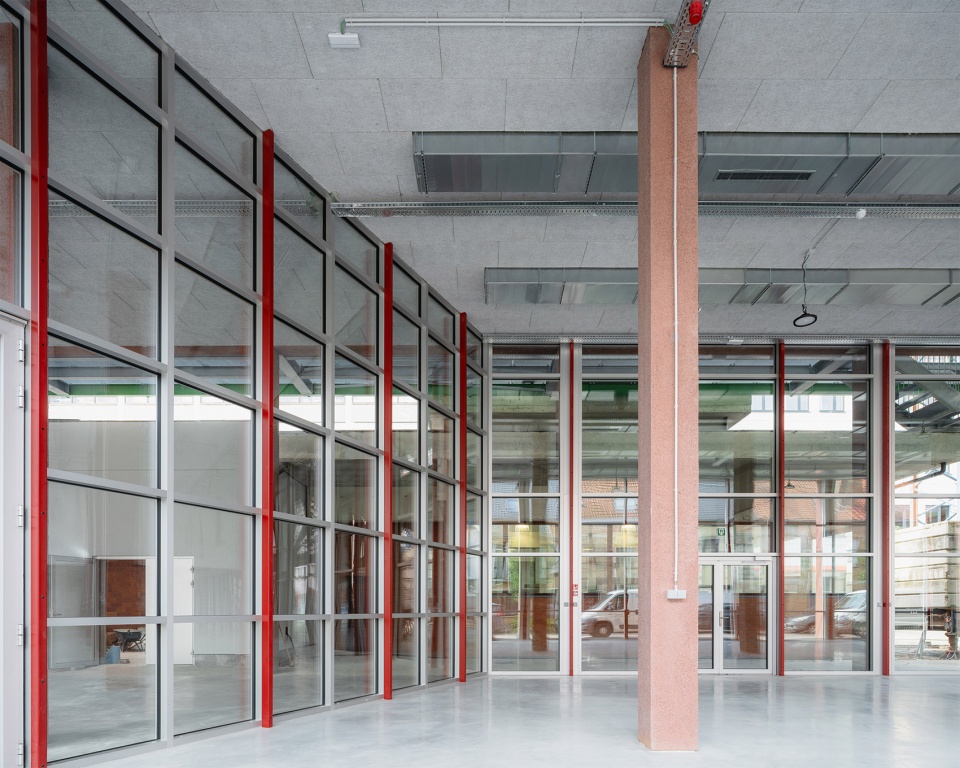

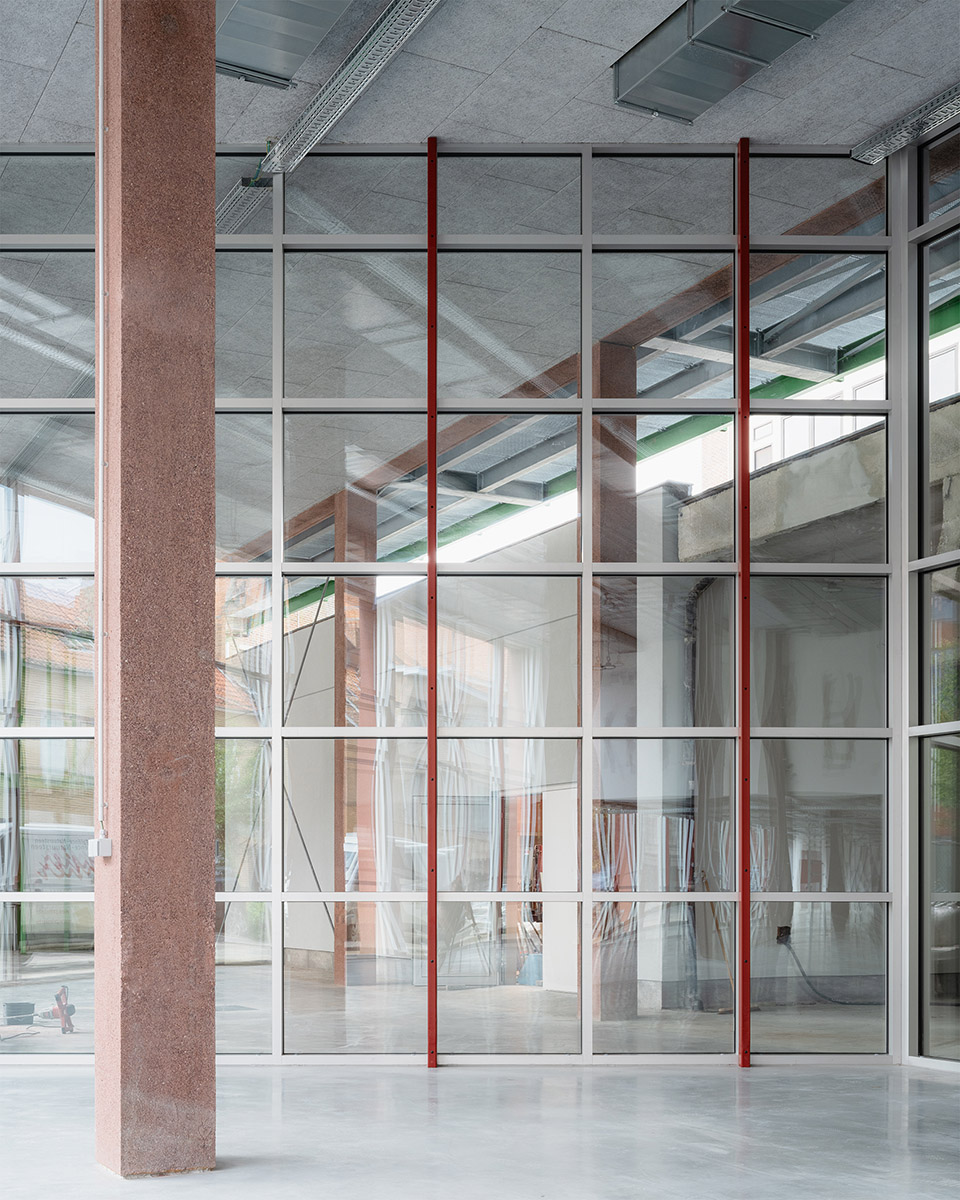

▼内部玻璃隔断，glass partition wall ©Johnny Uman

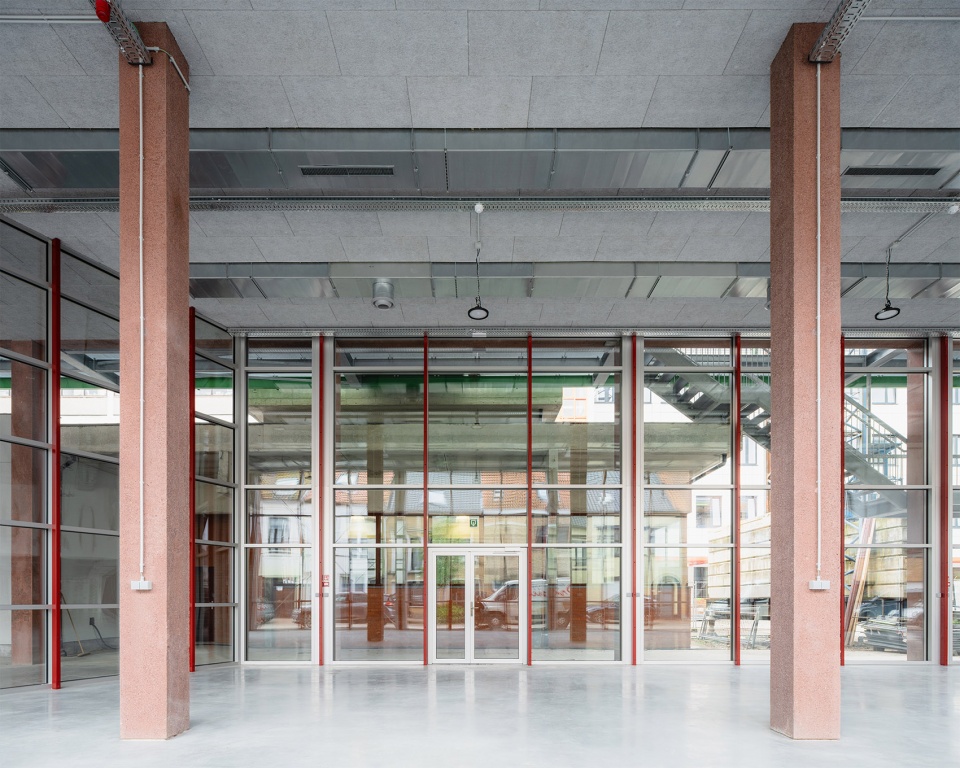

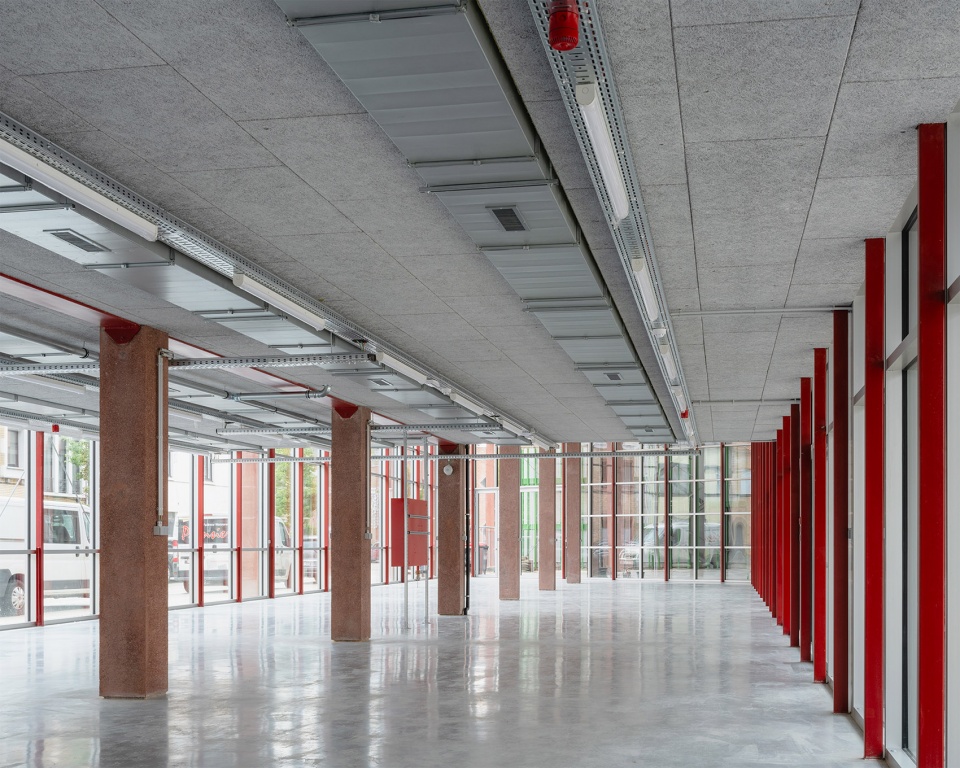

▼宽敞明亮的内部空间，spacious and light space ©Johnny Umans

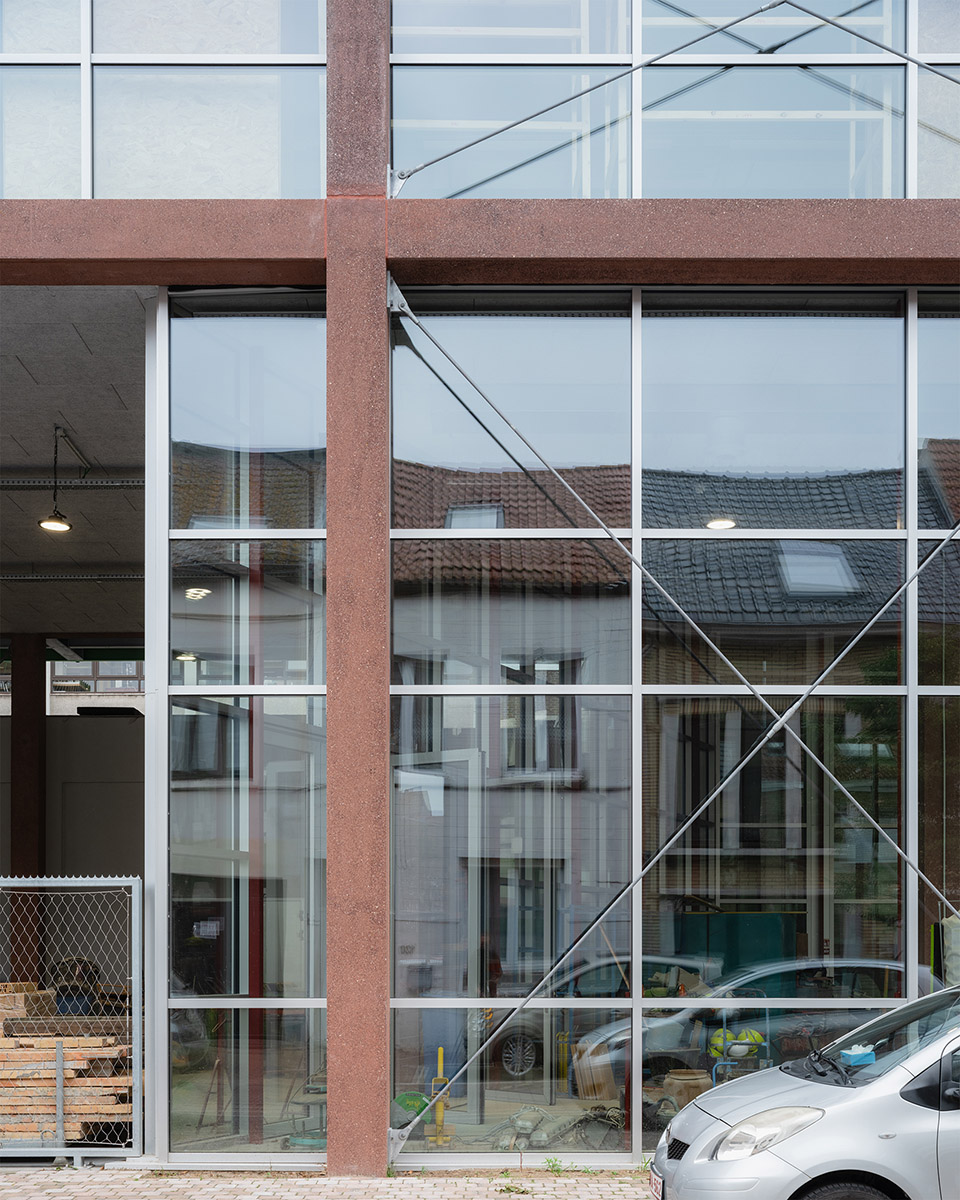

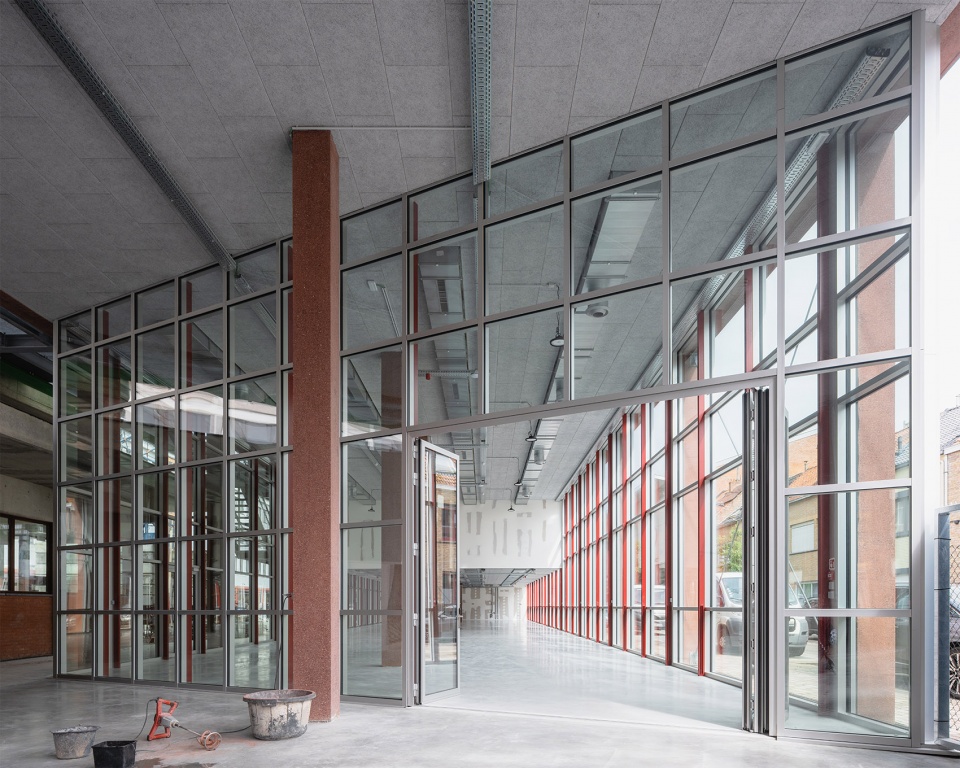

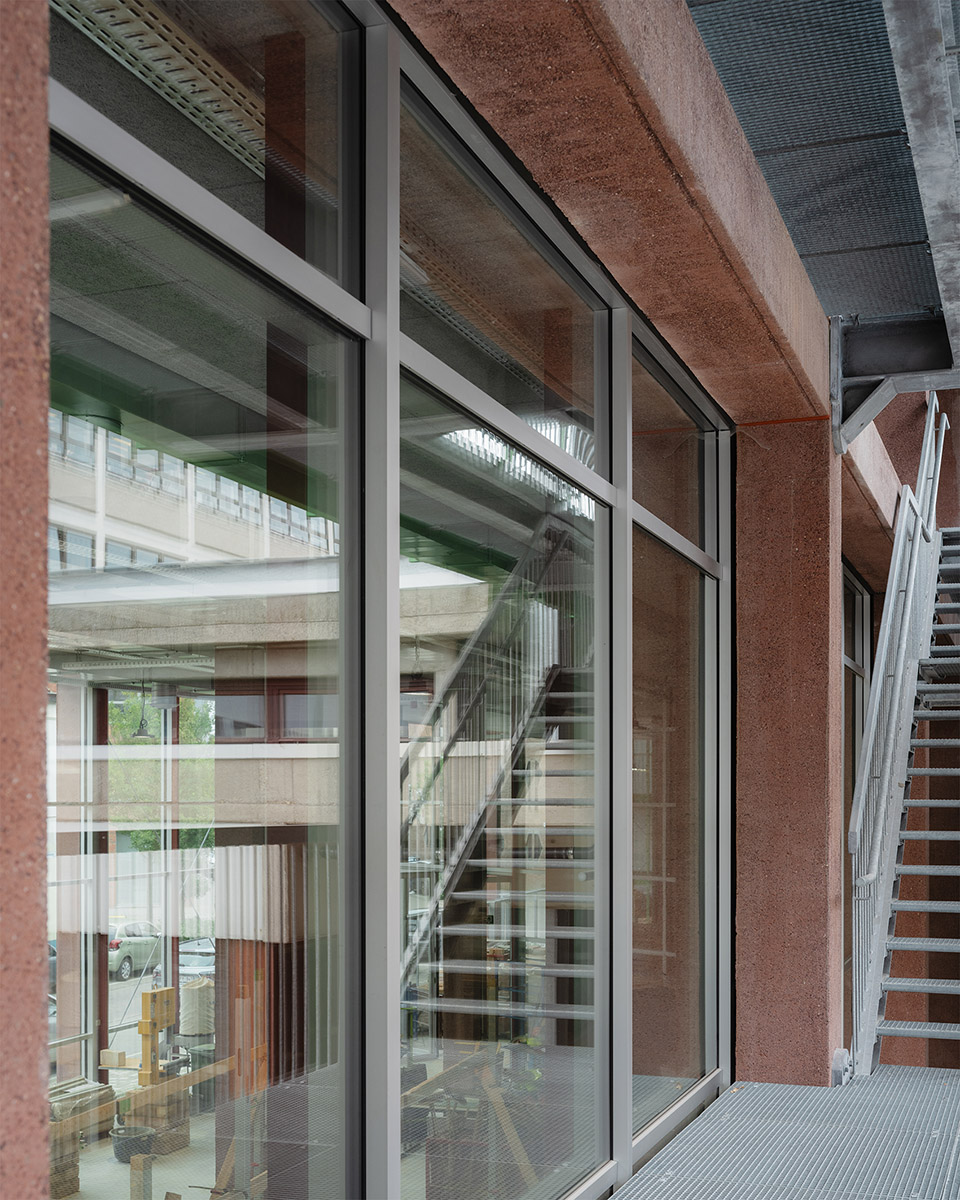

▼玻璃隔断局部，glass partition wall ©Johnny Umans

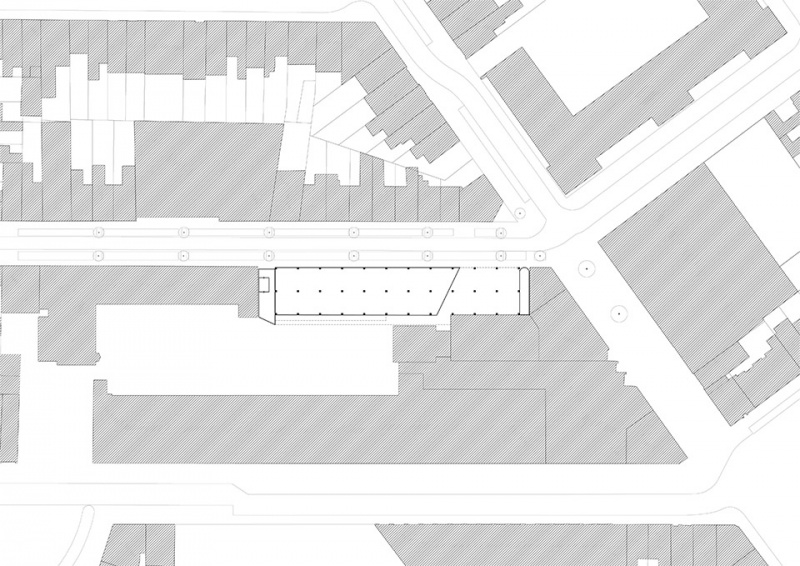

▼场地平面，site plan ©NWLND Rogiers Vandeputte

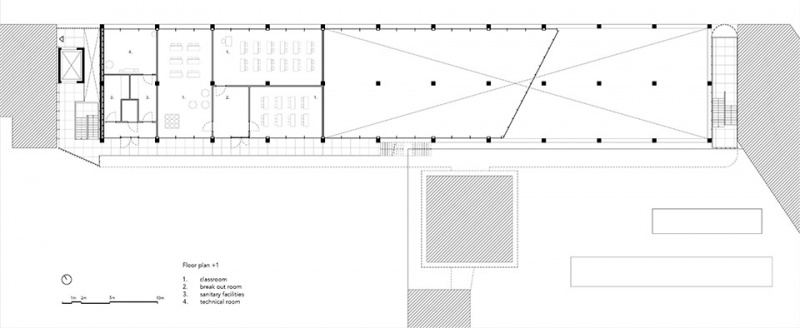

▼二层平面，first floor plan ©NWLND Rogiers Vandeputte

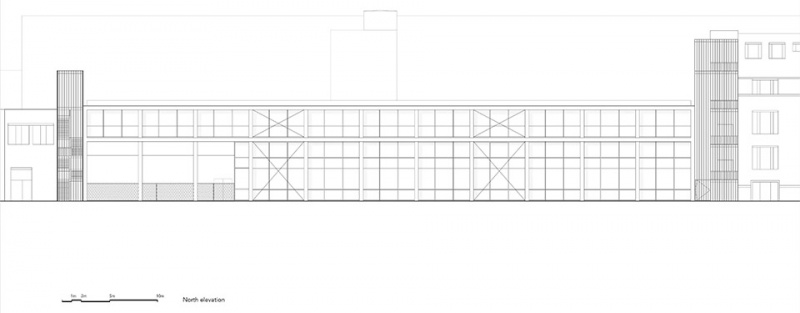

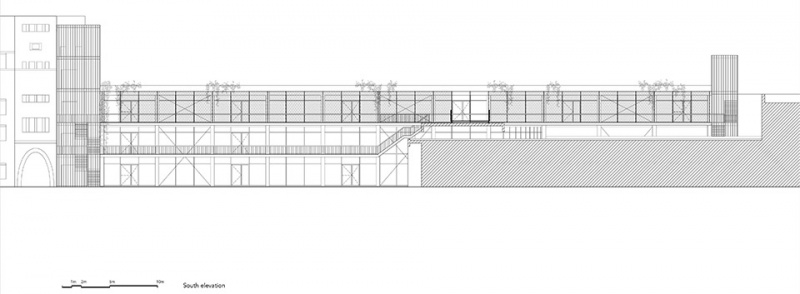

▼立面，elevation ©NWLND Rogiers Vandeputte

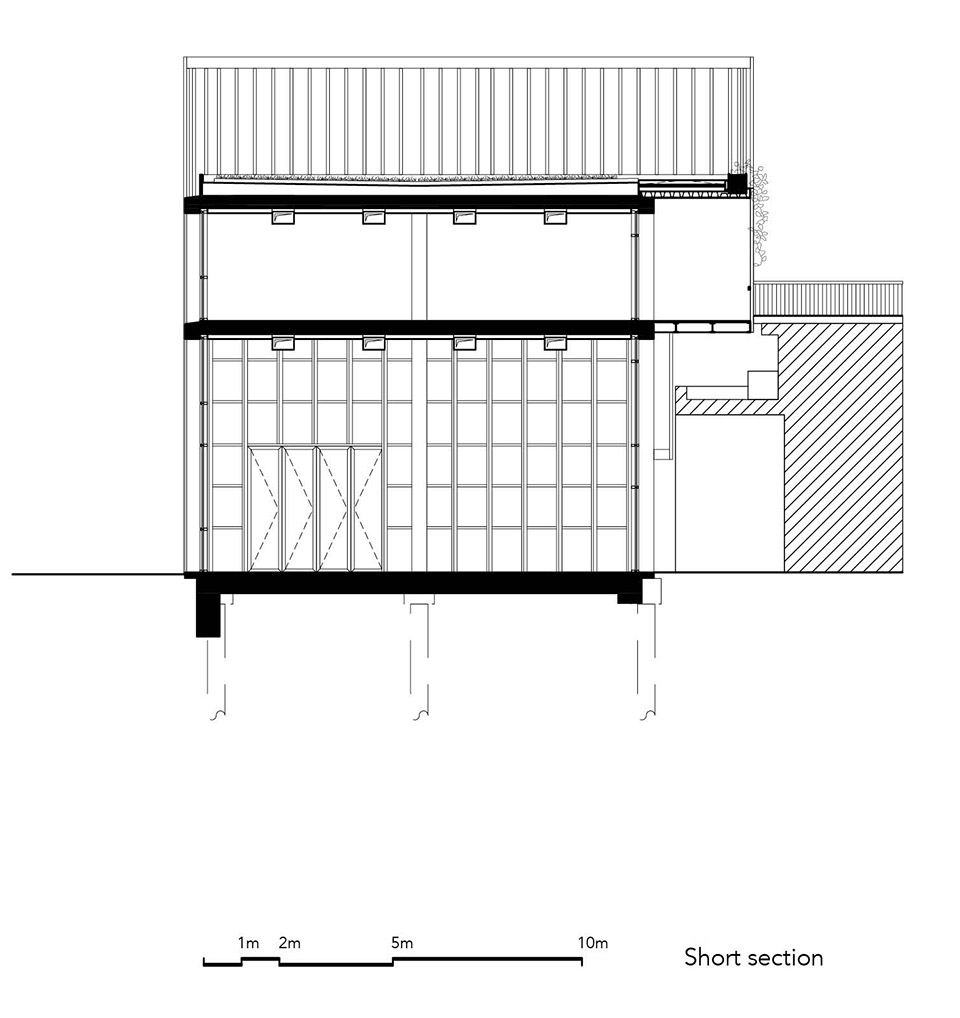

▼剖面，section ©NWLND Rogiers Vandeputte

Client: City of Oostende
Location: Oostende
Period: 2020 – 2024
Status: Delivered
Area: 2.500 m2
Budget: 3.500.000 euro
Architect: NWLND Rogiers Vandeputte
in collaboration with Kris Broidioi

More: NWLND Rogiers Vandeputte 更多关于他们： NWLND Rogiers Vandeputte on gooood
