ARCA, Brazil By Atelier Marko Brajovic

Among the forest, beside the waterfall.

Project Specs

Location:

来自 Atelier Marko Brajovic 对gooood的分享 。
Appreciation towards Atelier Marko Brajovic for providing the following description:

ARCA这个名字来源于巴西当地传说中一艘位于热带雨林中心的船。事实上,这个项目跟水并没有关系,而是一栋延续了巴西当地房屋类型的住宅。一个小巧精致的对象,建筑师在设计时希望能够最小程度的影响周围的环境。

ARCA was named by the locals as it came as a ship in the middle of the Brazilian Atlantic Forest. If fact, on a more anecdotic level, it’s an earthship project, that comes from a wish to mimic a specific Brazilian indigenous house typology (Asurini, Médio Xingu) and be a stand alone object with minimal impact to the surrounding.

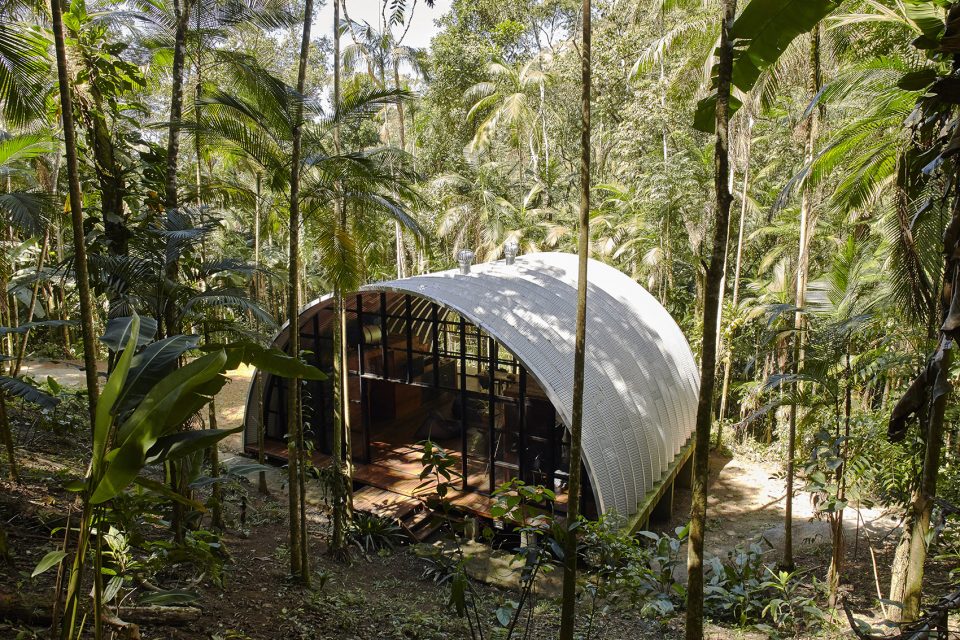

▼雨林中与自然友好的小型住宅,a eco-friendly residence in the middle of the Forest

为此设计师决定用一个壳体结构来支撑屋面和墙体。Galvalume材料制作的模块(碳钢+铝+锌)在一个星期内完成现场组装,并且可以轻松地在其他地方完成拆卸和重建。

For that purpose we decided to use a shell self-supporting structure that solutions a roofing, side walls and finishings. The Galvalume (carbon steel + aluminium + zinc) modules were assembled on-site in only one week and as well can be easily dismantled and rebuilt on a new location.

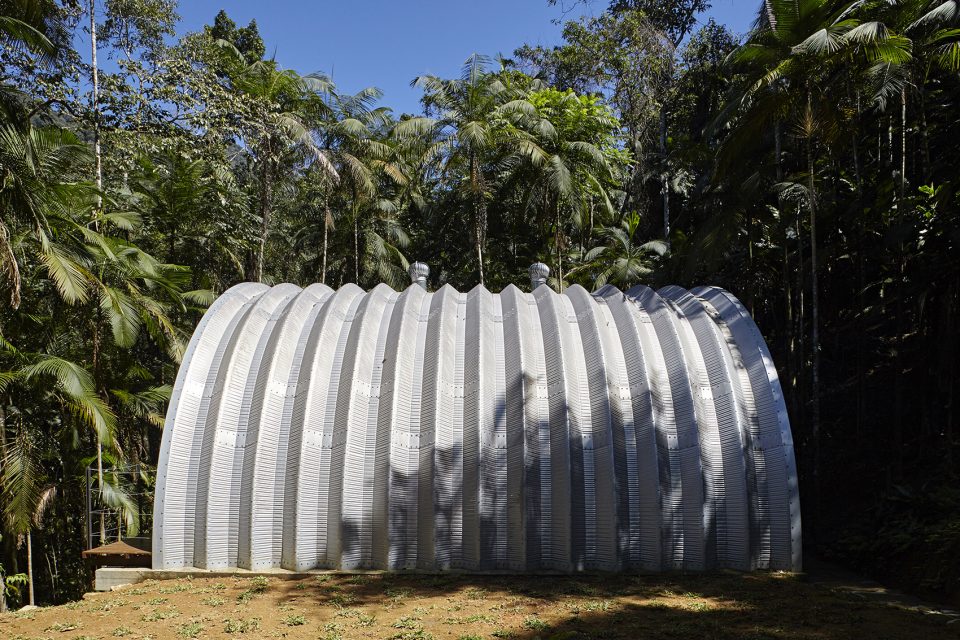

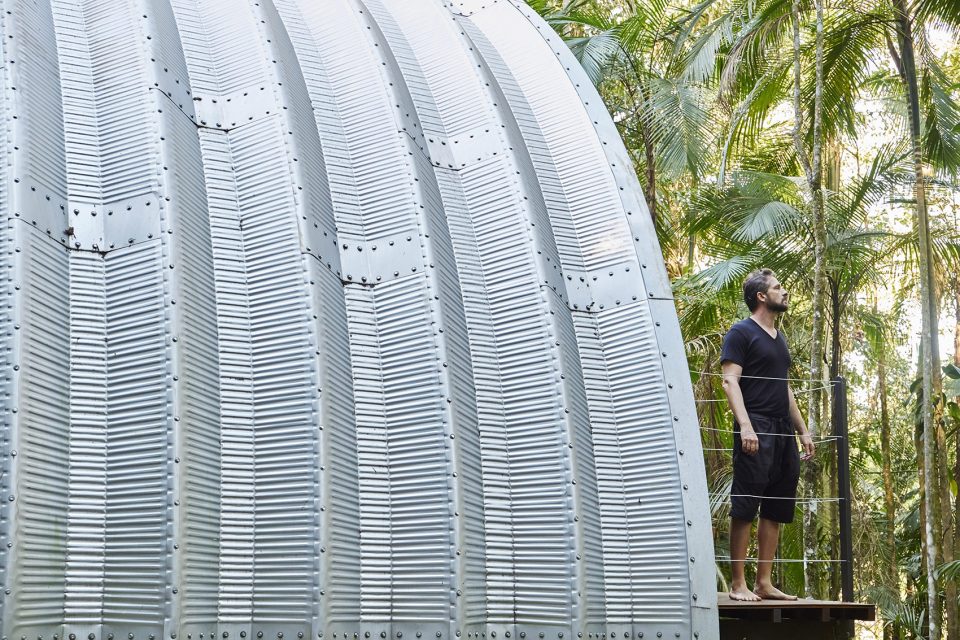

▼使用了Galvalume材料的结构,the self-supporting structure made of Galvalume

▼结构可以轻松地在其他地方完成拆卸和重建的工作,the structure can be easily dismantled and rebuilt on a new location

内部的木结构墙体只有3厘米厚度,内部由钢结构进行加固,压缩了整个结构的体量。

The internal timber walls are only 3 cm ticks as they are internally reinforced by steel-bar that compress the whole structure.

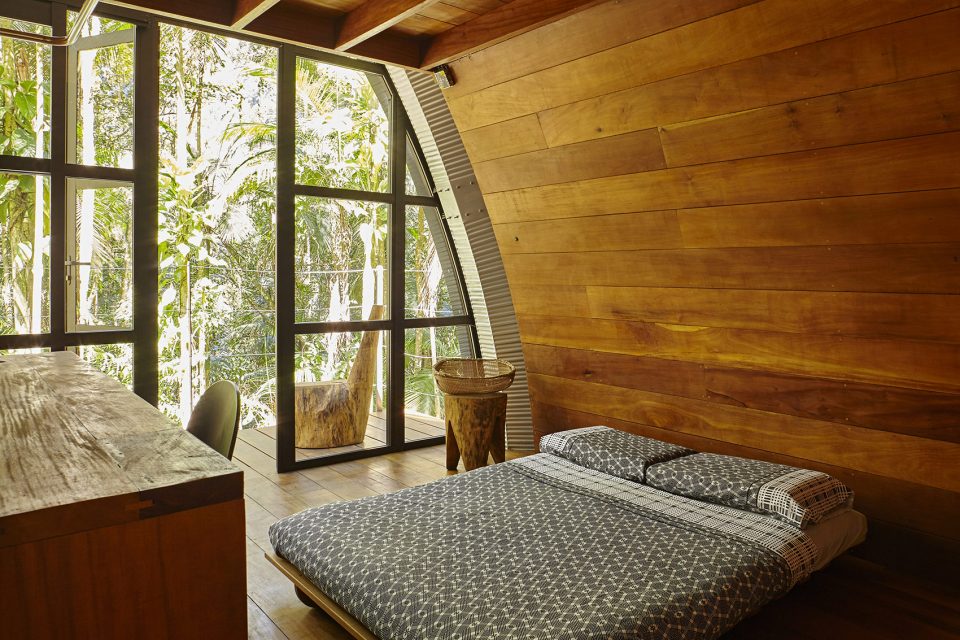

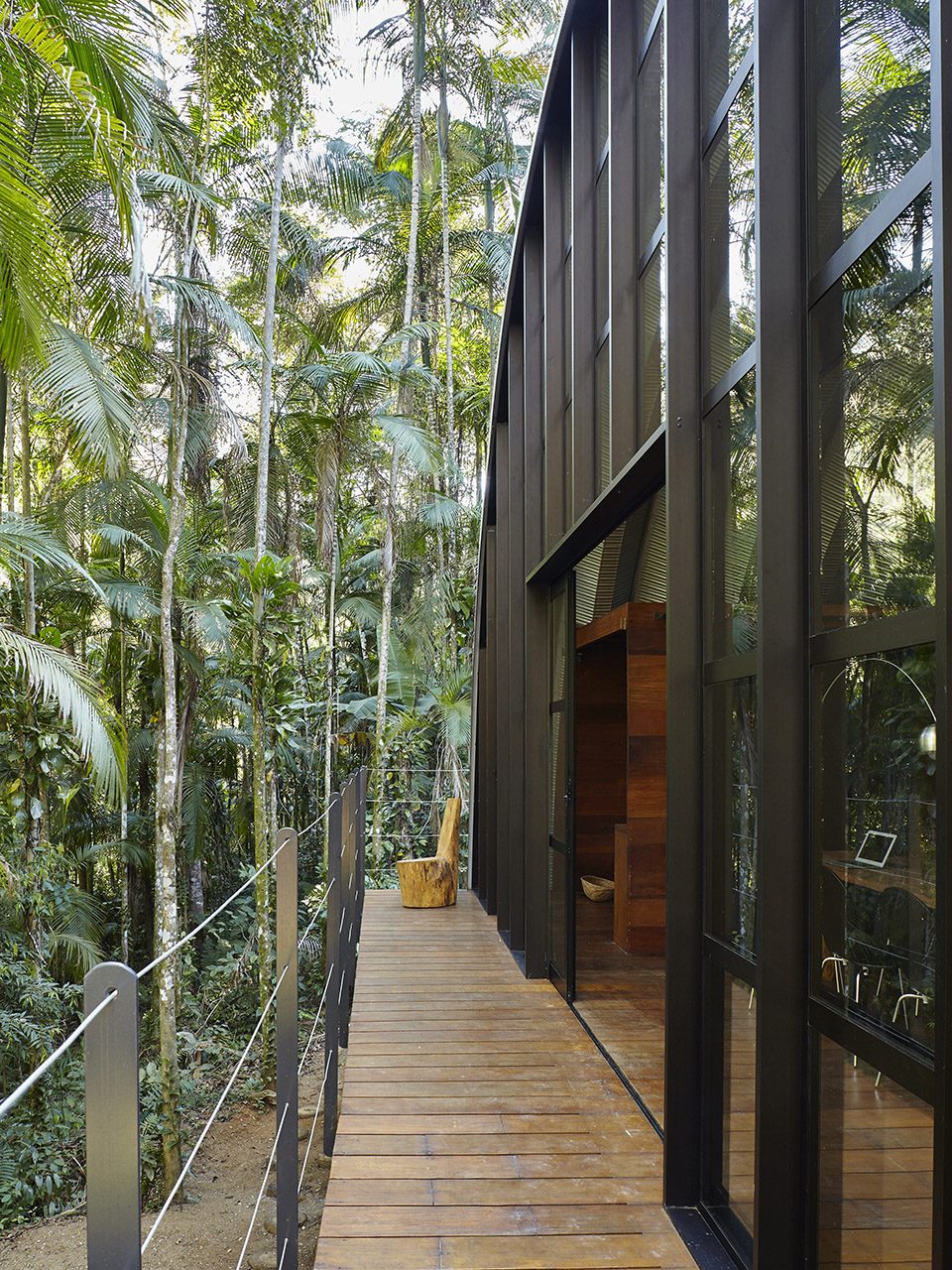

▼住宅两侧通高的落地窗引入了舒适的阳光,the full-height glazed facade invites more sunlight into the space

这栋房子可以容纳一对夫妇和他们的孩子。内部由设施齐备的厨房、浴室,宽敞明亮的开放空间构成。中央开敞的区域可以作为客厅或者工作坊,进行创意工作或者提供培训的空间。当进入工作模式需要完整的开敞空间时,内部的床和沙发可以折叠,卧室也可以作为工作区的一部分。

A house can host till two couples with kids, has a fully equipped kitchen, bathroom and a generous open space serving as living room or workshops area for creative and professional trainings. In that second mode, the beds folds in sofas and the sleeping room transforms in production rooms.

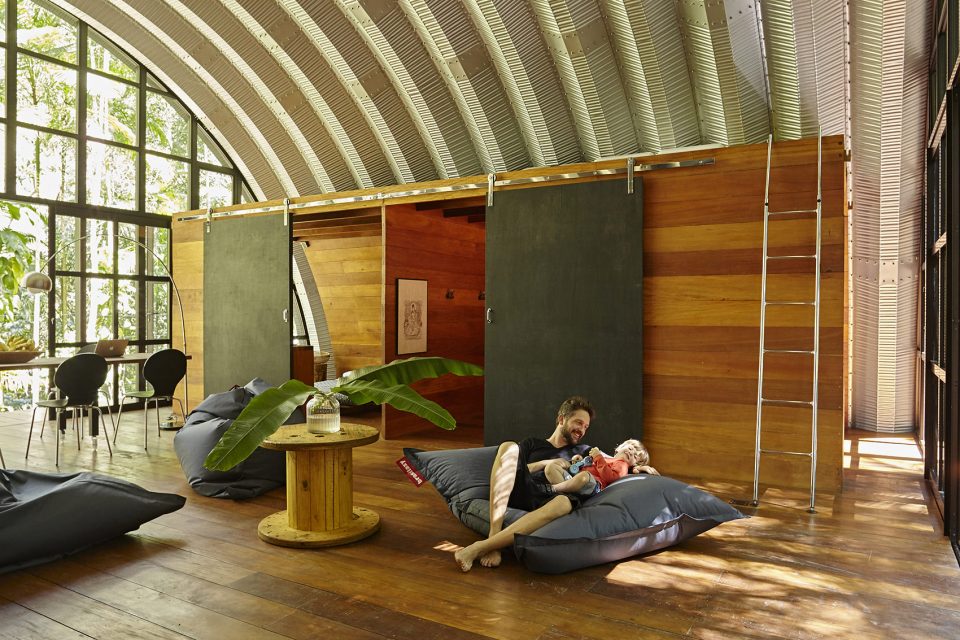

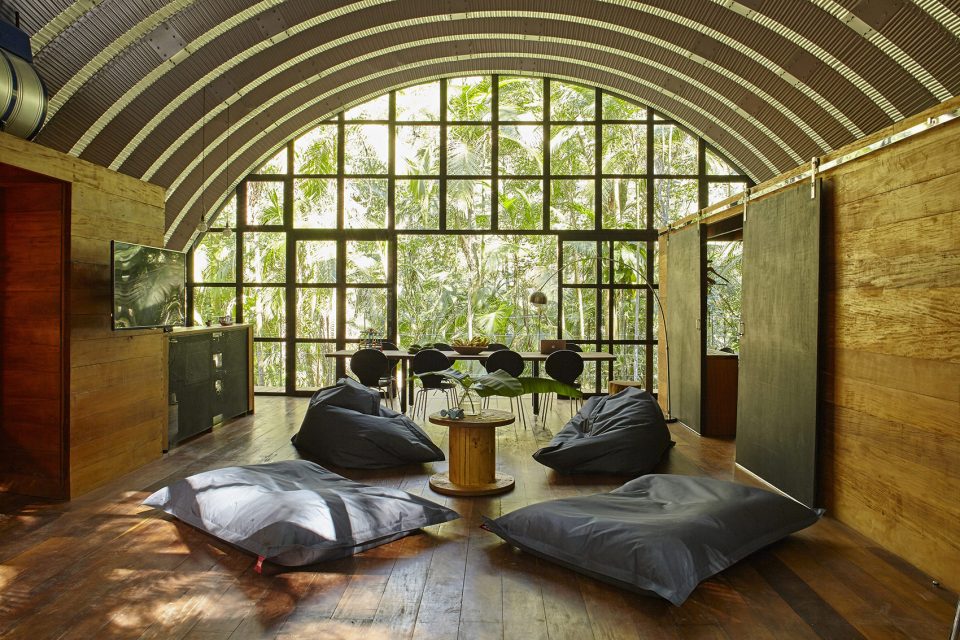

▼开敞的内部空间可以用于居住或工作,a generous open space can serve both as living or working purpose

▼舒适的内部空间,the comfort interior space

设计旨在为从事创意工作的专业人士和他们的孩子们提供一个周末的好去处。创造舒适的空间,让他们在自然的启发下更好的创作。

The main idea is that a house can be used for a weekend by creative and professionals (with kids) that want to work on their creation inspired by nature in a very confort environment.

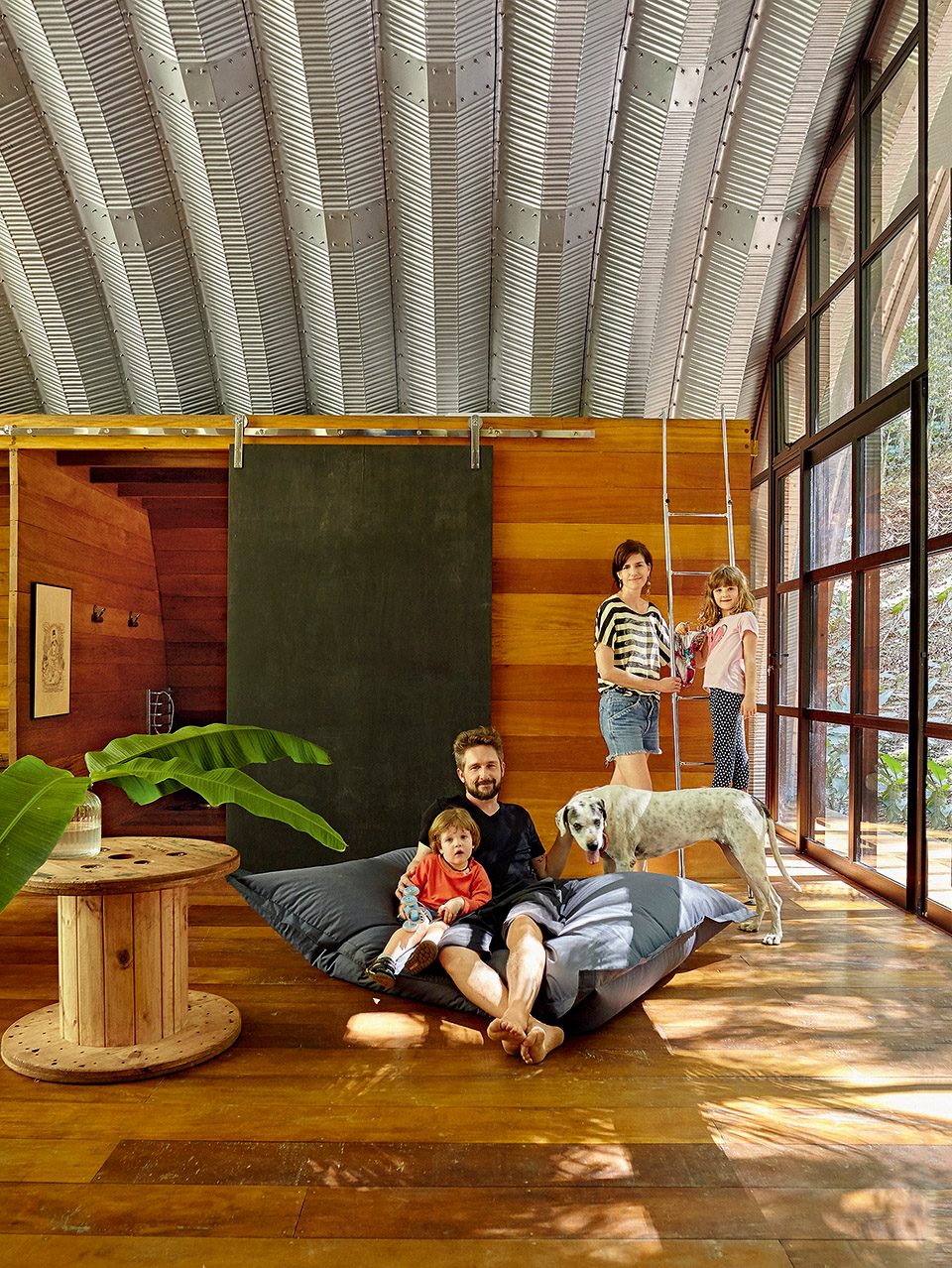

▼住宅为一家人提供了亲近自然的机会,the residence provides the family members an access to nature

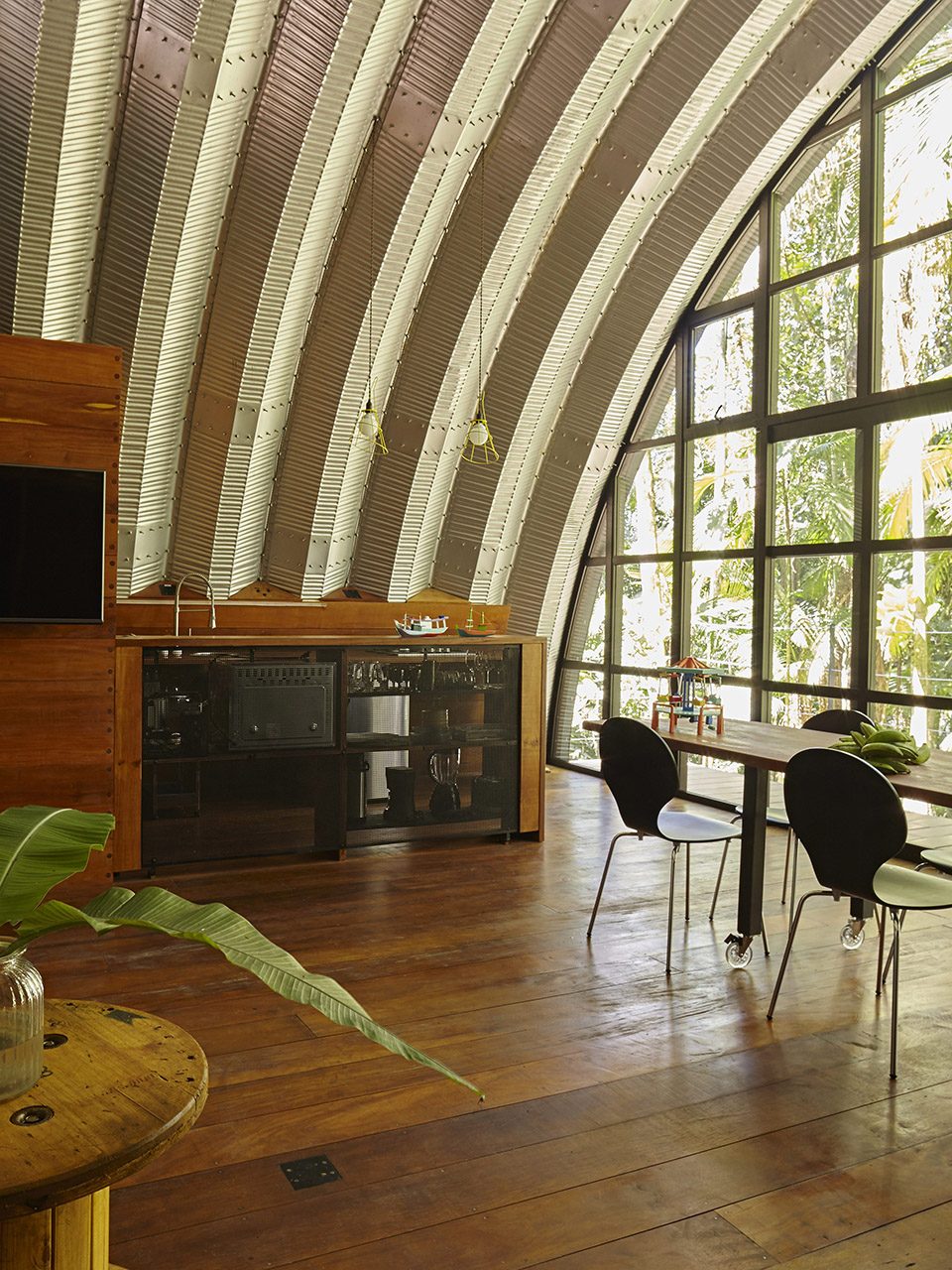

▼餐厅,dining area

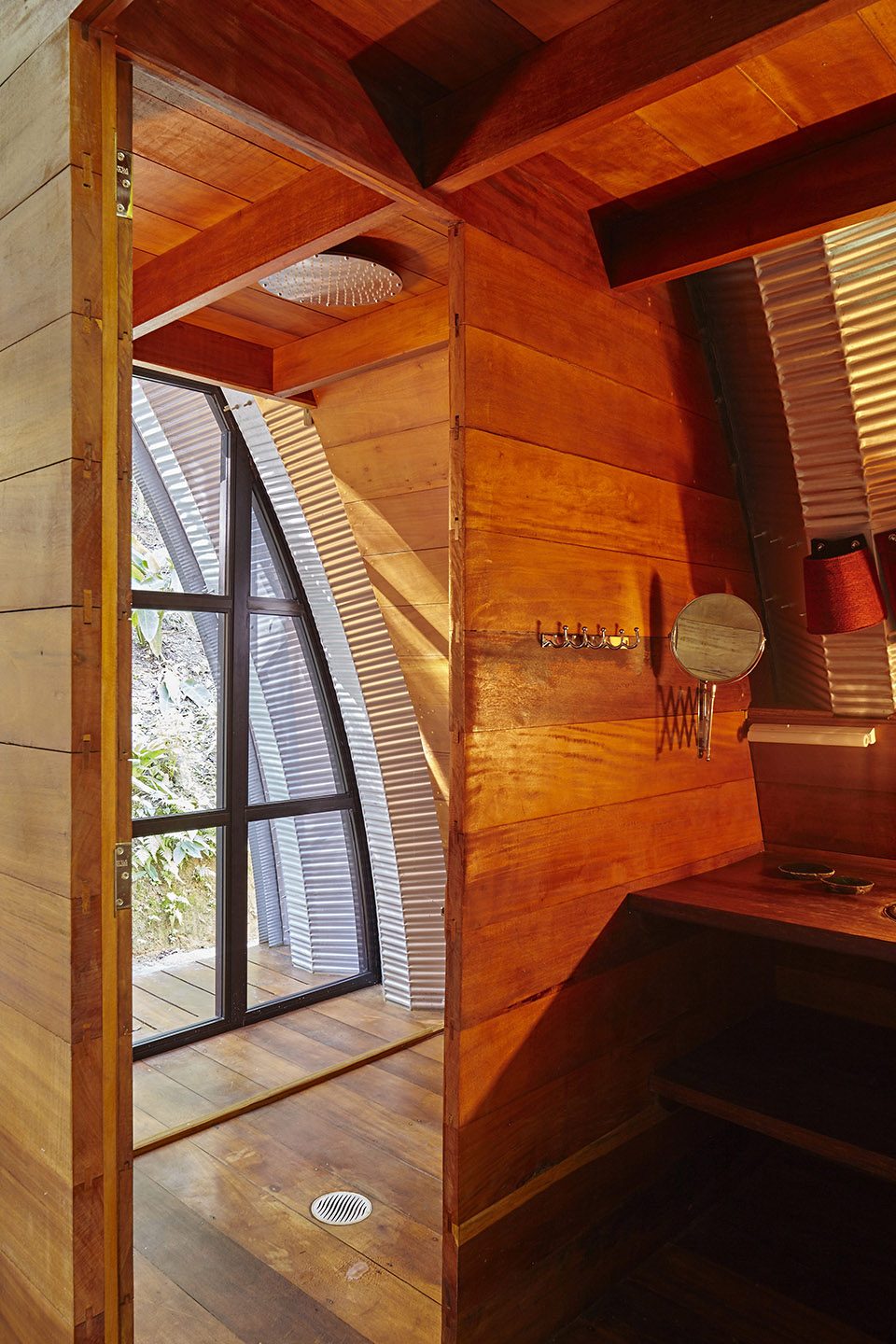

▼洗手间,bathroom

ARCA坐落在Parque da Bocaina国家公园的边界处,住宅一侧就是Perequé瀑布。距离这里十公里出就是一座名为Paraty的殖民地城市,并且以它丰富的文化遗产和自然环境而闻名。

ARCA is located on a waterfall Perequé, on a border with a national park Parque da Bocaina and ten kilometers from a charming colonial city Paraty well known for its cultural heritage and natural treasures.

▼住宅一侧的景观,the waterscape besides the house

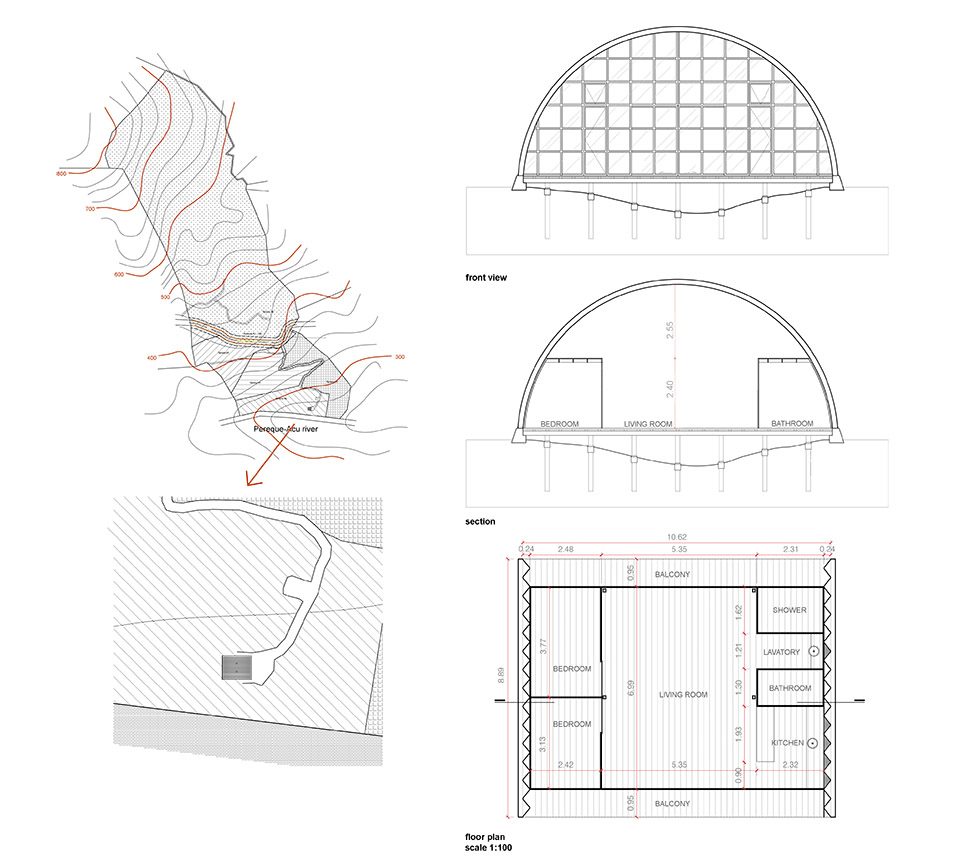

▼图纸,drawings

Project name: ARCA
Format: Guest house and learning
Project by: Atelier Marko Brajovic
Creative Director: arch. Marko Brajovic
Project Director: arch. Bruno Bezerra
Assistent Architect: arch. Lucas de Sordi
Shell structure constructor: Expobrax
Area: 130m2
Dimensions: 12m (L) x 10,5m (W) x 5,8m (H)
Location: Paraty, Brazil
