Sohlbergplassen Viewpoint / Carl-Viggo Hølmebakk

Curved concrete viewing platform

Project Specs

Location:
Materials:

来自Carl-Viggo Hølmebakk对gooood的分享。更多关于他们: Carl-Viggo Hølmebakk on gooood

Appreciation towards Carl-Viggo Hølmebakk for providing the following description:

挪威画家Harald Sohlberg (1869-1935)在达纳山区呆了几年后,画出名作Winter Night in the Mountains,而今天介绍的观景台,与画中风景的观测视点极为接近。

群山之中,松林密布,一片面向绝美山湖景色的坡上,这个弯曲的混凝土观景台优美的躲开了场地上任何一颗树,在森林中如艺术品般轻盈漂浮自由蔓延。这个平台没有伤害场地上的树木和树木的根,以及坡上的地形。考虑到冬季的大雪重量而采用了混凝土结构,地面上的开洞可以漏走雨水,透过阳光。基础打桩穿越冻土层,深达地下2.5米。

/wp-content/uploads/2013/07/_c_zR3sNEw3tEcx81Xyx1AFLFcndwXbQRATgQUDlsymjsBAlRLRlm6b3F0gC1qRHx3wD8mpB04-Cii2d2IyTdc0MwtDd6cx47W4.jpg

The Norwegian painter Harald Sohlberg (1869-1935) stayed in the Rondane mountain area for several years to do studies for his most famous work, Winter Night in the Mountains. The motif was a summation of sketches from several standpoints. The most recognisable position was close to where the viewpoint platform is built today.

The dark silhouette of pine trees in the foreground is a significant quality of the painting, framing the almost luminescent winter landscape. Also today the site has a certain dynamic quality, between the densely growing pine trees on the hill side and the distant mountains. This relation became the starting point for the geometry and the structure of the platform.

/wp-content/uploads/2013/07/_c_nB9le-Pk3sGxdU2q4uwdgDK50hGGiAj9SufTZWnxMIWvuzmSLhQGscG8Q1mfU5gkL5Jr7XVTqkI1knYv0SarheGOI1HC6rPK.jpg

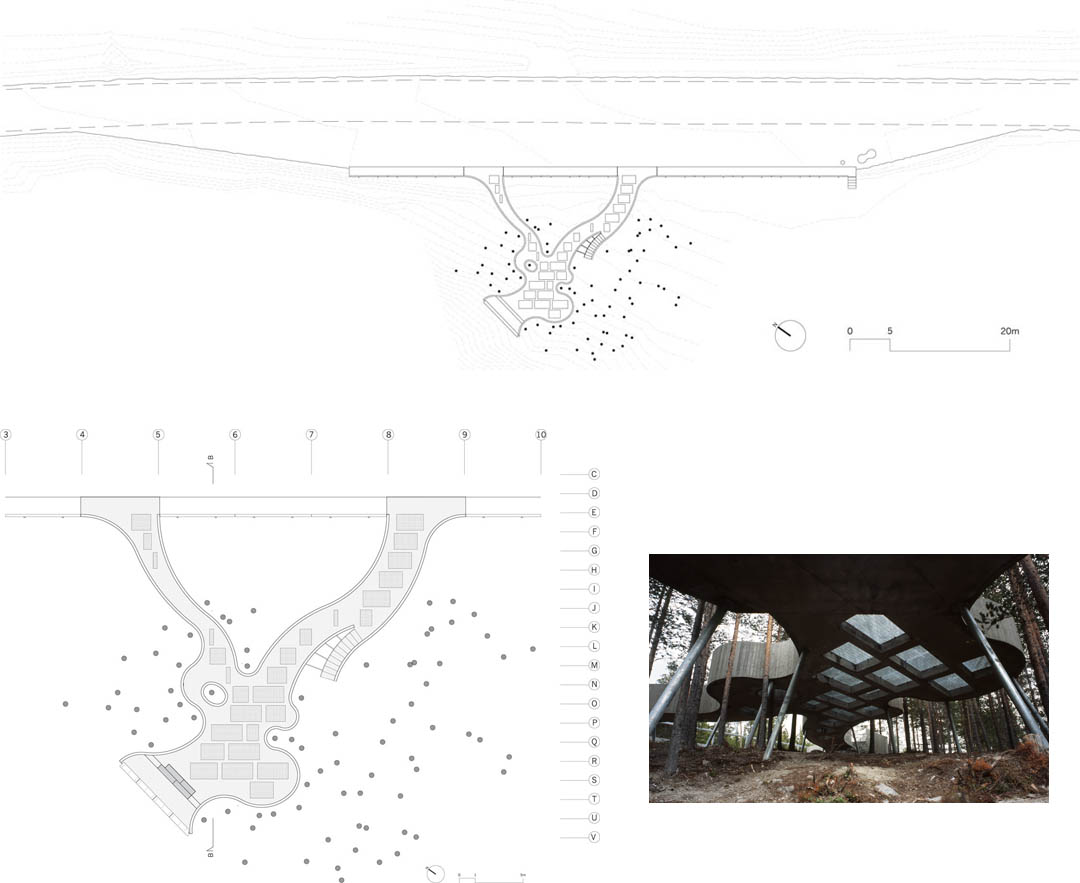

Several tests were executed by placing a ladder up against the tree trunks, trying to find the best views and interesting spaces between the trees. After the trees and topography were digitally registered, the form of the platform could be defined precisely in such a way that no trees had to be cut. It was also crucial to find a foundation system that would not destroy any roots. The ground in the area was frost-free at 2.7 meters – any traditional foundation would imply substantial excavation, and cut down of most of the trees.

In early stages of the project, the platform had a somewhat flexible construction made in steel. The pillars would have “snowshoes” resting on the ground, allowing the structure to move along with the frost heave. Load tests on a 3D-model were done by the structural engineer, and showed that the curved beams would collapse when strained by snow and movements in the ground. The structure was then changed to concrete, and a torsion stiff connection between the curved beams and the floor plane could be established.

/wp-content/uploads/2013/07/_c_lWs8DWg_zK9wd740VoyVcQKijpXsPl0MjD6UbIhS4KIsL7i7NLrzhOCok5XZ0_5qzOMRHfaUFsJ64ct5CYkrXXqUXUa2dhZN.jpg

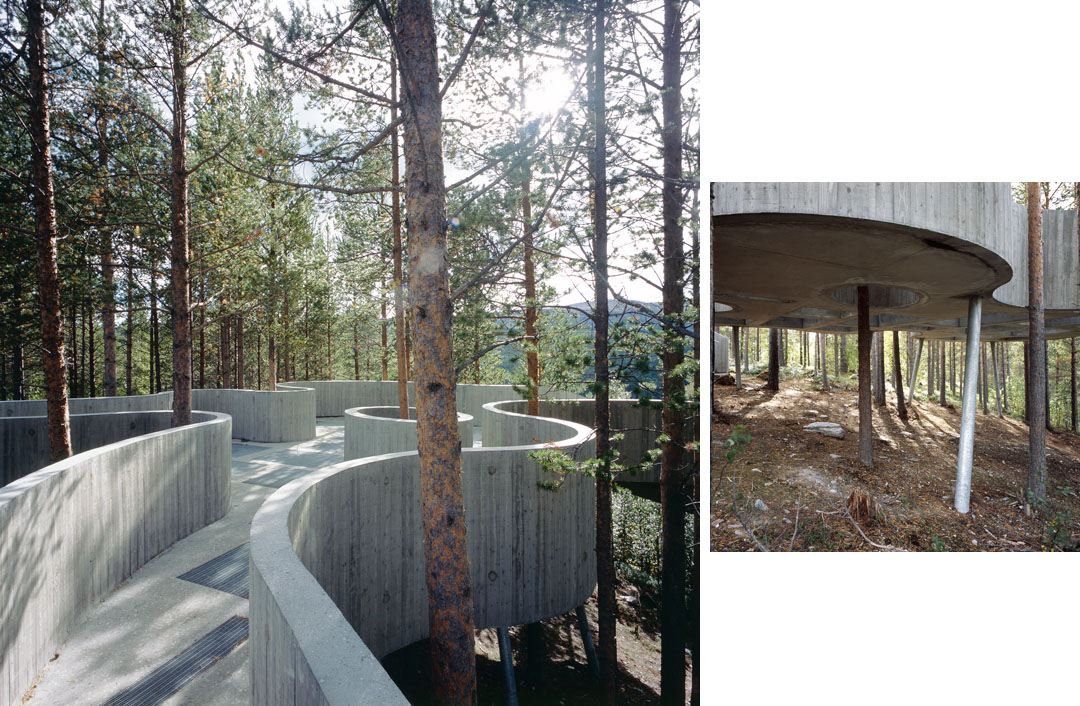

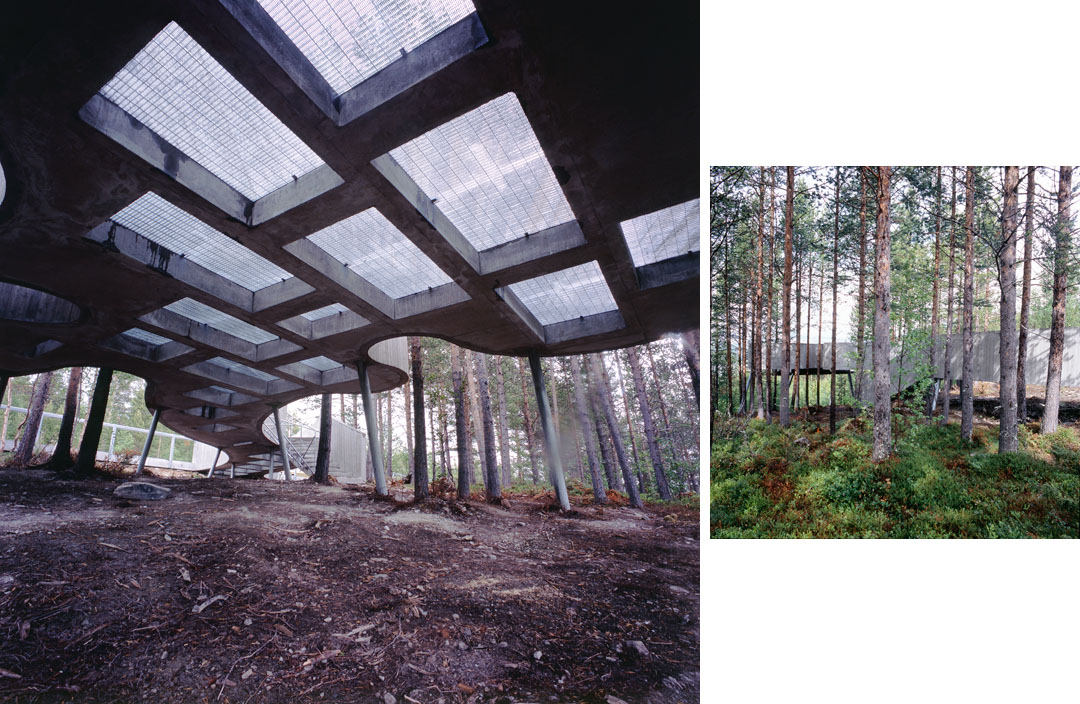

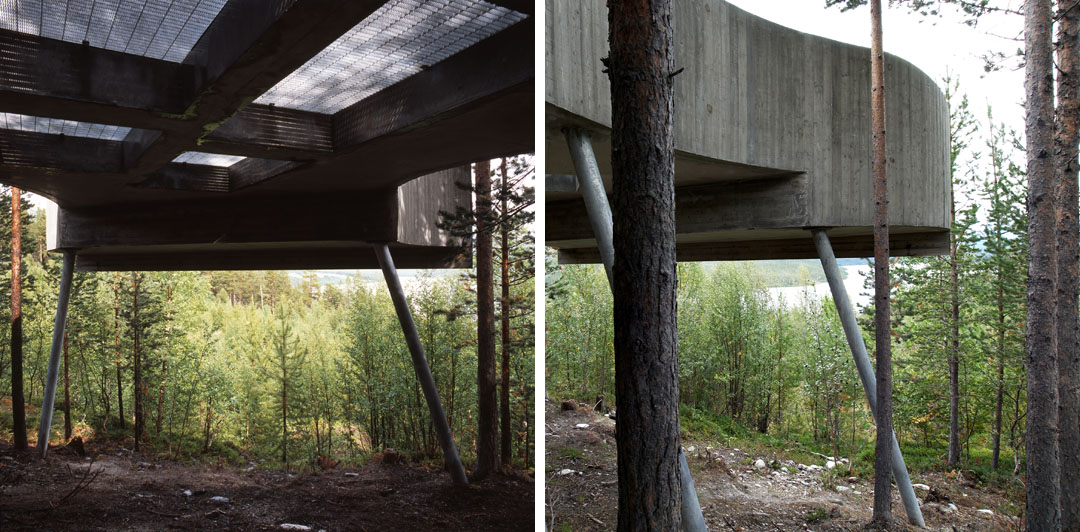

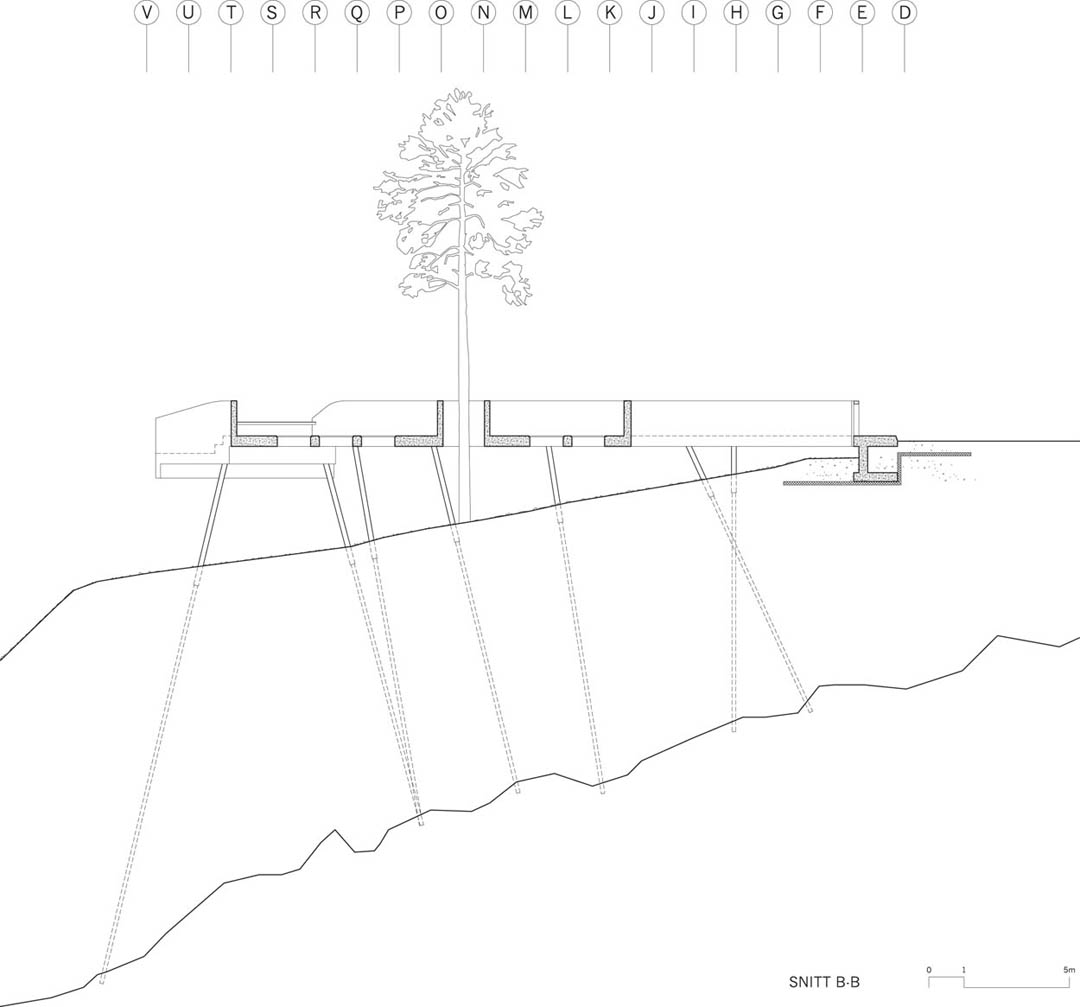

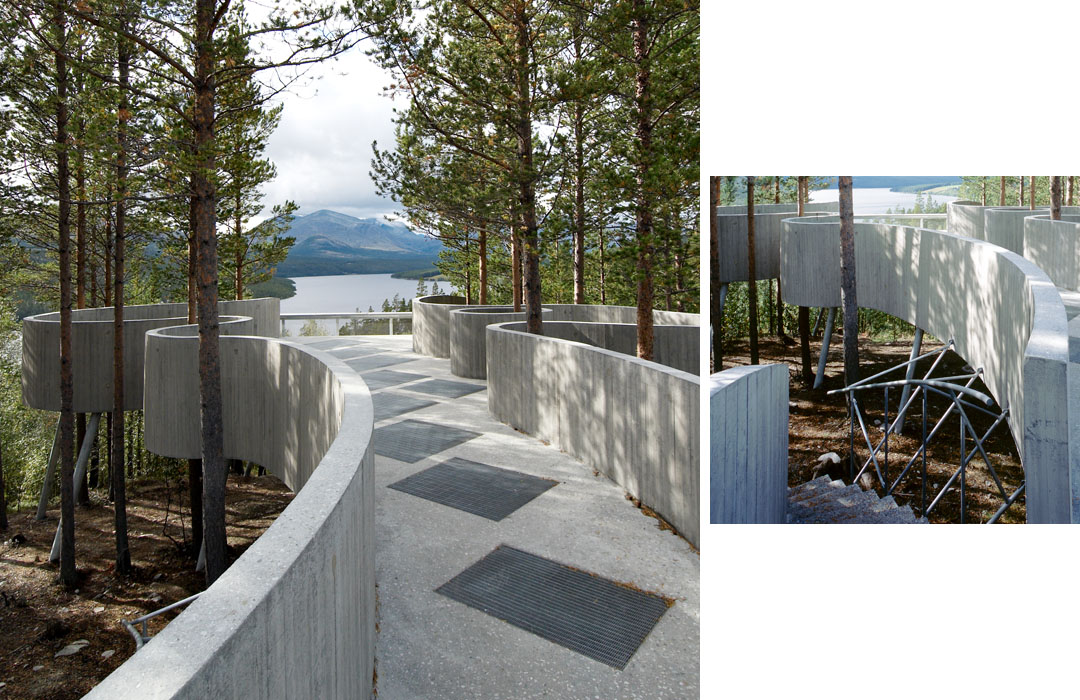

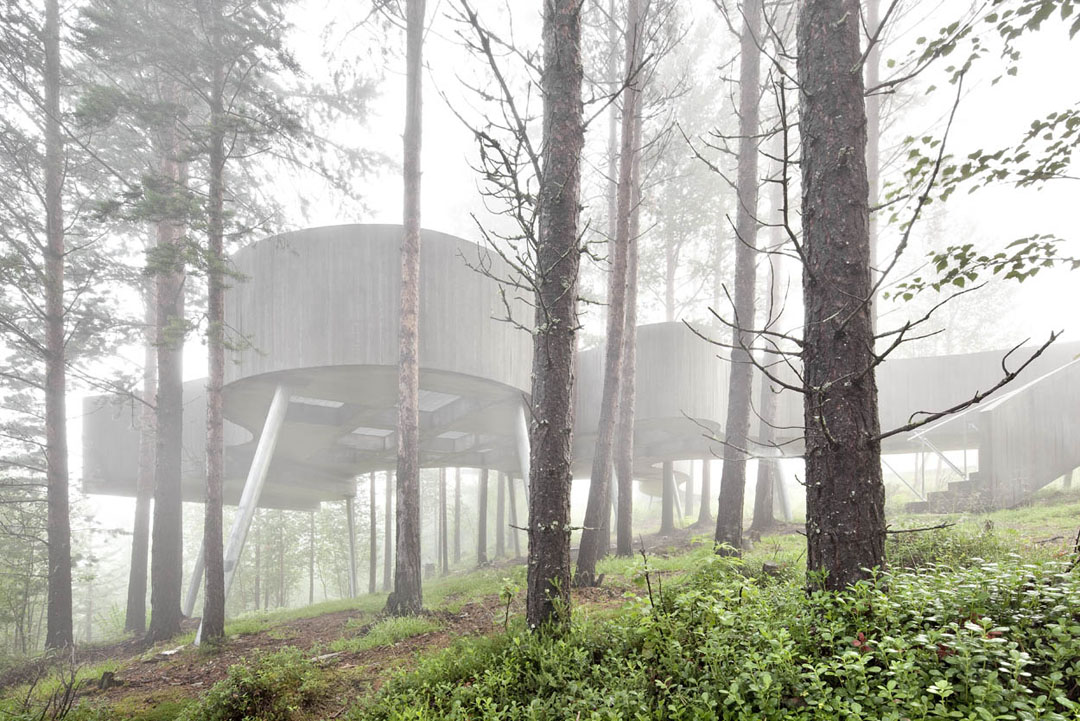

The beam along the periphery of the platform also works as a railing. The beam rests on thin steel core pillars, drilled to rock, some places more than 12 meters below the ground. The rectangular openings in the floor allow rain and sunlight to get down to the terrain. A staircase leads to the space underneath the platform and further down the hill to the lake.

The floor has a hardly noticeable tilt outwards (0.3 meters) giving a slight feeling of being pulled towards the view. The movement between the pine trees, from the road towards the beautiful mountain motif, became an architectural answer to the artist’s interpretation – already evident in the painting.

/wp-content/uploads/2013/07/_c_4RZtMINJW88AB5BmjFdr6b3sMOn-xVsq7Sqyzs7SQDAIPkc4nmlDrfQtpCny4fCRCBm4giYwGRlbute_J90Y9p4IF6Fb9gCA.jpg

/wp-content/uploads/2013/07/_c_JK7sZsafbMpu8Xr_p5hyXIpoEUuXmC9K-Ay6HGLEdv3QyUitMP0rtoxJj4R591Arta-y1fRhitrmfTUlWPkacFt1XXsOVWW8.jpg

/wp-content/uploads/2013/07/_c__cherGXoM5DQ4yBOK36EIR6cCXOOECaE3BSBJS3yUt3Ld8Vv-foWfkop-UjCdxyqd10DdWvg5w8UBBxsxmIBWBKhAuD28NVD.jpg

/wp-content/uploads/2013/07/_c_U2vr1vAm2FdF4w7notcx3kX__VREbgRh0speI2ZJXemhXPHyY5hUNsqsUEKtt_O51_IHHfm61wJTbATbixcobsmw_2LSsgTE.jpg

/wp-content/uploads/2013/07/_c_EKy920uITSanT-z3Ybnwouyw1lg8z5wdGpfnWkXdb6vVEx3PKhdmcIo9r9eV0lzzNsru2iJ43pJfiZK2ow-e85DXuakNiikl.jpg

/wp-content/uploads/2013/07/_c_Fa3pk_0Woce8djppBTbnmx9GF5CfLK_MjCGVSERiHBBL_j9wCSpuZaWypgqGCdZg7VVsIKRZ3EtvcGgd84smF9f25-arcrut.jpg
