众建筑PAO给gooood分享了他们最新的装置作品三巧顶。更多关于：PAO on gooood

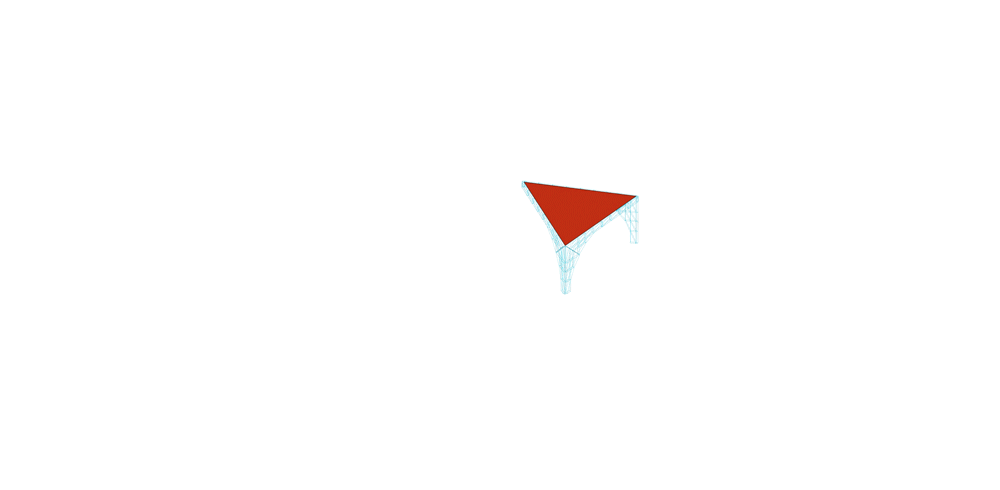

这是一个用三角形搭建出的顶，如同儿时的七巧板游戏一般。

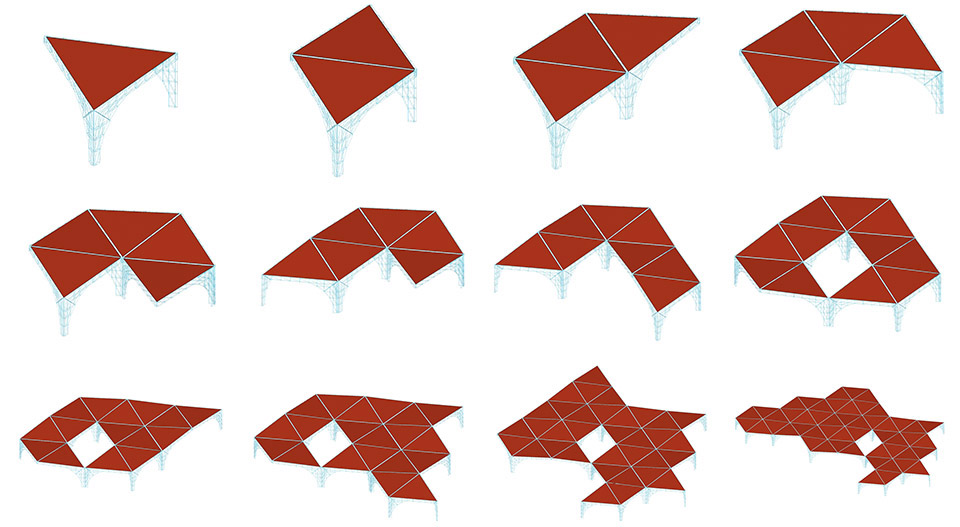

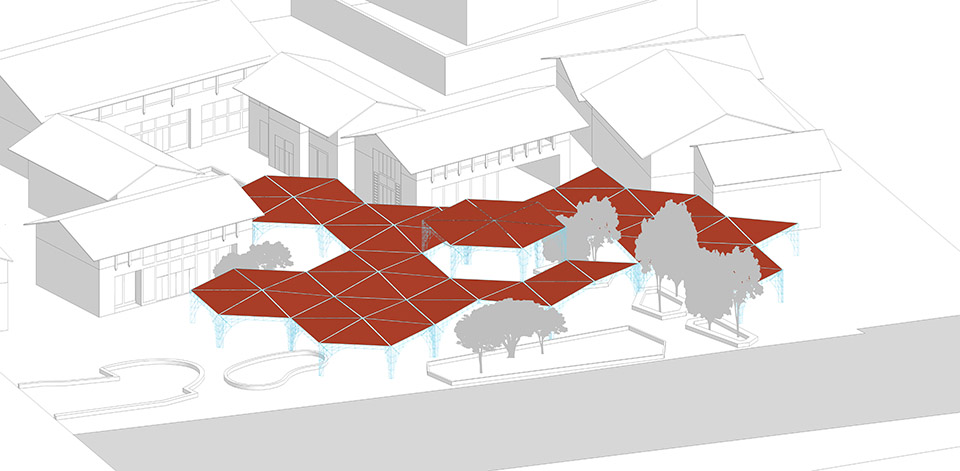

三角形单元拼接出的顶可以灵活组合，能增长，亦能减少，覆盖不同的空间大小，满足各种使用要求。顶下的空间不仅通透灵活，还能往各个方向无限延伸。

The Tangram Canopy is a flexible modular roof structure. The design mimics the Tangram, a Chinese game of individual triangle-derived pieces that can be rearranged into various forms.

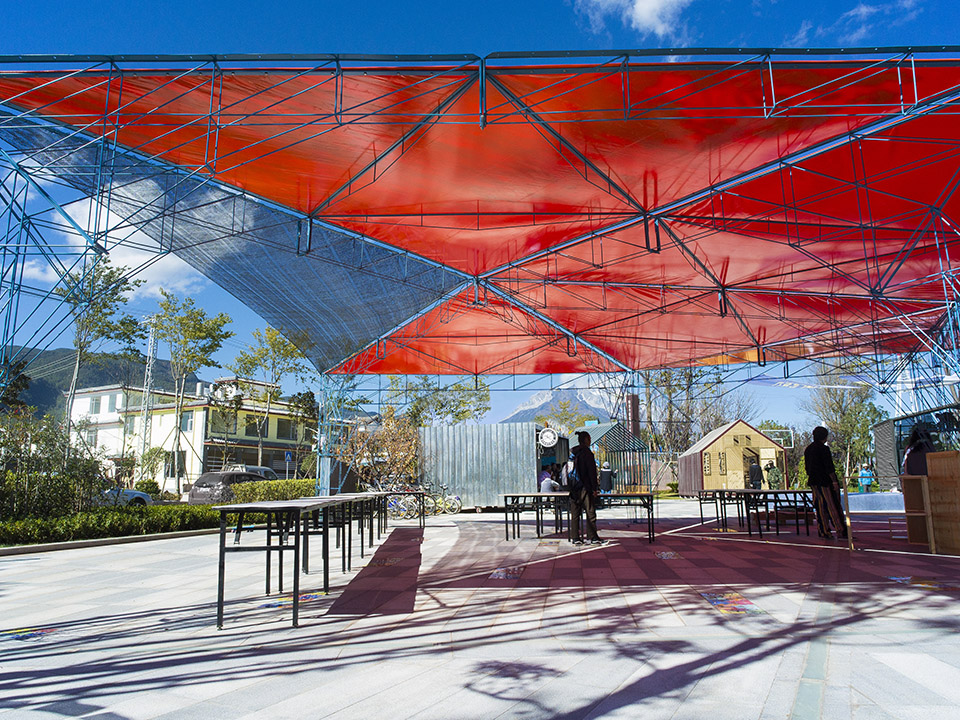

The flat roof of the Tangram Canopy ensures the modules are directionless, unlike typical canopies. The spaces created are infinitely expandable in all directions, unified under a singular canopy.

/wp-content/uploads/2015/01/_c_LzDGwqZekUqvFUGVJ8H9UL0PEpZIy7ngaPjmlMtEhYwY51Rk7o8bBBq5pYcvlADrjRLTK_LjosfJumaXIkZWzRen3Y2jKCf1.jpg

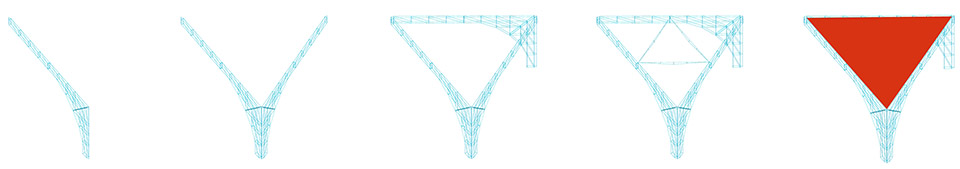

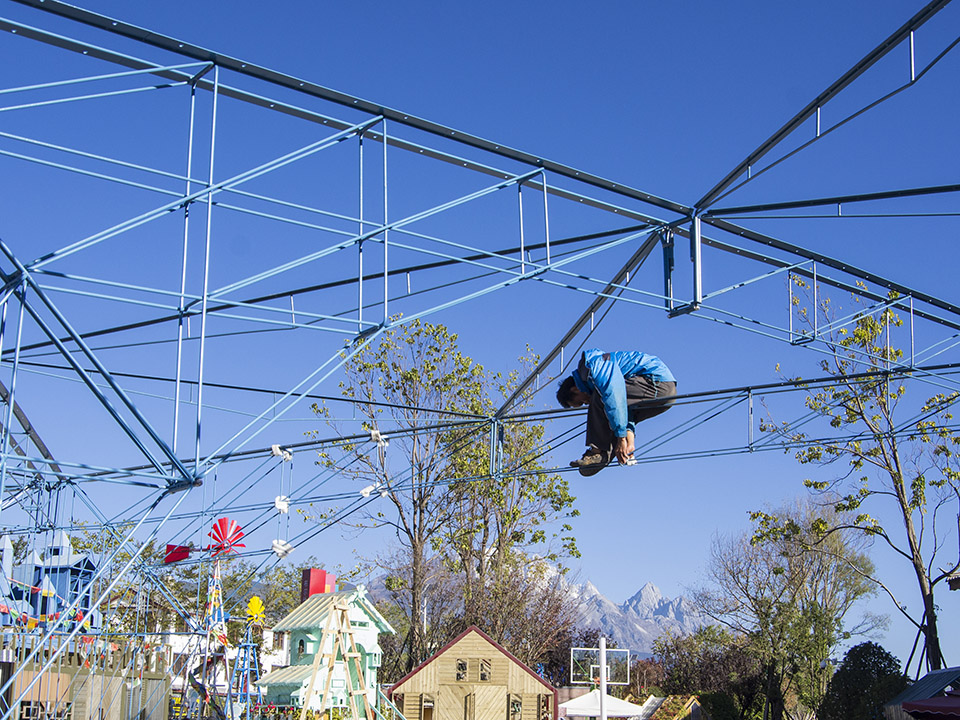

我们希望这个三角形顶最终能漂浮在空中，因此支撑的结构必须“消失”，所以我们选择用10mm直径细钢筋弯成三角形来制作L形支架，三角形结构具有高效率的传力特点，能用最少的材料覆盖出最大的空间，这也是一种节约的态度。

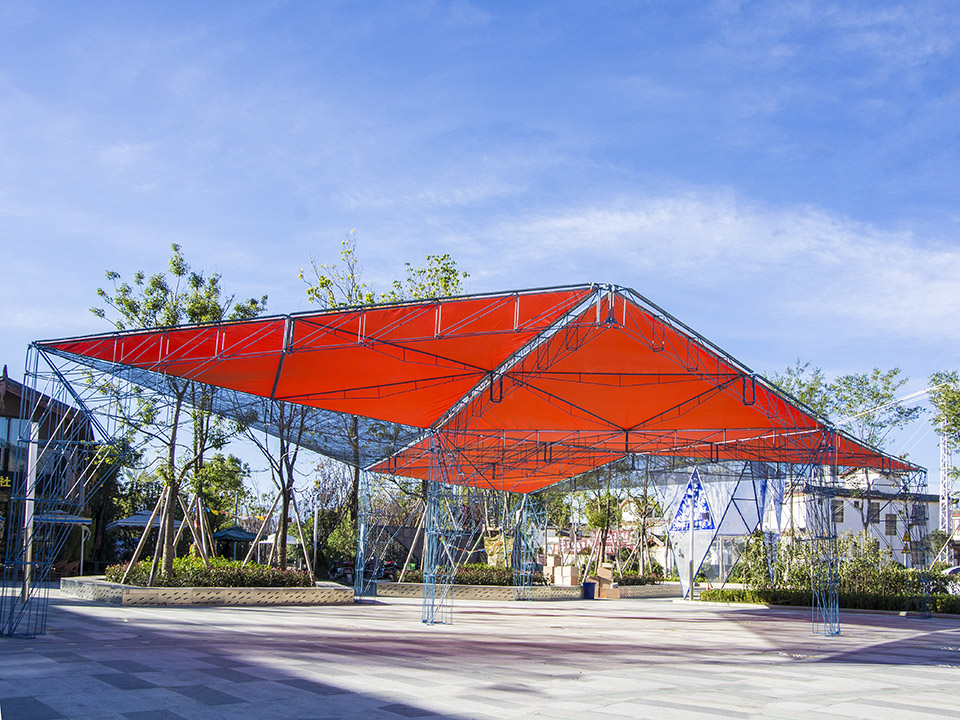

这些想法的结果就是一组三角形飘在蓝天中！

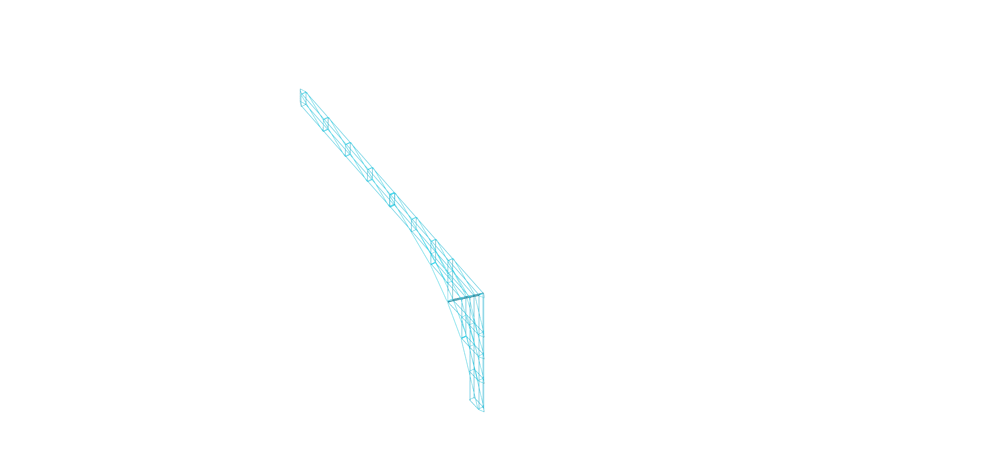

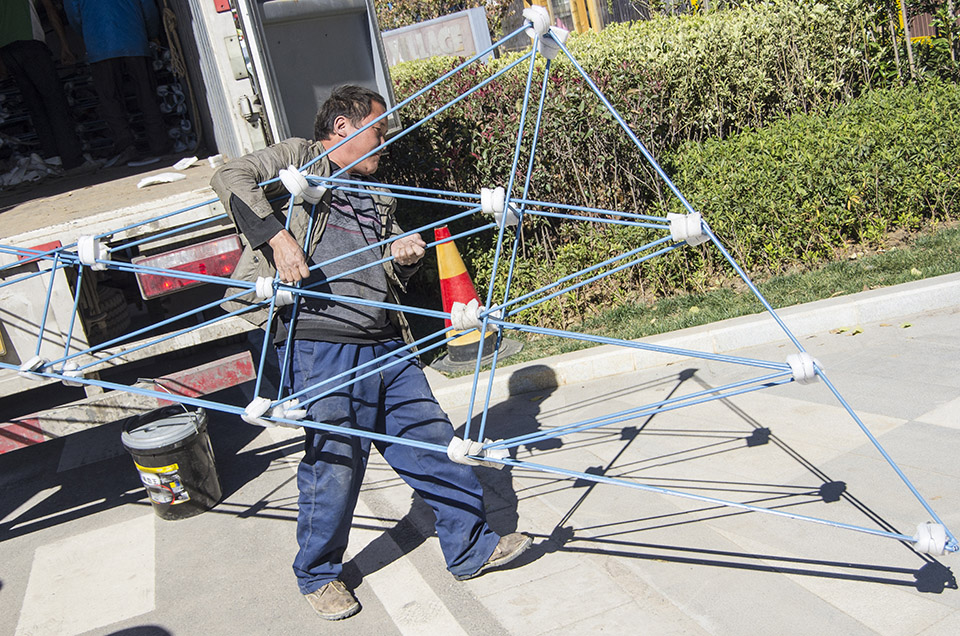

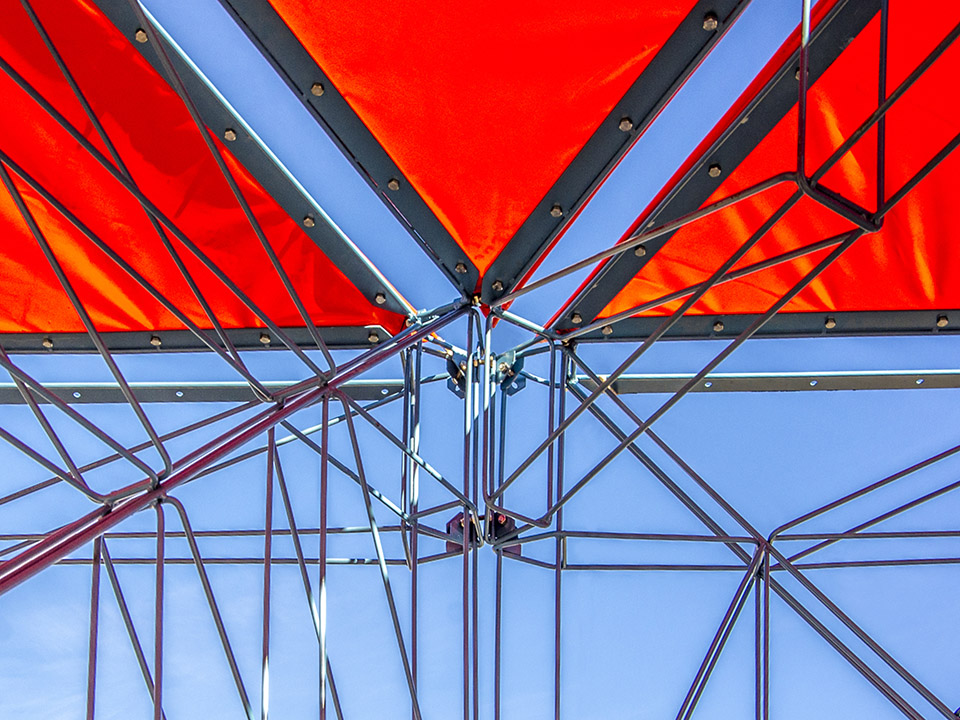

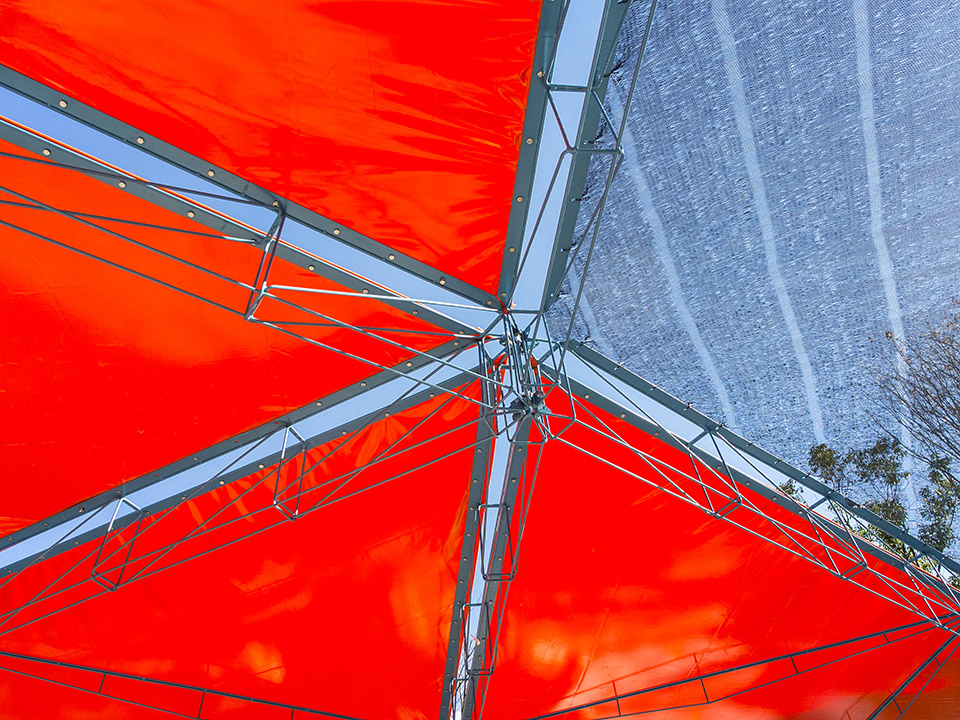

The structure consisted of truss-like “L” shape modules made of 10mm thick steel rod. The lightness of the structure allows it to almost “disappear” into the background while the canopy appears to float above. The long spans provide flexible open spaces on the ground with minimal obstructions.

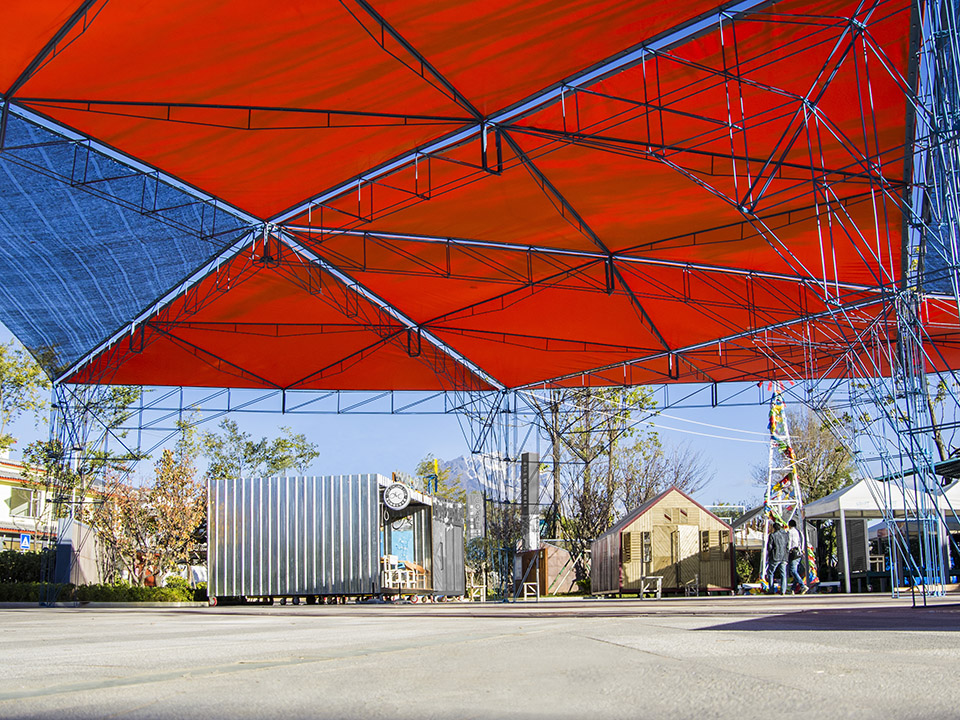

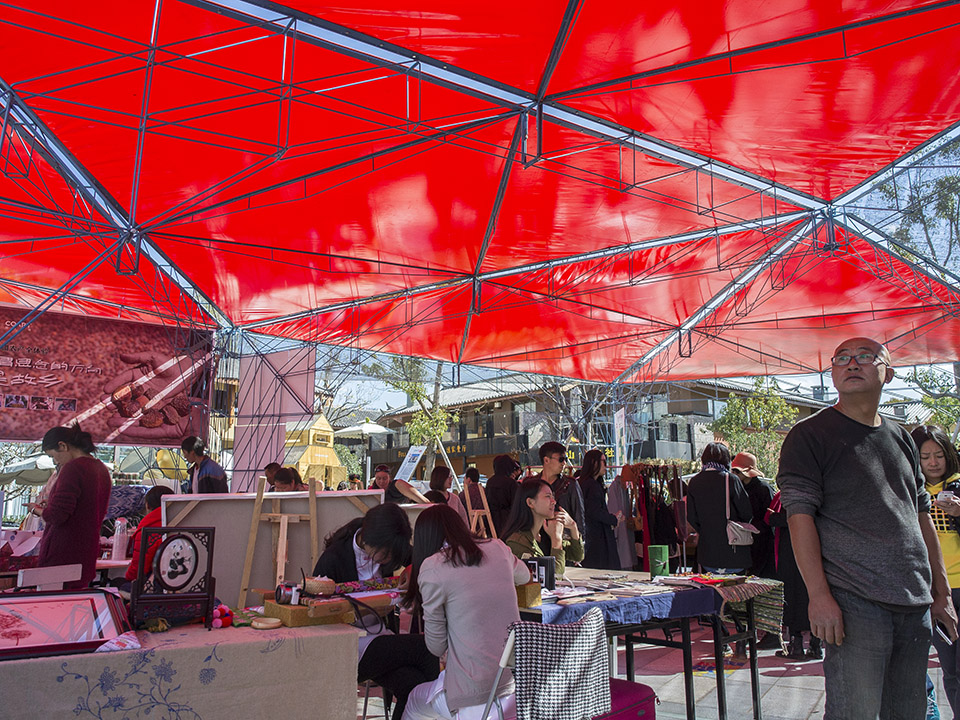

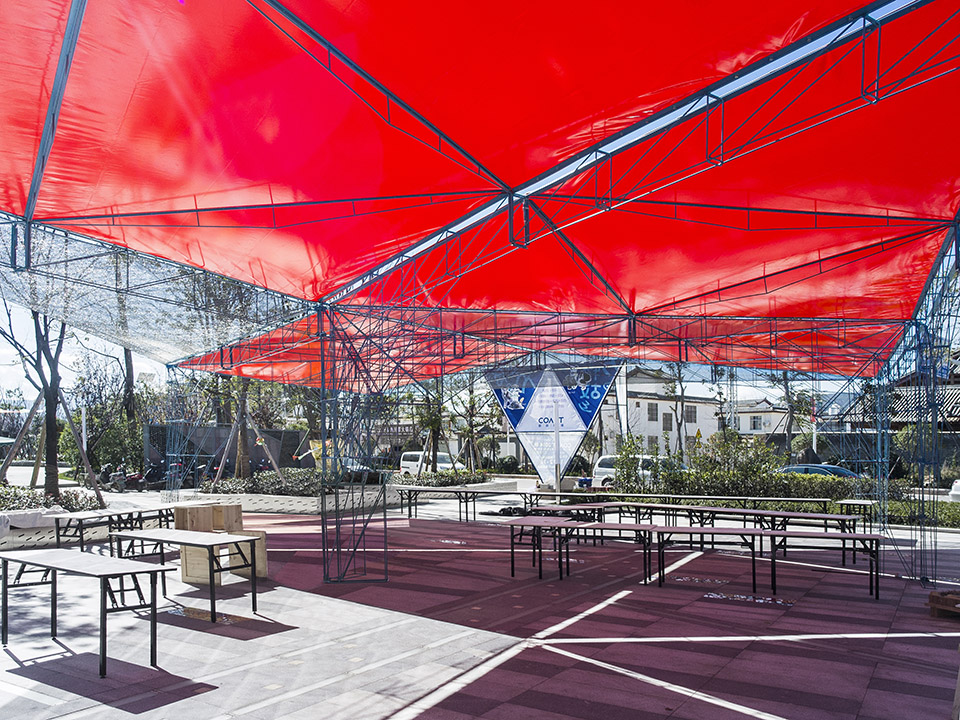

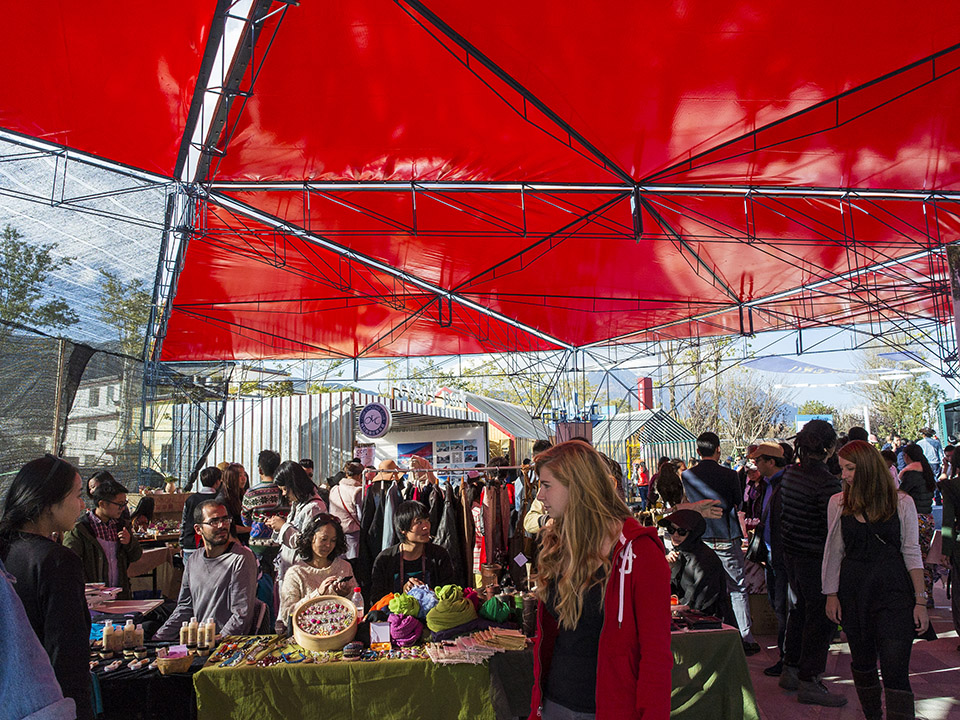

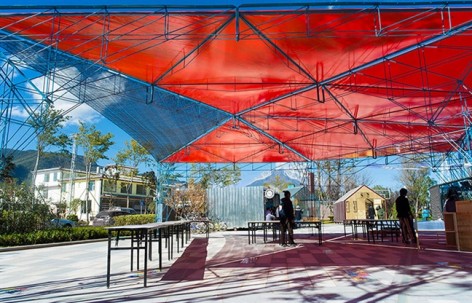

The Tangram Canopy is used here as a covered market for the 2014 COART festival in Lijiang, Yunnan.

/wp-content/uploads/2015/01/_c_aVie1YzB7NLKO_SSZZBIuZvPTJ86LggFv_fptRXveVX-5M_yKHJUukxBGbbz50BKQk4xfr7M3Ag7OnlTbJkF7YB4cTeTSwMa.jpg

/wp-content/uploads/2015/01/_c_0uNWmQI5Y3Yh_3LMnASmODVUuhQ7yhrg-APRZ_RfYcLWHZ0SDEZ35pxGfgD1GmAl2SqdCZZ8oTW3yT2VYJLEFGJilEJFZFtD.jpg

/wp-content/uploads/2015/01/_c__PEim0kPkqLGIzk_QCQgXI6dCo9FOzStmIF1K-nXPsER_9XOgSFekQdL5bRNmYt7lOSVjS-C-ulxCJaQ3oUJ2UU9-MY9dNjW.jpg

/wp-content/uploads/2015/01/_c_PmbLBu-bCOzvDpBzA08I65gbQNbrWN93xK9YGU9J_cw5BulOlFxmDoQ8Br6iQDUXe_NhYnw7Cur4tdVqBpAIIwJ8SYN-Jj81.jpg

/wp-content/uploads/2015/01/_c_EEOrzTEUut_ojEy_ALAE1TvERVwAdjjAPCMsBvSO3F9y_idIptuKOxwnURes7baQh011V2iyJ8amZ0xQ_SAD7K41eU3U8qIc.jpg

/wp-content/uploads/2015/01/_c_qzCXdSZu9DCzQ2S0s80NrqA4EsH5kHaGIBWm34rP1kH4GPt1YPZGfxaOlUYn3zJ4pUWi1ApchdaQ8nusyn5P5_PbNVi6yPuF.jpg

/wp-content/uploads/2015/01/_c_k-cxBpUjsCF-nT7OWYeF55_tCkfbLZC3Miub9jzoVrlQTQ2ISBnpTJ1VdsCRNlOYUyQohyeQF2W4nENA9dYFjaajC0qfcX3b.jpg

/wp-content/uploads/2015/01/_c_GVFyZUPbn-PnVSfAhEneWwsDHduIOBEJr2KshnSDdxIqE3QvI3XdD4XmNUOYSJC2_c0pP_TDpV4ioY4RgnZKCc_3PdMOV68e.jpg

/wp-content/uploads/2015/01/_c_BgUhPXU7FNlqaKEGMyl-rbcwFA1U16TjAa5NFJkmgZ6sEVy4nZxJi5x1h83Wkk1NfQ27aXmG18j3Dn3fclA4i3xAy-bu9Vdl.jpg

/wp-content/uploads/2015/01/_c_Y95vh-6KNtuQzKCGjP9a-goPWejY_kr8hGhB6Rj37amU4GsZxWv50T9lw-CdUvo1NBlta1Sx3Uz-EfP_kqnBxwyFLuxBHU2f.jpg

/wp-content/uploads/2015/01/_c_EeKwn1vQFRDfl64EBhIP3XrtsVZUQYozOY3qgM3L7L0gfwEAAF3XVopTTzC8ifYV0r2bDDJ2zgG-Vz7SHewV8dlzrEAkuo4D.gif

/wp-content/uploads/2015/01/_c_Dxx61p7nPH4OaP-jgpSlMsNp_3f9lob2w-VkNPrzdrVBarsgIQFjped2J4VJlgnaRR_WMgUULqd-Cj5hCh5k4viYGWRd_X21.jpg

/wp-content/uploads/2015/01/_c_DLJ_cw1CGfabfMK4J5k2C4WSZPWAm1JeGXVBwu47xQCNaEW6Eea8So2fnEuSrQdj_hCqbByA2TrtVKQuqpdjOtou-2aliktT.gif

/wp-content/uploads/2015/01/_c_3LJvaYEDrO8bv3eytNs0h6AZMhtU6eKfSXhiJpOymRGuyE4T9fJS1w43_sssl7V7_6v1H0r4ceA6nRgodM3B8Iuphz2HOKb6.jpg

/wp-content/uploads/2015/01/_c_WFmSKrjUQobsrPe3RwSOvIHoacj6N6u9YHem53vDNUa9JbHGVWiyXPFBUX7onq7b9wBeyvMWr9y6ZiYlPZpKXJ3GMes6V3BA.jpg

客户：COART
地点：丽江市束河古镇
材料：钢、PVC膜材
完成时间：2014年11月
设计主持：何哲，James Shen（沈海恩），臧峰
项目团队：蒋昊，高天霞，林天泉
摄影：众建筑

Client：COART
Location：Lijiang, Yunnan Province
Material：Steel and PVC
Date of Completion: November 2014
Principal: He Zhe, James Shen, Zang Feng
Project Team: Jiang Hao, Gao Tianxia, Lin Tianquan
Photographer: People’s Architecture Office (PAO)
