非常感谢设计方Prechteck将项目介绍和项目图片授权gooood发行。更多请至：Prechteck on gooood
Appreciation towards Prechteck for providing the following description:

/wp-content/uploads/2011/12/92b17d927be2ca42e0667f2caa2ff768.jpg

/wp-content/uploads/2011/12/e49f2715c17847ee4e43ffe607c904de.jpg

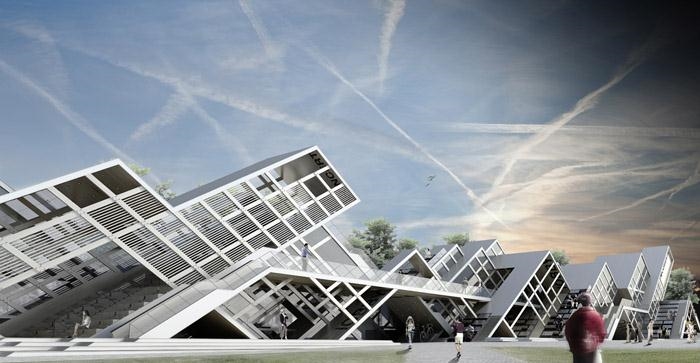

Randerscheinung ,a modular pavilion proposal for the 13th documenta 2012 to take place in kassel, germany.

There are 3 diagrams which explain the pavilion’s concept best:

-the pavilion as modular system:
Held every five years, the event’s cyclical existence called for a temporary building which may be easily disassembled and relocated to another site.
The pavilion exists of different parts, housing different functions, all singular cells but the strongest in coexistence with its neighboring parts.
The main concept is that during the 5 years no documenta is held, each cell can be assabled in a different german city and serve as an info booth to the next documenta.
At the beginning of the next documenta, the parts get transported back and get reconnected on site.

-the pavilion as a bench:
Some functions stated in the brief, like concert hall, lecture hall, reading and chill out areas ask for sloping surfaces to sit and walk. the sedentary landscape is comprised of a truss system placed at 30 degree angles, turning wall and roof panels into an ideal location for staircases and surfaces for sitting.

-the pavilion as a meeting point:
The competition brief stated that the pailon should stay in the back seat and not taking any attention away from away from the documnta itself. On the other hand it should be a unique articulation and interpretation of documenta’s atmosphere. Randerscheinung uses documenta’s heartline as a metaphorical image describing its historical, political and artistic alteration over time. Keeping the pavilion to the sidelines of the site inbetween Kassel and the documenta plot, the pavilion extends horizontally and so relates to the surrounding cityscape. Stretching in the horizontal plane creates an atmosphere of togetherness with open access for all.

/wp-content/uploads/2011/12/17a8156bf658495a2aae39a5c8c88b77.jpg

这是德国卡塞尔2012年文献展的临时展馆方案，来自奥地利的Prechteck。

可以从三个方面来理解这个方案。

模块化系统
5年一次的展览需要是一个临时展馆，可以轻松拆卸并迁移到其它地方。展馆不同的部位有着不同的功能，这些部分需要和谐的组合在一起。在文献展结束期间，单元可以在德国不同的城市用作信息亭，等到下一次文献展开始的时候，可以将他们运回展览现场重新组装。

多功能
一些比如音乐厅，报告厅，阅读和坐下来休息所需要的空间正是这个30度桁架系统可以提供的。这个系统是墙面，是屋顶，是楼梯，也是人们停留的理想地。

一个交汇处
参赛要求提到展馆应该退让在一侧，为大展览服务，同时又要与展览气氛融洽。这个展馆隐喻着时间流逝下的历史，政治，艺术变迁。展馆水平延伸，最后融入城市景观，营造出平和的气氛，开放并欢迎所有到访者。

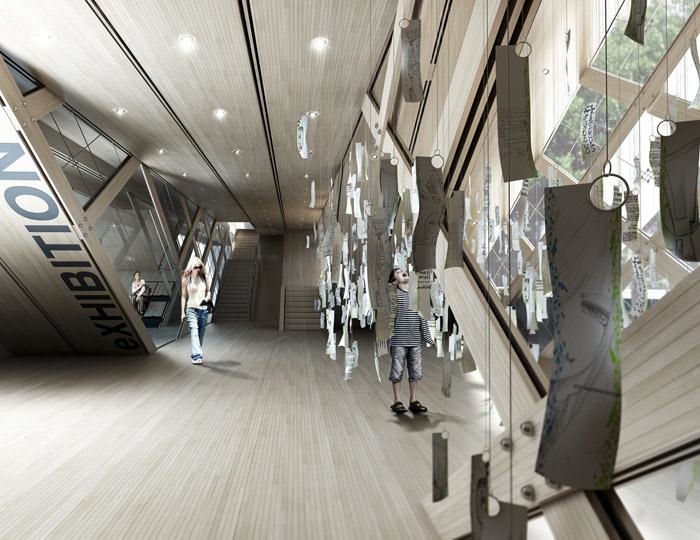

▽ lobby

/wp-content/uploads/2011/12/3dc665e4d13d7921ae28931fbdfea8bf.jpg

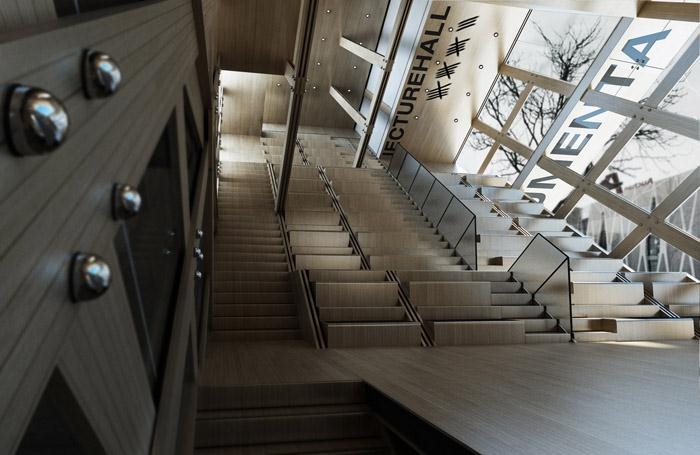

▽ Lecture hall

/wp-content/uploads/2011/12/050c4e4d3db11ec3f5ae987d303ab79d.jpg

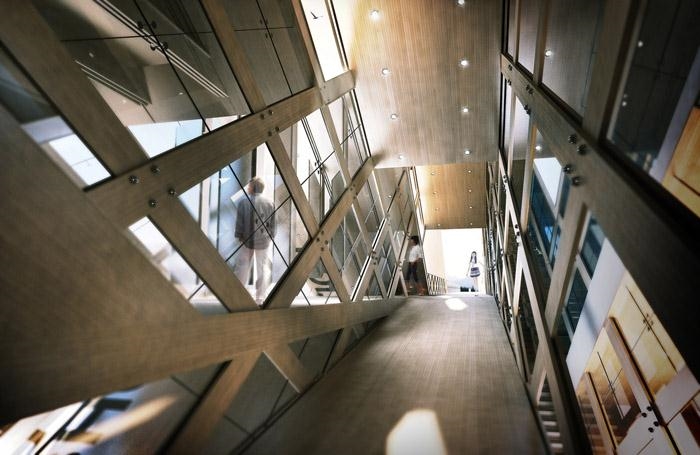

▽ in between way

/wp-content/uploads/2011/12/a76a70430127e084060bffa67f849803.jpg

▽ interior exhibition

/wp-content/uploads/2011/12/1601f9654aae02d546d3005ca8f7804a.jpg

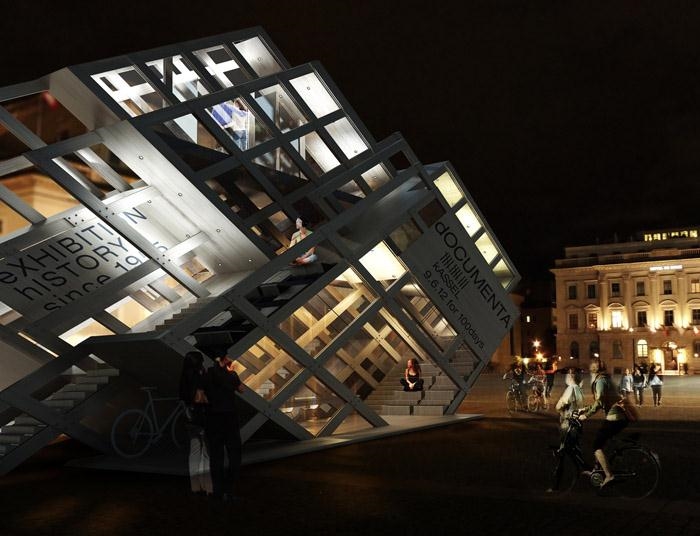

▽ at night

/wp-content/uploads/2011/12/97fa82d5ff1486e84b9dbe6a0f669730.jpg

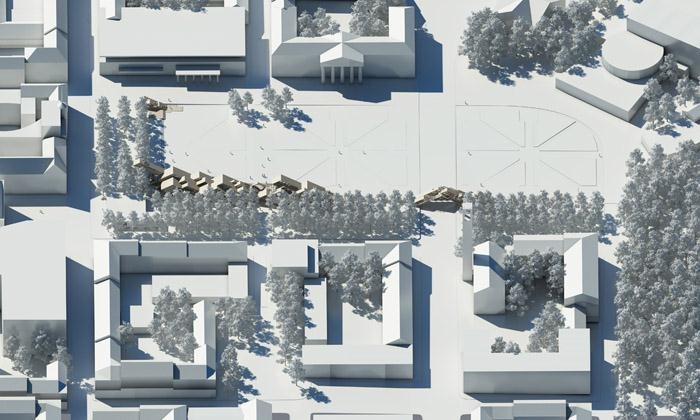

▽ birdview

/wp-content/uploads/2011/12/db702cfbe324e237ae7ae8bb0fb51b8d.jpg

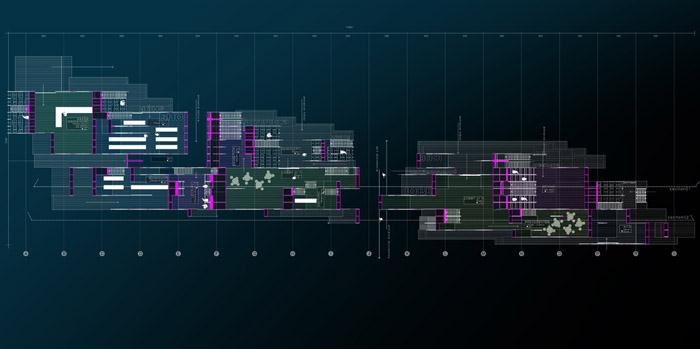

▽ plan

/wp-content/uploads/2011/12/d904270ee3085f376f9083f6b9d658ee.jpg

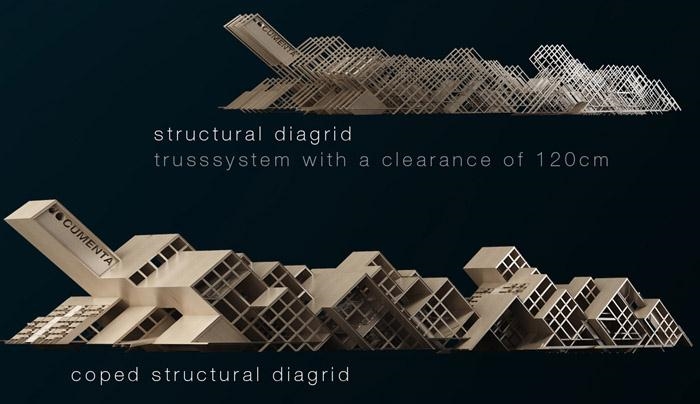

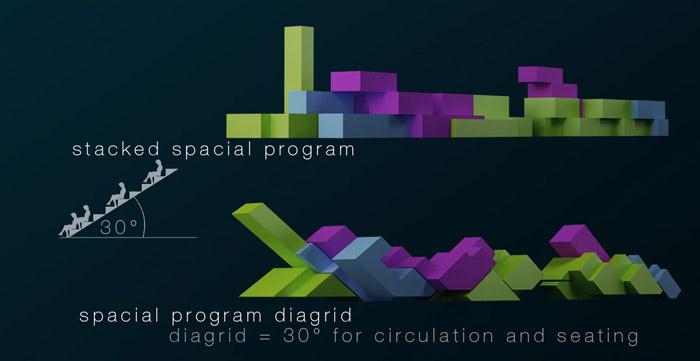

▽ diagram

/wp-content/uploads/2011/12/5d68887c5a88dc19d4d4f85b4df7ba1f.jpg

/wp-content/uploads/2011/12/0c6aa6f7523f3e35d7e6eff26295670d.jpg

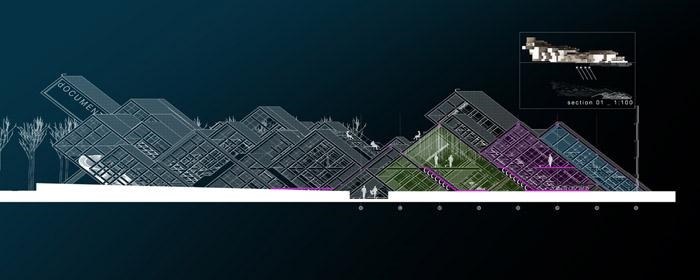

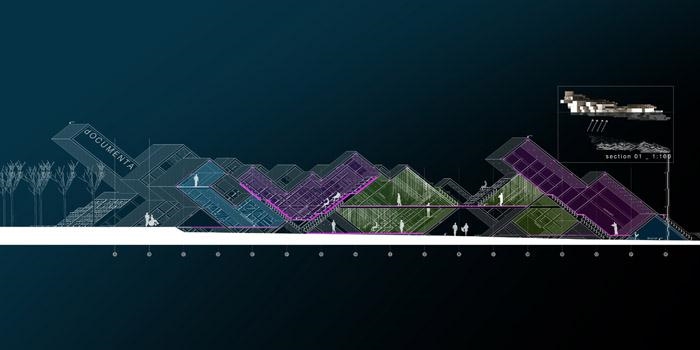

▽ section

/wp-content/uploads/2011/12/997739054277b4c5516852e2ff893f90.jpg

/wp-content/uploads/2011/12/384fb65fd7e49dfd498d8fc4a513e044.jpg

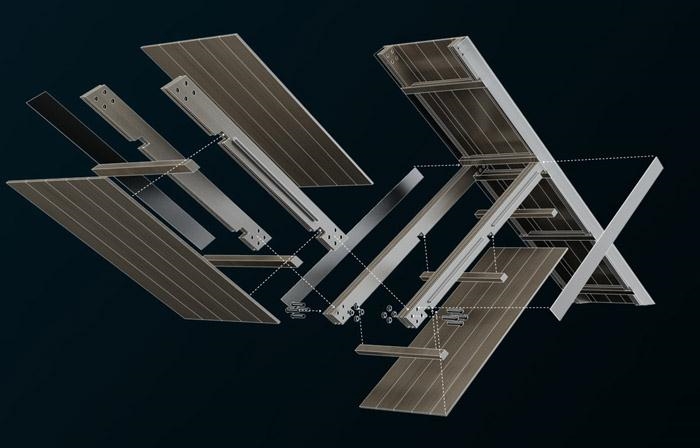

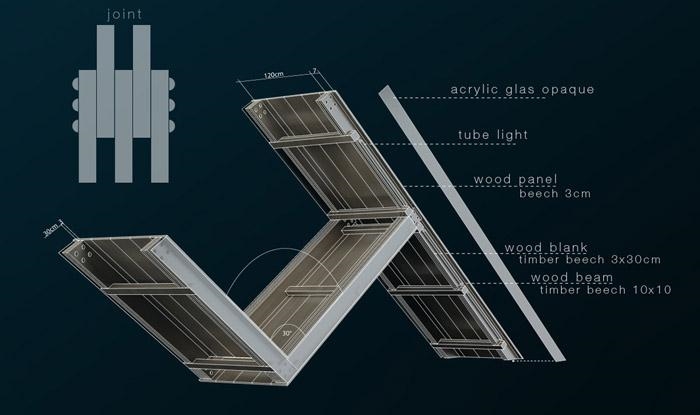

▽ detail

/wp-content/uploads/2011/12/a46f43f06a42d5f5bde72467548028dc.jpg

/wp-content/uploads/2011/12/82f122322b49de0d11774af9db660db6.jpg
