Poly International Plaza, Beijing By SOM

A jewel-like faceting that shimmers as it reflects the sky

Project Specs

Location:

非常感谢来自 SOM 予gooood的分享。更多关于他们:SOM on gooood
Appreciation towards SOM for providing the following description:

保利国际广场位于故宫和首都机场之间,在临近首都机场高速的新建商务区里占据着优越的位置。项目场地由主楼和两栋规模小些的配楼组成。三栋大厦的椭圆形基底轮廓跳脱了毗邻的城市肌理的刚性几何形状,让周围的公园景观与项目场地水乳交融。园林绿化覆盖了车库坡道和疏散楼梯,最大限度地减少了它们的视觉影响,同时还构建出宁静、随地形起伏的步行道。

Located midway between the Forbidden City and Beijing Capital Airport, Poly International Plaza occupies a prominent position in a new business district adjacent to the Capital Airport Expressway. The project site comprises a main tower and two smaller supporting towers. The elliptical footprint of the three towers frees the buildings from the rigid geometry of the adjoining urban fabric, allowing the landscape of surrounding parks to continue seamlessly through the project site. The landscaping covers garage ramps and egress stairs, minimizing their visual impact while creating a tranquil, undulating topography with pedestrian paths.

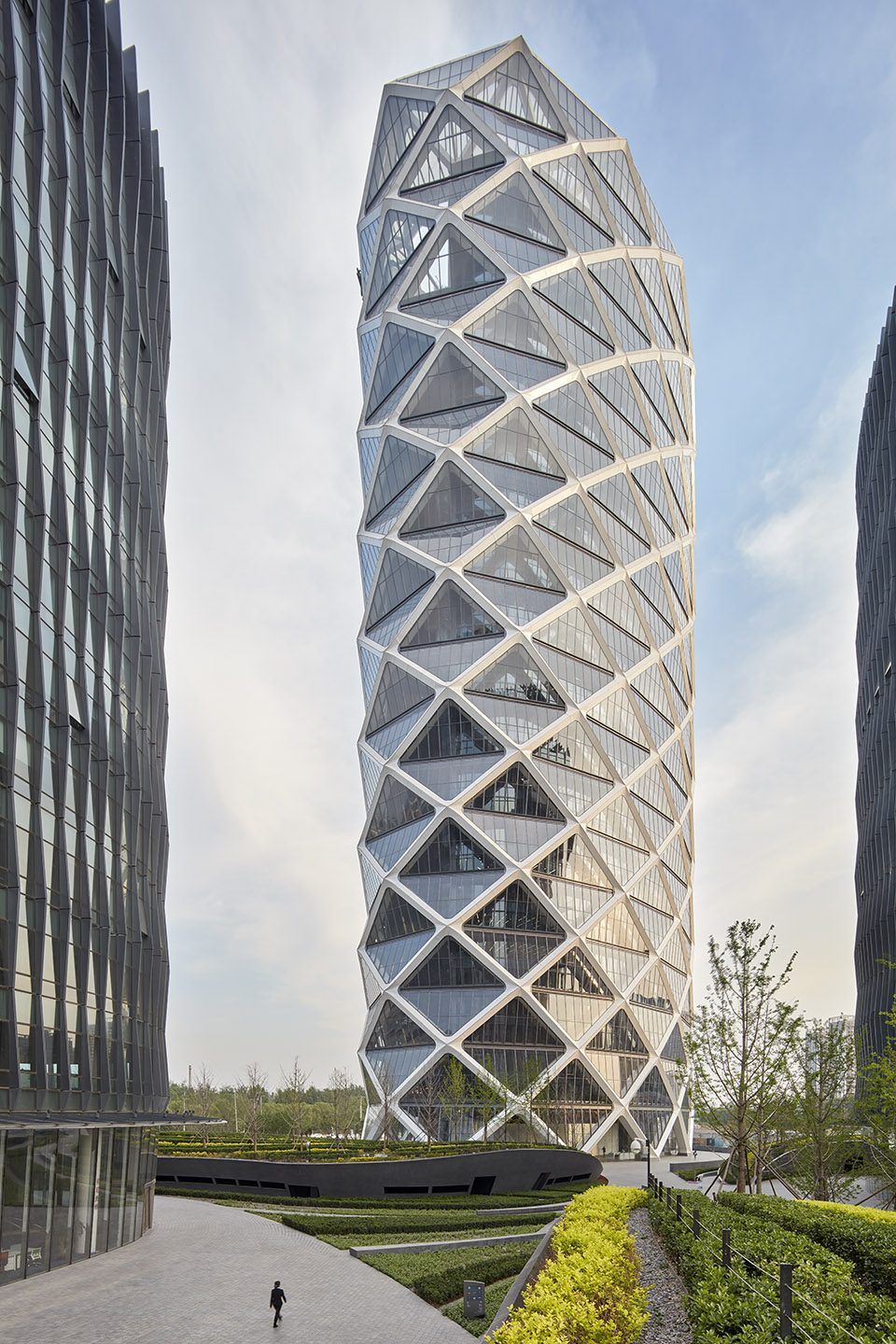

▼建筑外貌,surface

主楼的外观设计受中国纸灯笼启发,在构成图案的连续斜肋框架上安装宝石切割面造型的玻璃幕墙,让立面上天空浮映,日辉闪烁。外框架结构体系形成外层保温墙体,内层玻璃墙体之内才是办公空间。这一设计提供了自然光照的公共区域,可用于会议和社交互动,同时也构成楼层之间的空间和视觉联系。大跨度的结构设计,不仅提供广阔的内部空间,可营造无柱工作环境,而且还采用了具有高度可持续性的建筑/暖通方法来应对北京特有的气候和空气质量的挑战。

Inspired by Chinese paper lanterns, the design of the main tower’s exterior is formed by a continuous diagrid pattern, with a jewel-like faceting that shimmers as it reflects the sky. The exoskeleton structural system forms an outer thermal envelope around the office spaces, which are enclosed within a second glazed interior envelope. This creates daylit communal areas that accommodate meetings and foster social interaction, while establishing physical and visual connections between floors. The long-span structural design not only opens up the interior, creating a column-free work environment, but also employs a highly sustainable architectural/mechanical approach to address the climatic and air quality challenges particular to Beijing.

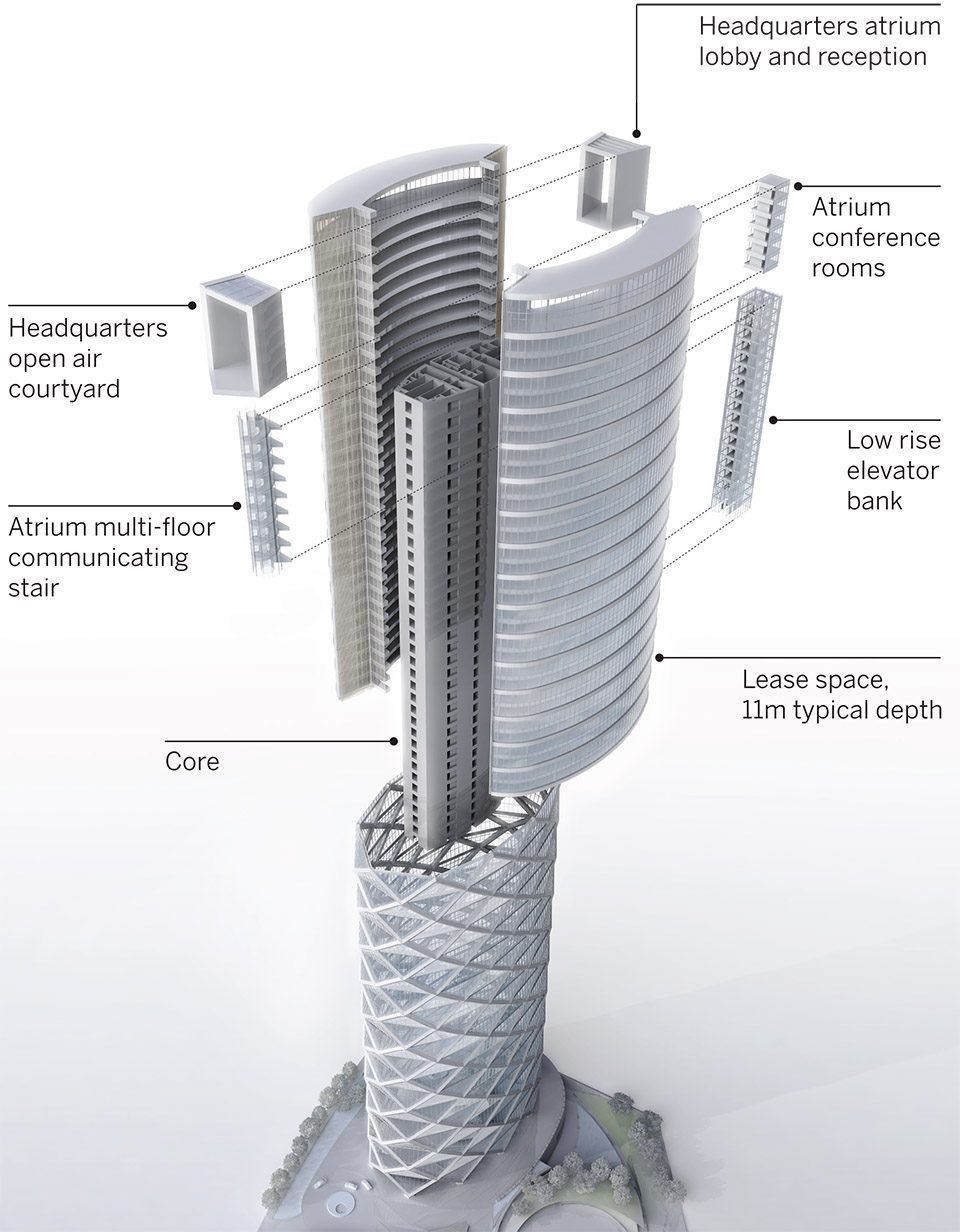

▼设计概念,concept

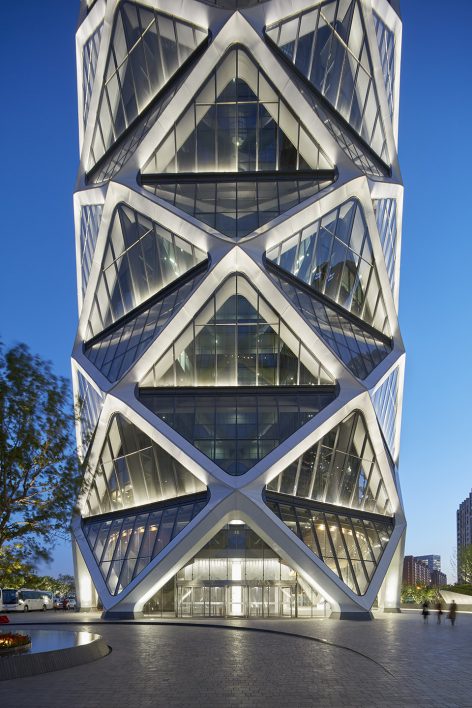

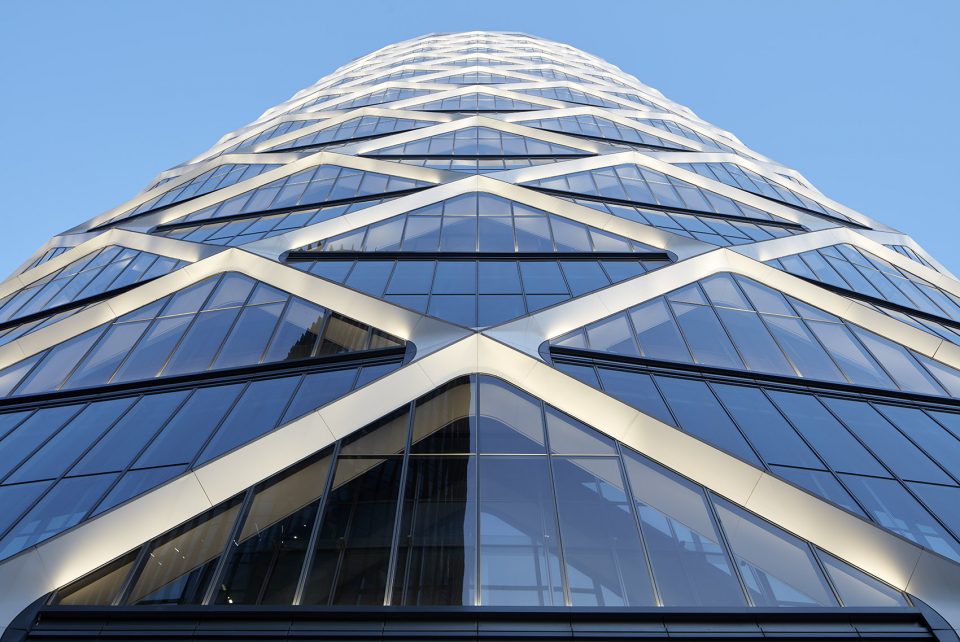

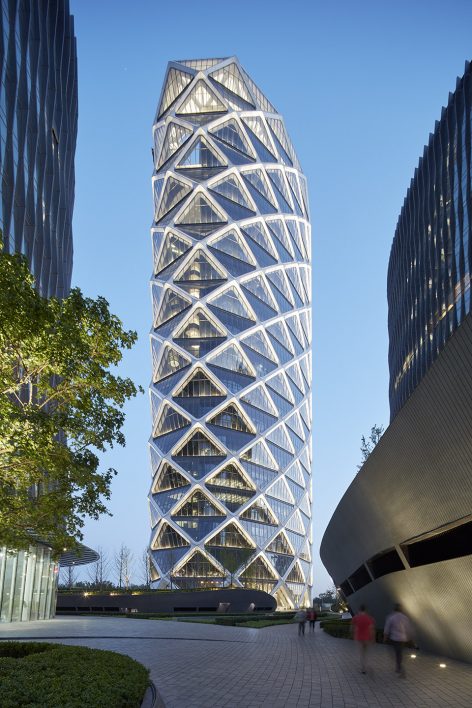

▼建筑外观表现为宝石切割面造型的玻璃幕墙, main tower’s exterior is formed by a continuous diagrid pattern, with a jewel-like faceting

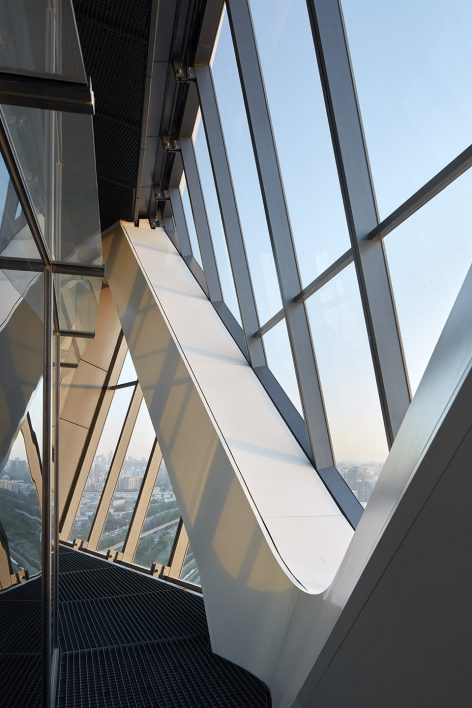

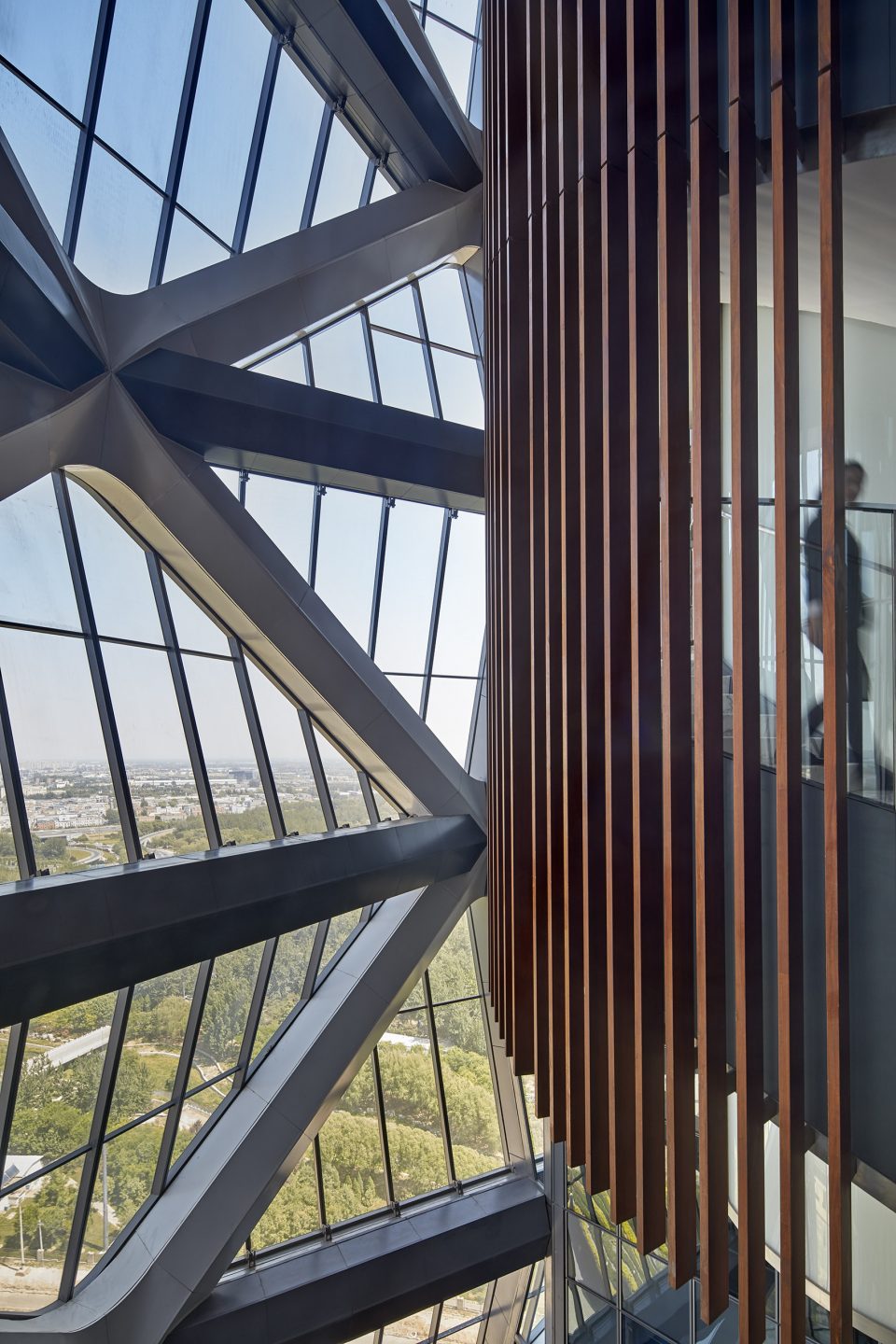

▼外墙结构细部,detail

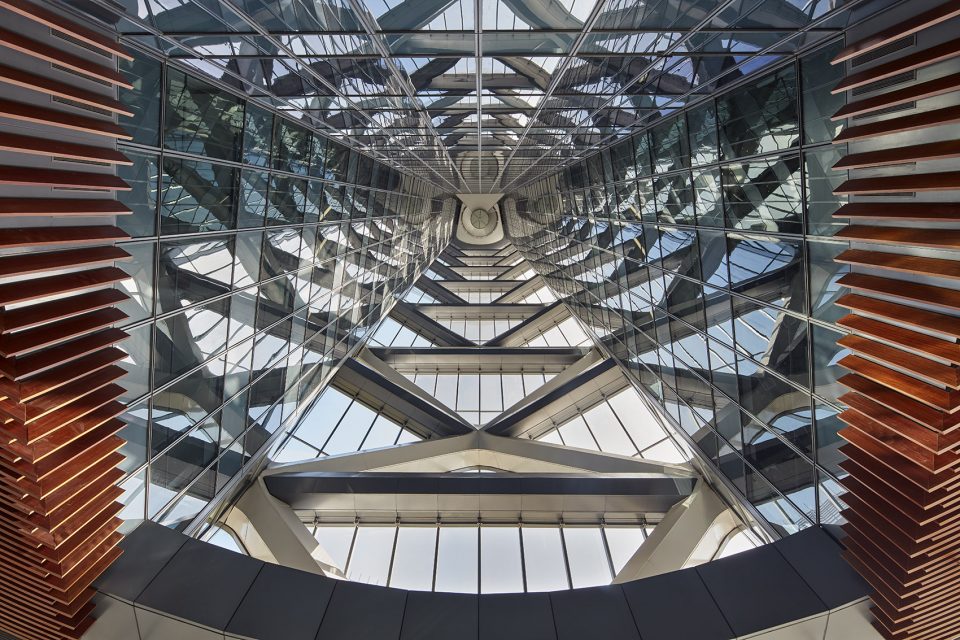

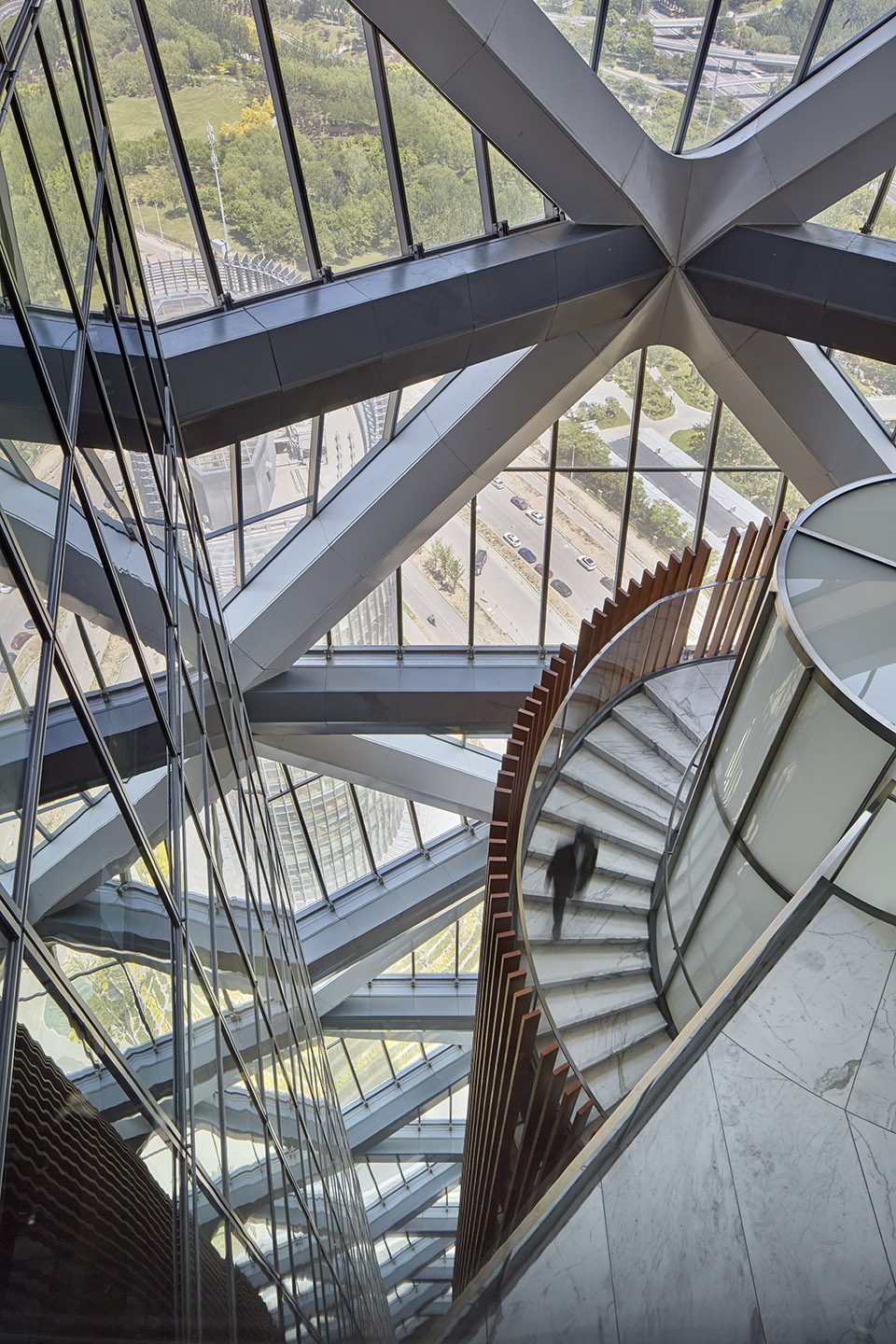

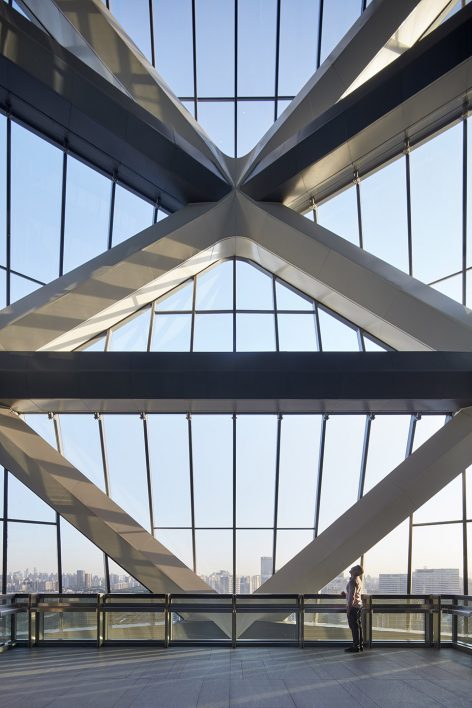

▼构成空间内视觉联系,visiual connections

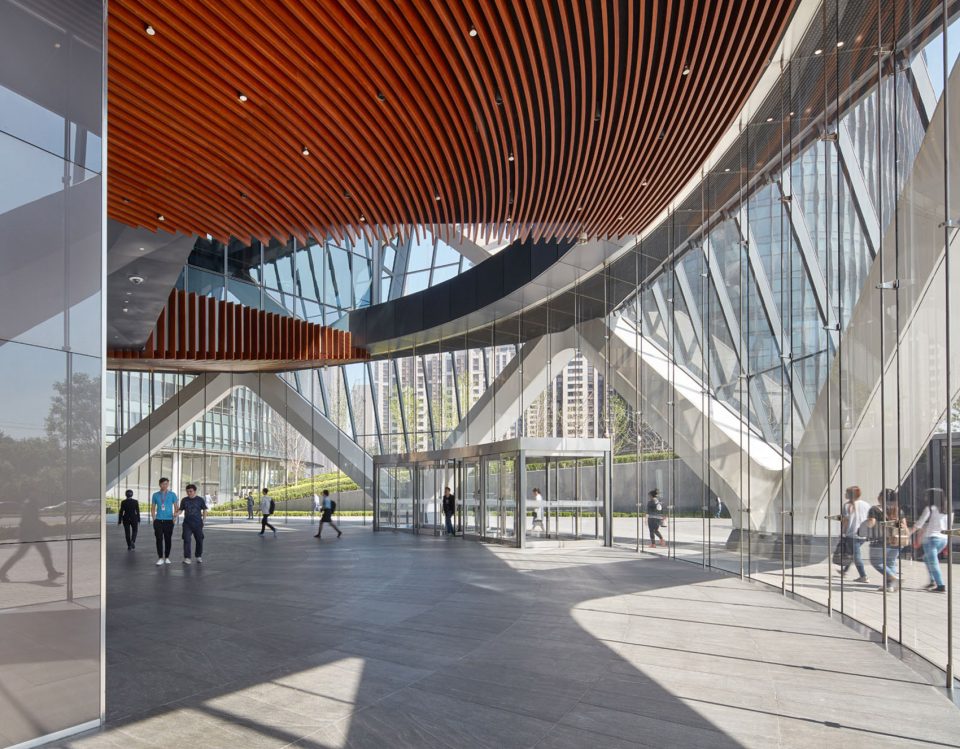

▼大面积立面采光,natural lights

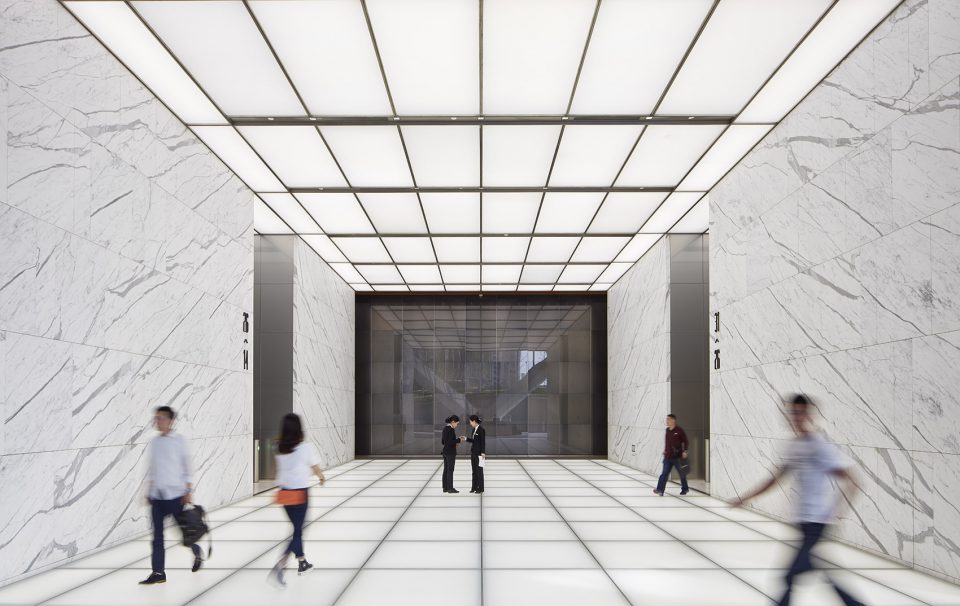

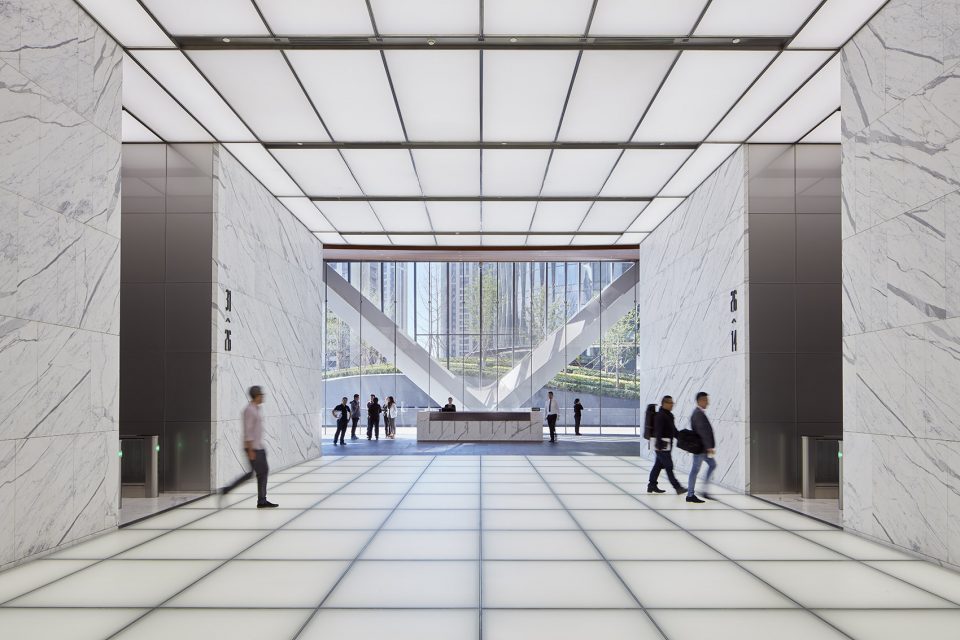

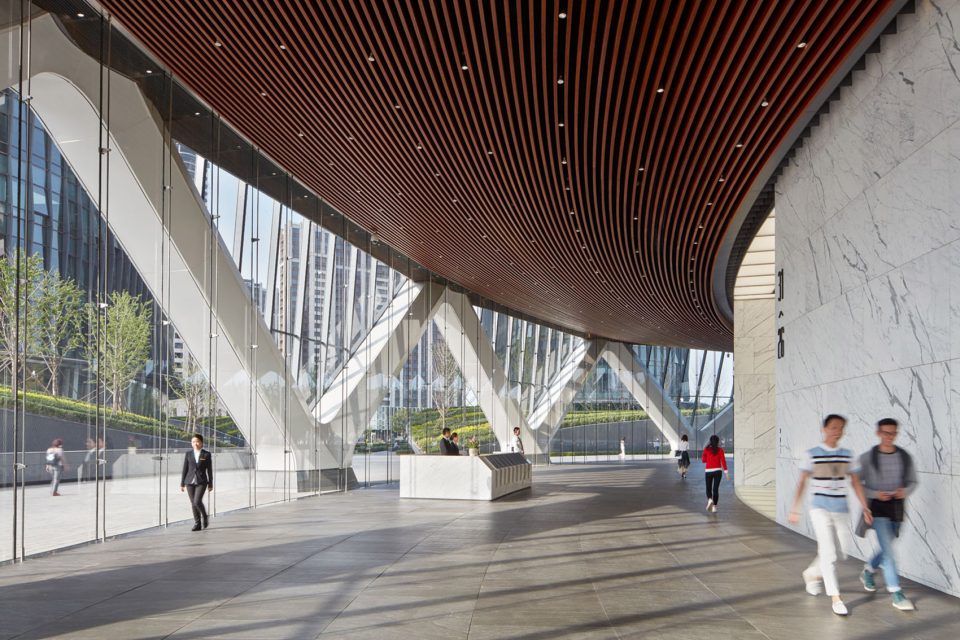

▼无柱式内部环境,column-free work environment

▼总平面图,master plan

▼一层平面图,the ground floor plan

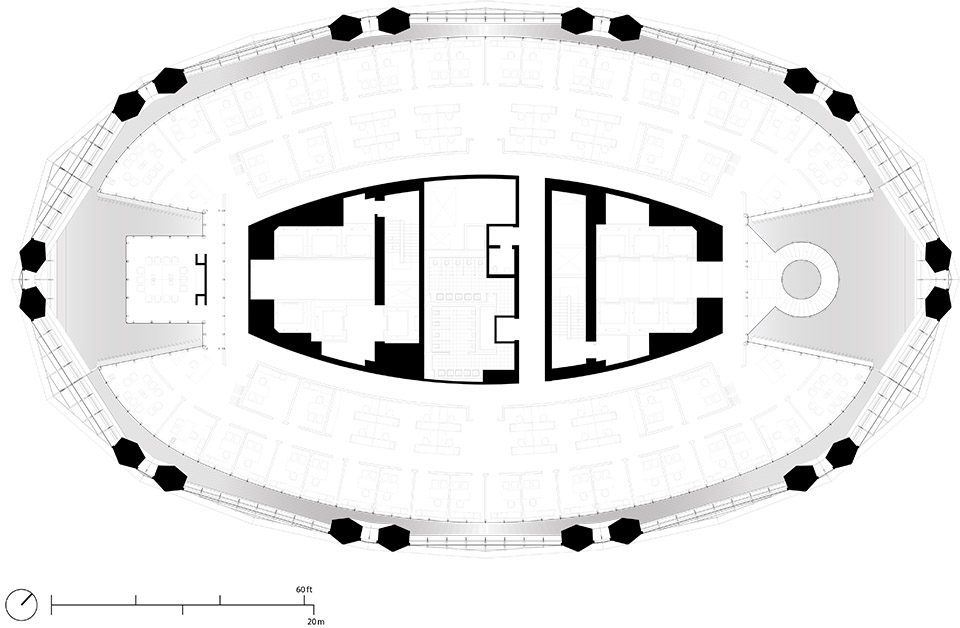

▼二十一层平面图,the 21st floor plan

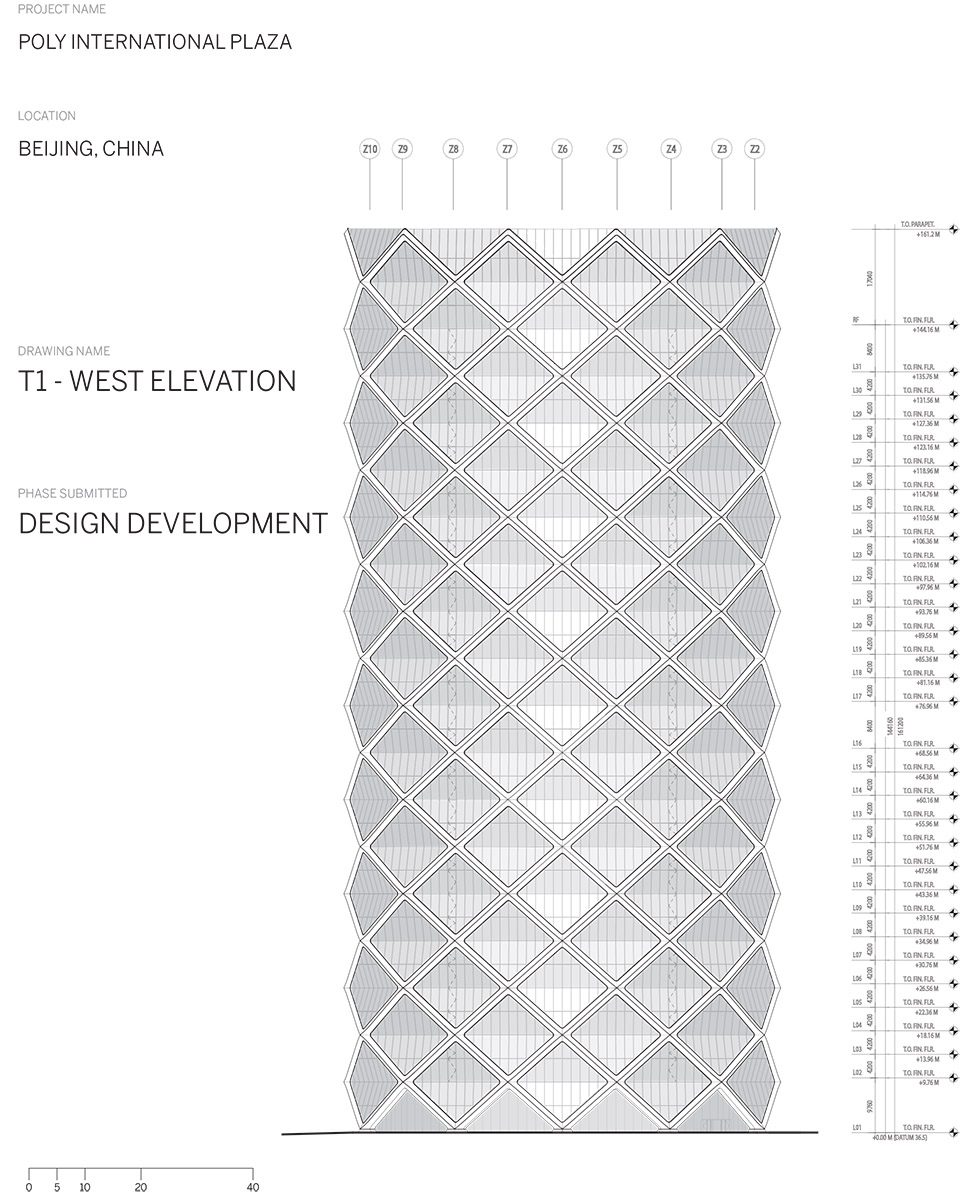

▼立面图,elevation

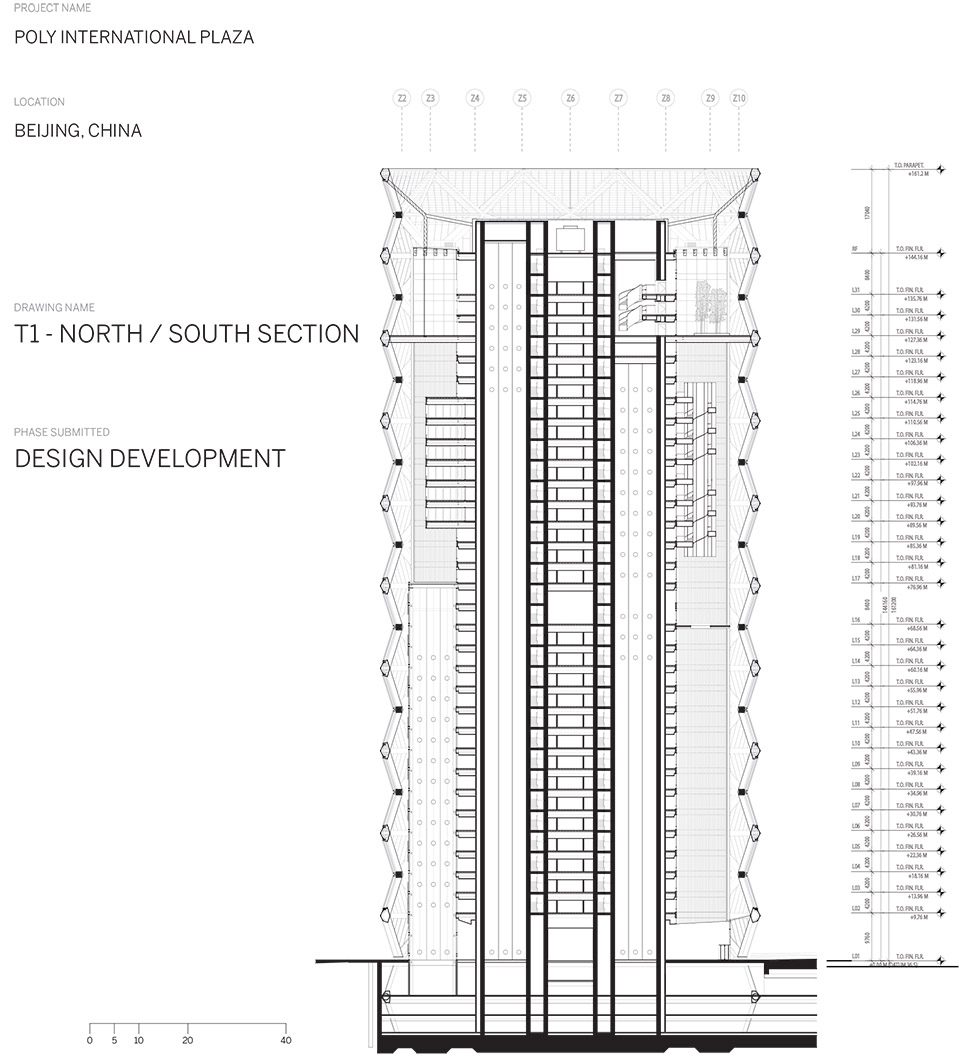

▼剖面图,section

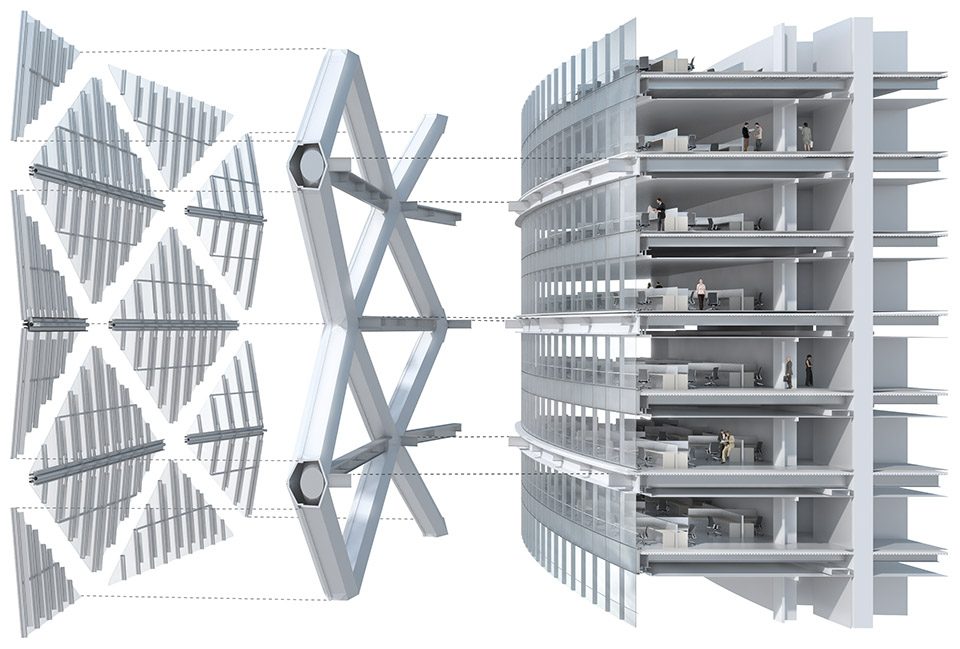

▼剖面效果图,section

▼结构分析,structure

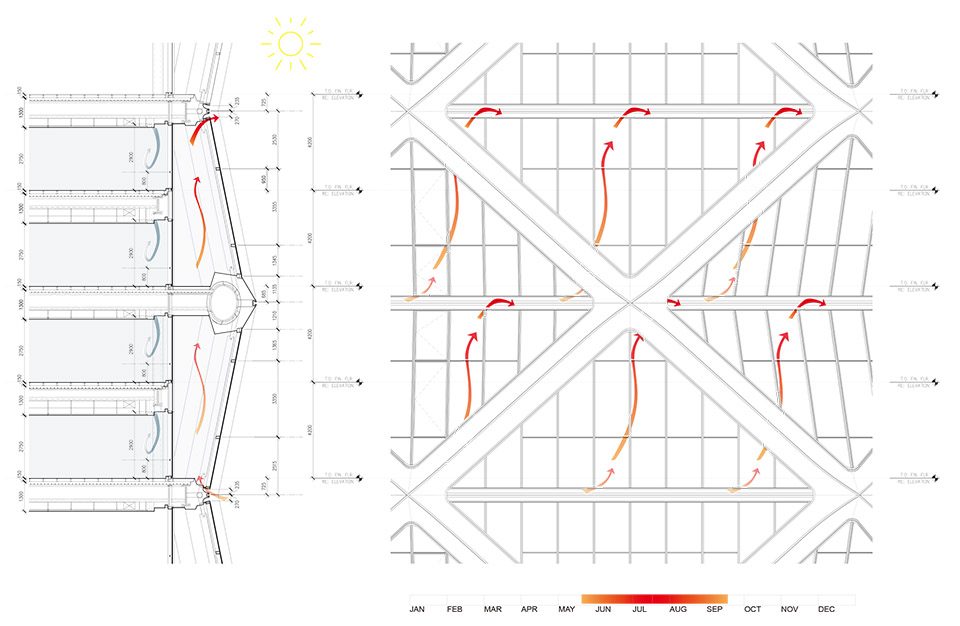

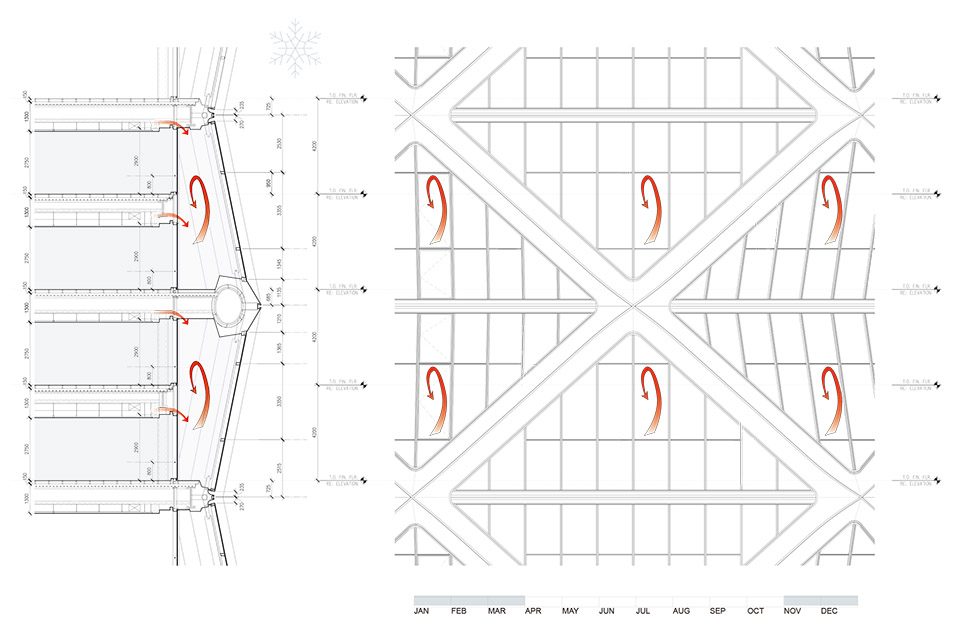

▼气流循环,circulation

地点: 中国北京
项目完工时间: 2016
用地面积: 23,612平方米
项目面积: 116,000平方米
楼层数: 31
建筑高度: 161.20米
类型: 商业+办公
服务: 建筑、结构+土木工程、高层建筑

中英文文字提供:SOM

Location: Beijing, China
Completion date: July, 2016
Gross square footage: 116,000 m2
Total project cost: N/A
Total construction cost: N/A
Client: China Poly Real Estate Company Limited
Owner: China Poly Real Estate Company Limited
PEOPLE
Architect:
Skidmore, Owings & Merrill LLP
One Front Street, San Francisco CA 94111
451.981.1555
Personnel in architect’s firm who should receive special credit:
Leo Chow, AIA, Design Partner
Gene Schnair, FAIA, Consulting Partner
Keith Boswell, FAIA, Technical Partner
Larry Chien, AIA, Project Managing Director
SOM Project Team:
Angela Wu, AIA, Associate Design Director
Brian Cook, AIA, Technical Coordinator
Francesca Oliveira, AIA, Technical Design
Christopher Talbott, AIA, Design Architect
Stephanie Chang, Project Coordinator
Josephine Pai, Project Coordinator
Jeffrey Bajamundi, Digital Design Coordinator
Architect of record: Beijing Institute of Architectureal Design (BIAD)
Associate architect(s): N/A
Interior designer: N/A
Engineers
Structural: Skidmore, Owings & Merrill
Mark Sarkisian, PE, SE, LEED®, Structural Engineering Partner
Neville Mathias, PE, SE, LEED AP, Senior Structural Engineering Associate Director
Rupa Garai, PE, SE, LEED AP, Structural Engineering Associate Director
Andrew Krebs, PE, SE, LEED®, Structural Engineer
Zhaofan Li, PE, Structural Engineer
Joanna Zhang, PE, SE, LEED AP, Structural Engineer
Jeffrey Keileh, PE, SE, LEED AP, Structural Engineer
Christopher Horiuchi, PE, Structural Engineer
Danny Bently, Technical
Feliciano Racines, Technical
Civil: N/A
Geotechnical: N/A
Consultants
MEP: WSP (WSP Engineering Services)
Landscape: SWA Group
Lighting: Francis Krahe & Associates Inc.
Green Building Design: Built Ecology
Vertical Transportation: Edgett Williams Consulting Group
General contractor: [firm name] China Construction Third Engineering Bureau Company Limited
Photographer: Bruce Damonte

English & Chinese text: SOM
