感谢 ODDO architects 予gooood分享以下内容。更多关于他们：ODDO architects on gooood。
Appreciations towards ODDO architects for providing the following description:

越南首都河内是一座在多个层面迅速发展的城市，展现出典型的东南亚地区活力。随着城市化和人口增长，目前河内人口已达约800万，城市中的高层建筑数量势必将显著增加。此次新设计的餐厅选址于高密度区域，四周高楼林立，办公与住宅功能并存，同时分布着多条连接周边城市的主干道。

The capital of Vietnam – Hanoi is a fast growing city in all aspects typical for a dynamic Southeast Asian region. With increasing urbanization and population, currently approximately 8 million people in Hanoi, the number of high-rise buildings in the city will certainly be significantly growing. The location of the newly designed restaurant is a high density area of high-rise buildings with offices and residential dwellings along with a large number of major roads connecting the neighbouring cities.

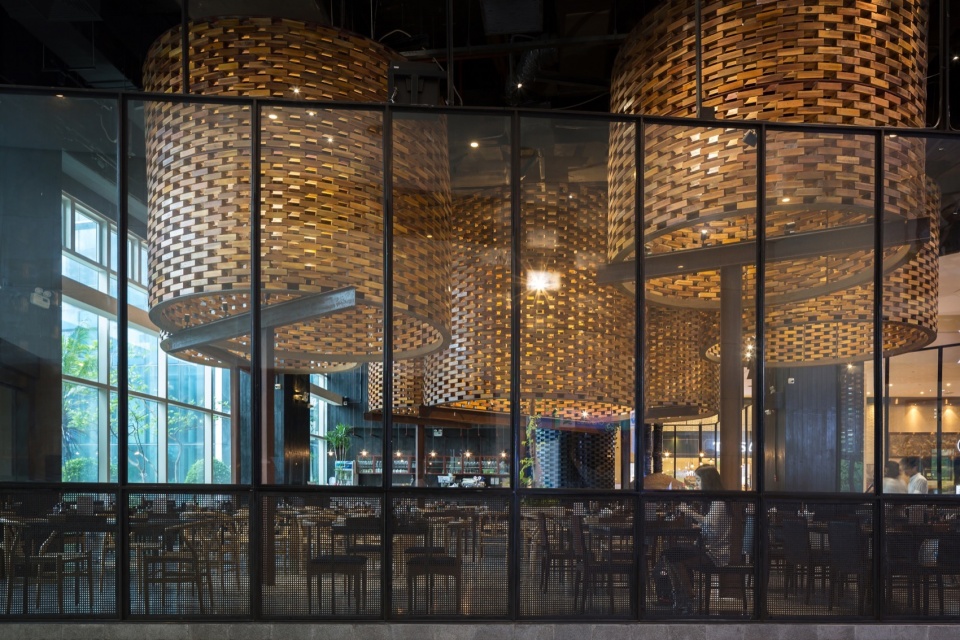

▼从街道看向室内，interior view from street © Hoang Le

餐厅位于一座名为“Landmark 72”的高层建筑的一层。“Pizza 4P’s”品牌是一个在越南拥有高口碑的小型连锁餐厅，由日本人创立，以对食品质量和顾客服务的极致追求闻名。例如，他们会在越南中部自建农场种植有机蔬菜，并自制奶酪供应旗下餐厅。

Restaurant is located in the ground floor of the high-rise building called Landmark 72. Pizza 4P’S brand is part of a smaller chain of restaurants with a high reputation of the quality in Vietnam founded by Japanese owners. Very caring about the quality of food and customer service, for instance they grow their own organic vegetables and make their own cheeses in the central Vietnam for their restaurants.

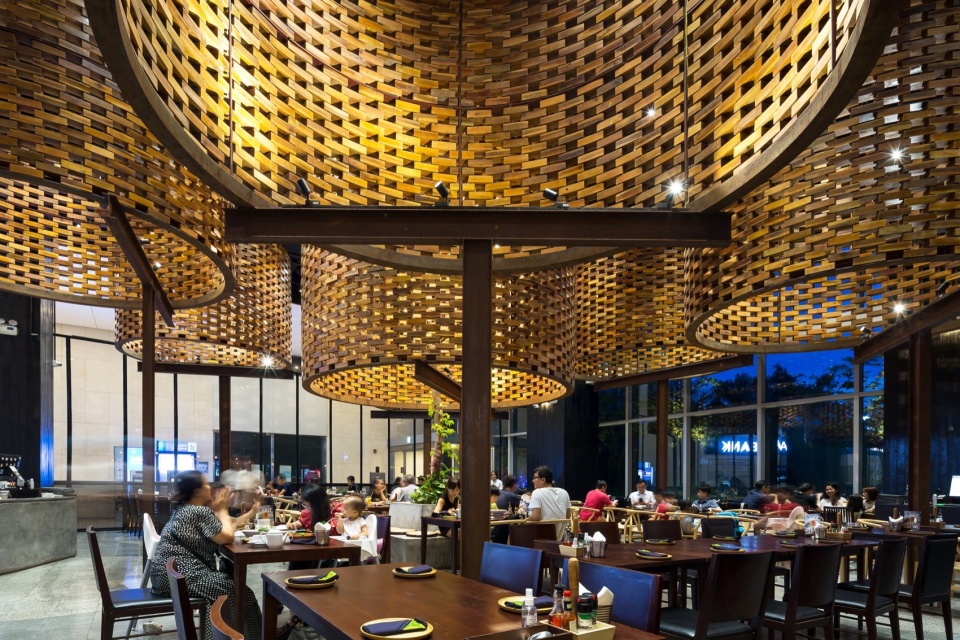

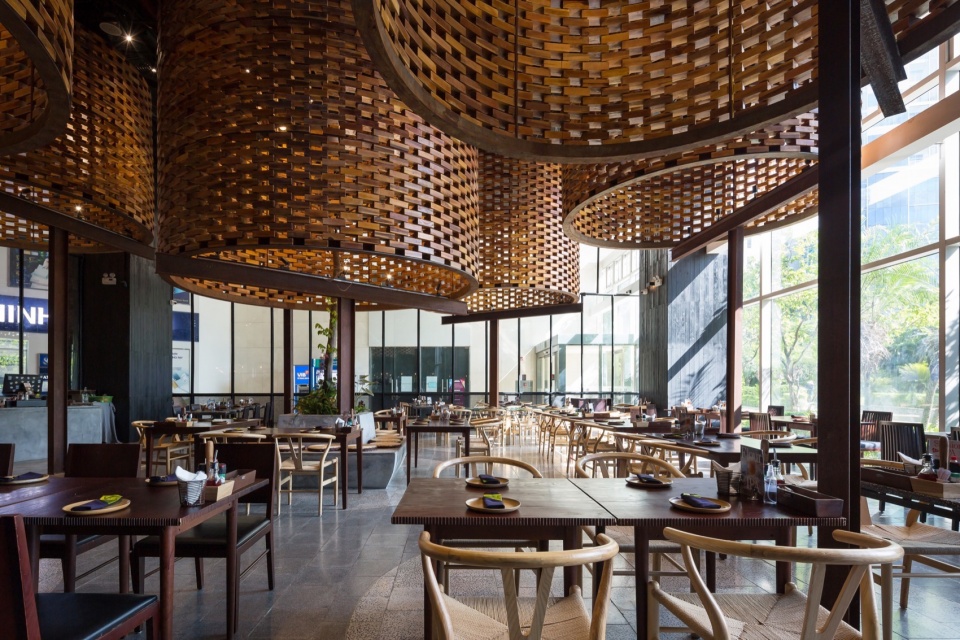

▼室内概览，interior overview © Hoang Le

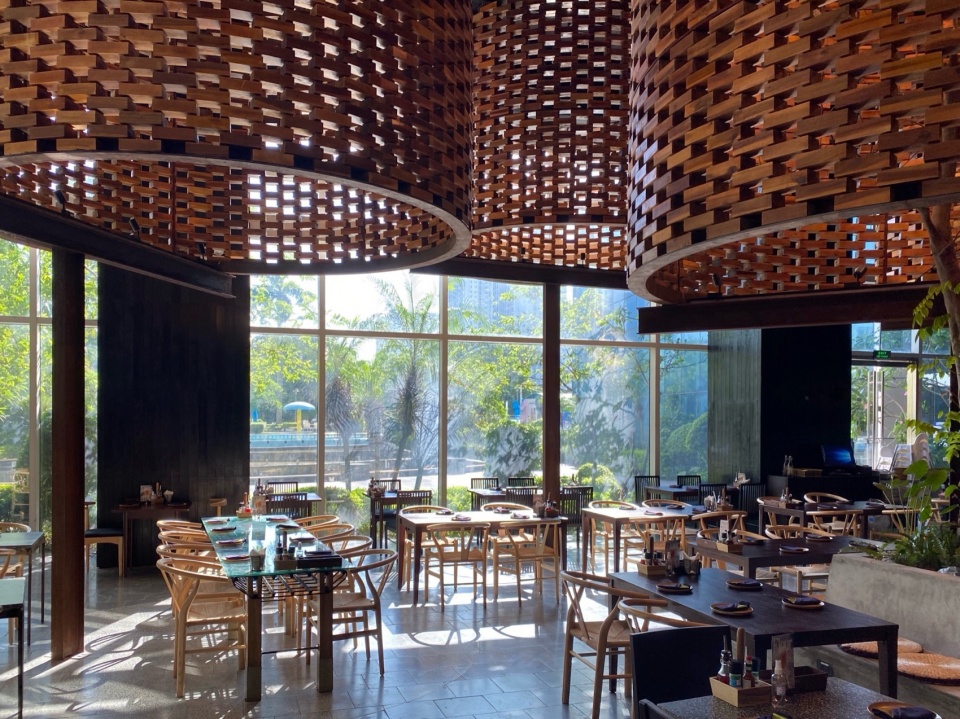

▼温暖光线，warm light © Hoang Le

本项目的核心设计理念之一，是营造出与千篇一律的传统商业空间截然不同的感官体验，打造一个让顾客忘却高楼林立商业环境的用餐场所。空间的一大优势在于其5米的层高，这为后续设计的展开提供了极大可能。

One of the main conceptual goals of the restaurant was the sensational separation from the monotonous conventional space and creating a place where the customers forget about the surrounding commerce of a high-rise building. One of the advantages of the space was the generous ceiling height of 5 meters which helped to enhance the subsequent design.

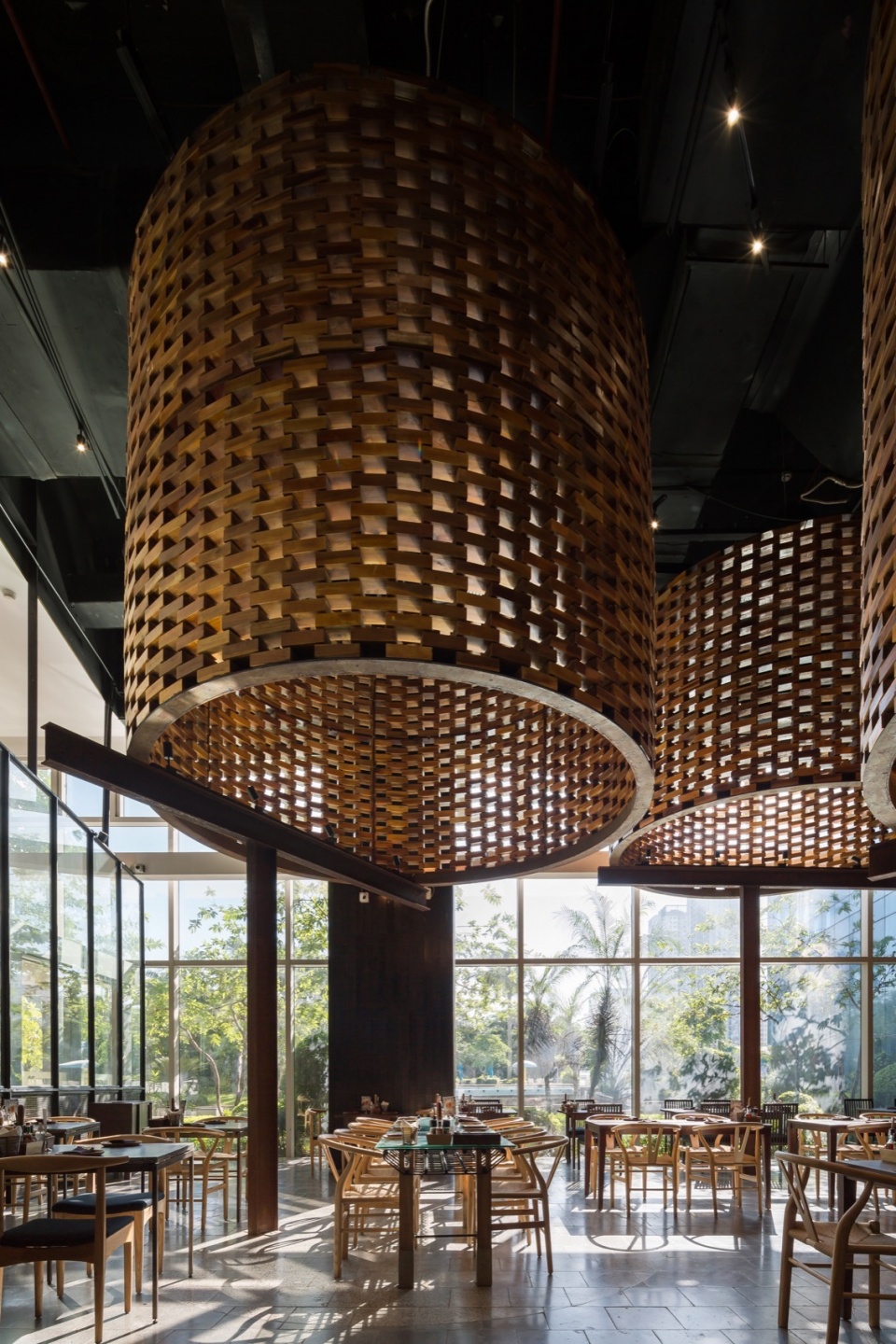

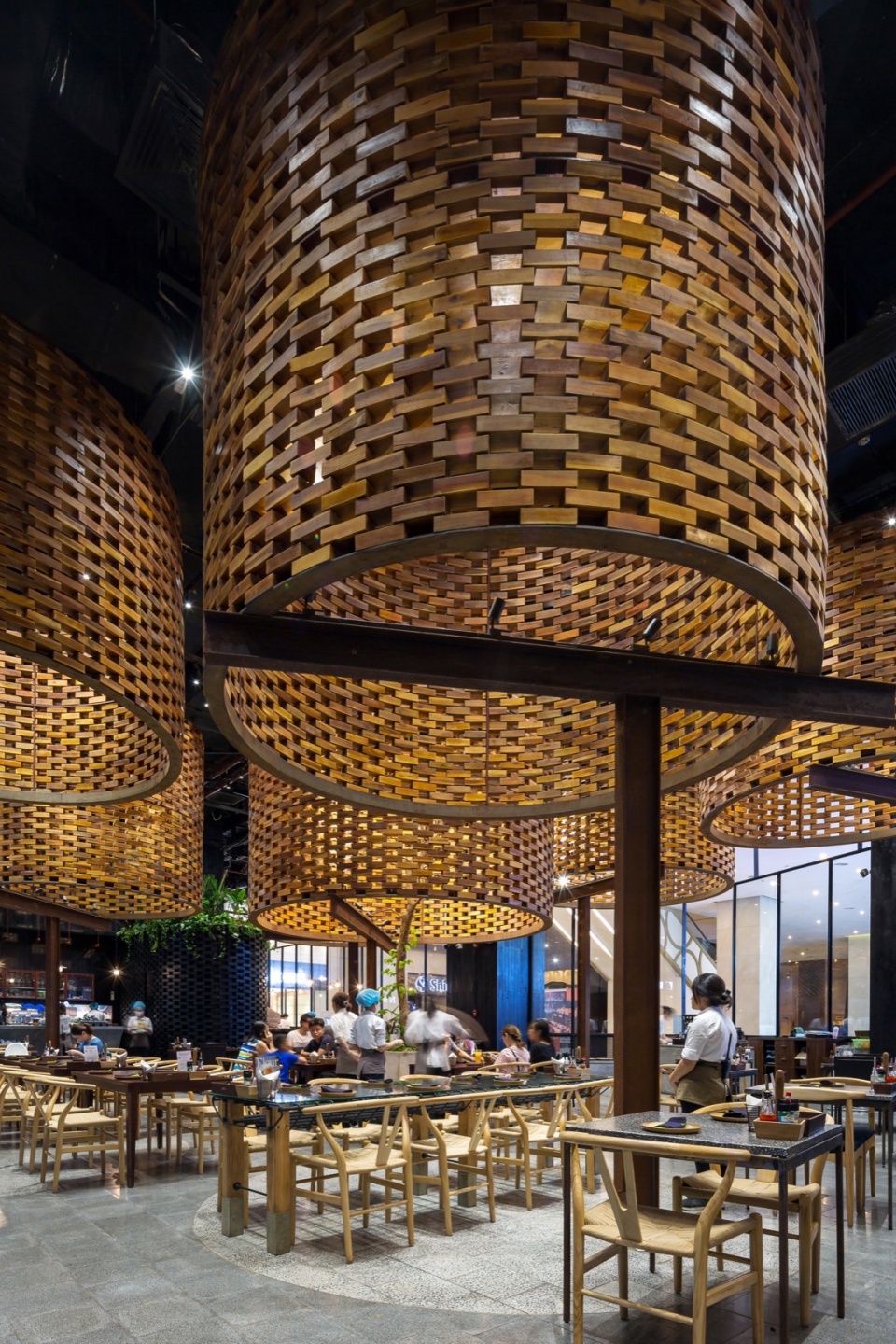

▼5米的层高，ceiling height of 5 meters © Hoang Le

设计中运用了悬挂与支撑相结合的穿孔垂直圆筒结构，不同高度的圆筒围合出多个就餐区域。同时，漂浮的圆柱体营造出的视觉构图，意图给顾客带来深刻的空间印象。设计灵感源于越南传统陶砖窑炉的空间体验。

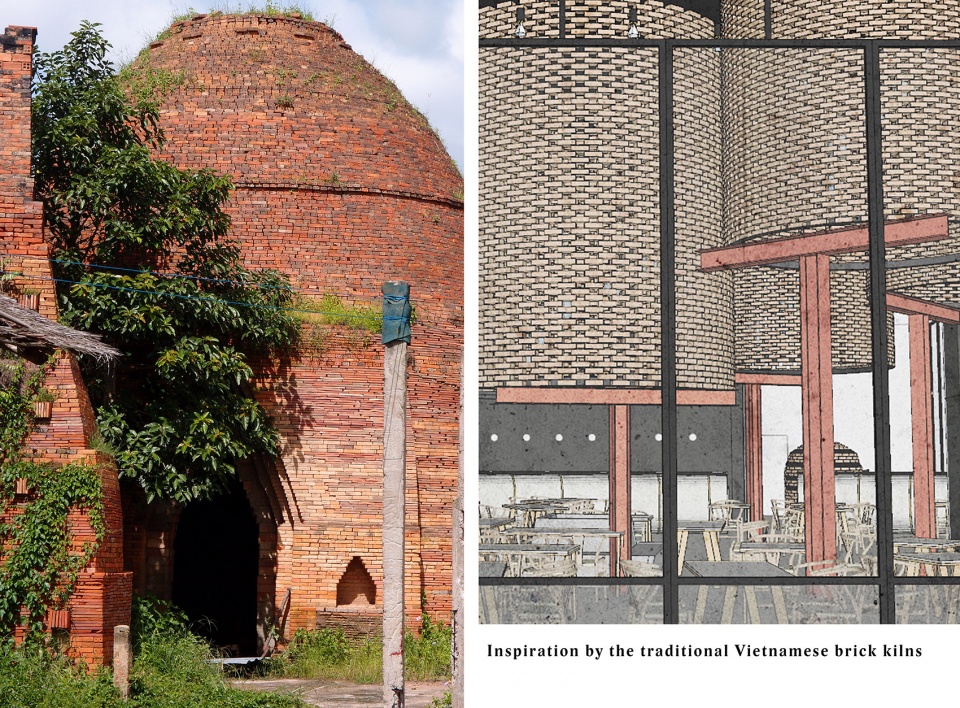

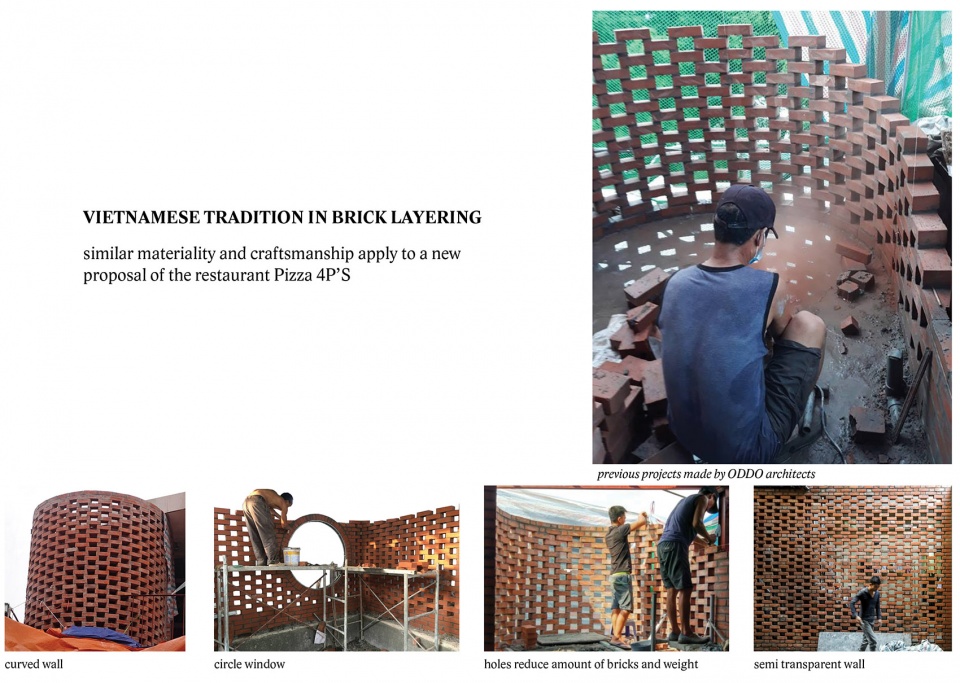

▼灵感来源，inspiration © ODDO architects

Suspended and supported perforated vertical cylinders in different height levels providing zones for seating. Another intention was to impact the visitor’s mind applying ingenious composition of levitating cylinder volumes. Conceptual inspiration of cylinders arose from the spatial experience of traditional kilns for firing Vietnamese terracotta bricks.

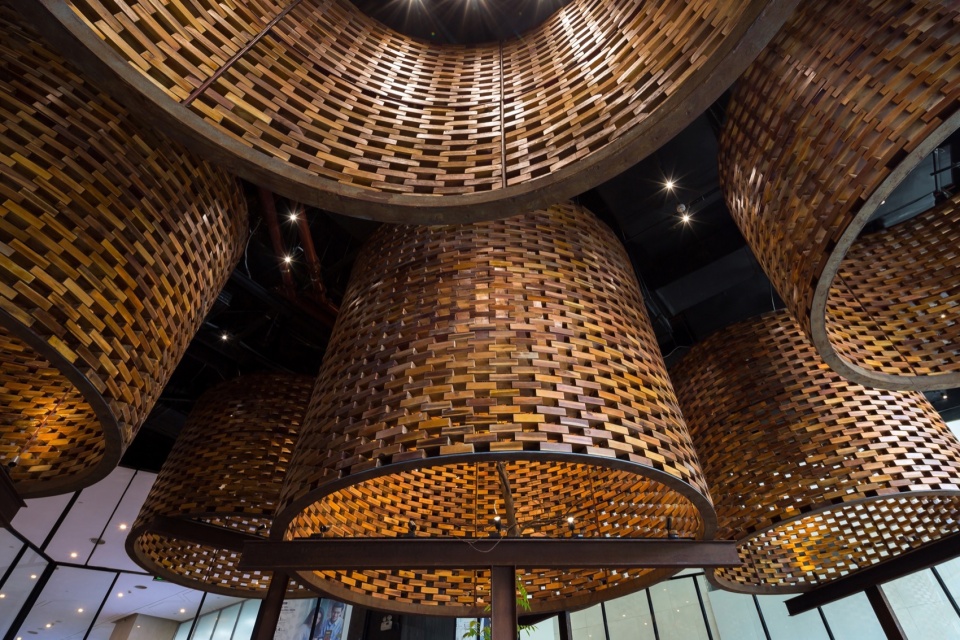

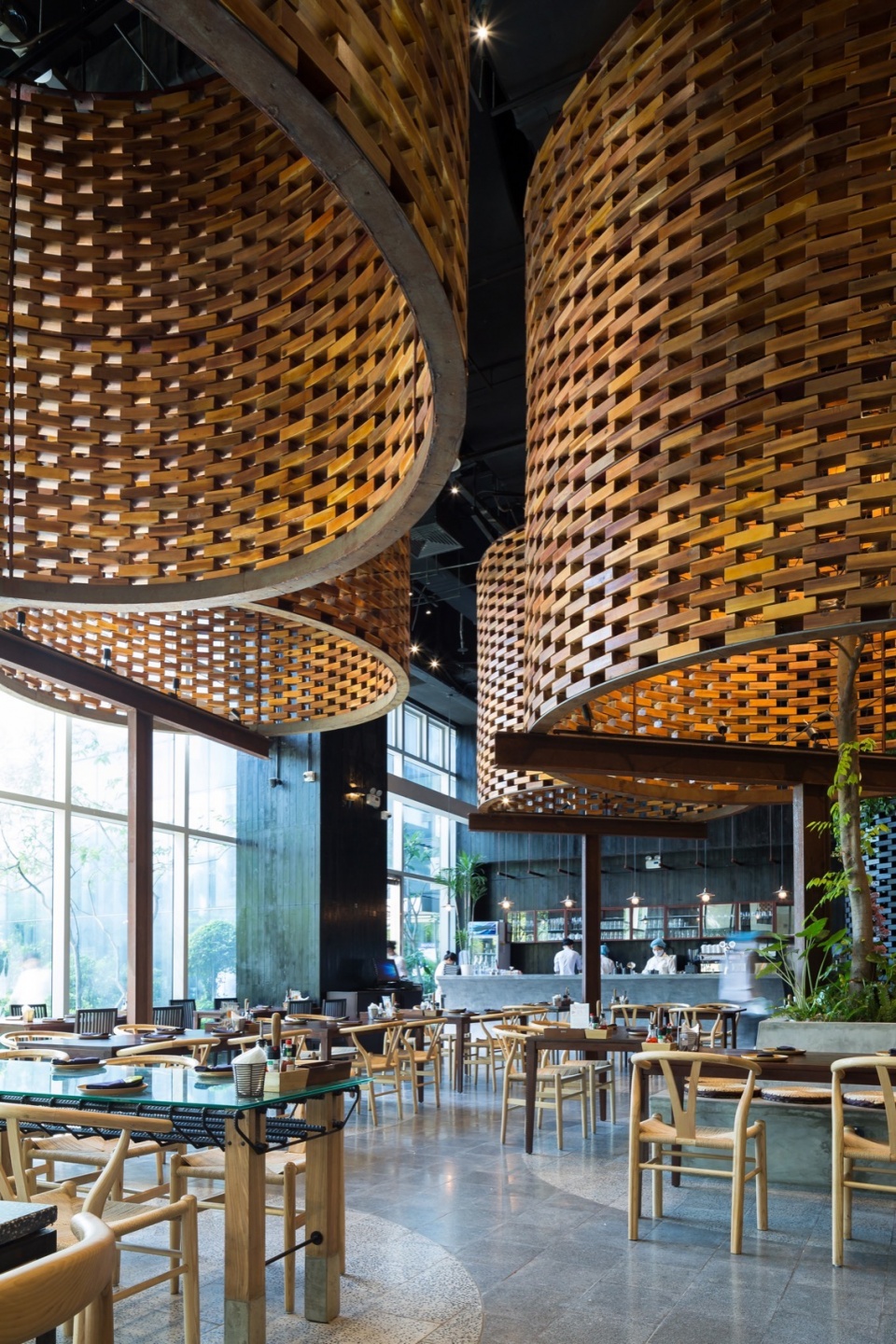

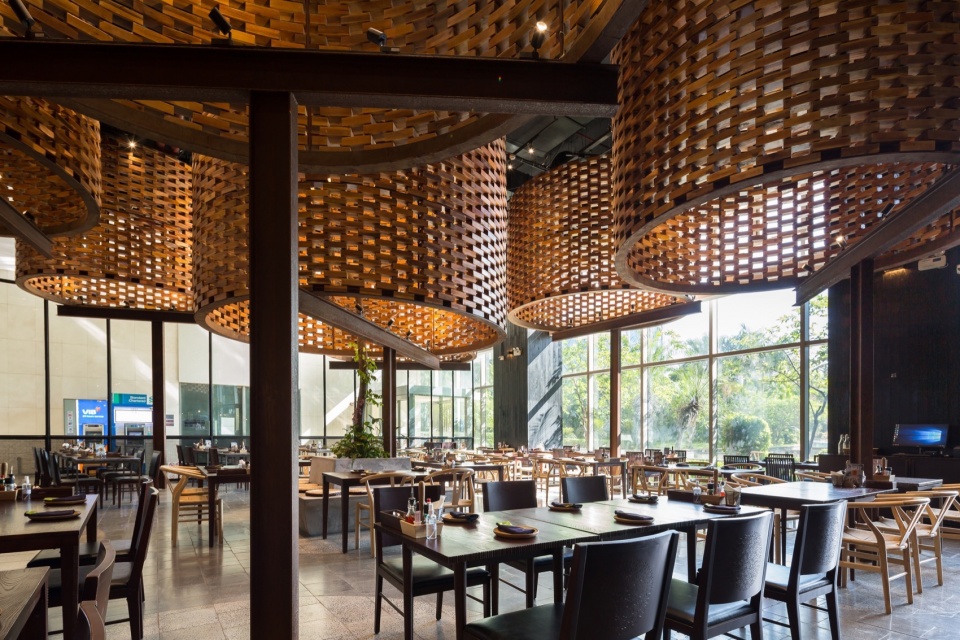

▼垂直圆筒结构，vertical cylinders © Hoang Le

餐厅内部共设置了七个不同尺寸的木质圆筒结构，它们一方面悬挂固定于上层楼板的钢筋混凝土结构上，另一方面通过T形立柱进行支撑。该结构系统既强化了空间的节奏感，又有效地提高了可使用面积，以容纳更多顾客。

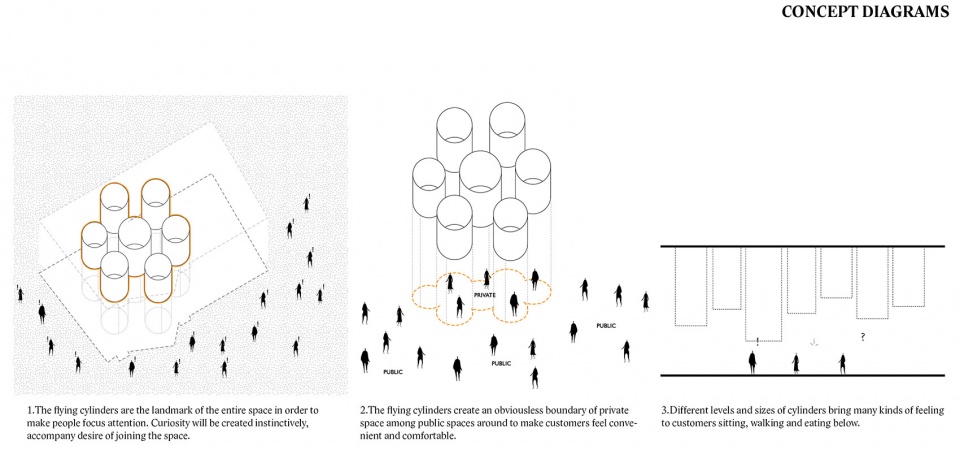

▼方案概念，concept diagrams © ODDO architects

Pizza 4P’S restaurant is arranged with seven wooden cylinders of different sizes. These cylinders are anchored and suspended from the reinforced concrete slab of upper floor and structurally supported by T- columns as well. This system allows rhythmic highlighting of the restaurant space and at the same time maximizing usable area for a larger number of customers.

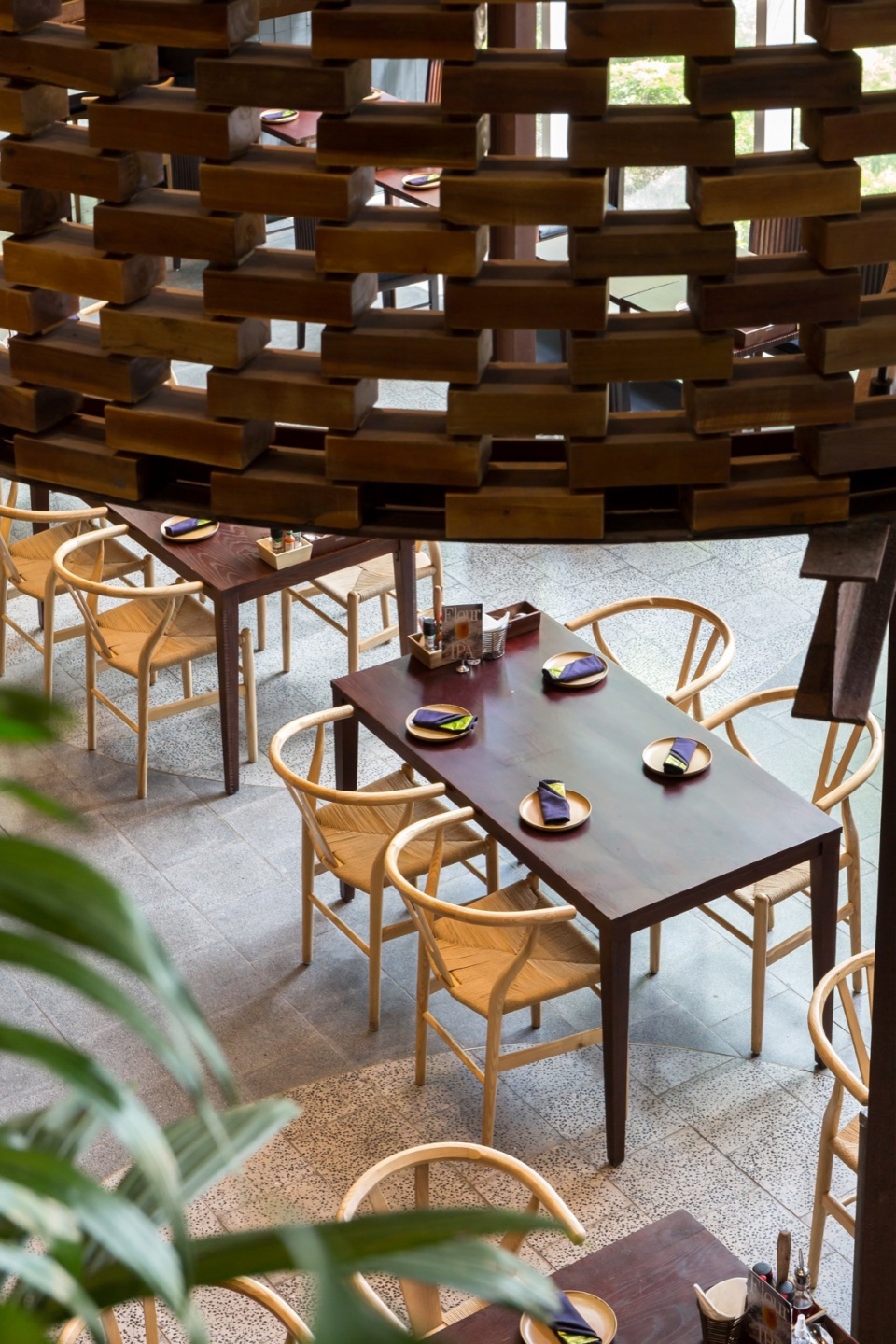

▼垂直圆筒细部，vertical cylinders detail © Hoang Le

这些圆筒的结构由类似越北传统砖块尺寸的木块拼接而成，采用干式榫卯工艺，无需胶水，使木材能够因应湿度变化自然伸缩。由于河内气候湿度与温差变化频繁，这种结构方式既顺应自然环境，又具备良好的可拆卸性，未来若需迁移亦可再次利用材料。

The construction of these cylinders is built of wooden blocks similar in size to traditional bricks in northern Vietnam. Wooden blocks assembled together by using careful joints by the dry method without gluing so that the wood can expand itself and work according to changes in humidity. Changes in humidity and temperature are quite common for Hanoi´s climate. In case of need this installation method will allow the material to be reused at another location.

▼圆筒由传统砖块尺寸的木块拼接而成，
cylinders is built of wooden blocks similar in size to traditional bricks © Hoang Le

餐厅室内大量采用本地传统材料，如当地快速生长的相思木、藤条、鞣制木面、打磨水磨石、钢制构件等，这些材料成本低廉且在本地易于获取。同时，部分室内家具取自河内一间已关闭的餐厅，经修复并定制后再次使用。其中最具特色的家具之一，是一张可容纳12人的长餐桌，桌身结构采用形似钢筋箍筋的钢条，搭配木-混凝土支腿与玻璃台面，使其内部结构清晰可见。

A combination of local traditional materials such as wood – a local species of fast-growing acacia, rattan, tanned wood surfaces, sanded terrazzo, steel elements, etc. are low cost and local common materials. The restaurant interior was partially equipped with renovated and customized older furniture from one already terminated restaurant in Hanoi. One of the most distinctive furniture element is a long dining table for 12 people made of reinforcement steel bars in the shape of structural stirrups, wood-concrete supporting legs and glass top to expose table structure underneath.

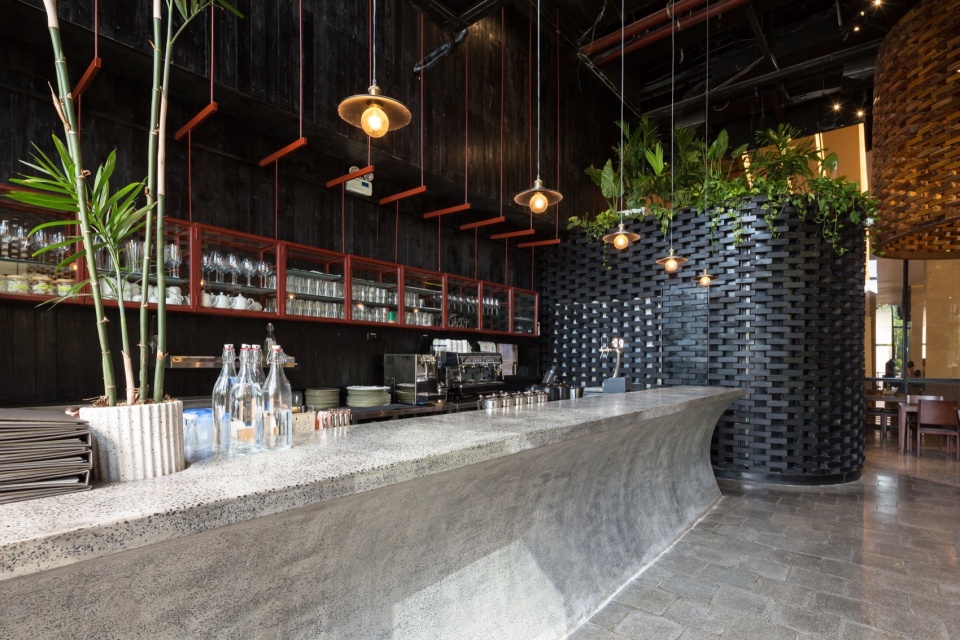

▼吧台，bar © Hoang Le

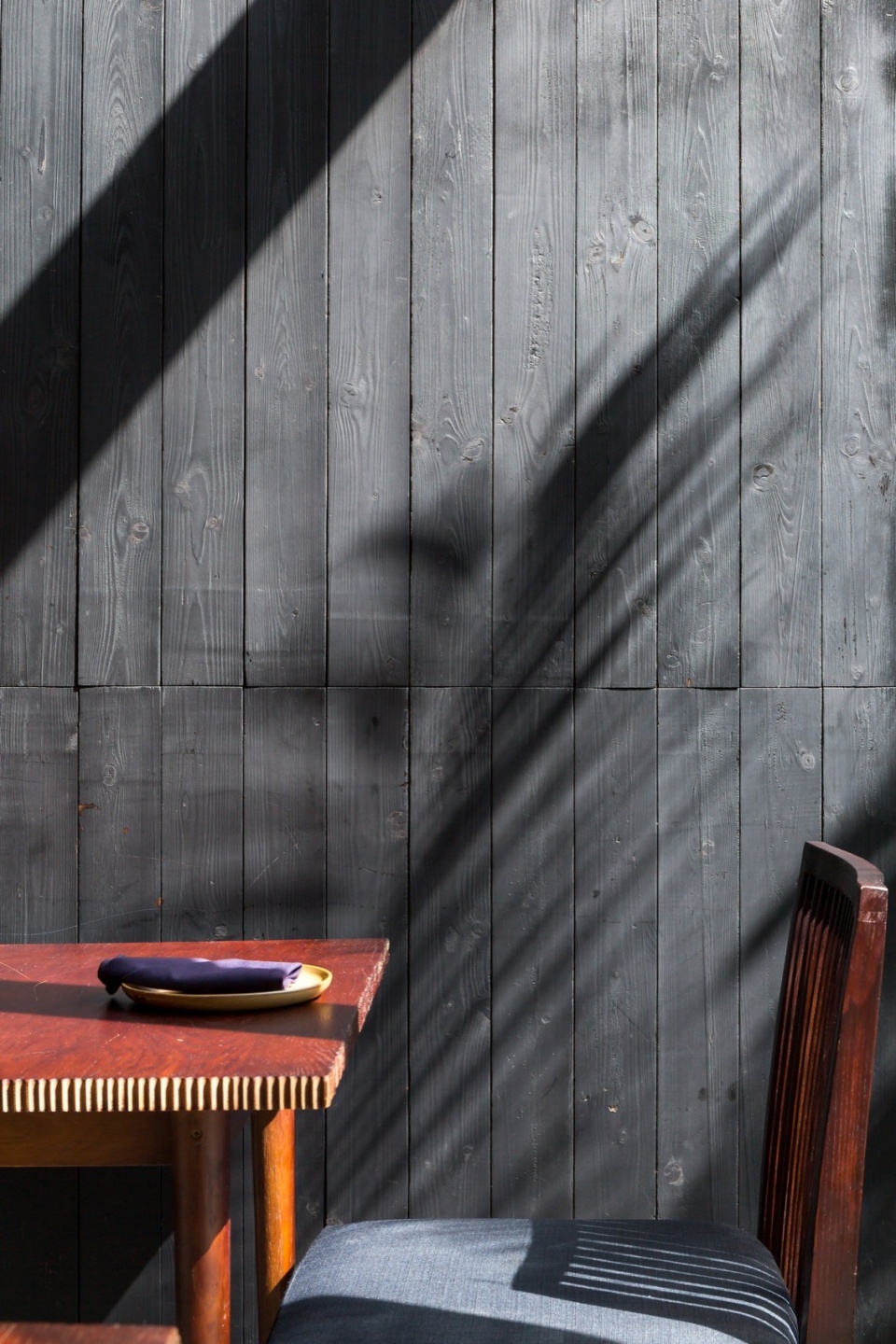

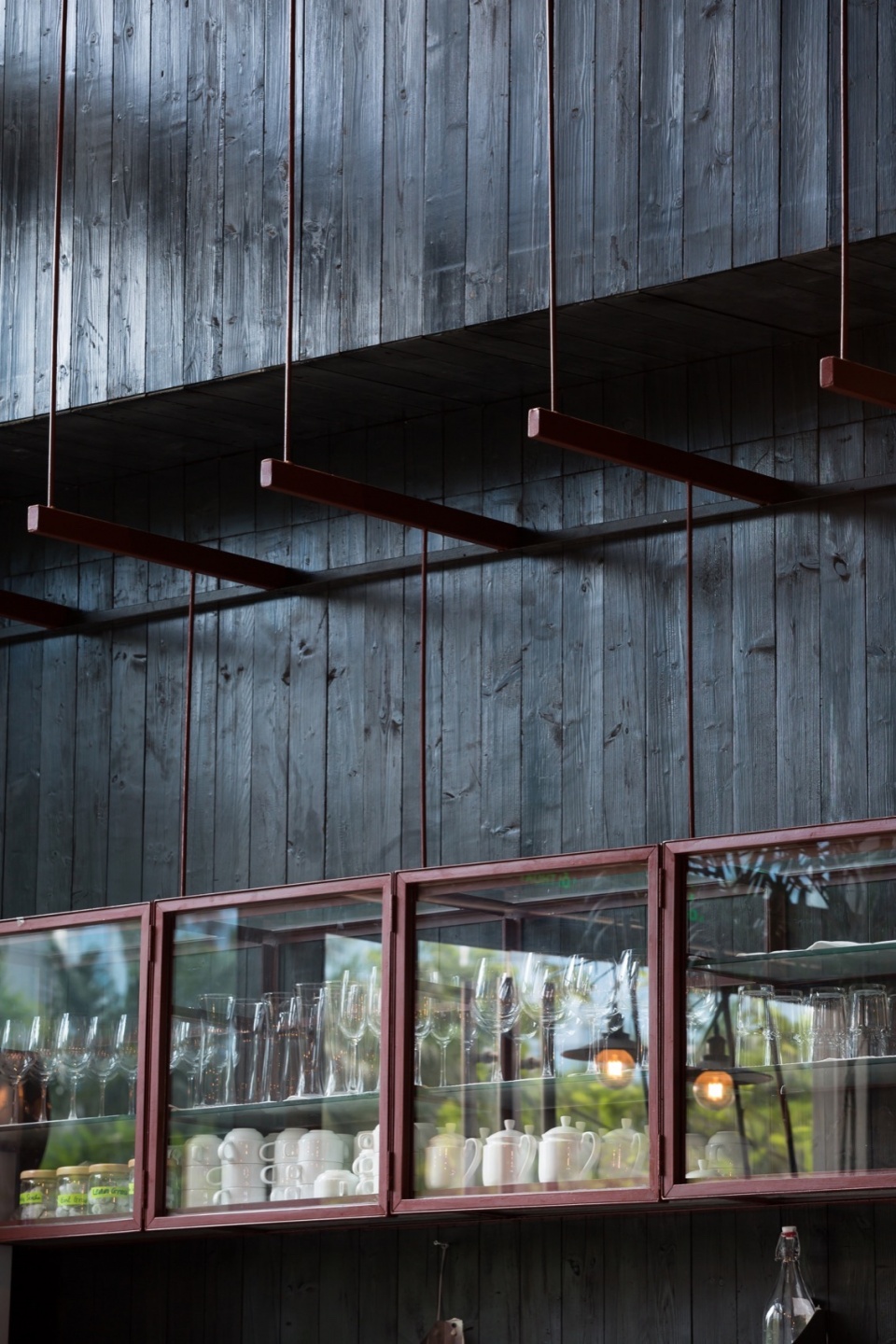

▼材质细部，material details © Hoang Le

Pizza 4P’s 餐厅以其独特的空间设计、舒适的氛围和脱离传统“光鲜”商业空间的独特魅力，呈现出一种独属河内的“场所精神”（Genius Loci），在喧嚣都市中营造出一处令人感受到空间张力与情绪愉悦的用餐之地。

Pizza 4P’S restaurant space is an attractive place with a certain dose of Hanoi Genius Loci with a sense of comfort and spatial excitement from being outside from the conventional “glossy” commercial spaces typical for Hanoi.

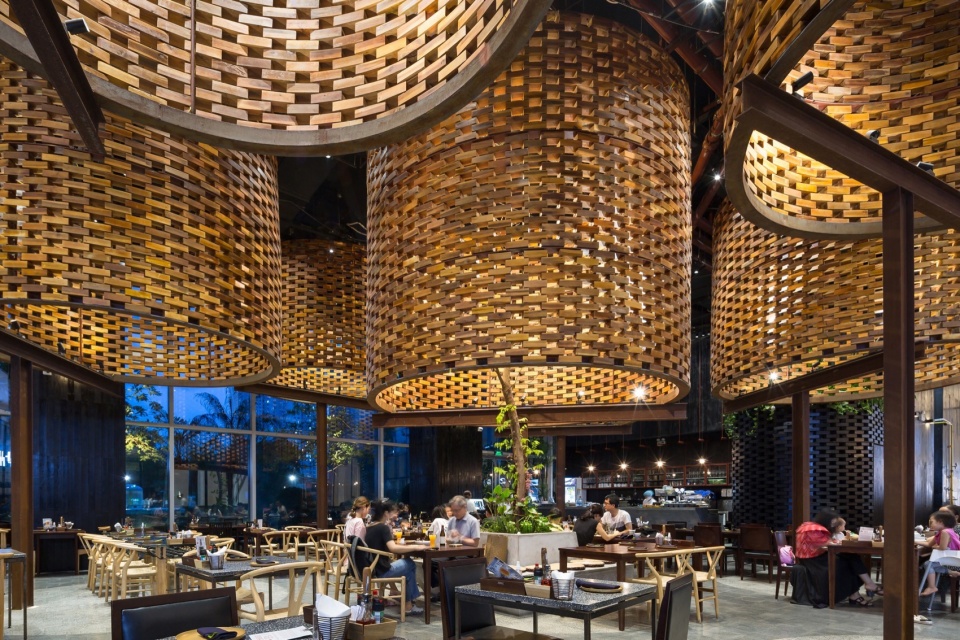

▼夜景，night view © Hoang Le

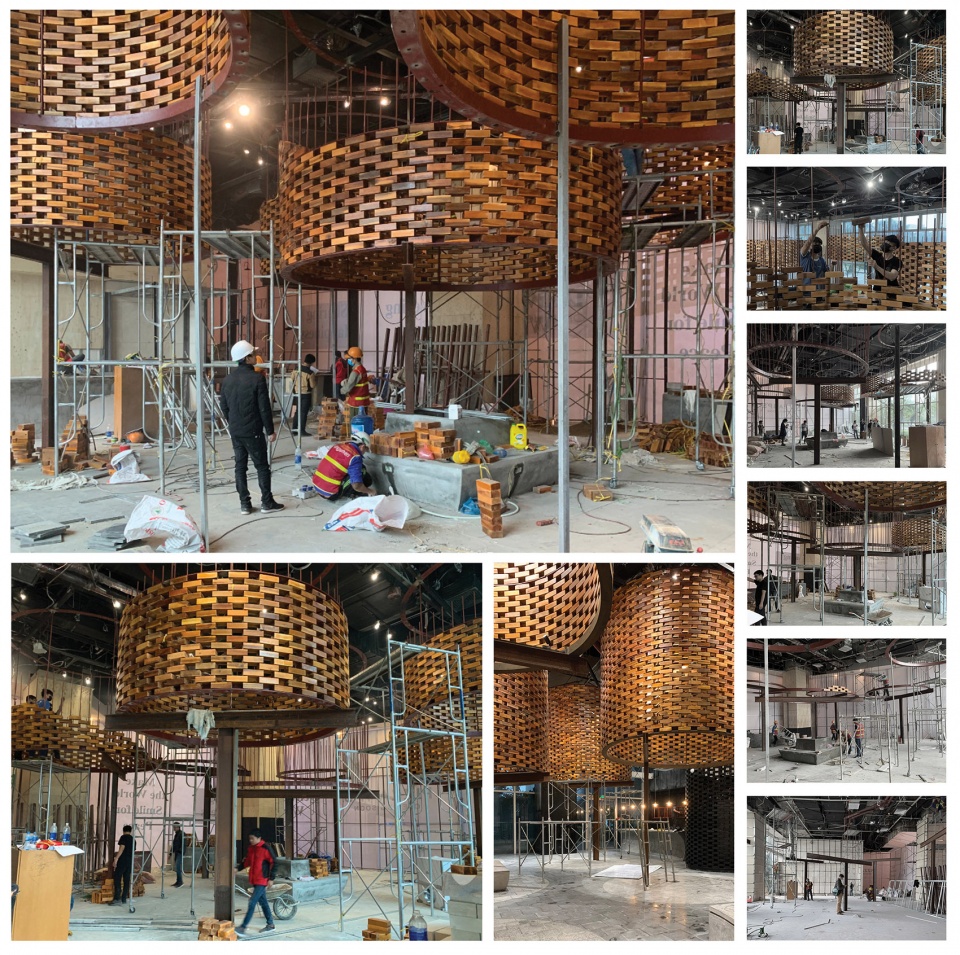

▼施工过程，construction progress © ODDO architects

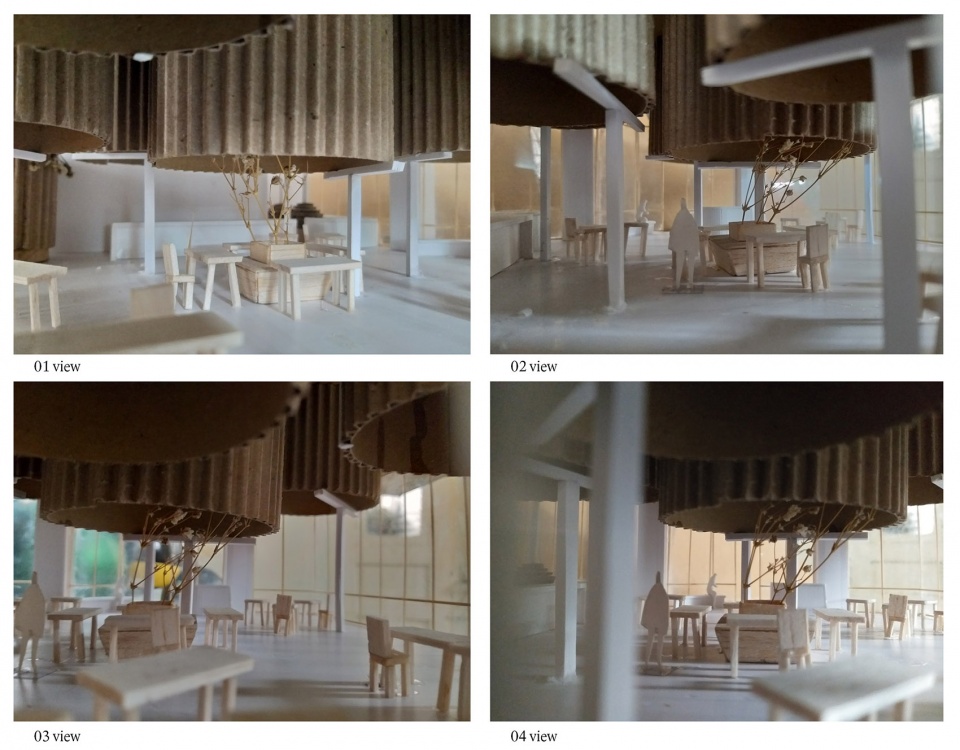

▼模型，model © ODDO architects

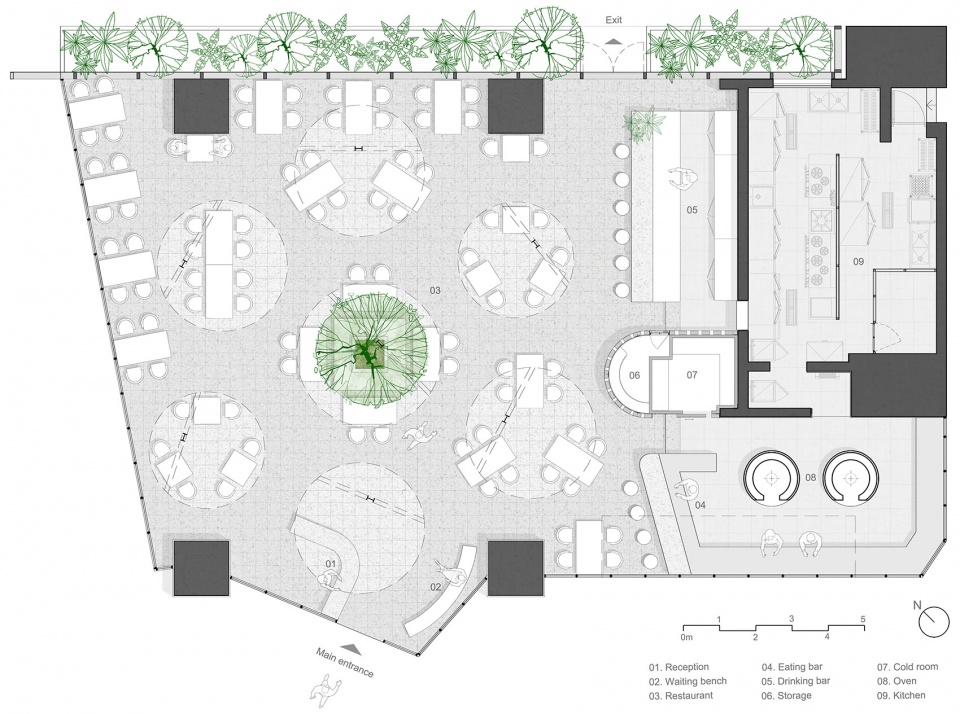

▼平面，plan © ODDO architects

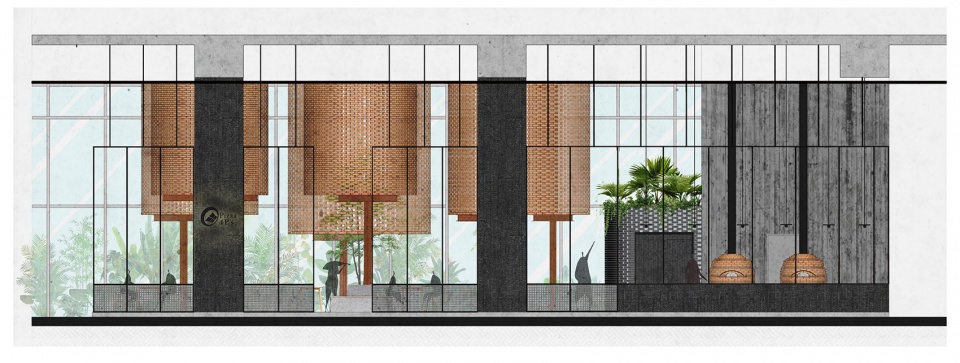

▼立面，elevation © ODDO architects

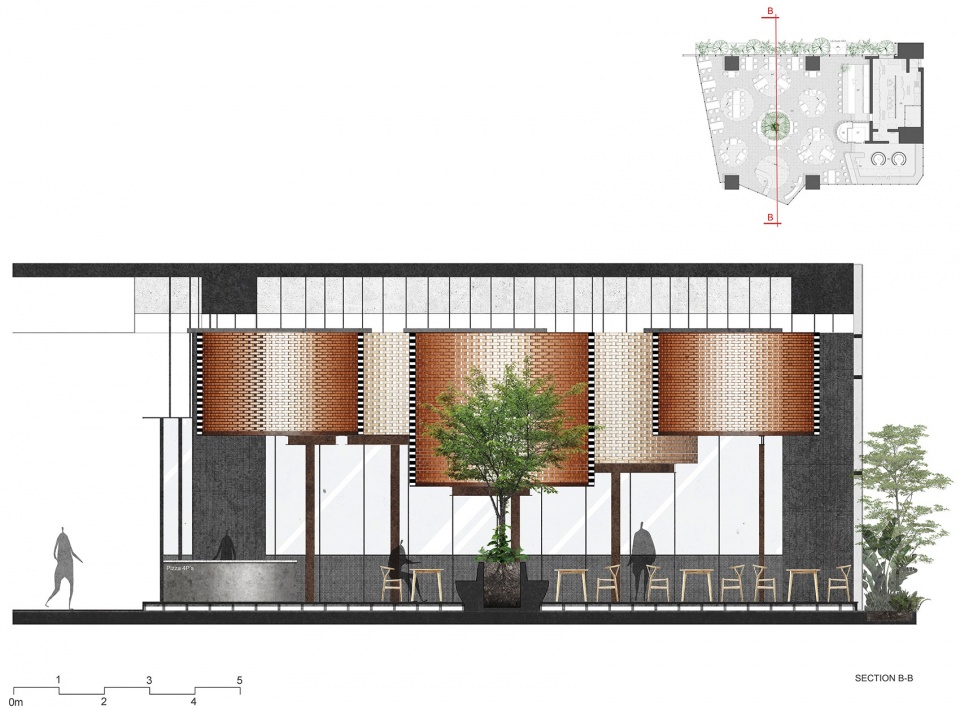

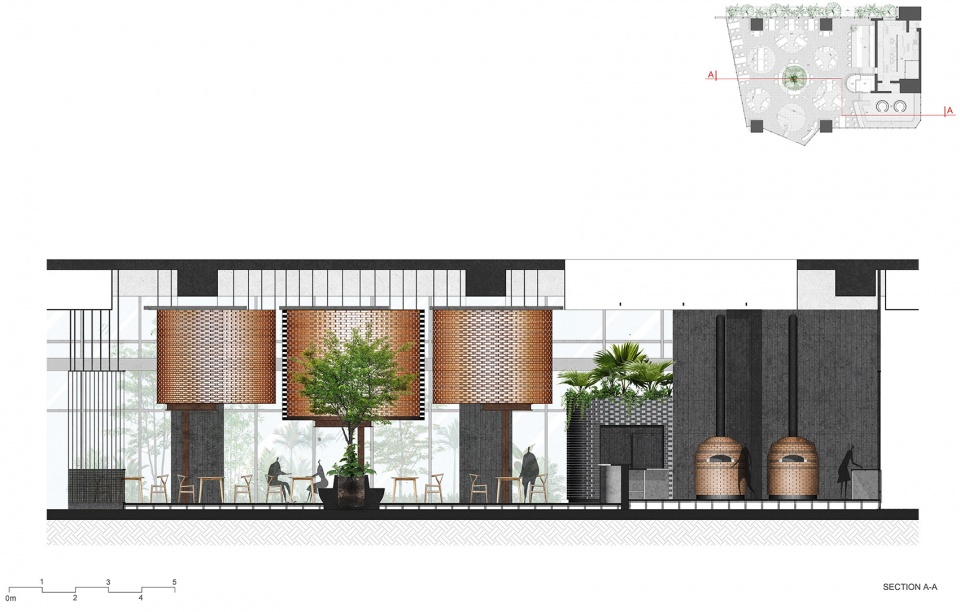

▼剖面，sections © ODDO architects

Architects: ODDO architects /Nguyen Duc Trung, Marek Obtulovic, Nguyen Manh Cuong, Mai Lan Chi Obtulovicova, Doan Quoc Dat Location: Hanoi, Vietnam
Floor area: 330m2
Completed: 2020
Construction time: 2,5 months
Capacity: 110 persons
Photographer: Hoang Le
