来自 ARCHITECTURAL BUREAU WALL 对gooood的分享。更多请至：ARCHITECTURAL BUREAU WALL on gooood
Appreciation towards ARCHITECTURAL BUREAU WALL for providing the following description:

位置LOCATION

莫斯科科学技术学院展馆位于俄展馆区Kolcevaya大道与Serenevaya巷的交口，展馆区主街东部。在展馆区的景观全面升级的背景下，展馆的设计理念遵循“Znaniy公园”领土发展的概念。

The Pavilion of Moscow Information Technology Department is located in VDNH, at the intersection of Kolcevaya Road and Serenevaya Alley, east of the main road of VDNH. The realization of the pavilion follows the development concept for the territory of “Park Znaniy” in the context of a comprehensive landscape upgrade for VDNH.

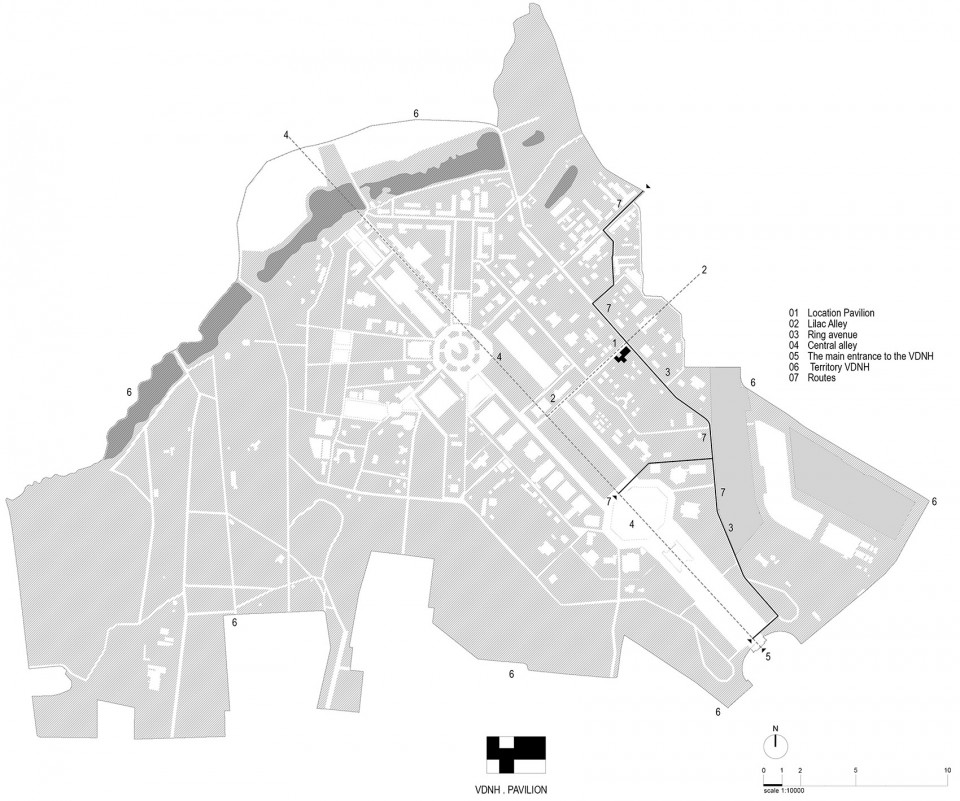

▼ 展馆的设计理念遵循“Znaniy公园”领土发展的概念，the development concept for the territory of “Park Znaniy” in the context of a comprehensive landscape upgrade for VDNH

设计理念CONCEPTION

MATRIX(网络线路)是科技馆外立面的设计概念。建筑的展览空间和主题区域，以及建筑的视觉与触觉感受都是在这一概念的指导下形成的。

MATRIX- conceptual carcass Information Technology pavilion, which forms the planning structure of exhibition space and thematic areas, visual and tactile image of the building.

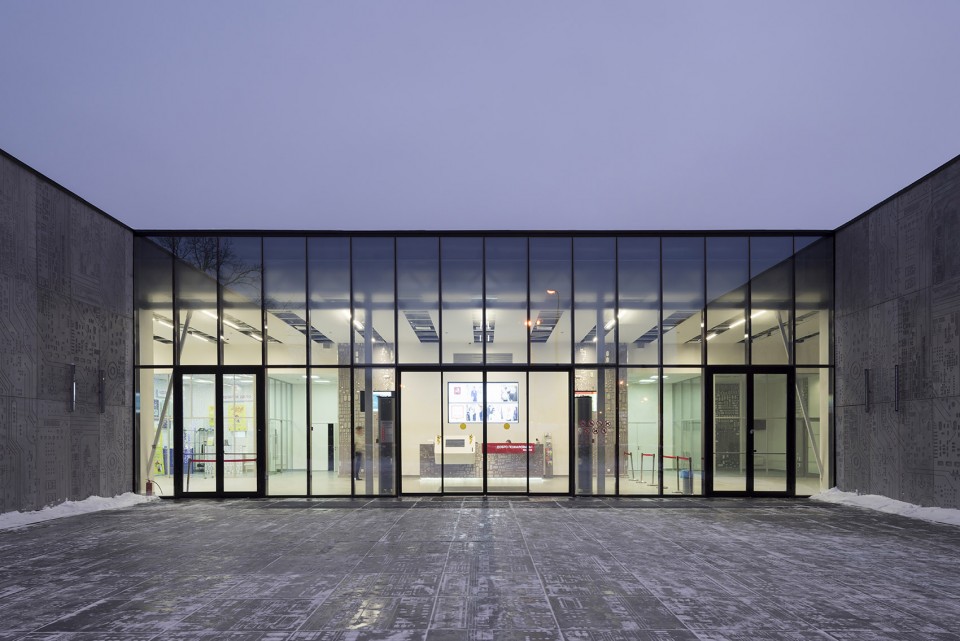

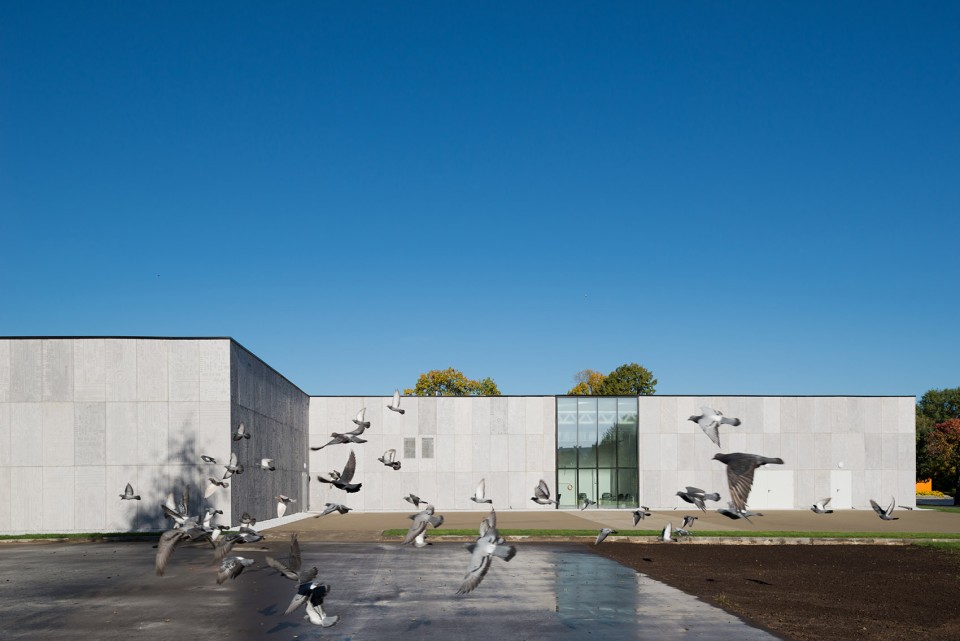

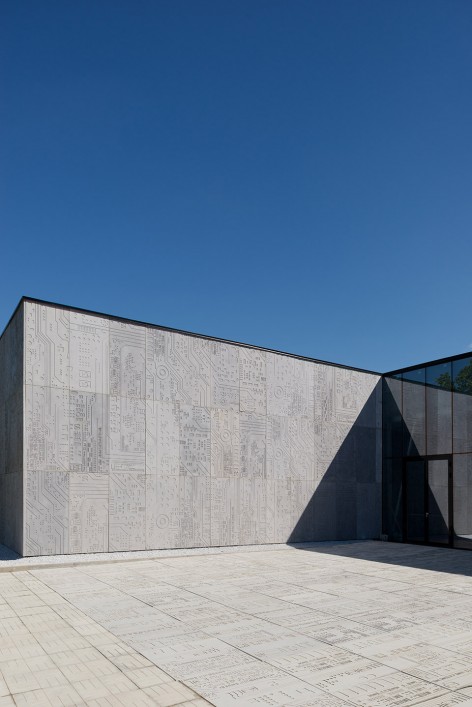

▼ 凹进去的入口，the entrance

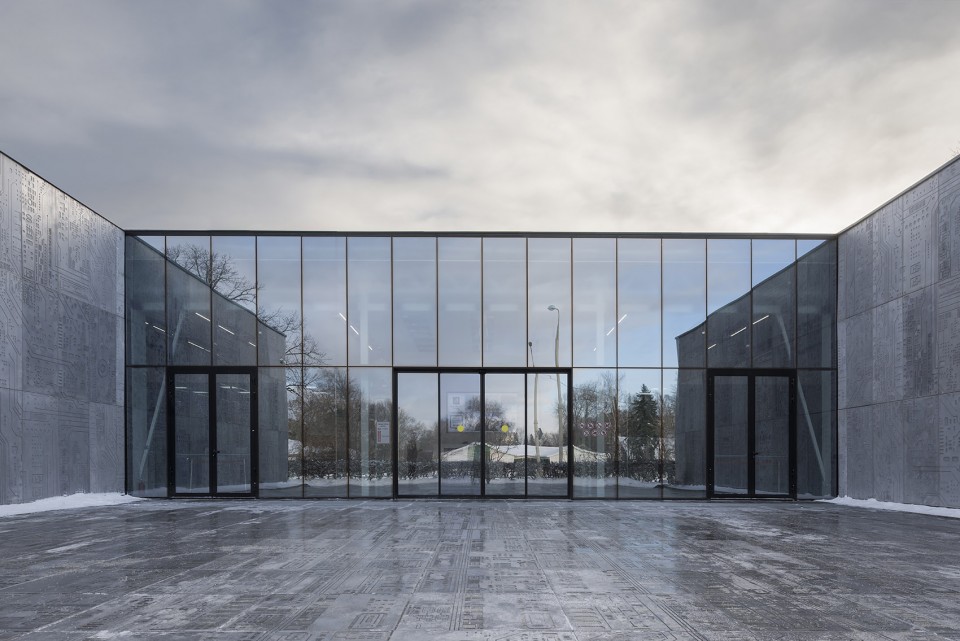

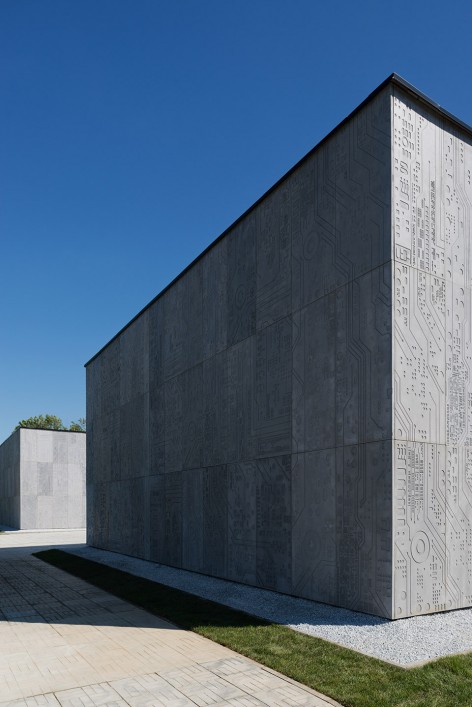

▼ 电路板图案一直延续到入口院落的开放空间部分，plastics continue in the open space of the yard entrance group

表皮SKIN

视觉上，建筑采用体块插入采光孔的方法。采光口主要位于入口大厅，地标展览区展厅，儿童中心以及物流中心，这些开口注重与地标和空间印象相结合。三个体块根据建筑的空间位置确定了三个巨大的开口。

外表是由2000×1000大小的印有电路板图案的混凝土板拼接而成的。这些电路板图案一直延续到入口院落的开放空间部分。

On a visual level, the object manifests anonymity at the expense of a monolithic solution – the outer shell to the local implantation of light apertures. Light openings in the body of the building are accentuated with attention to spatial landmarks and impressions: the entrance hall, a landmark exposition area exhibit, a kid’s center and a logistics center. Three deaf volumes identify three large openings designating and fixing the spatial location of the building.

The outer skin has its own identity due to concrete slabs that size 2000×1000 with plastic revealed pattern formalizing the aesthetics of the parent. Such plastics continue in the open space of the yard entrance group.

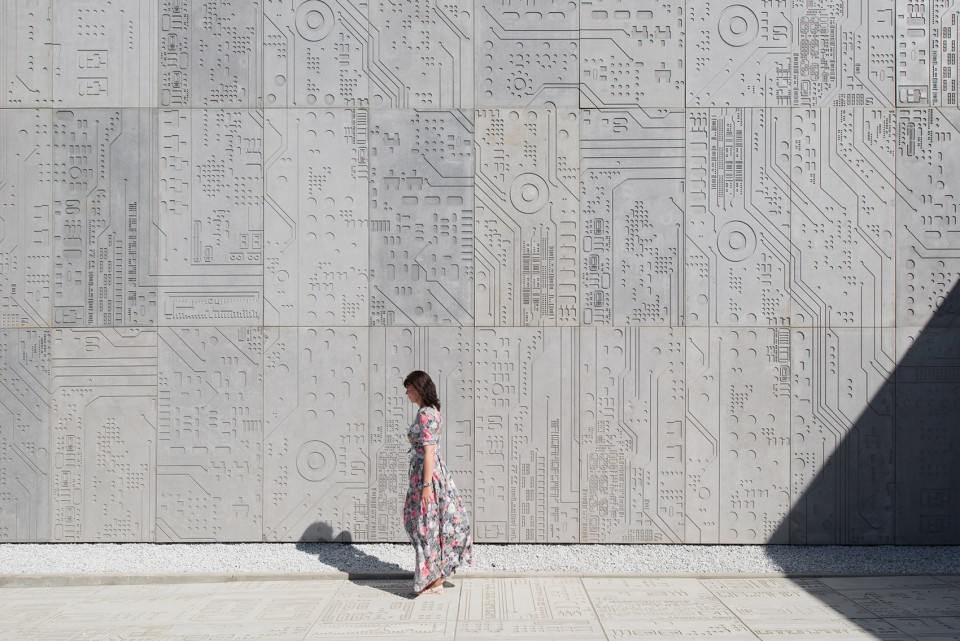

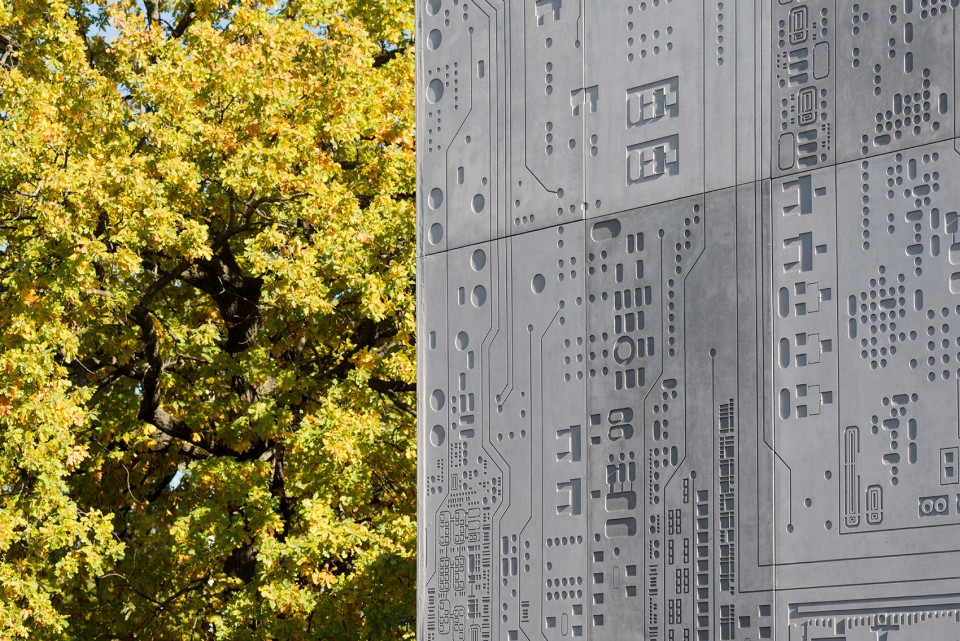

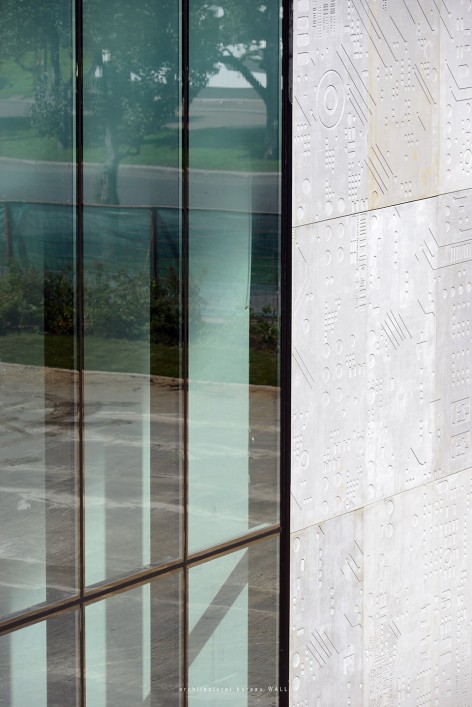

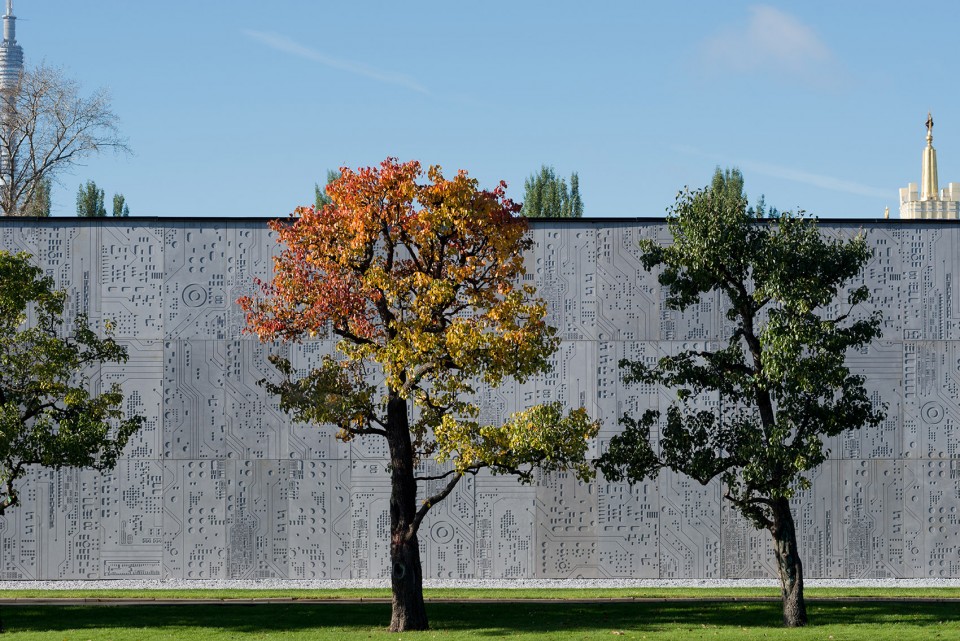

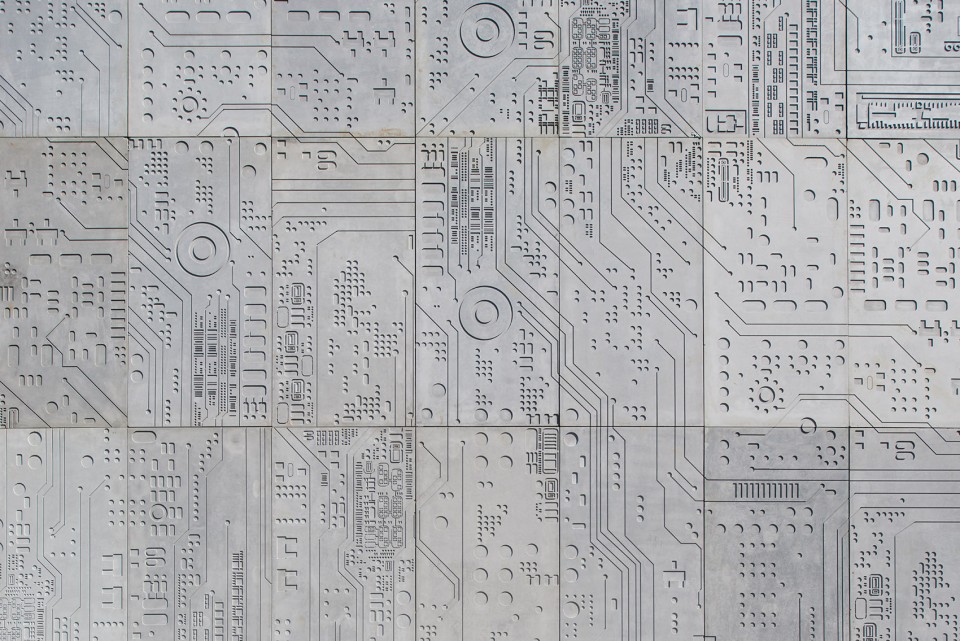

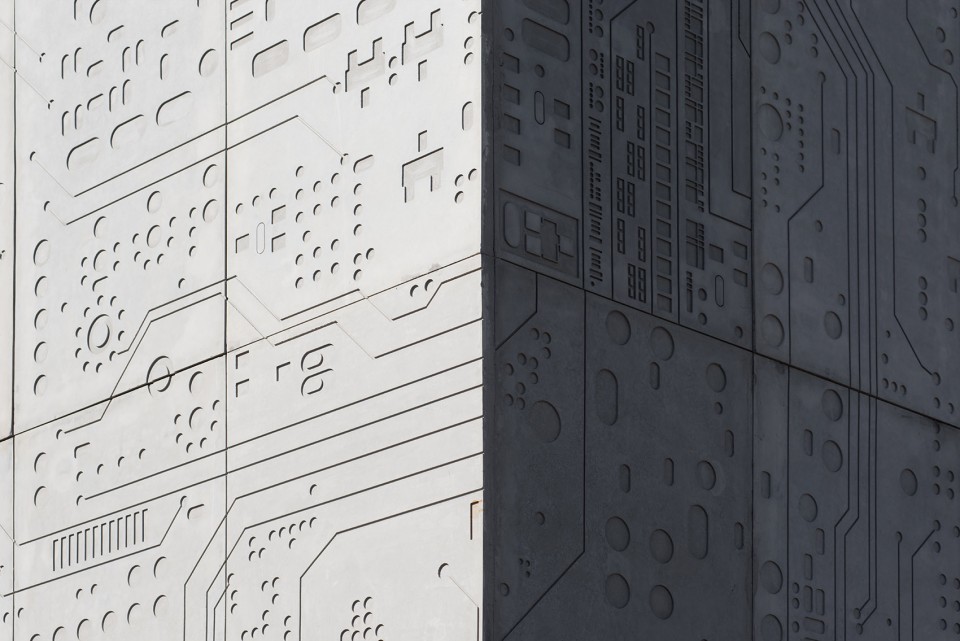

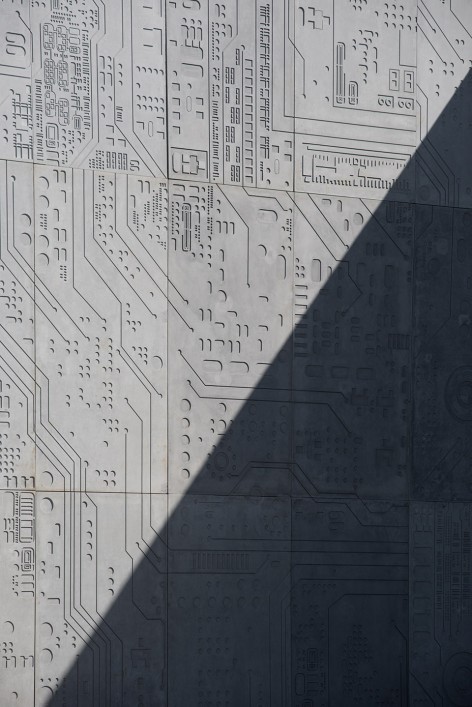

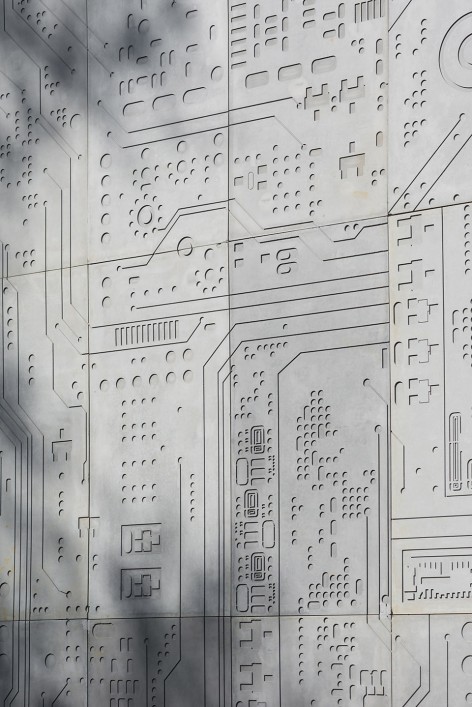

▼ 外立面上的网络电路图案，the plastic pattern on the skin

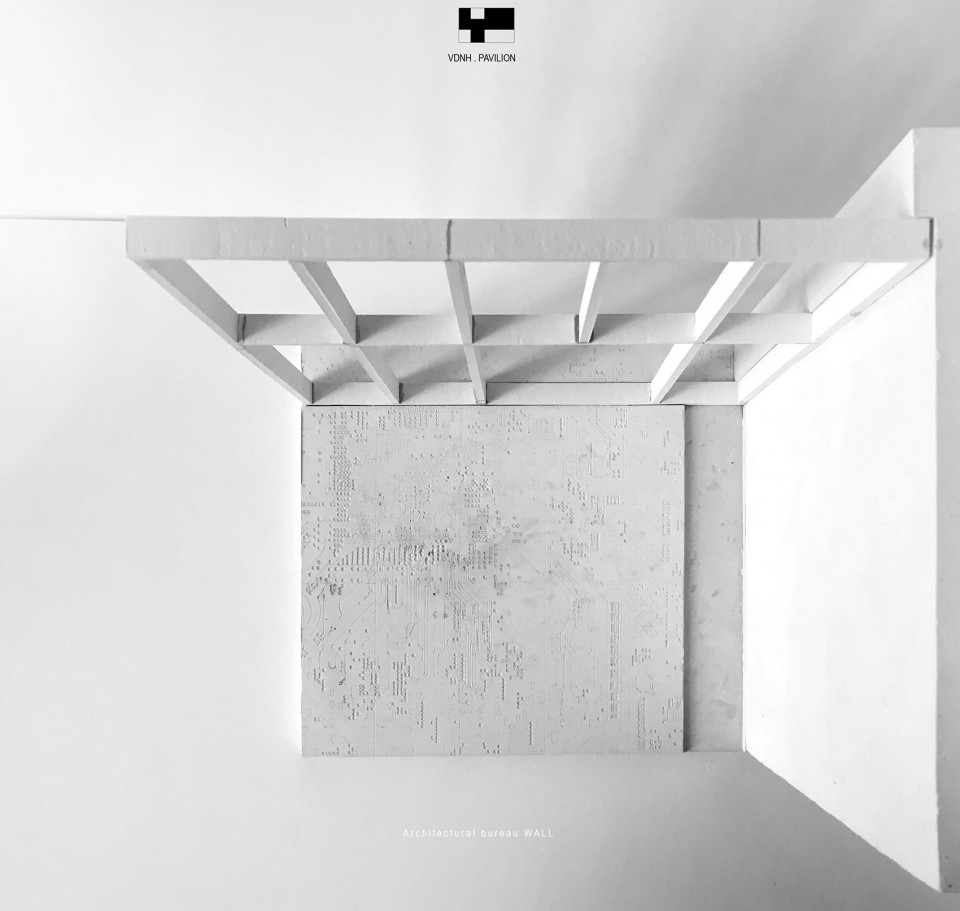

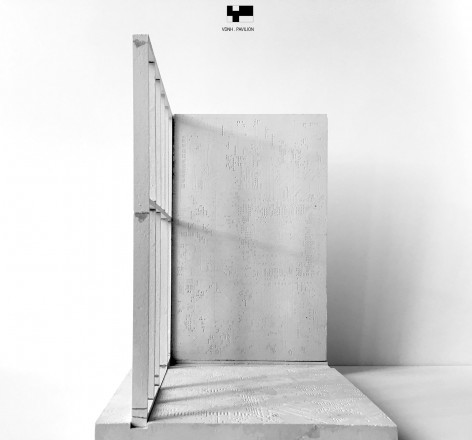

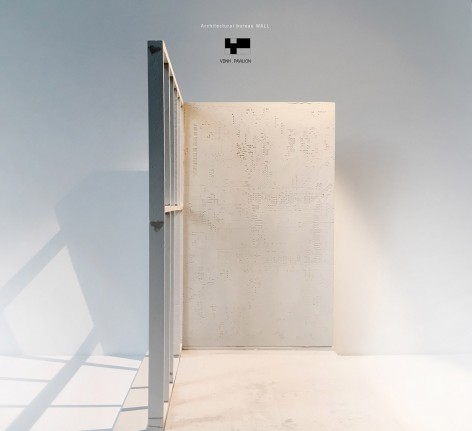

▼ 表皮探讨模型，the model of the skin

展览空间，EXTENTIONAL CARCASS

展馆分为3个部分，并拥有博览会区，商务中心和与中央通信空间连接的儿童区3个灵活展区。复杂的人工技术演示了展馆区领土发展过程，并形成三个独立体积。

夏季，主题区域成为可以开放展览，讲座，工作坊，儿童活动等的开放空间。开放和封闭空间由SMART FLOOR(智能楼层)这个共同的表面连接在一起，共同生成城市有机体模型，

智能楼层由于在整个平面上的固有分配的连接点，促进了主题的灵活性和可变性。与此同时，智能楼层将光导航系统，工程系统，电气，照明和采暖全部置于一个板块之中。

The pavilion is a three-part structure with 3 flexible thematic areas: an exposition area, a business center and a kid’s area connected to the central communication space. Plastic complexity interprets the development morphotype of VDNH territory, forming the substance of three separate volumes.

Ledged thematic areas create open spaces for flexible use in the summer season [open exhibitions, lectures, workshops, kid’s activities]. Open & closed spaces generate the model of urban organism, united by a common surface – SMART FLOOR.

Smart floor creates new algorithms, promoting a thematic flexibility and variability, due to a permanent allocation of the connection points on the entire plane. Light navigation systems, engineering systems, electrical, lighting and heating are implanted into a single plate.

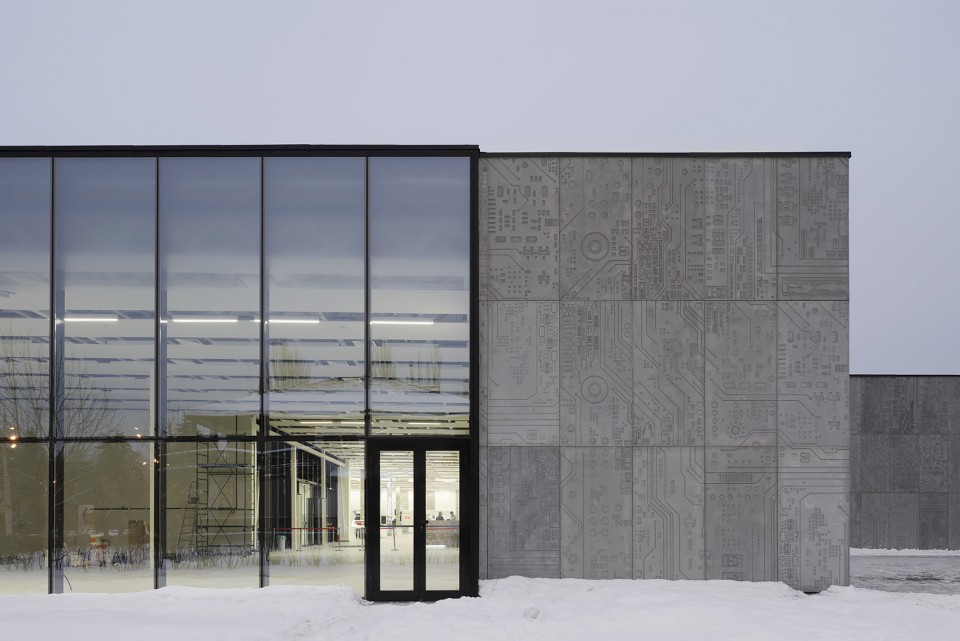

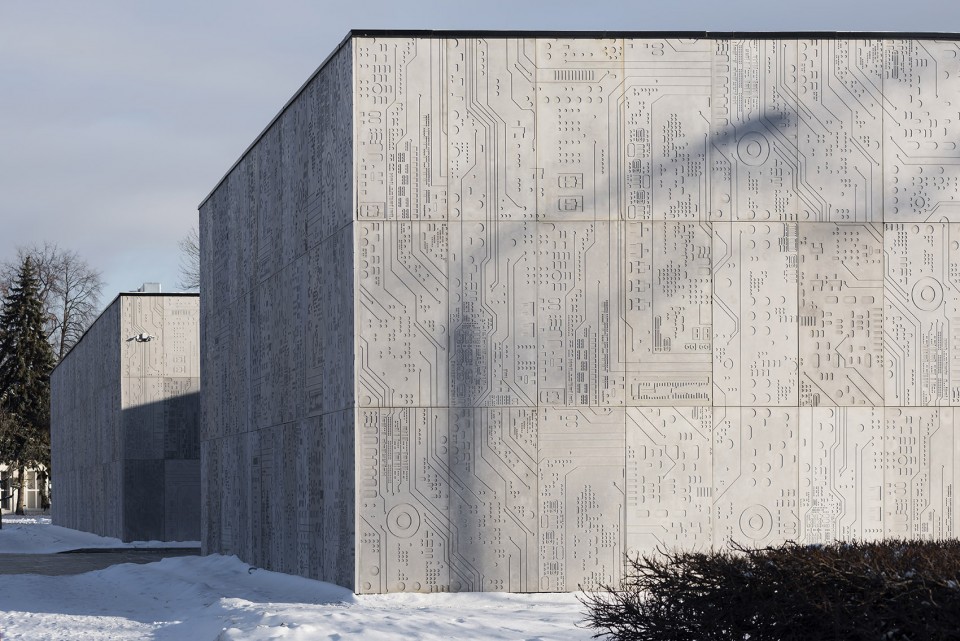

▼ 建筑开窗，the openings

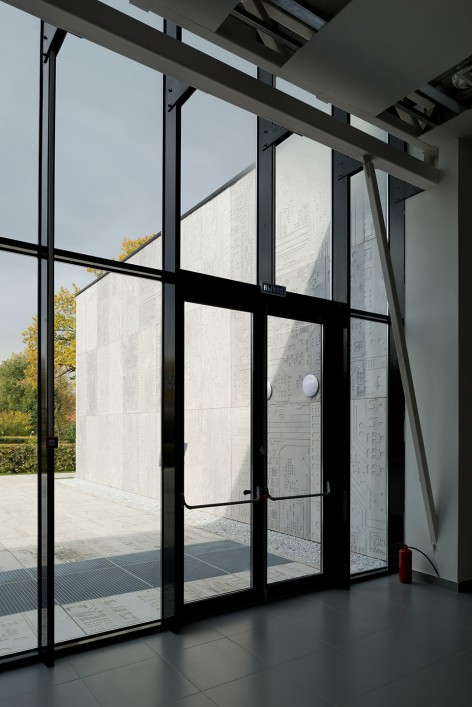

▼ 灯光点亮了入口门厅部分，the light light up the entrance

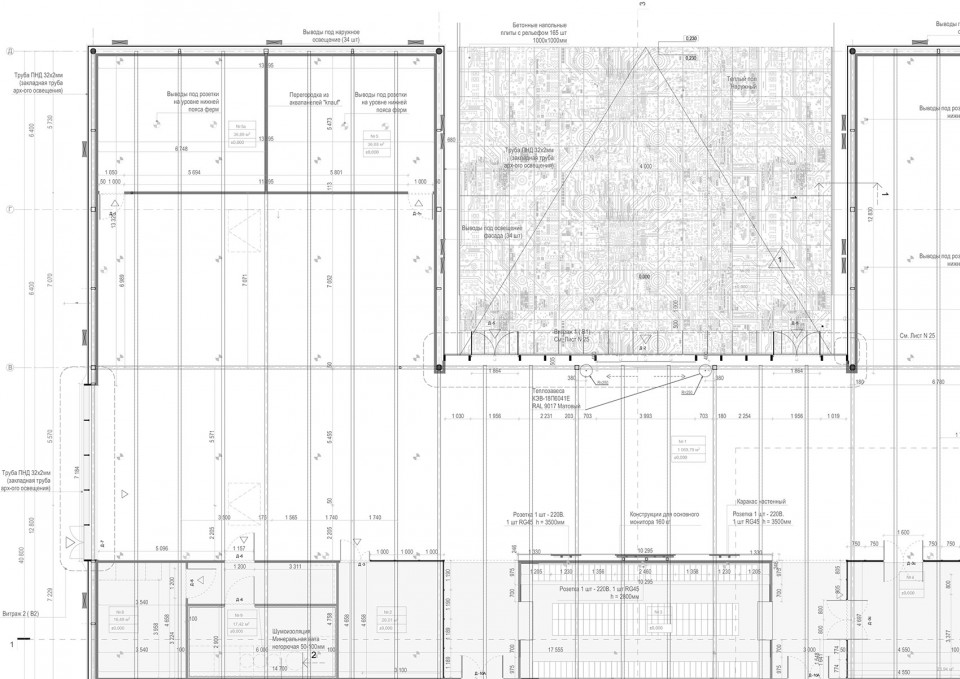

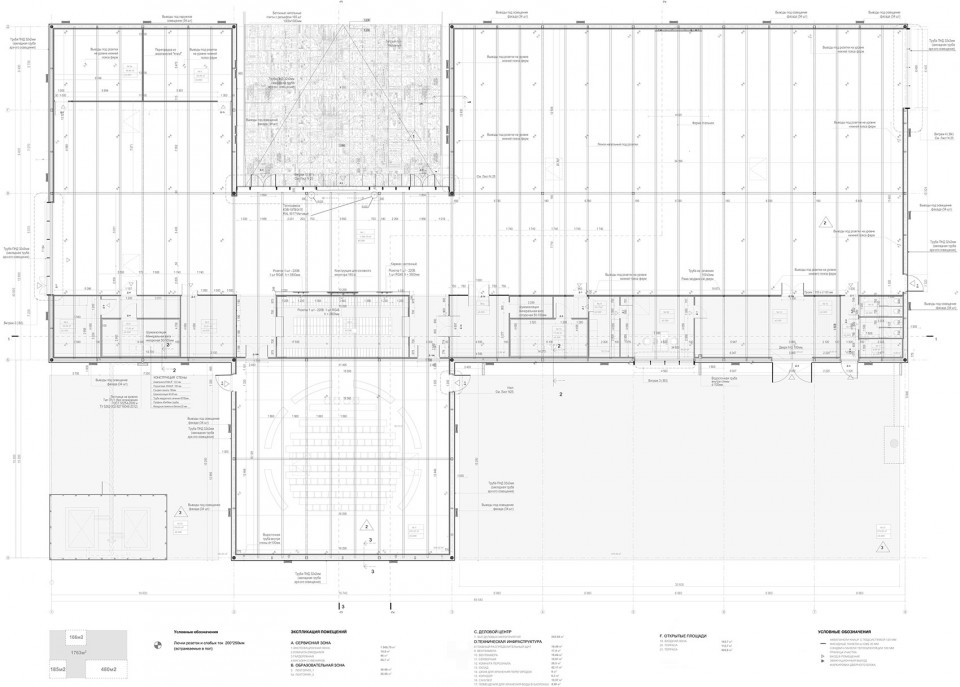

▼ 平面图，plan/平面图大样，detail of plan20 21

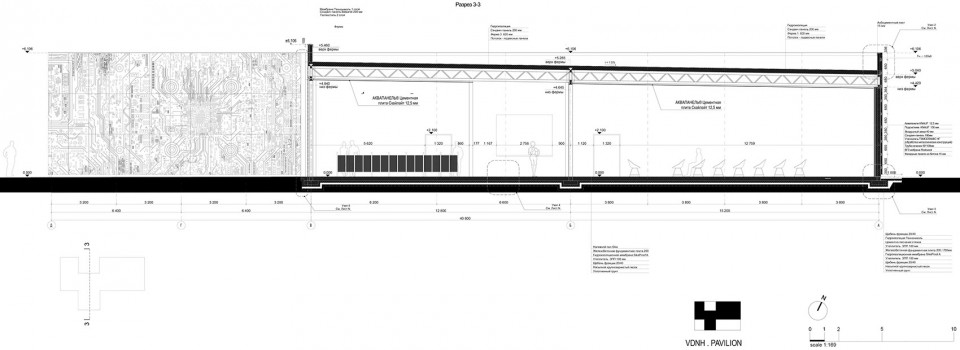

▼ 剖面，section

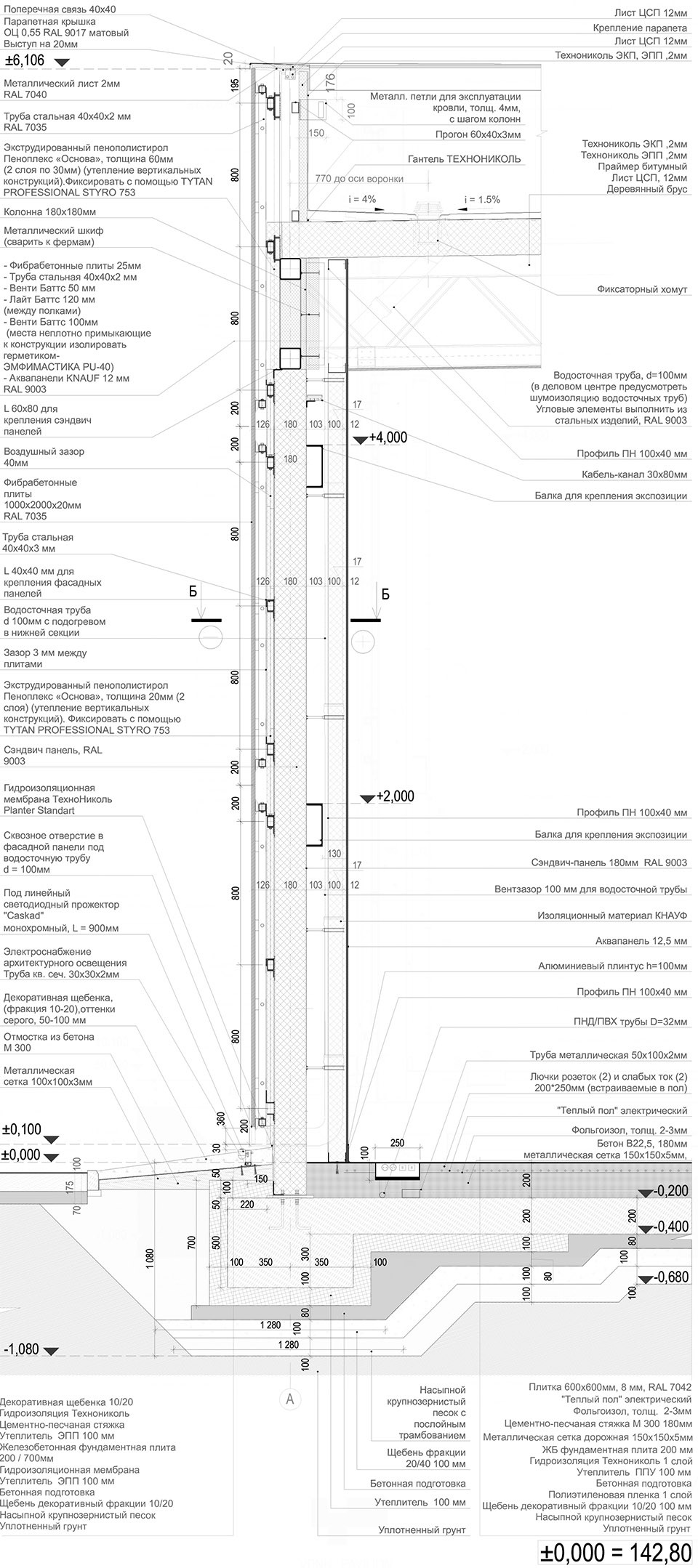

▼ 节点详图，joint detail

PARAMETERS
Total area： 1599.66 sq.m.
Dimensions： 167.5m x 25.6m
Height： 6 m
Functional areas
A Service zone： 250.8 sq.m.
B Educational area： 273.24 sq.m.
C Business center： 254.58 sq.m.
D Technical area： 158.77 sq.m.
E Exposition area： 698.57 sq.m.
F Open spaces： 1038.88 sq.m.
DESIGN AND CONSTRUCTION
Design 10/2015-05/2016
Construction 05/2016-09/2016
photographer： Ilya Ivanov
