2012年11月27日Oversea在海外专辑NO.7中向大家介绍了James Leng 冷俊的3个作品。
2013年的6月，James Leng 冷俊已经从哈佛大学GSD毕业，开设增补专辑向大家介绍他
的毕业设计Air Ops: A Retroactive Platform for Energy Exchange

Air Ops
A Retroactive Platform for Energy Exchange
空行动:
能源交换平台

Air Ops is a project about re envisioning zoning and energy use in a post Hurricane Sandy Manhattan. The core of the project hinges on the notion that zoning has always been one of the most potent elements in shaping the city, and in order for architecture to tackle the problem of energy at the urban scale, especially as a response to the increasing volatility of the climate, it must bring topics of sourcing and using energy into active dialogue with zoning, real estate, and the public realm.

空行动是一个在飓风后的曼哈顿重新设想区域规范和能源使用的项目。区域规范的概念，一直是塑造城市的最有力的元素，为了让建筑能够在城市尺度上面对能源的问题在建筑为了解决能源问，特别是为了应对日益恶化的气候环境，我们必须将能源使用与区域规范，房地产和公共领域结合起来。

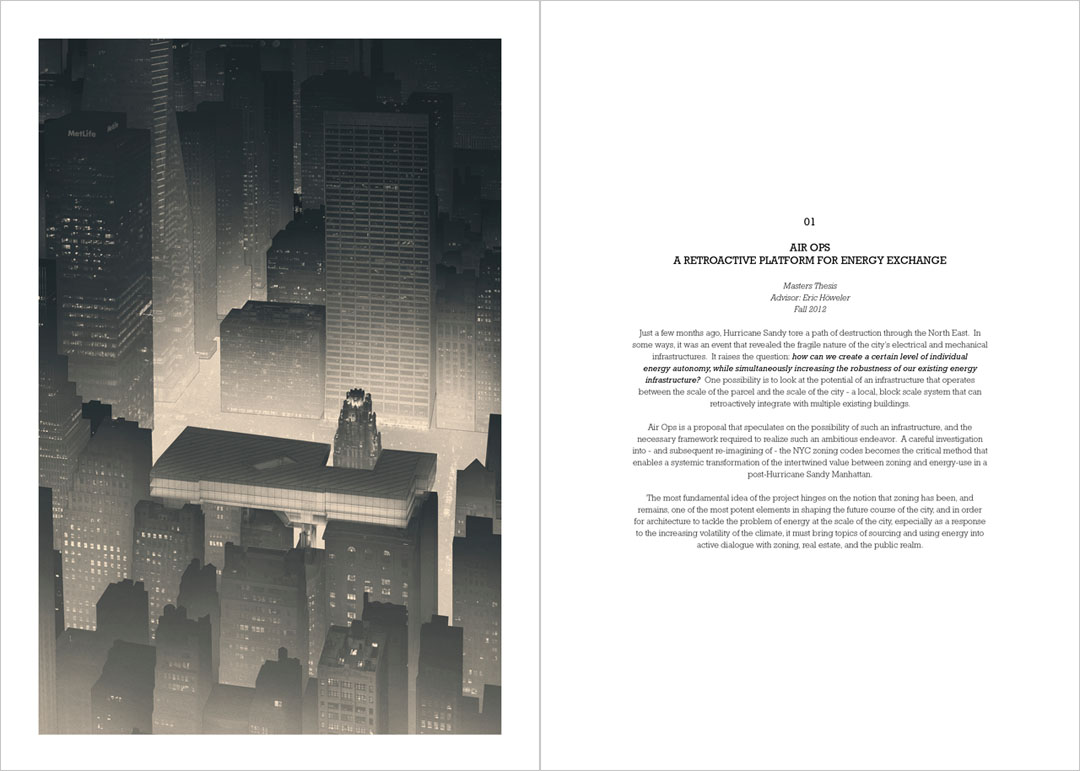

Just a few months ago, Hurricane Sandy tore a path of destruction through the North East. In some ways, it was an event that revealed the fragile nature of the city’s electrical infrastructures. It raises the question: How can we create a certain level of individual energy autonomy, while simultaneously increasing the robustness of our existing energy infrastructure? One possibility is to look at the potential of an infrastructure that operates between the scale of the parcel and the scale of the city a local, block scale system that can retroactively integrate with multiple existing buildings.

就在几个月前，飓风桑迪在美国的东北部制造了大规模的毁坏。在某些方面，这个事件揭露了城市能源网格的脆弱。这就提出了一个问题：我们如何能在增加现有能源基础设施的能力的基础上，创造一个基于个体的自主能源策略。一个解决的方法就是研究能将城市整体和单个城市区块连接起来的基础设施。

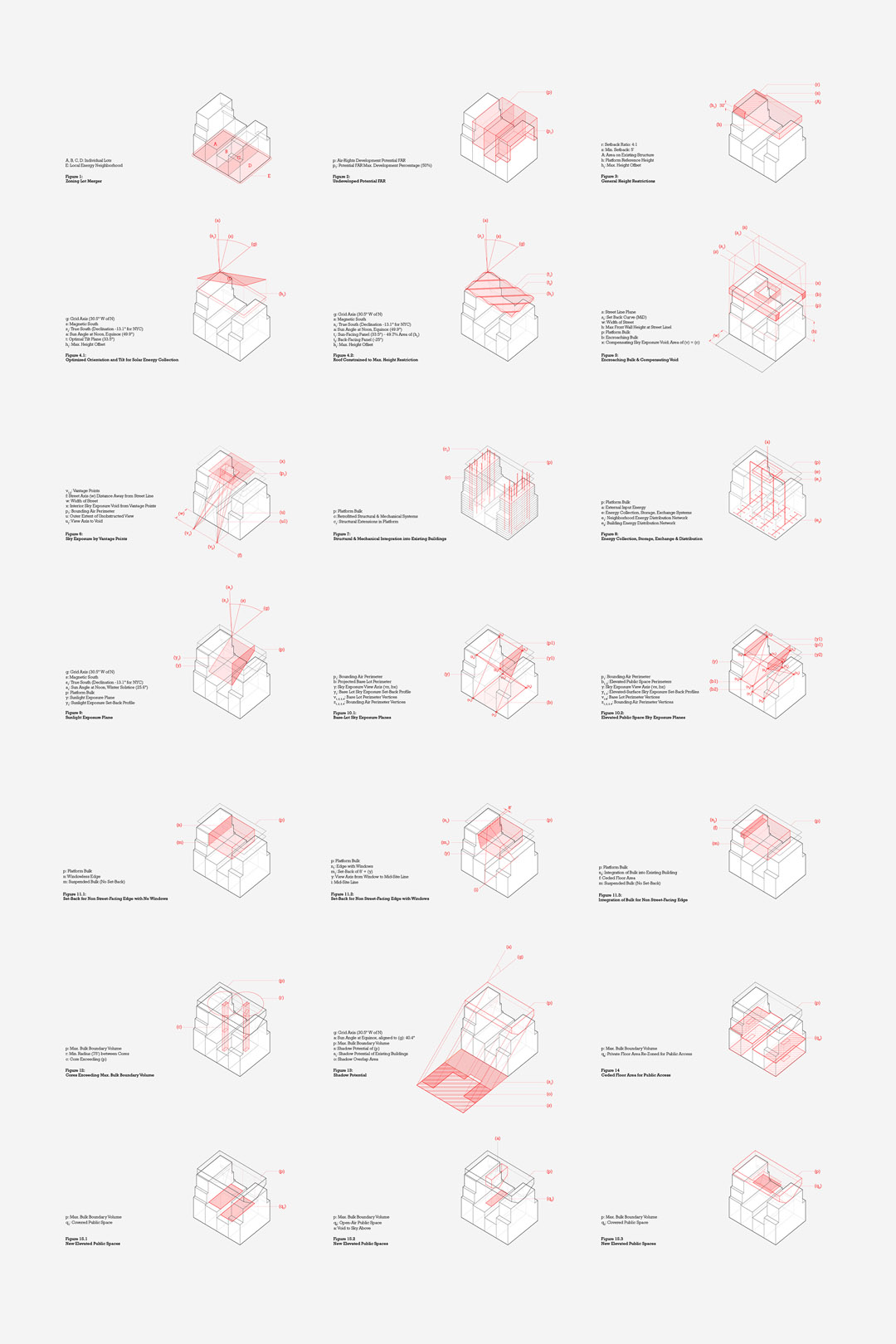

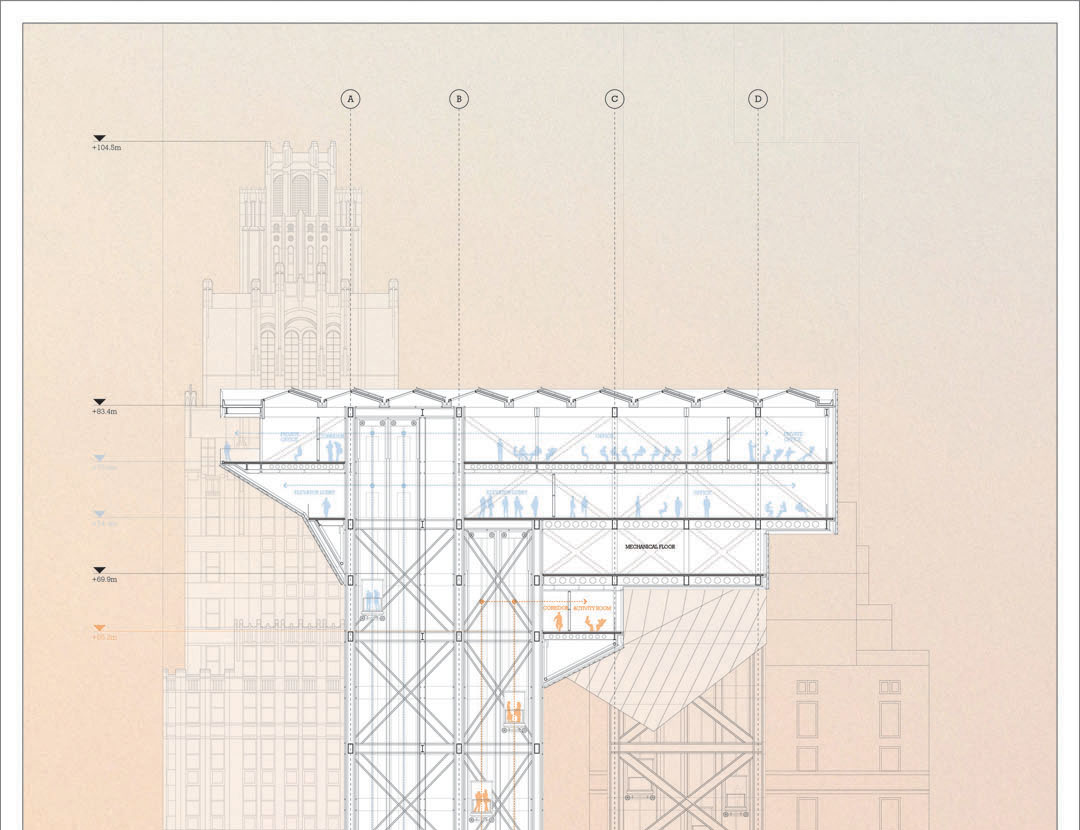

As a point of departure, the project delves into a careful investigation into the NYC zoning codes. Ultimately, a reimagination of the air rights zoning regulations becomes the critical method that enables the creation of a new urban typology. This new paradigm volumetrically inverts the convention of the setback: the top surface is maximized for sustainable energy collection, and the setback is then cut from the underside of the volume to ensure access to light and air for buildings below.

作为出发点，这个项目对纽约现有的建筑规范进行了细致的研究。然后一个新的空中区域规范成为了产生新的建筑类型的重要起点。这个新的模式翻转了现有的退后规范，上部表面追求能源收集的最大化，然后新的退后规范切除了表面底部的体量，保证了底部建筑对光和空气的需求。

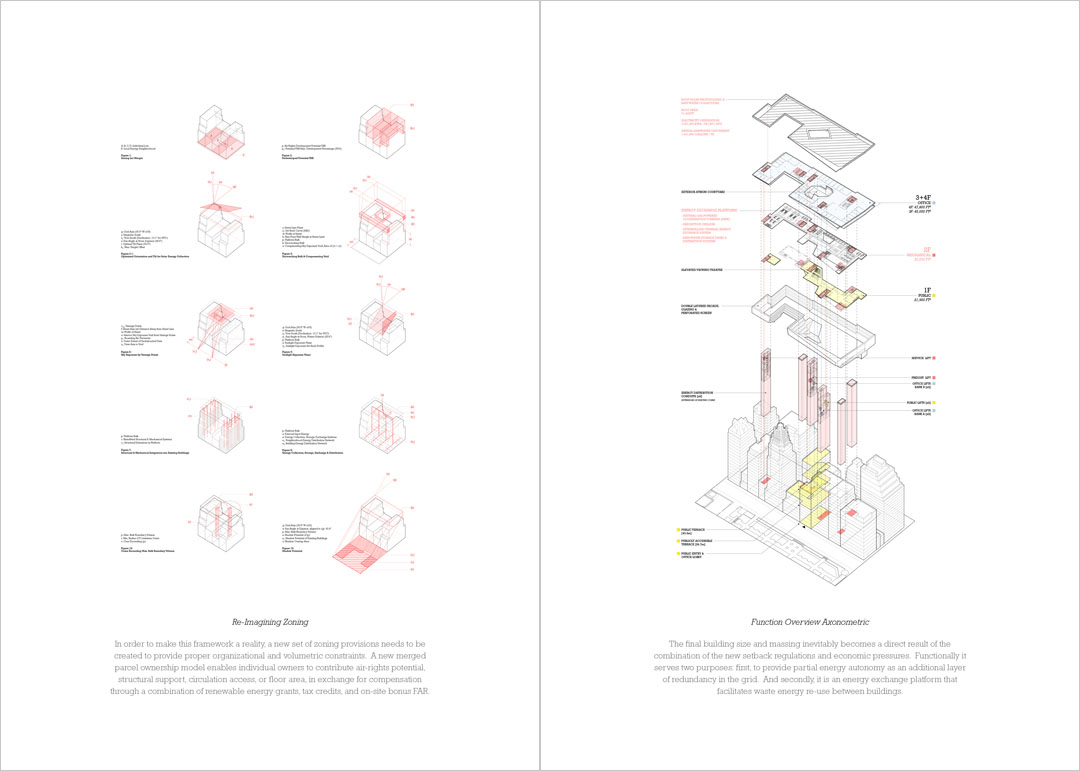

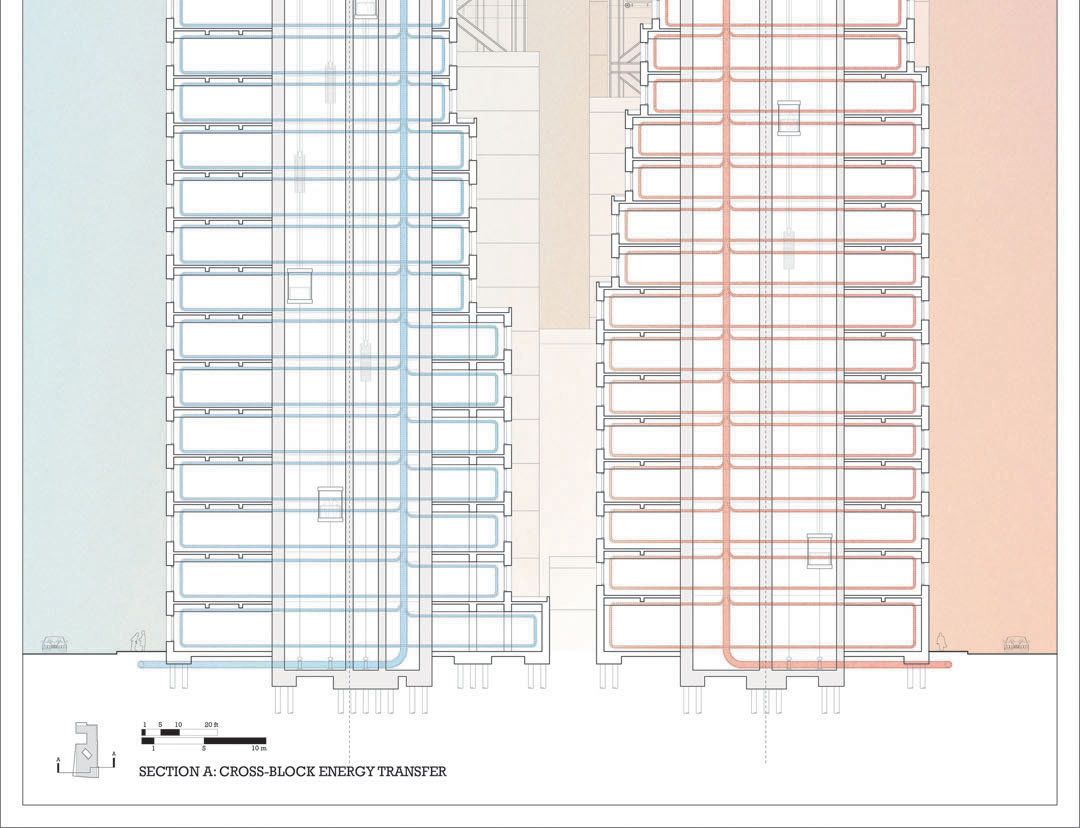

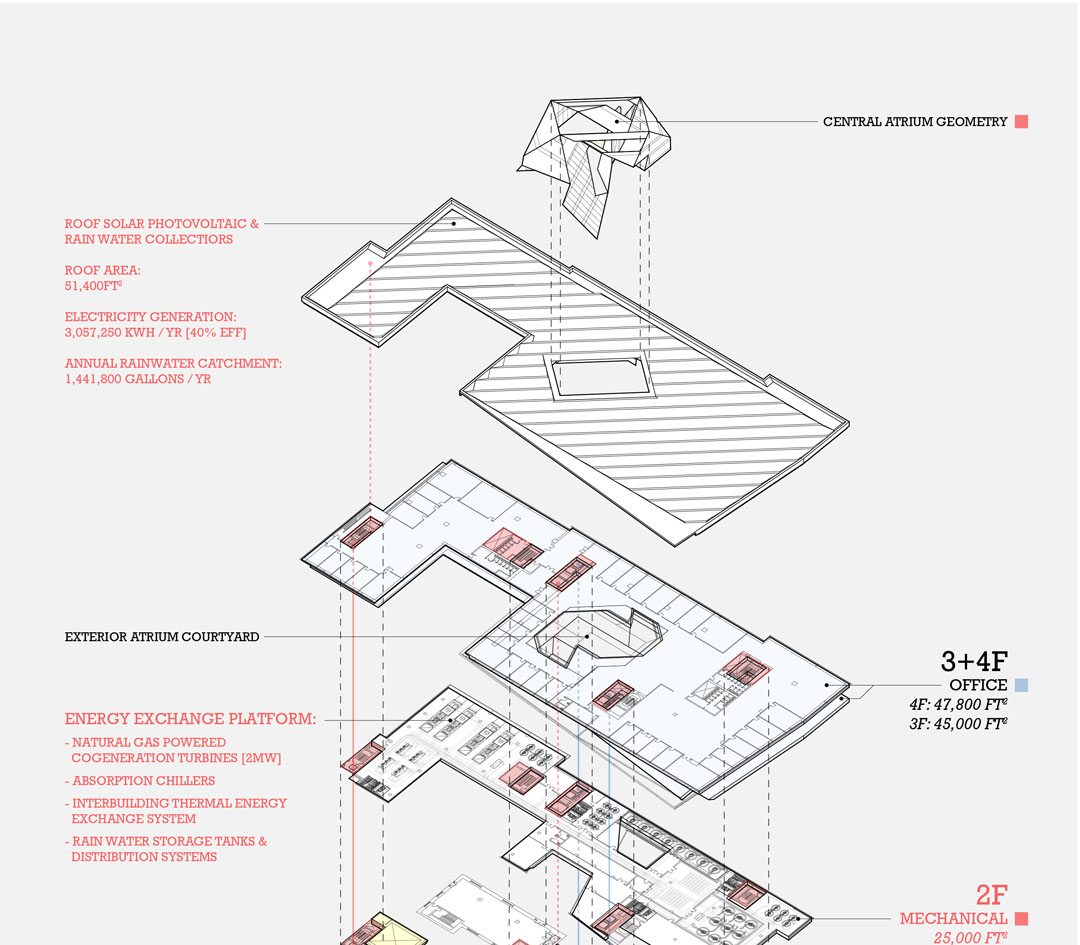

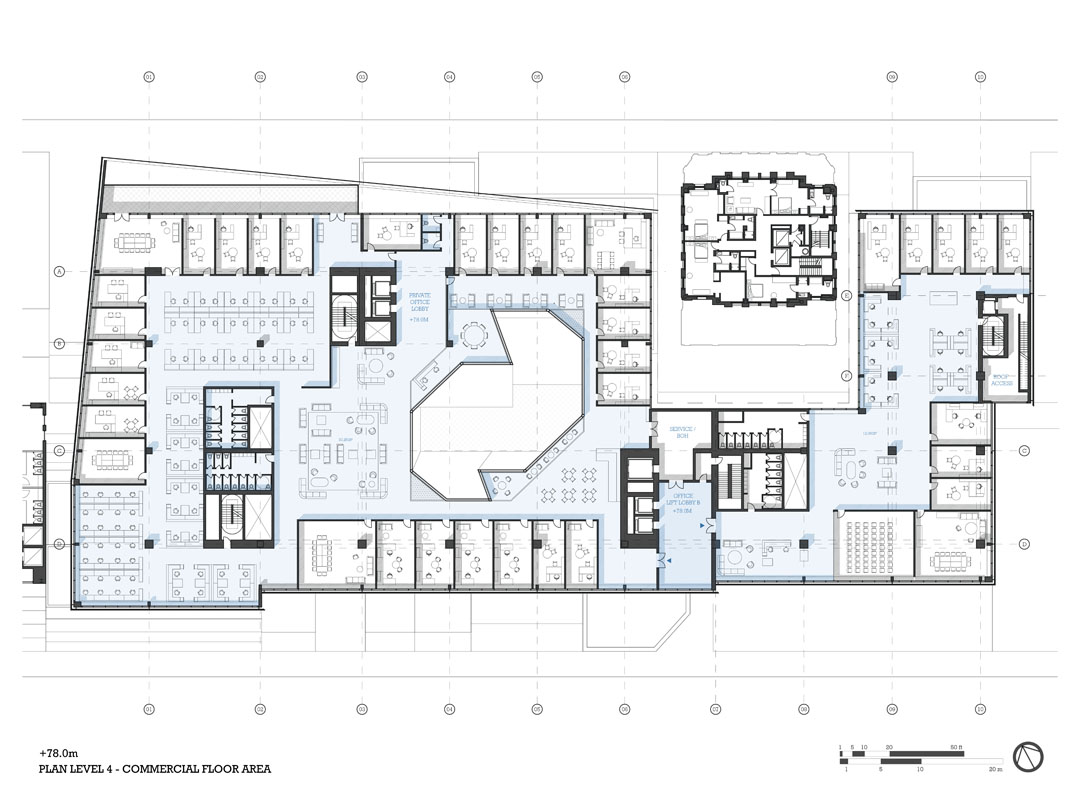

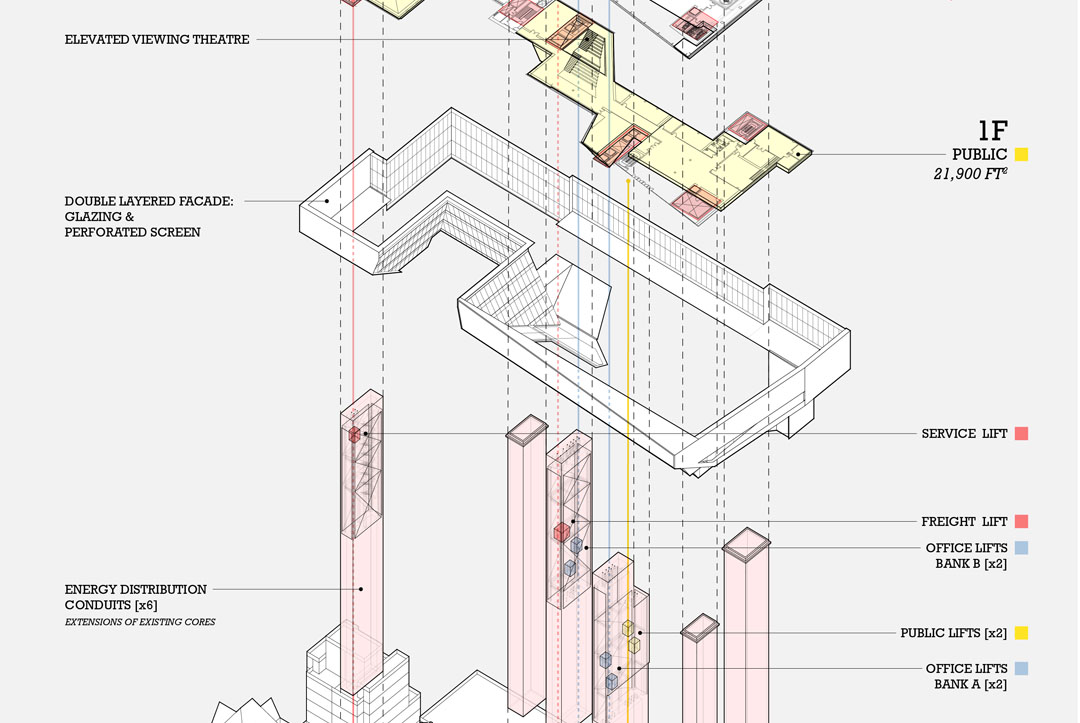

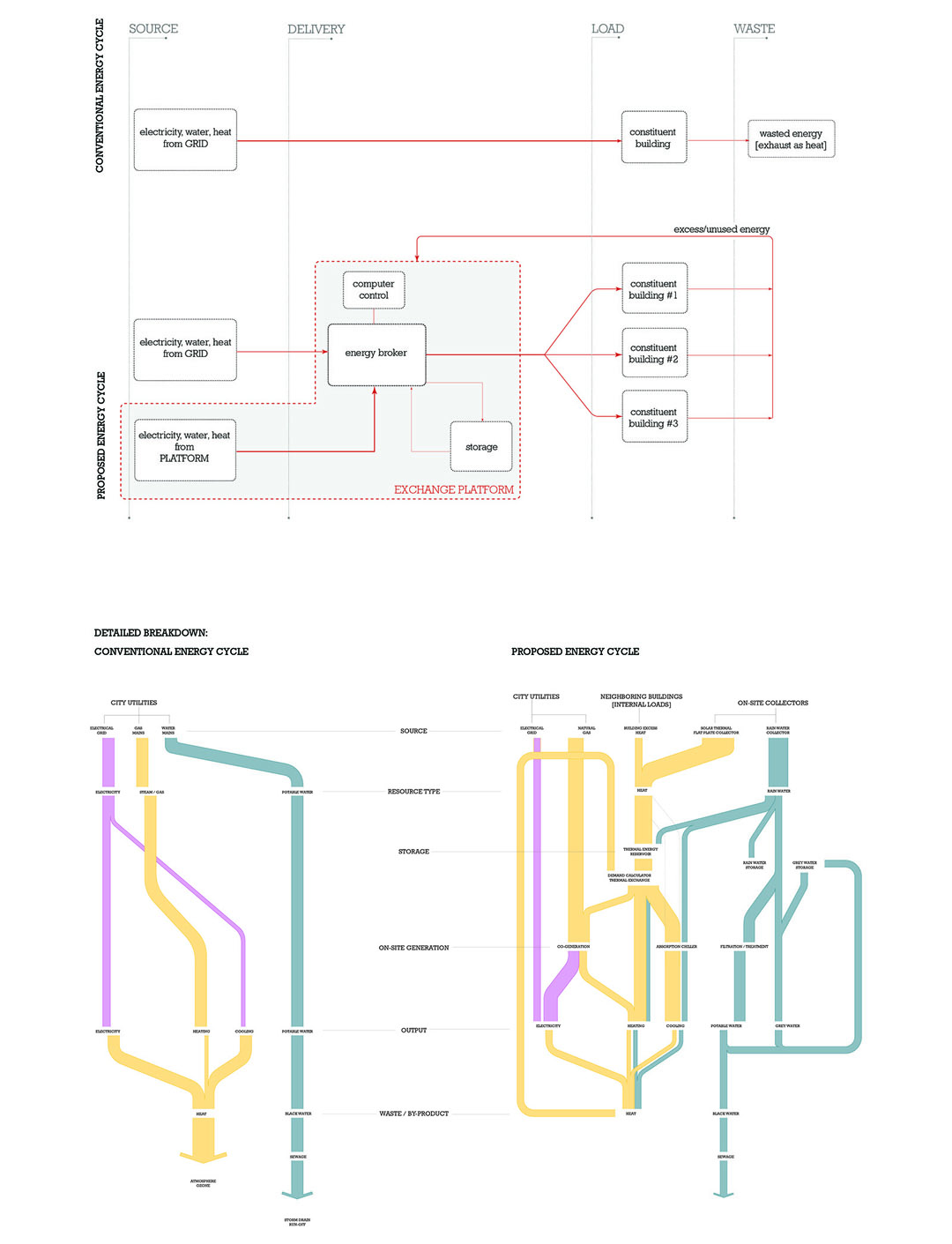

In order to make this framework a reality, the creation of a new merged parcel ownership model enables individual owners to contribute structure, circulation, or floor area, in exchange for compensation through energy grants, tax credits, and onsite bonus FAR. The final building size and massing inevitably becomes a direct result of new setback regulations and economic pressures. Functionally, the platform serves two purposes: first, to provide partial energy autonomy as an additional layer of redundancy in the grid. And secondly, it is an energy exchange platform that facilitates waste energy reuse between buildings.

为了让这个框架成为现实，一个新的集合所有制形式使得单个所有者可以通过贡献结构，流线，楼面面积来换取能源，退税和额外楼层面积。最终的建筑尺寸和体量，不可避免的产生于新的退后规范和经济需求。在功能上，这个平台起到了两个作用：一是在现有能源网格的基础上，提供了自主的能源。二是成为了建筑之间的能源交流平台。

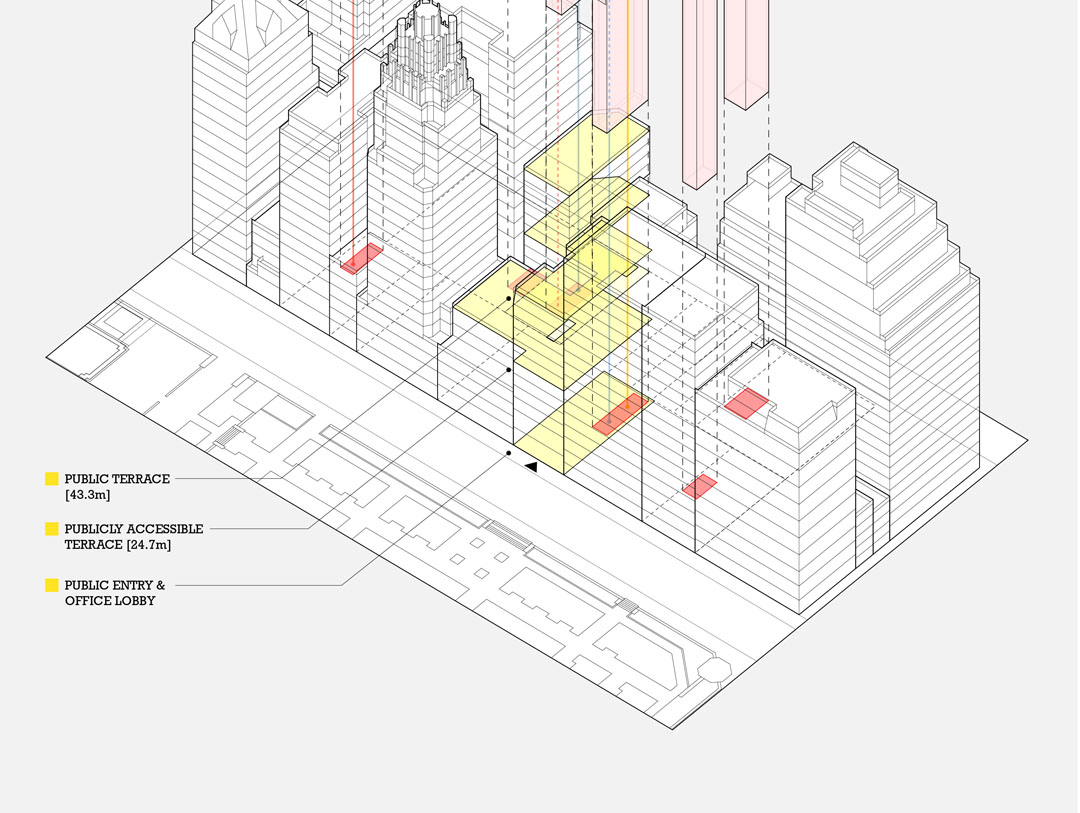

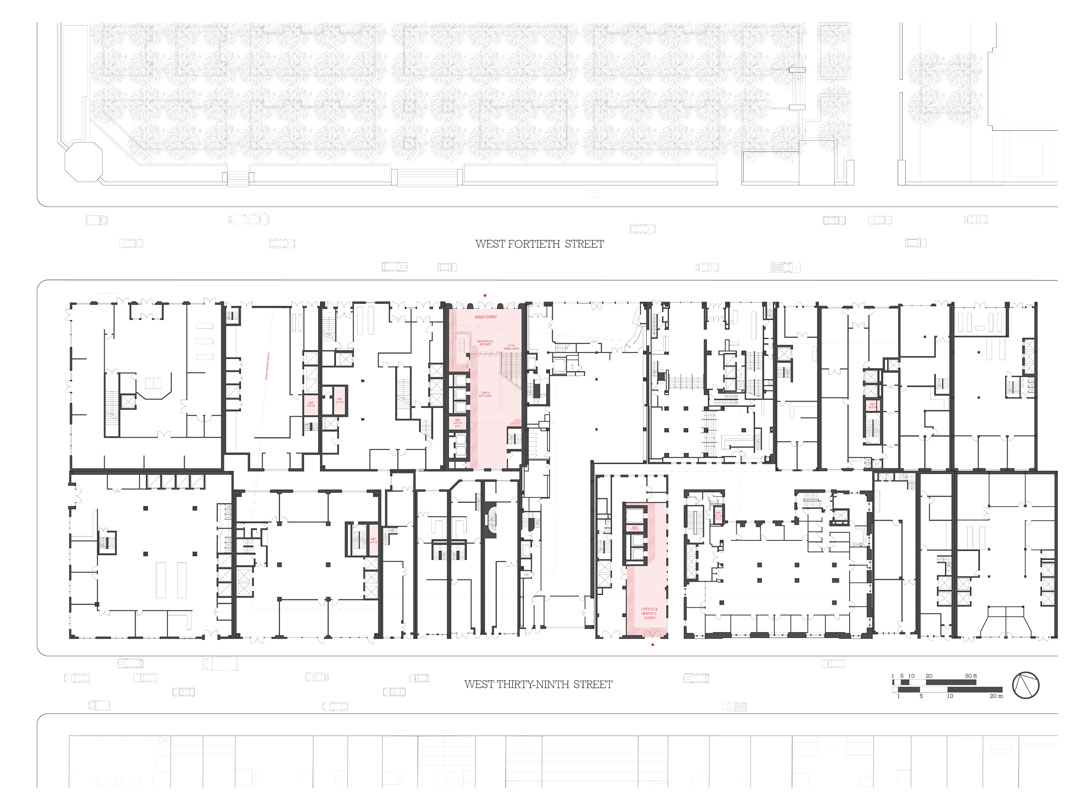

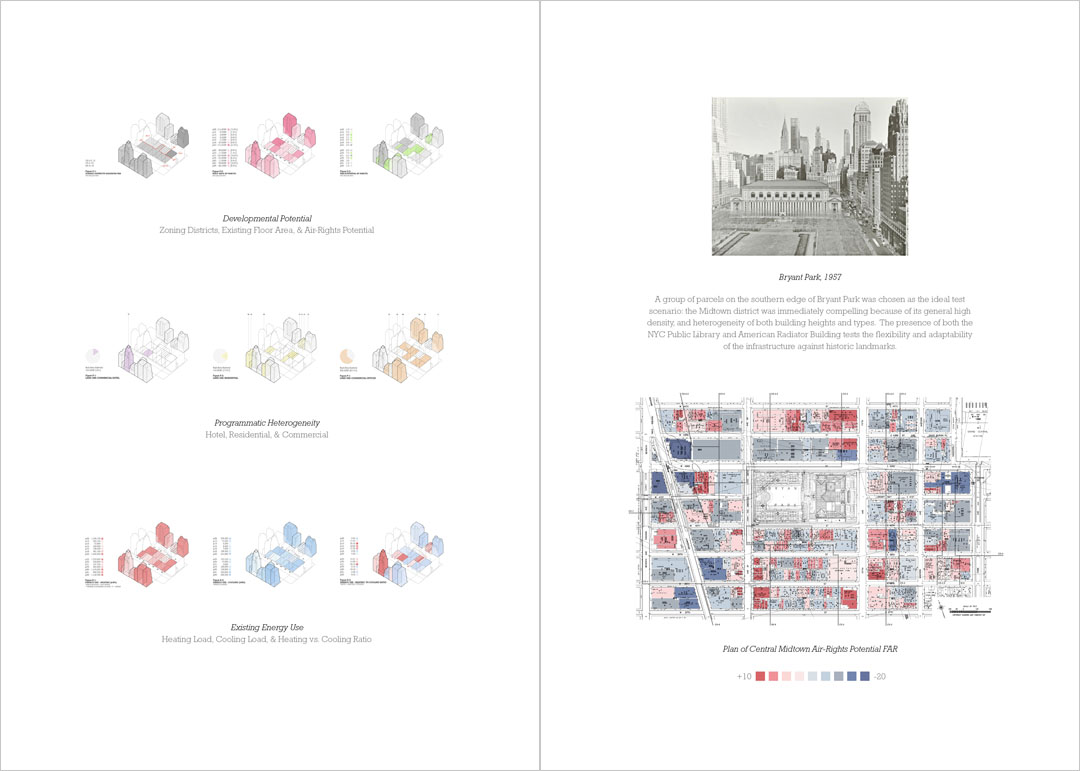

A group of parcels near Bryant Park provides the ideal test scenario because of the district’s general high density, and diversity of both building heights and types. Adjacency to the park uniquely enables the project to engage issues of image, frontage, and public space brought about by this new platform. The rooftops of certain lower buildings are converted into publicly accessible terraces which results in a continuation of the public ground plane into the vertical axis, where both the public and private benefit in this joint ownership effort. Ultimately, this platform introduces a fundamentally different spatial paradigm within the verticality of Manhattan. Nevertheless, the building itself is but one manifestation of the framework; one could consider it a template upon which all future iterations may be built upon.

在布赖恩特公园附近的一组建筑为项目提供了理想的测试环境。这里的建筑在具备高密度的同时，拥有丰富的建筑高度和类型。旁边的公园使得项目可以面对很多独特的问题，比如形式，正面性，以及公共空间。最终，这个平台为曼哈顿引入了一个完全不同的空间类型。同时，建筑本身就是这个构架的一个宣言，我们可以把它看成是其他所有类似建造的模版和启发。
