来自 Triptyque Architecture 对gooood的分享。更多关于他们：Triptyque Architecture on gooood.
Appreciation towards Triptyque Architecture for providing the following description:

“Onze22”是TRIPTYQUE事务所为Idea!Zarvos公司打造的最新项目，这是一座由悬浮楼板和落地玻璃围合而成的24层公寓住宅楼，为业主带来绝佳的城市视野。

With 24 floors made up of suspended slabs enclosed in floor-to-ceiling glass, TRIPTYQUE’s new project for Idea!Zarvos provides the experience of a scenic viewpoint.

▼项目概览，Overall view © Maíra Acayaba and Edu Castello

“Onze22”并非一座传统意义上的塔楼，它通过重叠的楼板和玻璃幕墙带来了360度的全景景观，促进了外部和内部空间的全面贯通。在这里，景色成为了空间和装饰的一部分。

This is not a tower block in the classic sense of the word; it is a set of overlapping, suspended slabs, interspersed with glass walls. Due to this structure framing the urban landscape in 360-degrees, Onze22 promotes total fluidity between exterior and interior. This is a design that invites users to relate to the city not as something that is outside – here, the view composes the spaces as if it were part of the decoration.

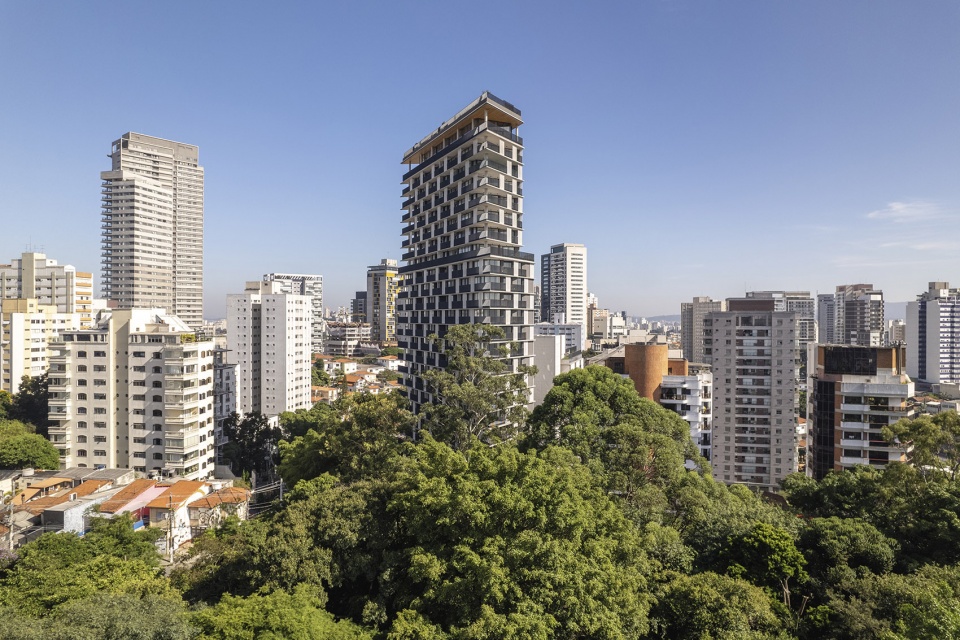

▼建筑和城市环境，Onze22 in the urban context © Maíra Acayaba and Edu Castello

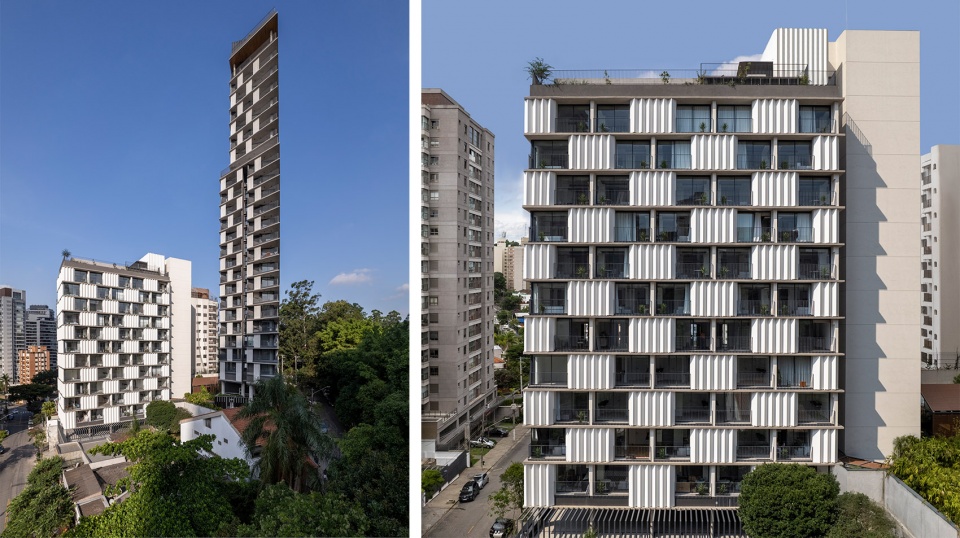

▼两栋塔楼：单间公寓楼和普通住宅楼，Two towers (studio and home) © Maíra Acayaba and Edu Castello

TRIPTYQUE创始合伙人Gui Sibaud表示：“从阳台上的任何位置都可以享受到圣保罗的无边美景，在角落处，你将收获到不同方向的独特视野。”

“Each point on the balcony invites you to observe São Paulo, providing endless views and, at the corners, the possibility of letting your gaze go in different directions.” — Gui Sibaud, founding partner of the agency TRIPTYQUE.

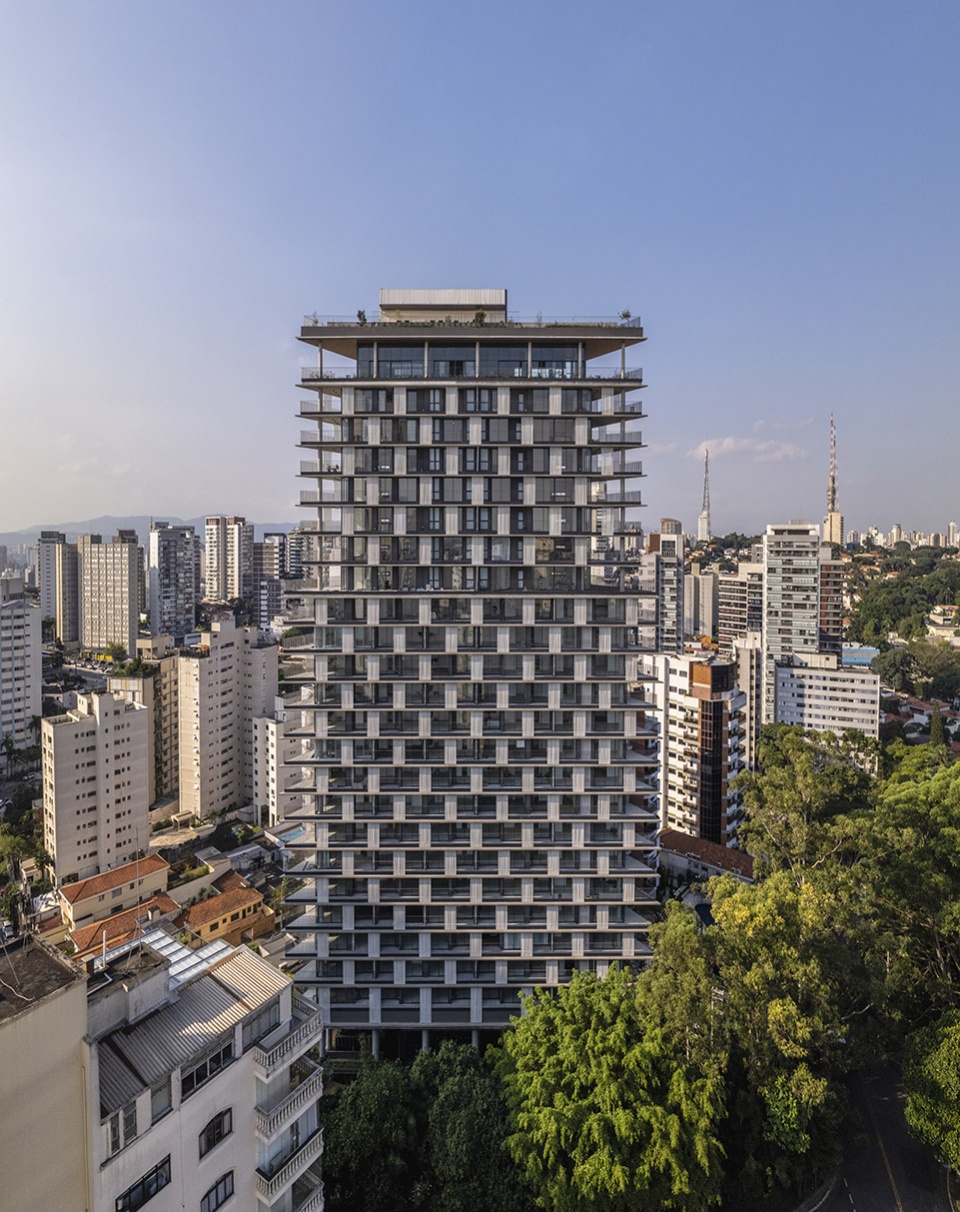

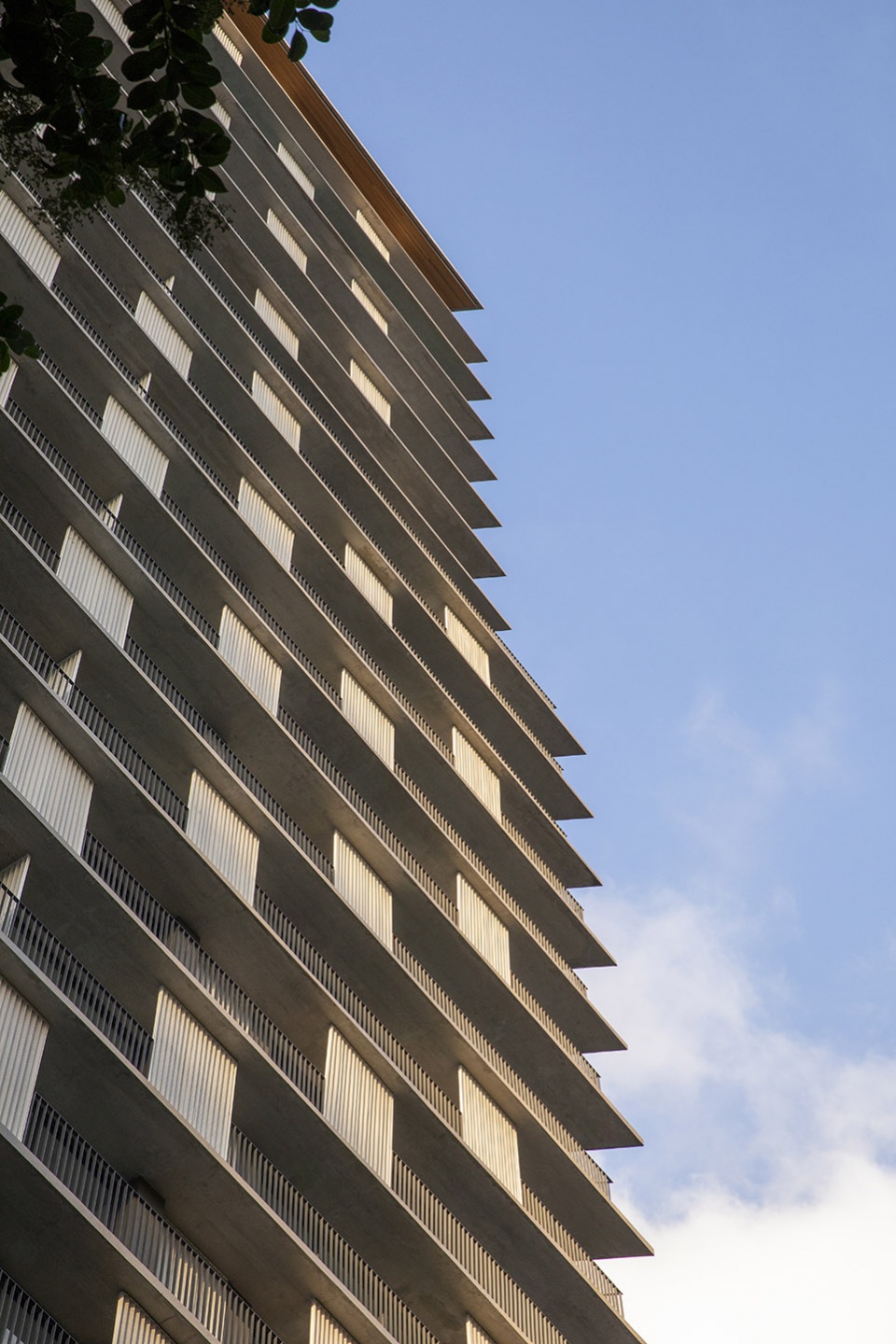

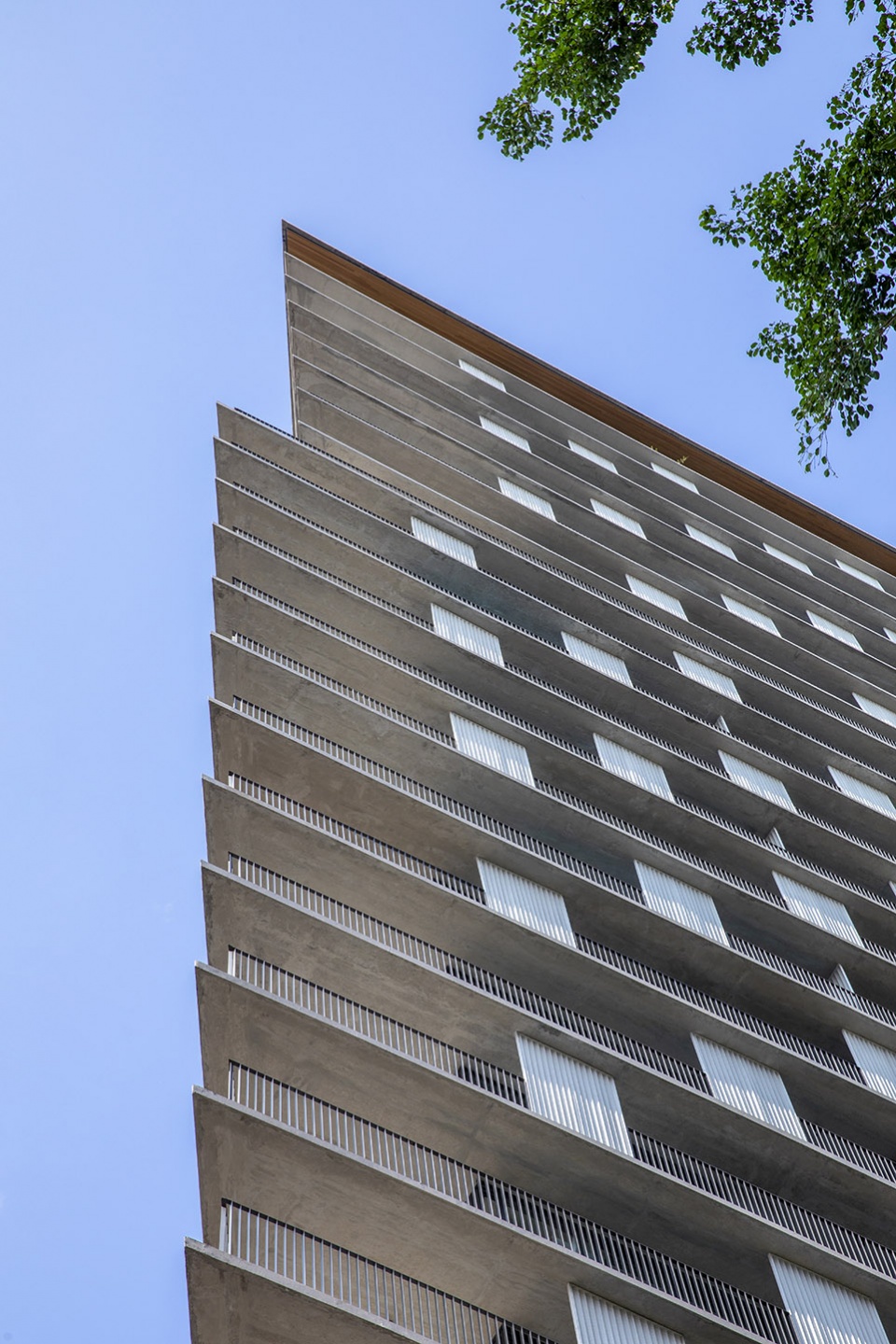

▼住宅楼立面，Home tower facade © Maíra Acayaba and Edu Castello

▼城市视野，View towards the city © Maíra Acayaba and Edu Castello

建筑的透明表皮使其内部的公寓空间沐浴在自然光线中，带顶的阳台环绕在外部，在扩大空间的同时还能够防止阳光的过度照射。

The building’s transparent skin ensures that the spaces of the studios and apartments are bathed in natural light. A covered balcony surrounds them entirely, expanding the spaces and ensuring protection against excess sun.

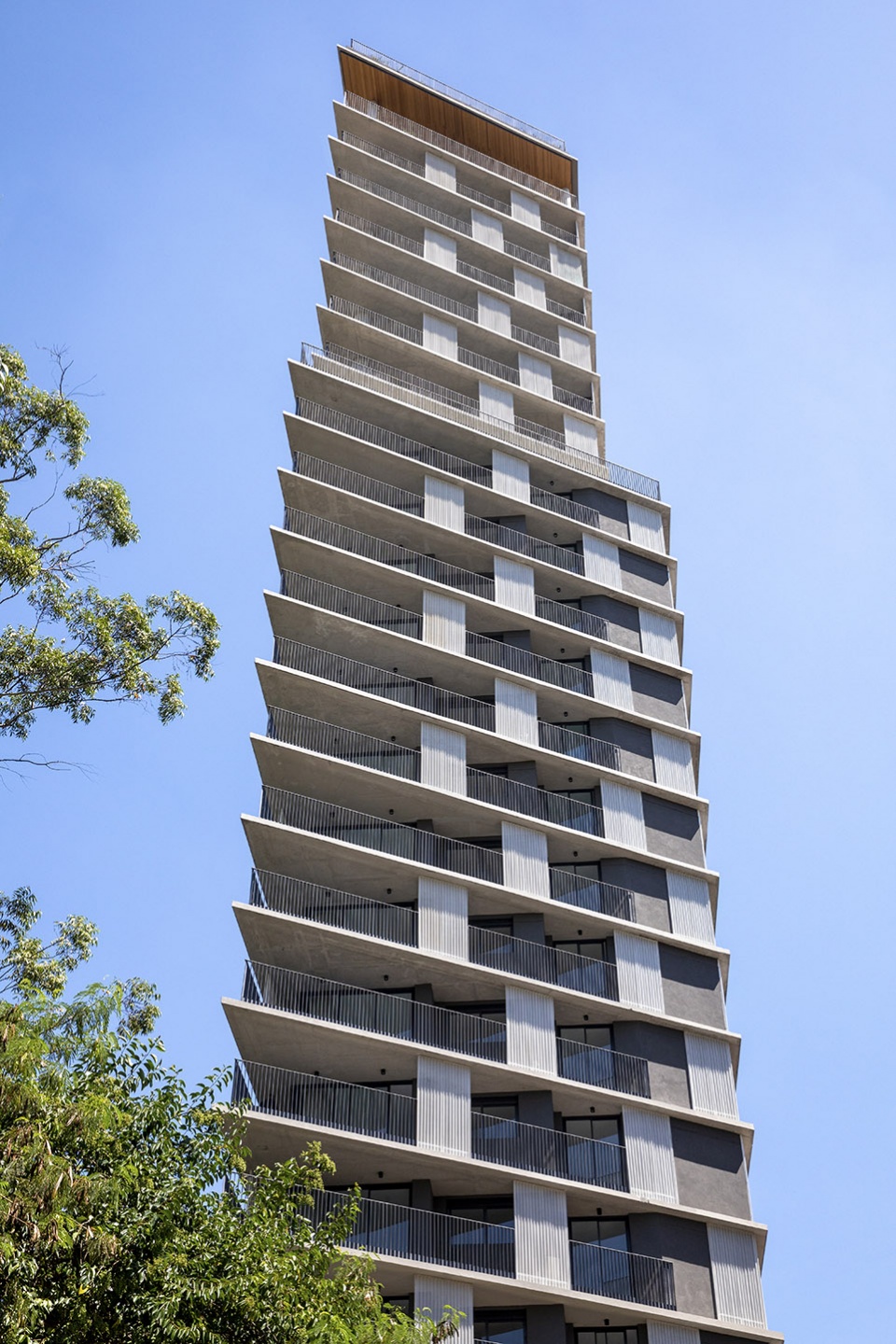

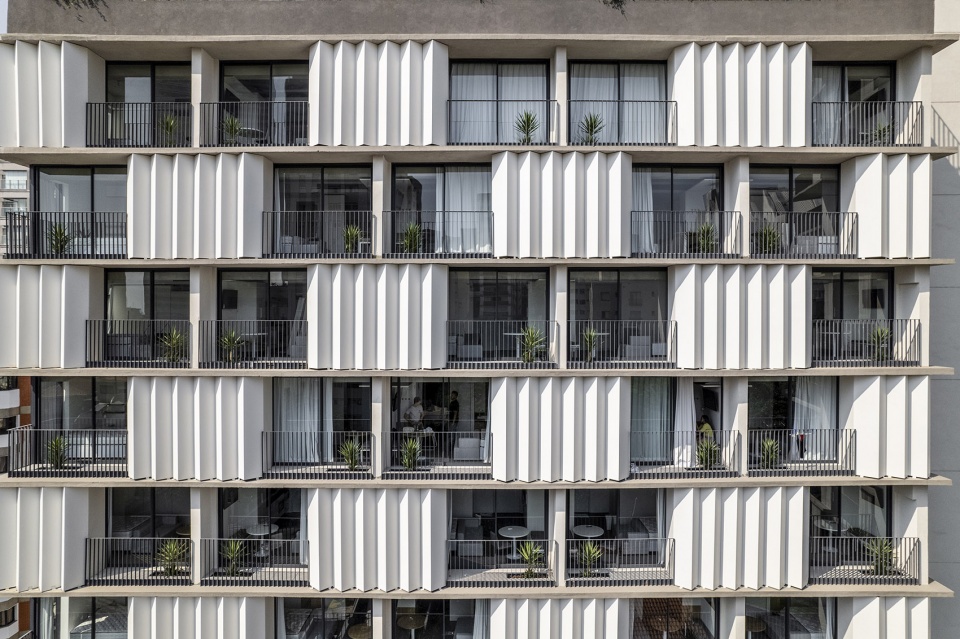

▼单间公寓楼立面，Studio tower facade © Maíra Acayaba and Edu Castello

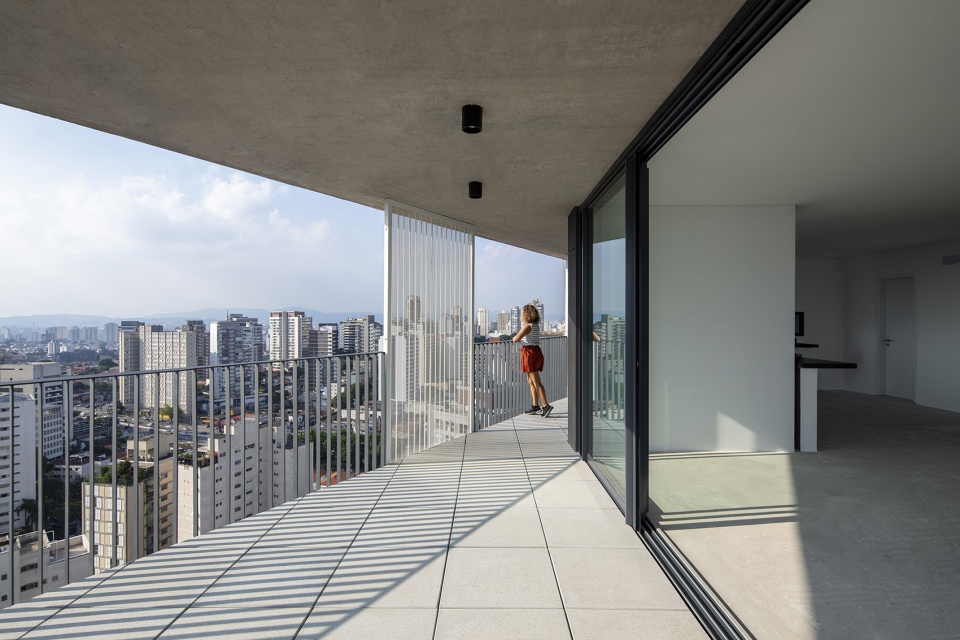

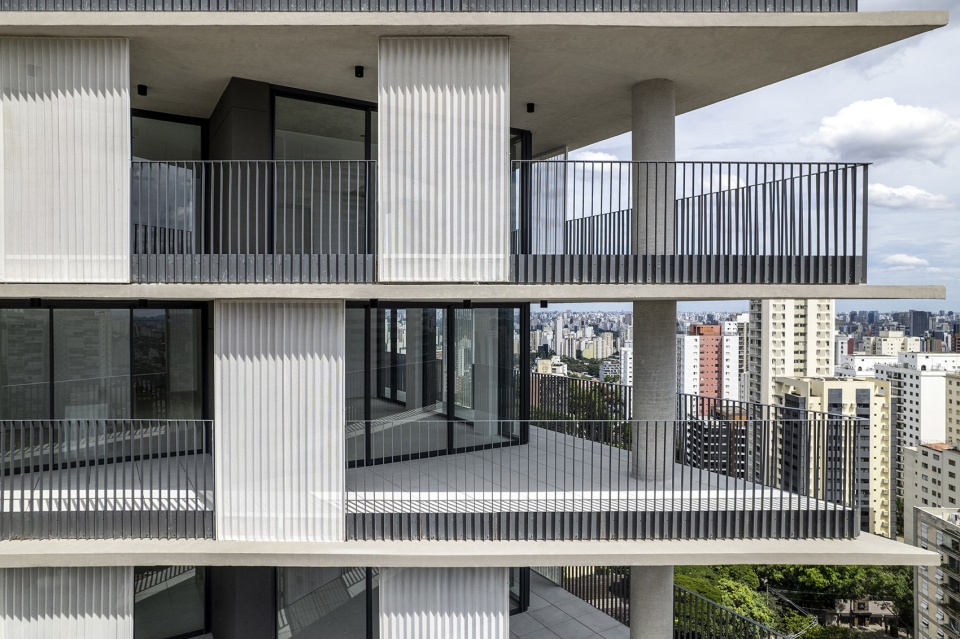

▼住宅楼阳台，Balconies of the home tower © Maíra Acayaba and Edu Castello

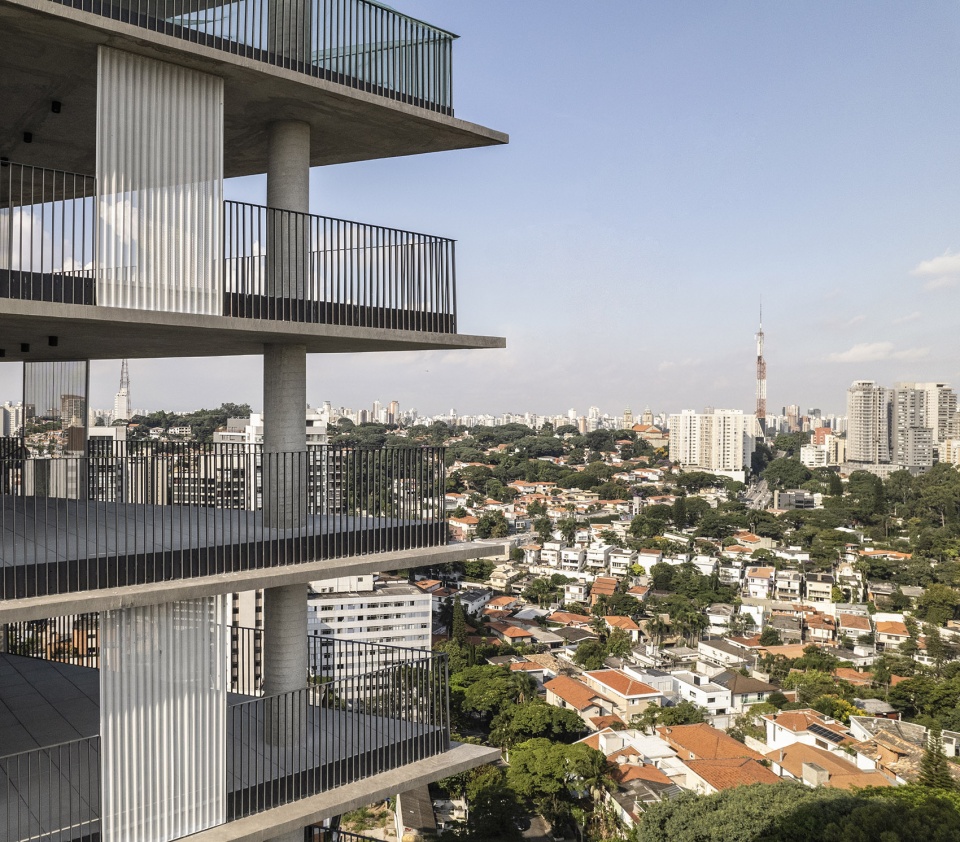

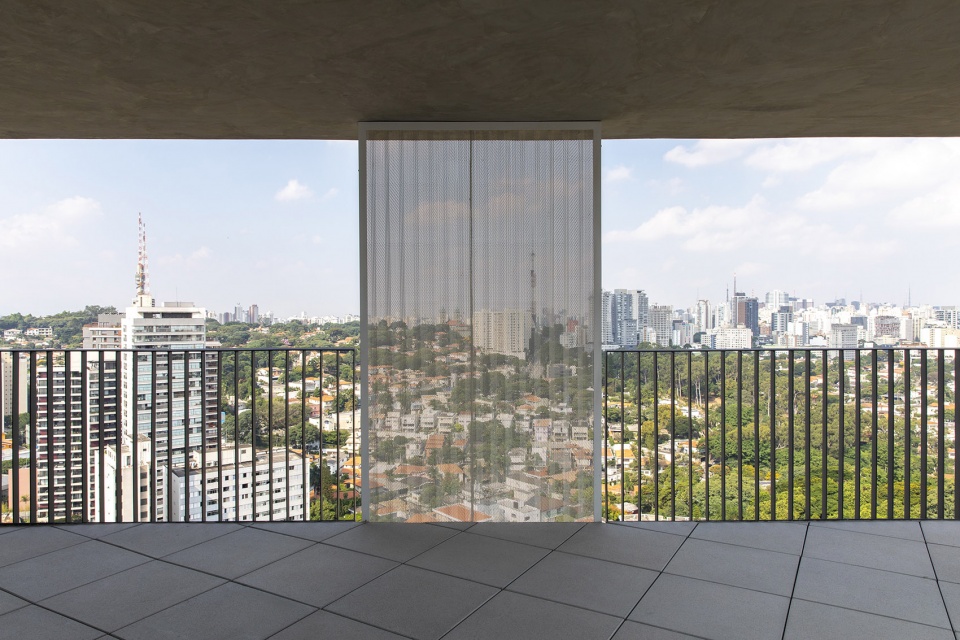

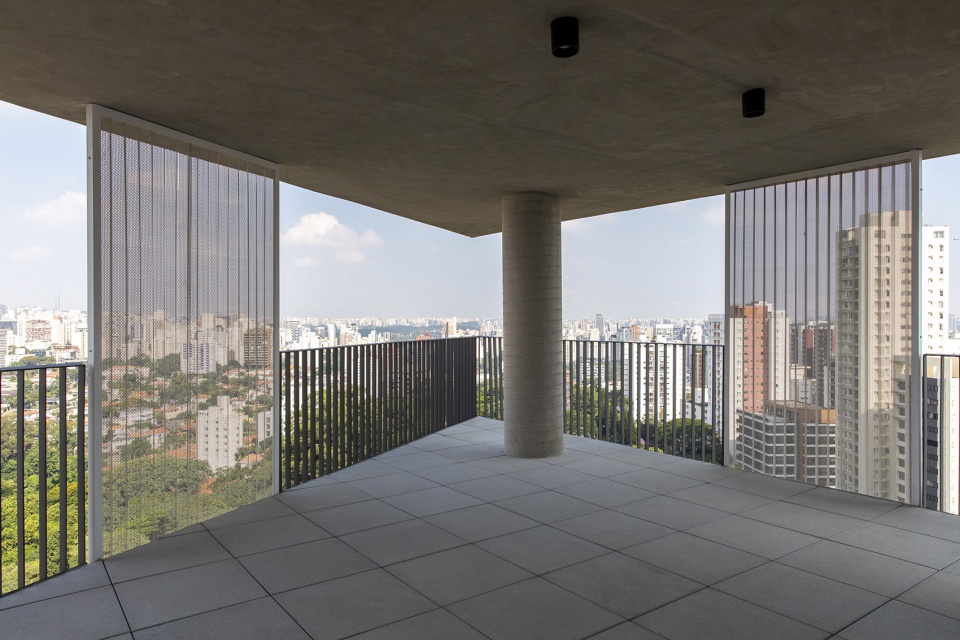

▼住宅楼阳台视野，Balcony view © Maíra Acayaba and Edu Castello

Onze22是TRIPTYQUE为IdeaZarvos!设计的第四个项目，坐落在圣保罗的Vila Madalena，从外观上看，大楼犹如一棵有生命的大树，从城市绿带破土而出。建筑被“种植”在Agissê大街第287号，紧挨着绿树成荫的大型广场，这体现了事务所在自然与城市之间建立新连接的积极愿望。

TRIPTYQUE’s fourth project for IdeaZarvos! in Vila Madalena, São Paulo, Onze22 seems to emerge from a green belt, as if it were a dominant living tree. The building is “planted” at Rua Agissê 287, close to a large tree-lined square, and manifests the activism of the French- Brazilian agency for a new pact between nature and the city.

▼住宅楼外观，Exterior view © Maíra Acayaba and Edu Castello

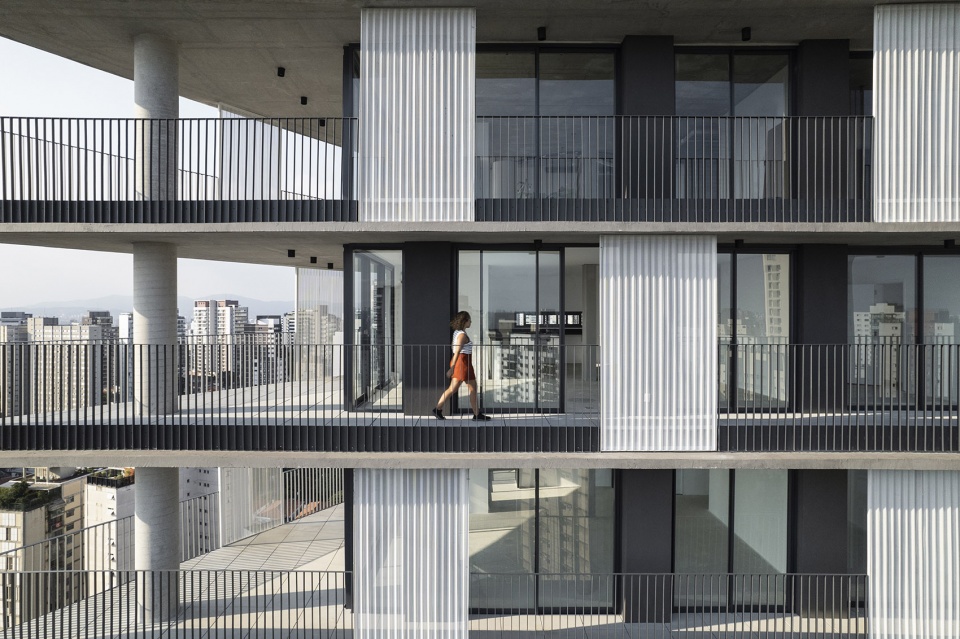

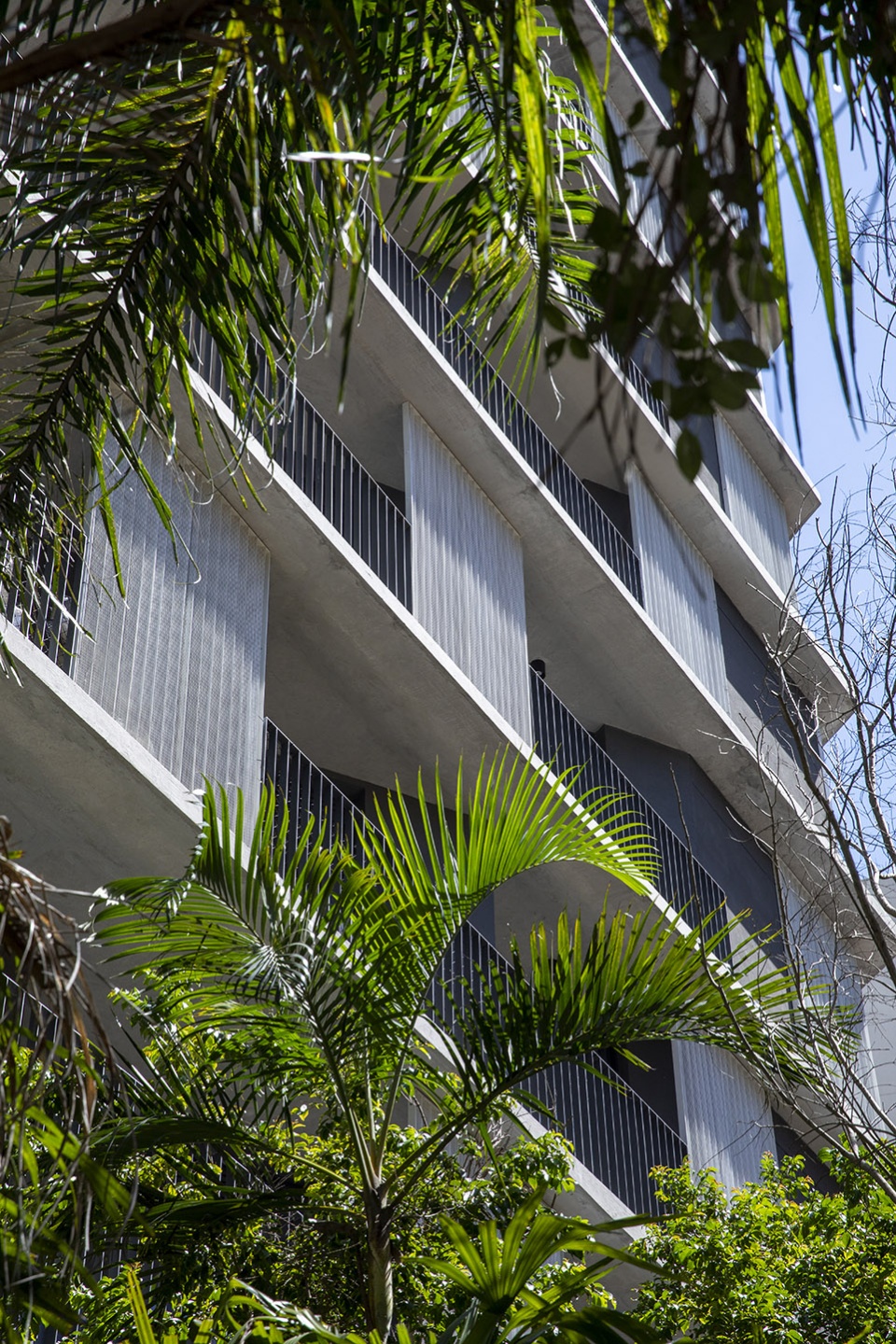

▼立面近景，Facade close-up view © Maíra Acayaba and Edu Castello

建筑的首层连通了两座塔楼（分别是普通住宅楼和单间公寓楼），6米高的宏伟立柱促进了项目与周围环境的对话。

On the ground floor of the development comprised of two towers (home and studio), the 6m high pillars facilitate the dialogue with the surroundings.

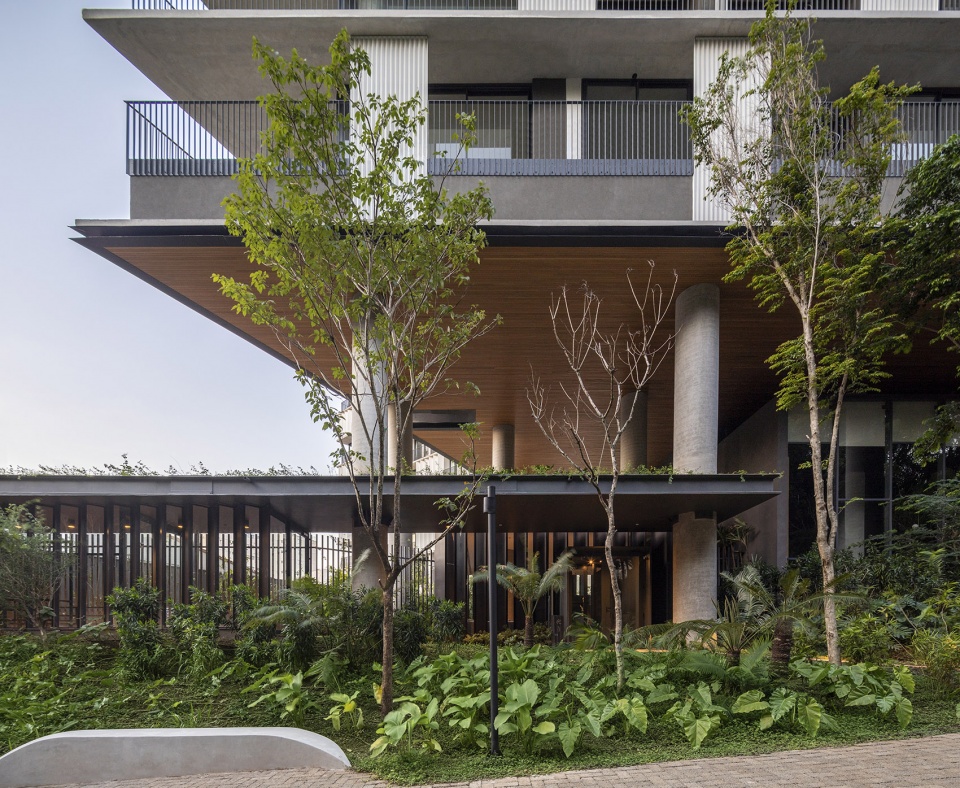

▼阳台立柱，The pillar © Maíra Acayaba and Edu Castello

TRIPTYQUE创始合伙人Olivier Raffaëlli表示：“立柱的作用是让公共空间（街道）和私人领域之间的过渡更加流畅和平缓。”

“Pilotis allow for a smooth and diffused transition between the public (the street) and the private.” — Olivier Raffaëlli, founding partner of TRIPTYQUE.

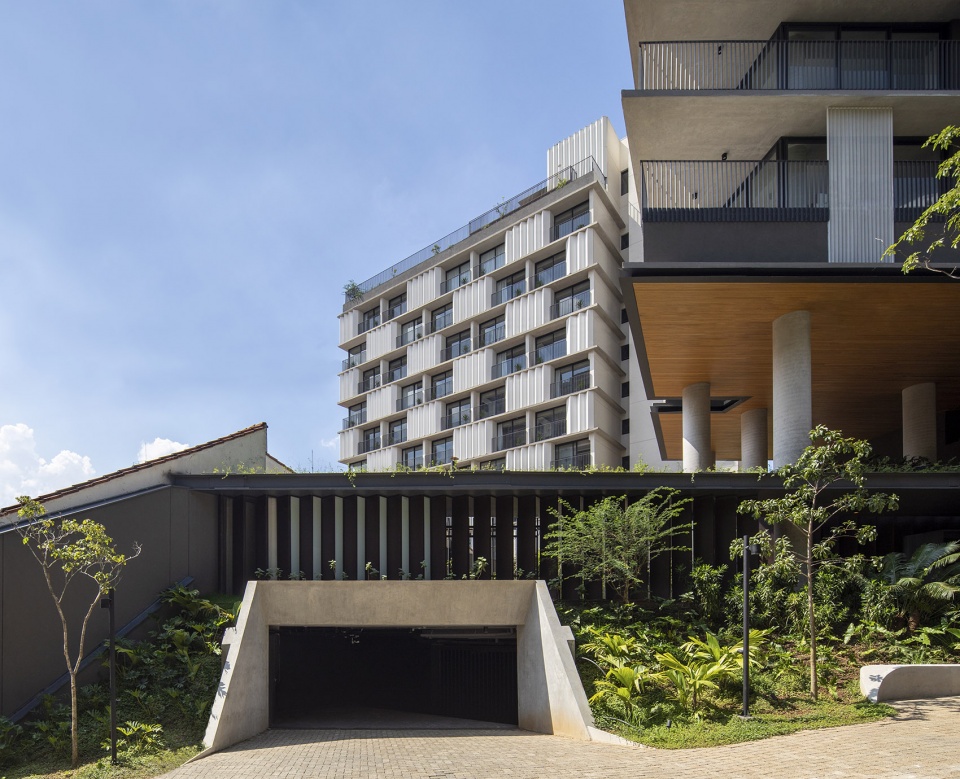

▼车库入口，Car park entrance © Maíra Acayaba and Edu Castello

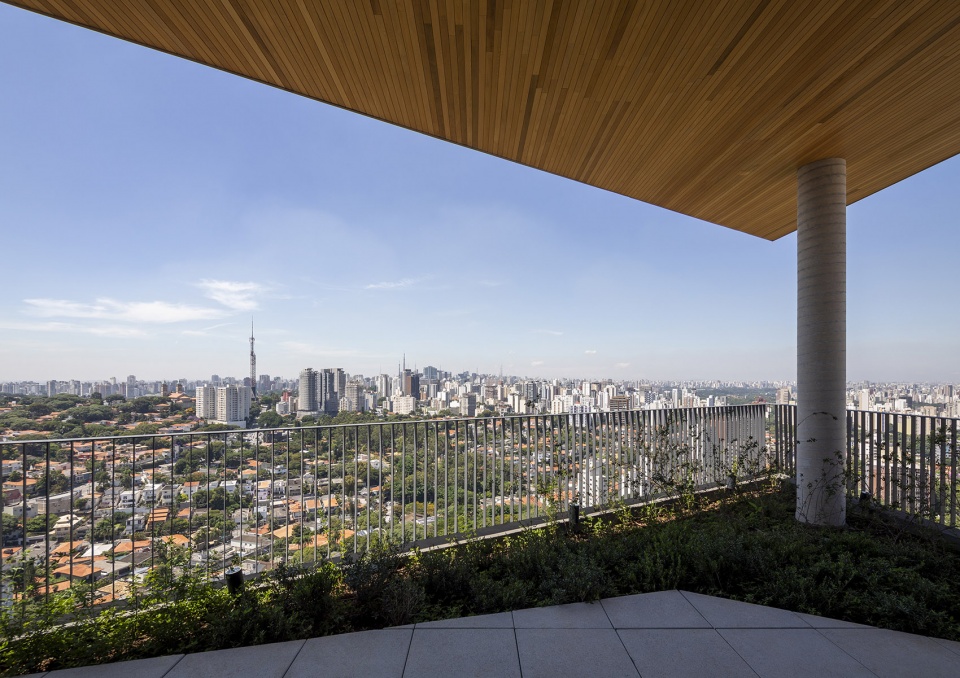

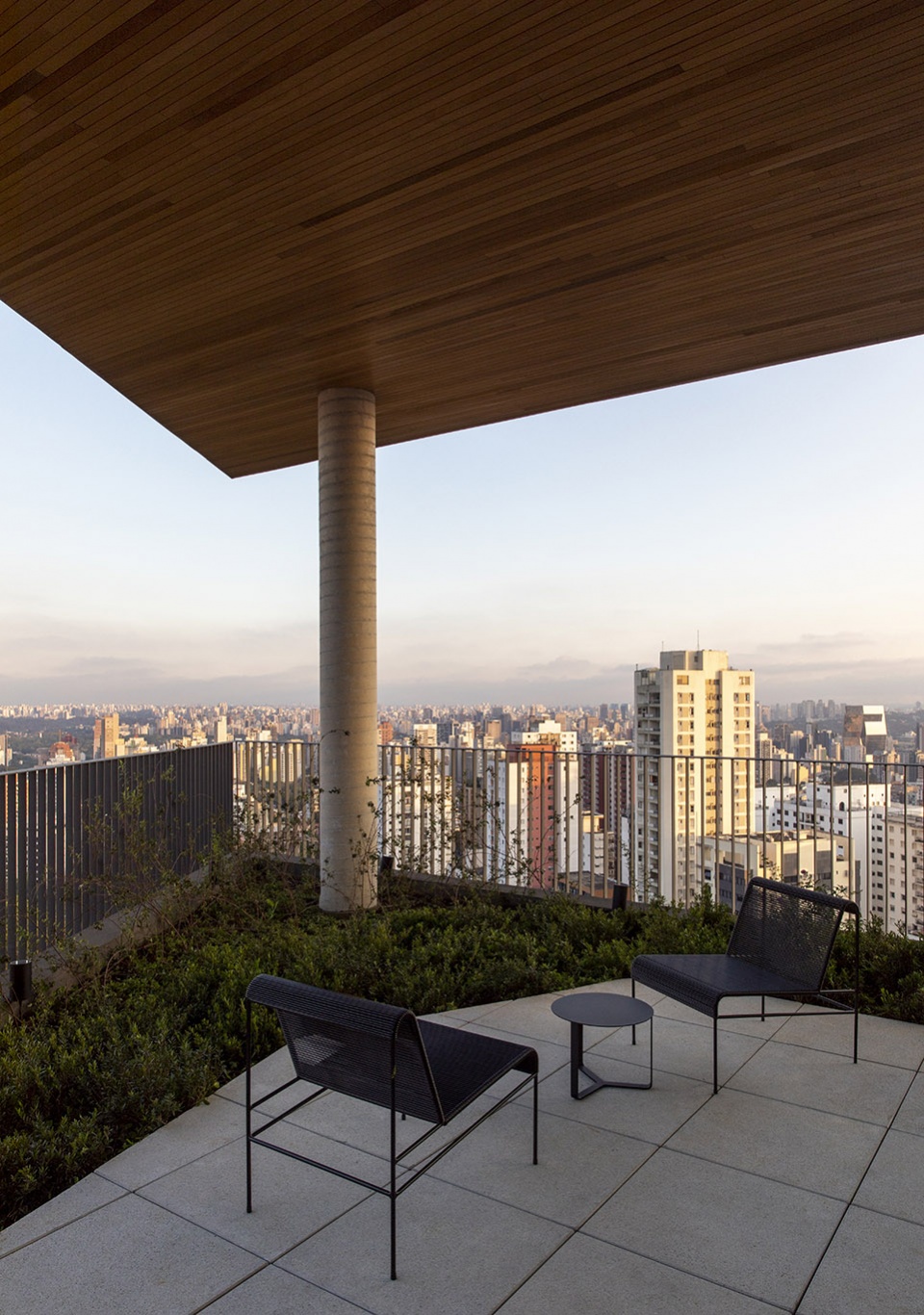

▼露台视野，View from the terrace © Maíra Acayaba and Edu Castello

该项目的景观设计由Rodrigo Oliveira完成，其方案将附近广场的茂盛植物延伸至该项目场地的庭院中，强调了连续的体验。热带花园环绕着公共区域（同样完全采用玻璃打造），建筑不设围墙，其原始的几何形状使人很难区分出大楼的正面和背面——每一侧都可以被视为主立面。

The landscaping designed by Rodrigo Oliveira extends the exuberant vegetation of the neighbouring square into the grounds, in an exercise of continuity. This tropical garden envelops the common areas — also entirely glazed — of a building without fences, whose original geometry makes it difficult to differentiate between the facade and the back of the building (in Onze22, all sides are facades).

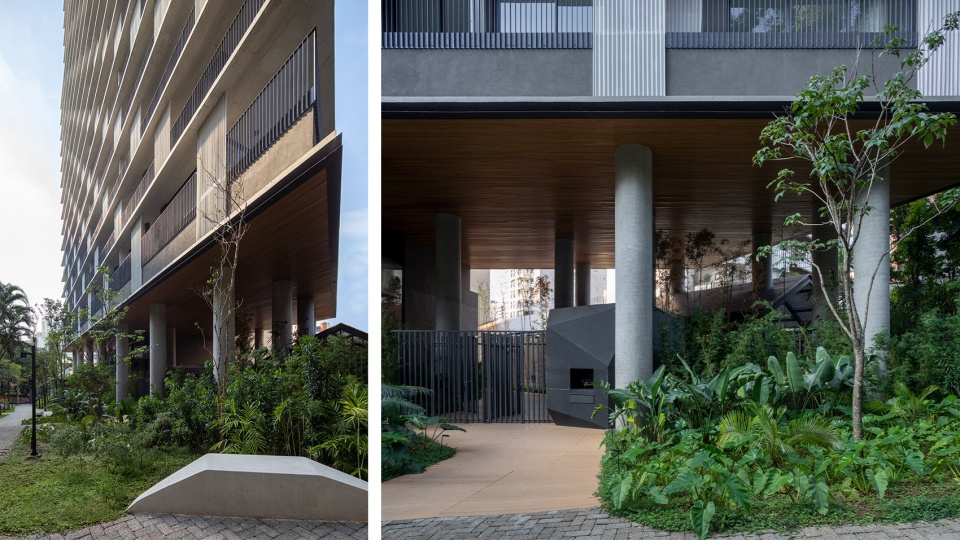

▼首层花园空间，Ground floor garden © Maíra Acayaba and Edu Castello

▼景观，Landscape © Maíra Acayaba and Edu Castello

建筑的二层可以俯瞰广场，上方的楼层均可纵览社区的全貌，使业主随时可以享受周围美不胜收的景致。

The first floors overlook the square, and the upper floors, the open panorama of the neighbourhood, with breathtaking views of the surrounding landscape.

▼住宅楼阳台视野，View from the home tower © Maíra Acayaba and Edu Castello

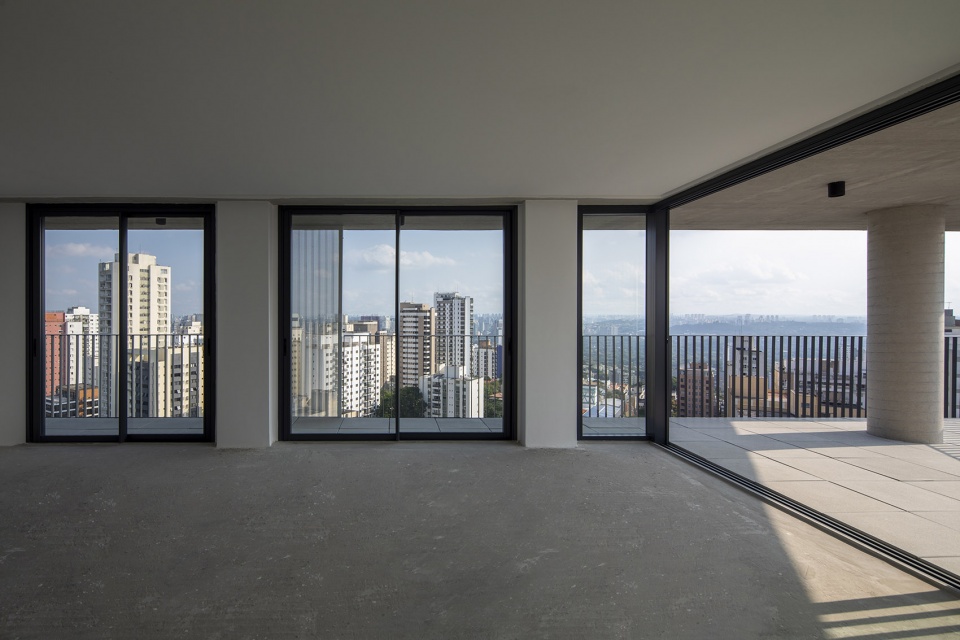

▼住宅楼内部，Interior view © Maíra Acayaba and Edu Castello

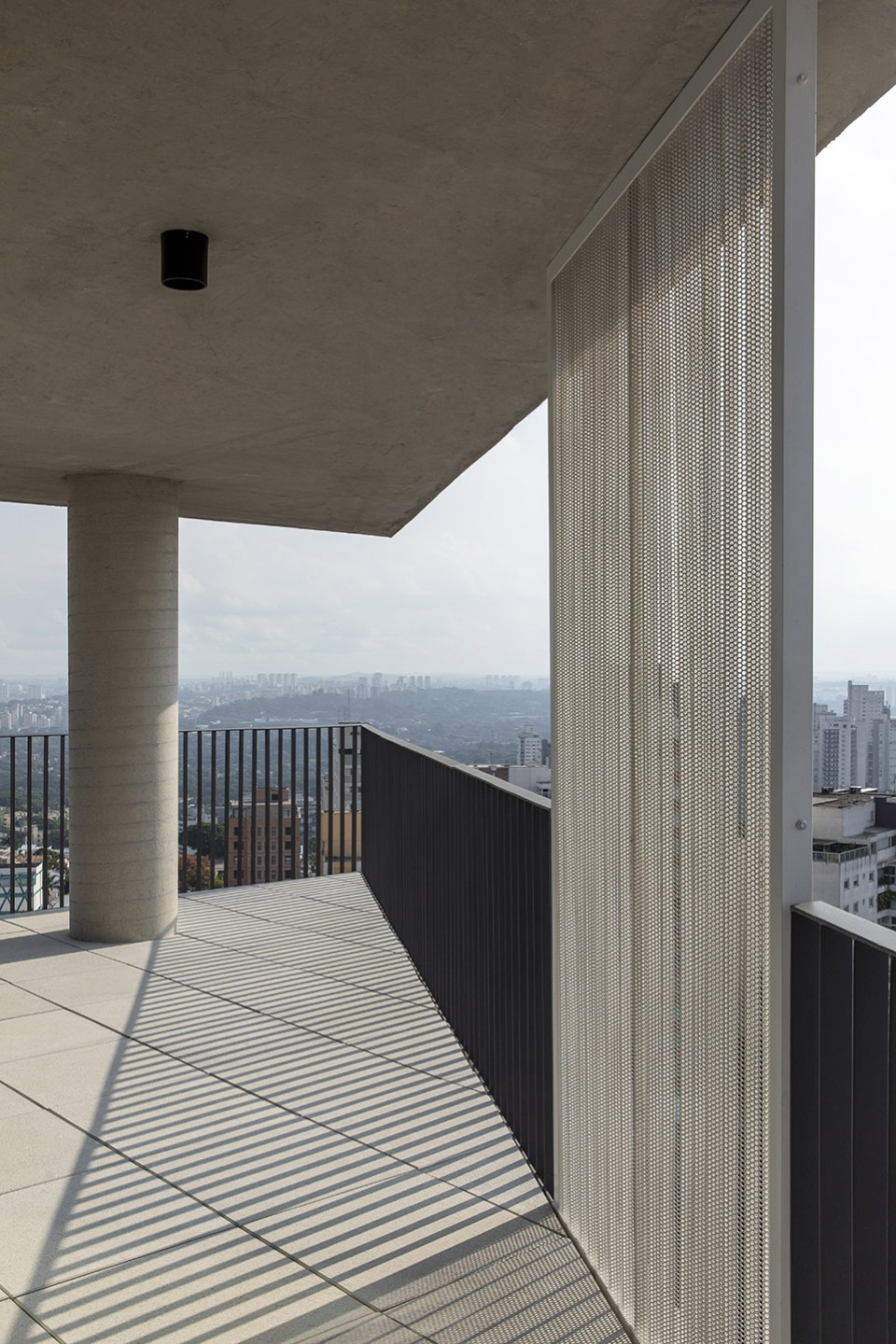

▼阳台细节，Balcony detailed view © Maíra Acayaba and Edu Castello

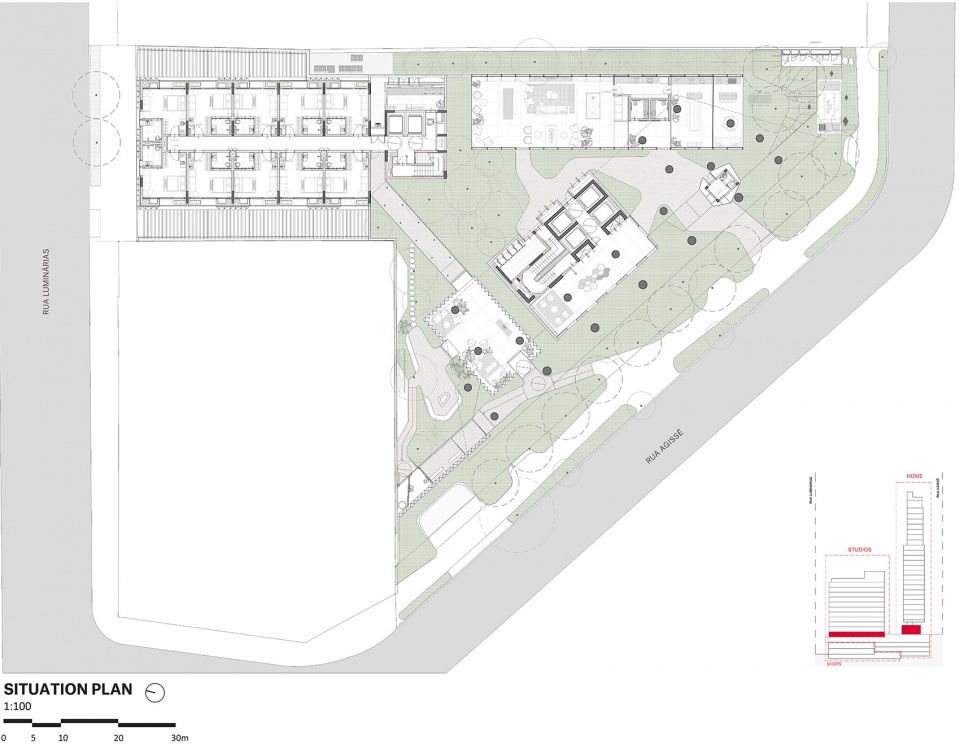

▼场地平面图，Situation plan © Triptyque Architecture

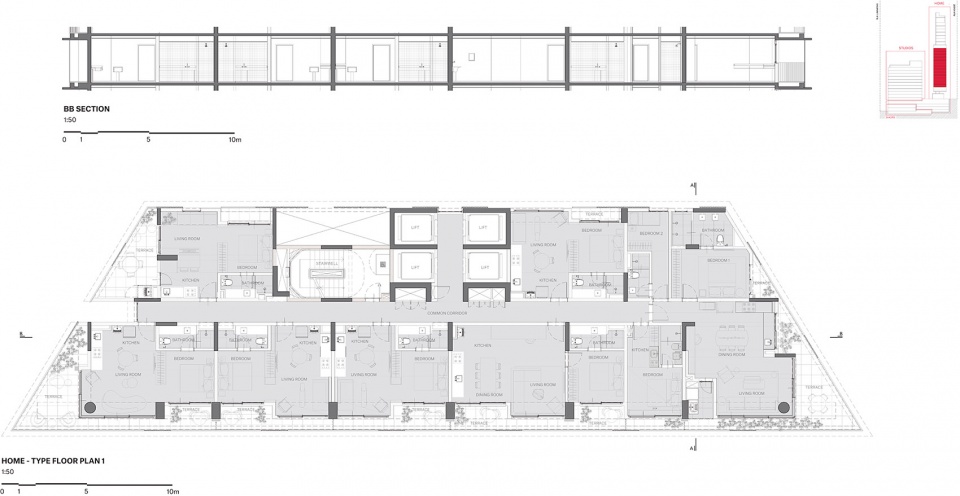

▼普通住宅标准层平面 & 剖面，Home – typical floor plan & section © Triptyque Architecture

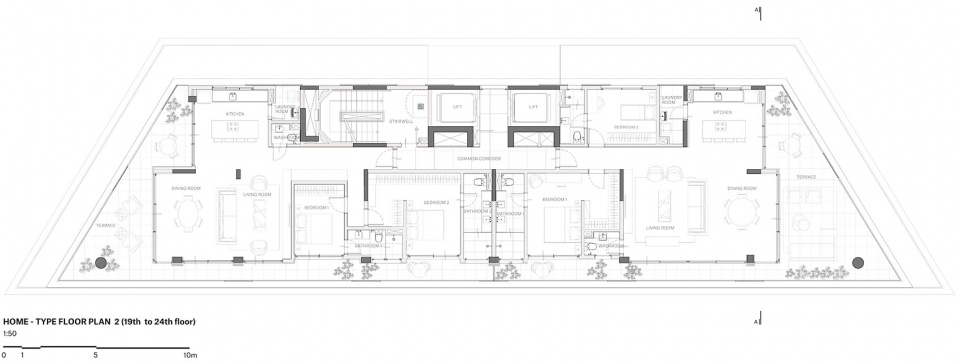

▼普通住宅标准层平面（19-24层），Home – typical floor plan (19th-24th floor) © Triptyque Architecture

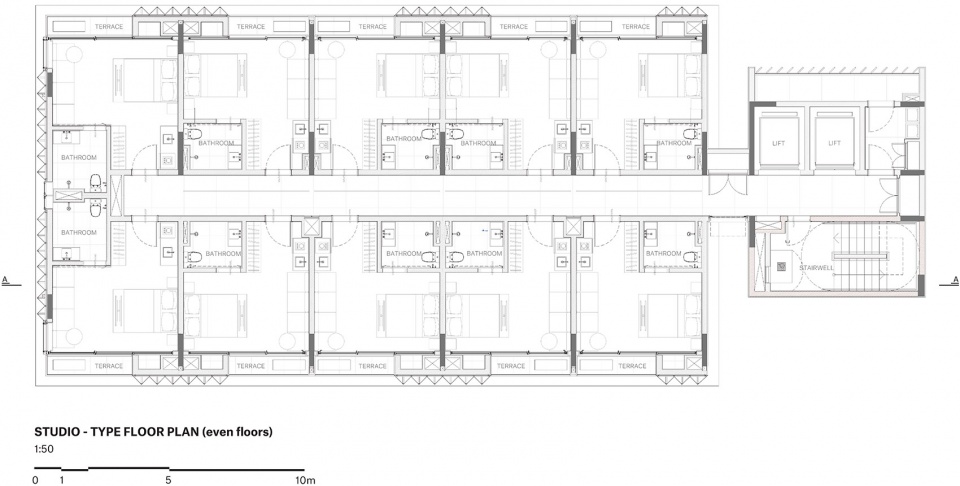

▼单间公寓标准层平面，Studio – typical floor plan © Triptyque Architecture

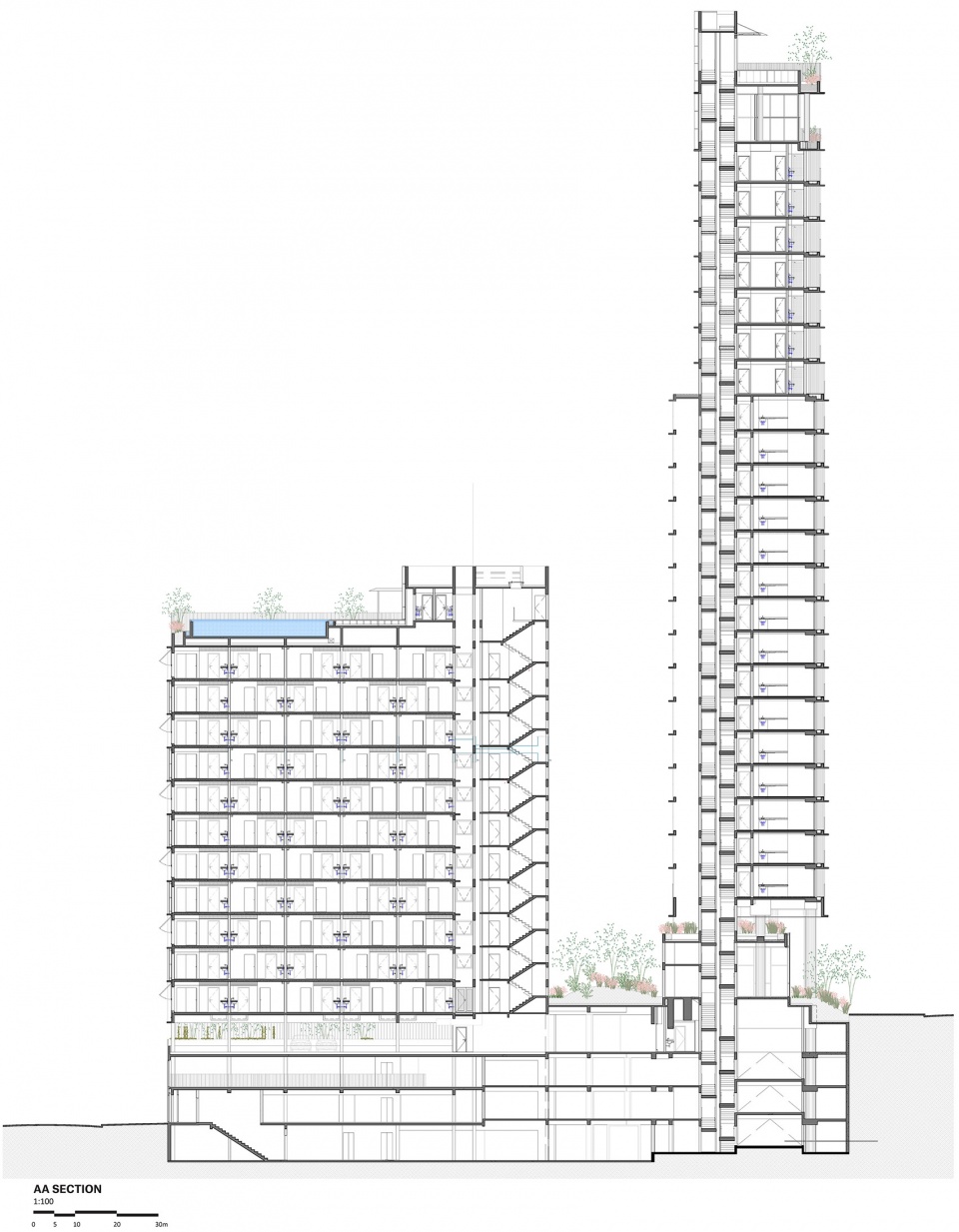

▼剖面图AA，Section AA © Triptyque Architecture

Client: Idea!Zarvos
Architecture: Triptyque Architecture
Authors: Gui Sibaud, Olivier Raffaëlli, Carol Bueno and Greg Bousquet Project coordinator: João Vieira, Renata Cupini e Julio Prieto
Team: Larissa Higa, Victor Hertel, Marina Olivi, Natália Shiroma
Landscaping: Rodrigo Oliveira
Program: Residencial
Total Built Area: 18.188,10 m²
Plot Area: 2.402,91
Location: São Paulo, Brasil
Year: 2023

More: Triptyque Architecture；更多关于他们：Triptyque Architecture on gooood
