ON THE PORT OF CANNES
戛纳港口位于Suquet Hill和影节宫（Palais des Festivals）之间。南临海堤，北临戴高乐自由林荫道（Allées de la Liberté-Charles-De-Gaulle）。直到1838年开始施工时，这里还是一片受保护的海滩。
The port of Cannes is situated between Suquet Hill and the Palais des Festivals. It borders the dike to the south and the Allées de la Liberté-Charles-De-Gaulle to the north. It was a sheltered beach until 1838, when construction began.

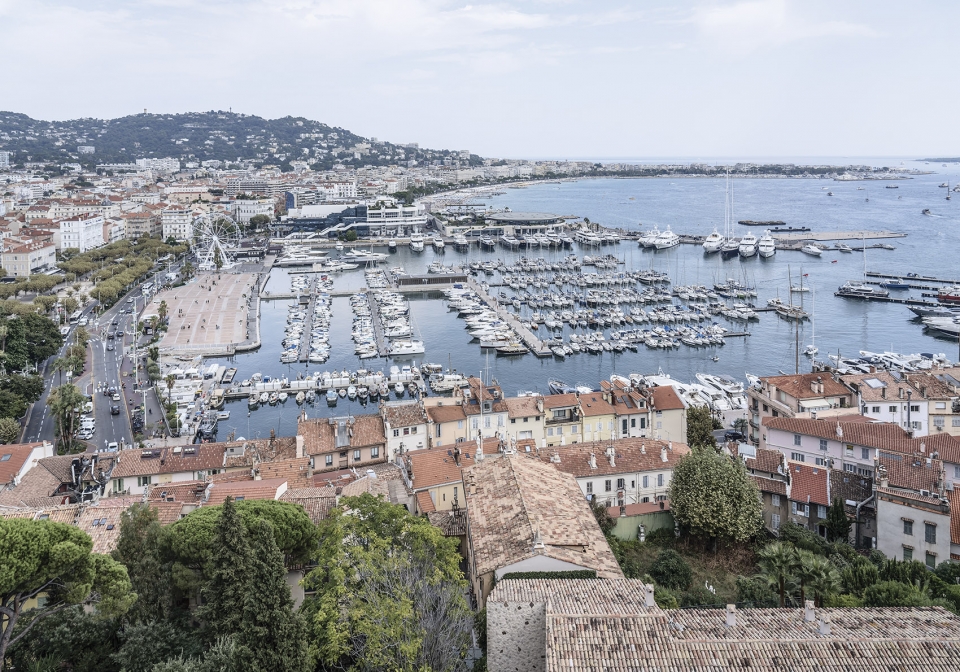

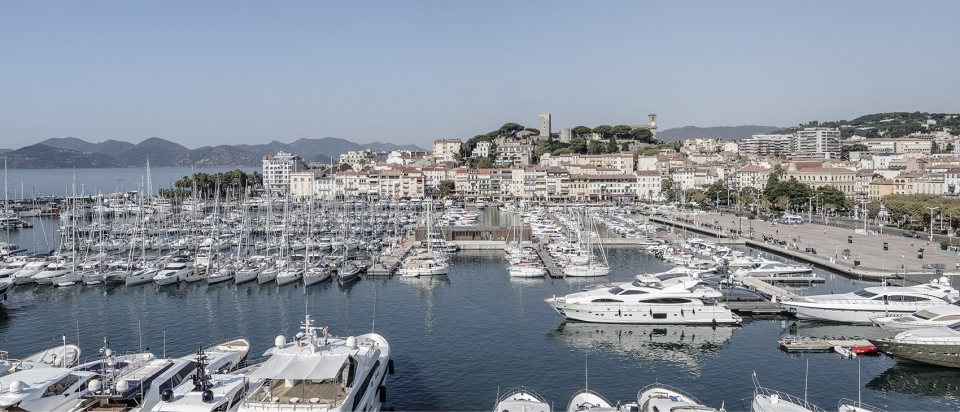

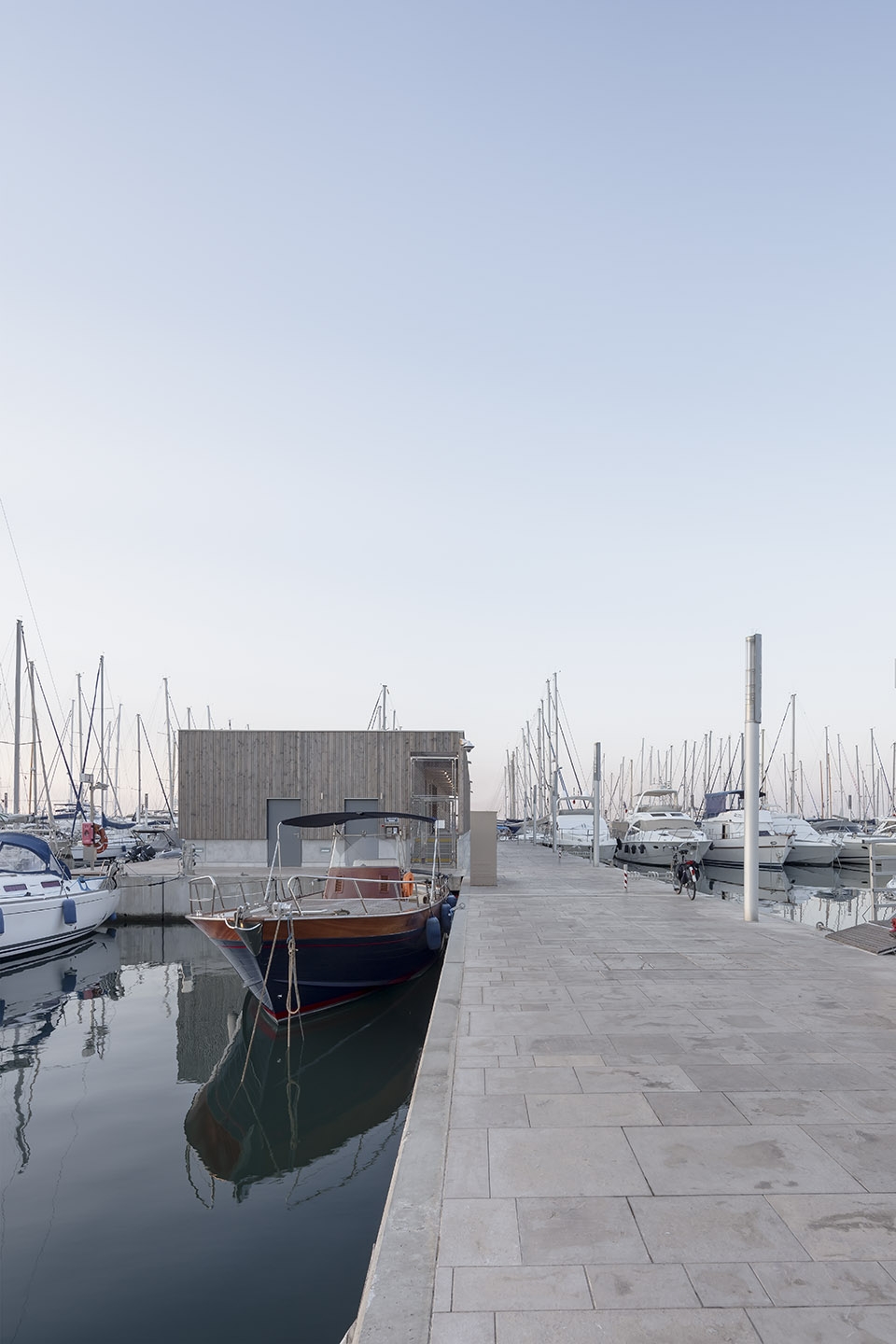

▼位于戛纳港口景观中的服务设施，view of the new services on Cannes port
The port has undergone a series of transformations and expansions in response to new requirements. The project’s objective is to offer new services, at the heart of the water, near the boaters. As part of the waterway development project, a competition was launched in 2009 in which the call for tenders was closed. A second competition was launched in 2013. Its building permit wasn’t granted, the call for tenders was unsuccessful and as a result, it didn’t go through either. A submerged box will be built in order to store the technical equipment which is required for the functioning of the port.

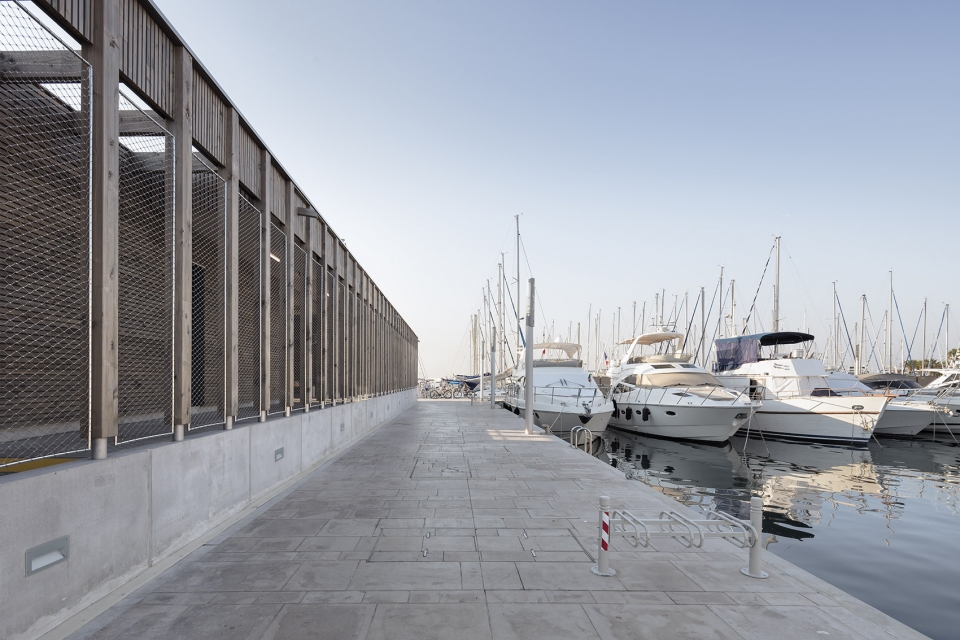

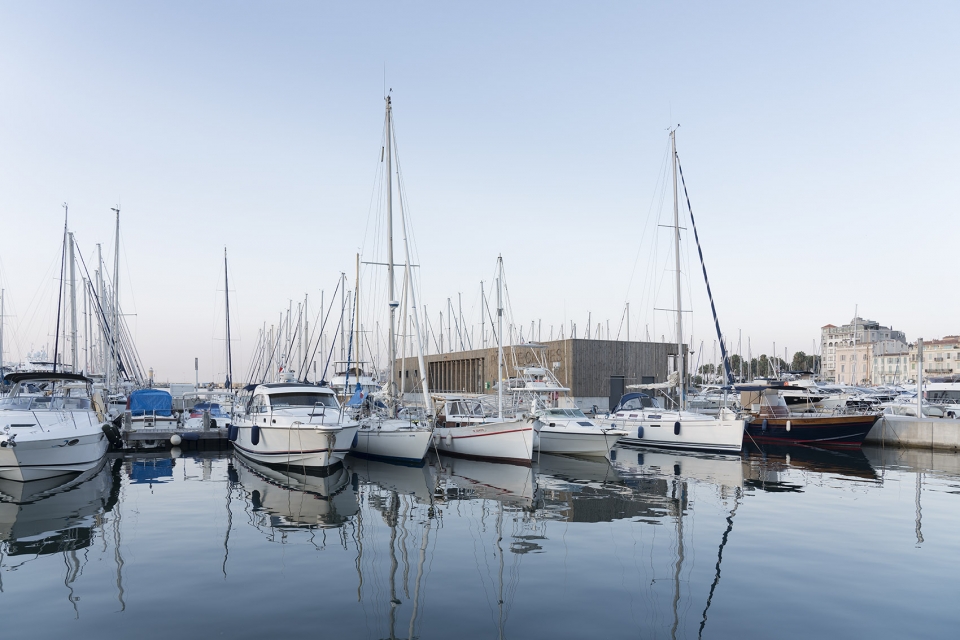

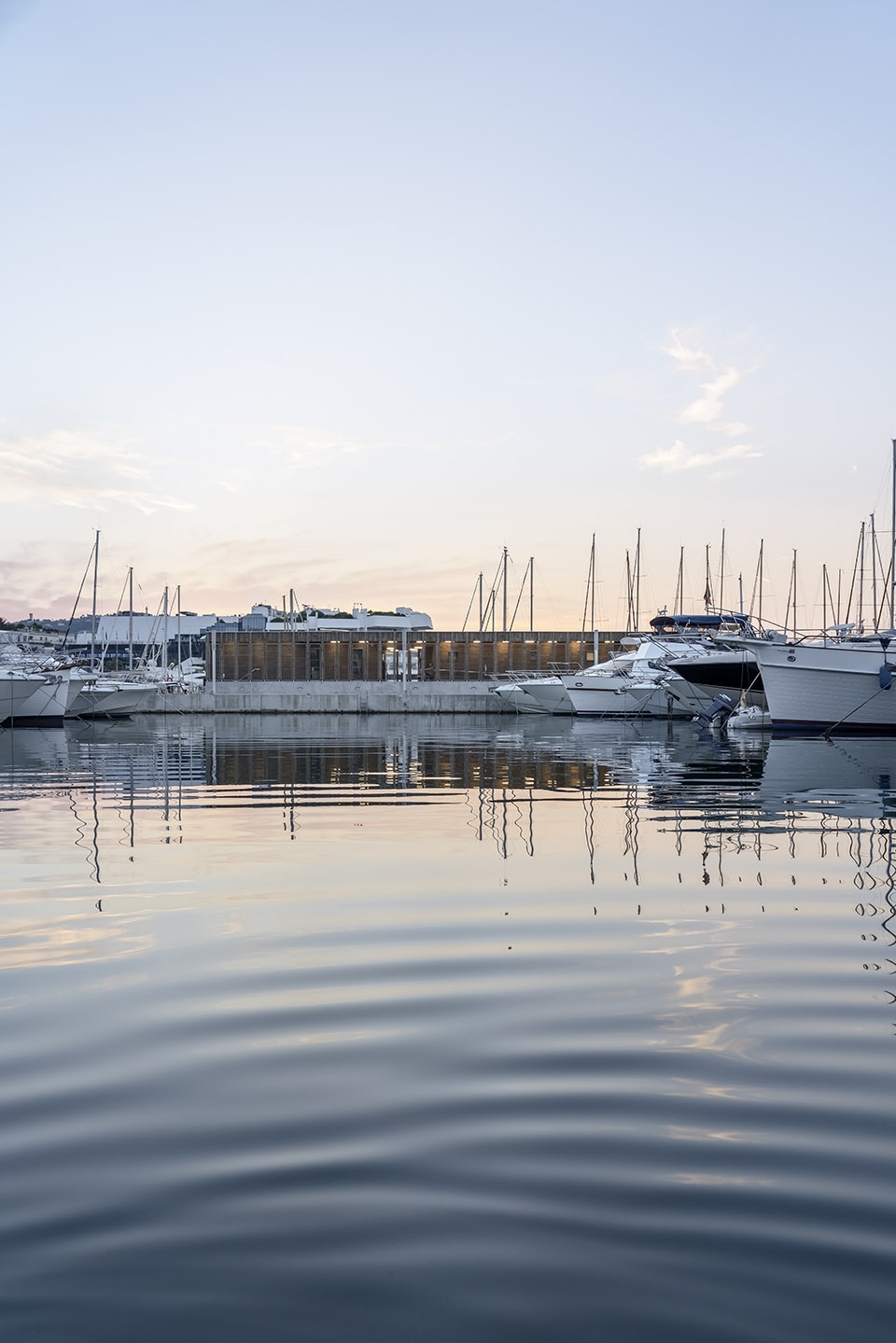

▼服务设施外观，exterior view of the services
Lines and points / a constructive thought at the service of use

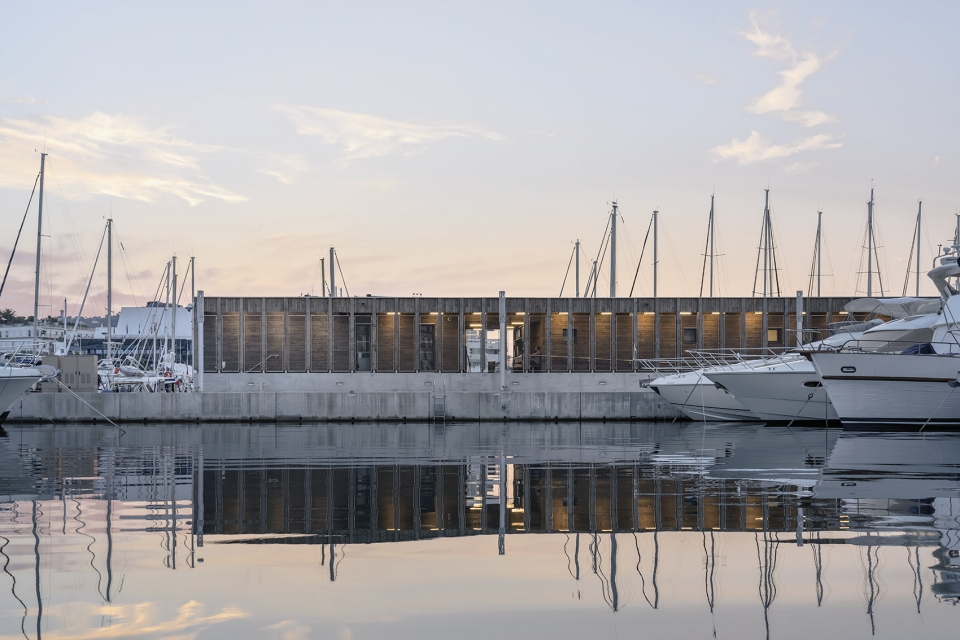

▼简单的平行六面体的体量，a simple parallelepipedic form
All the elements of the program are housed in a volume which has a simple parallelepiped form. The wooden structure sits on a concrete base spreading across the existing stumps. Spanning only one level, it perches naturally on top of the area covered by the existing submerged box. It stretches along the main wharf and form a close relationship between the calm water of the harbor and the landscape in the background. Placed between inside and outside, the servant spaces are situated along the periphery of the building, along the facade. Punctuated regularly by posts, it is like an anamorphosis of the limit of public space. It unfolds, like a light, transparent and ordered matrix. This succession of posts creates a vibration and a subtle rhythm on the dock. On the contrary, the served spaces are maintained in a plane with opaque facades. They are covered with a patterned cladding sensitive to the particular light variation of the marine atmosphere.

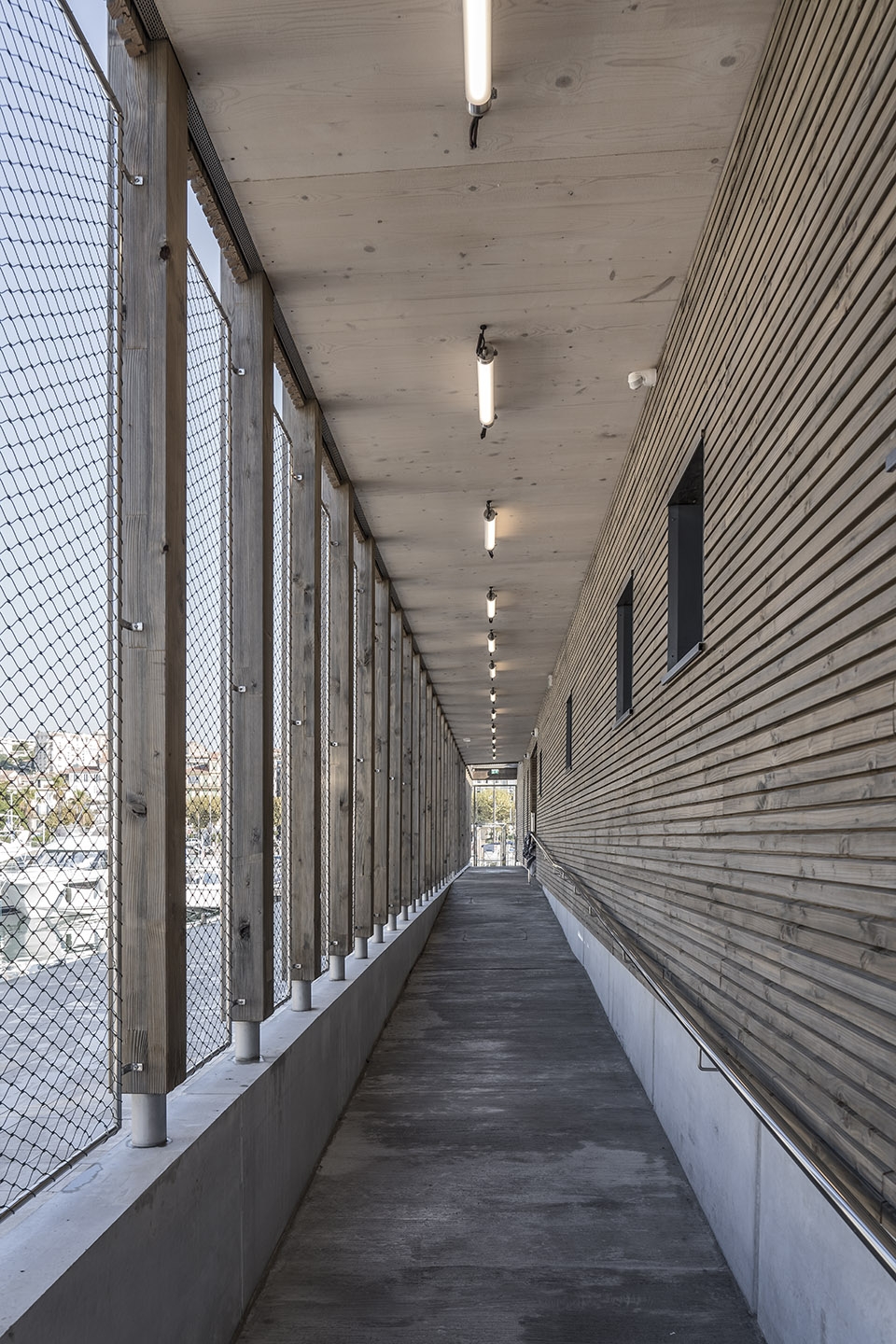

▼柱子有规律的将服务空间间隔开，the servant space is punctuated regularly by posts

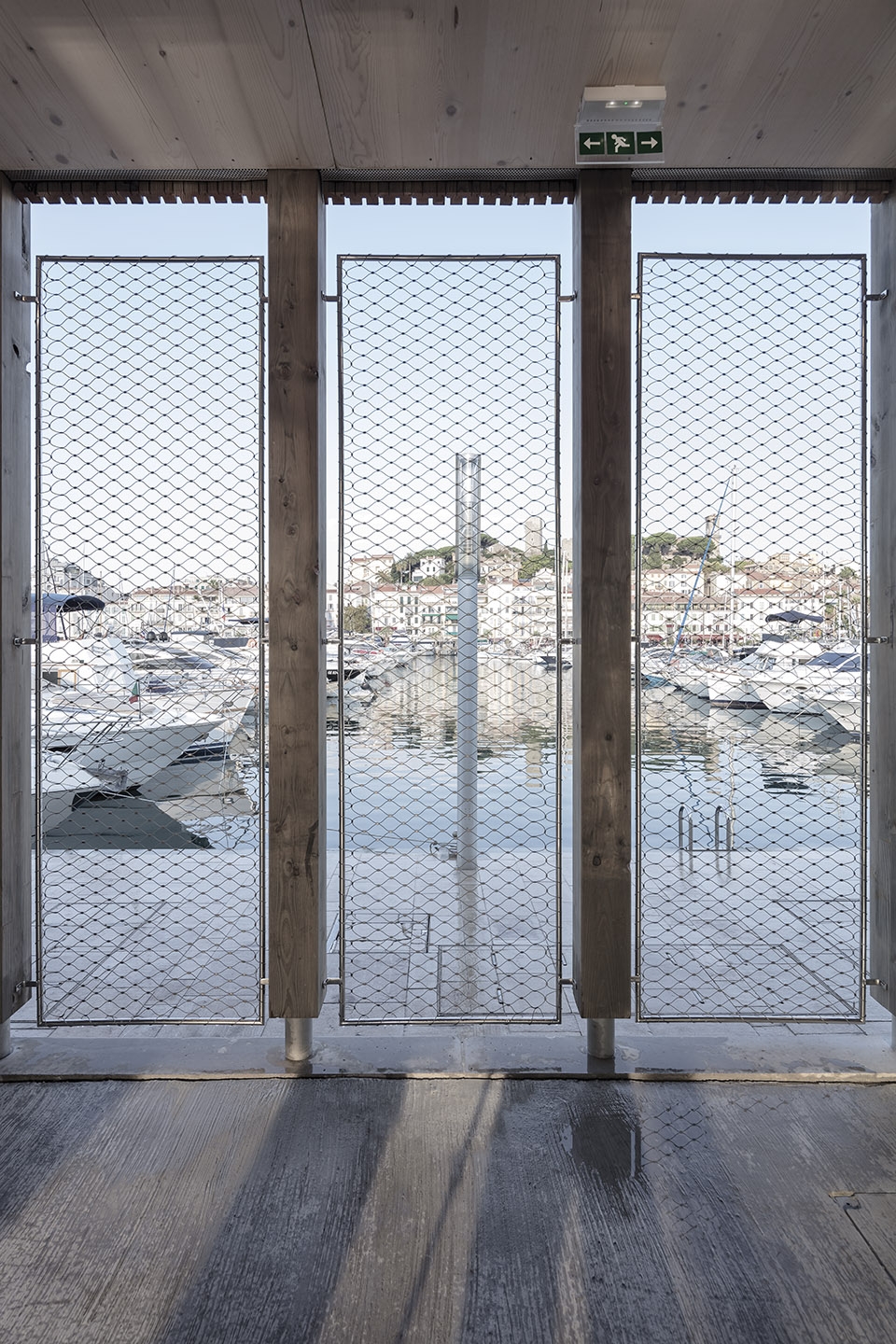

▼柱子与带有图案的面板形成特殊的空间边界，the posts and patterned claddings are like an anamorphosis of the limit of public space

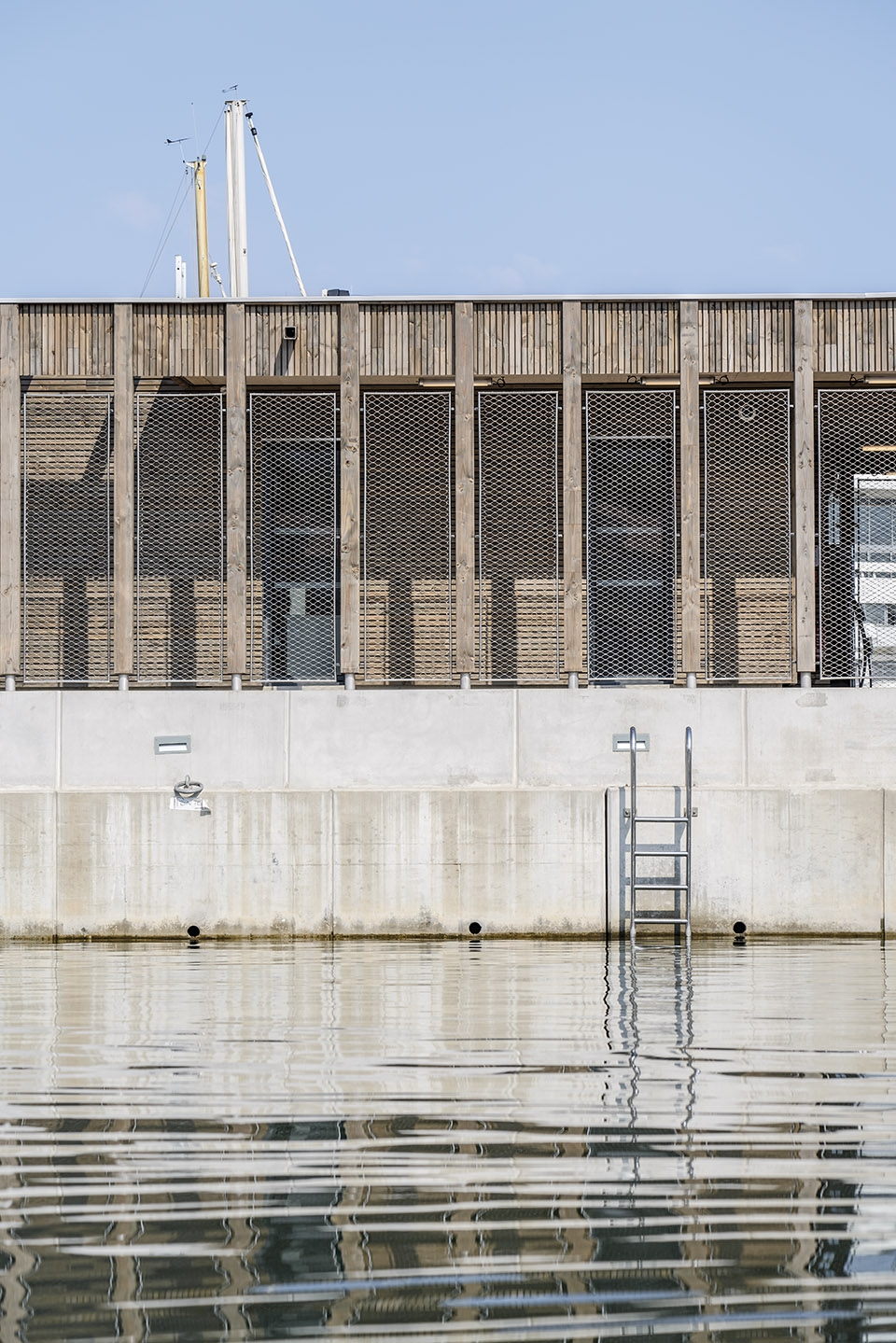

▼内部被服务空间封闭的木质立面，the served spaces are maintained in a plane with opaque wooden facades
Rigor as a guide
Setting out a project on this site comes with considerable constraints from the onset. The presence of the submerged box imposes a particular positioning of the load bearing structure as well a structure that can be adapted to the loads that can be received. In addition, the constraining nature of the site and its position on the busy port reduce the area of the construction site to its simplest form and make the supply of materials difficult. Faced with such demands and faced with relatively short deadlines, we chose to build using the dry construction system. The concrete base is composed of prefabricated elements which are layed out following the wooden poles’ frame. Wall elements composed of CLT panels framing and thermal insulation were assembled in the carpenter’s workshop and then transported by truck to the end of the harbor, and finally moved by barge to the work site. The size of each hoisted element was dictated by its weight. The facades are protected by cladding laid out either vertically or horizontally depending on its exposure to the weather. The roof’s waterproofing is provided by a floor made of wood that encloses the entire volume of the building.
LOCATION: CANNES, FRANCE.
PROGRAM: NEW SERVICES FOR BOATERS ON THE PORT OF CANNES
MAÎTRE D’OUVRAGE: CHAMBRE DE COMMERCE ET DE L’INDUSTRIE N.C.A
MAÎTRES D’OEUVRE: HEAMS & MICHEL ARCHITECTES,
ENGINNERS: SETEC GLINGENIERIE, TCE – BOIS ETUDES HULIN, STRUCTURE BOIS.
CONSTRUCTOR: SMGB (GROS OEUVRE, SECOND OEUVRE), TOITURES MONTILIENNE (CHARPENTE ET BARDAGE BOIS),
STME (CVP), SPIE (ELECTRICITE), REGIS (MENUISERIES EXTERIEURES)
PROJECT AREA: 320 m²
CUBAGE WOOD FRAME DOUGLAS: 5m³, WALL CLT EPICEA: 63 m³.
WOOD CLADDING DOUGLAS: 240 m², FLOOR IN WOOD: 290 m²
COÛT: 1 MILLION D’EURO H.T
COMPLETION PERIOD: SEPTEMBRE 2018.
PHOTOGRAPH: ALDO AMORETTI.
