感谢 Aedas 予gooood分享以下内容。更多关于他们：Aedas on gooood.
Appreciation towards Aedas for providing the following description:

“想象一下，置身于内蒙古广袤的草原之中。在郁郁葱葱的牧场上，矗立着一座现代化的研发中心，向来自世界各地的访客和科学家敞开怀抱。”由Aedas院士、全球设计董事韦业启（Ken Wai）带领团队设计，全国唯一国家级乳业技术创新中心正式落成启用。坐落于被誉为“全球乳业未来城”的伊利现代智慧健康谷，这座建筑即将成为引领中国乳业未来发展的焦点。

‘lmagine yourself in the vast grasslands of Inner Mongolia. Within the lush green pastures lies a modern research and development center, open to visitors and scientists from around the world.’ Led by Aedas Global Design Principal Ken Wai, the National Dairy Technology Innovation Centre is already completed and serves as the only nationwide research institution in China.

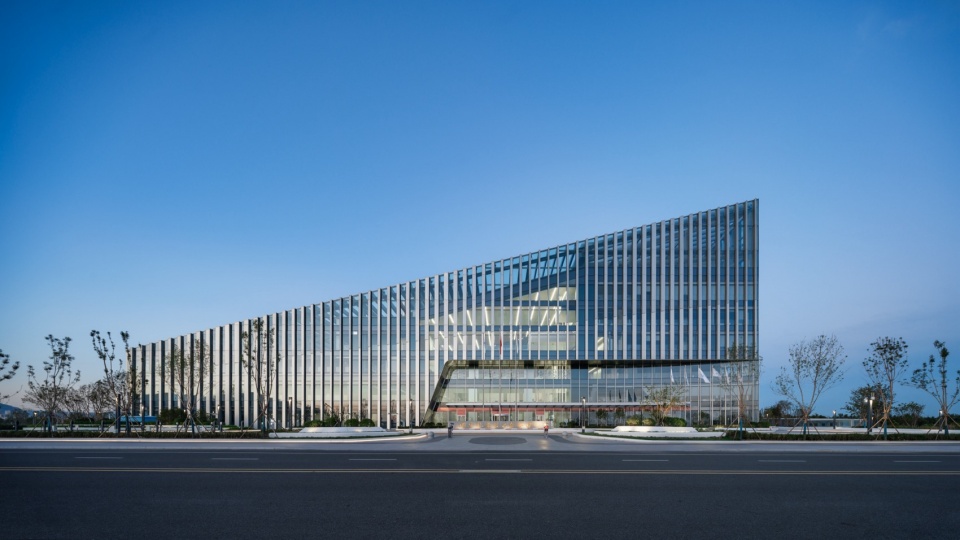

▼由Aedas打造的国家乳业技术创新中心落成启用，Overall view ©️ Aedas

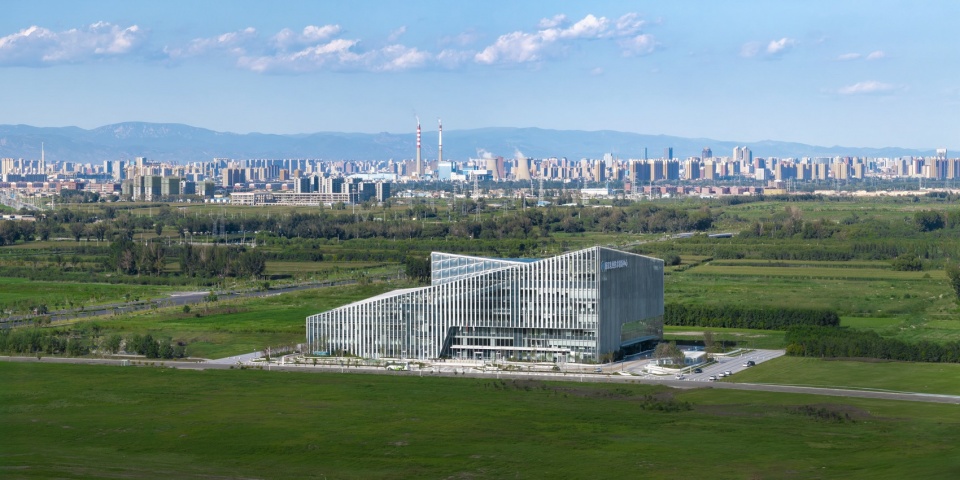

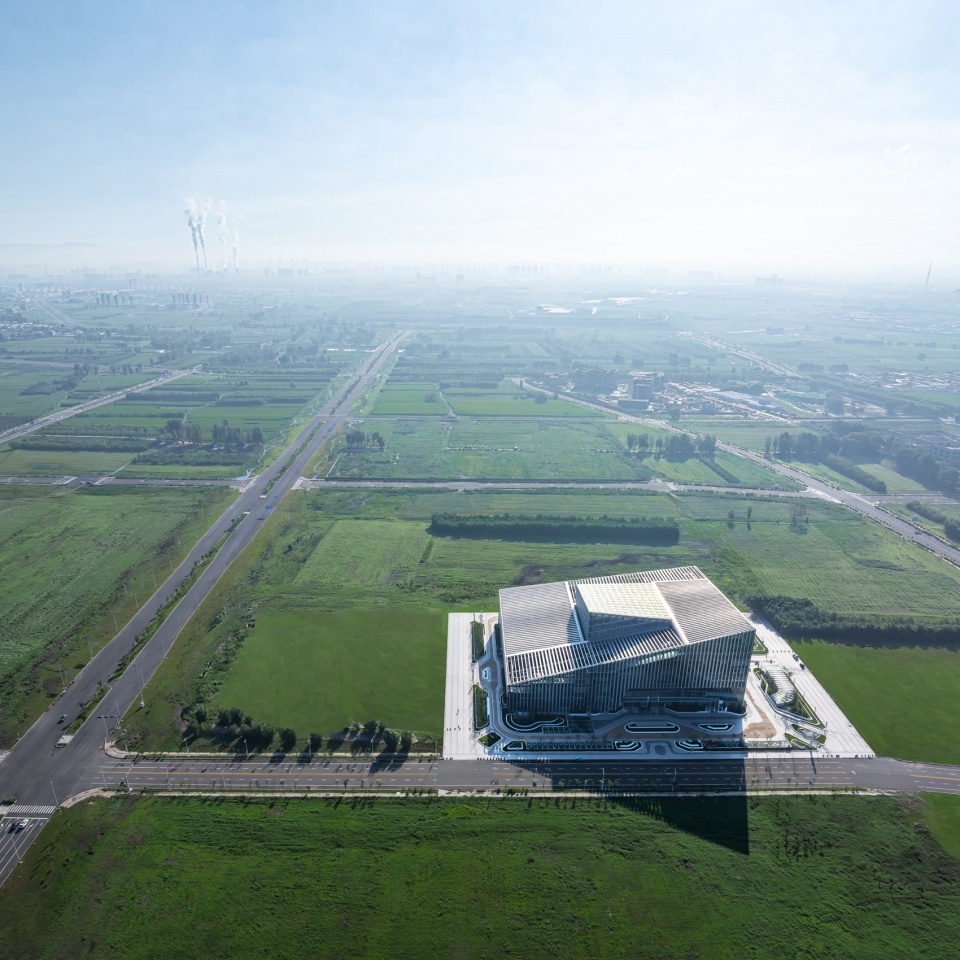

▼草原上的国家级乳业技术创新中心，Site location ©️ Aedas

“这是一个复杂且精致的项目，我们在有限的地块内，将空间集合成容纳实验室、办公空间、多功能厅、中试车间及展示空间在内的建筑。”韦业启（Ken Wai）如是说，“它不只是企业形象的展现，更是能够激发创新的科研空间。”

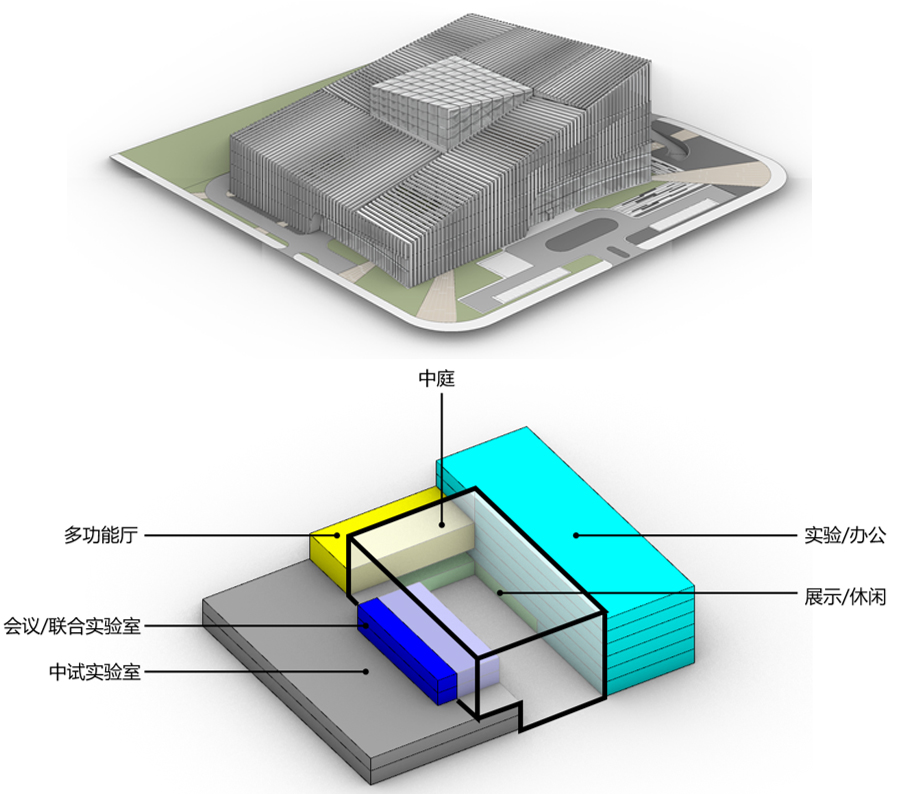

▼建筑体块示意图，Massing development ©️ Aedas

‘The design integrates laboratories, office space, multi-function space, and an exhibition area, providing a nurturing environment to stimulate innovation and showcase technological progress through research.’ shared Ken.

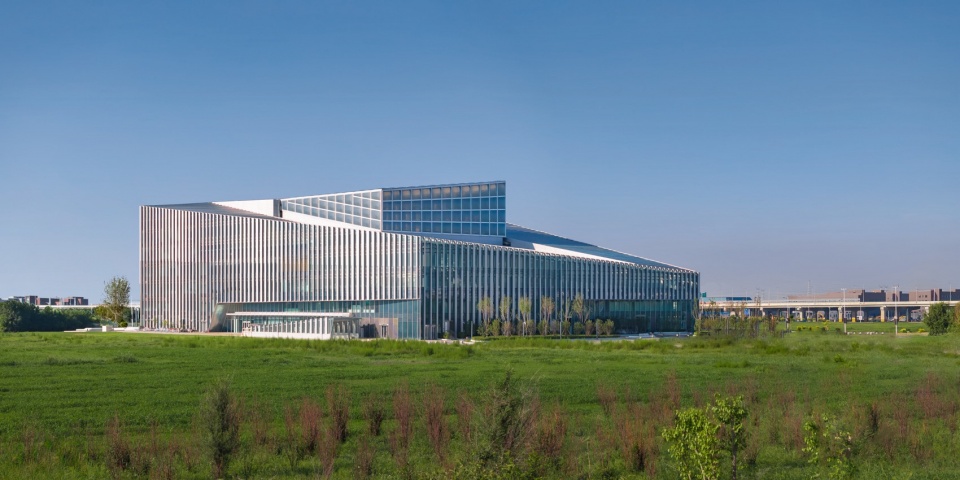

▼建筑与周边环境融合，Architecture closely connects with the surrounding open landscape ©️ Aedas

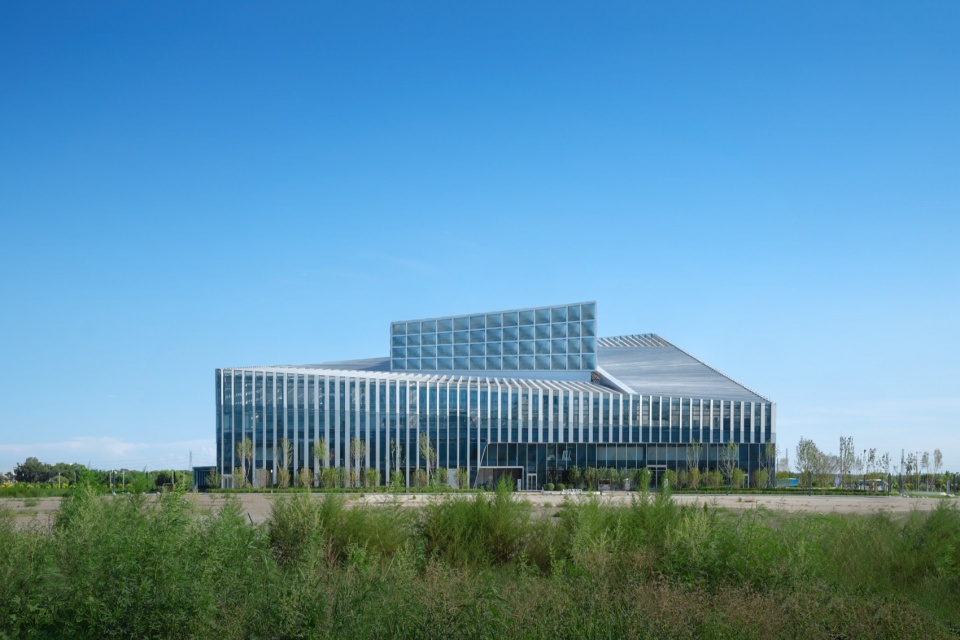

▼以纯粹简洁的形式回应多功能需求，A pure and simple architectural form derived from functional requirements ©️ Aedas

项目位于呼和浩特市乳业硅谷的中轴门户位置，东侧紧邻城市绿地，南侧面向中央公园，地理位置和景观资源优越。设计注重绿色生态环境的营造，有意增强了室内空间与外部景观之间的视觉联系，并在确保内部功能高效运转的情况下，为这个先进的研发中心营造开放舒适的科研氛围。

Situated in the heart of the industry cluster in Hohhot, the project is closely connected to an open landscape and a central park. The building design enhances the visual connection between the interiors and their surroundings, creating an open and sustainable environment for a cutting-edge research facility.

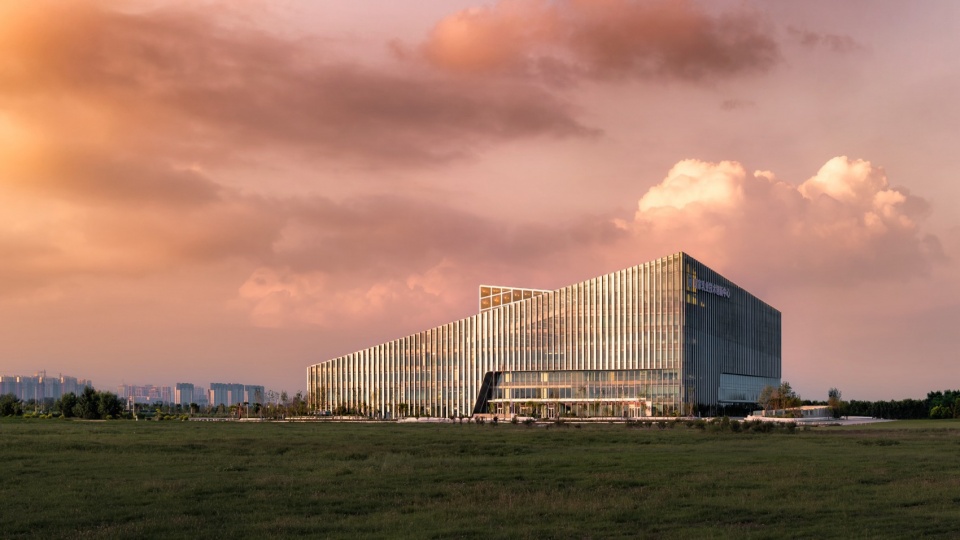

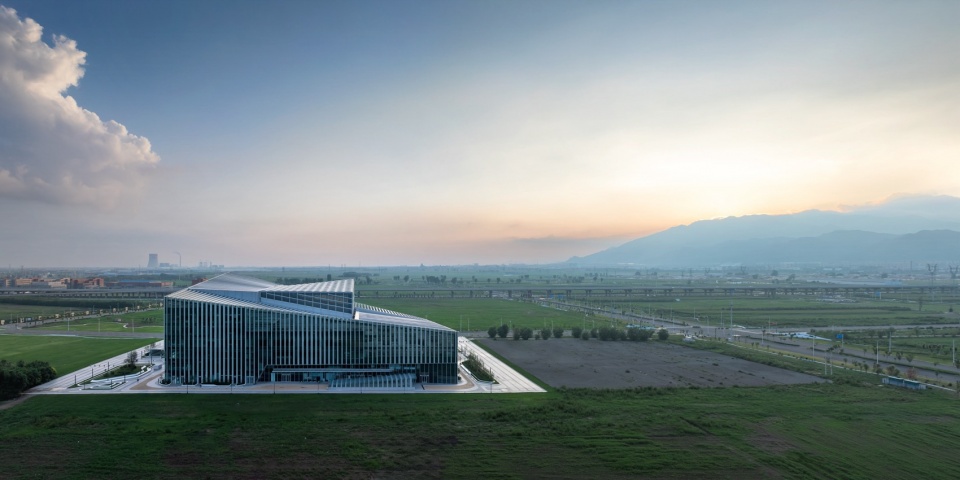

▼位于开放草原的研发中心，Situated in the open grassland in Hohhot ©️ Aedas

建筑围绕中庭展开，内部采用高效紧凑的布局，将六层的实验办公楼置于南侧，尽览中央公园的绿色景观，两层的中试车间置于北侧，便于货流进出。挑高的中庭串联起所有功能空间，营造出具有视觉冲击力的抵达体验。

Organized around a central atrium, the building housed a six-storey laboratory, a conference and exhibition centre, and a two-storey pilot-testing plant to facilitate pre-production evaluation. The atrium interconnected all areas and created a powerful arrival experience.

▼中央公园的绿色景观，Architecture in the surrounding landscape and central park ©️ Aedas

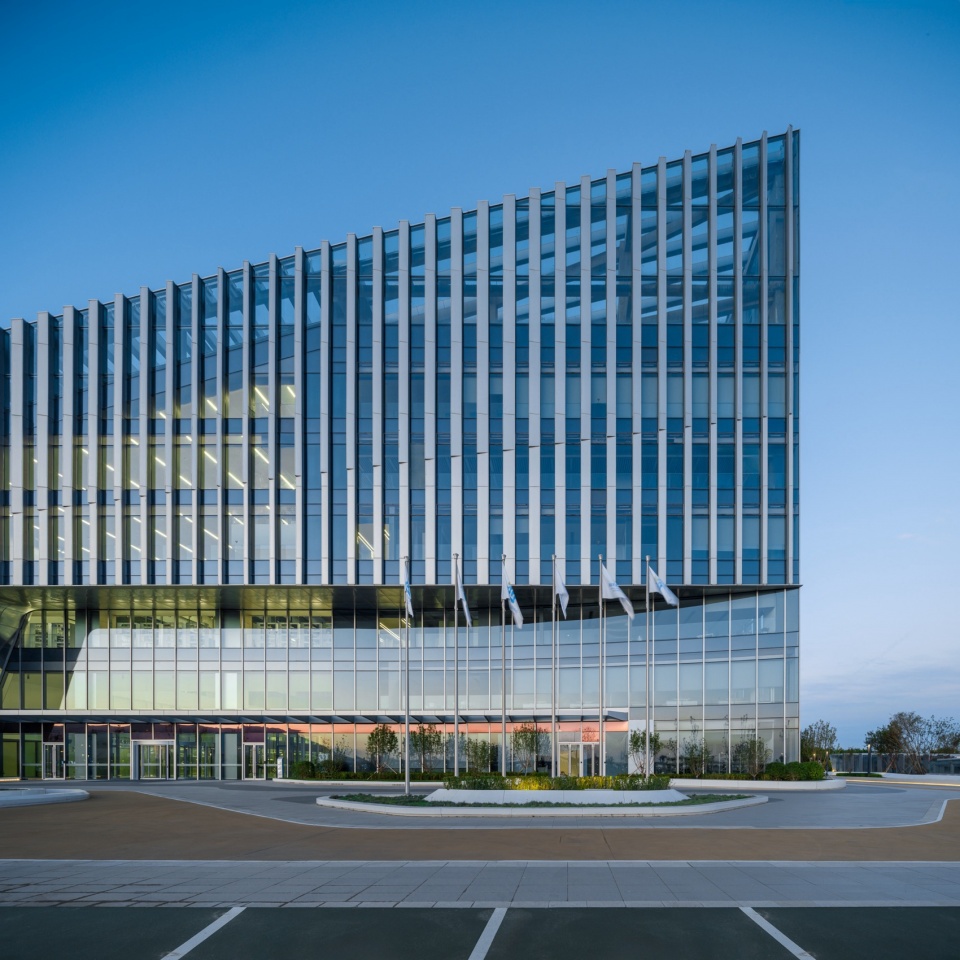

▼展示形象的落客广场主入口，Drop-off entrance ©️ Aedas

内部工作环境符合国际现代研发设施的标准，建筑整体覆盖有ETFE膜材质的采光屋顶，增强了自然光线渗透，减少了空间对人工照明的依赖，显著提高了建筑的可持续性。

The building is enclosed by a large skylight sheathed in ETFE material. This unique feature not only enhances natural light penetration into the interiors but also significantly contributes to the building’s sustainability, reducing the need for artificial lighting.

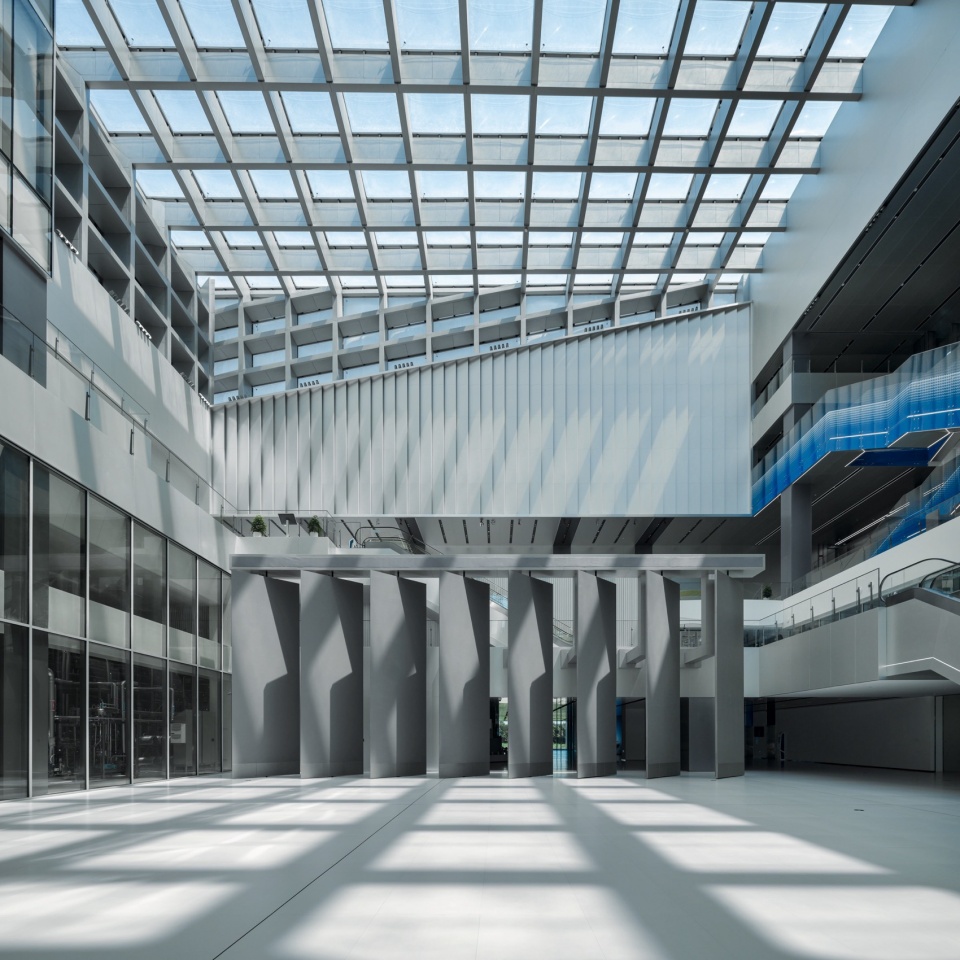

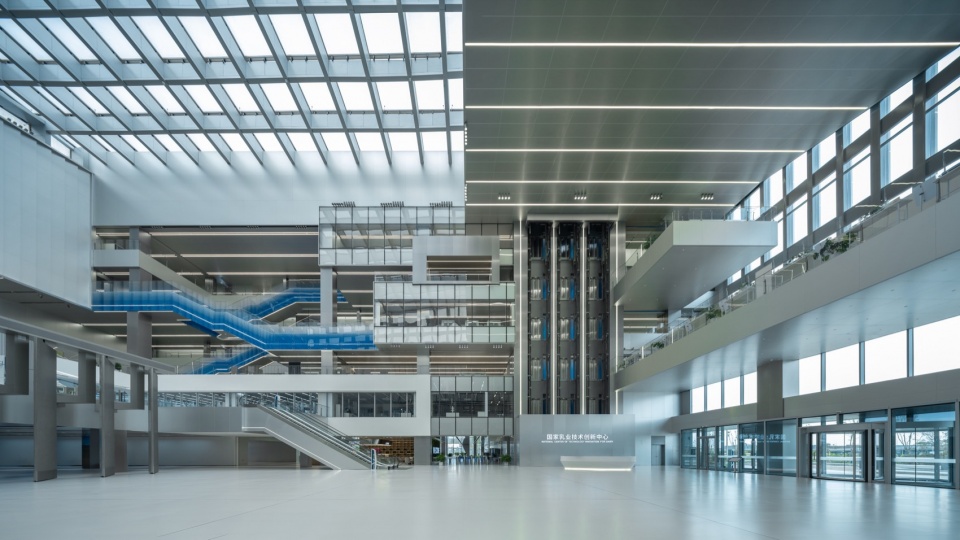

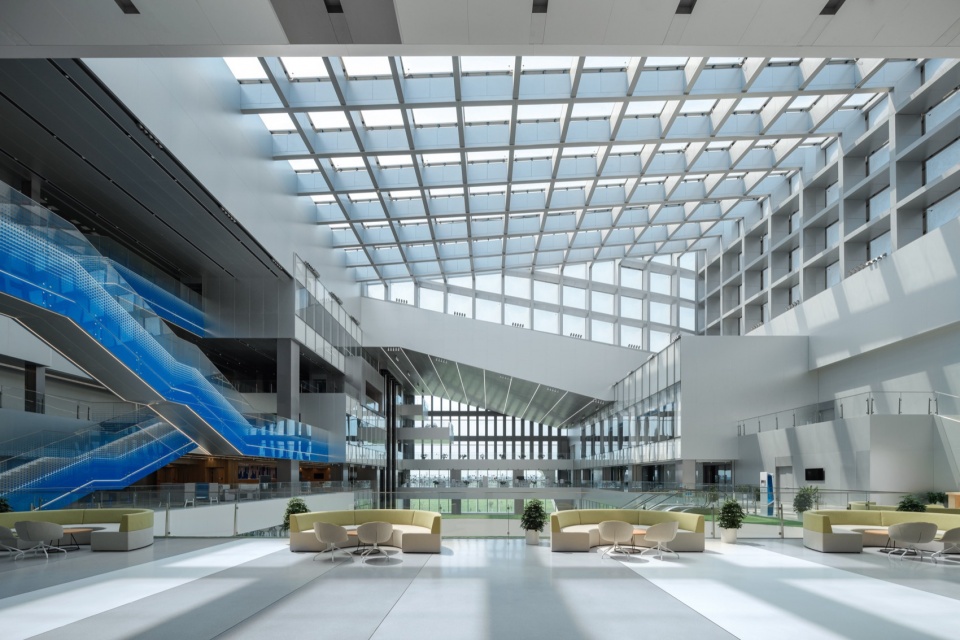

▼挑高的中庭、高效紧凑的空间布局，A void atrium interconnects all functions ©️ Aedas

▼中庭错落的屋顶形态，Roof form with varying heights centred around the main atrium space ©️ Aedas

▼中庭通透的自然采光，Enhanced natural lighting into the atrium ©️ Aedas

建筑立面以玻璃幕墙搭配铝板格栅，并集成了通风口，形成同时满足自然采光和自然通风的整体系统。每到傍晚时分，室内灯光点亮了简洁的体量和建筑立面，成为草原上创新发展的象征。

The façade incorporates glass curtain walls with vertical aluminium fins that incorporate ventilation vents, ensuring light penetration and allowing natural ventilation. The result is a clean massing and façade that reflects the high-technology identity.

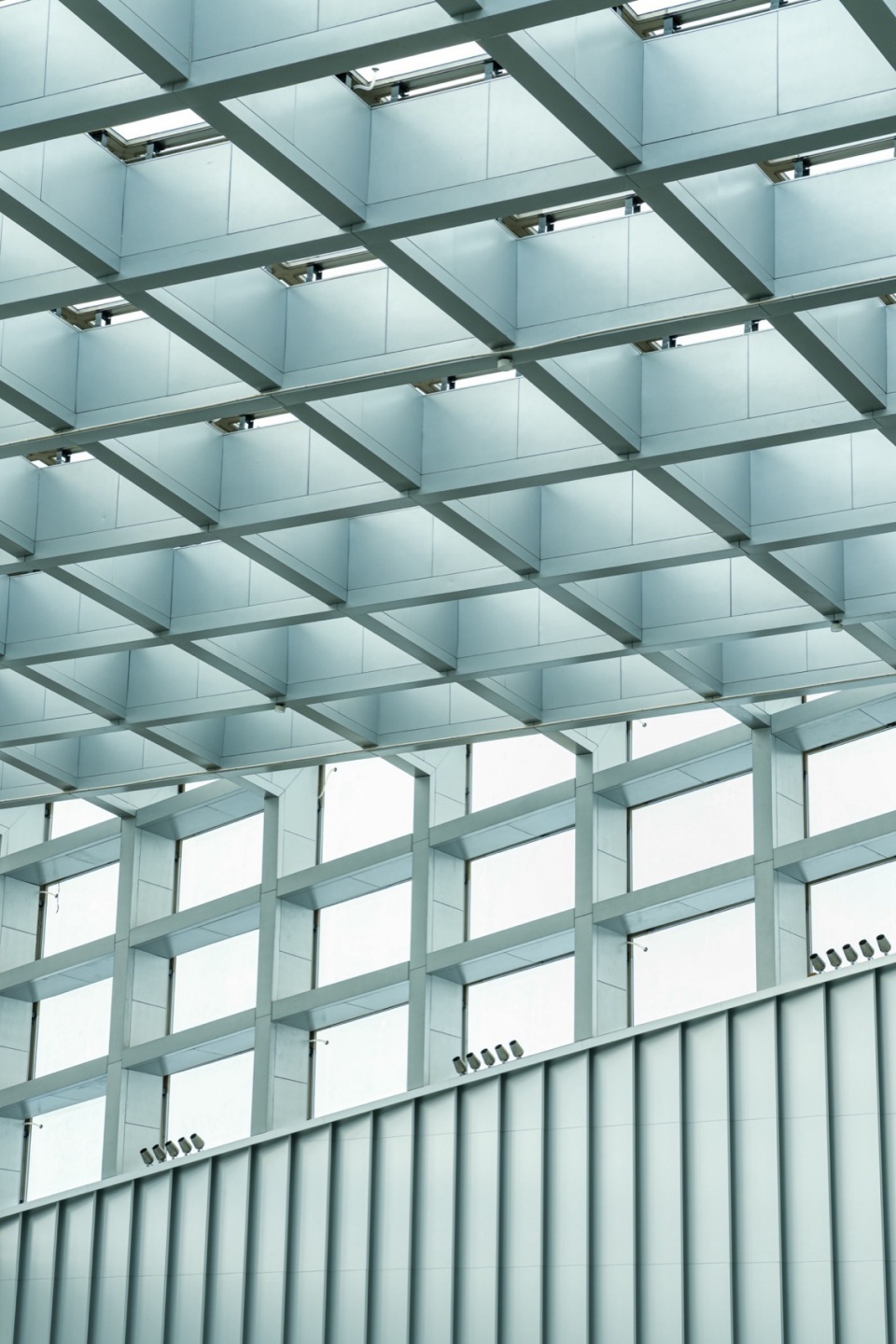

▼网格屋顶桁架结构，Square roof truss structure ©️ Aedas

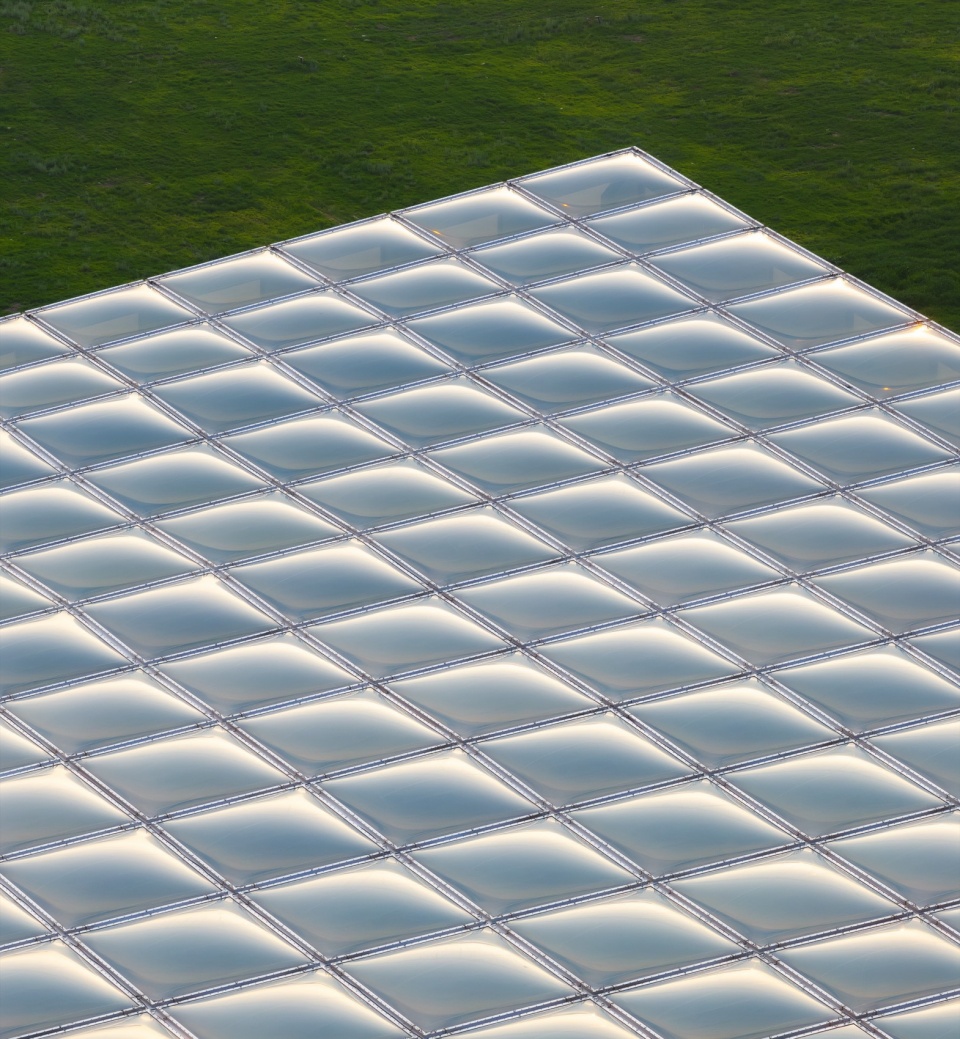

▼屋面使用ETFE膜材质，ETFE material is applied to the roof structure ©️ Aedas

“坐落于呼和浩特的国家乳业技术创新中心不仅仅是一个功能完善的研究设施，它更象征着我们为创造更健康的社会环境而不懈追求创新的决心。”韦业启（Ken Wai）说道。

‘The National Dairy Technology Innovation Centre in Hohhot is much more than just a functional research facility. It symbolizes the dedication to innovation for the betterment of a healthy society.’ Ken Wai comments.

▼具有视觉冲击力的抵达体验，Unique arrival experience ©️ Aedas

项目：国家乳业技术创新中心
位置：中国呼和浩特
设计及项目建筑师：Aedas
业主：伊利集团
设计建筑师：Aedas
建筑面积：45,137平方米
竣工年份：2023
主要设计人：韦业启（Ken Wai），Aedas院士、全球设计董事

Project: National Dairy Technology Innovation Centre
Location: Hohhot, PRC
Client: Yili Group
Design and Project Architect: Aedas
Gross Floor Area: 45,137 sq m
Completion Year: 2023
Design Directors: Ken Wai, Global Design Principal
