非常感谢 拓瑞建筑 予gooood分享以下内容。更多请至：TR architects on gooood
Appreciation towards TR architects for providing the following description:

秣陵9车间，位于南京市江宁区，由建成于九十年代的牛首工业园改造而成。项目改造后为以“互联网+”为核心的文化科技创意园区，总规模接近4万平方米。基地呈东西向长方形，西端的短边为唯一与外部道路衔接的界面。由于基地的形状以及开发的顺序，地块西端作为了一期启动区，由两栋U型厂房和与临街零散的临时房屋组成。

Moling 9 Workshop, transformed from Niu Shou Industrial Park that was built in the 1990s, is located in Jiangning District, Nanjing City. After this transformation, it becomes a Creative Park of Culture and Science with “Internet +” as its core and with a total of nearly 40,000 square meters. The base is rectangular in the east-west direction, and the short side at the western end is the only part that interfaces with external roads. With regard to the shape of the base and the order of its development, the western end of the block serves as a start-up area, consisting of two U-shaped buildings and temporary houses scattered on the street.

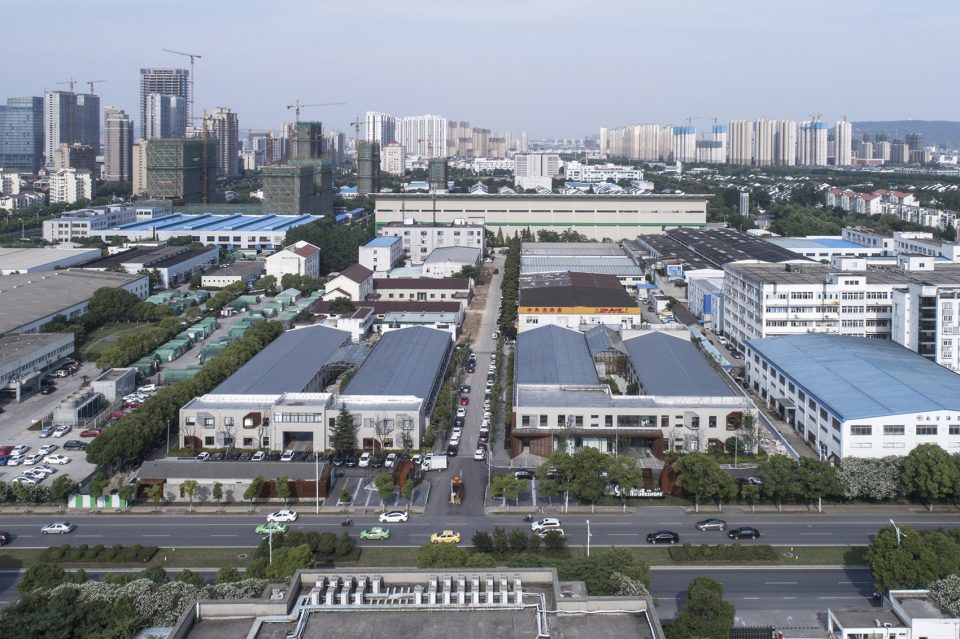

▼园区鸟瞰，aerial view

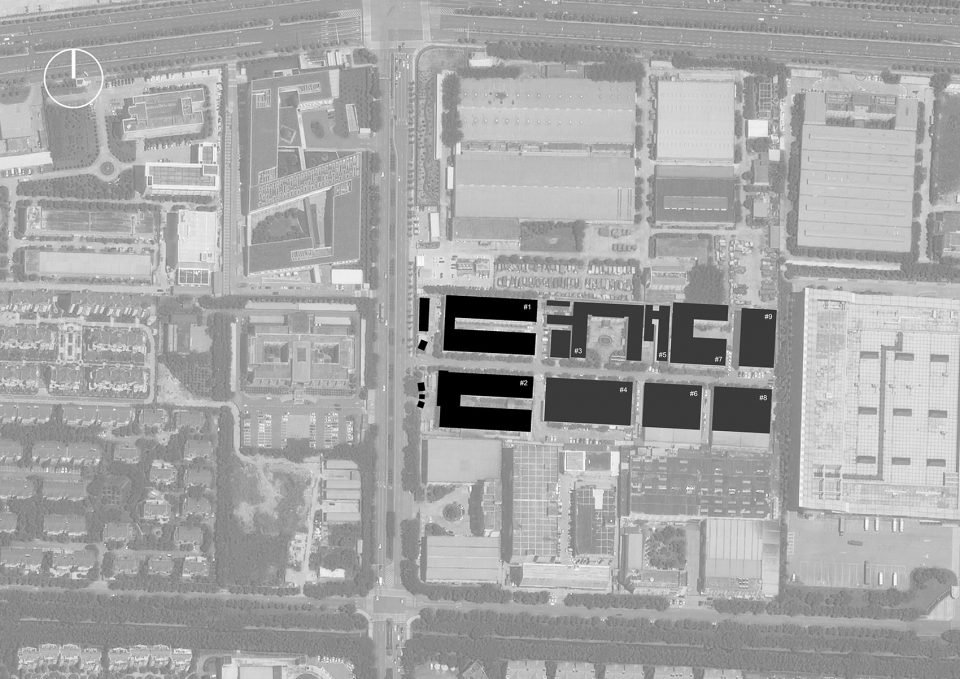

▼总平面图，master plan

设计师说服业主放弃了最初对沿街的两栋厂房立面进行大面积改造，由此构建出园区辨识度的设想。而是通过梳理厂房与外界之间的场地，用空间改造代替立面改造，在封闭的园区与城市之间，设立一个能让园区与城市互动的开放性过渡地带，以此改变大部分产业园对城市的封闭感和不友好，并由此创造九车间的辨识度。

Designers persuaded its proprietor to abandon the initial blueprint of constructing the park’s identity through large-scale renovation of the facades of the two factory buildings along the street. Instead, they suggested to set up an open transitional zone between the closed park and the city where the park and the city can interact with each other through rearranging the venue between the factory buildings and the outside world with the transformation of the space instead of facade renovation, in order to change the previous senses of alienation and unpleasantness of the most Industrial Park to the city, and thus create identity of 9 workshop identity.

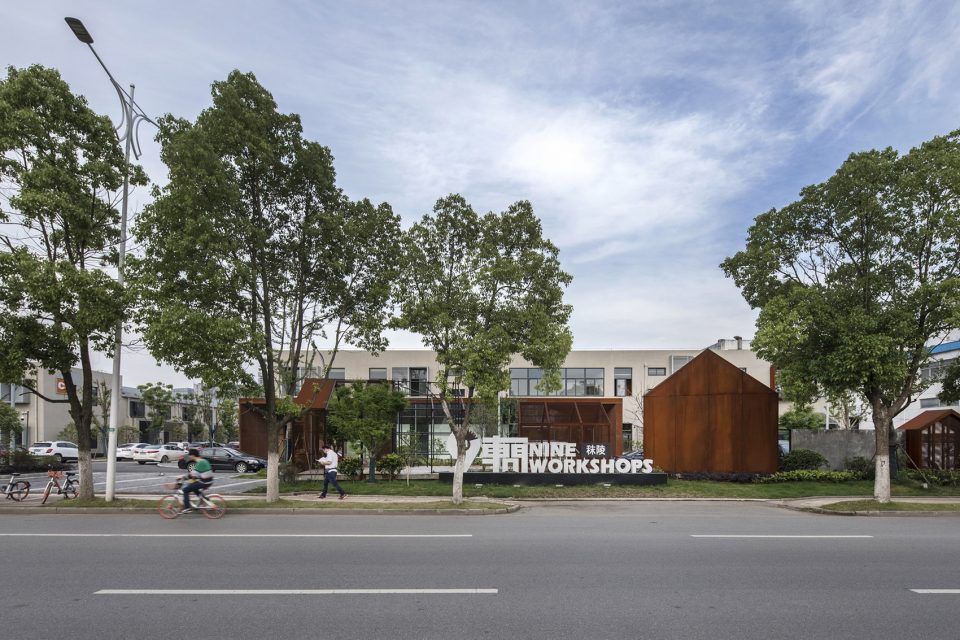

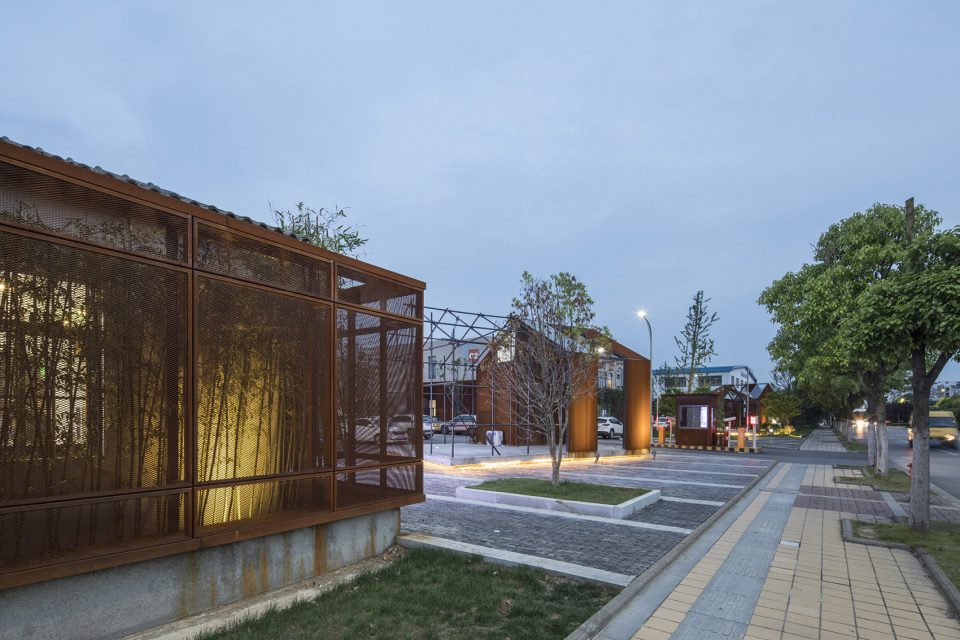

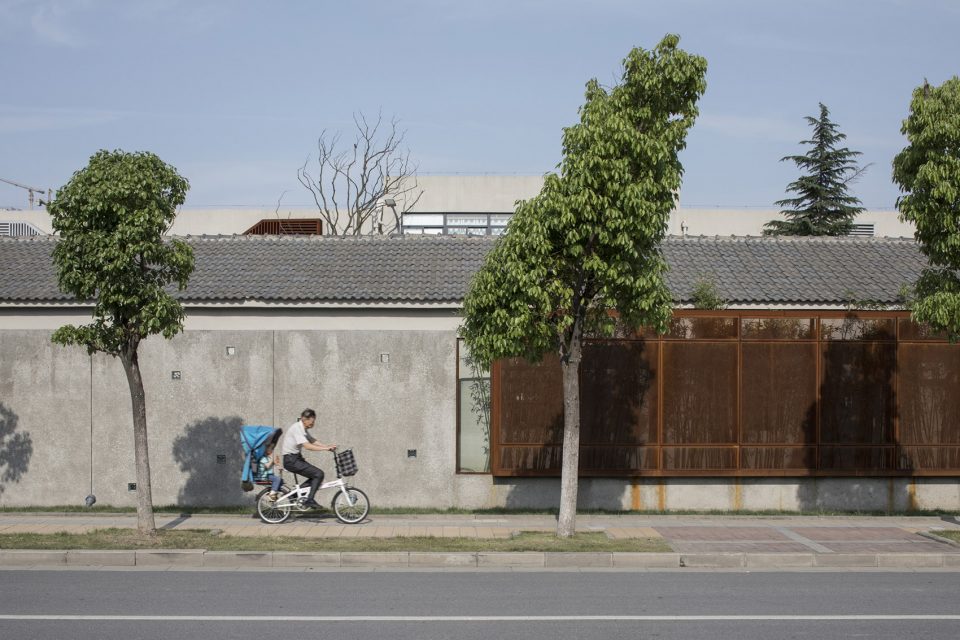

▼园区外貌，exterior view

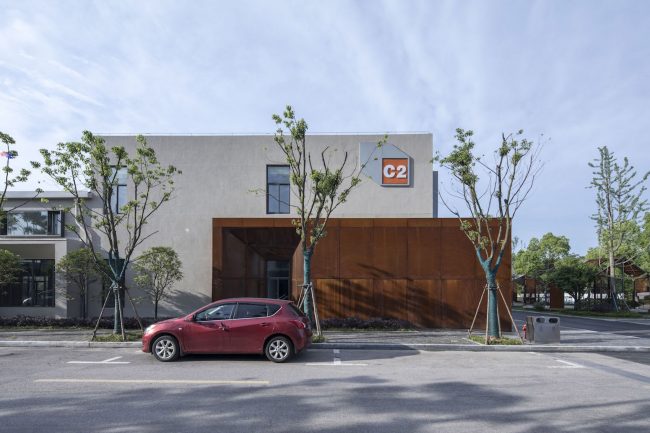

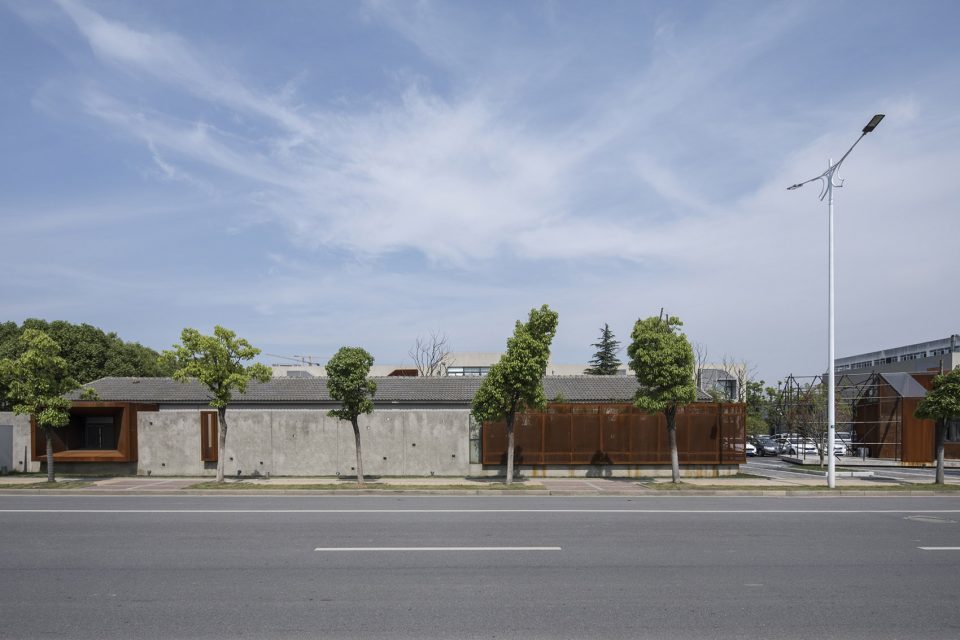

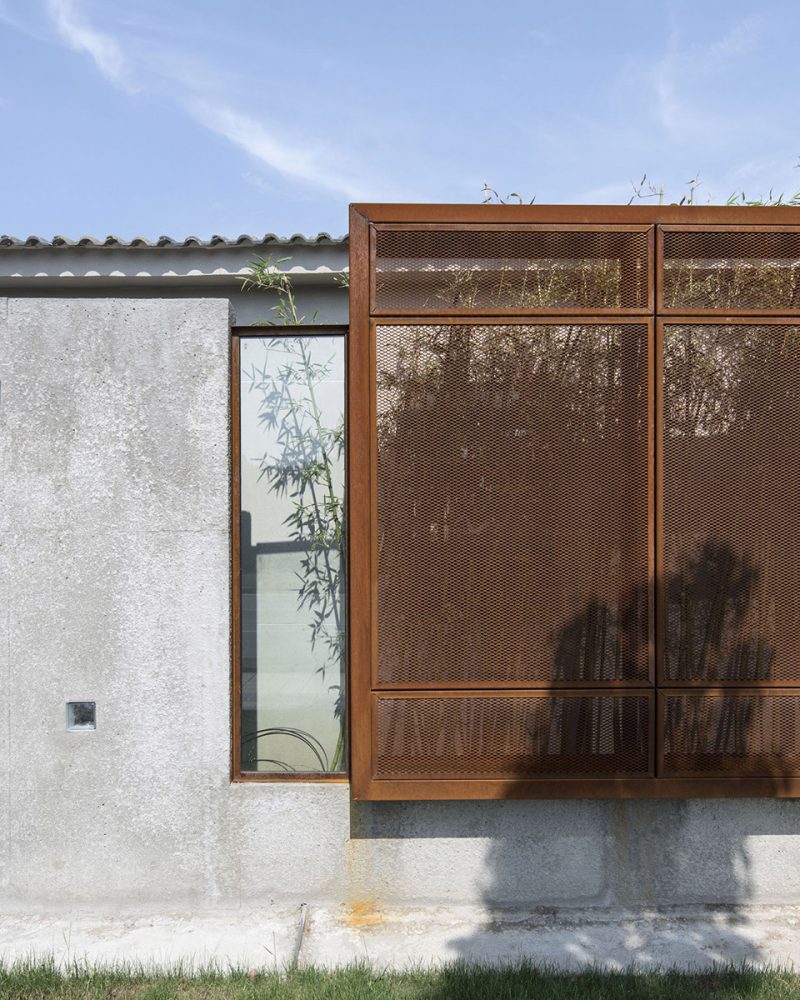

▼耐候钢、混凝土、玻璃的组合，the combination of weathering steel, concrete and glass

整理场地过程中，将沿街临时性的房屋进行拆除，同时保留西北角较为完整、砖混结构的小屋。并以该小屋的尺度作为设计依据，在腾出的场地中，植入四个由钢骨、耐候钢板、钢板网、玻璃、钢管脚手架组成的“工业小屋”。

In the process of site arrangement, the temporary houses along the street will be demolished while retaining the little houses with a relatively complete and brick-concrete structure in the northwest corner. And based on the dimensions of these houses, we would plant in the vacated ground 4 “industrial huts” made up of steel frames, weathering steel, steel mesh, glass and steel scaffolding.

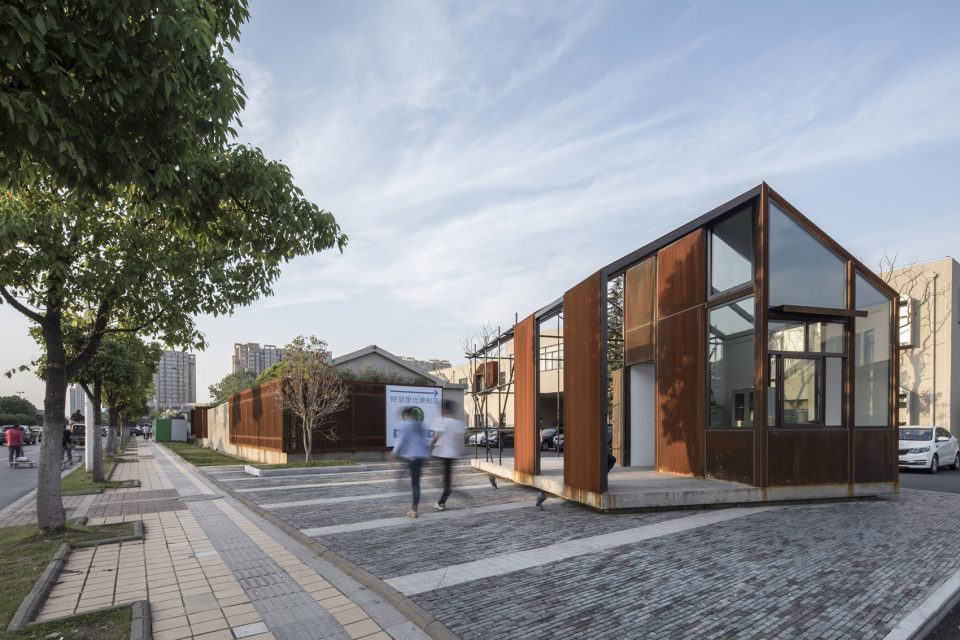

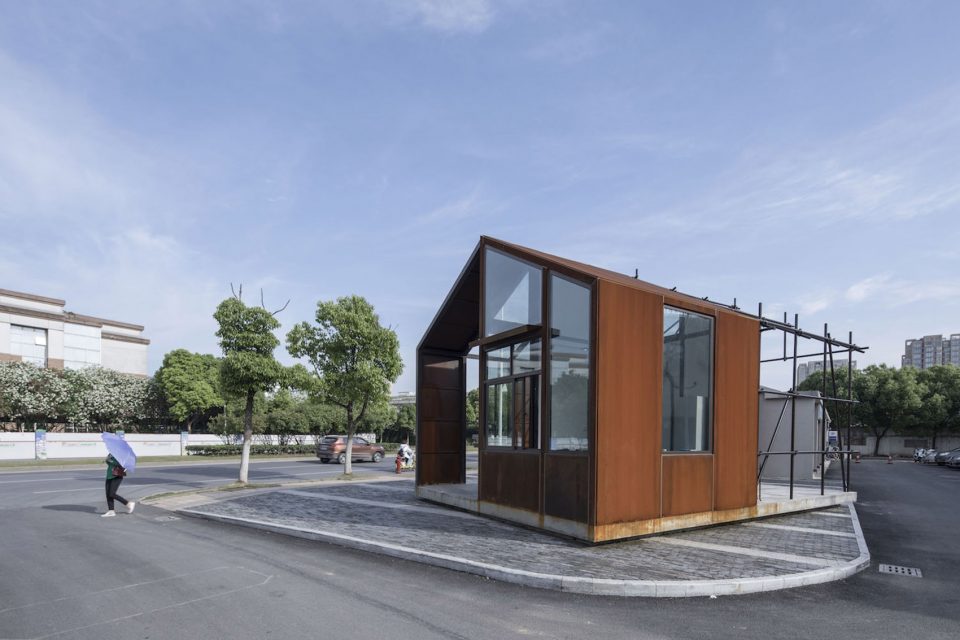

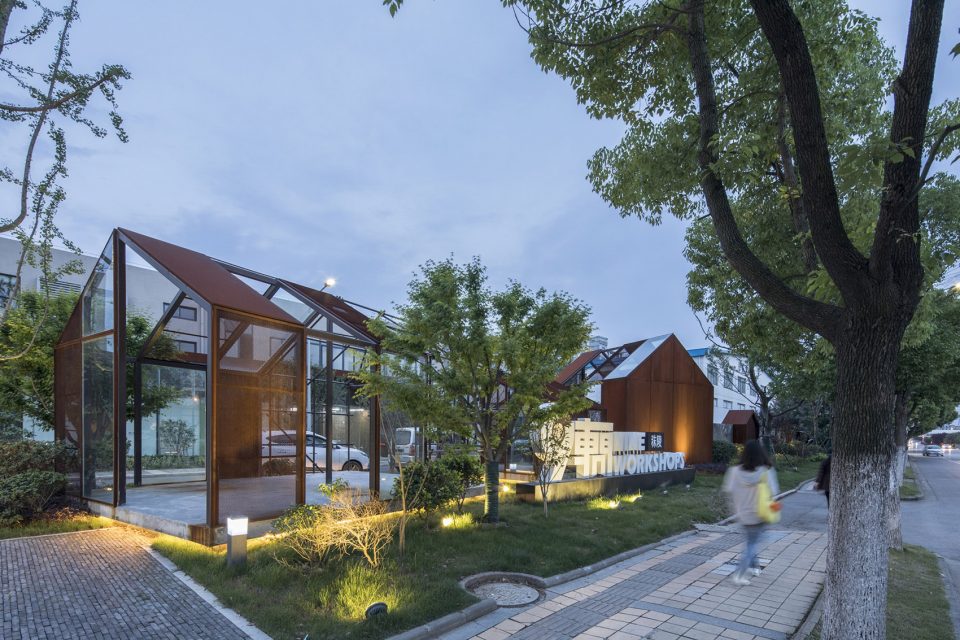

▼场地中植入四个“工业小屋”，4 “industrial huts” are placed in the ground

五个小屋组成的“工业村落”，替代了围墙和大门的建造，呈现出园区的开放性；小屋之间的空间方便了在上下班高峰期，大量行人进出园区时与车流完全分开；由于建造的材料，新的小屋不仅不会阻隔外部对园区的视线，反而与老厂房一起制造视线上的叠加，形成了新旧建筑的混合。

The “industrial community” consisting of five huts replaced the construction of fences and gates, representing the openness of the park. The space inside these huts make things easy during rush hour for a large number of pedestrians are completely separated from the traffic when entering and leaving the park. Because of the materials applied for the new huts will not only block the view of the park from the outside but will create an overlap of sight with the old factory, creating a mixing effect of old and new buildings.

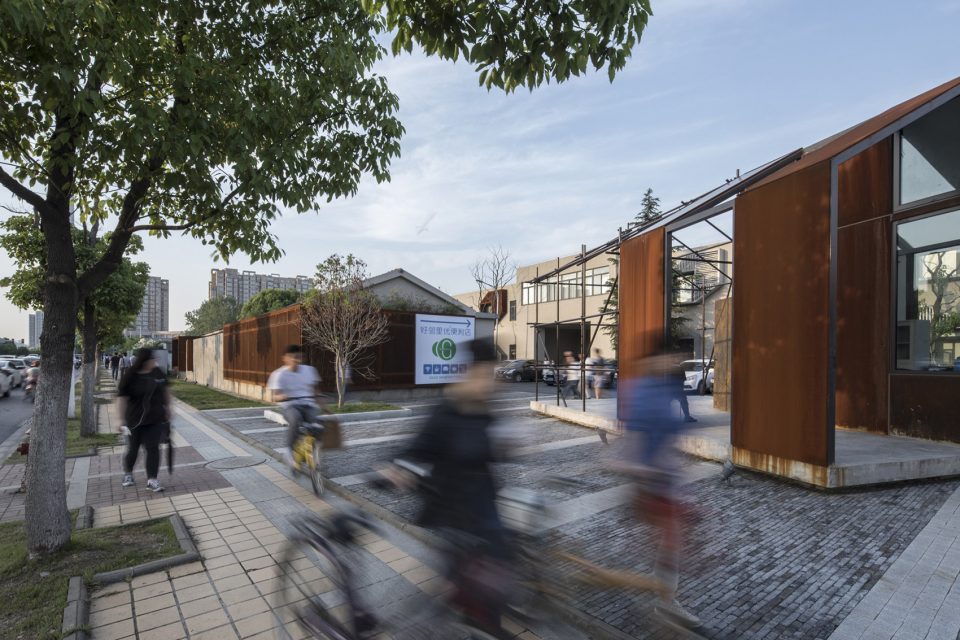

▼小屋之间的空间方便了在上下班高峰期，大量行人进出园区时与车流完全分开，the space inside these huts make things easy during rush hour for a large number of pedestrians are completely separated from the traffic when entering and leaving the park

我们希望这片开放场地的五个小屋，在前期作为功能不确定的触媒空间。我们设想着园区内或外的人们可以在这里等人、碰面、靠在脚手架边上闲聊，甚至在小屋里晒晒太阳，看看书。后期，随着经营的需要，沿街的小屋可以被改造成花店、咖啡厅、书店等商业功能，让园区功能更多元化，更具城市性。

We hope that the five huts in this open space will serve as a catalyst space with uncertain functions in the early stage where we envision people in and out of the park can wait, meet up and chat pleasantly leaning against the edge of scaffolding, and even bask in the sun and read books. In the later stage, because of the business needs, the huts along the street can be transformed into florist, coffee shop, bookstore and so on with commercial functions, so that the park will be provided with more diversified functions and greater urbanity.

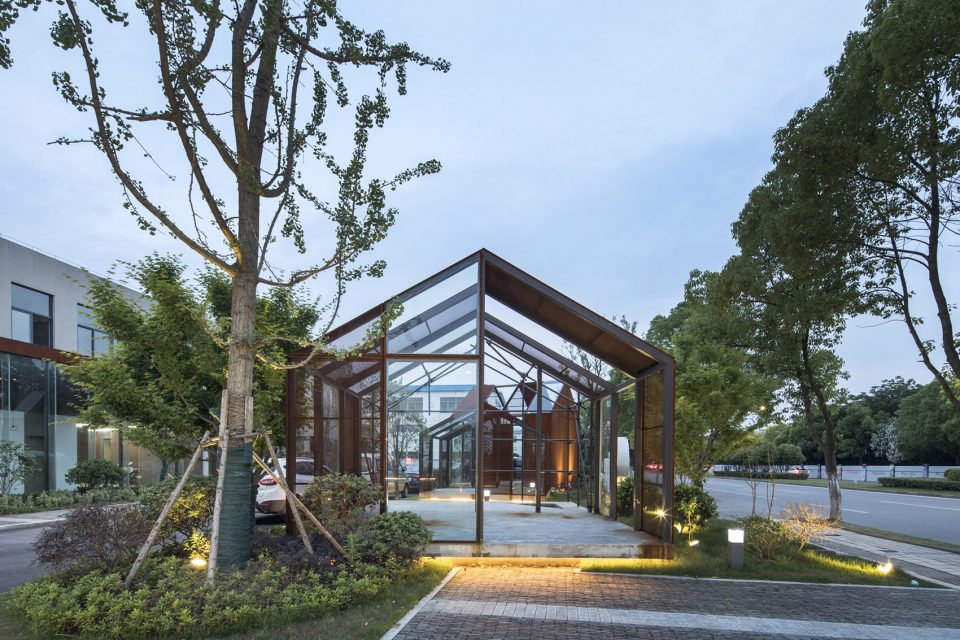

▼“工业小屋”由钢骨、耐候钢板、钢板网、玻璃、钢管脚手架组成，“industrial huts” made up of steel frames, weathering steel, steel mesh, glass and steel scaffolding

两栋U型厂房的改造中，保留原建筑年代记忆的基础上，内部利用建筑高度增加插层办公空间，而每栋U型厂房的中央空地被改造为充满绿意的庭院；新的桁架和玻璃组成的顶棚，覆盖了庭院局部上空，营造了室内外之间的暧昧地带，除了连接两边楼栋，也希望尽可能将人的活动延伸到庭院。

In the transformation of the two U-shaped factory buildings, on the basis of retaining the style of the original buildings, the inter-building space will be added the space of intercalated office taking advantage of building height, while the central open space of each U-shaped building was transformed into a green-filled courtyard. The new truss and glass roof, covering part of the courtyard, creates an ambiguous zone between the indoor and the outdoor. The zone is expected to extend the human activities as far as possible to the courtyard in addition to connecting the two sides of buildings.

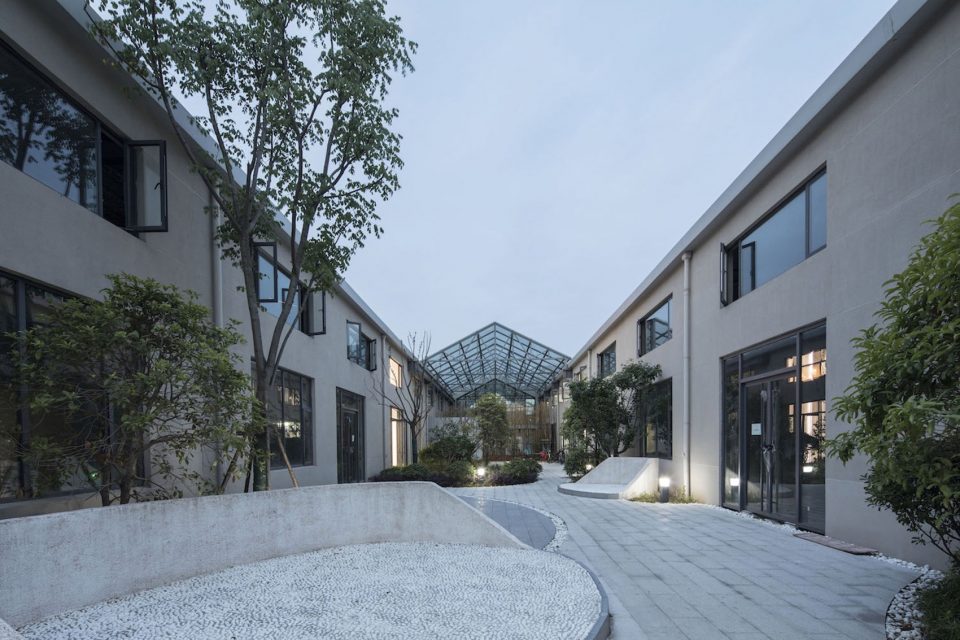

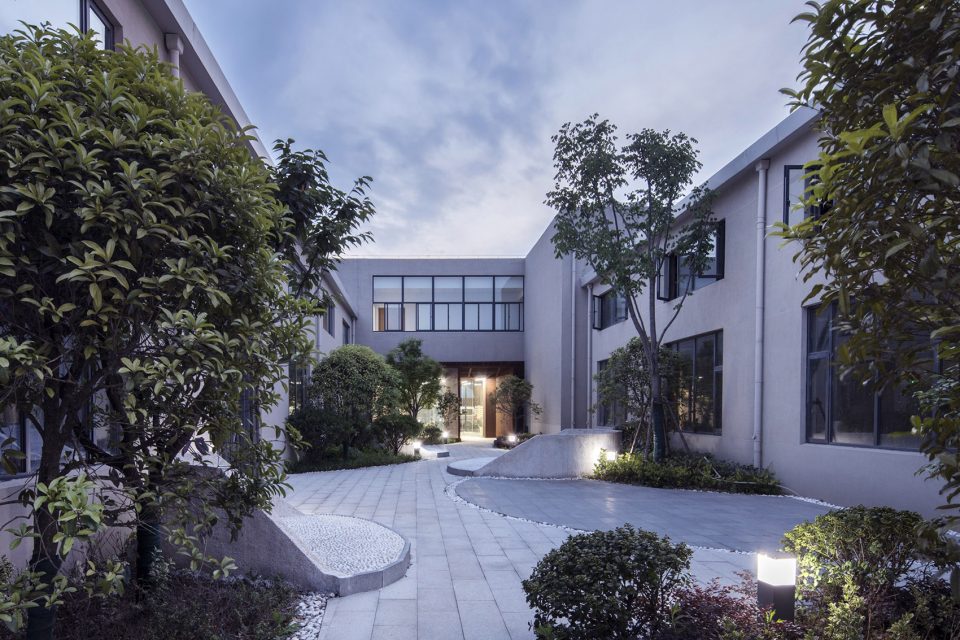

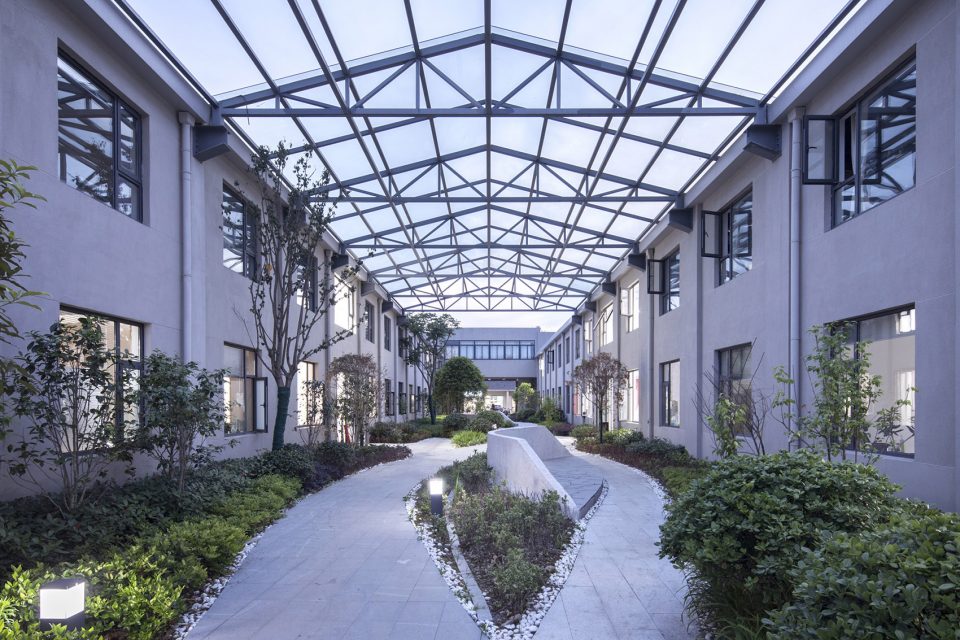

▼每栋U型厂房的中央空地被改造为充满绿意的庭院，the central open space of each U-shaped building was transformed into a green-filled courtyard

两栋U型厂房沿园区中央道路的界面改造，我们选择了弱化改造痕迹的做法。在这个界面之上，我们外加了一层构筑物，既解决了制冷设备外机的放置空间，也强调了建筑入口，同时，挑板底部斜面设计，降低了室内光照的减损。这层外加的构筑物，结合原厂房柱跨的节奏和外墙颜色，尽可能悄无声息地存在，与原建筑融为一体。

Two U-shaped factory buildings will be transformed along the interface of the park central road. We have chosen the way that could erase the most traces of transformation. In this interface, we added another layer of structure, which does not only create external space for placing the outside machine of refrigeration equipment but also highlights the entrance to the building. At the same time, the bridging piece applies for inclined plate design at the bottom, reducing the light distraction indoor. This layer of additional structures, come in tune with the original style of the factory buildings, entering finely into the integration of the original building as much as possible.

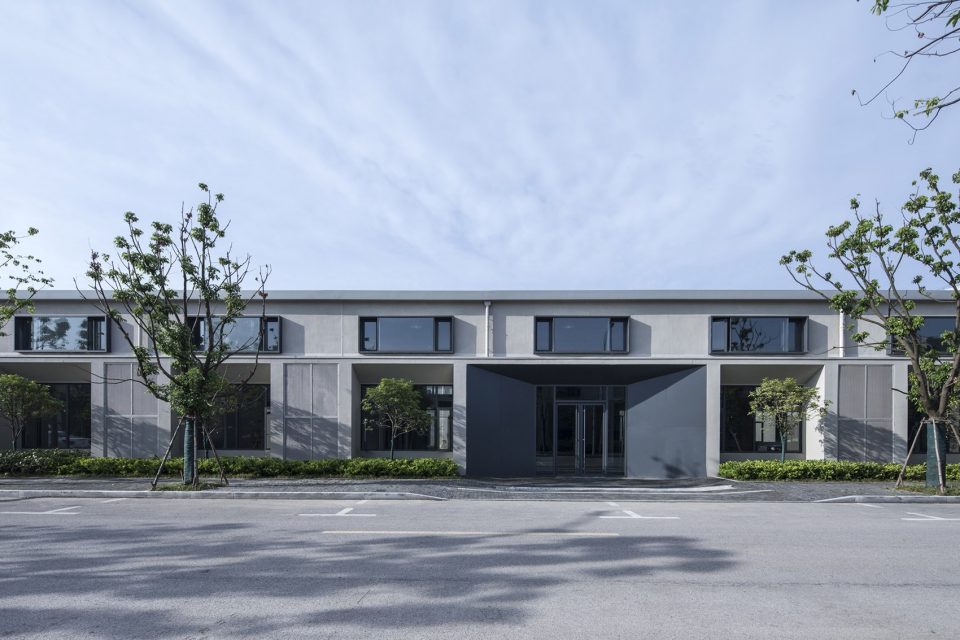

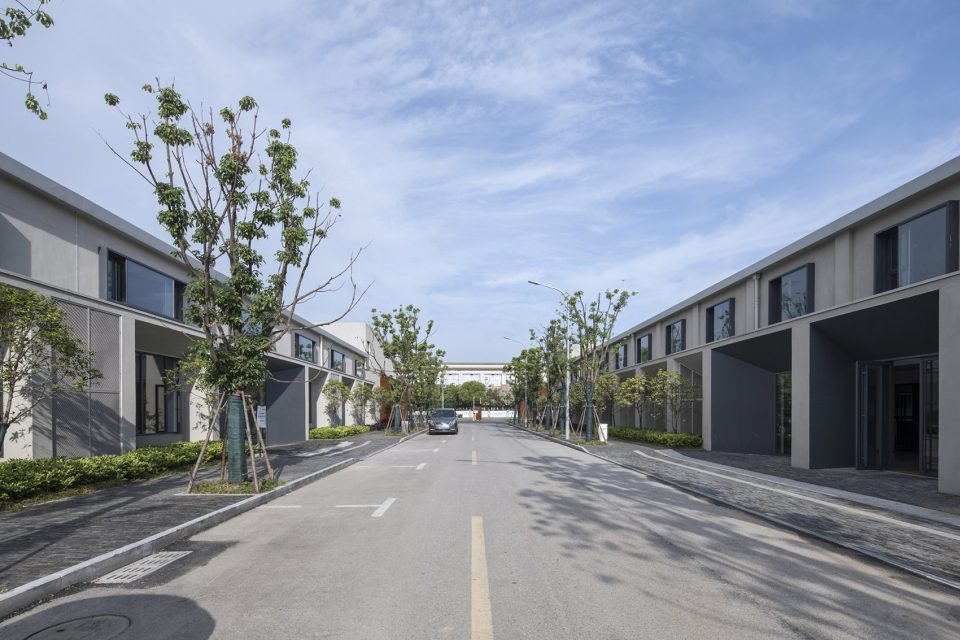

▼厂房沿园区中央道路的界面外加了一层构筑物，another layer of structure was added to the two U-shaped factory buildings along the interface of the park central road

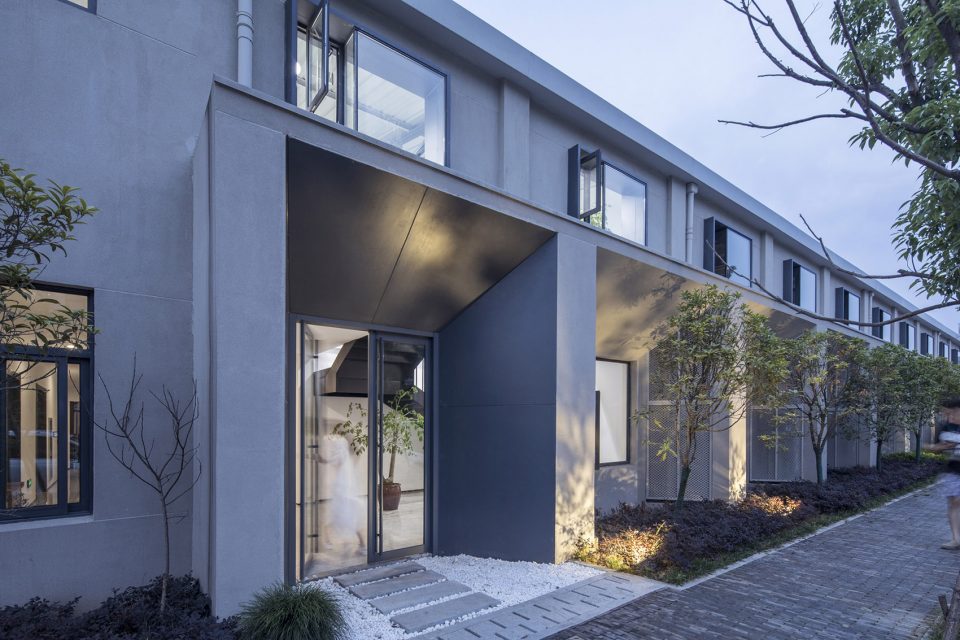

▼附加构筑物强调了建筑入口，the additional structure highlights the entrance to the building

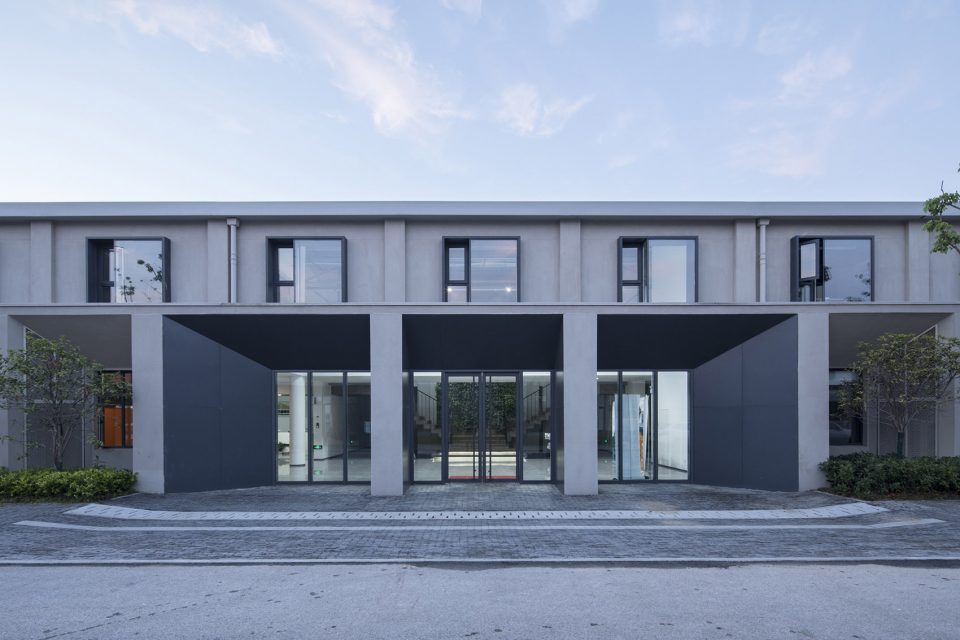

▼挑板底部斜面设计降低了室内光照的减损，the bridging piece applies for inclined plate design at the bottom which reducing the light distraction indoor

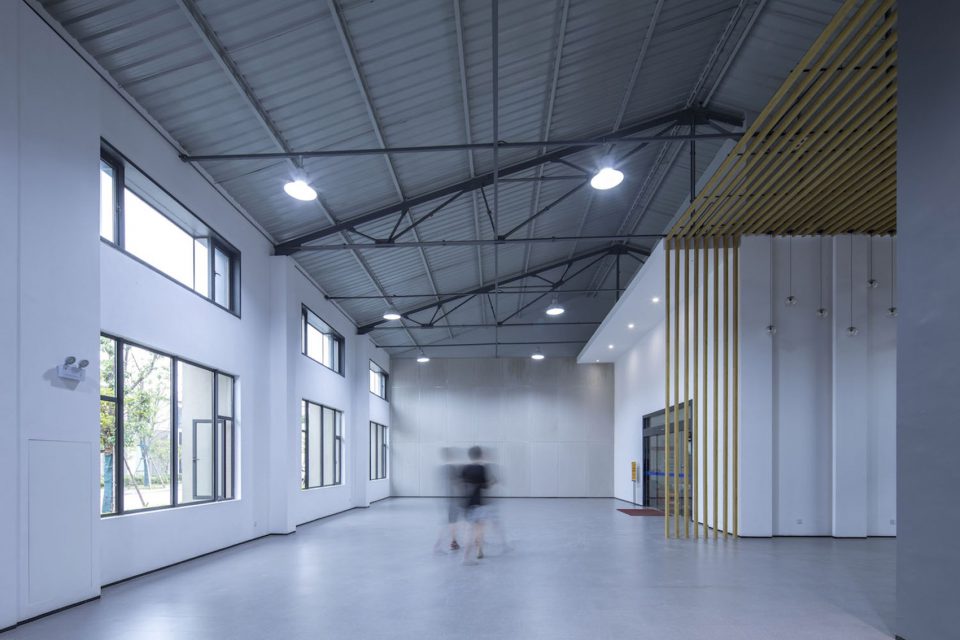

▼厂房内部，interior

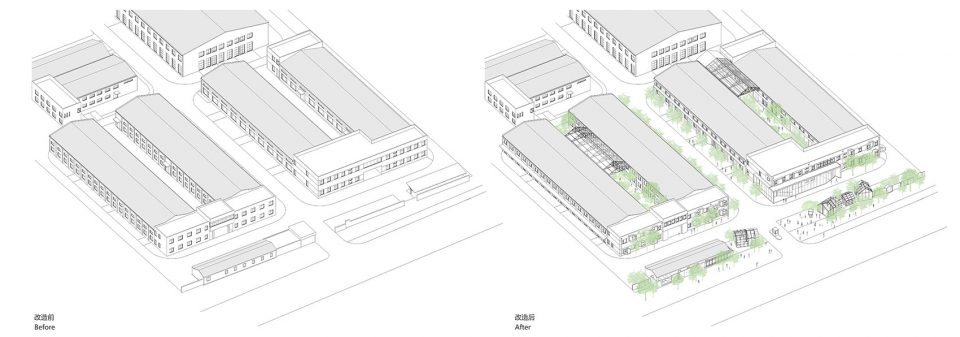

▼改造前后对比，before and after transformation

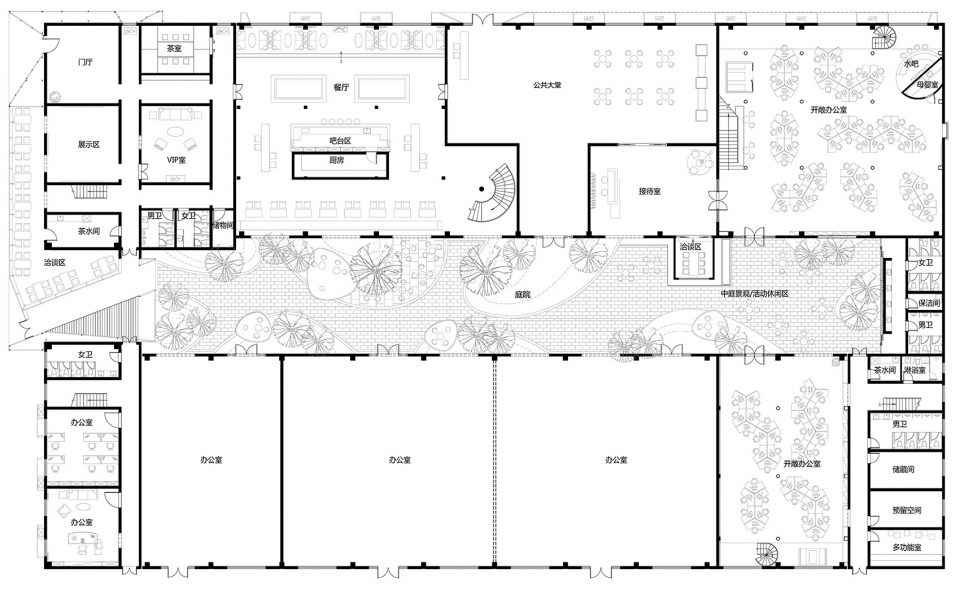

▼U形厂房一层平面，the first floor of the U-shape industry

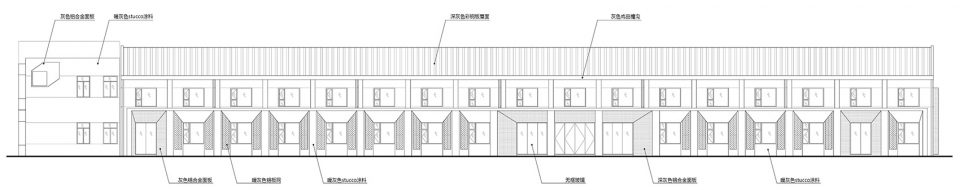

▼车间立面，elevation

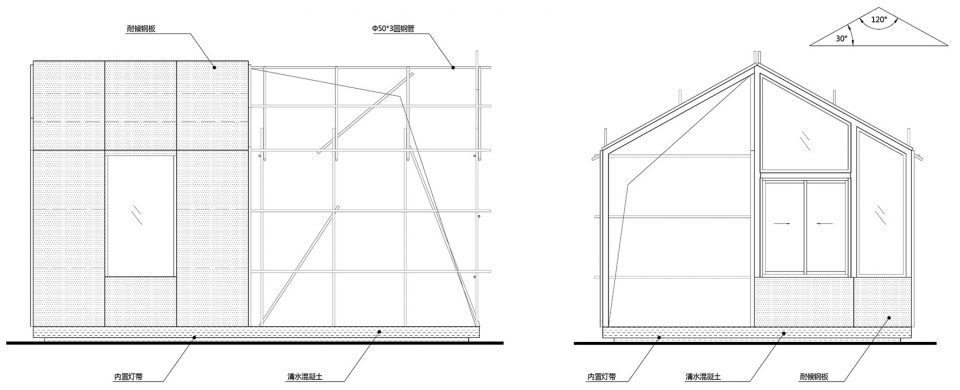

▼工业小屋立面，elevation of the hut

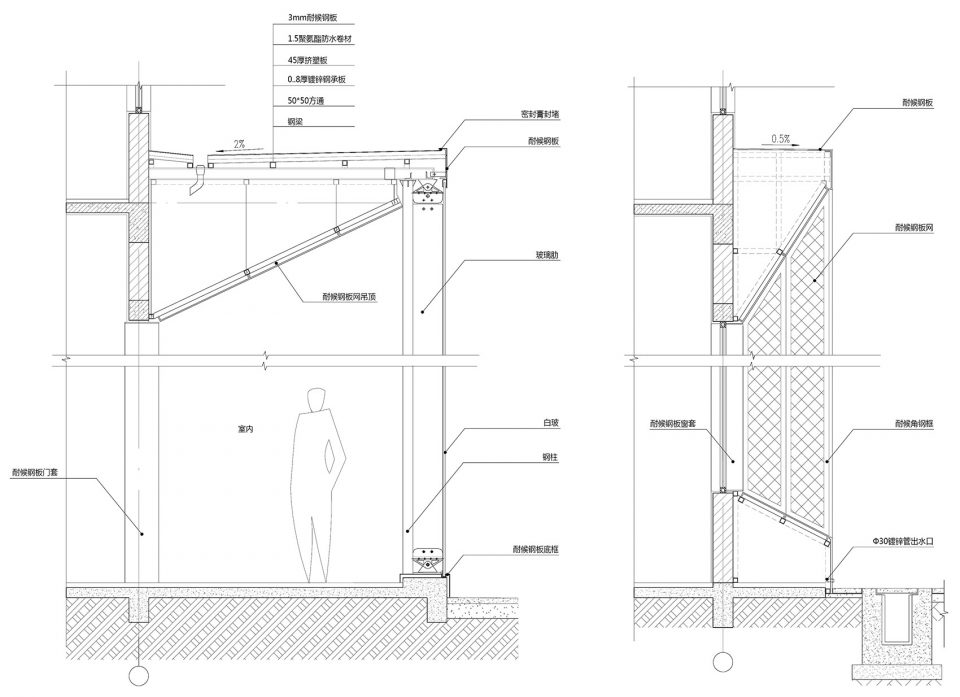

▼墙身大样，detail of the wall

项目名称：南京秣陵九车间
建筑公司：厦门拓瑞建筑
主创建筑师：黄河
设计团队：叶建鹏、林镇达、王晓明
施工图设计：谢永利、李荣、林海萍、王碧丽
建筑材料：耐候钢板、混凝土墙、质感漆
项目地址：中国南京
建筑面积：40000㎡
客户：网新沣德科技文化产业有限公司
项目年份：2017
摄影师：田方方

Project Name: Moling 9 workshop
Architects: TR architects
Lead Architect: HO
Design team: Ye Jianpeng, Lin Zhenda, Wang Xiaoming
Construction drawing design: Xie Yongli, Li Rong, Lin Haiping, Wang Bili
Material: weathering steel、Concrete、stucco
Address: Nanjing, China
Area: 40000 ㎡
Client: Insigma & Fender Co Ltd
Year: 2017
Photographer: Tian fangfang
