SMAC 当代音乐中心,法国 / Hérault Arnod architectes



位置 :
材料 :
文章分类 :

来自 Hérault Arnod architectes 对gooood的分享。更多关于他们:Hérault Arnod architectes on gooood. Appreciation towards Hérault Arnod architectes for providing the following description:

SMAC 当代音乐中心是一个音乐综合体,由两个音乐厅和两个不同类型的录音室组成。一个类似甲板的中庭将音乐中心的各个功能联系在一起,同时将人流从建筑物的一侧引导到另一侧。它的设计原则是:游人可以在音乐综合体里找到满足各种需求的空间,同时也可以穿越整个建筑通往其他的目的地。

This Contemporary Music Centre (SMAC) is a musical complex consisting of two auditoriums of very different kinds and recording studios, linked by a public space called the deck, running from one side of the building to the other. It is designed on the principle that, instead of being mere consumers of entertainment, people can construct their own evening by moving from one place to the other.

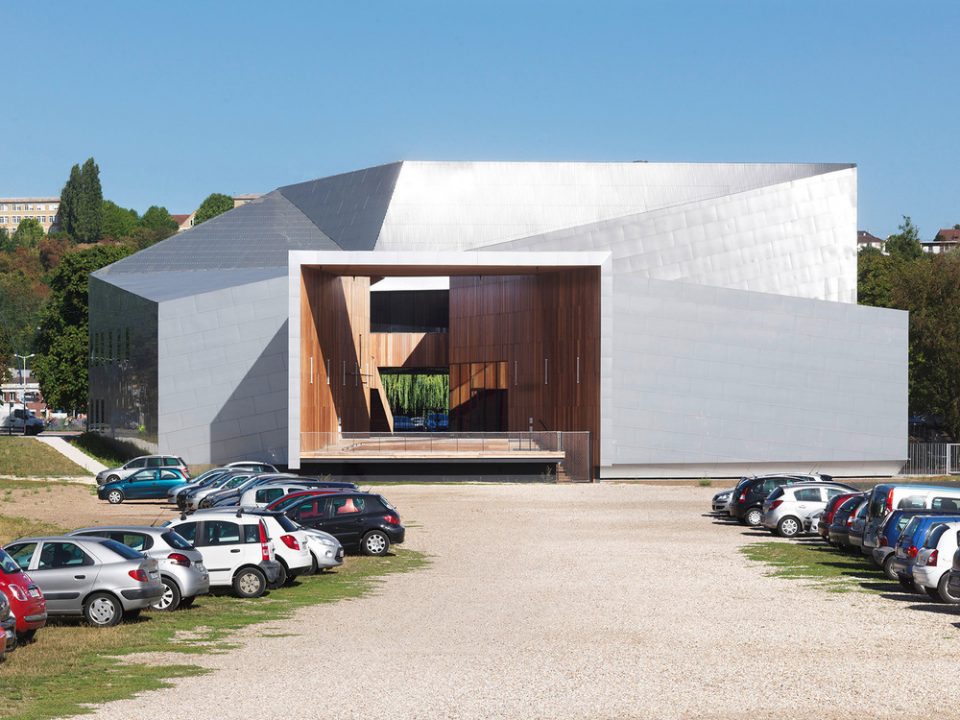

▼ 建成的音乐中心综合体,the Contemporary Music Centre is a musical complex

项目位于历史悠久的市中心边缘地带,一侧是当地举办 Bel Ebat 集市的开阔空地,另一侧是城市主要的交通流线。设计中的难点在于处理新建筑中的尺度关系:体量不能太小,设计模式也不是通常意义上的中心聚集的形式,同时要沟通场地周围用来举办集市的巨大空地和交通之间的关系。设计中的一个挑战就是让建筑与当地的娱乐活动、跳蚤市场和马戏团等一起创造空间上的协同效果。

The site is a corner of the Bel Ebat fairground, on the edge of the historic town centre of Evreux. The difficulty lies in the size relation between the new building, rather small and non-central, and the fairground, a huge empty esplanade. One of the challenges of the architecture is to create a synergy with the fairground activities – fetes, flea markets, circuses, etc.

▼ 场地一侧举办集市的空地,the huge empty esplanade for the Bel Ebat fairground


To resist and exist in relation to the vast expanse of the fairground, the structure is dense, sculptural and autonomous. The main concert hall is on the first floor and sticks out, overhanging the entrance on the northern side.

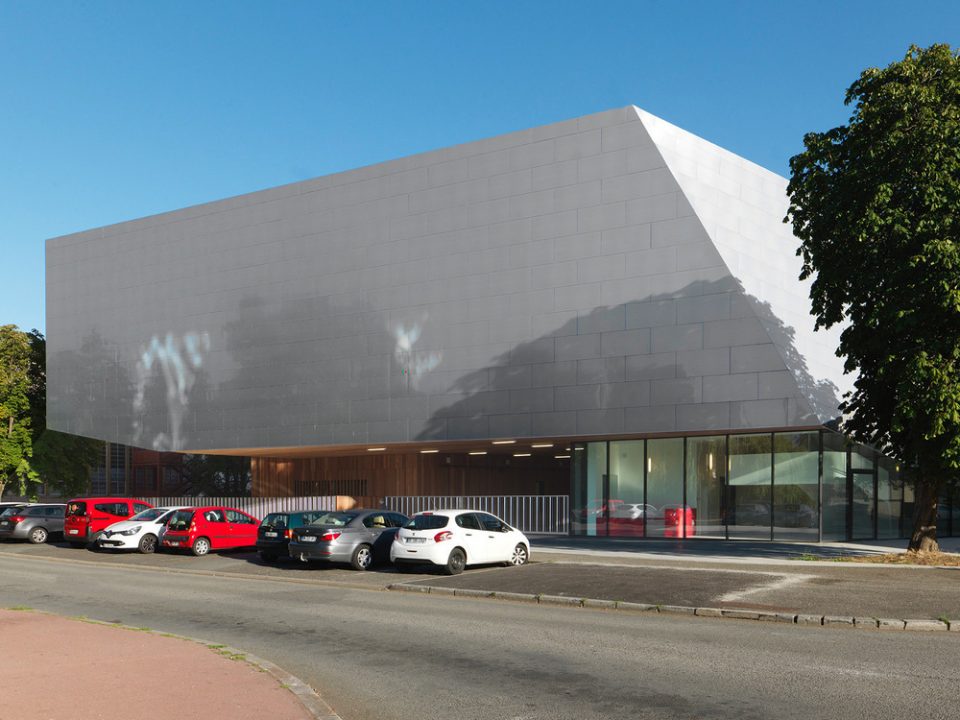

▼ 从二层悬挑出的音乐厅位于入口上方,the main concert hall sticks out overhanging the entrance

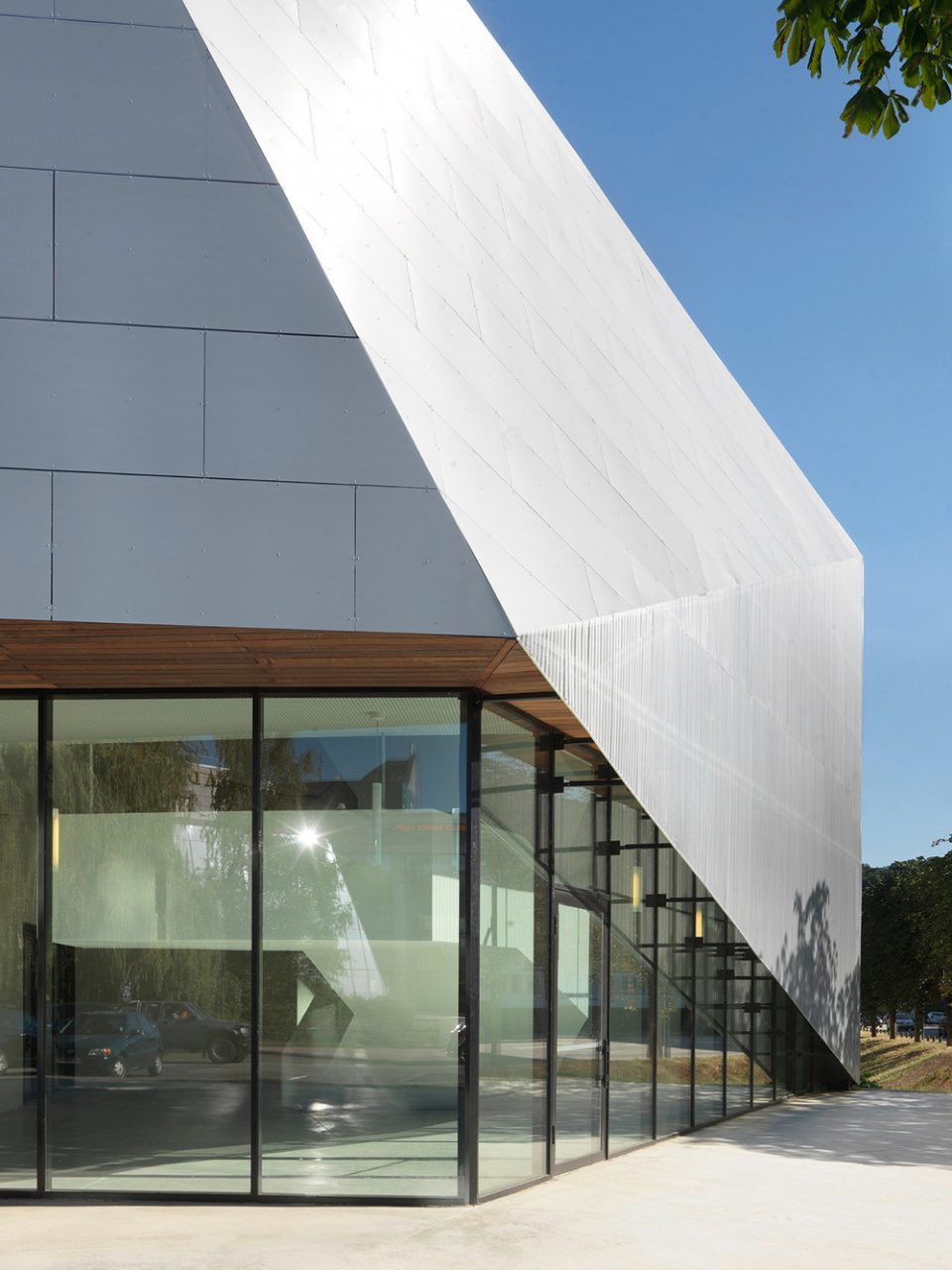

▼ 入口大厅的外立面,facade outside the stairwell

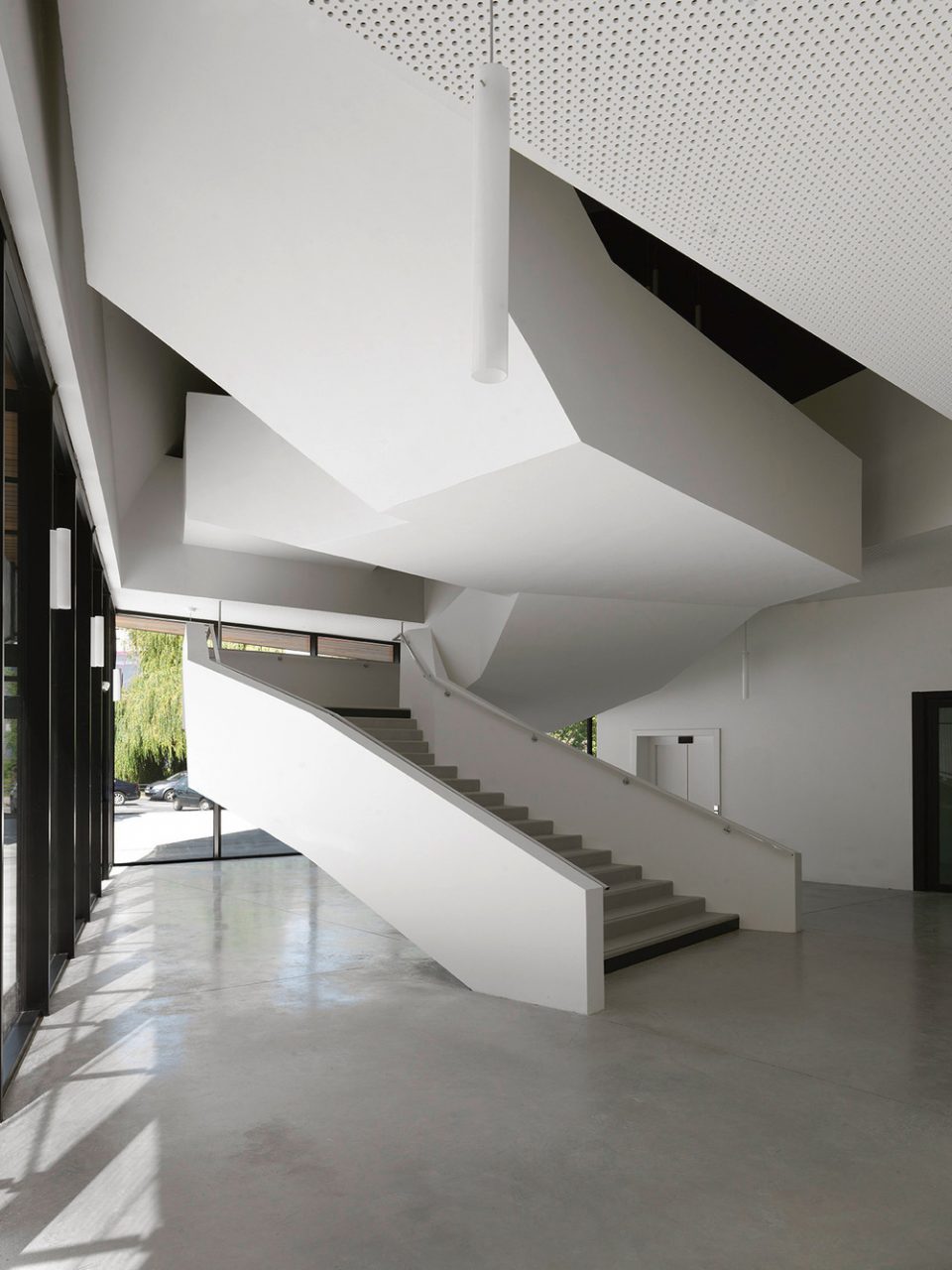

▼ 进入音乐厅的楼梯,the stairs leads to the auditorium


This course distributes and shows the different entities: main auditorium hall, local radio station studio, recording studios and the club, live-music café with its glass double façade fan folded for acoustic reasons. For acoustic reasons, the concert rooms and recording studios are separate concrete boxes.

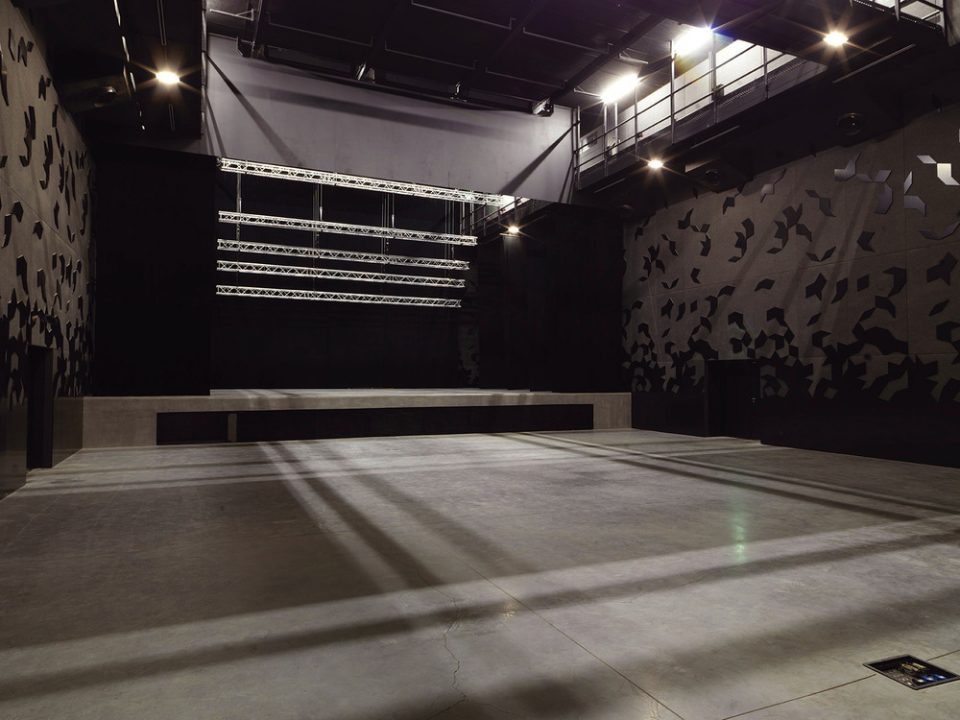

▼ 小型表演空间,the performance space

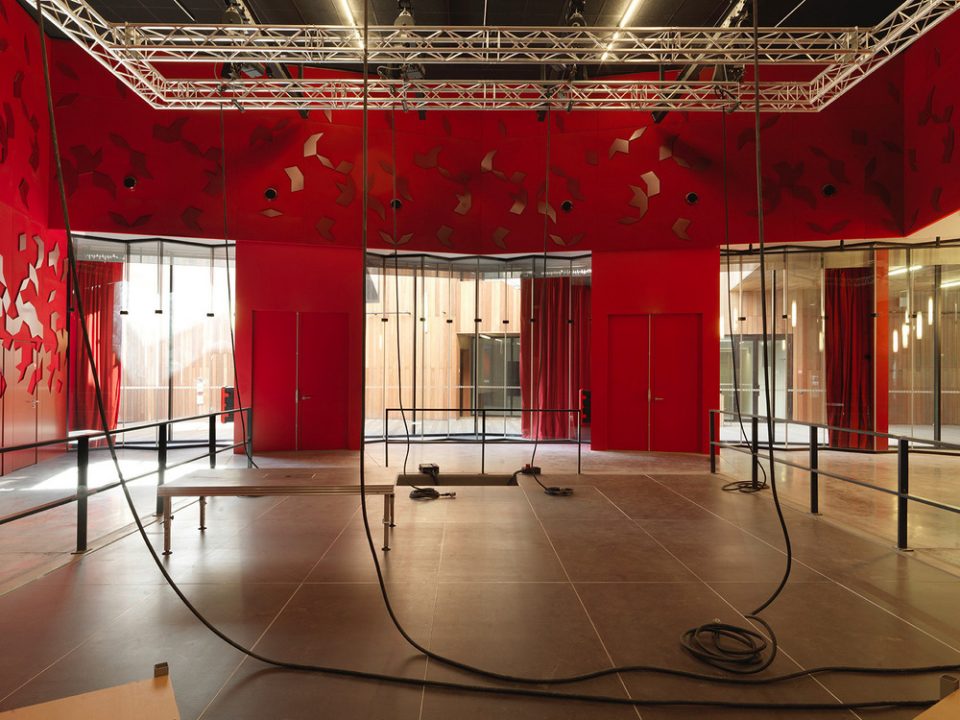

▼ 可以举办现场音乐会的咖啡厅,live-music café with its glass double façade fan folded

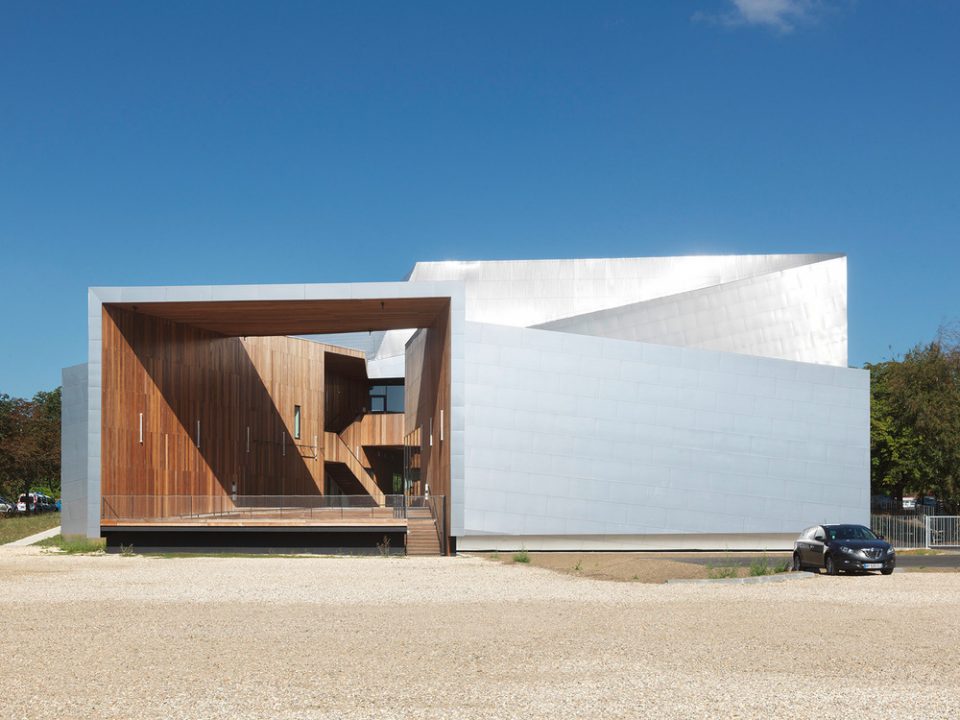

The whole structure is enveloped in a light metal skin, a double wall or over-roof that acts as an additional acoustic feature. From the outside, the volume is opaque, composed of triangular facets, some of them made of polished stainless steel that reflects the surrounding trees. It is imbued with a dual internal motion, the movement of the deck that crosses it and the movement of the roof which rises gradually to envelop the main auditorium. The deck operates like an immense interior/exterior hall stretching from the street to the esplanade.  The deck opens southwards to become a wide porch, an urban theatre that acts both as a terrace for the club, and as a stage for outdoor concerts or shows.

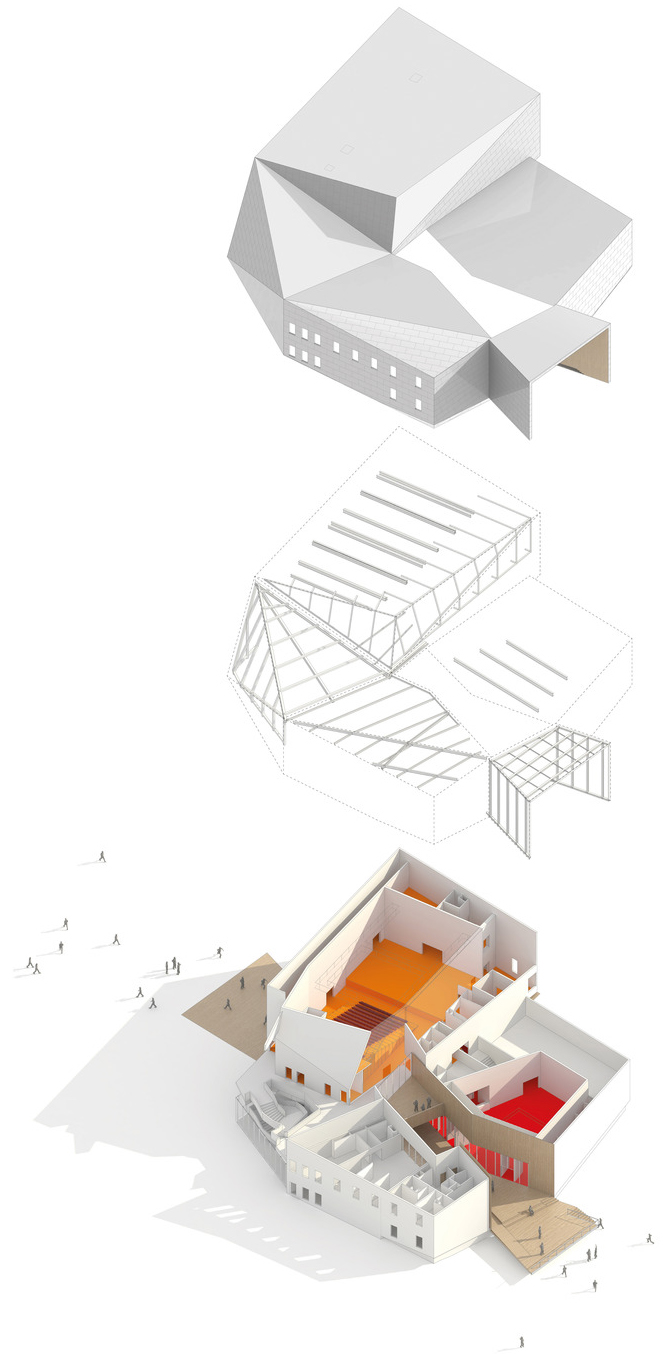

▼ 轴测空间分析,exploded axon

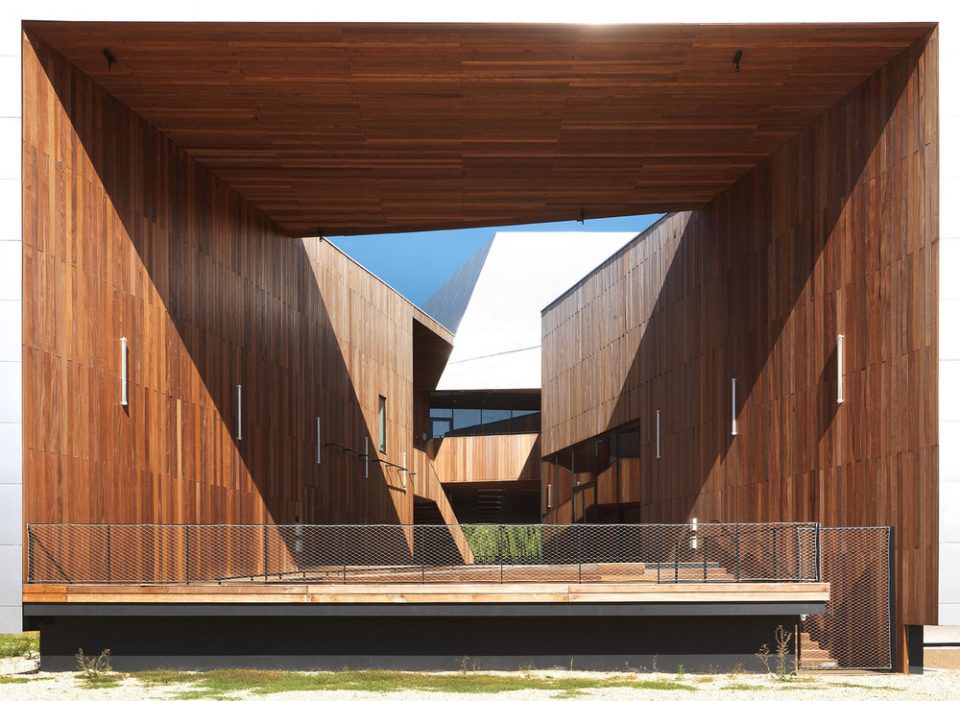

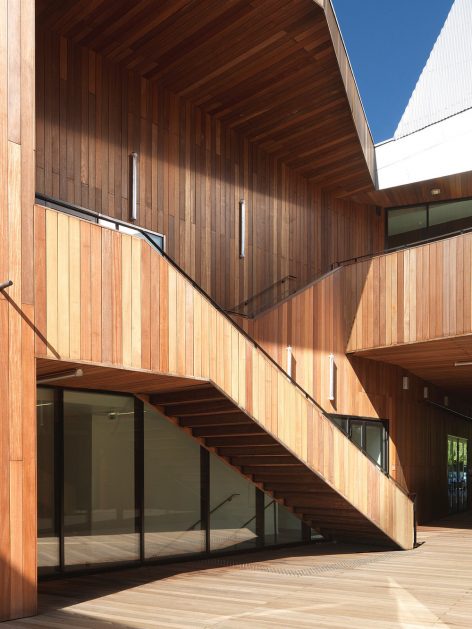

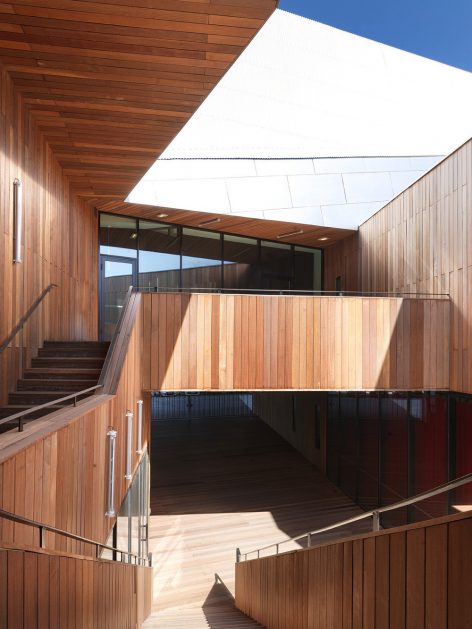

▼ 建筑的木质中庭,the deck operates like an immense interior/exterior hall

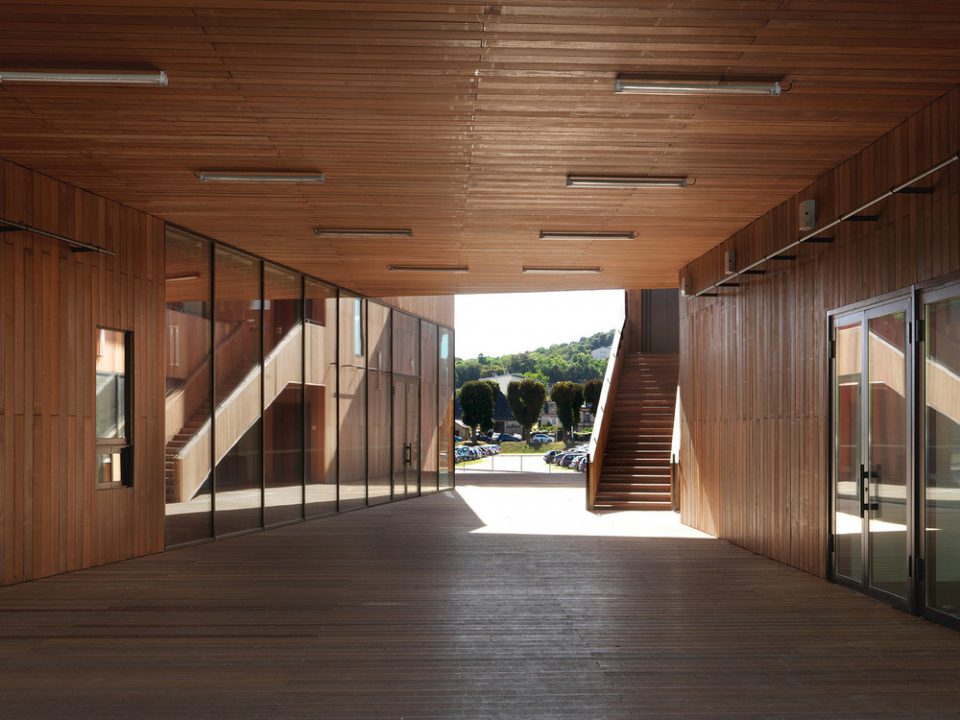

▼ 中庭连接了街道和集会空间的交通,the deck negotiates the flow from the street to the esplanade

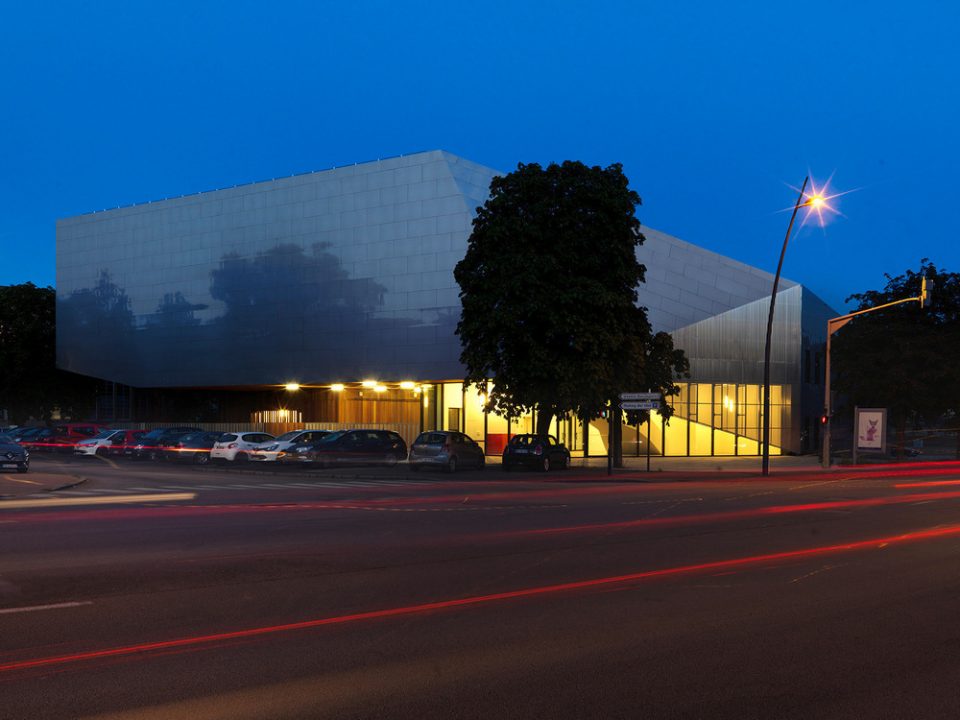

▼ 夜景,night view

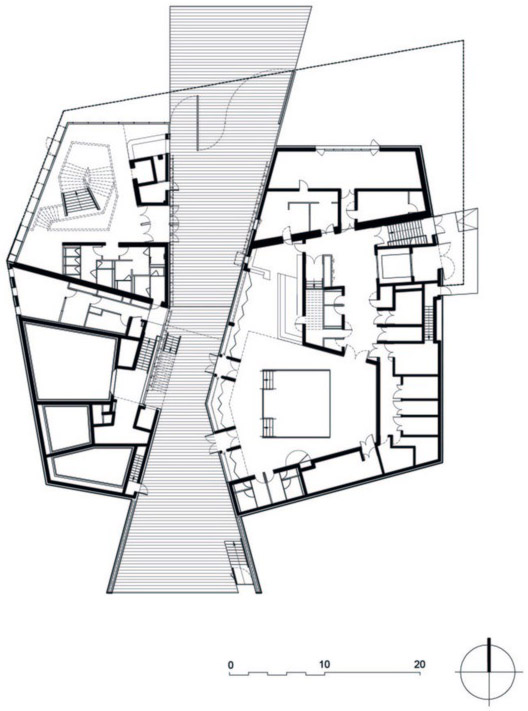

▼ 首层平面,Ground Floor Plan

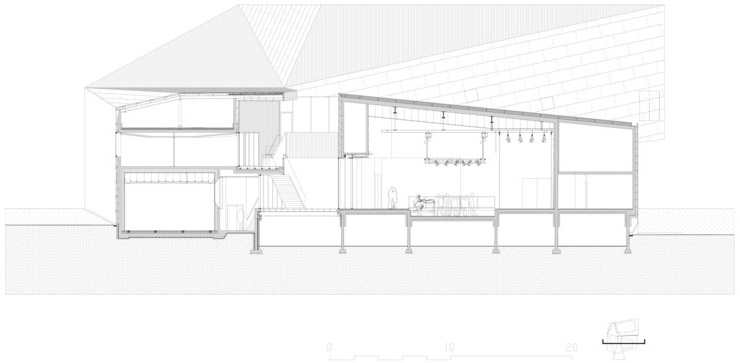

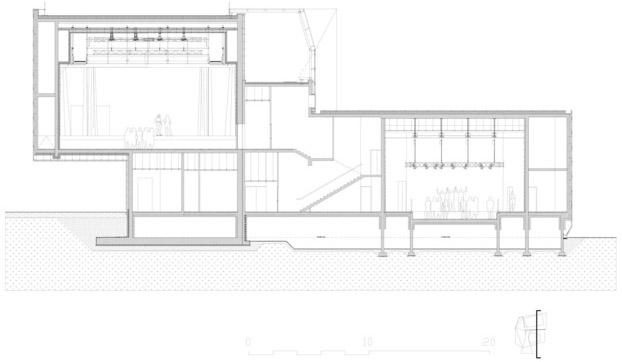

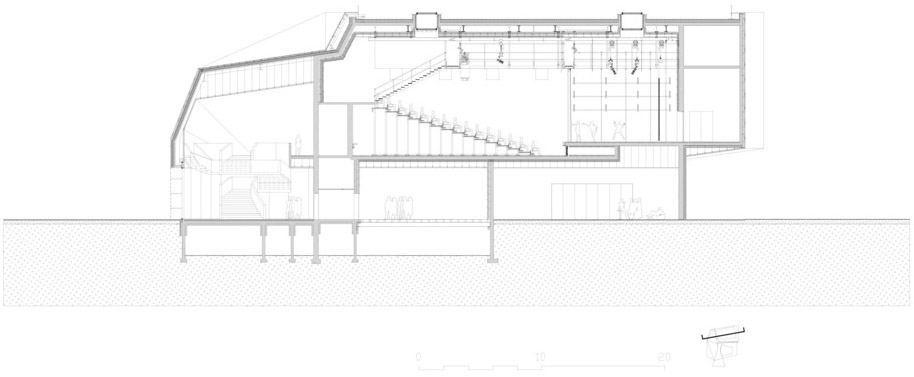

▼ 剖面,Section

Location: Évreux (Eure)
Client: Évreux municipality

Project management:
Lead architects: Hérault Arnod Architectes
Project manager: Camille Bérar
Fluids: Inex
Structure: Batiserf
Economist: Michel Forgue
Stage design: Ducks Scéno
Acoustics: Lasa

Area: 2450 m² + 570 m² covered linking areas
Costs: €8.5 million before tax
Timetable: Competition September 2008
Delivery planned: 2013

Concert room club (150 standing places + cafe restaurant)
Concert hall 600 standing places
Rehearsal studios
Office and radio spaces
Artists’ residence
Covered connecting areas
Images: Labtop-rendering

More: Hérault Arnod architectes. 更多关于他们:Hérault Arnod architectes on gooood.
