非常感谢Oscar Pedros将以下内容授权gooood发行。更多请至：Oscar Pedros on gooood
Appreciation towards Oscar Pedros for providing the following description:

Carballo媒体中心位于西班牙西北部的Carballo村，是一座低成本高品质图书馆。图书馆在如今互联网电子时代通常被认为是书籍的坟墓，但是该图书馆力求避免这一局面，配备了大量多媒体和互联网端资料，在全楼各处植入互联网入口。当地的建筑环境并不优雅，因此设计师将图书馆设计成为一个外围封闭的建筑，同时在内部中心放置了一个开放阅读内庭院，这个庭院不仅是室内空间的延生，更是内外部空间比例与交互的关键。

“Thinking on a 21th. Century library -as a friend of mine would say-, is like wondering about a book´s cemetery”. At that point, all efforts must conciliate architectonic non-variable values as sequence, promenade and staying with immateriality brought by new technologies. There is no other solution than sharing jealously material space with virtuality to avoid Carballo´s newest building ending as book warehouse.The building is placed in Carba

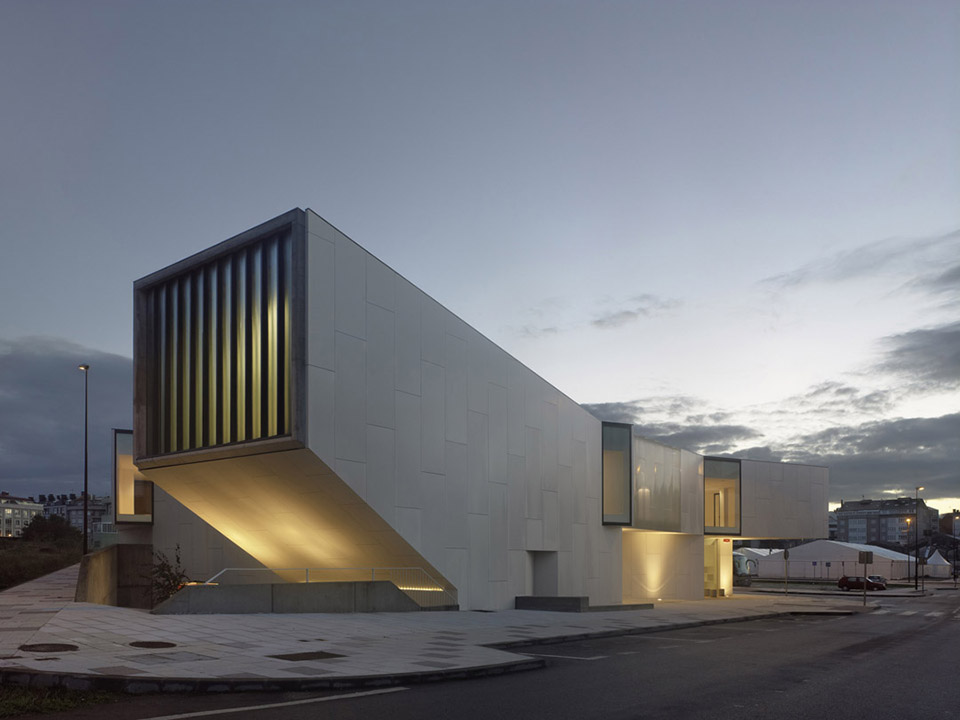

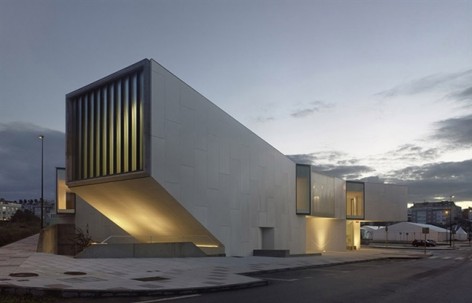

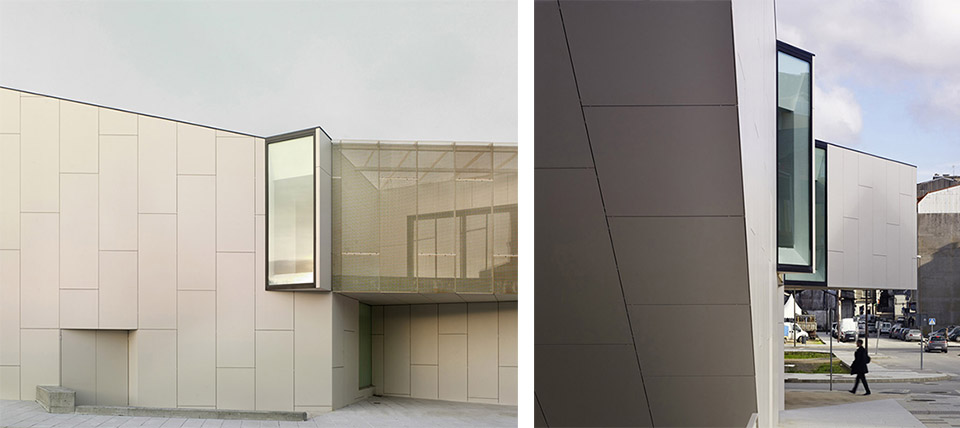

llo, a medium-sized spanish village (30.000 inh.), 35 km. far away from A Coruña, Galicia, Northwest Spain. Urban atmosphere is strongly rude, full of party walls and unfinished housing blocks. The building becomes quite hermetic and opens itself to an inner patio acting as an open space for reading.

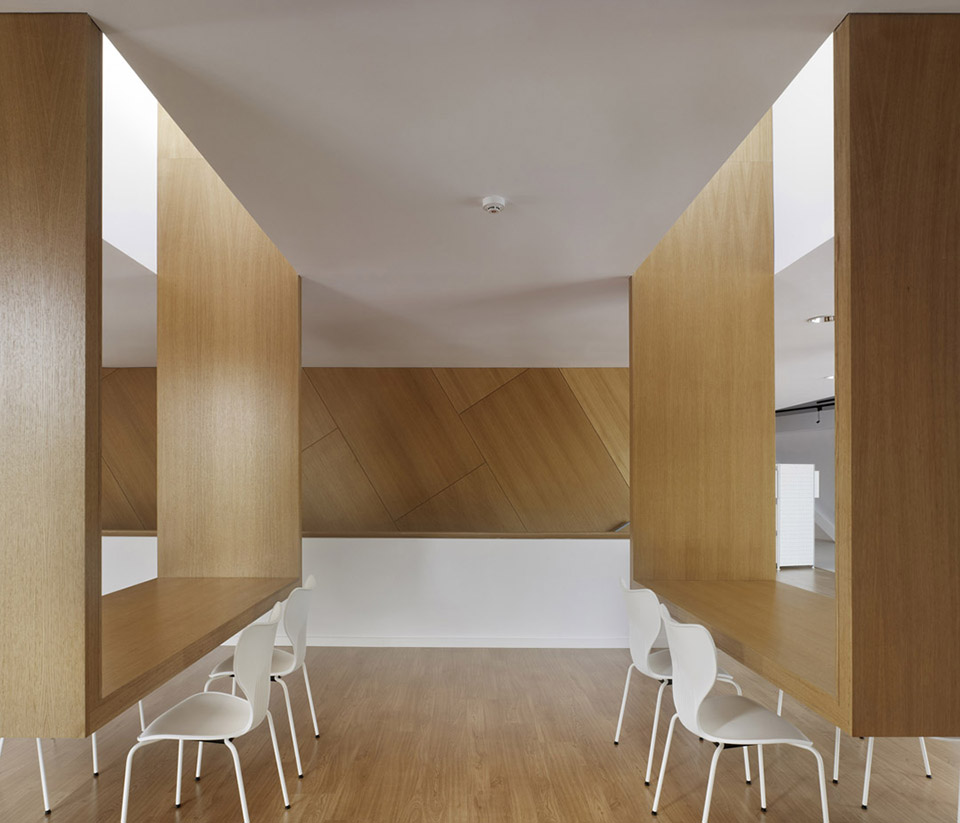

一层图书馆为O型布局，在两个楼梯的附近放置了U型上网桌面。二层是小说，漫画，影音媒体区，三层有一个倾斜的演奏空间，该空间的体量也反应在外部造型上—-一个突出的梯形立方体。呼应这个造型，建筑师在室外设计了一个室外露天剧场。

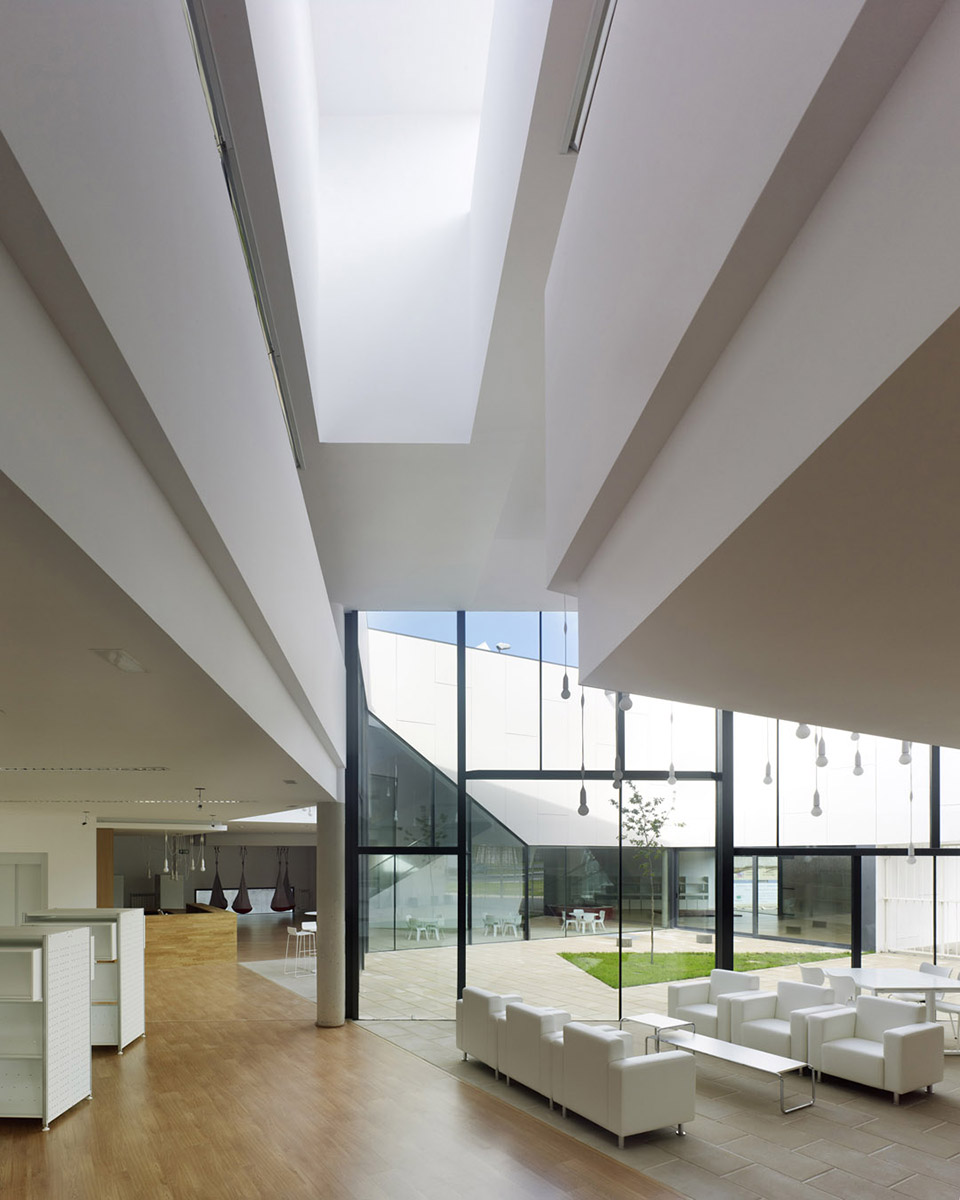

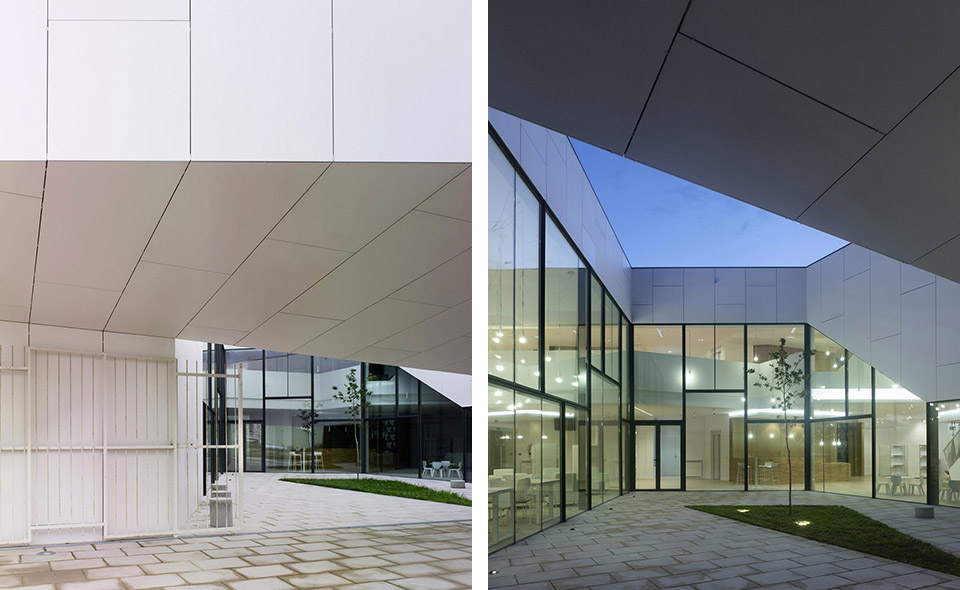

An U-shaped ground floor surrounds a central patio with controlled access from outside. This patio behaves as an extension of future public space northwards.

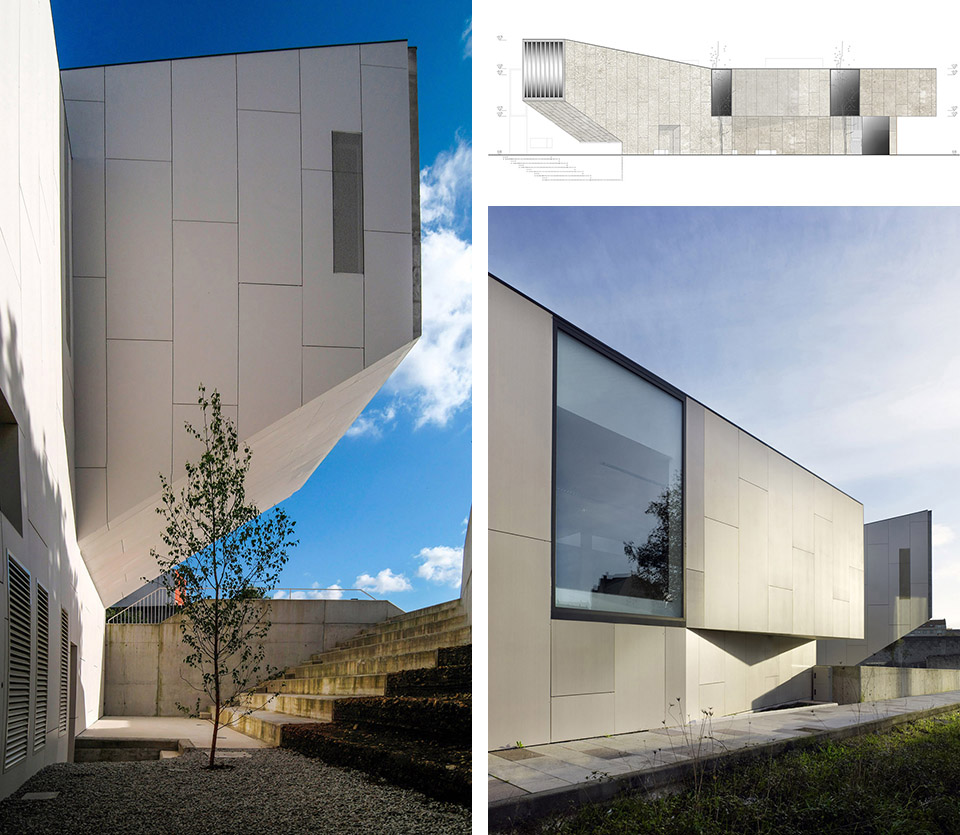

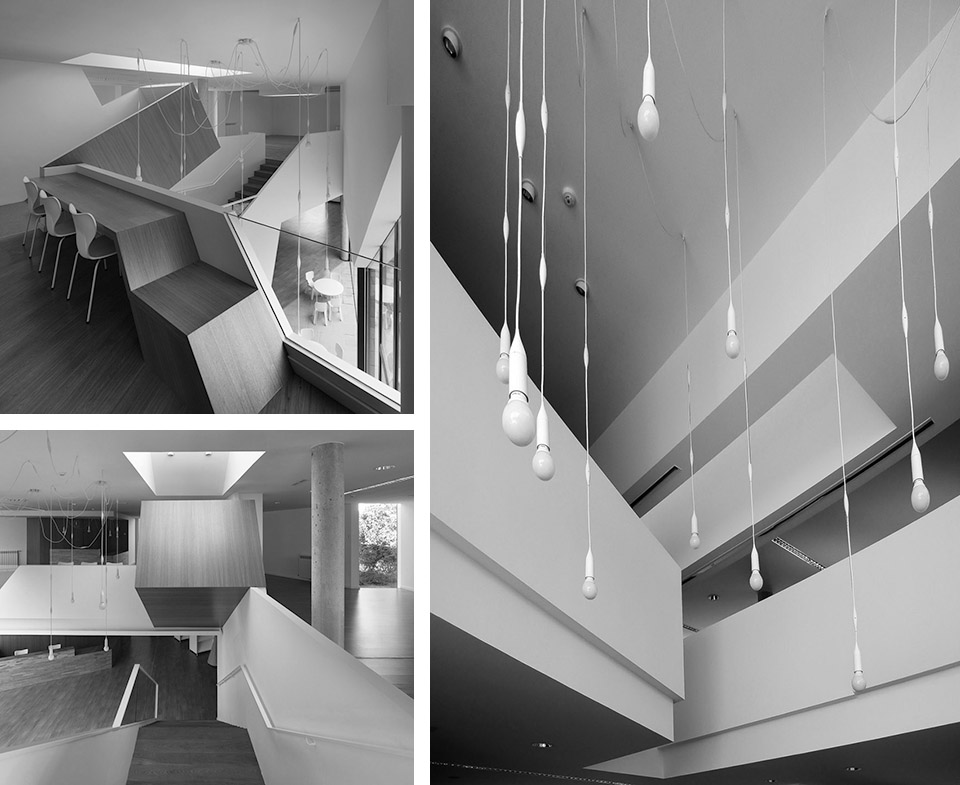

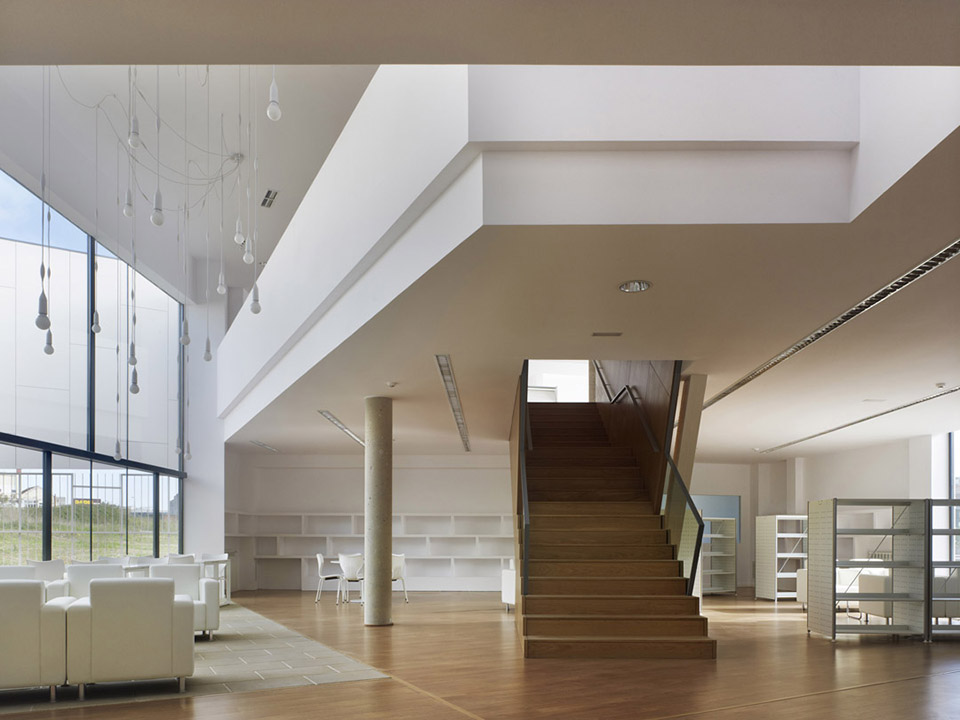

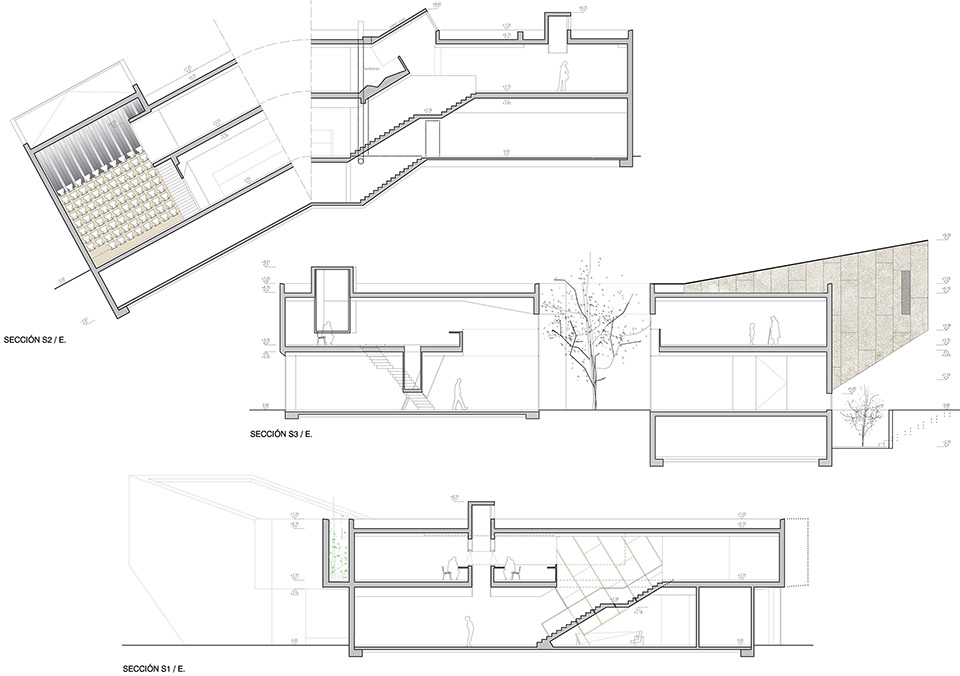

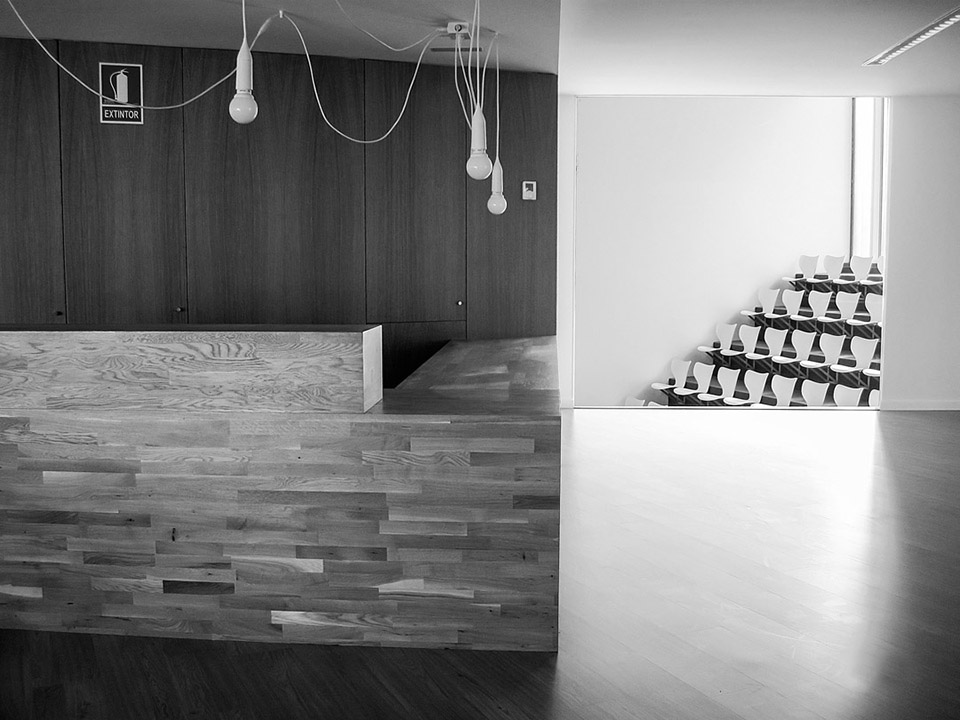

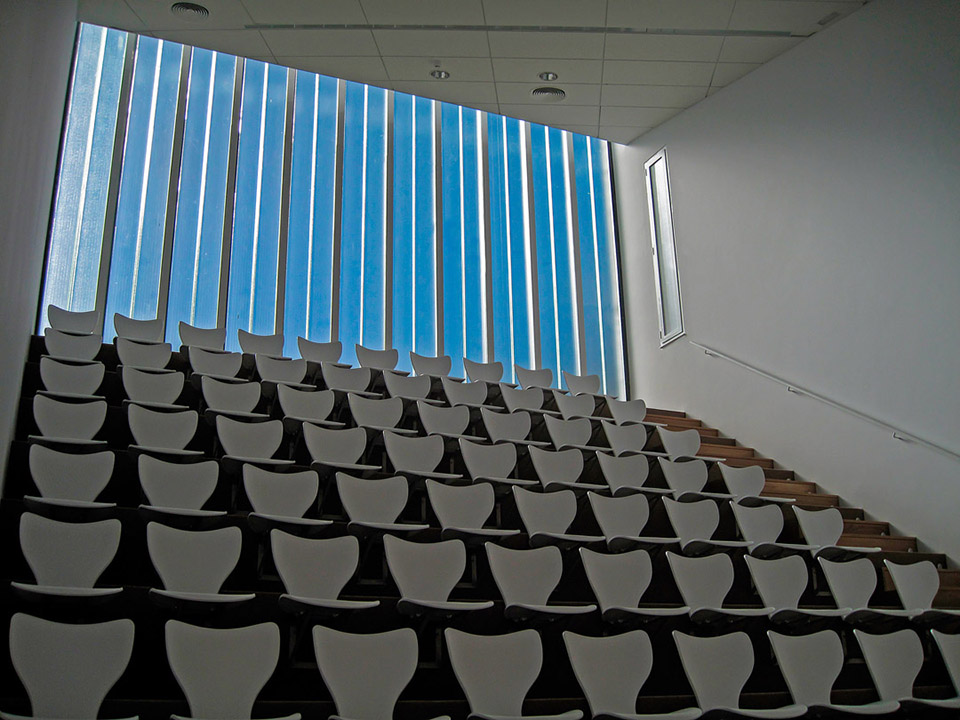

First floor closes itself in a O-shaped diagram. Media-readers access through two staircases placed on both ground floor U-wings, closing a spiral-path so movement and discovering inner space become a natural sequence. Teen/adult worlds converge in fiction and comic (N) and music & media (S). Third piece is a sloping recitals room & reader´s club. This piece is oriented west, covering an open-air space for performances.

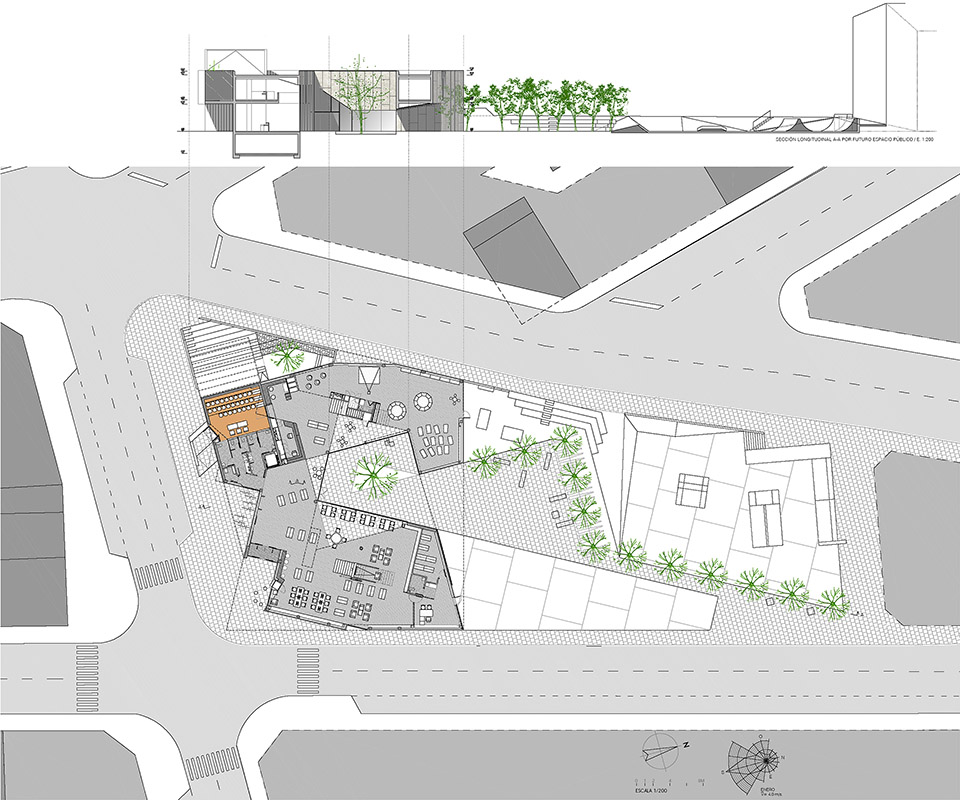

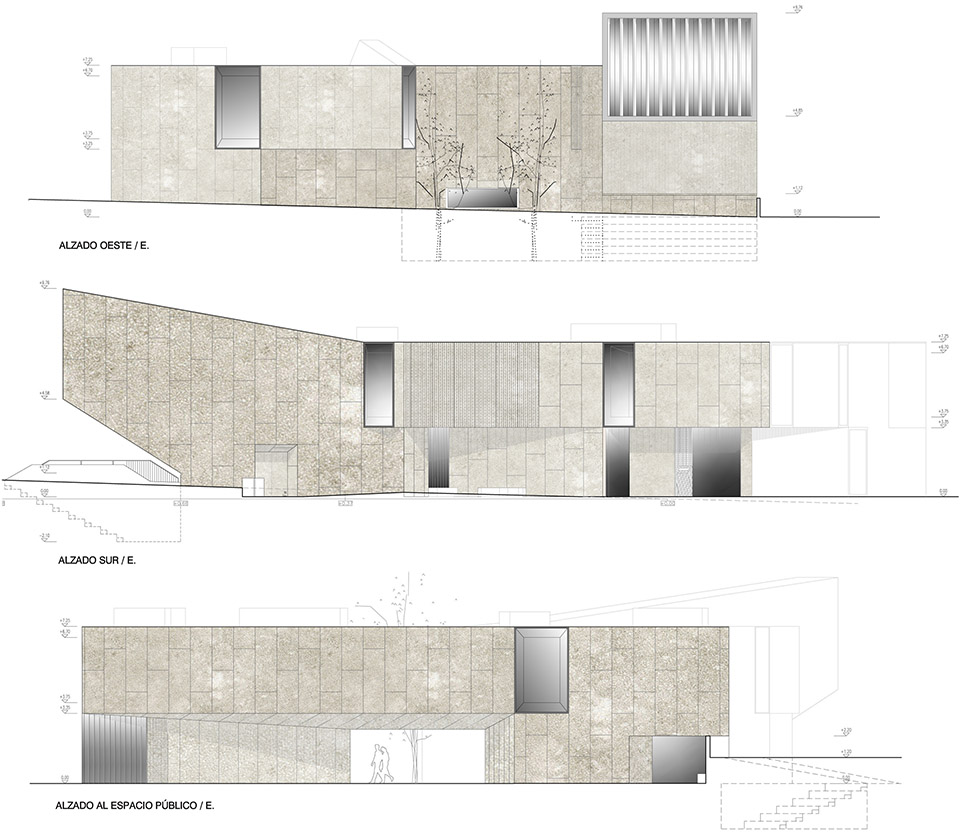

Floorplans are designed following the complicated plot´s geometry to get a better ratio of profit in relationships between inner and outer space, melting the threshold between them.The final budget (including furniture as shown i

n pictures and floorplan) was 764,00 €/sqm. Definitely low-cost architecture.

Óscar Pedrós, architect

COLLABORATORS:
Quantity Surveyor: Jesús Gende Gerpe
Construction Management: Óscar Pedrós
Structure: E3 Arquitectos (Carolo Losada Soto, Francisco Carballo)
Installation: Juan Seoane Ferreiro (INDUGAL)
Graphic Support: Alejandra García MacíasPROJECT DATA:
Title: Mediatheque in Carballo
Locatio

n: Rúa de Pontevedra S/N, Carballo, A Coruña. España (43°13′0″N 8°40′0″W)

Developer: Municipality of Carballo
Investor: Ministry of Culture, Spanish Government
Budget: 1.199.588,00 €
Area: 1.570,00 m2.
Ratio €/m2: 764,00
Constructor: Ogmios Proyecto S.L.
Year: 2013

PHOTOGRAPHS (please check folders for copyright):
Óscar Pedrós
Héctor Santos -Díez

MORE: Oscar Pedros，更多请至：Oscar Pedros on gooood
