来自 AMBAU Taller d’Arquitectes 对gooood的分享。更多请至：AMBAU Taller d’Arquitectes on gooood
Appreciation towards AMBAU Taller d’Arquitectes for providing the following description:

这间独特的loft公寓坐落于瓦伦西亚极富特色的居民区”El Cabañal”之内，不远处便是Malvarrosa海滩。这件顶层公寓所在的建筑相比其它传统的公寓楼而言并无特别之处，狭窄的楼梯连接着街道与公寓，而长长的进深使其中部房间必须通过天井通风和采光。厨房、卫生间等服务性的空间被置于建筑的后院一侧，而起外侧便是重新对外开敞的小天台。而在公寓中部，天花板将山墙一分为二，让坡屋顶下的宽阔空间不为人所知。

This peculiar and personal “loft” is located near Malvarrosa Beach, in the distinctive neighborhood of “El Cabañal” at Valencia City. The Origin house responded to the top floor of a very common type of town house between party walls. It’s accessed from the Street through a narrow staircase. The depth of plot required the existence of intermediate rooms that were illuminated and ventilated by a small courtyard; on the other hand, the kitchen and the “toilet” occupied the rear façade as attached parts, and connected through an ancient terrace that had been closed; Finally, throughout the house roof was a ceiling of plaster that hid the actual volume of the steep cover Gable.

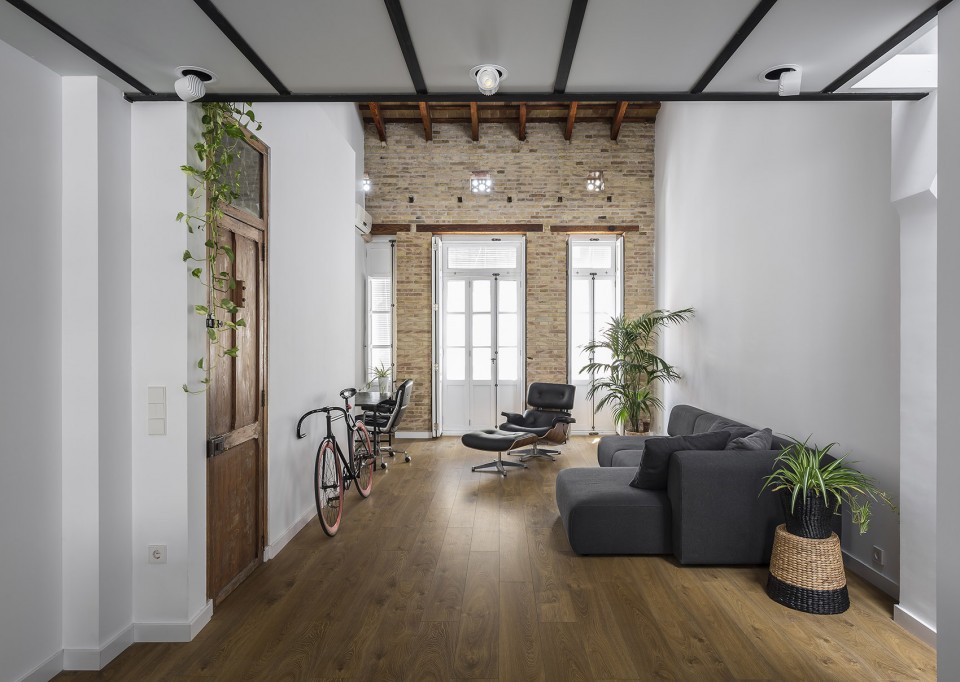

▼ 入口与客厅，entrance and the living room

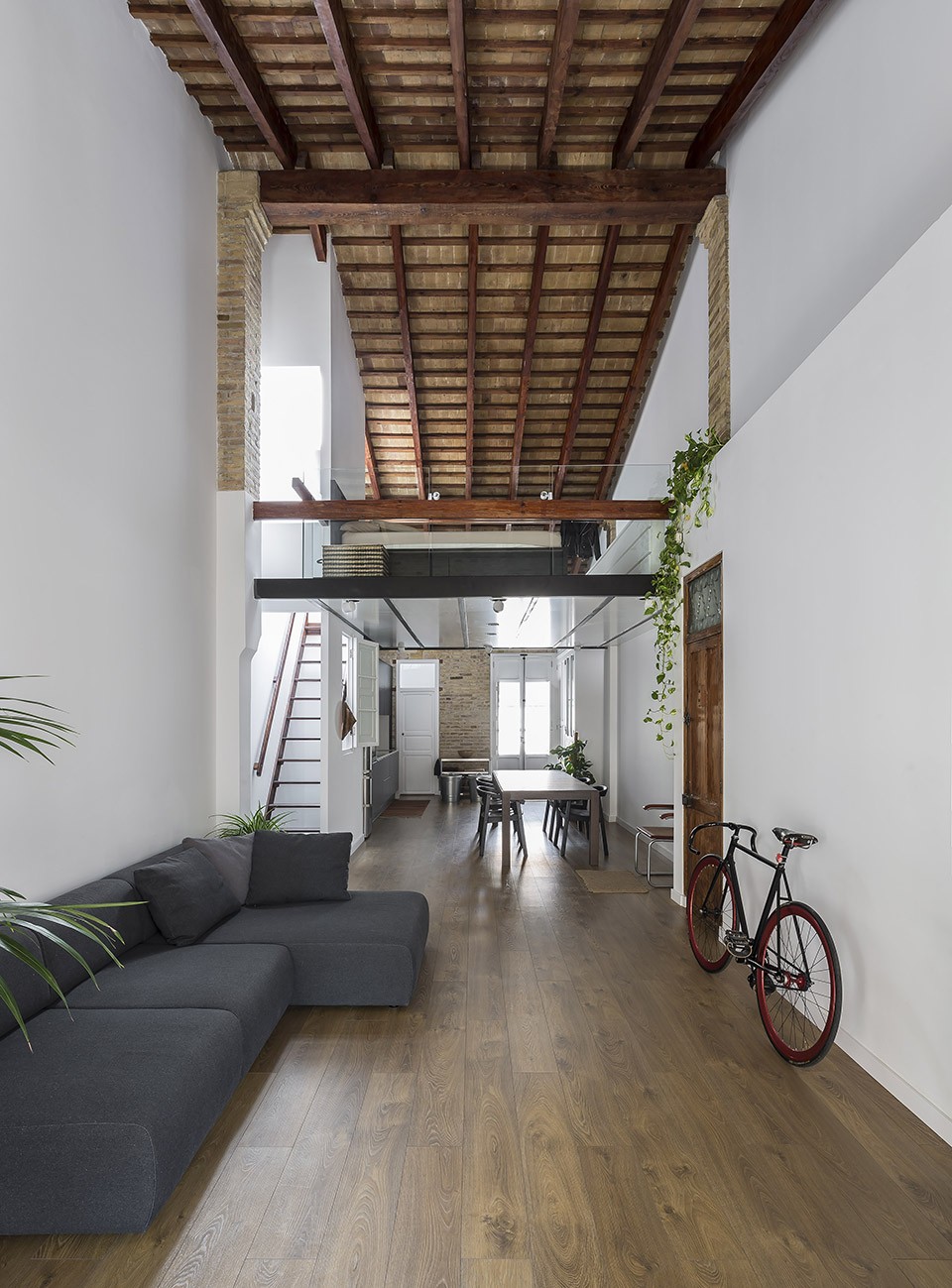

▼ 狭长的室内空间，a depth apartment on the top floor

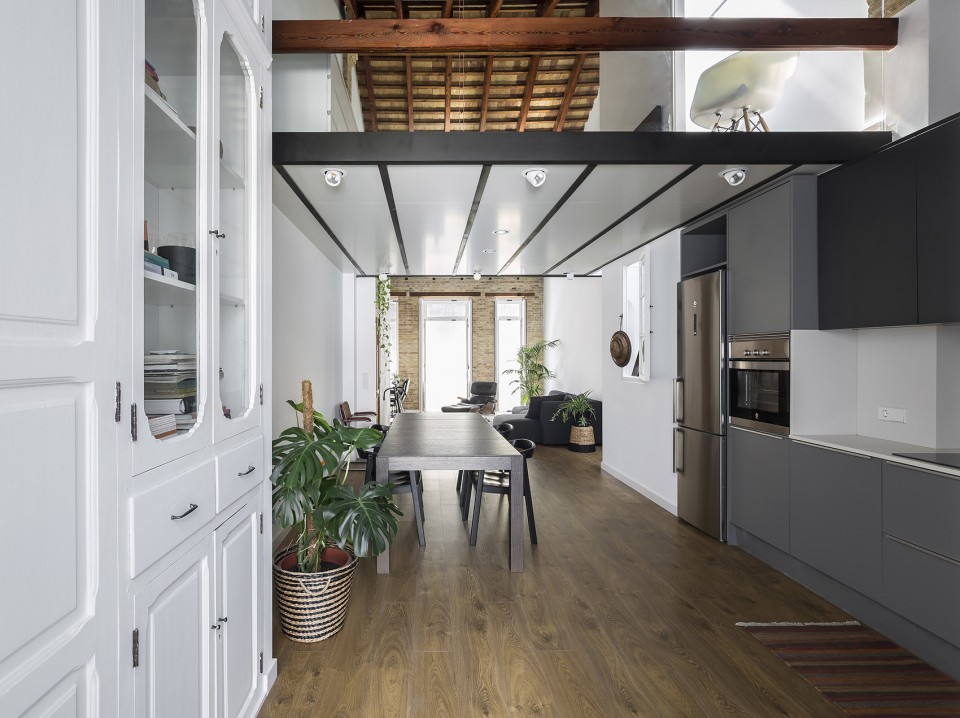

▼ 悬浮的阁楼楼板，阳光通过墙上的小窗照亮了餐厅，a slight ‘platform’ that seems to float in the middle of space

建筑师依据业主的要求，打造了这个完全开放的同时，拥有独立卧室和天台的小公寓。室内所有的隔墙都被移除，浴室成为唯一的封闭空间，而在开敞的内部，功能交叉重叠，一切皆有可能。

Based on a program of basic needs that requires the existence of a single room and a terrace, the project arises as a “loft” in which the only closed part is the bath. In this way, the original volume is put in prospective value: all the interior partitions are deleted to create a unique space where everything happens.

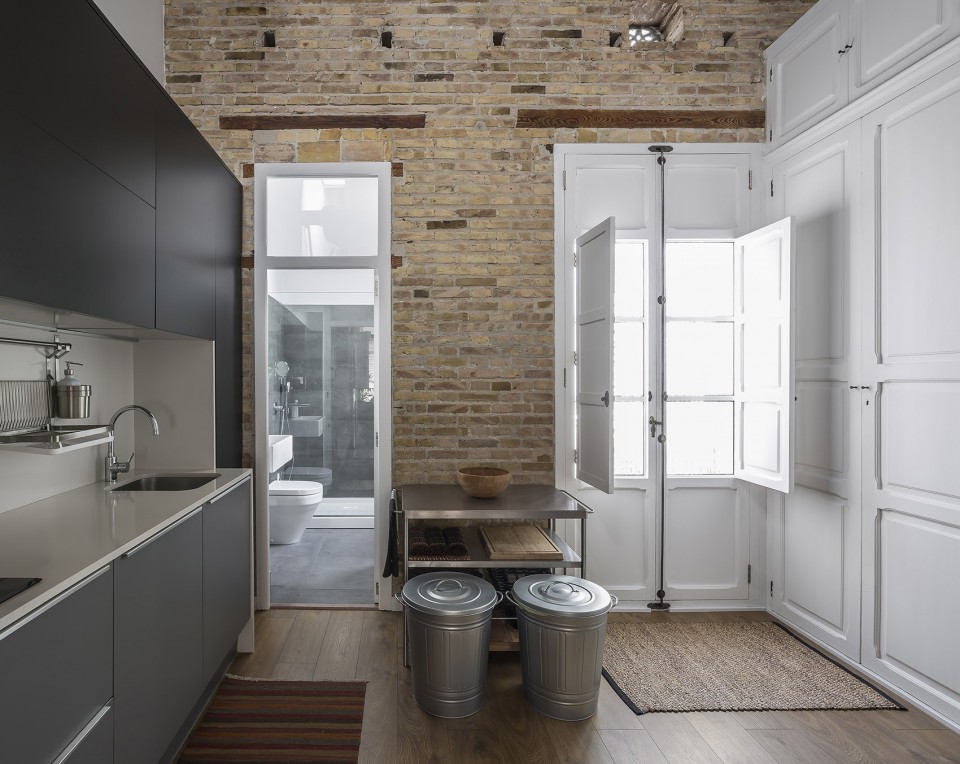

▼ 厨房，卫生间与通向露台的门，裸露的砖墙得到了完整的保留，kitchen, bathroom and the entrance of the terrace

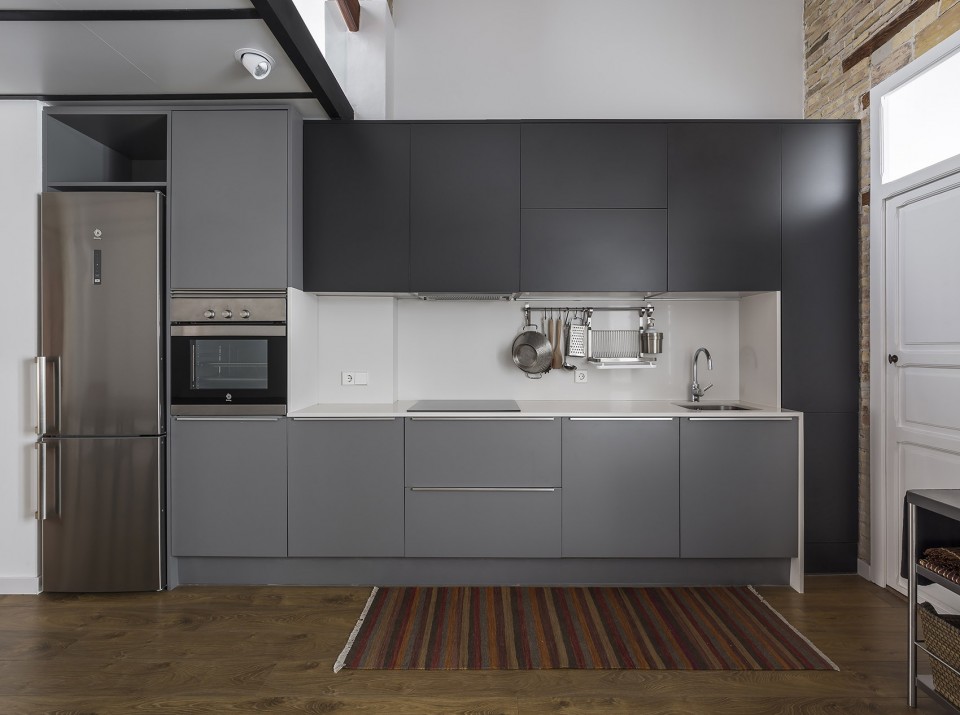

▼ 灰色的厨房简洁现代，modern kitchen in grey

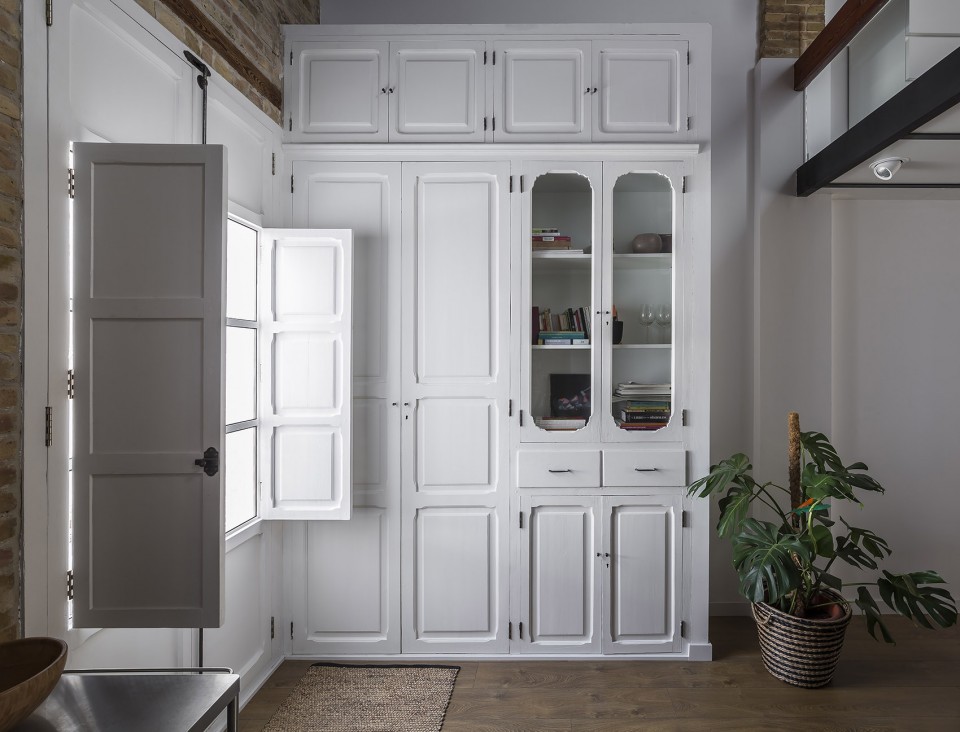

▼ 古老的橱柜被刷成白色，作为复合储物空间使用，the old cupboard is painted in white

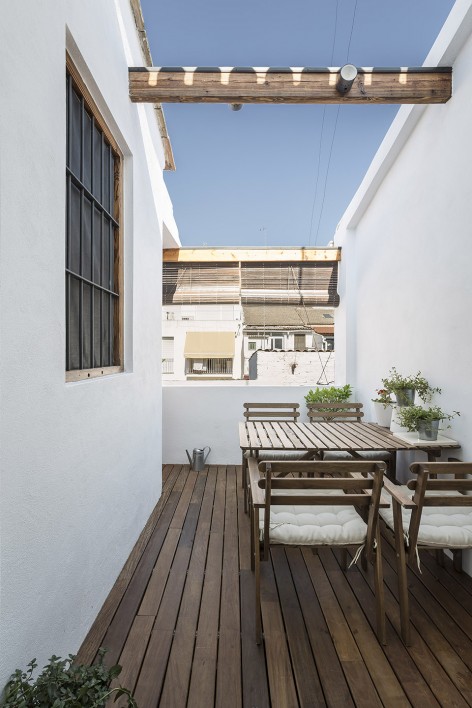

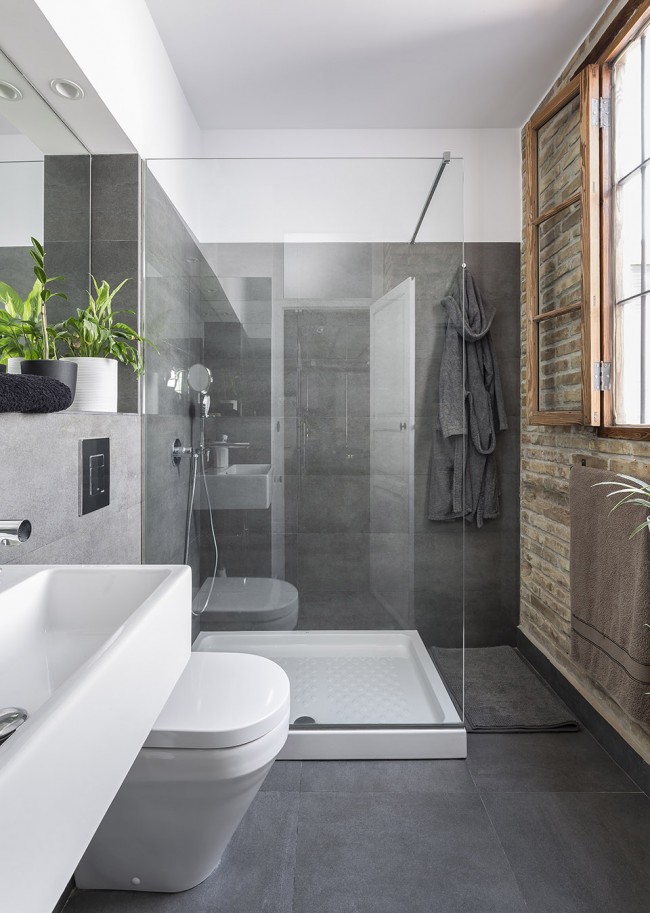

▼ 卫生间与其外侧的露台空间，bathroom and the terrace

建筑师最重要的工作，便是决定所有结构、墙体的去留。而他们唯一增添的元素，便是悬浮于公寓中部，与原有结构的材料产生了有趣对比的阁楼楼板。

The fundamental work was based, therefore, on removing and choosing what is going to stay. We only added a slight ‘platform’ that seems to float in the middle of space and contrasts in materiality with the rest of the original constructive elements.

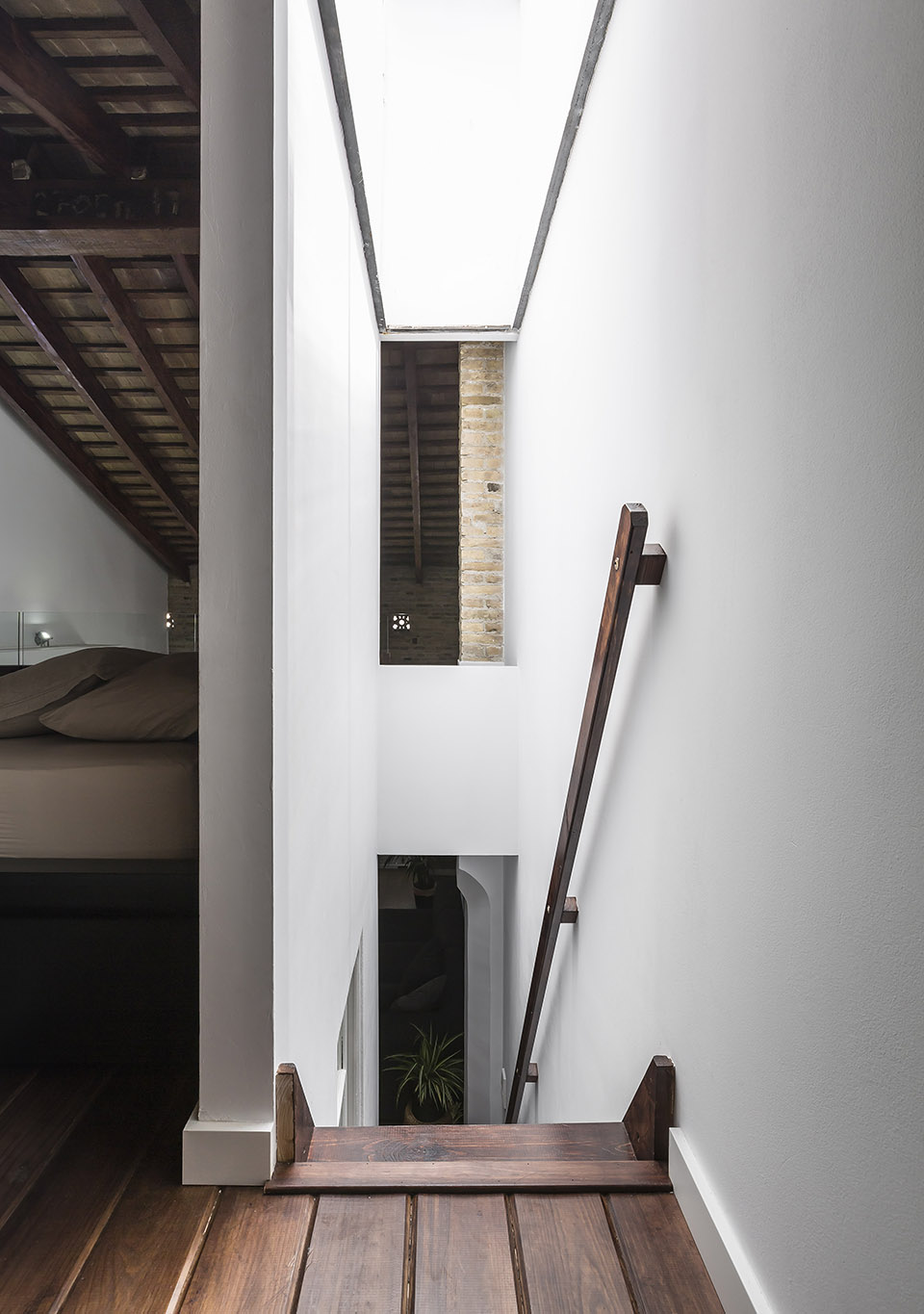

▼ 阳光从天井改造而来的楼梯上洒落，the small and narrow courtyard became a skylight

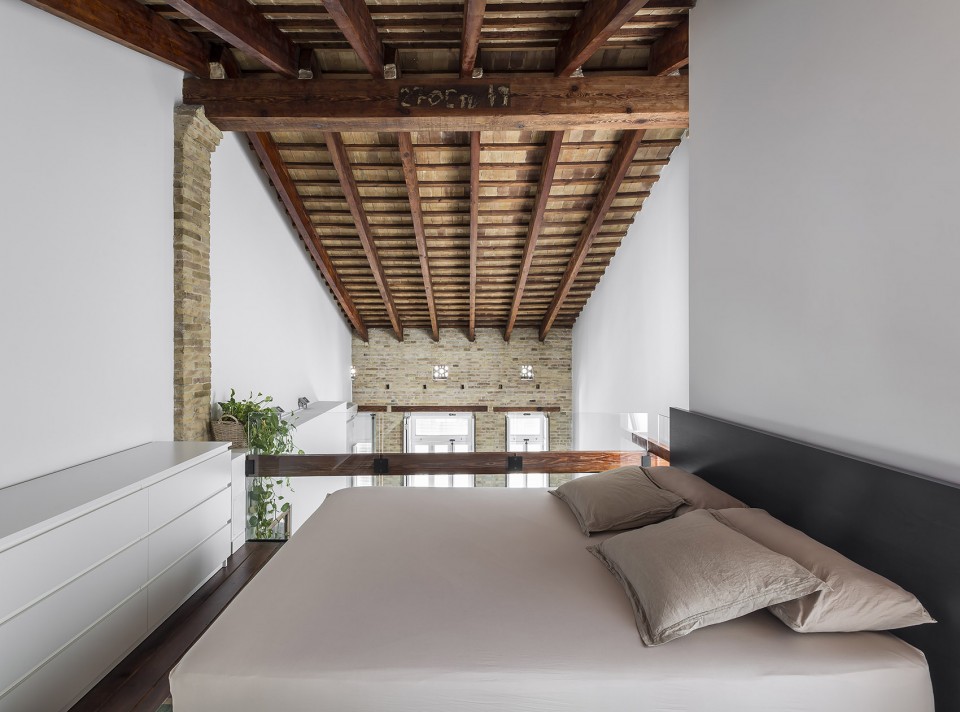

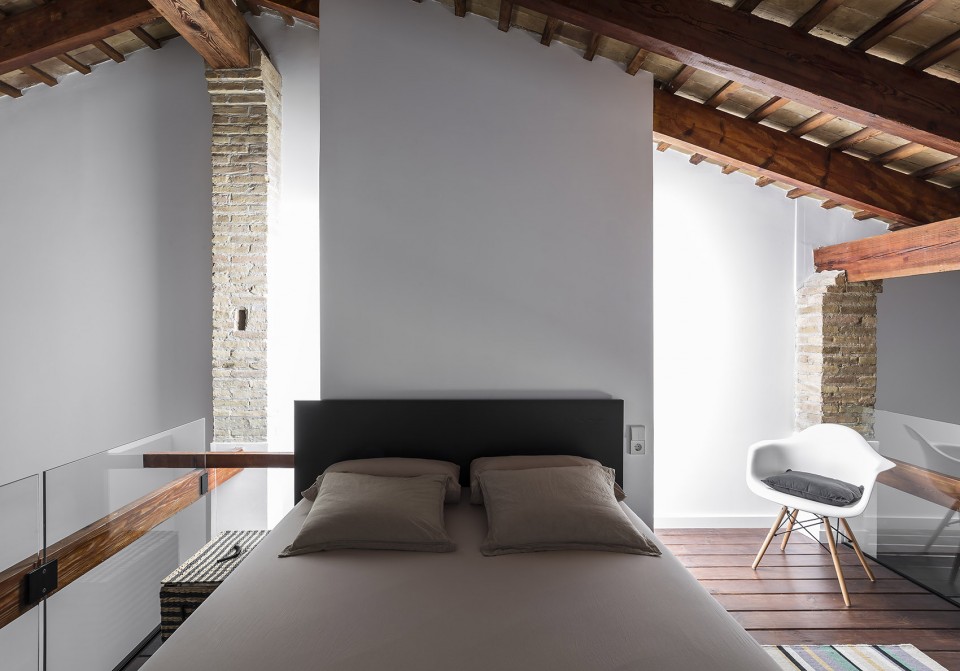

▼ 阁楼上的小卧室，bedroom on the attic

而通过保留、重现或再利用部分的建筑元素，建筑师成功地将公寓的过去与未来连接在了一起。前后侧墙壁的砖墙以原始的面貌重见天日，而屋顶的木结构则在清洁和修整后继续履行着职责；承重柱上的颜色划分以及保留的两根横梁暗示着曾经天花板的存在；保留的横梁与新增的玻璃墙面一起，界定了阁楼空间的范围；狭小的天井被改造为楼梯空间，阳光从天窗投射下来，通过墙面上留存的窗口，照亮了餐厅。被涂成白色的木质构件让房间显得更加开敞和明亮，古老的碗柜如今成为了集书架、衣柜、展示于一体的储物空间。一侧的线性厨房和浴室成为了特例，去除了所有材质、色彩和形状的灰色空间给公寓增添了一抹现代而干净的气息。

Certain elements were preserved and brought to light, or even “reinterpreted” with another utility, so the past and the future of the house dialogue calmly:
-The anterior and posterior walls were left in the original brick wall, and the entire roof of wood beams was cleaned and restored.
-The old ceiling line was drawn in the space through various resources: with a few light volumetric changes, remaining the height of the original plaster cladding on the pillars, and retaining the two main beams that supported it.
-This preserved wood substructure became the space limit of the attic which is the bedroom, as well as used as part of the new railing glass.
-The small and narrow courtyard became a skylight which illuminates the heart of the House. An old window was preserved as a decorative piece, at the time that brought light to the dining area.
-The ancient woodwork was restored and painted in white to bring more light into the space. An old cupboard became a key piece that serves as a shelf, wardrobe, pantry and warehouse.
-The new linear kitchen which was situated in one of the walls was designed by contrast in gray tones that highlights two volumes twinned with a modern and clean image which moves away from the textures, colors and shapes of the rest of preserved woodwork.
-In the bath a similar method was used: gray volumes and plains are opposed to the textured wall of the old restored window.

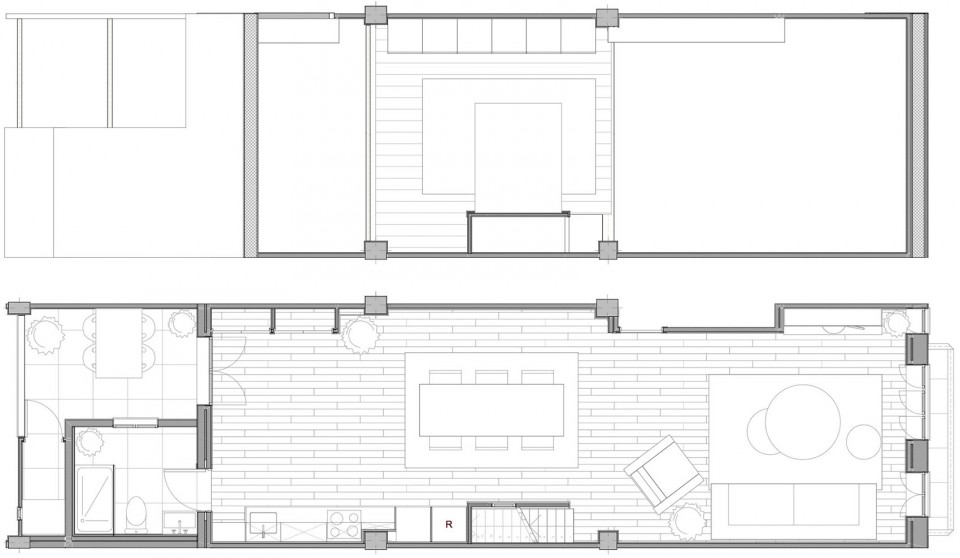

▼ 平面图，plan

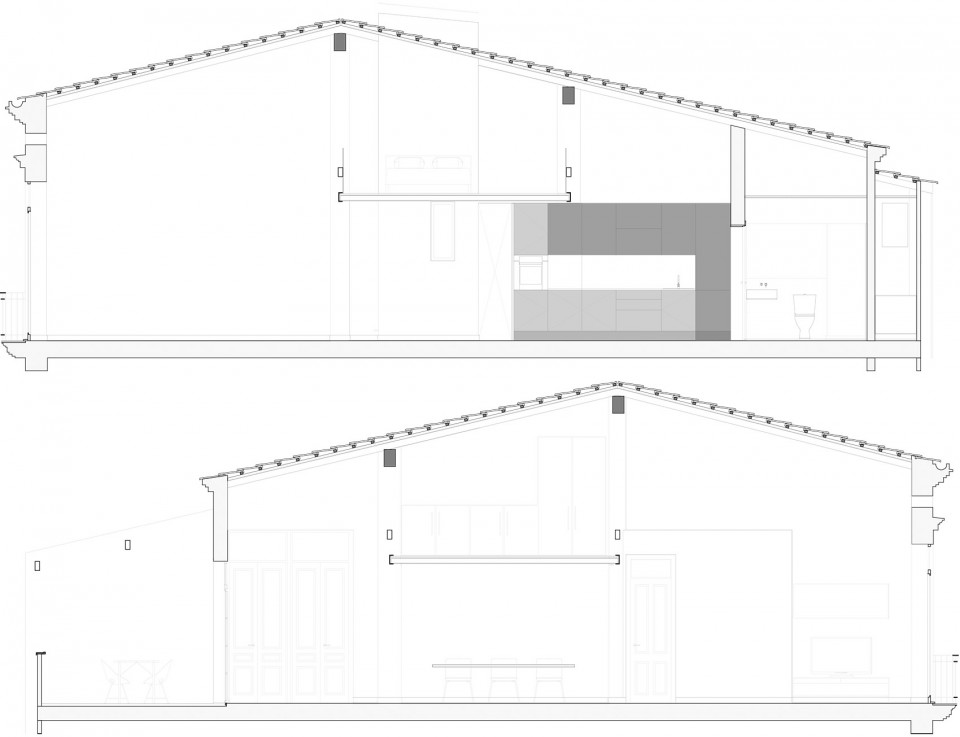

▼ 剖面图，section

Poject Information:
Location: Barrio del Cabañal (Valencia), Spain
Arquitects: amBau Taller d’Arquitectes working with Santiago García.
Surface area: 57+16 m2
Built: 2015
