非常感谢 赵扬建筑工作室 予gooood分享以下内容。更多关于他们：Zhaoyang Architects on gooood
Appreciation towards Zhaoyang Architects for providing the following description:

从下关一路向北蛇行的大理洱海生态廊道，经过洱滨村，就一直掩映在密林身后，跟洱海保持了相当的距离。将要接近葭蓬村的时候，它不得不避开密集的民房而转向一段开阔的岸线。葭蓬村驿站这块三角形的用地也就是因为廊道的这个扭转才被“挤”出来的。这个扭转所对应的转弯半径暗示了一种速度感。我们用一个曲面来呼应这种速度感，同时又隔离开廊道上往来穿梭的能量，在曲面的另一侧营造相对安静的氛围。

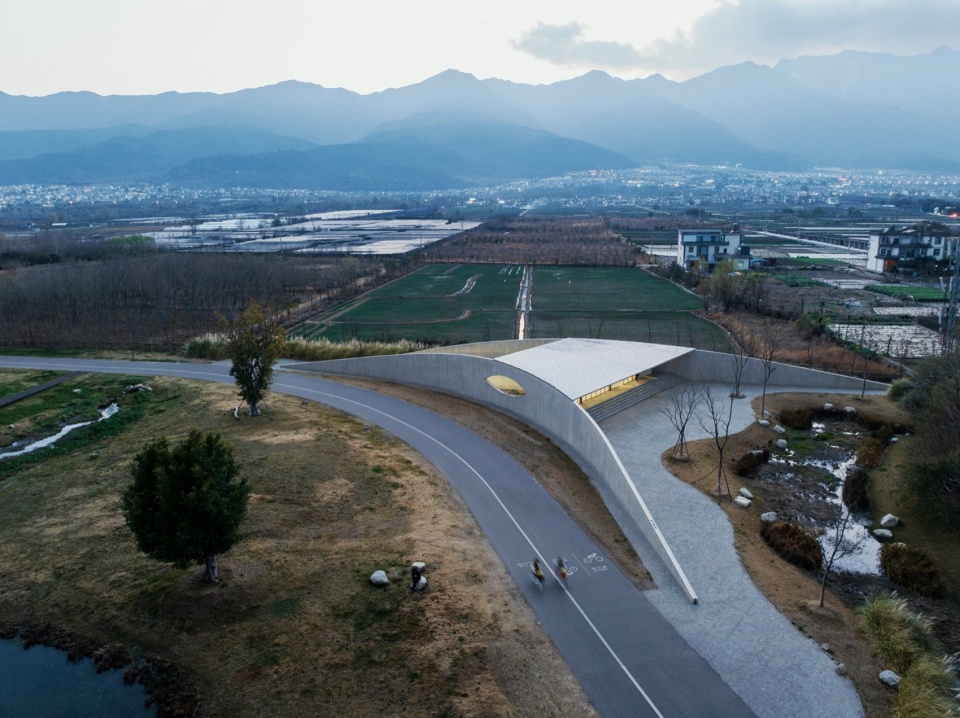

▼东北侧鸟瞰，Aerial view from northeast ©陈颢

▼北向鸟瞰，Aerial view from north ©陈颢

Erhai Lake Ecological Corridor in Dali aims to establish a healthy water-land buffer zone and ecological barrier, expanding the lake’s interactive interface for the residents and tourists. Along the 129-kilometer lakeside corridor, multiple service stations are planned. Zhaoyang architects was invited to design three service stations and two of them have been realized.

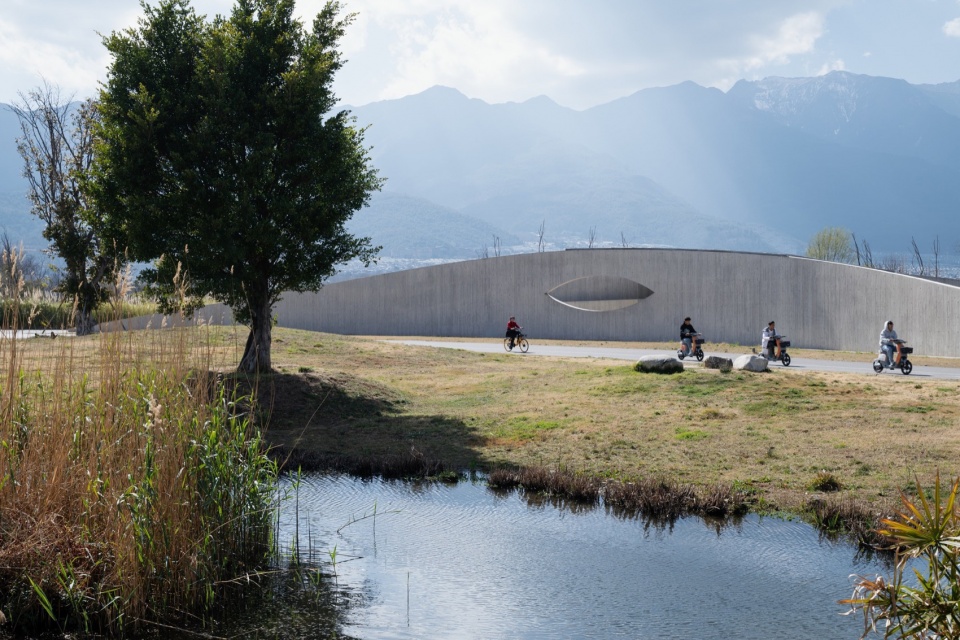

▼从湿地公园看驿站立面（下午的光线），Viewing the facade from wetland park（Afternoon sunlight）©陈颢

▼从东北方向接近驿站，Approaching the station from northeast ©陈颢

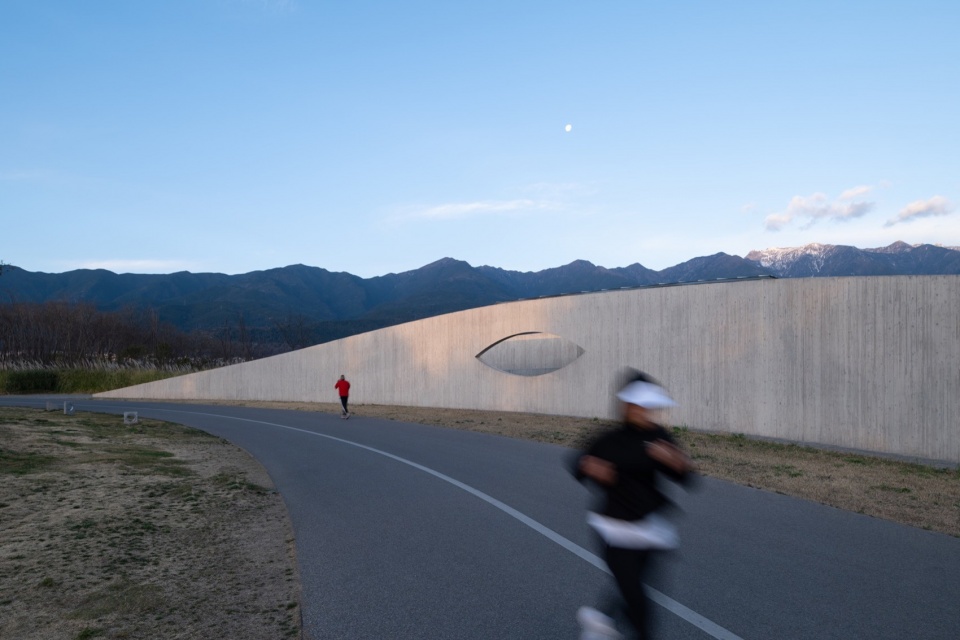

▼墙面与山景，Wall and the mountain landscape ©陈颢

弧墙的另一侧要为游人的停留和休憩做设计。我用一个咖啡馆把场地从北到南切分成三段。北侧是一个面对池塘和杂木林的广场，南侧是一个口袋形的下沉庭院，咖啡馆的界面是透明的，可以吸纳两侧风景。弧墙中部留出一个眼睛形状的开口，在视线上起到沟通内外的作用。

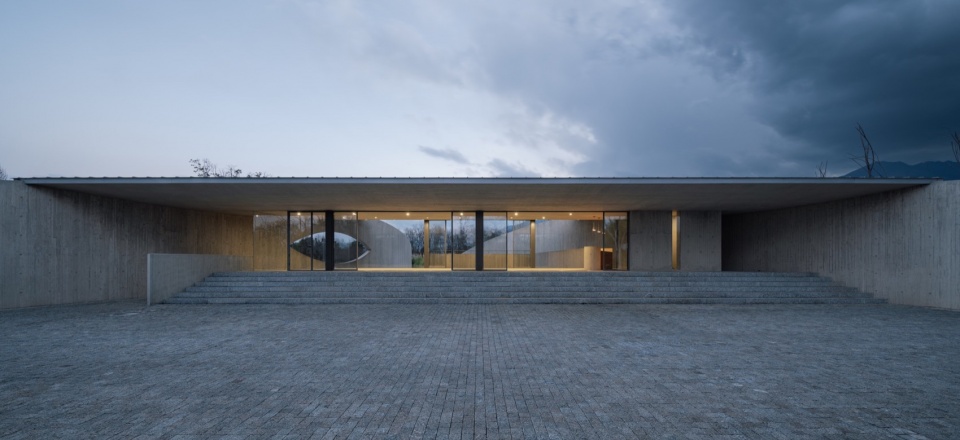

▼咖啡馆北立面，North facade of the cafe ©陈颢

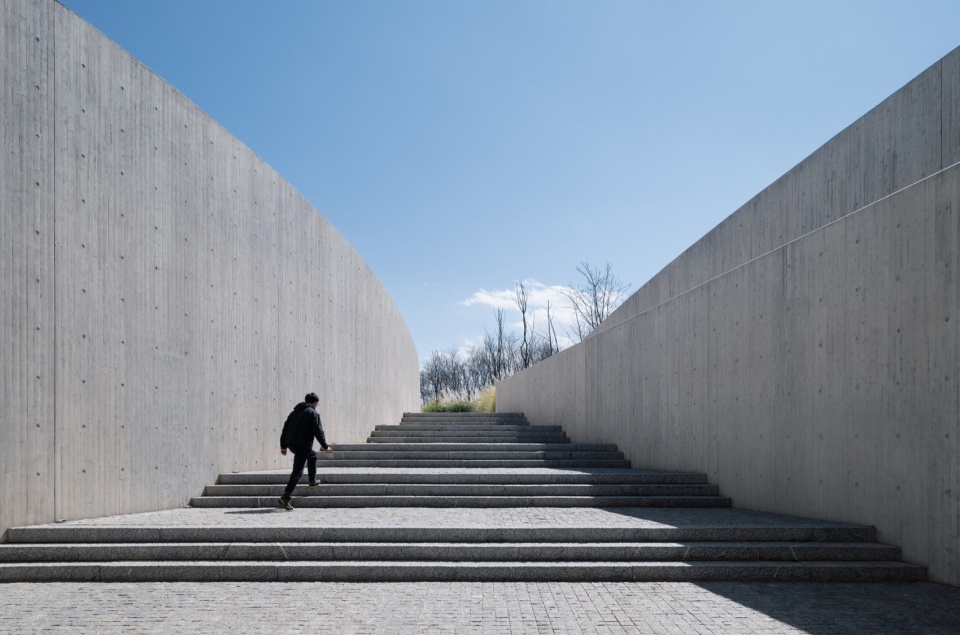

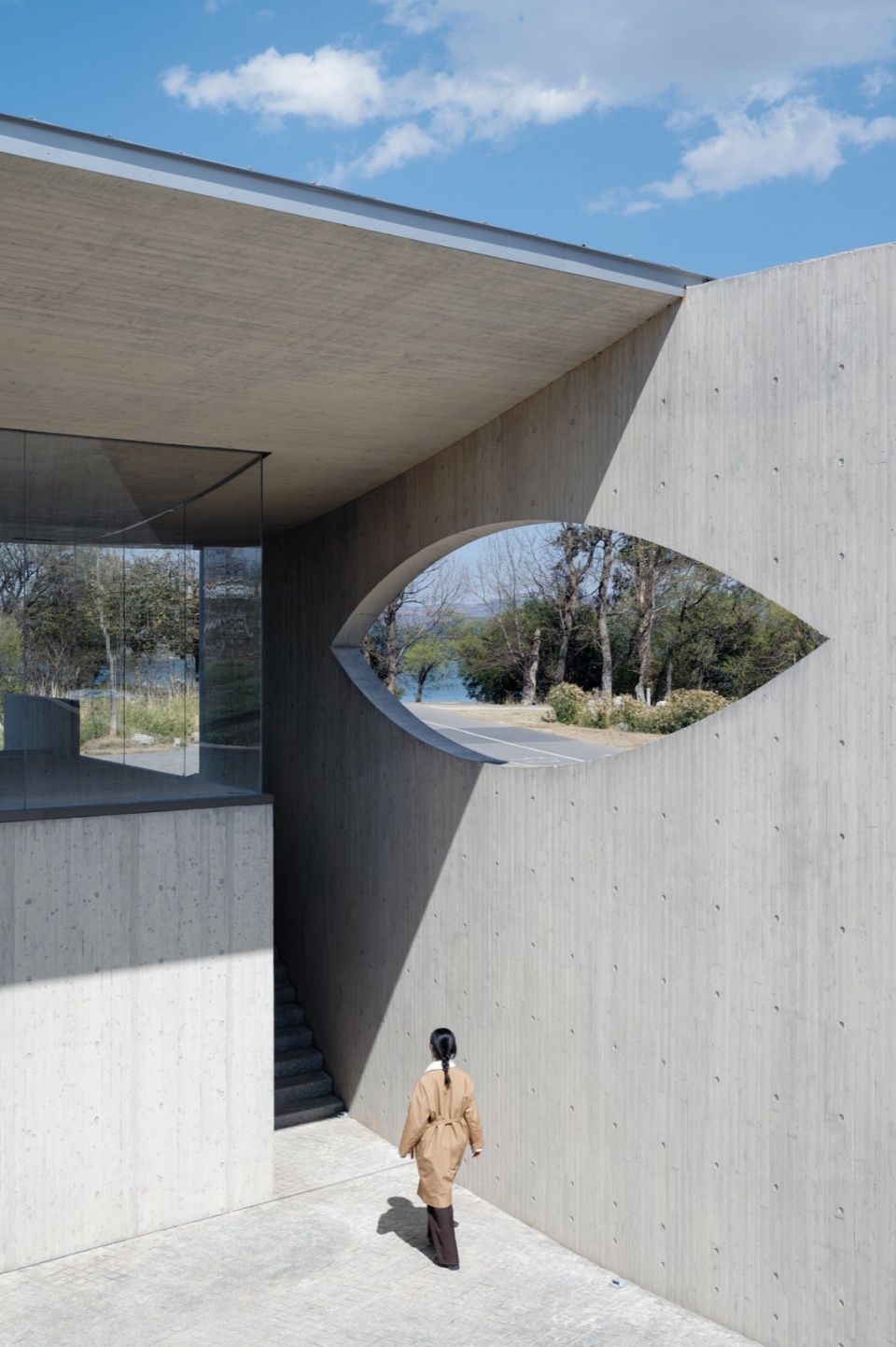

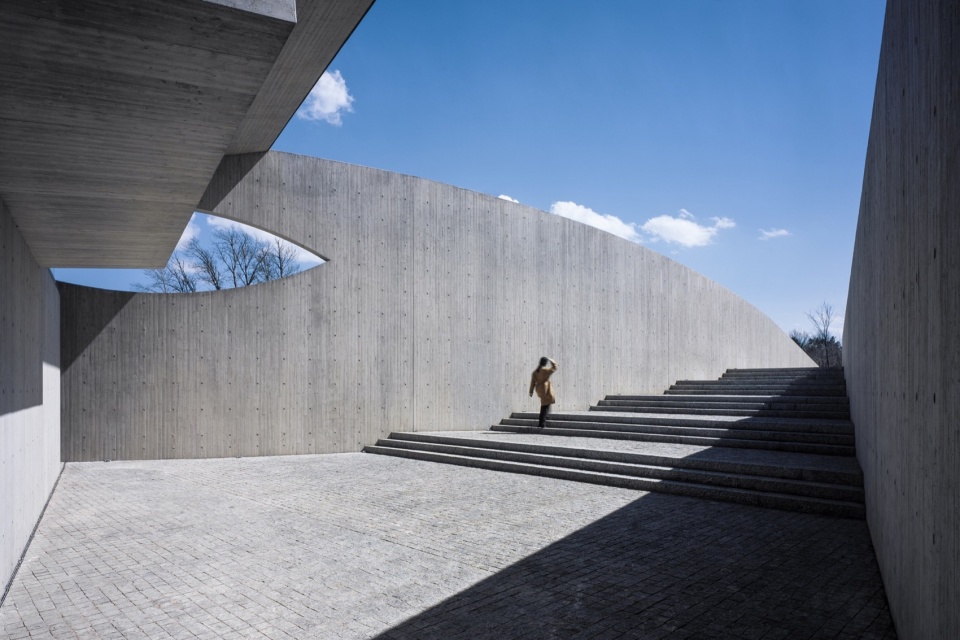

▼下沉庭院的台阶，Stairs of the sunken plaza ©陈颢

The Jiapeng village service station is located along the south part of the corridor, occupying a triangular shaped site.

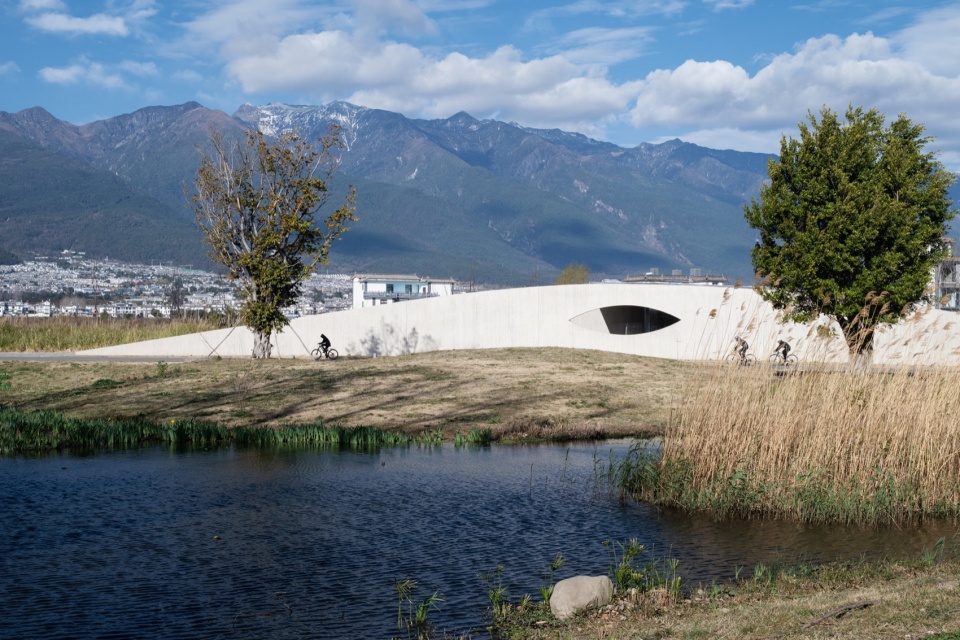

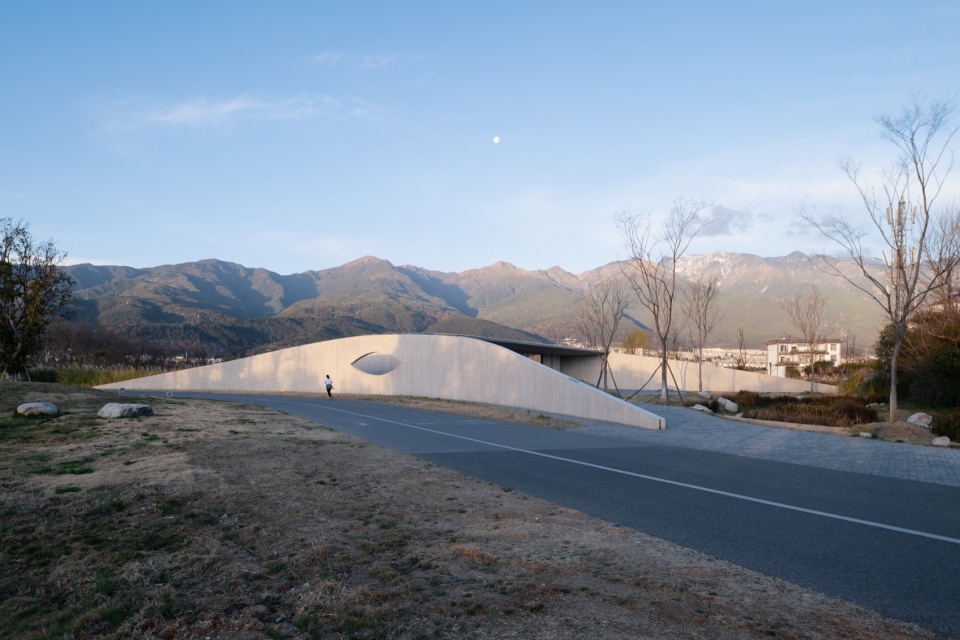

▼从湿地公园看驿站立面，Viewing the facade from wetland park ©陈颢

从廊道对面的湿地公园看过去，整个驿站舒缓地帖服在大地上，形成一个不争不强的中景。既是对湿地公园的空间限定和围合，也衬托着远处的苍山从山麓到山顶一层层逐渐隆起的轮廓。

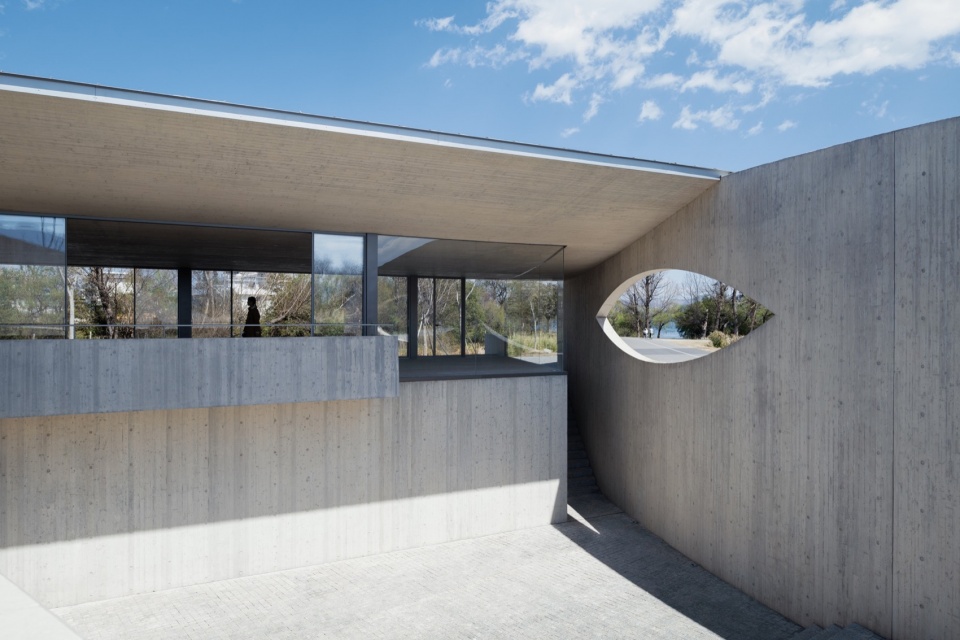

▼从坡道入口看咖啡馆南立面，Viewing the south facade from entrance of the ramp ©陈颢

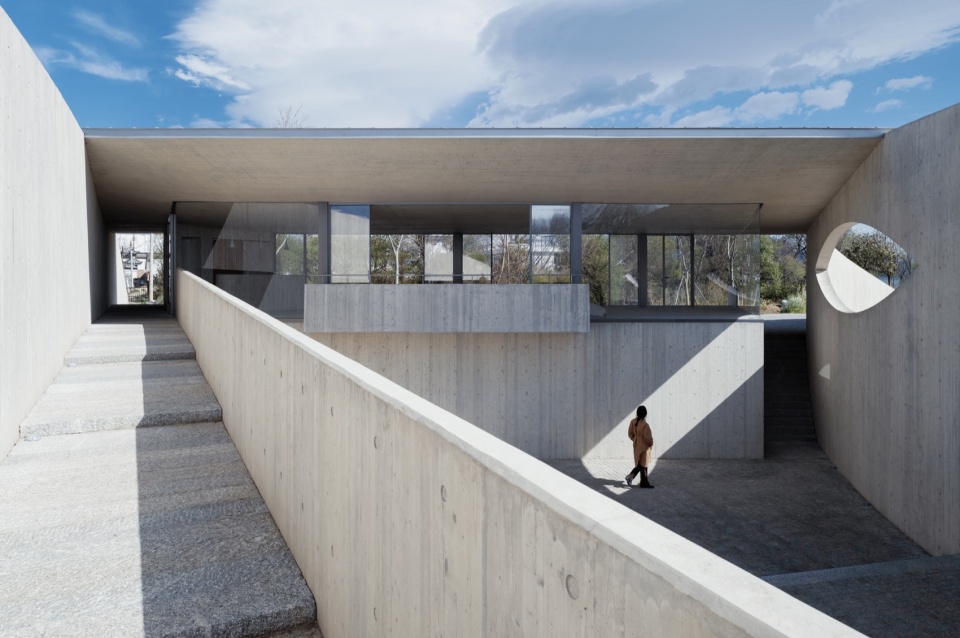

▼从南入口坡道看向咖啡馆，Viewing the cafe from ramp of south entrance ©陈颢

The building responds to the curvature of the corridor with a 80-meter long concrete wall, and creates a boundary between inside and outside.

▼咖啡馆吧台视角，Views of the counter of the cafe ©陈颢

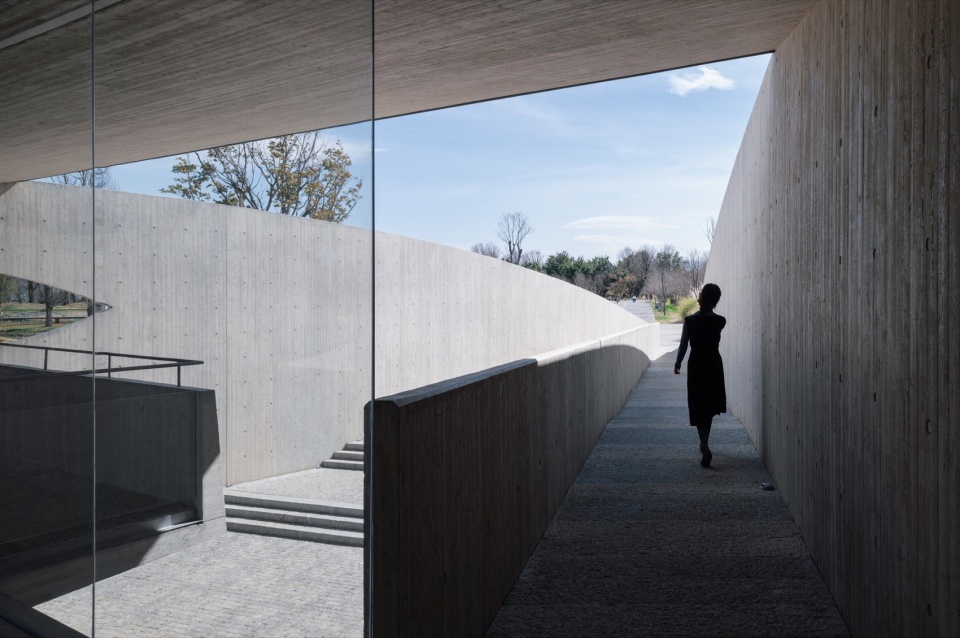

▼咖啡馆连接驿站南入口的坡道，Ramp connecting the station with south entrance in cafe ©陈颢

公共卫生间和厨房安排在咖啡馆楼下，和下沉庭院的标高相联系。为了弱化空间下挖的感觉，我们把咖啡馆的地面抬高了将近一米，这样就在咖啡馆、下沉庭院、北侧的小广场和廊道之间形成了不同的高差关系。

▼下沉庭院东北角，Northeast corner of the sunkun plaza ©陈颢

Inside of this boundary, the site is divided into three layers: a cafeteria in the middle, a plaza to the north and a sunken courtyard to the south.

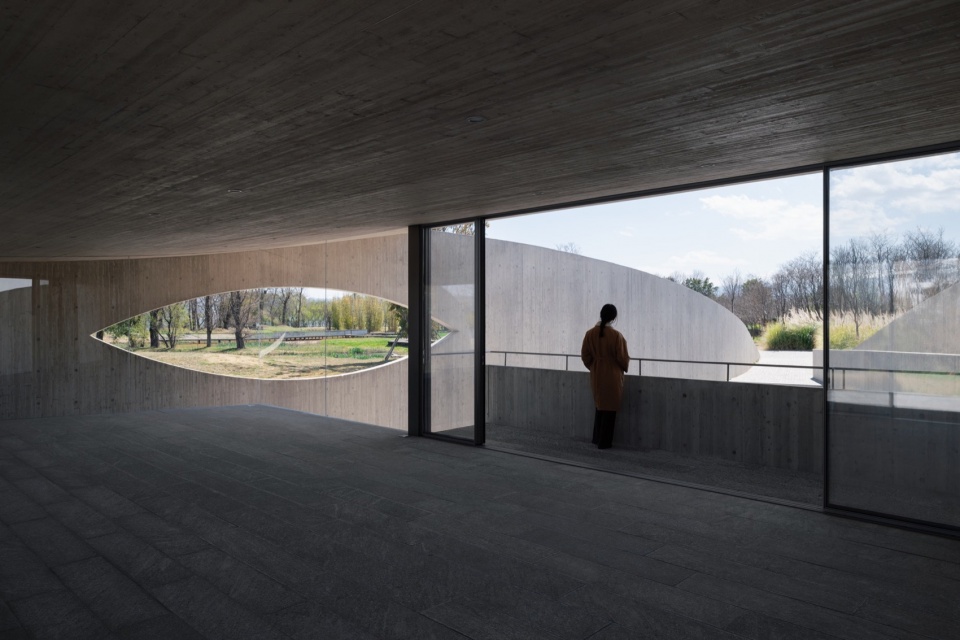

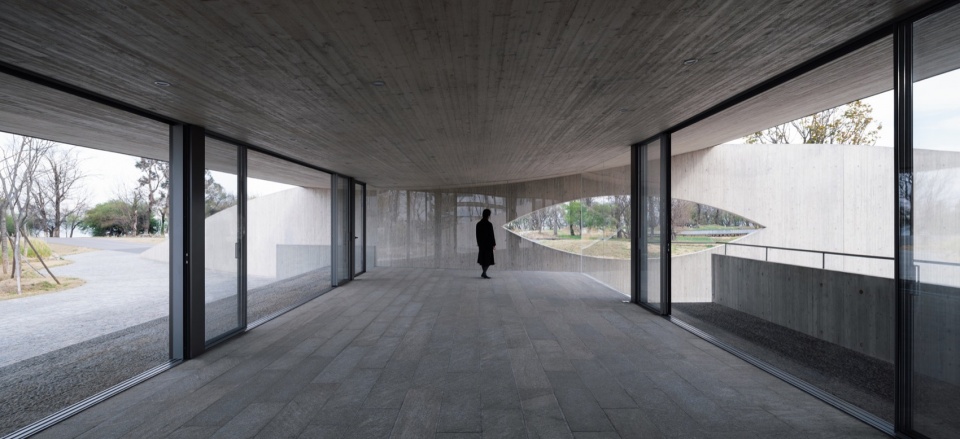

▼咖啡馆室内，The interior of the cafe ©陈颢

▼咖啡馆室内东南角，Southeast corner of the cafe ©陈颢

咖啡馆的顶面也处理成向下垂落的弧面，一方面呼应两侧墙体的轮廓，强化了檐下空间南北方向上的连续感，同时在结构上也为屋顶的反梁提供了足够的空间。于是，这两道弧墙夹举着光滑的弧形顶棚，定义了这个房子最基本的空间建构。

▼咖啡馆室内看苍山，Viewing the mountain from interior of the cafe ©陈颢

▼地下厨房入口回望，Looking back from the underground kitchen ©陈颢

Outside of this boundary, the rise and fall of the profile of this curved boundary echoes and even arouses the sense of speed when cyclists and joggers pass by.

▼坡道接近咖啡馆处，Part of the ramp closed to the cafe ©陈颢

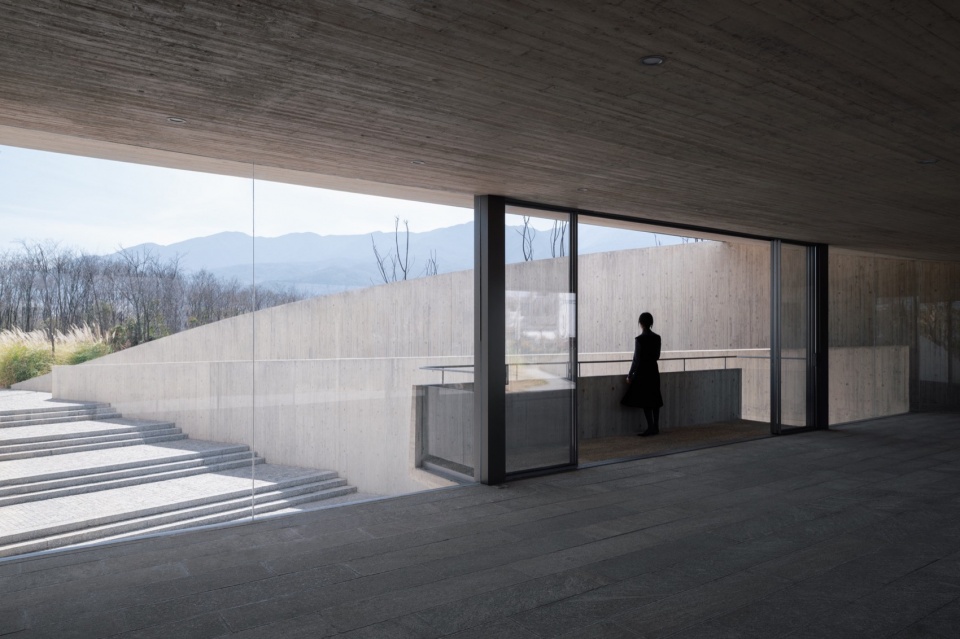

▼咖啡馆室内南望，Viewing the south view from the interior of cafe ©陈颢

紧贴着两道弧墙有两条路径南北穿越整个场地。靠西侧有坡道将地面缓缓抬升至咖啡馆，然后再从北侧的大台阶走到靠着湿地的小广场。从廊道东北方向接近时，弧墙弯曲敞开形成一个邀请的姿态，将廊道上的行人自然引入广场，咖啡馆的东头和弧墙之间是一段通往下沉庭院的台阶，同时也安排了进入公共卫生间的入口。

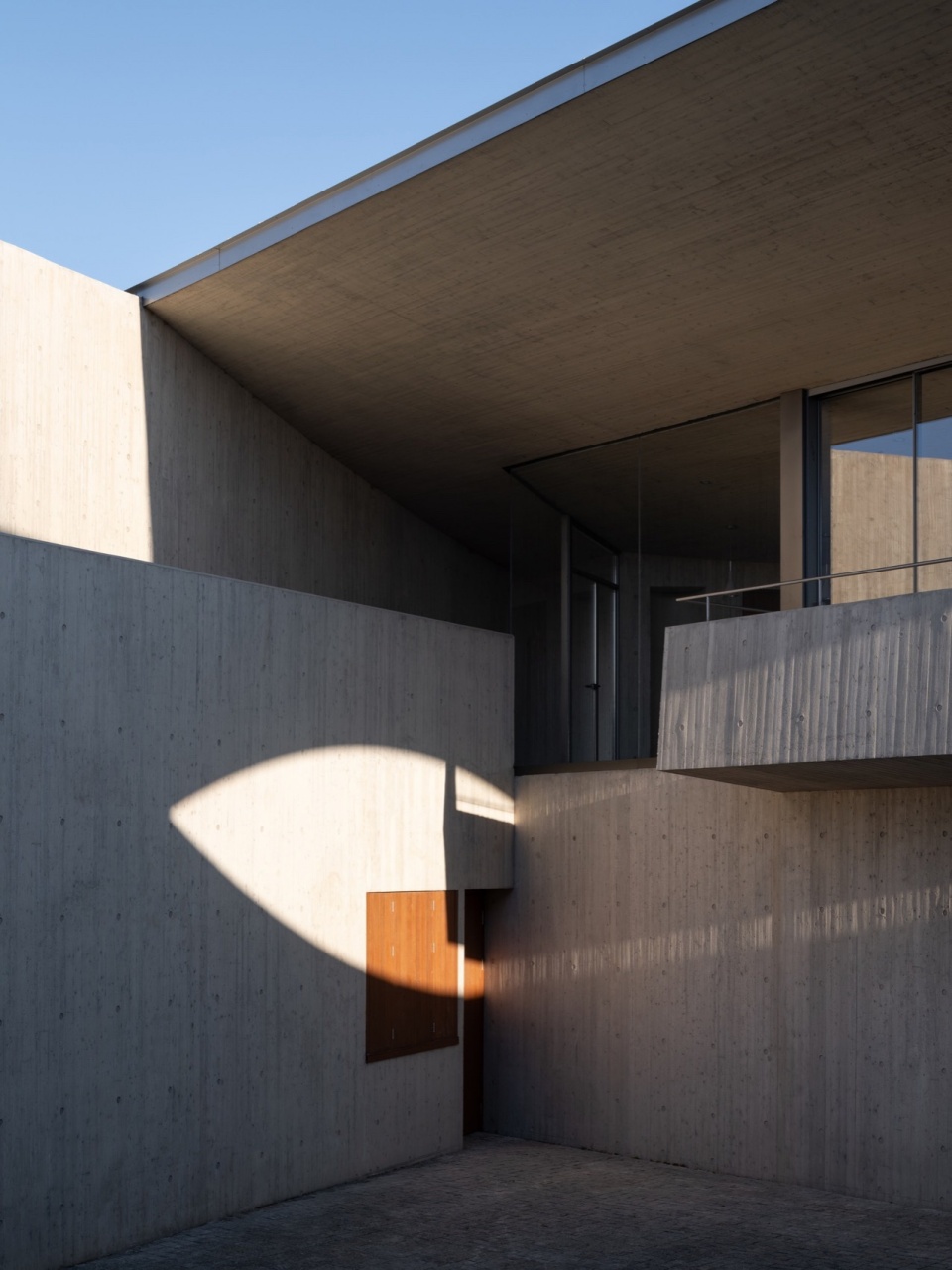

▼清晨摄入庭院的阳光，Morning sunlight in the courtyard ©陈颢

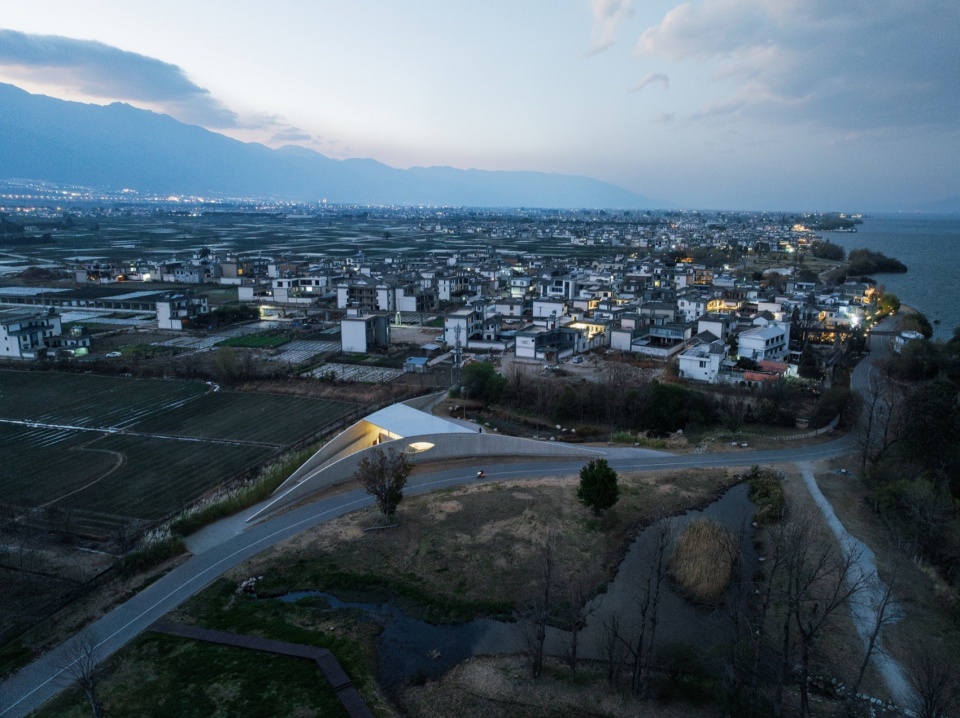

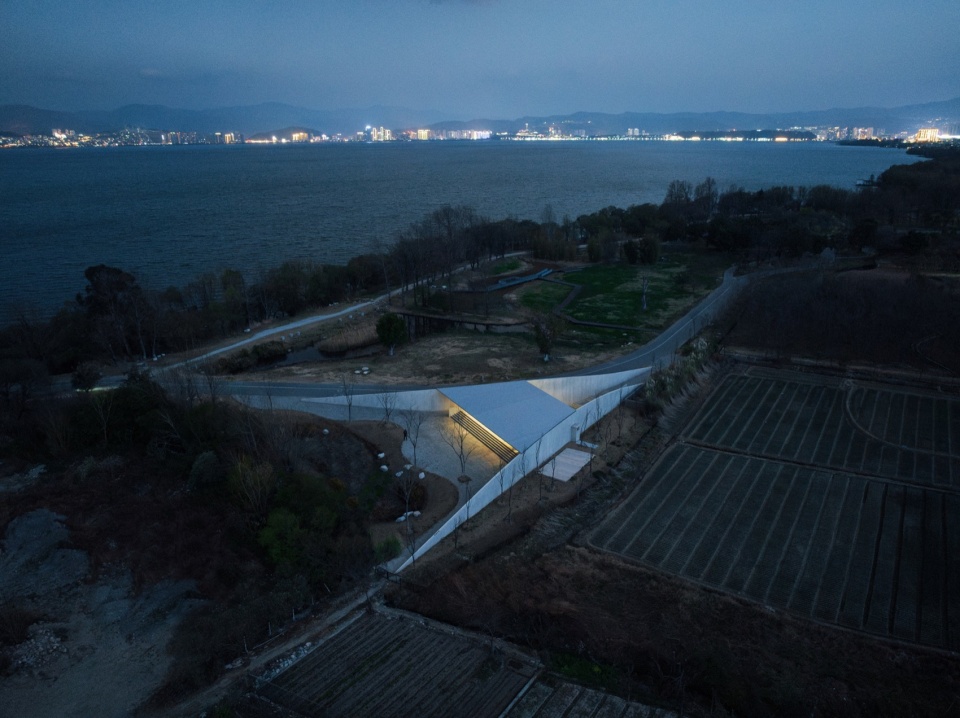

▼夜景鸟瞰，Aerial view in the evening ©陈颢

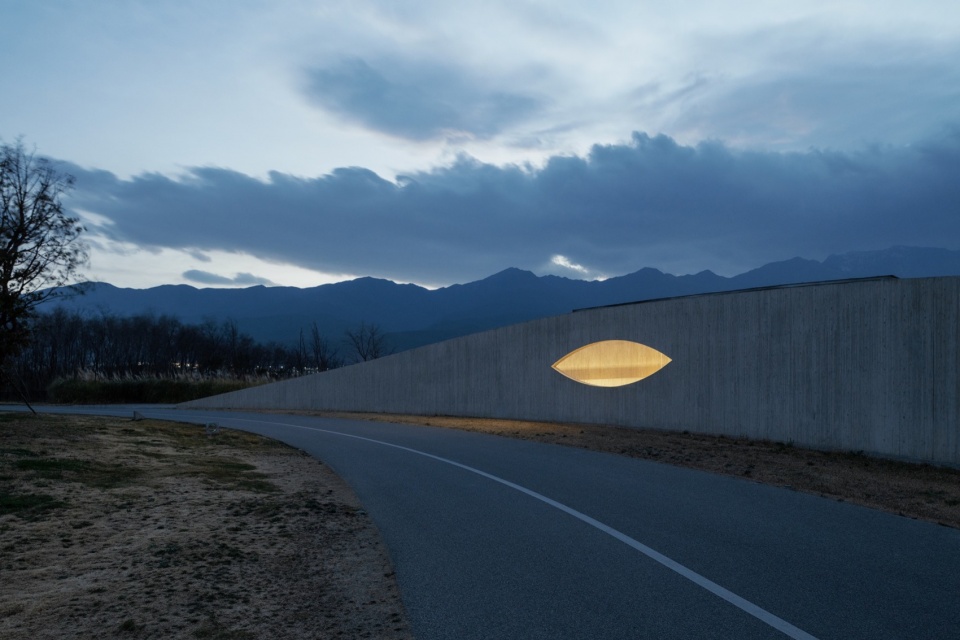

▼东立面黄昏，East facade at dusk ©陈颢

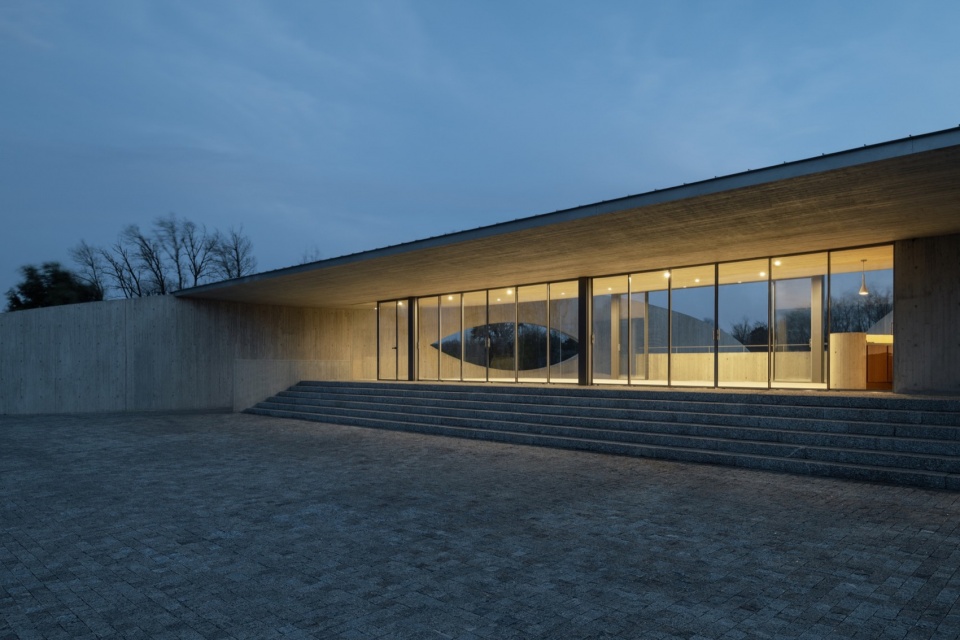

▼咖啡馆夜景，Night view of the cafe ©陈颢

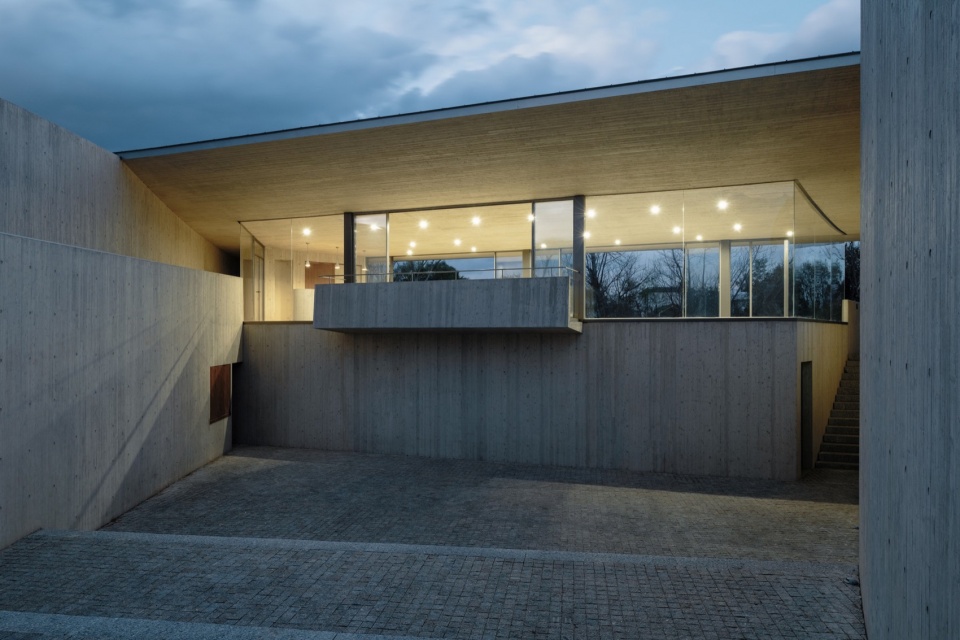

▼下沉庭院夜景，Night view of the sunken plaza ©陈颢

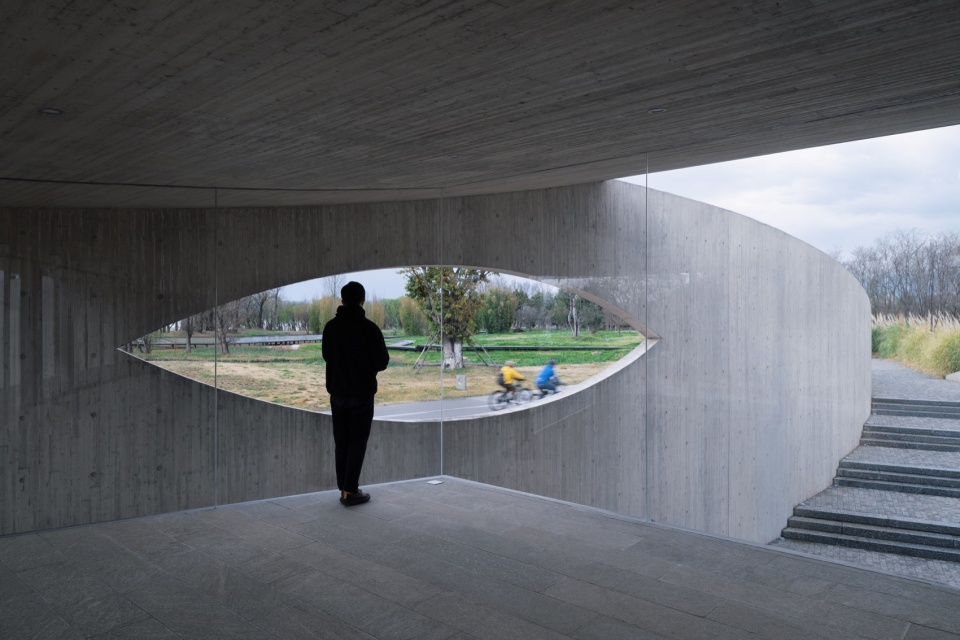

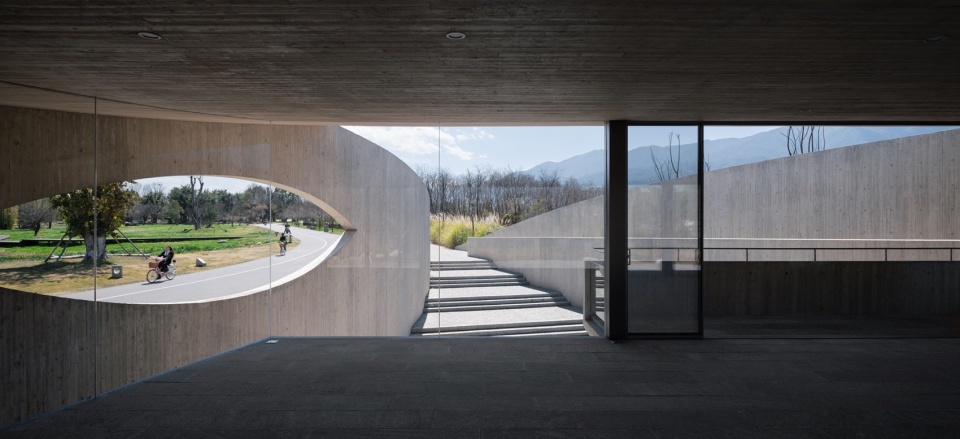

At the center part of the wall, an eye-shaped opening allows visual connection from the two sides. The carefully arranged levels, stairs and steps articulate an experience of architectural promenade.

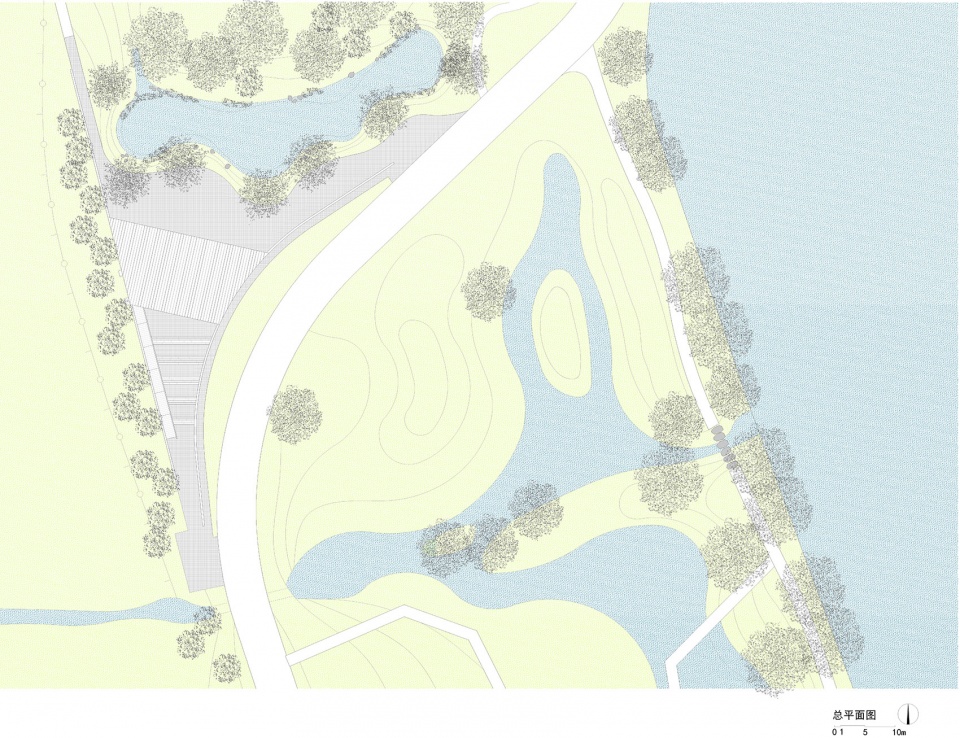

▼总平面图，Masterplan ©赵扬建筑工作室

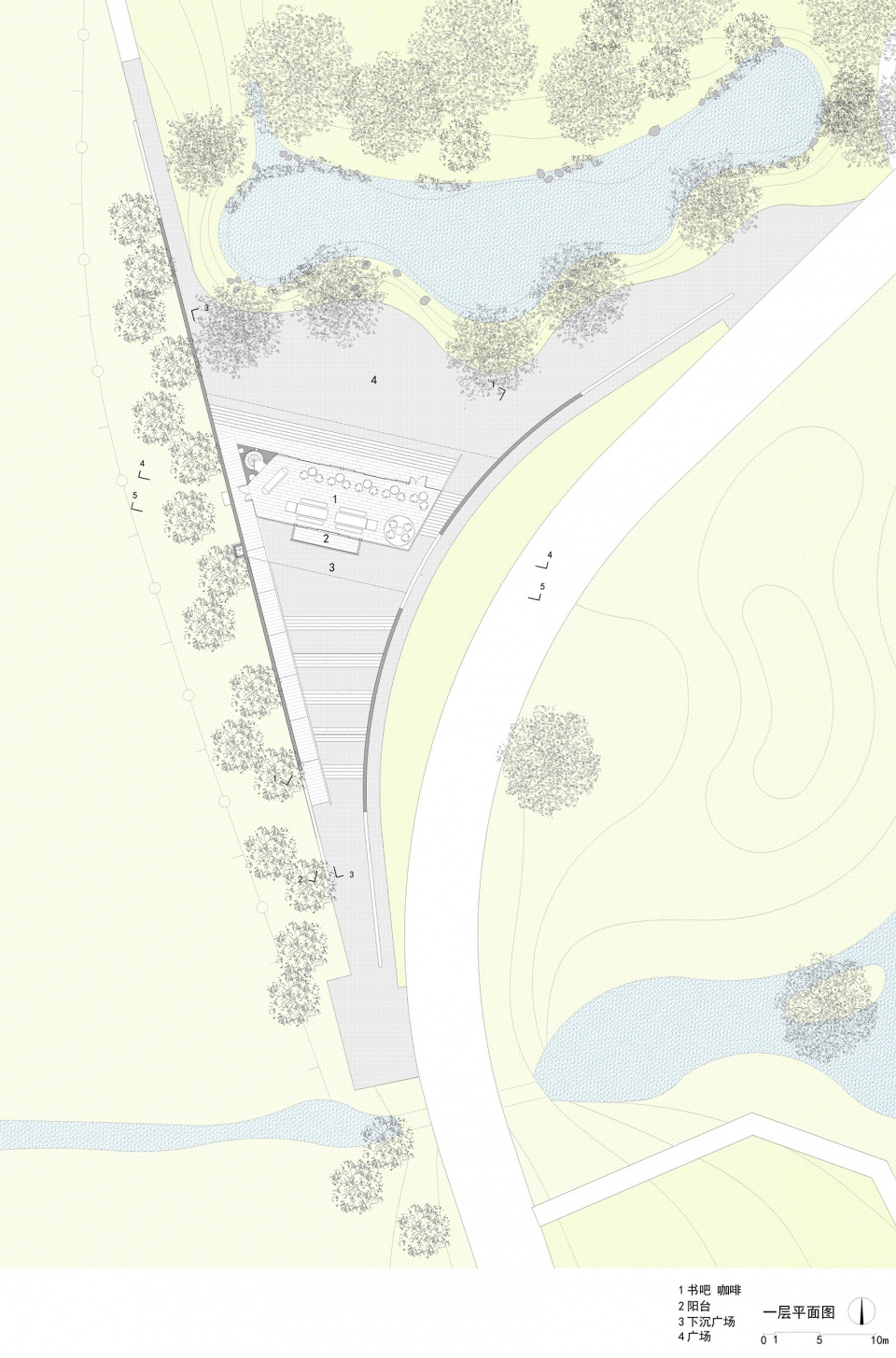

▼一层平面图，First floor plan ©赵扬建筑工作室

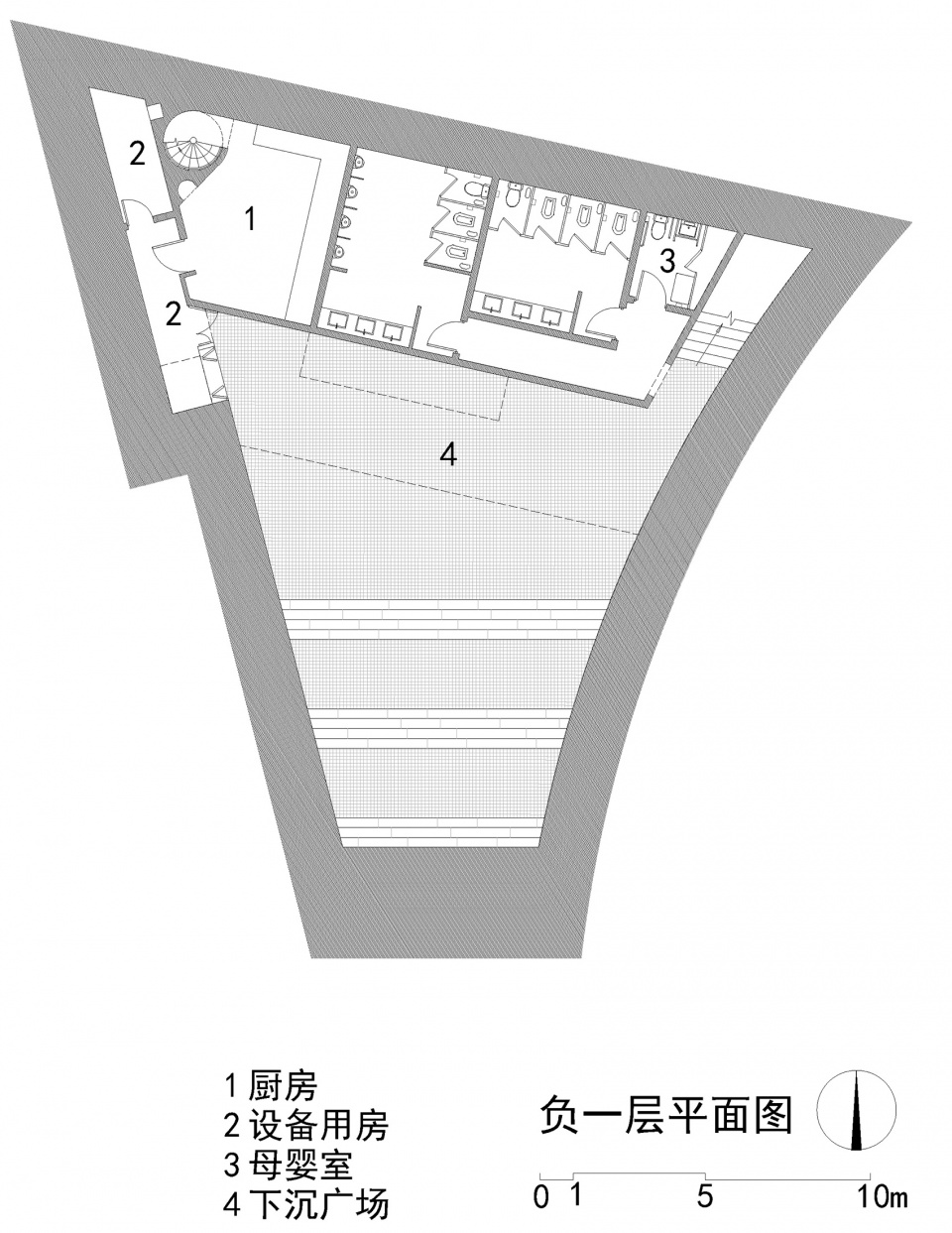

▼负一层平面，Basement floor plan ©赵扬建筑工作室

项目名称：洱海生态廊道葭蓬村驿站
设计单位：赵扬建筑工作室
设计团队：赵扬、王贺、罗晨、何诗洋、林璐、黄飞海
业主：大理苍洱投资有限责任公司
结构设计：马智刚、孟凡磊
机电设计：北京卡林建筑设计有限公司
施工单位：云南省建设投资控股集团有限公司
混凝土施工单位：北京益汇达清水建筑工程有限公司
项目位置：云南省大理白族自治州大理市
建筑面积：230平方米
设计周期：2020.7-2021.5
建设周期：2021.8-2023.12
摄影：陈颢

Project Name: Dali Erhai Lake Ecological Service Station
Architecture, Interior, Landscape: Zhaoyang Architects
Design Team:Yang Zhao, He Wang, Cheng Luo, Shiyang He, Lu Lin, Feihai Huang
Client: Dali Cang’er Investment Co., Ltd.
Structural Design: Zhigang Ma, Fanlei Meng
MEP Design: Beijing Kalin Architectural Design Co., Ltd.
Construction Contractor: Yunnan Construction Investment Holding Group Co., Ltd.
Concrete Construction Contractor: Beijing Yihuida Concrete Construction
Project Location: Dali, Yunnan province
Building Area: 230 square meters
Design Period: 2020/08 – 2021/05
Construction Period: 2021/08 – 2023/12
Photography: Su Chen
