非常感谢 HENN 予gooood分享以下内容。更多请至：HENN on gooood
Appreciations towards HENN for providing the following description:

Serviceplan集团的交流之家植根于公司的开放和合作理念，为这个世界最大业主管理机构的创新交流集团赋予了独特的空间身份。它位于慕尼黑奥斯特巴赫霍夫附近的全创新区iCampus，由R&S mmobilienmanagement开发。设计通过桥梁将三座独立的建筑连接起来，将40家不同的机构和1700名员工聚集在一个屋檐下。海茵建筑将这个总部设计成一个小城市，这一概念被称为办公都市主义，就像一座城市一样，交流之家除了会议室和独立工作区外，还包括聚会、餐饮和休闲空间。

The House of Communication for the Serviceplan Group creates a distinctive spatial identity for the world’s largest owner-managed agency group for innovative communication, rooted in the company’s ideals of openness and collaboration. Connecting three separate buildings via bridges, the design concept brings together 40 different agencies and 1,700 employees under one roof on the iCampus, a new innovation district near Munich’s Ostbahnhof, developed by R&S Immobilienmanagement. HENN devised the headquarters as a small city, a concept known as office urbanism. Like a city, the House of Communication includes spaces to meet, eat, and relax, alongside meeting rooms and individual work areas.

▼项目概览，overview of the project ©Mark Seelen

海茵建筑在室内设计上引入了一条连接所有三个建筑中庭的中轴线，由RKW Architektur+和KAAN Architecten合作设计。这条名为“创新路径”的轴线和主要循环线路贯穿整个建筑的一层。游客由入口处一个引人注目的六米宽楼梯进入，这条路径连接的目的地通过一个130米长的灯光装置凸显出来，灵感来自Büro Uebele设计的经典霓虹灯标志。它也作为一个活动和展览空间：公司所有者的私人艺术收藏作品正在展出，包括安塞尔姆·基弗、格奥尔格·巴利茨和托尼·克雷格的作品。通过艺术之旅和活动空间，该建筑向公众开放。

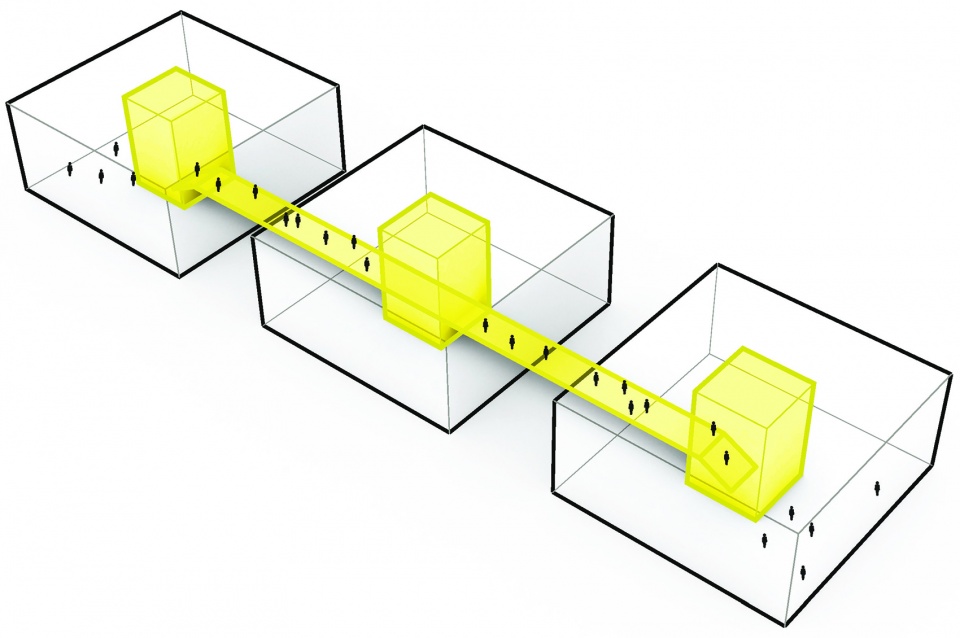

▼中轴线示意图，diagram of the central axis ©HENN

HENN Interior introduced a central axis connecting all three atrium buildings, designed by RKW Architektur+ and KAAN Architecten. The axis and main circulation route, named the Innovation Track, runs throughout the first floor of the entire complex. Visitors enter the Track via a striking six-meter wide staircase at the entrance. The Track’s connective purpose is highlighted by a 130-meter-long light installation, inspired by classic neon signage which had been designed by Büro Uebele. It also serves as an event and exhibition space: pieces from the private art collection of the company owners are on show, including work by Anselm Kiefer, Georg Baselitz and Tony Cragg. With art tours and space for events, the building is opened up to the public.

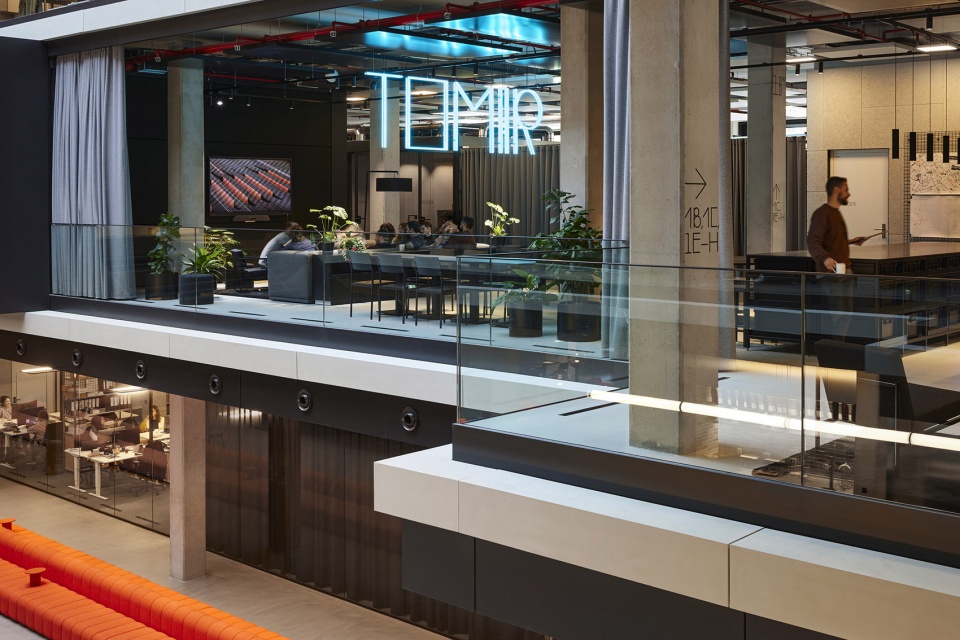

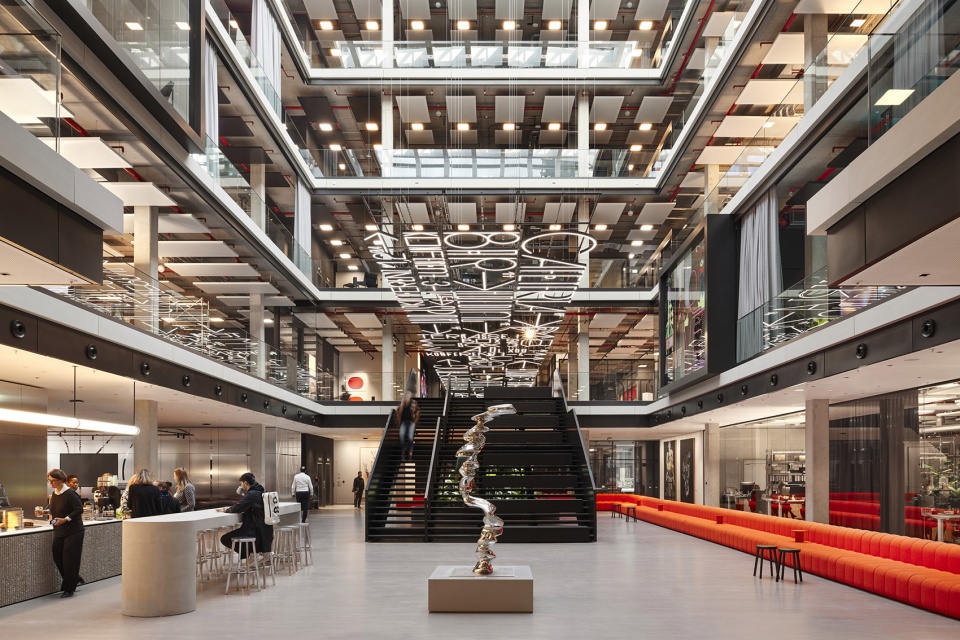

▼中庭，atrium ©Mark Seelen

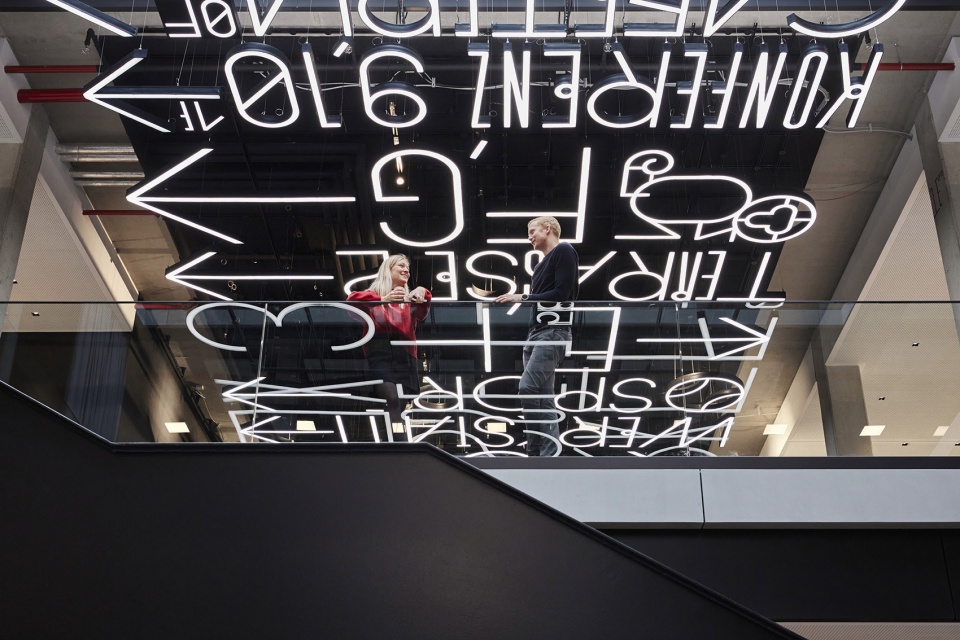

▼灯光装置近景，a close-up view of the light installation ©Mark Seelen

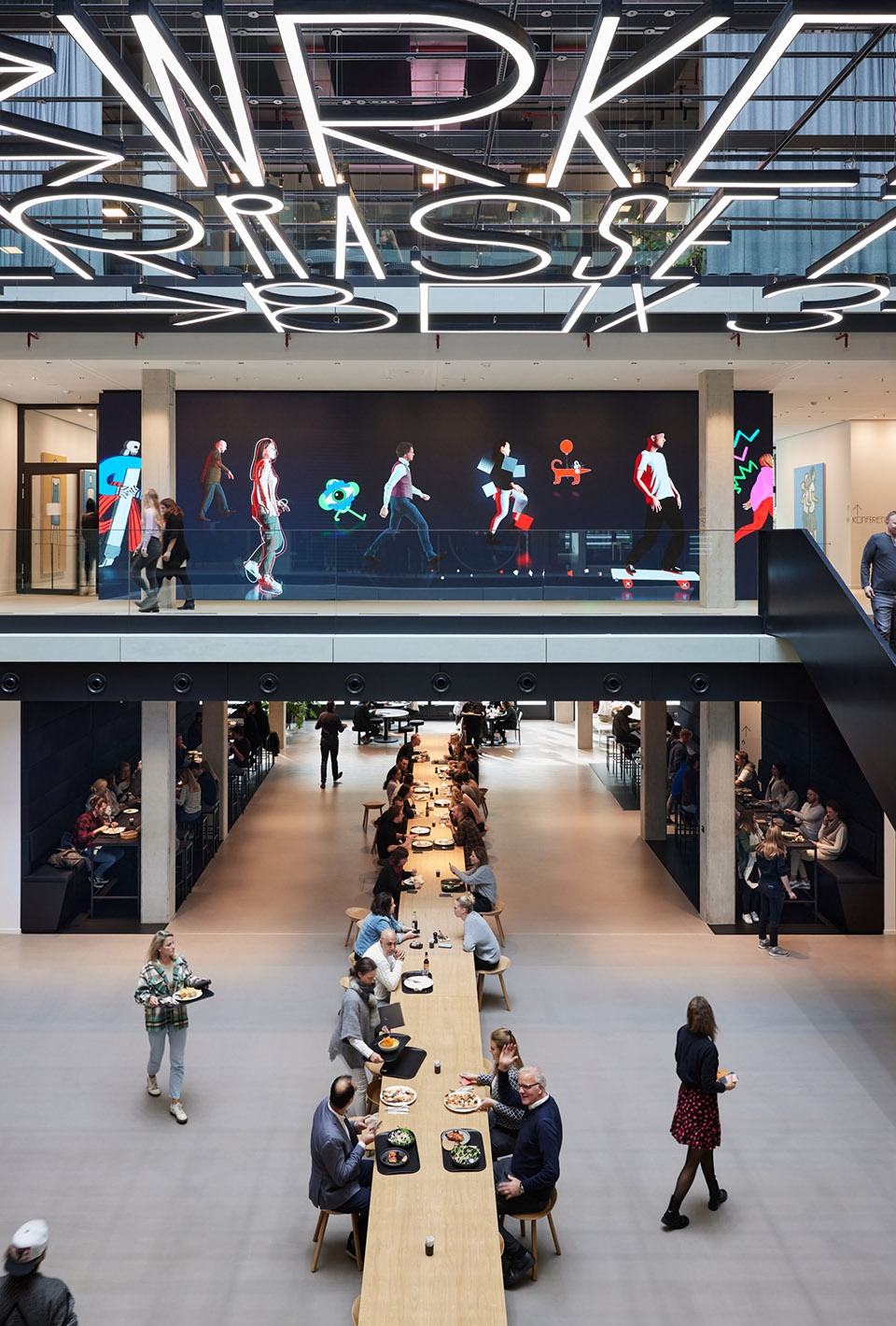

▼俯瞰餐厅区域，overlook view of the canteen ©Mark Seelen

在办公楼层，不同的工作模式——实体和虚拟、有声和无声——可以并行进行，这得益于声学设计，包括吸音墙、天花板和厚重的毛毡窗帘，以及办公室和会议室的空间组织。更活跃的区域围绕室内中庭布置，包括宽敞的茶室和协作办公空间。在周边，海茵建筑室内设计为集中办公设置了更安静的区域，包括为各个机构服务的电话亭和会议室。

On the office floors, different modes of work – physical and virtual, loud and quiet – can take place in parallel thanks to an acoustic concept that includes sound-absorbing walls, ceiling panels and heavy felt curtains, through to the spatial organization of offices and meeting rooms. The livelier zones are organized around the interior atriums and include spacious tea kitchens and rooms for collaborative work. Around the perimeter, HENN Interior placed quieter areas for focussed work, including telephone boxes and meeting rooms that serve the individual agencies.

▼围绕室内中庭布置的茶室和协作办公空间，tea kitchens and rooms for collaborative work are organized around the interior atriums ©Mark Seelen

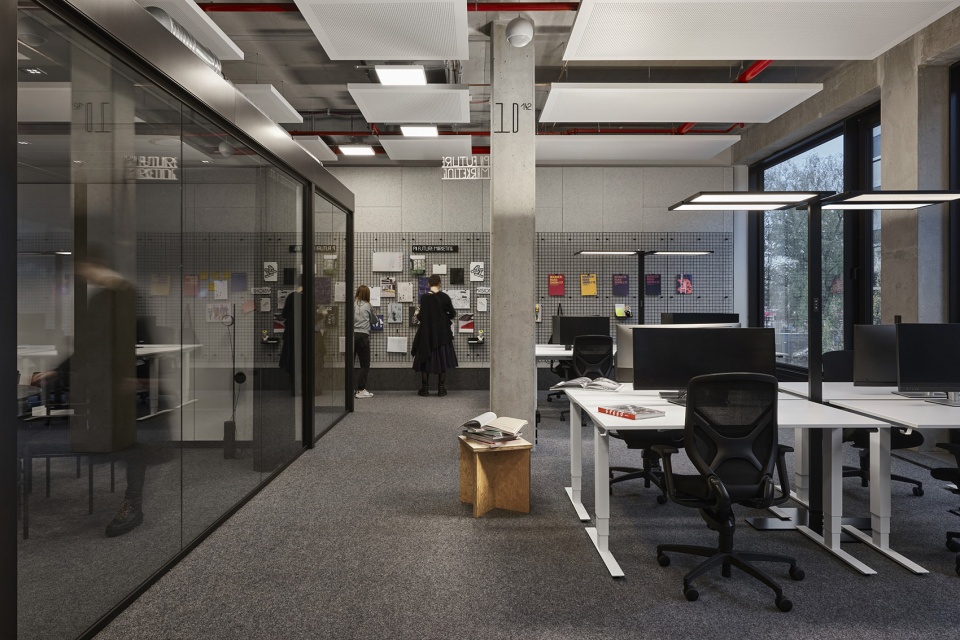

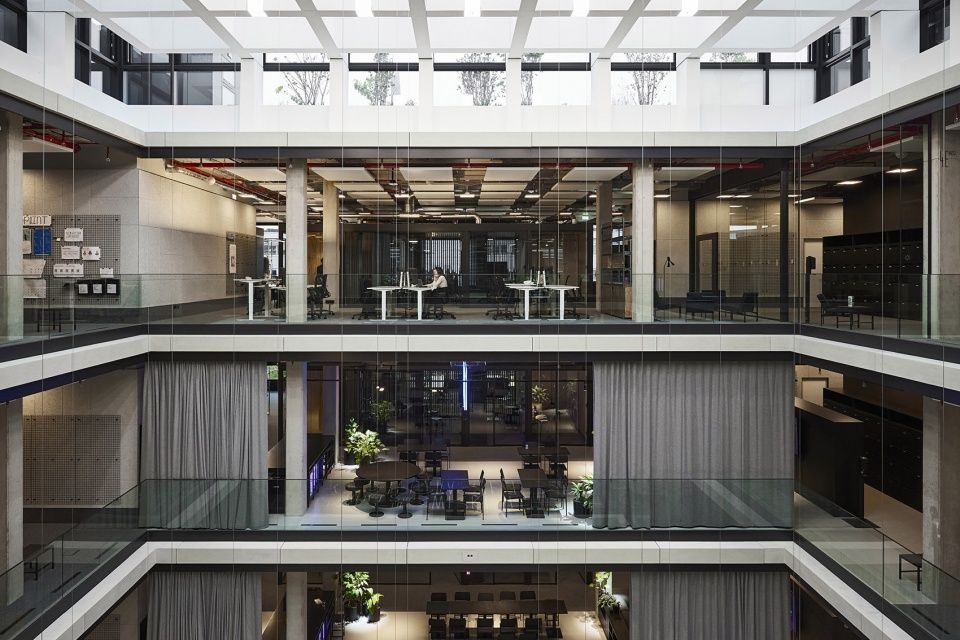

▼采用吸音墙、天花板和厚重的毛毡窗帘等声学设计的办公室，workplace with an acoustic concept that includes sound-absorbing walls, ceiling panels and heavy felt curtains ©Mark Seelen

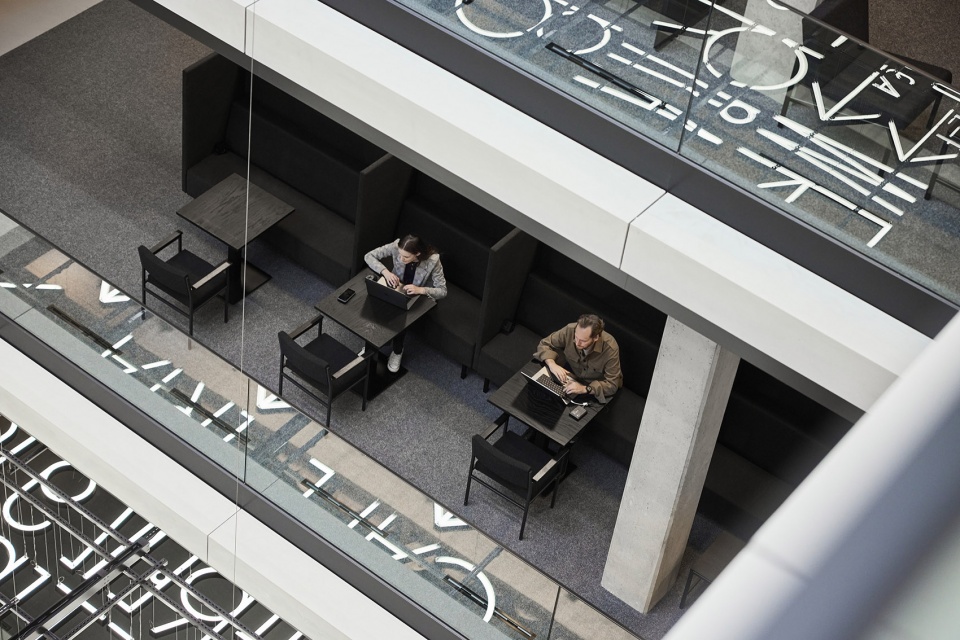

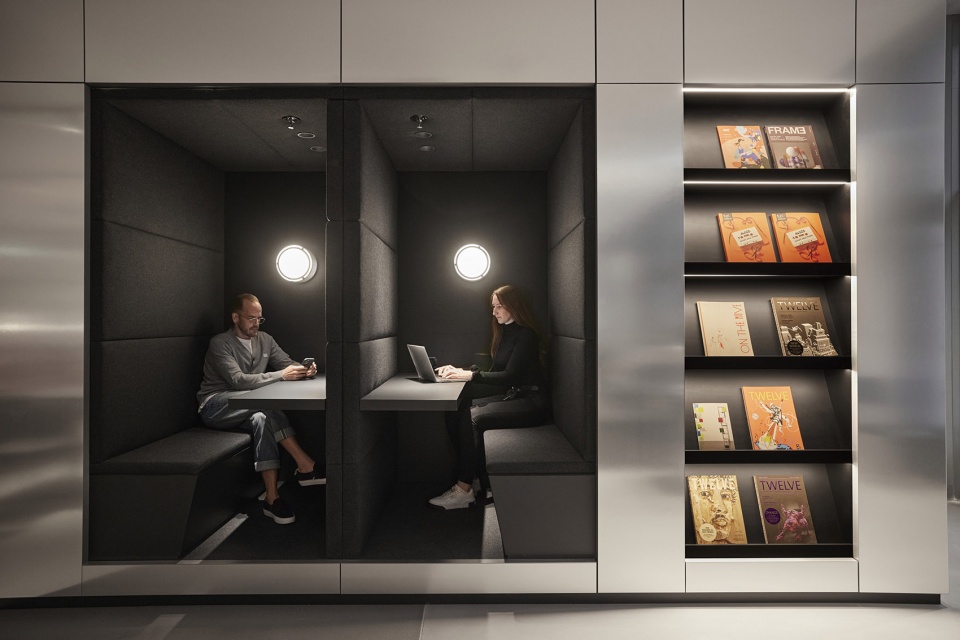

▼安静办公区，quiet areas for focussed work ©Mark Seelen

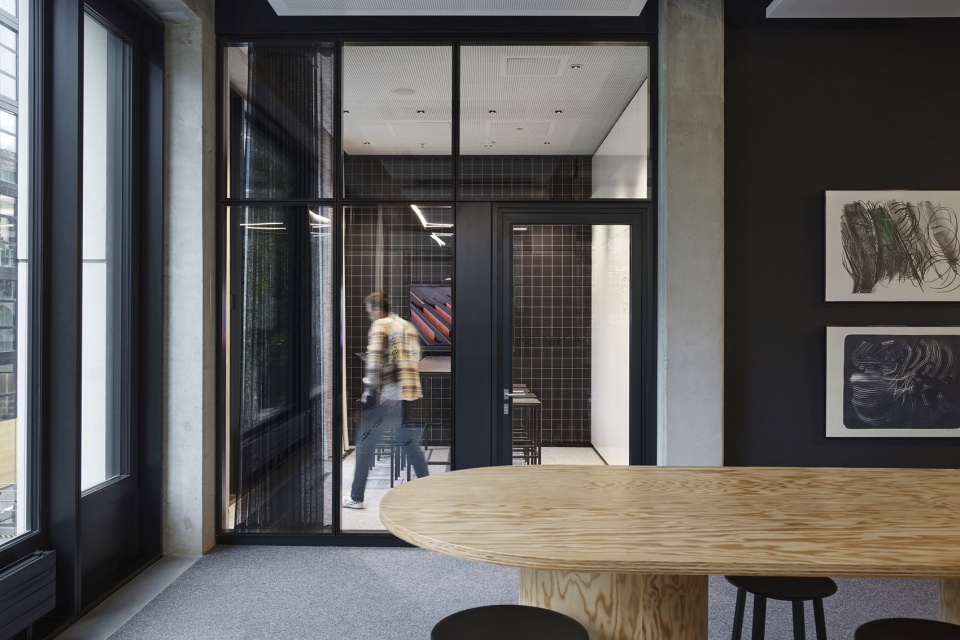

▼会议室，meeting rooms ©Mark Seelen

该设计遵循一致性理念为Serviceplan开发独特视觉标识。就像一套剪裁得体的西装，可以搭配个性单品和色彩，Serviceplan有统一的清晰线条和黑白灰单色基调，在所有地区和机构营造出一个统一的风格。粗工业材料，如钢格栅、生钢和黑色染色木材，贯穿始终。Serviceplan的沟通和融合精神通过独特的超大家具来体现——一张30米长的可以容纳100人的用大胆的珊瑚色Raf Simons织物装饰的沙发，和餐厅的一张可以容纳80名员工的木桌。Serviceplan这种单色基调和简单家具装饰的统一风格更凸显出了彩色超大的个性单品。

The design follows a distinct visual identity developed for Serviceplan based on the idea of a uniform. Like a well-tailored suit that can be styled with statement pieces and colorful accents, the Serviceplan uniform has clear lines and a monochrome color palette in black, white and gray, creating a coherent whole across all areas and agencies. Coarse industrial materials like steel grating, raw steel and black-stained wood are used throughout. Serviceplan’s ethos of communication and integration is expressed through unique, oversized furniture pieces – there is room for 100 people on a 30-meter-long sofa upholstered in bold, coral Raf Simons fabric, and space for 80 employees at a single wooden table in the canteen. The monochrome backdrop and simple furniture of the Serviceplan uniform allow colorful and oversized statement pieces to pop.

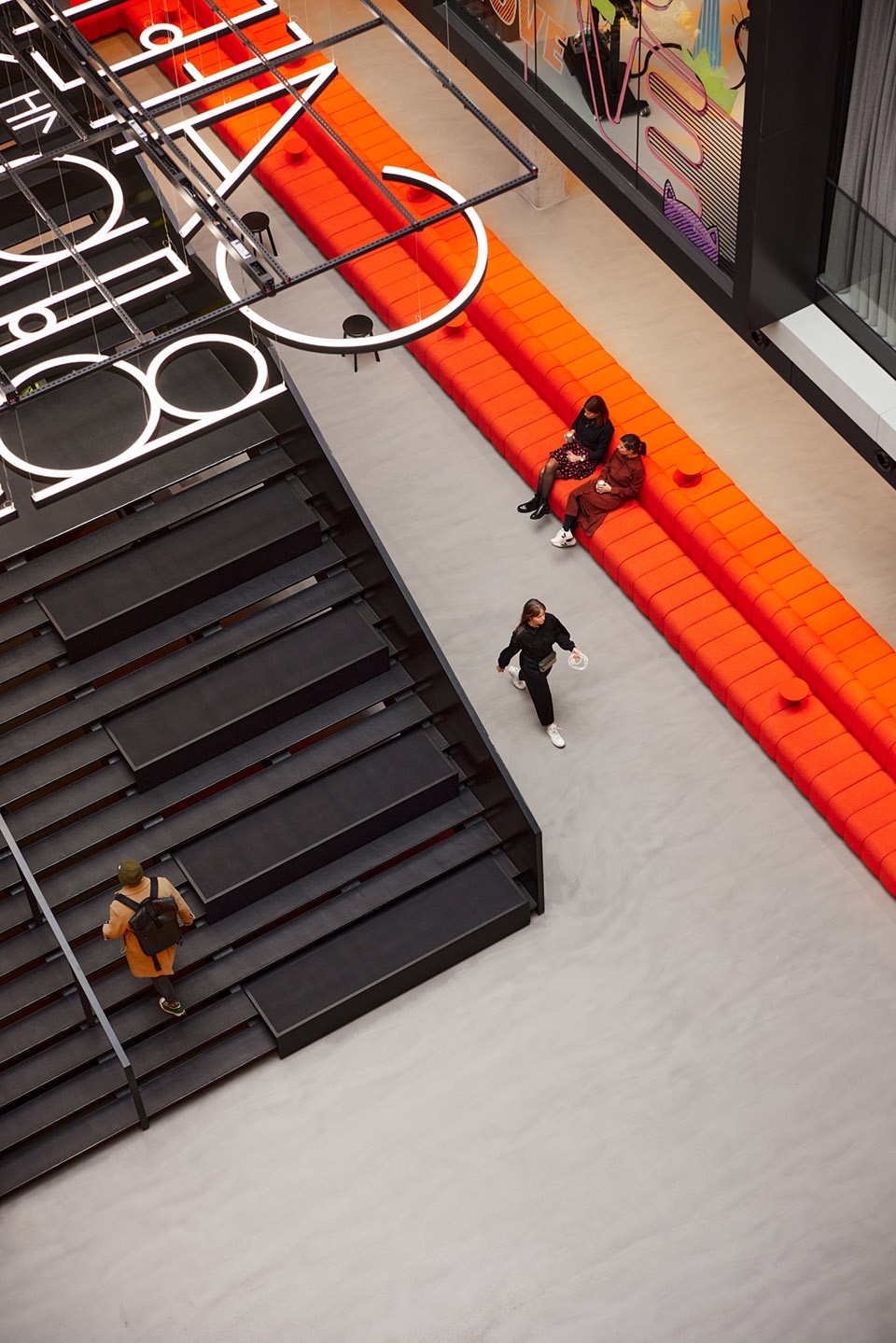

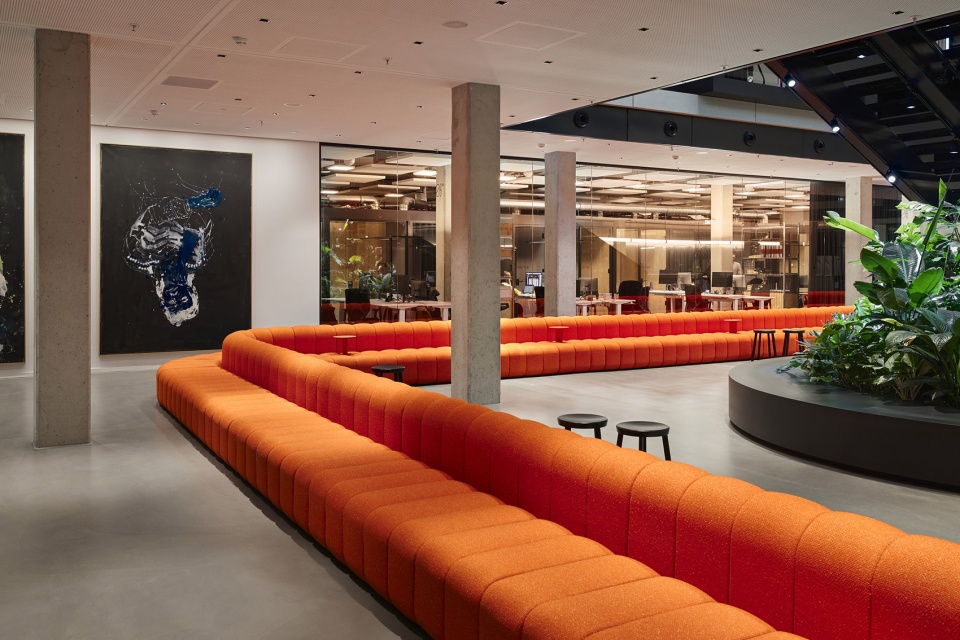

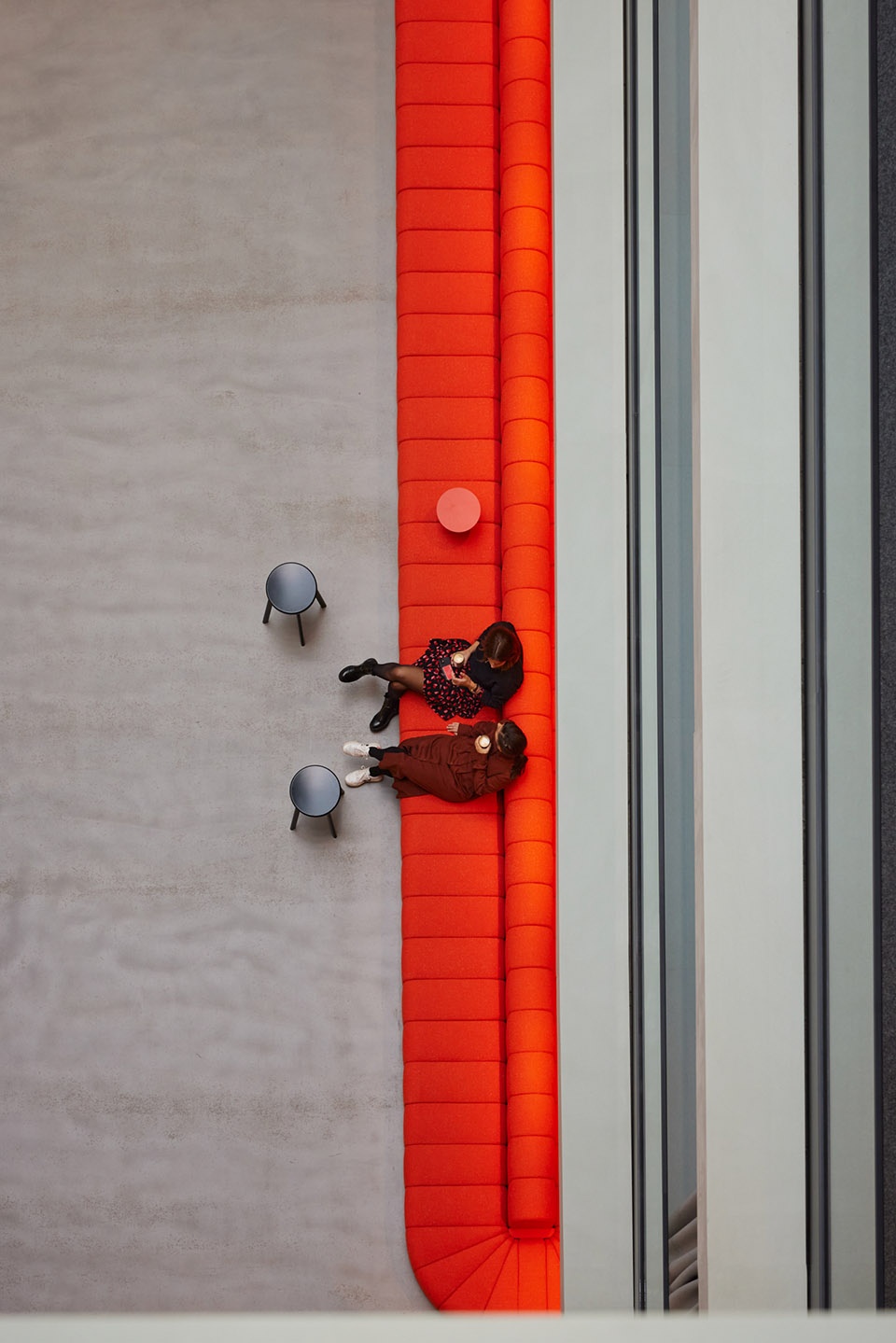

▼俯瞰独特的珊瑚色Raf Simons织物沙发，overlook view of the sofa upholstered in bold, coral Raf Simons fabric ©Mark Seelen

▼珊瑚色Raf Simons织物沙发近景，close-up view of the sofa upholstered in bold, coral Raf Simons fabric ©Mark Seelen

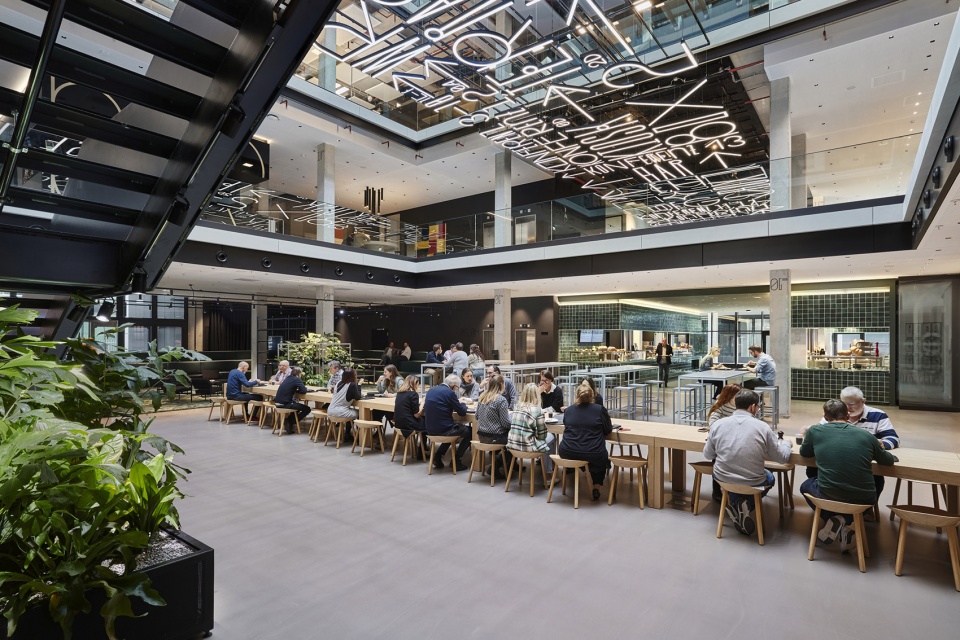

▼可容纳80名员工的木桌， space for 80 employees at a single wooden table in the canteen ©Mark Seelen

海茵建筑室内团队与当地制造商合作设计了室内独家元素，包括纺织品和定制灯具。一件复古的设计作品——一把坚固而简约的在20世纪50年代德国警察部门使用的椅子——被重新挖掘，并延伸出一整套家具，包括长椅、凳子和桌子。定制的柔性隔架系统也可作为多功能房间隔断。不同颜色和尺寸的方形网格织物墙面覆盖物是对立面几何结构的致敬。Büro Uebele专门为该项目设计了一种特殊字体，应用在墙壁和柱子上作为指引标识，也作为创新路径上的印刷元素，增加视觉深度和特点。

HENN Interiors worked with local manufacturers to develop exclusive elements, including textiles and bespoke lighting pieces. A vintage design piece – a robust and minimalistic chair that was used by Germany’s police departments in the 1950s – was reissued and developed into a whole line of furniture including benches, stools and tables. A custom-built flexible shelving system also serves as a multifunctional room divider. Textile wall coverings with square grids in different colors and sizes are a homage to the geometric architecture of the facade. A special font was developed by Büro Uebele exclusively for the project and used for all signage in the building – for orientation on walls and columns, but also as a typographic element on the Innovation Track, adding visual depth and character.

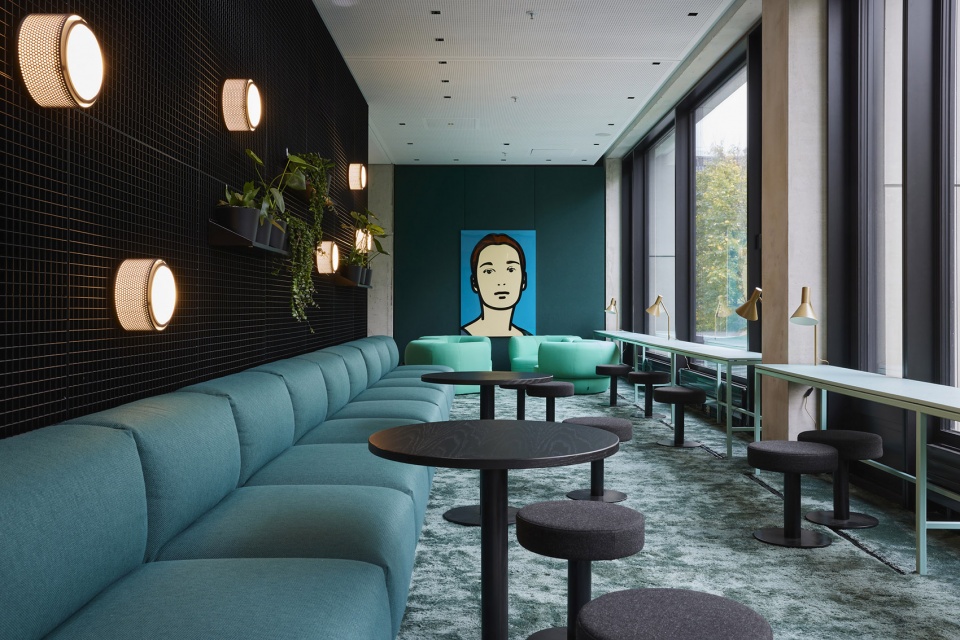

▼纺织品和定制灯具等室内独家元素，exclusive elements includes textiles and bespoke lighting pieces ©Mark Seelen

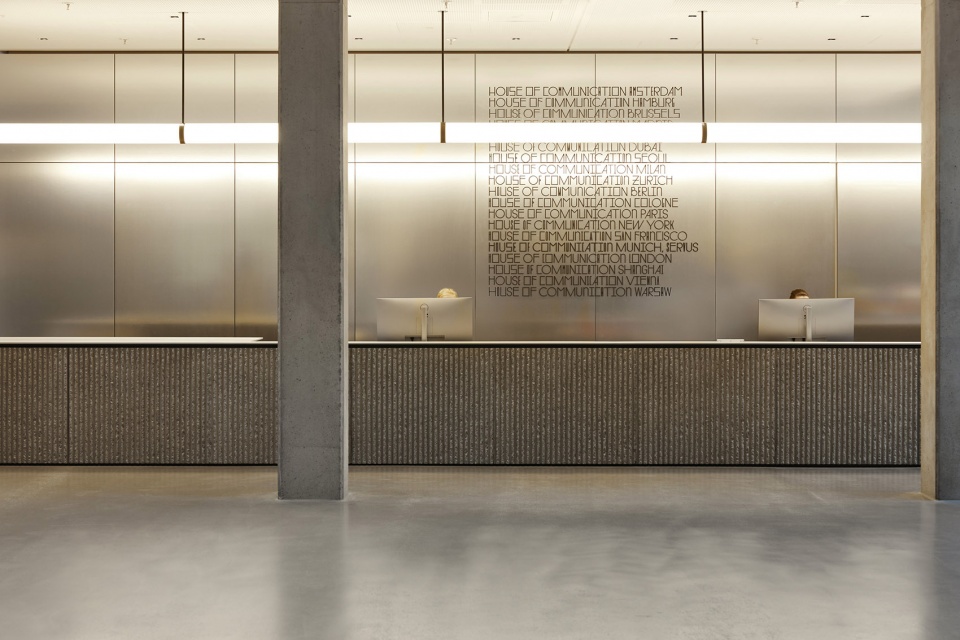

▼前台区域，reception area ©Mark Seelen

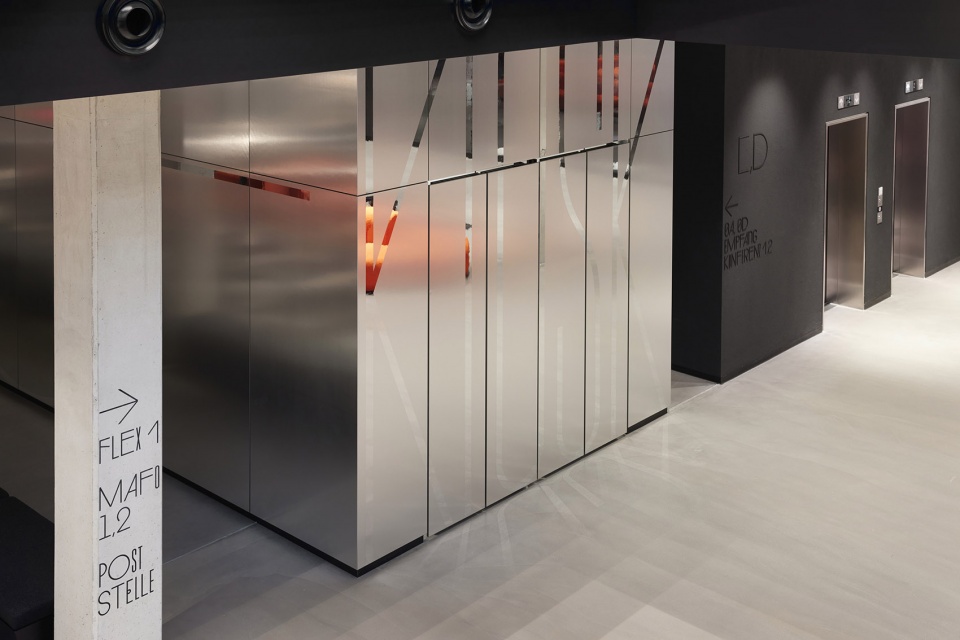

▼电梯厅，elevator lobby ©Mark Seelen

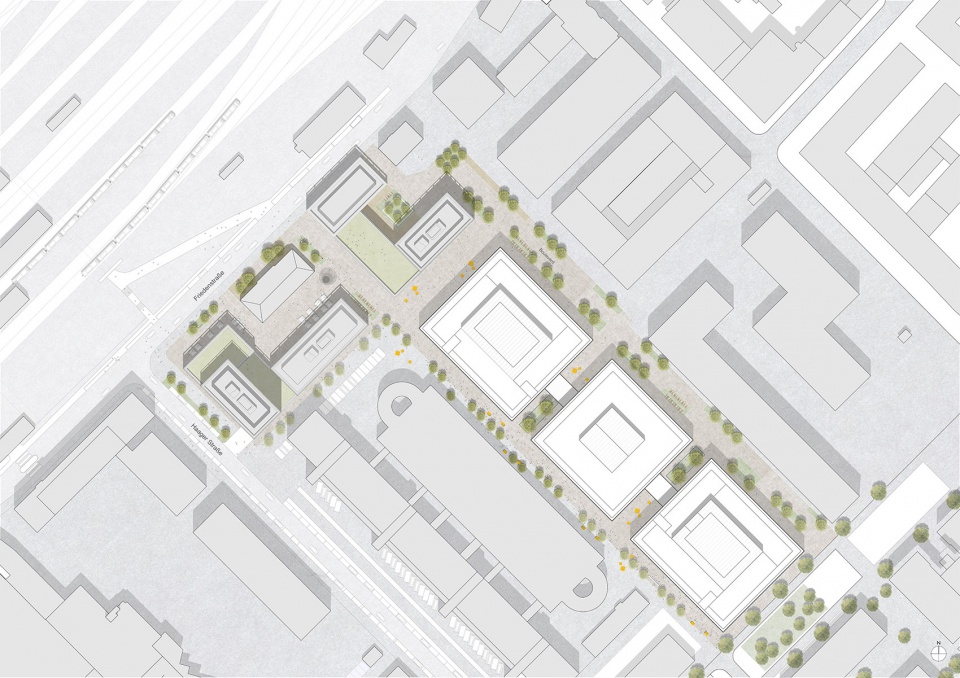

▼总平面图，site plan ©HENN

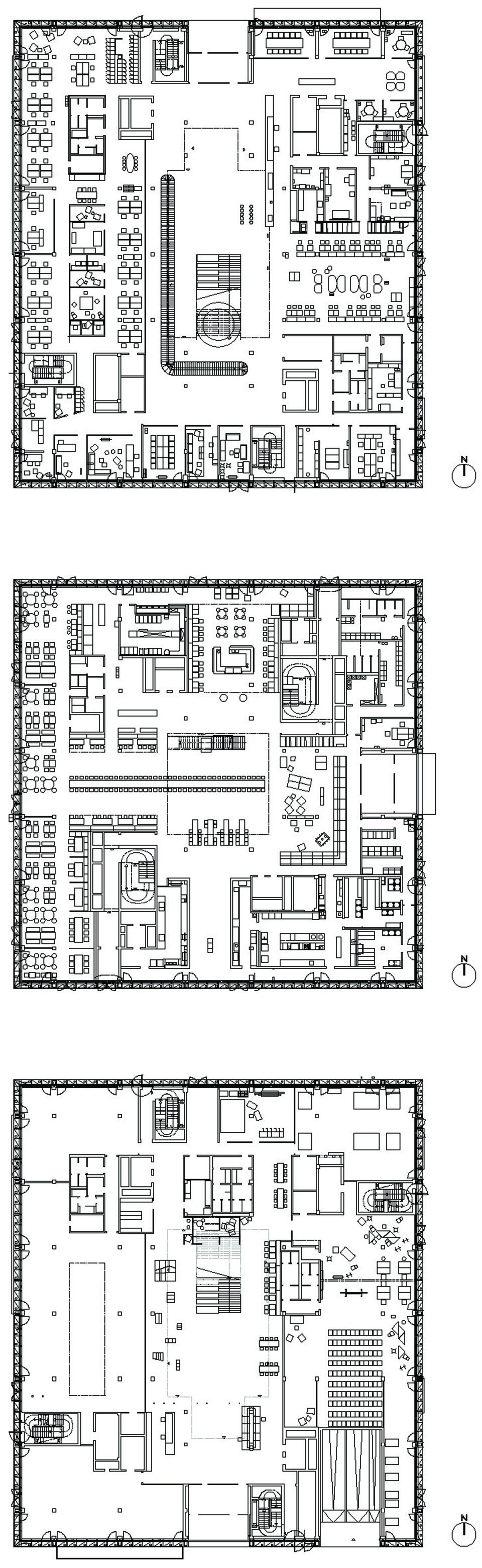

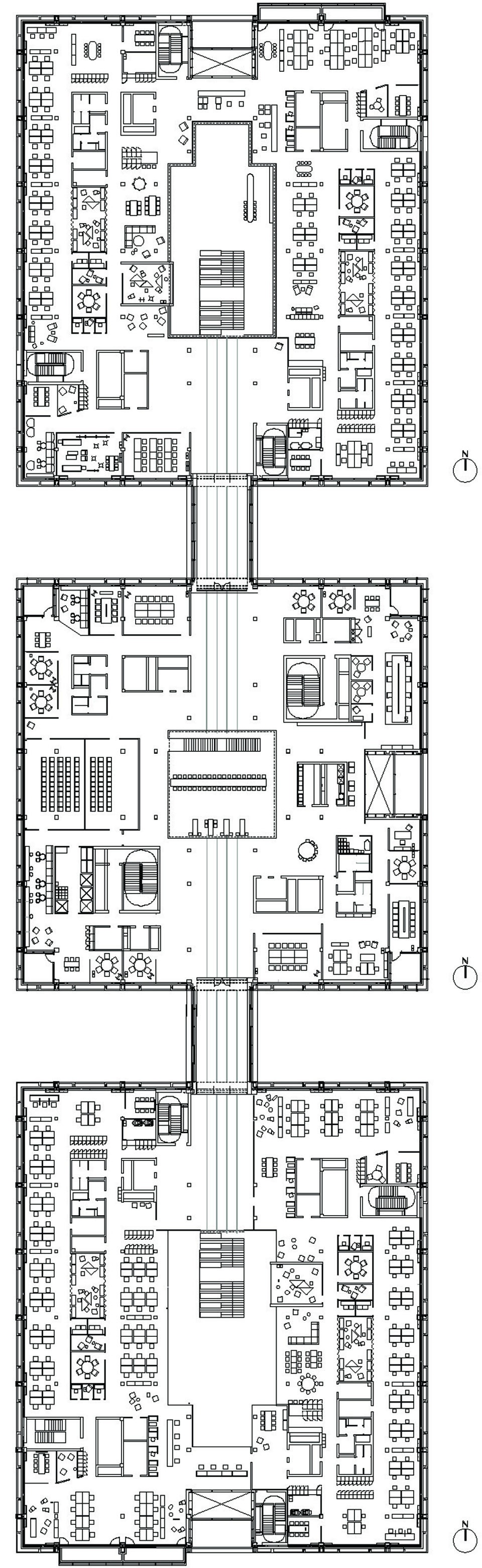

▼一层平面图，first floor plan ©HENN

▼二层平面图，second floor plan ©HENN

项目开始时间：2018
完工：2022
设计范围: 室内建筑 (可行性研究到施工监理), 承租户装修
业主：Serviceplan Group SE & Co. KG
项目地址：iCampus, Friedenstraße 24, 81671 Munich, Germany
面积：40,000 m²
工作站：共1100个，由1700名Serviceplan员工通过共享办公桌使用。共享办公桌比例：0.5
功能：办公和合作空间、员工餐厅、会议区、咖啡厅、健身中心、屋顶露台
团队: Joachim Grund (partner in charge), Alexandra Berger, Tanja Dietsch, Andreas Fuchs, Attila Horvath, Katrin Jacobs, Deborah Klajmic, Yvonne Koll, Laura Kummer, Anja Liesenfeld, Christiane Reichenbach, Kathrin Schiffelholz, Gudrun Spitzer, Kathrin Stamm, Peter Weber, Handan Yalki Toyhan,
Shiyu Ying
建筑合作方:
RKW Architektur+, Düsseldorf (建筑)，KAAN Architecten, Rotterdam (幕墙)，R&S Immobilienmanagement GmbH, Munich (业主, 建筑)
承租装修顾问：
Apropos Licht, Munich (特殊灯具)，Combine Consulting Gmbh, Munich (变更管理)，Büro Uebele, Stuttgart (标识, Serviceplan 字体)，Bartenbach, Munich (照明装置)，Drees & Sommer, Stuttgart (建筑服务、施工管理)，GKR Hydrokulturen, Munich (绿植)，IGW Ingenieurgruppe Walter, Stuttgart (厨房设计)，Lumen³, Munich (照明设计)，OfficeMEDIA visuelle Medientechnik, Munich (媒体工程咨询)
制造商和供应商：Blå Station, Åhus, Schweden (沙发中庭，长30米)，Hülsta, Stadtlohn (木制餐桌食堂)，Kvadrat, Ebeltoft, Dänemark / fabric by Raf Simons (沙发中庭)，MSM MalscherSitzMöbel GmbH, Malsch (Serviceplan家具系列开发 )，Rohi Stoffe GmbH, Geretsried (特殊纺织品)，Trend Interior, Greding (搁架系统)
施工公司、承租户装修:，BES Brunold Holz und Design Manufaktur GmbH, Schwandorf (木工活)，Designfunktion, Munich (休闲家具)，Elektro Kreutzpointner, München (电子工程)，Marcus Hansen, München (休闲家具)，Projektleuchten Gmbh, Dortmund (照明装置)，SchreinerCoburg GmbH, Coburg (标识)，Trend Interior, Greding (搁架系统)

Project start: 2018
Completion: 2022
Scope of work: Interior architecture (Feasibility to Construction supervision), tenant fit-out
Client : Serviceplan Group SE & Co. KG
Address: iCampus, Friedenstraße 24, 81671 Munich, Germany
Gross floor area: 40,000 m²
Workstations:1,100 total, used by 1,700 Serviceplan staff via desk-sharing desk-sharing ratio: 0.5
Program: Office and co-working spaces, Staff restaurant, Conference area, Coffee bars, Fitness
Roof terraces
Team: Joachim Grund (partner in charge), Alexandra Berger, Tanja Dietsch, Andreas Fuchs, Attila Horvath, Katrin Jacobs, Deborah Klajmic, Yvonne Koll, Laura Kummer, Anja Liesenfeld, Christiane Reichenbach, Kathrin Schiffelholz, Gudrun Spitzer, Kathrin Stamm, Peter Weber, Handan Yalki Toyhan, Shiyu Ying
Architecture: RKW Architektur+, Düsseldorf (architecture) KAAN Architecten, Rotterdam (façade), R&S Immobilienmanagement GmbH, Munich (client, architecture), Consultants tenant fit-out
Apropos Licht, Munich (special luminaires), Combine Consulting Gmbh, Munich (change management), Büro Uebele, Stuttgart (signage, Serviceplan font) Bartenbach, Munich (light installation), Drees & Sommer, Stuttgart (building services, construction management), GKR Hydrokulturen, Munich (plants), IGW Ingenieurgruppe Walter, Stuttgart (kitchen planning), Lumen³, Munich (lighting design)
OfficeMEDIA visuelle Medientechnik, Munich (media engineering), Manufacturers and suppliers, Blå Station, Åhus, Schweden (sofa atrium, length 30 meters), Hülsta, Stadtlohn (wooden table canteen, gastronomy), Kvadrat, Ebeltoft, Dänemark / fabric by Raf Simons (sofa atrium), MSM MalscherSitzMöbel GmbH, Malsch (furniture series developed for Serviceplan), Rohi Stoffe GmbH, Geretsried (special textiles), Trend Interior, Greding (shelving system)
Construction companies, tenant fit-out:
BES Brunold Holz und Design Manufaktur GmbH, Schwandorf (carpentry work), Designfunktion, Munich (loose furniture), Elektro Kreutzpointner, München (electrical engineering), Marcus Hansen, München (loose furniture) Projektleuchten Gmbh, Dortmund (light installation) SchreinerCoburg GmbH, Coburg (signage), Trend Interior, Greding (shelving system)
