感谢 Mold architects 对gooood的分享。更多关于他们：Mold architects on gooood。
Appreciation towards Mold architects for providing the following description:

HOMA是一家位于希腊Vagia Serifos的小型精品酒店。项目面积为180平方米，由三套独立的住宅单元组成，每个住宅单元均包含两间卧室和一间小起居室。此外，每个单元还包括一系列比室内面积大得多的户外空间，包括：厨房、起居/用餐区，以及私人游泳池。

HOMA is a small boutique hotel of 180 m2. in Vagia Serifos. It consists of three independent lodgings, with 2 bedrooms and a small living area each. The outdoor areas – proportionally much larger than the indoor ones- include kitchens, living / dining areas and private swimming pools for each unit.

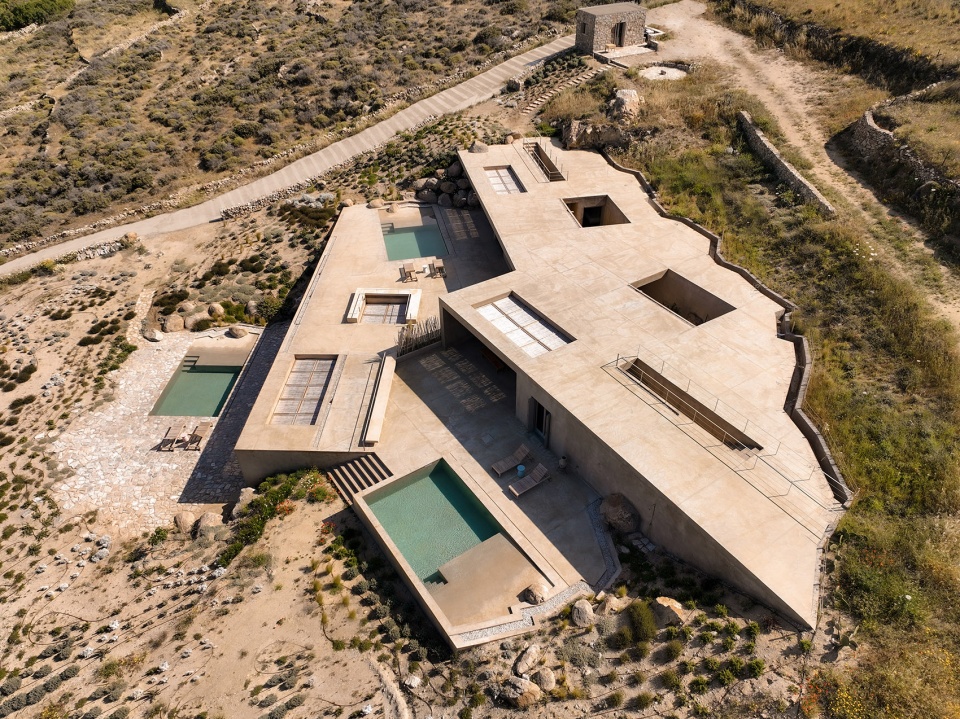

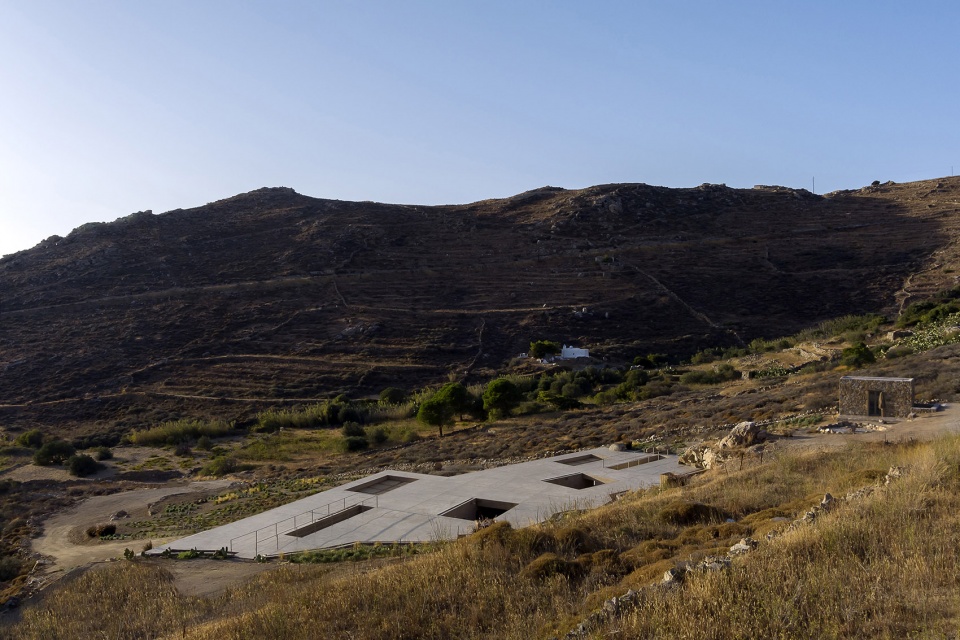

▼项目概览，overall of the project © Panagiotis Voumvakis

<点>、<线>、<面>
< POINT > < LINE > < PLANE >

项目所在场地位于Serifos岛的南部，该地区因当地活跃的采矿活动变得伤痕累累。采矿设施的痕迹分散于广阔的场地之上，这意味着场地上遍布着大量因采矿而掘起的底土，这些痕迹不仅是场地独特的“第二居住特征”，同时也是重要的工业文化遗传。

The context in which the project was created is the South of Serifos – an area scarred from an intense mining activity. Traces of the mining facilities are scattered throughout the wider area and signify the existence of a “second level of habitation” – a rich subsoil and a very important cultural heritage.

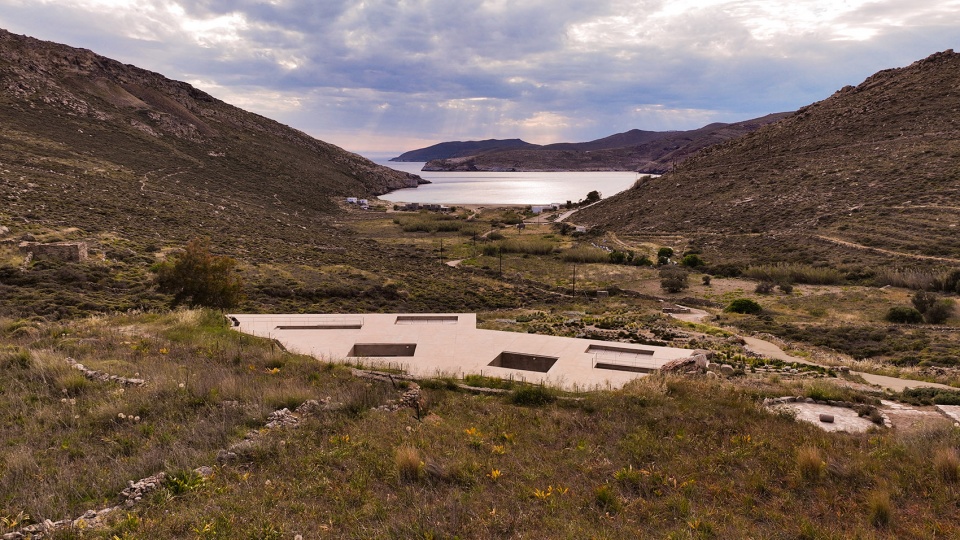

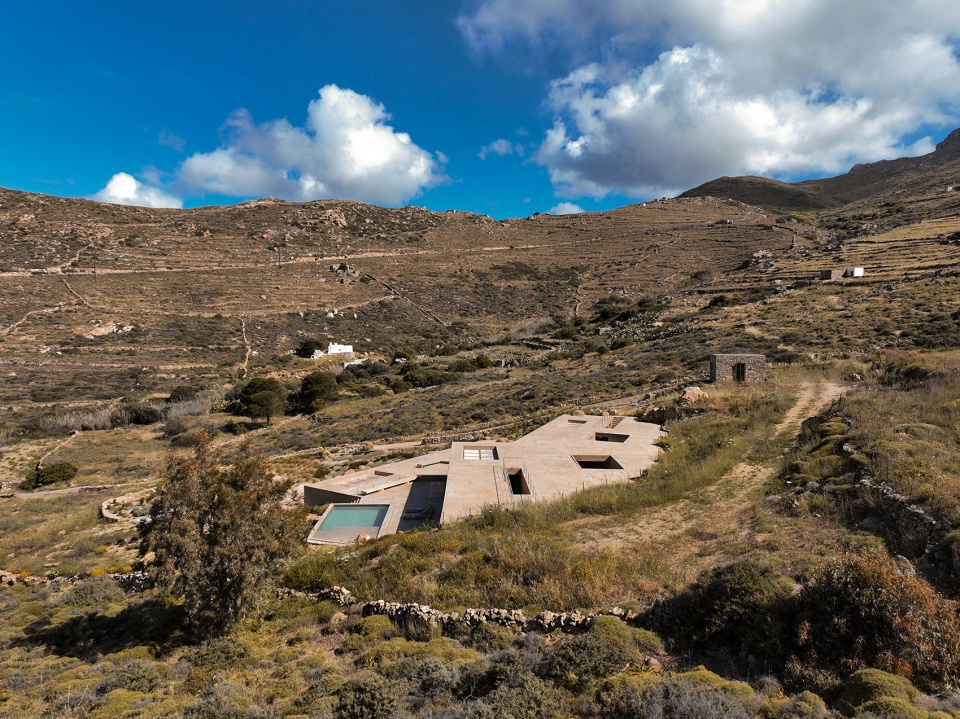

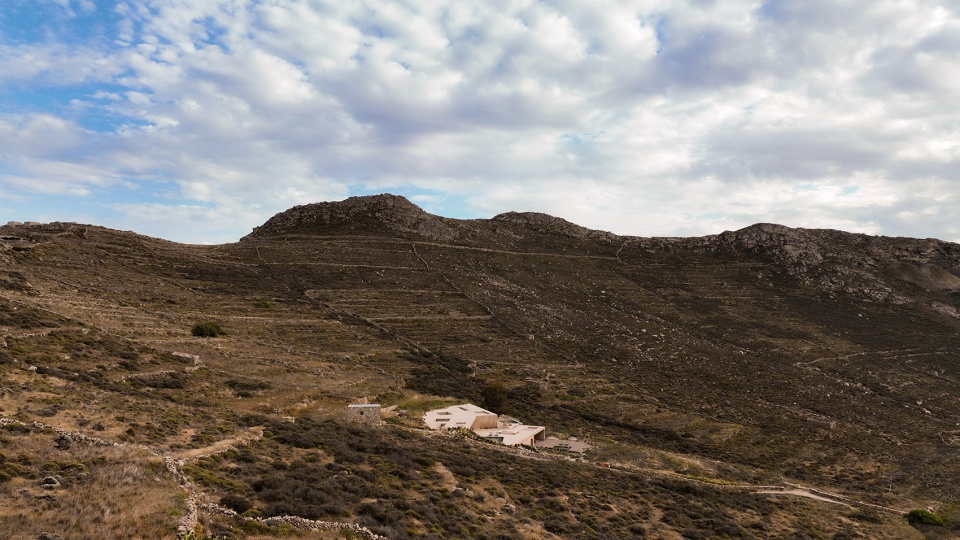

▼项目远观，viewing the project at distance © Mold architects / Panagiotis Voumvakis

▼与自然融为一体的建筑，building that is integrated with nature © Mold architects

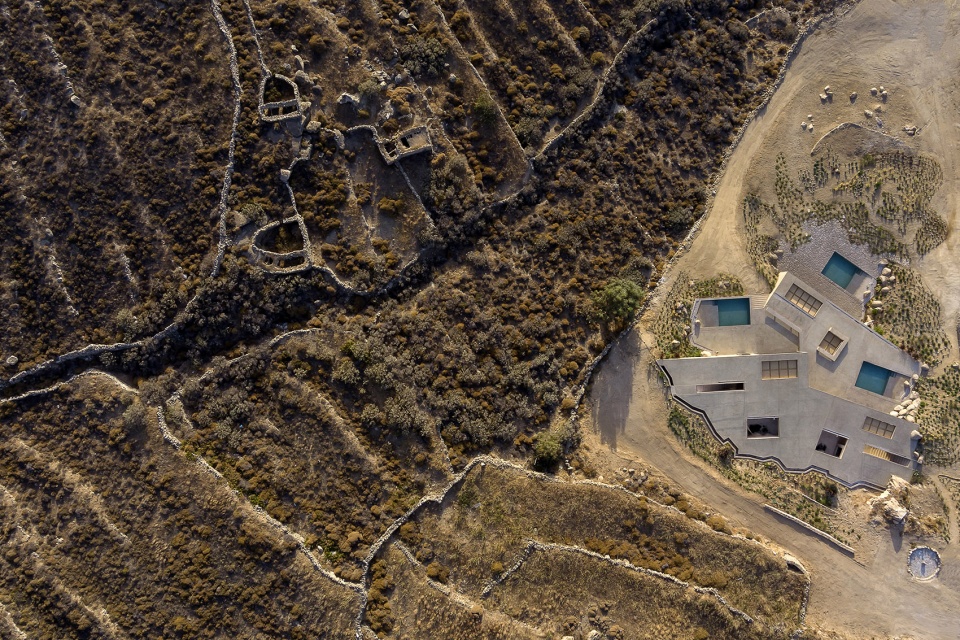

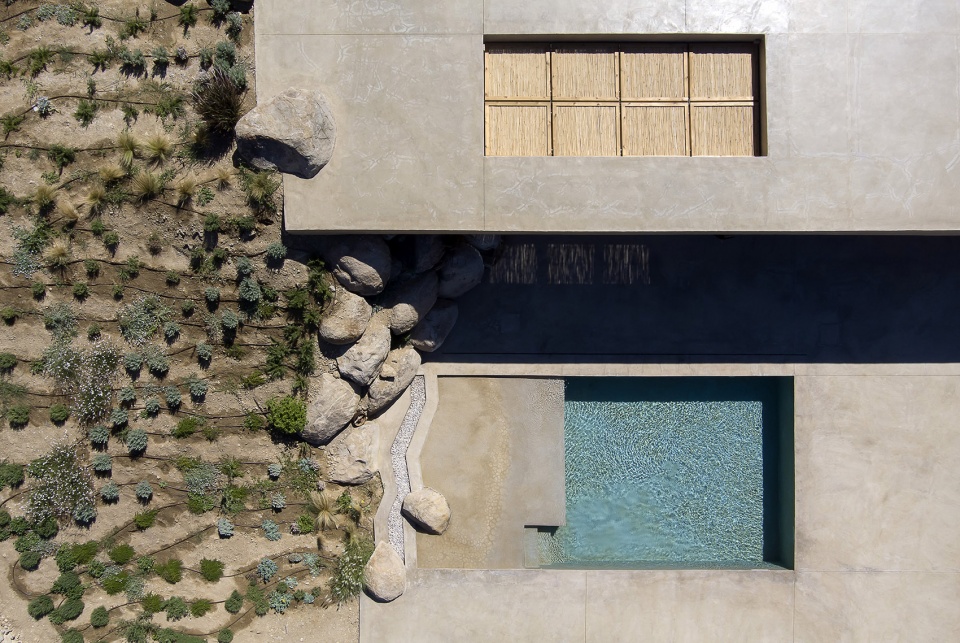

▼定时图，top view © Panagiotis Voumvakis

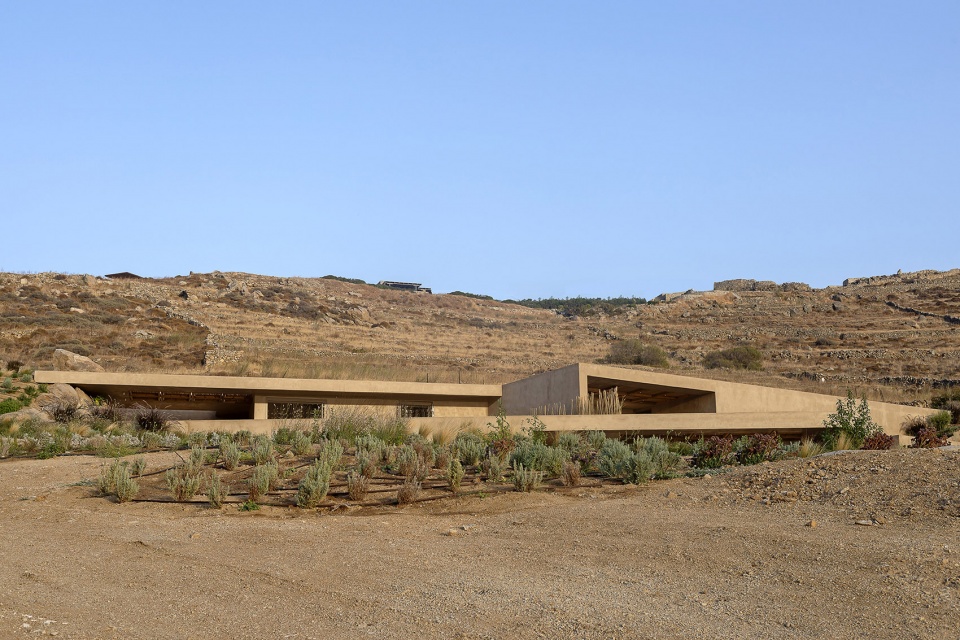

▼立面，facade © Panagiotis Voumvakis

<点> – 房间大小的矿洞标志出酒店的主入口，将人们引向如画廊一般的地下空间中，交错的地下交通空间形成网络。
<线> – 在地面层，鹅卵石小径以及货车道组成的路网以线性的形式分隔了场地，并形成尖锐的场地轮廓，以简洁抽象的几何形态象征性地融入到自然景观之中。
<面> – 线性的结构元素勾勒出宽阔的平坦表面，成为斜坡地形的人工延伸。

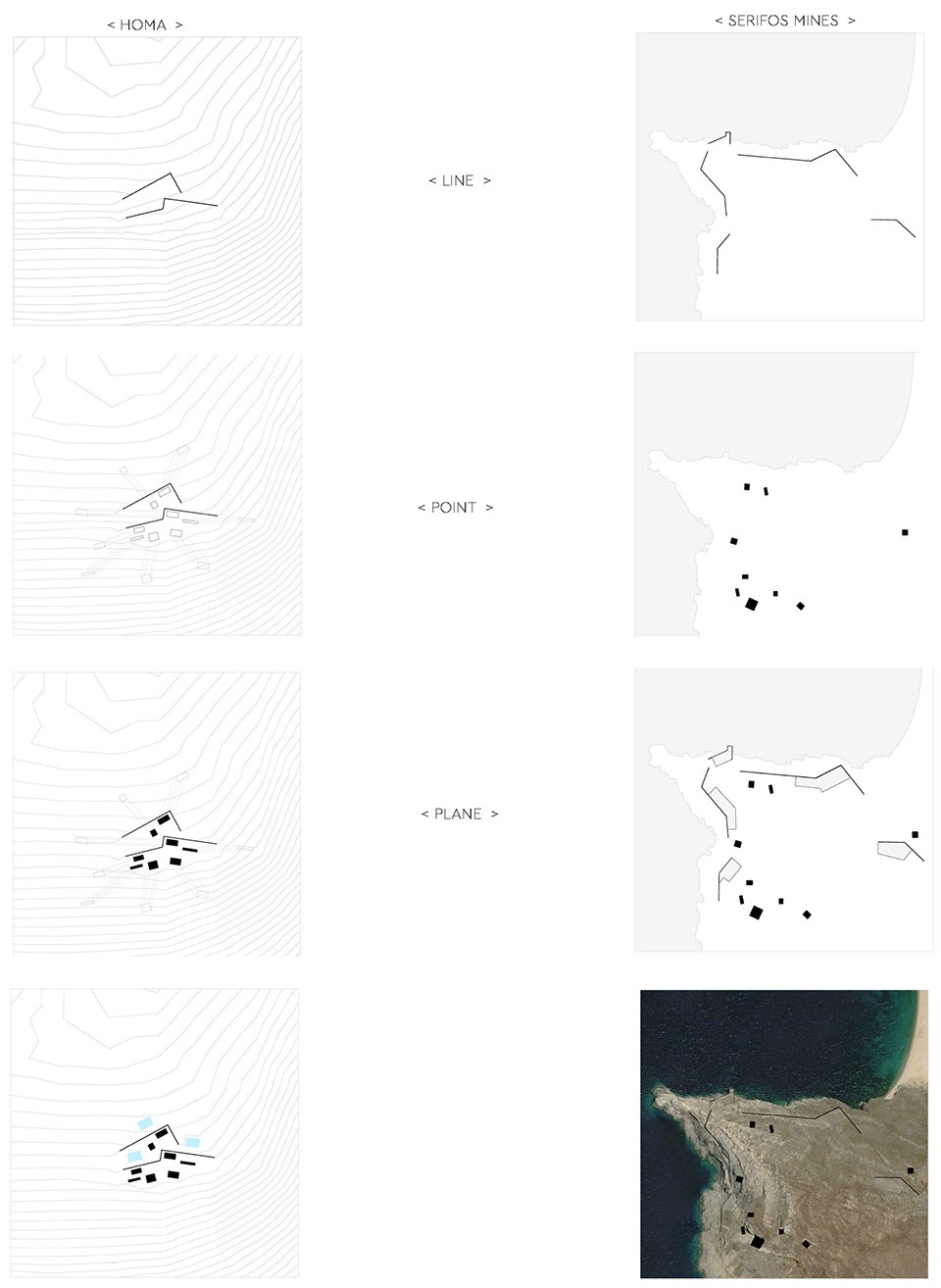

▼分析图，analysis diagram © Mold architects – Iliana Kerestetzi

▼“点线面”的几何构成，geometric composition of “point, line and plane”© Mold architects – Iliana Kerestetzi

< POINT > The room-sized voids resulting from the excavations indicate the entrance into a second – underground – network of galleries below the ground level.
< LINE > On the surface, the cobbled paths as well as the network of railway lines of the wagons, create sharp linear cuts that emblematically integrate into the natural landscape.
< PLANE > These linear configurations produce broad flat surfaces acting as artificial extensions of the sloping terrain.

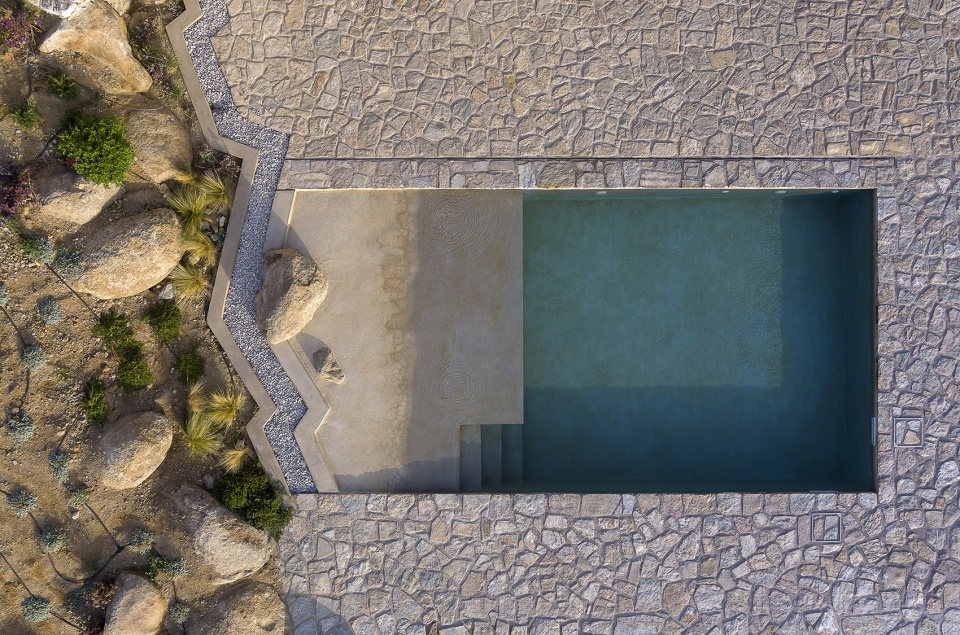

▼泳池平台顶视图，top view of the pool © Panagiotis Voumvakis

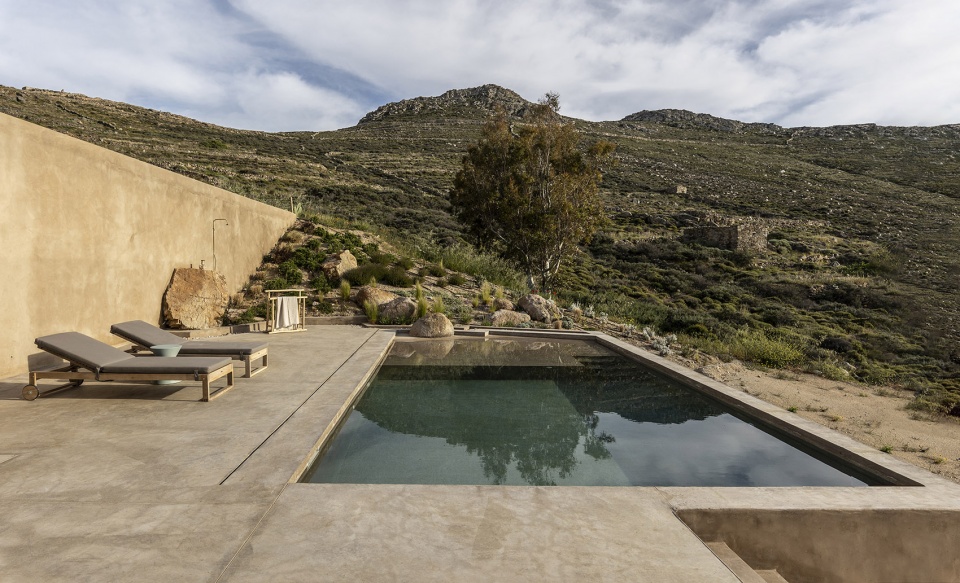

▼户外泳池，outdoor pool © Ioanna Royfopoylou

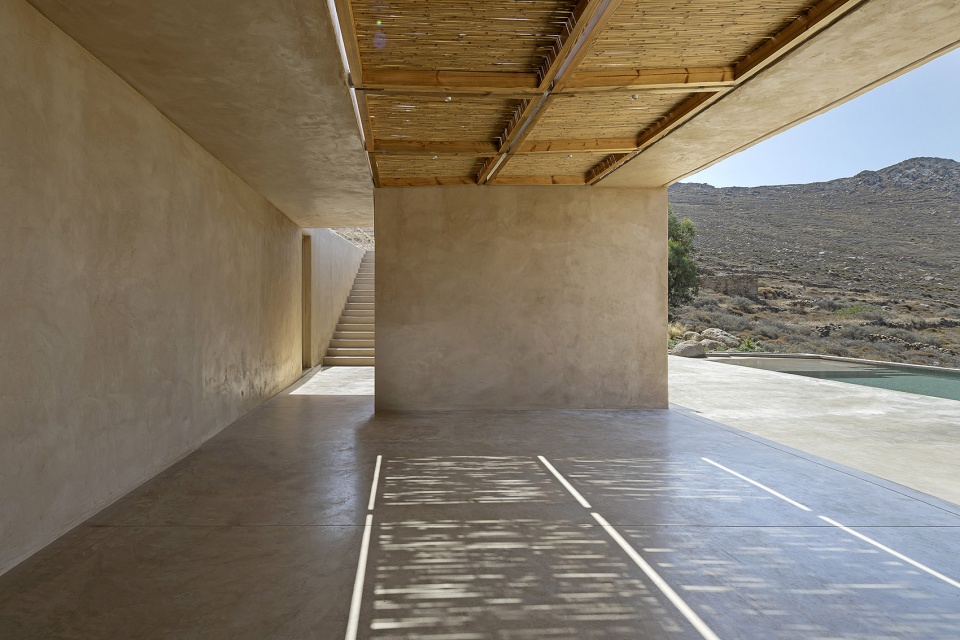

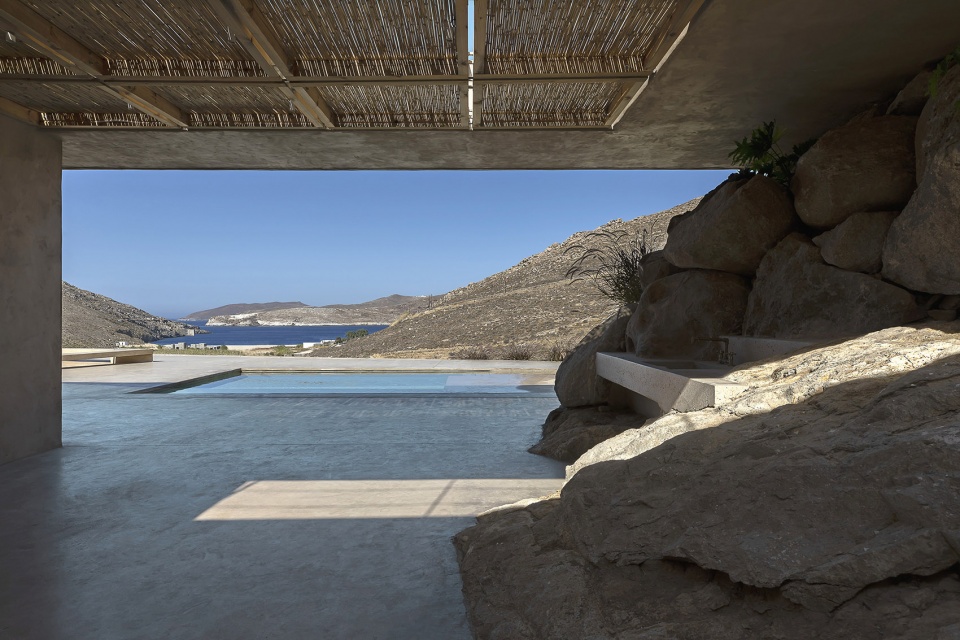

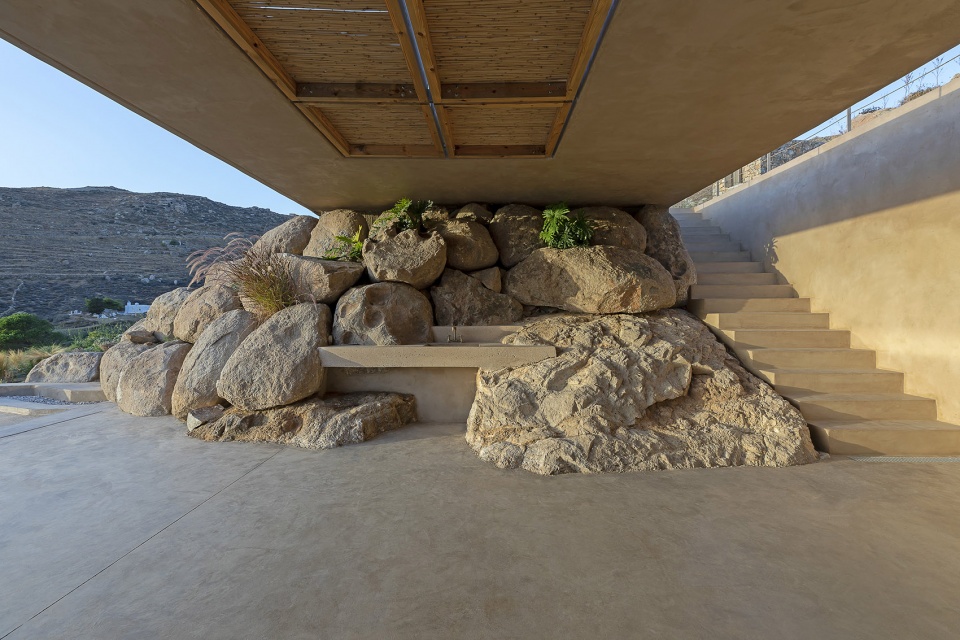

▼由平台下侧看泳池，viewing the pool under the platform © Panagiotis Voumvakis

▼地下空间由楼梯进入，staircase leading to the underground space © Panagiotis Voumvakis

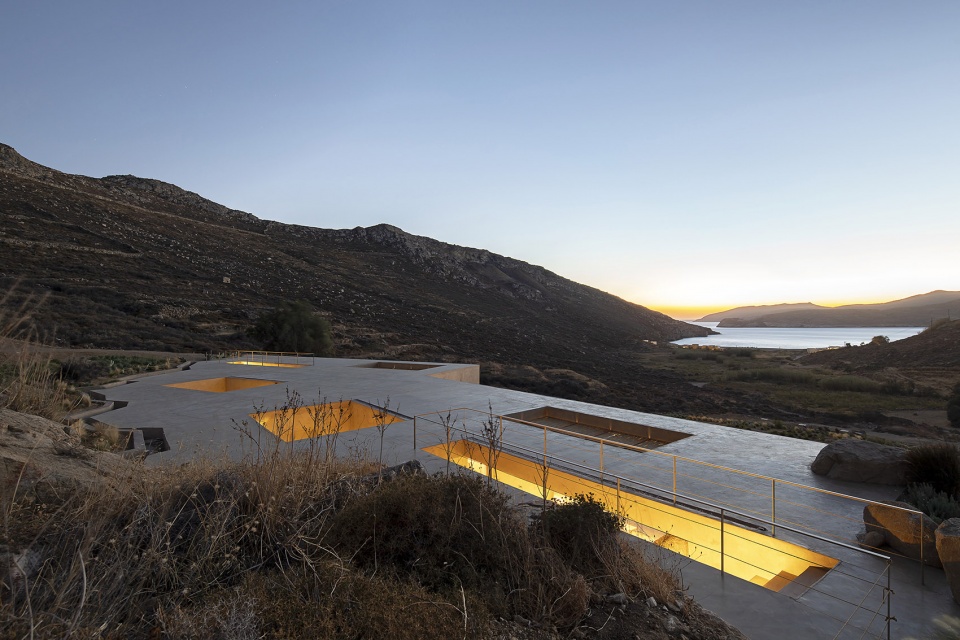

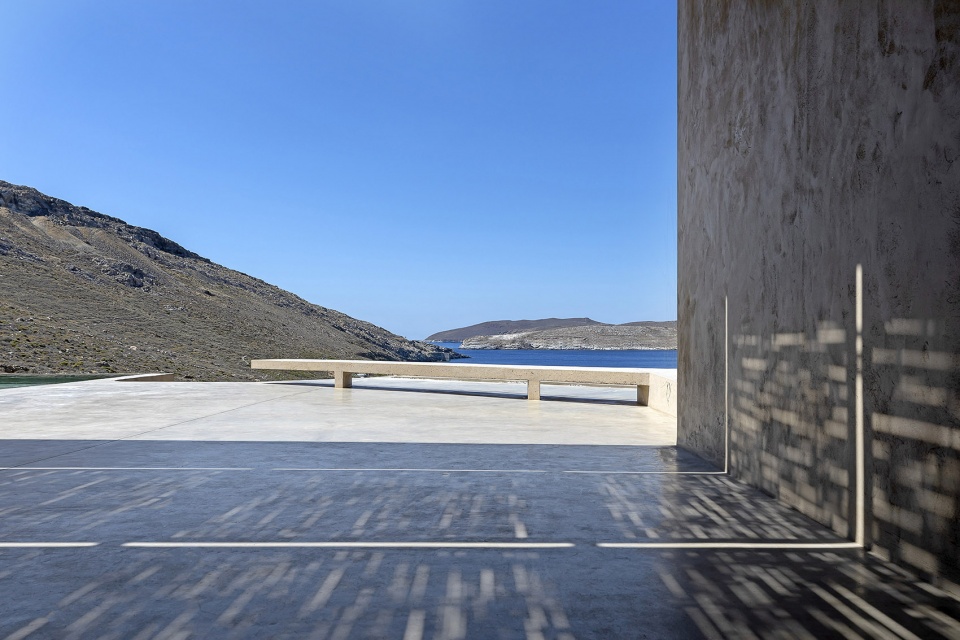

▼由屋顶平台看海景，viewing the sea from the rooftop platform © Panagiotis Voumvakis

设计的核心理念旨在尊重场地上矿井的结构痕迹，并以此为基础在地下重构出生活空间。设计充分利用了场地的自然曲线，以两条<斜线>串联起一系列空间，将建筑与景观融为一体。这两条斜线分别定义出两处平台，即两个<面>，平台下分别包含了两个居住单元。每个住宿单元在平面上都经过了轻微的旋转，以保证室内的隐私，同时为不同居住空间创造出不同海景视野。

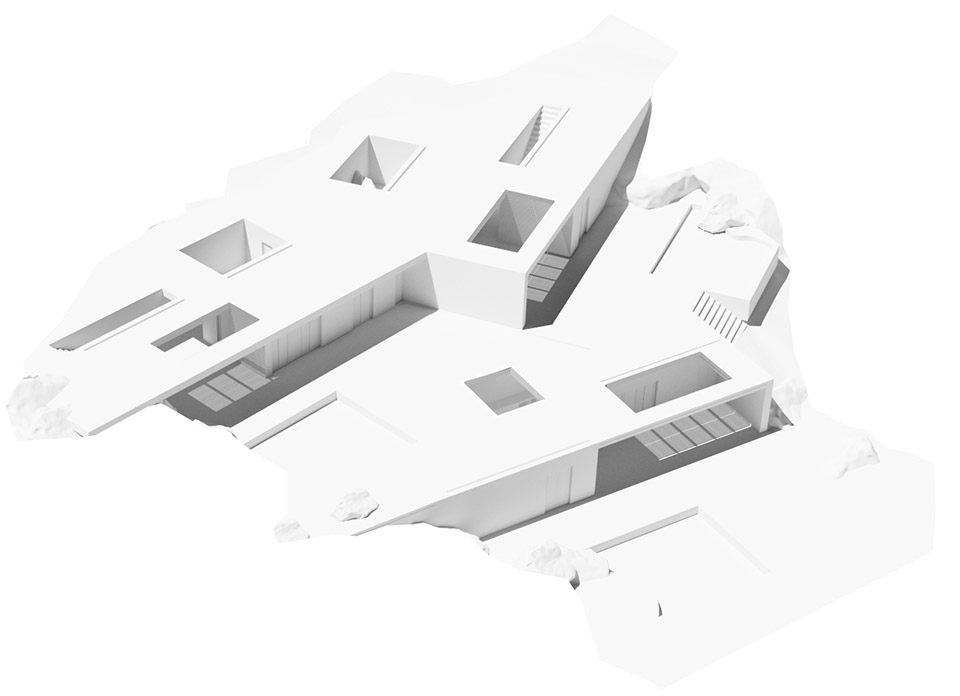

▼轴测图，axonometric drawing © Mold architects – Iliana Kerestetzi

The acknowledgment of the remnants of those configurations and the intention to revive a housing scenario below the ground surface formed the core idea of the design. Taking advantage of the natural curvature of the plot, we designed two angled lines < LINE > that are assimilated into the landscape. These lines define two flat platforms respectively, < PLANE > on which the lodgings are placed. (One on the first and two on the second). Each lodging is positioned with a slight rotation, ensuring privacy and variable sea views.

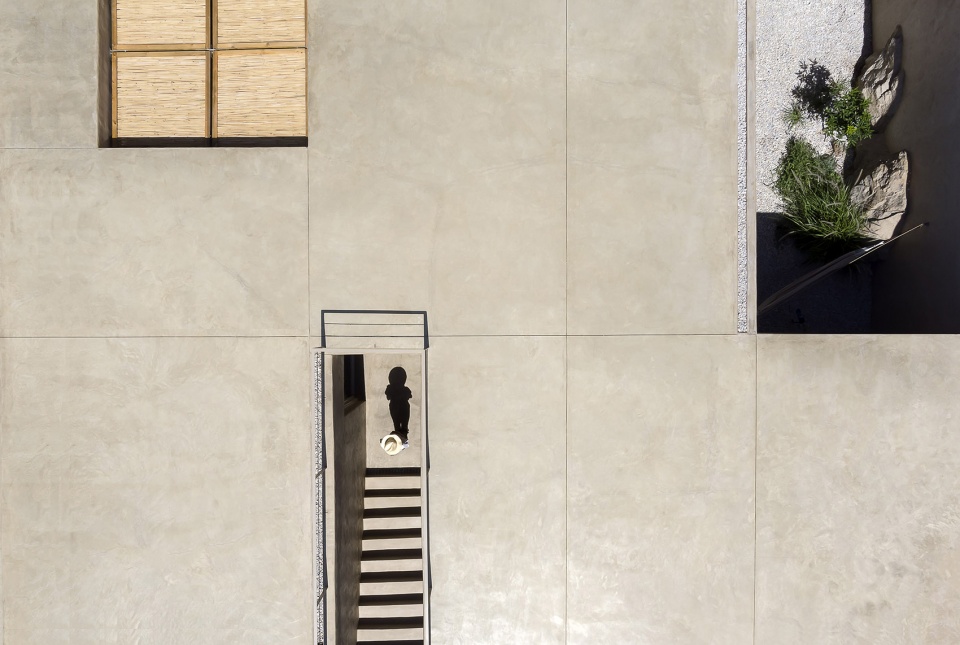

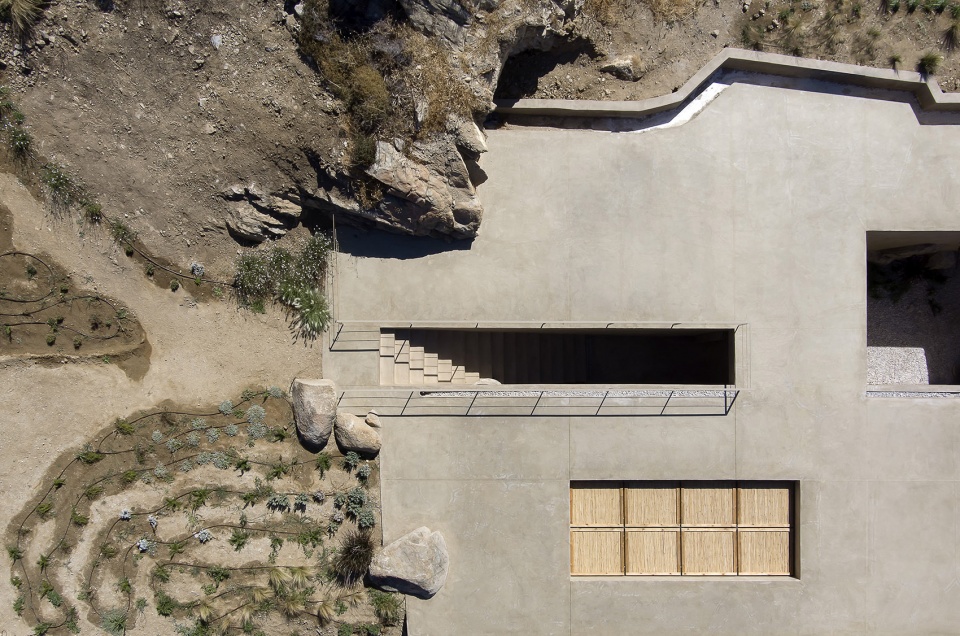

▼顶视图，top view © Panagiotis Voumvakis

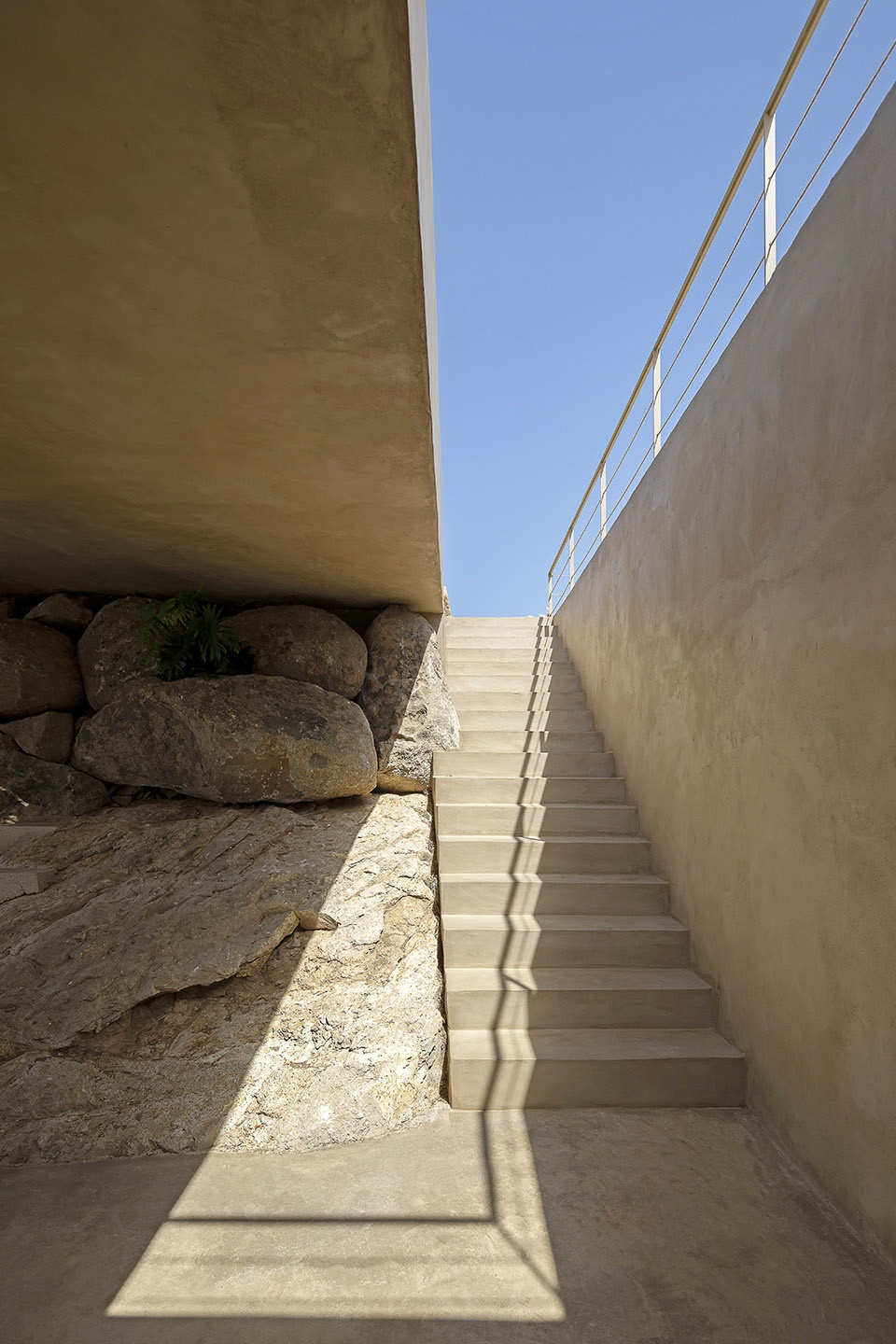

▼楼梯，staircase © Panagiotis Voumvakis

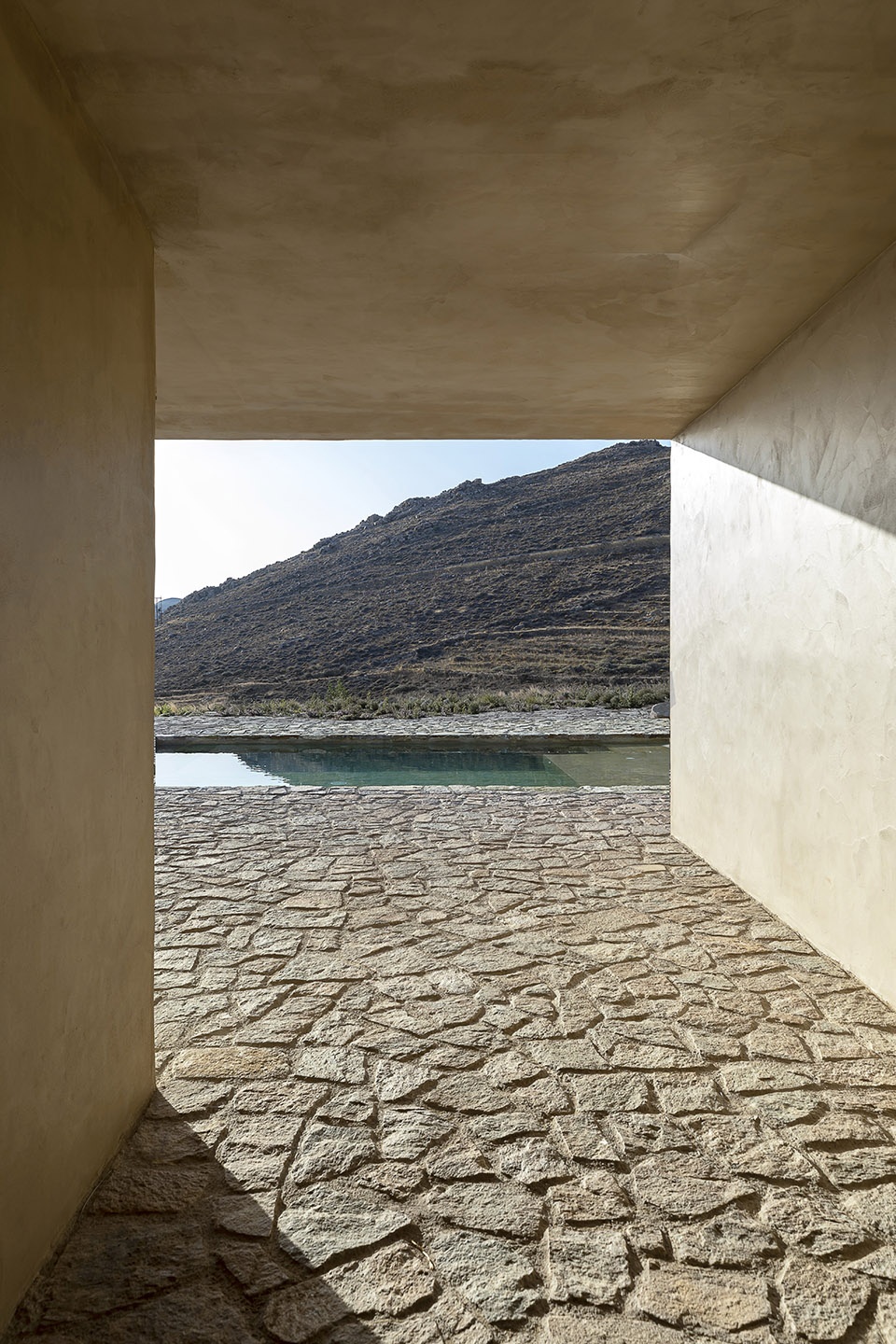

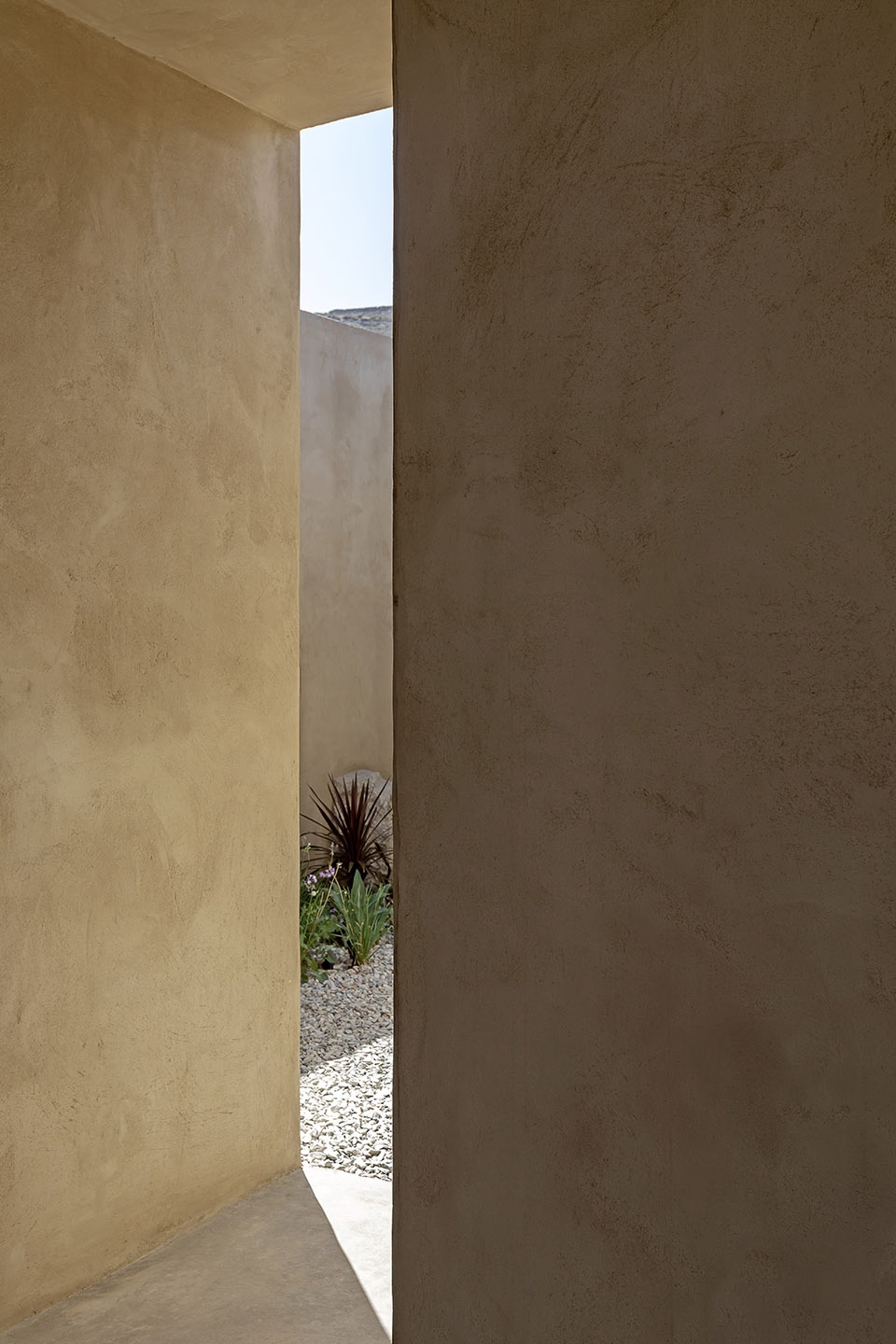

▼建筑形成的框景，frame view of the architecture © Panagiotis Voumvakis

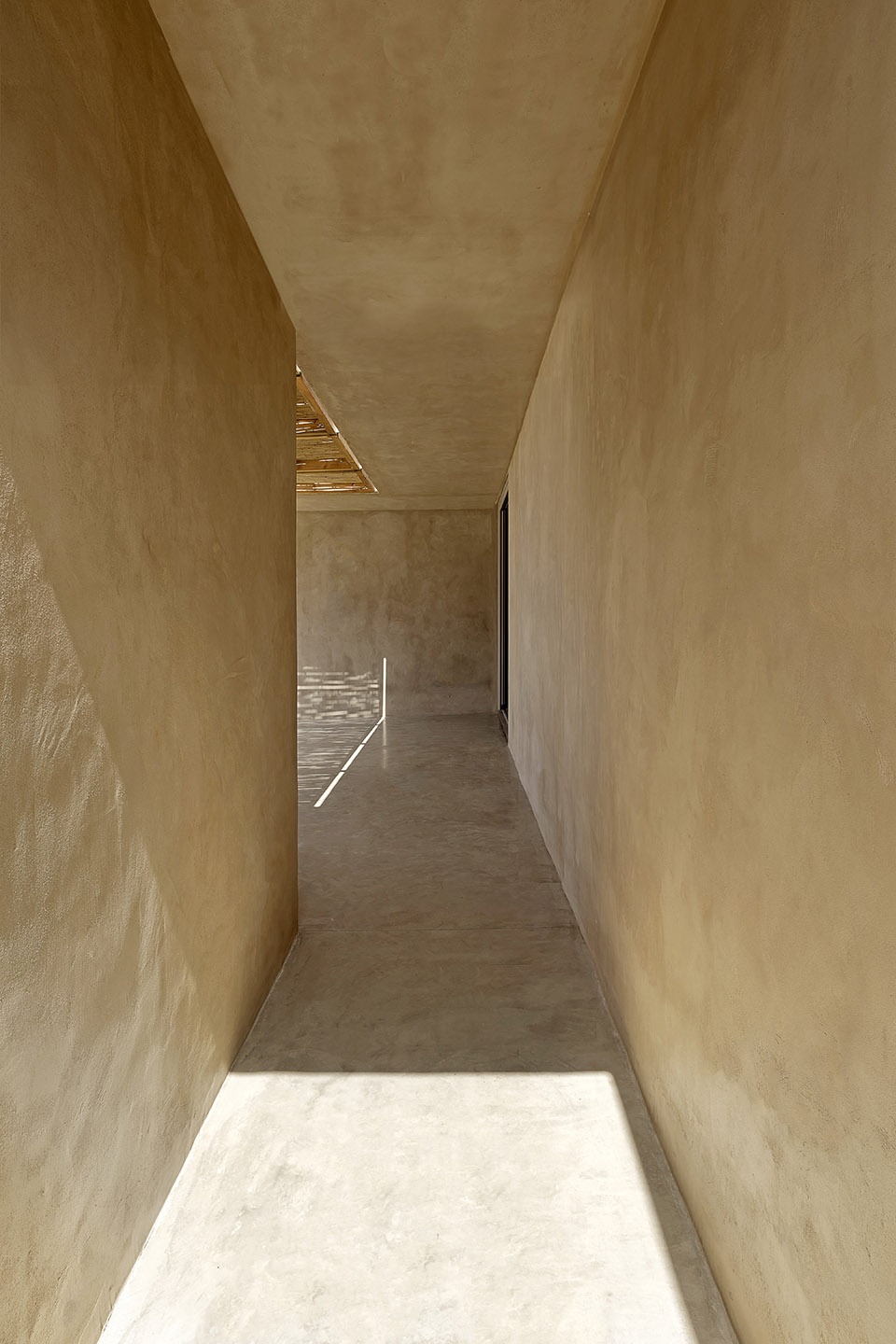

▼地下空间走廊，underground corridor © Panagiotis Voumvakis

地下空间需通过屋顶的线性楼梯进入，这些楼梯定义了地下居住空间的“新地坪层”。这种空间形式类似于“adits”，来自拉丁语aditus，代表“入口”，同时这些“入口”也是地下走廊空间中唯一的光线来源。天井、楼梯，以及泳池，由平面上的正方形与基底正交形成。空间的虚实对比创造出有趣的空间序列，创造出沐浴在自然光线中的功能空间，以及舒适宽敞的生活空间。

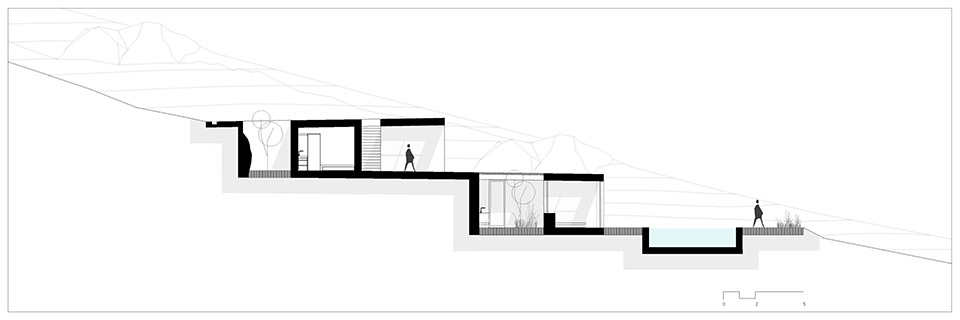

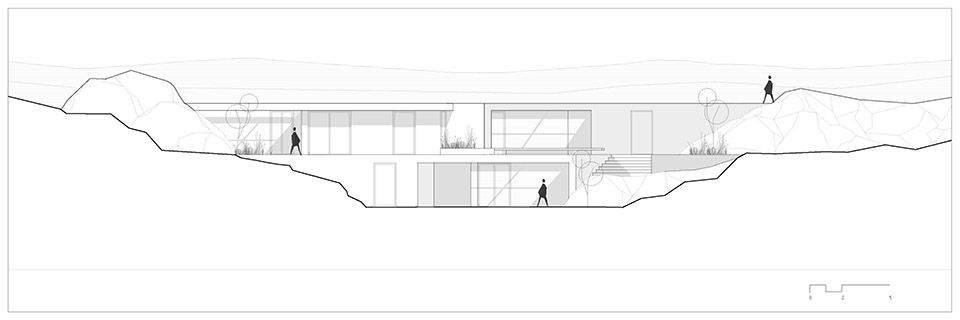

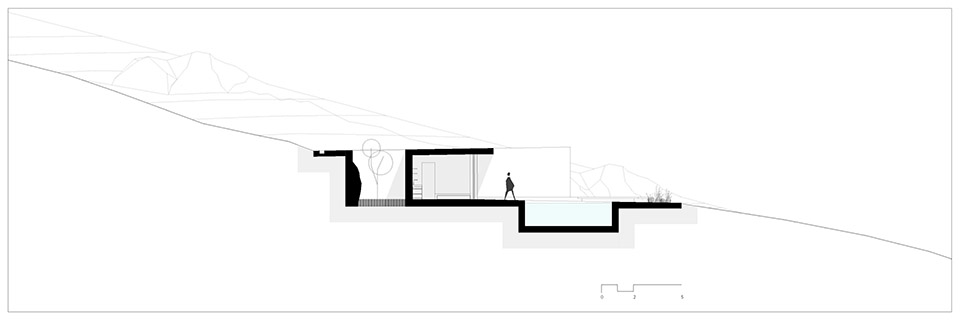

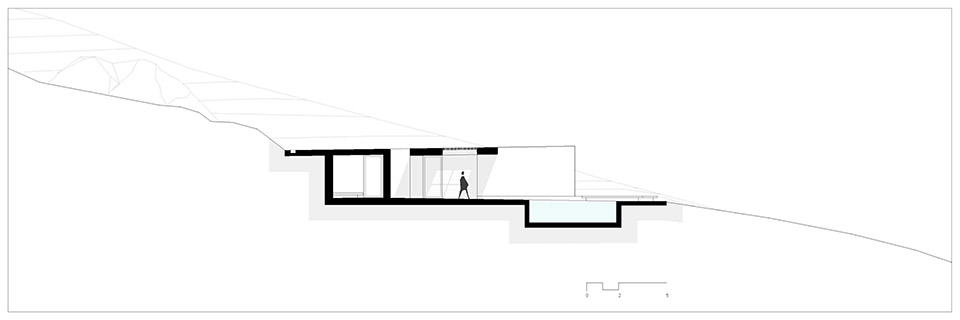

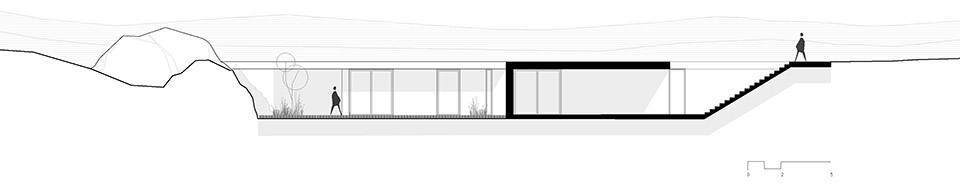

▼剖面图，section © Mold architects – Iliana Kerestetzi

The lodgings are approached from the roof, through linear staircases which define the entrance to a “new ground” of habitation, below the surface. Analogous to the adits – from Latin aditus, entrance – (which were the only source of light in the dark galleries of the mines) the patios, stairs and pools, result from the substruction of square and orthogonal masses from the planes. These sequences of voids and fulls, create functional and welcoming living spaces bathed in natural light.

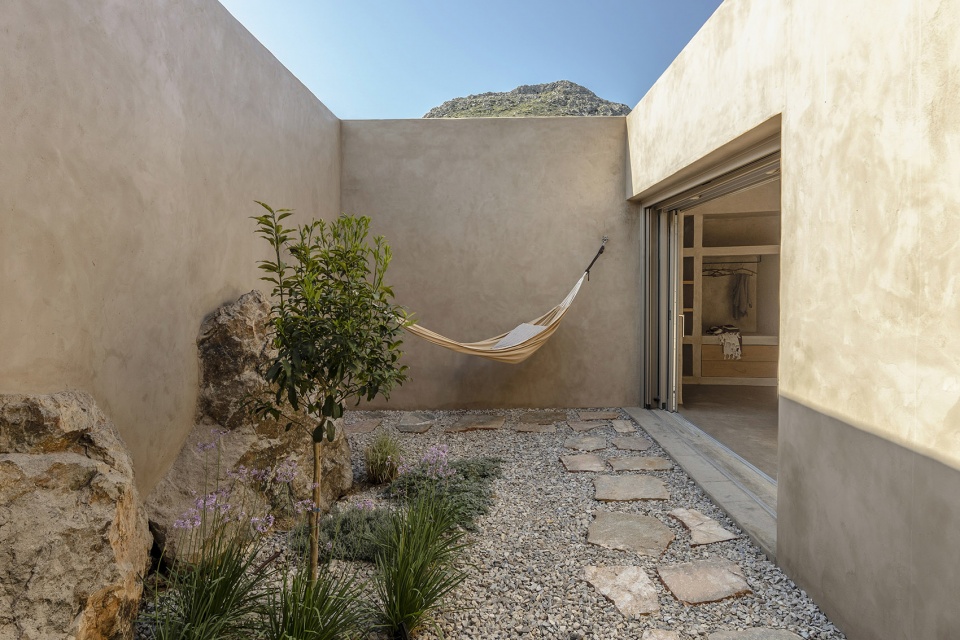

▼庭院，courtyard © Ioanna Royfopoylou

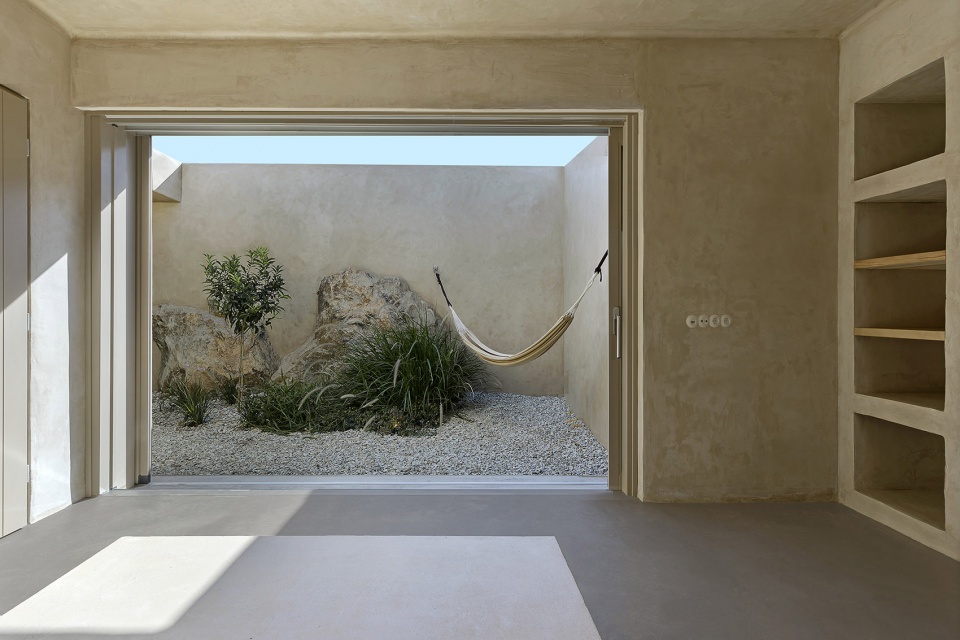

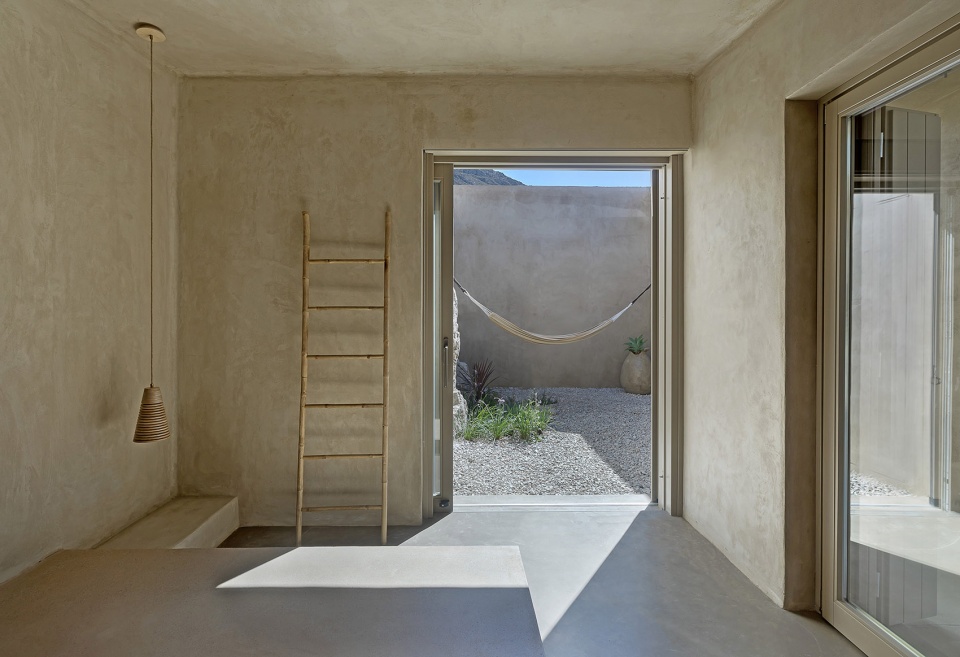

▼由室内看向户外庭院，viewing the courtyard from interior © Panagiotis Voumvakis

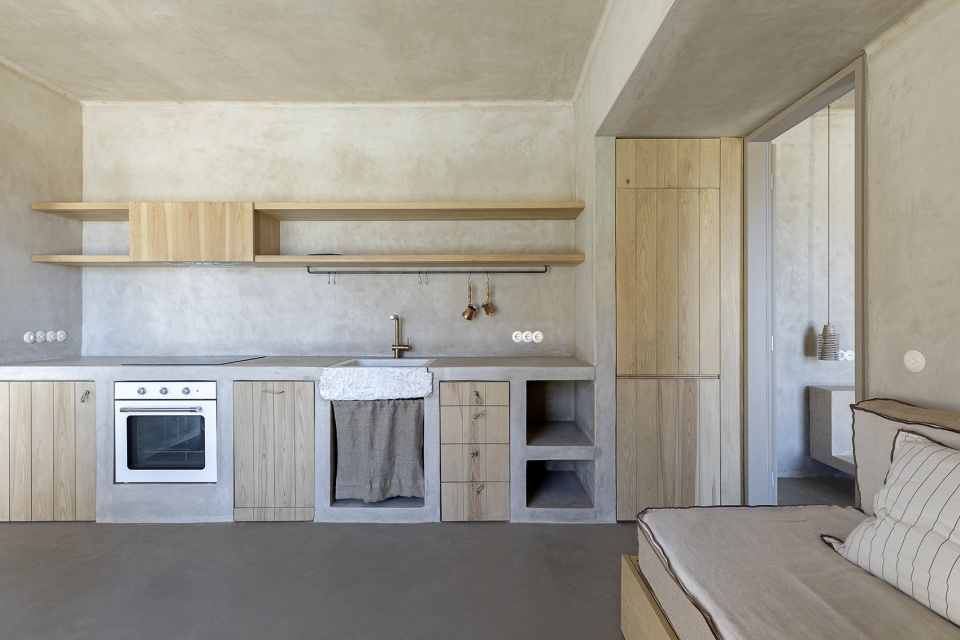

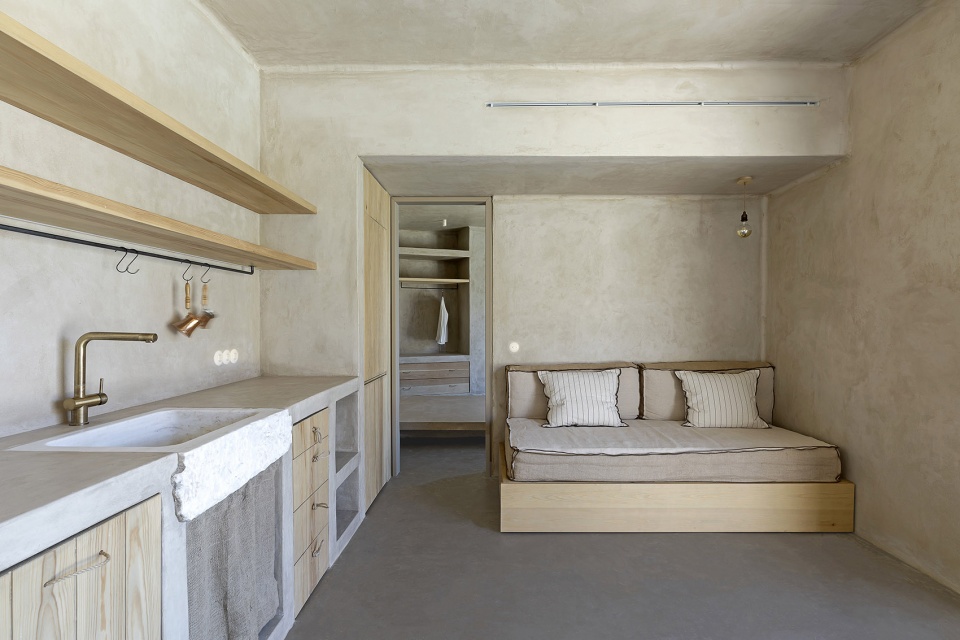

▼套房室内 – 起居空间，interior of the guesthouse – living room © Panagiotis Voumvakis

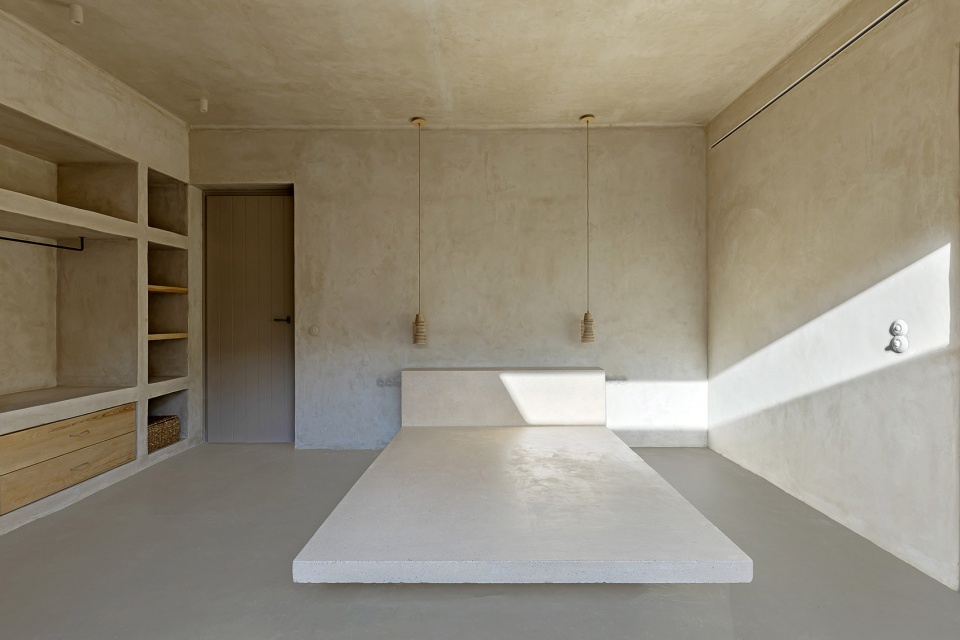

▼套房室内 – 卧室，interior of the guesthouse – bedroom © Panagiotis Voumvakis

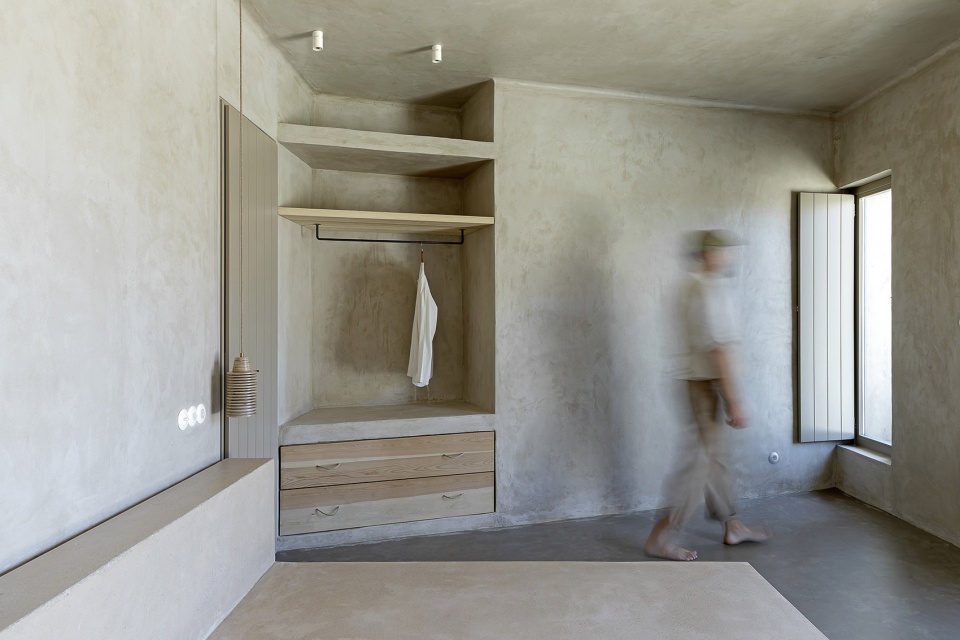

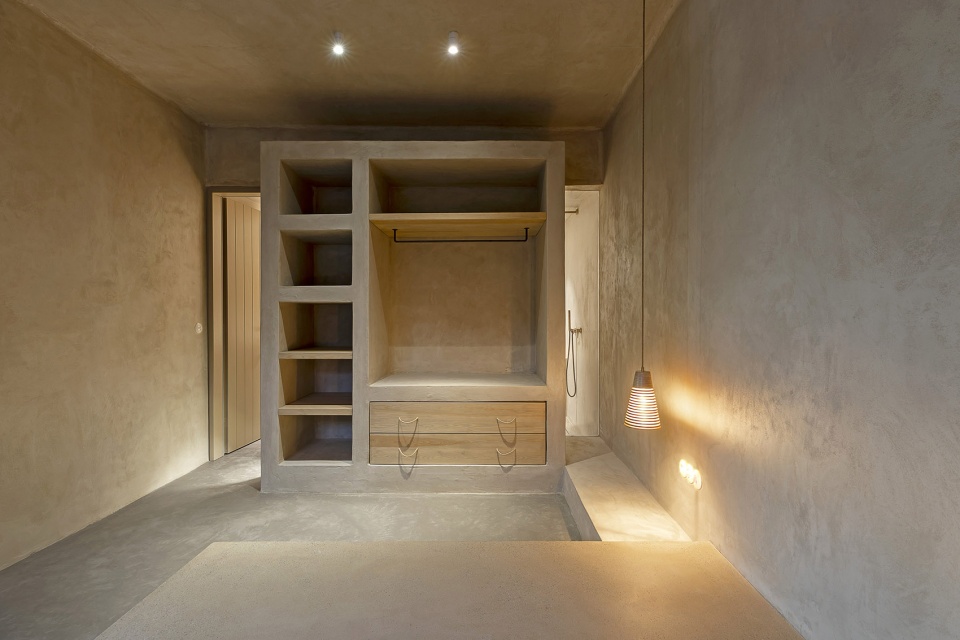

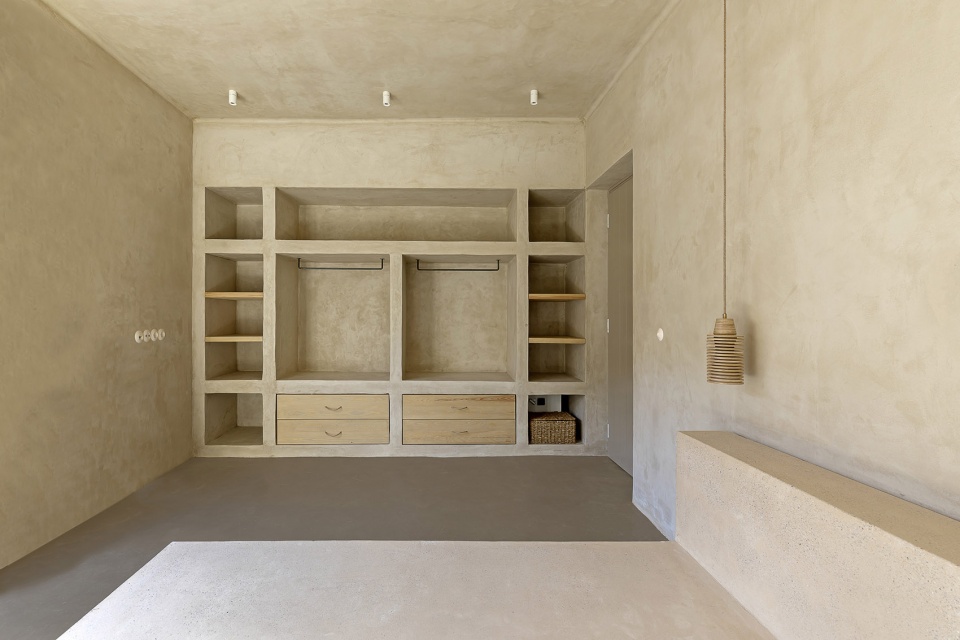

▼侵入式衣柜，integrated wardrobe © Panagiotis Voumvakis

▼夜间灯光效果，interior light effect © Panagiotis Voumvakis

酒店的名字“Homa”，来源于希腊语中的“χώµα”，译为土壤；“土壤”元素出现在项目的各个空间之中，例如：石膏中的土质矿物颜料，白色抛光混凝土制成的家具，木材和天然岩石构成的框架结构等，所有元素都强调出设计的统一性，使建筑宛如由自然土壤雕刻而成的艺术作品。

Homa – from Greek χώµα, soil: The earthen mineral pigment in the plaster, the built furniture from white polished concrete, the wood and the natural rocks which frame the construction, underline the monolithic nature of a composition which derives from the sculptural processing of the natural soil.

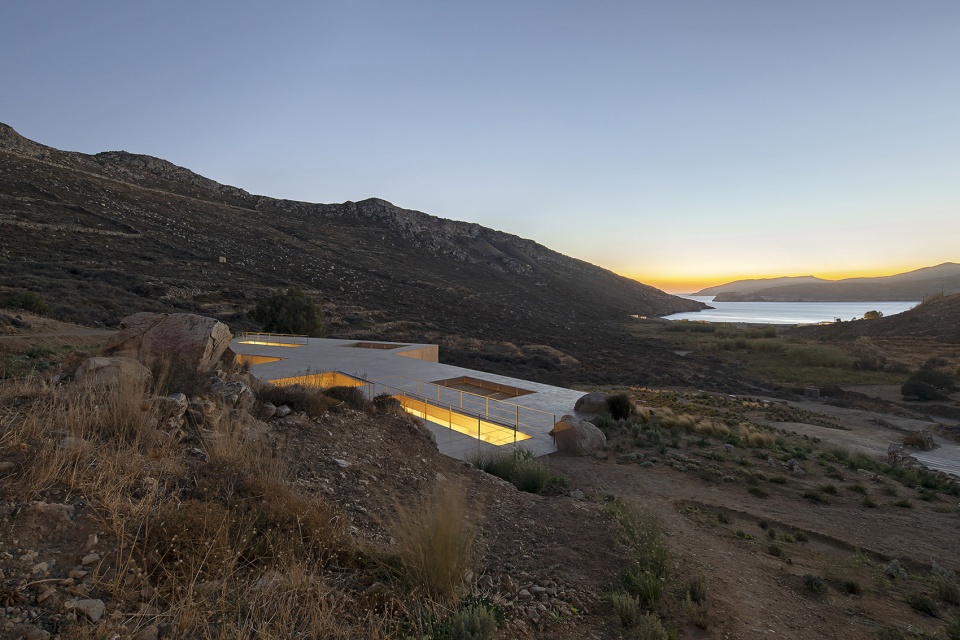

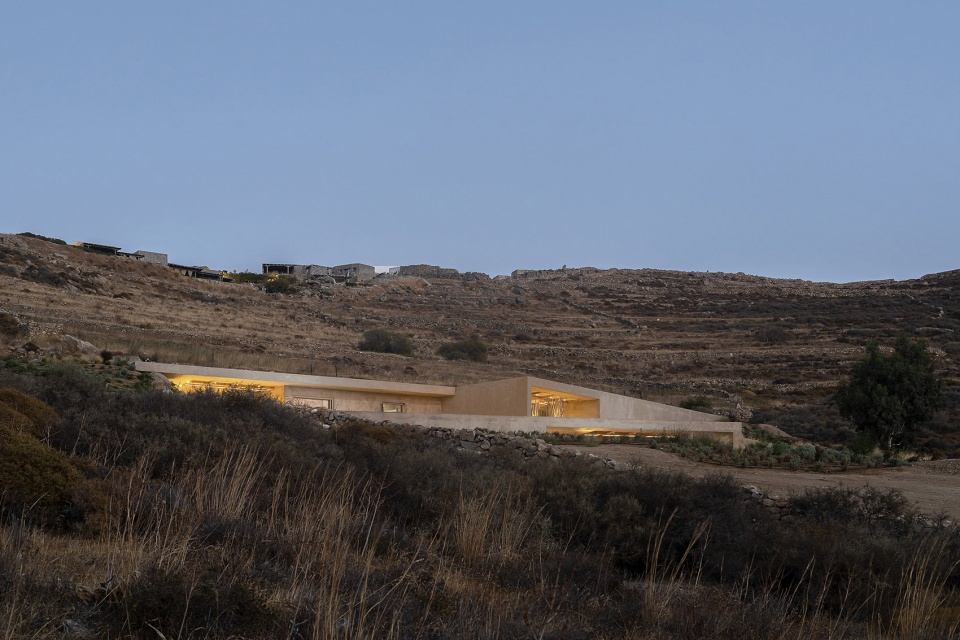

▼夜景远观，night views at distance © Panagiotis Voumvakis

▼立面夜景，night view of the facade © Panagiotis Voumvakis

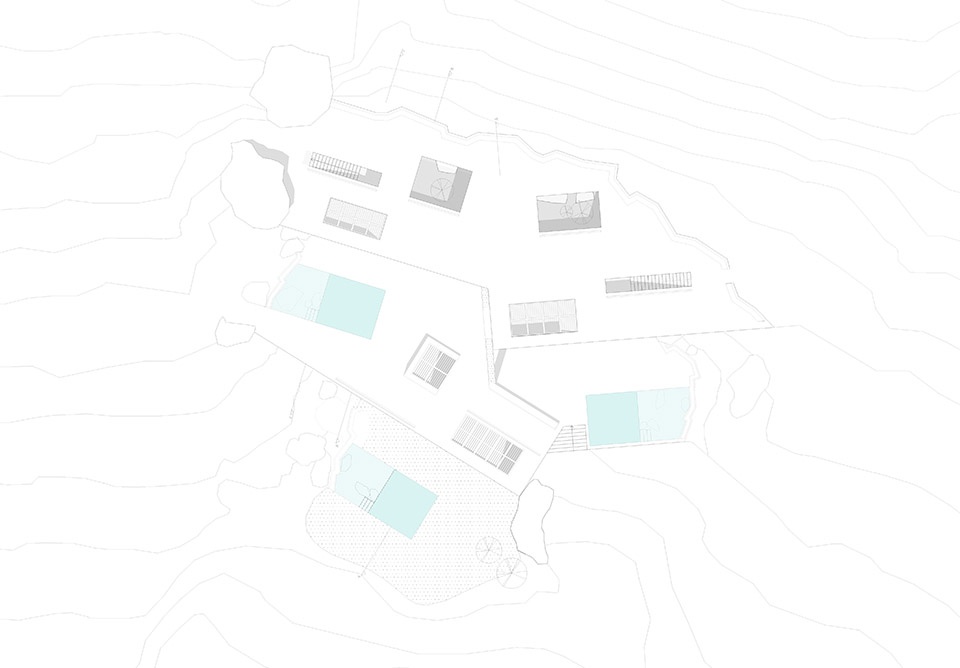

▼总平面图，master plan © Mold architects – Iliana Kerestetzi

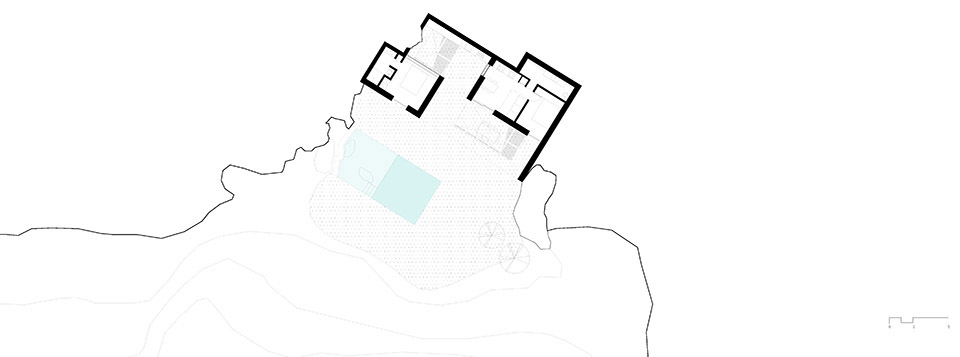

▼底层平面图，plan +0.00 © Mold architects – Iliana Kerestetzi

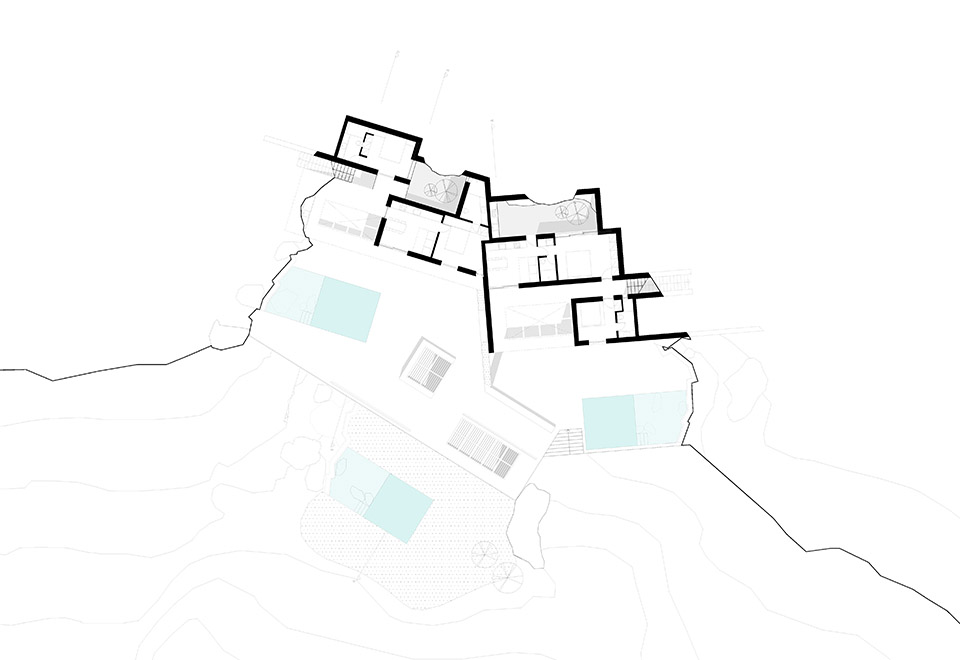

▼地下一层平面图，plan -3.20 © Mold architects – Iliana Kerestetzi

▼立面图，elevation © Mold architects – Iliana Kerestetzi

▼剖面图，sections © Mold architects – Iliana Kerestetzi

Τitle: HOMA VAGIA
Types: Boutique hotel
Location: Vagia, Serifos Island , Cyclades
Plot: 5.500m²
Gross area: 180 m²
Design:2020
Construction: 2022
Architectural design: Mold architects – Iliana Kerestetzi,
Design team: Iliana Kerestetzi, Konstantinos Vlachoulis, Maria Vretou
Stuctural design: Technodynamics
MEP design: Agapakisconsultants
Lighting design: IFI group
Photographer: Panagiotis Voumvakis
*3 photos are by Ioanna Royfopoulou and some by Mold architects
