非常感谢 Stolon Studio 予gooood分享以下内容。更多请至： Stolon Studio on gooood
Appreciation towards Stolon Studio for providing the following description:

建筑设计
Architecture

Rockbourne Mews 是一个城市闲置地段再开发项目，三栋包括生活和办公的房屋围绕一片多功能室外公共庭院，形成了这个小小的可持续发展社区。建筑采用三层玻璃，并在墙面、地面和屋顶设置高性能保温层，保证建筑在获得充足的自然光照的同时，满足人们对于保温隔热的需求。

Rockbourne Mews is a redevelopment of an urban brownfield site with a small sustainable community of 3 live/work houses arranged around a multi-functional shared outdoor courtyard. The buildings create a balance between natural light and thermal performance by using triple glazing as well as high performance insulation to walls, floors and roof.

▼建筑外观，external view of the building

基地四周都是建筑，项目需要在有限的预算下，谨慎地处理和相邻建筑的关系，与混杂的周边环境相协调，并且在不破坏私密性和美观的前提下，让每个房间都能享受到光照。

Land-locked on all sides, the architects had the challenge of providing light to each room, without compromising privacy and outlook; in a scheme conversant with its patchwork context, constructed with the sensitivity which accompanies 32 Party Wall Awards, and delivered on an ambitious budget.

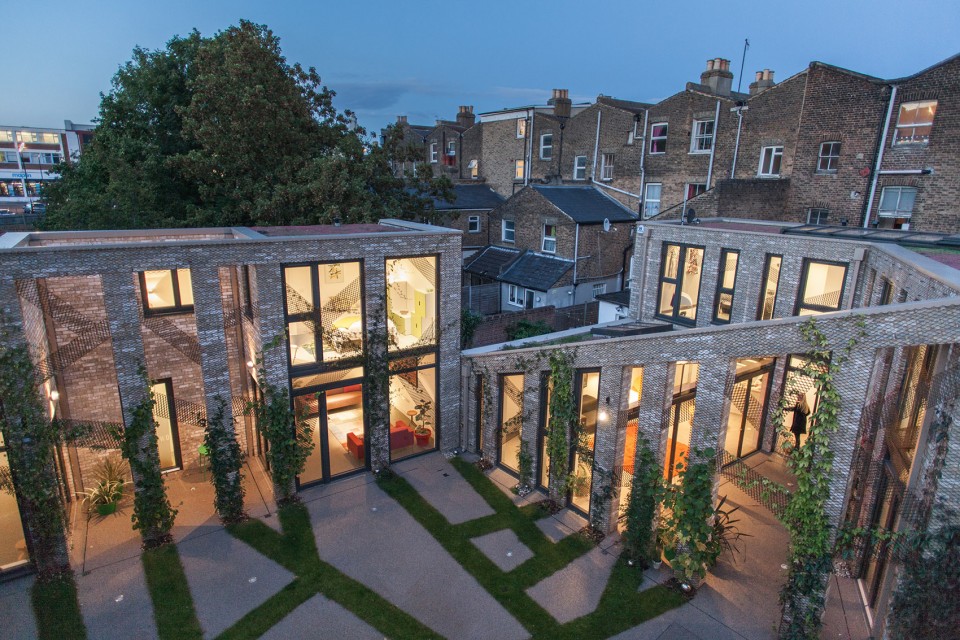

▼鸟瞰，与周边区域向协调，bird view, being harmony with the context

▼社区入口，进入庭院，entrance of the community, enter the courtyard

公共庭院的地面由树脂碎石和花坛拼接成几何形状，与建筑砖柱的位置相呼应。花坛靠近墙面的地方设有脚架，爬藤植物可以沿着脚架向上攀爬，并顺着建筑表面的葡萄架网格向四周蔓延，在立面上描绘出丰富的图案，并为室内提供隐私和遮阳。几何图案在项目图形、织物上均有出现，甚至在业主的婚戒上都有其身影。

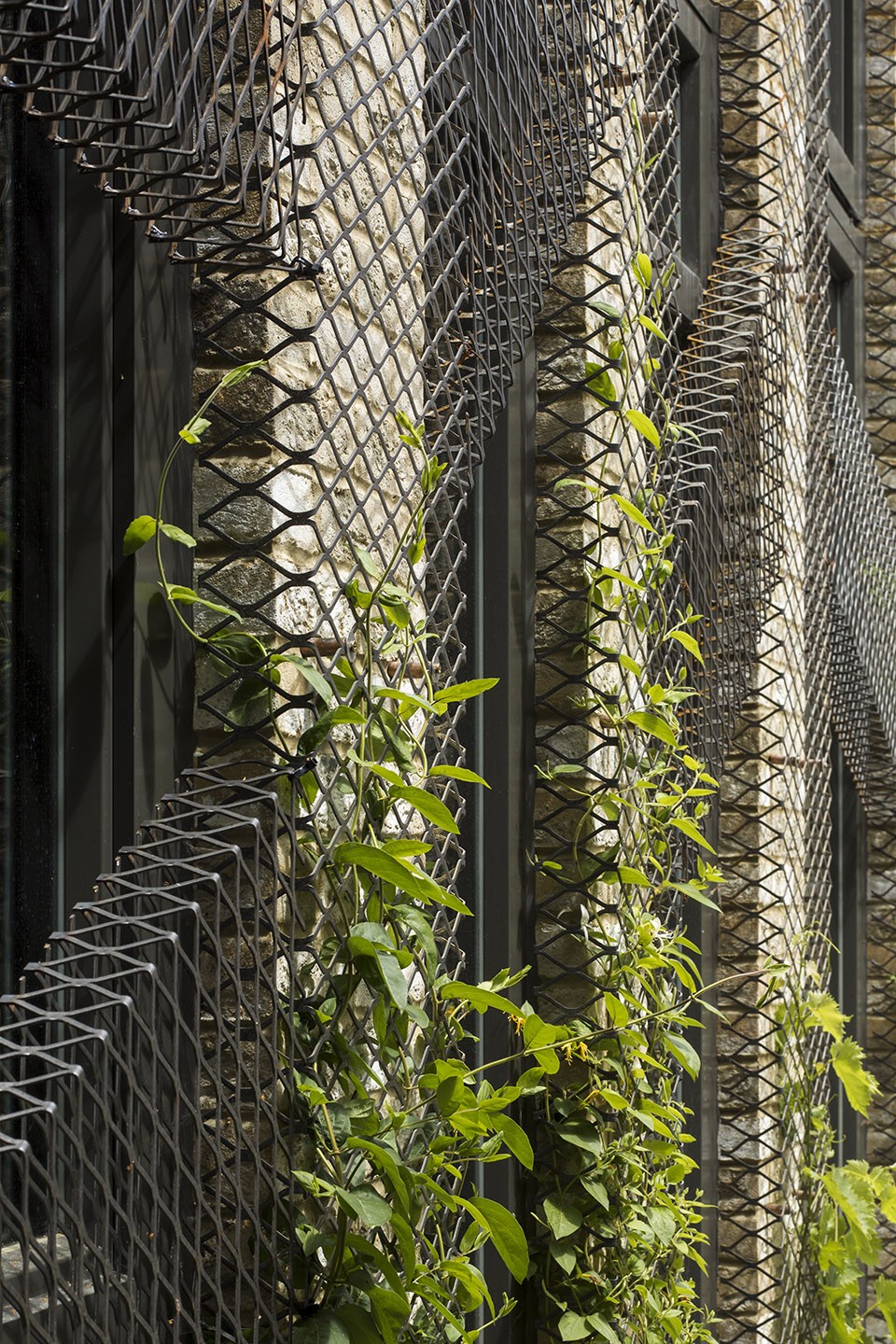

The communal courtyard is landscaped with a geometric mix of resin-bound gravel and , connecting back to brick piers. The beds provide footholds from which climbing plants grow, supported on a treillage mesh, which branches across the face of the buildings, tracing out the motif of the elevations and providing privacy and shade to occupants. The geometric pattern features in project graphics, textile-prints and also in the clients’ wedding rings.

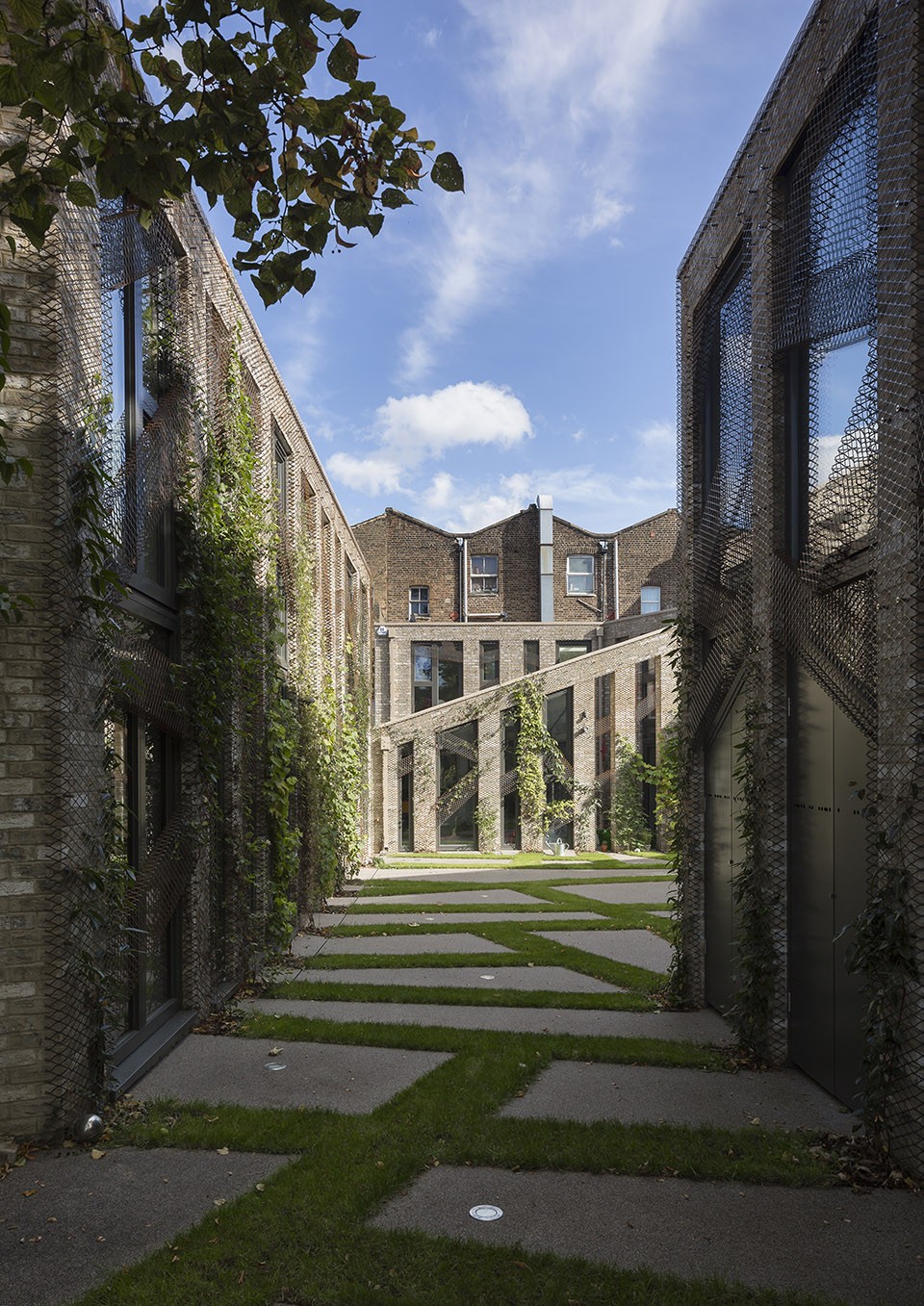

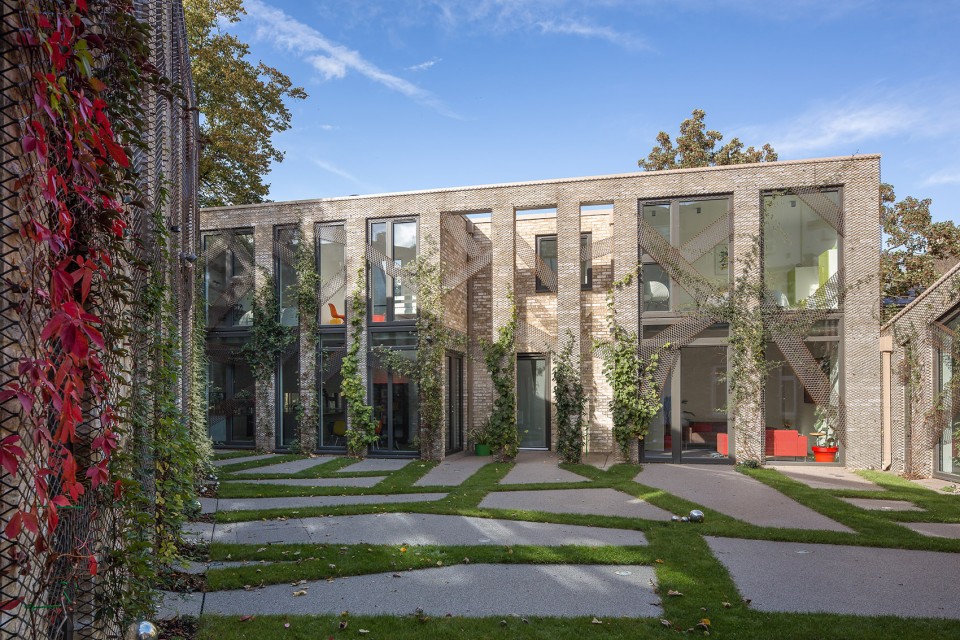

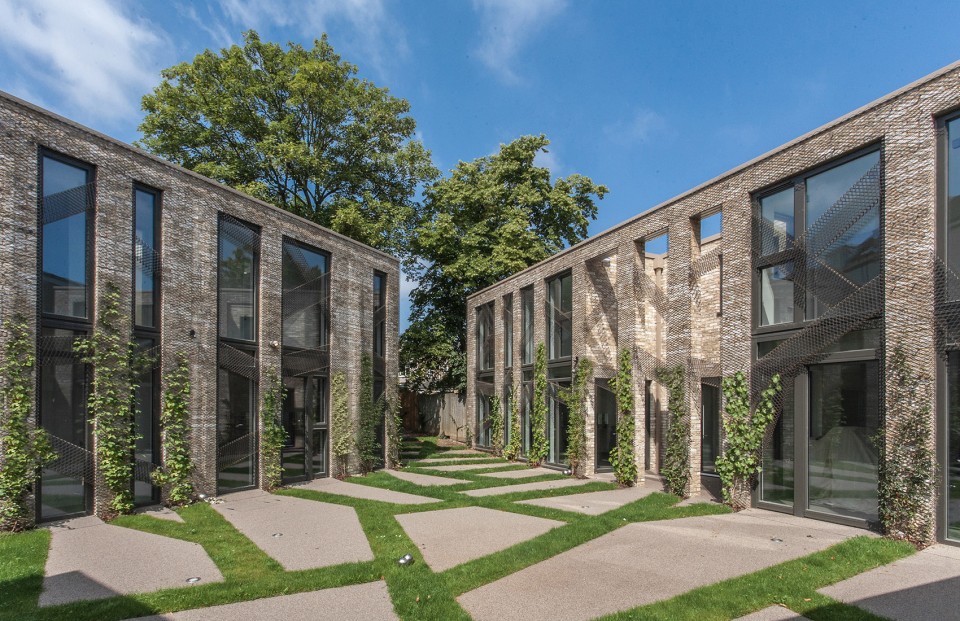

▼庭院地面呈几何图样，植物爬上墙壁，geometric pattern of the courtyard landscape, plants climb across the face of the building

房屋的底层中部都设有面向庭院的半私密凉廊空间，可以用作入口门厅，露台或者生活空间的延伸，也可以作为中庭供周围房间使用。砖制的飞梁标出建筑入口，未设任何障碍就划分出了私密和公共空间。

Central to each of the open plan ground floors is a semi-private outdoor room / courtyard. This loggia space is multifunctional, serving as a grand entrance porch, an external terrace, an extension to the living space and as an atrium to the surrounding rooms. The flying brick beams of houses, define the boundary of the private and communal space, creating a clear gateway without barriers.

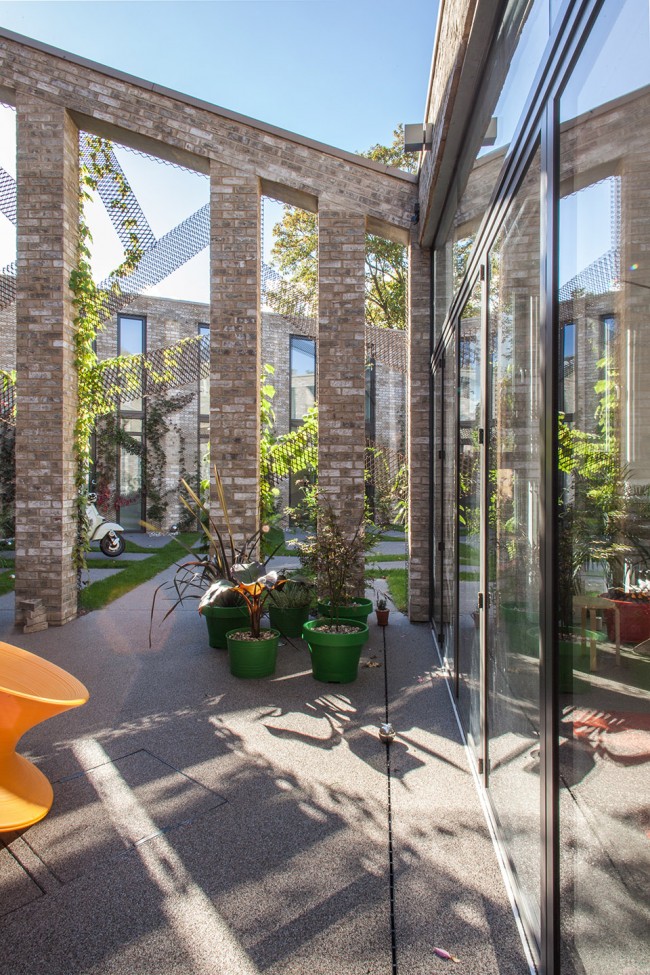

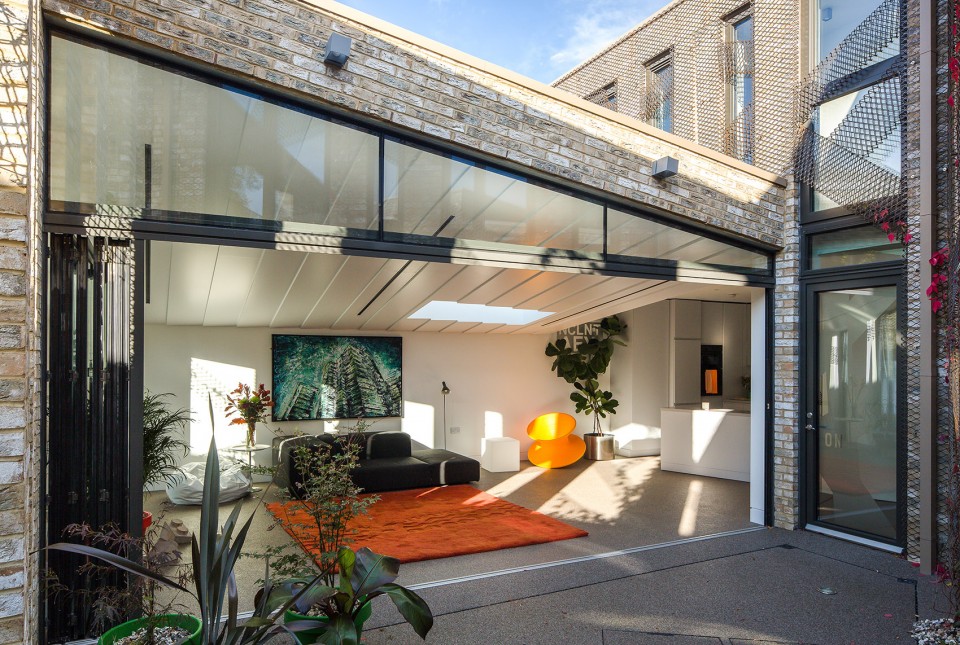

▼凉廊空间，loggia space

每座房屋都在基地中占有自己的一席之地，它们采用同样的设计语言，由相同的材料建成。与当地传统的住房不同的是，新建筑的窗墙比很高，整个设计显得轻盈通透。浅色的砖面和玻璃可以反射阳光，使公共庭院即使在冬天也可以获得光照。

Each house is tailored to its position on the site, fashioned from the same building fabric, and gathered together using a common design thread. Atypical to a traditional mews, the designs are light and airy, with a high proportion of glazing to solid. The pale ‘stock’ bricks and glazing reflect light into the communal courtyard even during winter months.

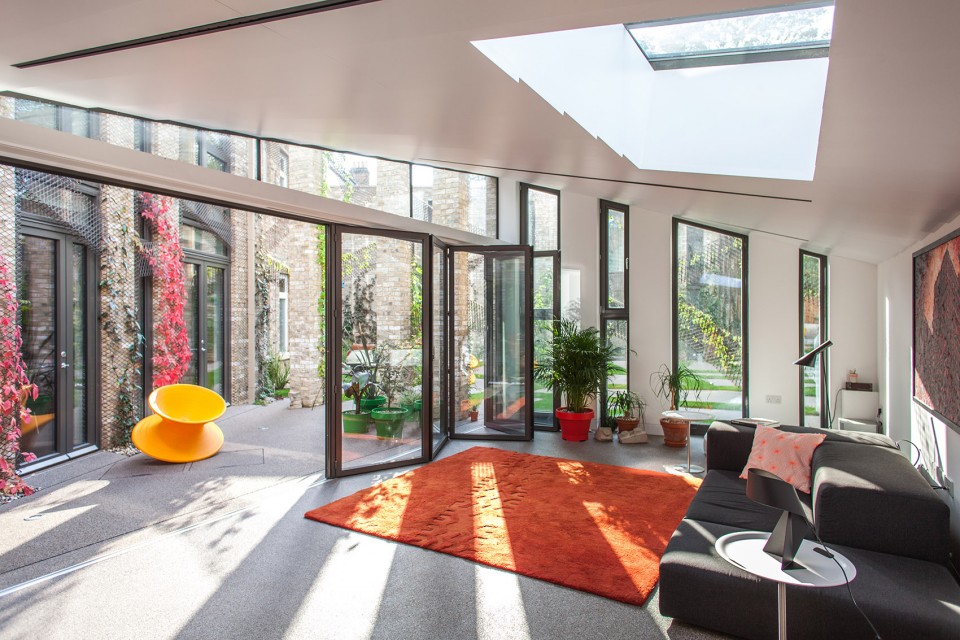

▼生活空间，大开窗让阳光充满室内，living space, large window bringing sunlight into the rooms

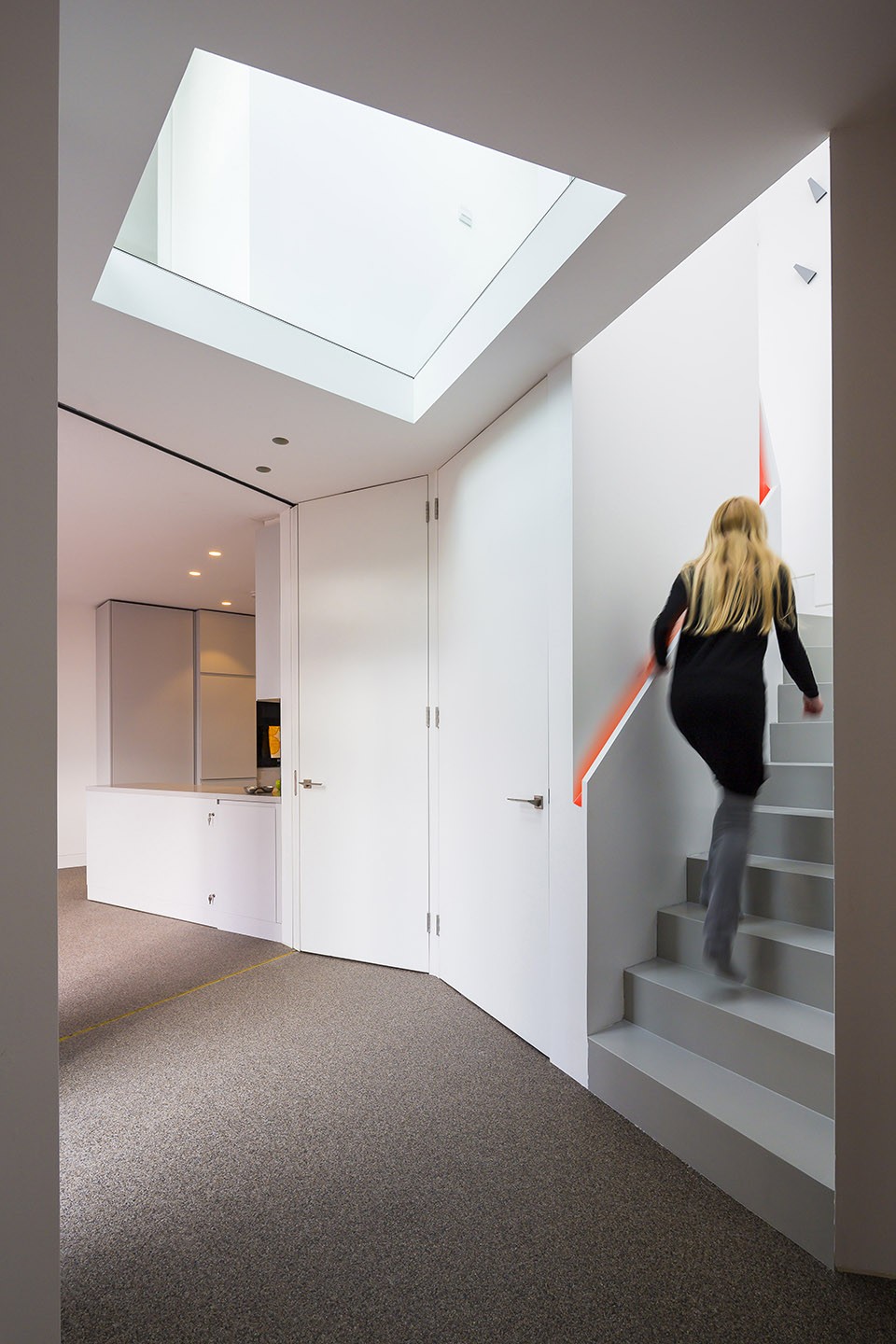

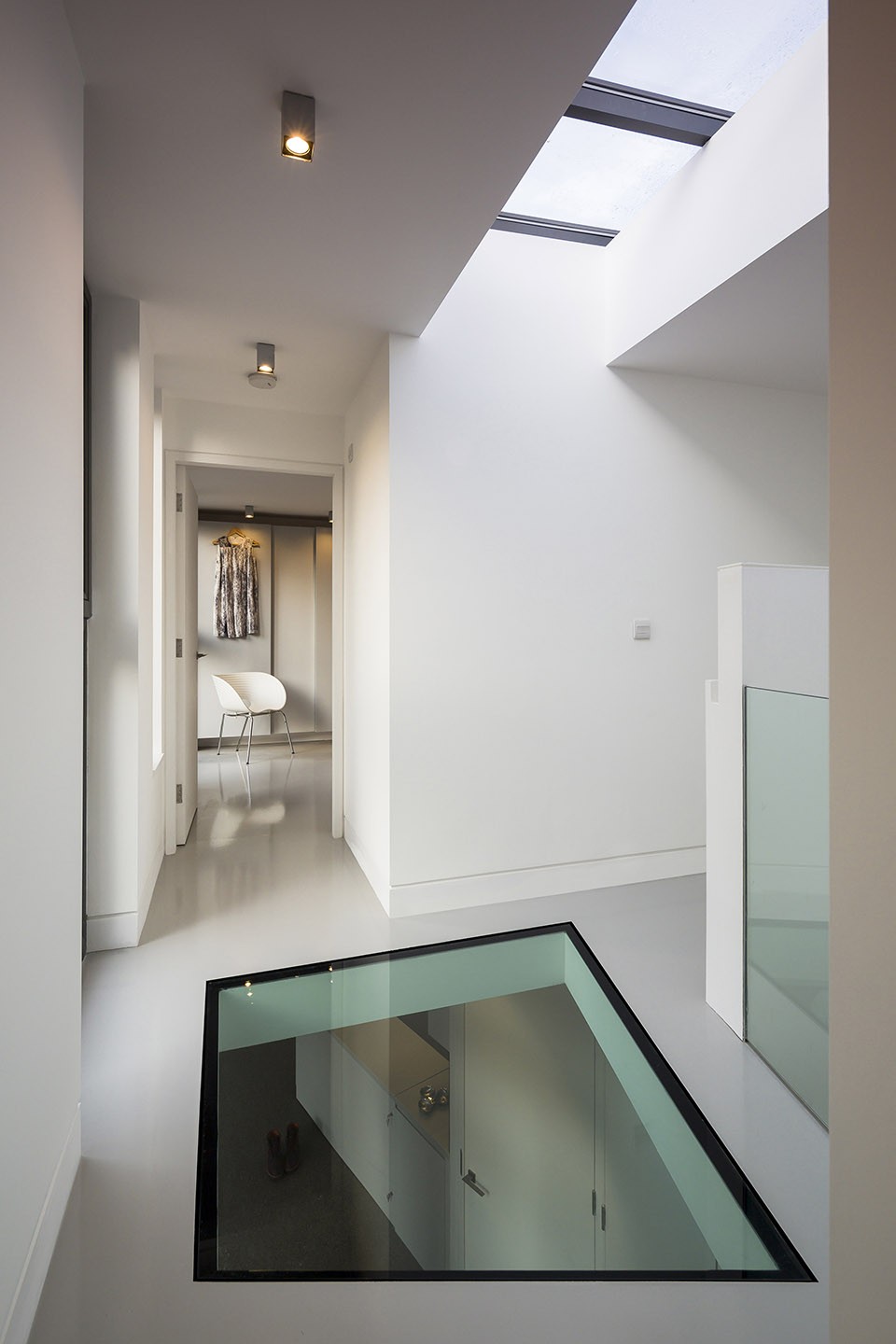

▼室内空间也可获得光照，interior spaces could recieve sunlight as well

两层通高的三层玻璃窗之间由细长的砖柱分隔，靠二层的构造将其拉牢。建筑师通过3D软件设计了曲面屋顶的钢结构以及定制的砌体支撑，和砖制斜梁精确地连结在一起。屋顶的两端向上抬起，将阳光送入室内，其内侧设置仿佛犰狳盔甲一般的天花，可以将阳光柔和地反射到生活空间。

The large two-storey triple-glazed window openings are framed by slender brick piers, which are braced by the construction of the first floor. The steel structure and bespoke masonry supports over the curved roof were designed in 3D to accurately unite the crafted brickwork geometry of the inclined beams. Lifted in two corners to bring light into the living space, this roof is finished internally with a softly reflective, biscuit-jointed ‘armadillo’ ceiling.

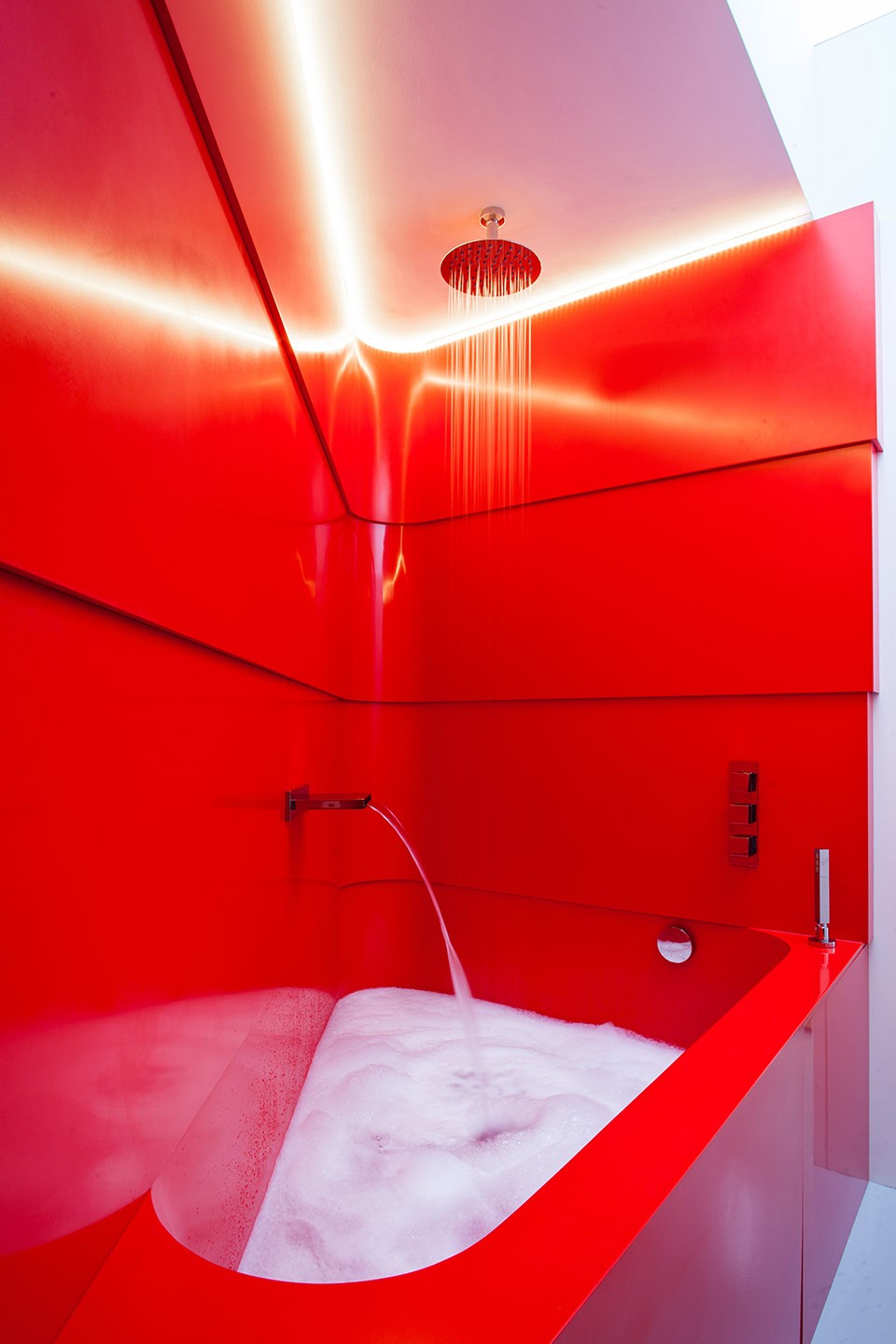

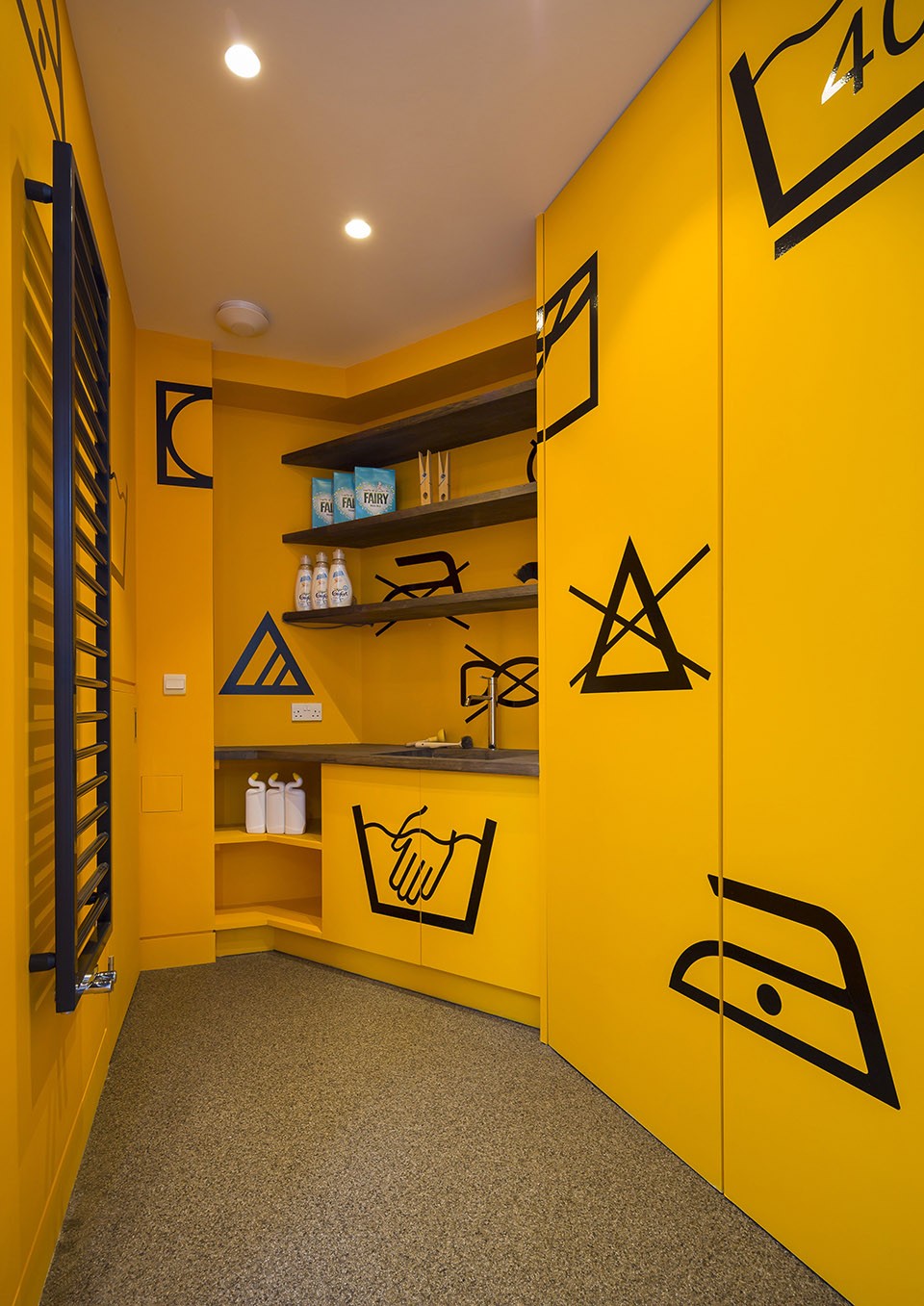

▼洗衣间和浴室，laundry room and bathroom

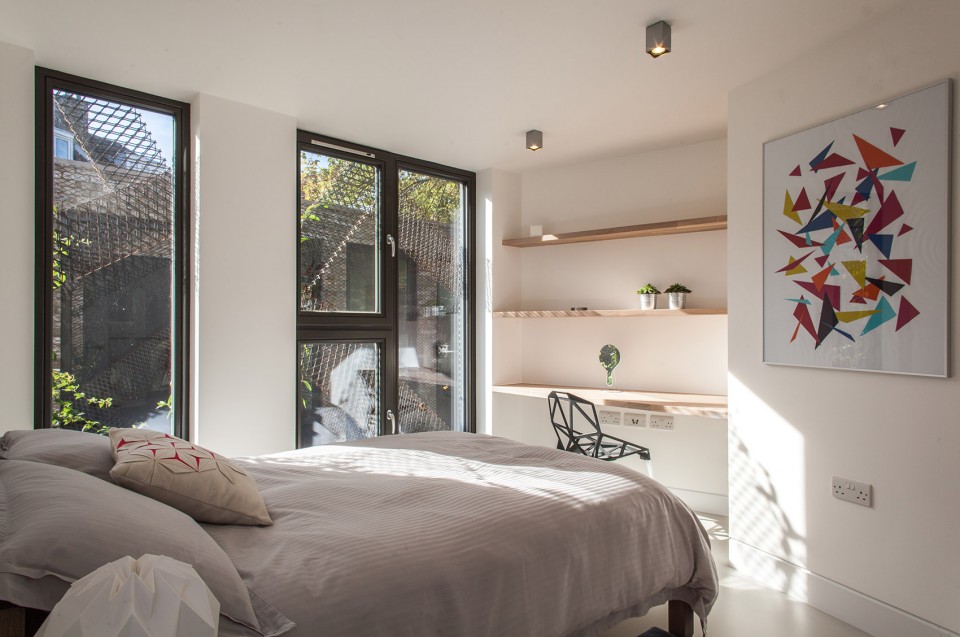

▼卧室，bedroom

可持续发展策略
Sustainable Strategy

建筑内设有一套可持续发展的排水系统，包括屋顶绿化，墙面绿化和植物滤水带；一个雨水收集池；一个17000升的稀释池配两个建筑师自己发明的监控构件以减小水流，控制流量。项目内还种植了多种当地野花，提高生物多样性的同时，为建筑点缀上了斑斓的色彩。

A sustainable drainage system (SuDS) incorporates a combination of green roofs, green walls, planted filtration strips, a rainwater-harvesting tank, a 17,000 litre attenuation tank and 2 ‘drinking policeman’ – which the architects invented – to slow the flow of water, as well as slowing traffic. A mix of sedum and native wild flowers were used to increase biodiversity and improve the appearance.

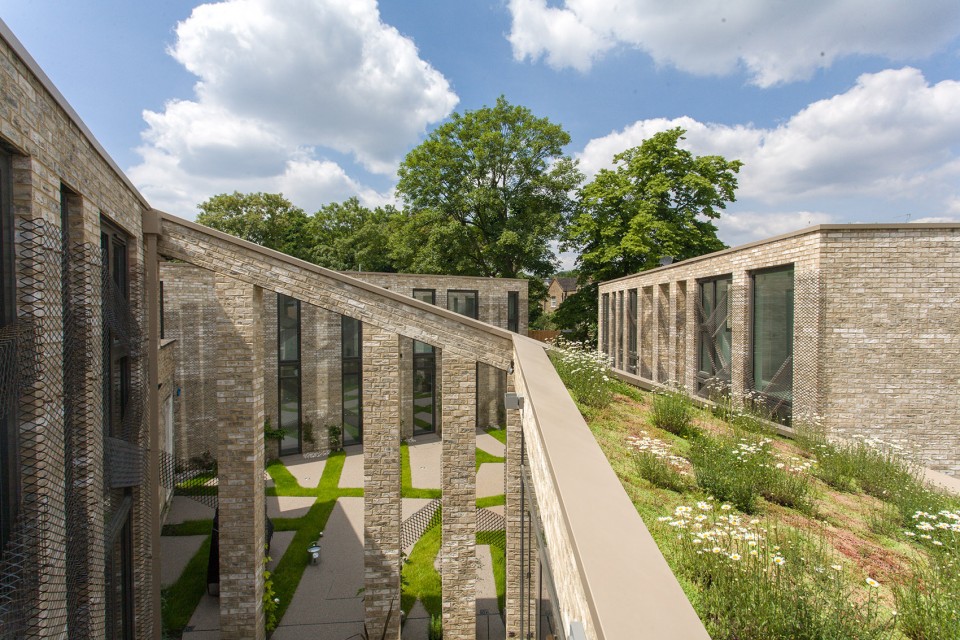

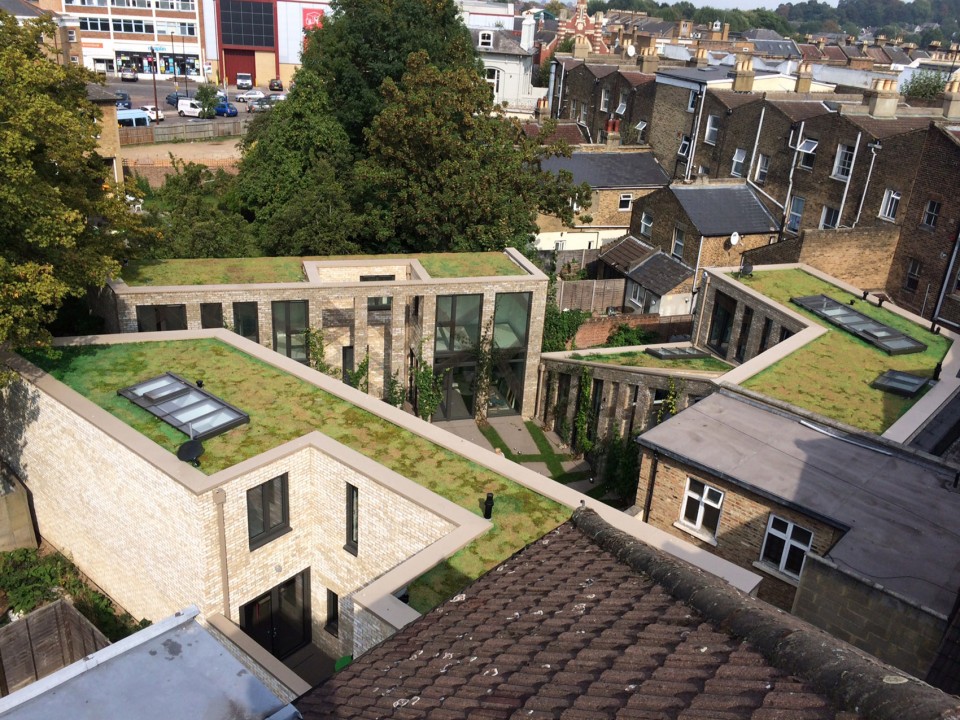

▼屋顶绿化和墙面绿化，green on roof and walls

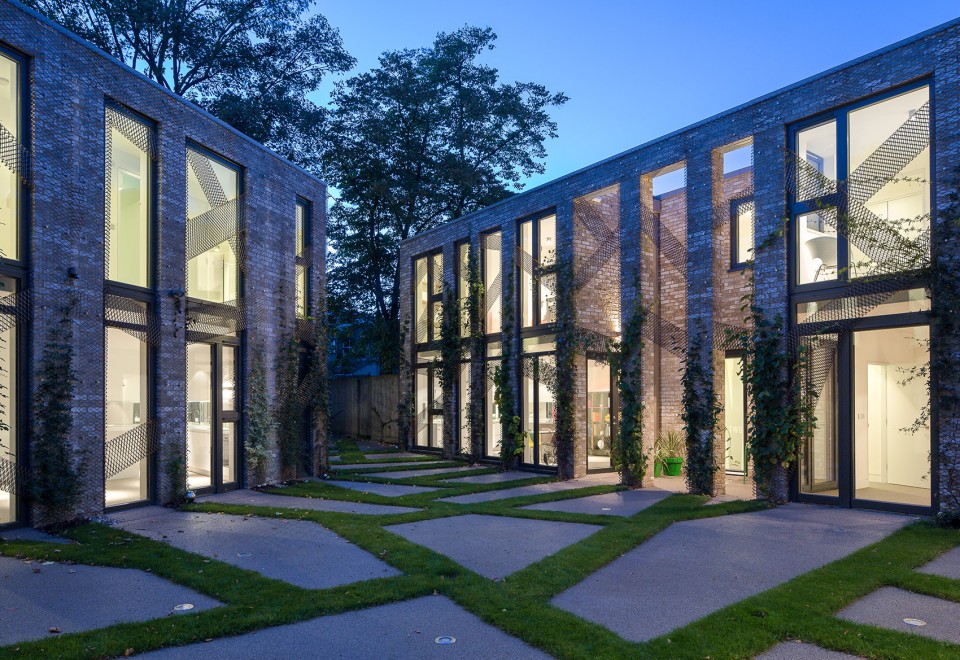

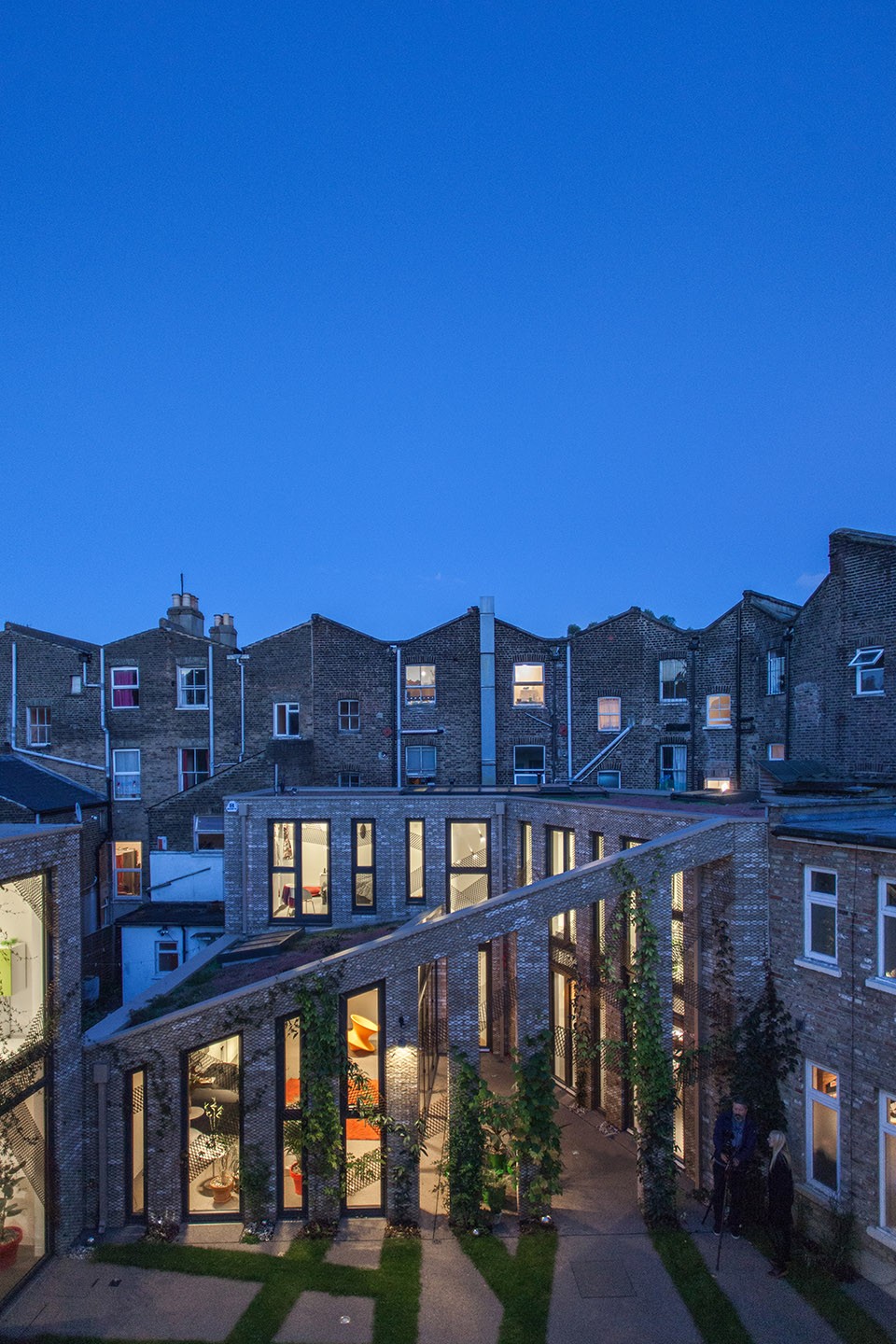

▼夜景，night view

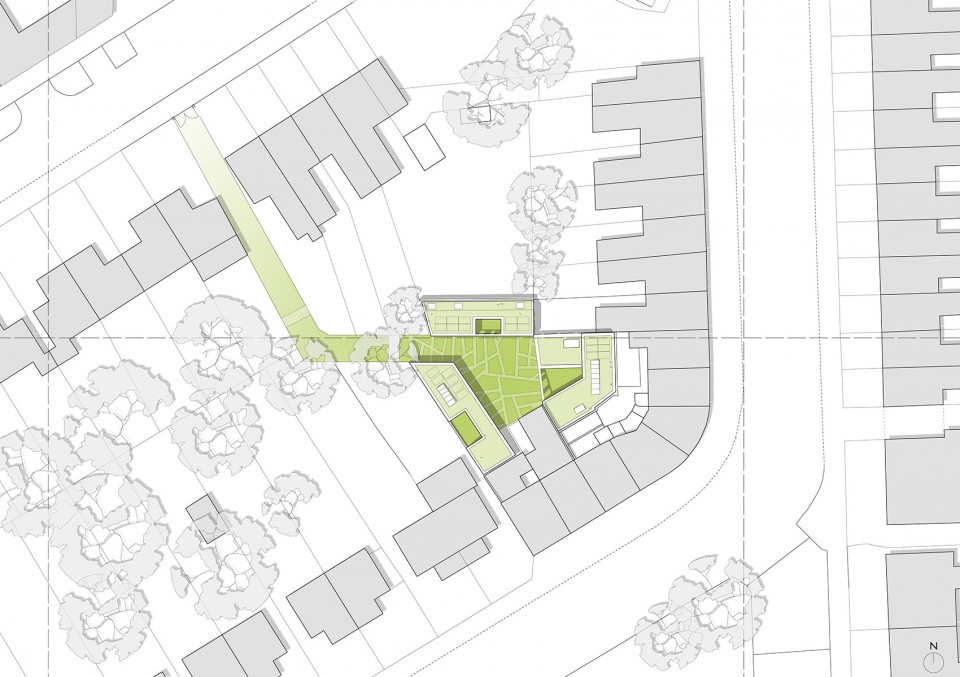

▼总平面图，site plan

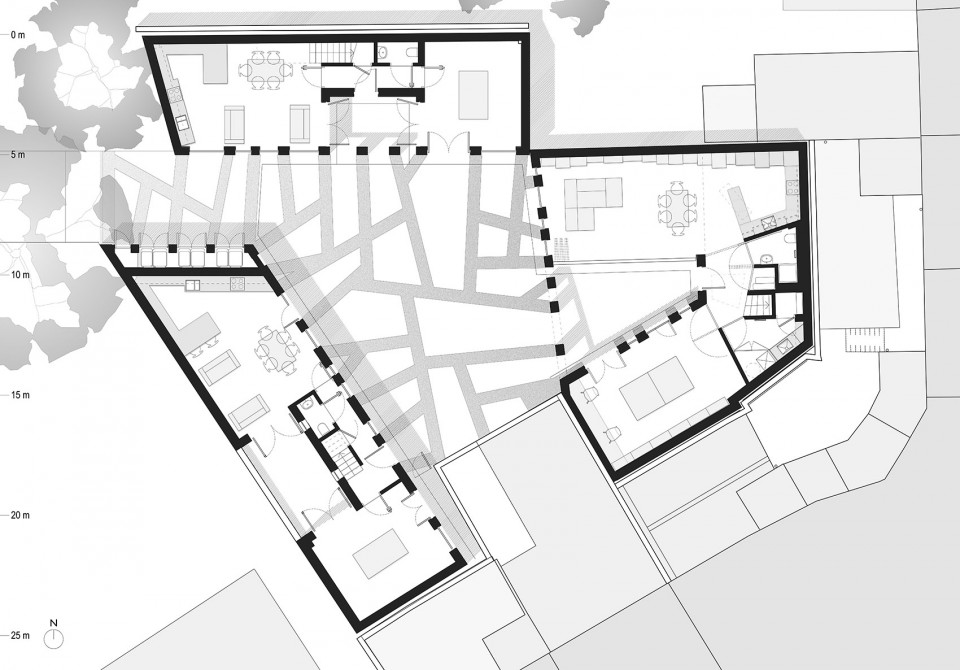

▼一层平面图，ground floor plan

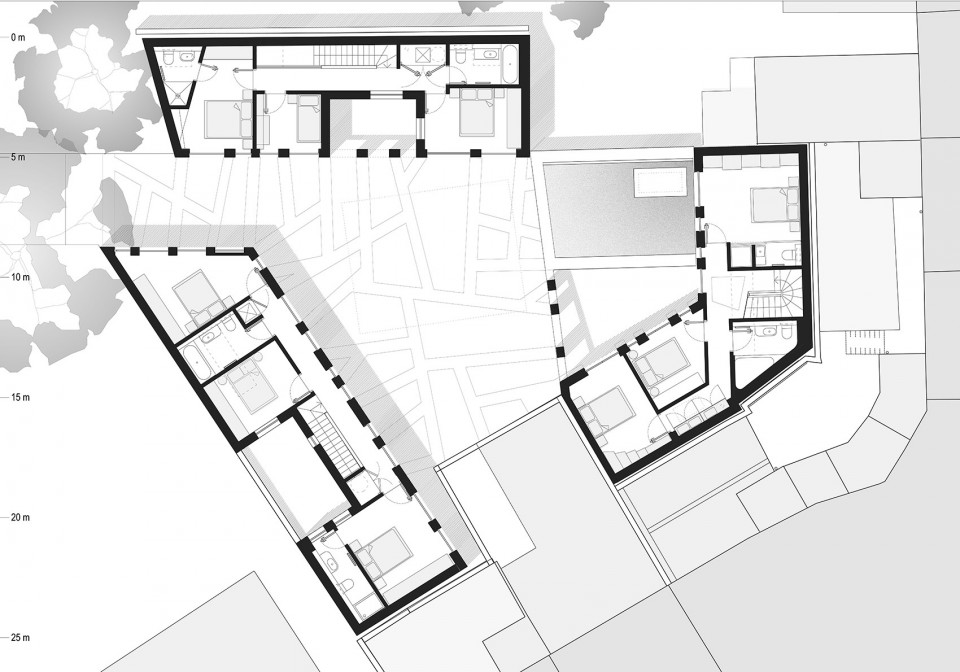

▼二层平面图，first floor plan

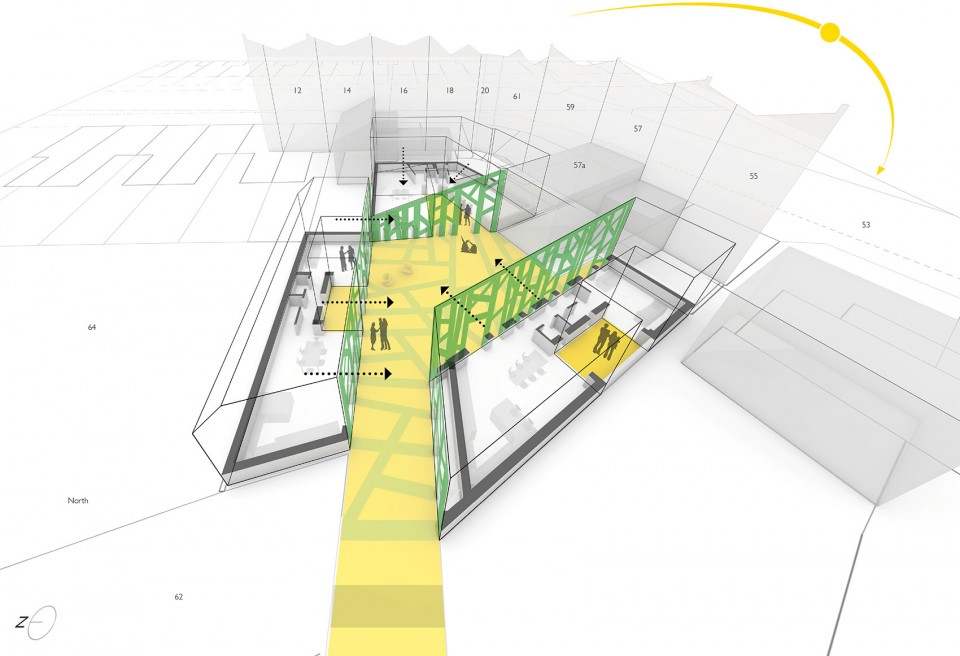

▼分析图，diagram

Project: Forest Mews
Address: Rockbourne Road, Lewisham, London SE23 2AT
Value: confidential
GIFA: 400 sqm
Client & Architect: Robert and Jessica Barker
Structural Engineer: David Philips (StructureHaus)
Drainage Engineer: Peter Brett Associates
Main Contractor: John Perkins Projects

Drawings: Stolon Studio
English text: Stolon Studio
Chinese text: gooood

More: Stolon Studio，更多请至：Stolon Studio on gooood
