非常感谢 Plan:B Arquitectos 将以下内容授权gooood发行。更多请至：Plan:B Arquitectos on gooood
Appreciation towards Plan:B Arquitectos for providing the following description:

该项目是由Plan B Arquitectos设计的位于哥伦比亚首都波哥大的一座宾馆。整个建筑体量、高度、宽度、缩进和分布都严格遵循波哥大市政府的规定。

在这些参数规定下，建筑的大部分结构都被确定；此外，出于盈利需要，酒店建筑应充分利用每一寸空间，不应有丝毫浪费。上述条件决定了建筑师的发挥空间十分有限。

该设计试图渗透到这些限制条件当中，最终呈现出的是一个修长的建筑体量；四面均为开放式立面；较大的立面有金属和玻璃双层表皮；前立面面对街道，并高悬于1.5m的地面层之上（建筑规范允许的范围内）。

车道和人行道位于同一层。从天窗投进的阳光照亮位于地下层的公共区域。

The overall volume, height, width, setbacks and distribution of the program are some of the physical aspects that the municipality strictly regulates in this area of Bogotá.

Much of the volume of buildings defined under these parameters is already prefigured, especially when the logic of trade leads to build all the square and cubic meters allowed.

This hotel is an attempt to open or permeate the norm: it is slim and has four open facades due to side setbacks; the larger facades are set back to allow a double skin of metal and glass, and the main facade articulates urban life and cantilevers the 1.5 m allowed by the building code.

The vehicular access is located at the same level as the pedestrian access, this allows an additional level of rooms. Common areas occupy the basement with skylights.

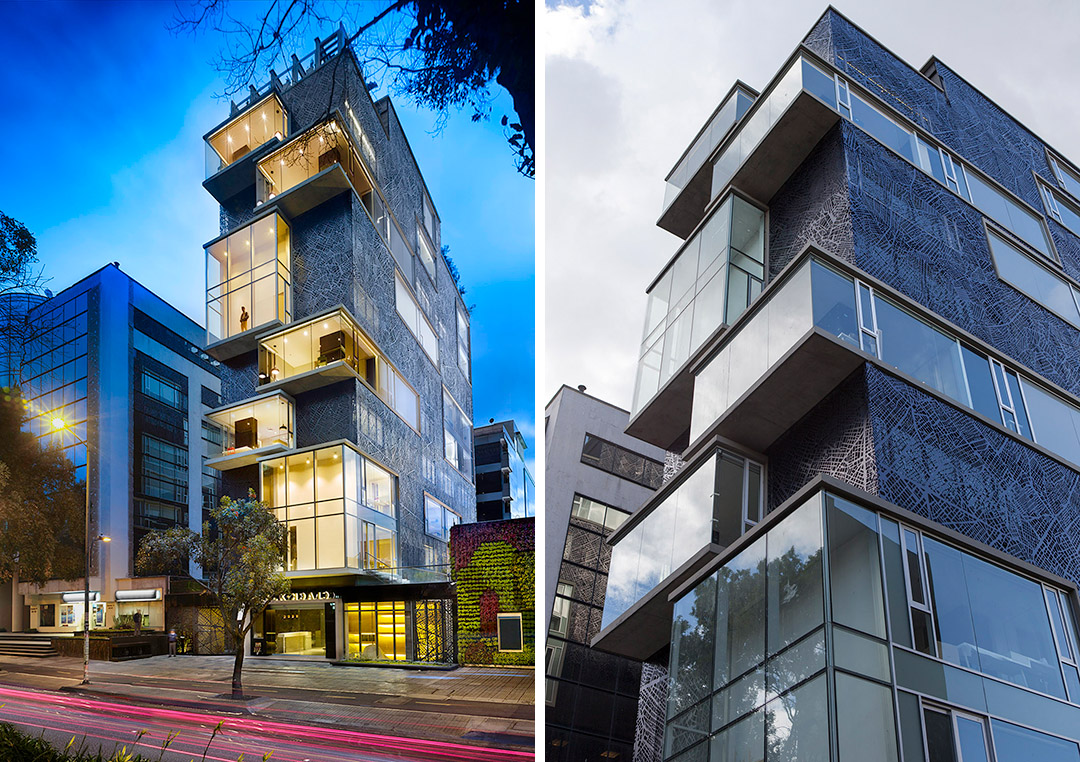

▼（左）建筑拥有修长的体量与开放式立面（右）立面由玻璃落地窗，玻璃凸窗以及穿孔金属百页组成 (Left) Slim volume and open facade (Right) The facade is formed by French windows, hanging windows and perforated metal blinds.

酒店层叠的小房间通过中央廊道连接起来。固定的多孔金属百叶窗、大型落地窗以及悬浮在主街道上方的窗户等三种不同类型的窗户以及与城市的视觉联系是该酒店最大的特色。部分悬浮窗户甚至被当做小房间使用。

在房间内可以看到外部的城市生活和风景：有人居住的小山、被统一砖砌体建筑占据的城市，93公园附近区域，而从建筑外部也可以看到酒店内部的情景。特殊的立面设计将内外部巧妙地连为一体。

The building is understood as the stacking of small rooms articulated by a central corridor; simultaneously, it is identified as the vertical sum of three types of windows and visual relationships with the city: those controlled by fixed and perforated metal blinds, those defined with glazed surfaces the full size of rooms, and those that cantilever over the main street, which in some cases operate as small rooms at the end of circulations.

While the rooms allow one to observe urban life and the landscape: the inhabited hills, the homogeneous brick city, and the spaces near the 93 park, the exterior image of the building corresponds to the life and interior, daily use of rooms and hallways.

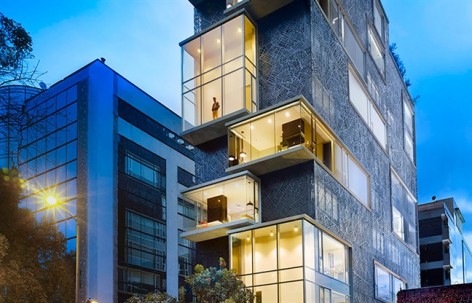

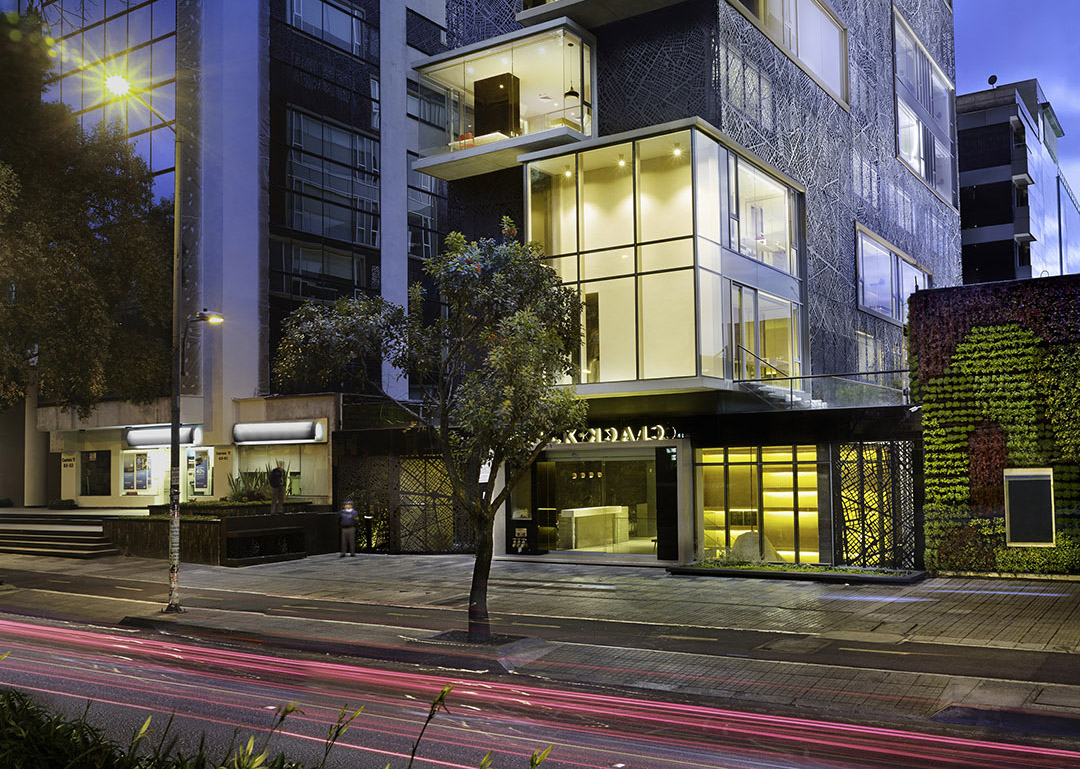

▼修长的建筑体量与开放式立面。凹凸有致的盒体堆叠让建筑看上去充满活力 Slime volume and open facade. Cantilevered and staggered boxes makes the building full of vitality.

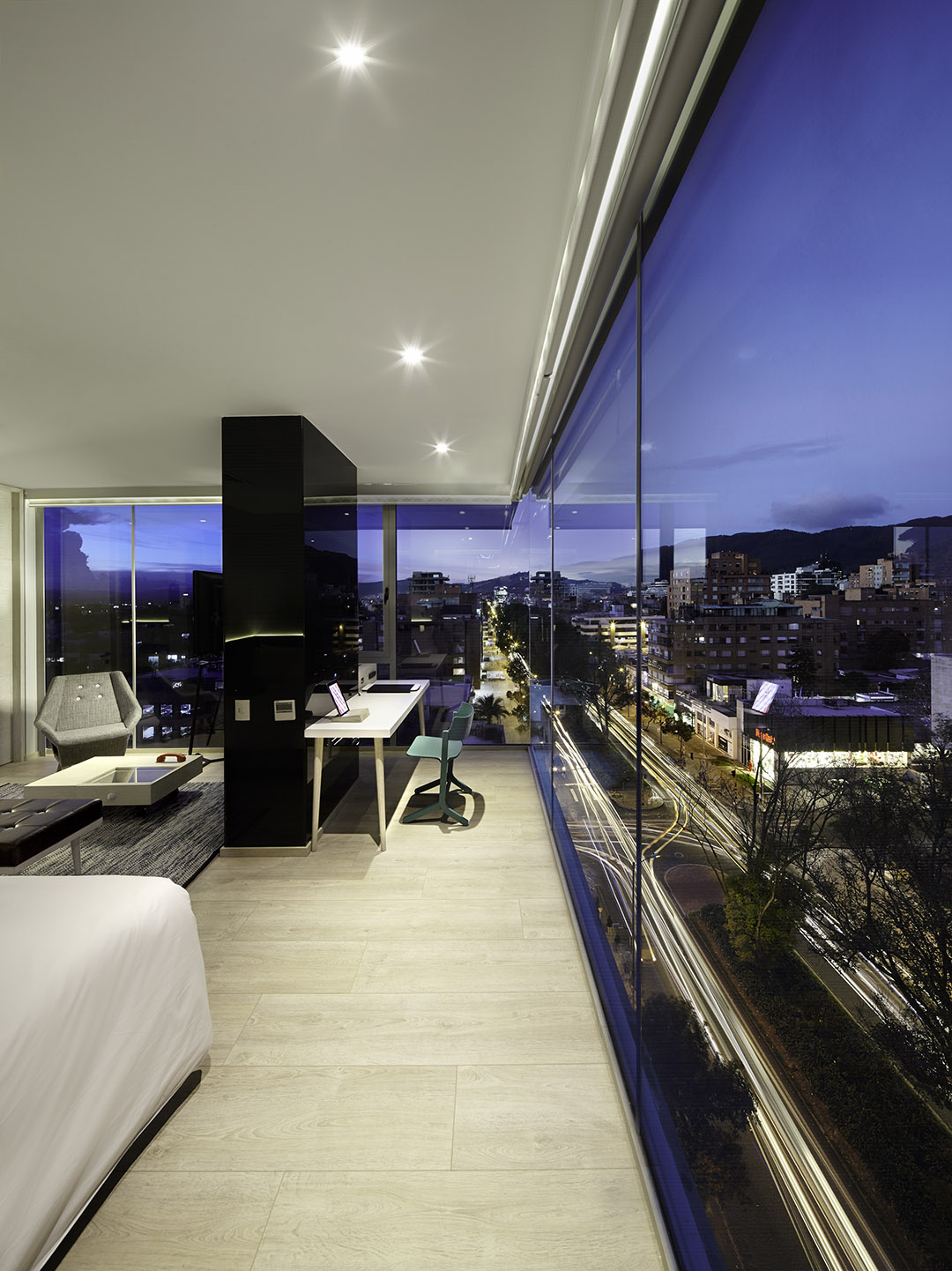

▼在酒店内部看到的城市景观。设计模糊了建筑内外的区别 View of city landscape from the internal. The design blurred the different between the outside and inside.

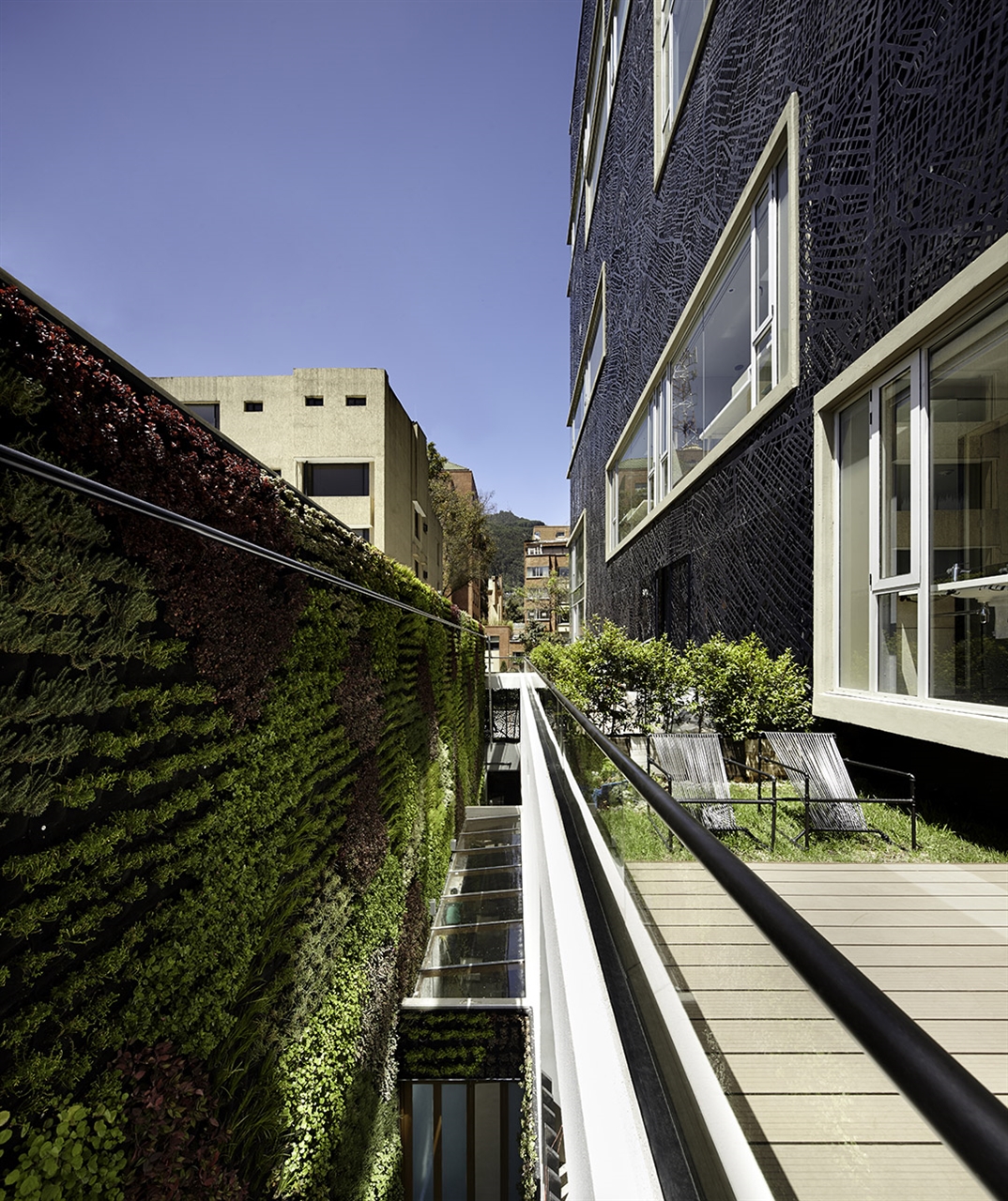

▼拥有屋顶花园的酒店层，两侧留出的缝隙成为天窗，光线渗透进地下两层的酒店大堂与停车场空间。一侧的墙壁做成垂直绿化花园 The layer with roof garden. The gaps act as the skylight through which the sunshine penetrates and reaches the lobby and parking lot below. The side wall is designed as vertical green garden.

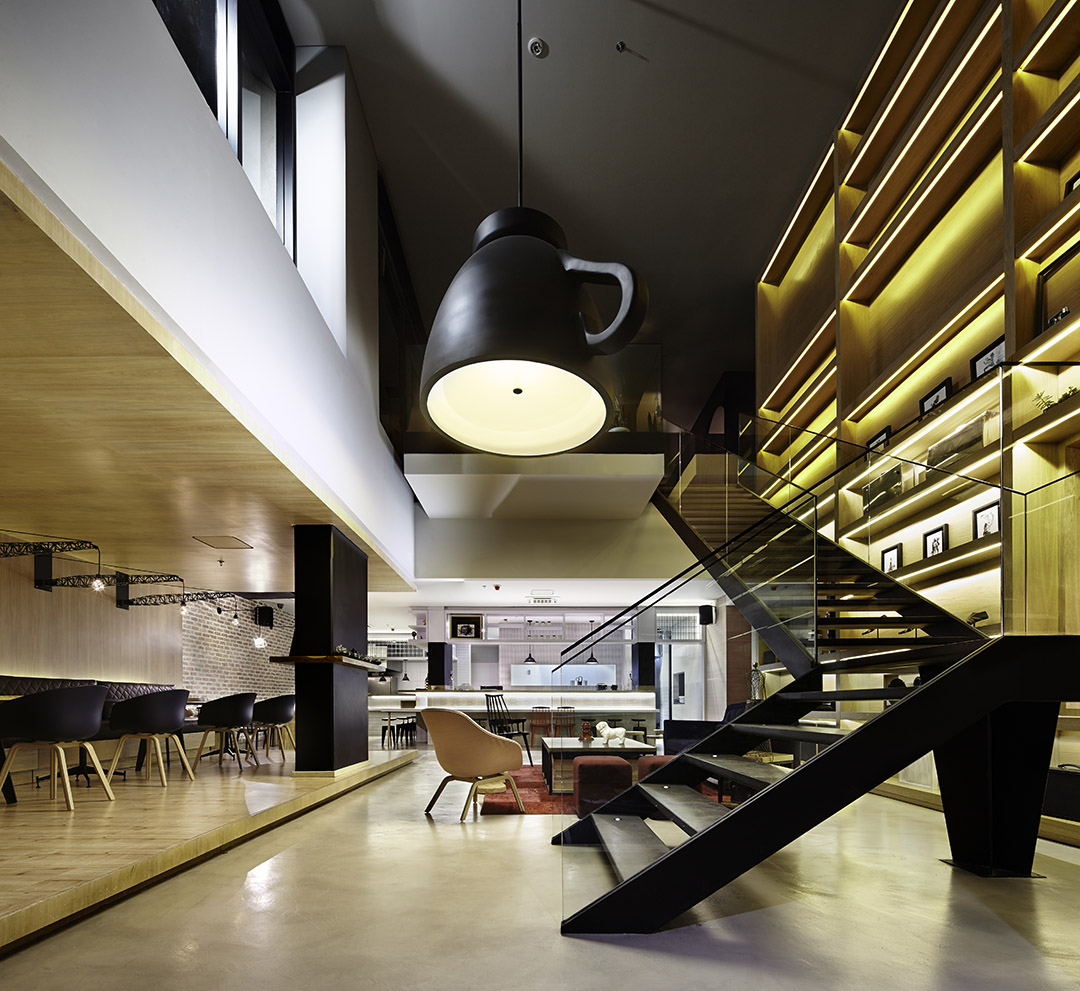

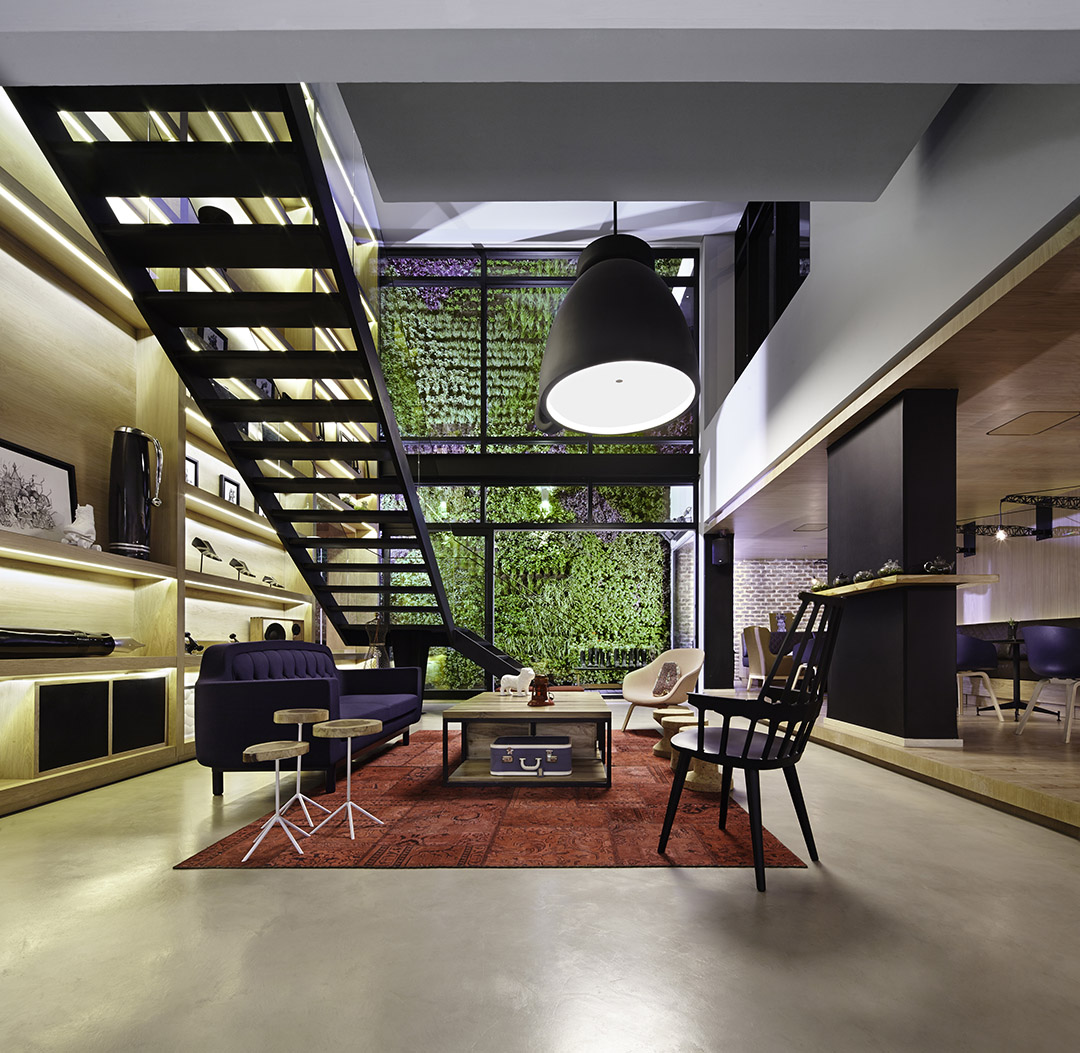

▼酒店大堂公共空间。一面墙是垂直绿化空间。自然光从建筑与垂直绿化墙之间的缝隙天窗洒进 The public space in the lobby with one vertical green wall. Natural lights flow from the skylight between the building and the green wall.

▼酒店大堂公共空间 The public space in the lobby

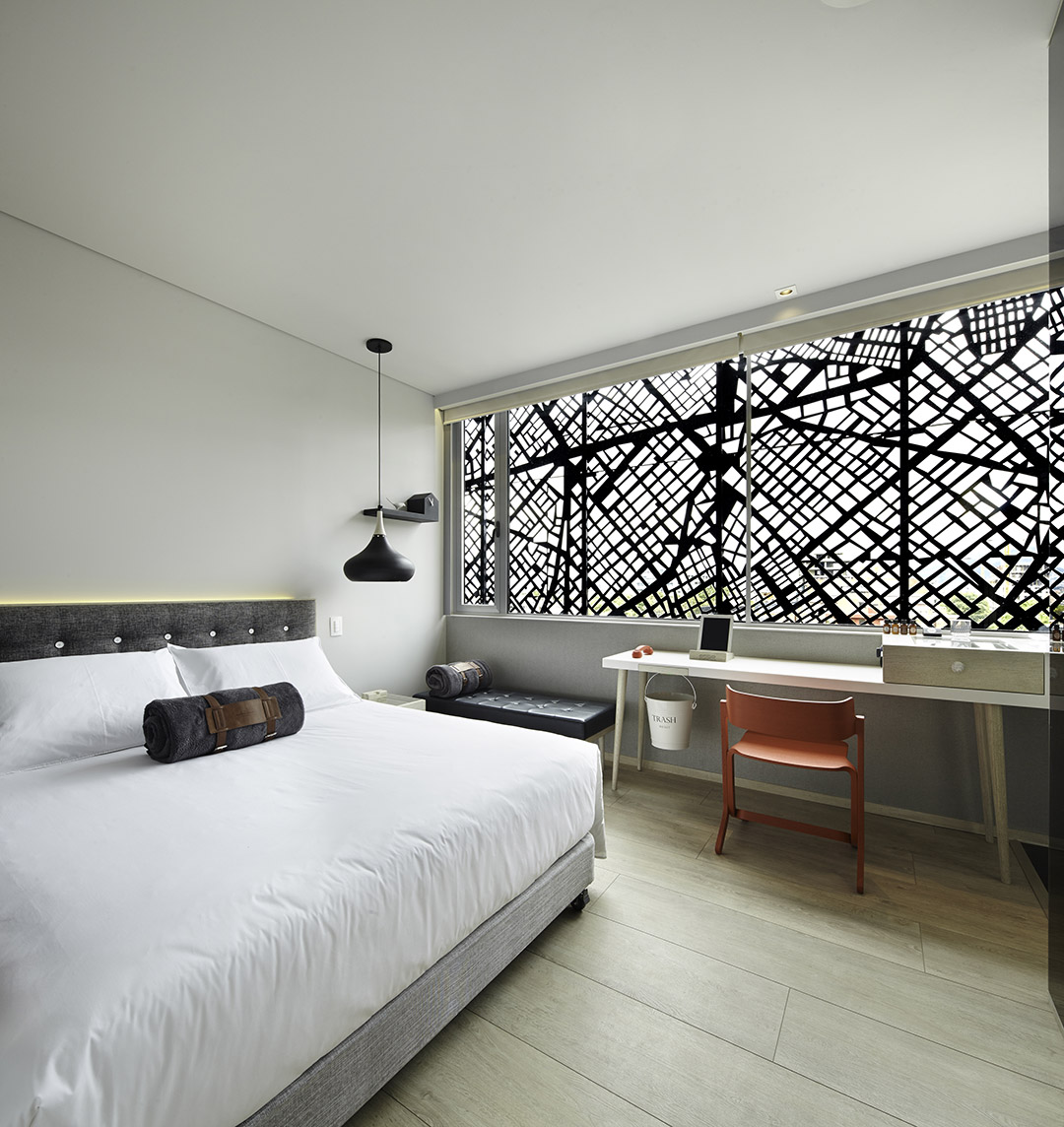

▼酒店客房，窗外是穿孔金属表皮–其机理是抽象化的城市地图 Guest room with perforated metal blinds at the facade; the texture symbolizes the abstract city map.

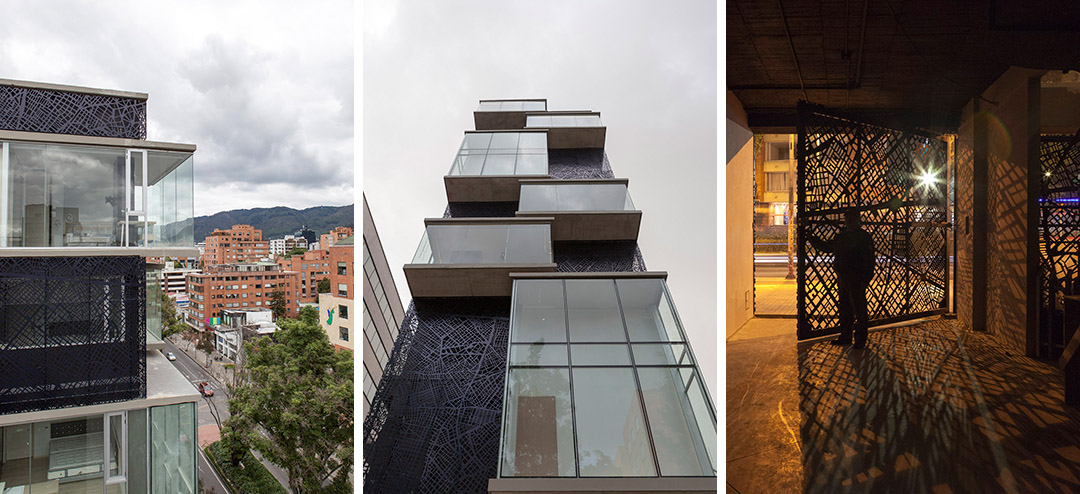

▼（左和中）开放并凹凸有致的立面，立面由玻璃落地窗，玻璃凸窗以及穿孔金属百页组成（右）酒店大门也使用了抽象画地图的穿孔金属板元素
(Left and middle) concave-convex and open facade which constitutes French windows, hanging windows and perforated metal blinds
(Right) The hotel gate also applies perforated metal blinds with a texture symbolizing the abstract city map.

Architects: Plan B Arquitectos
Location: Bogotá, Bogota, Colombia
Project Architects: Felipe Mesa, Federico Mesa
Project Area: 4500.0 m2
Project Year: 2012
Photography: Andrés Valbuena, Santiago Pyniol
Project Team: Ivanovha Benedetto, Sebastián Serna, Juan Pablo Giraldo, Juan David Hoyos, Carlos Blanco, Daniel Tobón, Gloria Rivera,
Anne Berkers
Interiors: Perceptual
Construction: Acecuma Constructores LTDA

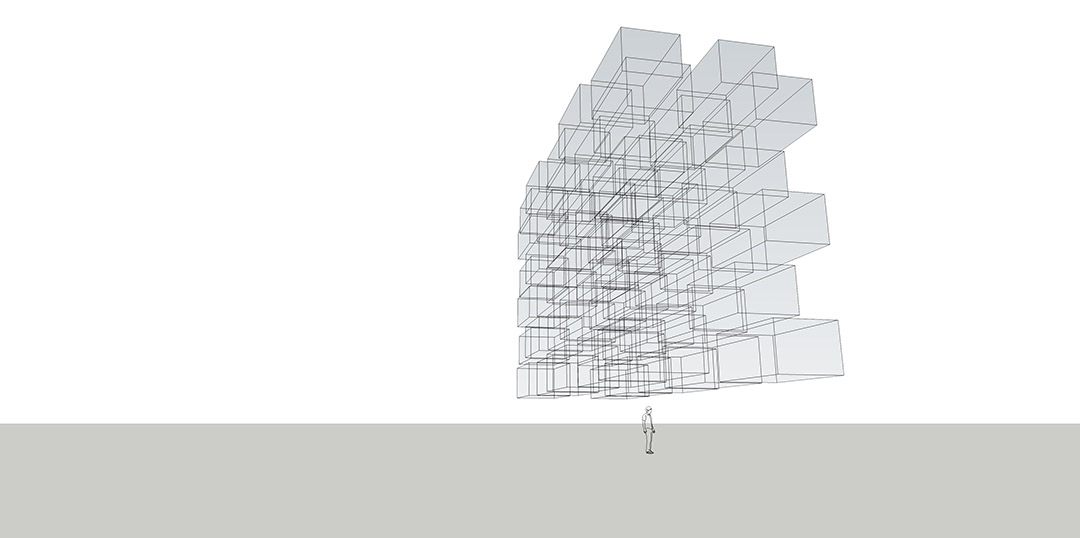

▼堆叠的体块概念示意 Concept: stacked boxes

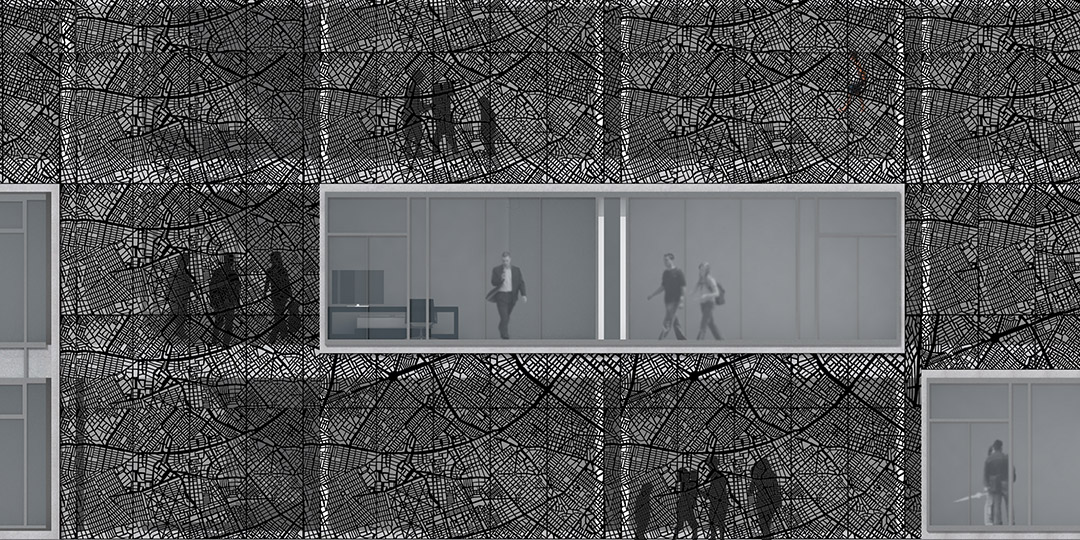

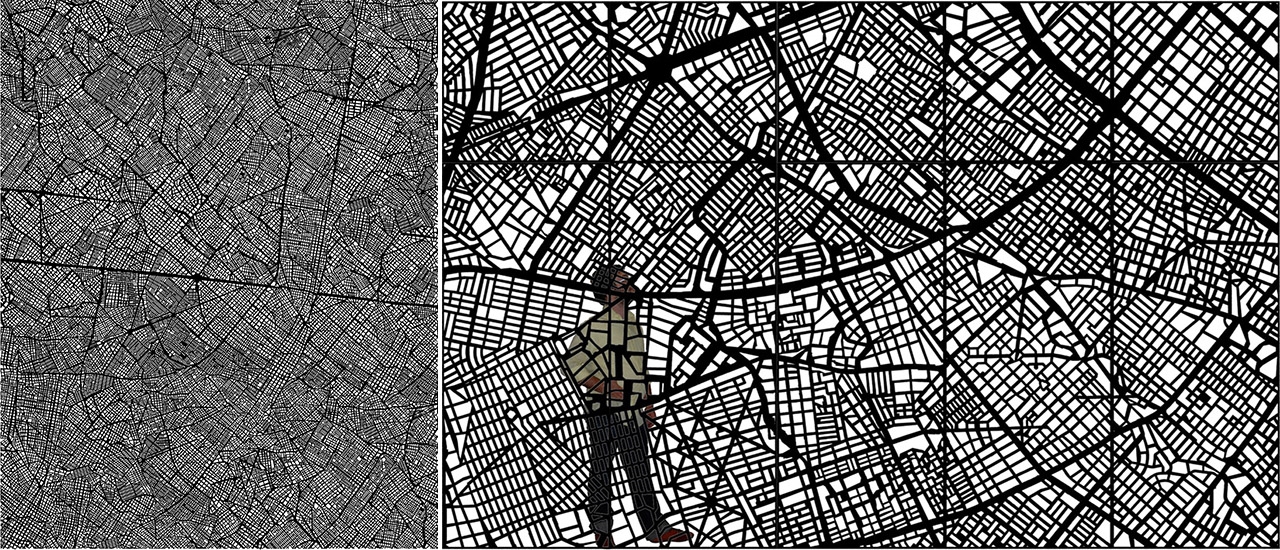

▼将城市抽象化地图的机理运用在建筑外表皮的金属穿孔板上 Abstract city map are transferred as the texture of the perforated metal blinds.

▼ 渲染图 Rendering

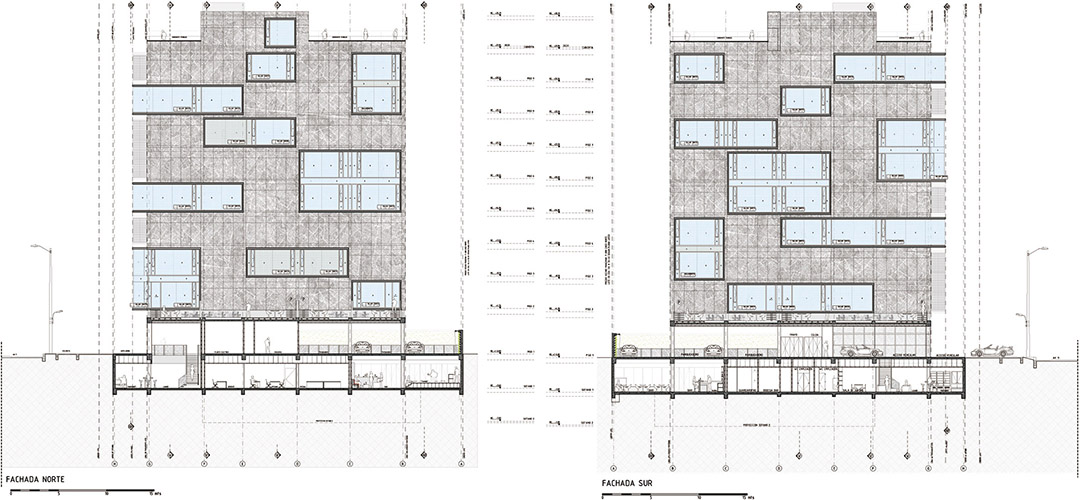

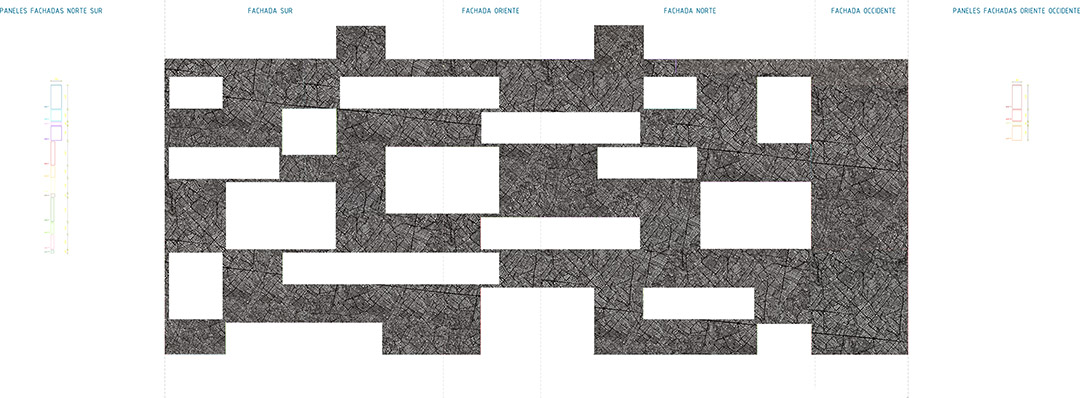

▼立面展开图 Extended elevation

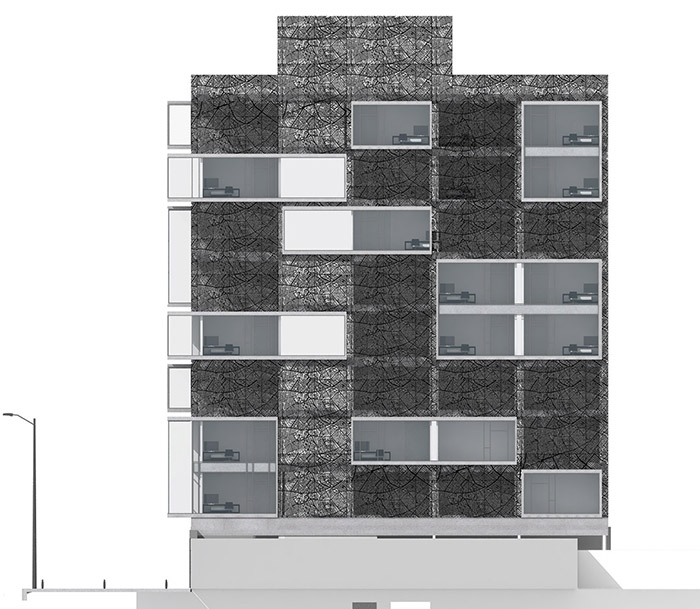

▼ 立面图 Elevation

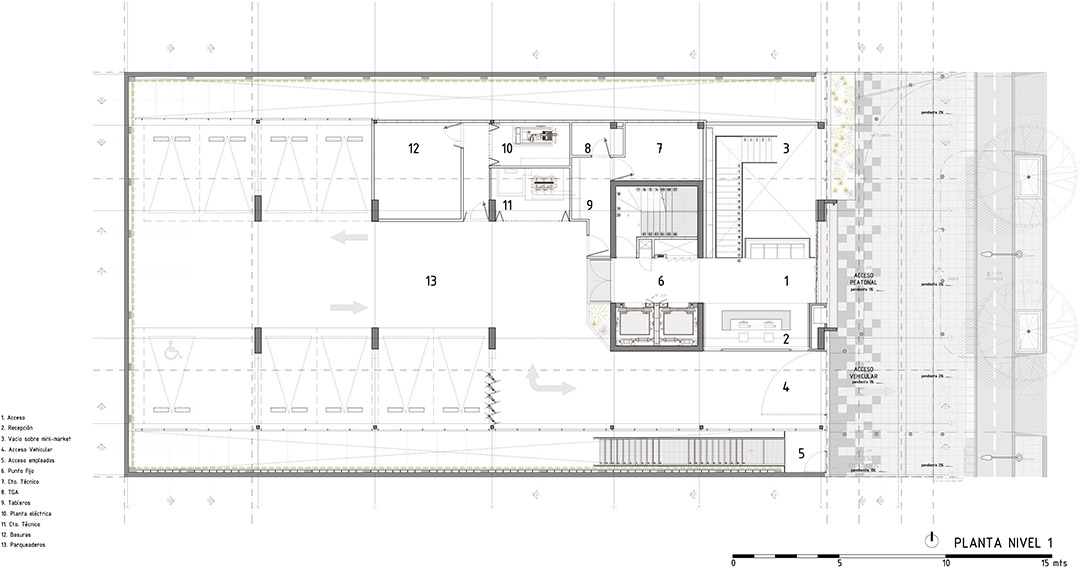

▼ 地面层 Ground floor

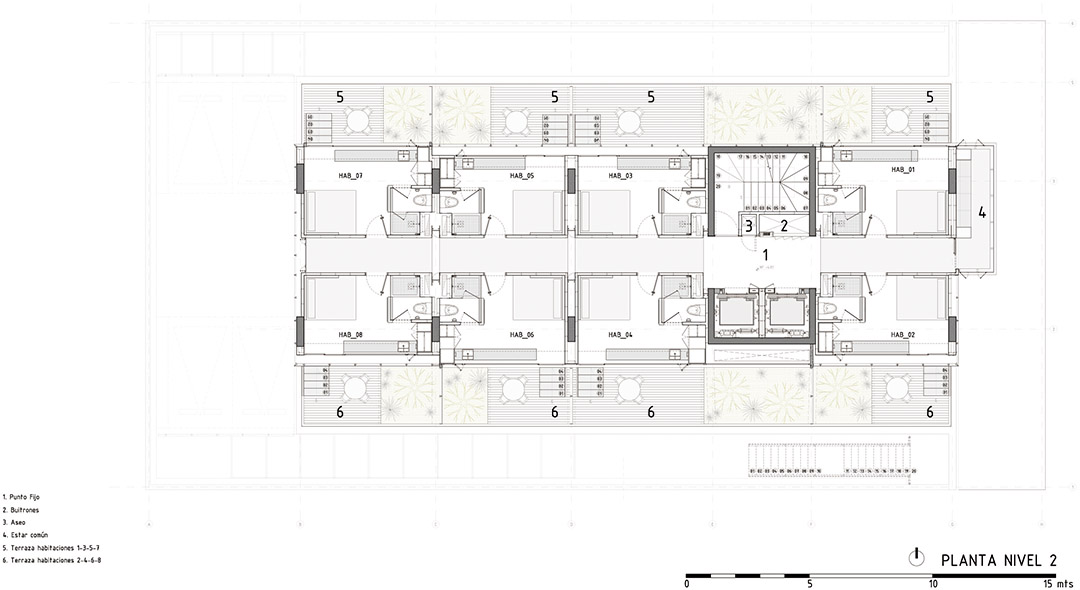

▼第二层 2F

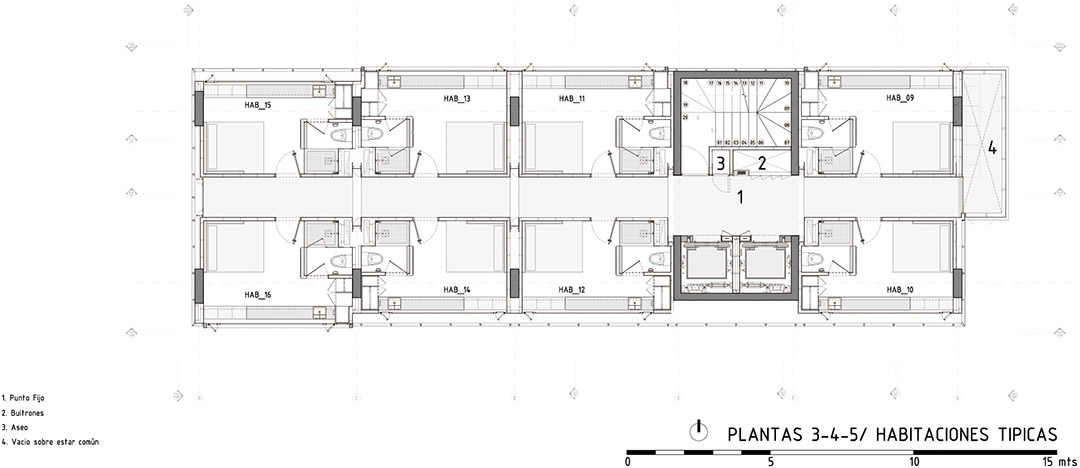

▼3到5层 3F~5F

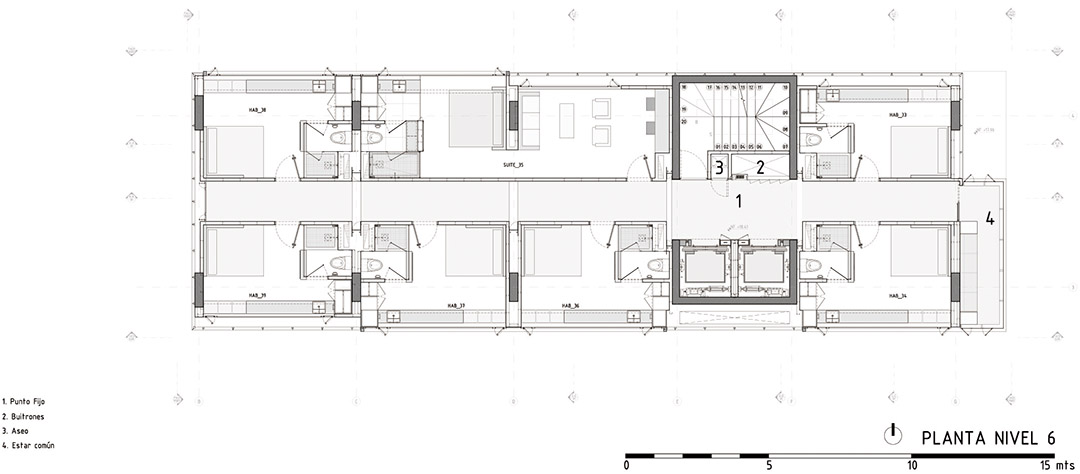

▼ 6层 6F

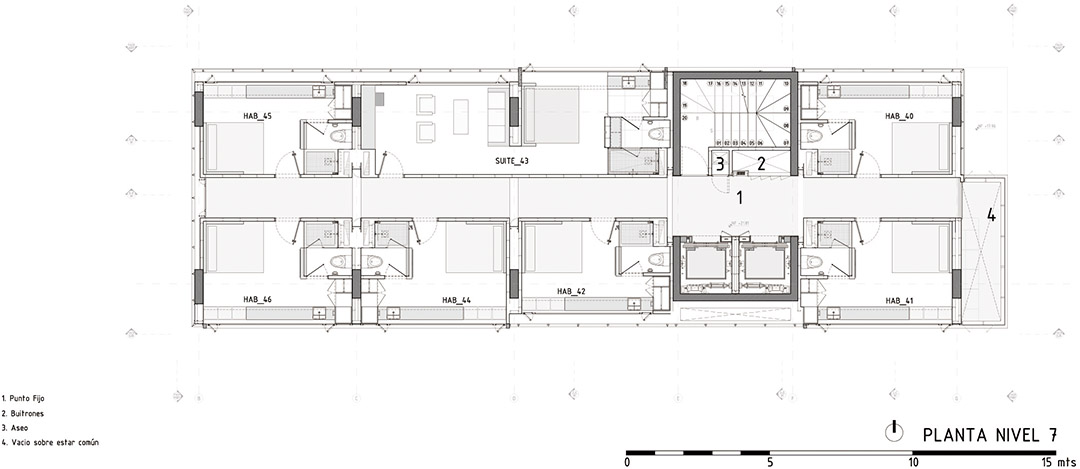

▼7层 7F

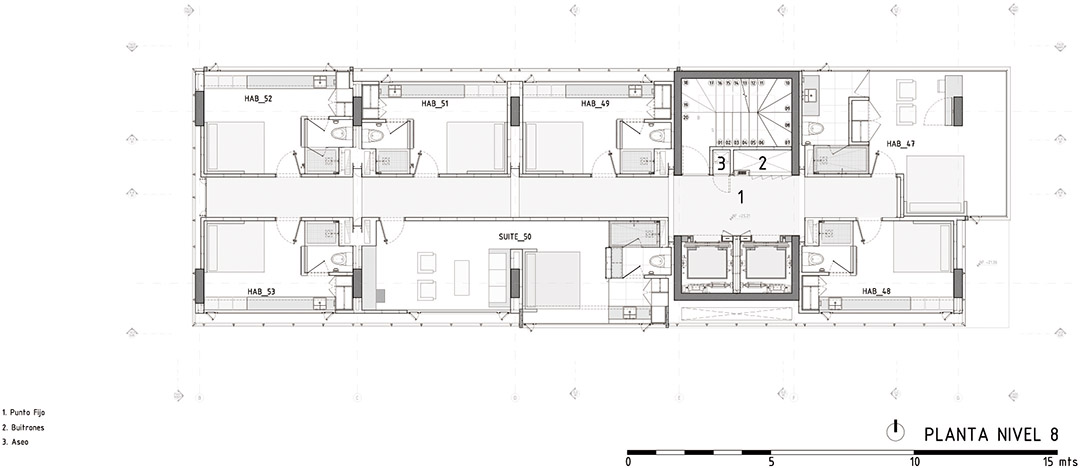

▼ 8层 8F

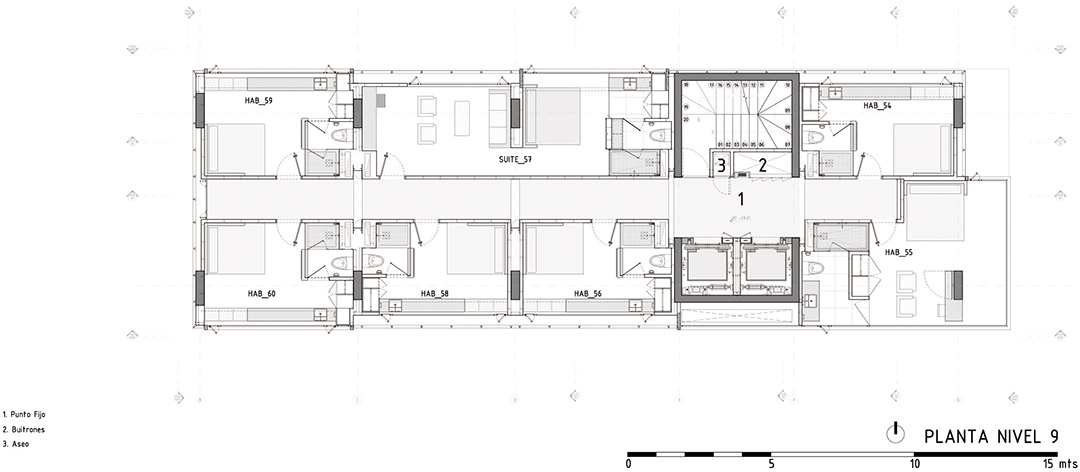

▼9层 9F

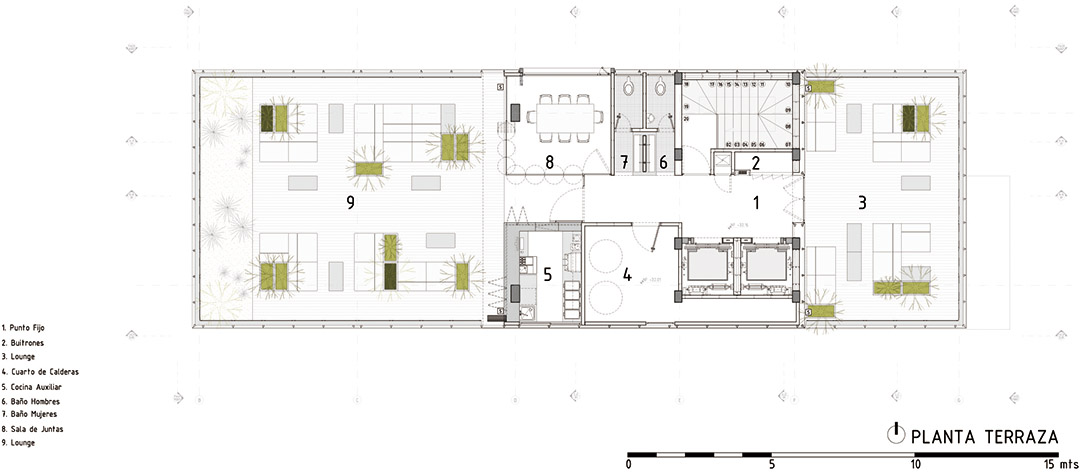

▼顶层 Top floor

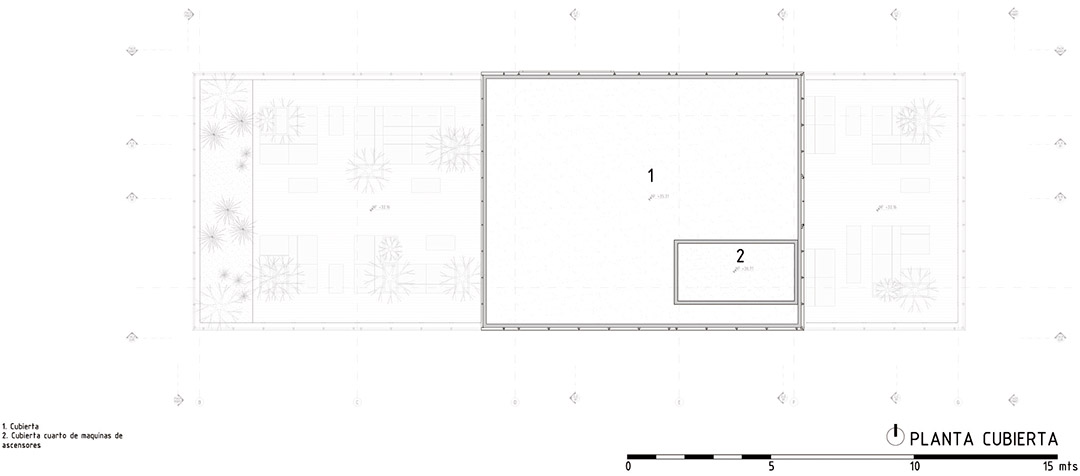

▼屋顶平面 Roof

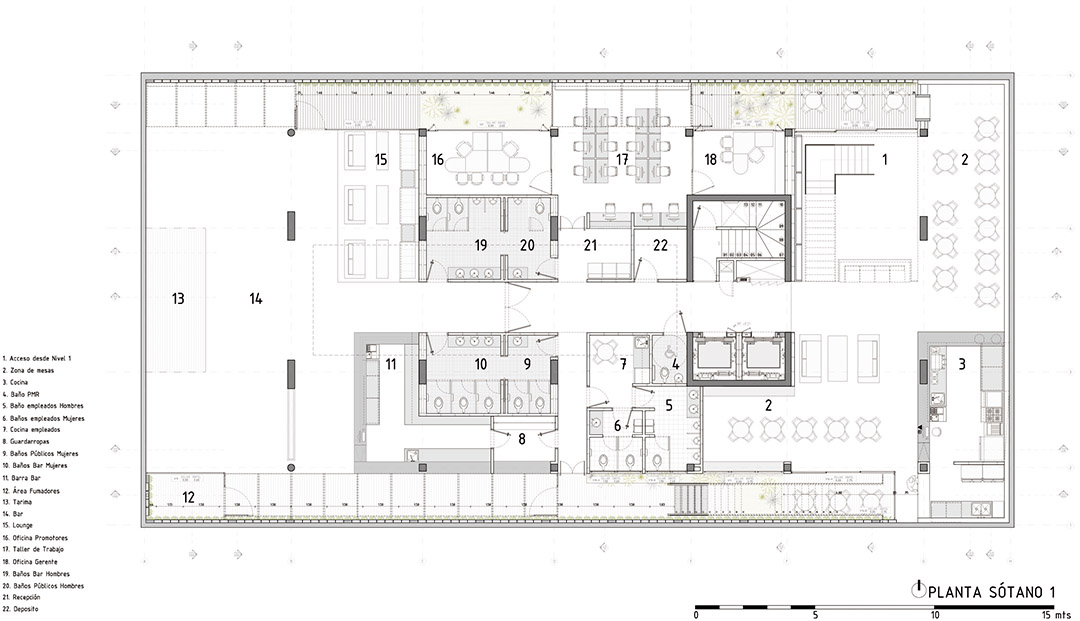

▼地下一层 -1F

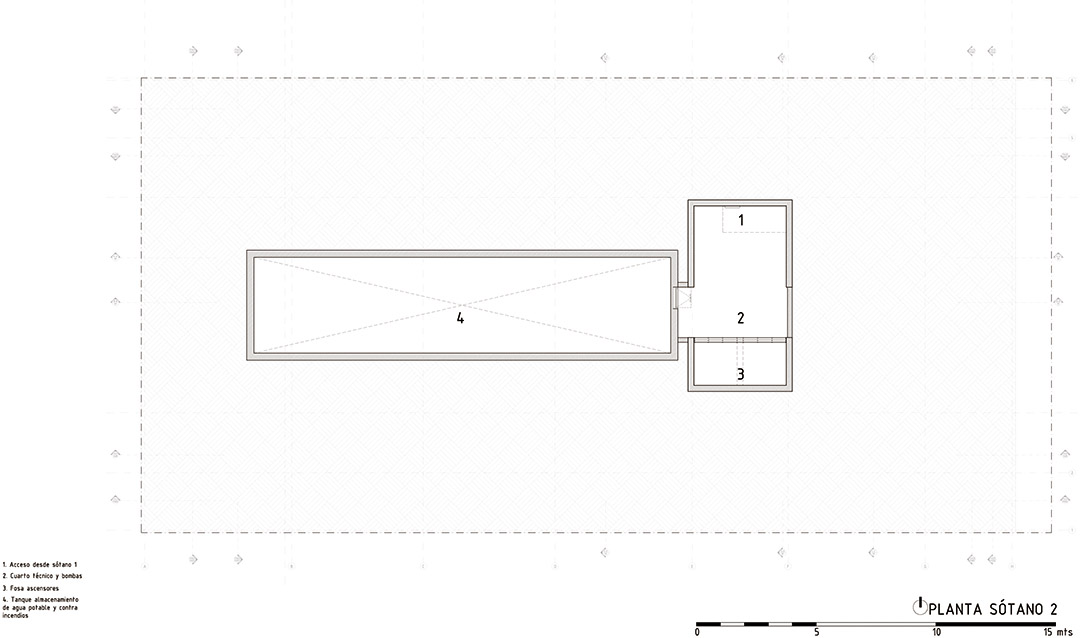

▼地下二层 -2F

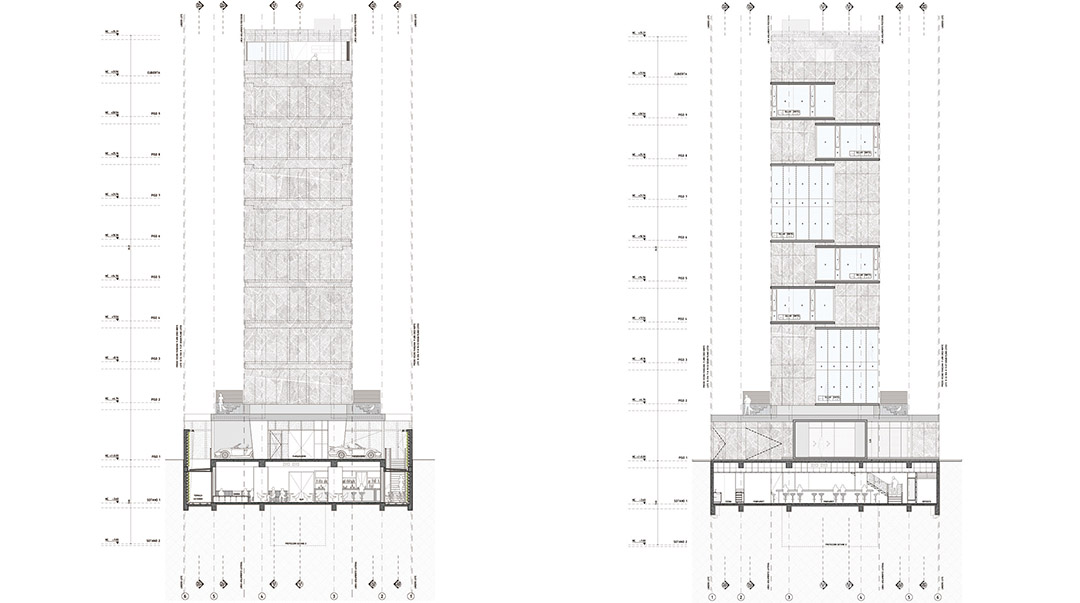

▼立面 Elevation

▼立面 Elevation

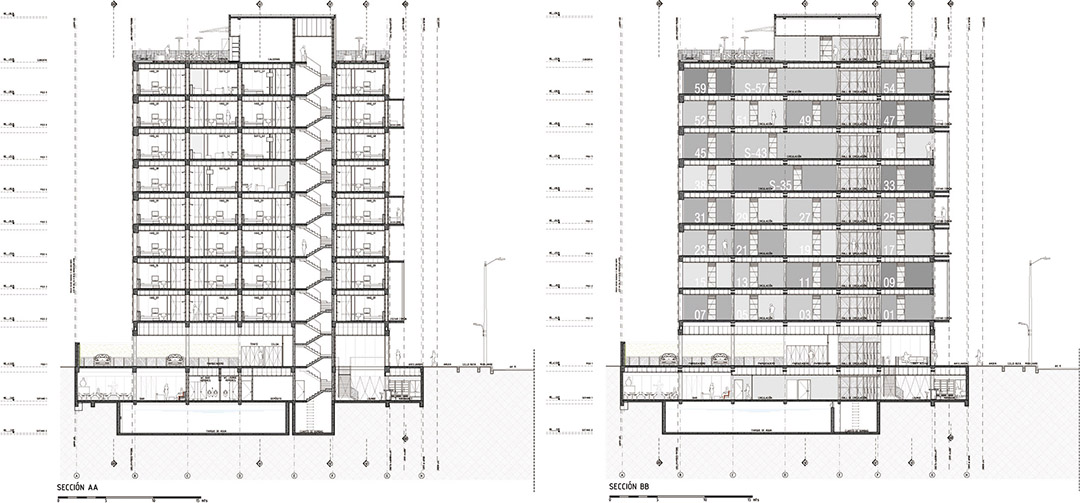

▼剖面 Section

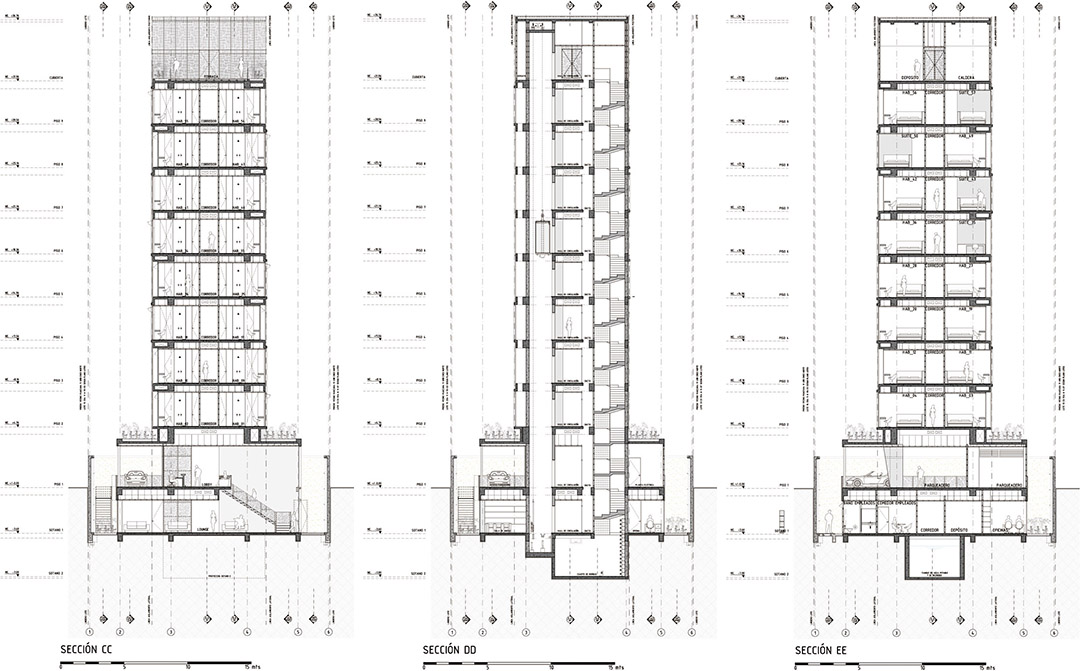

▼剖面 Section
