Casa RBS By Marco Ortalli architetto

A smart house in the downtown area.

Project Specs

Location:
Materials:

非常感谢 Marco Ortalli architetto 予gooood的分享。更多请至:Marco Ortalli architetto on gooood
Appreciation towards Marco Ortalli architetto  for providing the following description:

建筑位于城市的紧凑地区,紧邻的步行街每周会有流动市场。此项目的目的是在基地建造新的建筑,同时不扰乱城市环境。项目是与周围建筑分离的地面层住宅,配有地下储藏室。住宅分两个入口,步行入口由步行街进入,车行入口从Vittorio Veneto广场进入。

The building is located in downtown (Erba Co) in an area already dense. It overlooks the pedestrian street where the market is held every week. The goal was to reach the new home, without harming the environment and urban space.It is a detached one floor house above ground, the accessories and the box spaces are basement. The house has two separate entrances, pedestrian from pedestrian street , cars access from Piazza Vittorio Veneto.

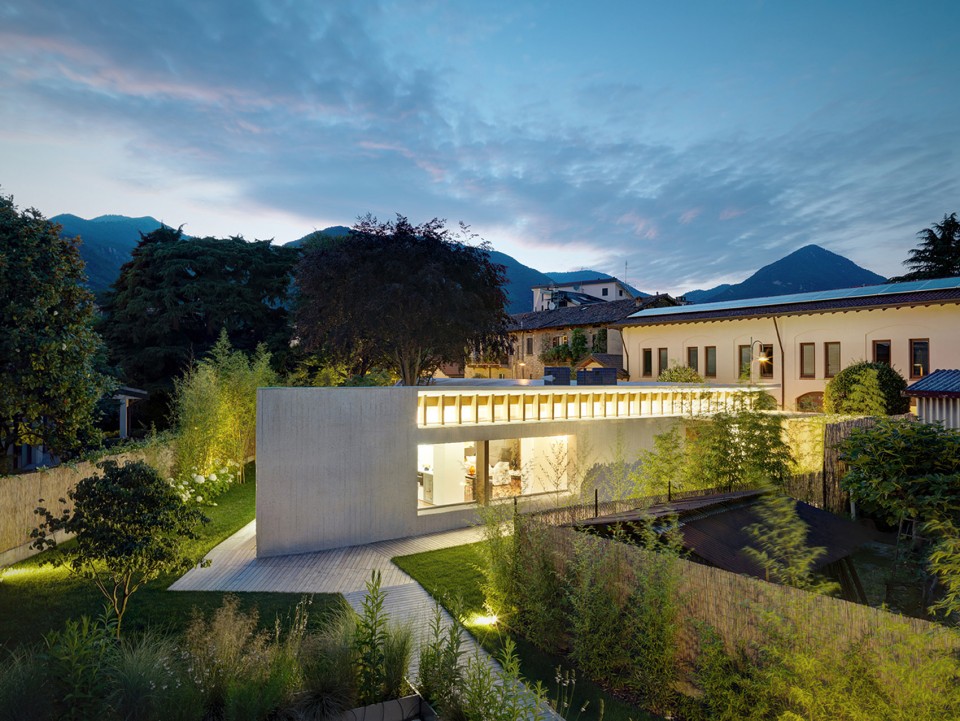

▼位于城市紧凑地区的住宅建筑,the building is located in downtown (Erba Co) in an area already dense

002-Casa RBS By Marco Ortalli architetto

三角形的地块促使建筑向复杂几何图形以及小空间的方向设计,该项目中包含封闭的私人空间和花园。建筑侧立面顶部由木柱支撑挑过盲墙立面,形成独特造型。

The triangular shaped lot has stimulated the choice of complex geometries and a careful study of the spaces. The project is closed to the public space to open up to the patio and garden. Along the building is characterized by a blind wall surmounted by a strip window backwards punctuated by wooden pillars.

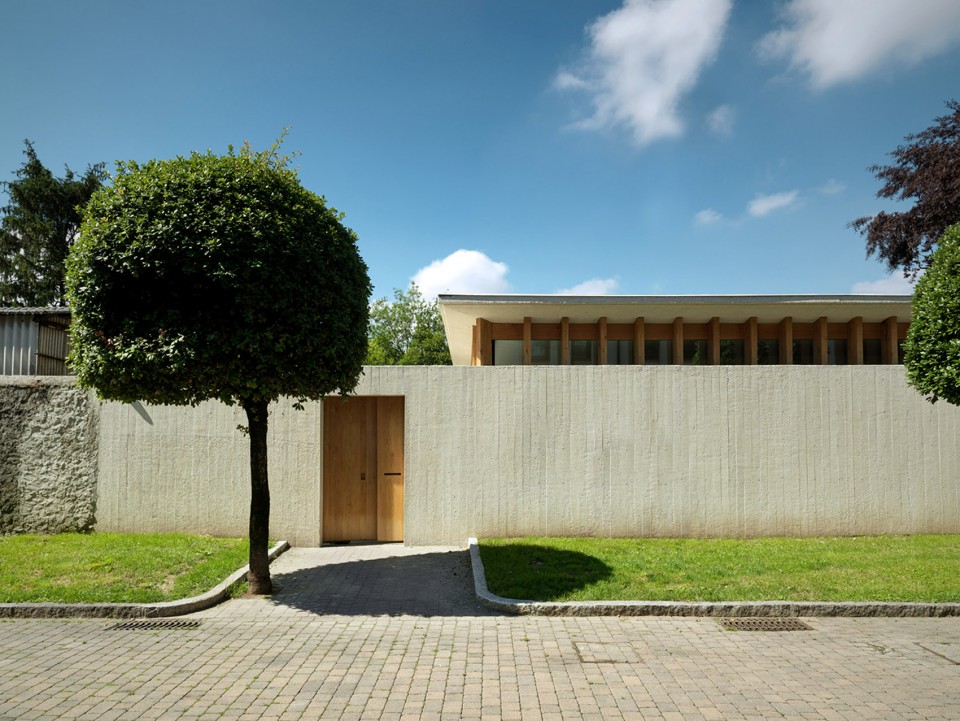

▼建筑外立面顶部由木柱支撑挑过盲墙立面,形成独特造型,Along the building is characterized by a blind wall surmounted by a strip window backwards punctuated by wooden pillars

003-Casa RBS By Marco Ortalli architetto

视图中的结构砌体钢筋混凝土也是立面整体,在内部隔离和对抗。完整的设计使得细节的研究也充分考虑了窗户遮蔽和混凝土砌筑系统的控制。

Structural masonry reinforced concrete in view are also the facade finishing, internally is the isolation and a counterwall.The study of the details has allowed to mask the windows and control systems inside the concrete masonry. entirely shaped design.

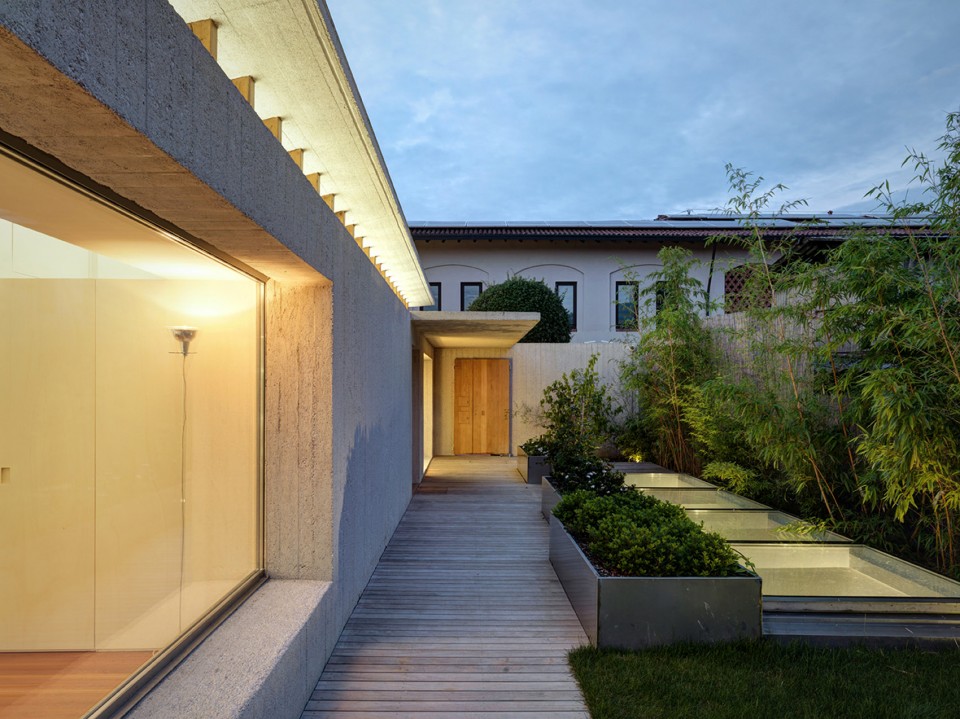

▼细节的研究也充分考虑了窗户遮蔽和混凝土砌筑系统的控制,地下室天窗由植物遮蔽,the study of the details has allowed to mask the windows and control systems inside the concrete masonry. entirely shaped design

004-Casa RBS By Marco Ortalli architetto

自然光在建筑环境中起到了重要作用。穿过巨型窗口的光线形成基本室内照明,外部附带自动窗帘和停电恢复系统。建筑的方向沿着两条直线延伸,南部立面每个房间都开有大窗口。花园中现存的和新种植的植物为住宅提供私密遮掩。

Natural light plays a fundamental role in the characterization of environments. The very local open light to the outside through large windows. Which blackout system have been provided for filtering Automated external curtains.The building orientation, lays from light coming through the windows tape from the north and east along the two straights prospects. To the southweast the facade is articulated in a broken line each room has a large windows.The use of vegetation, that the shield is through new plantings, as well as maintaining the existing trees in the project.

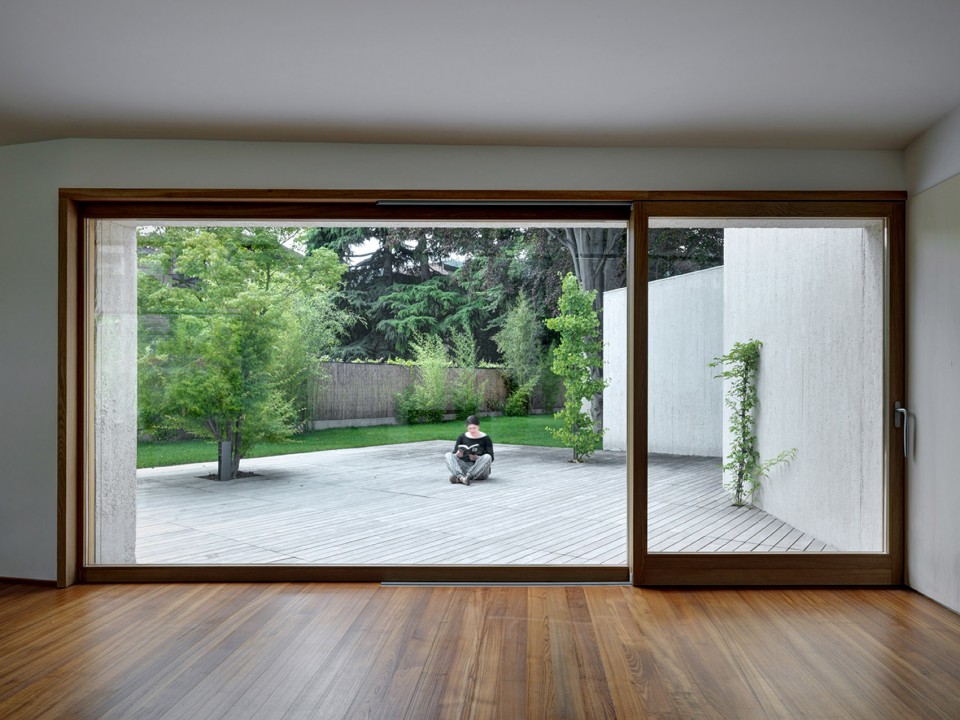

▼巨型窗口引入室内照明,与室外庭院相映成趣, the very local open light to the outside through large windows,and enjoy a good connection to the yard

007-Casa RBS By Marco Ortalli architetto

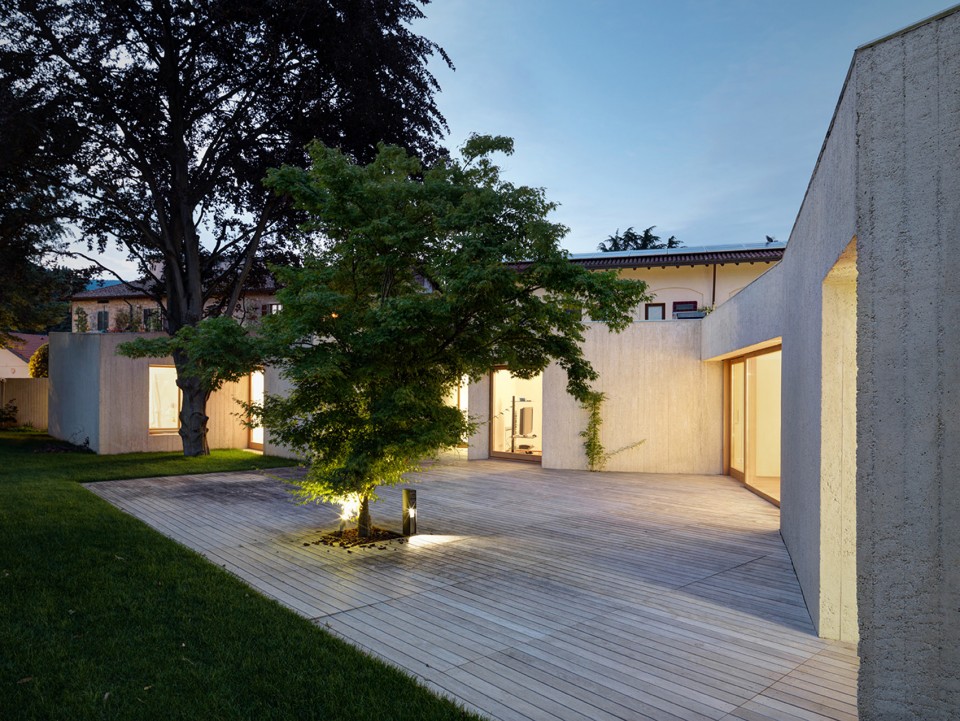

▼南部立面每个房间都开有大窗口,to the southweast the facade is articulated in a broken line each room has a large windows

005-Casa RBS By Marco Ortalli architetto

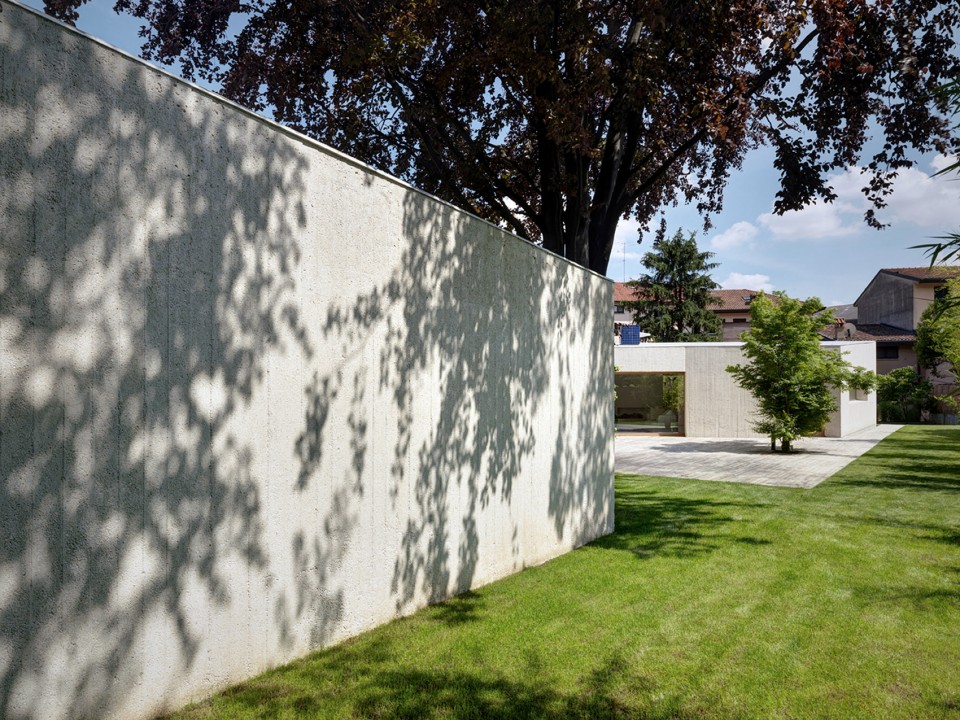

▼建筑防护依靠花园中现存的和新种植的植物,the use of vegetation, that the shield is through new plantings, as well as maintaining the existing trees in the project

006-Casa RBS By Marco Ortalli architetto

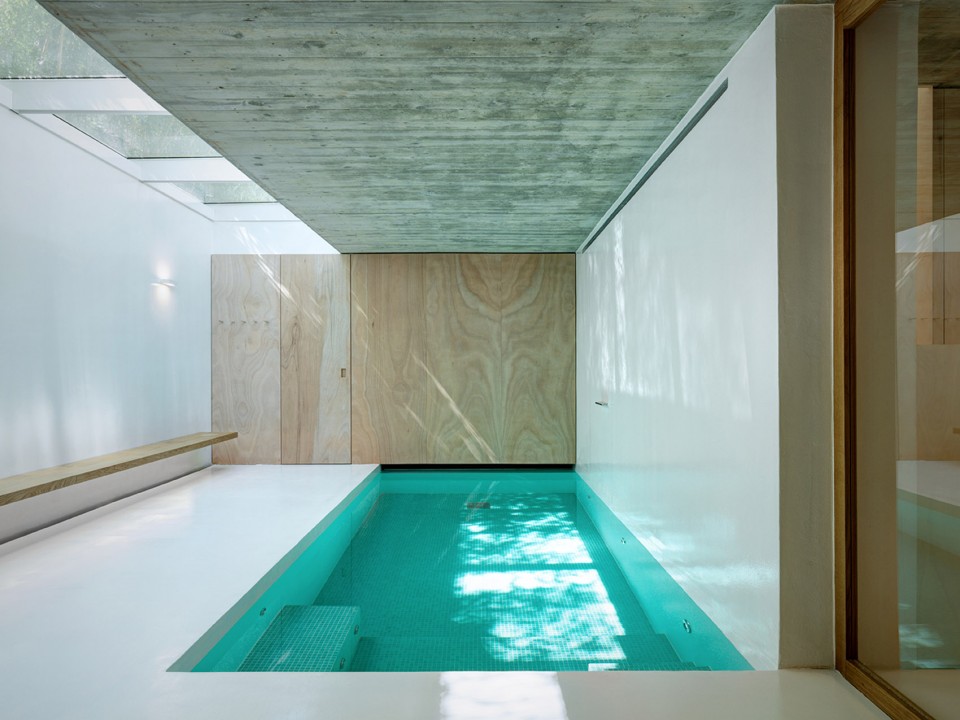

地下室中庭一个大型加热旋涡天顶玻璃照明中庭,由地表植物遮挡隐蔽。地下钢筋混凝土结构在顶部视野内引入多样采光,墙面由奥古曼面板铺装,室内采用全定制家居。建筑设计重点考虑了垂直分布,住宅内部电梯连接居住空间和附加空间,另一部电梯连接广场和公园及父母露台。

On the basement there is a large heated whirlpool zenithally illuminated by a patio with glass roof and screened on the ground floor by the vegetation.The basement reinforced concrete in view defines the ceiling have cashed lights of various diameters in the slab thickness. The walls are coated with okume panels.The furnishings are designed and manufactured to design and built the facilities and the villa.Much attention has been paid to the vertical distribution, there is a housing compartment internal elevator that connects the living area with dell’interrato accessory spaces. An elevator connects the square with the garden and the terrace of the parents at home.

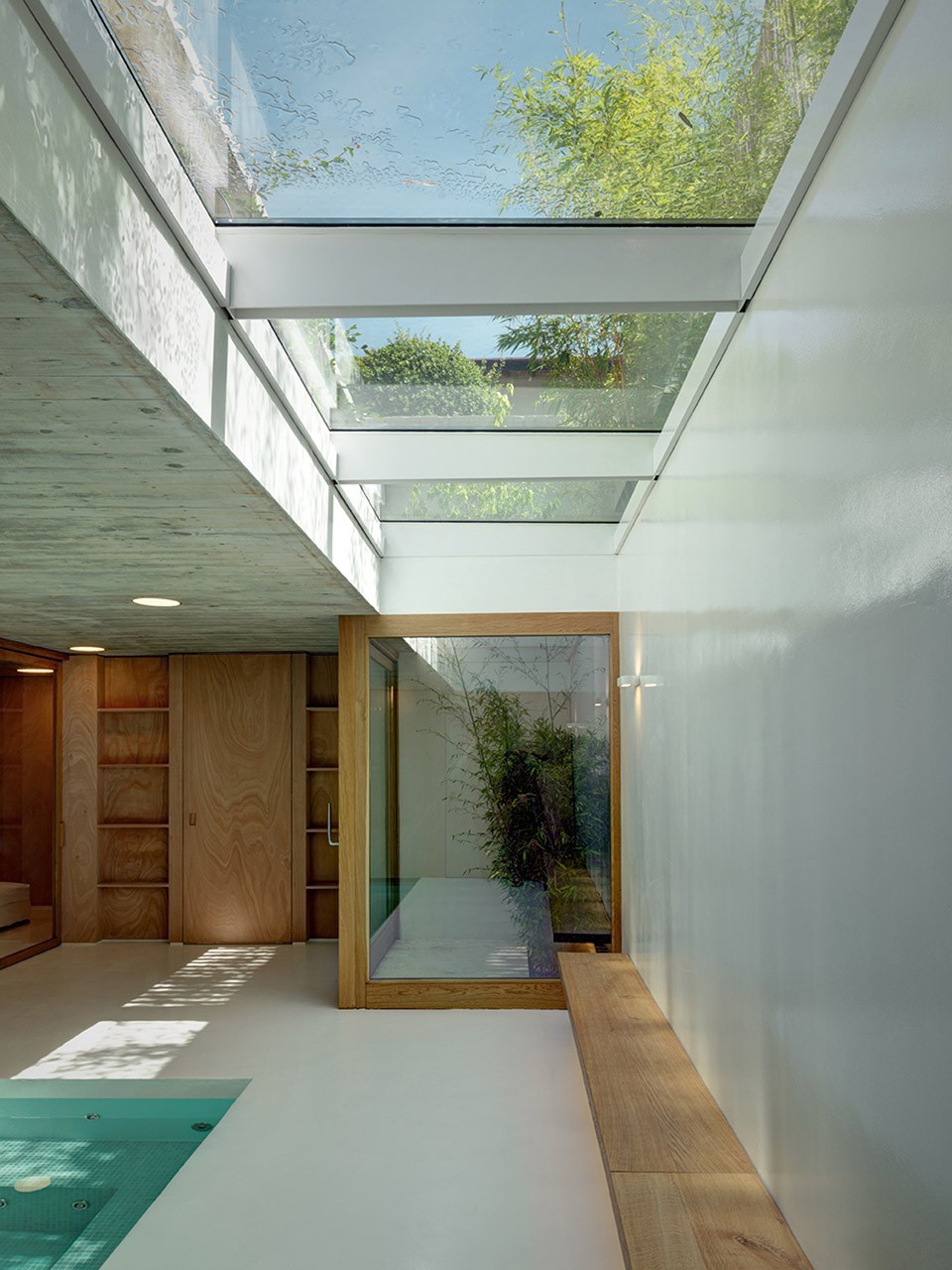

▼地下室钢筋混凝土结构在顶部视野内引入多样采光,The basement reinforced concrete in view defines the ceiling have cashed lights of various diameters in the slab thickness

009-Casa RBS By Marco Ortalli architetto

▼室内家装采用定制家具完美契合内部结构,the furnishings are designed and manufactured to design and built the facilities and the villa

008-Casa RBS By Marco Ortalli architetto

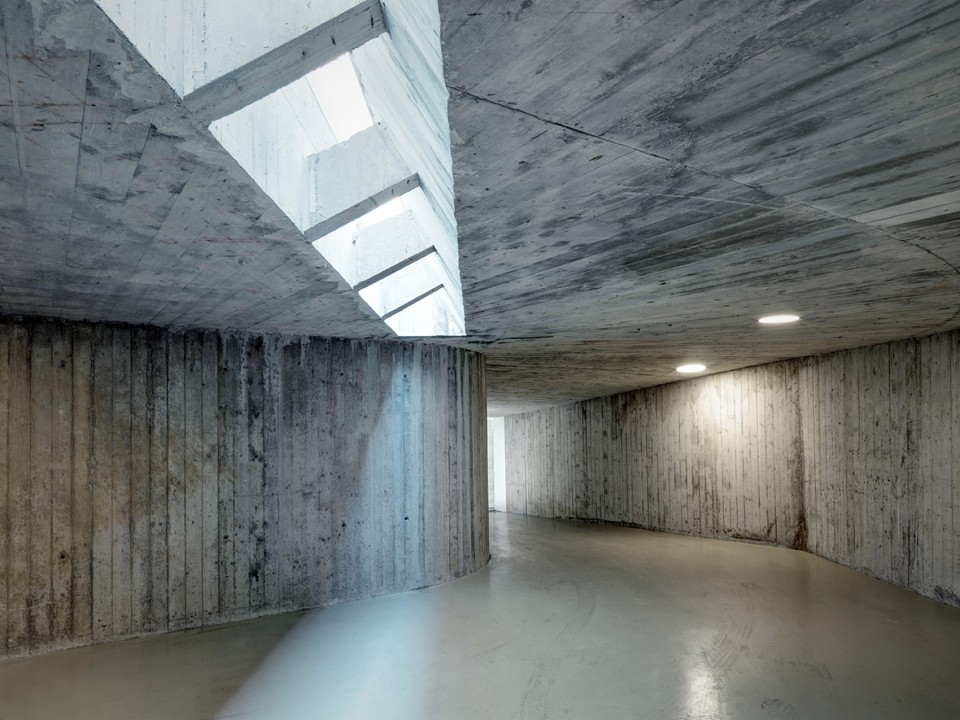

▼地下室车行入口,顶部采光设计减少能源消耗,the car access with the natural light from the roof

010-Casa RBS By Marco Ortalli architetto

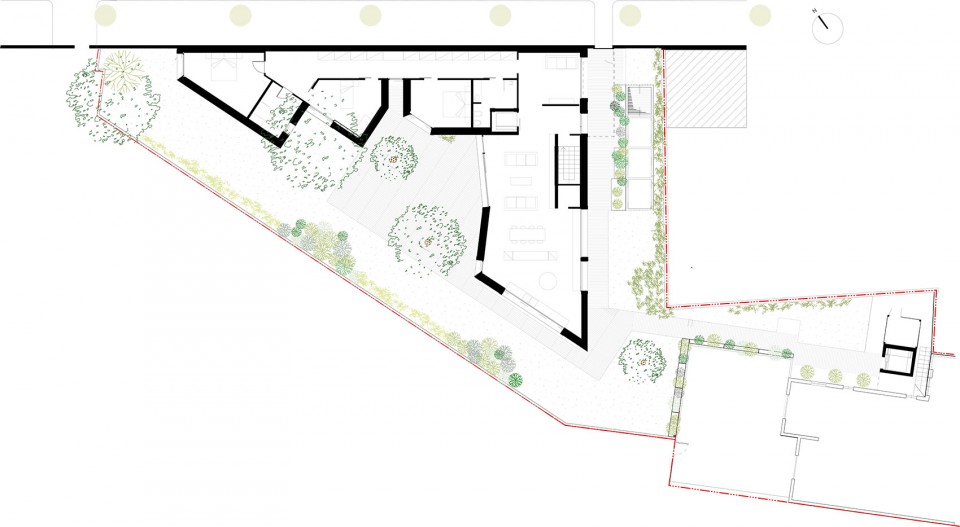

▼平面图,the plan

CRB disegni per pubblicazioni

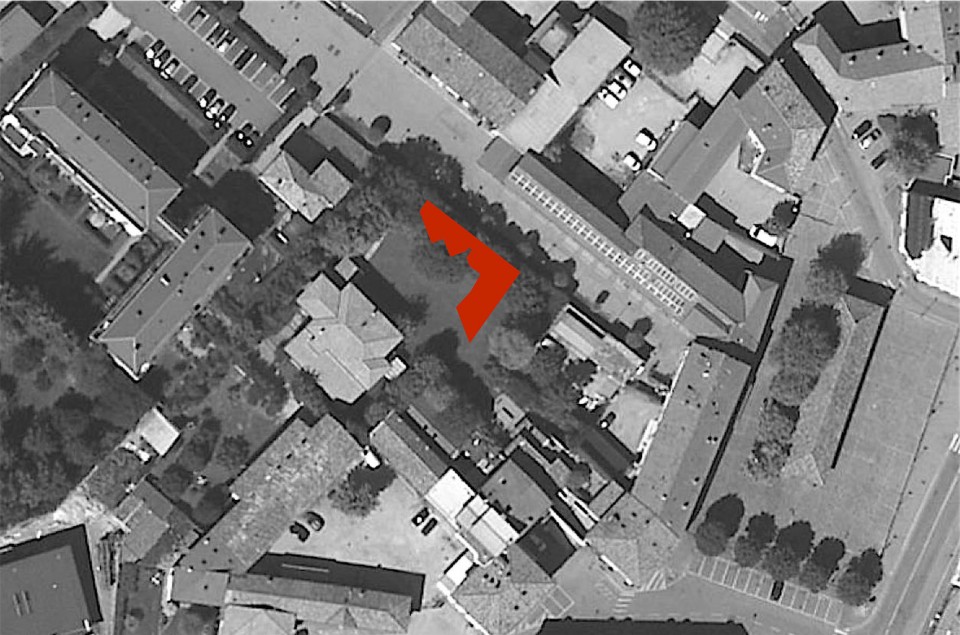

▼区位图,site map

001-Casa RBS By Marco Ortalli architetto
