非常感谢 Felipe Assadi Arquitectos 予gooood分享以下内容。
Appreciation towards Felipe Assadi Arquitectos for providing the following description:

该项目坐落在一个5000平方米的公寓住宅区，与瓜亚基尔市中心典型的城市住宅形成了尺度上的反差。相互紧挨的体量围绕着场地分布，并在内部形成一个庭院。如果将所有隔墙元素拆除，会得到一个连续的、一体化的庭院建筑。

The Project is located in a condominium development of 5,000-sqare-meter lots. Nevertheless, the typology reflects the configuration on a different scale, of a typical city block in central Guayaquil, with back-to-back constructions occupying the perimeter and generating patios on the interior. If we were to remove the divisions, we would have a single continuous building with a large inner patio.

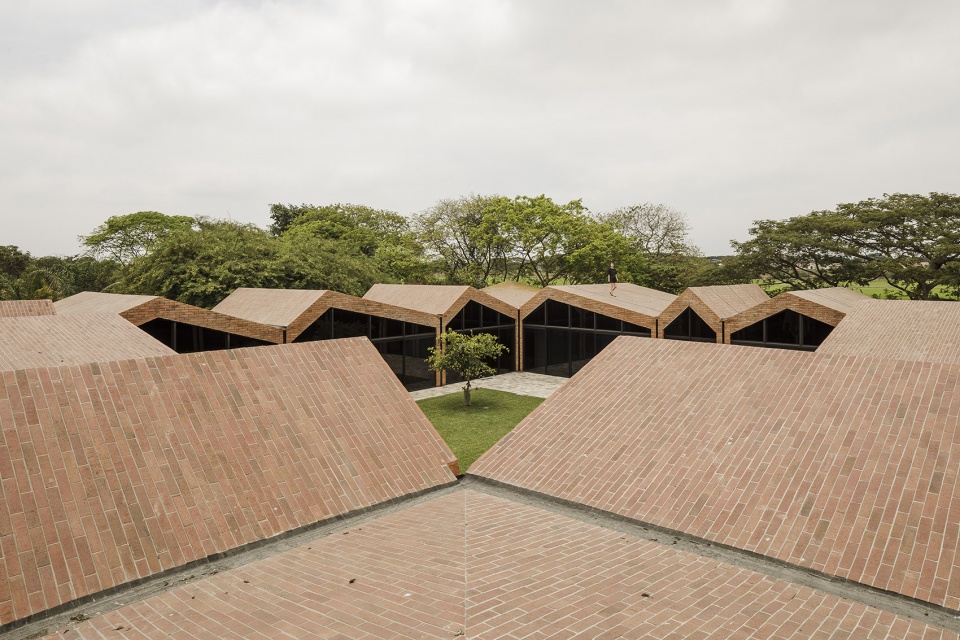

▼鸟瞰图，aerial view

不同居住空间的分隔通过独立的屋顶来实现，虽然立面是连续的，但形态各异的屋顶起到了定义空间的作用，同时将独立的单元融合到统一的系统当中。

The divisions between adjacent domestic spaces are marked by separate rooftops and projections on the continuous façade. Thus, they can be read as independent units belonging to a single system. Exactly as in the center of the city.

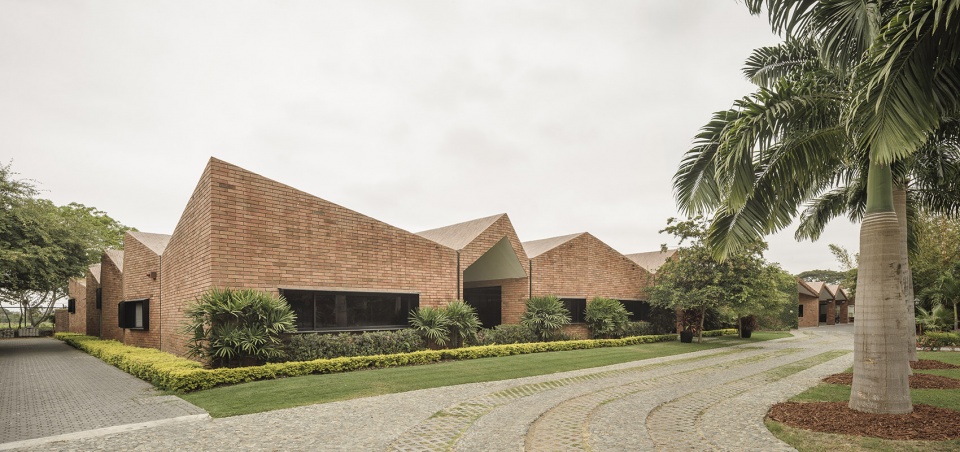

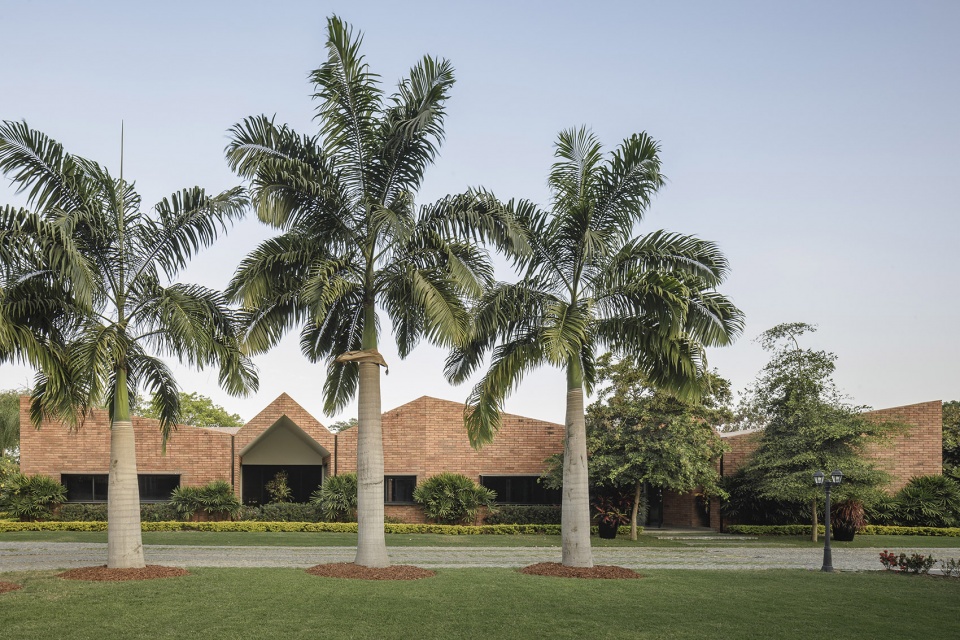

▼街道视角，view from the street

▼相互紧挨的体量围绕着场地分布，并在内部形成一个庭院， the back-to-back constructions occupying the perimeter and generating patios on the interior

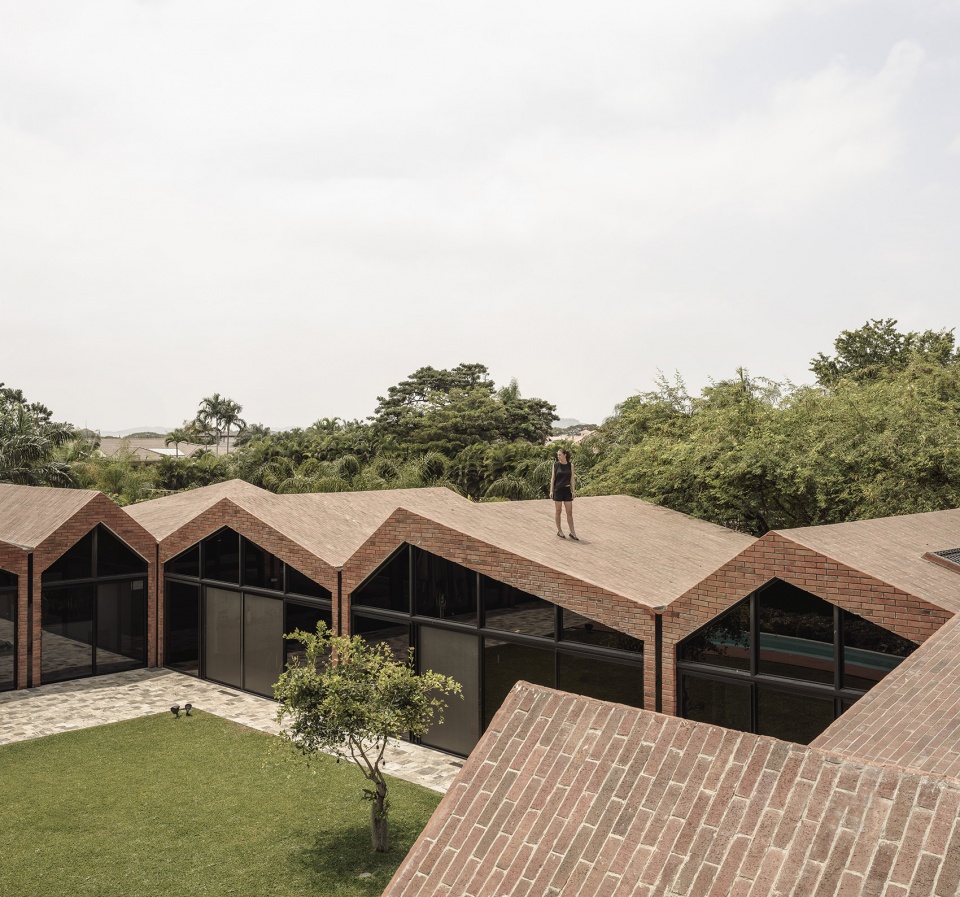

▼空间的分隔通过独立的屋顶来实现，the divisions between adjacent domestic spaces are marked by separate rooftops and projections on the continuous façade

基于这一平面设置，住宅内的空间都围绕在正方形庭院周围，并通过内部走廊相连。庭院将所有的空间从视觉上连接起来，同时保证了每个房间都能享有自己的风景。

Likewise, the spaces of the house are articulated around a square central patio, with an internal corridor. The patio connects all of the spaces visually and ensures that the house has a landscape of its own. 、

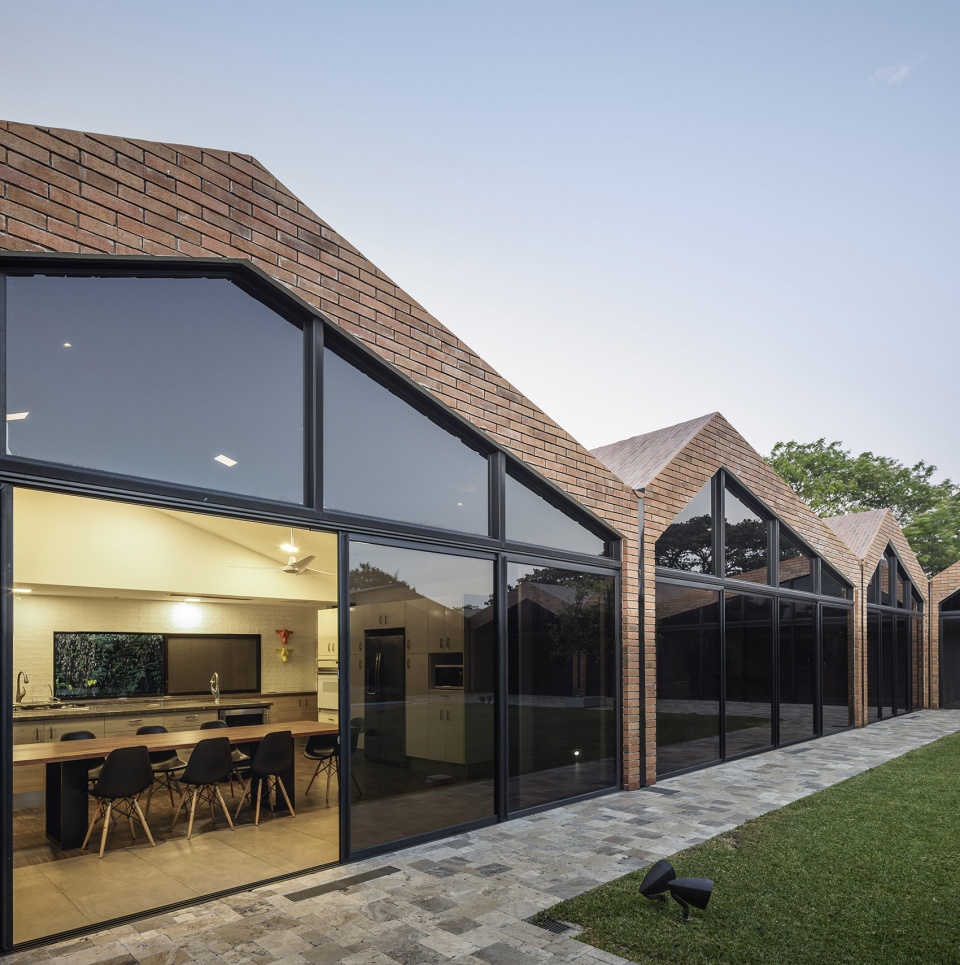

▼外观细部，exterior detailed view

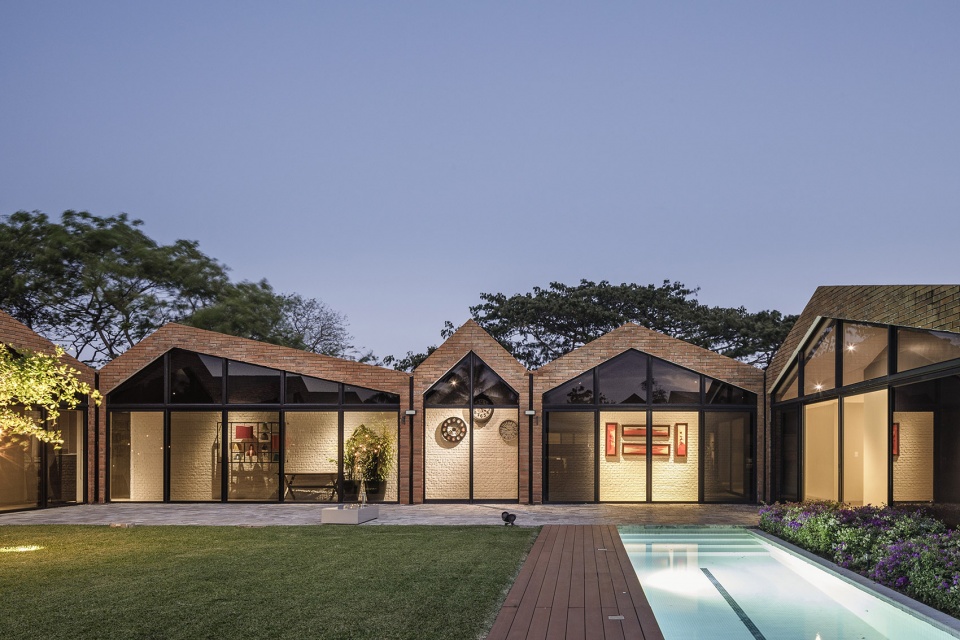

▼从正方形的庭院望向室内，view to the interior from the square patio

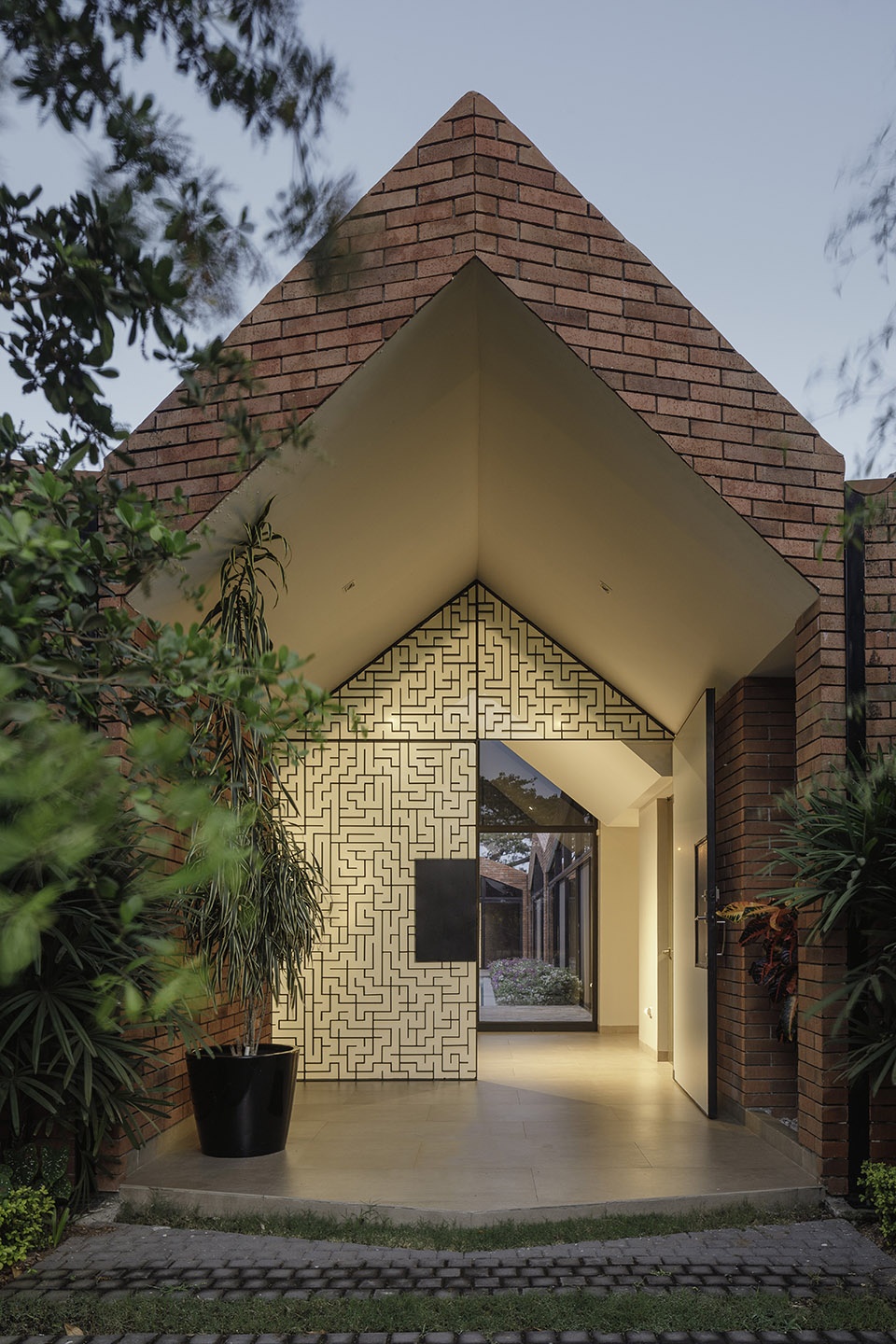

▼住宅入口，entrance

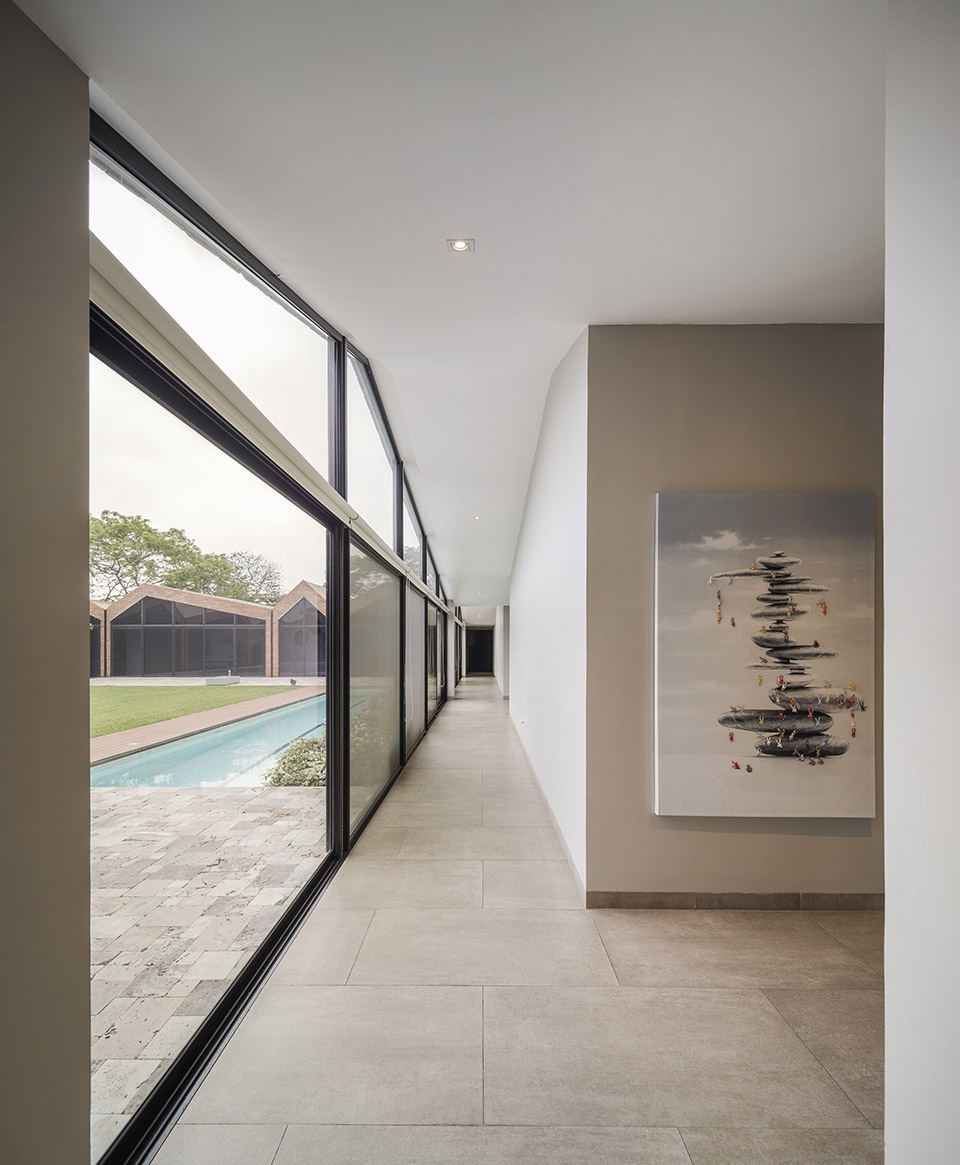

▼内部空间通过内部走廊相连，the spaces of the house are articulated around a square central patio, with an internal corridor

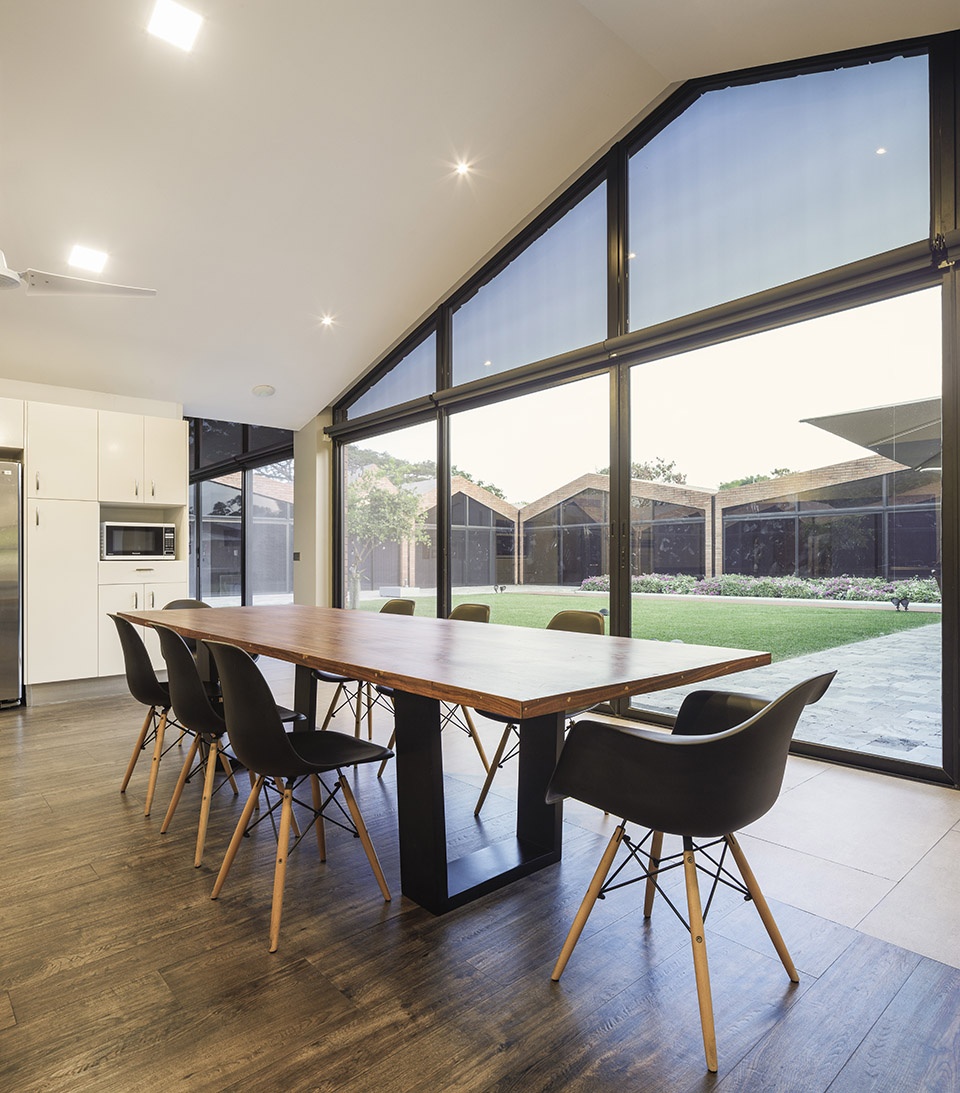

▼从餐厅望向庭院，view to the patio from the dining area

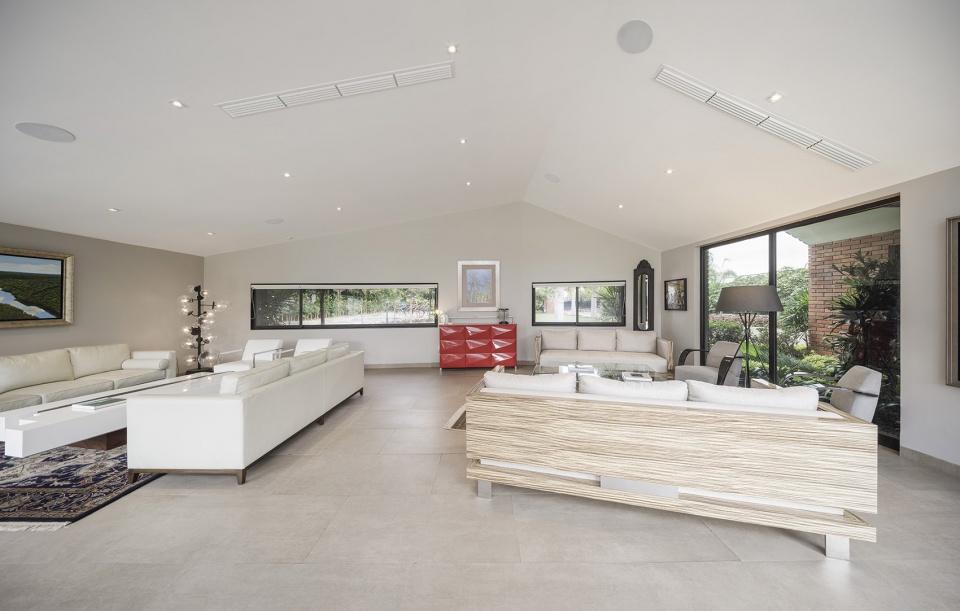

▼起居室，living room

▼从庭院望向建筑，view from the courtyard

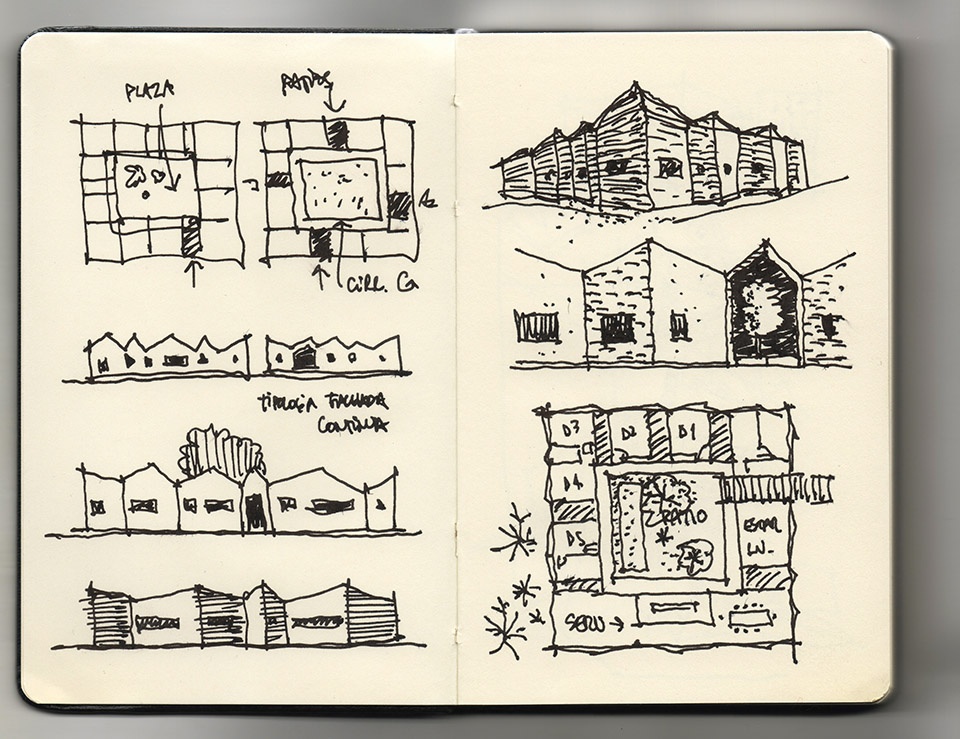

▼设计手稿，design concept

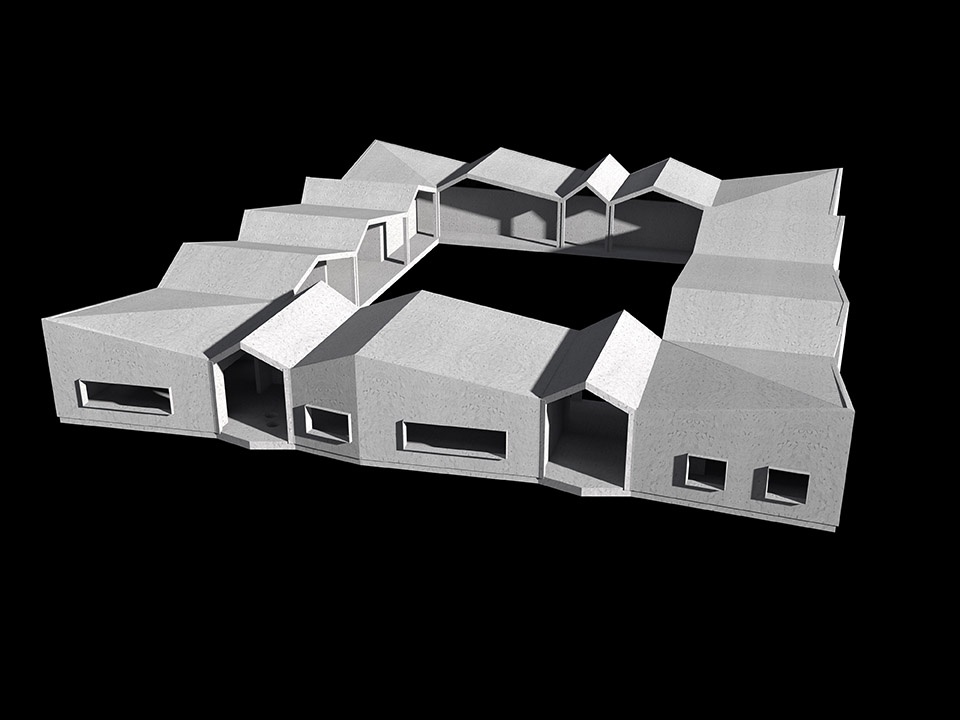

▼模型，model

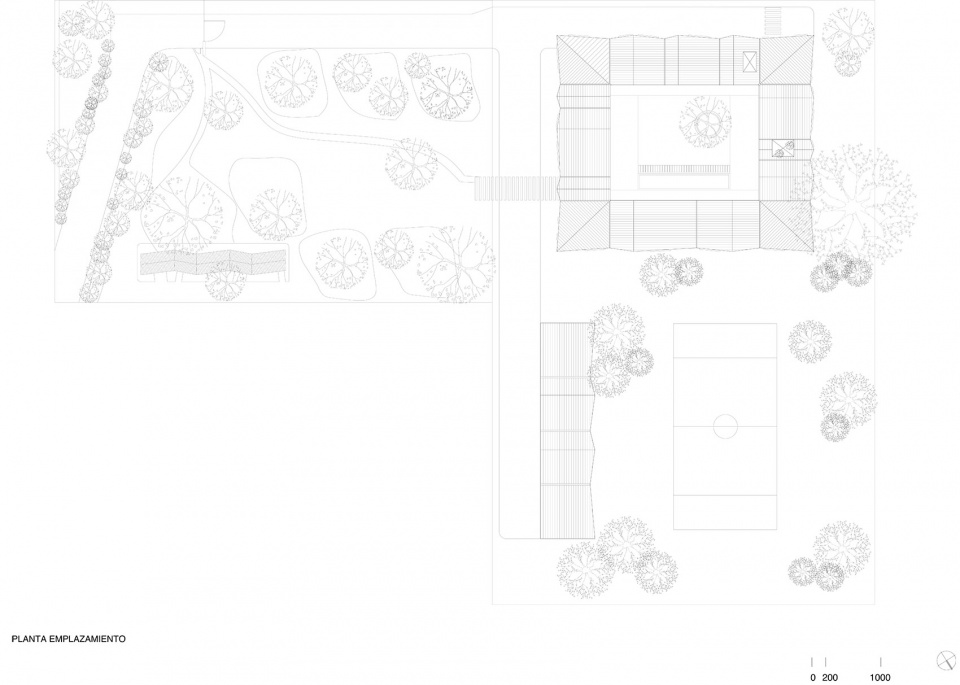

▼场地平面图，site plan

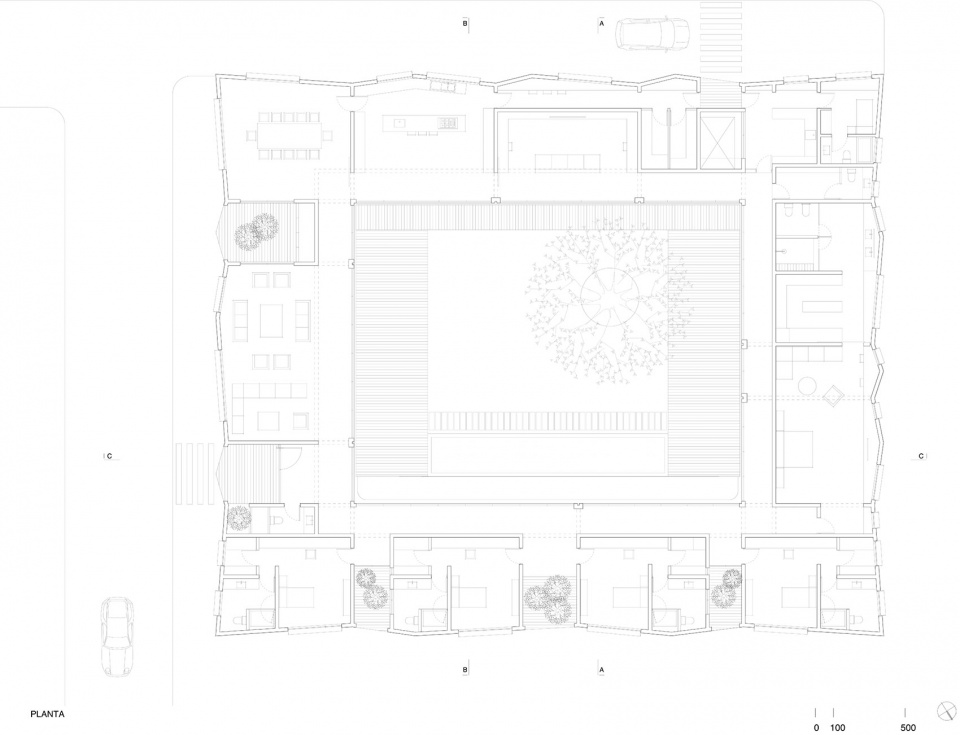

▼首层平面图，ground floor plan

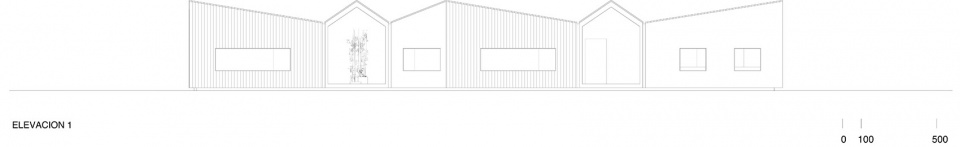

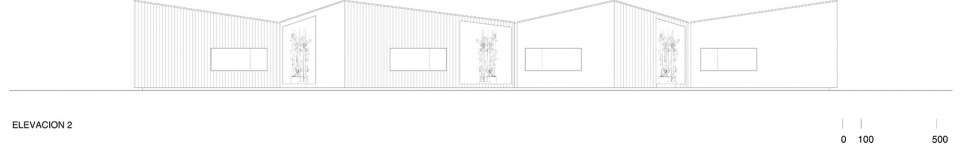

▼立面图，elevations

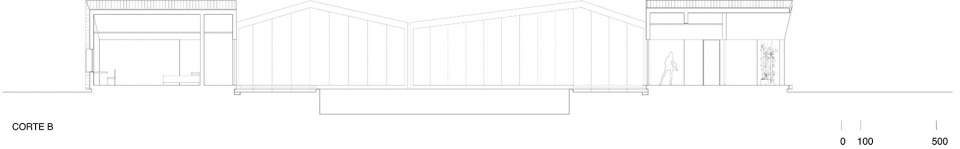

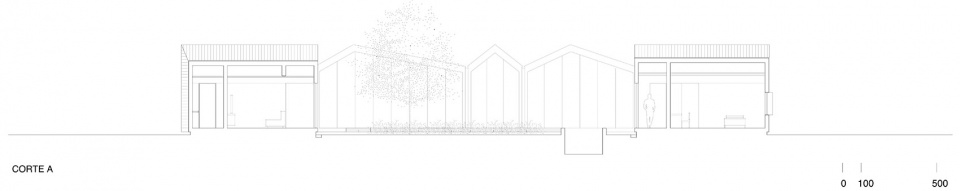

▼剖面图，sections

ESPAÑOL
Casa El Cortijo
2° 4’11.59″S / 79°51’21.11″O
Guayaquil, Ecuador
Felipe Assadi
Trinidad Schönthaler
Alejandra Araya
Macarena Ávila
Constructora
Francisco Ibañez

More：Felipe Assadi Arquitectos
