非常感谢 北京市建筑设计研究院有限公司 予gooood分享以下内容。更多请至：BIAD on gooood
Appreciation towards BIAD for providing the following description:

建筑理念
Architectural concept

小米园区用地为非平行四边形，不规则的用地形状和以居住区为主的周边城市环境无法带给园区的使用者清晰的秩序感，也无法形成强烈的场所自我认知。规划建立了一个强有力的秩序，建筑，景观，道路，纵横交错的坐落于网格之上，呈现出“矩阵互联”的图底意向，这种意向在文化关联层面揭示了小米的性质，更大的意义在于大多数的工作和休息空间获得了正南正北的朝向，在北京，这意味着阳光、舒适和更加健康的工作环境。下沉景观的植入链接了城市绿地与园区内的景观活动场所，最大程度地软化了建筑与城市的边界。

The Xiaomi campus site is non-parallelogram, the irregular shape of the site and the predominantly residential surrounding urban environment cannot bring a clear sense of order to the users of the campus, nor can they form a strong self-perception of place. The plan establishes a strong order, with buildings, landscapes, roads, and intersecting grids, presenting a “matrix of interconnectedness” that reveals the nature of Xiaomi at a culturally relevant level, and more importantly, the majority of the work and rest spaces are oriented to the north and south, which in Beijing means sunlight, comfort, and a greater sense of place. This means sunlight, comfort and a healthier working environment. The implantation of the sunken landscape links the urban green space to the landscaped activity spaces within the campus, softening the boundary between the building and the city to the greatest extent possible.

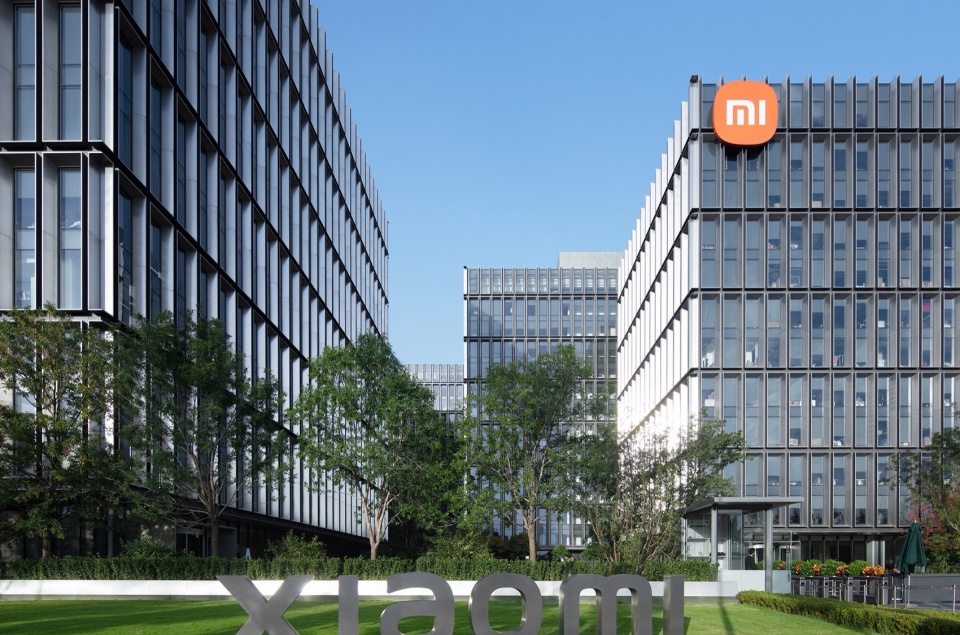

▼小米总部园区入口，entrance of the Xiaomi Headquarters Park © 存在建筑

环境分析
Environmental analysis

项目位于北京海淀区，距离著名的中关村软件园西北方5公里，项目占地4.39公顷。用地所处城市区域里有大量的密集型居民区，街区整体形象繁杂，地区局部环境缺乏高科技办公区域的氛围。政府希望小米总部园区在海淀区安宁庄地区的植入，能够有力地扭转了这一局面，改善该地区的城市气质，进一步加强海淀区科技重镇的形象。

The project is located in Haidian District, Beijing, 5 km northwest of the famous Zhongguancun Software Park, and covers an area of 4.39 hectares. The site is located in an urban area with a large number of dense residential areas, with an overall mixed image of the neighborhood and a local environment that lacks the atmosphere of a high-tech office area. The government hopes that the implantation of Xiaomi Technology Park in the Anningzhuang area of Haidian District will strongly reverse this situation, improve the urban atmosphere of the area, and further strengthen the image of Haidian District as a major technology town.

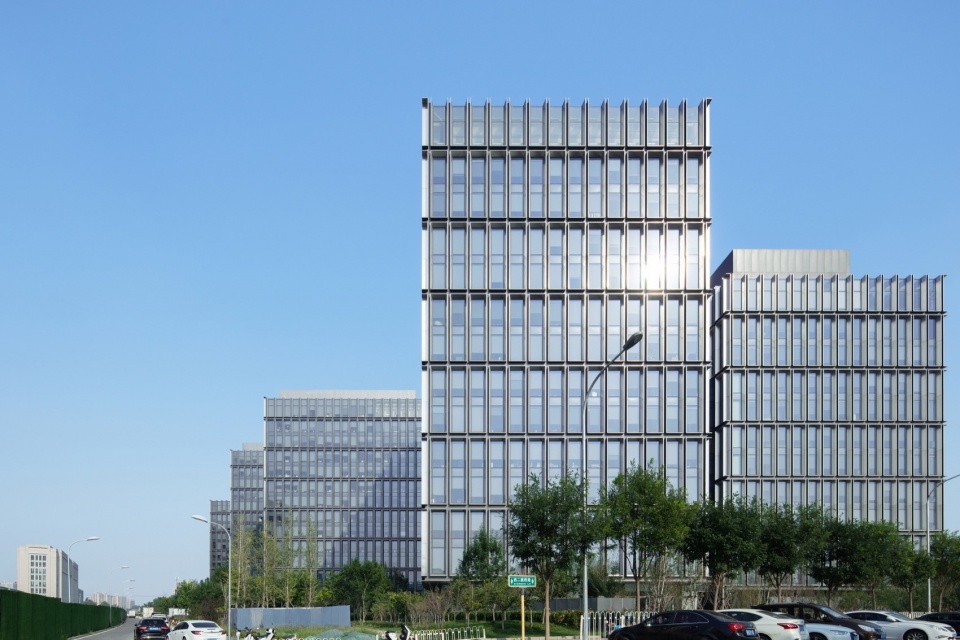

▼小米总部园区城市立面，urban facade of the Xiaomi Headquarters Park © 存在建筑

场地分析
Site analysis

21万平米的建筑体量被分解为3组8个单体，分散的体量和正南北向的朝向与周边居住建筑的体量环境相互协调，消解了庞大建筑对环境的冲击。单体与城市道路间锯齿空地被绿地覆盖，为城市提供了更多的绿地。

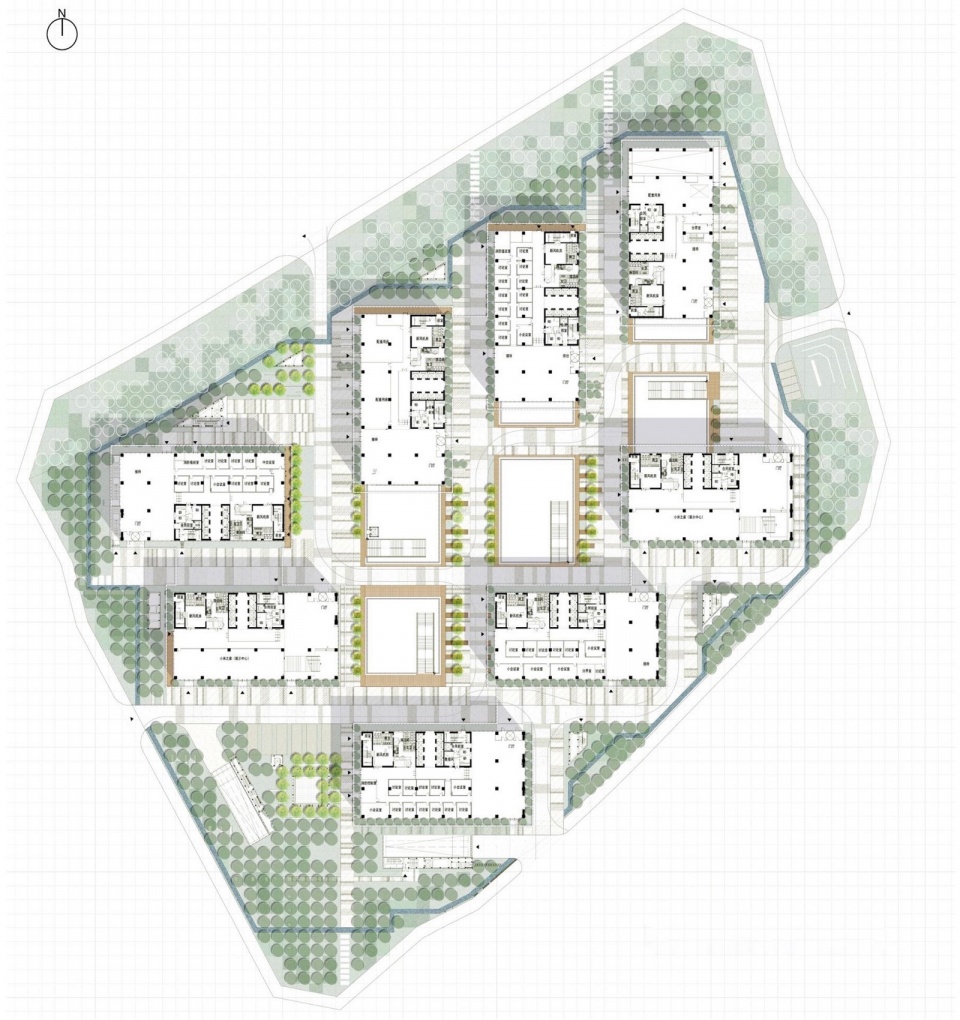

▼小米园区中横纵编织的密度街区，plan of the Xiaomi Headquarters Park © BIAD

The 210,000 square meters of building volume is decomposed into 3 groups of 8 monoliths, and the scattered volume and positive north-south orientation are in harmony with the volume environment of the surrounding residential buildings, dissipating the impact of the huge building on the environment. The sawtooth space between the monoliths and the city road is covered by green space, providing more green space for the city.

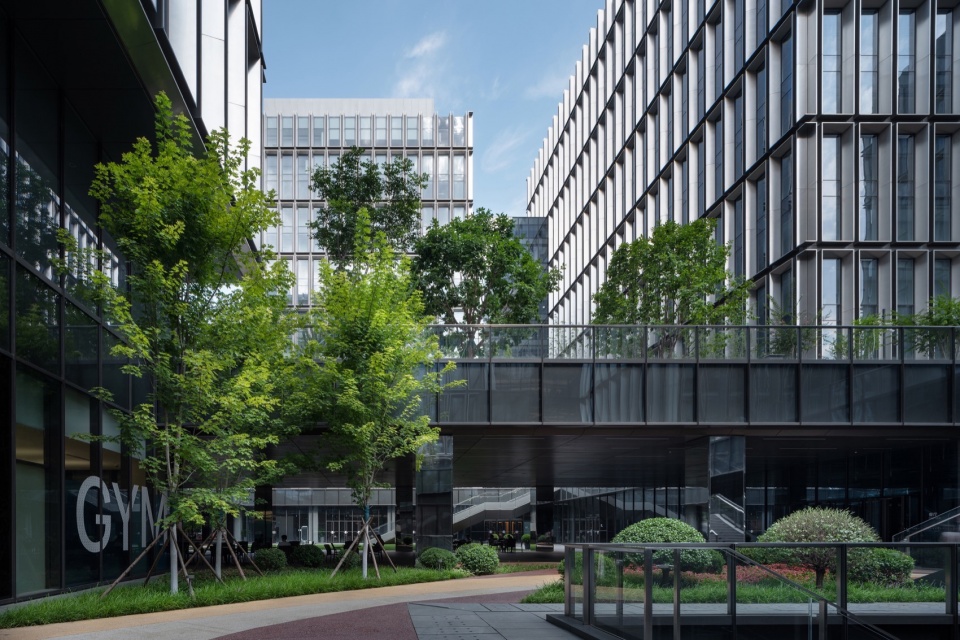

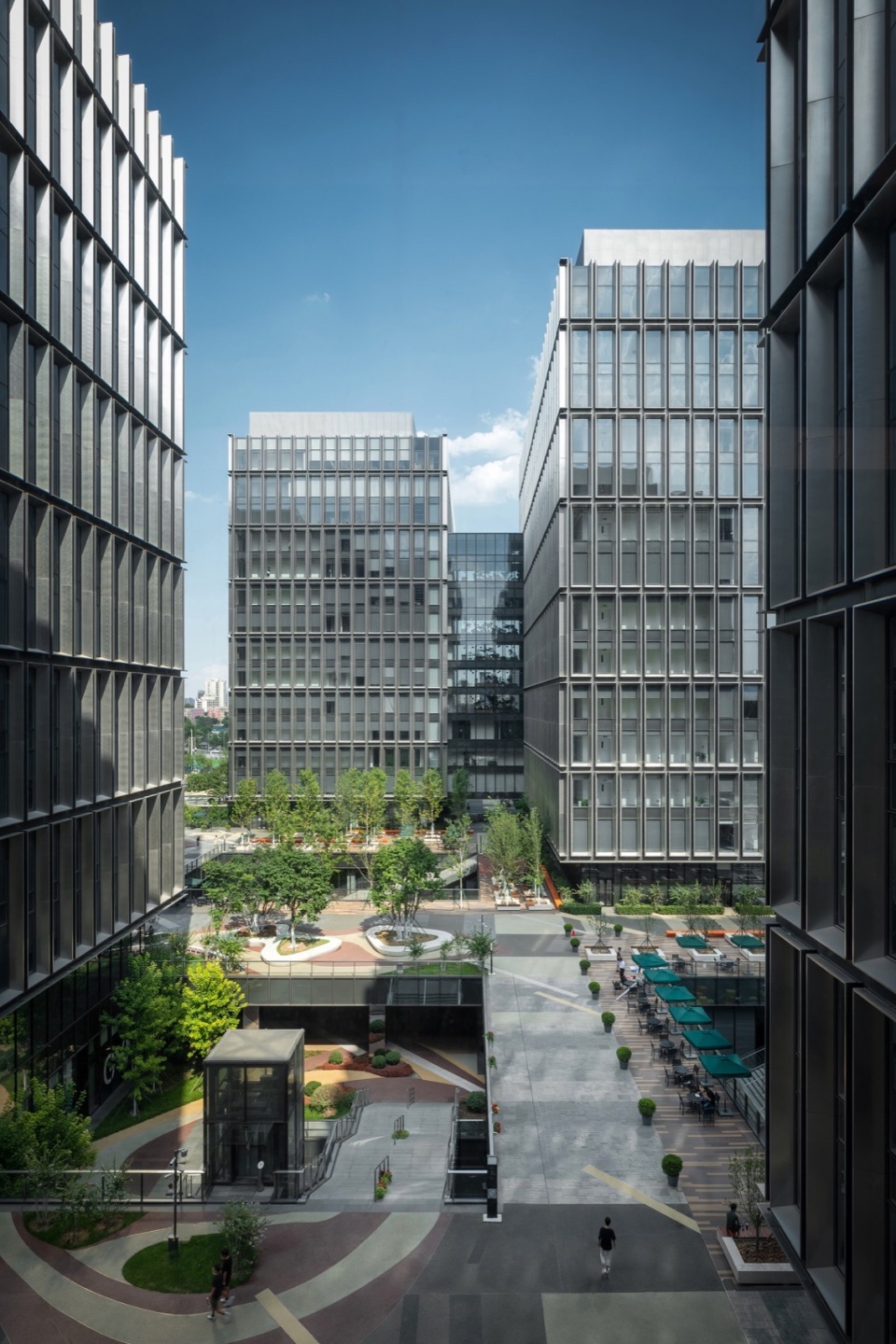

▼小米总部园区近地空间，ground level of the Xiaomi Headquarters Park © 吕博

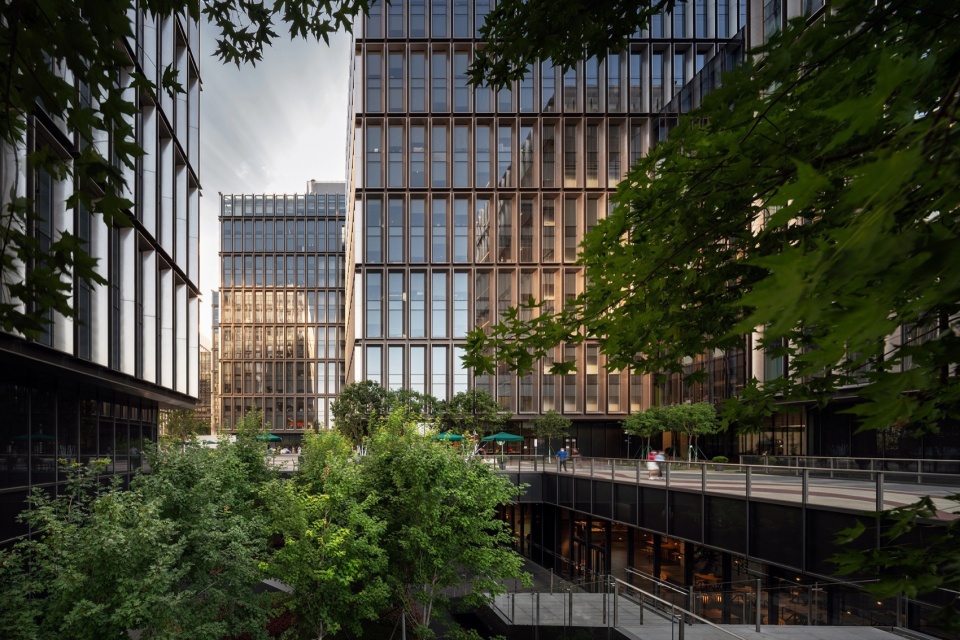

▼小米总部园区下沉庭院，the sunken courtyard © 吕博

▼傍晚的小米园区步行街，walkway inside the Xiaomi Headquarters Park © 存在建筑

幕墙设计
Curtain wall design

精致的外表皮由单元式幕墙构成，幕墙单元板块在工厂加工，现场组装，精致度高。幕墙单元间设有通风器，在过度季承担自然通风换气的功能，幕墙玻璃部分不再设窗，仅承担采光和观景的职责，1.4米宽2.8米高的玻璃直接落地，室内的视野明亮而开阔。幕墙单元内设置布纹不锈钢与深色铝板组合的遮阳框。布纹钢板对光线的漫反谢性能优于常规的氟碳喷涂铝板，无论是北侧背阴处，还是阴雨，晴空，都能有细腻的朦朦胧反射效果，令人感受到，细节的精致。

The exquisite skin is composed of unit curtain wall, which are prefabricated and assembled on site with high delicacy. The curtain wall units are equipped with ventilators to assume the function of natural ventilation and air exchange in the excessive season. The glass part of the curtain wall is no longer equipped with windows, but only assumes the duties of light and view, and 1.4 by 2.7-meter glass falls directly to the ground, so that the indoor view is bright and open. The curtain wall unit is equipped with a sunshade frame combining cloth grain stainless steel and dark aluminum plate. The diffuse reflection of the cloth grain steel plate is better than the conventional fluorocarbon sprayed aluminum plate, whether in the back shade of the north side, or in the cloudy rain, clear sky, there is a delicate hazy reflection effect, which makes people feel the exquisite details.

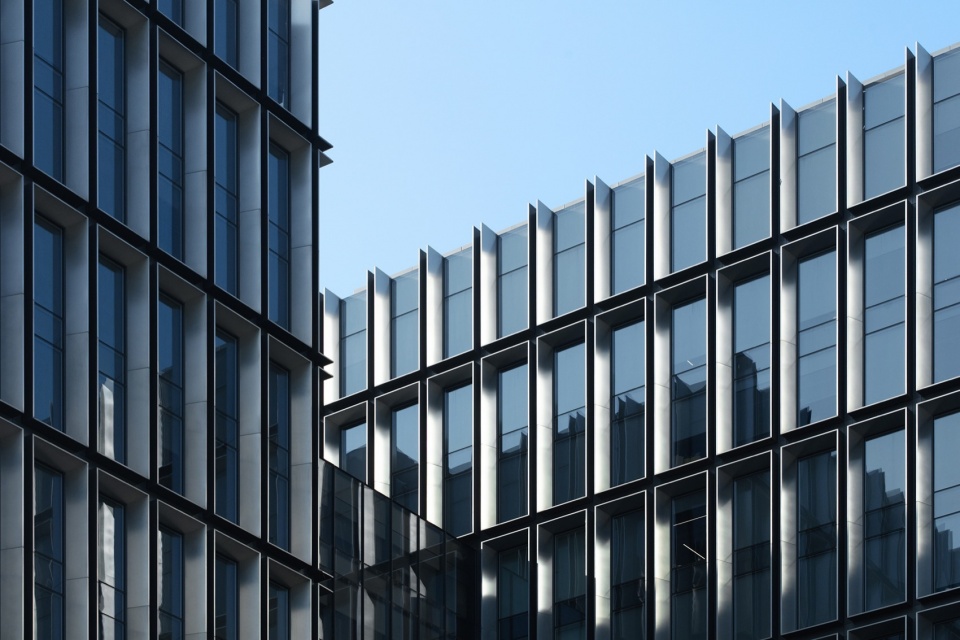

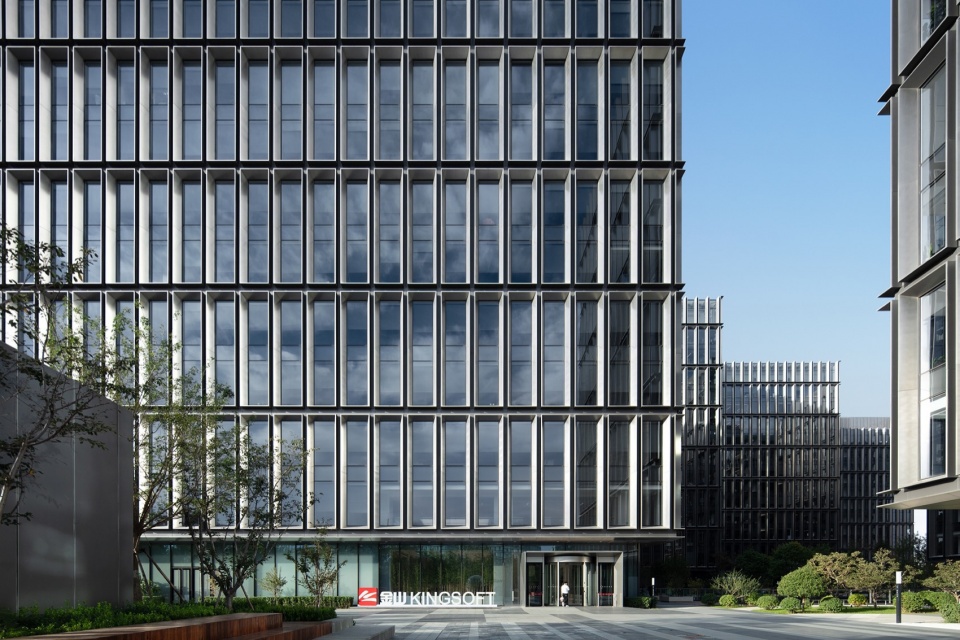

▼智慧立面的技艺品质，curtain wall design © 存在建筑

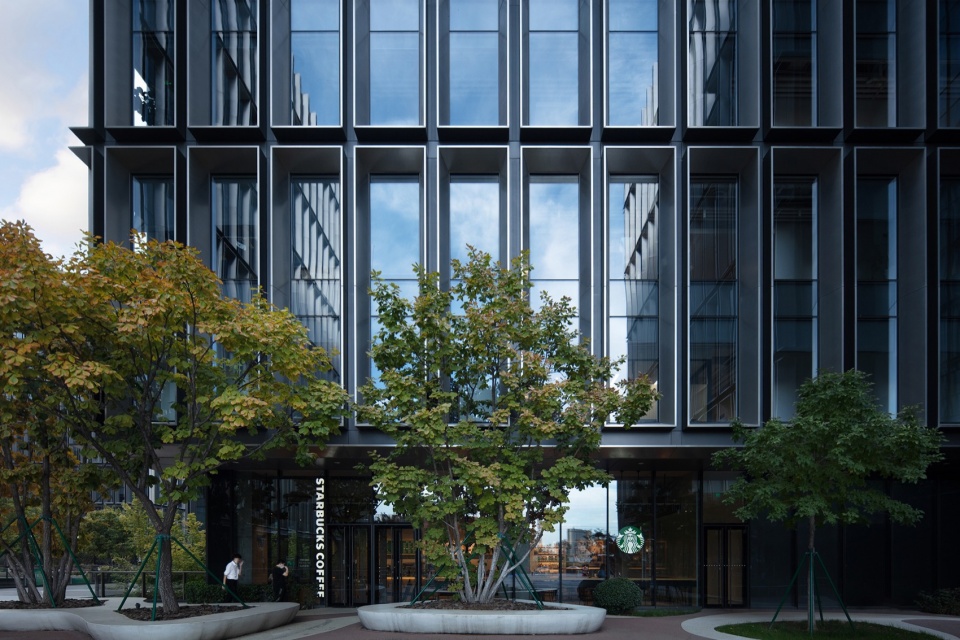

▼小米总部园区首层现代骑楼，modern arcade on the first floor © 存在建筑

▼阴影部分柔和的漫反射光，the shadow part of the soft diffuse light © 存在建筑

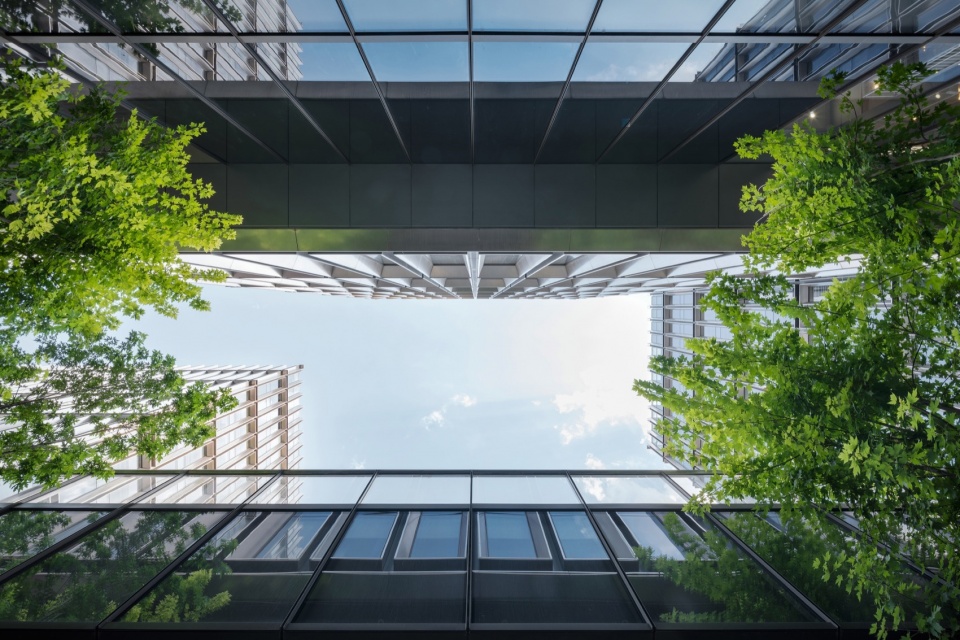

▼从下沉景观庭院仰视主楼，look up to the main building from the sunken landscaped courtyard © 吕博

可持续建筑
Sustainable construction

项目采用被动节能的设计策略，有效减少建筑使用中的运营费用和围护成本。大多数办公单元实现南北向布局，同时控制每个办公单元的进深和面宽，并将核心筒设置在建筑角落部位，争取到最大的自然采光面积，通过日照，通风，采光等专业软件的计算与分析。该布局内所有单体均在自然通风，自然采光，景观视线等方面拥有良好的条件，有利于整个场地环境的通风，便于污染物的扩散，有利于员工的身心健康。在设计早期即开始使用Ecotect，Phoenix等环境研究软件分析模拟建筑布局对场地的风，光，热等物理环境情况，对建筑室内空调气流均匀度和效果做CDD模拟。

The project adopts a passive energy-saving design strategy to effectively reduce the operating costs and envelope costs in building use. Most of the office units are laid out in a north-south direction, while controlling the depth and width of each office unit, and setting the core in the corner part of the building for maximum natural lighting area. All single units in this layout have good conditions in natural ventilation, natural lighting and landscape view, which are conducive to the ventilation of the whole site environment and the diffusion of pollutants and the physical and mental health of employees. At the early stage of design, we started to use Ecotect, Phoenix and other environmental research software to analyze and simulate the physical environment such as wind, light and heat on the site, and to do CDD simulation on the uniformity and effect of airflow of indoor air conditioning of the building.

▼小米园区的景观空间，
landscape area of the Xiaomi Headquarters Park © 吕博

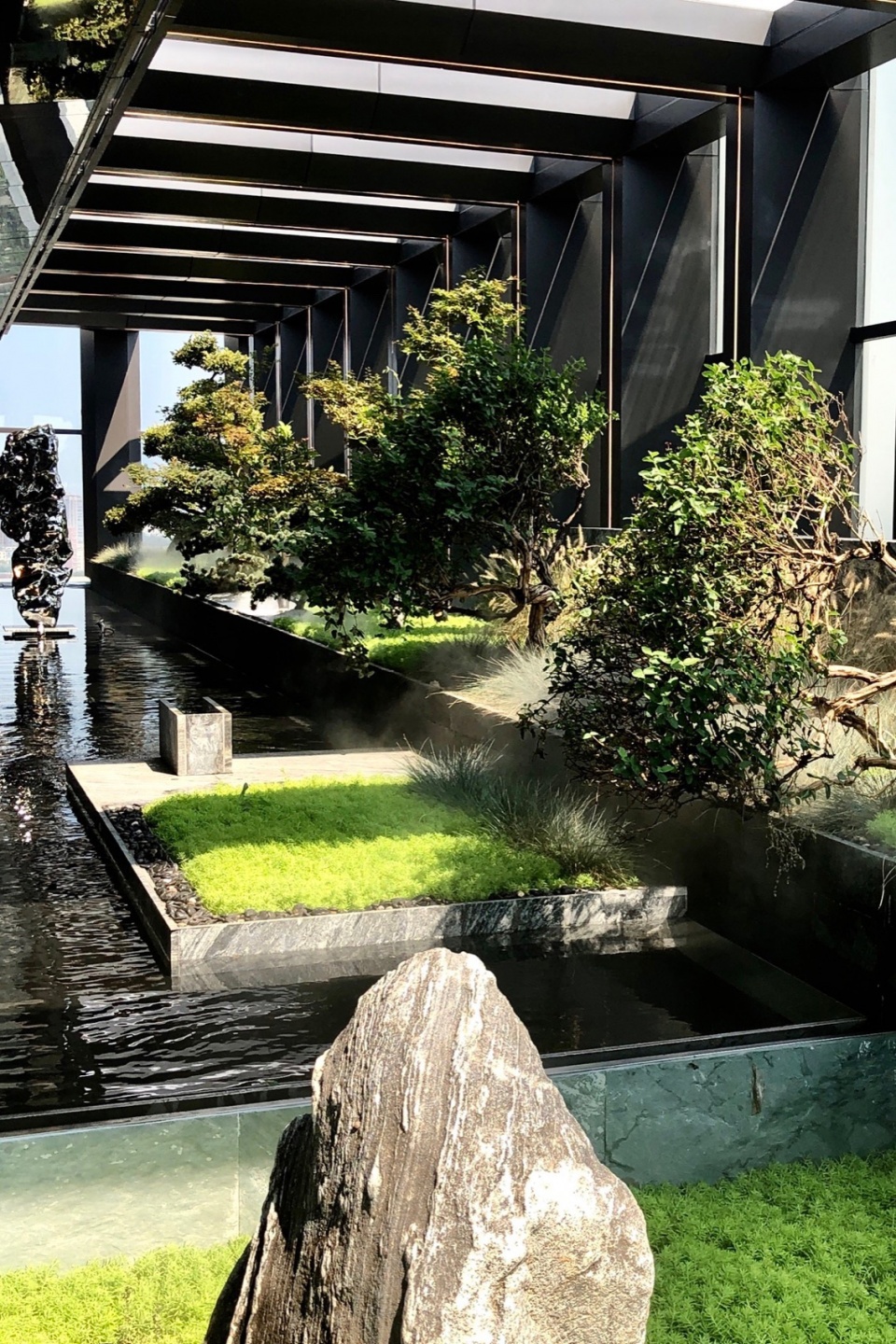

▼小米园区顶层景观空间，top floor landscape space © 马泷

创新技术
Innovative technology

以信息化为手段，融入互联网及人性化理念，在整个小米移动互联网产业园内实现建筑物运行和管理的信息化，同时为物业管理提供支持与保障，为园区的运维提供数据支撑平台。采用ALOT技术，为空调温控器、智能灯控面板、照明智能控器、智能插座等产品，构建云端平台并对其进行自动控制。在本项目中大量运用小米智能产品，物业运维人员和场景使用人员均可以对所处场景运用移动平台进行控制，创建了以人为本的智慧园区。

Taking informationization as a means to integrate the Internet and humanization concept, it realizes informationization of building operation and management in the whole Xiaomi Mobile Internet Industrial Park, while providing support and guarantee for property management and providing a data support platform for the park’s operation and maintenance. ALOT technology is used to build a cloud platform and automatically control products such as air conditioning temperature controller, intelligent light control panel, lighting intelligent controller and intelligent socket. In this project, a large number of Xiaomi smart products are used, and both property operation and maintenance personnel and scene users can control the scene they are in using the mobile platform, creating a people-oriented smart park.

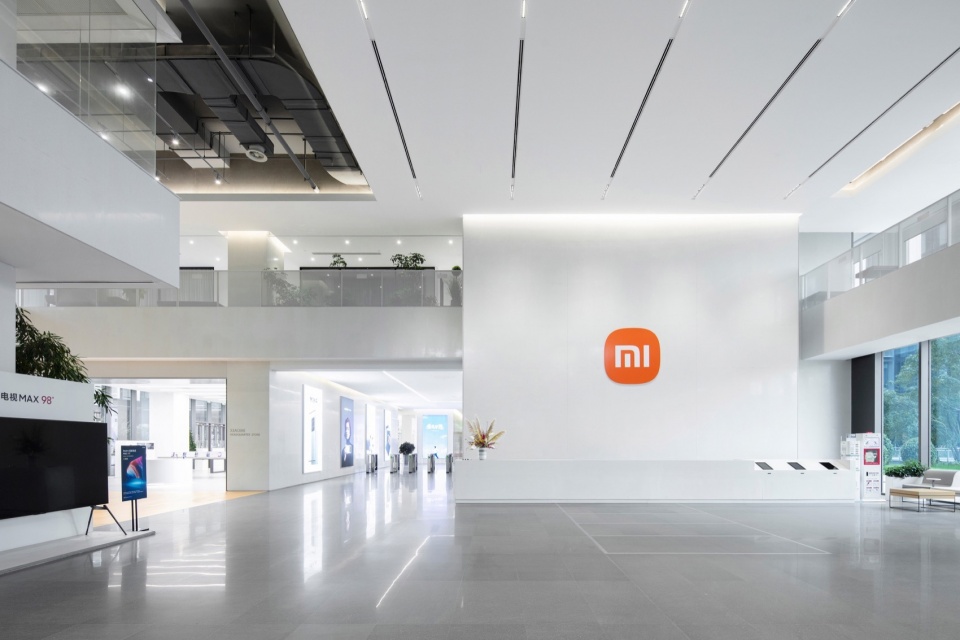

▼简约高效的小米办公大堂，simple and efficient office lobby © 存在建筑

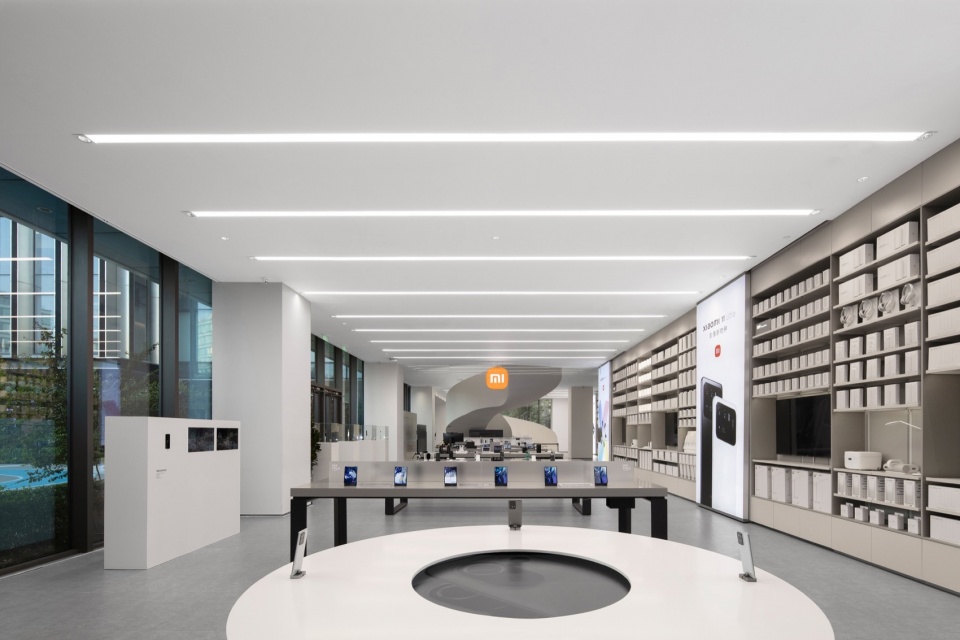

▼小米产品展示，display area of the product © 存在建筑

建筑体验
Architectural experience

小米总部园区为小米的年轻人提供了日常休息，交往，团建，企宣，表演，参观接待，聚会等各类活动的空间。小米室内装饰设计融合各类正式与非正式会议交流空间，创造活跃轻松的工作气氛，体现互联网企业的特色与朝气。

It provides a space for Xiaomi’s young people to have daily rest, interaction, group building, corporate promotion, performance, visiting reception, party and other kinds of activities. Xiaomi interior design integrates various formal and informal meeting and communication spaces to create an active and relaxed working atmosphere, reflecting the characteristics and dynamism of an Internet company.

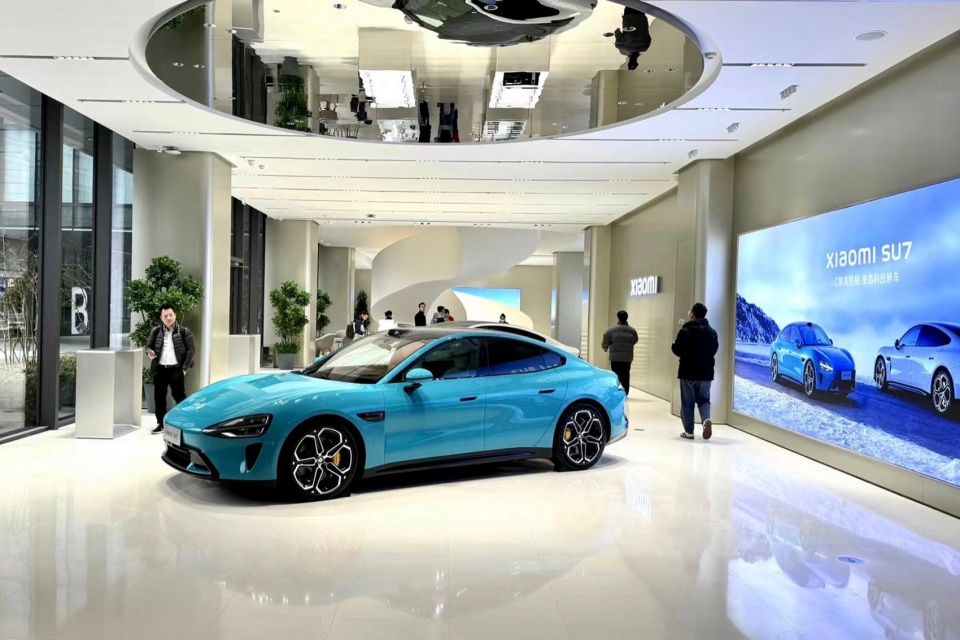

▼小米总部园区中的SU7，display of the SU7 © 杨珊珊

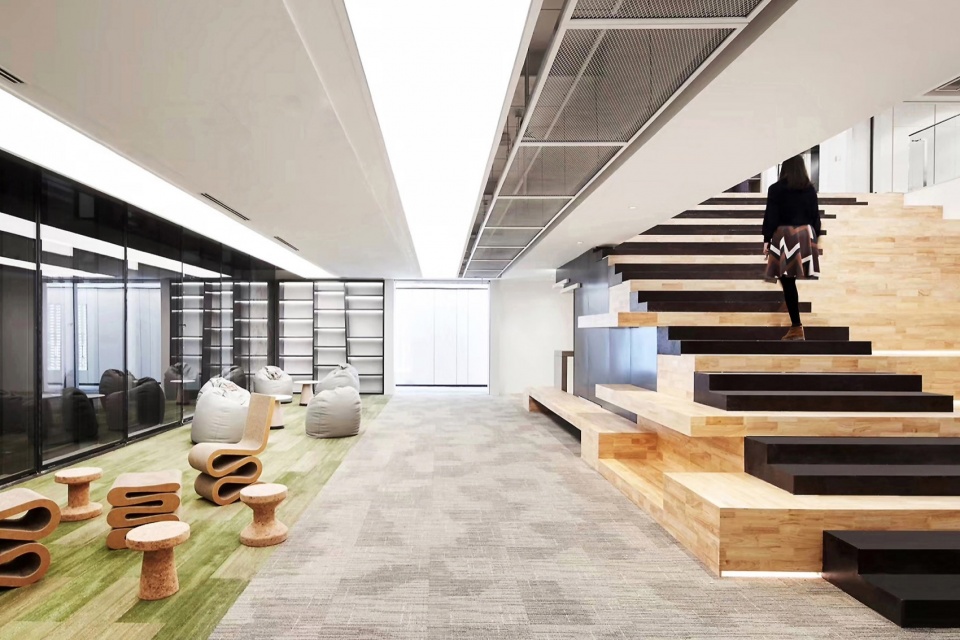

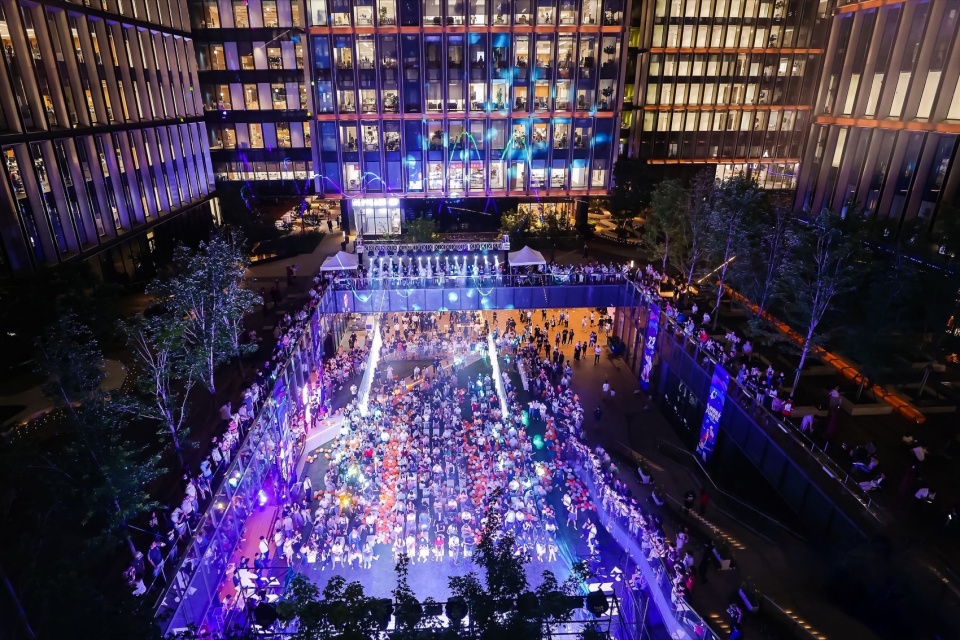

▼楼体之间的公共交流空间，public communication space between the buildings © 小米官宣

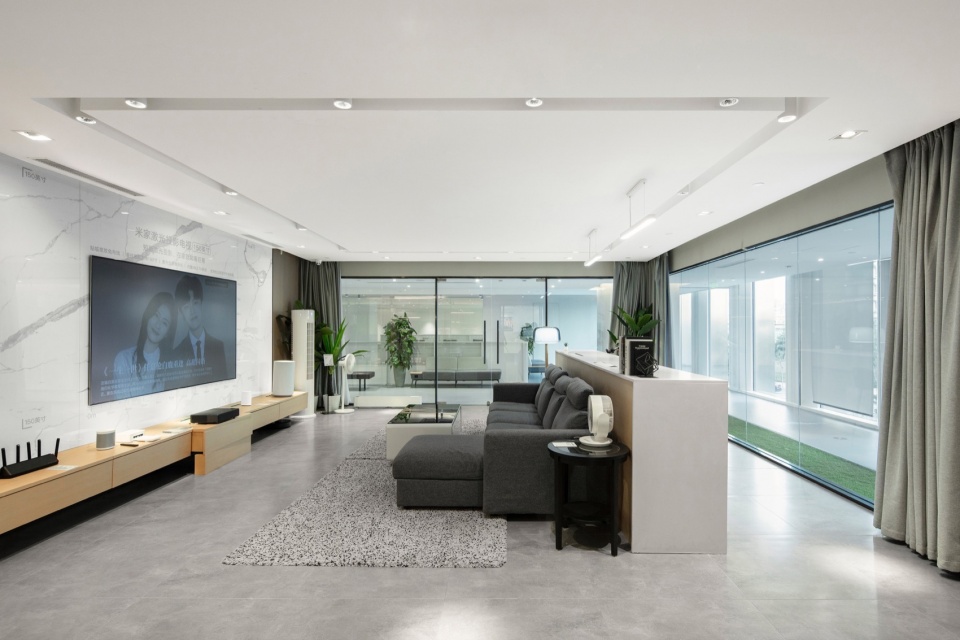

▼小米园区家居场景展示，home scene exhibition © 存在建筑

员工对办公环境，庭院景观，餐饮健身等空间效果非常满意，成为了员工乐于工作和生活在其中的家园。

The employees are very satisfied with the office environment, courtyard landscape, dining and fitness space effects, and become a home where employees are happy to work and live in.

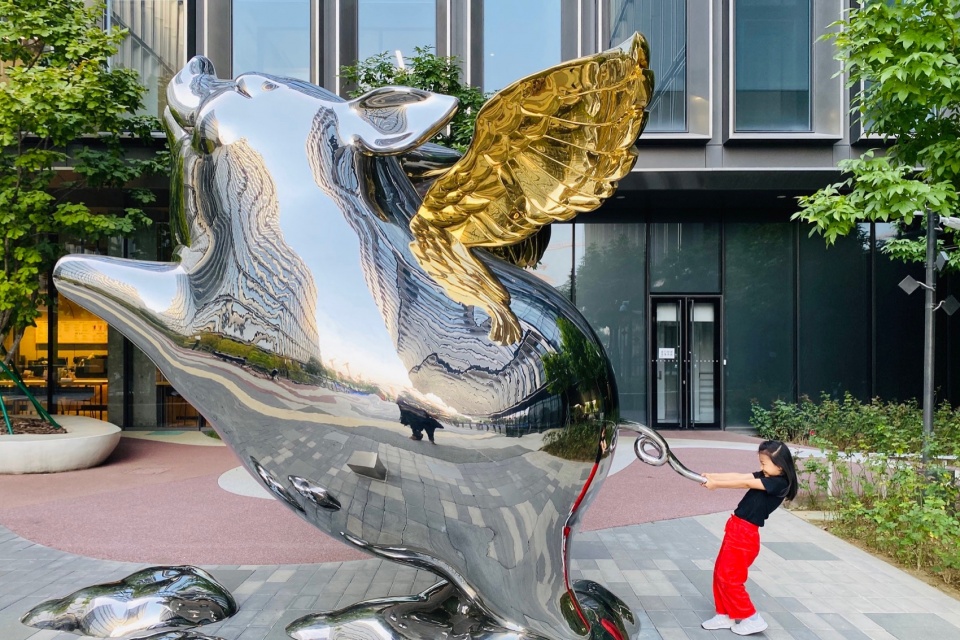

▼人文艺术提升园区的亲和度，humanities and arts enhance the park’s affinity © 马泷

建筑价值
Architectural value

小米移动互联网产业园在海淀区安宁庄地区的植入，促进了该地区城市面貌的更新，提高了街区活力，强化了海淀区高科技区域的城市属性。项目建成后，分散在海淀区各租赁办公点的小米企业员工迅速入驻并给与好评，为小米科技1.6万名员工提供了第一个真正意义上的“家”，为企业高速发展提供了有力的支持。

The implantation of Xiaomi Mobile Internet Technology Park in Haidian District’s Anningzhuang area has promoted the renewal of the area’s urban landscape, increased neighborhood vitality, and strengthened the urban attributes of Haidian District’s high-tech area. After the completion of the project, employees of Xiaomi enterprises scattered in various leased offices in Haidian District quickly moved in and gave positive comments, providing the first real sense of “home” for Xiaomi’s 16,000 employees and providing strong support for the rapid development of the enterprise.

▼数字科技助力社区生活，digital technology facilitates community life © 小米官宣

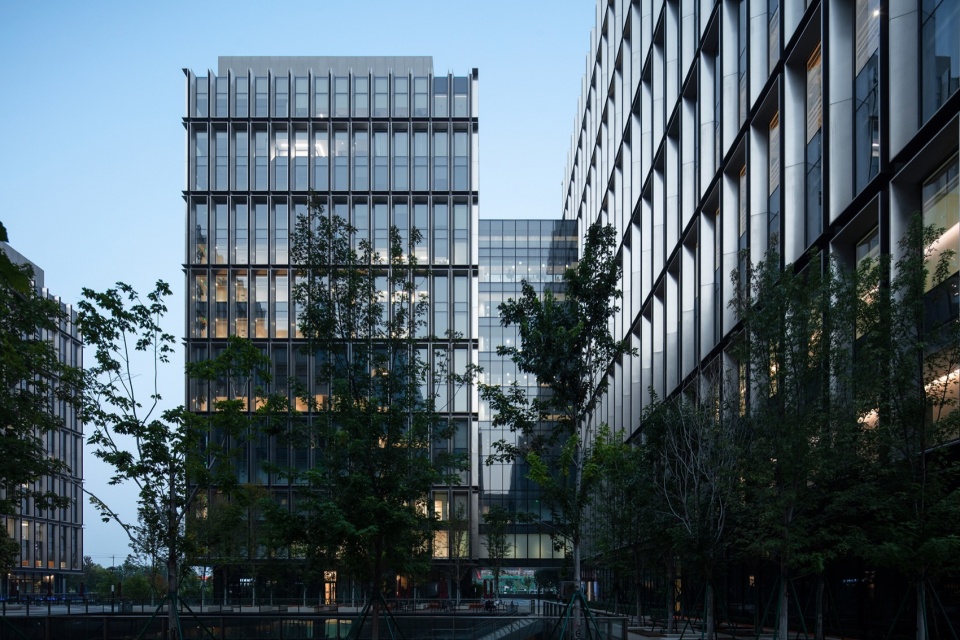

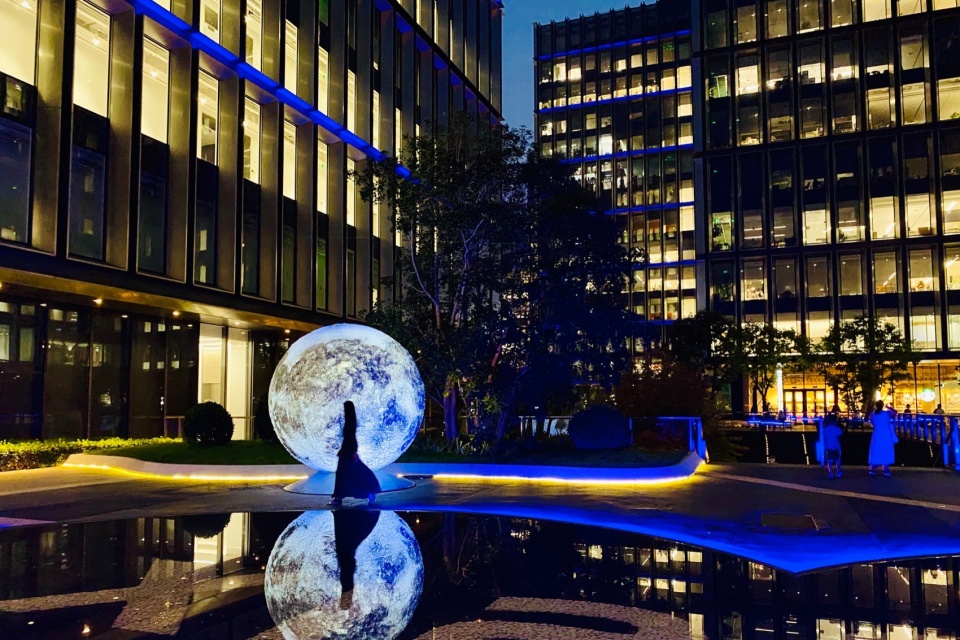

▼夜色下的小米园区景观，night view © 马泷

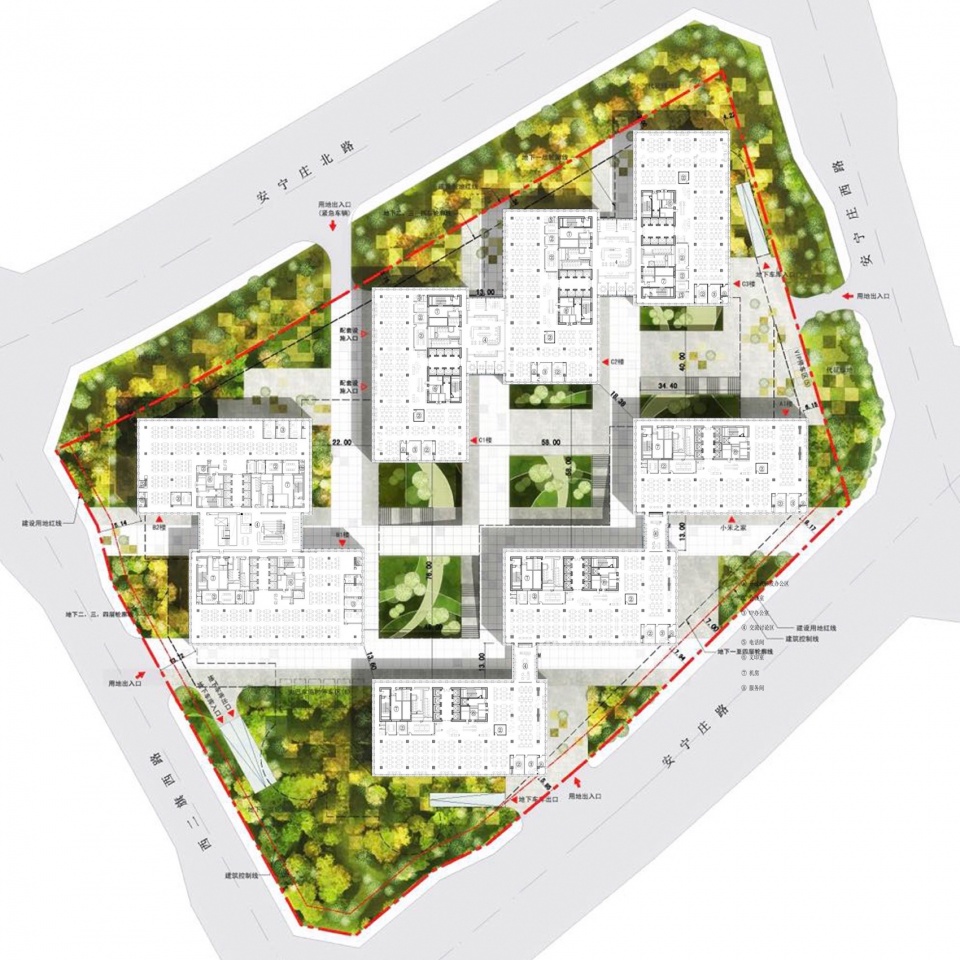

▼三组办公标准层的连续平面，floor plan of Xiaomi Headquarters Park © BIAD

项目名称: 小米总部园区
项目地点: 北京市海淀区安宁庄西路
建设单位: 小米科技有限责任公司；北京小米移动软件有限公司；北京多看科技有限公司
基地面积: 43991㎡
建筑面积: 346686㎡地上：213357㎡：
建筑高度：60米
设计时间：2014.10-2016.08
建成时间：2019.07
撰稿人：马泷，徐珂

建筑设计：北京市建筑设计研究院
主创建筑师：马泷
竞赛阶段：
马泷、张浩、王伟、李少琨、徐珂、杜月、刘思思、张硕、王丽
实施阶段：
马泷、陈文青、王伟、赵雯雯、吴迪、王鲁丽、刘思思、王丽
结构机电设计：北京市建筑设计研究院
祁跃、郭晨喜、陈冬、张铁辉、牛满坡、张亦凝、晏庆模、刘双霞
室内设计：GENSLER、北京市建筑设计研究院
张晋，臧文远，周晖，朱兆楠
景观设计：LOCUS、北京市建筑设计研究院
刘辉、刘健、刘庚吉、房昉、张佳佳
智能化设计：太极计算机股份有限公司
项目经理：谭雪

Project Name: Xiaomi Headquarters Park
Project Site: Anningzhuang West Road, Haidian District, Beijing
Client: Xiaomi Technology Co., Ltd.; Beijing Xiaomi Mobile Software Co., Ltd.; Beijing Duokan Technology Co., Ltd
Site area: 43991㎡
Building Area: 346686㎡ Above ground: 213357㎡:
Building height: 60 m
Design time: 2014.10-2016.08
Completion time: 2019.07
Writers: Ma Long, Xu Ke

Architectural design: Beijing Institute of Architectural Design
Chief Architect: Ma Long
Contest Stage:
Ma Long, Zhang Hao, Wang Wei, Li Shaokun, Xu Ke, Du Yue, Liu Sisi, Zhang Shuo, Wang Li
Implementation Phase:
Ma Long, Chen Wenqing, Wang Wei, Zhao Wenwen, Wu Di, Wang Luli, Liu Sisi, Wang Li
Structural &MEP Design: Beijing Architectural Design and Research Institute
Qi Yue, Guo Chenxi, Chen Dong, Zhang Tiehui, Niu Manpo, Zhang Yining, Yan Qingmo, Liu Shuangxia
Interior Design: GENSLER, Beijing Institute of Architectural Design
Zhang Jin, Zang Wenyuan, Zhou Hui, Zhu Zhaonan
Landscape Design: LOCUS, Beijing Institute of Architectural Design
Liu Hui, Liu Jian, Liu Gengji, Fang Fang, Zhang Jiajia
Intelligent design: Taiji Computer Co., Ltd
Project Manager: Tan Xue
