Woof & Meow House / dot Architects

Assembly and insulation houses

Project Specs

Materials:

非常感谢度态建筑将以下内容授权gooood发行。更多请至: dot Architects on gooood
Appreciation towards dot Architects for providing the following description:

点击下方视频(VIDEO)进行观看  ▼





Vimeo

“汪房&喵房”是度态制造发起的公益性项目,旨在为流浪小动物提供户外过冬住宅。“汪房&喵房”分为两种基本类型:组装版和保温版房屋。

这两种款型又各自有为猫设计的小户型“喵房”,和为狗设计的大户型“汪房”。在这一系列产品之外,“汪房&喵房”本质上是一套开源的设计方案。我们希望宣传智识共享的精神,发动身边的每个人自己动手、制作、体验、贡献,为城市里的流浪小动物过冬提供帮助。

“Woof & Meow House” is a project initiated to provide winter shelter for stray dogs and cats. It is an open-source project which seeks to promote knowledge sharing and encourage people to care, make, and give for stray animals in need.

/wp-content/uploads/2013/12/_c_TFw3OfDlYsh3tCNfBIpGyP5O-rAediPAPWXAX84OFCUvYt9cy1wOFsc6B8GLoBzcyRV1C9n0R14Wvhl1aTNinUL900tnvb7S.jpg

/wp-content/uploads/2013/12/_c_pl04WFgq9SiZVX89EId_t_ir6BaSwPJSyxynClD4UJLYUP89rtFxEN_QJJYAuIu1CSA1W_ol5gK354U8EGNDlO3eByeQg1Gz.jpg

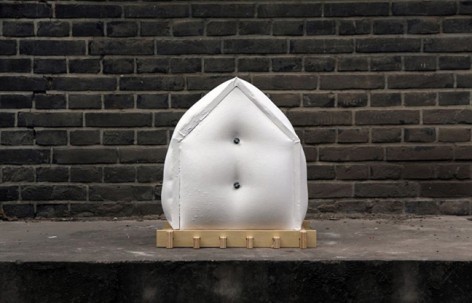

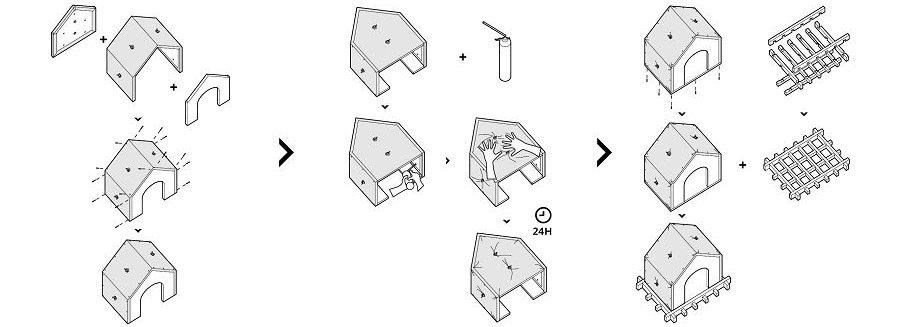

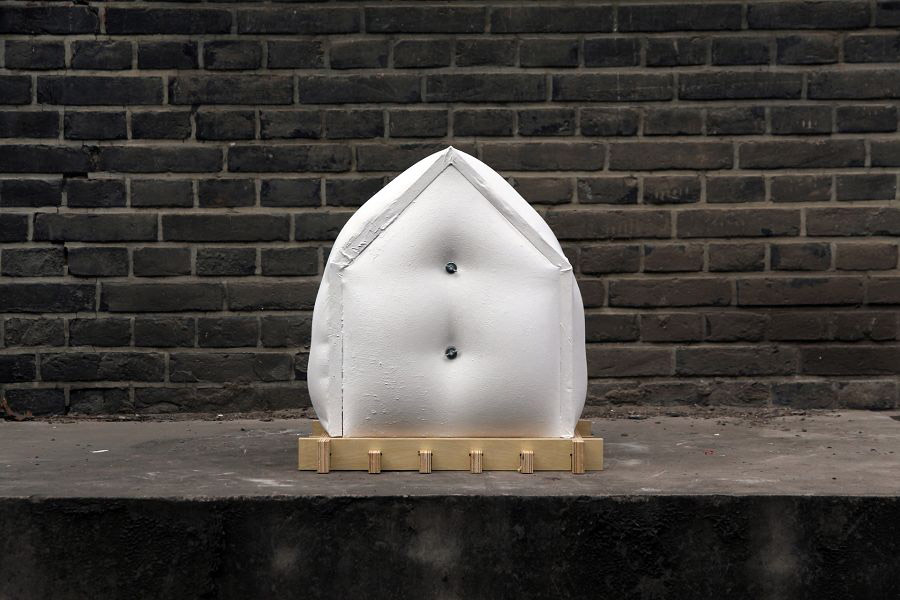

组装版房屋采用18mm胶合板为底板,直接拼装。保温版房屋在组装版的底板上附加了喷涂发泡聚氨酯(SPF)保温层。保温层采用棉布做外模板,棉布的弹性帮助SPF在氧化膨胀过程中获得自然的鼓包形态。

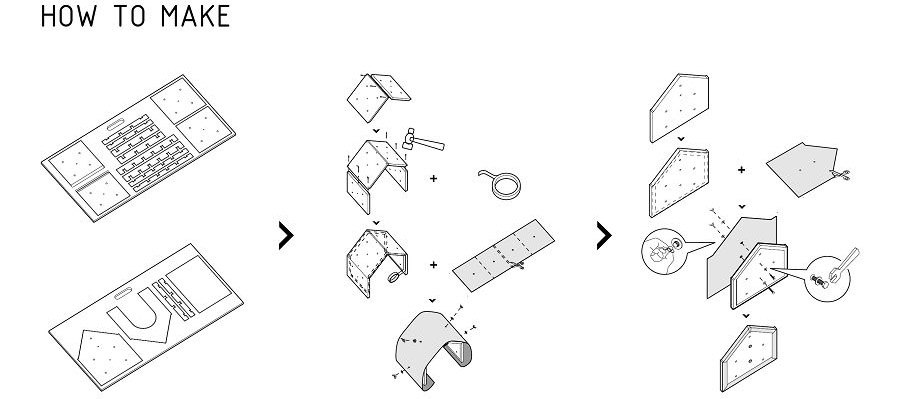

度态制造把设计图纸和制作过程开源公布在网上,鼓励更多的人下载设计说明,亲手制作。“汪房&喵房”的底板全部采用木板或胶合板CNC切割,保温层采用房屋最常用的填缝剂,保温层模板采用普通白布。组装过程中只需要极少量的日常工具,最大程度的方便用户加工组装。

度态制造同时在众筹网站点名时间上发起了“汪房&喵房”项目,为不具备制作条件的用户直接提供半成品和成品。

点名时间众筹链接

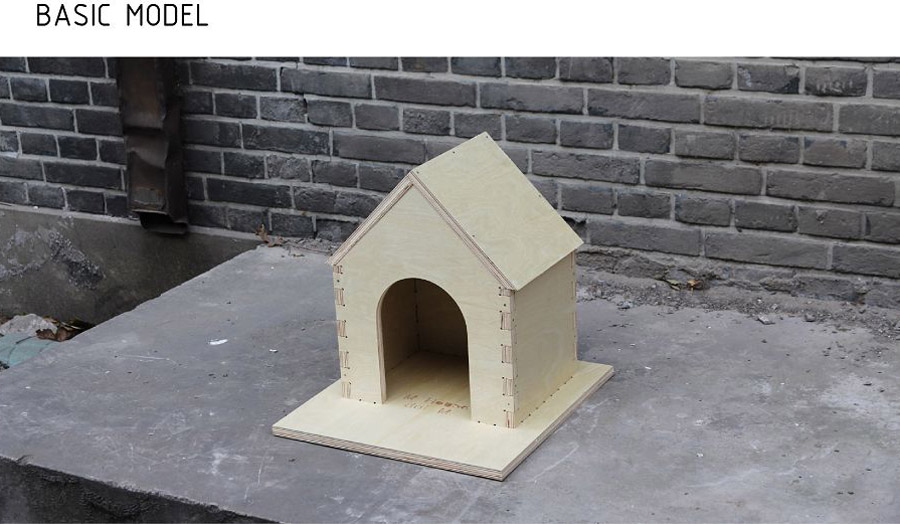

“Woof & Meow House” offers several different types of shelter which vary in forms and sizes: the basic model is made of 18mm plywood, and the insulated model uses the basic model as structure and is covered with a layer of  bulbous foam.

The insulation layer is made with spray polyurethane foam (SPF), which dot Architects, the designer, had played with in their previous mobile house project “Bao House” .

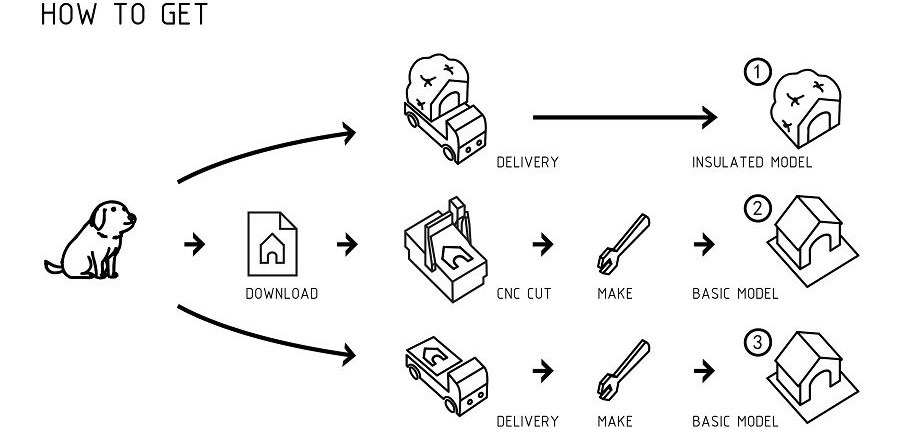

The instruction manual and making process will be published online. Anyone who has an interest to make and a wish to care is encouraged to download the drawings and fabricate a “Woof & Meow House” of his or her own version. Only minimum tools and materials are required, and CNC-cut plywood facilitates making process for users who are less skillful in wood working.

Campaign for crowd funding on DemoHour

/wp-content/uploads/2013/12/_c_0ZXGWROc91YB9mBeAoqQrQ_JaqelQqOz0CR9uLRjF77u_qZXZqJ1WYHacYaYGTuUGFOj2lIBVssY0JG1qIv-MEJh2BBC-Xa6.jpg

名称:汪房&喵房
内容:流浪小动物房屋
设计:度态建筑

Project name: Woof & Meow House
Program: Shelters for stray dogs and cats
Project by: dot Architects
Made by: dot Make
Photo credits: Ning Duo, Sabrina Hu,  Yuming Bai

/wp-content/uploads/2013/12/_c_IZJX5cAexuyxx900vbXIsJiEGcFQX3lCRon10omFtOwDTqzhprU6pYJsJAOul0p1EBNpOJfCck8kcAIeC5Veolp4RL9cxNo7.jpg

/wp-content/uploads/2013/12/_c_Sv6AeWdfnB4aU7otfKh3NA-68XLmbu2SiPGrocBVhqXbMM0s7XMxf2CDh2XABHhqjIA3mkU9Sss5_hGQ5ubaJE13vvTTlgBV.jpg

/wp-content/uploads/2013/12/_c_NJNIMsge45r1n4JjMJb3vopDJHyf16Hg5PWpHv4hBSNZoPRXNpHPMbRFe87GFBcewS36lTj-H9Zeh_Bch9mHtMAQv_8u7PG7.jpg

/wp-content/uploads/2013/12/_c_GCALBdAbue9X2nmr7ixYHdx788BPPlIYL2Xt5VQ5kv7r325i1_1ih6Finj_EOMn-npi22LVYXzTWYsRLm-aX_bs76GsMaN57.jpg

/wp-content/uploads/2013/12/_c_P_ouZ3QxQHyvQxcfANUuhyrQtkyzGTs8TAsY2RnqUlWJcPpp7y0ttGZ-HYW1CZ-aaMreyt08upAn-bDAw7EmQ26q_Z1eAakR.jpg

/wp-content/uploads/2013/12/_c_vt9i2RI15tiDr2nXQ84i0LUcXw9pNq7EqwsvEbDz5dPcq5FuJQzCyVCJi4H_GljGiinRB6l3Az-a-x1vshjQ9DNu58q1A34S.jpg

/wp-content/uploads/2013/12/_c_FRqjkyKo_VJ3zX5GX---l7LAvmaRofI2wB3nq6CnL-SOvVmwFSRxQfFh2blJURJwi89JFf51Ir23Z3sSXYhs3UMAYe9nDzD_.jpg

/wp-content/uploads/2013/12/_c_yZ8atytXNsMO0O9FIw5ubsJPQiznZC8TAPRBQTP5mGSFjISQcV8Dw3fWEdV1sFKYrr6f5YYEYttWq_4nNWkgQeGQxADZJnkc.jpg

/wp-content/uploads/2013/12/_c_klaTC-Tf-Rlf20ti5YGXwMgie940uRnHsXq-nPXPPz2aOpTSFMBuVSSX7-oETpVvhUgfz4Ku6pTdDXTwjpBZIh6tgzNtSuE_.jpg

/wp-content/uploads/2013/12/_c_LlSRsxVzDoUyBJYwMw2Y_zdNvdH2GTGY2uKV3zwS-x7Dt1I2vCLzAhJhjrU2aLqx6zF1nPfNRf7KX3FBCswjLuBOR7TVgZJG.jpg

/wp-content/uploads/2013/12/_c_xT-6hFhoLOXtRsoIEffEucBEUWWVu2nUyMT4hwOQwClbucKs9vPr4kRbXAuKu986guyPJQmxYuqzcJoS_bWThKlcAQIeabtT.jpg
