非常感谢 Shma 将以下内容授权gooood发行。更多请至： Shma on gooood
Appreciation towards Shma for providing the following description:

VIA 31 公寓位于是曼谷人口最稠密的市中心，建设完建筑后，留下的边角用地要做成景观，对设计师来讲委实是一个挑战。建筑被周边茂密的大树所掩映。景观设计师决定将这里的边界模糊，把外面的美丽景观引入内部。为此，景观设计师设计了一列竖向线性的围栏，取意于“森林的树干”。

To create the nice garden out of the confined space seems to be a challenging task for a landscape architect. The design strategy for VIA 31; small condominium in one of the densest area of Bangkok seems to be the answer for those challenge.

The concept is derived from the site characteristic and its surrounding context where surrounded by gardens with old existing trees .The strategy is not to build anything much within our confined site, but rather borrow the greenery and blur our site territory to be part of the nice surrounding landscape.

The key element in achieving this concept is the boundary wall which being interpreted to be a linear silhouette sculptures that imitates the tree trunk and light quality of the forest.

果断的拆除从前3米高的围墙，取而代之30毫米直径的不锈钢管，这些管子以不同的垂直密度排列，创造出富有节奏的光影和视觉效果，同时还能为在花园内部的人们提供一定程度的隐私保护。不锈钢管不仅是内外的分界线也更是视觉上联系内外的介质。这样做，花园显得更大，层次更丰富，景色也更美丽。

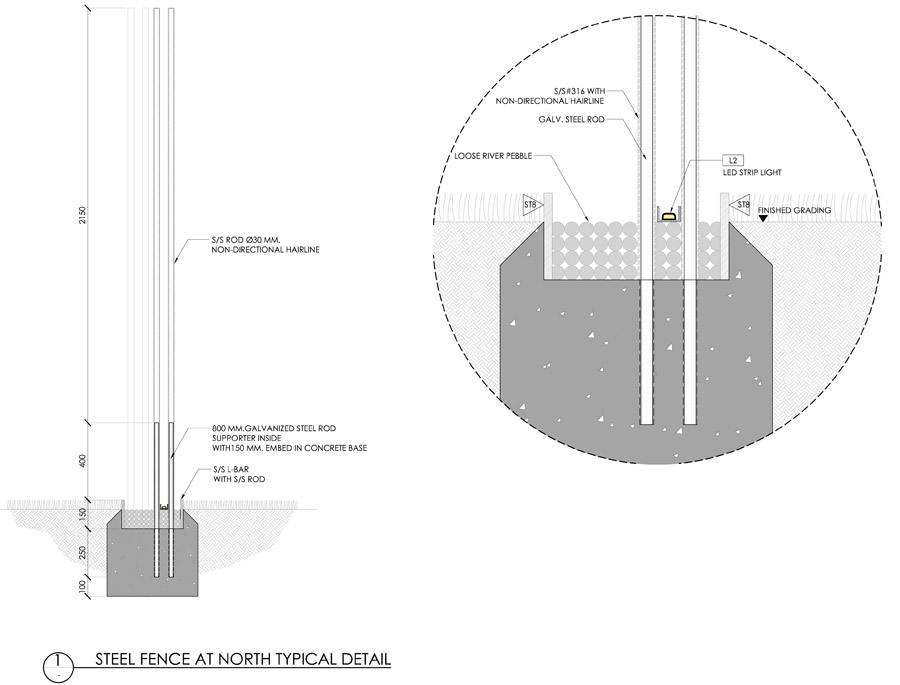

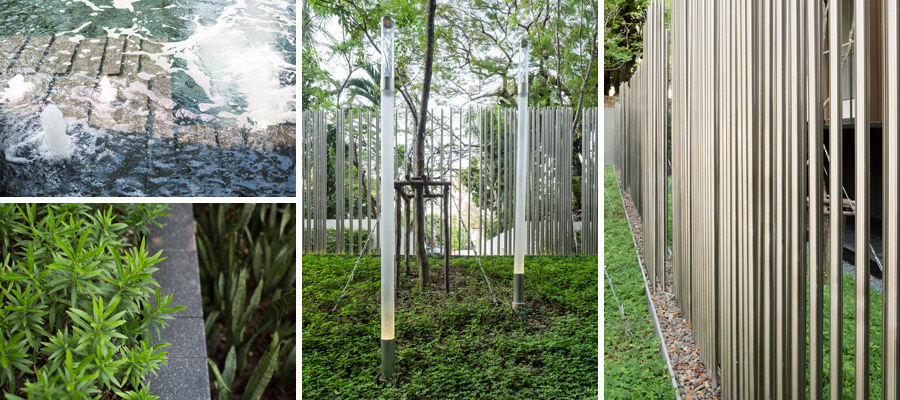

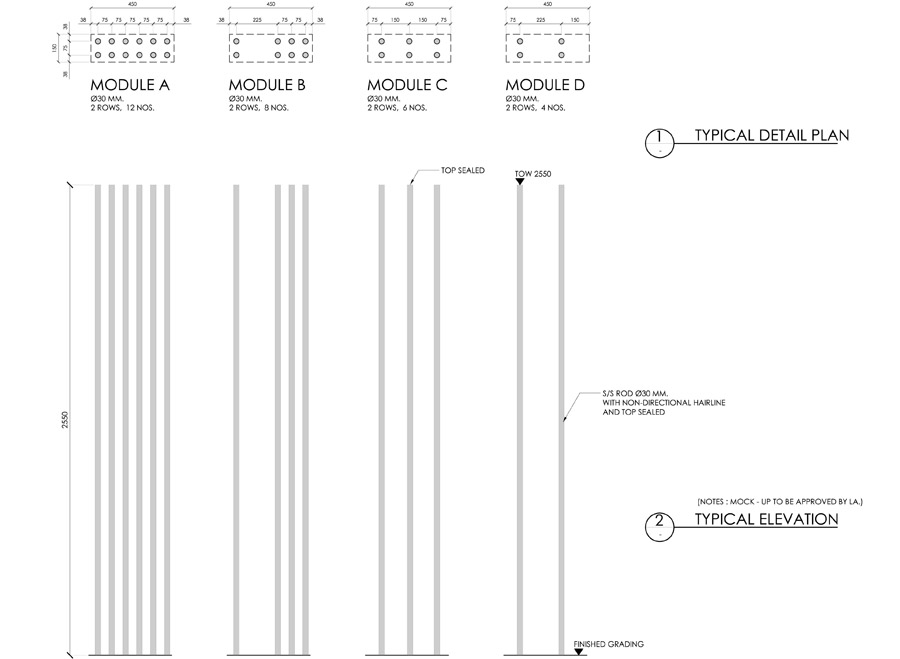

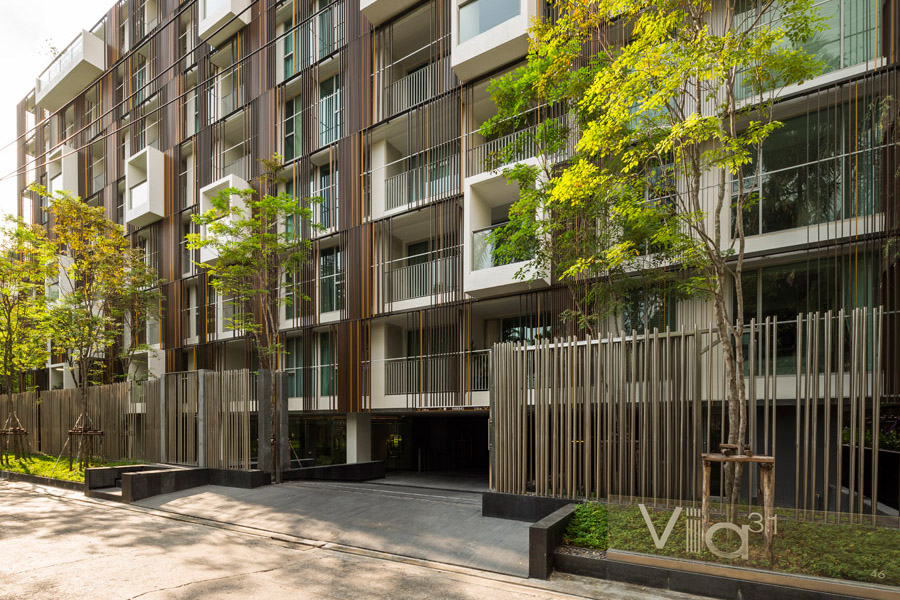

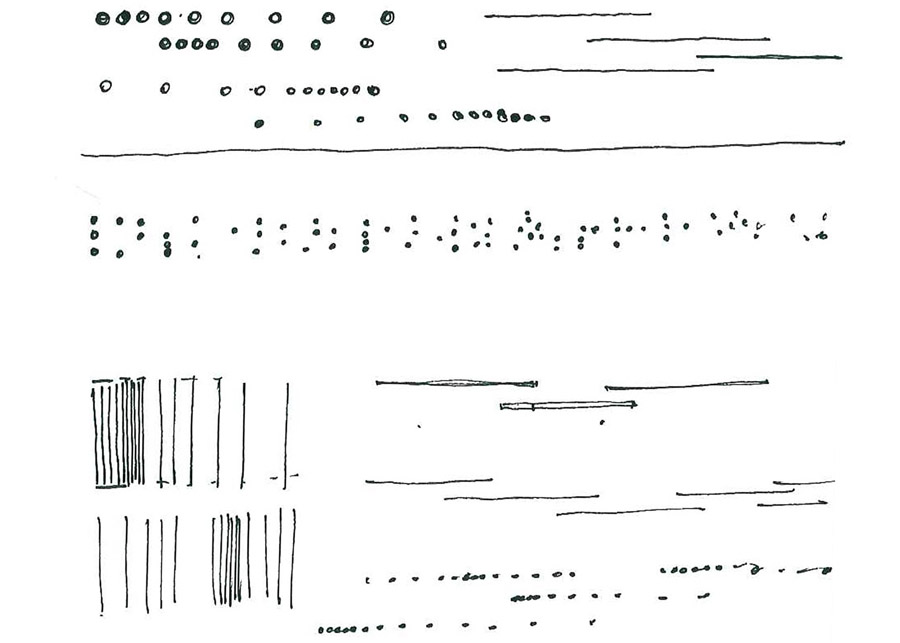

Fifty meter long front boundary wall were built from 540 numbers of free standing 3 m. tall and 30 mm in diameter of stainless steel tubes. They were placed vertically in various densities to create various rhythms of light and shadow as well as a unique visual effect. Importantly with various densities of these stainless steel tubes, they provide certain degree of privacy while you are inside the garden.

This stainless steel wall provides not only site demarcation but importantly a medium that enable an interesting visual connection between inside and outside, private and public to take place. It also makes the garden from the inside feel larger by borrowing external greenery /scenery to be part of the internal garden space.

此外这么做也有一个关键的原因。在公共道路一侧，外面的道路标高较高。一次在内部可以形成一个种满绿化的斜坡，成为一道美丽的风景线。斜坡上树干笔挺的乔木进一步模糊了内与外的区分。

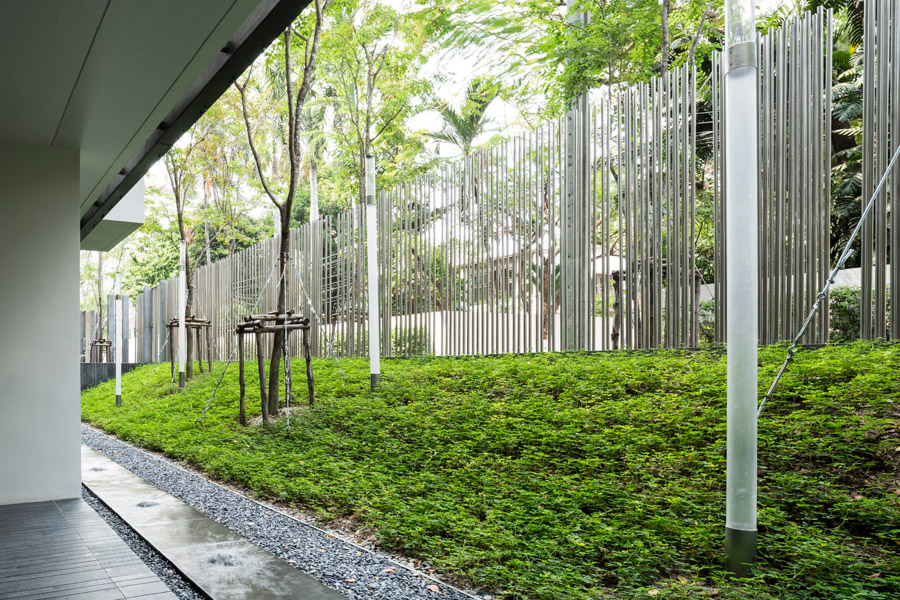

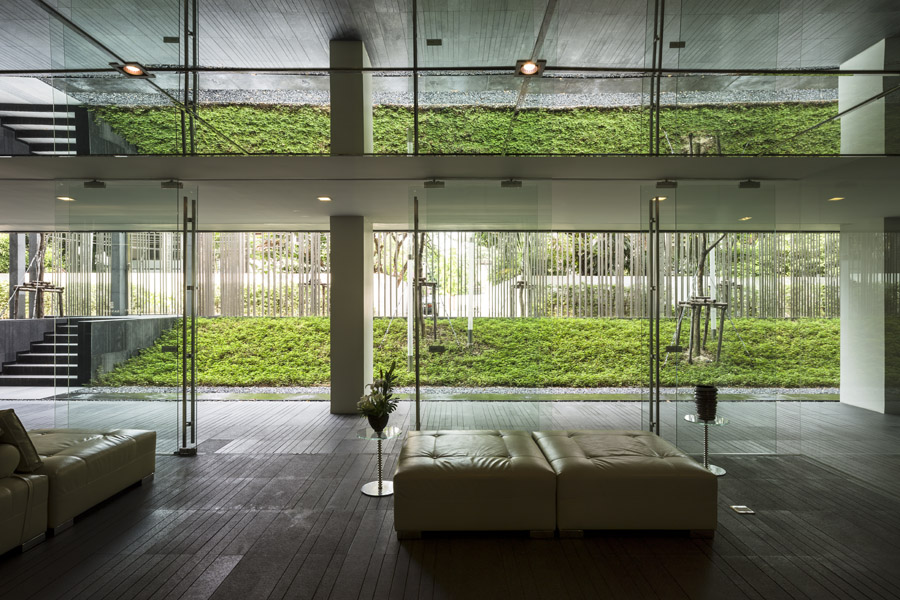

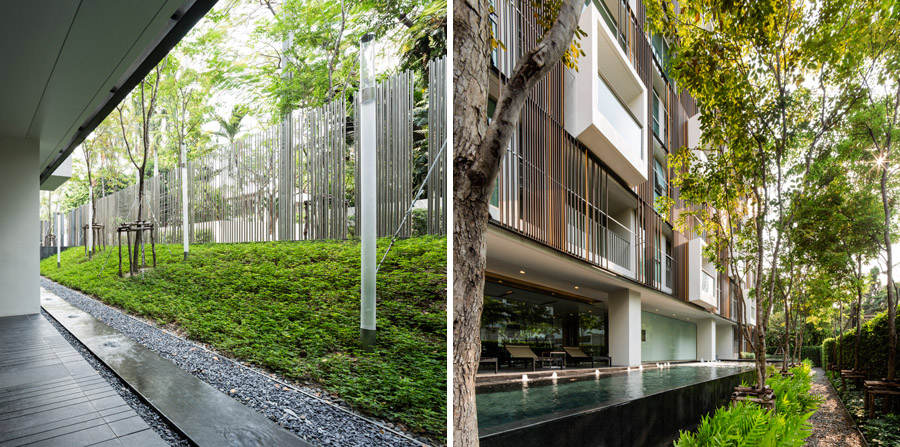

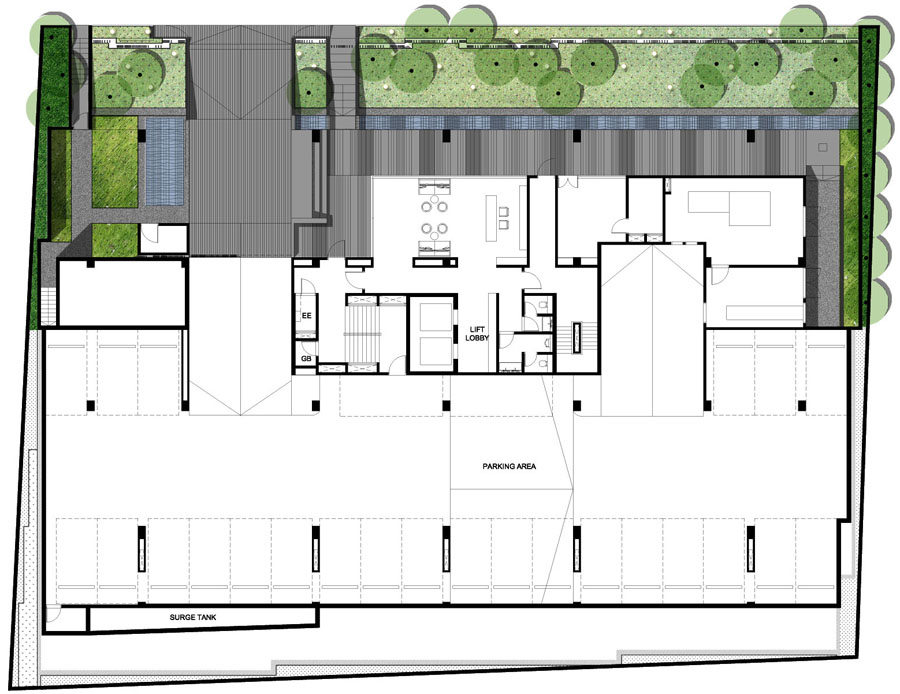

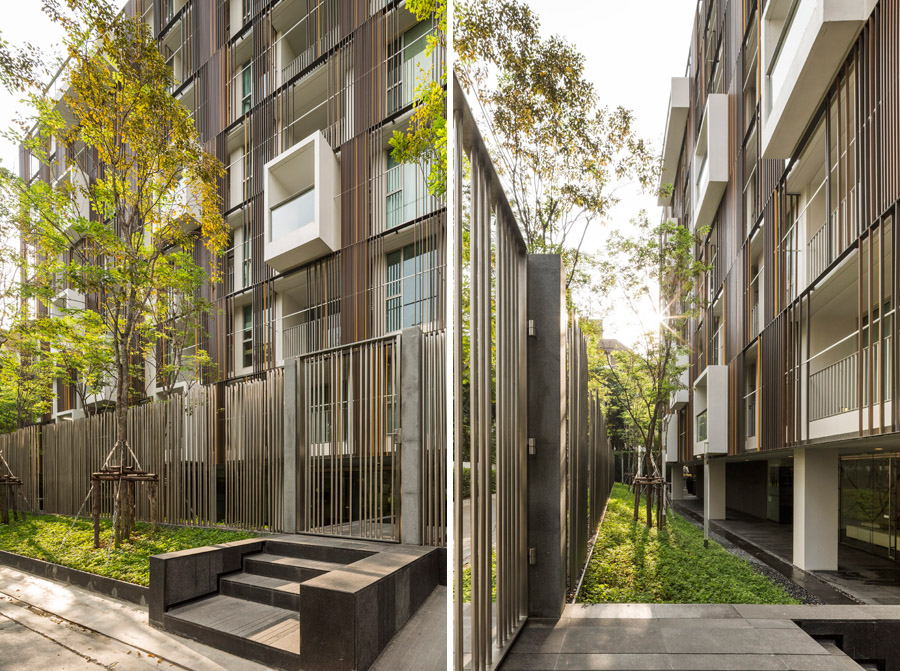

Another key element in creating the seamless connectivity is the sloping planter which place behind this stainless steel wall. It connects the upper level where public road is to the lower level where the garden and lobby are located. The slope then become the nice green backdrop for the whole landscape space and the lobby .At the bottom of the slope there is a linear water feature made of solid black granite stone. It is the imitation of the natural stream where it normally finds at the lower ground of the mountain. 15 nos of forest tree species (Dalbergia cochinchin-ensis Pierre ) were planted randomly on this slope and also outside the stainless steel wall .This tree arrangement helps to crate the blurring affect between external and internal space .Importantly these vertical tree trunks together with vertical stainless steel tubes also helps to achieve forest liked space within this small garden.

此外大楼北侧二楼的平台上有一个20长的花岗岩泳池。泳池的水溢出落在下一层地面上，创造出一个水声潺潺的宁静森林氛围

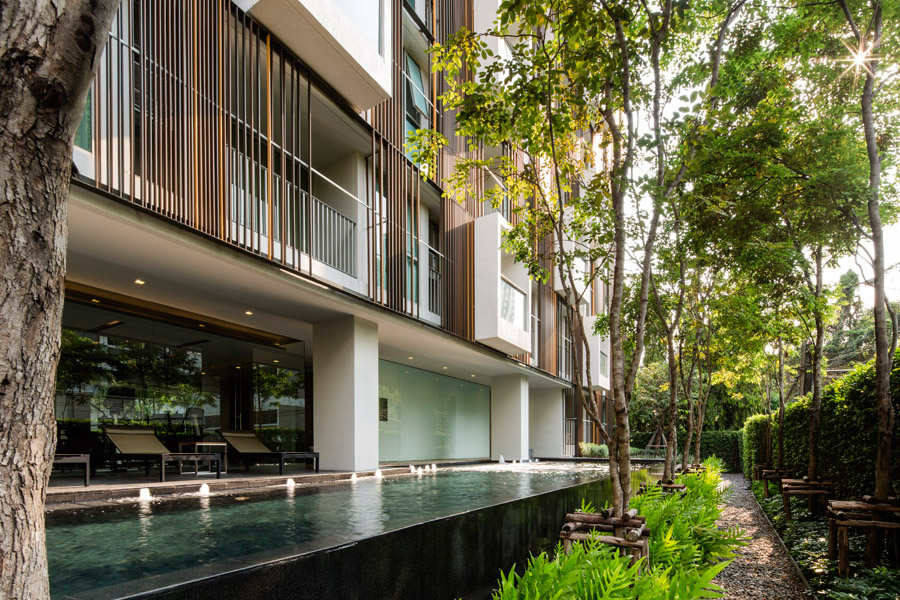

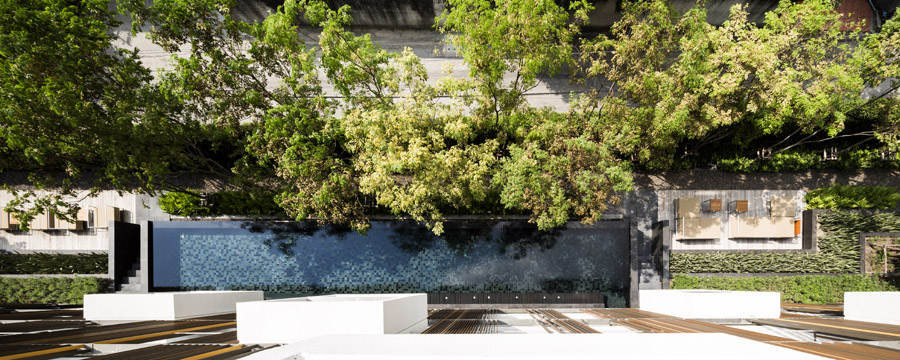

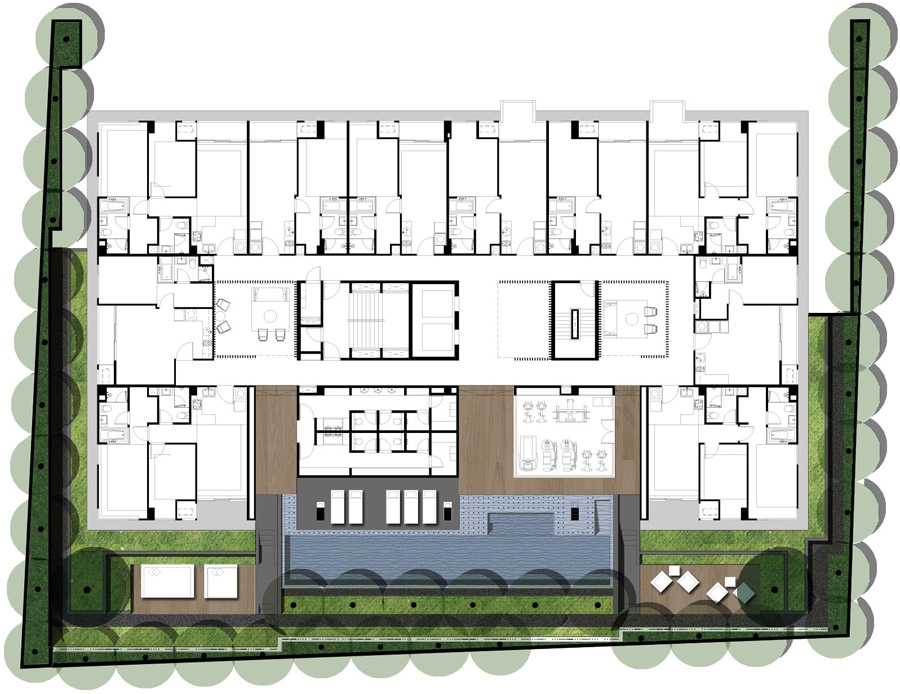

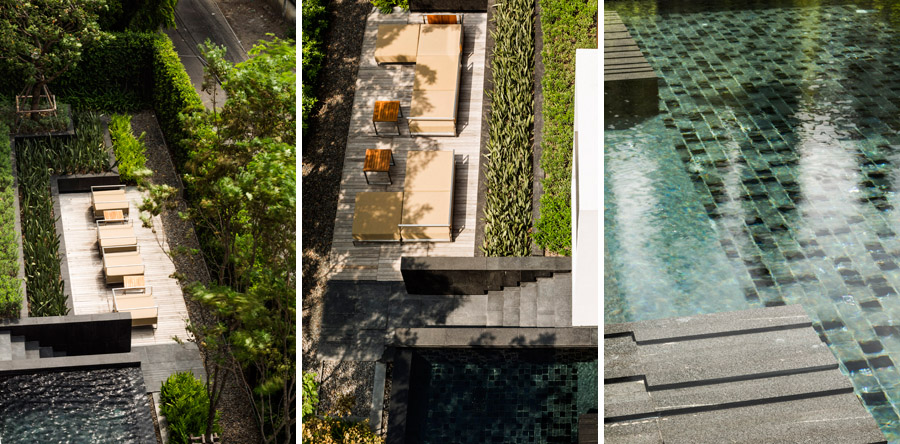

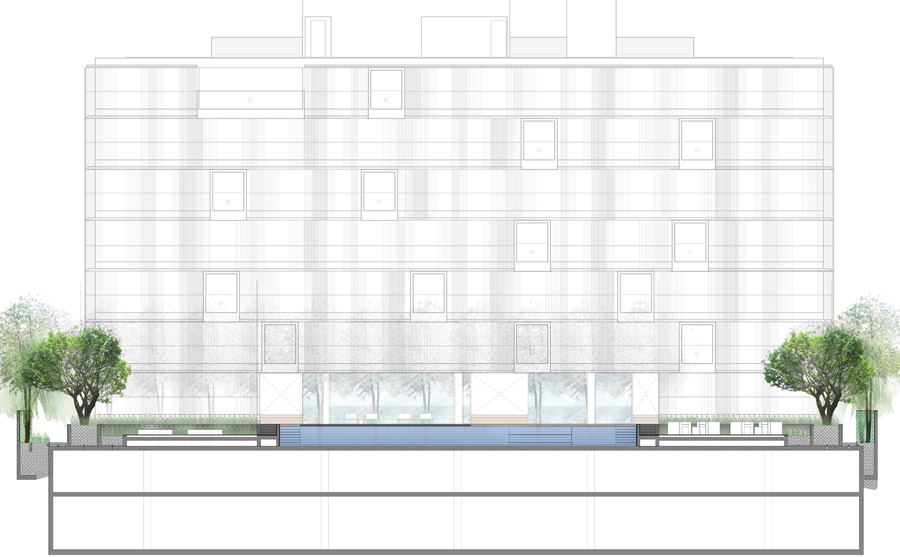

The 20 meter long swimming pool is located behind the building on the second floor facing north. The water from the swimming pool is overflowing the granite stone pool edge down to the garden level where two sitting corners are well hidden under the tree grove. At this garden, sound of cascading water from the pool also helps to create a tranquil ambience. The same tree species as the front garden also being planted randomly here to create the same forest effect.

景观师与建筑师紧密合作，景观上的垂直设计语言也被运用到建筑外立面上。景观与建筑的分别不仅模糊，两者共同一起模糊的内与外，私人与公共的界限。

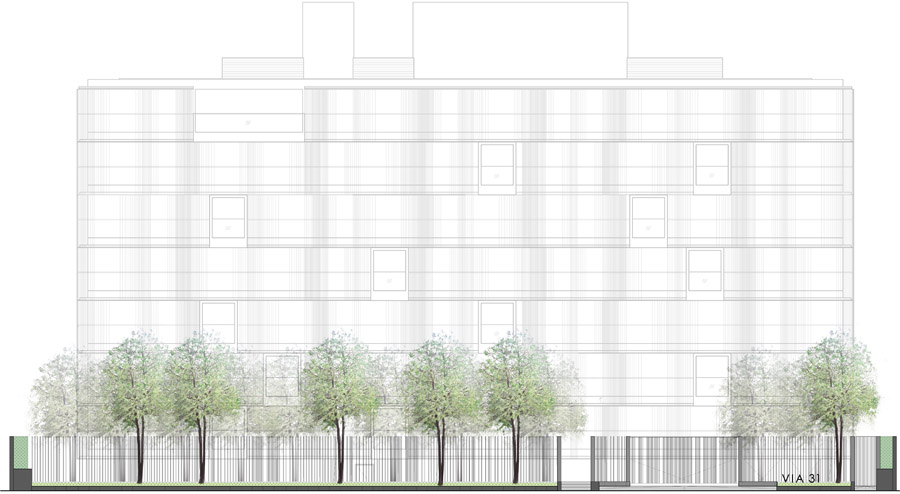

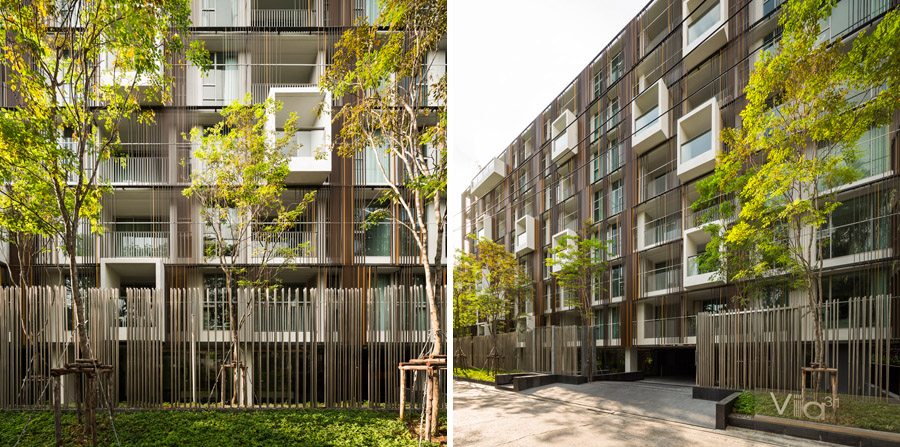

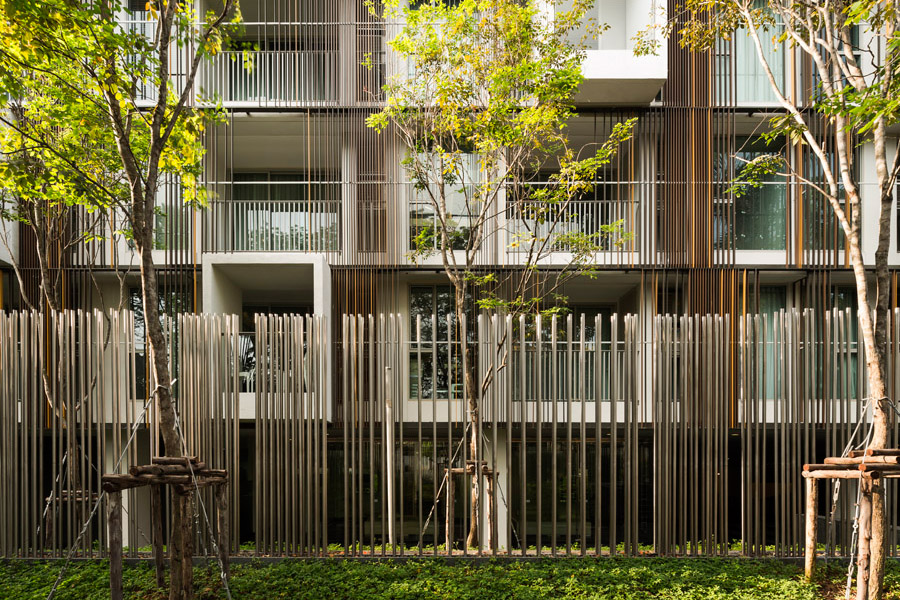

By working very closely with the architect, this design language of vertical elements were also used at the building façade to provide privacy for all the residential units .As the result integral territory is being created .The boundary between exterior and interior , architecture and landscape , private and public is blurred at “ VIA 31 “.

Name of Project: Via 31 Condominium
Landscape Architect : Shma Company Limited

Project Team:
Design Director    – Mr. Yossapon Boonsom
Senior Landscape Architect          – Ms. Kwanchanok Kongchoksamai

Client& Developer: Sansiri PCL.
Photograph Credit: Mr. Wison Tungthanya

Location: Bangkok, Thailand
Use: Condominium Garden
Site Area: 1,828 sq.m.
Building Scale: 8th Storey Building
Structural System :Post and beam
Design Year : 2010
Period of Construction:2010-2012.
