V+ Lounge by the West Lake / Studio Waffles and LYCS Architecture

Integrating diverse sensory experiences of underwater, water surface as well as over-water as a whole interior space.

Project Specs

Design Firm:
Location:

来自零壹城市建筑事务所对gooood的分享。更多关于他们:LYCS Architecture on gooood
Appreciation towards LYCS Architecture for providing the following description:



杭州V+ Lounge是著名品牌V+继北京、成都后国内的第三家分店,由华夫设计(Studio Waffles)和零壹城市建筑事务所(LYCS Architecture)共同完成其室内空间设计。项目地处西湖旁最为繁华的核心商业区域——东坡路平海路口的西南角,3层以上便可远眺湖景,离苹果亚洲最大的旗舰店不足100米。项目独特的地理位置传递出关于湖水的灵感,设计团队通过对曲线、镜面与光线的运用,将水下、水面、水上的不同感官体验融入进室内空间。

The interior space of Hangzhou V+ Lounge, which serves as the famous brand’s third branch in China after Beijing and Chengdu, is designed together by Studio Waffles and LYCS Architecture. The project is located at the southwest corner of the crossroad of Dongpo Rd. and Pinghai Rd, which is also the most flourishing commercial zone nearby West Lake. Meanwhile, the site is less than one hundred meters away from the largest flagship store of Apple in Asia.It is this unique location of the project that initiated the inspiration of translating the water of West lake into a design concept. Curves, mirrors and different lights are adopted to support this concept, thus integrating diverse sensory experiences of underwater, water surface as well as over-water as a whole interior space.

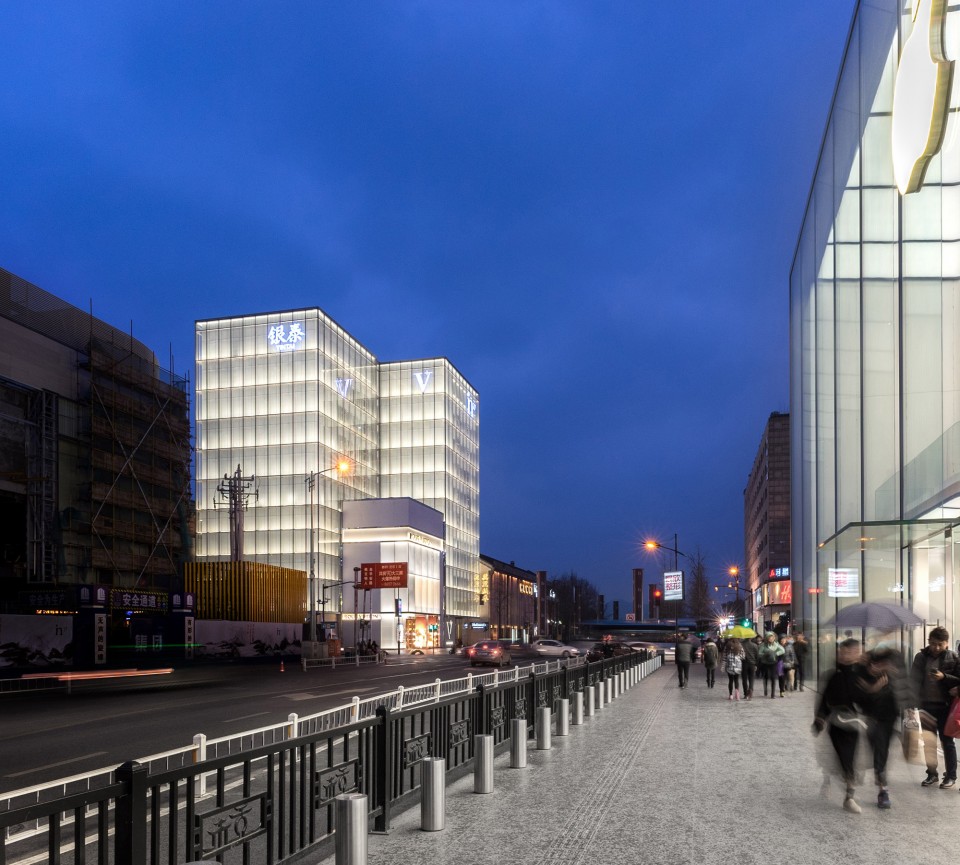

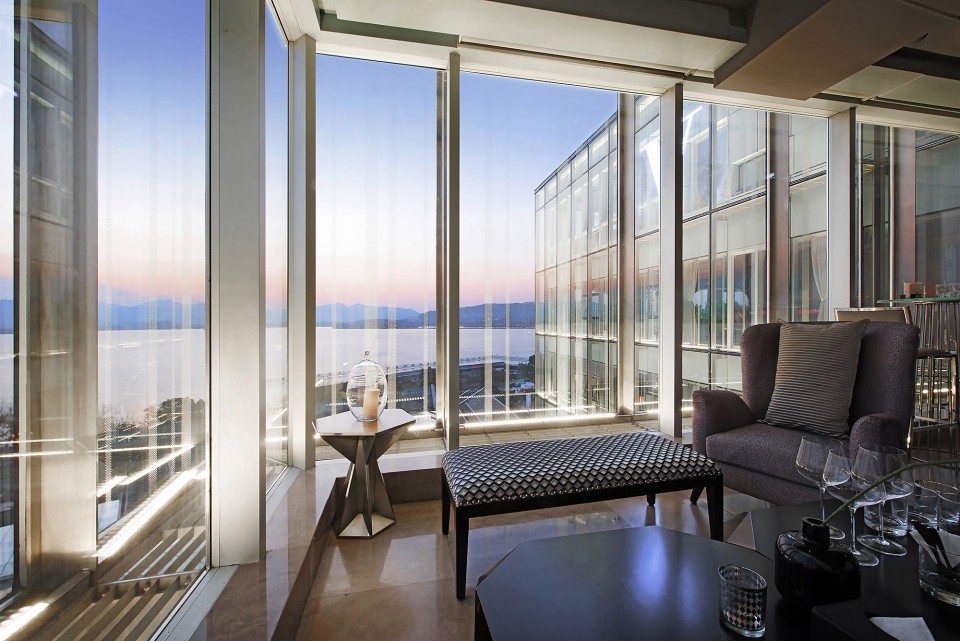

▼ Northeast view of V Lounge 东北视角

02_Northeast view of V+Lounge丨V+Lounge东北视角 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

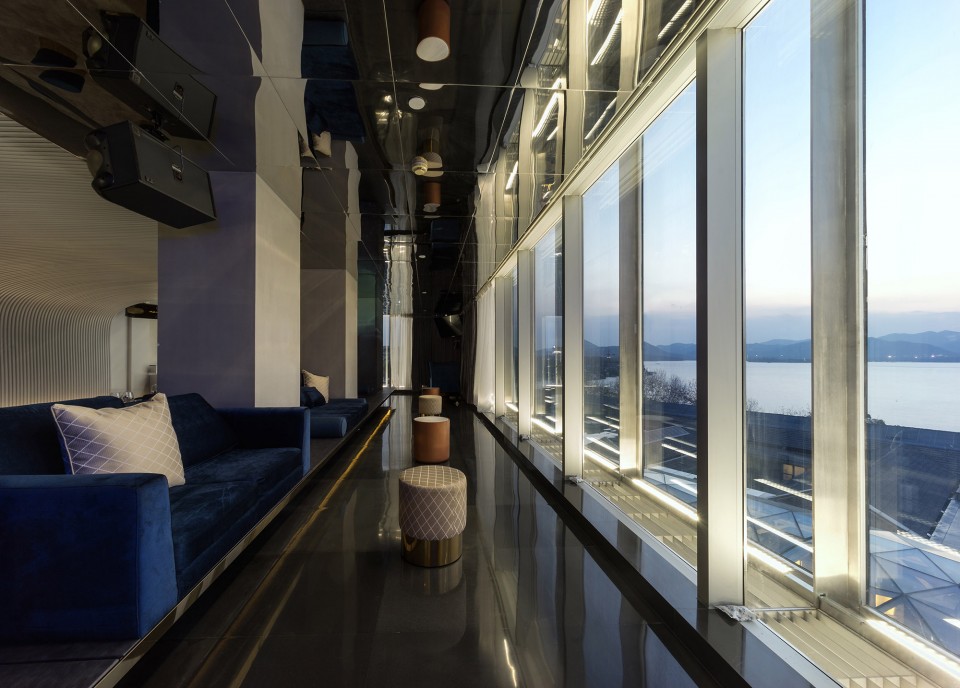

▼ 6F Corridor 六层的走廊

01_6F_Corridor丨走廊 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

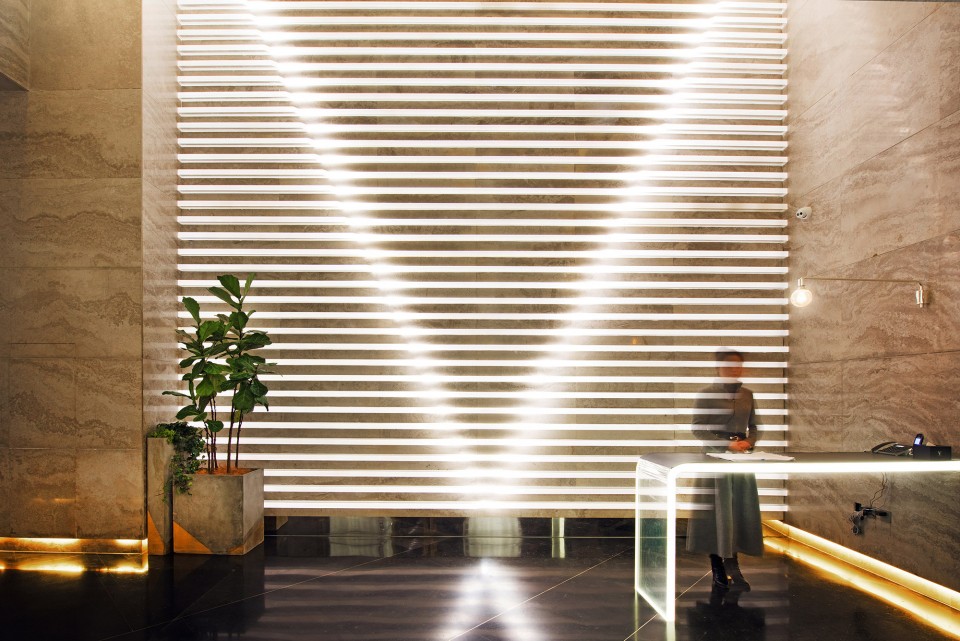

一层大堂利用层高较高的优势,运用较为整体的墙面设计,将若隐若现的几何分割光线穿插于其中,空间开敞、大气。细腻考究的材质暗示了整个项目低调、奢华的空间属性。

Taking advantage of the height of the ground floor, the designers set light with geometrically divided form on a whole wall. The openness and grandeur is guaranteed. Fine and delicate materials imply the quality of the space in a luxury but modest way.

▼ Main Entrance 入口

03_1F_Main Entrance丨入口 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture



水下游曳 Underwater Diving

三层是综合性酒吧,设置了多种类型的吧台,以满足不同顾客的需求。

休息区正中间耸立着黑白大理石拼接的巨大V+ logo,Logo图案在不同的视角下面会产生不同的变化。大理石墙面经过点光源的反射,将层高的优势通过戏剧化的材质表现方式进行解构和重组。

The third floor is an integrated bar with various counters, which satisfy different needs of the customers.

A huge V+ logo is standing in the middle of resting area by joining pieces of black and white marbles together. The logo image varies as the view changes. The height of the space is deconstructed and recombined by a dramatic way of material expression that goes simultaneously with reflection image of many spot lighting, finally enhance the perception of this spacious lounge area.

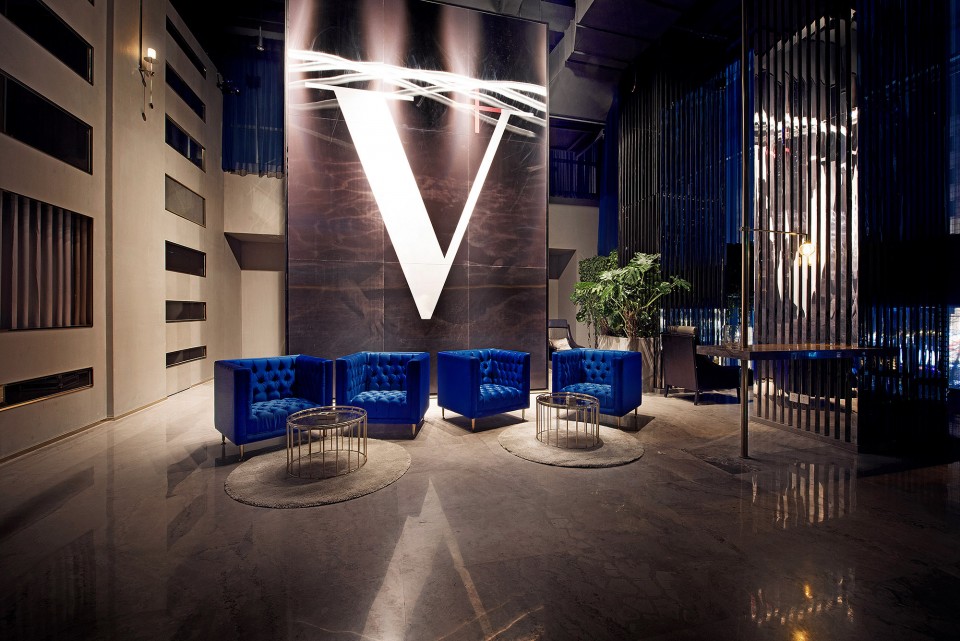

▼ 3F Reception area 三层接待区

04_3F_Reception area丨接待区 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

酒吧着重营造水下空间氛围。设计师使用透明的水纹玻璃作为墙面,顶部设置了射灯和漫反射灯光,利用空间的纵深优势,打造了一个虚实相交的水下吧,在变换的灯光下,柔和的呈现四季交替的景象。

An underwater atmosphere is emphasized in the counter zone. There are translucent water-textured glass as wall and placing spotlights and diffuse lights on the top. After that,the designer, taking advantage of the depth of the space, constructing an underwater bar with its interior space shifting from the solid to the void. The counter itself is made by multi-layered glasses and mirrors. It smoothly presents an image of different seasons when the light changes.

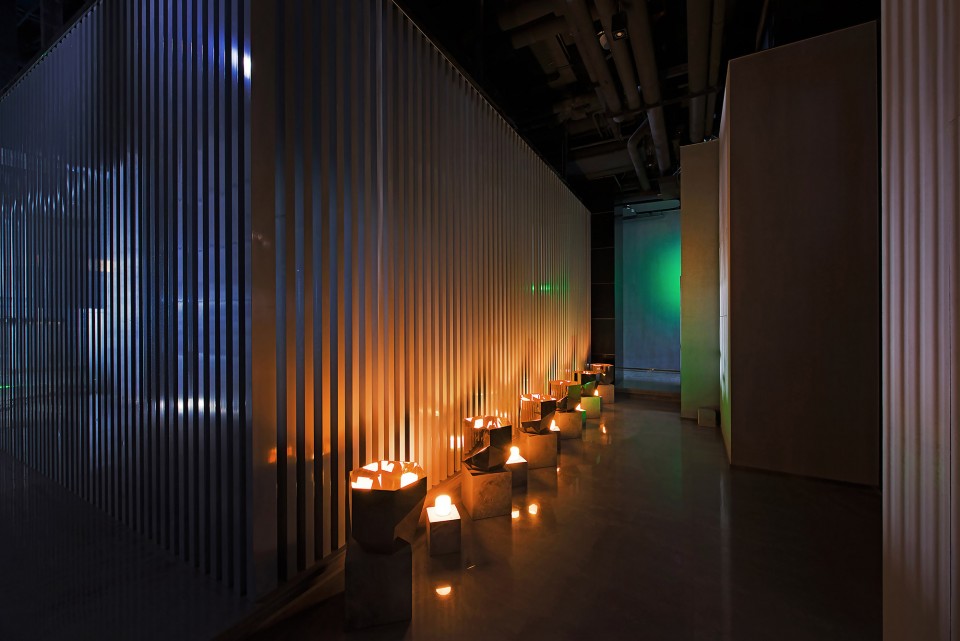

▼ 3F Lounge Bar 酒吧区

05_3F_Lounge Bar丨酒吧区 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

▼ 3F Lounge Bar 酒吧区

07_3F_Lounge Bar丨酒吧区 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture



水中探索 Exploring in the water

设计师在KTV部分的设计上突破了传统模式,创新性的将西湖之景引入室内。

五层空间融入了湖底漫游的概念,包间与走廊的墙面采用了镜面加流线型的灰色墙体来表现深入湖底的水下世界。走廊界面极尽简洁,光藏匿于镜面玻璃后和曲线墙体竖向切片的缝隙中,西湖的远景在这片暗色的涟漪中格外鲜亮。

In the KTV part, the designers carry out a breakthrough way of introducing the scenery of West Lake into interior space.

The fifth floor is designed with the concept of rambling in the bottom of the lake. Mirrors and continuous grilling are adopted to present the underwater world deep into the lake.The corridor has a surface with both simplicity and elegance.Light is placed behind the mirror and in the gap between curved grillings. Compared with the dark ripples created by the lights and shadows, landscape of the West Lake is particularly vivid.

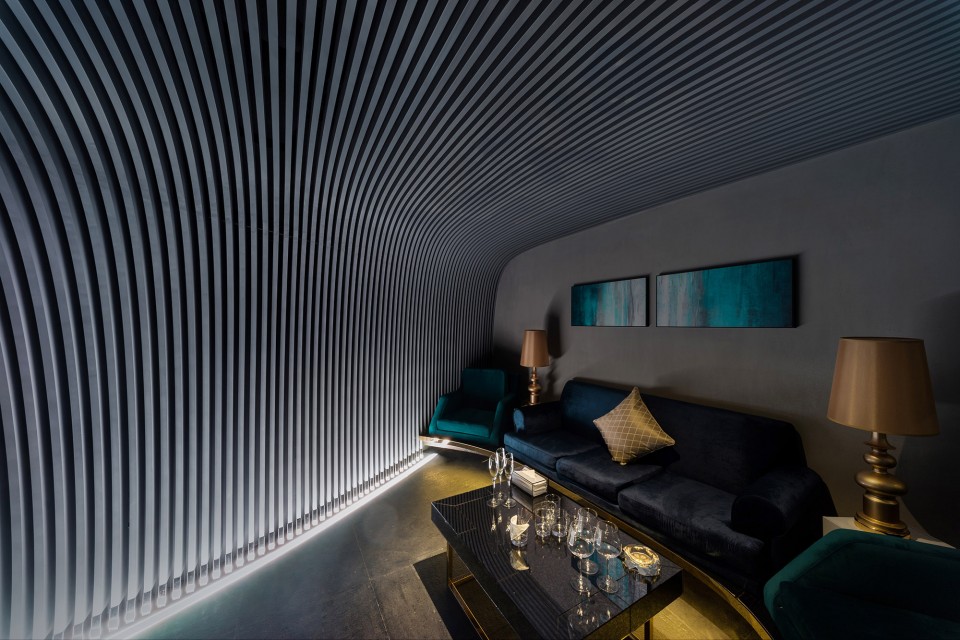

▼ 5F Private Room 包间

10_5F_Private Room丨包间 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

流线墙体过渡自然,将包间与走廊有机的结合在一起。包间内设置独特的飘板沙发,各式经典沙发置于薄板之上,漂浮在大包间中,降低了传统沙发厚重的感觉,在视觉上更加的通透。

Rooms and corridors are joined organically with continuous grillings on the wall. There are thin boards in the boxes where various classic couches are supported. They seem to flow in the large box, reducing the conventional visual weight of itself. Hence the interior space visually becomes more expansive.

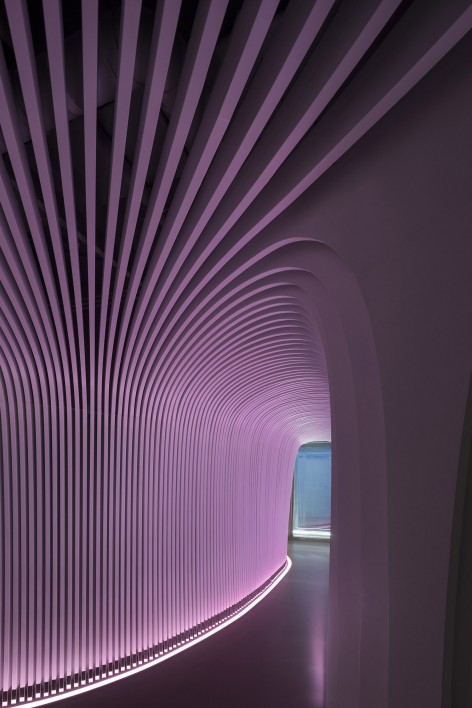

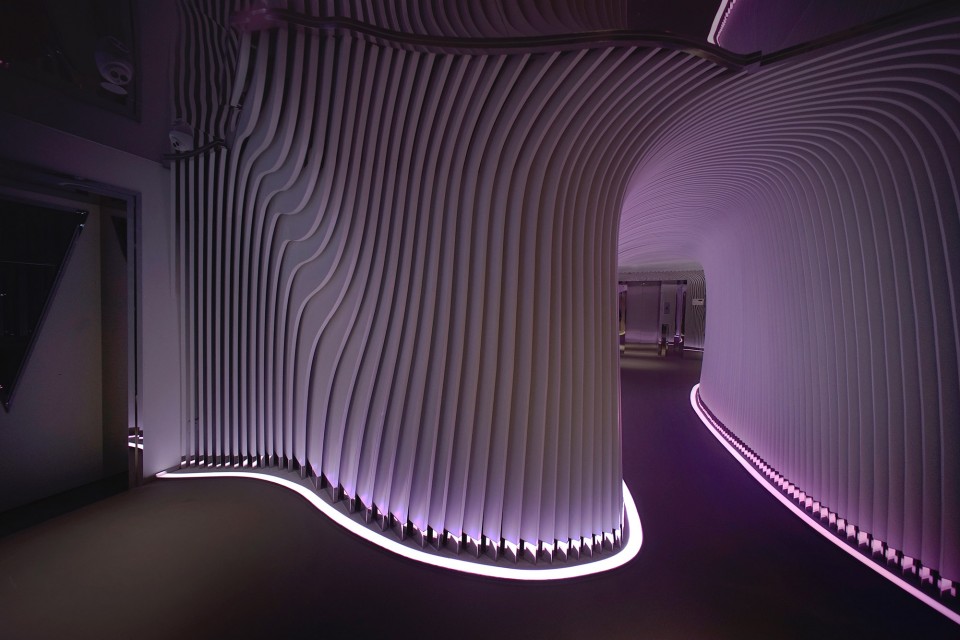

▼ 6F Corridor 走廊

11_6F_Corridor丨走廊 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture     12_6F_Corridor丨走廊 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

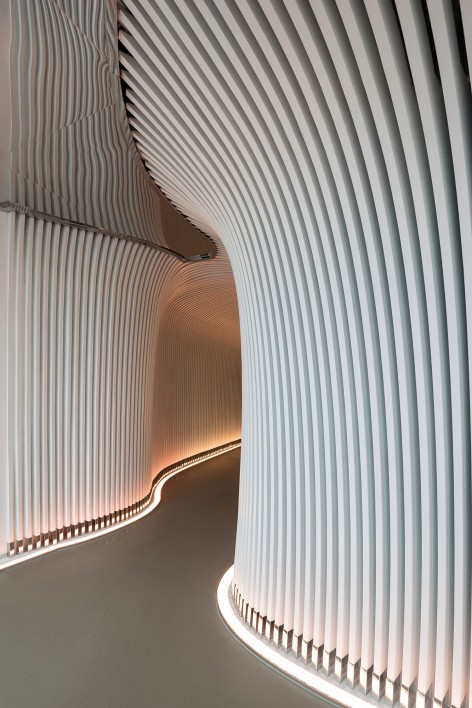

六层空间引入了无限西湖的概念,空间内沿用了白色的流线型墙体,并与镜面材料无缝连接,纯净而明快。整个空间简约而动感,宛如西湖水面一叶扁舟划过后留下的优美曲线。

The concept of the sixth floor is infinite West Lake. The interior space is sprightful with white streamlined wall adopted. They are connected seamlessly with reflective material. As simple and dynamic as its water metaphor, the whole space flows like a delicate curve left by a tiny boat cut through the West Lake.

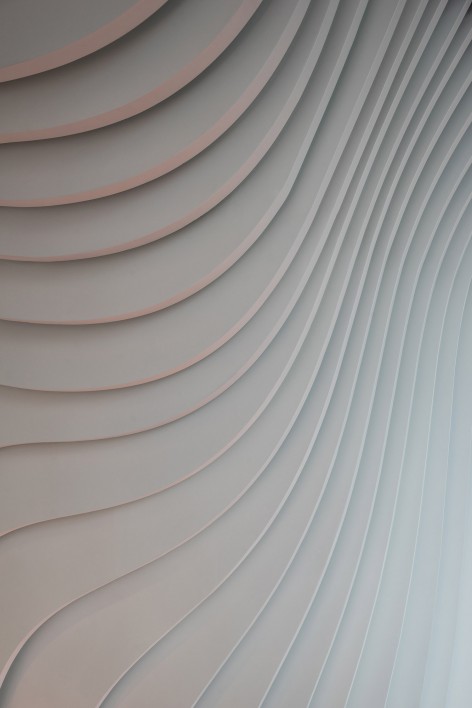

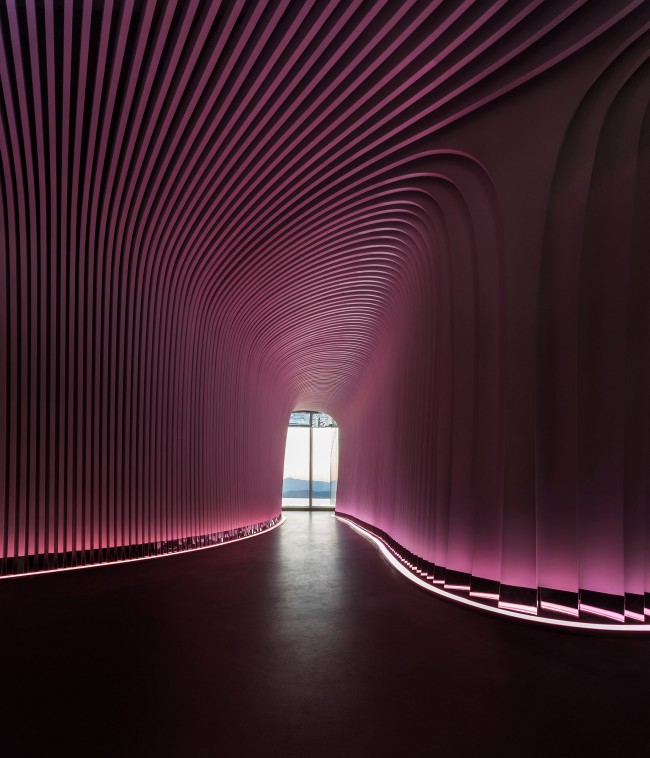

▼ 6F Corridor 走廊

13_6F_Corridor丨走廊 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture      14_6F_Corridor丨走廊 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

夹在水波之中的廊道运用高反射材料,将西湖美景延伸进室内空间,与室内天花映射出的美景形成鲜明的反差。廊道周围散射灯的带型可变色光源,呈现波光的柔美感觉,使人宛如身处湖底。

六层的包间对单一的空间进行了分割,以立柱或沙发等结构将一个全封闭空间转化成两个半封闭空间。包间内地面为精密抛光处理的黑色反射材质。一幅水下摄影为主题的壁画赋予墙面 “水”的波澜之感,电视背景墙以吸声性能极好的羊毛毡贴装,在全镜面的空间中以深沉的颜色增加墙体质感。

为了将西湖的景观价值最大化,V+包间更是采取了一种内外呼应的设计方式。室内使用了大量的落地玻璃,并且部分区域内的顶面和地面加入了光滑的镜面,通过反射能将西湖的美景引入室内,使用户在自然景观的环抱下享受歌唱的乐趣。

High-reflective materials in the corridors bring the outdoor scenery of West Lake into interior space. Between the image reflected on the ceiling and the view outside, a contradiction emerges. Meanwhile, there are flexible ribbon-like light coming from scattering lights near the corridor as if one can only experience when he travels in the sparkling underwater world.

In rooms on the sixth-floor, the whole space is divided into two open zones by structure and furniture. The floor in the box is carpeted with fine polished black floor, reflecting images of other parts of the room. In this reflective space, water theme fresco and dark sound-absorbing wool on the wall reinforce the existence of the space boundary, providing the beauty both in form and function.

In order to maximize the landscape value of West Lake, V+ rooms adopt a design method of connecting from inside to outside. There are a lot of full height glass and smooth mirrors on the ceiling and floor, which introduces the landscape of the lake into the rooms. Hence, customers are able to enjoy singing while embracing the natural landscape simultaneously.

▼ 6F Private Room 大包间

15_6F_Private Room丨大包间 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

▼ 6F Private Room 大包间

16_6F_Private Room丨大包间 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture



水面荡漾 Rippling on the water

七层与八层是专属于V+ Lounge VIP的独享空间,设计语言与其他空间相统一,但却更为尊贵与奢华。沿西湖面的两层空间部分被上下打通,形成一个中空的空间,既交相呼应又独立分隔,并将水的语汇元素用现代的方式展示在空间中。

为体现湖面轻盈的光影和富有微妙细腻的动感,七层整体空间采用了厚重精致的材料,,从而体现出水面的斑驳之感。吧台区域的设计以玻璃和金属材质为主,结合穿插于玻璃中间的灯光,营造出一个发光的宝石的效果。使得整体吧台成为一个视觉焦点。

There are V+ Lounge VIP rooms on the seventh and eighth floors. With a similar and unified design language, these rooms are more luxury. An atrium independently connects the two floors on the lake side, representing water elements in the space in a rather modern way.

To express the lithesome light and shadow as well as delicate dynamics on the lake surface, space on the seventh floor is designed with fine massive material to pursue a twinkling expression of the water surface. Glass and metal provide a majority of the material selection of the counter area. Lights pass through the glass just in the way a shining diamond does, which draws the interior visual attention all on this counter.

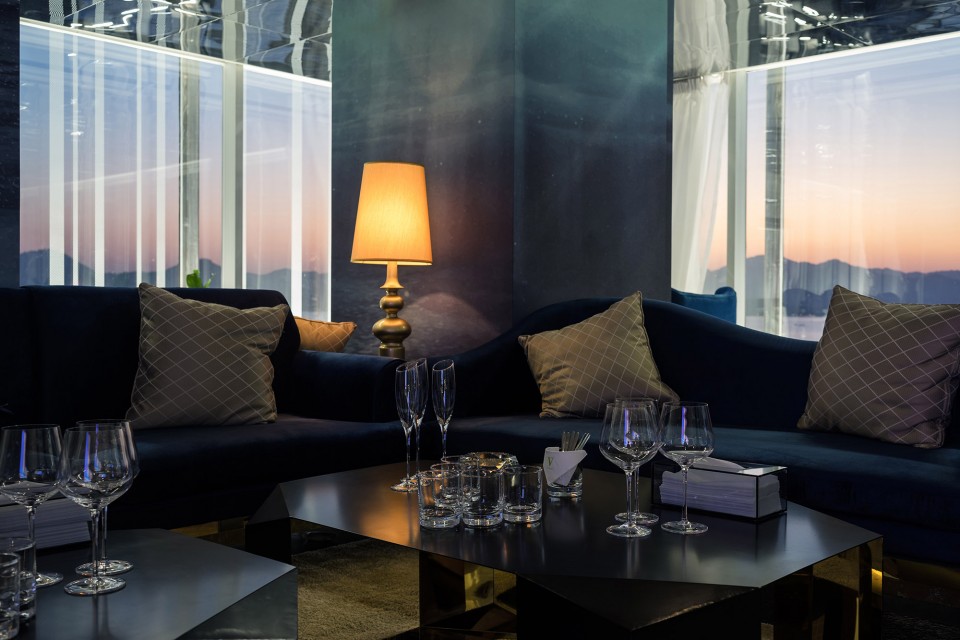

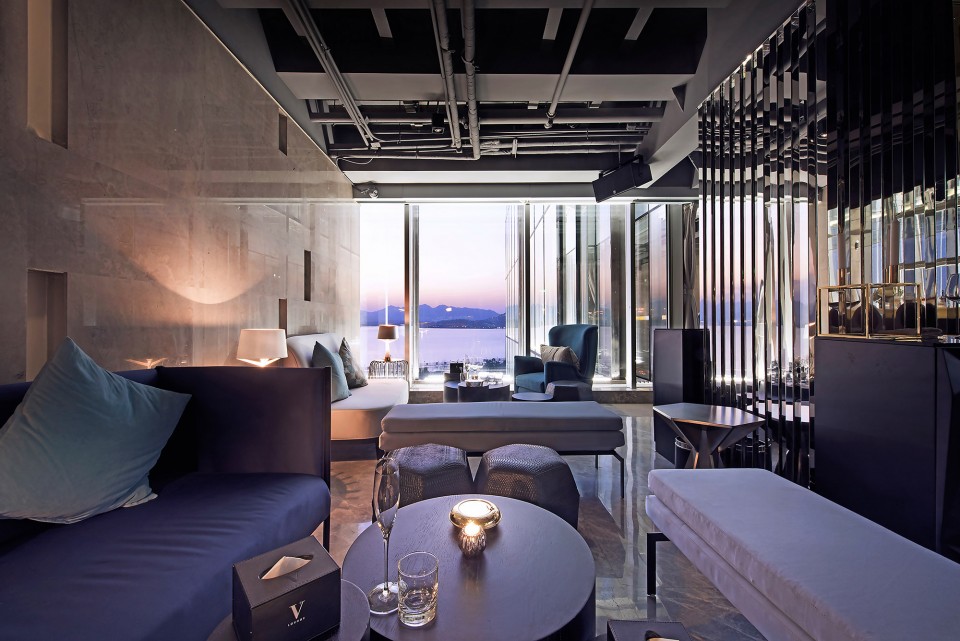

▼ 7F VIP Room VIP沙发区

17_7F_VIP Room丨VIP沙发区 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

在散客区,椭圆形片状物包裹柱体,可以在合适的高度形成桌面,带来独特的餐饮体验。沿窗的区域设置了可灵活组合的桌椅,中性的暗色调空间更加凸显出窗外抢眼的西湖夜景。

八层整体空间延续七层的材质对比的做法,但在空间造型上使用具有序列感且对称的线条元素,以区别于七层的自由排列的几何线条。

在VIP室内,天花由银白色的金属插片与质感较为厚重的混凝土组成,强调了材料的厚重与轻盈、多元与整体。地面部分选用暗色调的石材结合金属线条拼接。厚重的暗色调材质更能够凸显出银白色金属插片的轻盈感。

雪茄房在空间上同样延续序列、对称感的造型元素,局部添加细节变化,并配合以细腻、紧致的灯光,打造微妙变化的空间。

In the individual area, oval panels cover the pillar and form a table in a certain height. Thus unique dining experience is created Along the windows, several flexible tables and chairs are placed. The dark indoor space highlights the West Lake’s night scene outside the windows. The method of material contrast of seventh floor continues on the eighth floor. However, in order to distinguish from the free line elements on the seventh floor, line elements controlled more by sequence and symmetry are introduced on the eighth floor.

In VIP rooms, ceilings is constructed by white metal pieces and heavy solid concrete, emphasizing the both the weight and lightness, diversity and integrity in material. The designers chose dark tone stone jointed with metal lines as a floor pattern, whose deep dark skin serve as a counterpart of the white metal pieces,emphasizing the lithesome impression of the latter.

With several changes in details added, the cigar room keeps the sequential and symmetrical form. It becomes more subtle after elaborately considering lights exert their influence.

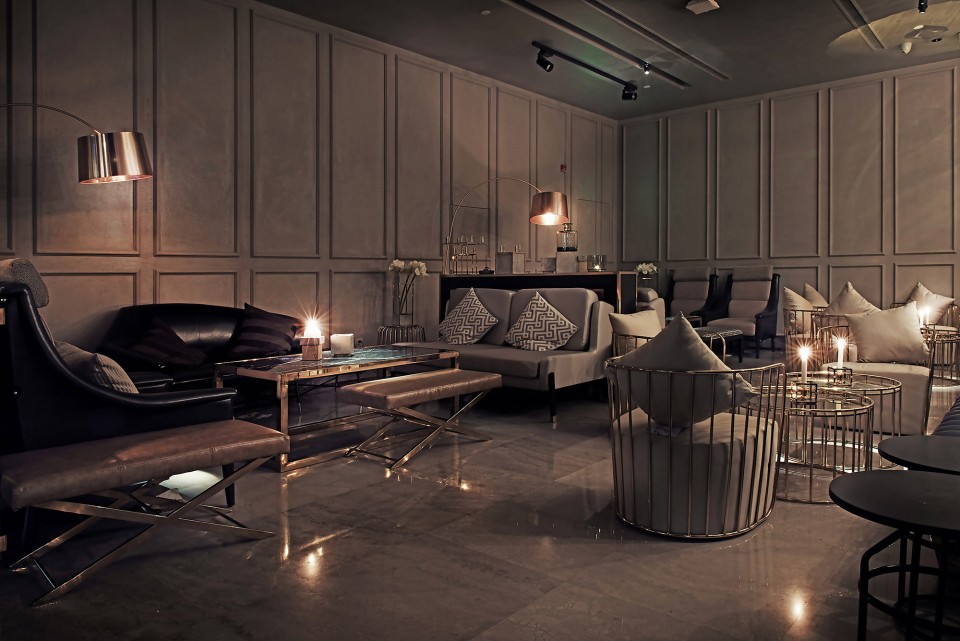

▼ 8F VIP Room VIP包间

19_8F_VIP Room丨VIP包间 V+ Lounge by the West Lake by Studio Waffles and LYCS Architecture

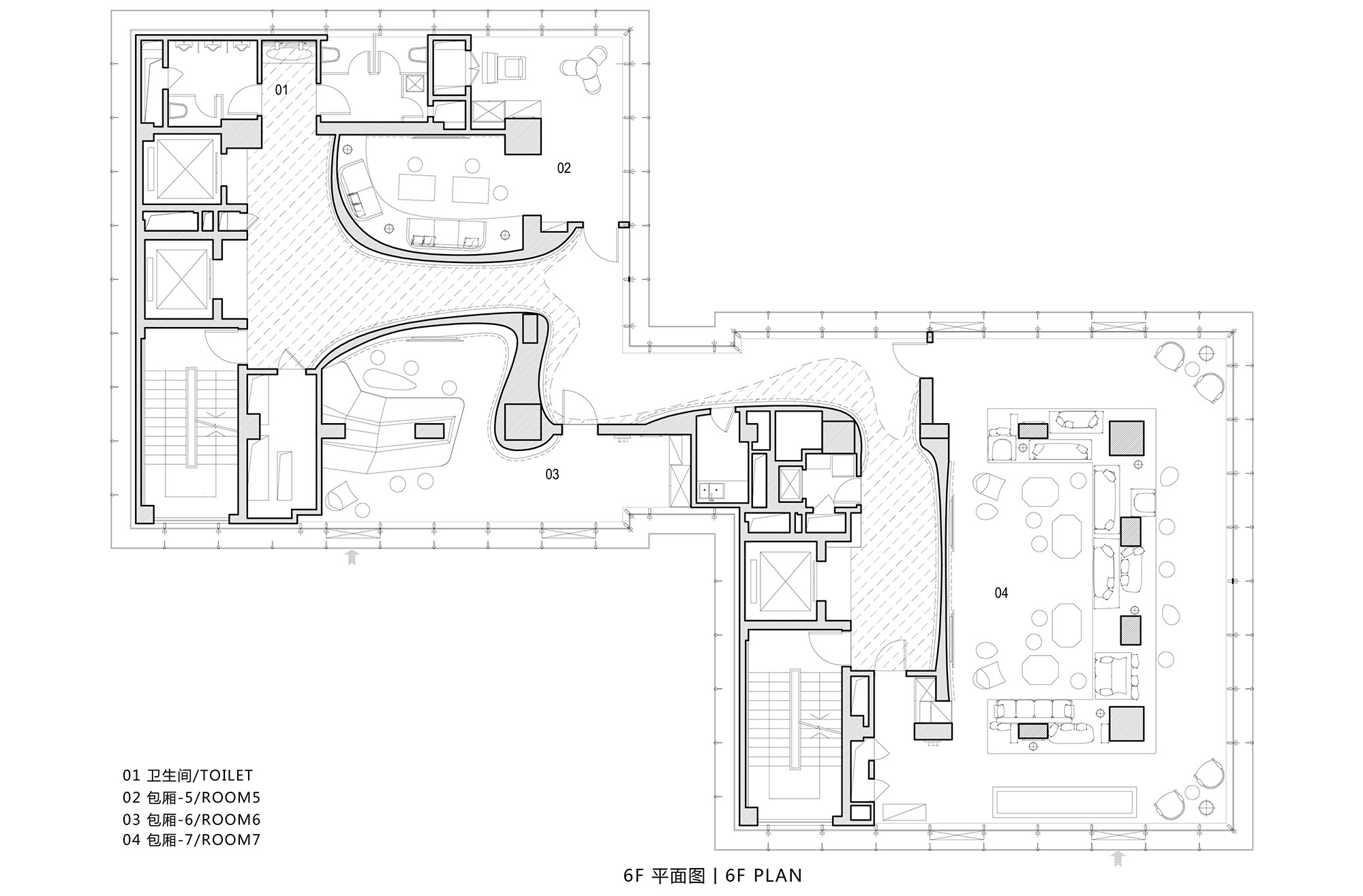

▼ drawings 线图,点击可看大图

3F

3F

4F

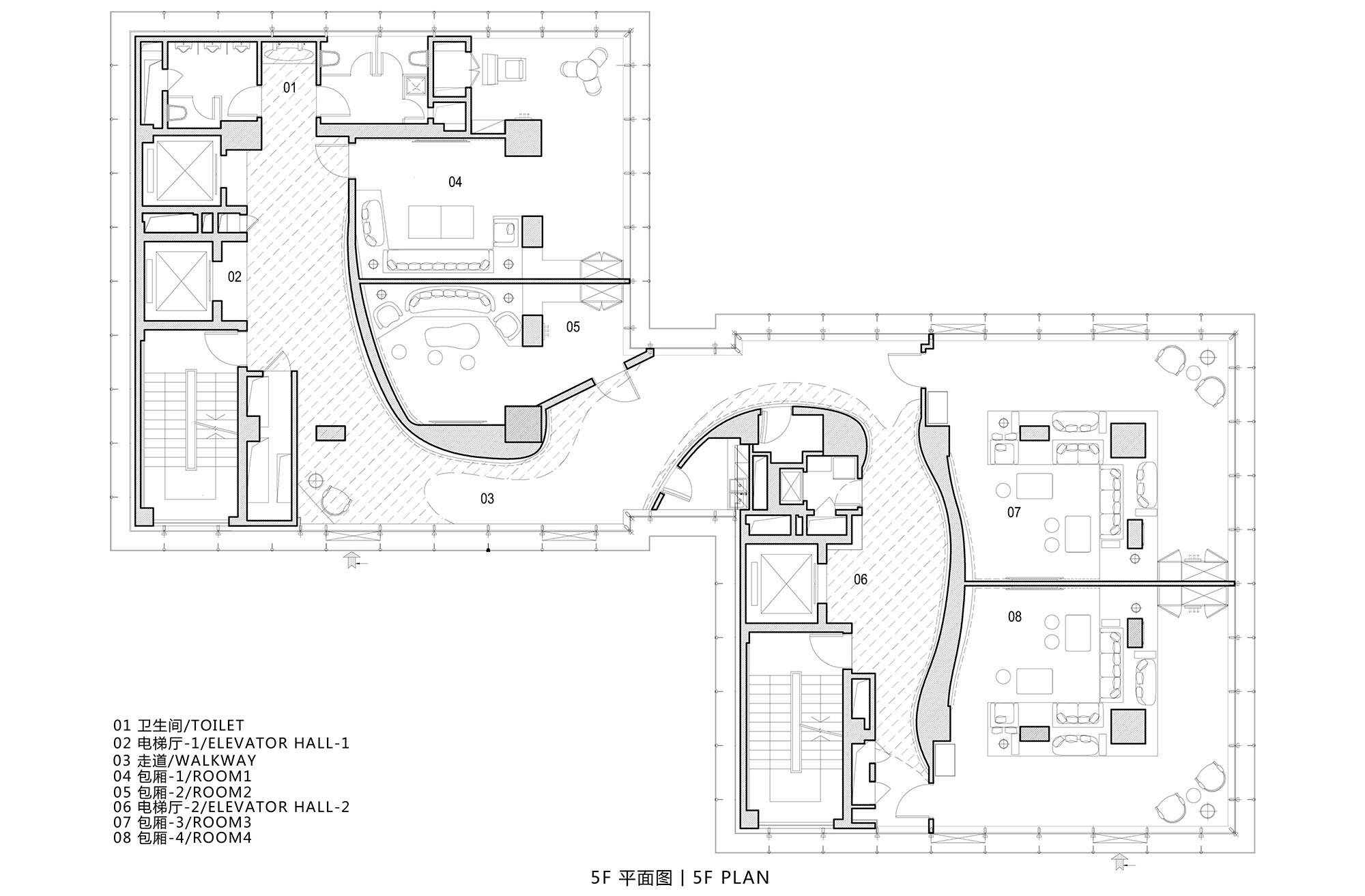

5F

6F

6F

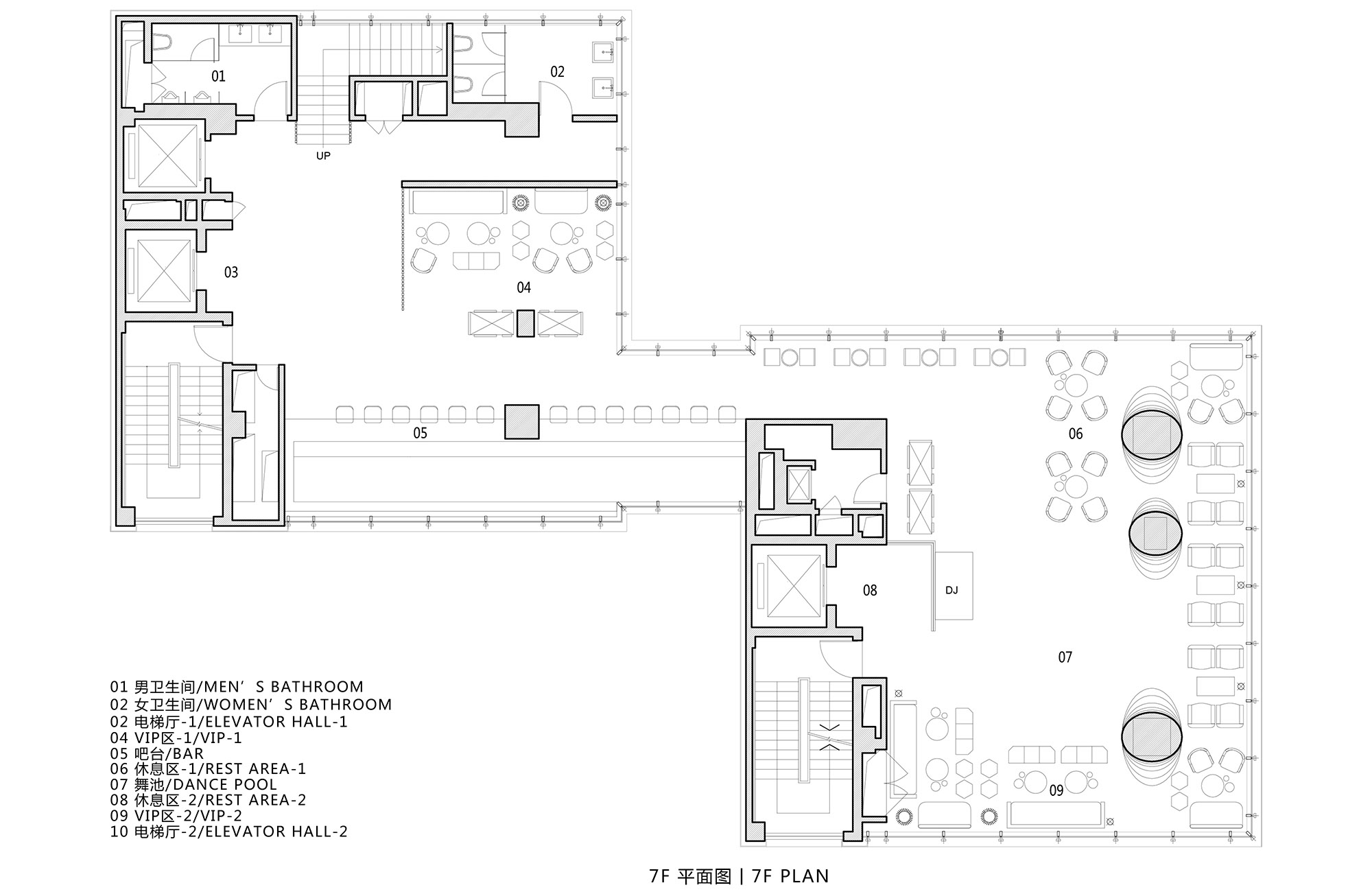

7F

7F

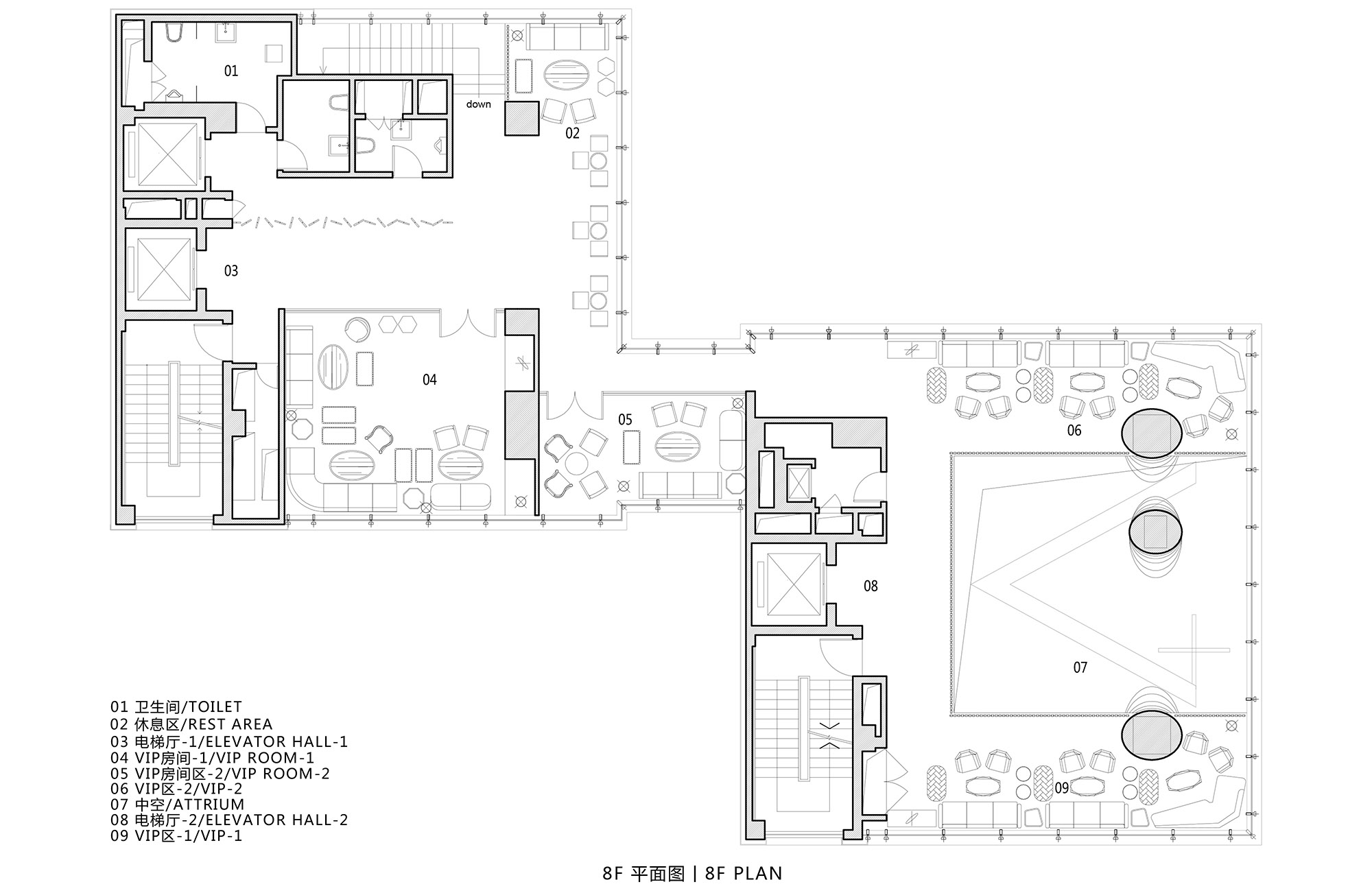

8F

8F

项目名称: 杭州V+ Lounge
室内设计:华夫设计 + 零壹城市建筑事务所
项目地点: 中国杭州
设计团队(华夫设计): 王令尘(Oscar Wang),温斌(Evan Wen),宓安裕,张云龙
设计团队(零壹城市):阮昊,何昱楼,来震宇,张秋艳,吴淼,许维卓,徐婧,罗晶中
项目时间: 2015年
项目面积: 2779 平方米
图片版权:华夫设计、零壹城市建筑事务所
图纸版权:华夫设计、零壹城市建筑事务所

Project Name: Hangzhou V+ Lounge
Interior Design: Studio Waffles + LYCS Architecture
Location:Hangzhou
Design Team(Studio Waffles): Oscar Wang,Evan Wen,MI Anyu,Nissa Zhang
Design Team(LYCS Architecture): RUAN Hao, HE Yulou, LAI Zhenyu,ZHANG Qiuyan, WU Miao, XU Weizhuo,XU Jing,LUO Jingzhong
Project Date: 2015
Size: 2779 sqm
Photo Copyrights: Studio Waffles ,LYCS Architecture
Drawing Copyrights: Studio Waffles ,LYCS Architecture
