感谢 Szostak Design 予 gooood 分享以下内容。更多关于他们：Szostak Design on gooood
Appreciation towards Szostak Design for providing the following description:

自Chase食堂在南校区Rams Head广场重新开放以来的十多年间，该空间已历经多次改造。餐饮空间从两层缩减为一层，星巴克取代了一层的原有店铺。本项目的目标是在现有基础上增加150至200个座位，以满足当前需求，并为南校区宿舍的学生打造一处全新的餐饮目的地。

In the ten plus years since Chase Dining Hall reopened at Rams Head Plaza on South Campus, the space has been adapted several times. Dining space was reduced from two floors to one and a Starbucks replaced a venue on level one. The goals of this project were to add 150-200 seats to meet current demand and create a new dining destination for students living in the South Campus dorms.

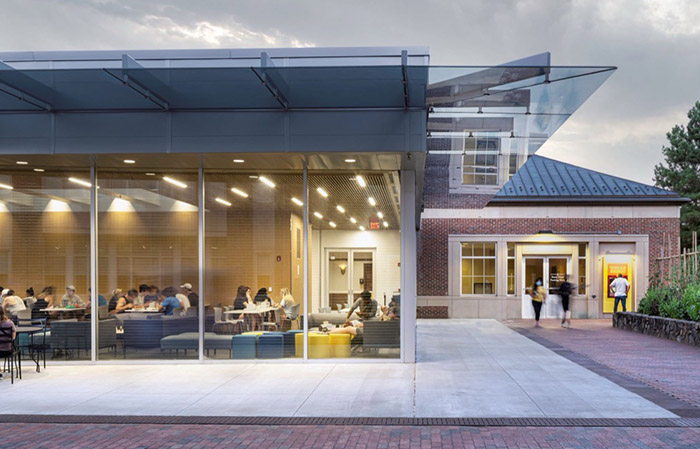

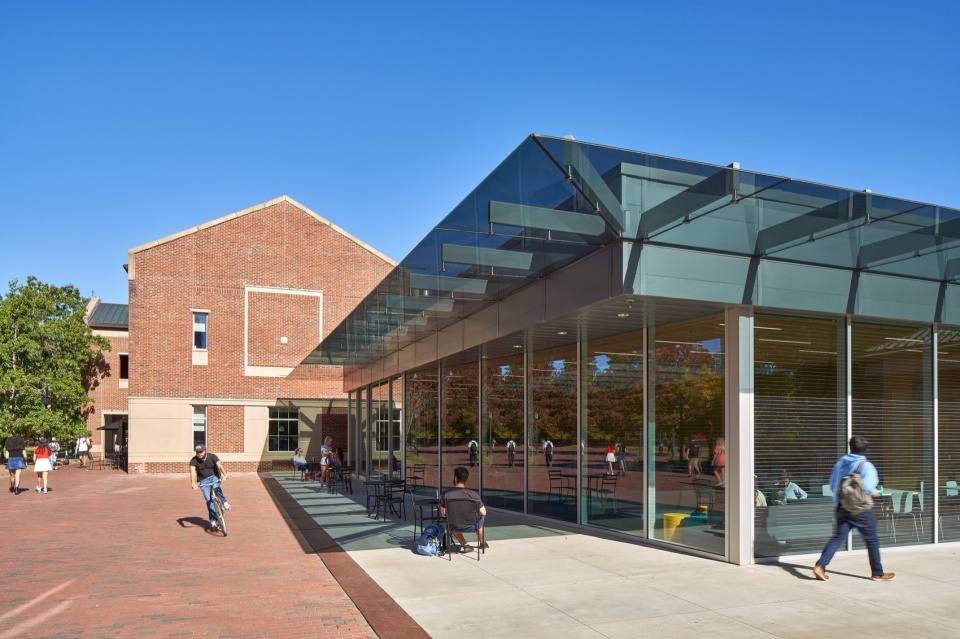

▼项目概览，overall of the project © Keith Isaacs

为实现业主对创新、富有吸引力的学生设施的愿景，我们的团队设计了一座3950平方英尺的玻璃亭阁式扩建建筑，其中包含一处新的餐饮服务点和灵活座位区。玻璃建筑外围护结构最大限度地提高了视觉通透性，并在人流量密集的步行走廊中保留了开放空间感。屋顶设计采用天窗以优化就餐区的自然采光，并设置玻璃雨棚以抵御太阳眩光和恶劣天气。多扇推拉门可将座位区向广场开放，而座位区与厨房之间的折叠门则可在需要时将两个区域隔离开来。在低峰时段，该亭阁也可与现有食堂分离，用于举办课程或活动。

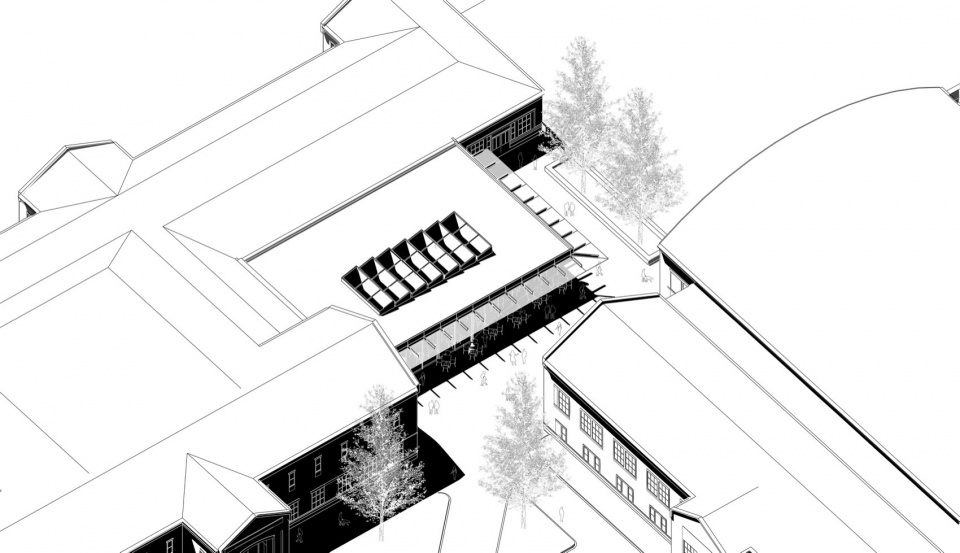

▼轴测图，axonometric drawing © Szostak Design

To fulfill our client’s vision for an innovative, attractive student amenity, our team designed a 3,950-square-foot glass pavilion addition which includes a new food service venue and flexible seating area. The glass building envelope maximizes visual transparency and preserves the sense of open space in a high traffic pedestrian corridor. The roof design features skylights to optimize daylighting in the dining area and a glass canopy to provide protection from solar glare and the elements. Multi-slide doors can open the seating area to the plaza and pocket doors between the seating area and the kitchen can isolate the two areas, when needed. The pavilion can also be separated from the existing dining hall during low traffic hours or to host a class or event.

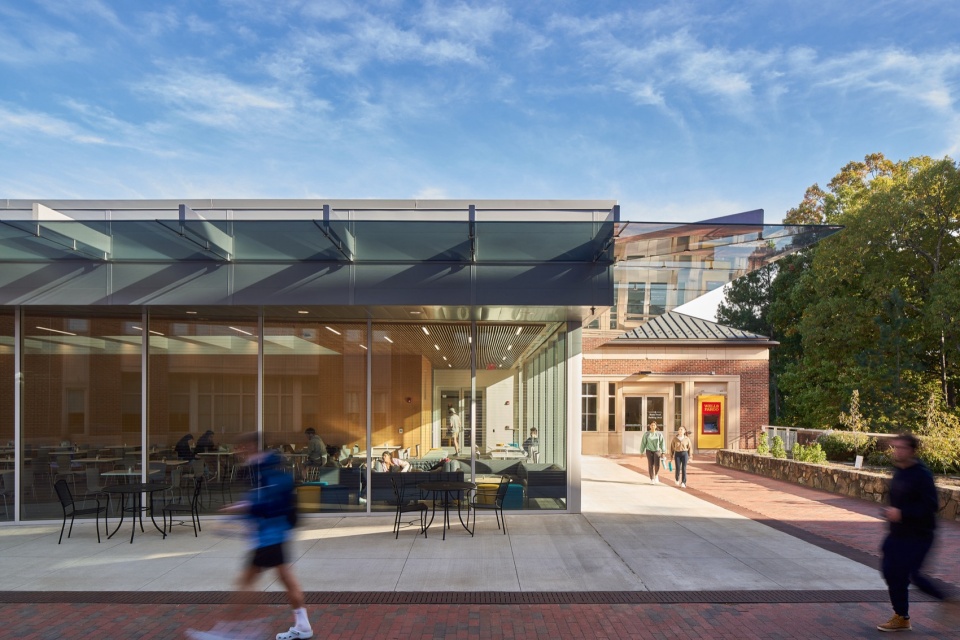

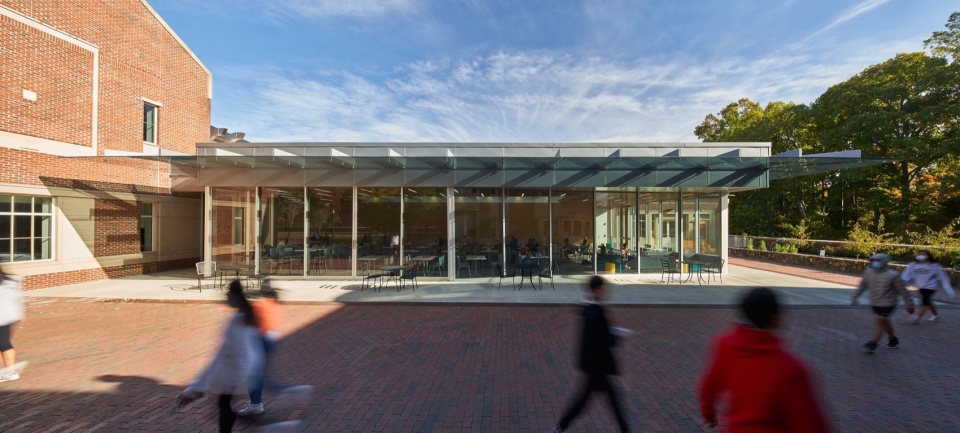

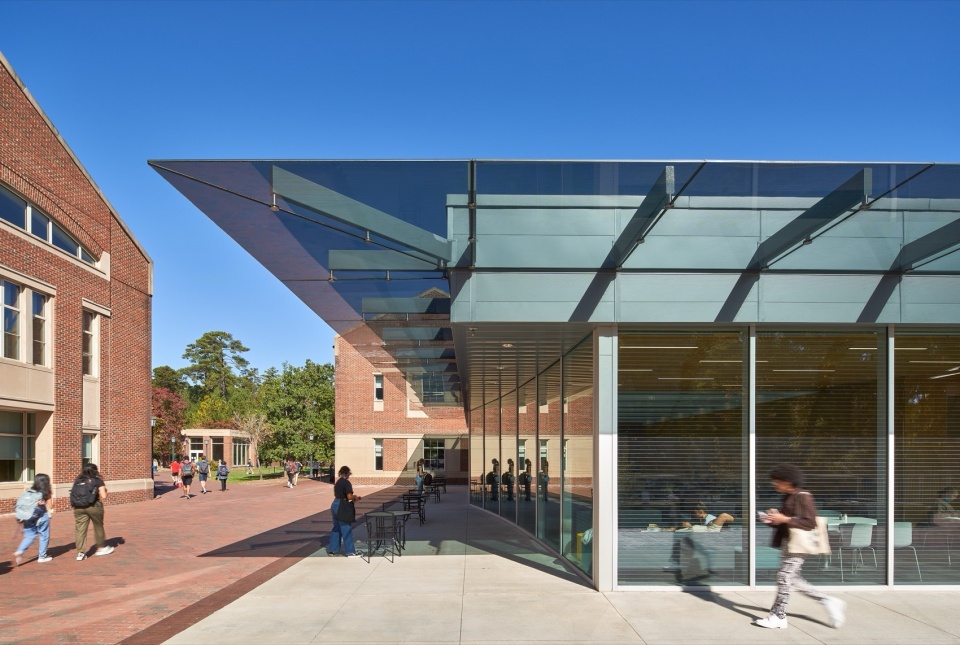

▼立面，facade © Keith Isaacs

▼玻璃亭阁式扩建建筑，the glass pavilion © Keith Isaacs

由于建筑坐落在现有停车库的顶层，广场下方仅有两根既有立柱可供支撑。东西走向的钢梁架设在一座钢桁架上，该桁架则坐落在建筑内部的两根既有立柱之上。钢梁在西侧从桁架向外悬挑36英尺，在东侧则与既有梁相连。钢梁由两片焊接在一起的W形型钢构成，以最大化惯性矩，并便于从广场下方30英尺处的材料堆放区吊运材料；同时，钢梁的设计还考虑了在建筑边缘周边布置机械管道的需求。

Since the building is sited on the top level of an existing parking garage, there are only two existing columns under the plaza that were used for support. Steel beams running east-west bear on a steel truss that sits on the two existing columns inside the building. The beams cantilever out 36 feet from the truss on the west side, and are attached to an existing beam on the east side. They are made of two W shapes welded together to maximize inertia and facilitate the lifting of material from the lay down area 30 feet below the plaza level, and are designed to allow for mechanical ducts around the edges of the building.

▼建筑坐落在现有停车库的顶层，
the building is sited on the top level of an existing parking garage © Keith Isaacs

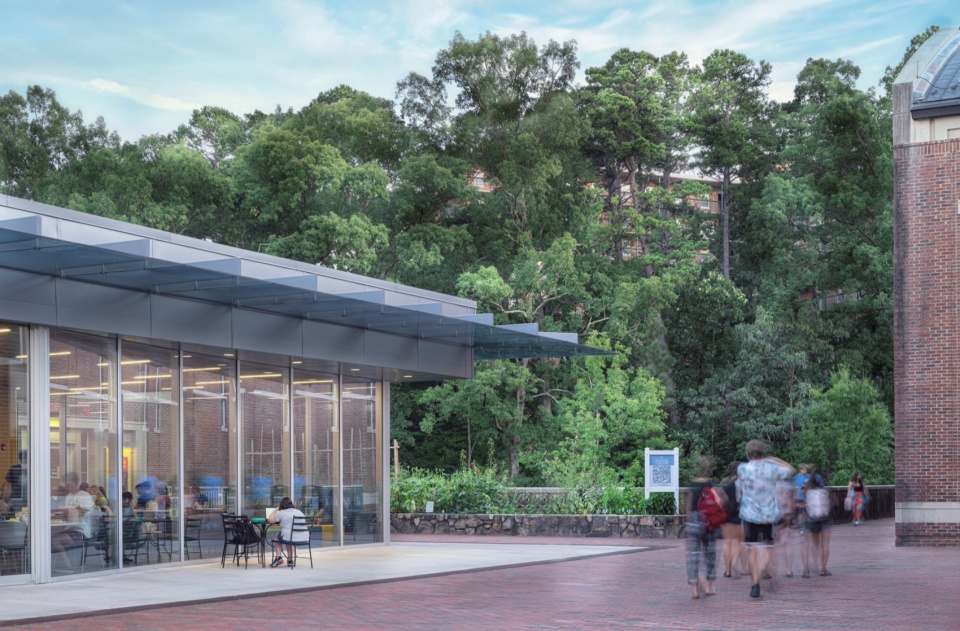

▼外观，exterior view © Keith Isaacs

▼近景细部，closer view © Keith Isaacs

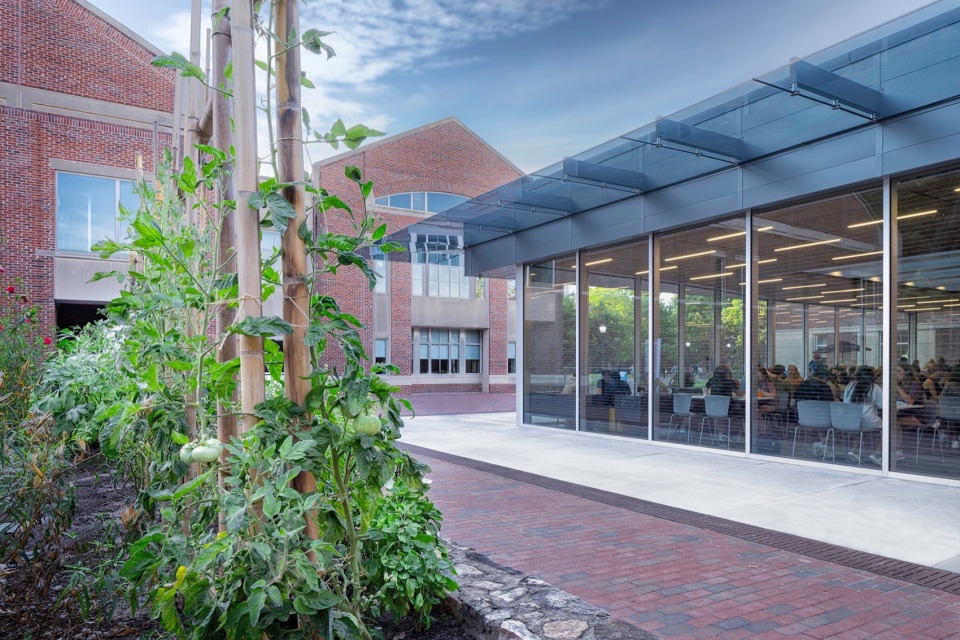

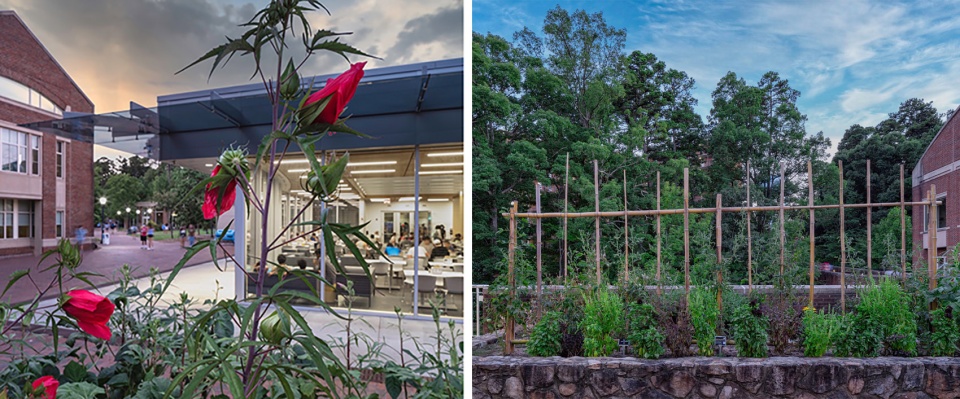

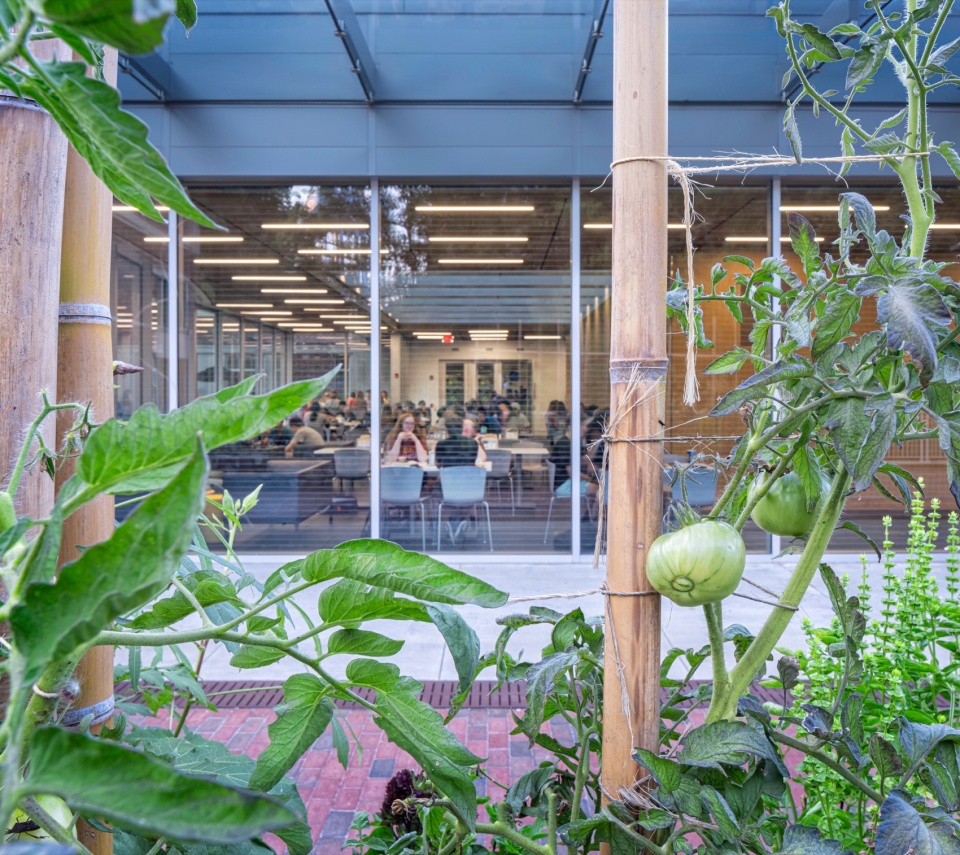

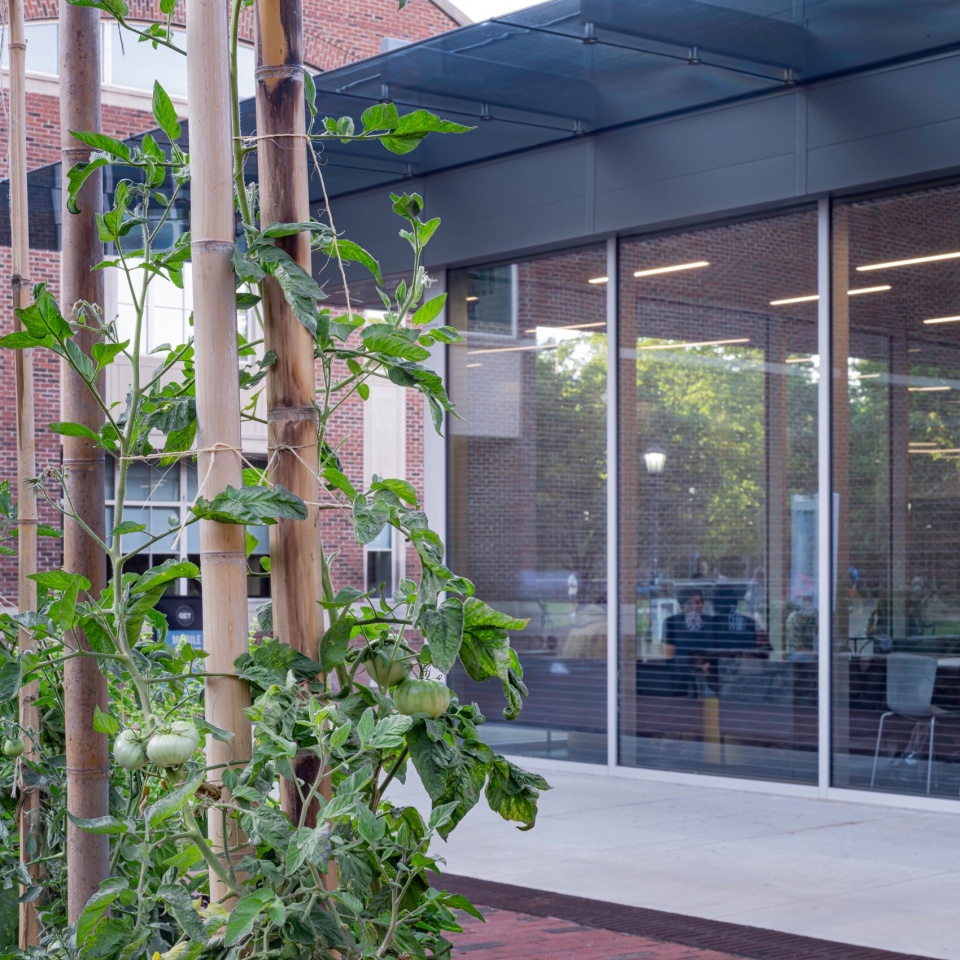

▼食堂周围的菜园，vegetable garden around the cafeteria © Keith Isaacs

项目还包括对29,786平方英尺既有室内空间的翻新。现有餐饮服务台配备了新设备以更好地满足学生需求，新的室内装修与新建亭阁相呼应，为整个空间带来统一感。

The project also included renovations to the 29,786-SF of existing interior space. Existing food service stations received new equipment to better serve student needs and new finishes match the pavilion and bring cohesion to the space.

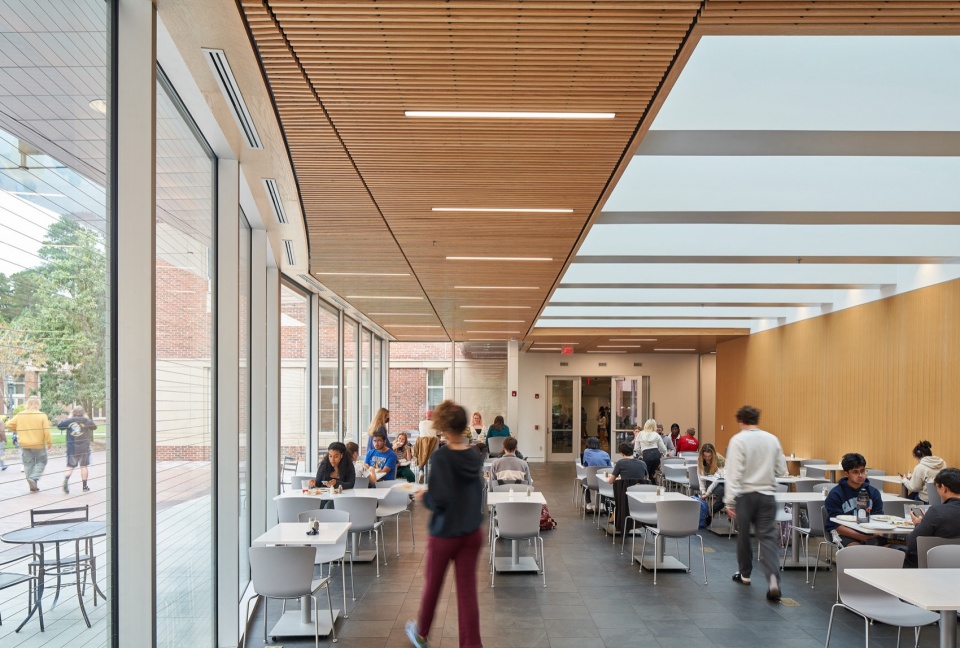

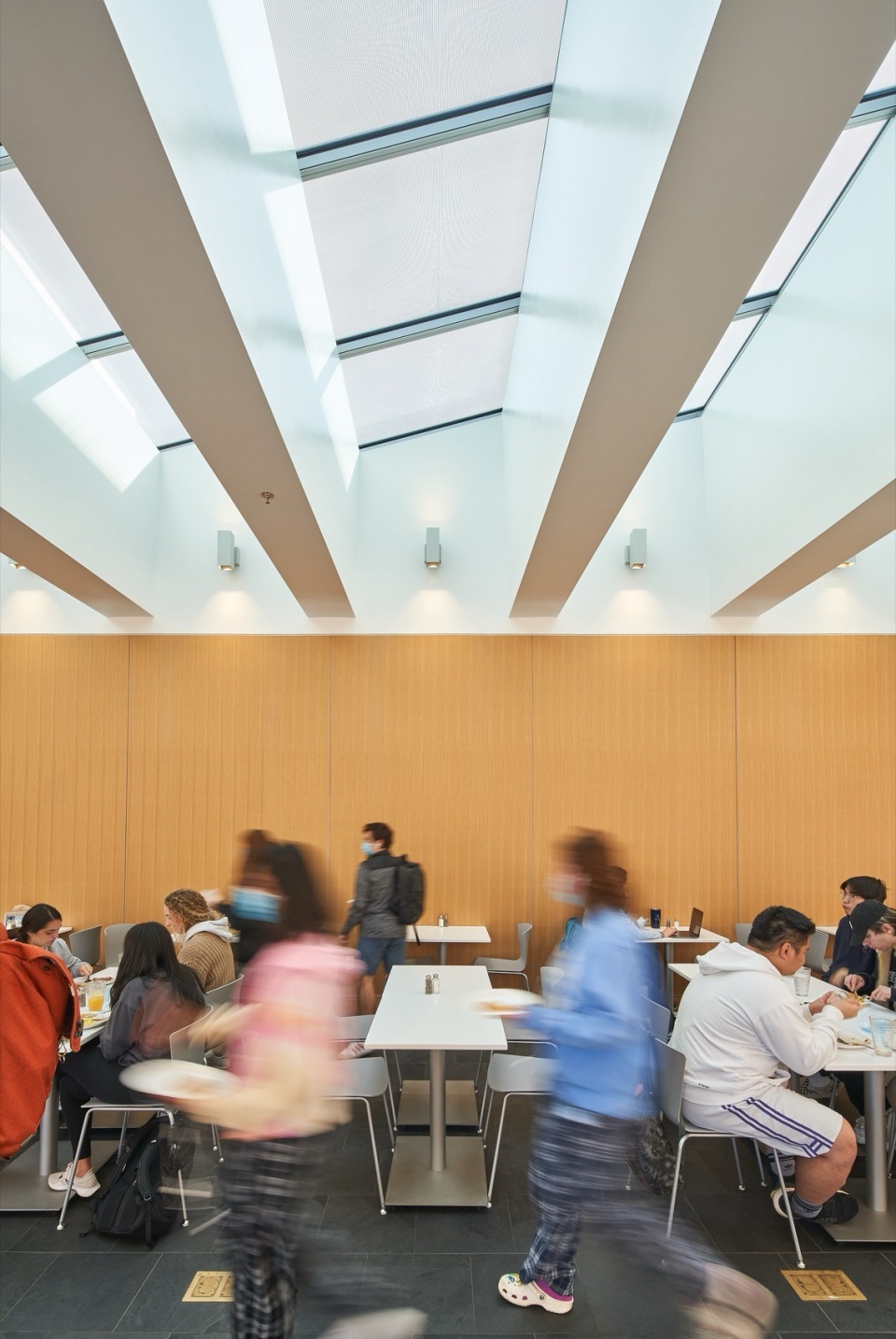

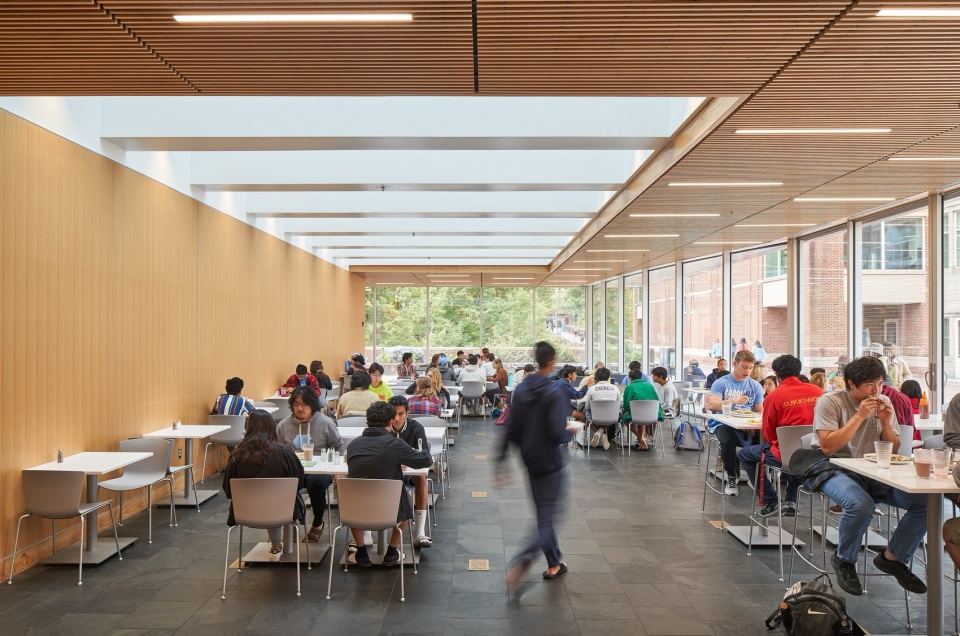

▼室内空间的翻新，renovation of existing interior space © Keith Isaacs

▼室内细部，details of interior © Keith Isaacs

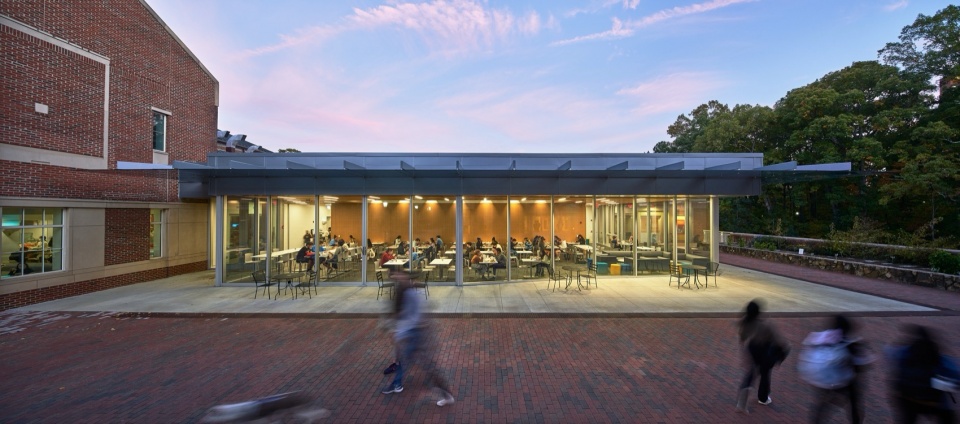

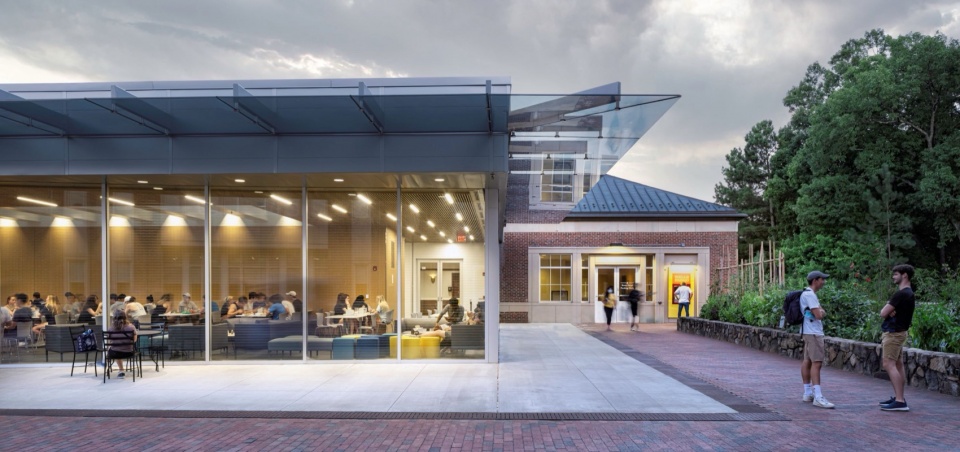

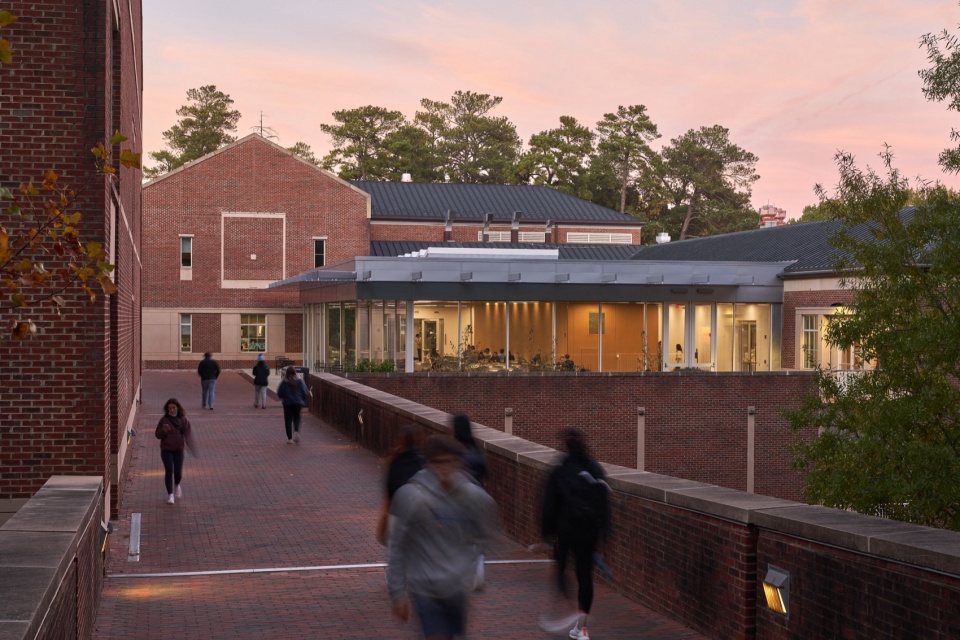

▼夜景，night views © Keith Isaacs

▼效果图，rendering image © Szostak Design

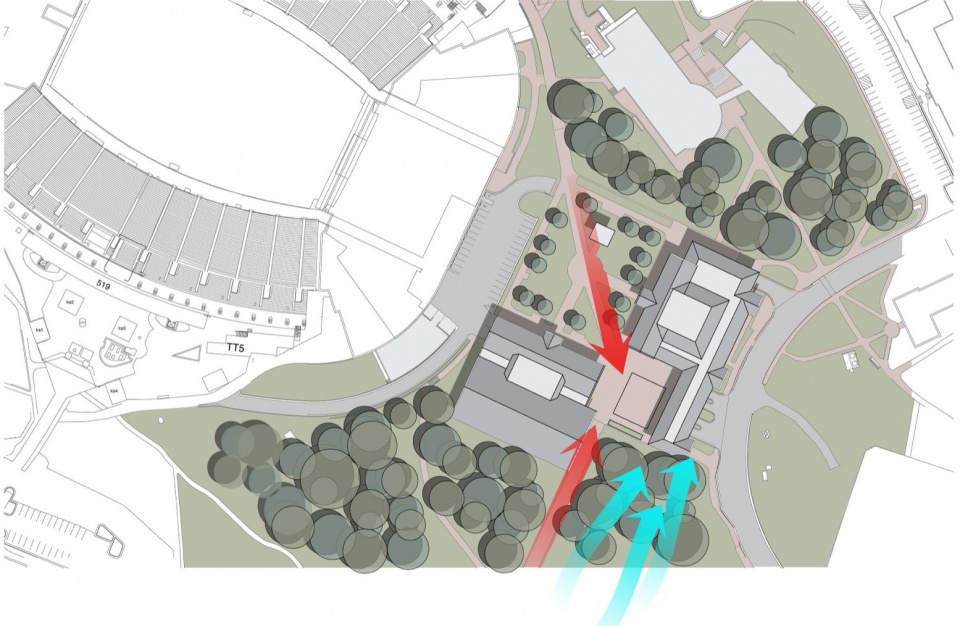

▼区位图，location plan © Szostak Design

▼总平面图，master plan © Szostak Design

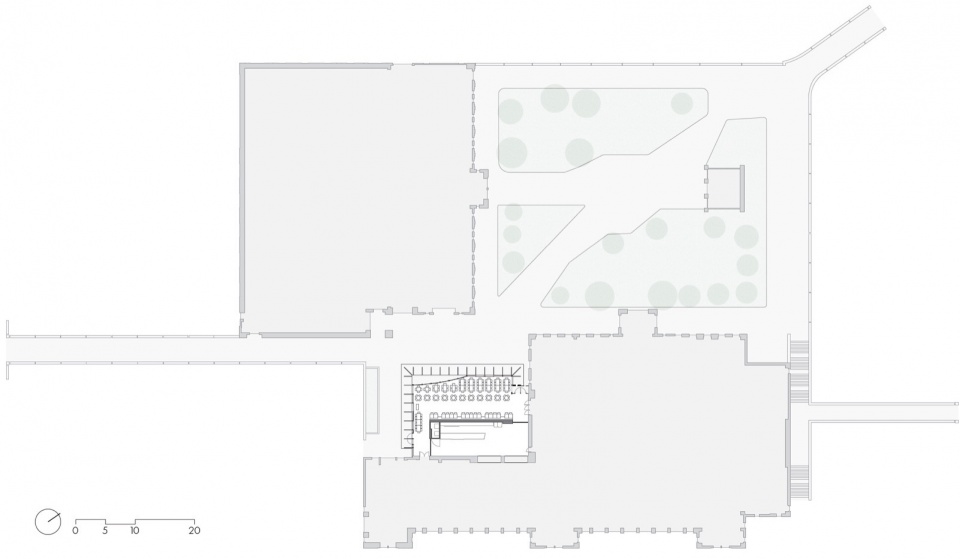

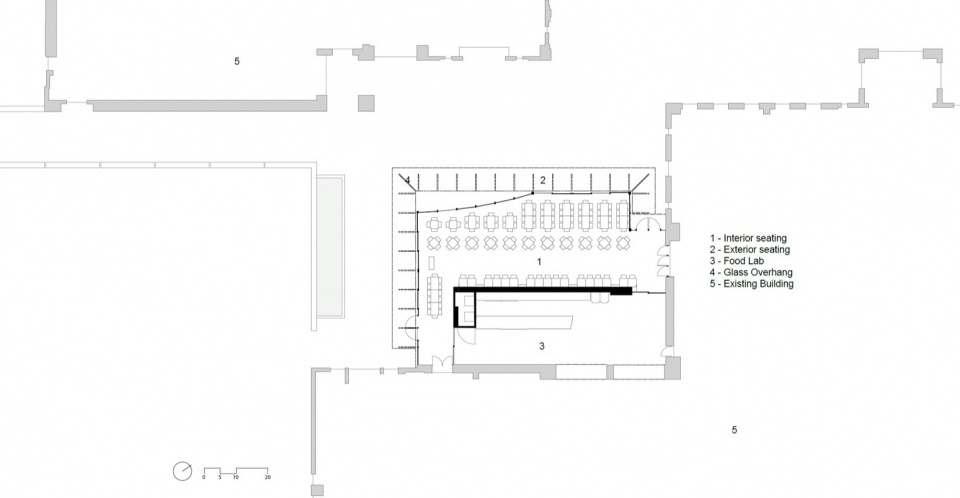

▼平面图，plan © Szostak Design

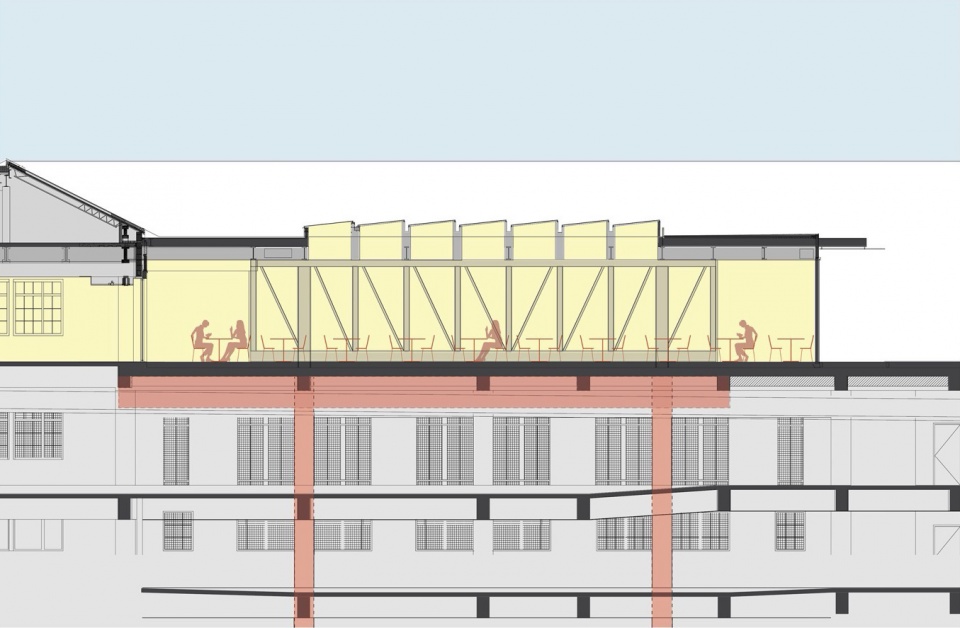

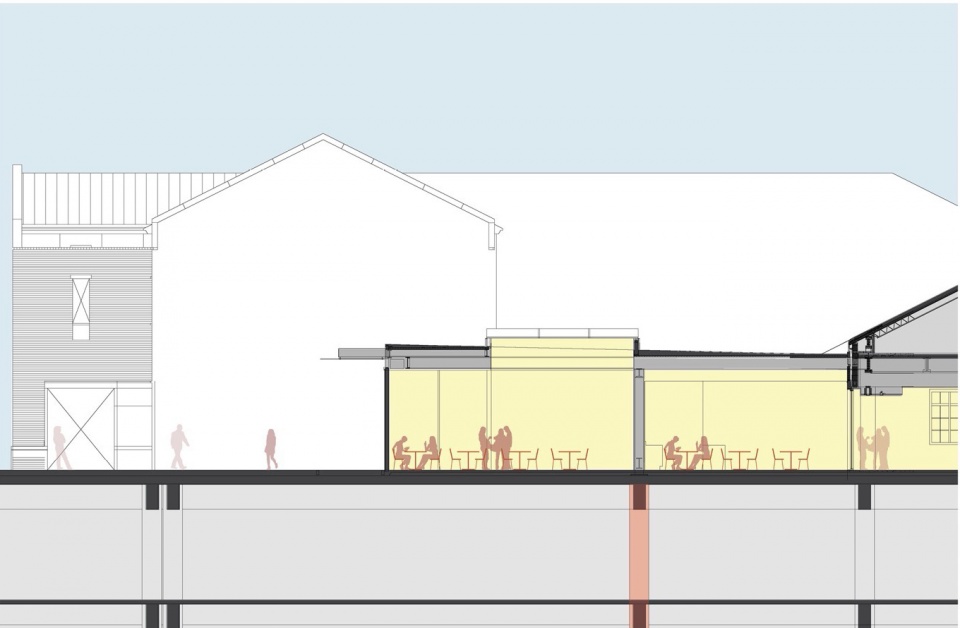

▼剖面图，sections © Szostak Design
