The urban planning for Shanghai Xujiahui Sports Park By HPP Architects

Upgrading model of the big cities and the landmark of the integrated sports culture.

Project Specs

Design Firm:
Location:
Category:

来自 HPP Architects 对gooood的分享。更多关于他们请至:HPP Architects on gooood.
Appreciation towards HPP Architects for providing the following description:

由HPP团队设计的上海徐家汇体育公园规划方案首次亮相公示,面向大众听取意见,方案公示时间为2017年3月31日至2017年4月29日。HPP作为该项目设计方,现在就带领你全方位了解未来的徐家汇体育公园。根据规划方案,徐家汇体育公园将保留和改造上海体育场、上海体育馆、上海游泳馆和东亚大厦四栋主要建筑,其余建筑基本拆除。未来,这里将建设成为符合“国际赛事之都”的徐家汇体育公园,一个城市核心区的体育公园,以全新的面貌迎接上海以及全世界人民。

The urban planning of the Shanghai Xujiahui Sports Park designed by HPP team made a stage pose firstly to take the public’s opinion, and the publicity time is from March 31, 2017 solstice on April 29, 2017.As the designer of the project, HPP now gives you an all-around view of future Shanghai Xujiahui Sports Park comprehensively.According to the planning scheme, Xujiahui Sports Park will retain and transform the four main buildings of Shanghai Stadium, Shanghai Gymnasium, Shanghai Swimming Center and East Asia Building, and the rest buildings will be basically demolished. In the future, it will be built into the Xujiahui Sports Park in line with “the capital of international events”, a sports park of central urban district, with a fresh new look to welcome people from Shanghai and around the world.

001-The urban planning for Shanghai Xujiahui Sports Park By HPP

上海徐家汇体育公园城市设计历经6个月完成,HPP在众多竞争单位中脱颖而出,一举中投。在众多上海人的心目中,上海体育馆和上海体育场不仅仅是被称为“万体馆”、“八万人”的地方,更是上海徐汇区的一大地标。新的规划在保留“一场两馆”以及主建筑东亚大厦的原有建筑上进行重新规划设计,将徐家汇体育公园打造成为开放的城市空间。

The urban design of Shanghai Xujiahui Sports Park takes 6 months to be completed, HPP stands out in numerous competitors and wins the first prize.In the hearts of numerous Shanghai people, Shanghai Gymnasium and Shanghai Stadium are not only known as places of “ten-thousand gymnasium” and “80,000 people”, but also the major landmarks of Shanghai Xuhui District.The new planning is re-planned and designed on the basis of original building of “one-stadium and two-gymnasium” and main building East Asia Building, so as to build Xujiahui Sports Park into an urban open space.

004-The urban planning for Shanghai Xujiahui Sports Park By HPP

005-The urban planning for Shanghai Xujiahui Sports Park By HPP

003-The urban planning for Shanghai Xujiahui Sports Park By HPP

设计范围包括公园设计、慢跑道设计、交通组织、地下空间设计及新建综合体设计、种植设计,配套设施。设计师想要打造一个独一无二的地标形象,一个开放融合的城市空间,给大家带来不可复制的运动体验,延续传承本土文脉,并将以下几大设计原则贯穿其中:

Scope of the design includes park design, jogging area design, traffic organization, underground space design, new complex design, planting design and supporting facility.HPP wants to create an unique landmark image and an open integrated urban space, bringing non-duplicated movement experience to the public, continuing the heritage of local context, and furthermore, integrating the following several design principles:

规划结构清晰 Clear planning structure:

将专业赛事与大众体育两大主题进行分区,保留现有两大场馆的主布局,强化与西面华庭宾馆的空间轴,形成东西向的“专业赛事轴”,保留了本土的城市空间记忆。

The two themes of professional events and mass sports are partitioned, the main layout of the existing two stadiums is retained, space axis with the west-side Huating Hotel is strengthened to form east-west “professional event axis” and keep the local urban spatial memory.

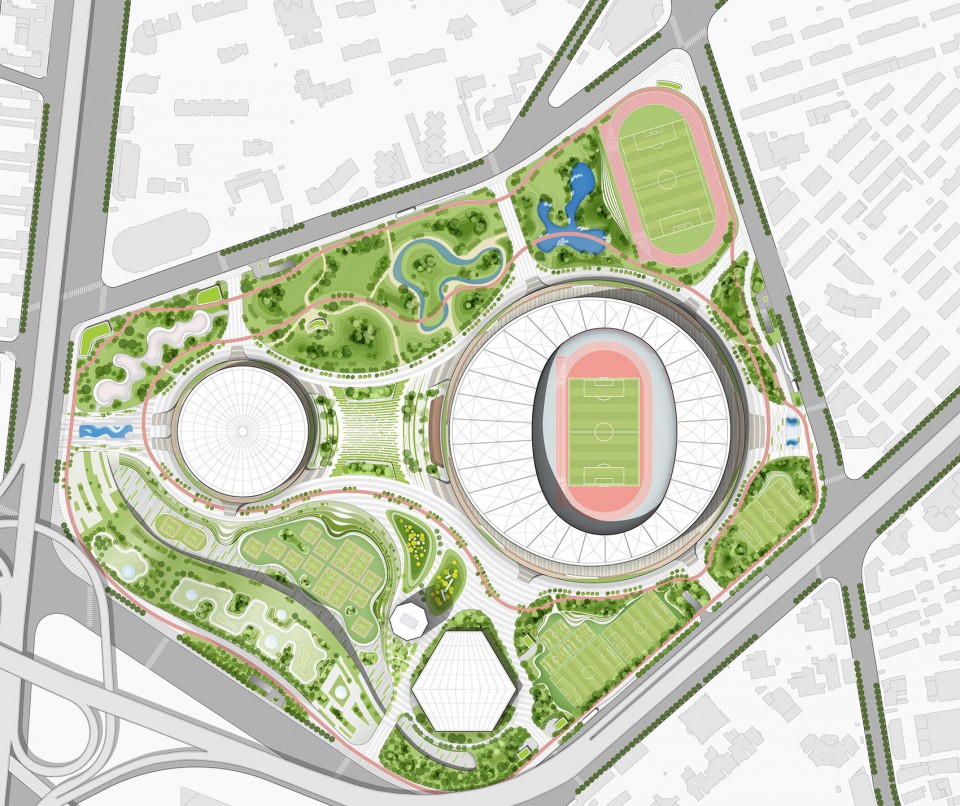

006-The urban planning for Shanghai Xujiahui Sports Park By HPP

专业赛事以外的空间作为大众体育公园区,并分为南北两大主题,北面为“有氧公园”,南面结合现有的市民游泳馆创造一片“运动公园”,形成“一轴两翼”的规划布局结构。

The space beyond the professional event is regarded as mass sports park district and divided into south and north themes, the north is “aerobic park”, and a “sports park” is created in the south combined with the existing citizen swimming pool, to form the “one-axis and two-wing” planning layout structure.

007-The urban planning for Shanghai Xujiahui Sports Park By HPP

组团分区明确 Clear group partition:

一条轴线串联两大体育空间,连接专业赛事,有氧公园,运功公园三大空间,提供丰富的运动体验。

An axis is connected with two sport spaces in series and connected with professional events, aerobic park and sports park to provide rich movement experience.

016-The urban planning for Shanghai Xujiahui Sports Park By HPP

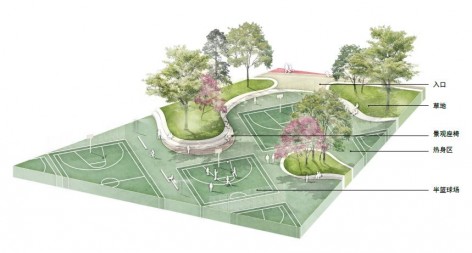

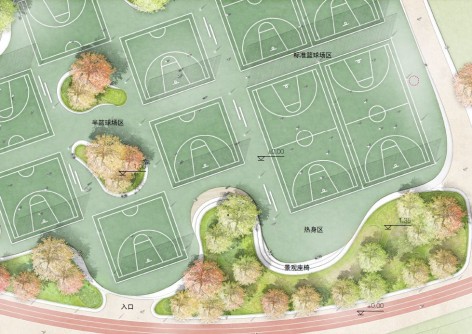

有氧公园 Air park:

013-The urban planning for Shanghai Xujiahui Sports Park By HPP 012-The urban planning for Shanghai Xujiahui Sports Park By HPP

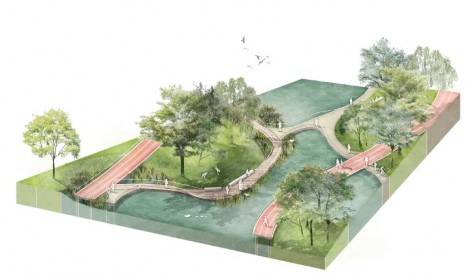

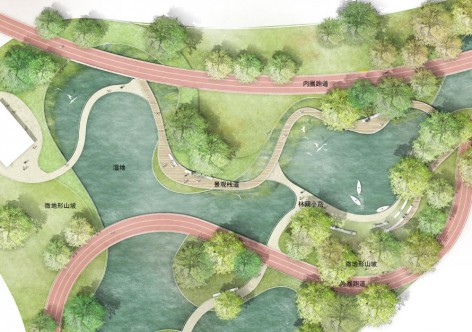

运动公园 Sports park:

011-The urban planning for Shanghai Xujiahui Sports Park By HPP 010-The urban planning for Shanghai Xujiahui Sports Park By HPP

交通组织高效 Efficient traffic organization:

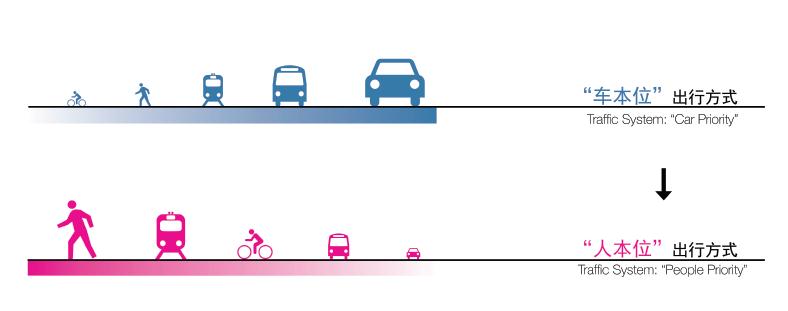

在交通方面,充分发挥公共交通资源优势未来依靠公共交通分担较大的比例。利用立体化开发模式,净化地面车行环境,  将“车本位”的出行方式改为“人本位”的出行方式。

In the aspect of traffic, give full play to the advantages of public traffic resource, and in the future, depend on the public traffic to share a larger ratio. Purify the ground driving environment via three-dimensional development pattern to transfer “vehicle-oriented” trip mode into “person-based” way.

015-The urban planning for Shanghai Xujiahui Sports Park By HPP

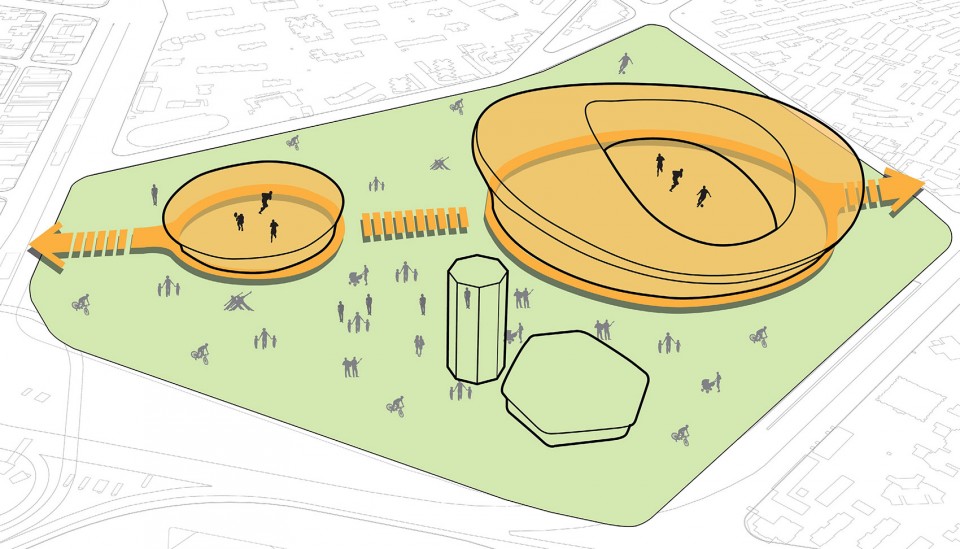

所有车辆进入街坊后即入地下车库,实现有效的人车分离。街坊人行出入口正对场馆疏散台阶,实现赛时人流的高效疏散。
After entering into neighborhood, all vehicles drive directly into underground garage to achieve effective separation of pedestrians and vehicles. Neighborhood sidewalk entrance is directly facing the stadium evacuation steps, to achieve efficient evacuation of people flow during games time.

008-The urban planning for Shanghai Xujiahui Sports Park By HPP

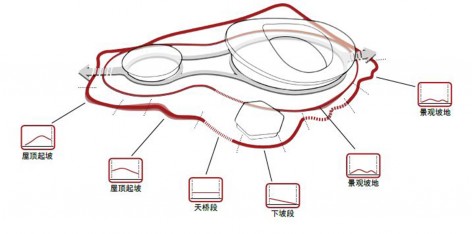

慢跑环境丰富 Rich jogging environment:

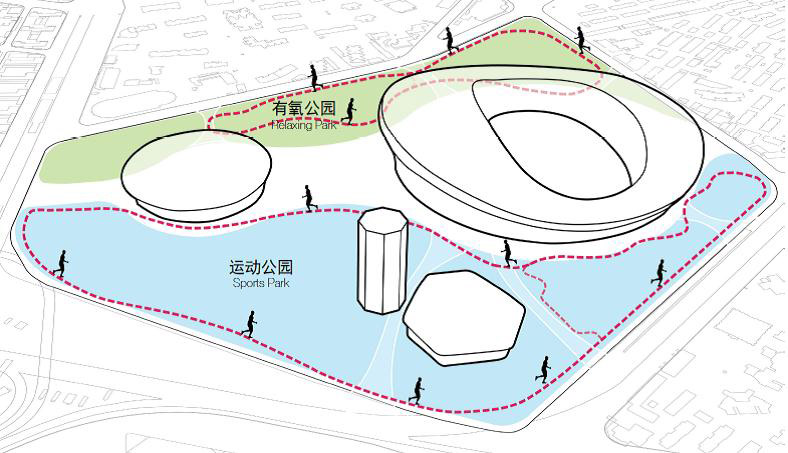

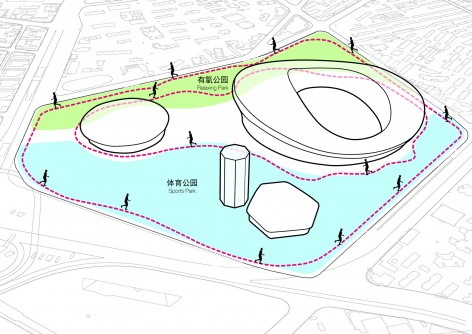

两条慢跑道串联整个街坊,分别为2.3KM和1.8KM.外圈跑道联动城市界面,利用街坊四边的人行道空间形成环绕街坊的慢跑环道;内圈跑道串联场馆和户外空间,创造了灵活有趣,移步异景的跑步感受。

Two jogging tracks are connected with the whole housing block in series, 2.3KM and 1.8KM respectively. Outer track is linked with city interface to form jogging ring around neighborhood by means of the quadrilateral sidewalk space, inner track is connected with stadium and outdoor space in series, so as to create flexible and interesting, stepping-greatest wonder running feelings.

structure     014-The urban planning for Shanghai Xujiahui Sports Park By HPP

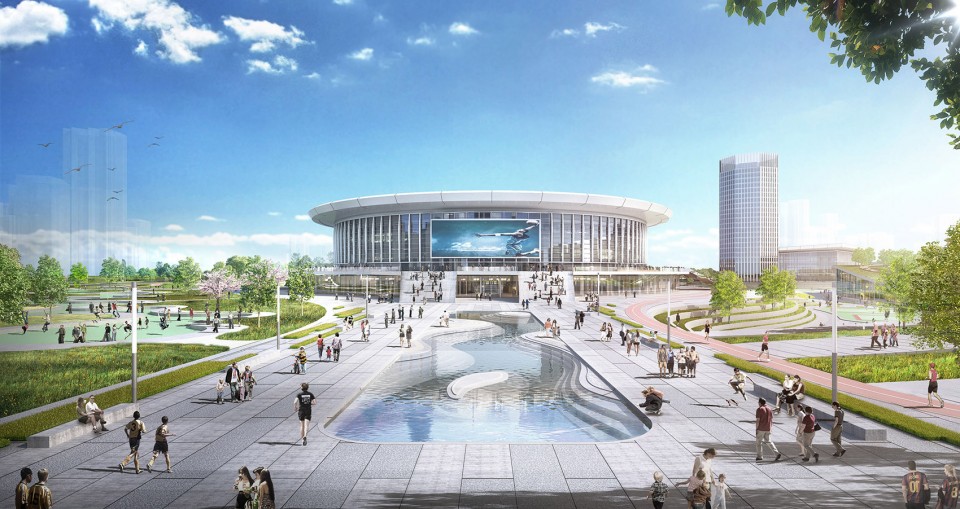

让我们一起期待徐家汇体育公园的建成。在未来,他将成为大型城市更新的示范,综合体育文化的标杆,“让城市活起来,让体育绿起来,让公园动起来”等诺言都将会在这里得以实现!

Let’s look forward to the completion of Xujiahui Sports Park. In the future, it will be upgrading model of the big cities and the landmark of the integrated sports culture, the promises of “make the city alive, sports green and make park alive”, etc. will be achieved here!

002-The urban planning for Shanghai Xujiahui Sports Park By HPP
