非常感谢 Alberto Campo Baeza 予gooood分享以下内容。更多关于他们：Alberto Campo Baeza on gooood.
Appreciation towards Alberto Campo Baeza for providing the following description:

Photos © Javier Callejas

建筑师希望安达卢西亚历史博物馆成为西班牙格拉纳达地区“最美的建筑”。

安达卢西亚历史博物馆希望记录收集整个安达卢西亚的历史，而这里早在古罗马时期，就有人耕种生活。古希腊地理学家斯特雷波（strabo）将安达卢西亚的居民描述成“最文明的伊比利亚人，他们用诗文写成律法”。

博物馆和附近的同样由建筑师设计，于2001 年建成的卡哈格拉纳达储蓄银行总部融合为一个整体。建筑师塑造了一个大小为60 米 x 120 米，高共三层的裙楼，裙楼上面立着一片薄薄的板楼，这个板楼的高度与不远处的储蓄银行总部大楼高度一致，外观协调统一。建筑中心是一个椭圆形的中央庭院，内布环形斜道，连接起裙楼的三层，形成极有张力的有趣空间。这个椭圆形的中央庭院其尺寸参照了爱尔汗布拉宫查理斯五世皇宫的规模。

此外无法忽略的是，博物馆形象如同城市的大门。博物馆高耸的板楼与卡哈格拉纳达储蓄银行总部建筑的高度和宽度相同，它们形成强有力的意向，如同巨大的屏幕般立在高速公路旁，建筑的表面将完全覆盖大面积的等离子屏幕，想过往的城市流量发送消息，就像伦敦的皮卡迪利广场和纽约的时代广场那样。这个博物馆提升了格拉纳达地区公共空间的层次。缄默的新建筑将用自己的语言，在新千年中向人们传递响亮的信息。

THE MA: ANDALUCIA’S MUSEUM OF MEMORY
Alberto Campo Baeza.
Spreading the message

We would like to make “the most beautiful building” for the Museo de al Memoria de Andalucía (Andalusia’s Museum of Memory) in Granada. The MA. A museum that wishes to transmit the entire history of Andalusia. As early as Roman times, Strabo described the inhabitants of Andalusia as “the most cultivated of the Iberians, who have laws in verse.”

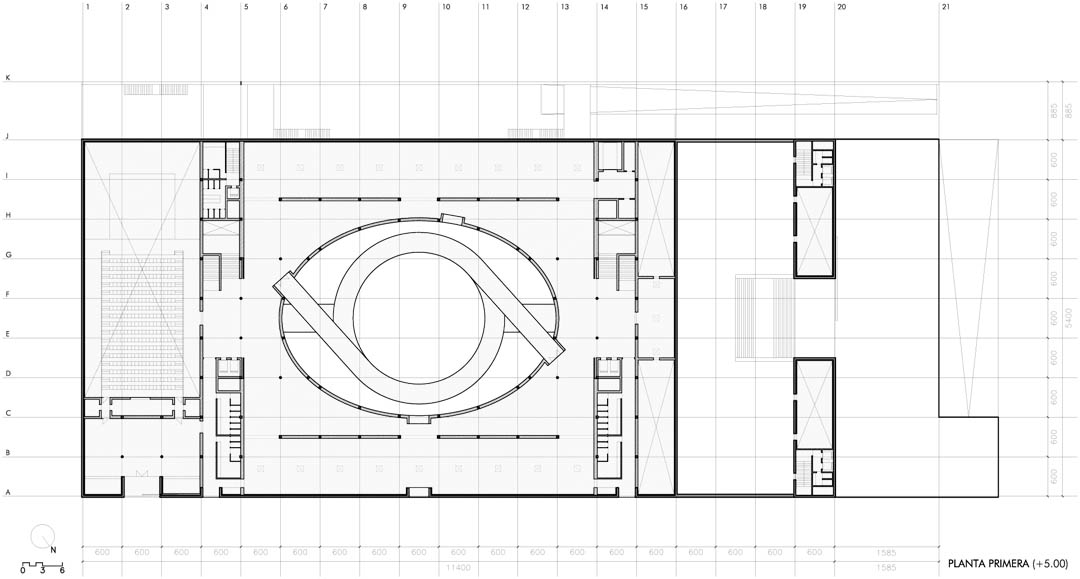

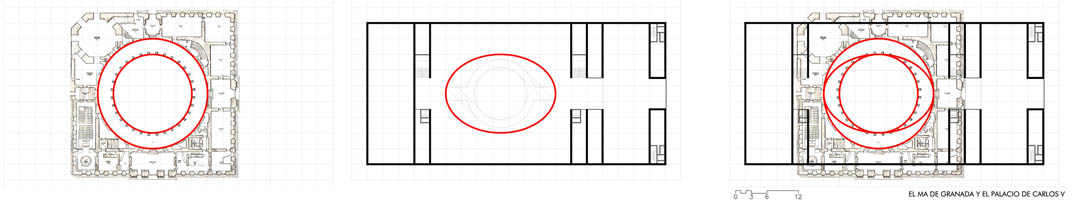

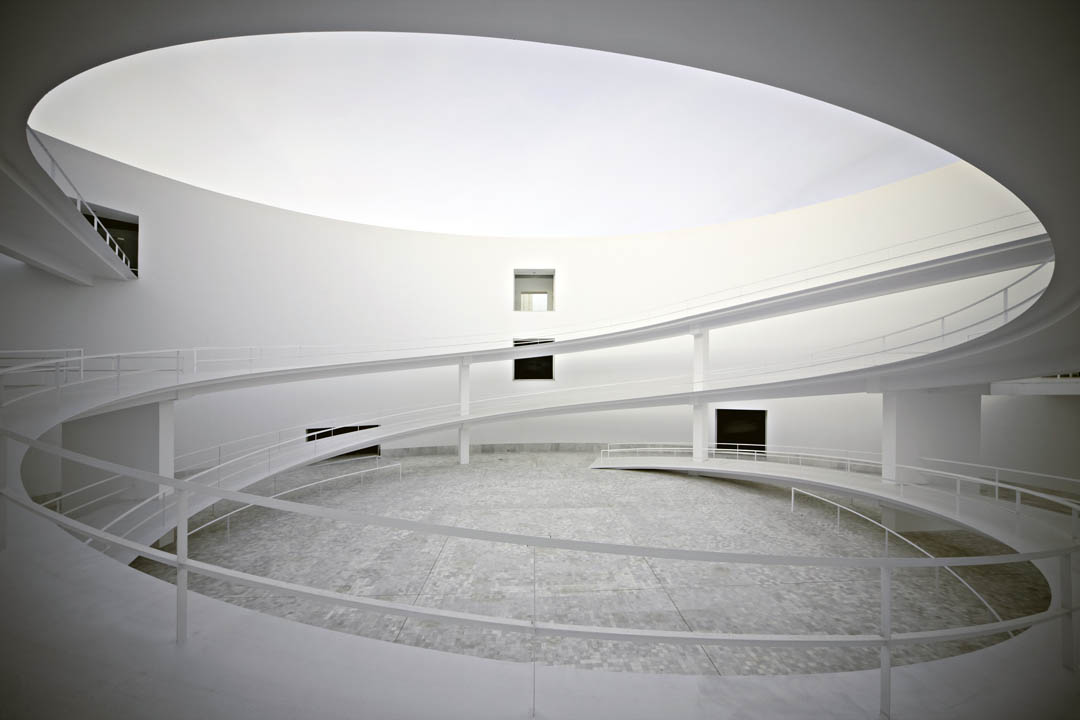

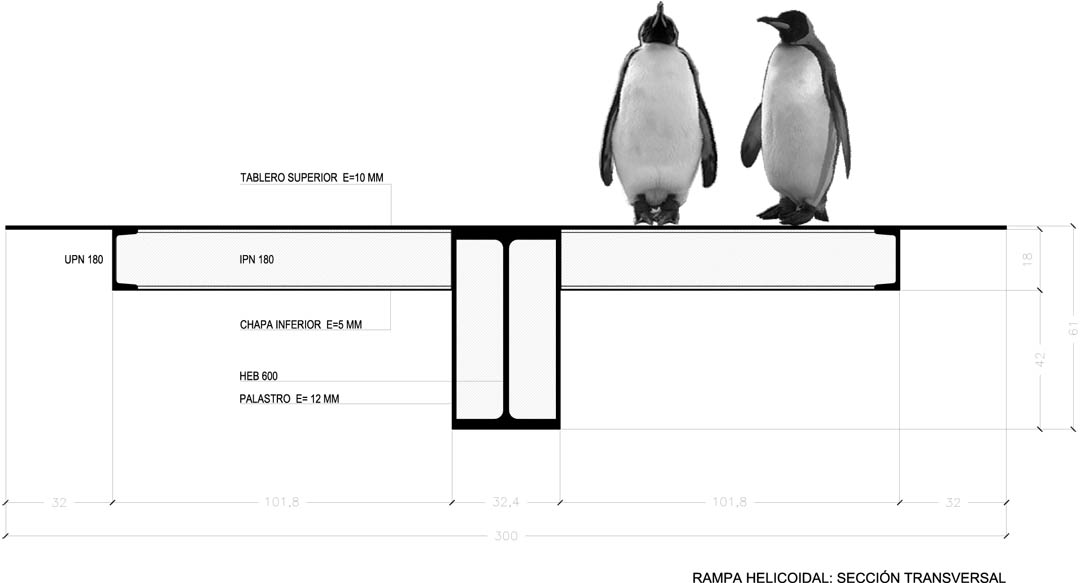

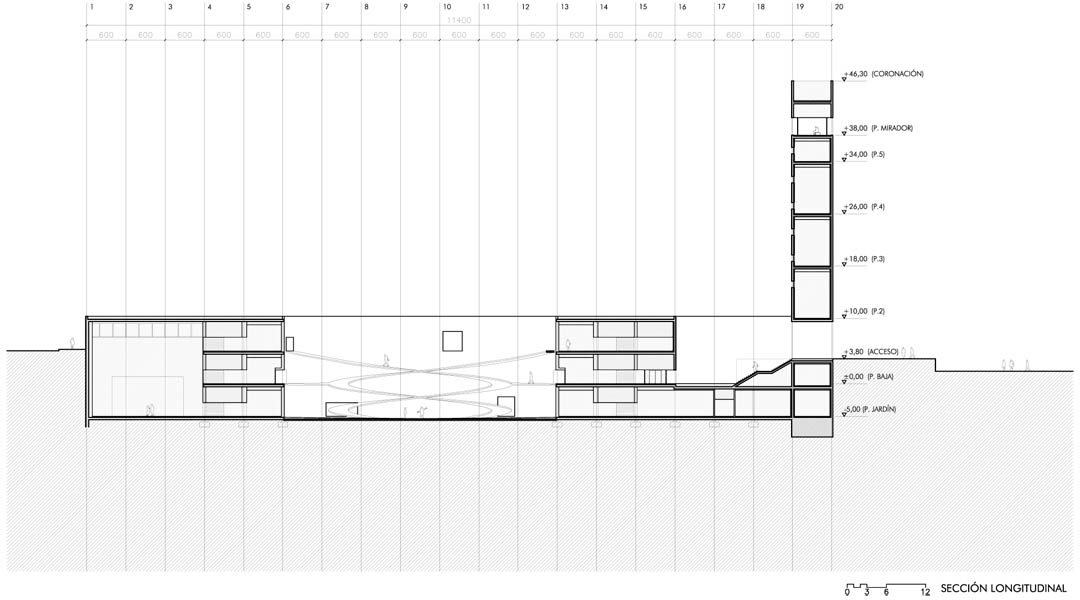

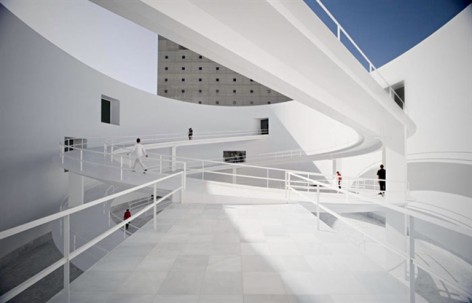

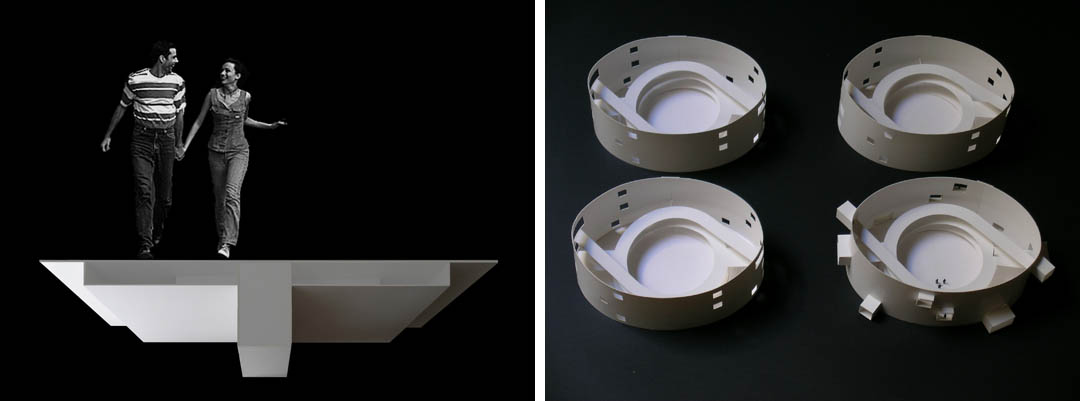

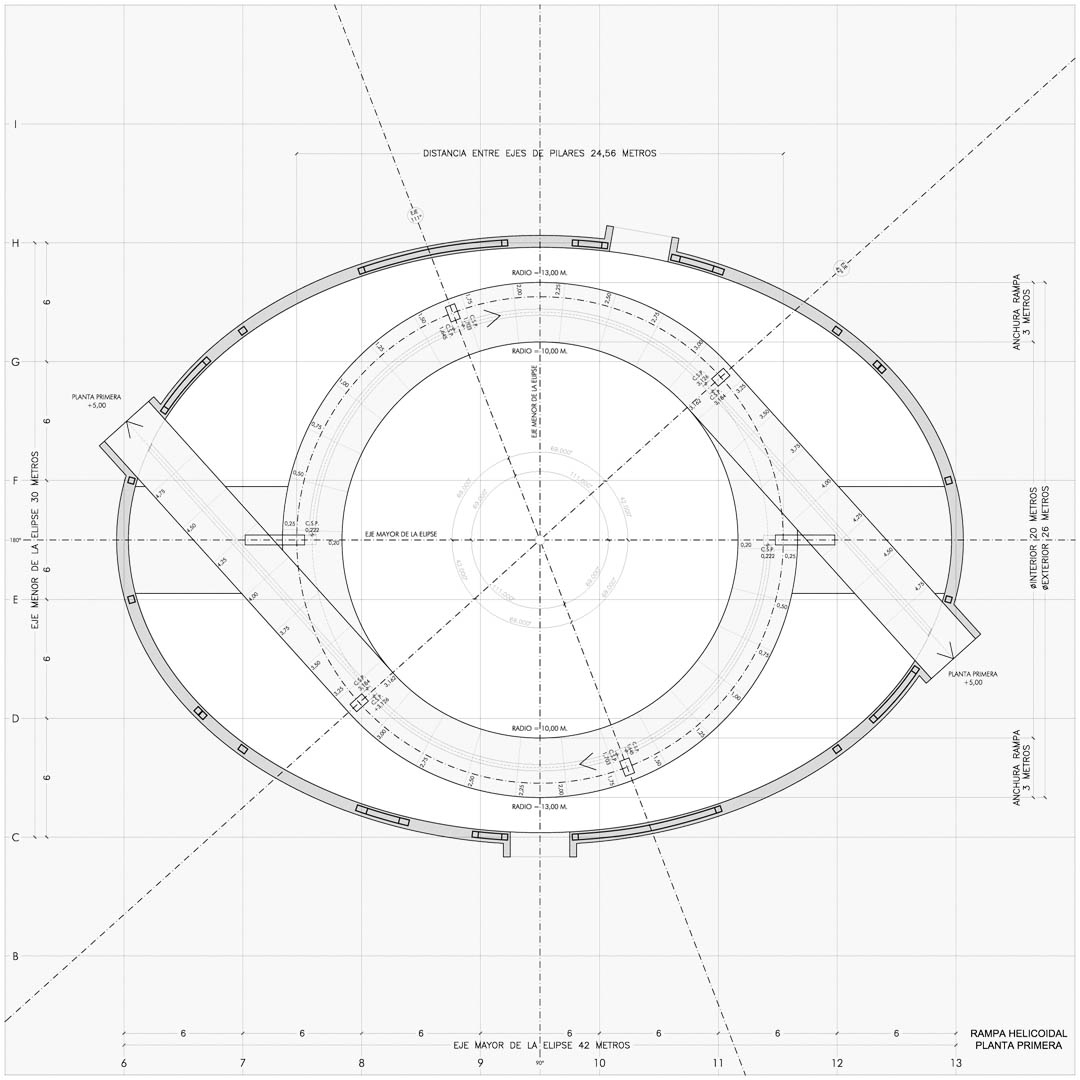

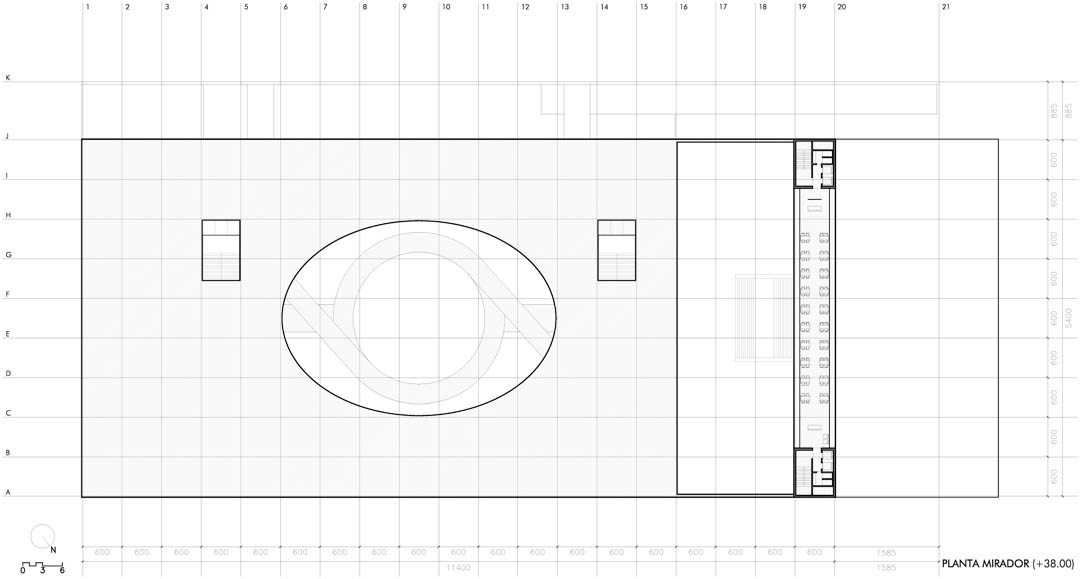

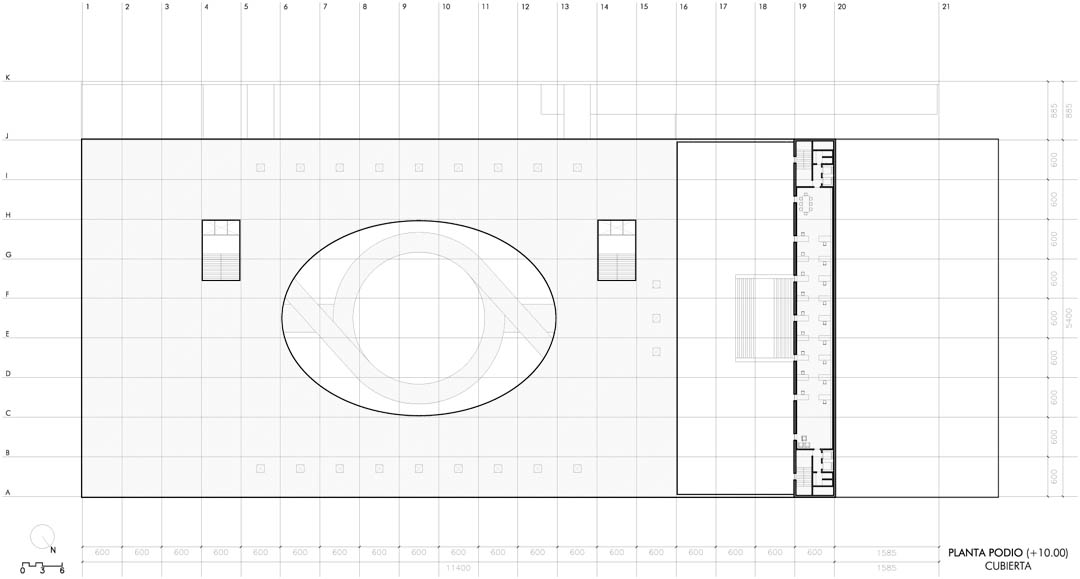

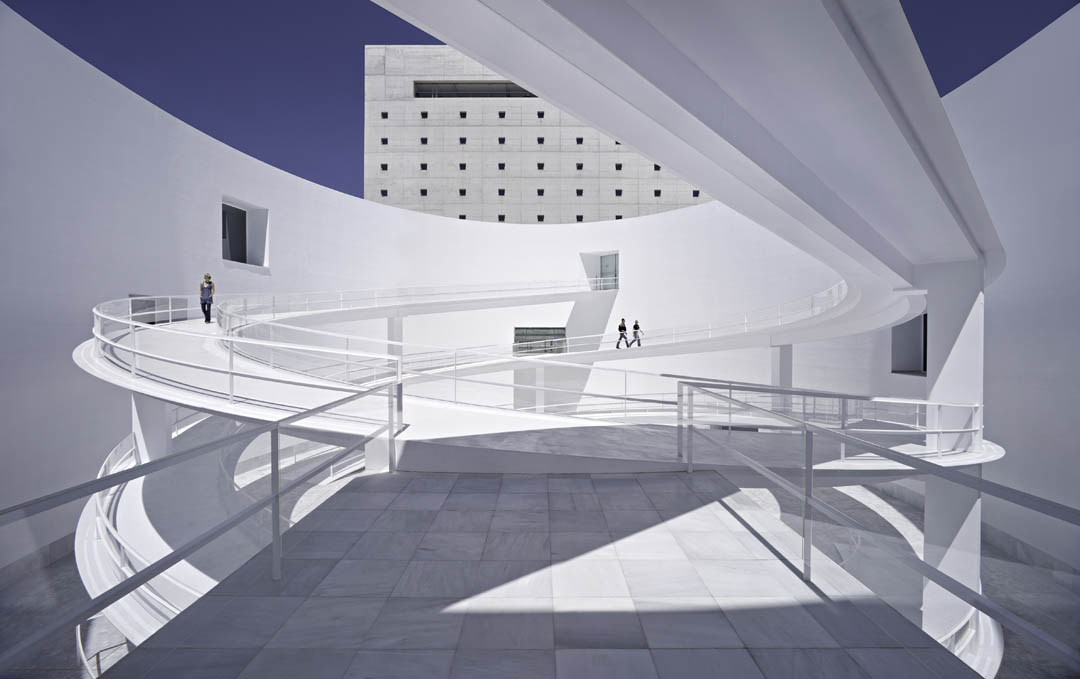

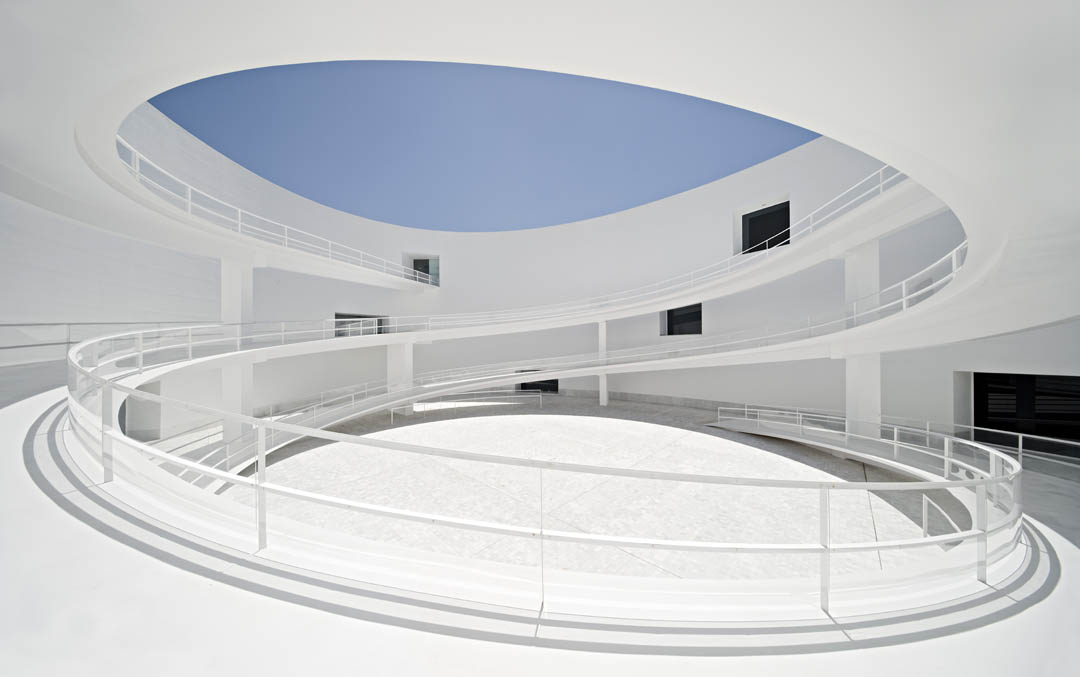

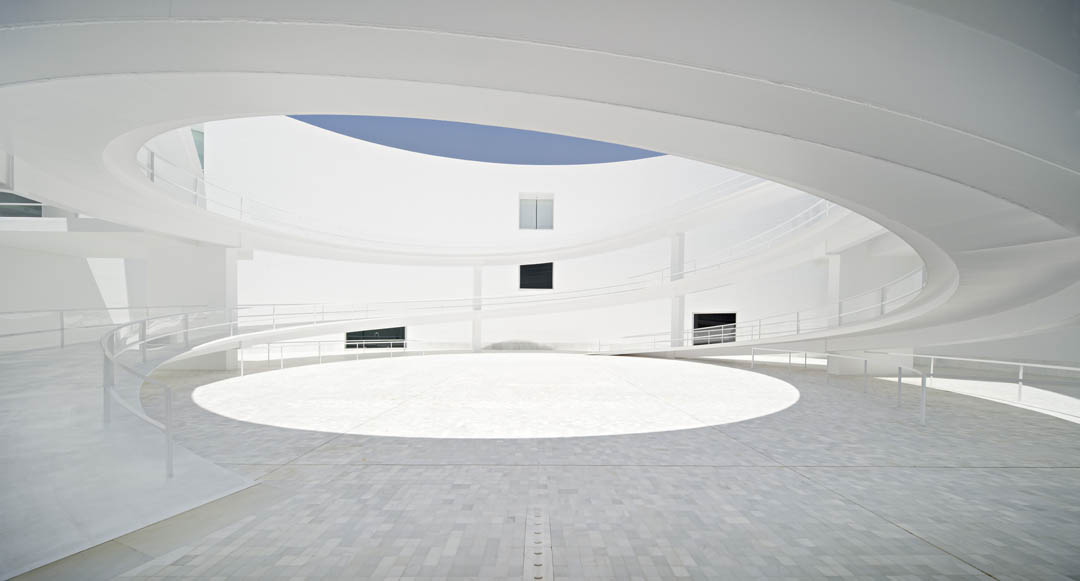

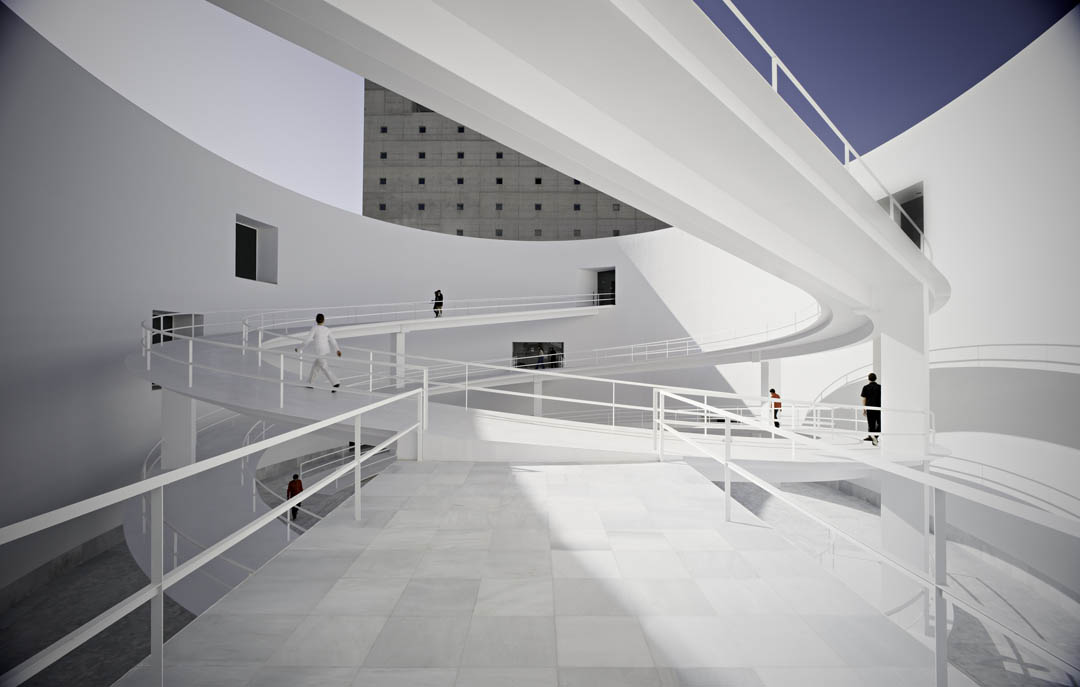

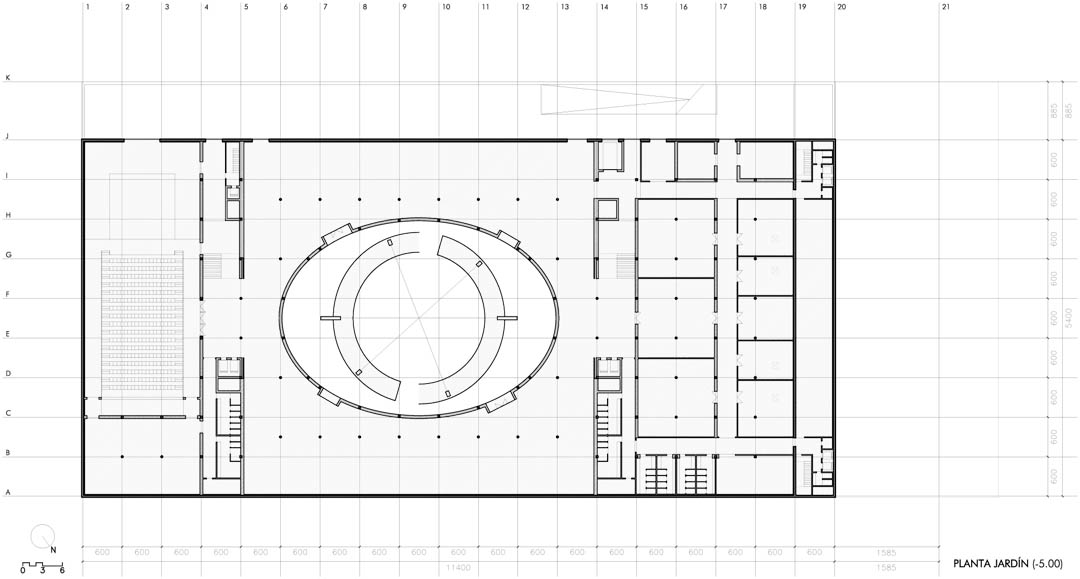

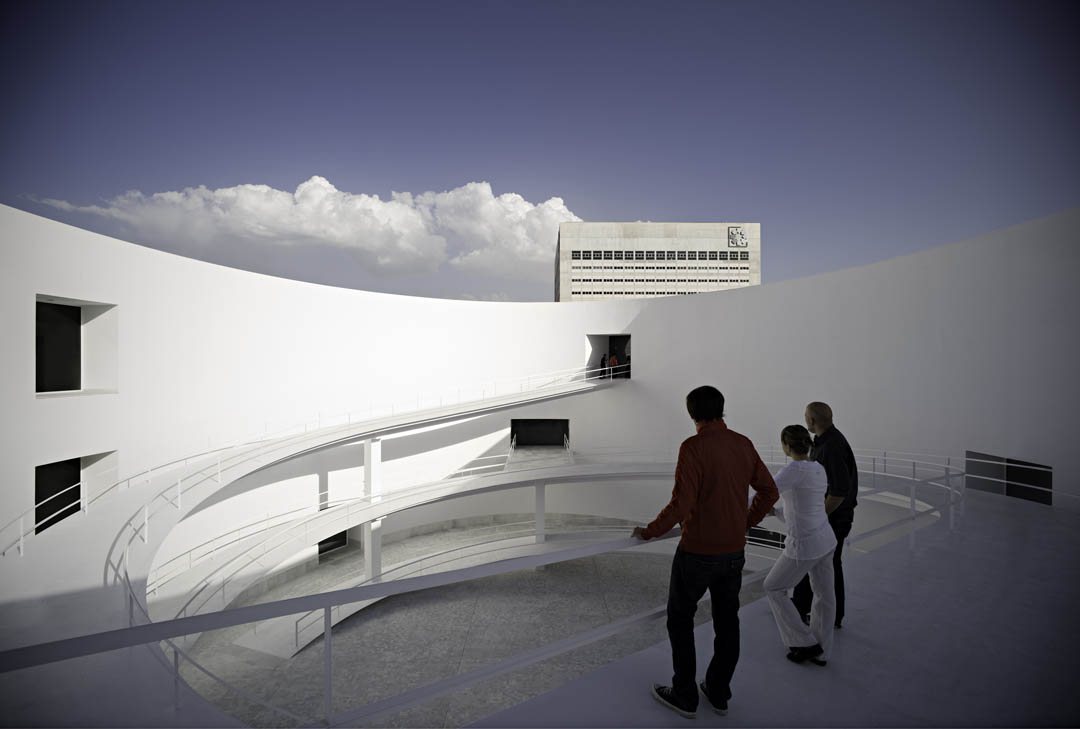

Our project for the MA is a building in line with the Central Headquarters of the CAJA GRANADA Savings Bank that we finished in 2001. We propose a podium building measuring 60×120 m and rising three stories, so that its upper floor coincides with the podium of the main CAJA GRANADA building. And its façade as well. Everything is arranged around a central courtyard, in elliptical form in which circular ramps rise, connecting the three levels and creating a very interesting spatial tension. The dimensions of the elliptical courtyard have been taken from the courtyard of the Palace of Charles the V in the Alhambra.

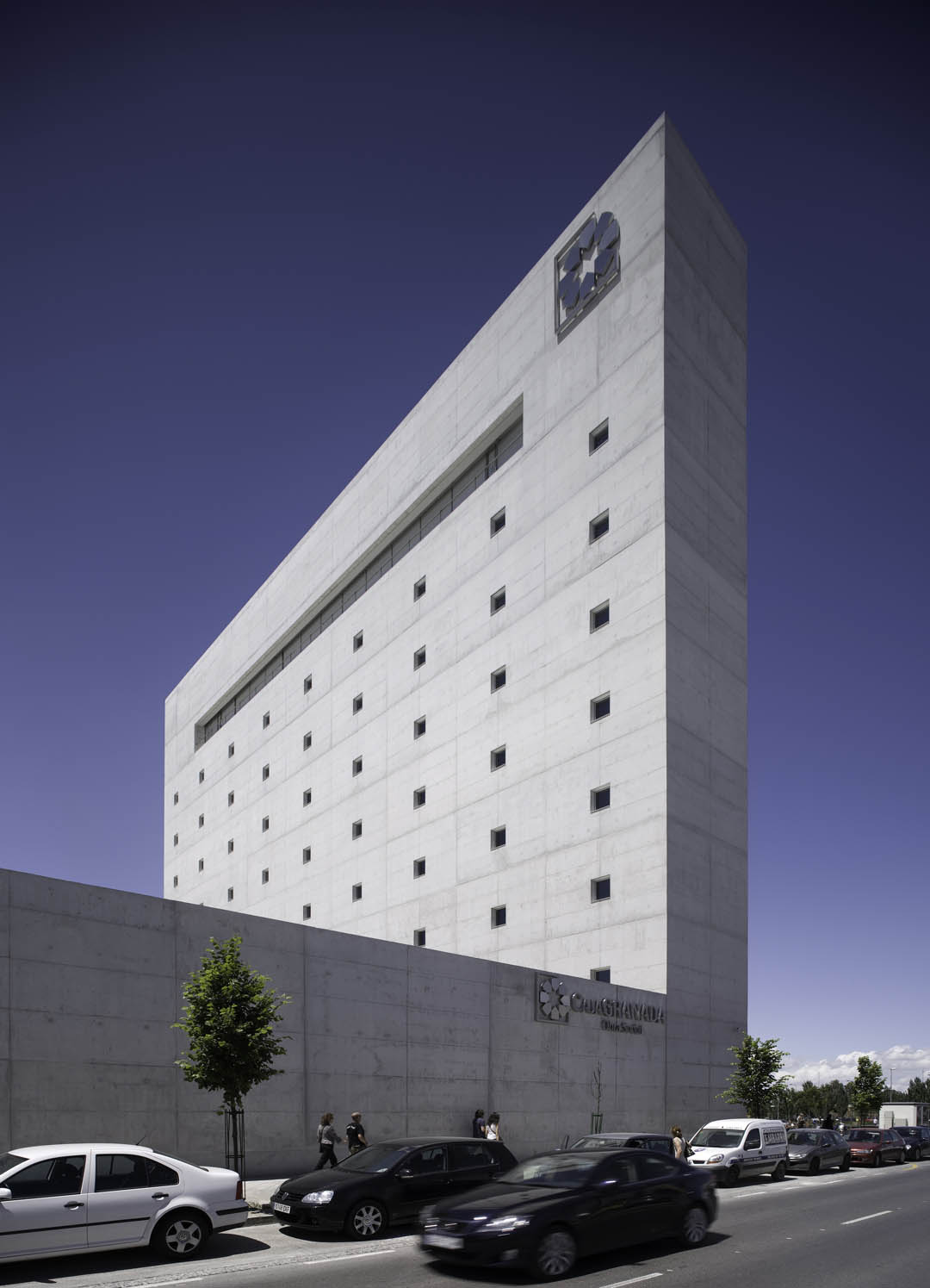

And to crown it all, as if it were a Gate to the City, a strong vertical piece emerges, the same height and width as the main building of the CAJA GRANADA. It thus appears before the highway that circles Granada as a screen-façade that sends messages over the large plasma screens that will cover it entirely. Like Piccadilly Circus in London or Times Square in New York.

And to finish the entire operation, a large horizontal platform all the way to the River, the MA open FIELD that will serve as a public space in that new area of the city of Granada.

The new building, silent in its forms, is resounding in its elements to communicate the messages of the new millennium in which we are already immersed.

Granada. 2008

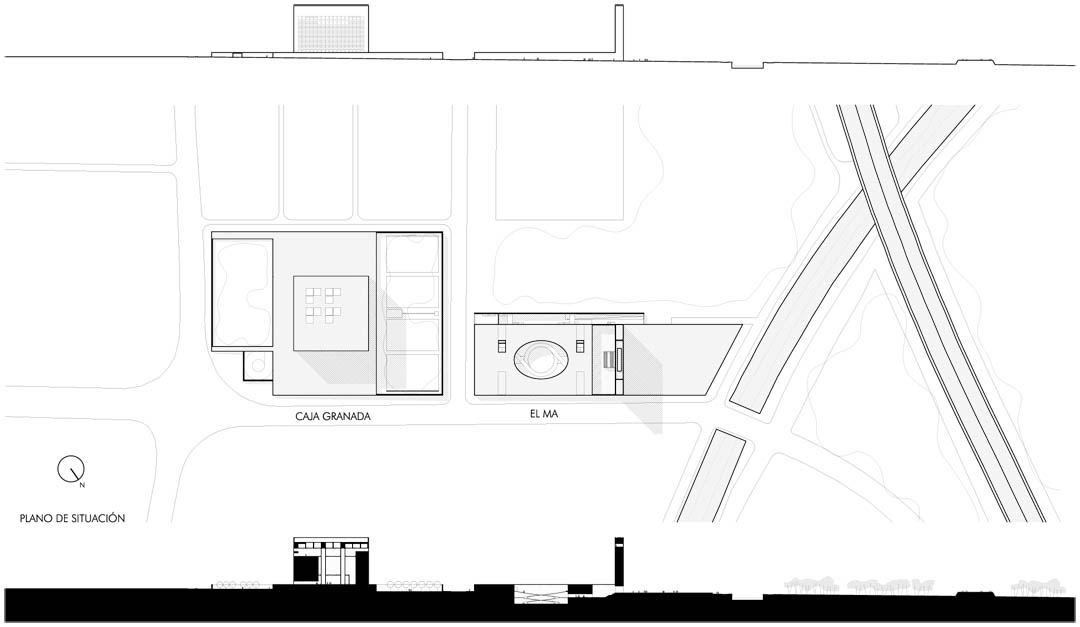

Location: Avenida de las Ciencias s/n, in line with the Central Headquarters of the Caja
Granada Savings Bank, also work of Alberto Campo Baeza.
Client: Caja Granada
Project: 2006
Construction: 2009
Area: 15.000 m2
Achitect: Alberto Campo Baeza.
Collaborating architects: Alejandro Cervilla García, Ignacio Aguirre López.
Structure: Andrés Rubio Morán, Mª Concepción Pérez Gutiérrez
Engineering: R. Úrculo Ingenieros Consultores S.A.
Collaborators: Miguel Cabrillo, Sergio Sánchez Muñoz, Petter Palander
Budget: 30.000.000 €
Project Manager: 3.14 Gestión + Arquitectura
Quantity Surveyor: Luís Olmedo
Exhibition: GPD, General de Producciones y Diseño S.A.
Building Firms: Estructuras Reina María S.L., Grupo Salmerón, Metalistería Torcuato
López S.L., Aislamientos Tabiplac S.L., AFF S.L.U., I.T. Curiel, Crespo y Blasco S.A.,
Flamesa, P.R.S. Proyectos e Instalaciones S.L., Kone Elevadores S.A., Andarivel
