感谢 IDIN Architects 予gooood分享以下内容。更多请至： IDIN Architects on gooood
Appreciation towards IDIN Architects for providing the following description:

“Riva Vista河滨河度假村”是一家拥有61间客房的度假酒店，位于流经泰国清莱省中心的Kok河河畔。清莱省以其独特且古老的传统文化而闻名，近些年发展迅速，目前已成为泰国著名的旅游城市之一。本项目对设计者的要求是在市中心、河岸旁打造一座中型酒店，并且需要顺应城市居民的生活方式，因为该城市的居民是这家酒店的主要目标客户。因此，设计者在设计中同时呈现了现代化的设计和泰国北部的乡土特色，并将这两种风格融合为一道看齐奇特的“菜肴”——使用乡土食材，却用现代技术烹饪，新旧结合设计手法。

“Riva Vista Riverfront Resort” is a 61 keys hotel situated next to Kok River in the heart of Chiang Rai province. Known for its distinctive ancient traditions, Chiang Rai is experiencing a rapid growth in recent years and has become one of Thailand’s famous destinations. The brief requires a design of a medium-size hotel on a site that is adjacent to a river, in the heart of a city. It has to answer to the lifestyle of city dwellers, which is the main target user of the project. The architect’s intention is therefore, to capture the essence of modernity with a vernacular Northern Thai character and deconstruct both aspects into one seemingly peculiar “dish” that uses vernacular ingredients but prepared in modern techniques – a mixture of both old and new.

▼项目概览，Overall view © DOF Sky|Ground

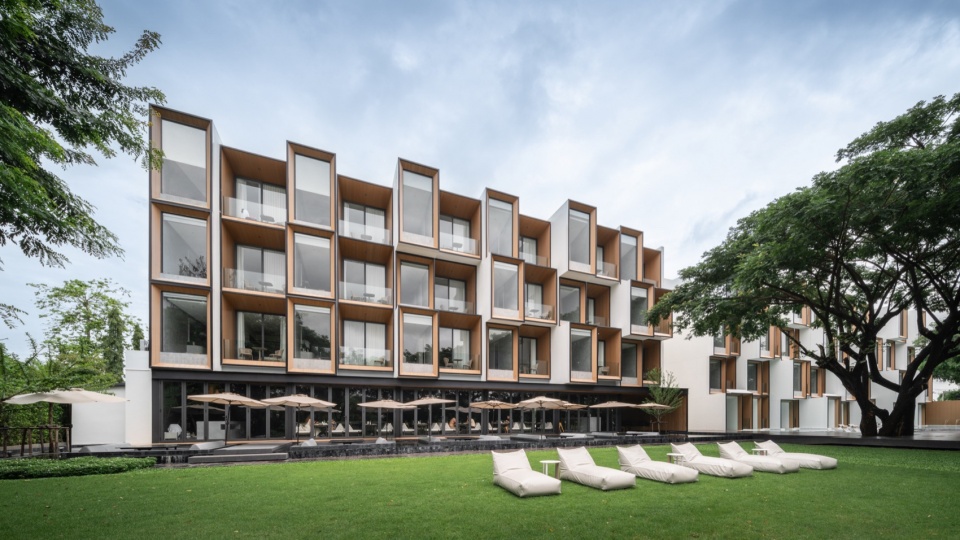

▼建筑外观，Exterior view © DOF Sky|Ground

由于项目选址位置独特，用地被一条道路划分成两部分，其中一部分的临街面与清莱主要水道之一Kok河相邻，酒店中的全日餐厅河主套房均位于这部分建筑内，这样能够充分欣赏到河景。设计者采用了单侧走廊的设计，使所有客房都能拥有河景视野。这两部分由一个巨型的雨树相连，并且还有一条能够通往河边的步道。道路后侧是用地的第二部分，设计者在这里建造了一座L形的建筑，中间环绕着游泳池，这部分的每间客房都有通向泳池的私人通道，以弥补缺少河景的不足。这部分建筑中设置了大堂、会议室、健身中心和水疗中心，建筑中间形成的较为封闭的庭院可以用于私人聚会。

▼项目用地分析图，site analysis © IDIN Architects

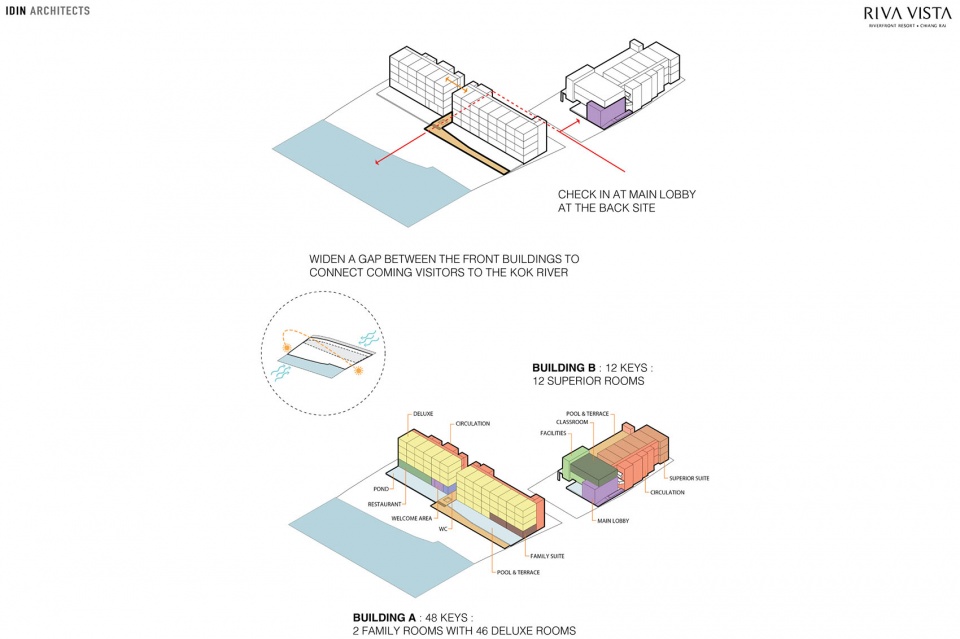

▼建筑体量分析图，volumn analysis © IDIN Architects

Due to the site’s unique location, divided by a road and separated into two plots, one of the plots has its frontage along the bank of the Kok River, one of Chiang Rai’s main waterways. The all-day dining as well as the main suites are placed in a building in this plot to take advantage of the river view. Single corridor is used in the design to allow all guest rooms to have a river view, while the building is divided into two parts to open the view to the existing giant rain tree and to connect to the walkway leading to the riverfront. On the second land plot located behind the road, the L-shape building wrapped around a main pool, with direct private access from each guest room to compensate for the lack of river view. The building mass consists of the lobby, a seminar room, a fitness center and a spa create an enclosed court with a swimming pool in the center, where it can be closed off for private parties.

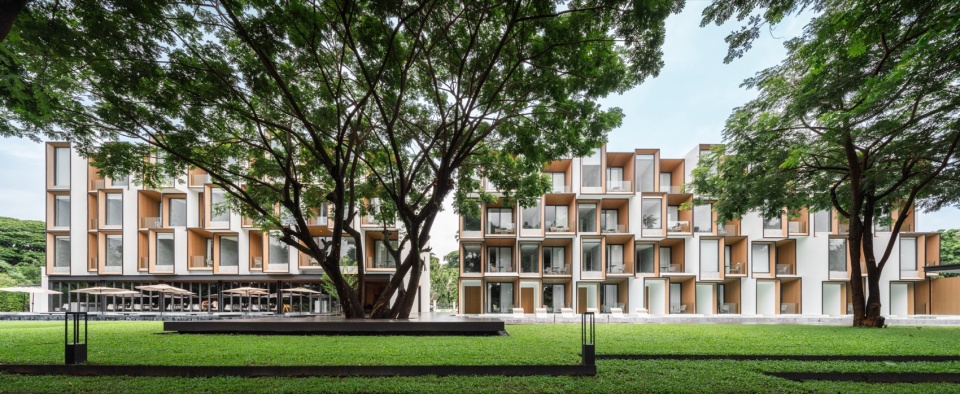

▼项目被划分为两个部分，Divided by a road and separated into two plots © DOF Sky|Ground

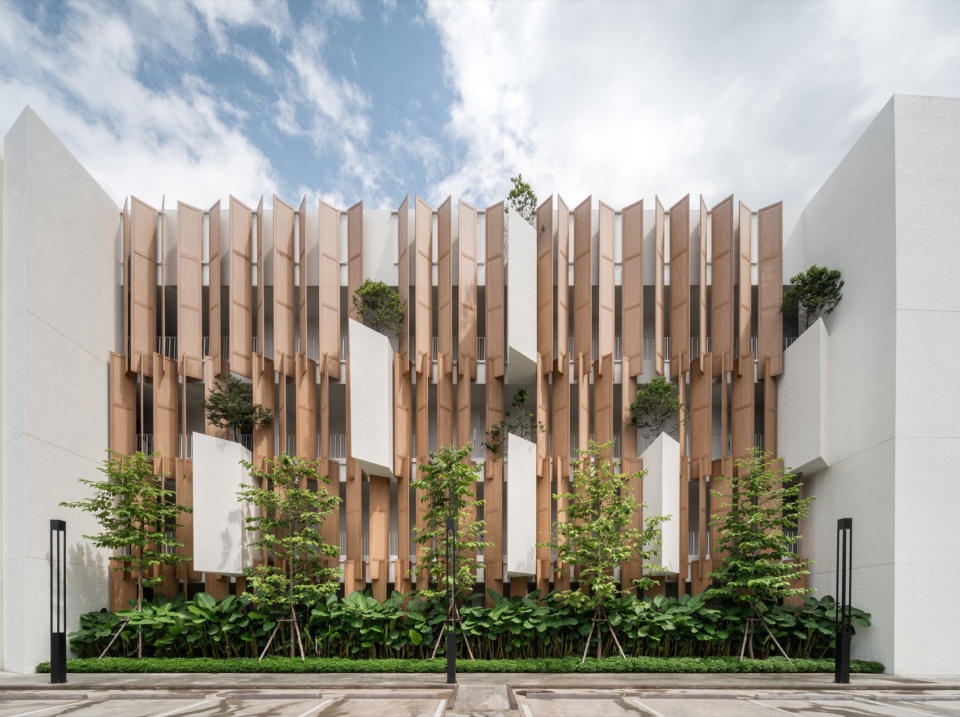

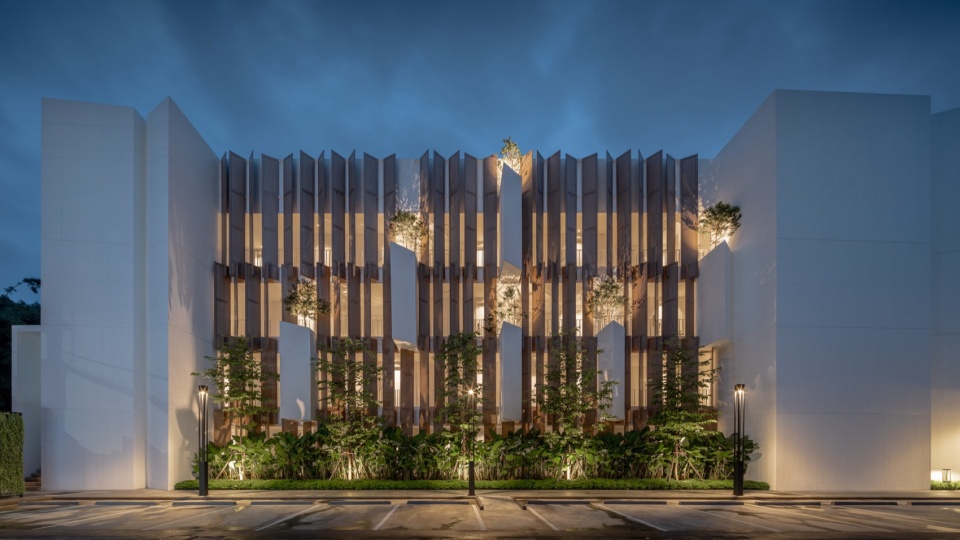

▼建筑立面，Facade © DOF Sky|Ground

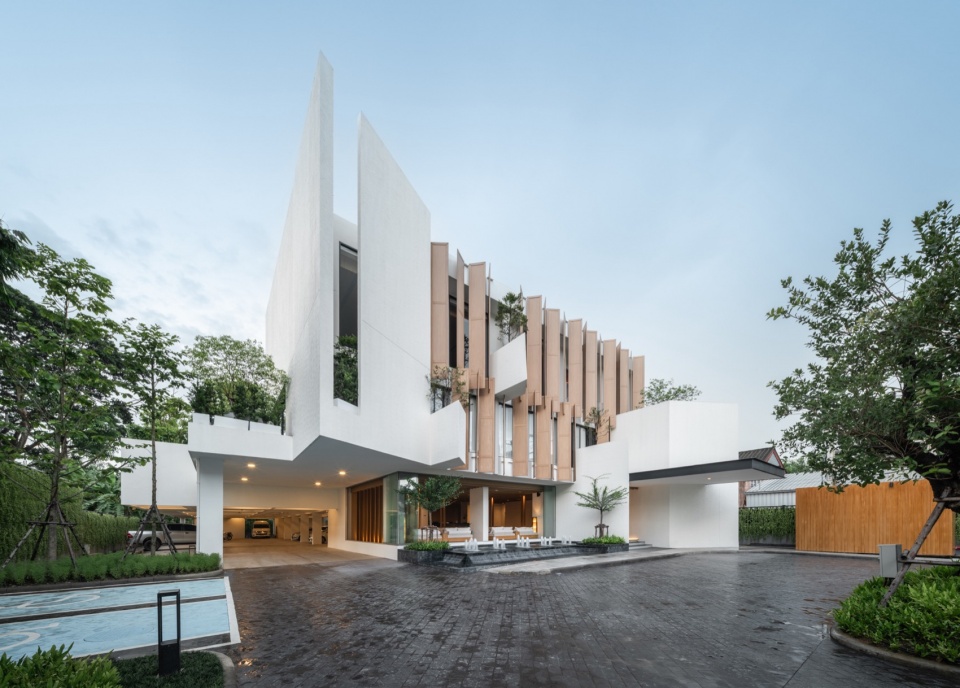

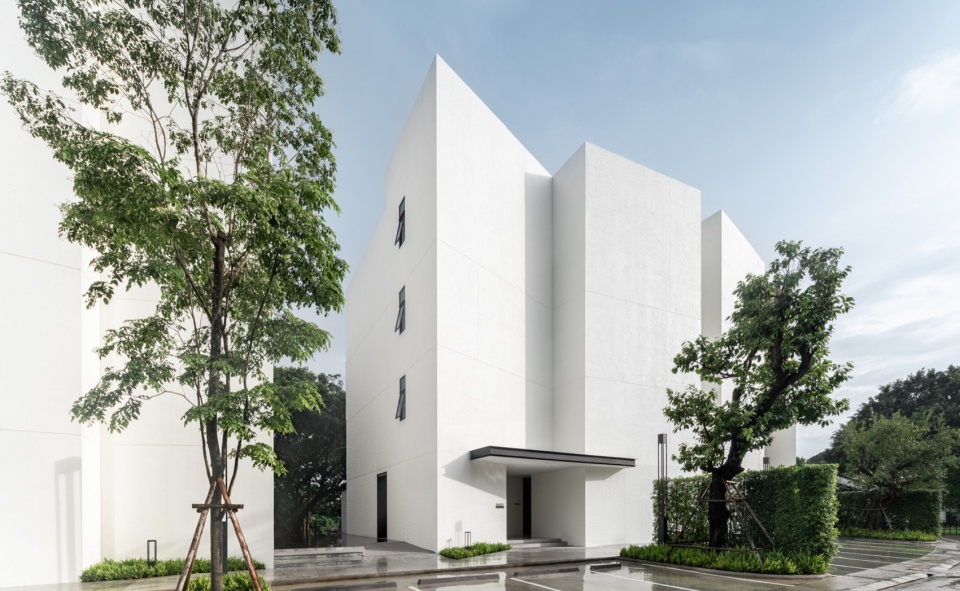

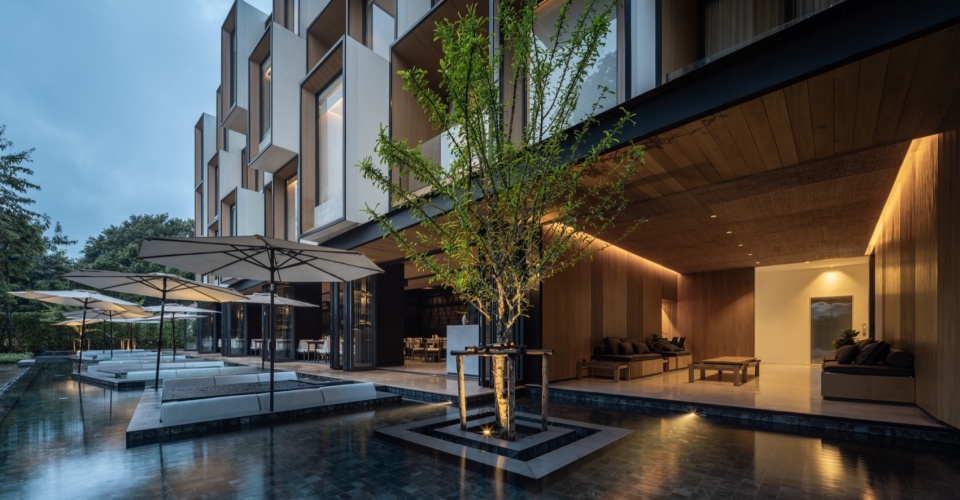

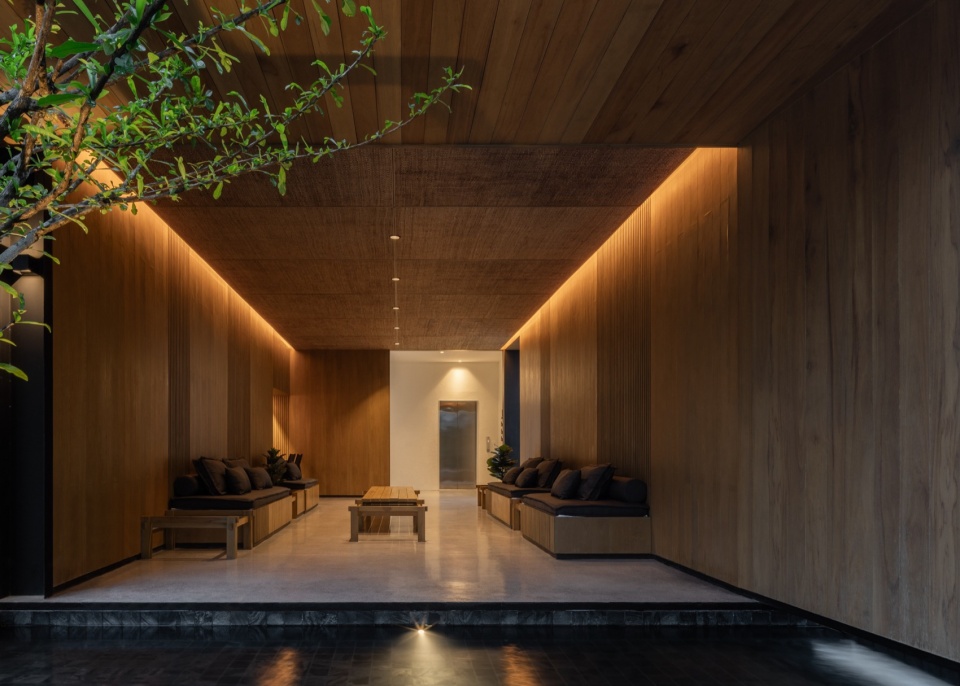

▼入口处，Entrance © DOF Sky|Ground

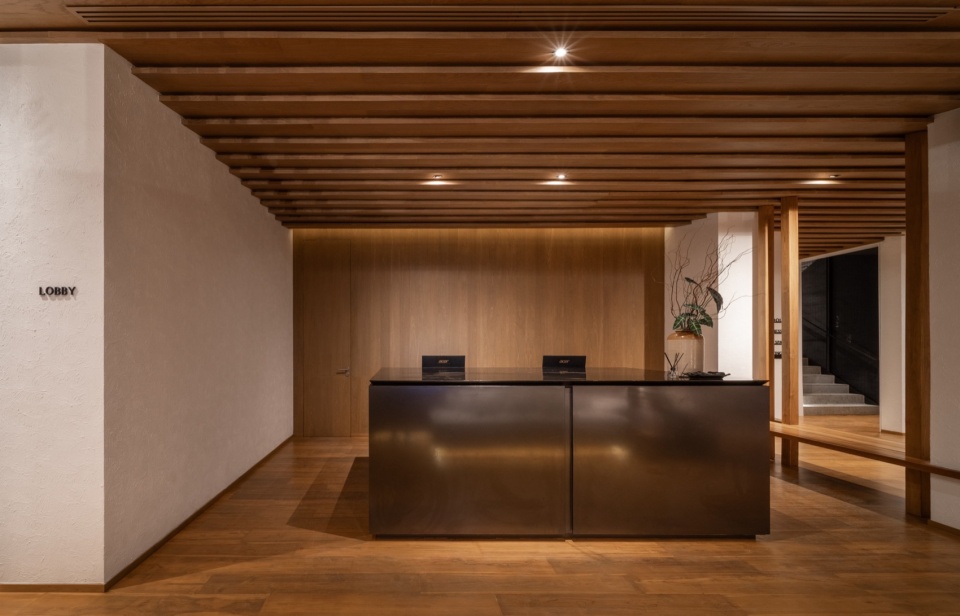

▼接待处，Reception © DOF Sky|Ground

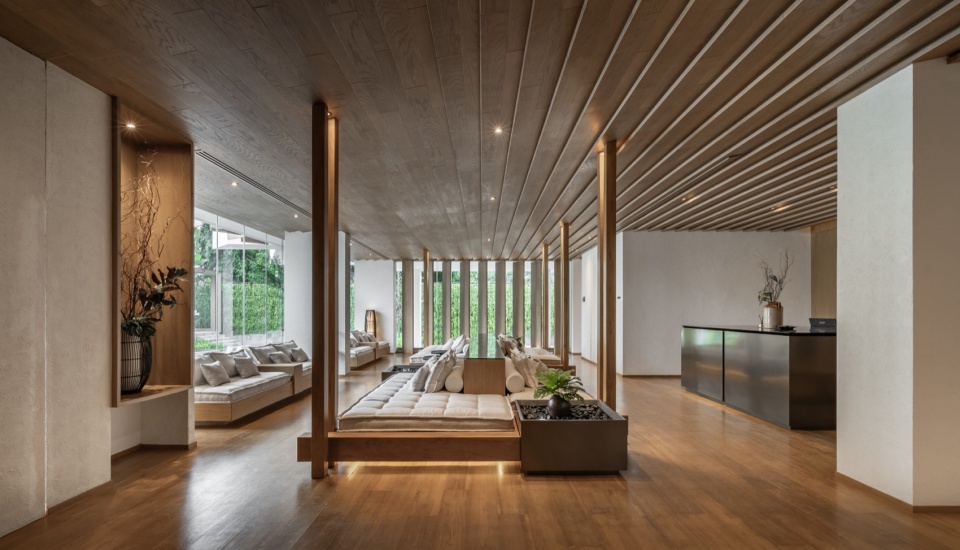

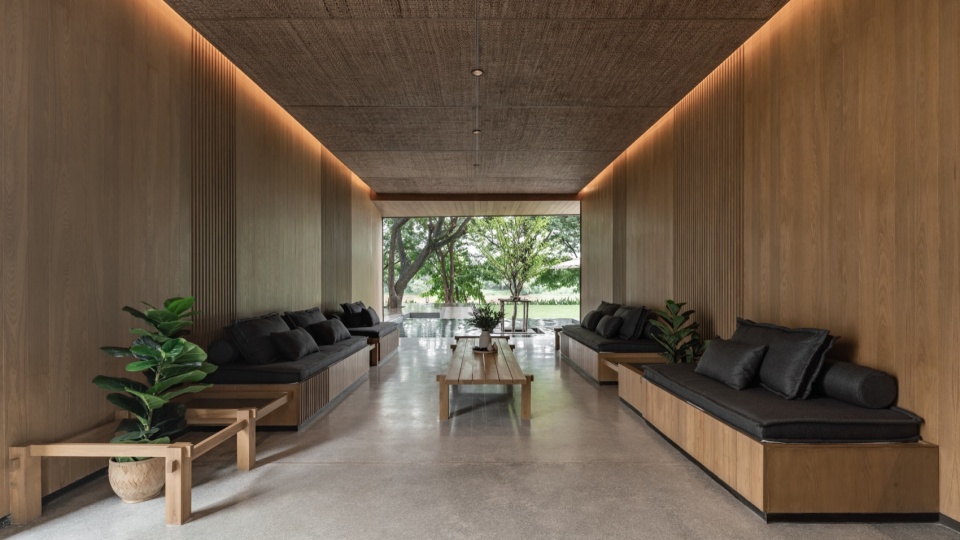

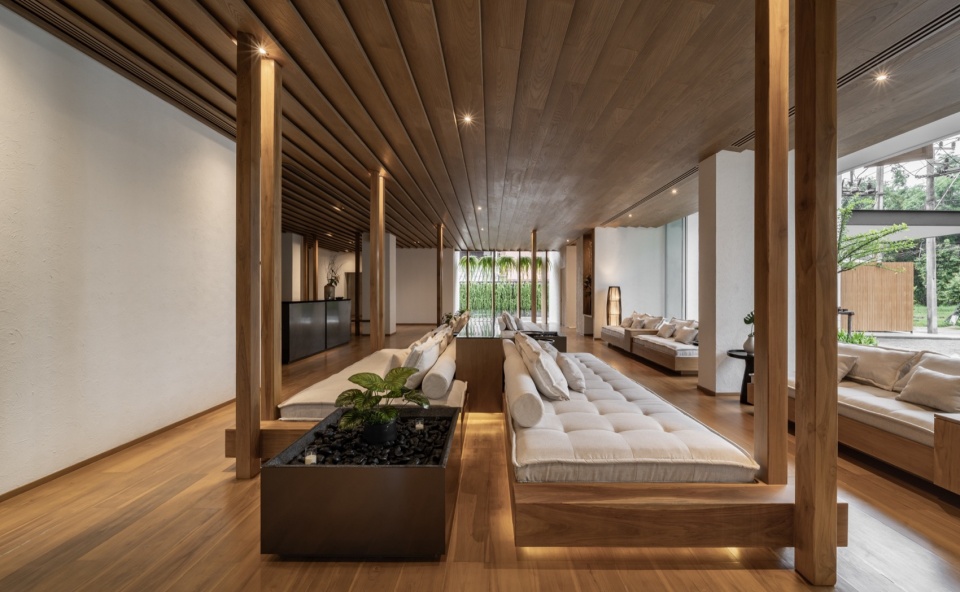

▼接待大厅休息处，Lounge area © DOF Sky|Ground

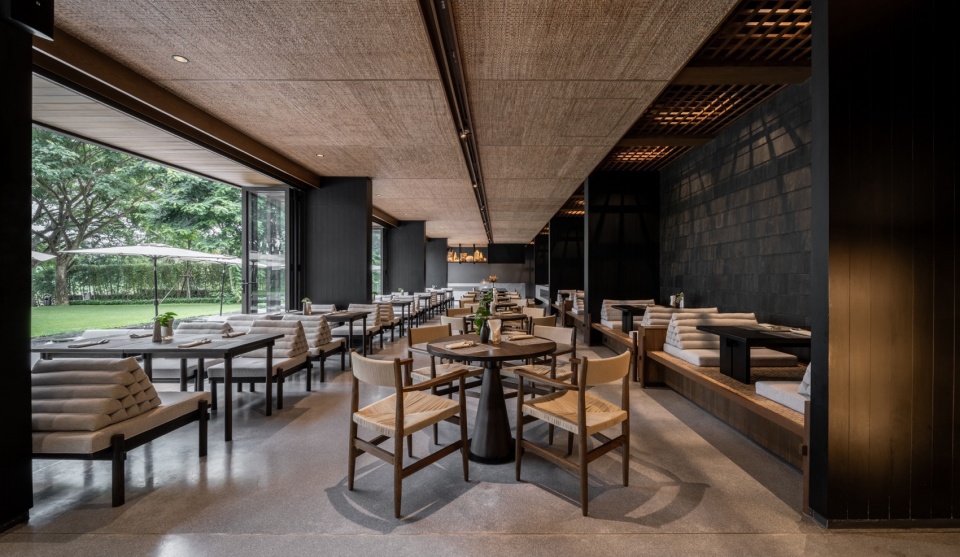

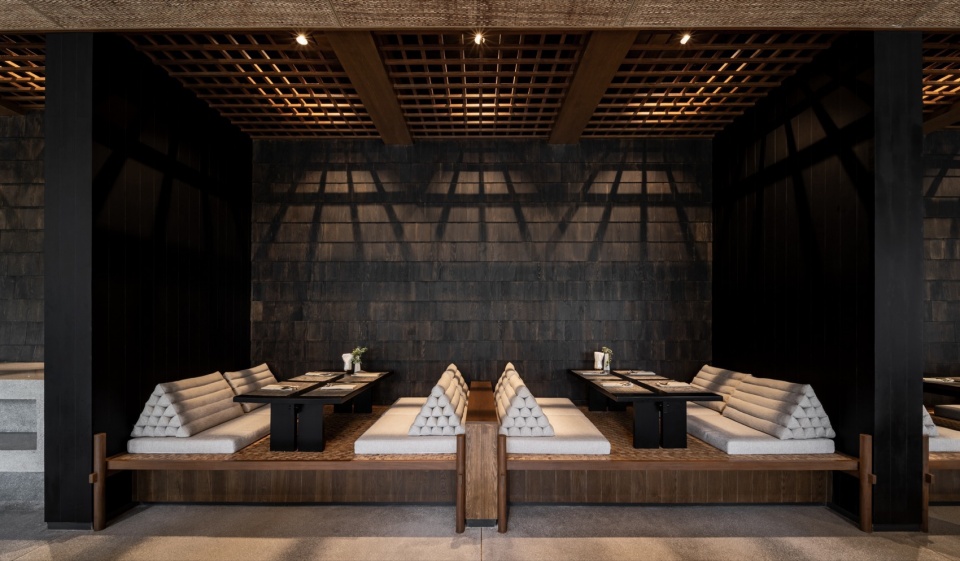

▼餐厅，Dining area © DOF Sky|Ground

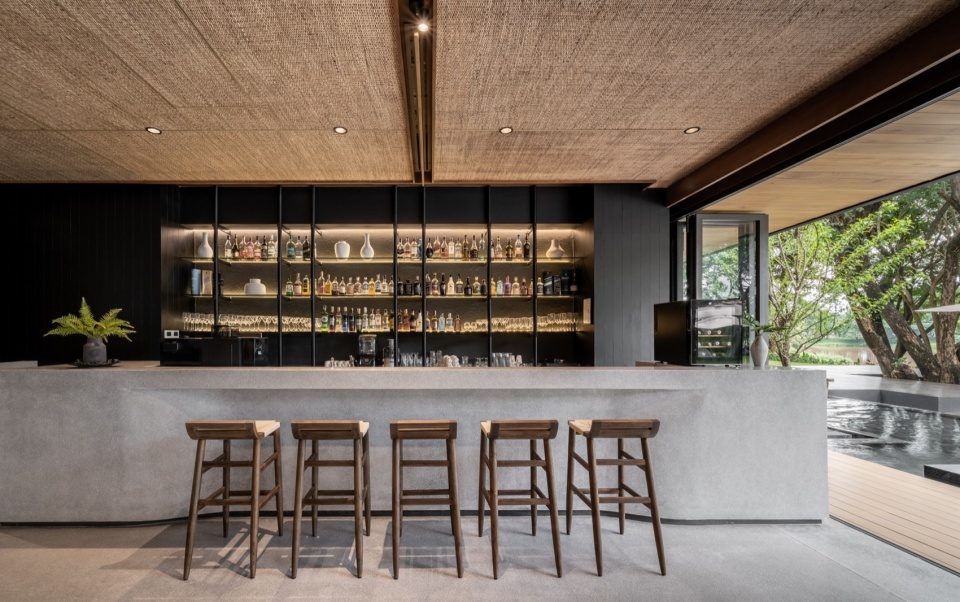

▼吧台，Bar © DOF Sky|Ground

设计者以现代设计手法与Lanna地区乡村建筑语言相融合，坚固与开放并置，还采用了白色色调，营造出一种宁静与简洁的对比氛围，这种对比的理念从室外延伸到了室内，在色彩和材料等方面的选择也同样融入了Lanna地区的传统元素。其中包括方言元素，例如“Tern”（เติ๋น）；多功能升降平台“Kwan”（ควั่น）；传统的悬挂式储物柜——安装天花板上的交叉木格和“Raan-Nam”（ร้านนา）；还有传统习俗中放置在门口的迎宾架子，所有这些设计与家具都特意展示了当地传统的木接缝工艺，以突出Lanna建筑的特色。

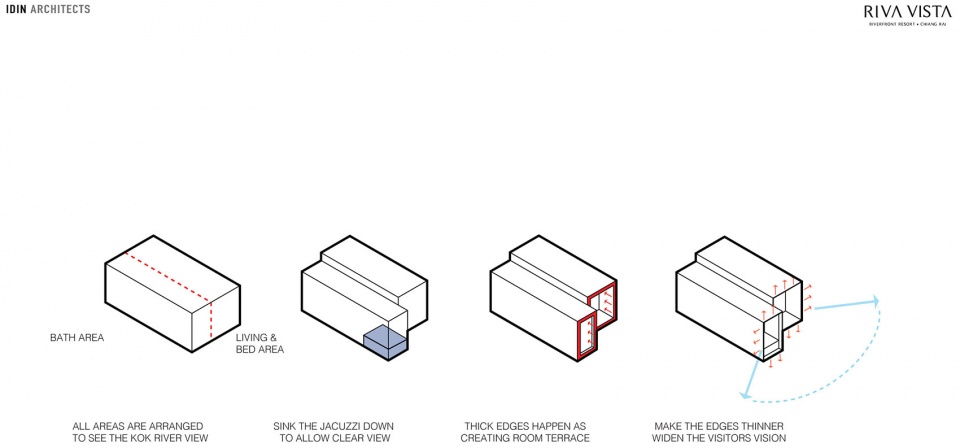

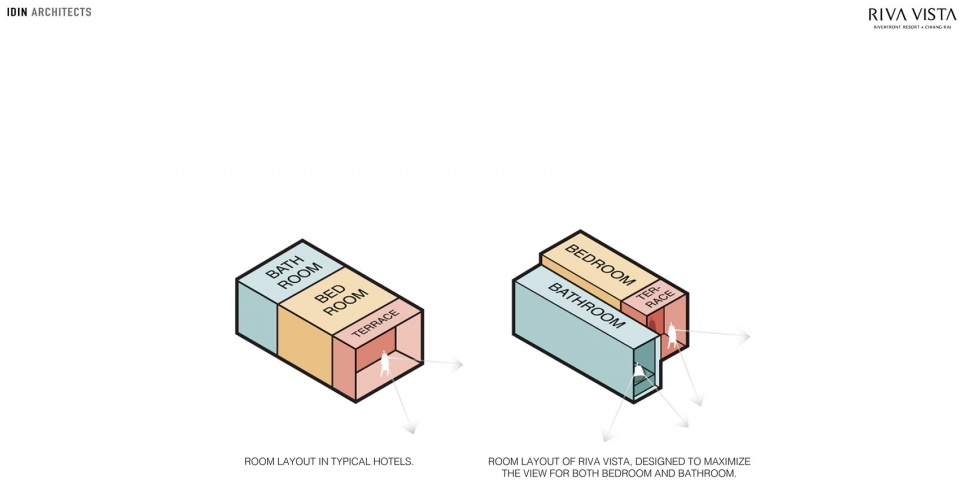

▼客房分析图，analysis of the guest room © IDIN Architects

From the concept of mixing modern form with the architectural language of Lanna vernacular architecture, the architect creates contrast through the juxtaposition between the solid and openness in combination with the stillness and simplicity of the white color scheme. This idea of contrast extends inwards to the interior, where traditional Lanna architectural elements such as colors and materials are borrowed and integrated into the design. These includes vernacular elements such as “Tern” (เติ๋น); a multifunctional raised platform, “Kwan ” (ควั่น); a traditional hanging storage resembling a crossing wooden grid on the ceiling and “Raan-Nam” (ร้านนา); a shelf traditionally used to hold a welcoming water jug for passerby, all of which are used along the interior furniture that purposely showcase traditional wood joints to highlight influence of Lanna architectural elements.

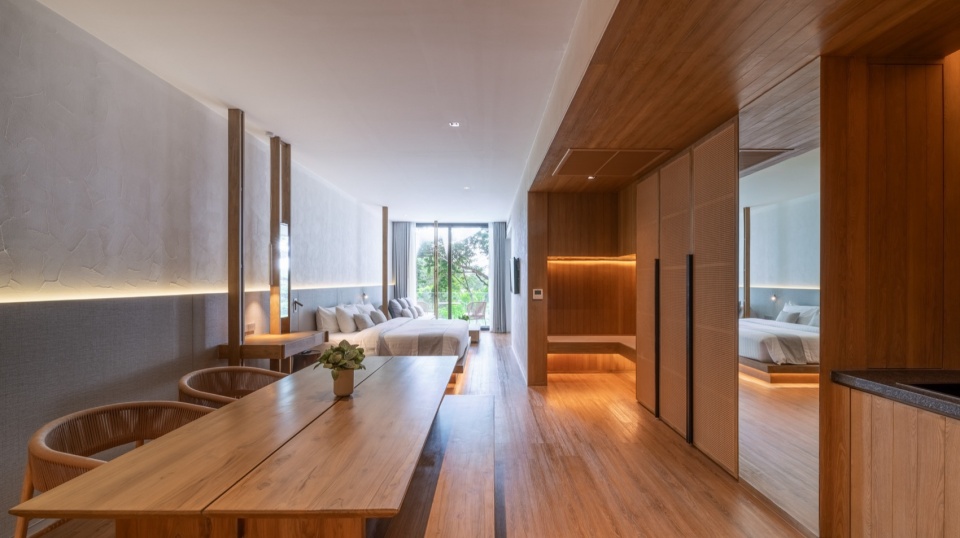

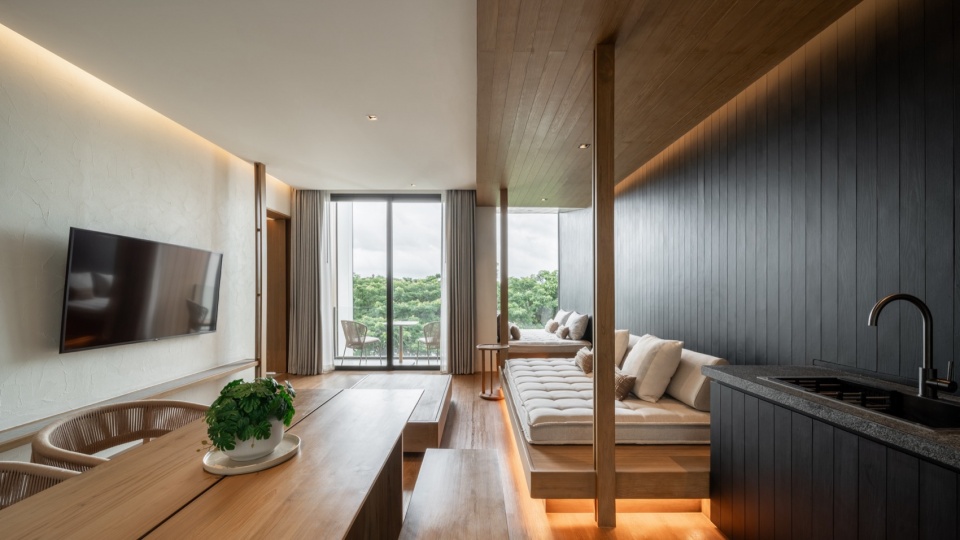

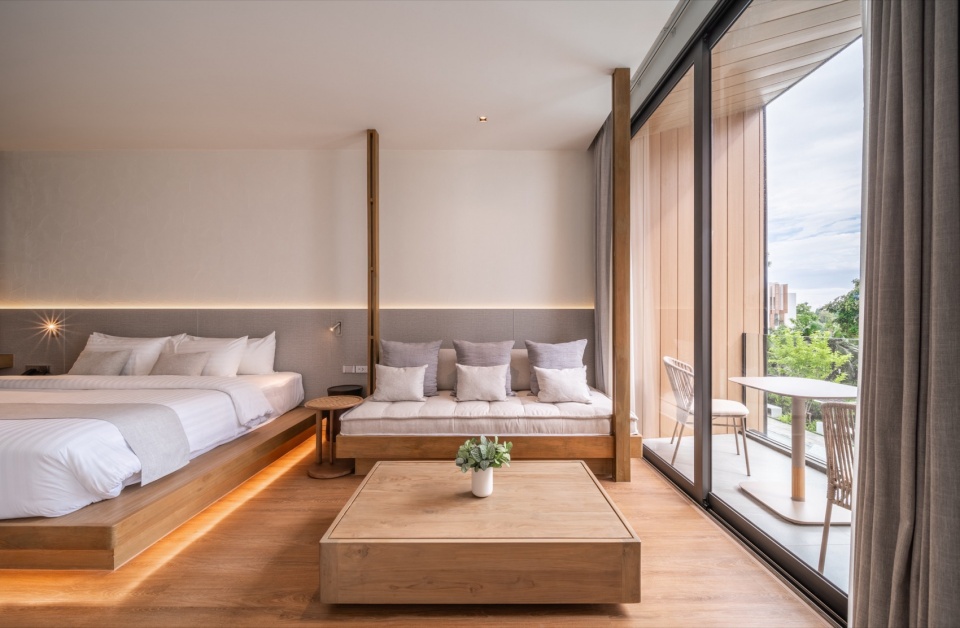

▼客房，Guest room © DOF Sky|Ground

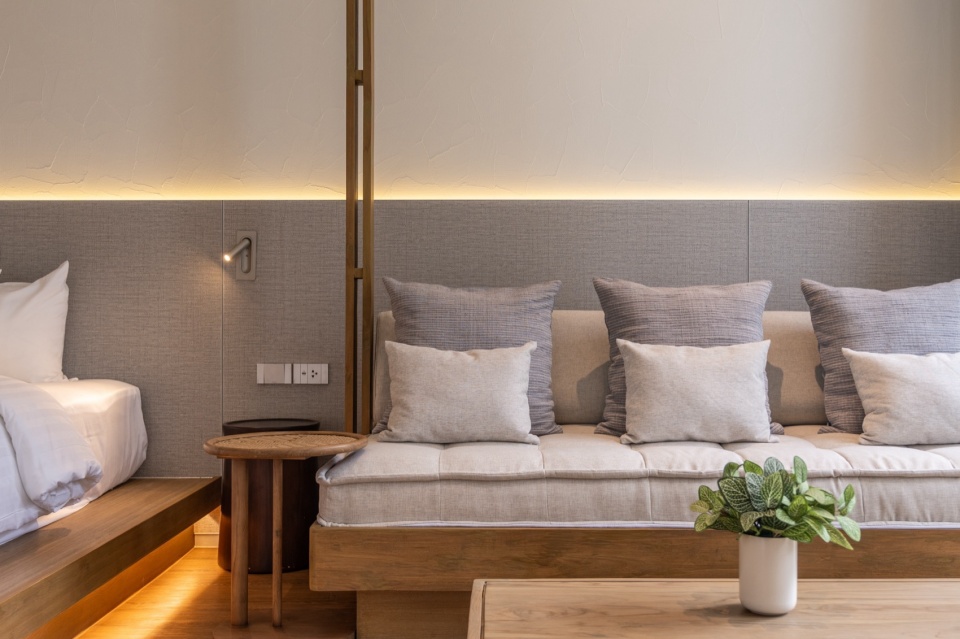

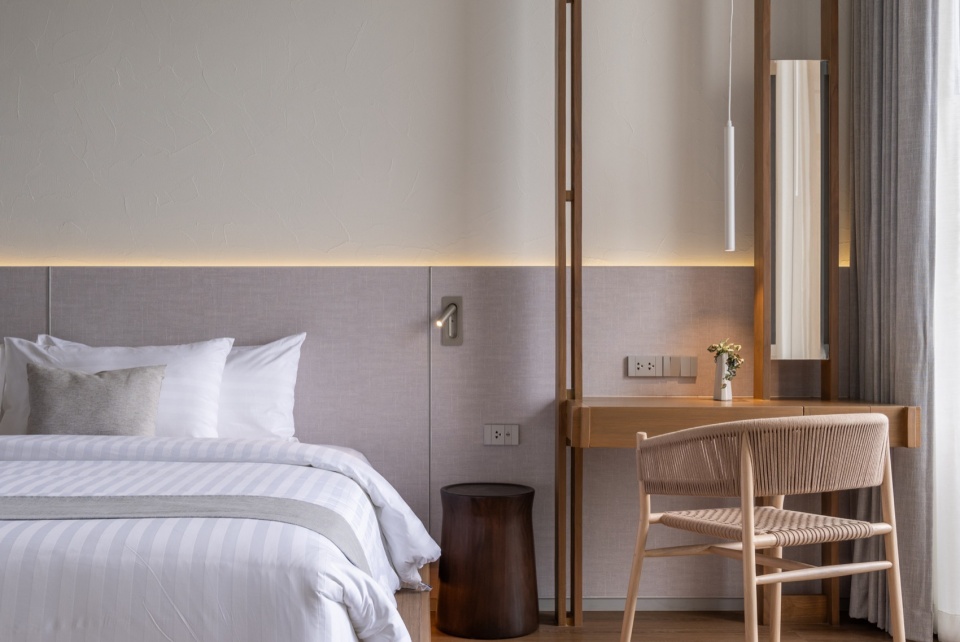

▼客房卧室，Bedroom © DOF Sky|Ground

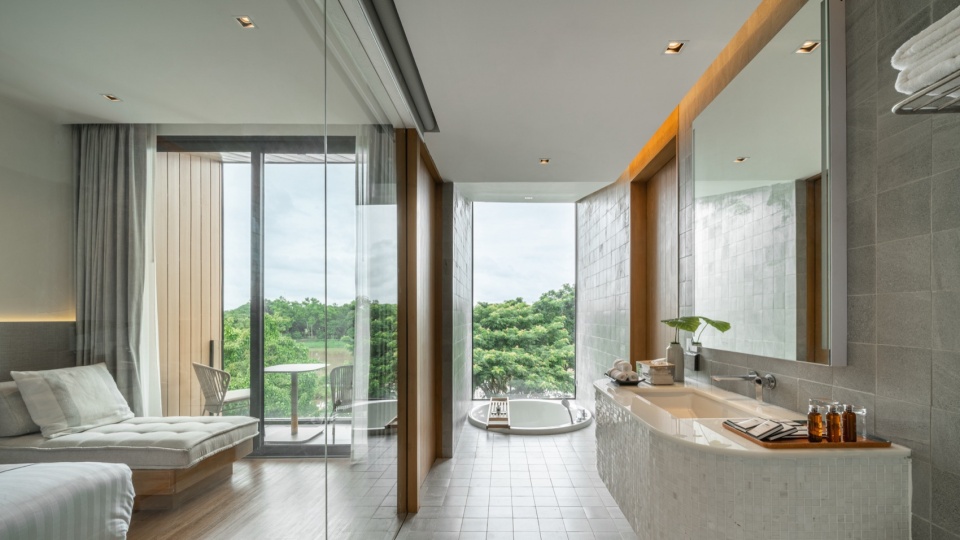

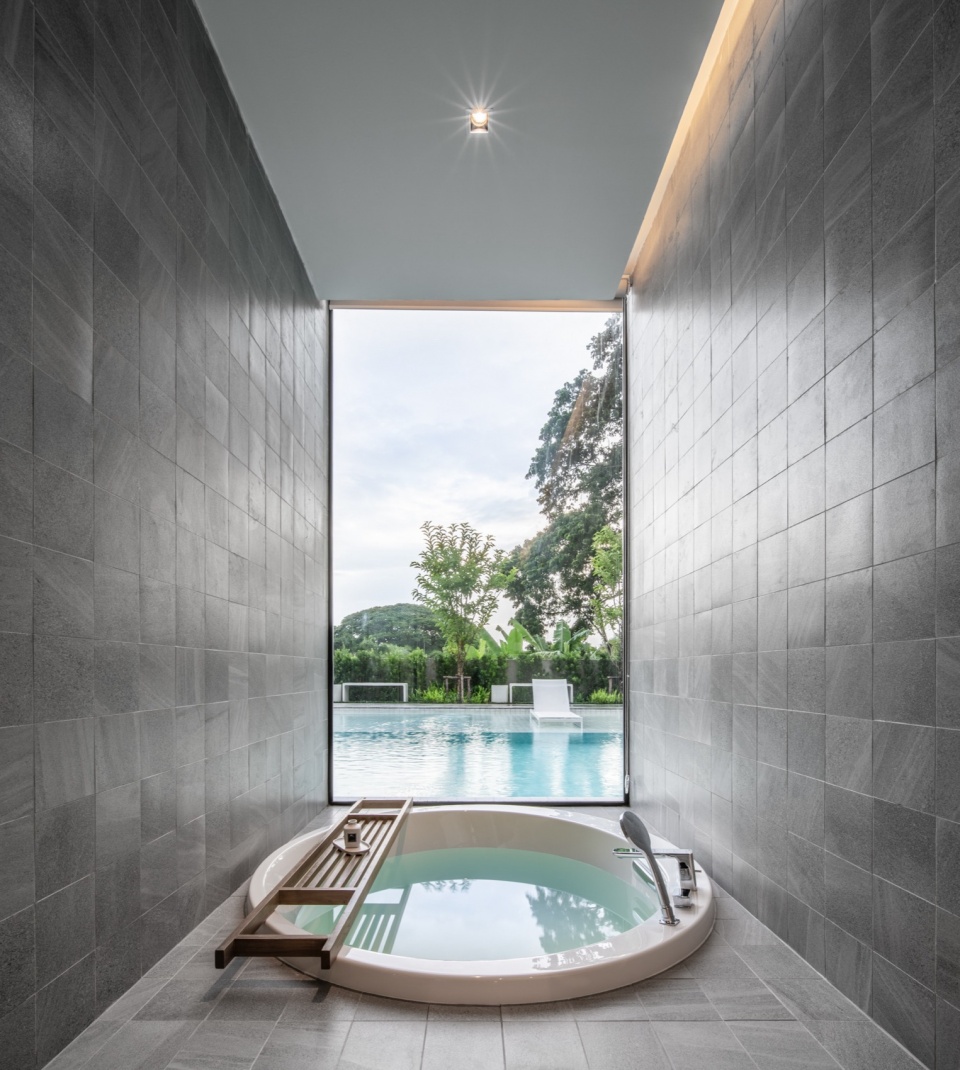

▼观景浴室，View bathroom © DOF Sky|Ground

▼观景浴室近景，View bathroom close view © DOF Sky|Ground

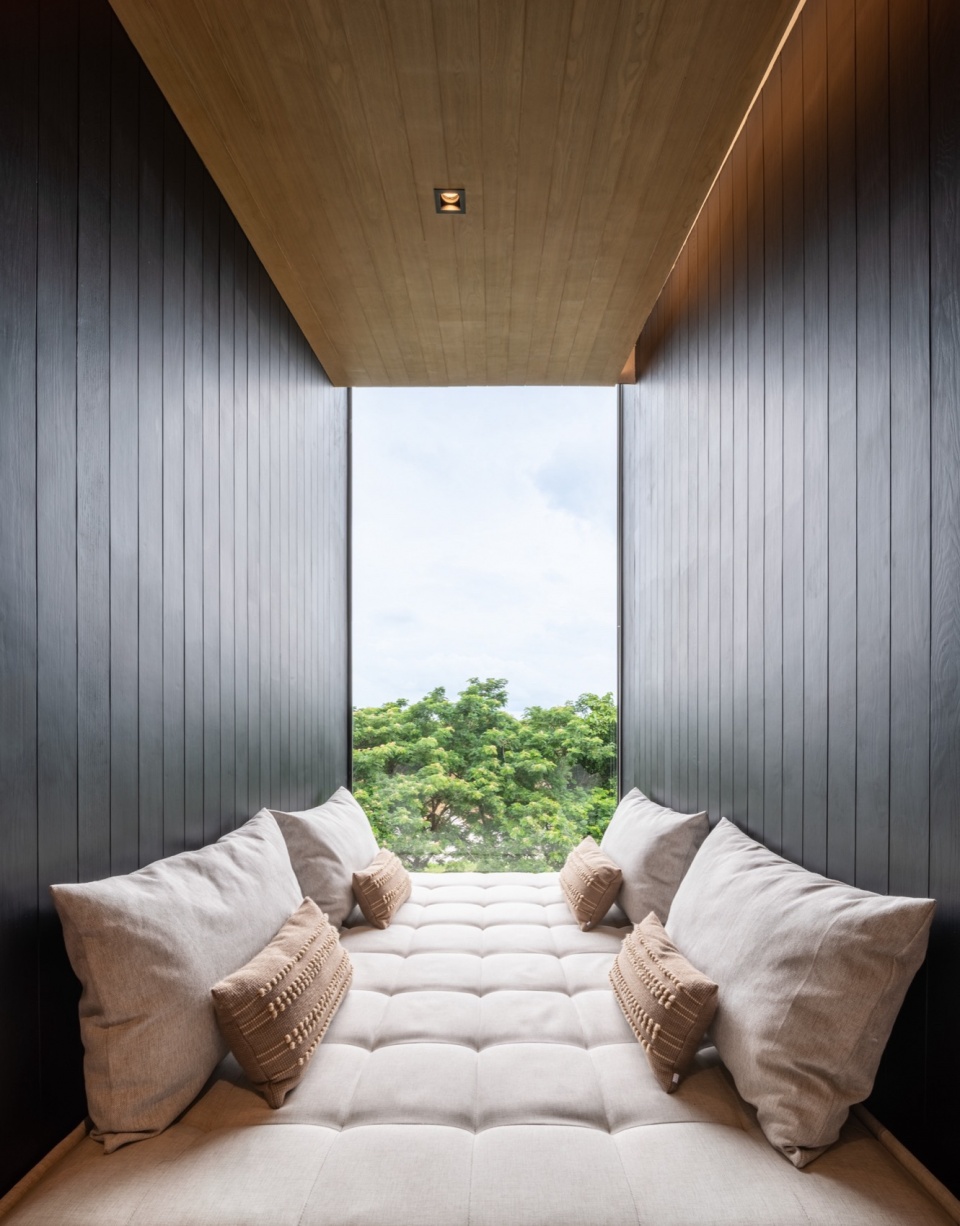

▼观景平台，Viewing platform © DOF Sky|Ground

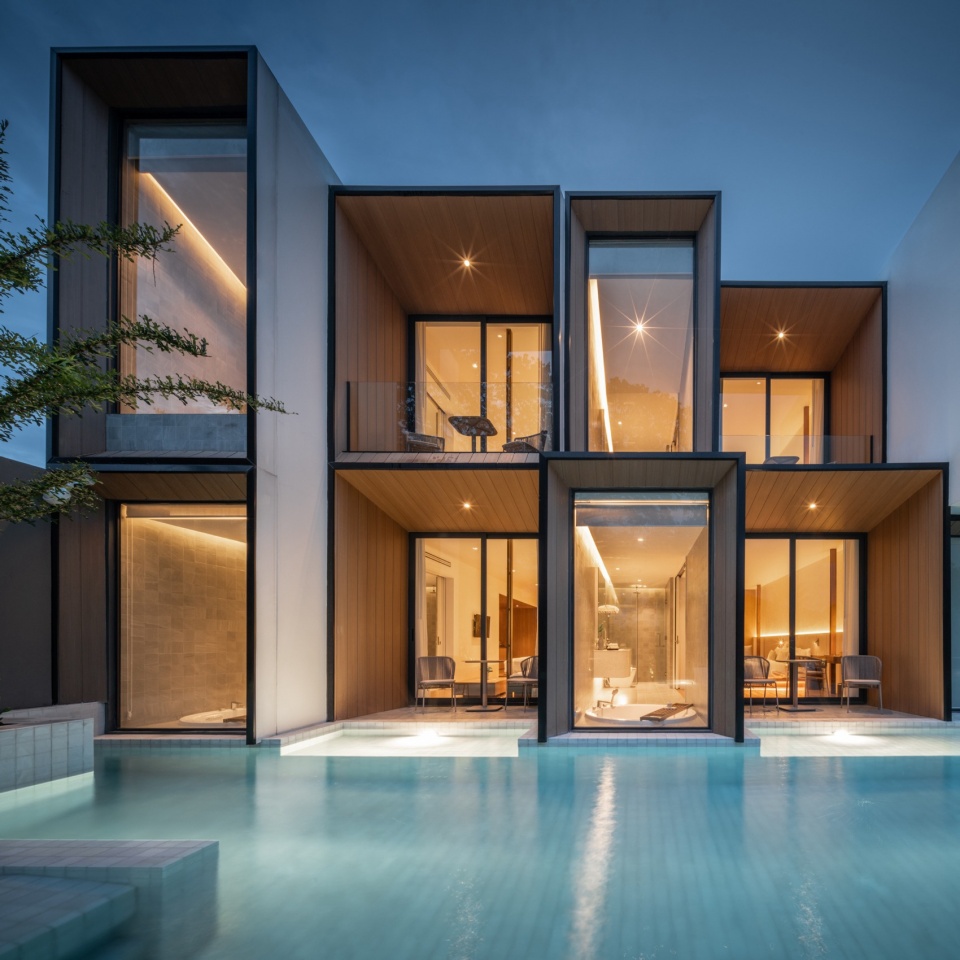

▼每间客房都向室外开放，Every room opens to the outdoors © DOF Sky|Ground

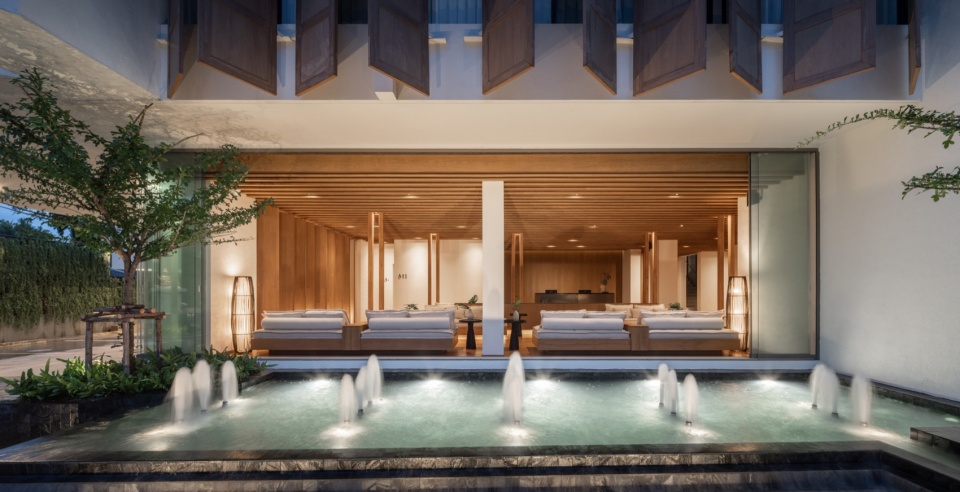

▼室外喷泉，The fountain © DOF Sky|Ground

在客房内部的设计者，设计者将浴室布置在了一侧，这样能够使每个房间都拥有河景视野，这种分离式布局在建筑外观生形成一系列向外凸起的结构，使建筑立面结构更加丰富，与道路另一侧简单的立面形成了鲜明的对比。此外，设计者在两座建筑面向道路的立面上选择使用了木门，在这里还形成了带有遮阳的走廊，走廊中的不同位置摆放了绿植，从而形成了本项目独特的建筑语言。

The layout of the guest room is designed with the bathroom separated on the side to grant each room a river view. This separation in the layout also creates sets of alternating protrusions, resulting in more complex facade layers that contrast well with the simple facade on the road-facing side. Moreover, the facades facing the road of both buildings also used wooden door elements and repurposed them as shading devices for the corridor with insertions of tree pots in different positions, thus creating a unique architectural language that is distinctive for this project.

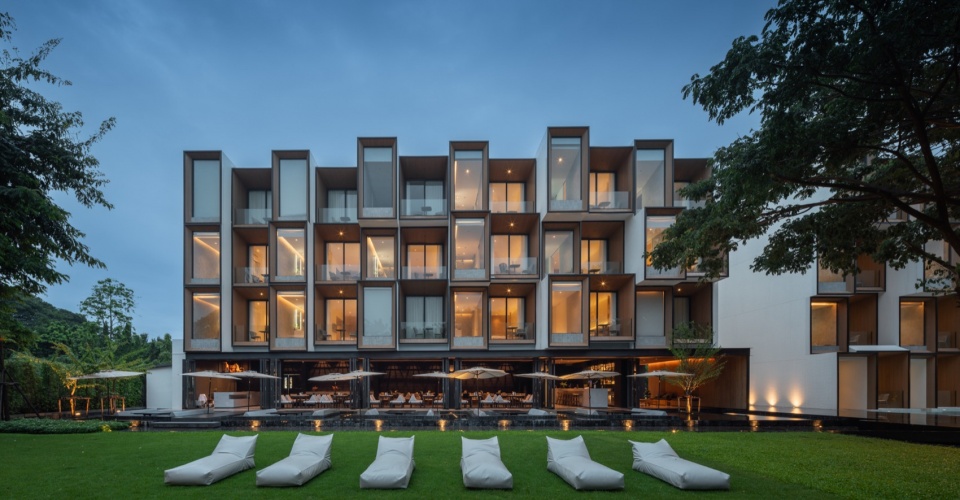

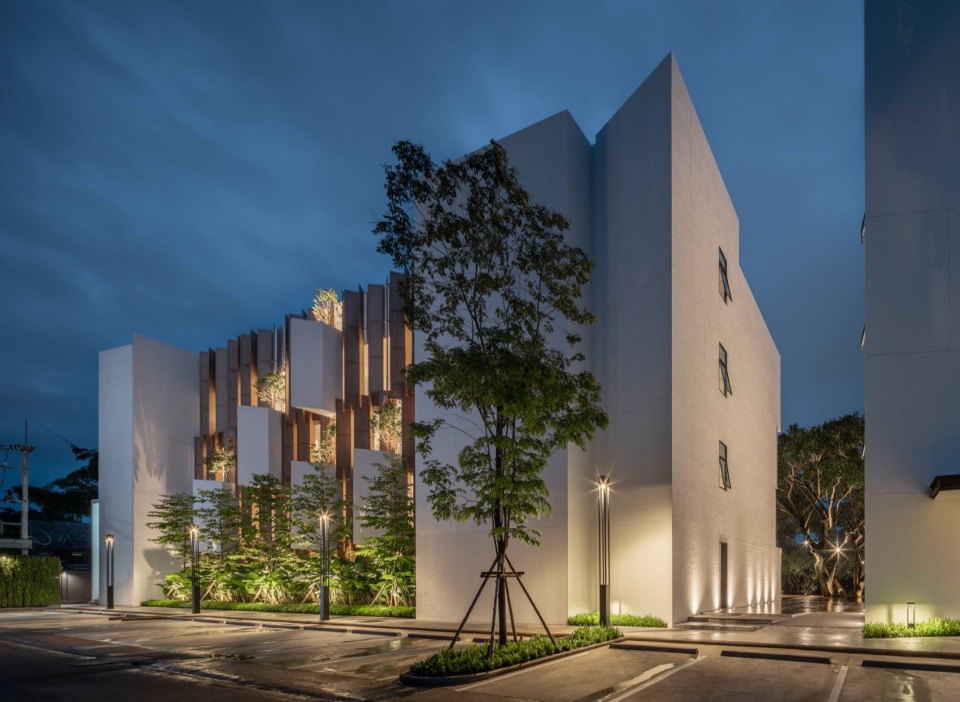

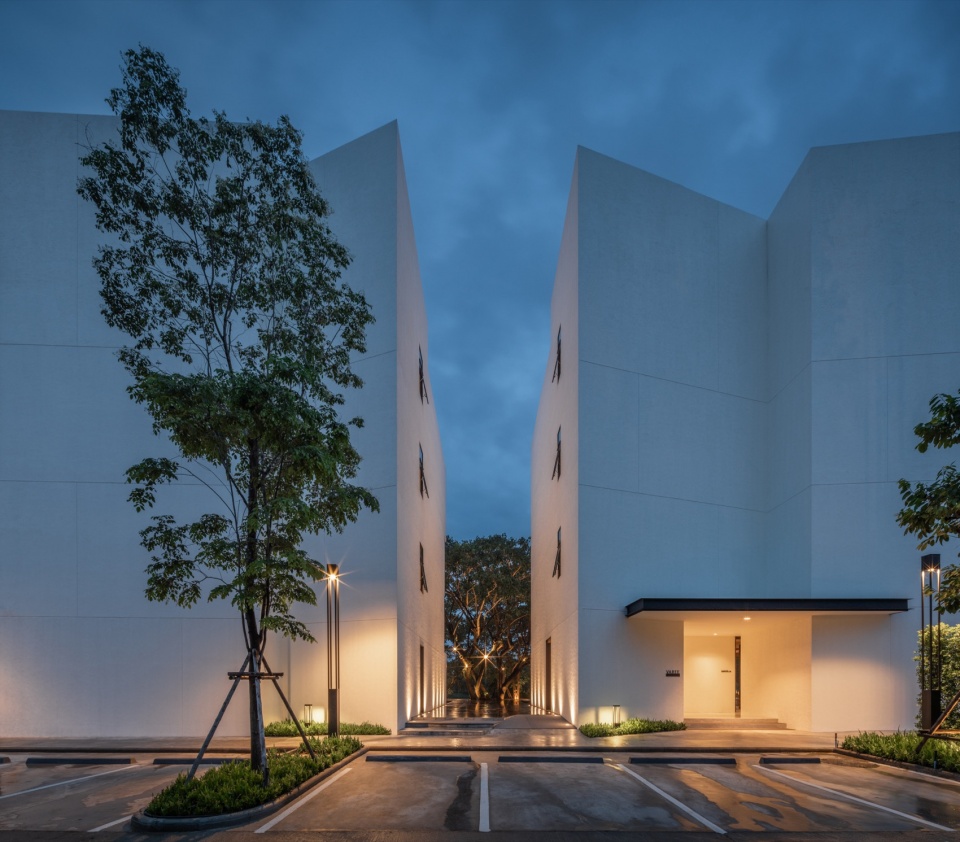

▼夜览全貌，Overall night view © DOF Sky|Ground

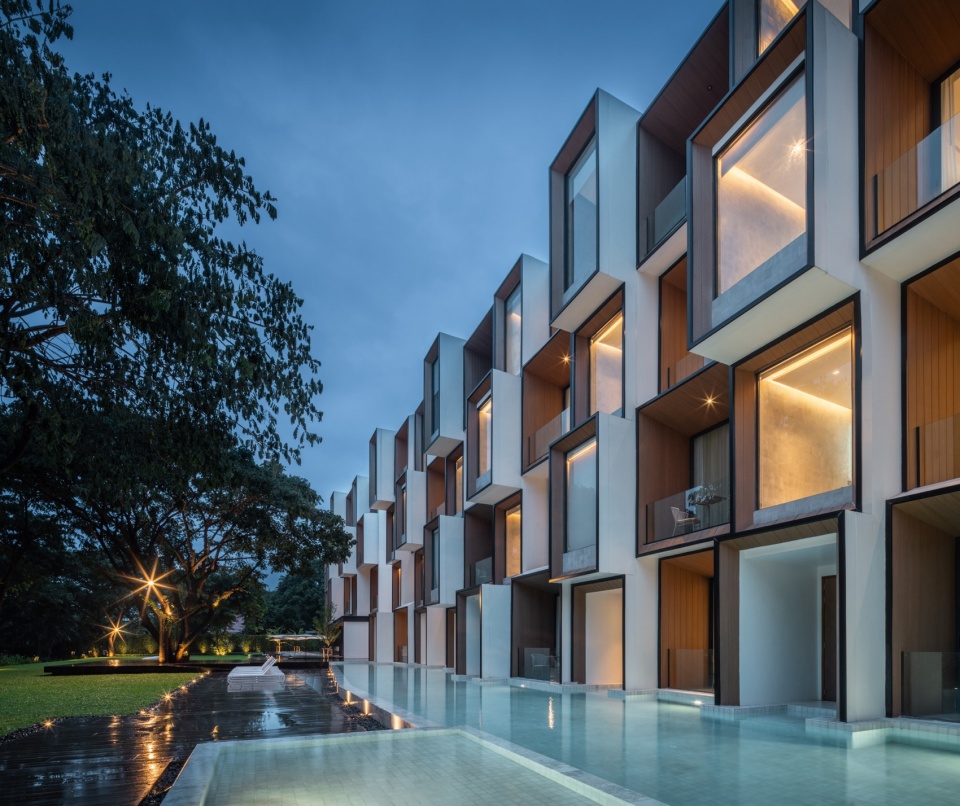

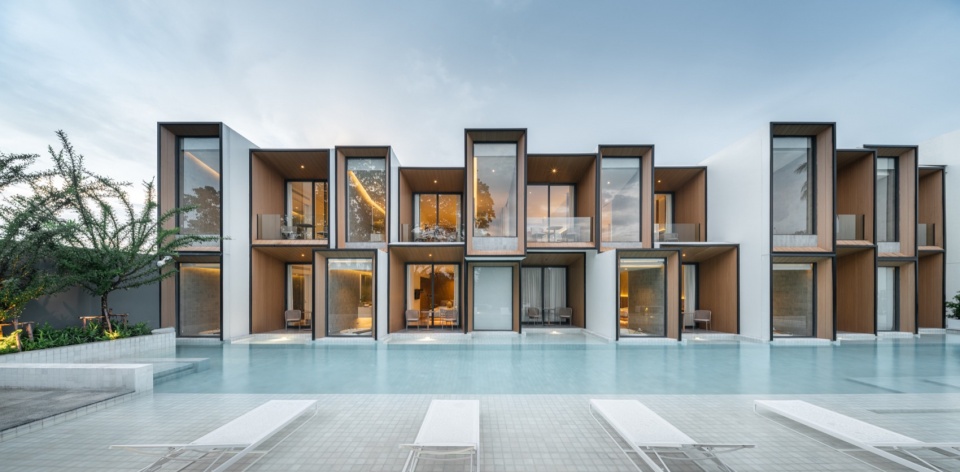

▼夜览室外泳池，Night of the pool © DOF Sky|Ground

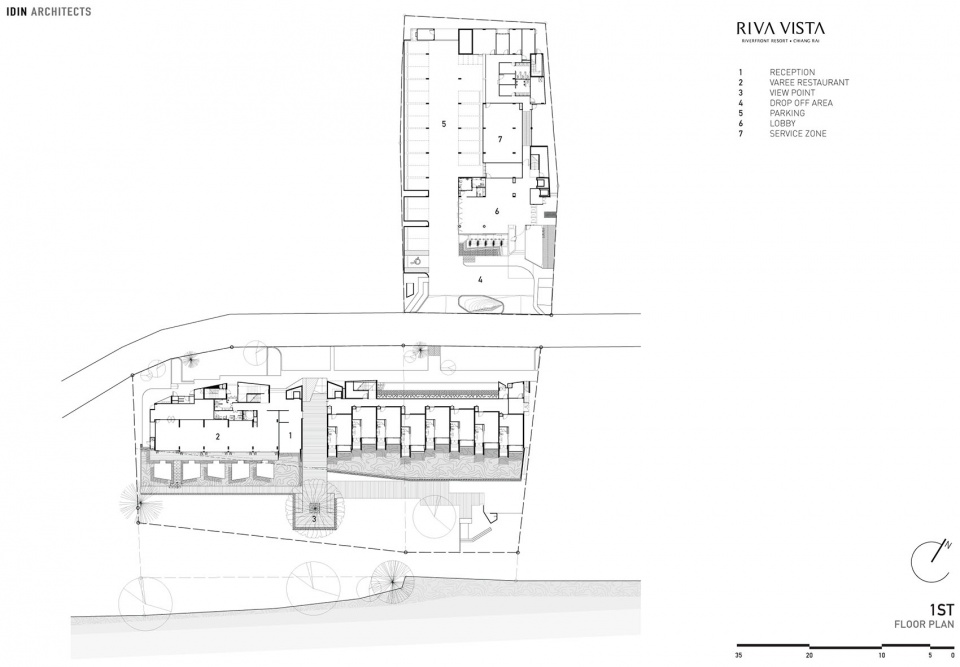

▼一层平面图，1st floor plan © IDIN Architects

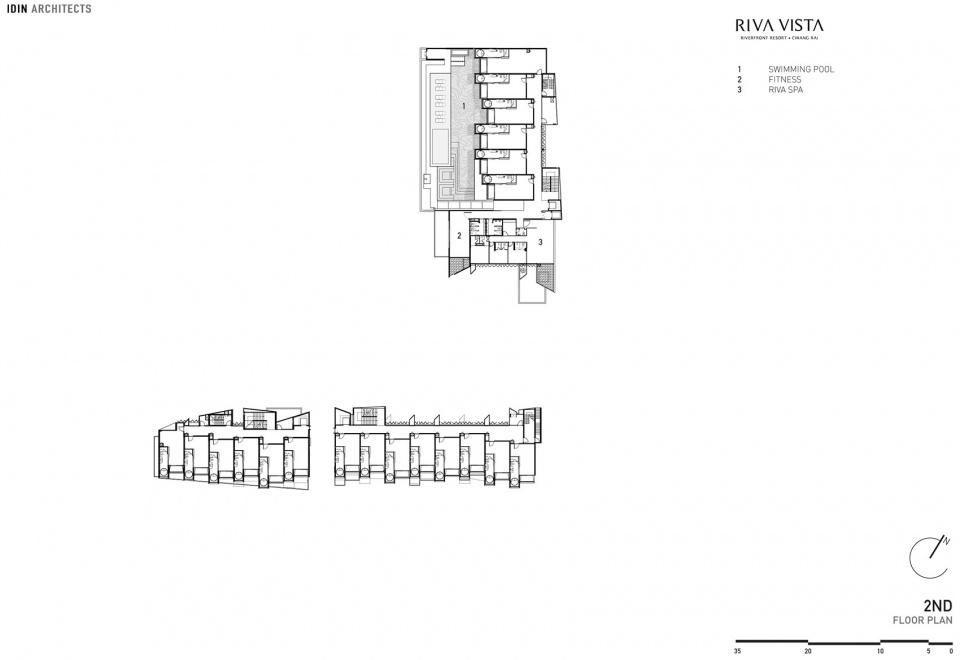

▼二层平面图，2nd floor plan © IDIN Architects

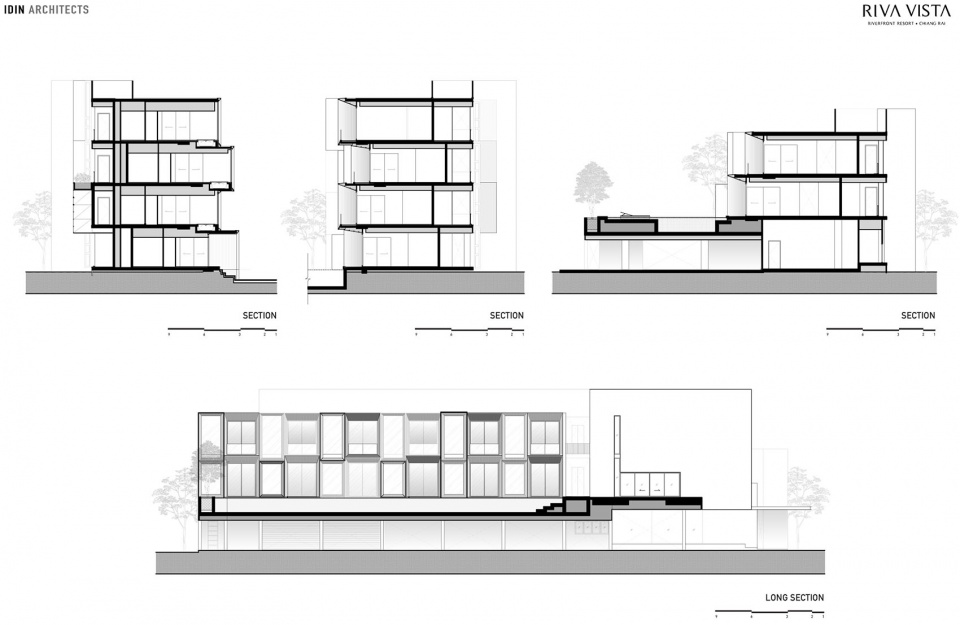

▼剖面图，section © IDIN Architects

PROJECT TITLE: Riva Vista Riverfront Resort
PROJECT TYPE: Resort
LOCATION: Chiang Rai, Thailand
ADDRESS: 286/1 Moo 2, Rimkok, Mueang, Chiang Rai, 57100
START-COMPLETE DATE: Completed 2023
OPENING YEAR: 2023
USABLE AREA (SQM): 5,530
OWNER: Lanna Resort Partnership Limited
ARCHITECT: IDIN Architects
INTERIOR DESIGNER: IDIN Architects
LANDSCAPE ARCHITECT: Vista Pagoda Co., Ltd.
CONTRACTOR: Phanpongthai Company Limited
PHOTOGRAPHER: Chiang Rai, Thailand
