非常感谢 Alvisi Kirimoto，Studio Gemma 予gooood分享以下内容。更多关于他们请至：Alvisi Kirimoto on gooood，Studio Gemma on gooood。
Appreciation towards Alvisi Kirimoto ，Studio Gemma for providing the following description:

项目坐落于罗马Parioli区的中心，毗邻Villa Ada公园，是Alvisi Kirimoto与Gemma工作室为LUISS Guido Carli大学设计的全新校园中心。建筑周边环境优美，被郁郁葱葱的绿植围绕其中。为了完善大学空间，并强调出场地周围的绿色景观，建筑师将现有的棚屋拆除，从零开始，以景观优先的设计理念，为学院扩建出一座全新的教学大楼。

Close to Villa Ada, in the heart of the Parioli district in Rome, Alvisi Kirimoto with Studio Gemma has designed a new hub surrounded by greenery for the LUISS Guido Carli university campus. The intervention, which completes the university spaces and enhances the surrounding green areas, has involved the demolition of an existing shed, subject to landscape constraints, construction from scratch, and the expansion of an educational building.

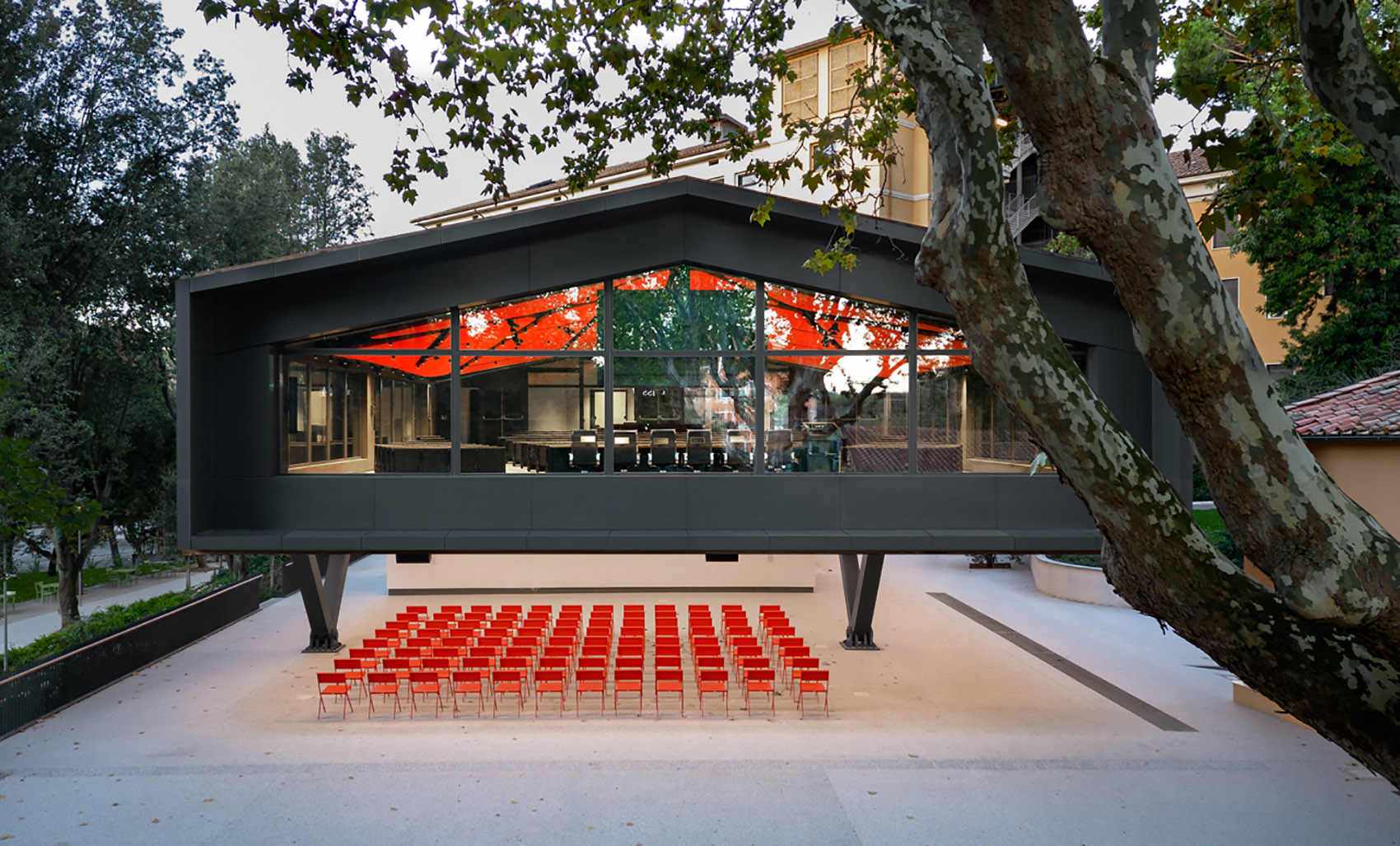

▼项目概览，overall of the project © Marco Cappelletti

该中心共有两个楼层，总面积为1500平方米，场地周围景观丰富优美，交通便利，建筑靠近位于地块南部的小树林，可谓是公园和校园主广场后部的延伸。建筑被郁郁葱葱的绿植包围，通透开放的外观使其与周围的景观融为一体。上部体量的外观由大面积的玻璃与木条组成，天然的材质肌理将建筑与周围的树冠相融，在建筑和环境之间创造和谐的对话，同时也将室内空间中的活动场景清晰地展示在人们眼前。

The hub, which develops over two levels, for a total area of 1.500 sqm, is positioned in the most accessible and picturesque point of the complex landscape, near a small wood located to the south of the lot, the last extension of the park and the campus main square. Clad in natural wood slats and glass, the upper floor projects the building into the treetops, creating a privileged dialogue between architecture and context, and offering a dynamic cross-section of the activities that take place inside.

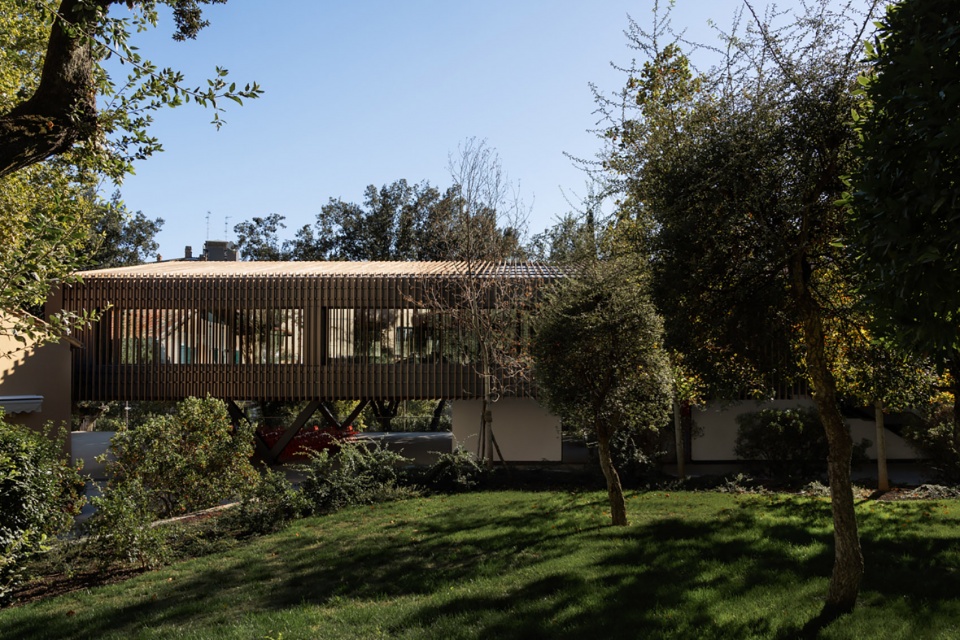

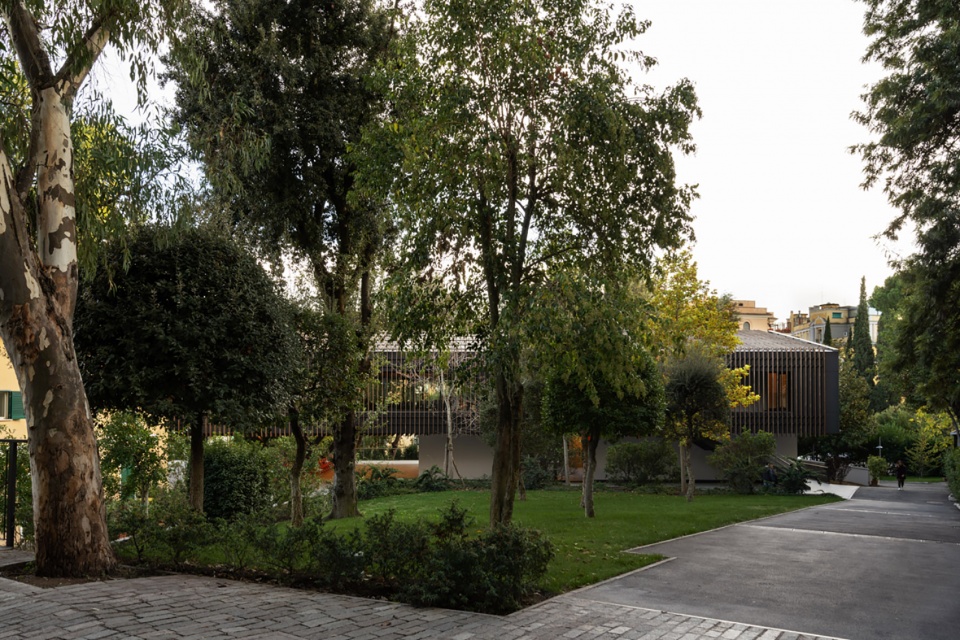

▼由树林看建筑，viewing the project from the woods © Marco Cappelletti

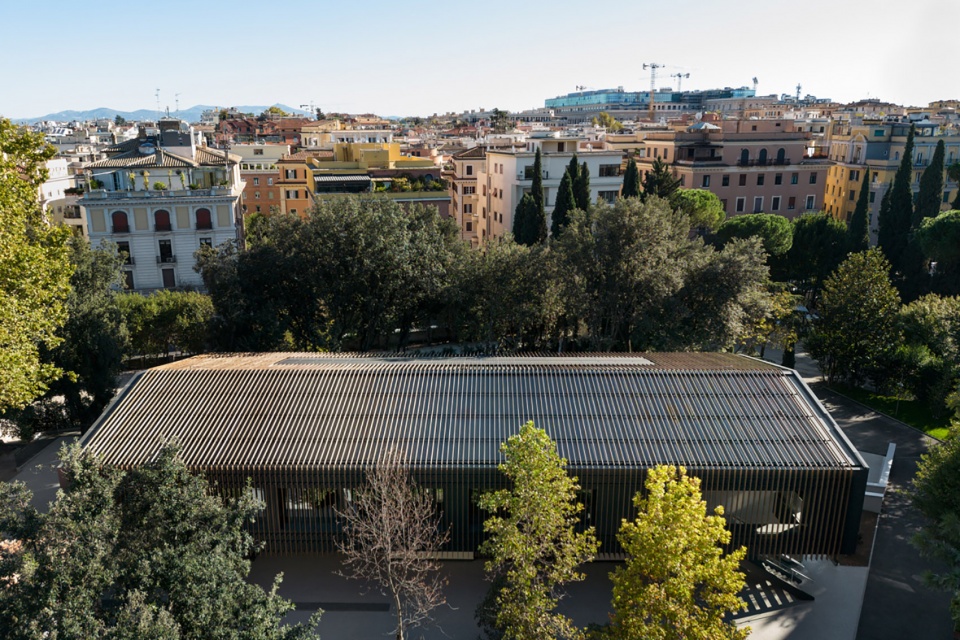

▼项目鸟瞰，aerial view of the project © Marco Cappelletti

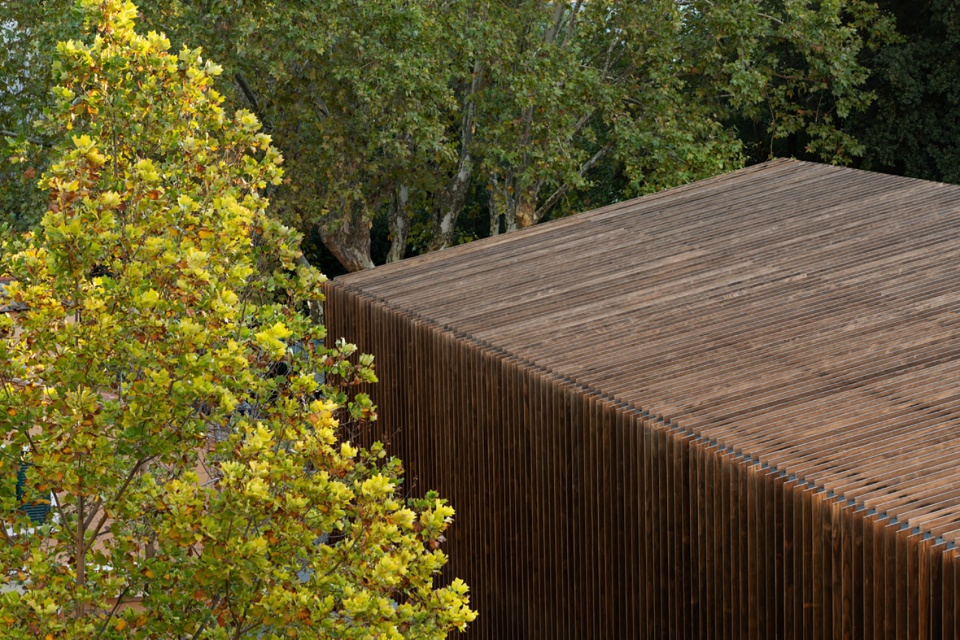

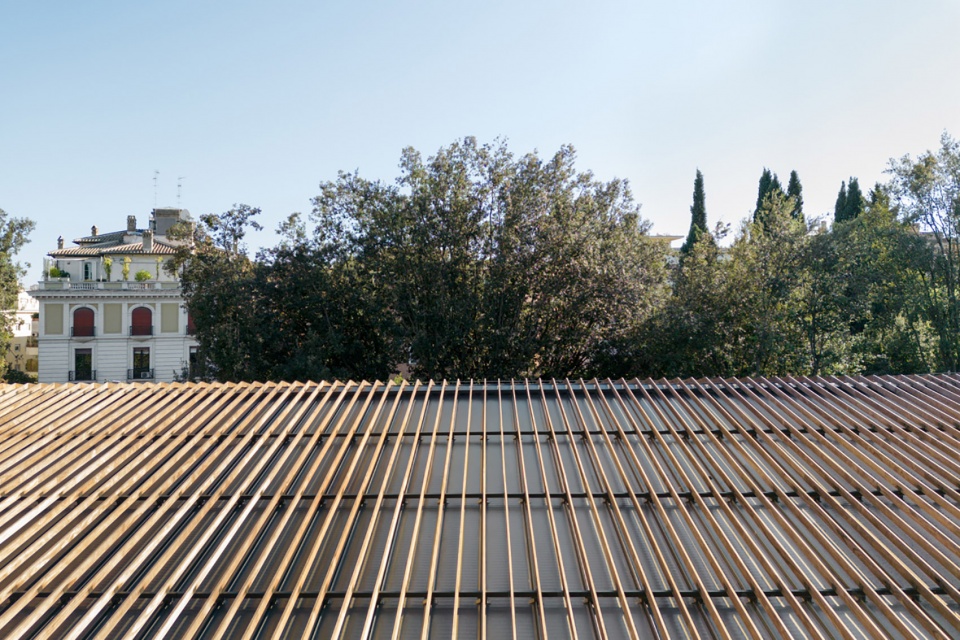

▼屋顶细部，details of the roof © Marco Cappelletti

“建筑结构与周围绿色景观之间的紧密联系标志着一种创新教育方法，旨在鼓励学生们在自然中学习，关注健康与自然之间的关系。高渗透性的表皮不仅使建筑融入周围景观，同时促进了整个学生社区之间的交流，并且在概念上反映出校园的开放性。”工作室联合创始人、建筑师Massimo Alvisi解释道。

“The indissoluble link between the structure and the surrounding greenery signals an innovative approach to education which, to encourage learning, focuses on the well-being generated by the relationship with nature. The high permeability that characterizes the skin of the building not only facilitates immersion into the landscape and fosters exchange among the entire student community but is also a conceptual choice that reflects the openness of the campus.” explains the architect Massimo Alvisi, co-founder of the studio.

▼项目远观，viewing the project at distance © Marco Cappelletti

▼底层主入口，main entrance on the ground floor © Marco Cappelletti

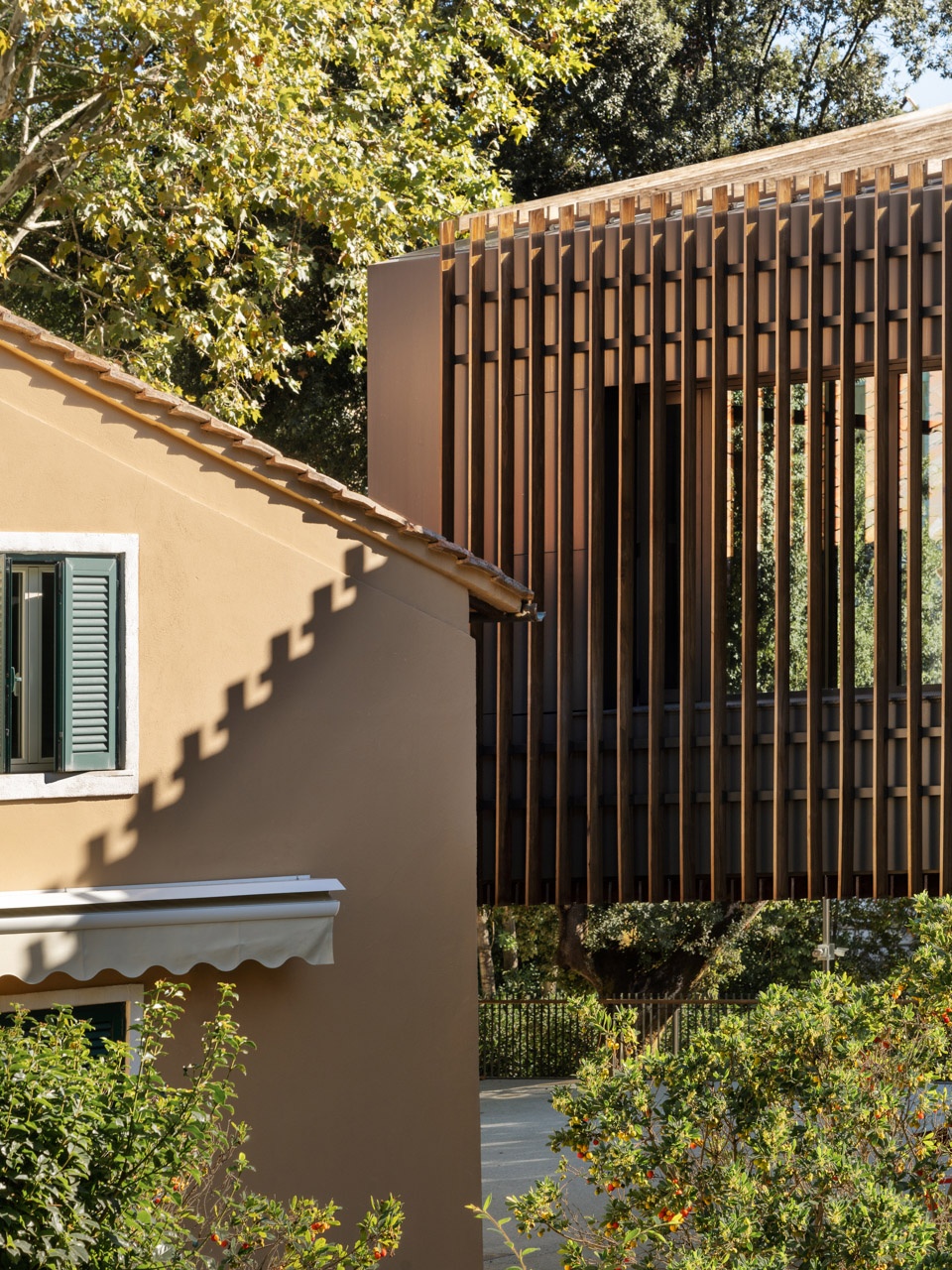

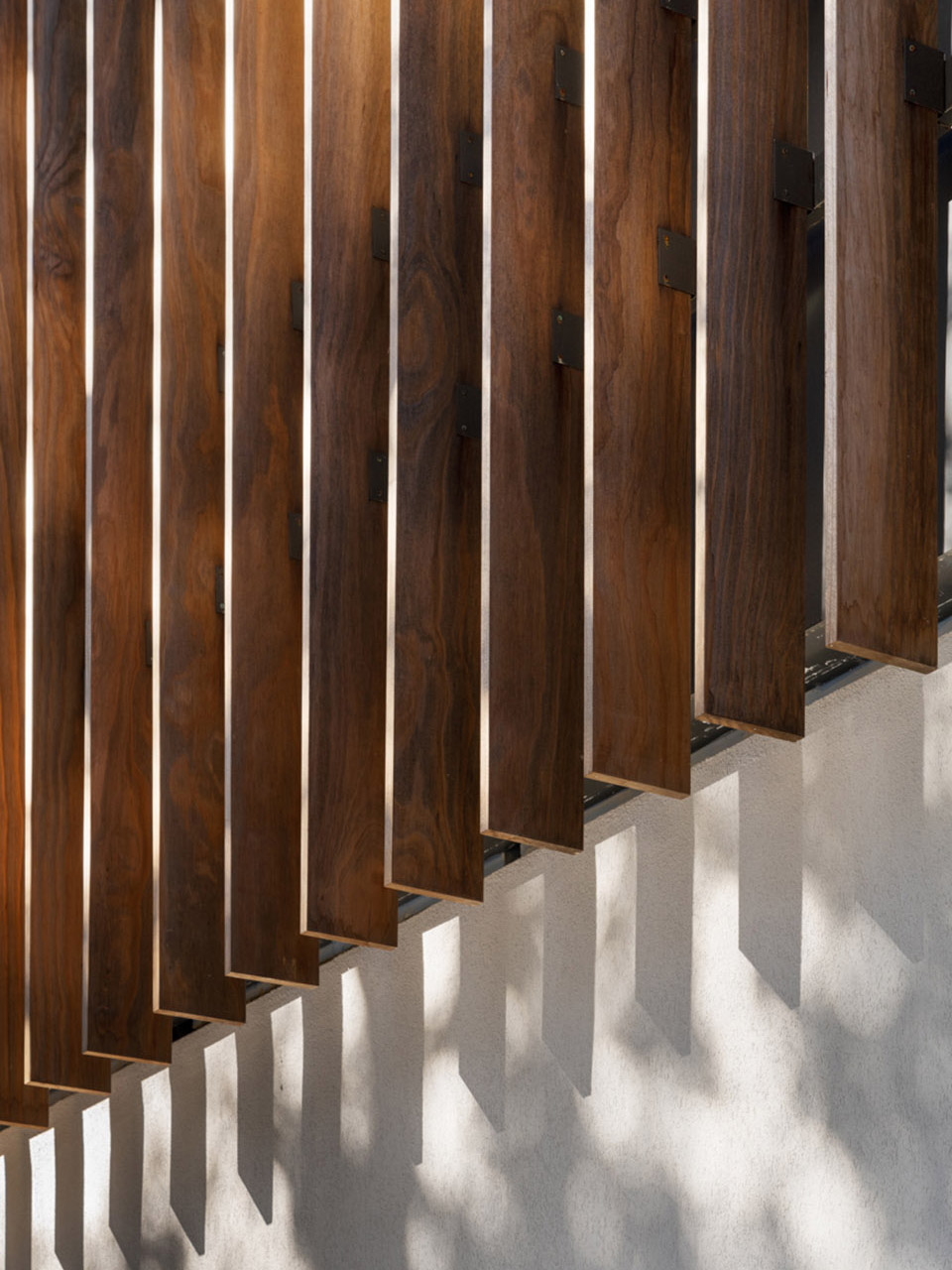

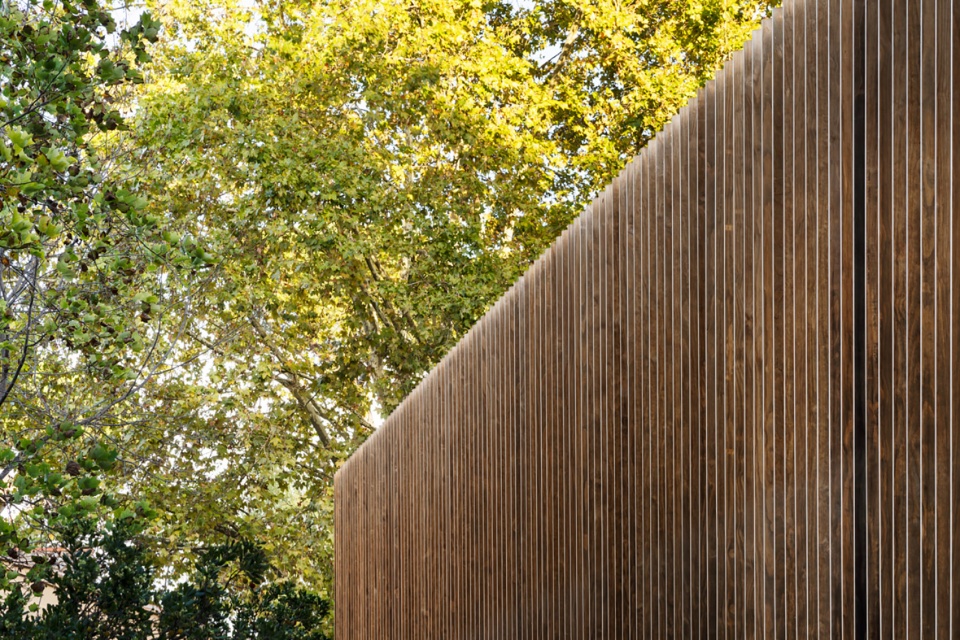

▼外观细部，details of the exterior © Marco Cappelletti

设计采用了体量叠加的手法，旨在将建筑与周围茂盛的树冠连成一片，同时尽可能地释放底层空间。建筑的底层包含了中心的主入口、教室和服务区，而上层则包含了一座大型报告厅，以及两间常规教室。悬挑的形式不禁让人联想起经典的书屋，除了亲切的建筑形式外，建筑中心空间更是专门为学生设计，营造出“家”一般的舒适氛围。

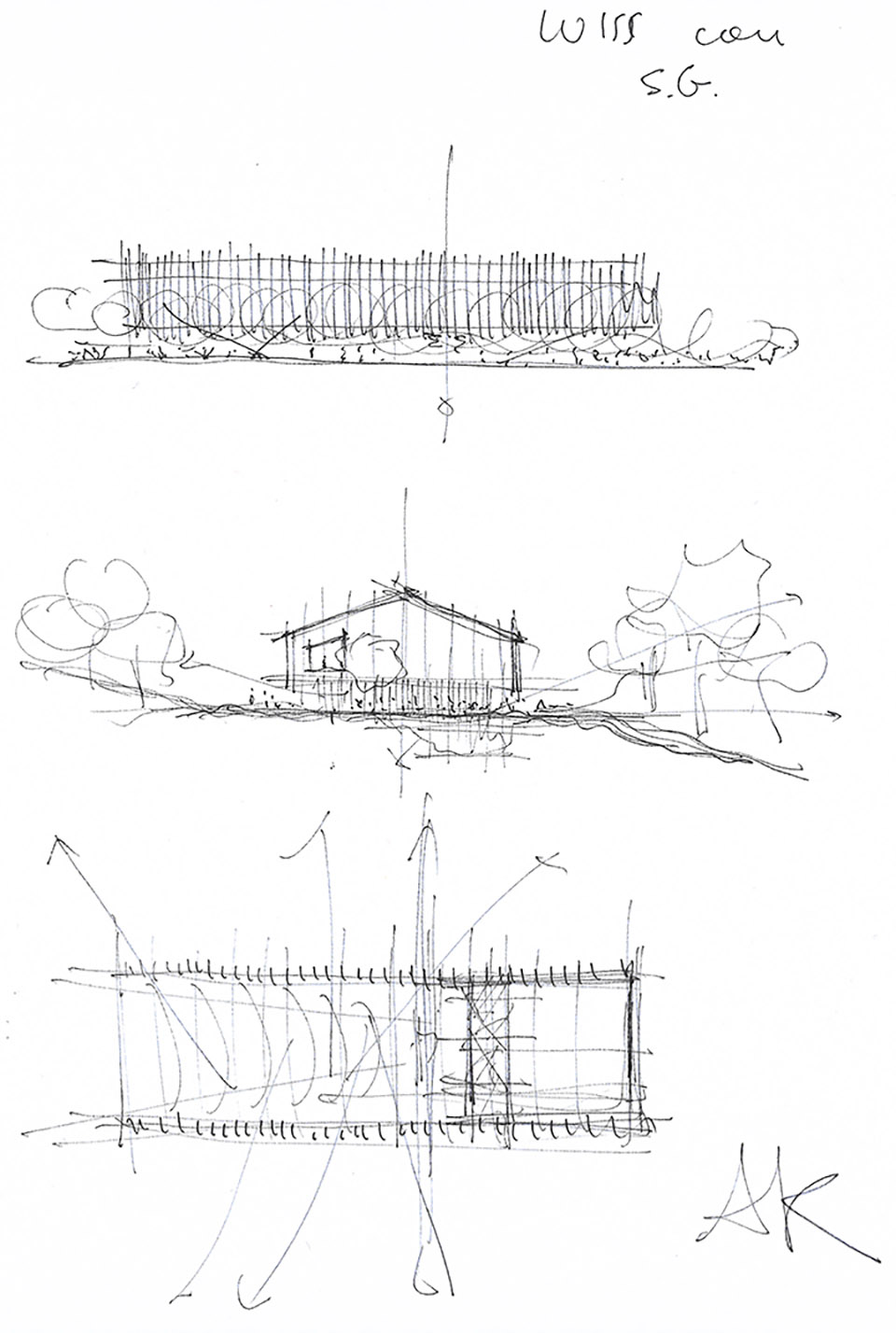

▼草图，sketches © Alvisi Kirimoto + Studio Gemma

The project stems from the idea of raising the volume to put it in direct connection with the treetops, freeing up the ground floor as much as possible. The latter houses the entrance, a classroom, and service areas, while the upper floor encompasses an amphitheater and two classrooms. Surrounded by greenery and with its permeable and transparent skin, the building seems to dissolve into the landscape, evoking the classic tree house, from which it takes not only its outline, but also the welcoming and almost “homely” dimension of the spaces, custom-designed for the students.

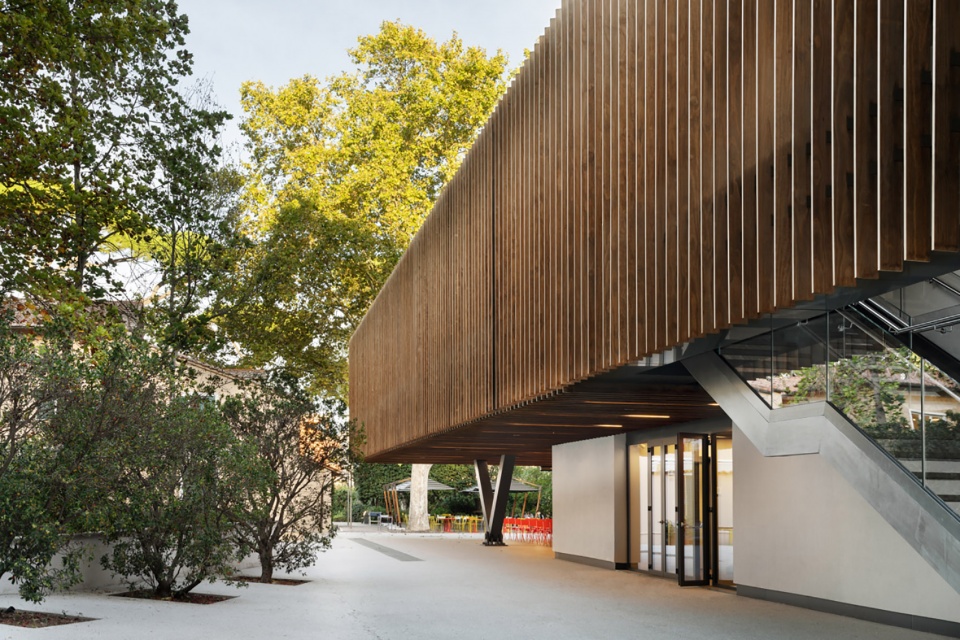

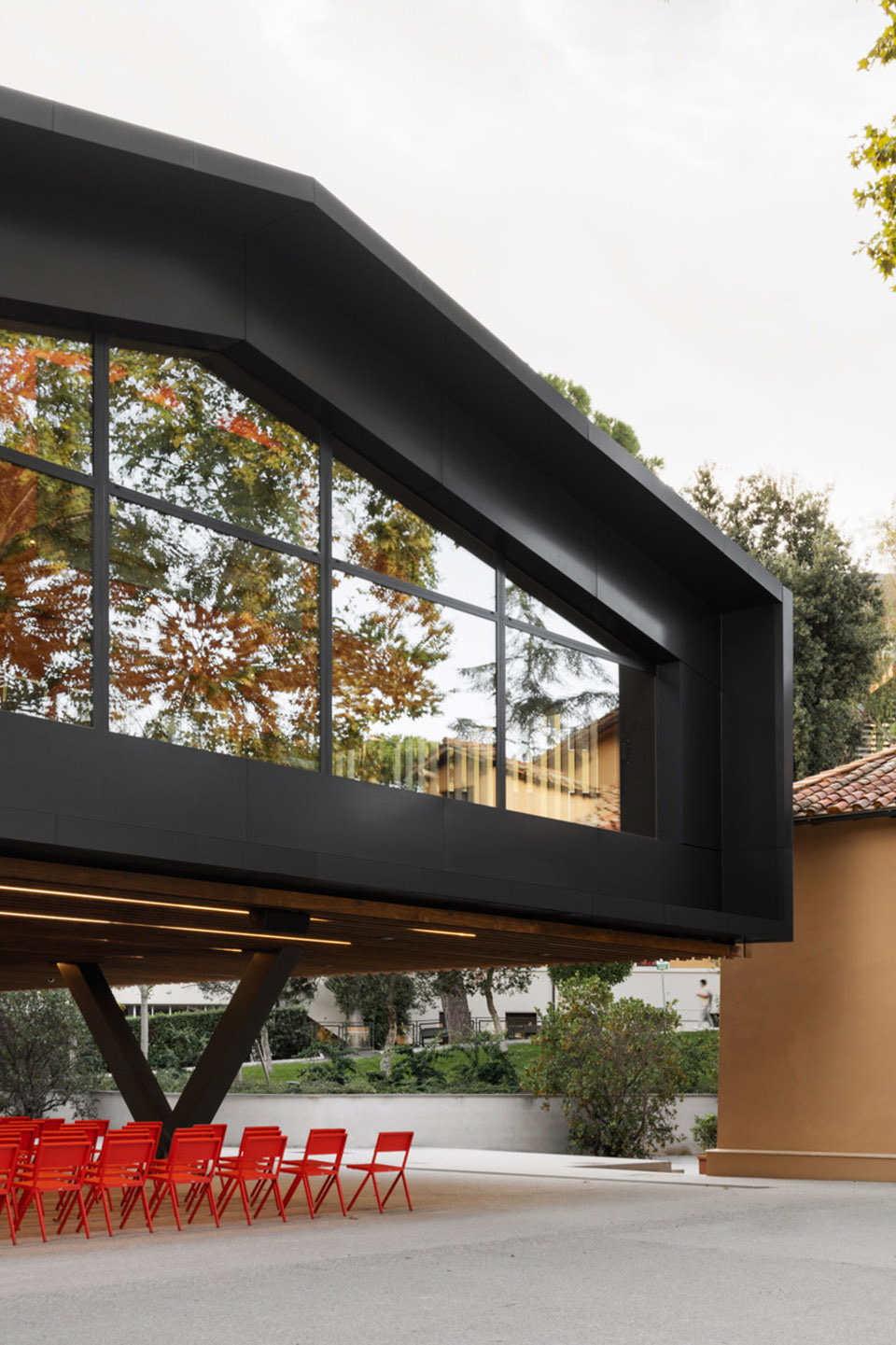

▼底层体量后撤增强了上部体量的轻盈感，the retreating of the bottom volume enhances the lightness of the upper volume © Marco Cappelletti

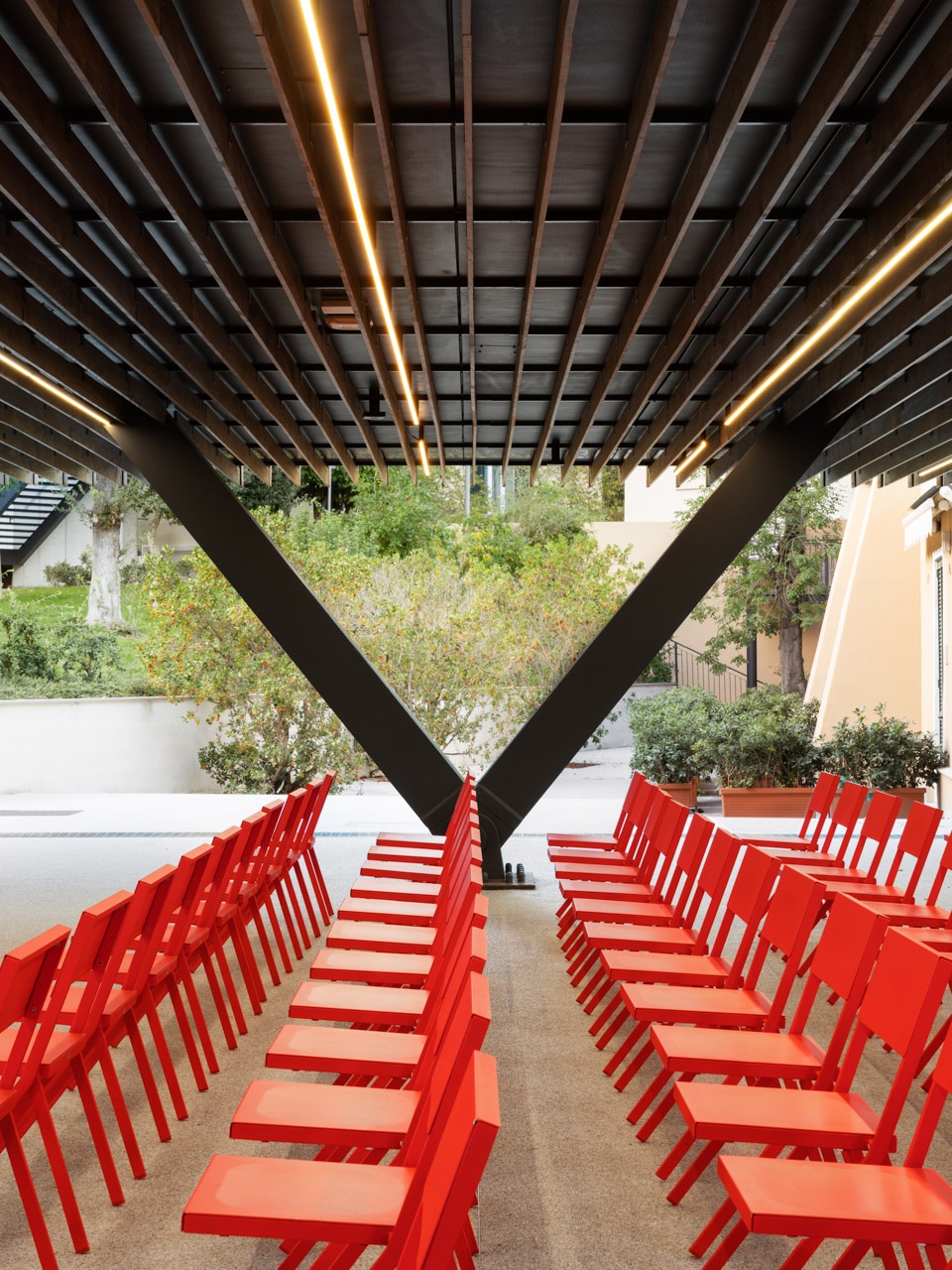

▼底层灰空间，open and covered space on the ground floor © Marco Cappelletti

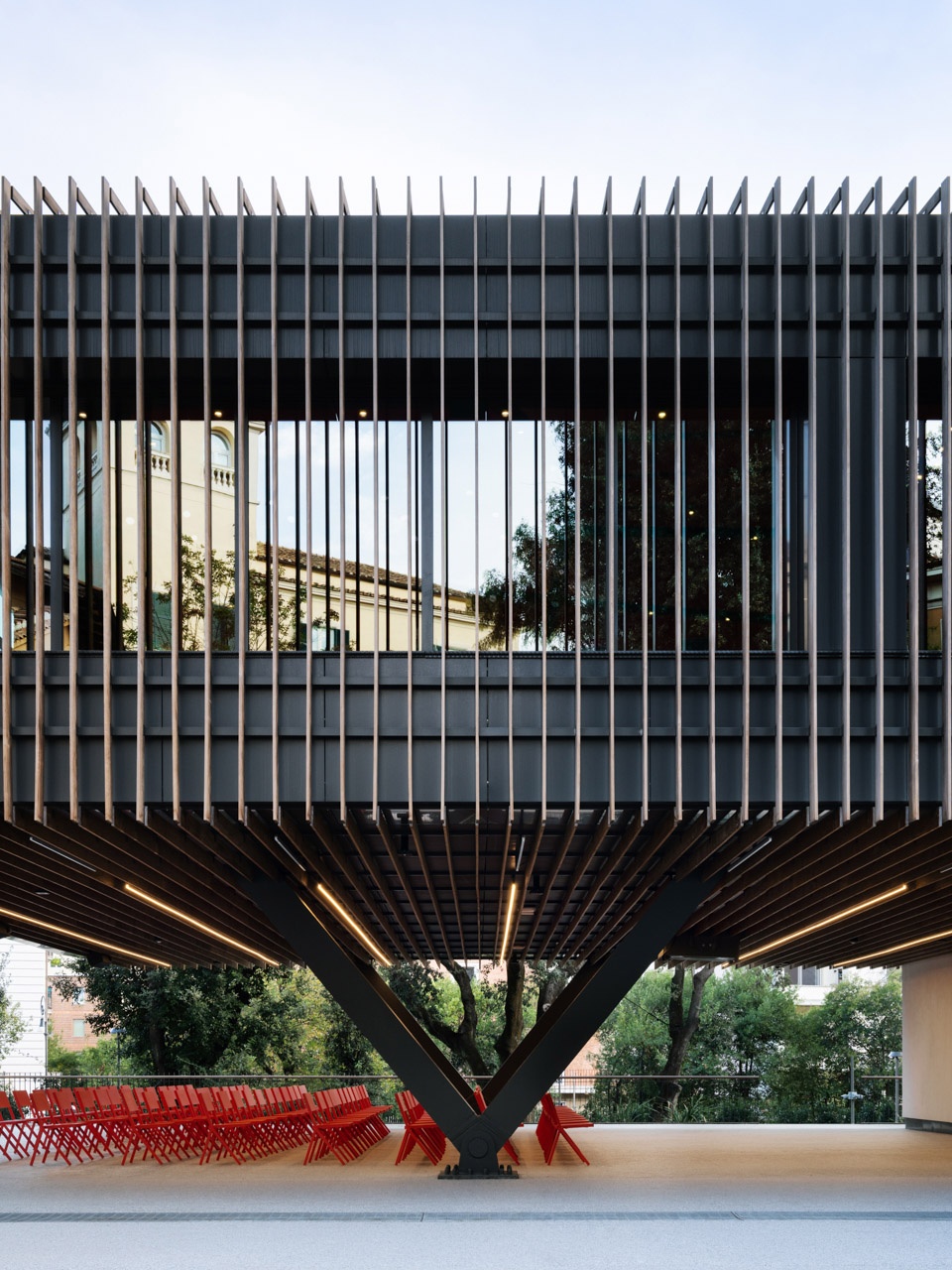

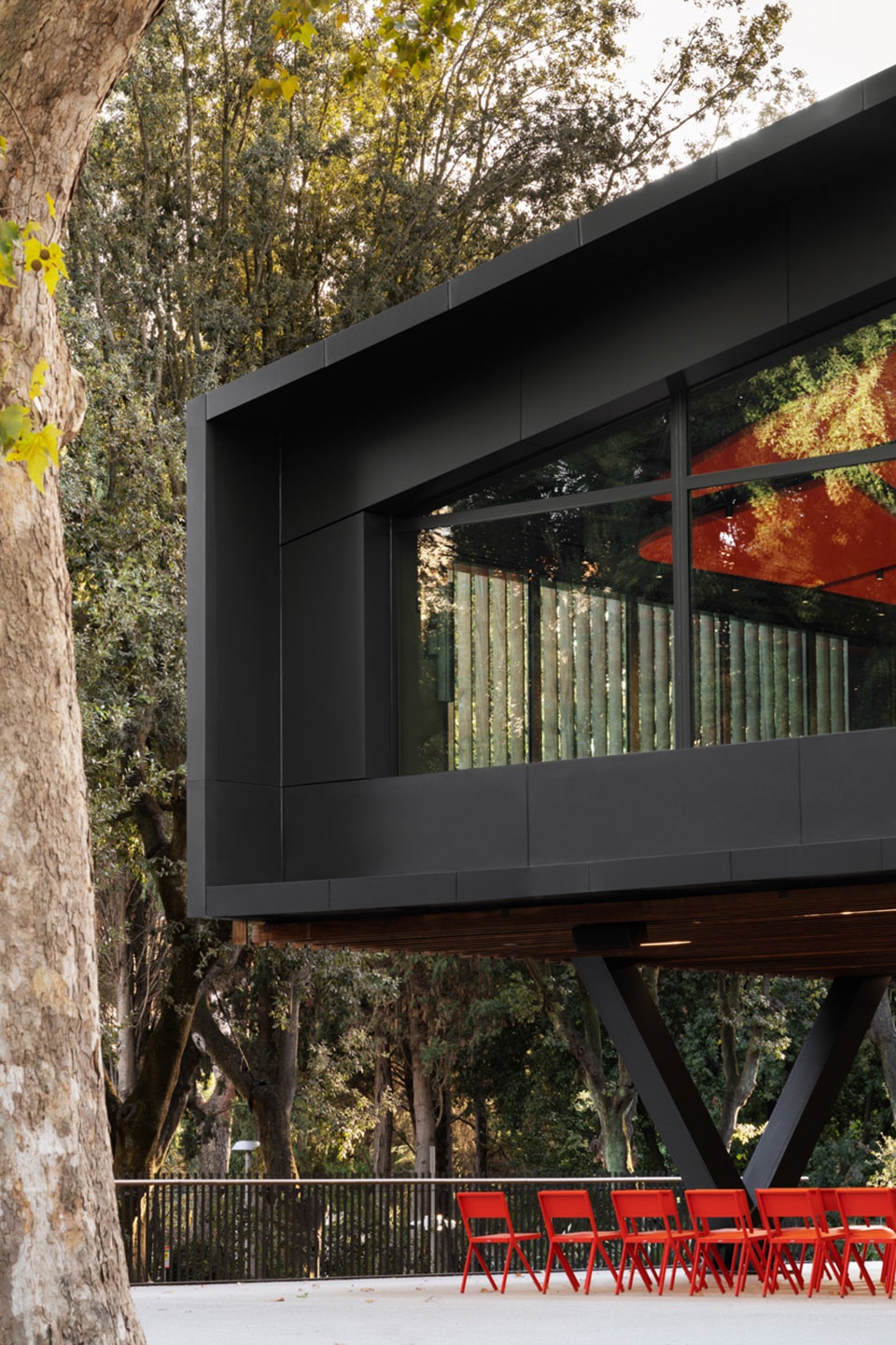

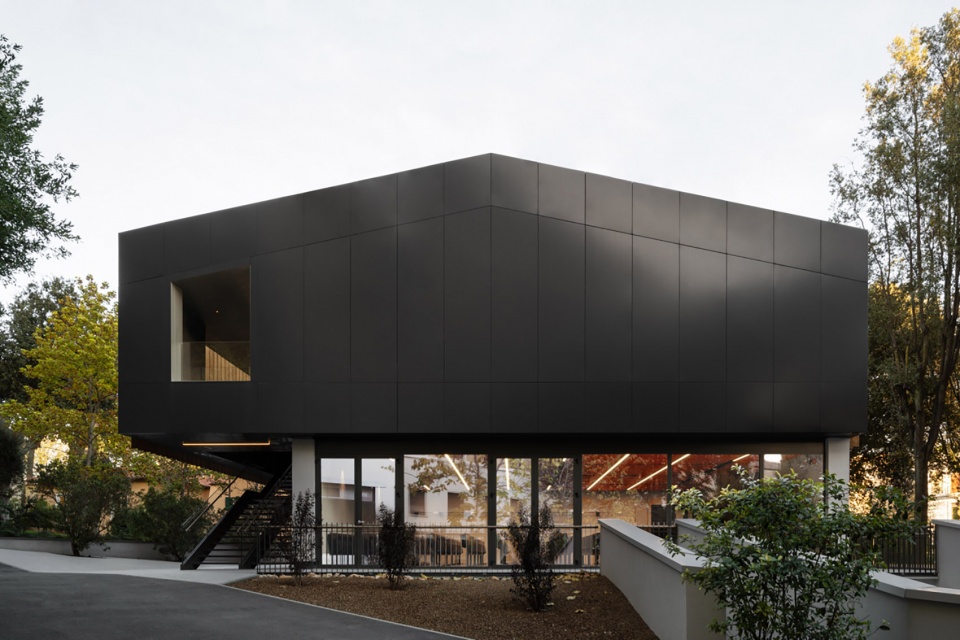

▼上下体量的虚实对比，contrast between the upper and lower volumes © Marco Cappelletti

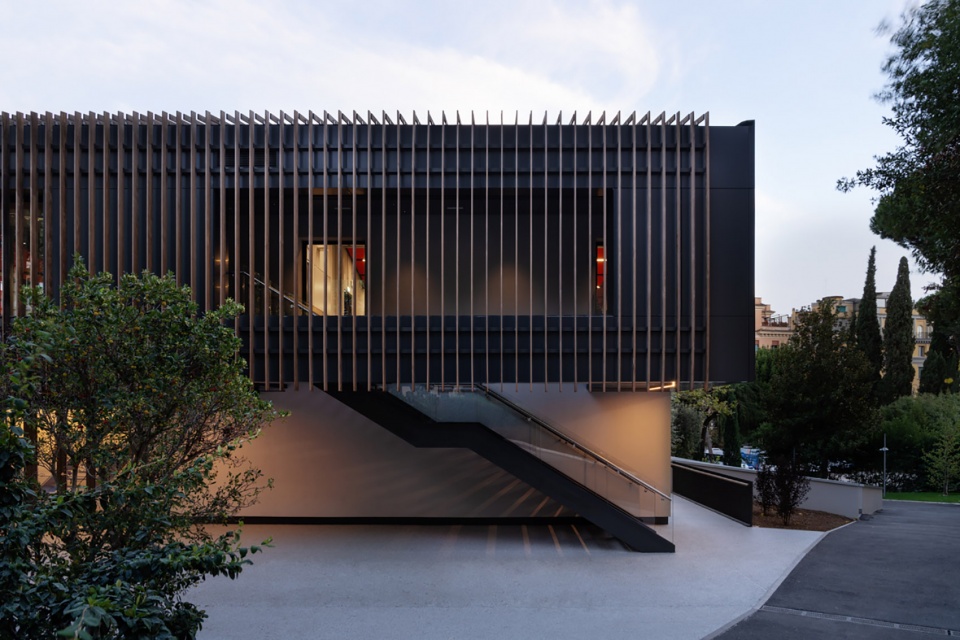

▼室外楼梯，outdoor staircase © Marco Cappelletti

室内空间经过精心设计，保证了空间的多样性，能够满足各种教育、文化、艺术以及社会活动的需求，例如：会议、授课、晚会与放映电影等。大型报告厅具有多重功能，而教室的设计则旨在重新定义传统教学和远程学习之间的平衡，教室配备了先进的视听会议系统，并被完美地集成在建筑中。位于通高空间中的交叉楼梯连通了两个楼层，此外还设有一部室外楼梯将底层与二楼相连。底层体量的后退进一步强调出上部体量的轻盈之感，同时创造出一处既开放又受到保护的室外空间，为授课与户外活动提供了理想的场所。

The interiors have been carefully designed to guarantee great versatility and host various educational activities, and cultural, artistic, and social events, from conferences to classroom lessons, from gala evenings to film screenings. The amphitheater – designed for multiple uses – and the classrooms, designed to redefine the balance between face-to-face teaching and remote learning, are equipped with sophisticated audiovisual conferencing systems that are perfectly integrated into the architecture. A cross-flight staircase connects the two levels internally via a double-height space, while a third staircase connects the first floor with the outside. The ground floor, visibly set back, further underlines the lightness of the upper volume and creates a simultaneously open and covered space, equipped for courses and outdoor activities.

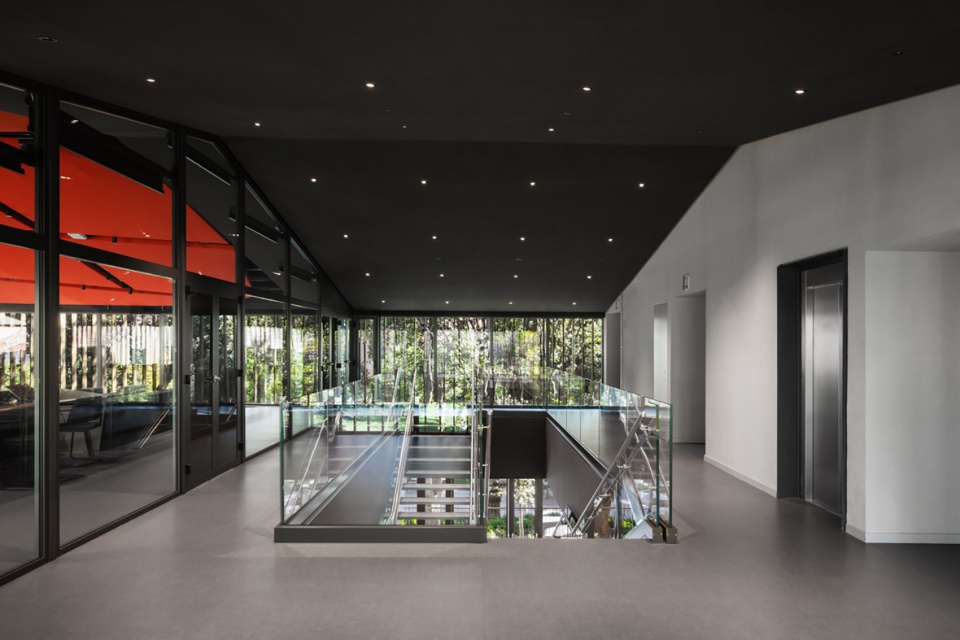

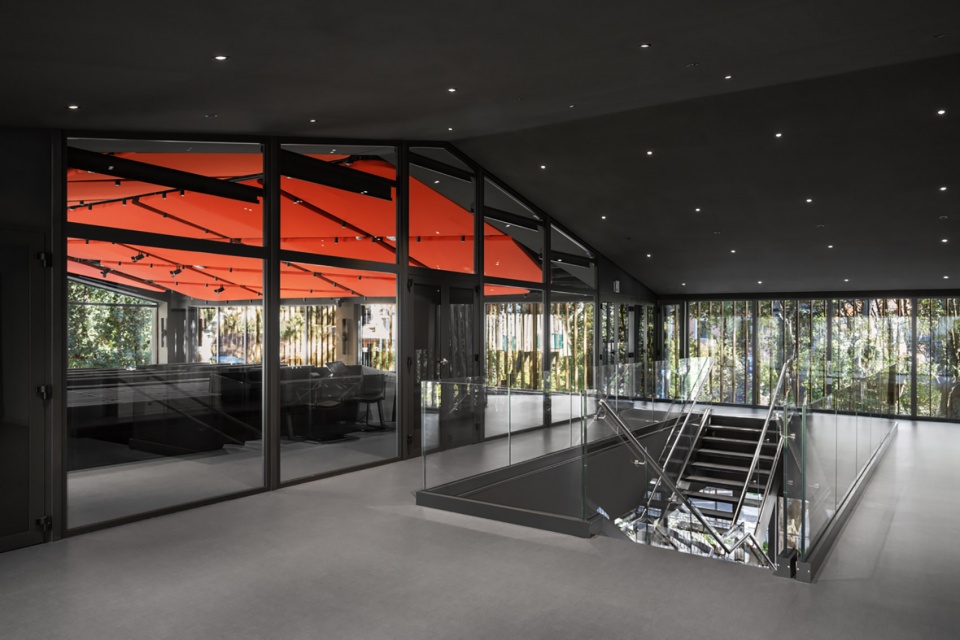

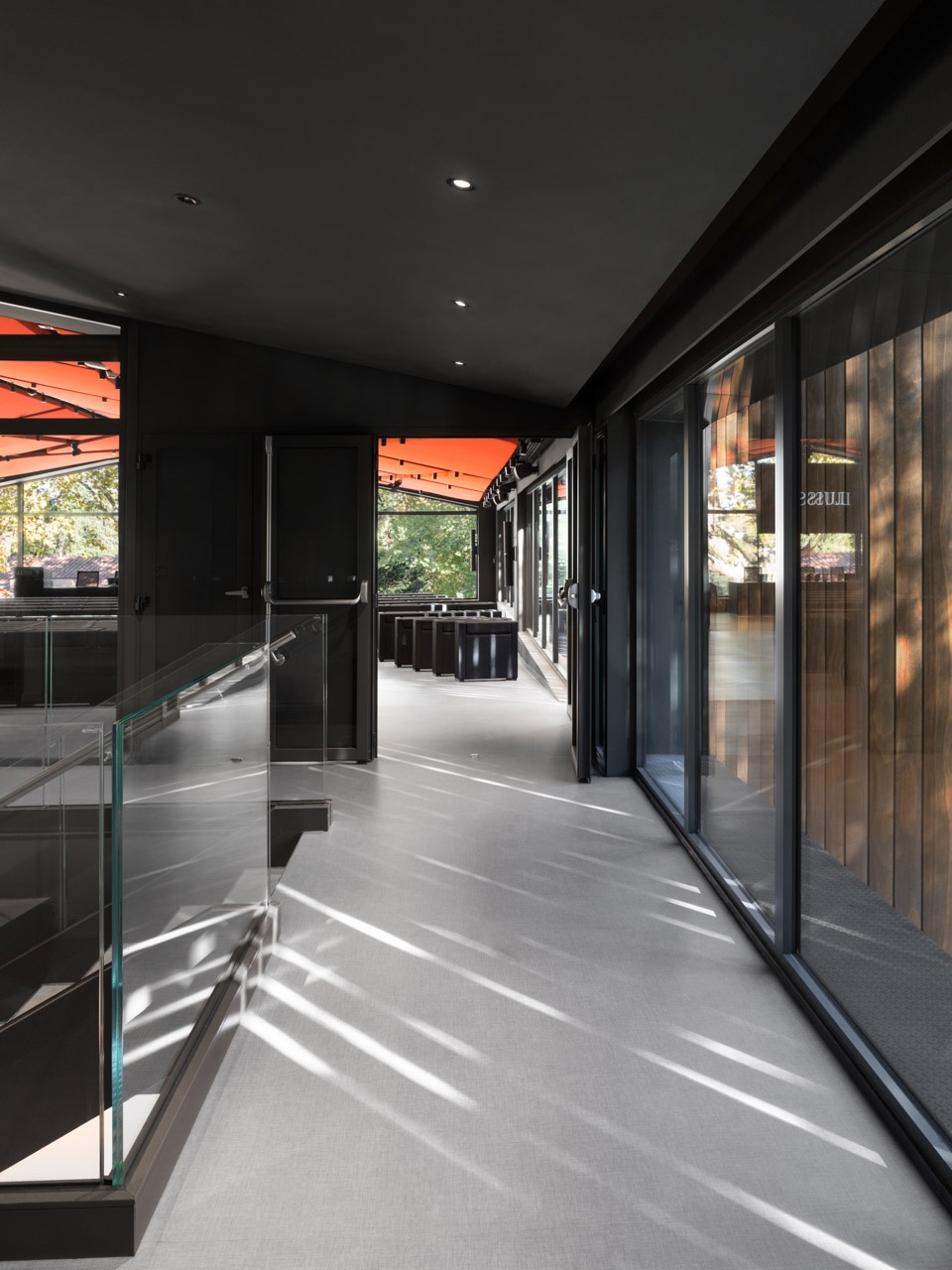

▼二层交通空间，circulation space on the upper floor © Marco Cappelletti

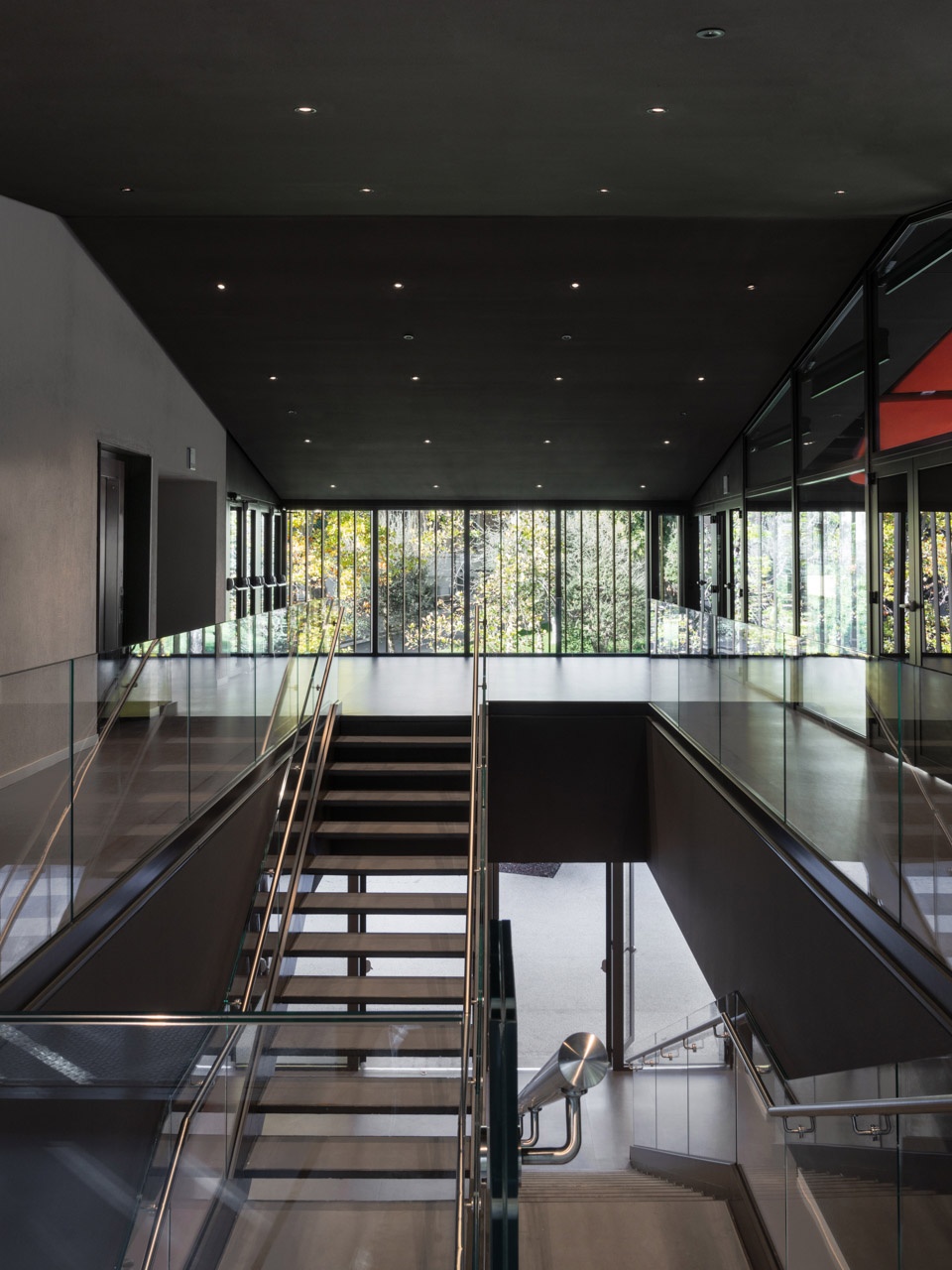

▼交叉楼梯，the cross-flight staircase © Marco Cappelletti

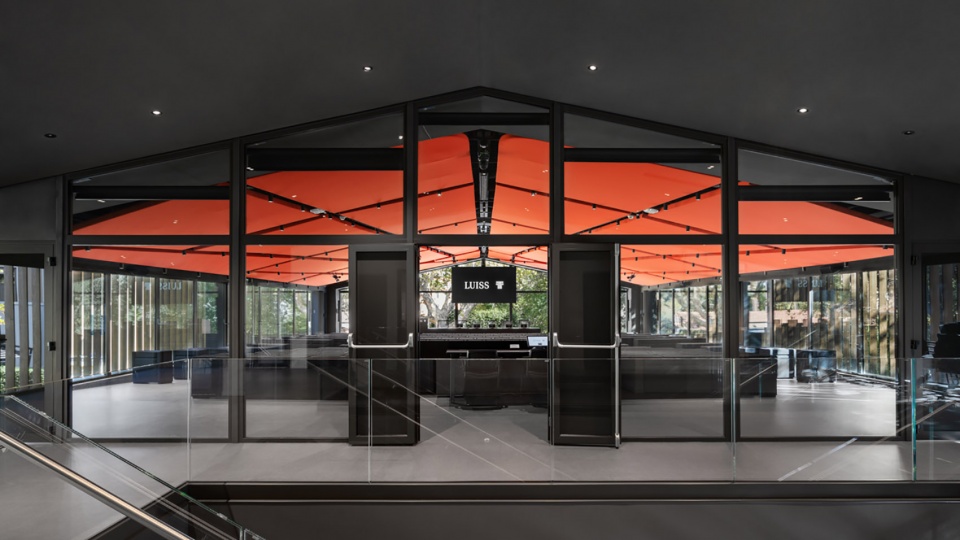

▼大型报告厅入口，entrance of the amphitheatre © Marco Cappelletti

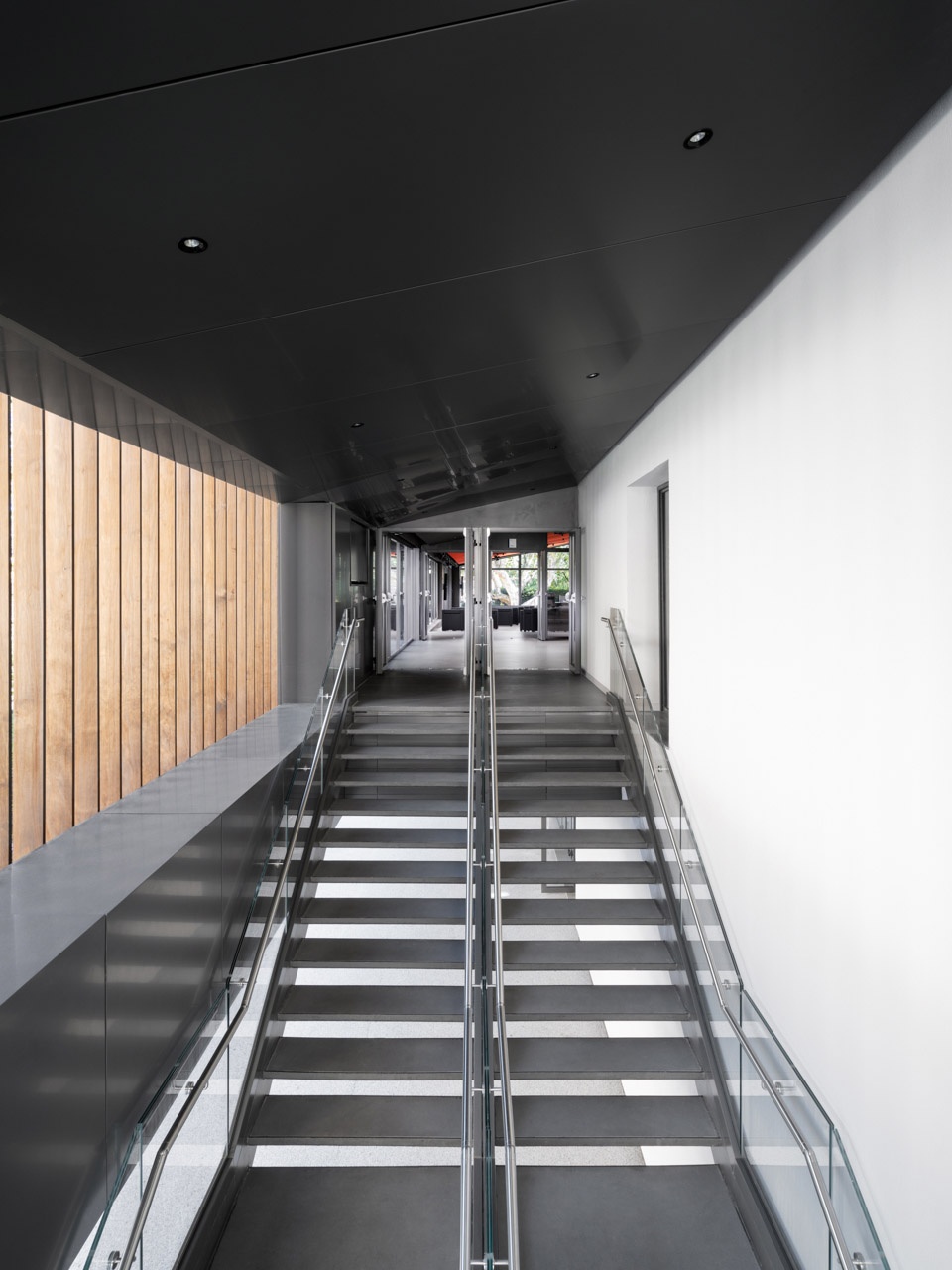

▼走廊，corridor © Marco Cappelletti

在色彩、材料与肌理的选择上，设计始终保持了高度的敏感性：金属材质反射出的光影、粗糙的石膏板表面与温暖的木质肌理融合在一起，创造出对比与平衡的游戏。秉承着可持续设计的原则，建筑由天然材料构成，并获得了著名的LEED白金认证。悬吊在天花板上的吸音板定义了大型报告厅中的空间氛围，鲜艳的珊瑚红色吸引着外界的注意力，并以有机的形态轮廓加强了室内空间与邻近树林的对话。同样引人注目的红色也出现在家具与教室中的一系列细节中，相同的色彩使整个建筑具有巨大的视觉连贯性。每到傍晚，室内的红色与夕阳的余晖相映成趣，为建筑赋予了生命与活力。

The colors, textures and materials of the project were chosen with the same sensitivity: the shades of the metal cladding and the scratched plaster mix with the warm nuance of the wood, in a balanced game of references and contrasts. Inspired by sustainable design principles and made of natural materials, the building has earned the prestigious LEED Platinum Certification. The suspended acoustic panels that define the false ceiling of the amphitheater, with a coral red color, capture attention from the outside, while their organic silhouette reinforces the dialog with the adjacent grove. The same striking red characterizes the furnishings and some elements of the classrooms — a refined detail that gives the entire complex great visual coherence, especially when the building comes to life in the early evening.

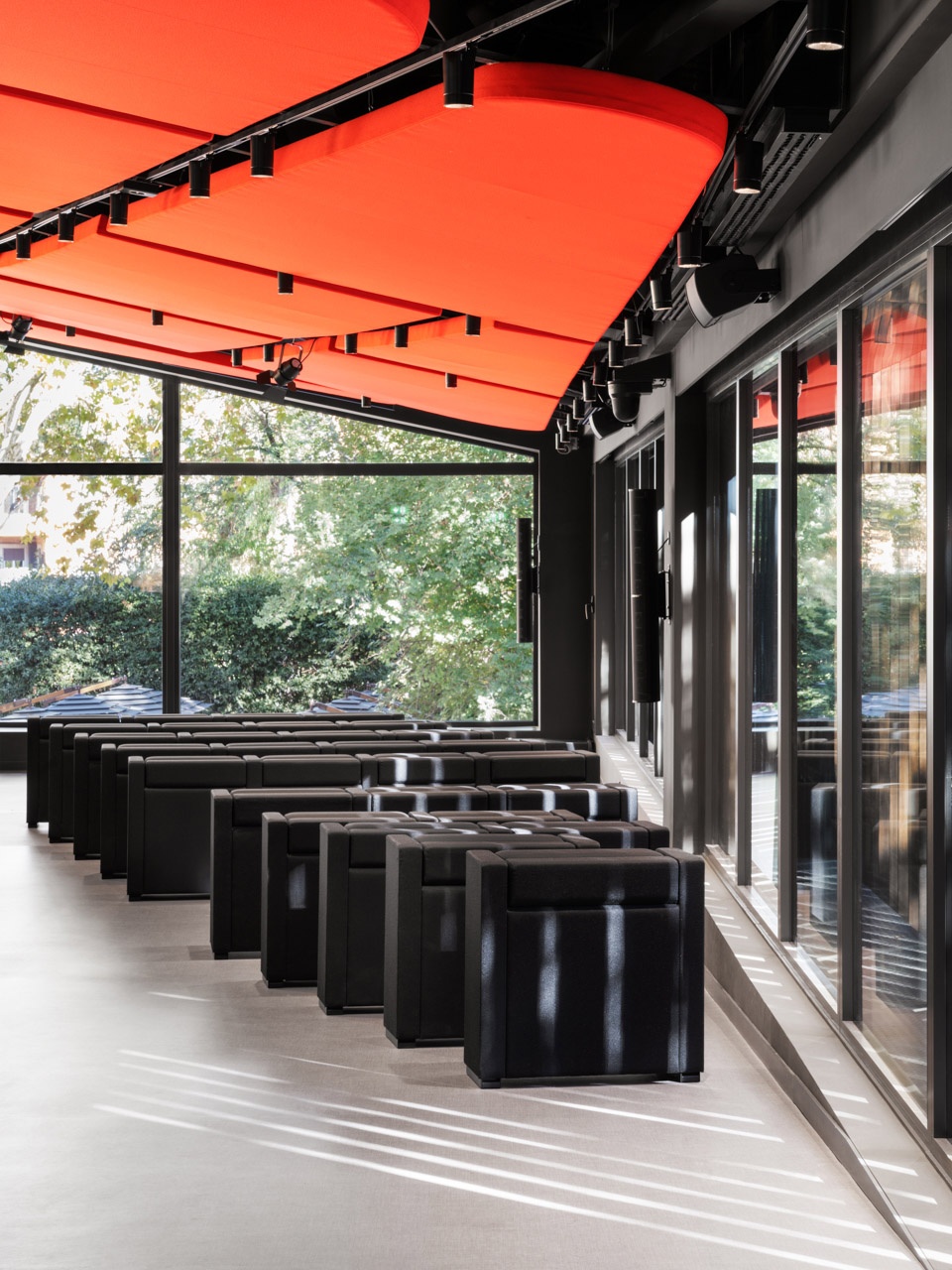

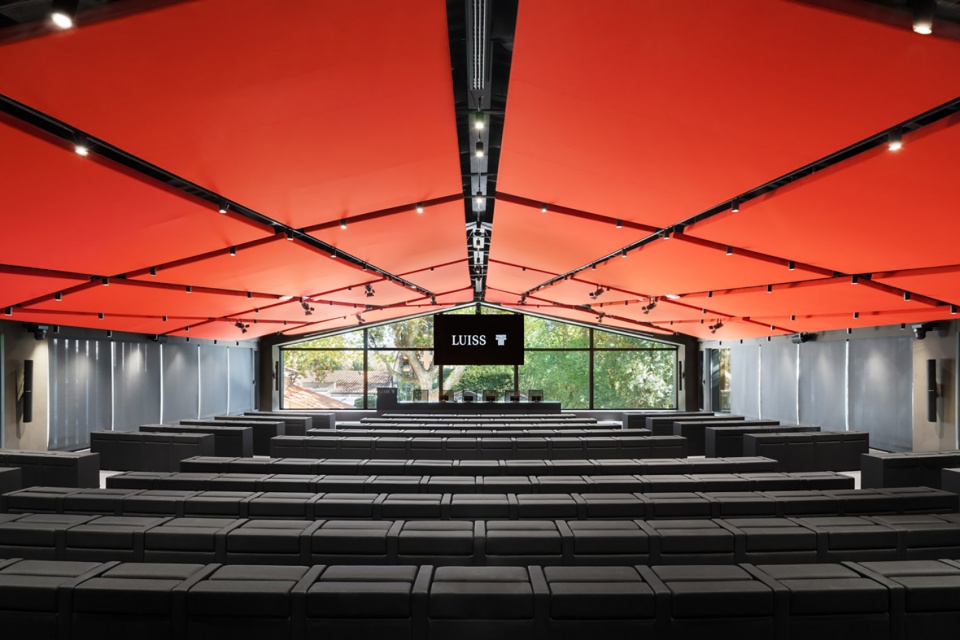

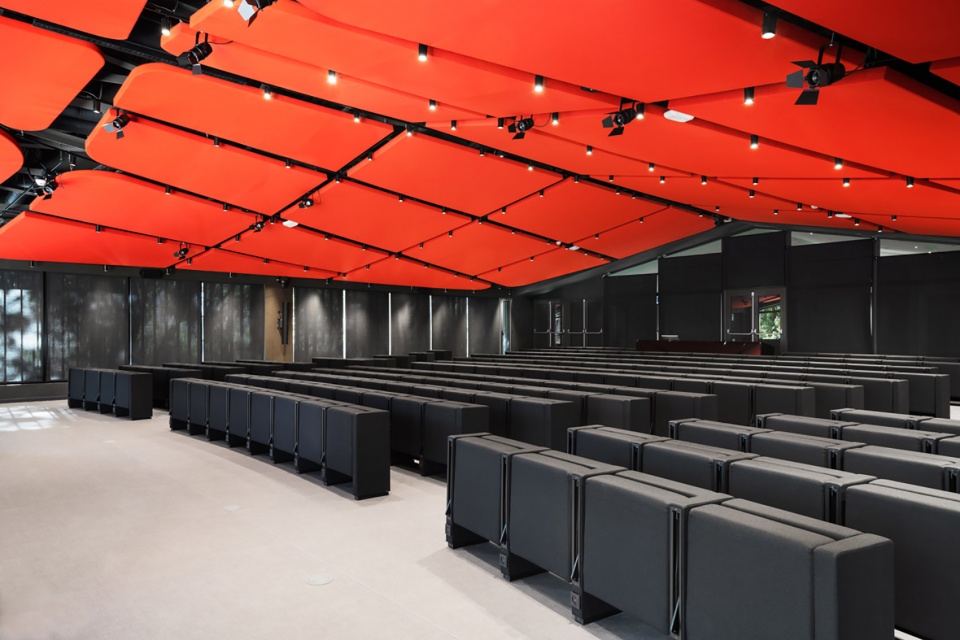

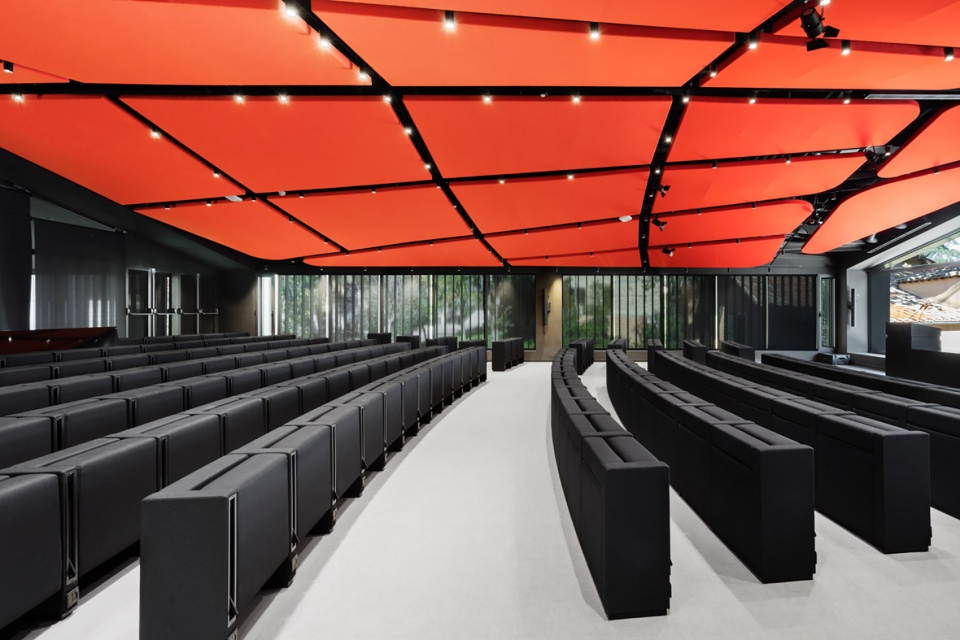

▼大型报告厅，the amphitheatre © Marco Cappelletti

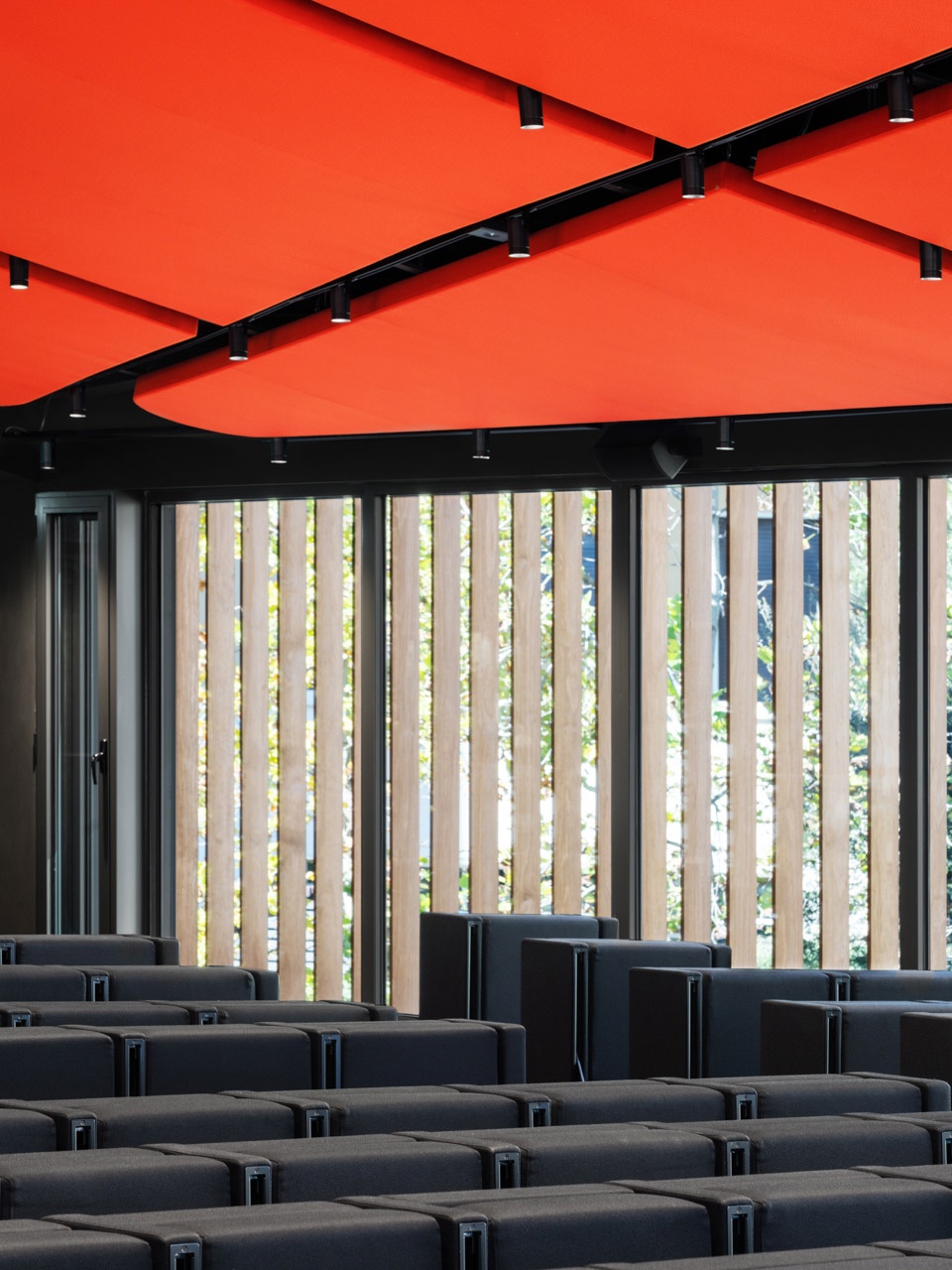

▼珊瑚红色的吸音板，the suspended acoustic panels that define the false ceiling of the amphitheater © Marco Cappelletti

▼大面积的玻璃为室内引入充足采光与景观视野，large areas of glazing bring in plenty of light and views © Marco Cappelletti

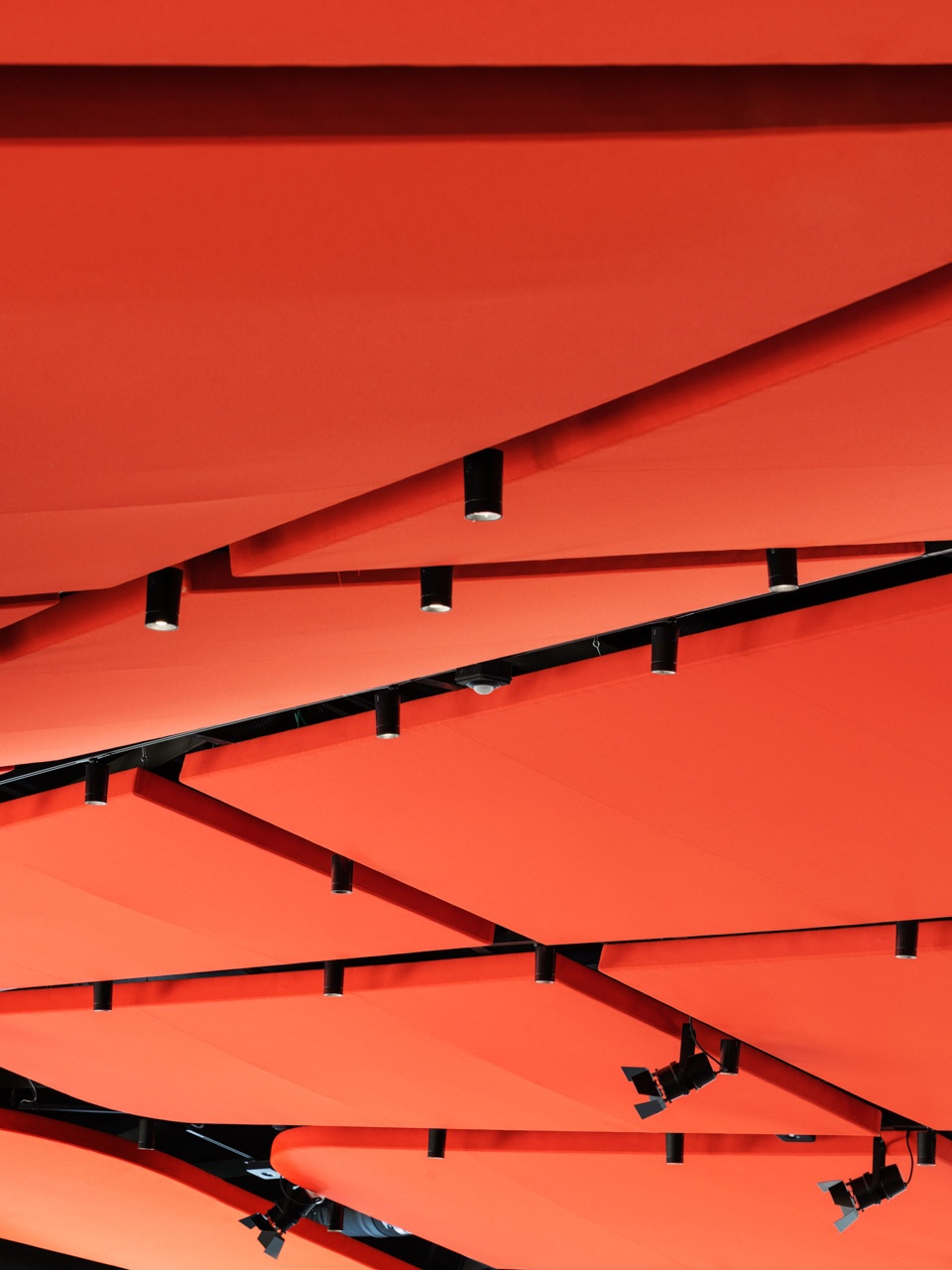

▼吸音板细部，details of the acoustic planes © Marco Cappelletti

室外空间也经过了精心的设计，重新铺设了砾石地板与木制甲板小路，这条小路荫蔽在茂盛的霍尔姆橡树下，将中心广场与树林连接在一起。室外区域设施完备，旨在鼓励学生们在户外空间中学习、社交、放松与玩耍，巨大的灵活性为学生们的社交生活提供了无限的可能。从外观上看，由Alvisi Kirimoto事务所牵头设计的LUISS校园中心建筑，宛如一座巨大的望远镜，悬挑在绿色景观之上，俯瞰着下面的广场，成为大学校园生活的全新焦点。

The outdoor spaces have been redesigned with stabilized gravel flooring, while a deck path, protected by the shade of a row of holm oaks, connects the grove area with the square. All the outdoor areas have been equipped and designed to encourage study, informal meetings, relaxation, and play, offering infinite possibilities for aggregation and great flexibility in use. Resembling an enormous telescope that juts out over the greenery and watches over the square below, the project by Alvisi Kirimoto becomes the new focal point of life on the university campus.

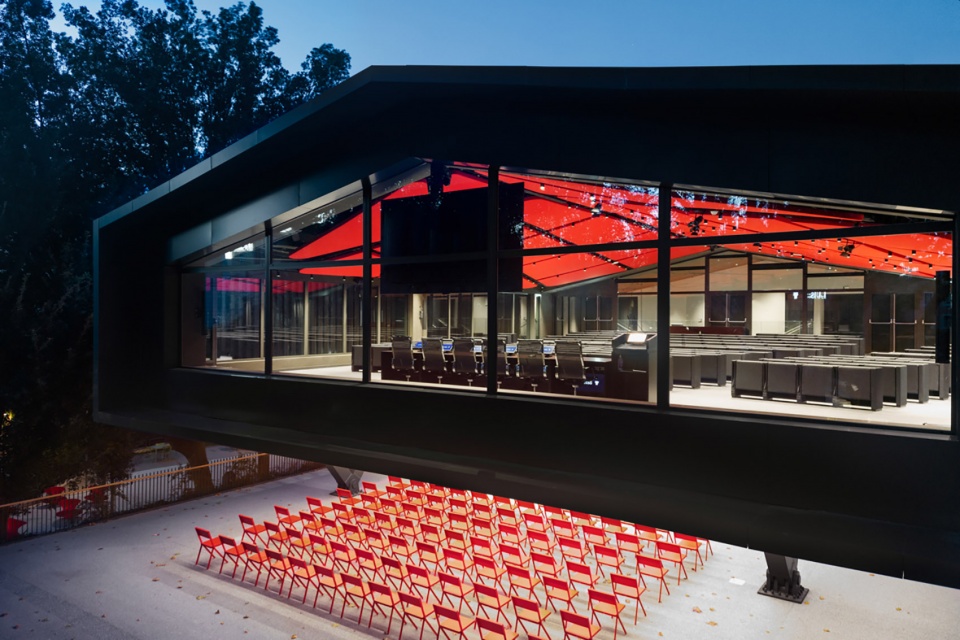

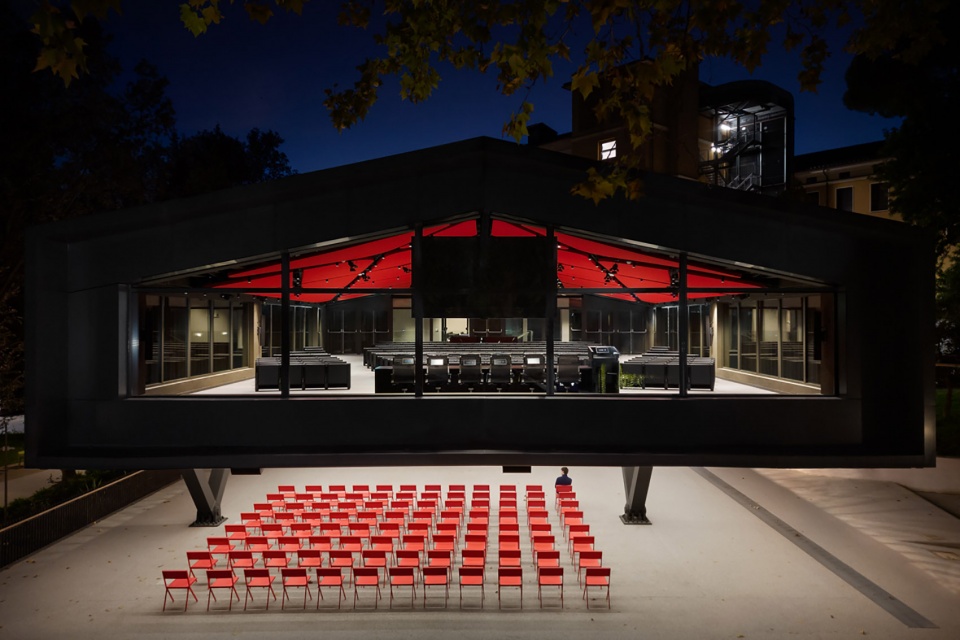

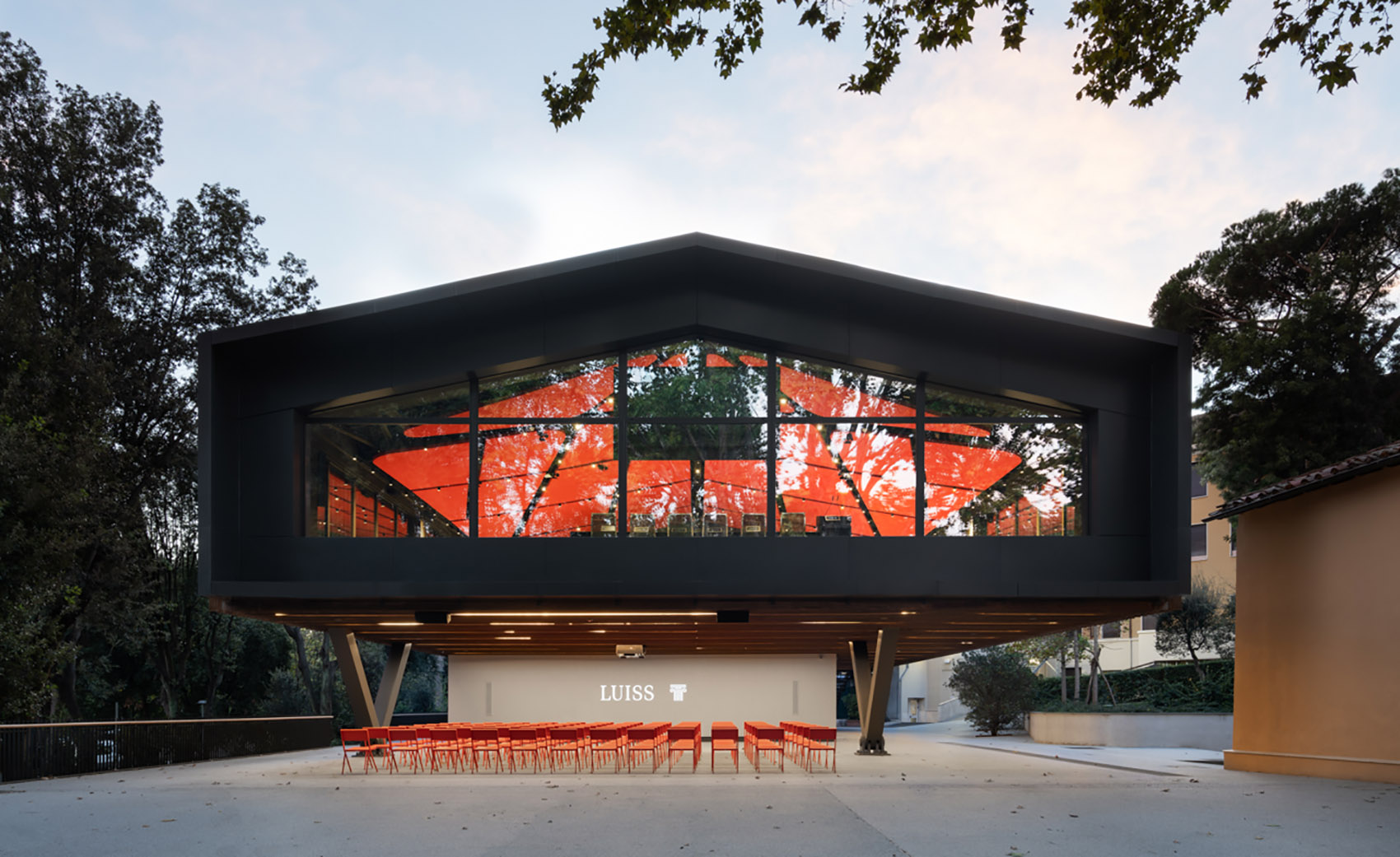

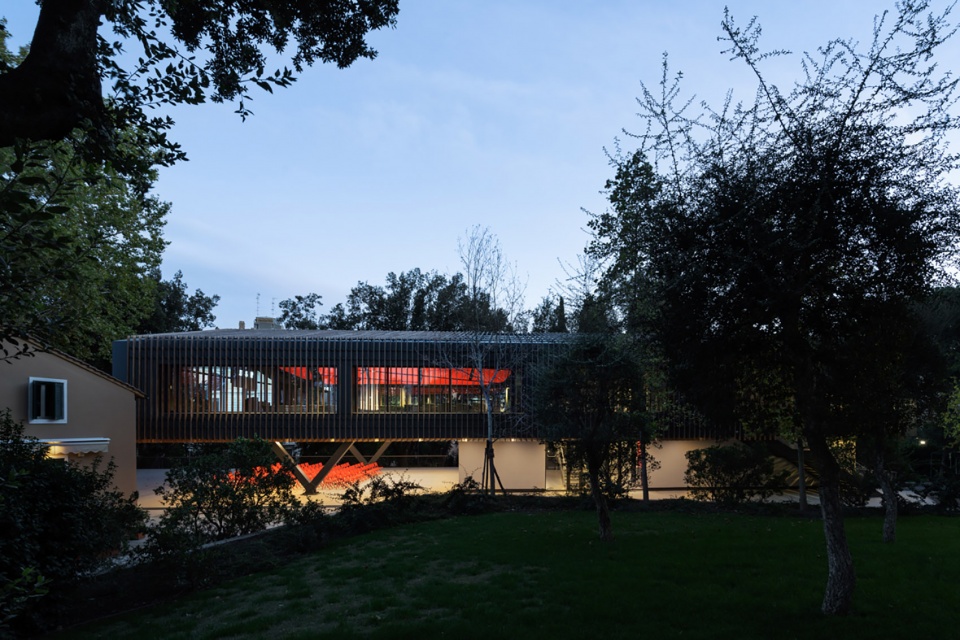

▼夜景，night views © Marco Cappelletti

▼夜景远观，night view at distance © Marco Cappelletti

▼模型，model © Alvisi Kirimoto + Studio Gemma

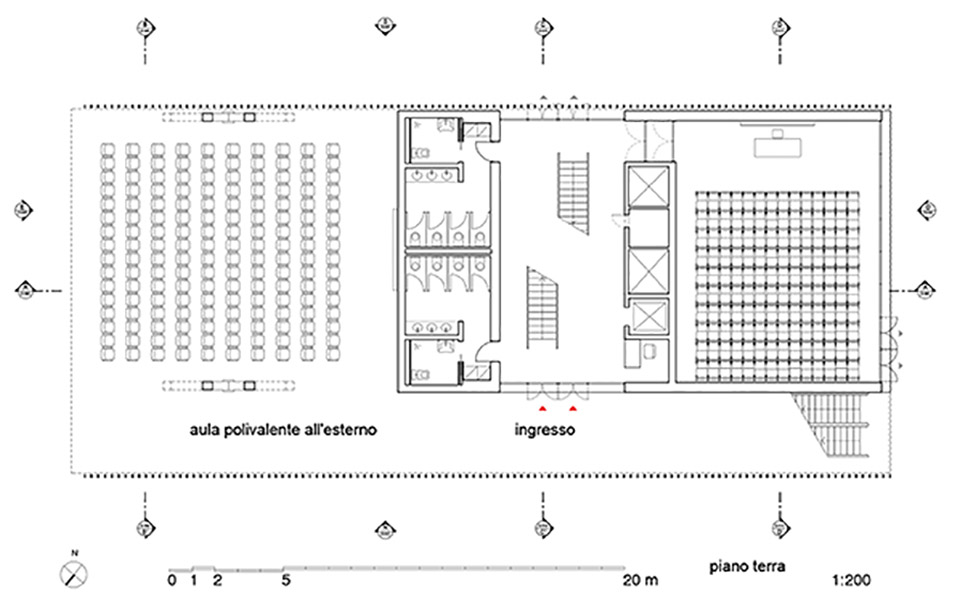

▼底层平面图，ground floor plan © Alvisi Kirimoto + Studio Gemma

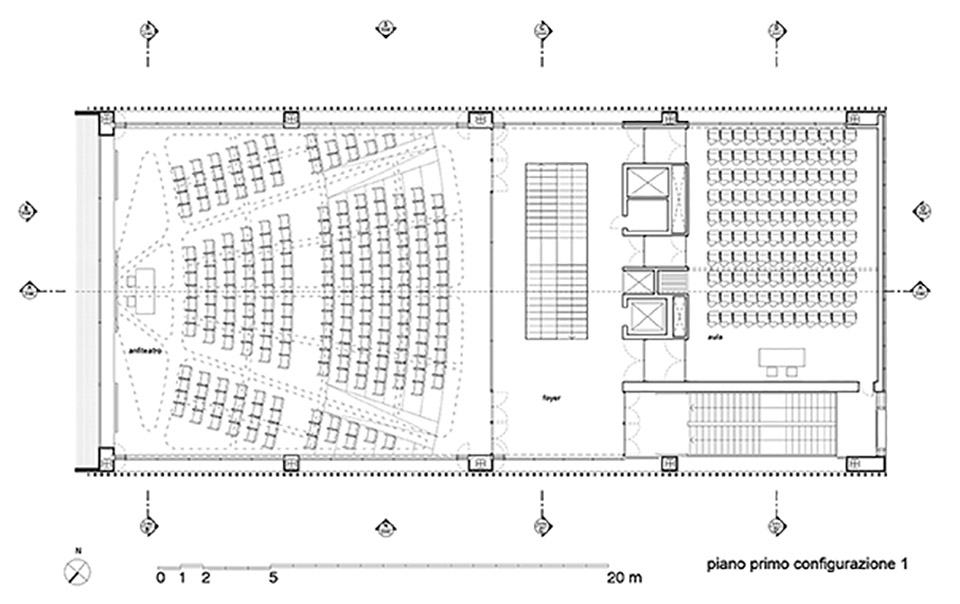

▼二层平面图 – 布局1，upper floor plan – layout 1 © Alvisi Kirimoto + Studio Gemma

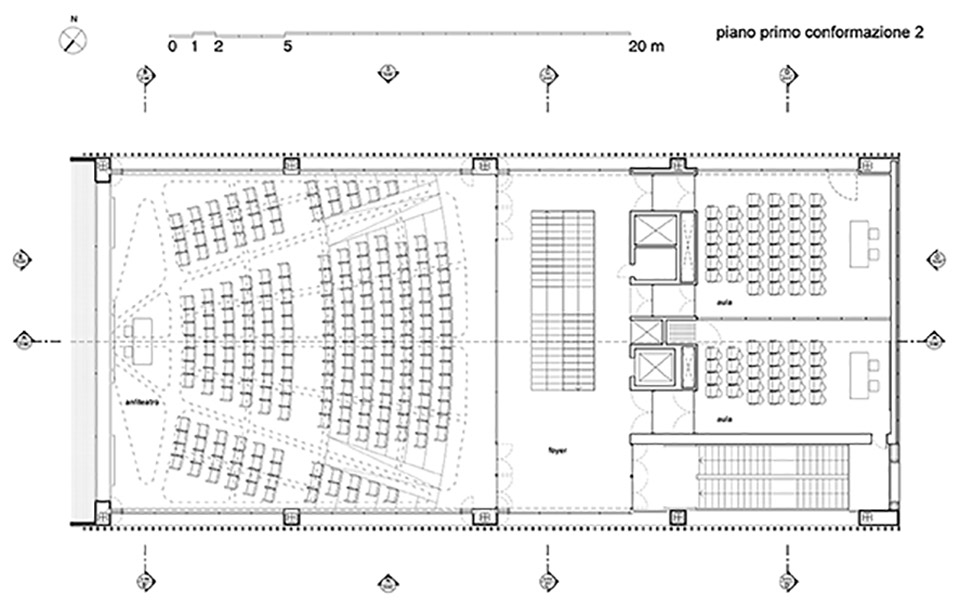

▼二层平面图 – 布局2，upper floor plan – layout 2 © Alvisi Kirimoto + Studio Gemma

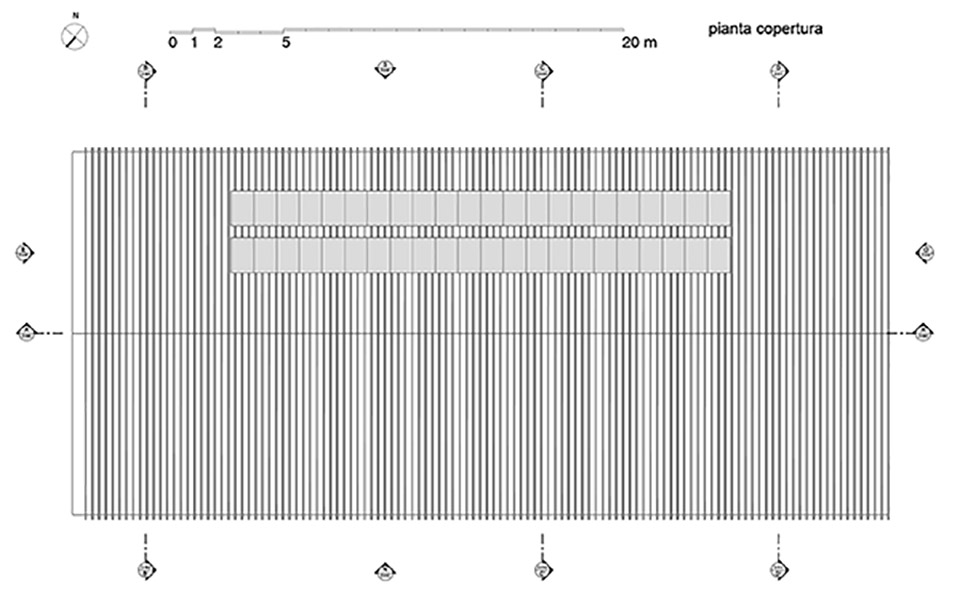

▼屋顶平面图，roof plan © Alvisi Kirimoto + Studio Gemma

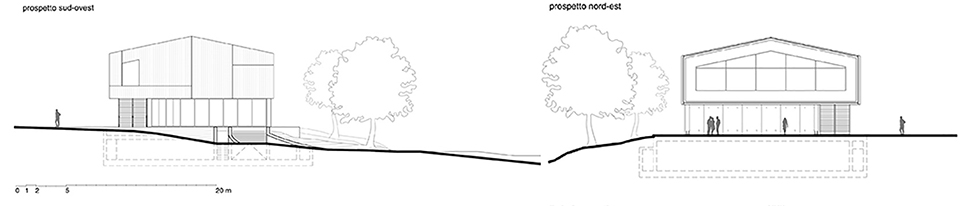

▼立面图，elevations © Alvisi Kirimoto + Studio Gemma

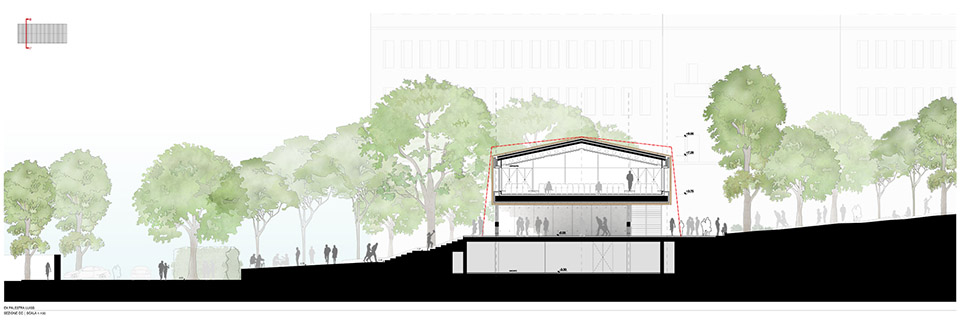

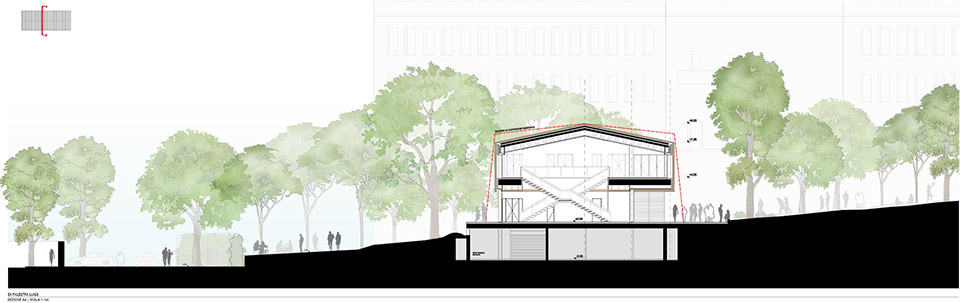

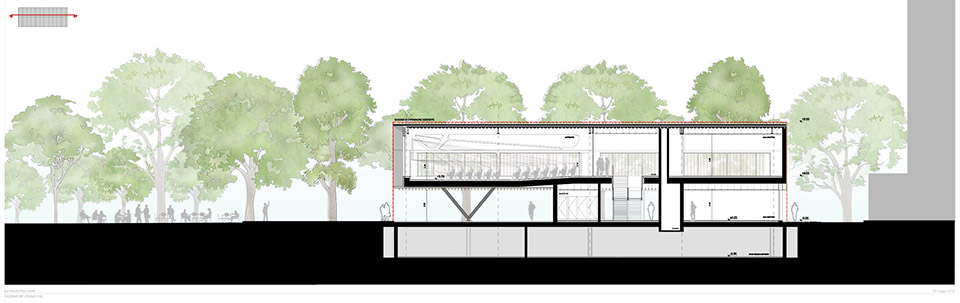

▼剖面图，sections © Alvisi Kirimoto + Studio Gemma

NAME: New LUISS school building
ADDRESS: Viale Romania, 32 Rome (Italy)
ARCHITECT: Alvisi Kirimoto and Studio Gemma
Massimo Alvisi, Junko Kirimoto (Alvisi Kirimoto)
Cristiano Gemma (Studio Gemma)
PROJECT TEAM: Alvisi Kirimoto: Vasiliki Maltezaki, Chiara Quadraccia, Daniel Costa Garriga
Studio Gemma: Alessandro Speranza, Federica Vola
CLIENT: Luiss Libera Università Internazionale degli Studi Sociali Guido Carli
CONTRACTOR: ECOFAST Sistema srl
GFA: 1.500 sqm (buildings)
COMMISSIONED: 2019
START OF CONSTRUCTION: 2020
COMPLETION: 2022
CONSULTANTS:
Structures: INGE.CO srl
Installations: Planex srl
LEED Certification: Habitec Distretto Tecnologico Trentino Scarl
Acoustic: Engineer Andreas Hoischen
Cost management: Engineer Gianluca Gangemi
SUPPLIERS:
Lightning: iGuzzini
Seats: LAMM
External wood cladding: Kebony
Façade cladding: Ponzio Bond
Stained glass: Romana Ponzio Windstop
Packable walls: Oddicini
Interior flooring: Tarkett
Internal curtains: Serge Ferrari
Sound absorbing panels: Acoustico
Sound system: Bose
Elevator: Schindler
Bathrooms tiling: Marazzi
External flooring in stabilized gravel: Pietranet
External deck flooring: Déco Ultrashield
BUDGET: €5,116.845
PHOTOGRAPHER: ©Marco Cappelletti
