非常感谢 CHYBIK+KRISTOF 予gooood分享以下内容。更多关于他们请至：CHYBIK+KRISTOF on gooood
Appreciation towards CHYBIK+KRISTOF for providing the following description:

CHYBIK+KRISTOF 事务所最近赢得了新捷克林业委员会大楼的竞标。事务所基于布尔诺地区，由一群年轻朝气的设计师们组成。中标项目是一栋森林边界的两层建筑，按竞赛要求，此建筑大量使用木材为建造材料。建筑的设计理念是将森林景观与五指大楼相融合，自然小径环绕建筑形成不同的外部景观。项目包括建筑，景观和室内将由多位设计师联合设计。

A project designed by a team under the direction of the Brno based young architecture studio CHYBIK+KRISTOF has recently won the international competition for the new administrative centre of the Czech Forestry Commission in Hradec Králové. The winning proposal is a two-storey building on the edge of an existing forest, that uses wood extensively as construction material – as requested within the competition. The concept is based on incorporating the forest landscape into a five-finger building to create new relations between the inside office and the outside forest landscape. A nature trail surrounding the building allows to explore the different forest ecotypes, designed by Tomas Babka and breathe.earth.collective.

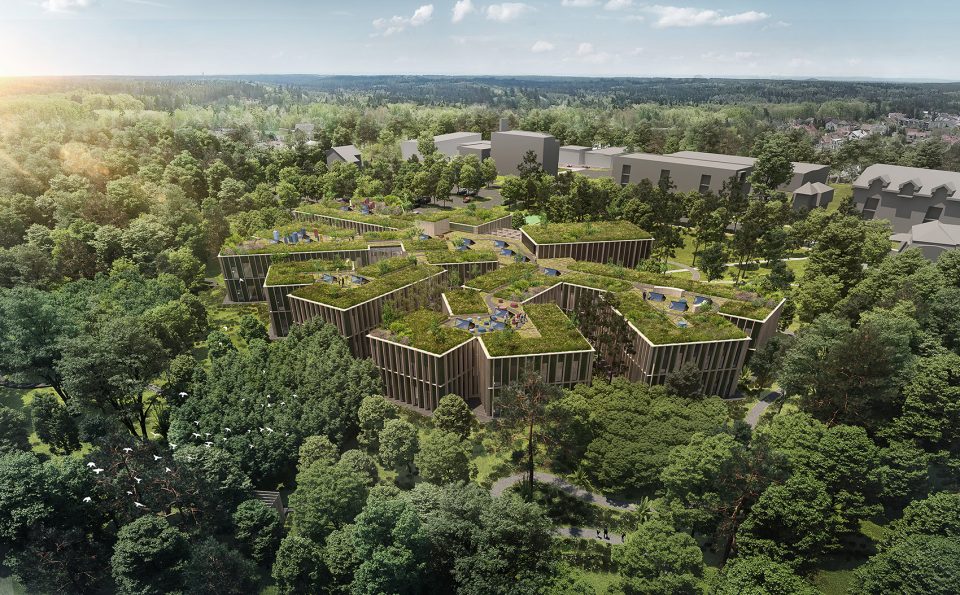

▼建筑设计效果图，rendering

2016年夏季，新的捷克林业委员会大厦项目展开了两轮国际竞标。此项目是要扩建总部大楼以满足日益增长的需求。建筑位于赫拉德茨-克拉洛韦西南市郊，这里有捷克最受欢迎的林地之一。有超过四十家来自捷克，西班牙，奥地利，波兰，斯洛伐克，法国，美国和荷兰的事务所参与竞标，比赛的评委会包括Dorte Mandrup-Poulsen, Dietmar Eberle, Miroslav Šik等人。其中五家事务所进入了二轮竞标。获胜者CHYBIK+KRISTOF事务所以及合作设计师K4, Ivo Stolek, Jan Stolek, Tomas Babka 和breathe.earth.collective以非常规的入口设计赢得了评委会的芳心。这个独特的入口设计让建筑脱离行政大楼的束缚，展现公共开放的特性，展现未来建筑风采。除此之外，评委会还赞扬了事务所将建筑与自然融合的设计手法，这种正面开放和模块化的建造方式令室内平面设计充满可能性。

In summer 2016, a public two-round international architecture competition was announced, looking for a design for the new administrative centre of the Czech Forestry Commission that should substitute the existing insufficient headquarter buildings on the south-western outskirts of Hradec Králové – a place next to one of the most sought-after forests in the Czech Republic. More than forty architectural firms from the Czech Republic, Spain, Austria, Poland, Slovakia, France, United States, and Netherlands took part in the competition with its international jury consisting of Dorte Mandrup-Poulsen, Dietmar Eberle, Miroslav Šik amongst others. Five of these teams were selected to complete their proposals in the second round. The winning entry presented by CHYBIK+KRISTOF Architects & Urban Designers in collaboration with K4, Ivo Stolek, Jan Stolek, Tomas Babka and the breathe.earth.collective prevailed by its unconventional approach which, according to the jury, makes the building an open public institution rather than an administrative building, fulfilling the vision of a future-oriented envoironment. In addition, the jury praised the sensitive way of incorporating the building in the natural surroundings, its open-fronts and the modularity of the construction, which enables a variability of the interior layout.

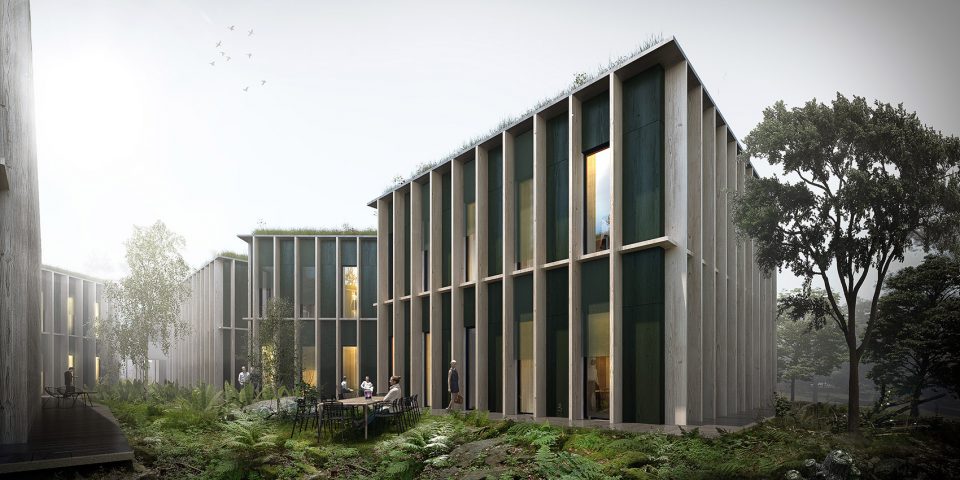

▼建筑与景观相融合的设计手法， incorporating the building in the natural surroundings

“进入建筑内部的同时，我们也进入到森林中，我们问自己，是什么让我们选择坐在炎热的办公室内，而放弃在怡人景致中工作。实际上，这一点也是我们在设计中最主要的考虑。我们试图创造与自然通透，亲密，并且美观的办公空间。带着这样的想法，这个以庭院为中心的放射性规划平面最终确定，这个设计将使森林景观与建筑相互渗透。”CHYBIK+KRISTOF事务所的合伙人Ondřej Chybík解释道。

“While inspecting the premises we also took a walk into the wooded areas, asking ourselves what it was that made us work in hot indoor offices when the best thing to do seemed to be to take a laptop to the woods and enjoy the tranquillity and airiness of the place while working. In fact, this idea was the driving force behind our proposal – what we sought to do was create a transparent, yet intimate and highly presentable working space. Having this concept in mind, we opted for a radial office layout relying on a central courtyard from which the building penetrates the wooded areas and the wooded areas penetrate the building.” Ondřej Chybík, a founding partner of CHYBIK+KRISTOF Architects & Urban Designers, says.

功能与外观 Functions and typology

办公区被分成五个手指一样的部分，这五个独立的行政单位于中央庭院连接，朝向主入口形成45°角。开放的正立面形成会议厅，咖啡屋和食堂这两个主要主要区域。这里承载了建筑的社交功能，如会客室和图书馆一样吸引人来交流。

The office sections are divided into five „fingers“ representing five independent administrative units forming an angle of 45° and converging in the central courtyard towards which the main entrance is orientated. The open front’s defining features comprise two protruding volumes – a conference hall and a cafeteria and canteen – which form the central meeting area of the building. All social functions are concentrated here, like a meeting room and a library.

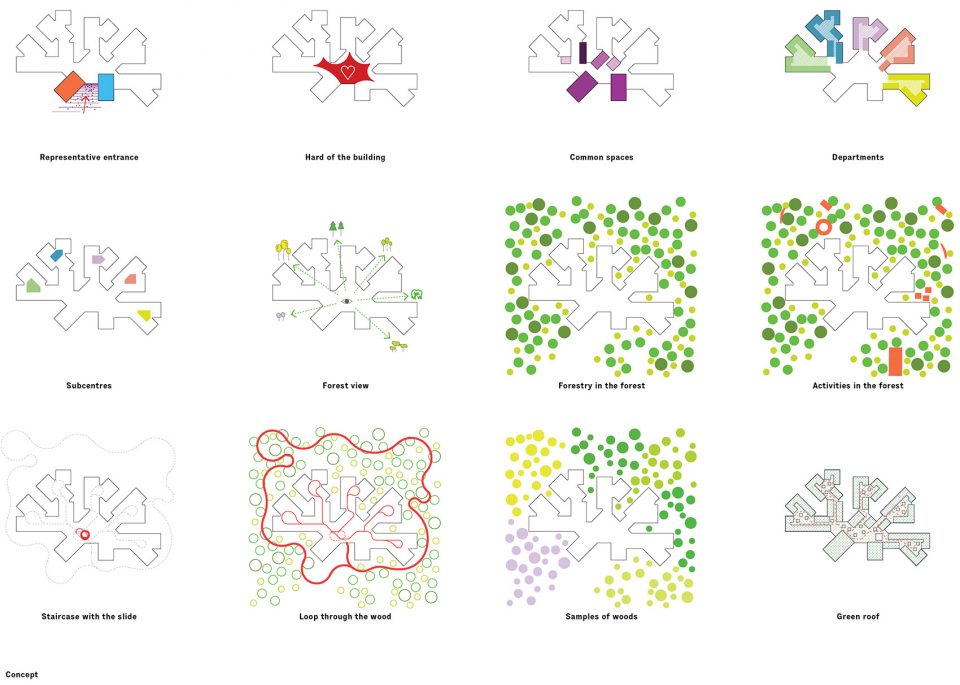

▼设计理念，concept

建筑外围的自然小径从屋顶向下延伸开来，描绘了可持续发展的森林理念，小径引导来访者环绕建筑而下进入庭院。屋顶天窗照亮中心两层庭院，支撑的柱子，垂落的树干给来访者置身于森林之中的感受。访客中心被看作是建筑设计的附加价值，充分展示了行政大楼的公众开放性。

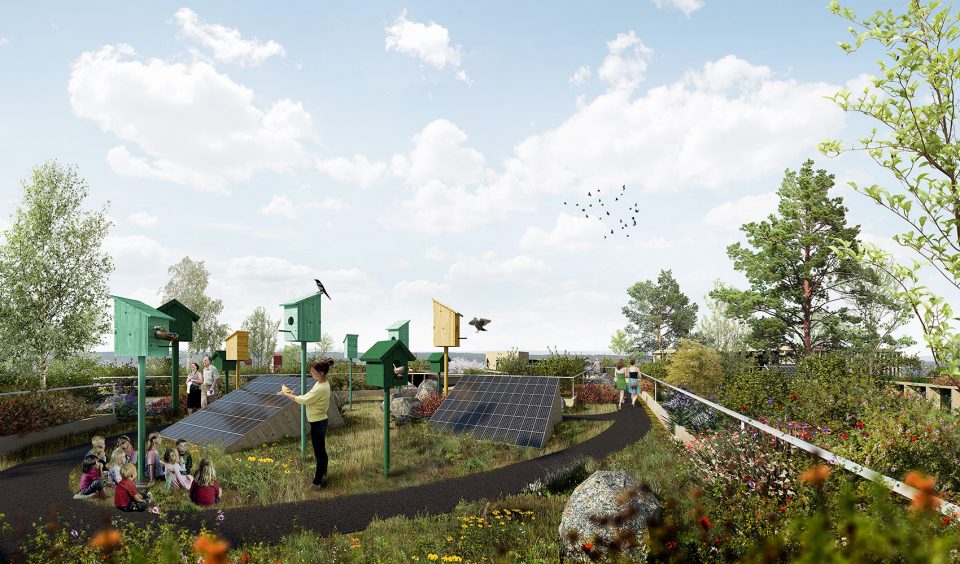

The nature trail on the outside of the building starts on the roof with a presentation delineating the elements of sustainable forestry. The trail continues with a slide that takes visitors down to the courtyard and directs them along a winding pathway around the whole building. The central two-storey courtyard is lit by roof skylights and is complemented with supporting columns reminding the visitors of tree trunks that give the impression of a clearing in the middle of a forest. The program provided by the visitors’ centre may be seen as an added value of the design of the administrative centre that accentuates its being open to the public.

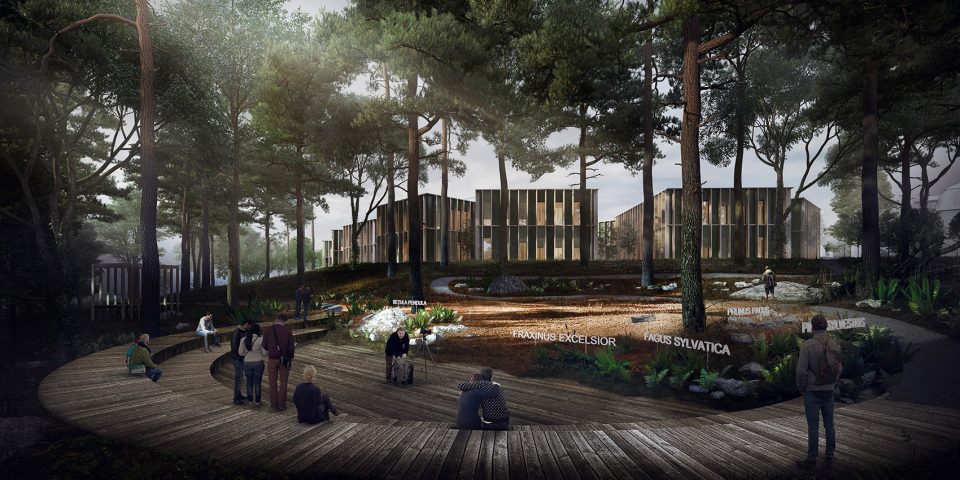

▼环绕建筑外围的小径带领人在景观与建筑中穿行，the nature trail leading people moving between nature and the architecture

办公区规划采用了将室内外景观相连接的城市规划理念。走廊在某些地方消失了，取而代之的是将主楼梯设置在建筑的子中心。存储空间和可以举行正式商务会客以及非正式休闲聚会的餐厅也被嵌入到此区域。模块化的建造将办公区分割成各种附加单元，并通过移走非承重结构打造创造性的开放空间。地面层的分割确保了所有区域都能享受充足的自然采光。地下室用作停车场，健身房，仓库，咖啡屋及食堂的储藏间等附加功能。

The office areas as such employs the urbanist concept of an office landscape and is interconnected with the exterior. Corridors are virtually missing in the particular units. Instead, sub-centres with central staircases, storage areas and kitchenettes (which can be used for a number of activities from business meeting to informal gatherings/break-out activities) are inserted. The modularity of the construction enables both the division of the office area into enclosed units and the creation, by removing the non-load-bearing elements, of an open space area with subcentres. The segmentation of the ground plan ensures that all areas can offer sufficient amounts of daylight. The sub-basement is designed to provide additional functions such as parking spaces, wellness and fitness centre, depositories, and places with supplies for the cafeteria/canteen.

▼由屋顶向下伸展的弯曲坡道增加空间灵动，the curved stairs creates a lively atmosphere

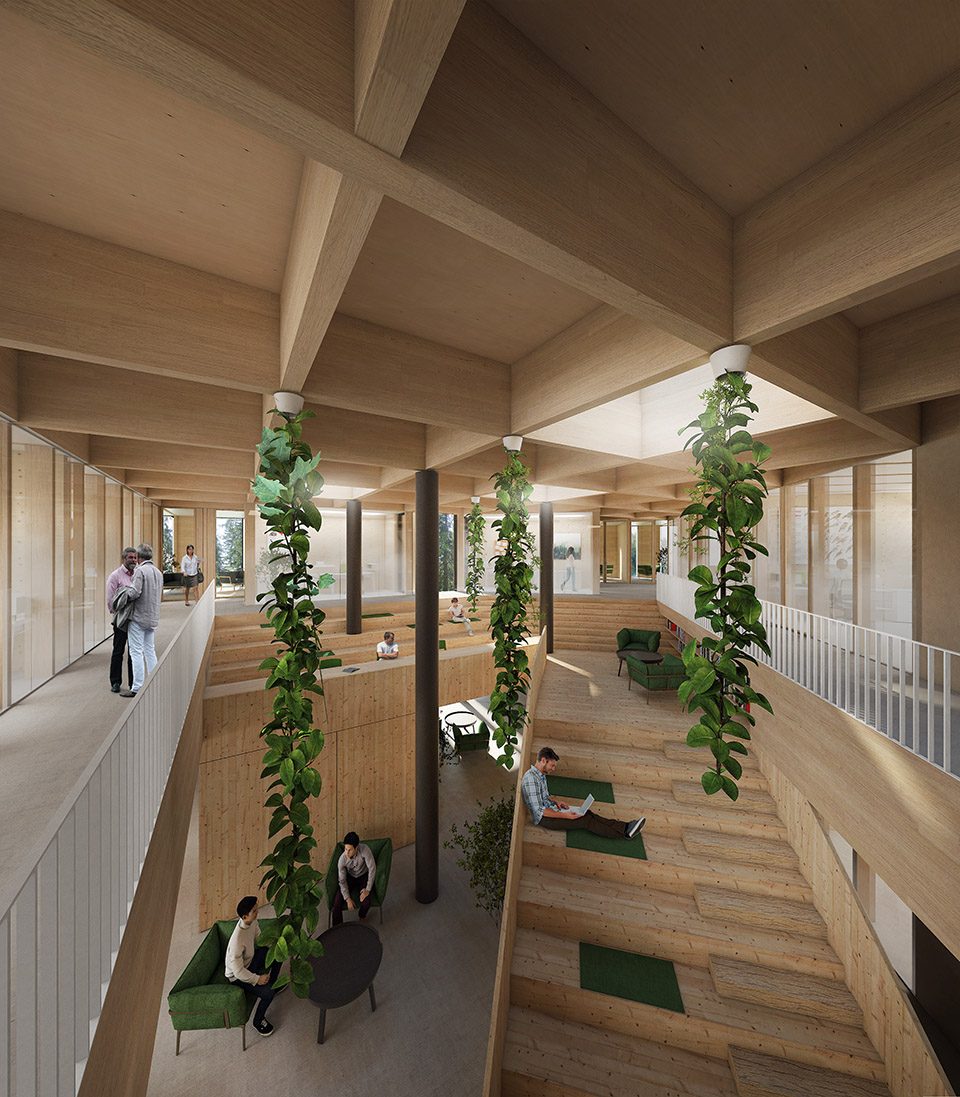

▼垂落的树干给人置身森林的感受， tree trunks that give the impression of a clearing in the middle of a forest

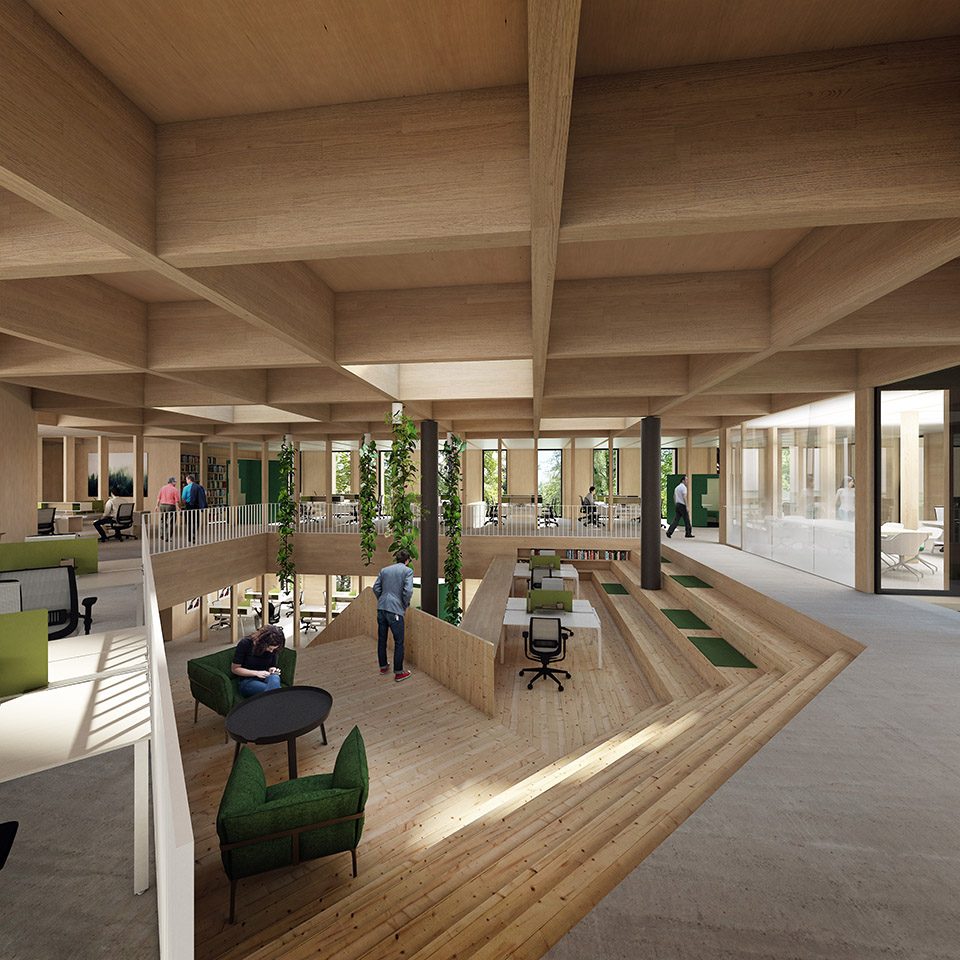

▼主楼梯位于子中心，central staircases are designed in sub-centres

▼屋顶天窗引入自然光照，the roof skylight letting in the natural light

景观规划概念 Landscape concept

景观作为建筑设计理念的一部分，由建筑设计师与景观设计师共同决定。设计师们持有共同的理念，希望通过自然在建筑中的融入来改善内外部环境关系。五个巨大的分区提供不同的森林环境体验，不同的树木品种比如云杉，山毛榉和冷杉，松树和桦树，以及橡树和角树，这些树木都是捷克森林中的常见品种。建筑主入口设计展现出茂盛的花园视觉，并自带科技制冷效果。植物不仅作为配景存在于建筑中，更通过其带来的森林气息另来访者印象深刻。在开放庭院中，基地，石头，灌木和多年生植物等平面规划都加强了森林景观的真实性。考虑到要尽快建立森林景观系统，设计师建议开发林地组合形式，在未来的二十年，周围林地景观将被陆续改变。

An integral part of the proposal is the concept of the landscape and vegetation which CHYBIK+KRISTOF Architects & Urban Designers developed in cooperation with landscape architect Tomáš Babka, and the Austrian, breathe.earth.collective, who have been known for their remarkable work on the Austrian Pavilion at the Expo in Milan ‘breathe.austria’.Together they developed the concept to improve the relation between the outside and the inside within an immediate proximity to the building. The five major sectors are going to provide different local forest experiences, such as spruce, beech and fir, pine and birch, and oak and hornbeam forests, which refer to the basic types of forest found in the Czech Republic. The main entrance is designed to serve as a highly-presentable vision of a park in the future with fully-grown trees performing with technical adeabate cooling elements. The vegetation proposed is not a mere accompaniment to the design. It is rather meant to educate and recharge its visitors as well as the employees through the refreshing forest atmosphere.In the open courtyards the succession of the actual forests will be initiated through the provision of an intensive ground layer based on substrates, stones, shrubs and perennials. Considering the effort to install an instant forest landscape, the designers propose a development scheme of the forest. The upcoming 20 years the surrounding forest landscape will be constantly changing.

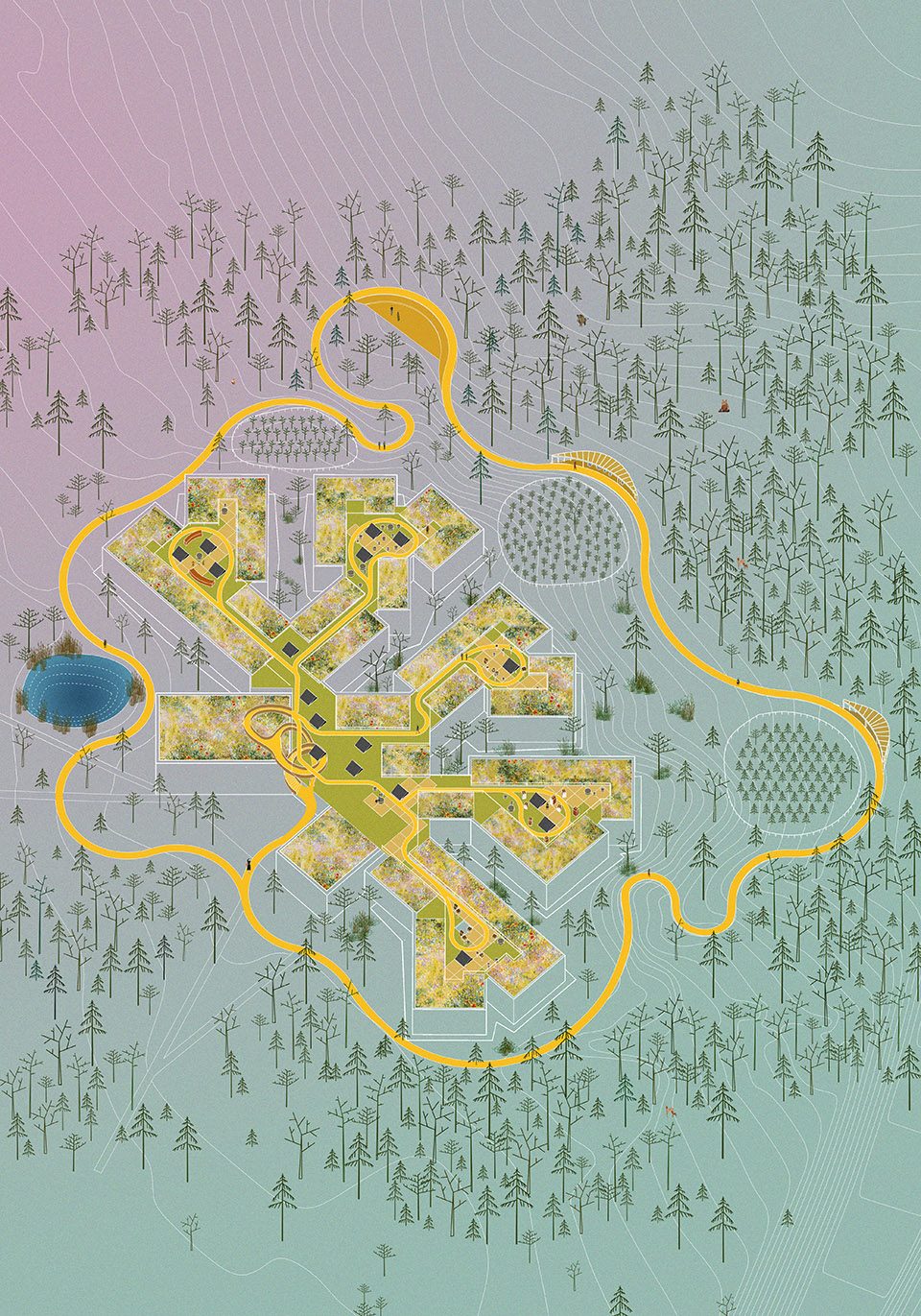

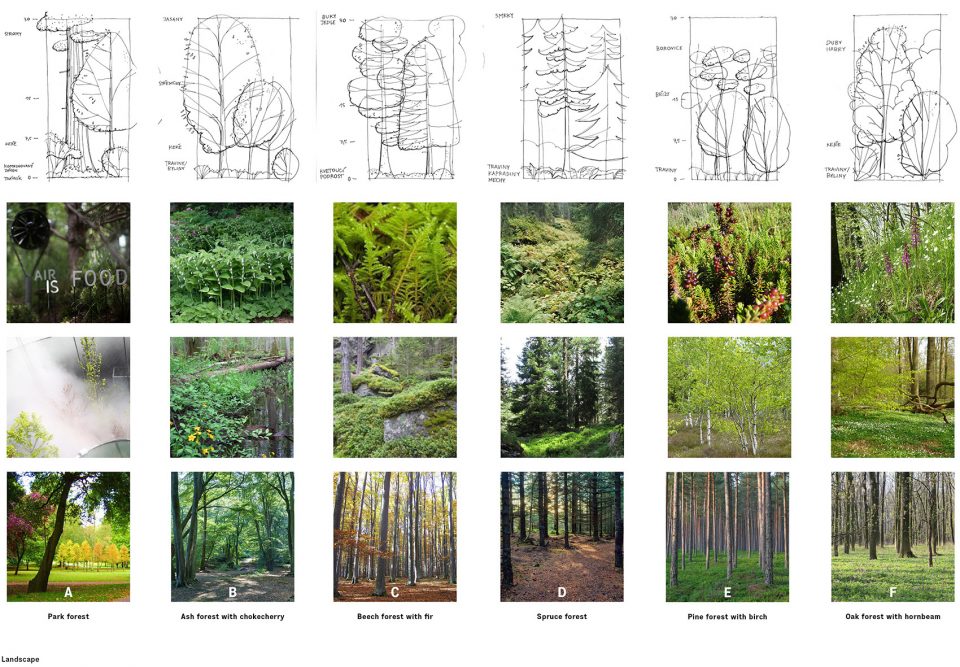

▼景观规划，landscape design

能源及可持续理念 Energy concept and sustainability

捷克林业委员会行政中心以节能建筑为设计理念，并大量使用木材作为建筑材料，满足审美需要。地上部分包括框架结构采用多层压合木板，柱子为胶合板材料。建筑立面元素和部分内部结构采用木质材料，下层地下室和楼梯间由混凝土构造加固。建筑还采用了木质圆形取暖设备，房顶的可再生能源，内部装配的可调节热力系统以及节能灯的使用使建筑整体零消耗。能源消耗和热水管理数据将受到互联网大众的密切监控。

The administrative centre of the Czech Forestry Commission has been designed as an energy-efficient building which makes extensive use of wood as a building and aesthetic material. The above-ground part consists of a framework construction made of glued laminated timber profiles, columns are also made of glulam. Full facade elements and internal crossbars are made of compact wooden boards. The sub-basement and staircase cores are made of reinforced concrete. Wood pellet stoves are used to provide heating. Alternatively, boreholes can be used and photovoltaic arrays may be installed on the roof of the building and serve as renewable energy sources. In addition, the building is equipped with a controlled heat recovery ventilation system, systems to save drinking water, smart rainwater management systems, external shading devices and energy-efficient LEDs which, as a whole, make it a building with virtually zero energy consumption. Energy consumption and heat and water management data will be monitored closely and accessible to the public on the internet.

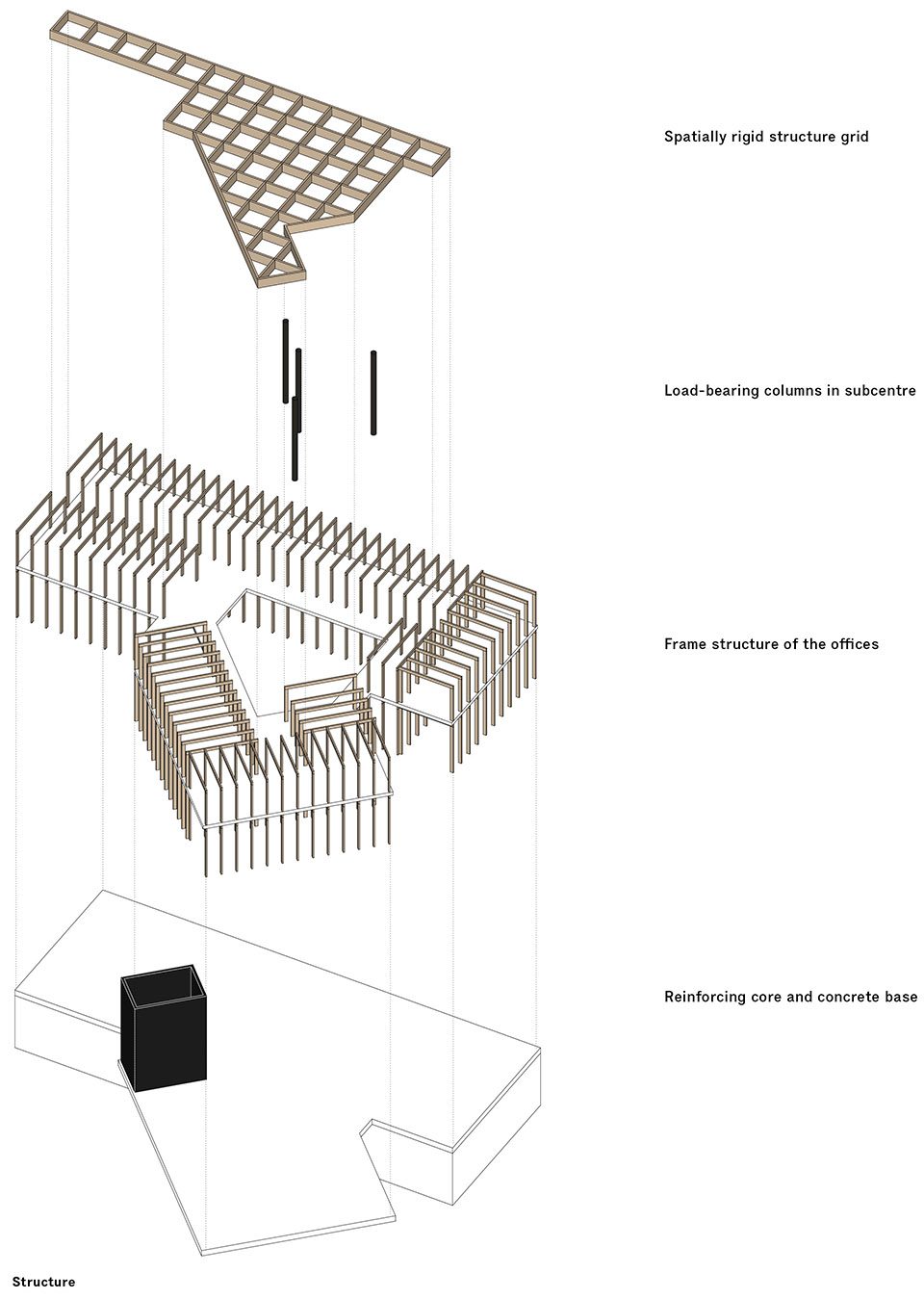

▼建筑结构，structure

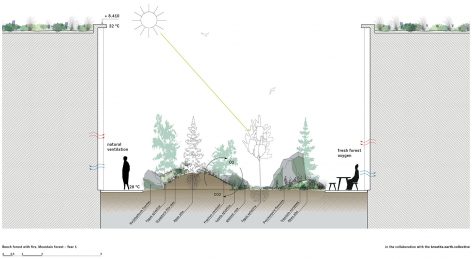

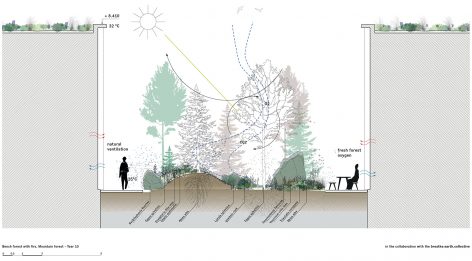

▼节能规划， energy-efficient

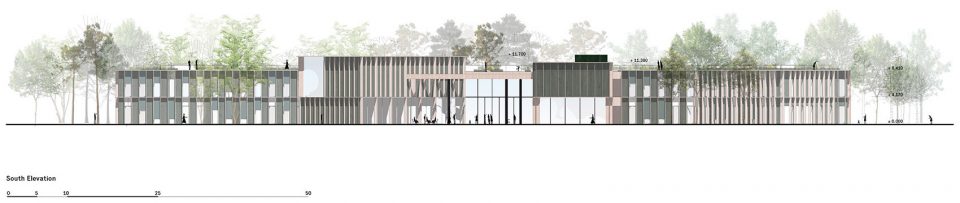

▼南立面图，south elevation

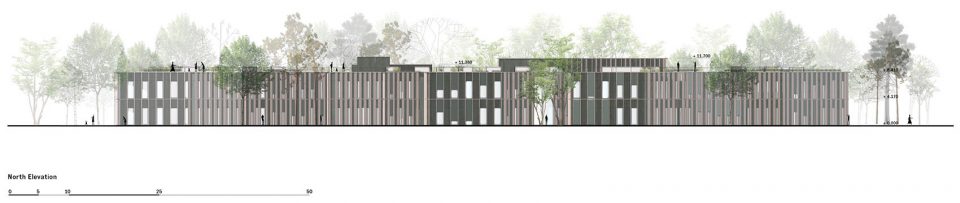

▼北立面图，north elevation

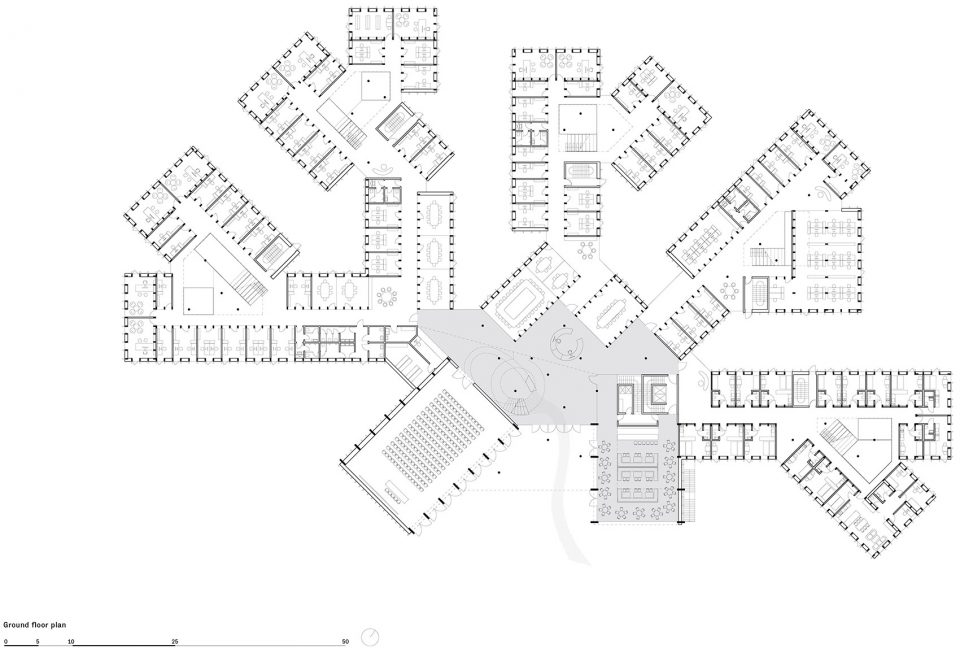

▼一层平面图，the first floor plan

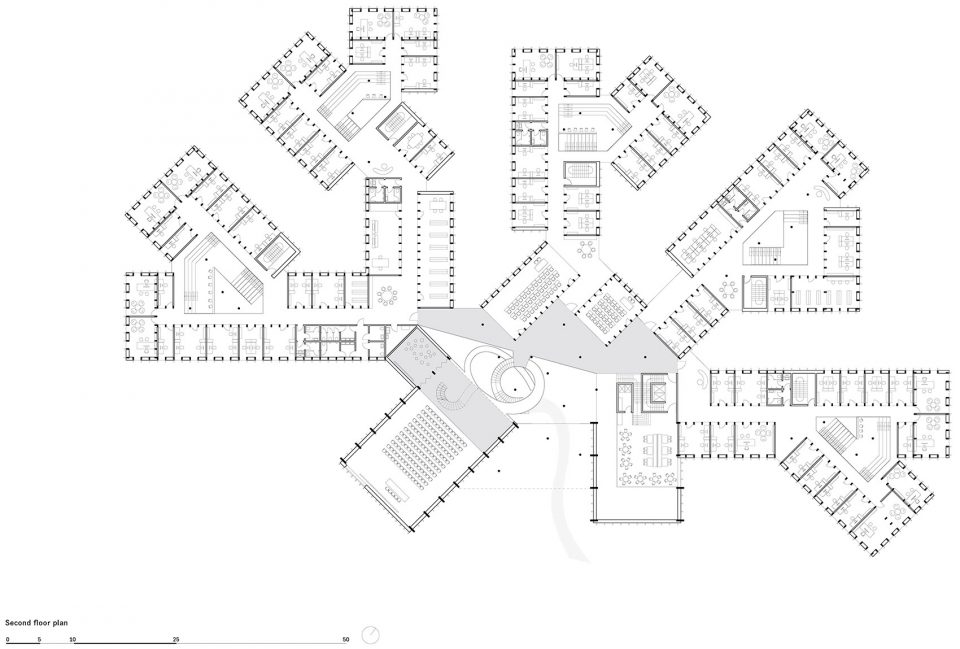

▼二层平面图，the second floor plan

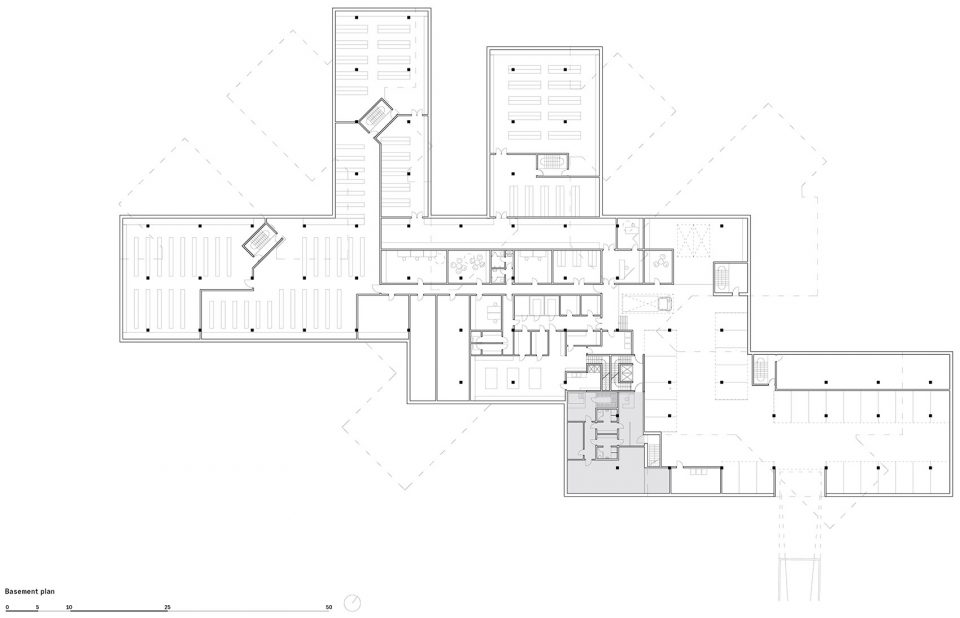

▼地下室平面图，basement plan

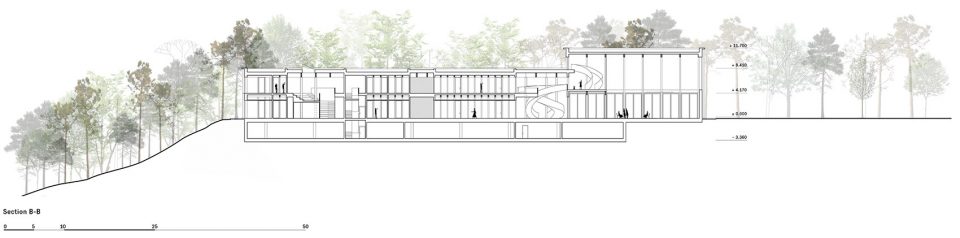

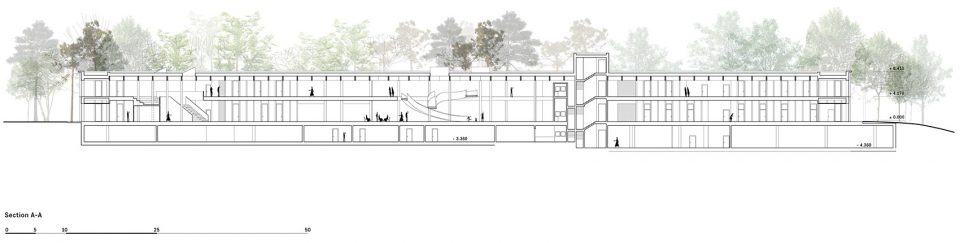

▼剖面图，section
