来自土耳其建筑事务所Dilekci Architects对gooood的分享。更多请至：Dilekci Architects on gooood

Mi’Costa酒店及公寓是来自土耳其建筑事务所Dilekci Architects的项目，获得了2015年的密斯凡德罗奖（最负盛名的欧洲建筑类奖项之一）提名。项目坐落在伊兹密尔的切什梅半岛那美丽的Boyalik海滩，每一间客房都能看到海。建筑群组高低错落有致，靠海的部分低，远海的区域高。组群共同抵御和利用来自海风的侵袭，接受来自阳光的照耀，适应炎热多风的当地气候。开放式的理念保证每家每户都有明亮温暖的花园露台。建筑外檐向外挑出两米，有效的遮蔽过多的阳光。面海部分没有遮蔽，建筑后方有遮阳板阻挡过多日照。

Mi’Costa Hotel and Residences Project is one of the nominated projects from Turkey for Mies Van Der Rohe 2015, that is most prestigious European Union Prize.

The project Micosta is located in magnificent Boyalik beach in Çeşme Peninsula, Izmir. Çeşme Peninsula excels from its sea, climate and thermal springs. Hotels and houses are very common in the region.

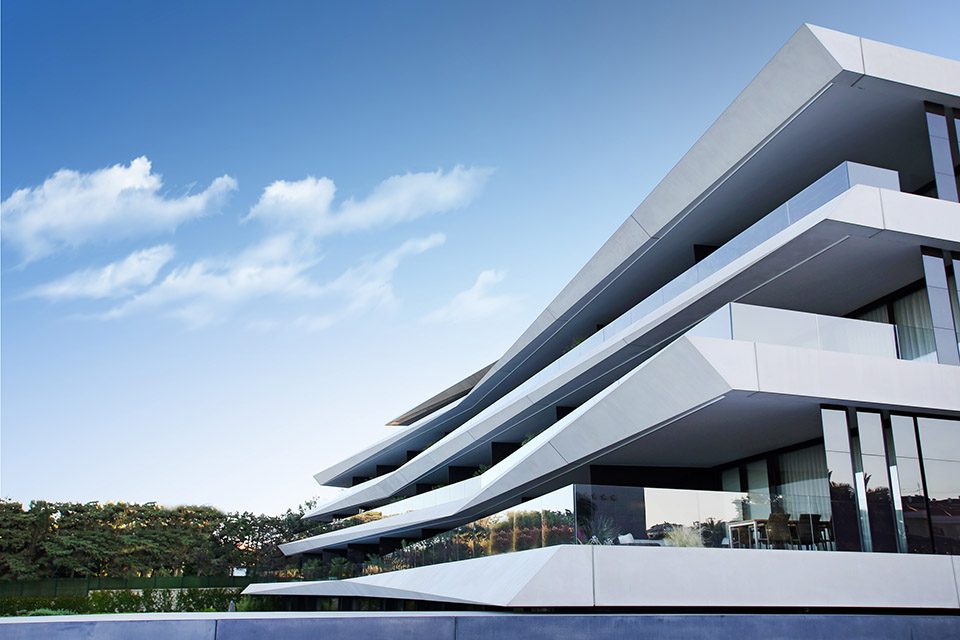

▲ 造型明朗的酒店公寓，屋檐向外挑出两米，每个房间都可看到海。一层是大厅，餐厅，社交厅。庭院有水疗区–分为泳池和热水区。

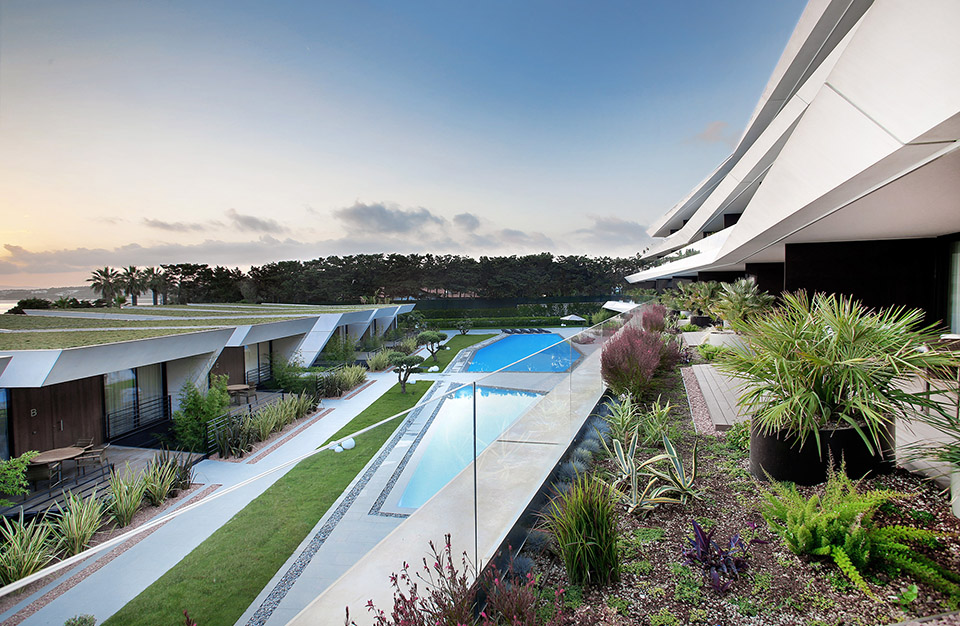

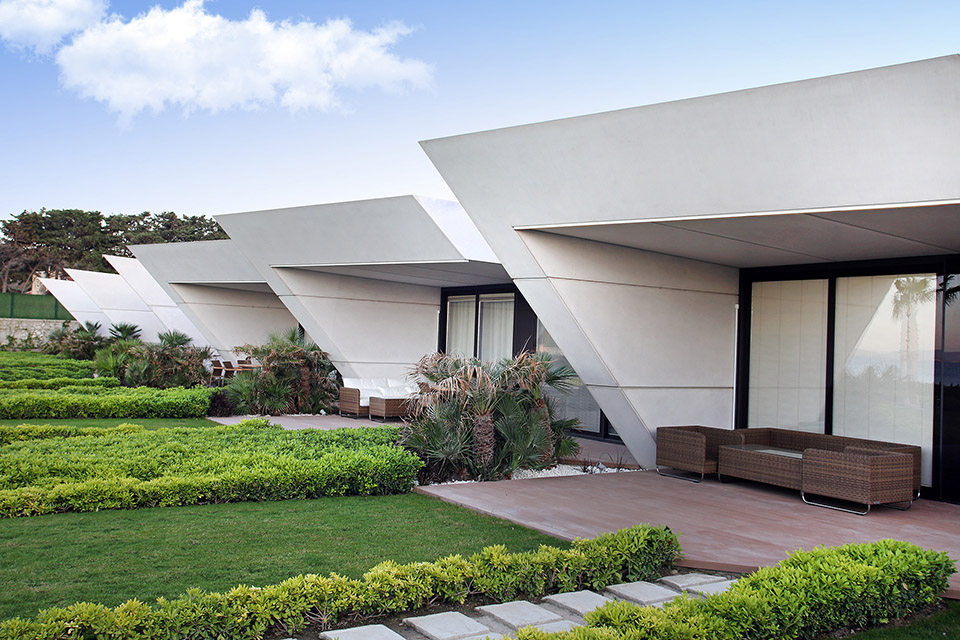

▲ 酒店公寓较矮的部分是一系列一层的小单体组成。他们的屋顶上种植上绿草，保证后方高建筑的视野景观充满绿意。

Each room in Micosta, is design to see the sea coast uninterruptedly. Moreover, structures in the project area comes down closer to the sea (at the same time to prevent from wind) and some of the structures composed of high. Buildings can also be accessible from two fronts that has come down to external fields. The lower floors can take the sun on the South side to the bright and spacious gardens.

Active solar orientation (south) lie directly behind the project. Hot and windy climate has been the determining factor for those facts. Extensive use of open space for each unit garden-terrace areas are formed. Sky and horizon to seek to meet these areas and to get more sun light in to the middle of courtyard, the structure is moved to south direction for 2 meters on each floor. This shift from the southern direction also provided to create advantageous and effective sun shadow area. The units has inner and outer spaces to use according to different weather conditions. In addition to being in a seafront location, courtyard sheltered areas has designed to prevent houses from the wind of north. This courtyard creates a space for each unit to meet up and disperse. Moreover, entrance lobby, social center, restaurant and spa areas are reachable from this courtyard. Besides, the open spaces covers the swimming pool and thermal pool areas.

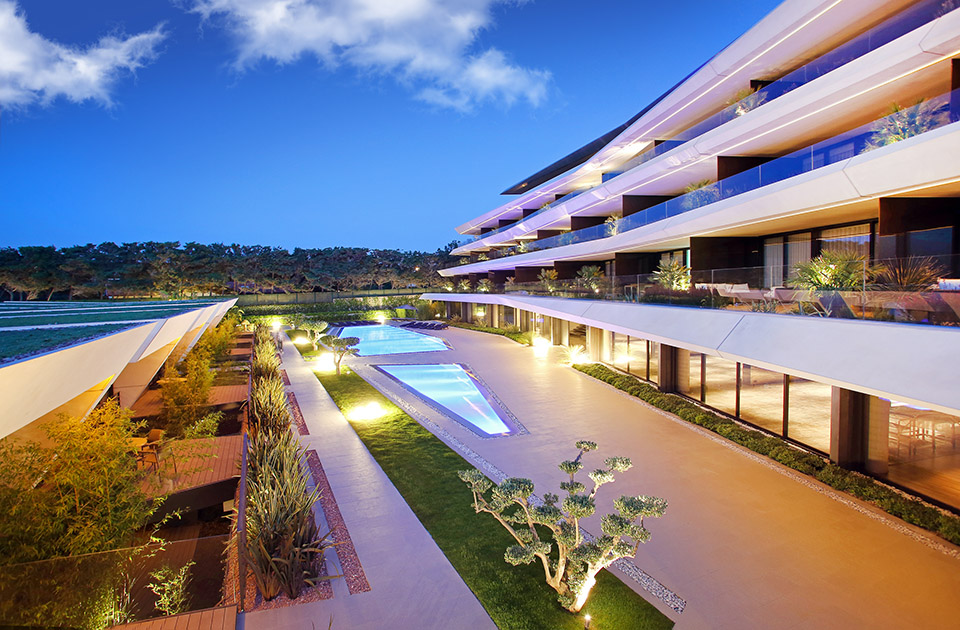

▲ 站在高体量部分向下看水疗庭院。每个房间都拥有明亮宽敞的花园。每个房间都能看到海，都在开放的理念下拥抱自然。

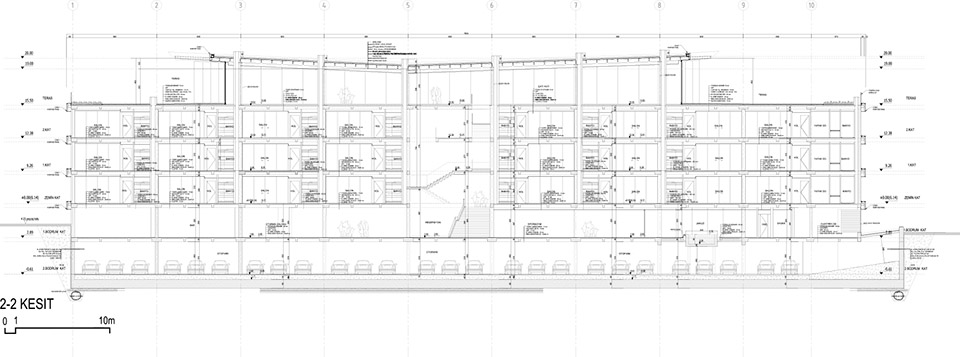

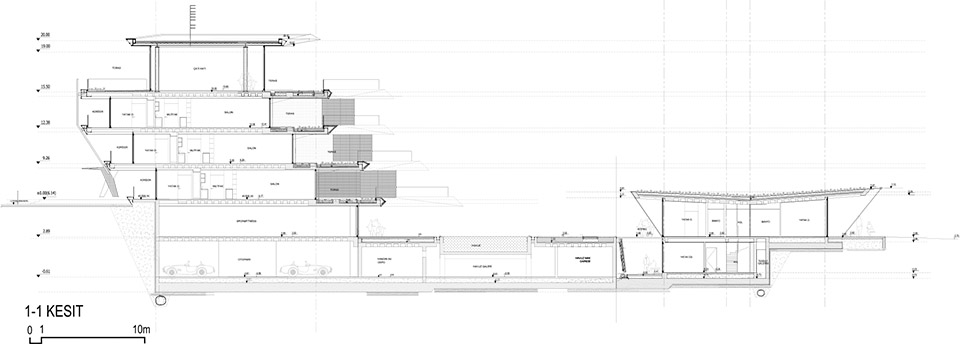

▲ 剖面

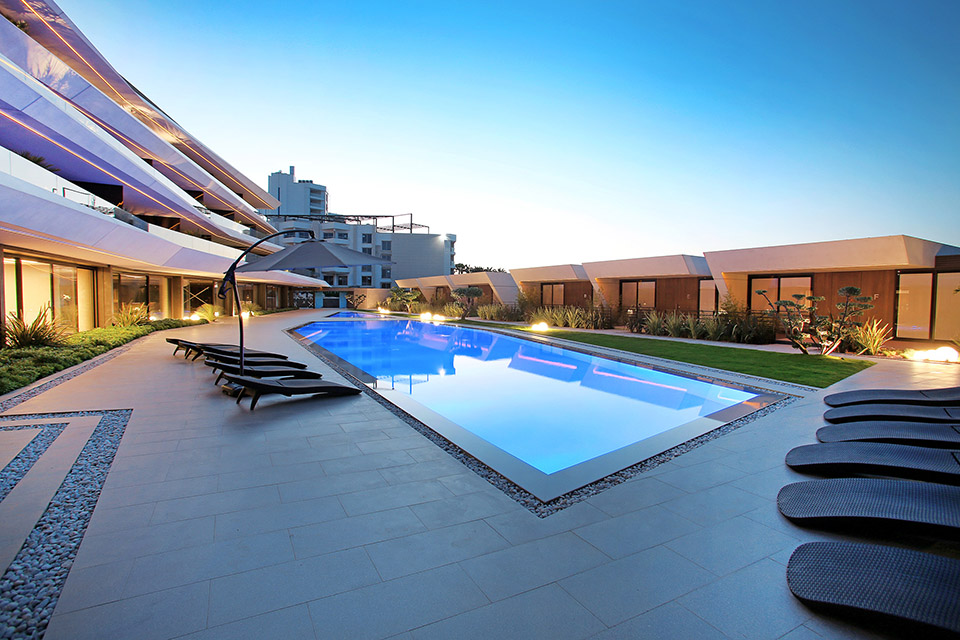

▲ 简明风格的庭院。冬季，热水区的水加热借助地热。

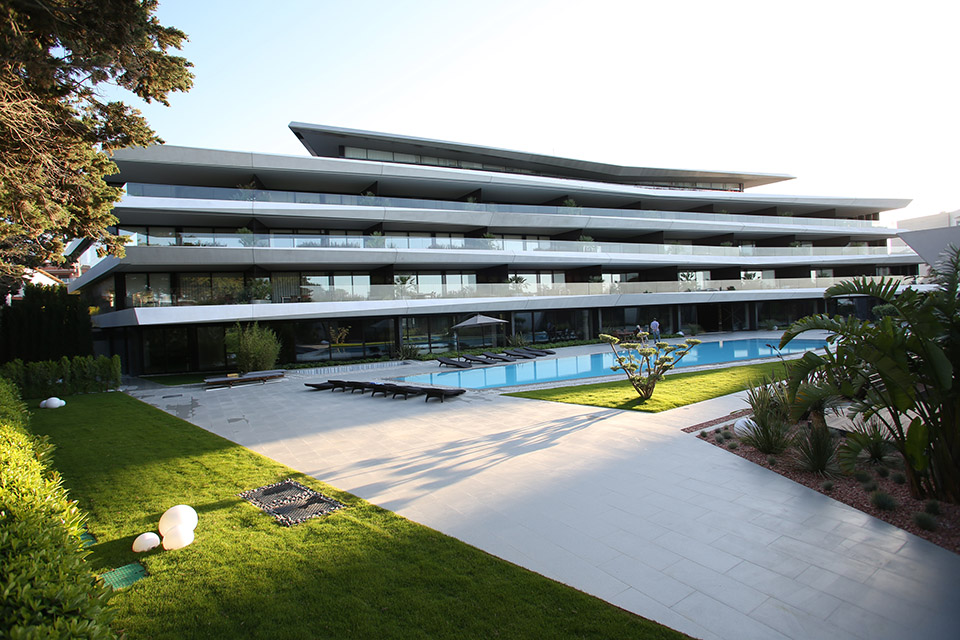

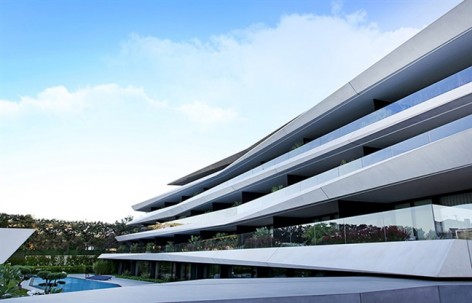

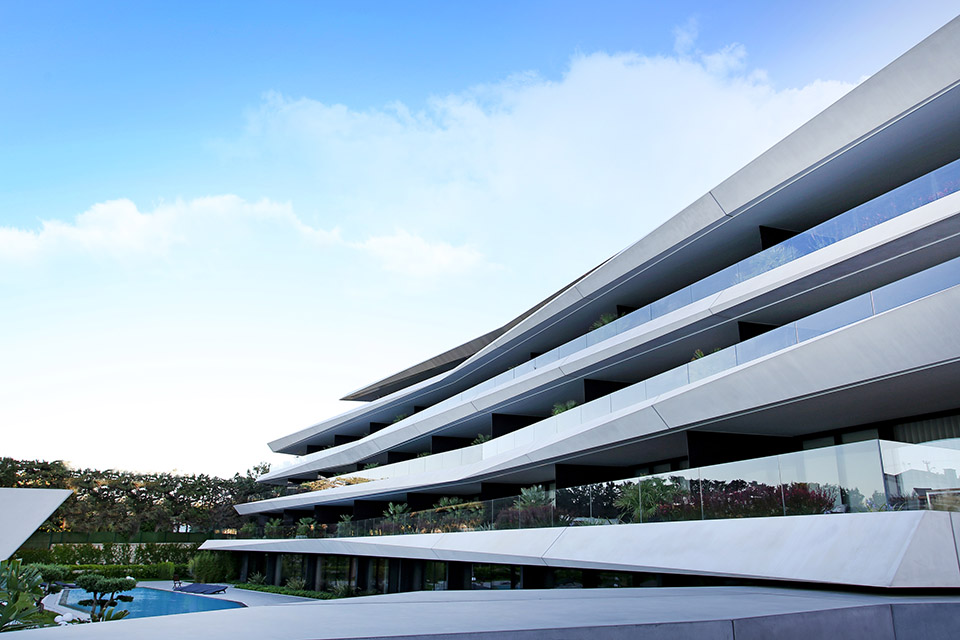

▲ 建筑面海立面。

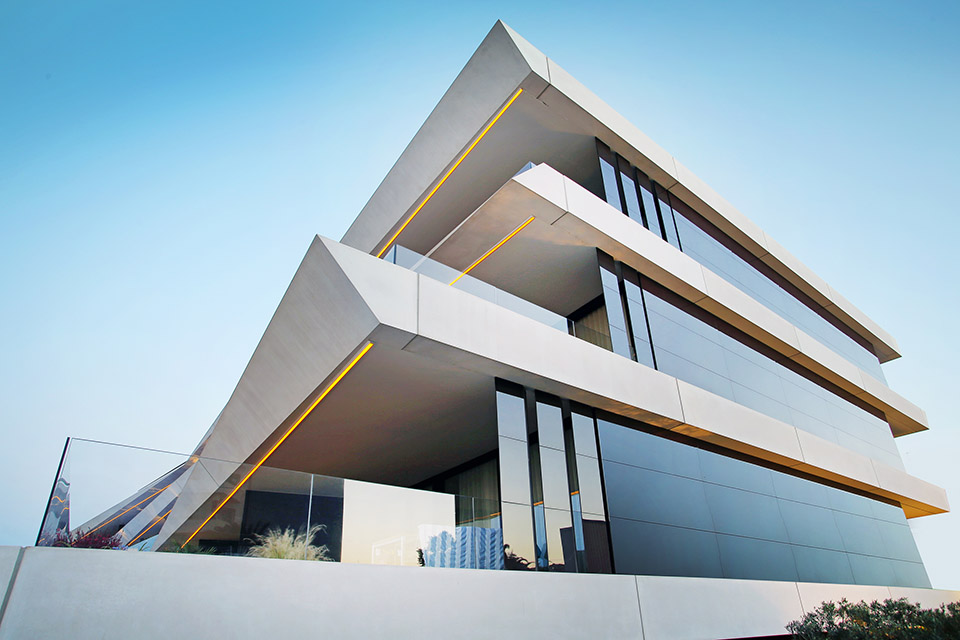

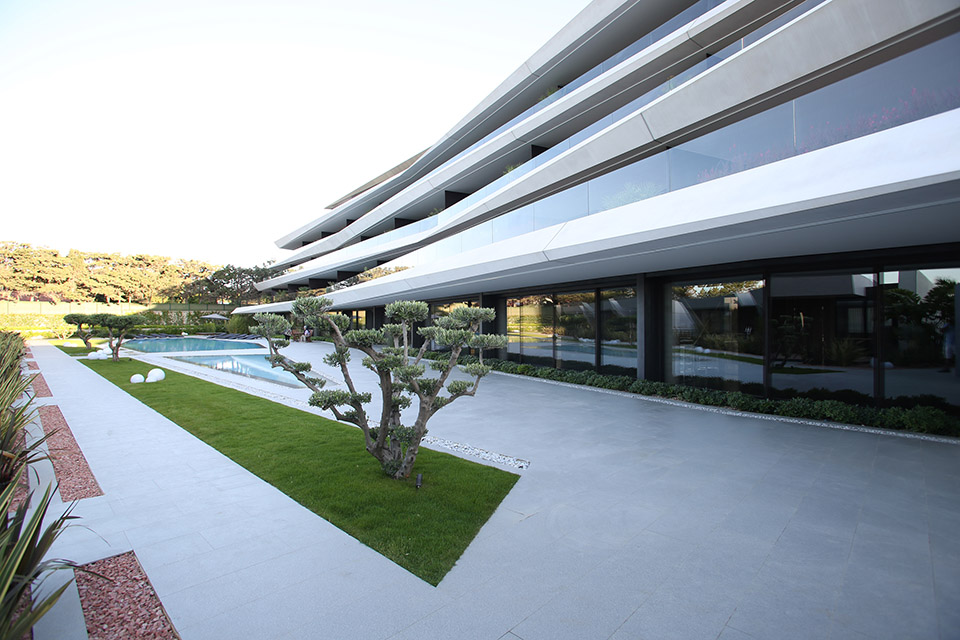

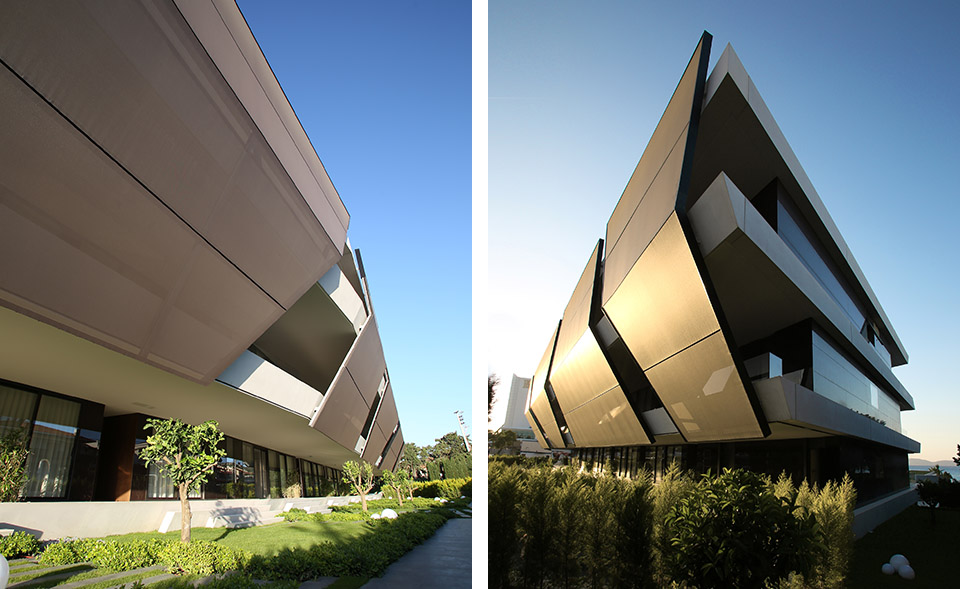

▲ 屋檐向外挑出两米，有效遮阳，并为露台花园提供足够面积。同时折线元素的运用成就建筑外观的鲜活明朗。建筑为混凝土结构体系，外墙采用能高性能的GFRC玻璃。

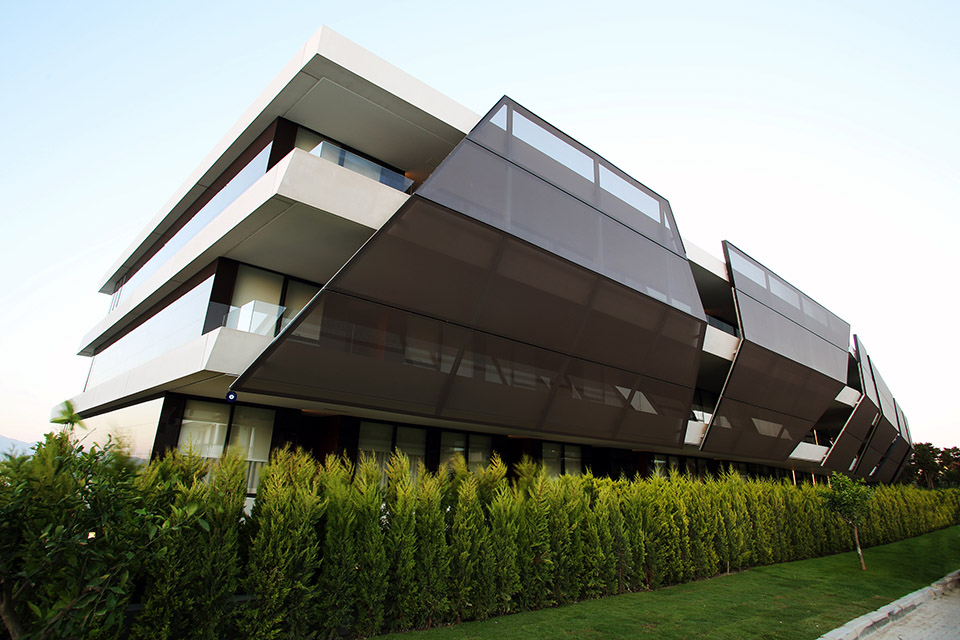

▲ 背侧，安装有遮阳板。建筑注重节能。

▲ 背侧，安装有遮阳板。

There are two entrances to the project area. The central area is being accessed by the main entrance lounge. In addition, an upper rib entry can be made on the north side.

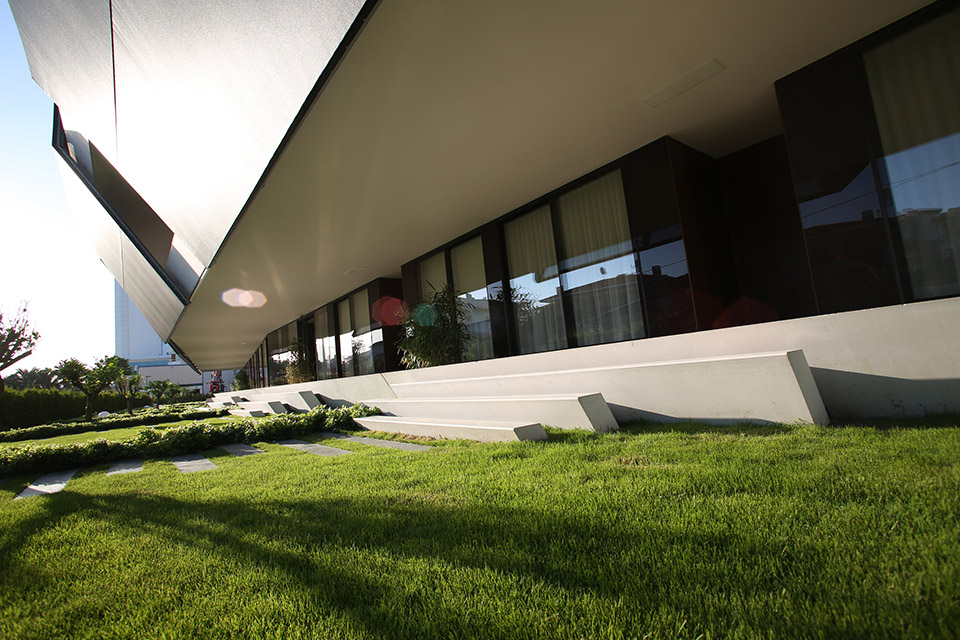

▲ 背侧的入口景观。台阶延续草坪踏步石的语言，每一步由单独的一条石材组成。

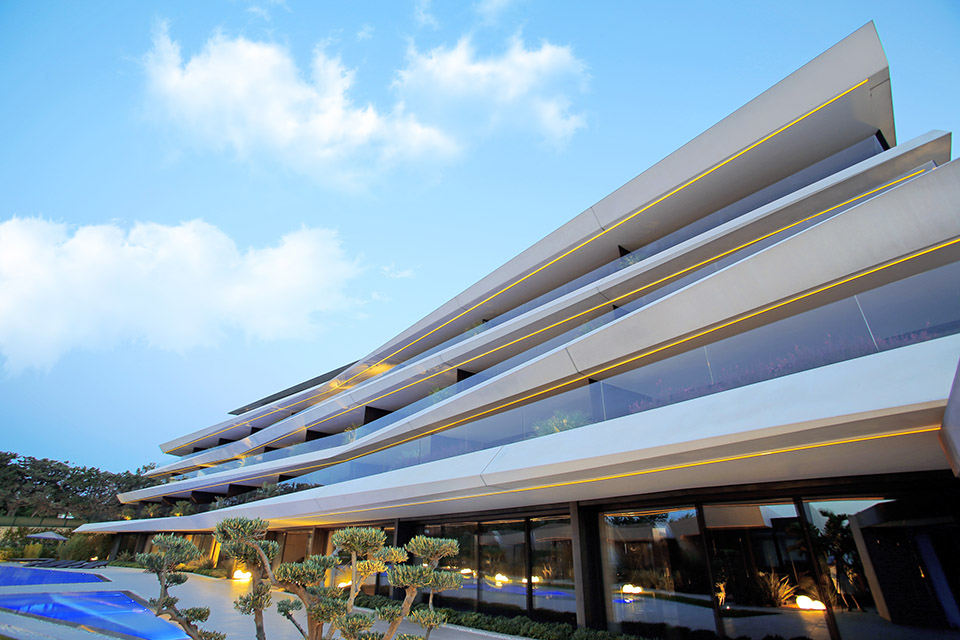

▲ 屋檐底部的光带也采用了动感的折线。

▲ 屋檐底部的光带也采用了动感的折线。

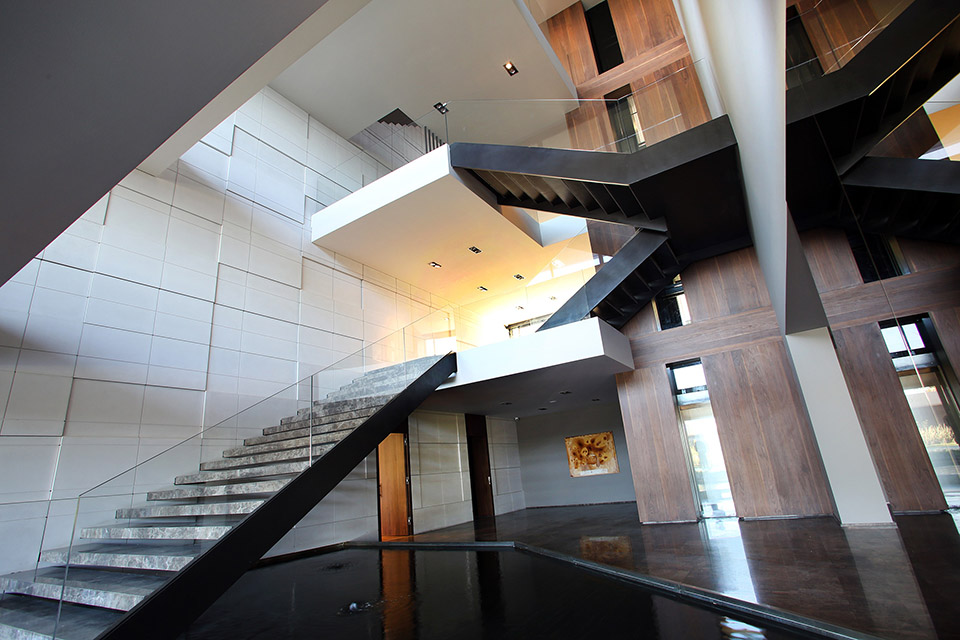

▲ 大厅

▲ 夜景

▲ 夜景

The project designed upon ecological and sustainability criteria. Emphasis was placed on the use of passive climatic data. Orientation of the project was creating shadows by using the sun’s angle of incidence. Also by taking the advantage of the northern lights and turning in to a positive part of this project. At the same time, units with two fronts contributes to the interior space ventilation meaning that two front-units can benefit from this north-south air-ventilation. During the winter, thermal energy is provided by geothermal water. Fire water tanks and pool water is obtained by the method of reverse osmosis. Widely used electric power is also contribute from the common used wind turbines in Çeşme. Structural system of concrete is a skeleton system. GFRC high performance glass has been used at the facades.

Title of work: Mi’Costa Hotel Residences
Author: Durmus Dilekci
Office: Dilekci Architects *
Location : Cesme, Boyalık
Project Date : 2011
Construction Date: 2012-2013
Site Area: 7.350 m²
Construction Area : 10.085 m²
Client : SUV Yapı A.S.
Structural Engineering : Nu Muhendislik
Mechanical Engineering : Nukleer Mühendislik
Electrical Project : Nukleer Mühendislik
Landscape design: Nesil Peyzaj
Photographer : Ozgur Ari
