非常感谢 MVRDV 予gooood分享以下内容。更多关于他们： MVRDV on gooood
Appreciation towards MVRDV for providing the following description:

由MVRDV设计的Matrix ONE实验办公楼位于阿姆斯特丹科技园的中心，现在已经落成并投入使用。作为矩阵创新中心的主要枢纽，这座六层、面积达13000平方米的新建筑为园区创造出关键的社交空间和设施。更加重要的是，该项目还推动了可持续设计的发展：从可拆卸的建筑、“社交楼梯”、太阳能发电到智能照明和设有大量的自行车位的停车场，项目的设计从各个可能的角度融合了可持续的思想。Matrix ONE大楼实现了阿姆斯特丹雄心勃勃的能源使用目标，并获得了BREAAM优异评级。同时，大楼的使用者也是可持续性研究领域的先驱者，其中阿姆斯特丹大学的可持续实验室就坐落于此，他们将在这栋大楼中继续开拓可持续性研究的未来。

The construction of Matrix ONE, the MVRDV-designed laboratory and office building in the heart of Amsterdam Science Park, is now complete. Serving as the main hub of the Matrix Innovation Center, the six-storey, 13,000-square-metre building provides the campus with key social spaces and amenities. Crucially, the project also pushes the envelope in sustainable design: from demountable construction, the “social stairs ”, and solar energy generation to smart lighting and generous amounts of bicycle parking, it incorporates sustainable thinking from every possible angle. Matrix ONE meets ambitious Amsterdam targets for energy use and is certified BREAAM- Excellent. The building’s users are also working on sustainability solutions: the University of Amsterdam’s SustainaLab works here on technologies for a sustainable future.

▼项目概览，overall of the project © Daria Scagliola

Matrix ONE大楼是组成Matrix创新中心的七座建筑中规模最大的一栋，Matrix创新中心坐落于阿姆斯特丹科技园内，这里汇集了众多致力于为当前和未来问题提供可持续解决方案的科学家和企业家。Matrix ONE大楼由科学实验室和科技公司办公室组成，这些科技公司包括高通公司（Qualcomm），以及一系列例如Photanol、Skytree和初创公司FUL Foods的致力于可持续发展领域的企业。

▼分析图，analysis diagram © MVRDV

Matrix ONE is the largest of seven buildings that now make up the Matrix Innovation Center, part of Amsterdam Science Park, where scientists and entrepreneurs work on sustainable solutions for current and future problems. Matrix ONE itself contains a mixture of science laboratories and offices for tech companies including Qualcomm and sustainability companies such as Photanol, Skytree, and the startup FUL Foods.

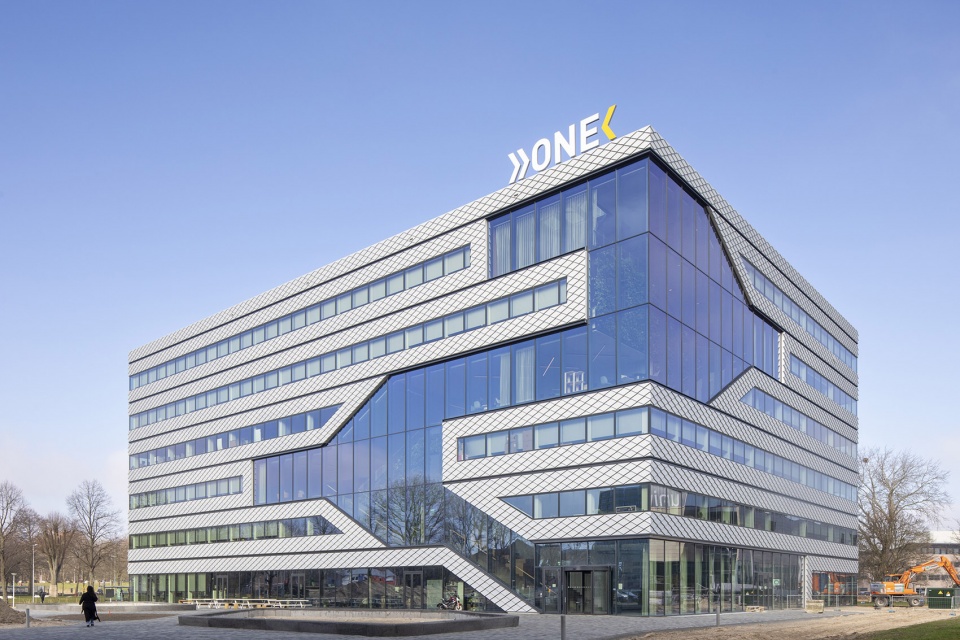

▼建筑外观日景，day view of the project © Daria Scagliola

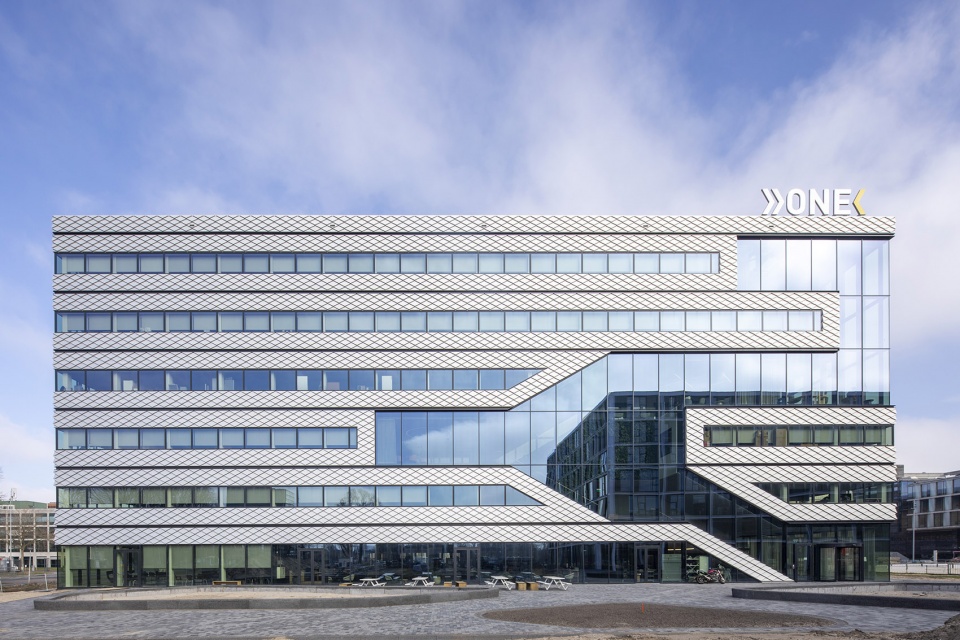

▼立面日景，day view of the facade © Daria Scagliola

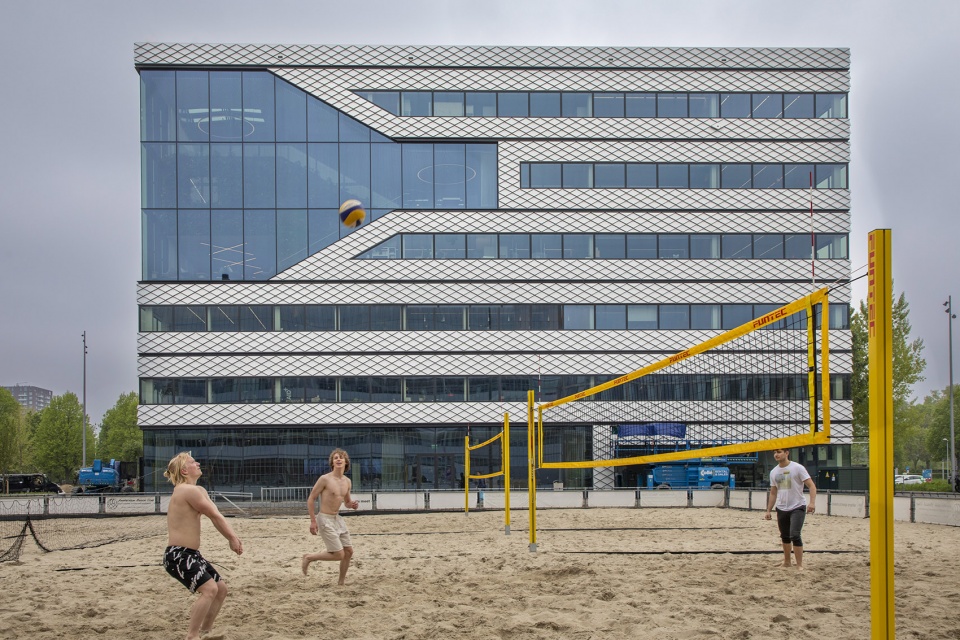

▼由园区沙滩排球场地看建筑，viewing the project from the beach volleyball venue © Daria Scagliola

作为Matrix创新中心的主体建筑，Matrix ONE旨在成为阿姆斯特丹科技园及其他地区建筑的可持续发展典范。建筑采用了“可拆卸式”的设计，建筑的各部分之间采用了如螺丝和螺栓的简单连接，这样，在某个建筑部分需要更新时，就可以将该元素分离出来并在其他地方重新使用；大楼楼板采用了预制混凝土板，楼板之间没有设置固定连接，这样，在建筑寿命结束时，这些材料就能够获得二次使用的机会。为此，Madaster平台特别为本项目提供了一个全面的材料通行证系统，技术人员可以深入了解所使用的材料和产品以及超过120,000个独立构件的二氧化碳储存情况。因此，本项目中超过90%的建筑材料可以在未来再次被使用。

▼“可拆卸式”建筑分析图，analysis diagram of “detachable” system © MVRDV

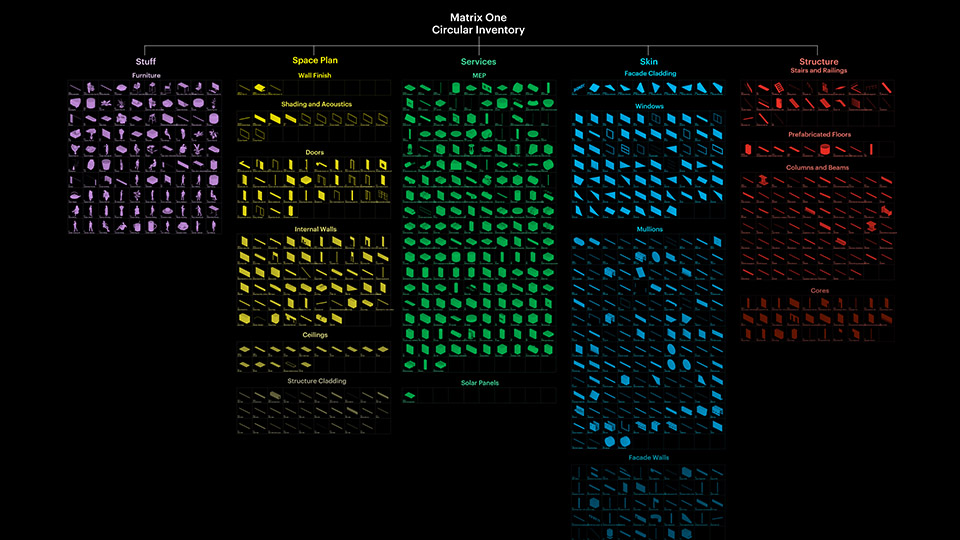

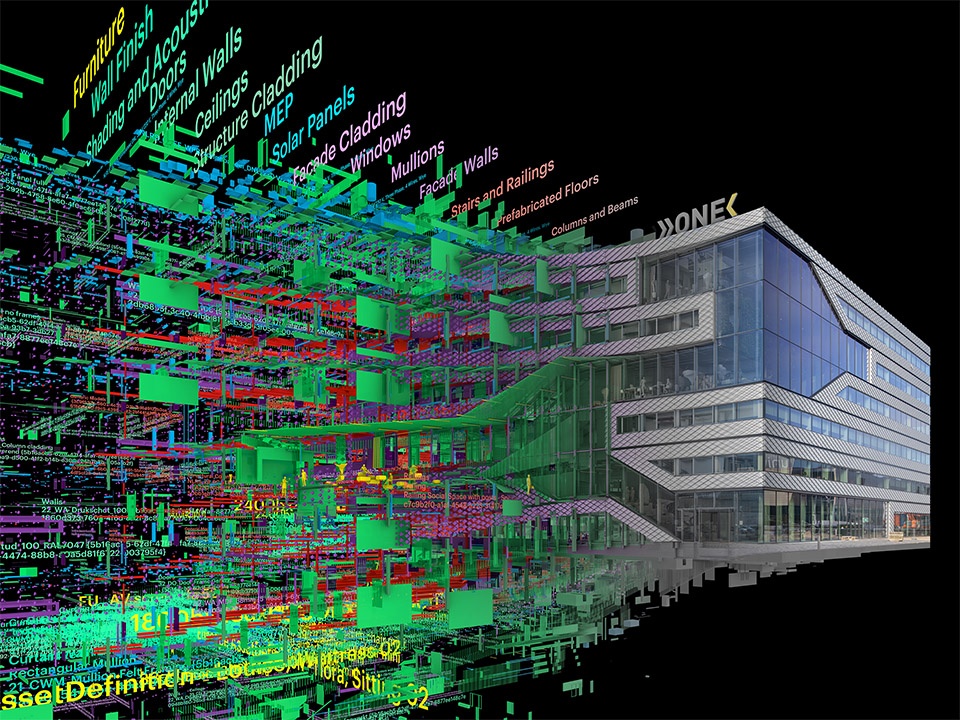

▼分析图，diagram of the circular inventory © MVRDV

As the main building of the Matrix Innovation Center, Matrix ONE aims to be a sustainable example for the other buildings in Amsterdam Science Park and beyond. The building is designed to be demountable. Simple connections such as screws and bolts allow elements to be detached and reused when various parts of the building are updated; even the building’s floors are made using prefabricated concrete slabs with no fixed connections, allowing them to be reused at the end of the building’s lifespan. The platform Madaster provides a comprehensive material passport system to give insight into the materials and products used and the CO2 storage for over 120,000 individual components. As a result, over 90% of the building’s materials can be reused again later.

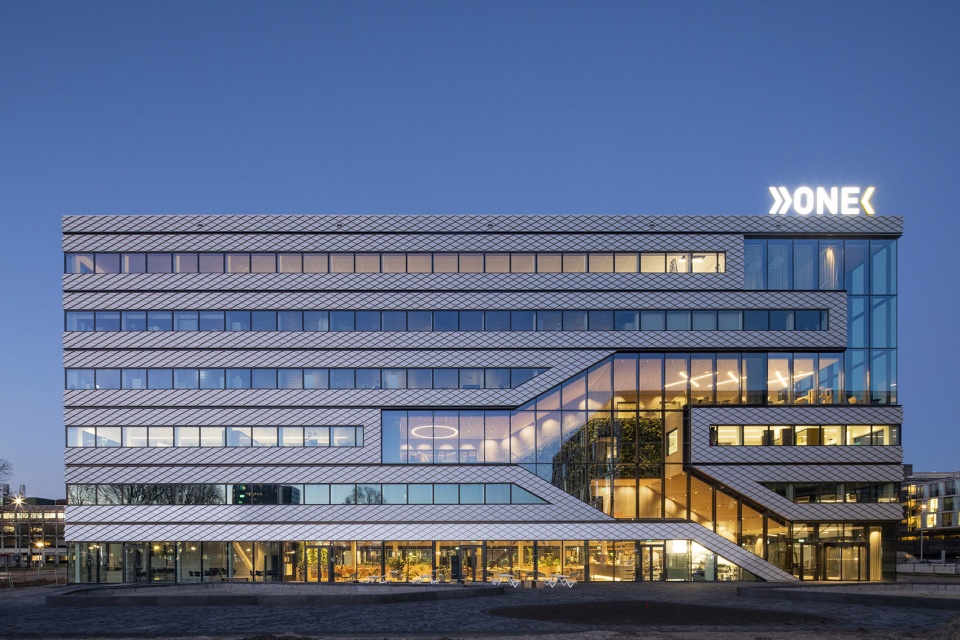

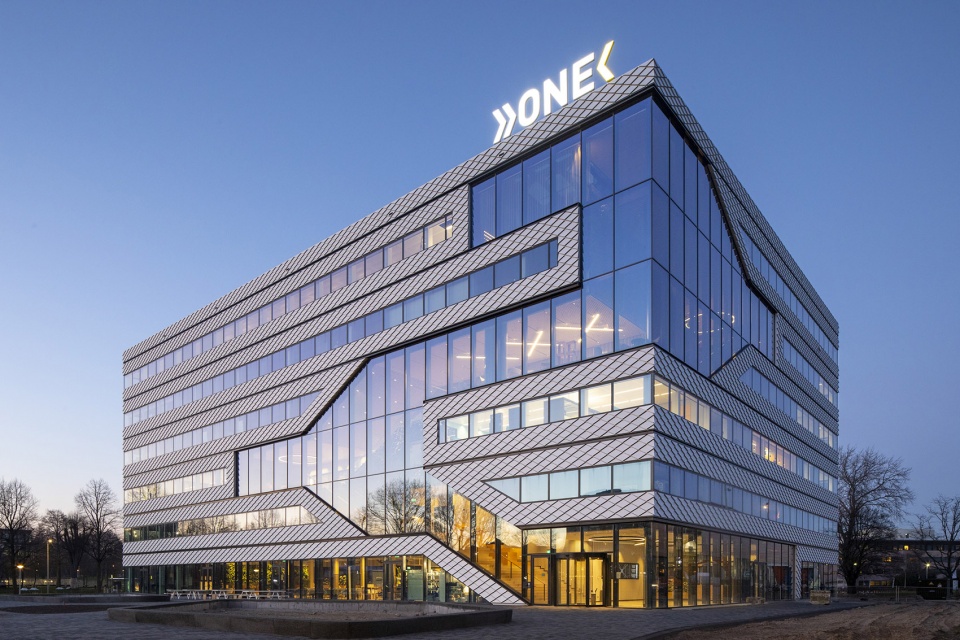

▼立面夜景，night view of the facade © Daria Scagliola

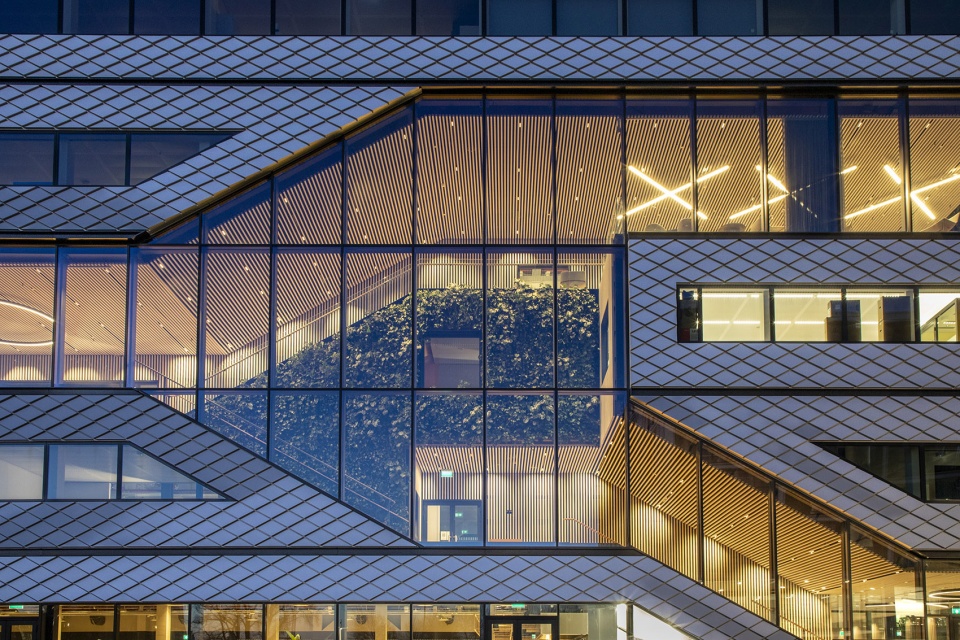

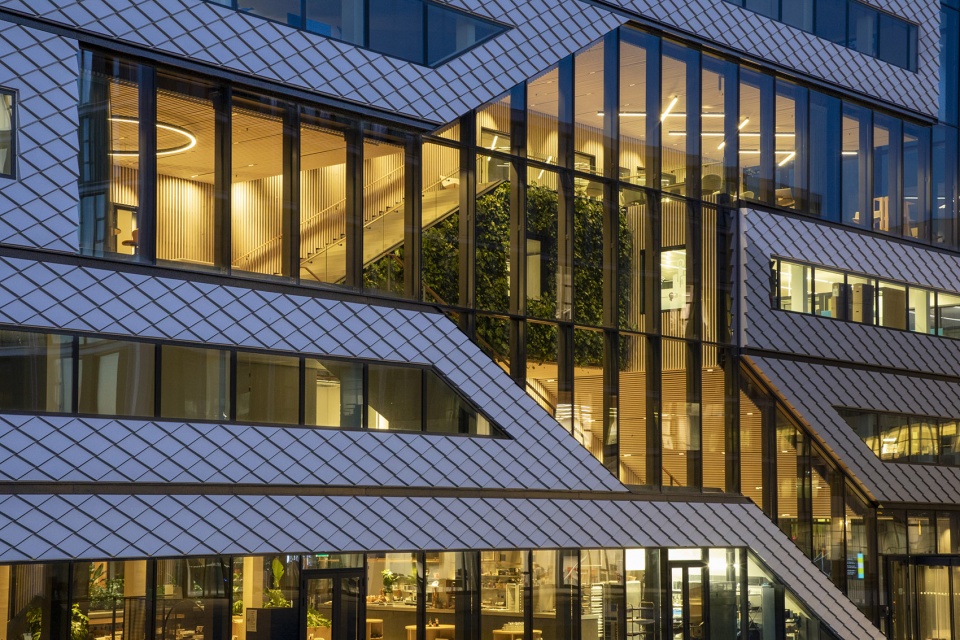

▼立面夜景细部，detailed night view of the facade © Daria Scagliola

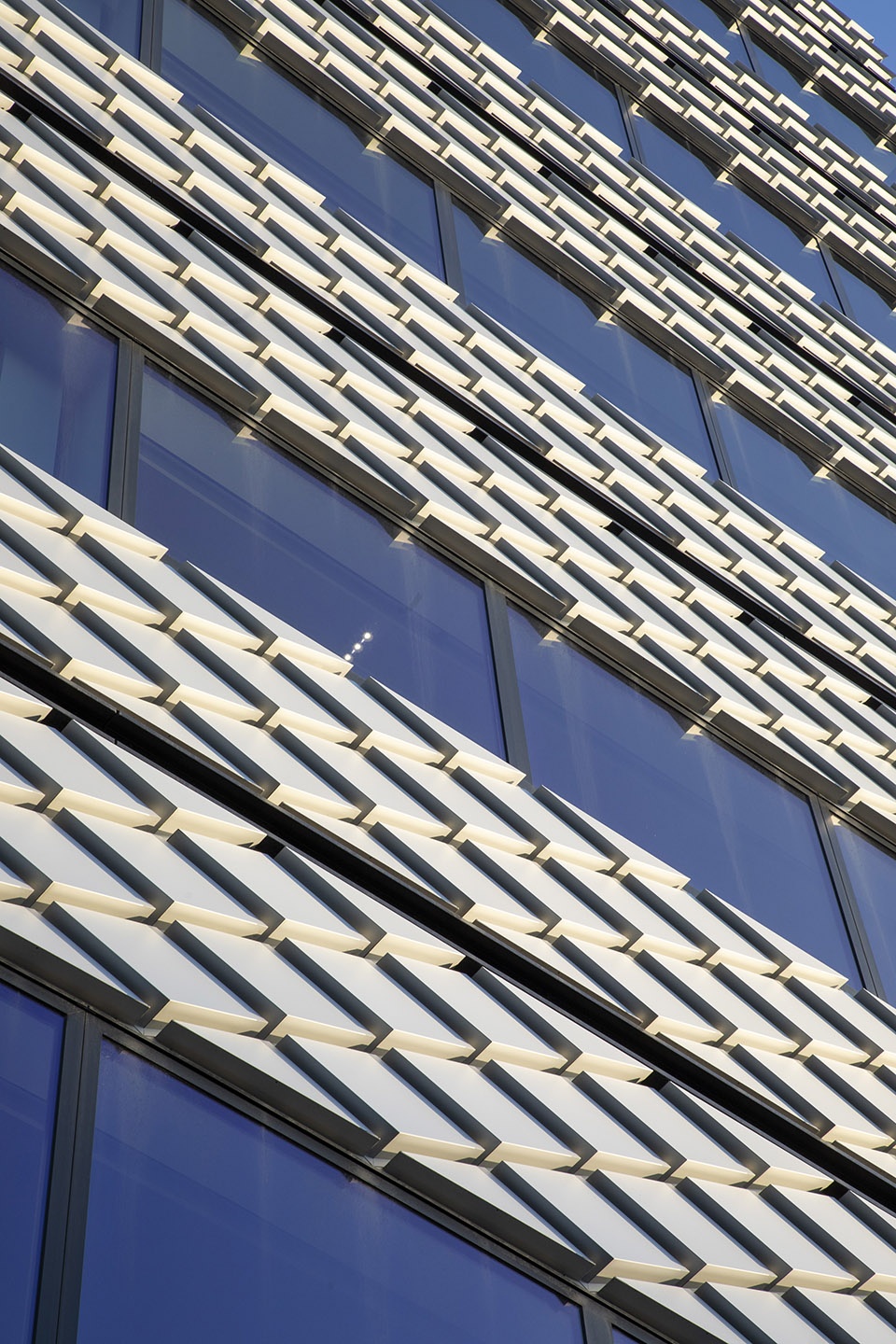

▼立面细部，details of the facade © Daria Scagliola

屋顶上面积达1000平方米的太阳能电池板负担了建筑一部分的能量来源，而互联网连接的照明和加热装置有助于减少能源消耗（关键实验室设备采用了独立的电路与电力系统）。通过这种能源生产和减少能源消耗的结合，建筑本身产生的能源抵消了其能源消耗中的一大部分，因此达到了阿姆斯特丹雄心勃勃的能源性能目标。

On the roof, 1,000 square metres of solar panels generat e a portion of the building’s energy, while internet-connected lighting and heating fixtures help to reduce energy consumption (power for critical lab equipment runs on a separate circuit). With this combination of energy generation and reduced energy consumption, the building itself produces a significant proportion of the energy it consumes, and therefore meets the ambitious Amsterdam targets for energy performance.

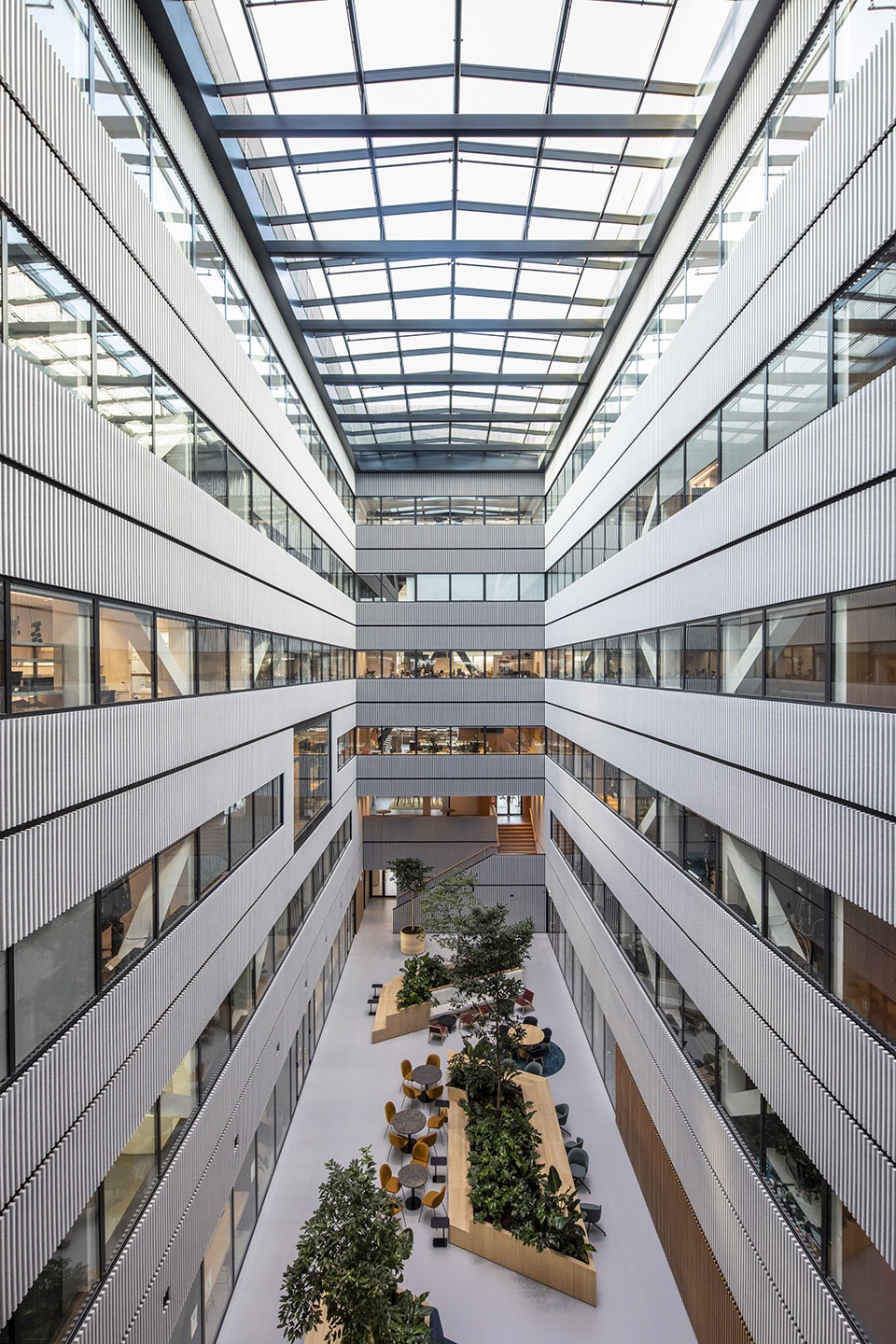

▼通高中庭，the atrium © Daria Scagliola

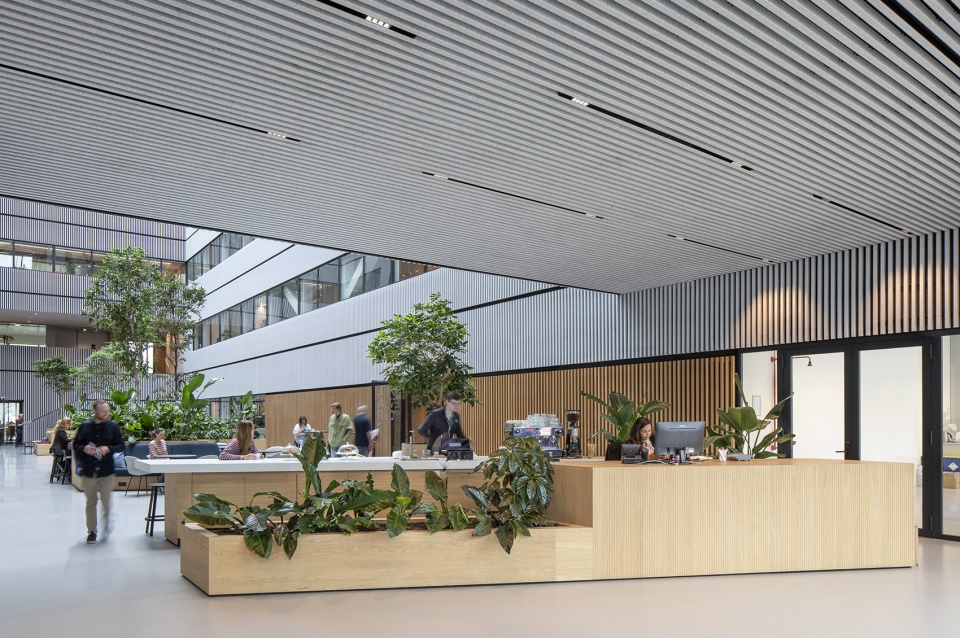

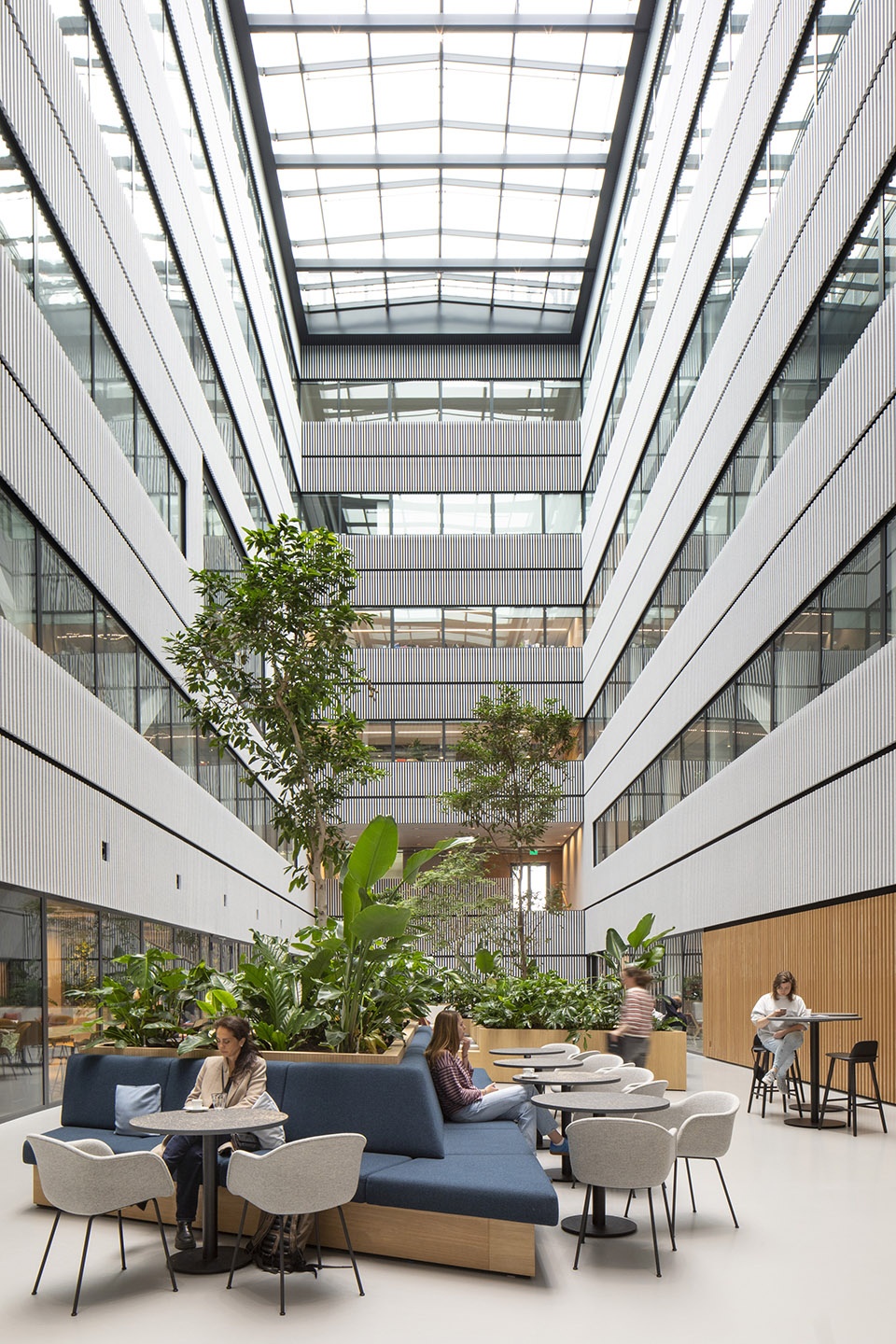

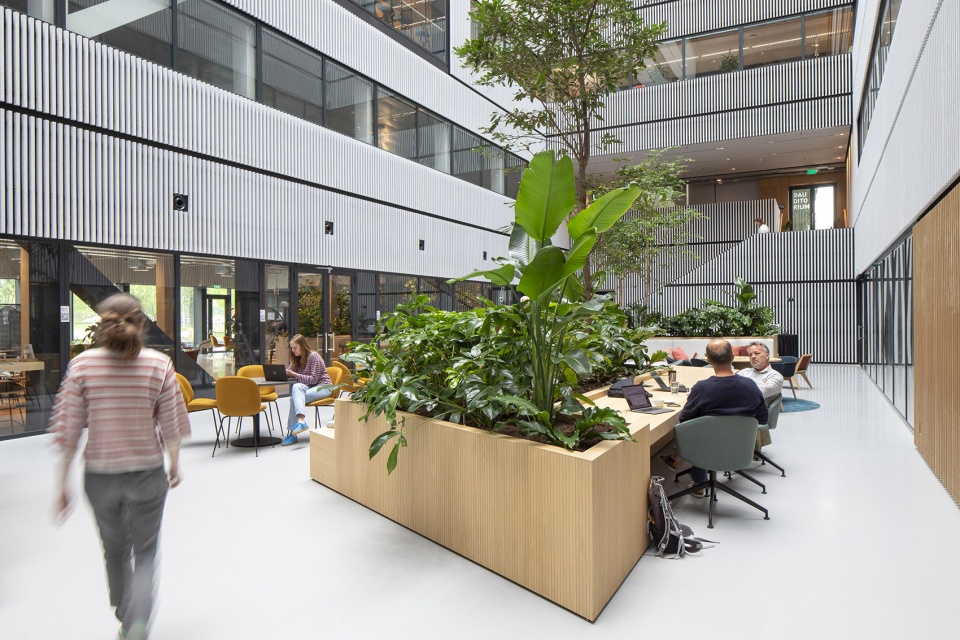

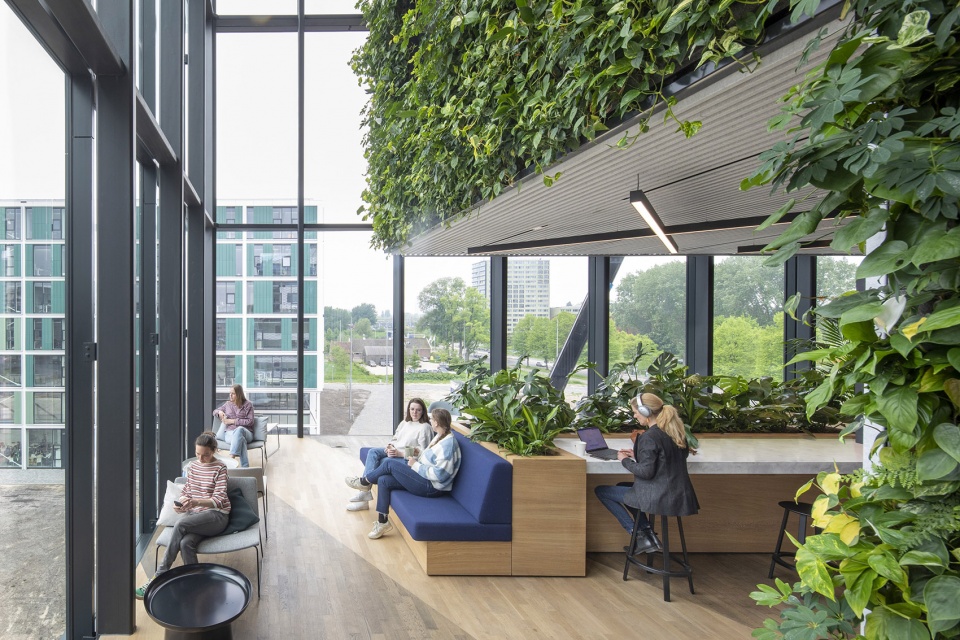

▼位于中庭的公共休息区，public leisure area in the atrium © Daria Scagliola

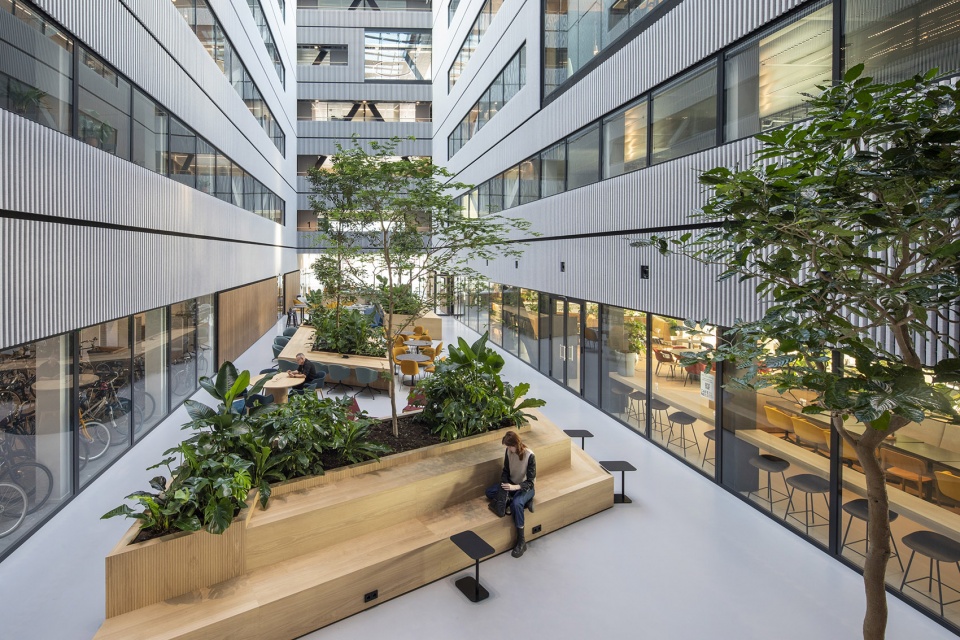

▼中庭休息区细部，details of the atrium © Daria Scagliola

作为Matrix创新中心的主体建筑，Matrix ONE承担了园区社交中心的重要职责。紧邻建筑南角主入口的大型“社交楼梯”是MVRDV为其设计的一个关键元素，设计的核心理念旨在将这座“社交楼梯”打造为贯穿园区的曲折路径的延续。通过设置论坛式的演讲座位、非正式会议桌和咖啡台，这些楼梯将来自不同行业的员工们聚集在一起，促进了人们之间的交流与分享。“社交楼梯”空间的室内设计由MVRDV与up architecture合作完成，包括，从室外便可看到的郁郁葱葱的绿色墙壁，起到吸声与减少回音效果的柔软毛毡饰面等，精心的室内设计为社交空间创造出平静而亲密的氛围。

As the main building of the Matrix Innovation Center, Matrix ONE serves as the social hub of the campus. A key element of MVRDV’s design is the large “social staircase” immediately next to the main entrance on the building’s southern corner, which is conceptualised as a continuation of the zig-zagging paths that are found throughout the campus. With tribune- style seating for presentations, tables for informal meetings, and coffee stations, these stairs bring together workers from different industries, allowing them to mingle and share ideas. The interior design for this space, developed by MVRDV in collaboration with up architecture, includes multiple lush green walls that are visible through the glass façade, while soft felt finishes elsewhere dramatically reduce sound reverberation, lending the social spaces a calm and intimate atmosphere.

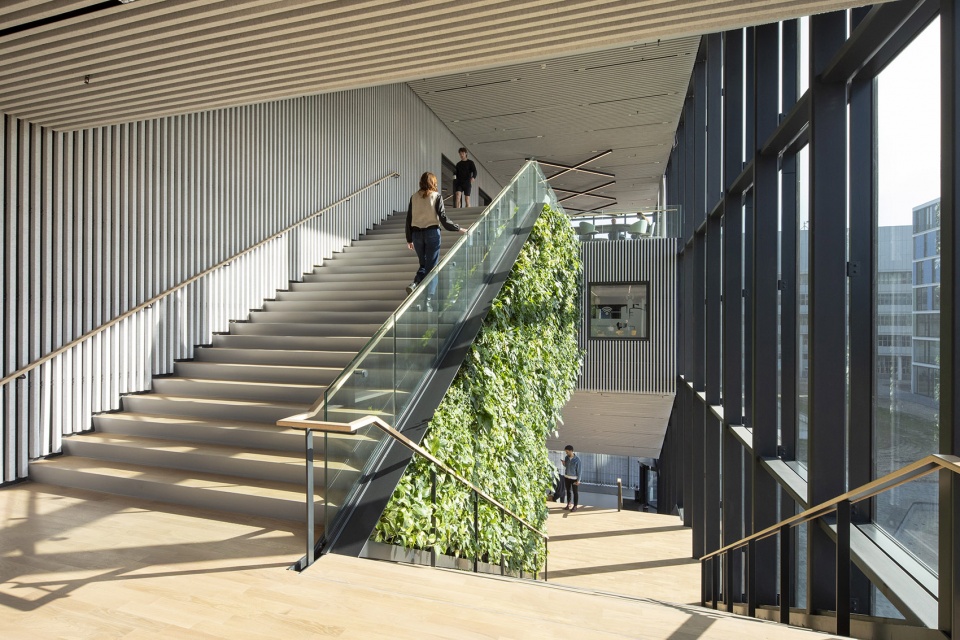

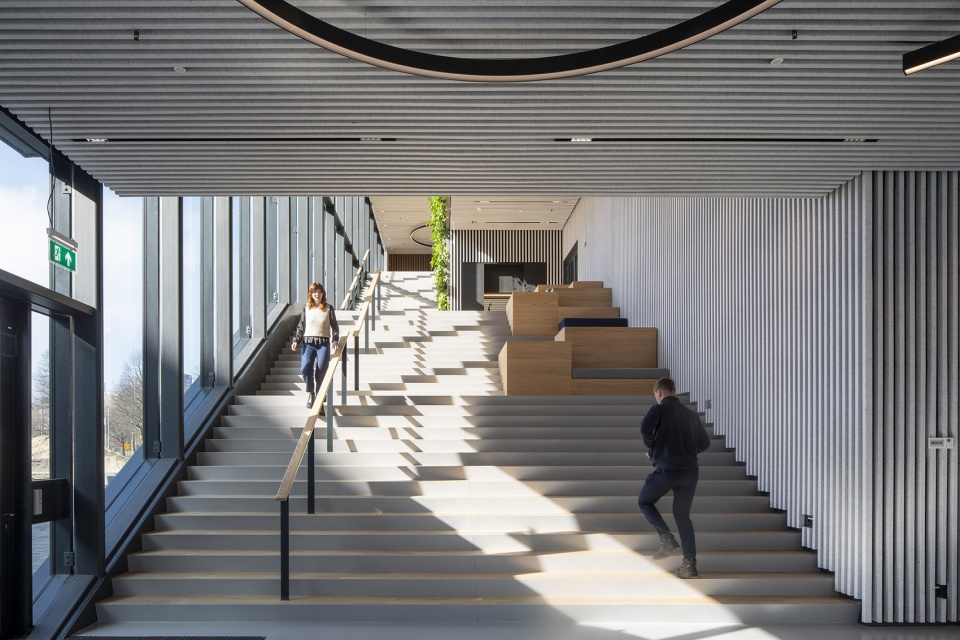

▼社交楼梯，the social staircase © Daria Scagliola

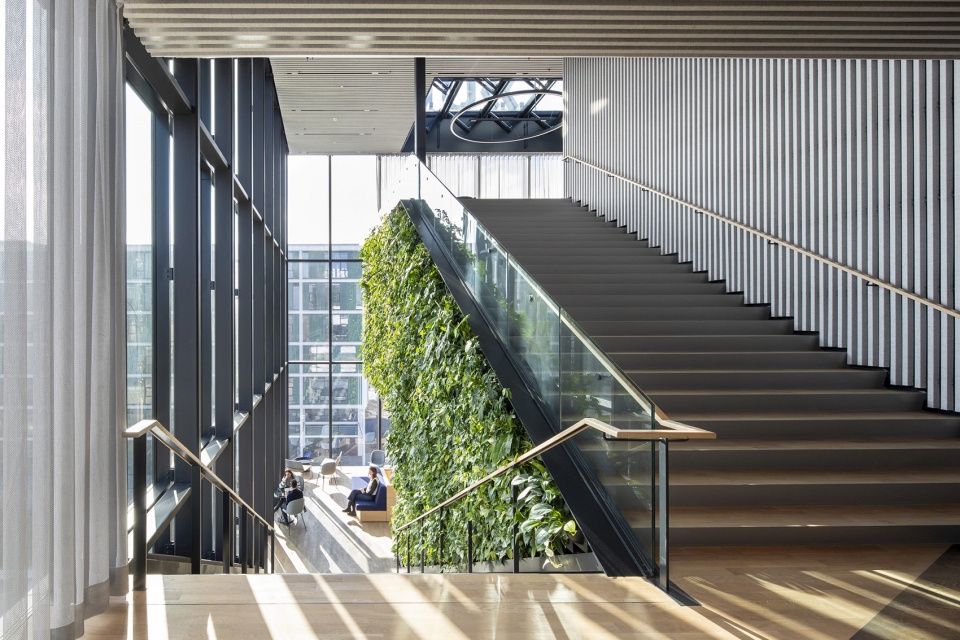

▼郁郁葱葱的生态墙壁，the lush green walls © Daria Scagliola

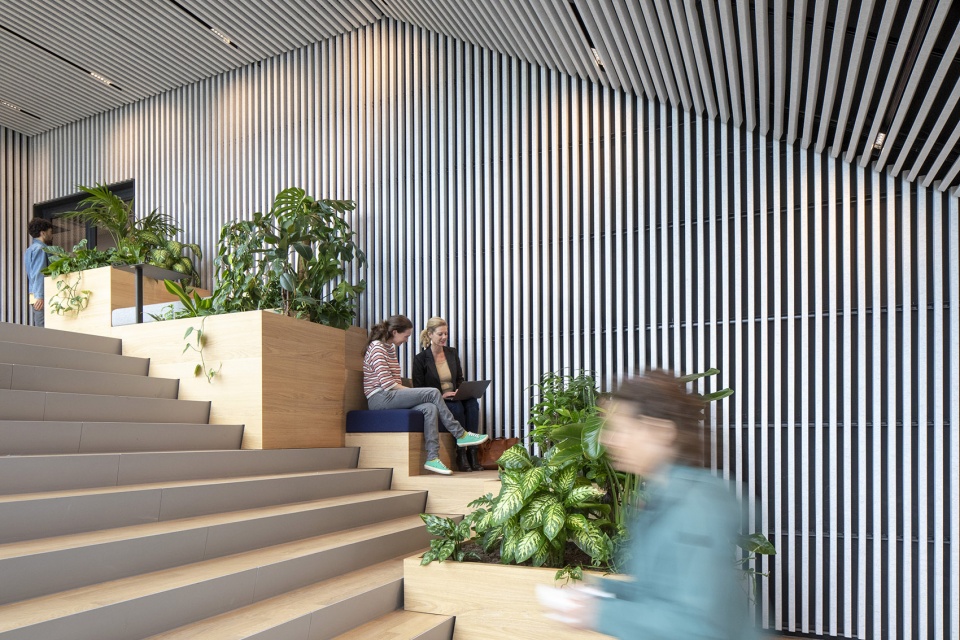

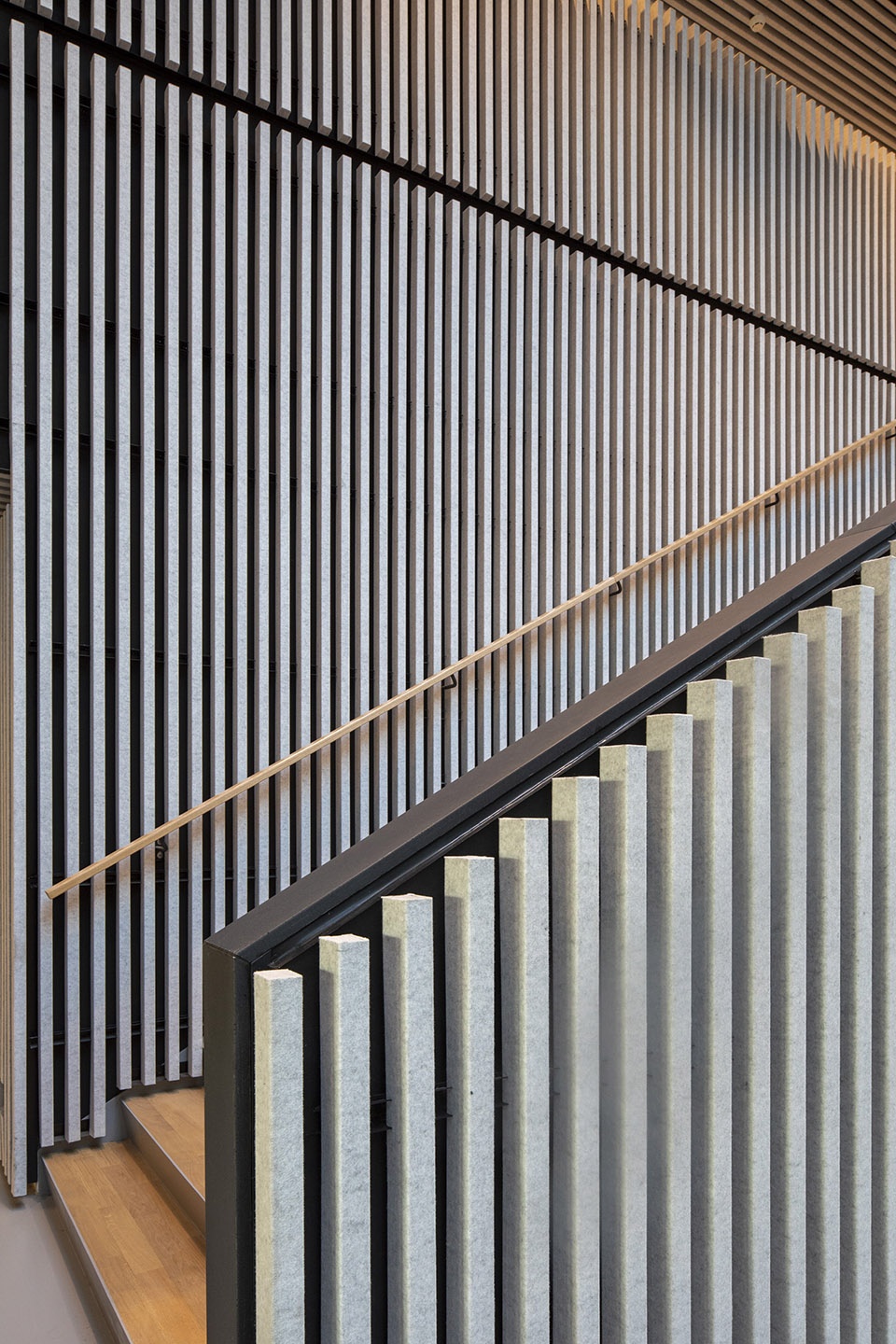

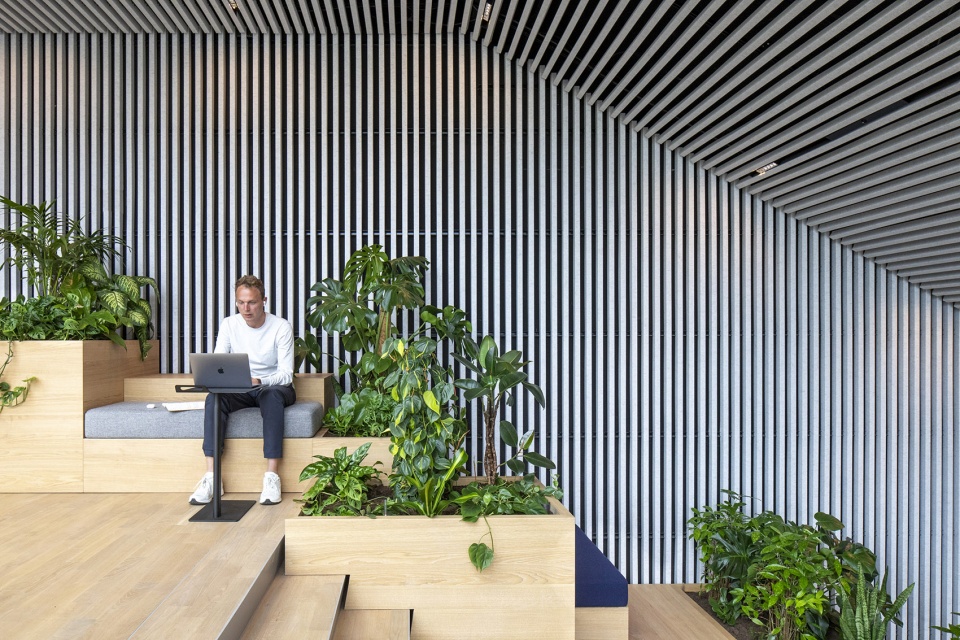

▼社交楼梯细部，details of the social staircase © Daria Scagliola

“社交楼梯”与建筑中的其他公共设施相辅相成，例如位于一楼的餐厅以及位于楼梯顶部的酒吧等。这些社交功能形成了“俱乐部矩阵”，可辐射到Matrix创新中心的其他建筑，供所有员工使用。此外，大楼内还包括一个设有100个座位的礼堂，该礼堂巩固了Matrix ONE作为科技园创造和共享知识中心的枢纽地位。

This social staircase is complemented by the building’s amenities, with a ground floor restaurant and a bar at the top of the staircase. These social features form “Club Matrix”, available for use by workers from all of the surrounding Matrix buildings. The building also includes an 100-seat auditorium, confirming Matrix ONE as a central hub for the creation and sharing of knowledge.

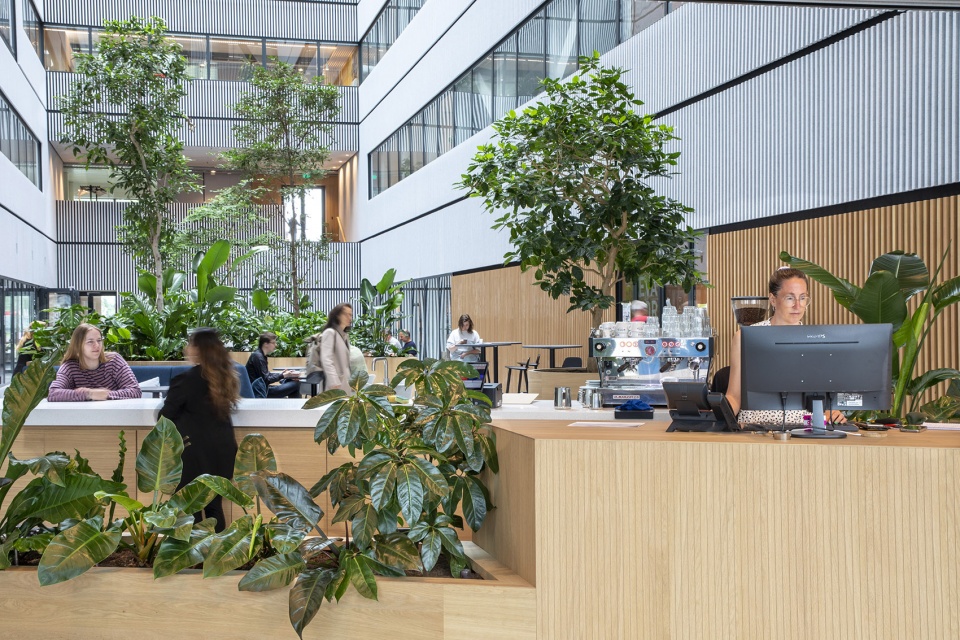

▼公共休闲用餐空间，public casual dining space © Daria Scagliola

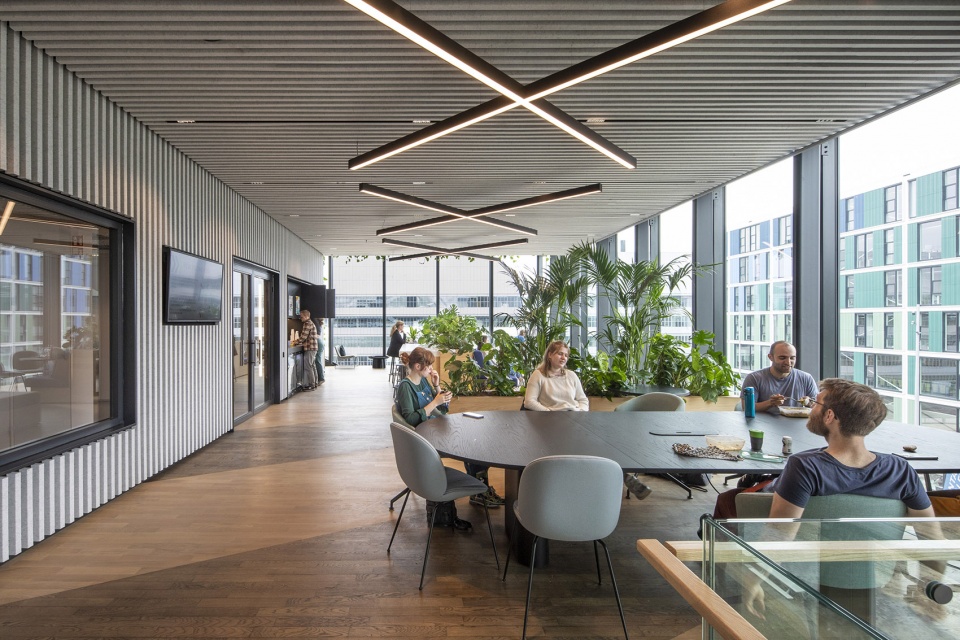

▼非正式会议工作区，informal meeting workspace © Daria Scagliola

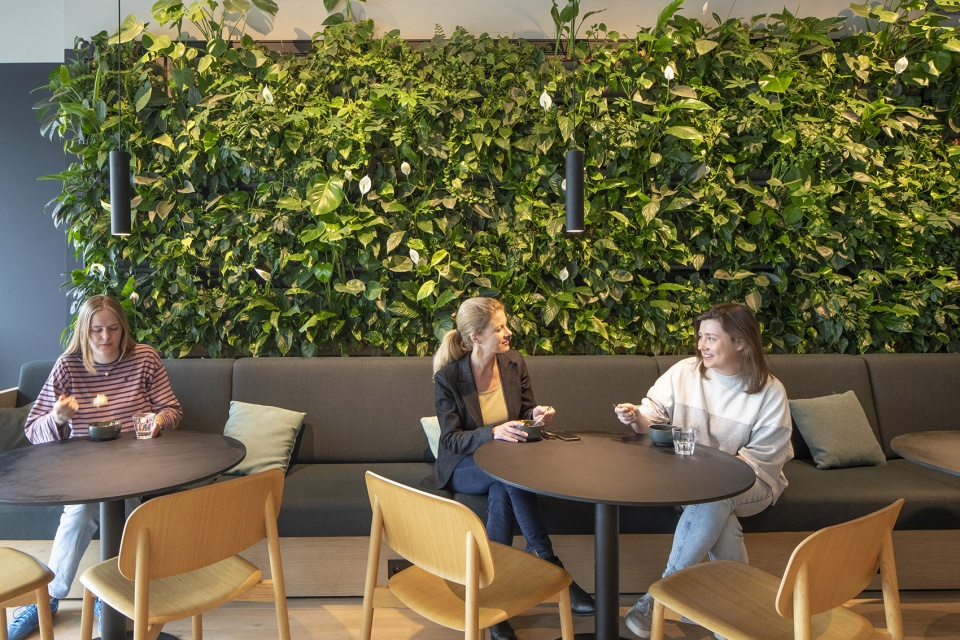

▼绿植墙体，green wall © Daria Scagliola

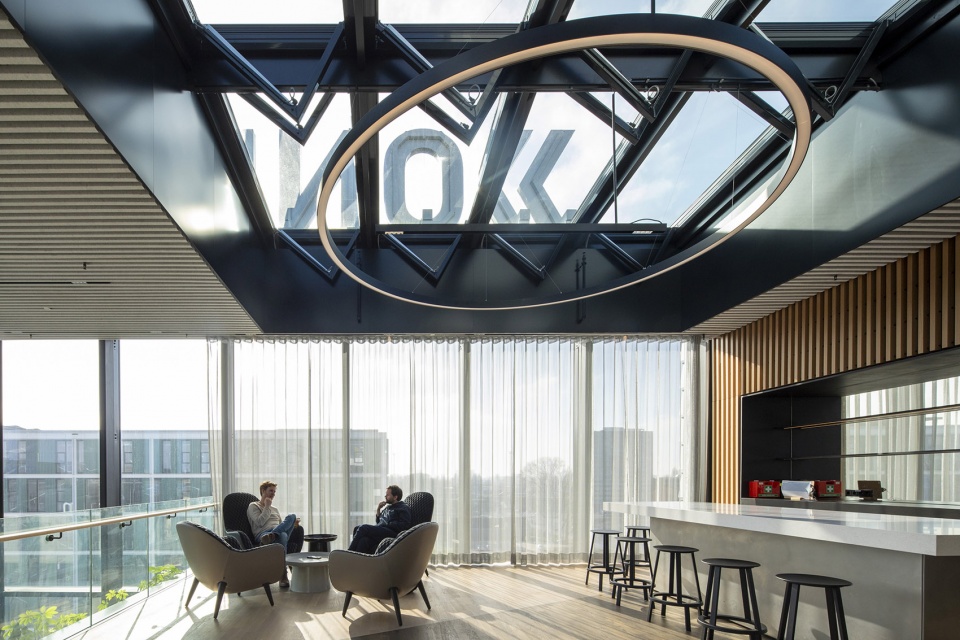

▼顶层酒吧，top floor bar © Daria Scagliola

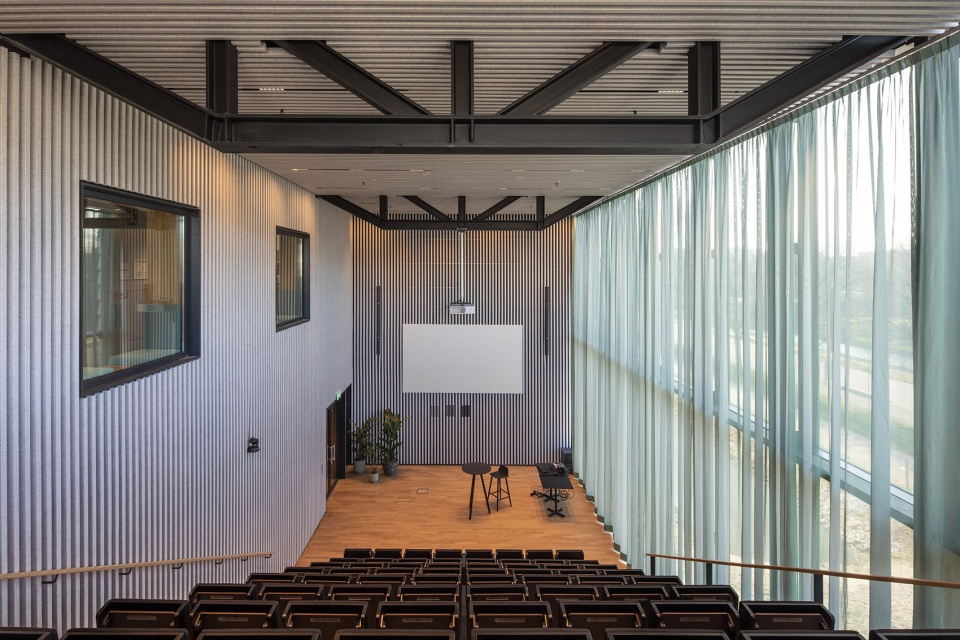

▼礼堂，the 100-seat auditorium © Daria Scagliola

▼细部，details © Daria Scagliola

Matrix ONE还鼓励使用者们发展健康的生活方式，例如：“社交楼梯”位于明显的位置，而电梯则隐藏在建筑深处，需要通过中庭进入，这一设计旨在鼓励人们多使用楼梯少乘坐电梯，达到日常锻炼身体的目的；建筑的后部，大楼次入口处则设置了通往自行车停车处的通道，从中庭可以直接进入或看到，旨在鼓励在大楼里的工作人员多骑自行车上班。

Matrix ONE also encourages users to lead a healthy lifestyle: the location of the social stair encourages people to use the stairs instead of the elevators, which are found deeper inside the building, accessed via the atrium. On the rear of the building, a secondary entrance includes access to a bicycle parking facility that is directly accessible and visible from the atrium, encouraging those who work in the building to cycle.

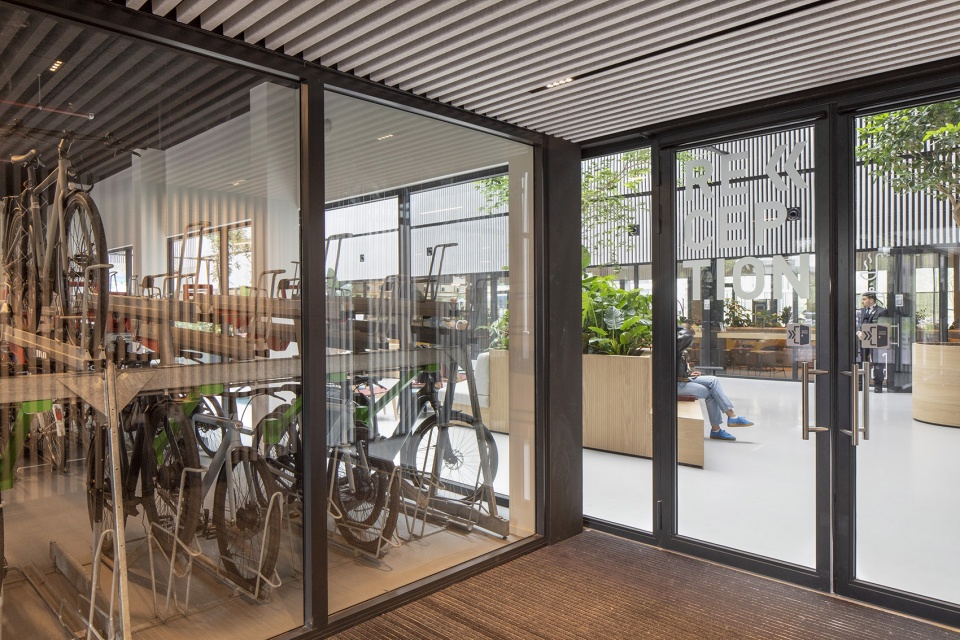

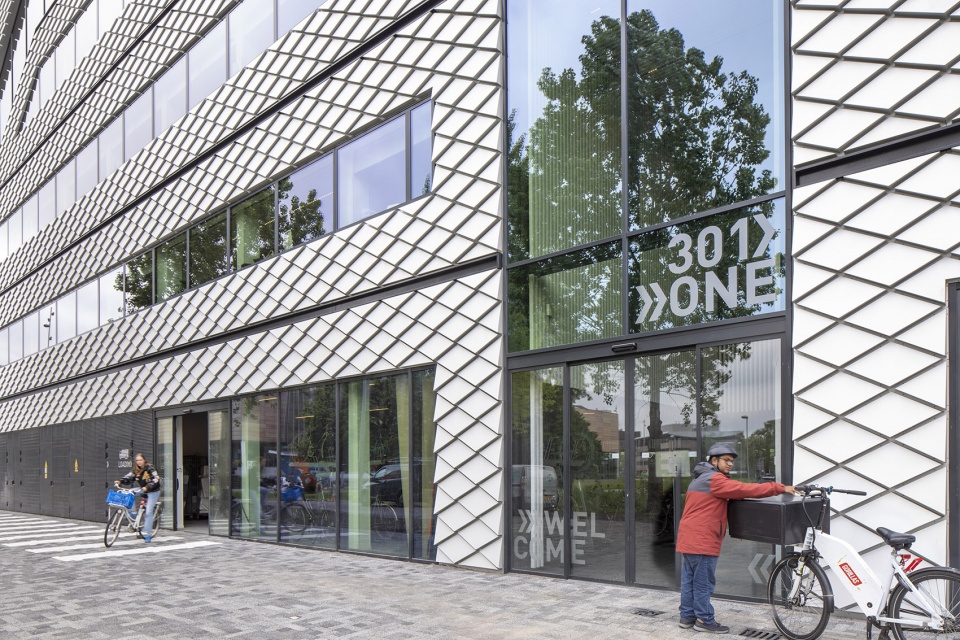

▼次入口与自行车停车处，secondary entrance and bicycle parking facility © Daria Scagliola

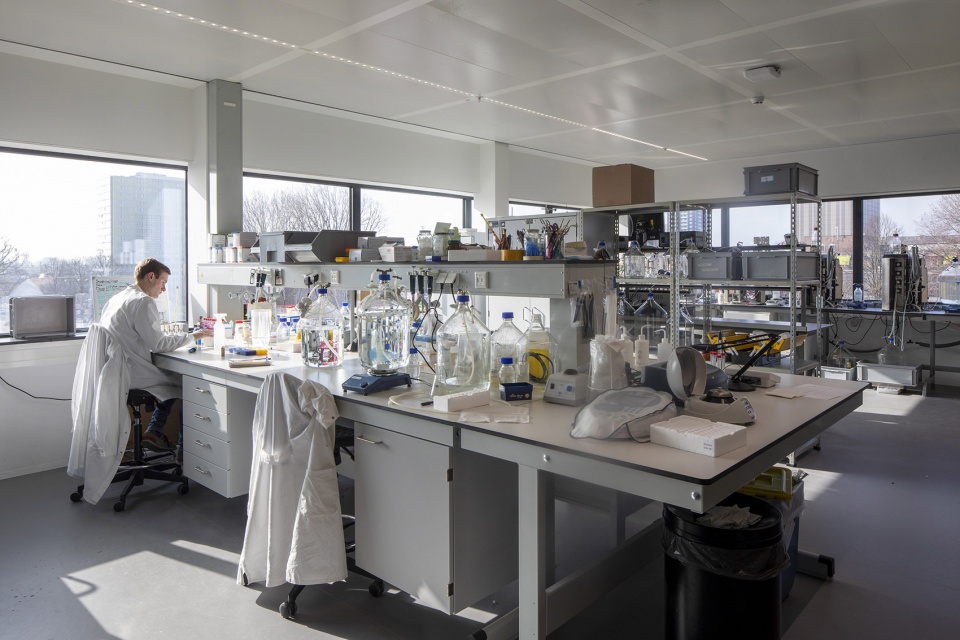

▼实验室，laboratory © Daria Scagliola

“Matrix ONE为我们提供了一次绝佳的机会来验证MVRDV长期研究的节碳减排策略，在这个方面，这座建筑目前来说可谓是最先进的，同时我们也将技术在未来的发展考虑到了设计之中。因此，我们将内部空间和技术设施排布地尽可能的灵活；办公室可以很容易地改造成实验室，反之亦然，同时实验室也可以很容易地利用新系统升级，以适应不断变化的标准。在未来的几十年里，当这栋建筑不再是最尖端的设施时，它将成为其他建筑的材料来源。我们希望未来的所有建筑都能秉承这一可持续发展的理念，同时我们也很高兴看到Matrix ONE大楼成为我事务所在践行这一理念中的先锋。 ”MVRDV合伙人Frans de Witte说道。

“Matrix ONE offered an excellent opportunity for us to test a number of the carbon-reduction strategies we have long been investigating at MVRDV”, says MVRDV partner Frans de Witte. “The building is state-of-the-art now, but it also acknowledges that the state-of-the-art is constantly changing. So we made both the interior spaces and the technical installations that serve them as flexible as possible; offices can easily be modified to become labs and vice versa, and labs can be easily upgraded with new systems to accommodate changing standards. In the decades to come when the building is no longer cutting-edge, it will become a source to harvest materials from for other buildings. In the future, we hope this is how all buildings will work – and we’re excited to see Matrix O NE become a standard-bearer in our own office.”

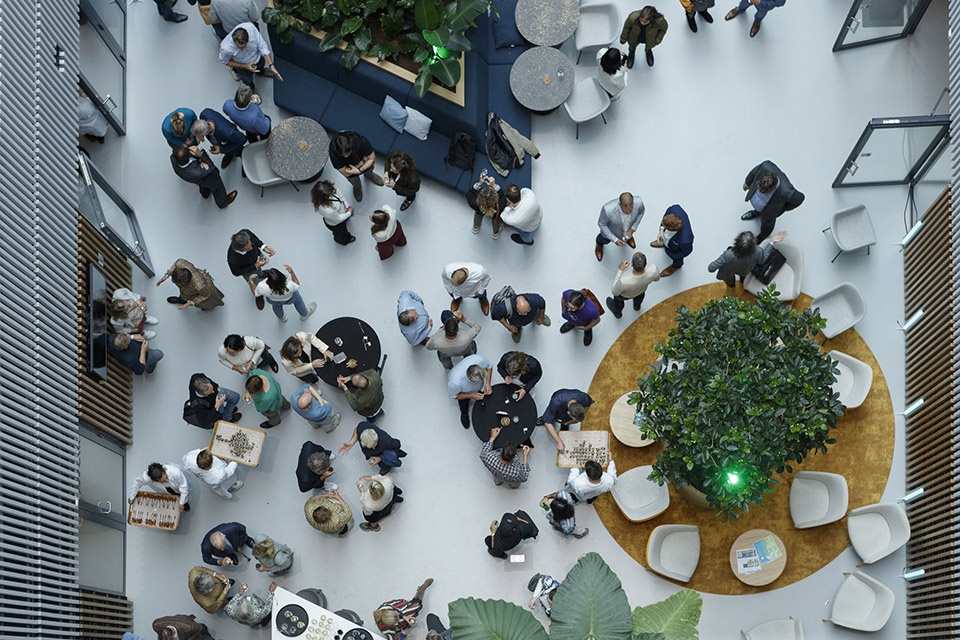

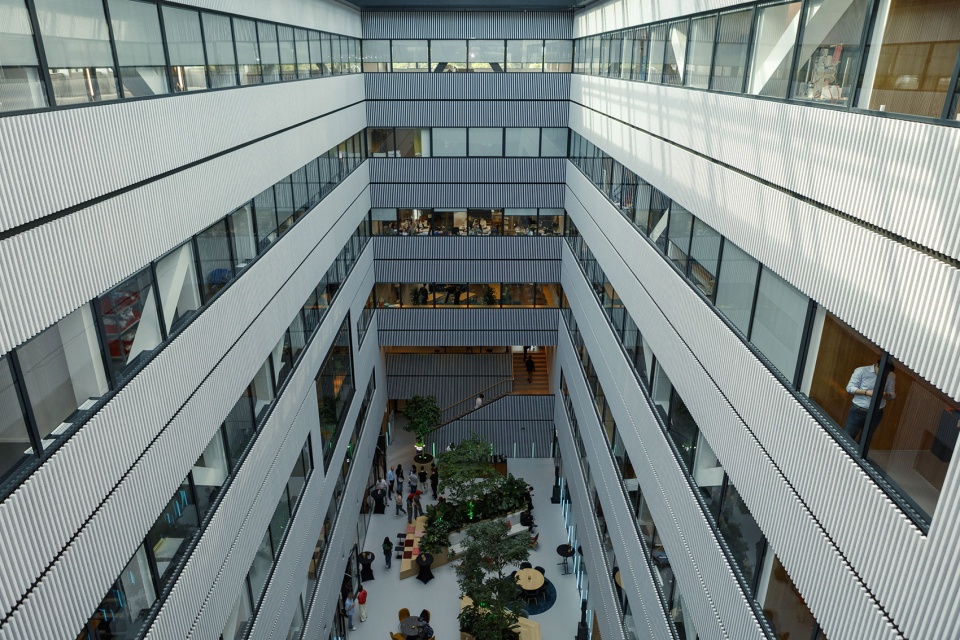

▼开幕式当天的中庭，view of the atrium at the open ceremony © Tim Eshuis

▼开幕式当天活动场景，photos of the open ceremony © Tim Eshuis

Project Name: Matrix ONE
Location: Amsterdam, the Netherlands
Year: 2018–2023
Client: Matrix Innovation Center
Size and Programme: 13,000m2 – offices, laboratories, education spaces, restaurant
Sustainability certification: BREEAM-NL-Excellent
Credits
Architect: MVRDV
Partner: Frans de Witte
Design Team: Fedor Bron, Mick van Gemert, Roy Sieljes, Fouad Addou, Aneta Rymsza,
Andrea Manente, Ievgeniia Koval, Lesia Topolnyk, Giuseppe Carosini, Damla Demir
Visualisations: Antonio Luca Coco, Pavlos Ventouris, Luca Piattelli, Luana La Martina,
Francesco Vitale, Gianlorenzo Petrini, Cinzia Bussola
Copyright: MVRDV Winy Maas, Jacob van Rijs, Nathalie de Vries
Partners:
Contractor: De Vries en Verburg
Project coordination: Stone 22
Landscape architect: Karres+Brands; Gemeente Amsterdam
Structural engineer IMD
MEP, Building physics: Deerns
Cost calculation: IGG
Environmental advisor: ATKB
Interior architect: MVRDV; UP Architecture
Photography: © Daria Scagliola
