感谢 RG architects studio 予gooood分享以下内容。更多关于他们：RG architects studio on gooood
Appreciation towards RG architects studio for providing the following description:

全新的GALAXIE eR（eR译为“快乐”）幼儿园可容纳50名儿童，满足了Šluknov山麓地区Varnsdorf镇对新幼儿园设施日益增长的需求。项目位于Západní街和通往edionova学校的道路的拐角处，建筑采用了单层砖结构，平面呈规则的椭圆形，内部还设有一座椭圆形的中央庭院。建筑上部，低矮的护墙围合了平坦的绿色屋顶，多功能厅体量较高，突出于其他部分的屋顶之上。

The new GALAXIE eR Kindergarten for 50 children (eR as JOY) addresses the increasing demand for new preschool facilities in the town of Varnsdorf in the Šluknov foothills. Situated at the corner of Západní Street and the road leading to the Edisonova School, the building stands as a single-story brick structure with a regular elliptical floor plan and an internal elliptical atrium. It is covered by a flat green roof with a low parapet and an elevated roof section above the multifunctional hall.

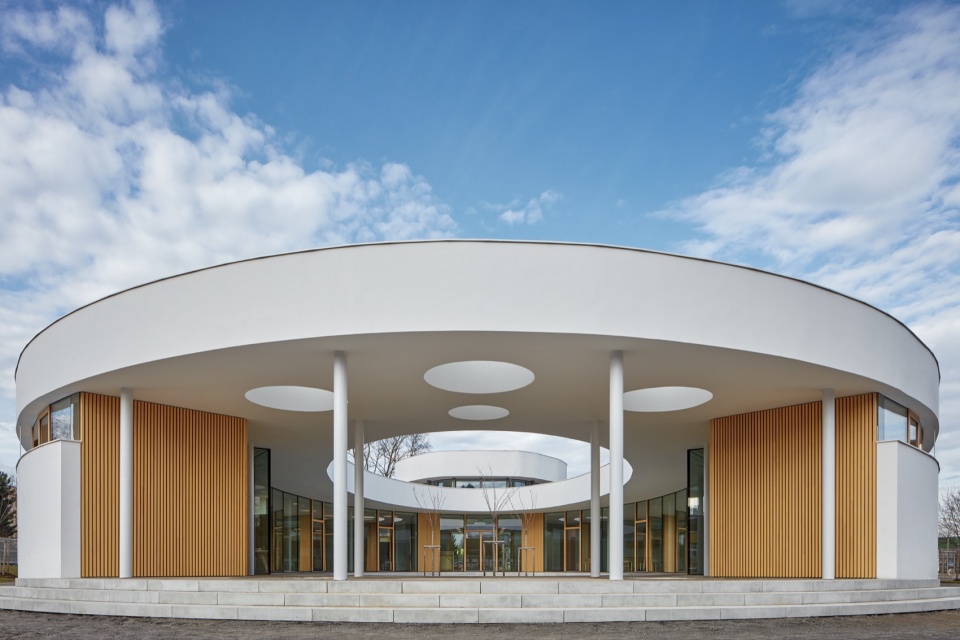

▼建筑外观，exterior view of the kindergarten © BoysPlayNice

建筑形态的设计考虑了周边城市环境的发展、现有的流线关系、场地位于街角的位置以及场地的朝向，旨在确保室内空间和中庭拥有足够的阳光，以及周围环境和邻近森林公园的景观视野。巧妙的布局在幼儿园前部创造出高质量的公共空间，如同一座椭圆形的绿色岛屿，使得路过的行人也能自然通过。

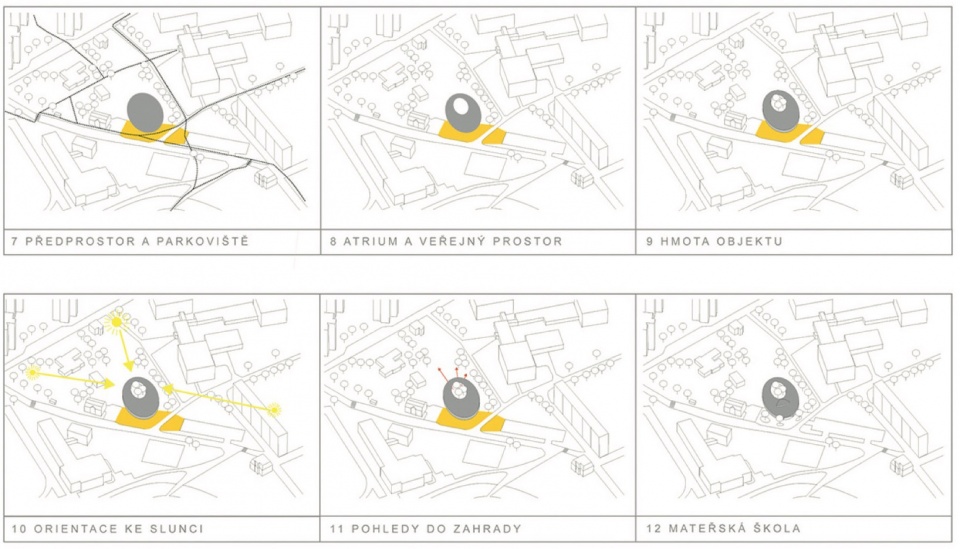

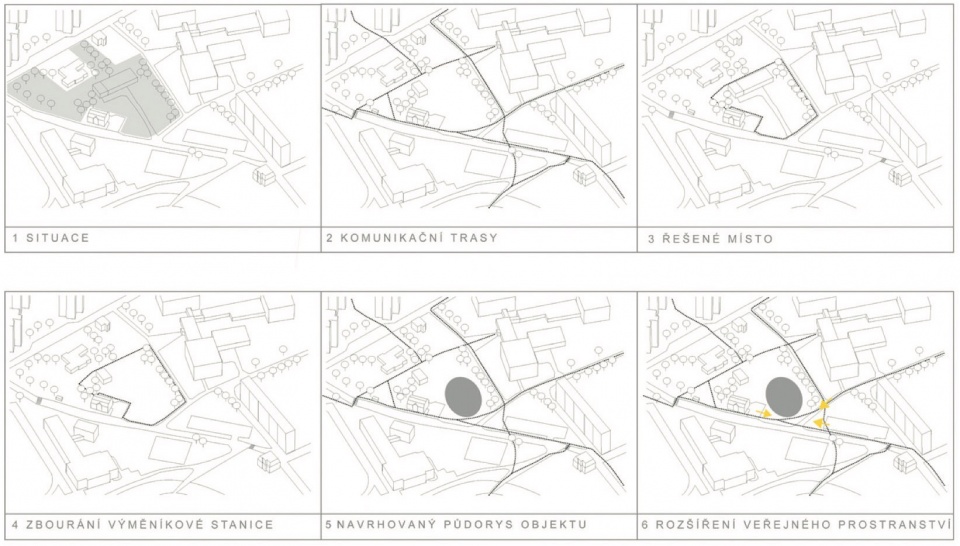

▼场地分析，analysis of the site © RG architects studio

The shape of the building was designed with consideration for the surrounding development, existing communication relationships, corner position, and the plot’s orientation to ensure sufficient sunlight in the interior spaces and atrium and to allow views into the surrounding landscape and adjacent forest park. The building’s placement created a high-quality public space in front of the nursery with elliptical green islands, also allowing for natural pedestrian circulation.

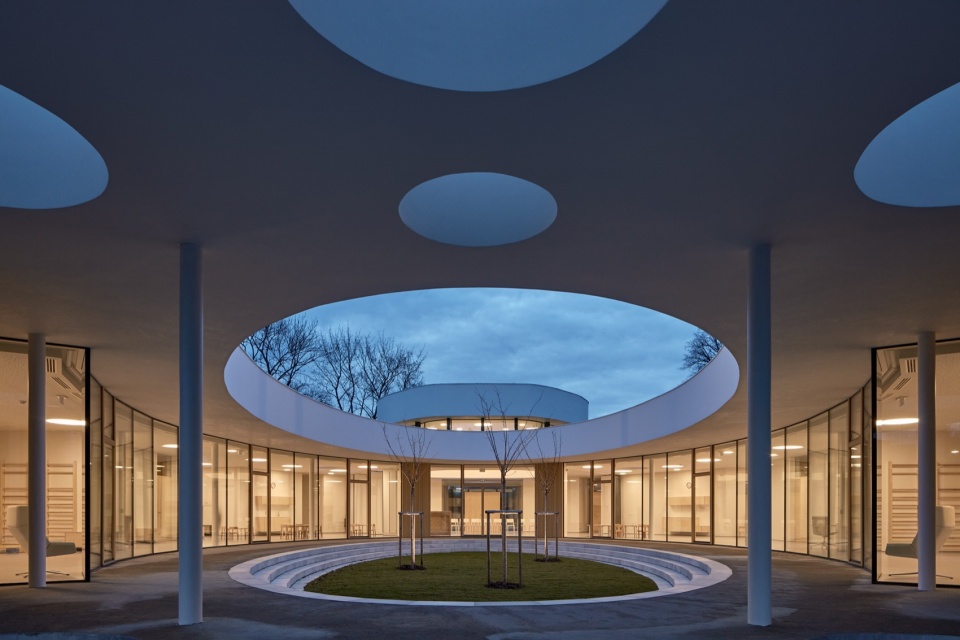

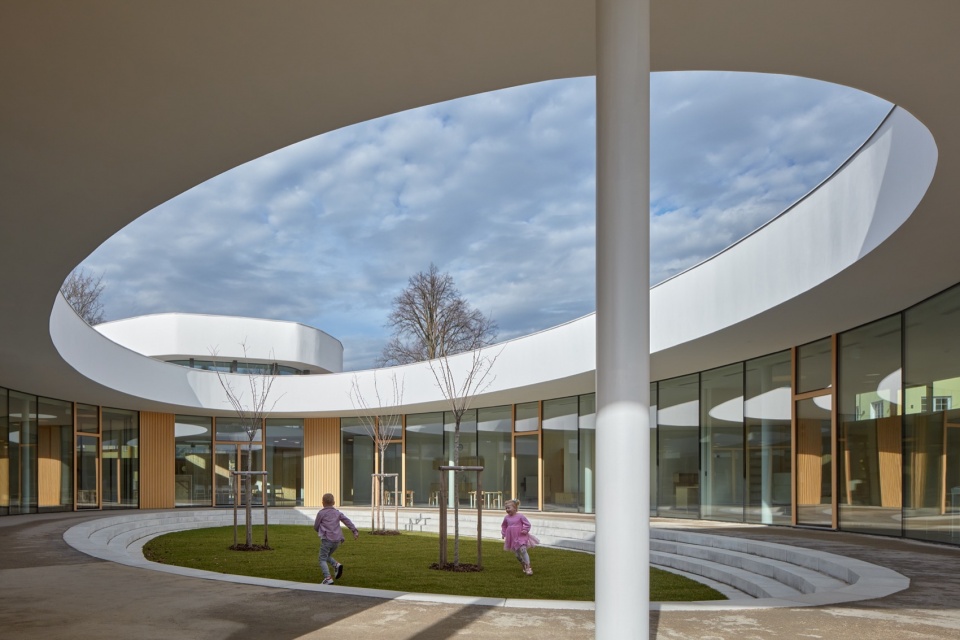

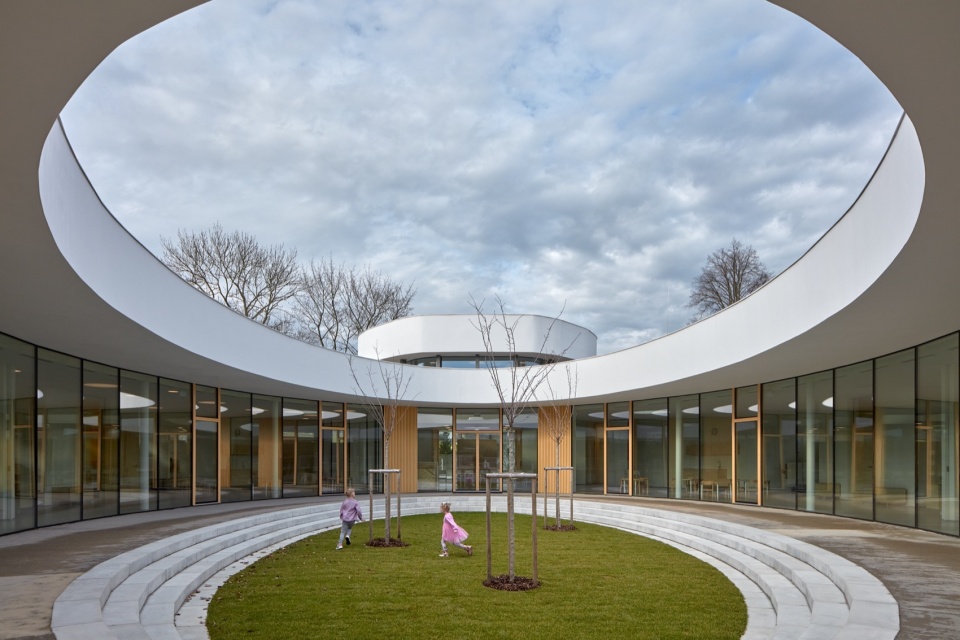

▼椭圆形的中央庭院，the oval central courtyard © BoysPlayNice

▼立面细部，details of the facade © BoysPlayNice

幼儿园的有机形态体现了开放、自由、和谐、美丽，这些品质是人类精神中必不可少的“营养品”，也是儿童成长过程中所需要的。在建筑内部，绿色的中庭与盛放的樱花树，为孩子们创造出宁静的放松和玩耍场所。它象征着伊甸园和孩子纯洁的灵魂。中庭与相邻花园在视觉与空间上紧密相连，进一步增强了孩子们将从象牙塔走向外部世界的寓意。

▼分析图，analysis diagram © RG architects studio

The organic shape of the kindergarten embodies openness, freedom of movement, harmony, and beauty – essential “nourishment” for the human spirit, desirable for children’s development. Inside the building, a green atrium with newly planted sakura trees opens up, creating a peaceful place for children to relax and play. It symbolizes the idea of the Garden of Eden and the child’s pure soul. The visual and physical connection of the atrium with the adjacent garden further plays out the idea of children’s emergence from paradise into the outside world.

▼由接待大厅看庭院，viewing the garden from the entrance hall © BoysPlayNice

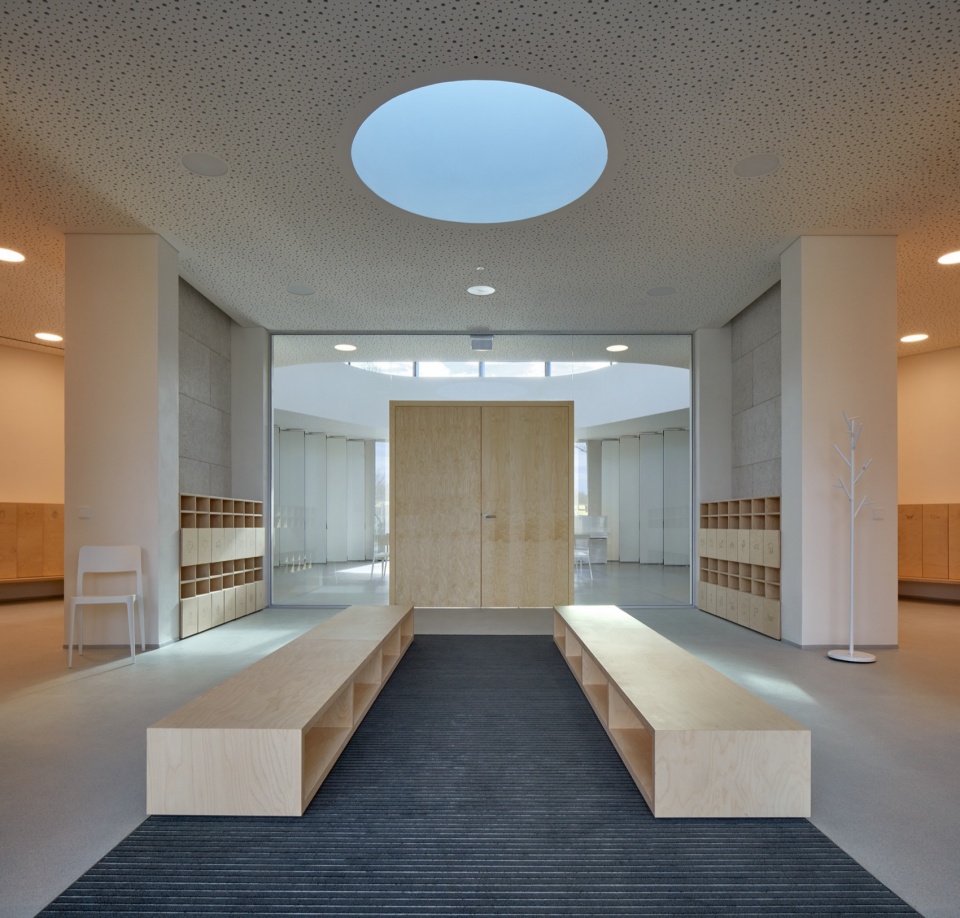

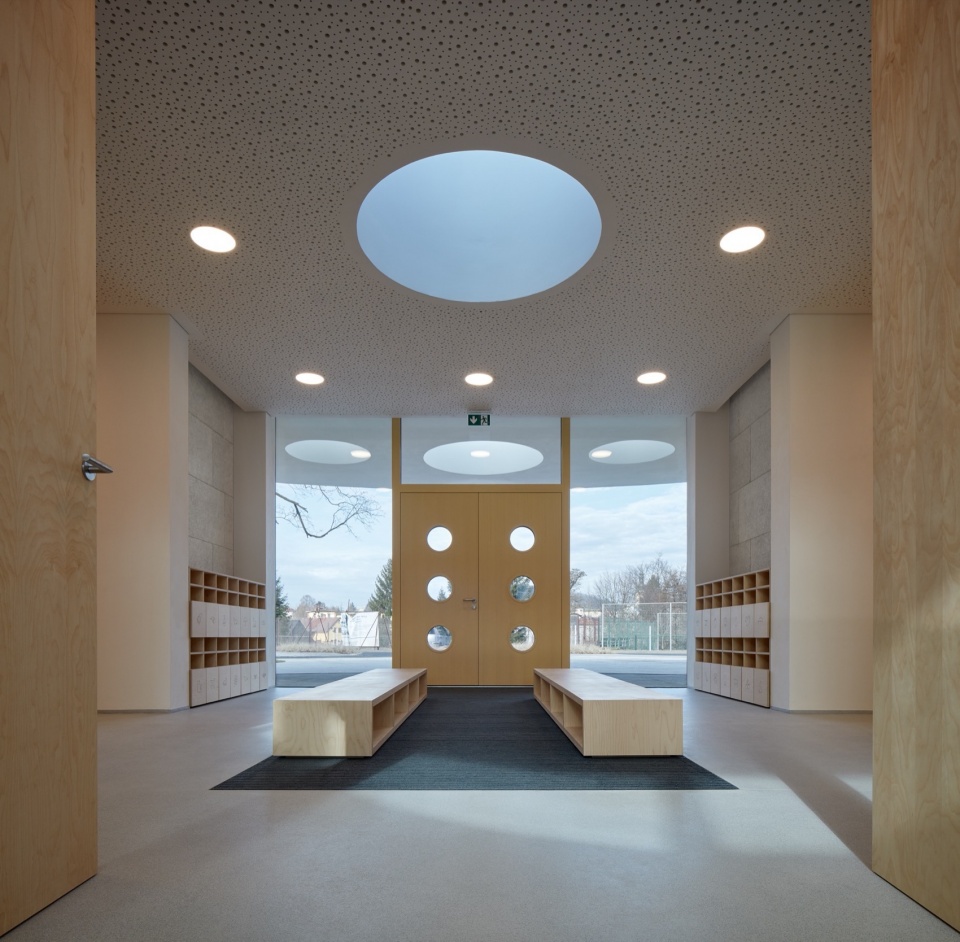

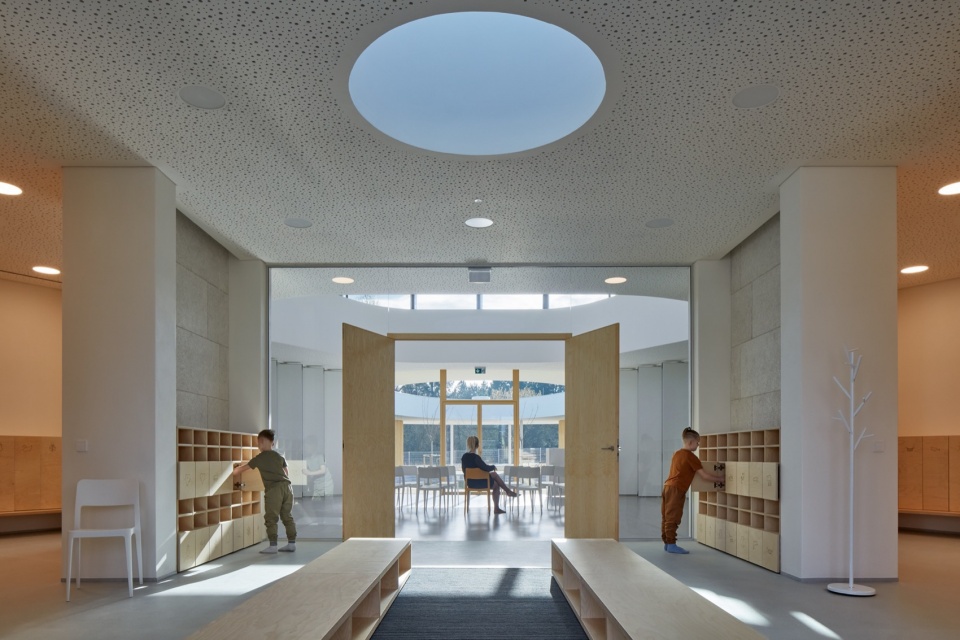

▼接待大厅，entrance hall © BoysPlayNice

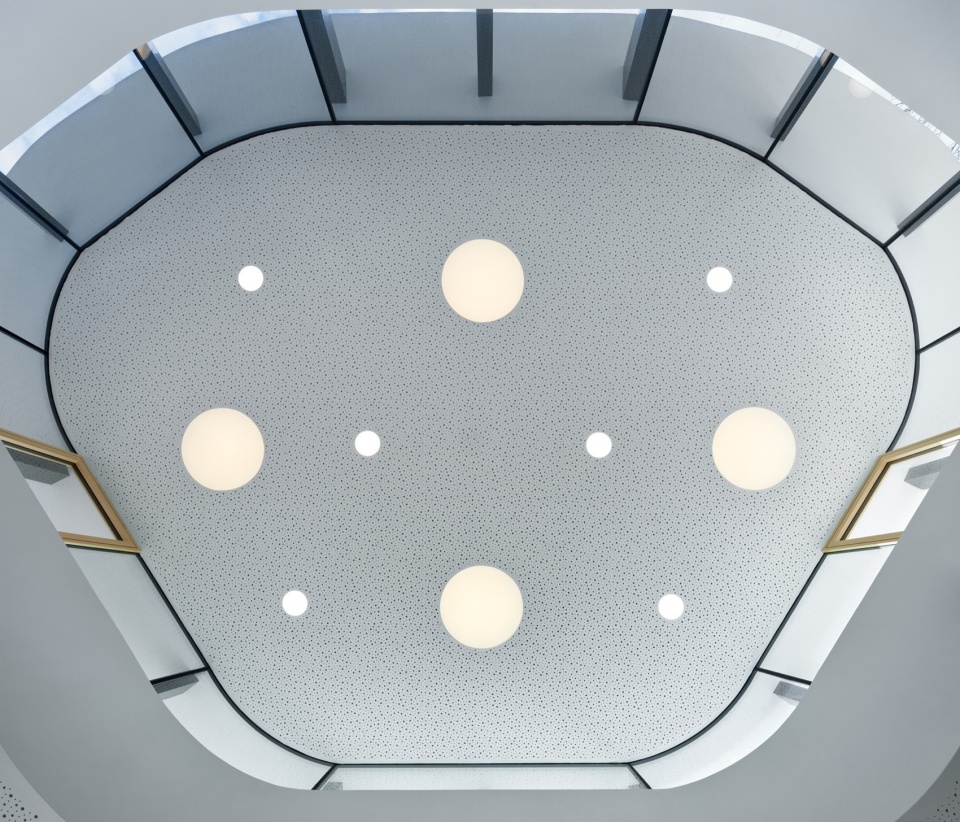

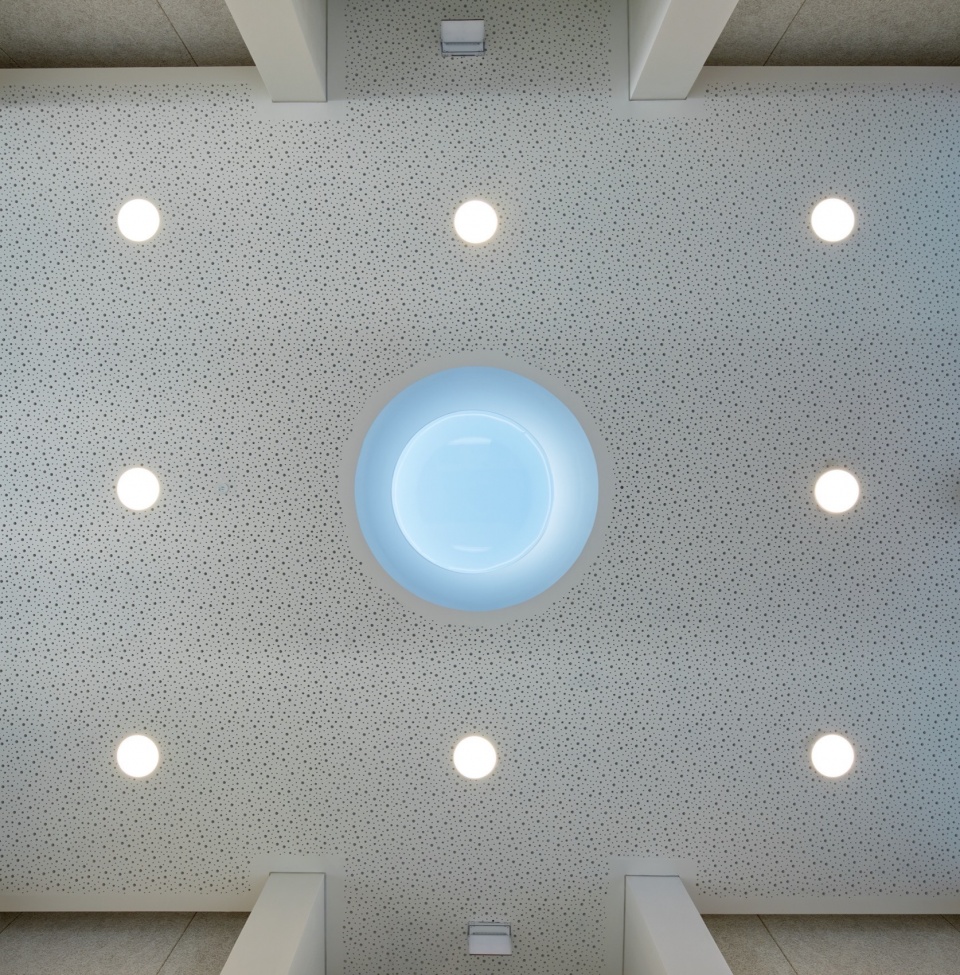

▼天花板细部，details of the ceiling © BoysPlayNice

建筑空间由两个独立的部分组成，每个部分可容纳25名儿童，并配备必要的服务和卫生设施，以及餐饮设施。多功能厅位于幼儿园的中心轴线上，宛如一座想象力的舞台，该大厅可用于幼儿园内的儿童聚会和体育活动，也可用于课外的文化活动和娱乐活动。

The internal layout consists of two separate sections, each accommodating 25 children, equipped with necessary operational and sanitary facilities, its catering operation, and a multifunctional hall located in the imaginary center of the kindergarten. The hall can be used for children’s parties and physical activities within the kindergarten operation, as well as for cultural events and activities outside school hours.

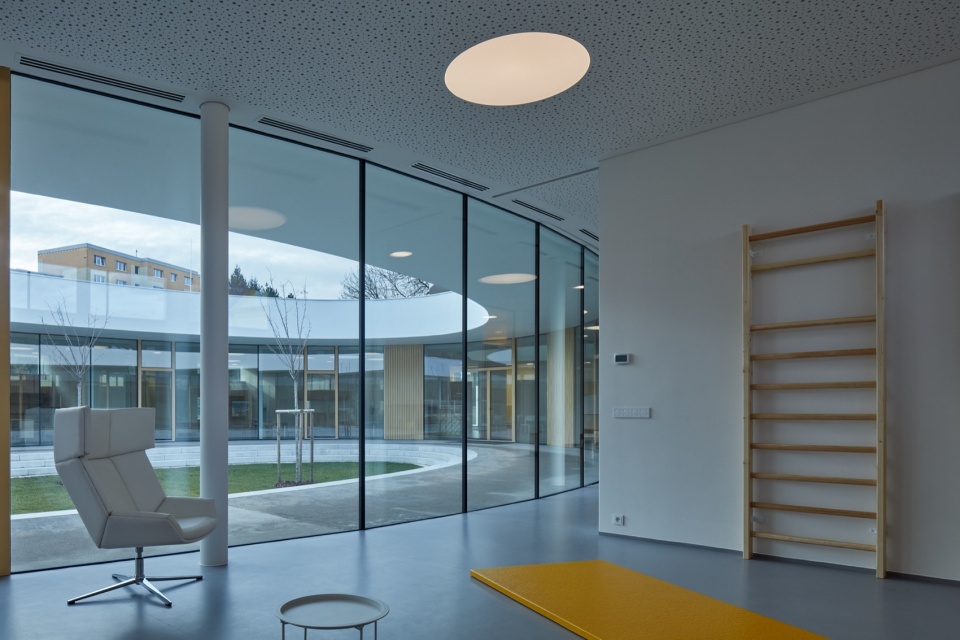

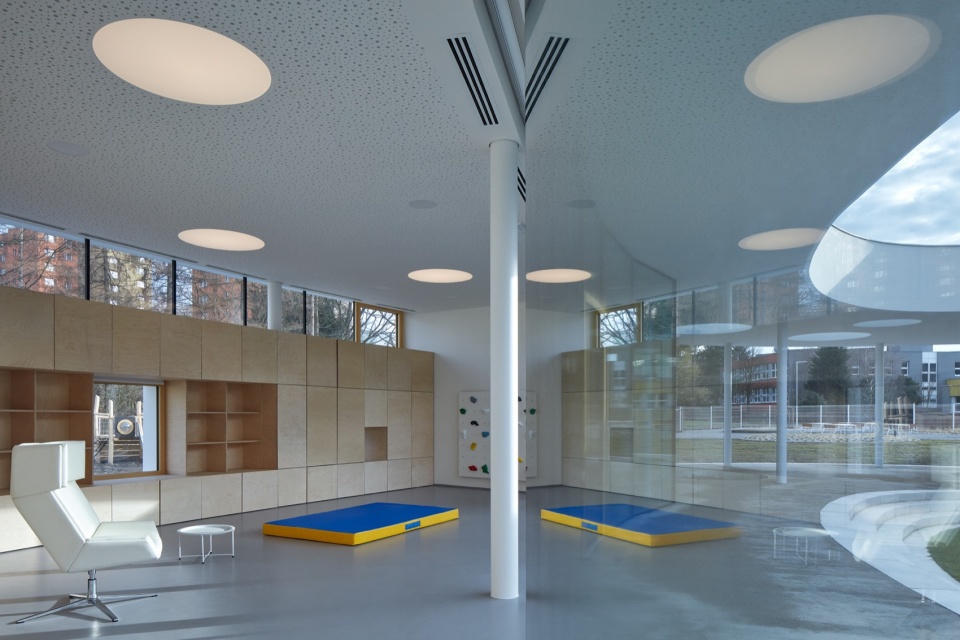

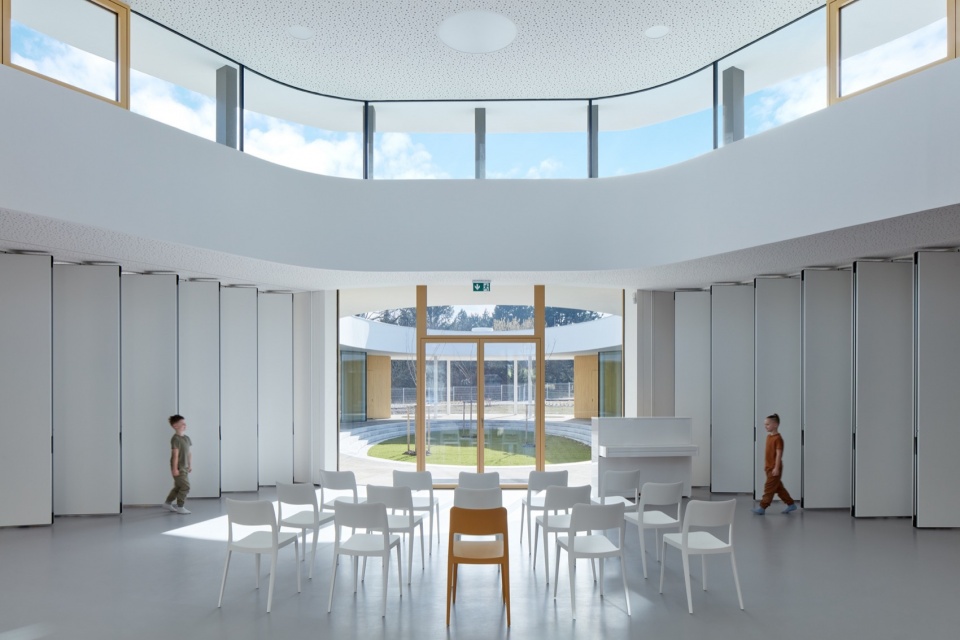

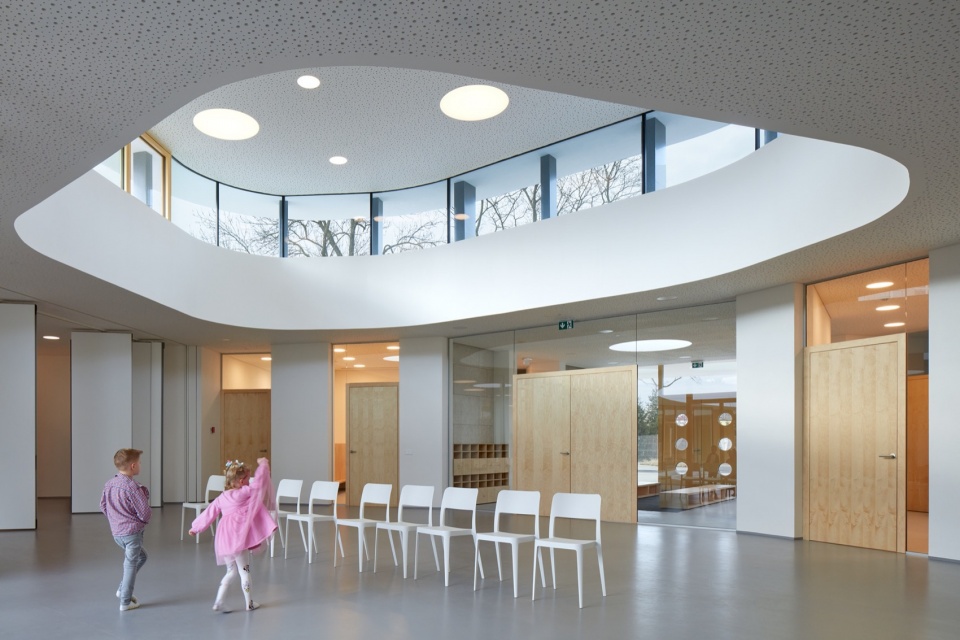

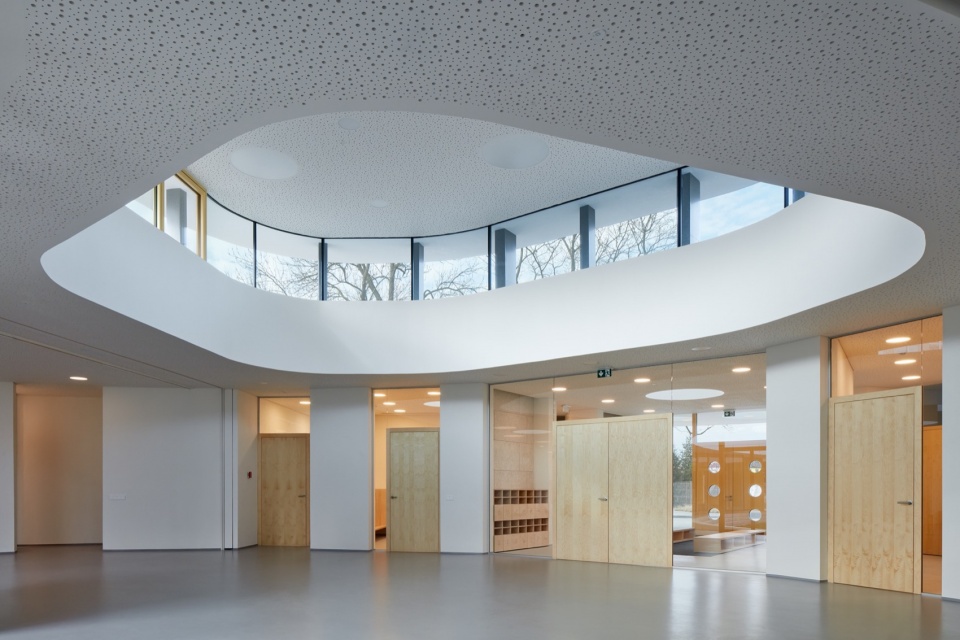

▼多功能厅，the multifunctional hall © BoysPlayNice

▼天花板细部，details of the ceiling © BoysPlayNice

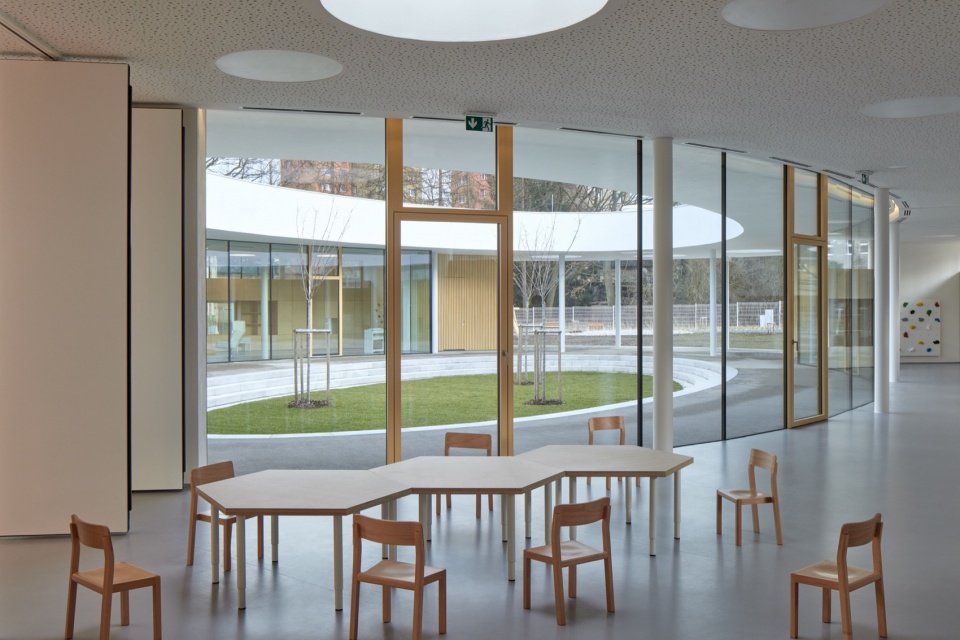

▼由多功能厅看庭院，viewing the garden from the multifunction hall © BoysPlayNice

▼多功能厅与相邻教室由可滑动面板分隔，the hall is separated from neighboring classrooms by mobile sliding panels © BoysPlayNice

多功能厅与相邻教室由可滑动面板分隔，可根据需要灵活改变整个空间。教室和游戏室/儿童午睡区，呈对称的形式分布在幼儿园的侧翼。教室平面采用了开放式的设计，室内设计了一系列内置的非典型家具，玩具架，内置橱柜，移动橱柜。大面积的内置竖窗和无框方窗将内部向外部环境开放，设计特别关注了儿童的视平线，让孩子们能够在玩耍中也能看到邻近的花园。

The hall is separated from neighboring classrooms by mobile sliding panels, allowing for flexible changes to the entire space as needed. The classrooms and playrooms, or nap areas for children, symmetrically oriented in the side wings of the kindergarten, are designed as open spaces bordered from the outside by built-in atypical furniture with toy shelves, built-in cabinets, mobile containers, and integrated strip and frameless square windows set at children’s eye level with views into the adjacent garden.

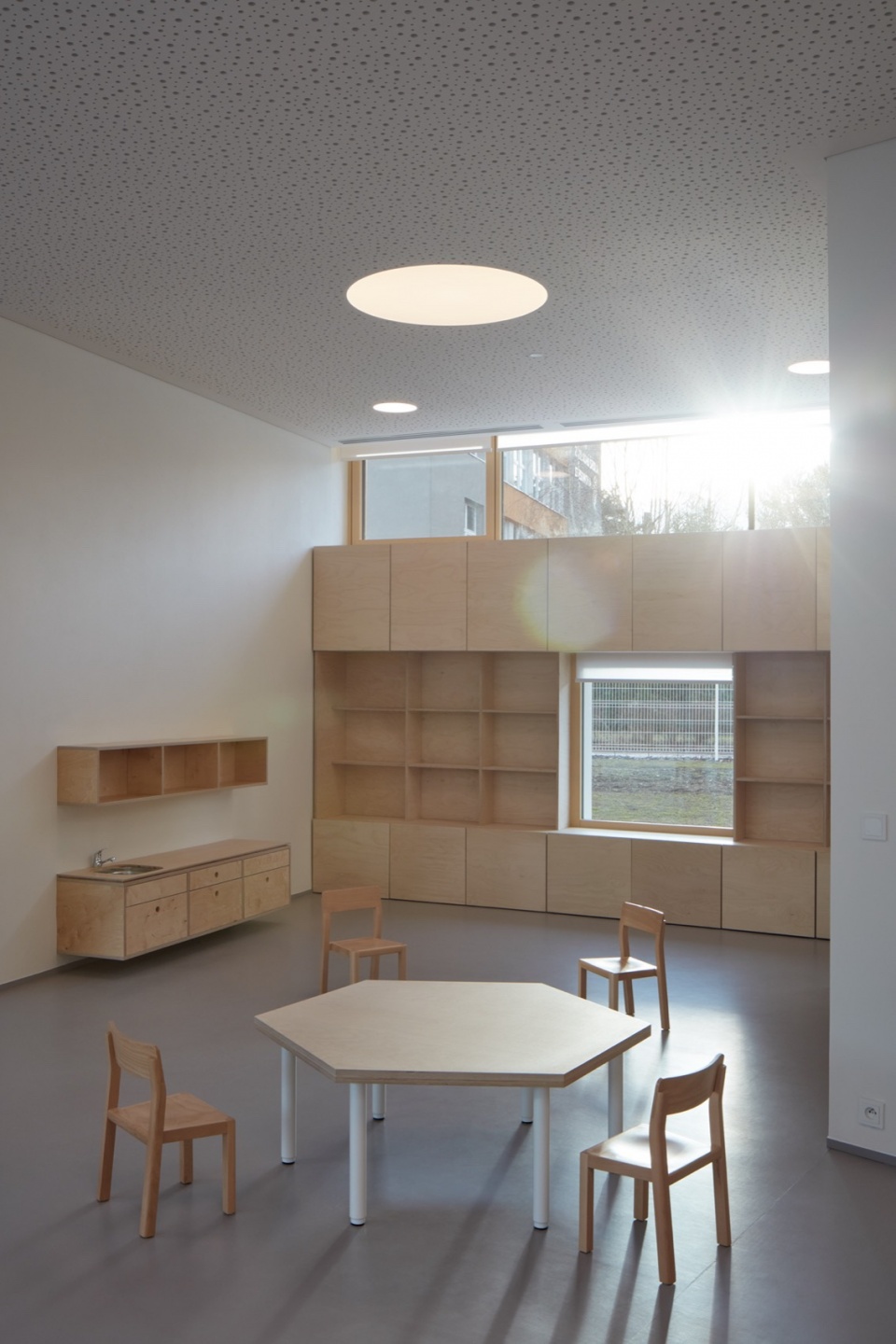

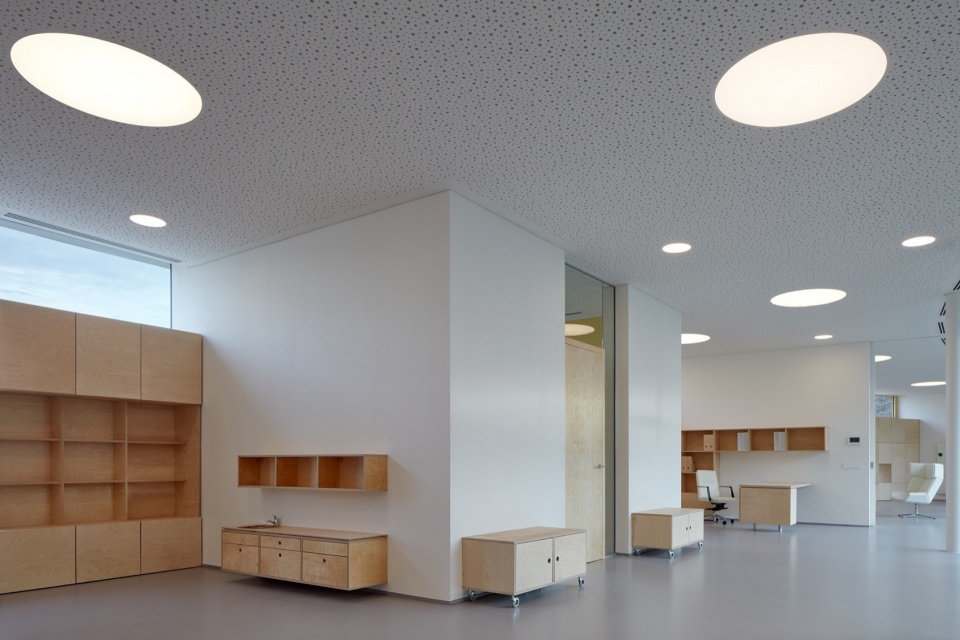

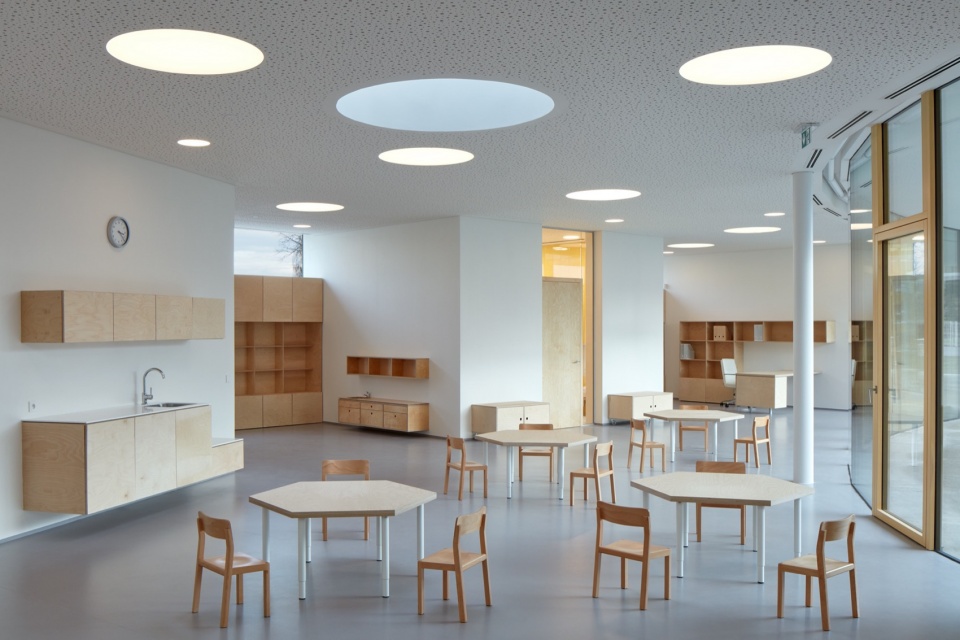

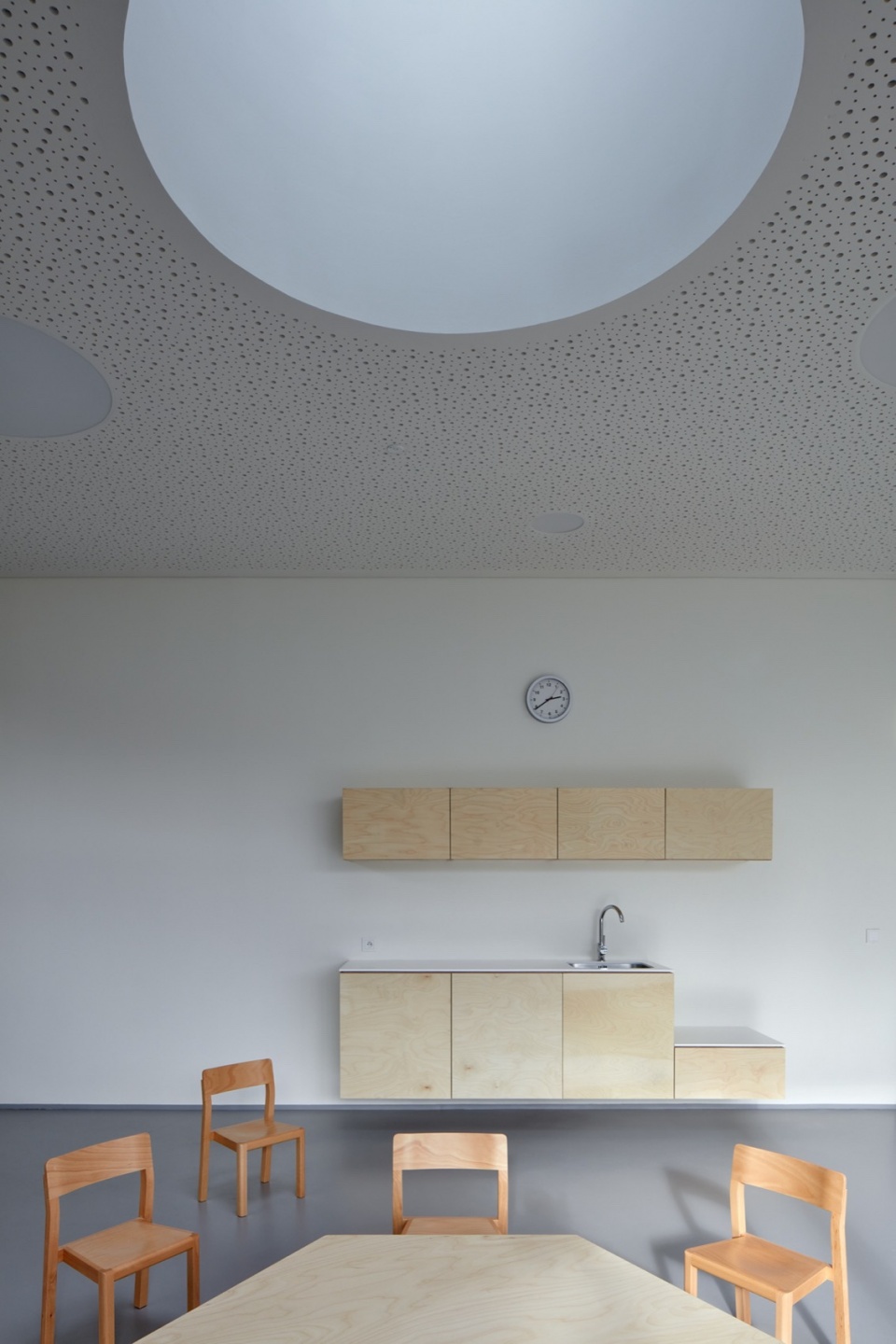

▼教室内部，interior view of the classroom © BoysPlayNice

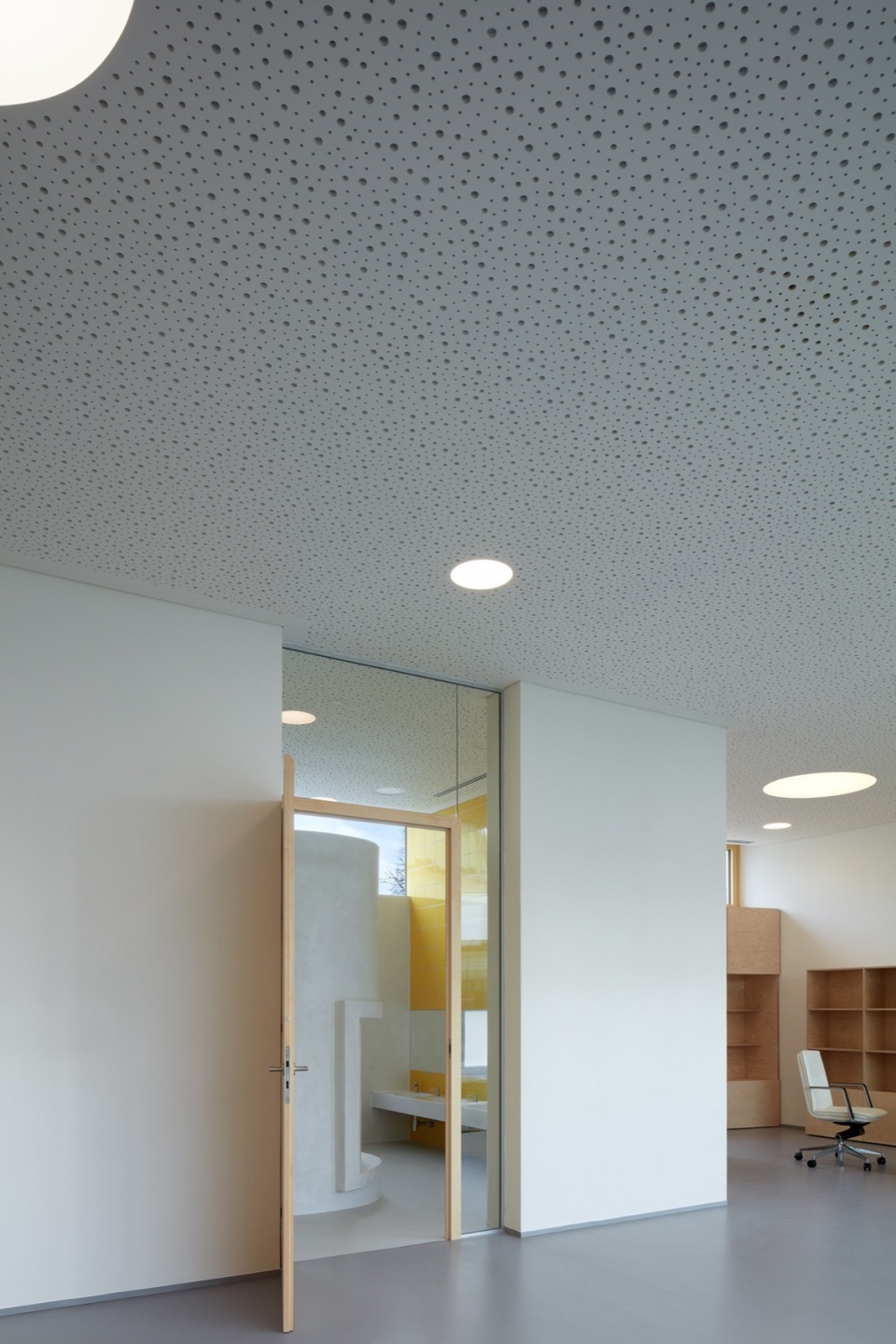

▼开放式设计与位于封闭空间中的服务设施，open design and service facilities located in enclosed spaces © BoysPlayNice

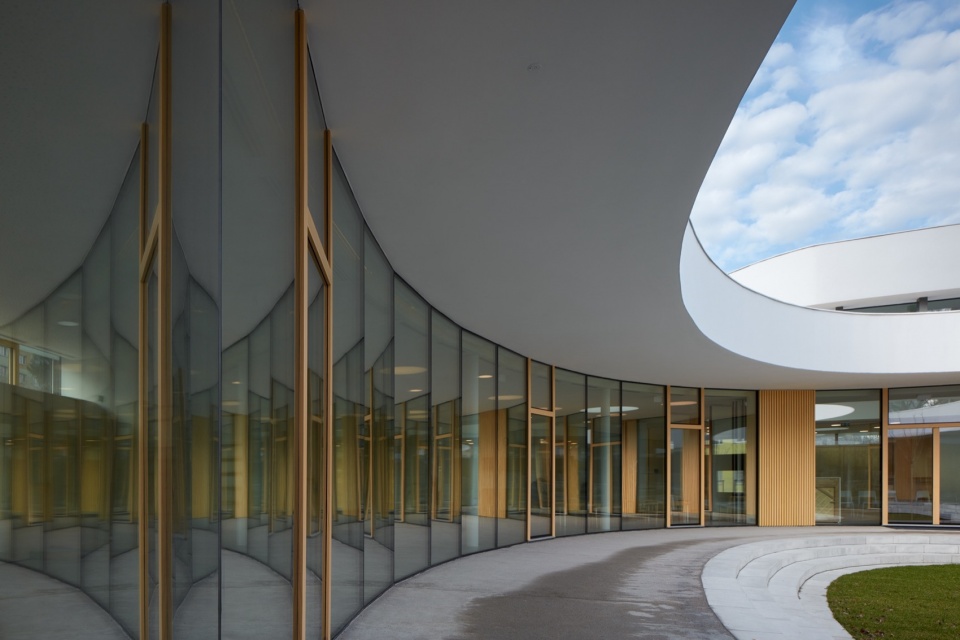

▼面向庭院的落地窗，floor-to-ceiling windows facing the courtyard © BoysPlayNice

▼紧密的室内外联系，strong indoor-outdoor connection © BoysPlayNice

室内设计旨在呈现出宁静的氛围，浅灰色油毡地板、由轻质桦木胶合板制成的内置非典型家具、集成无框开窗、白色油漆、带圆灯的声学穿孔天花板共同营造出中性的环境色调，同时也为空间带来了独特的个性与充满童趣的游戏感，标准的木制家具则与花园中茂盛的桦树与盛放的樱花树相得益彰。面向庭院的落地玻璃，以及周边墙壁上的条形和方形窗户，将花园转化为室内环境中不可分割的一部分，使整个幼儿园的环境更加统一和谐。

The interiors are designed as neutral environments combining light gray linoleum flooring, light birch plywood of built-in atypical furniture with integrated frameless windows, white paint, and acoustic perforated ceilings with circular lights, ultimately allowing individual color accents of play elements and standard furniture and the adjacent garden with birch trees and blooming sakura to stand out. Thanks to the floor-to-ceiling glazing facing the courtyard with strip and square windows in the perimeter wall, the garden becomes an omnipresent part of the interiors, completing the uniform and harmonious environment of the entire kindergarten.

▼内置家具，integrated furniture © BoysPlayNice

▼由轻质桦木胶合板制成的家具，
light birch plywood of built-in atypical furniture © BoysPlayNice

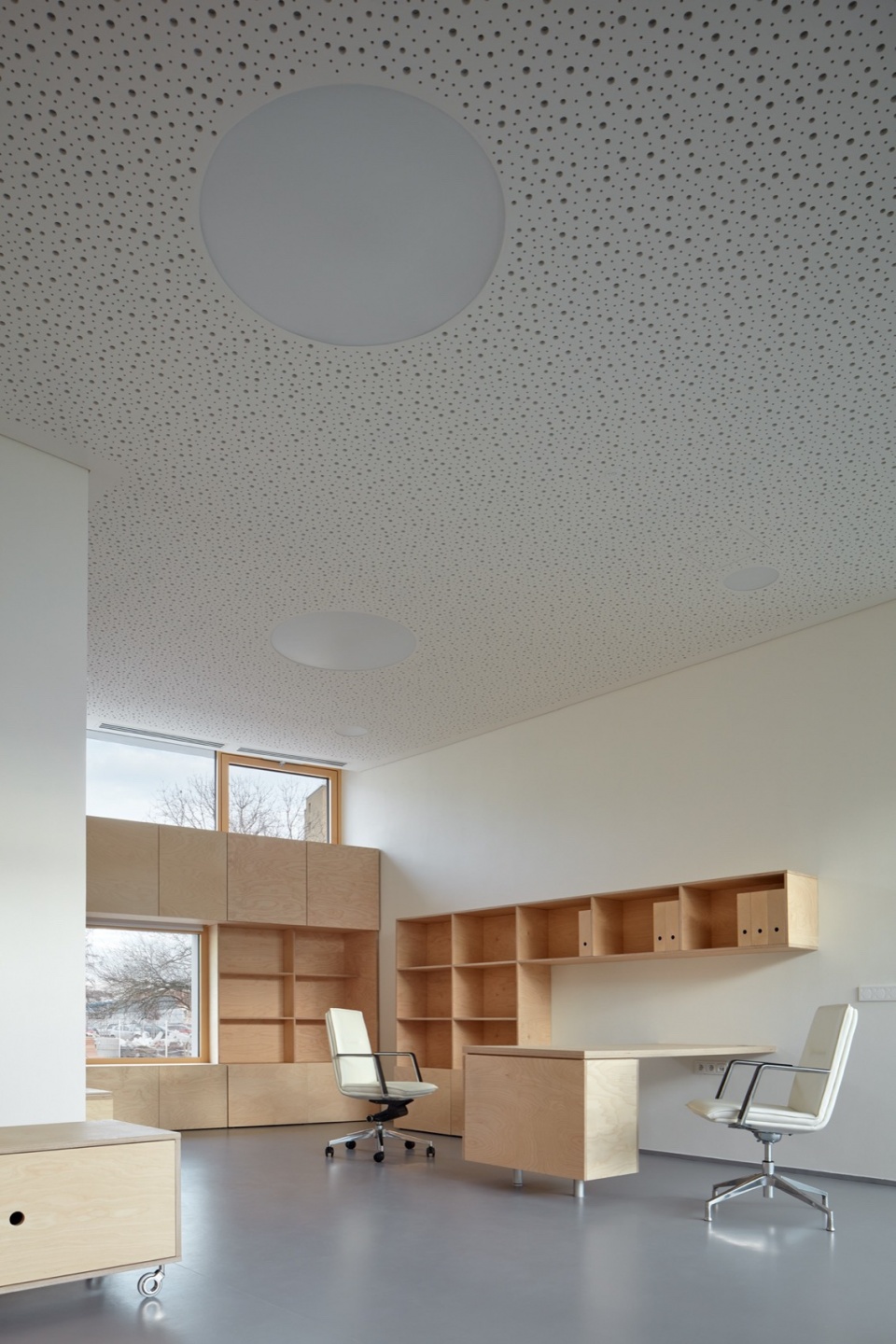

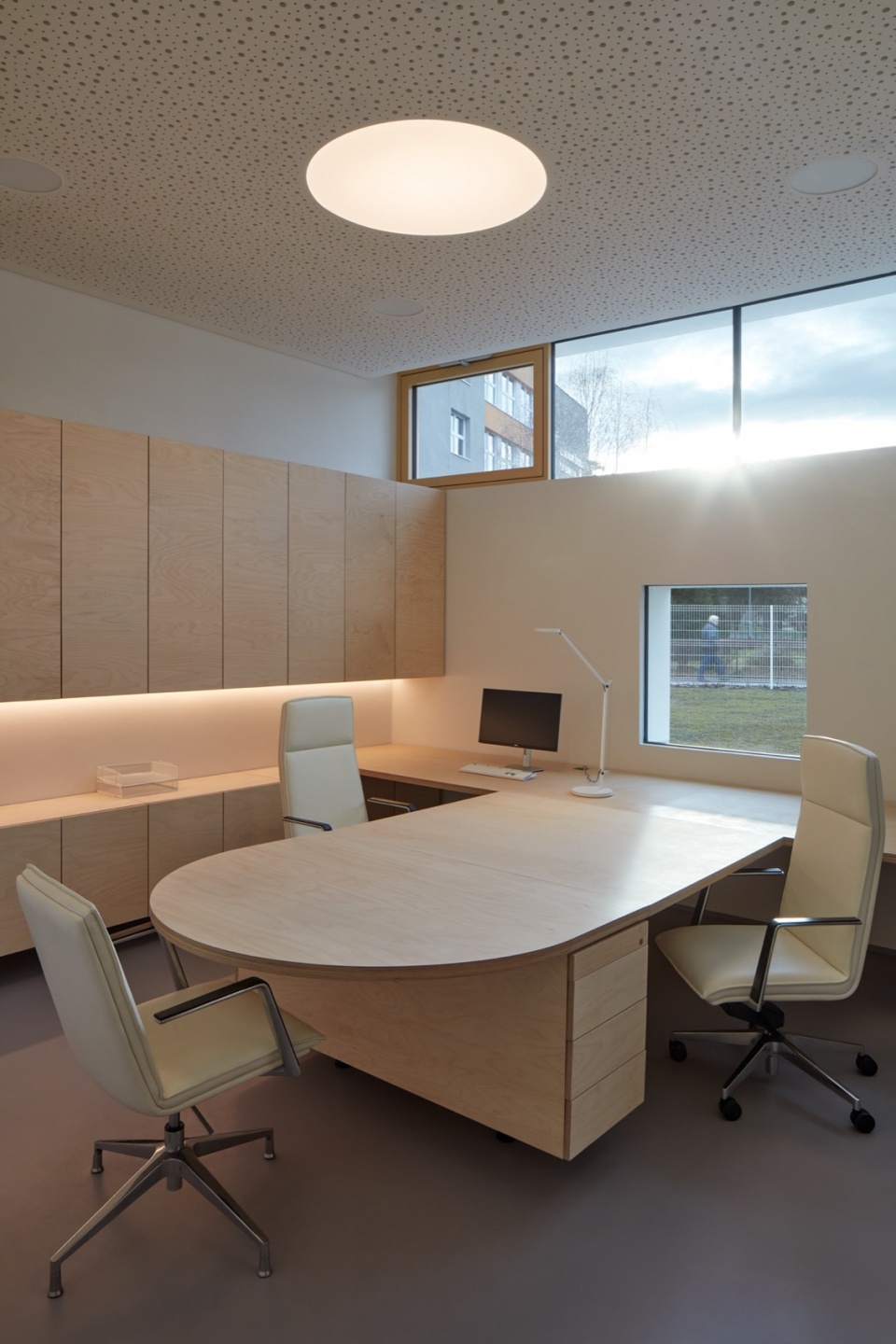

▼办公室，office © BoysPlayNice

▼交通空间，circulation space © BoysPlayNice

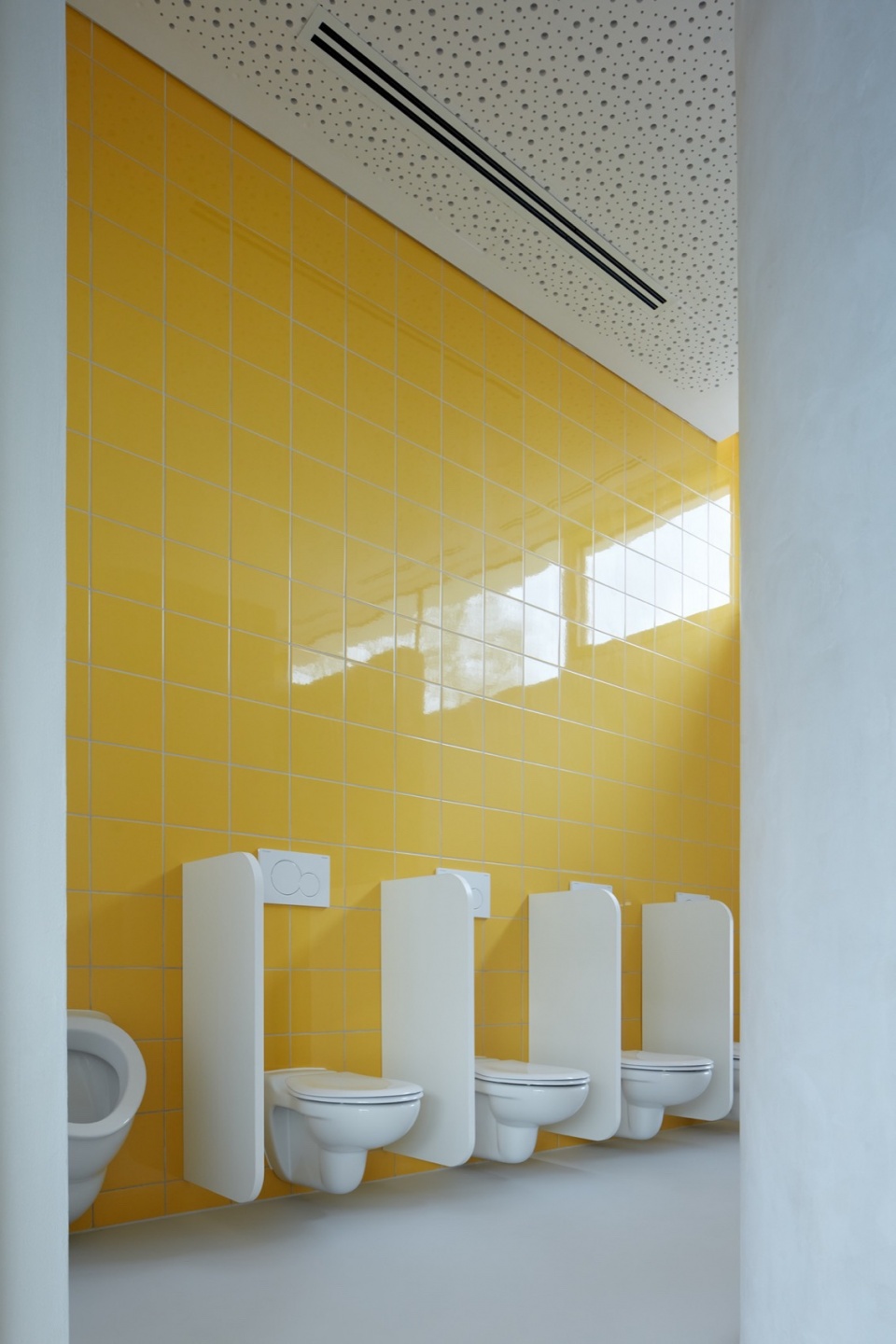

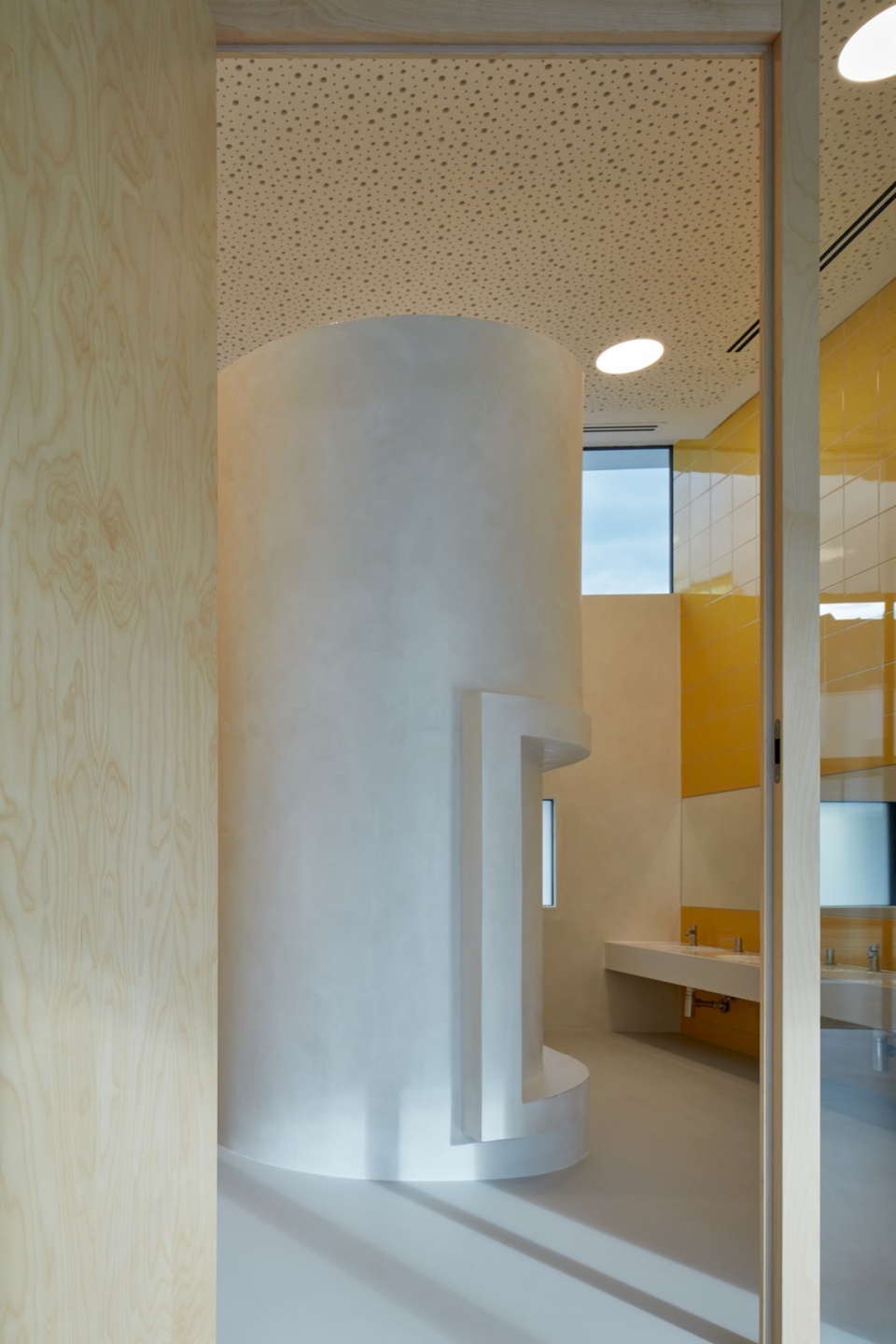

▼卫生间，toilets © BoysPlayNice

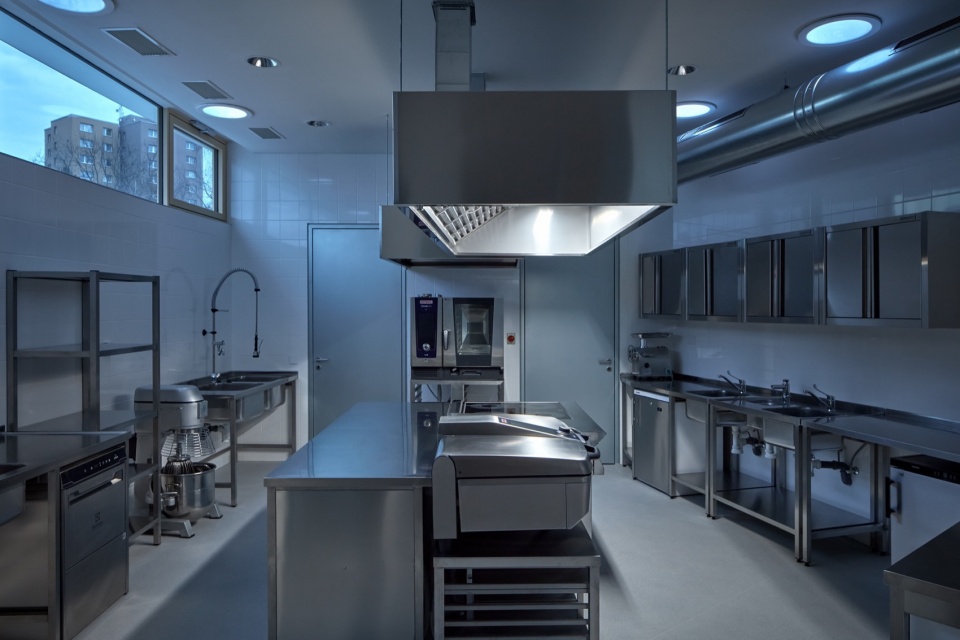

▼厨房，kitchen © BoysPlayNice

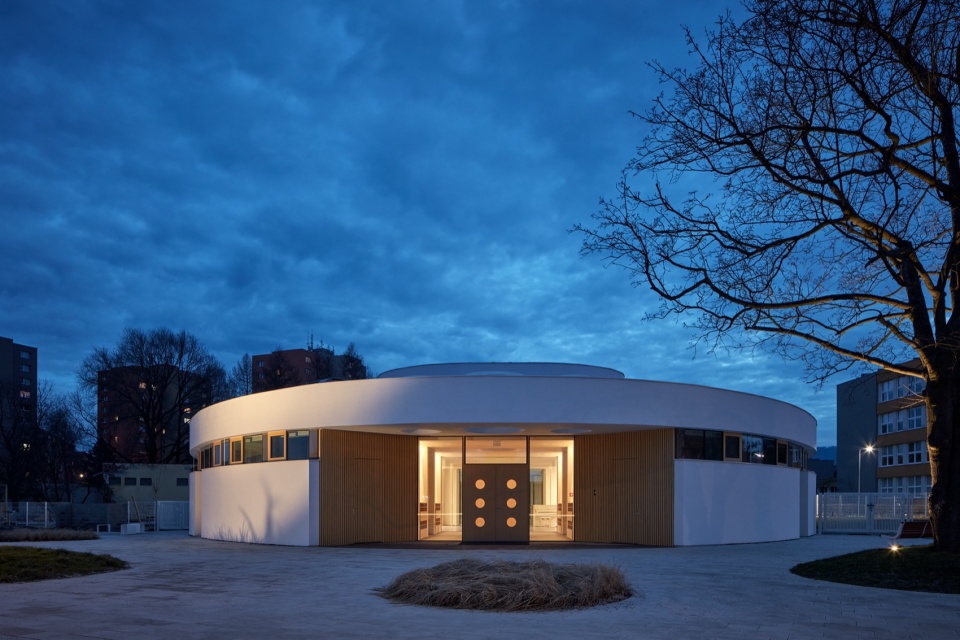

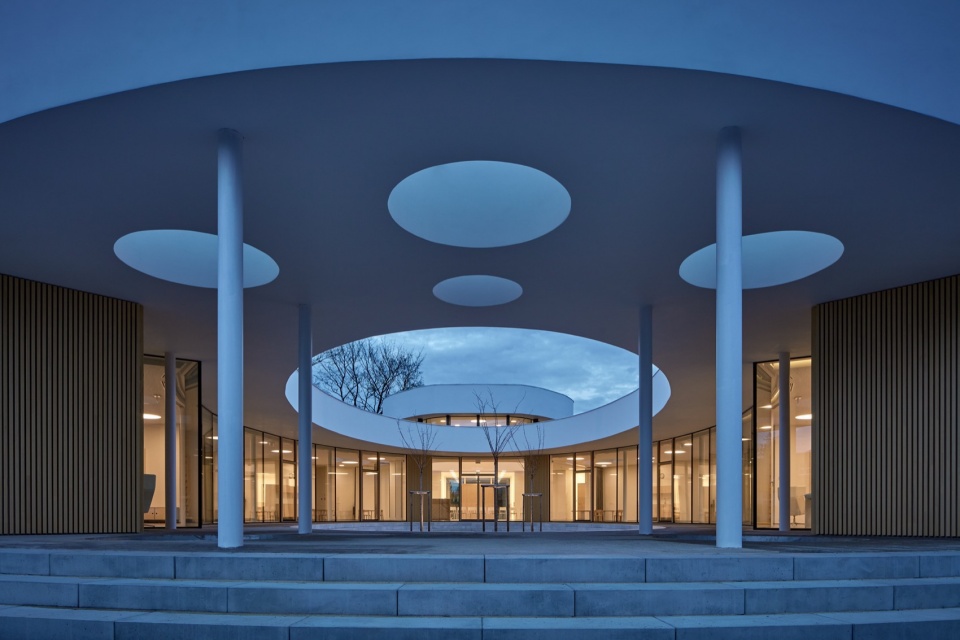

▼外观夜景，night view of the building © BoysPlayNice

▼花园夜景，night view of the garden © BoysPlayNice

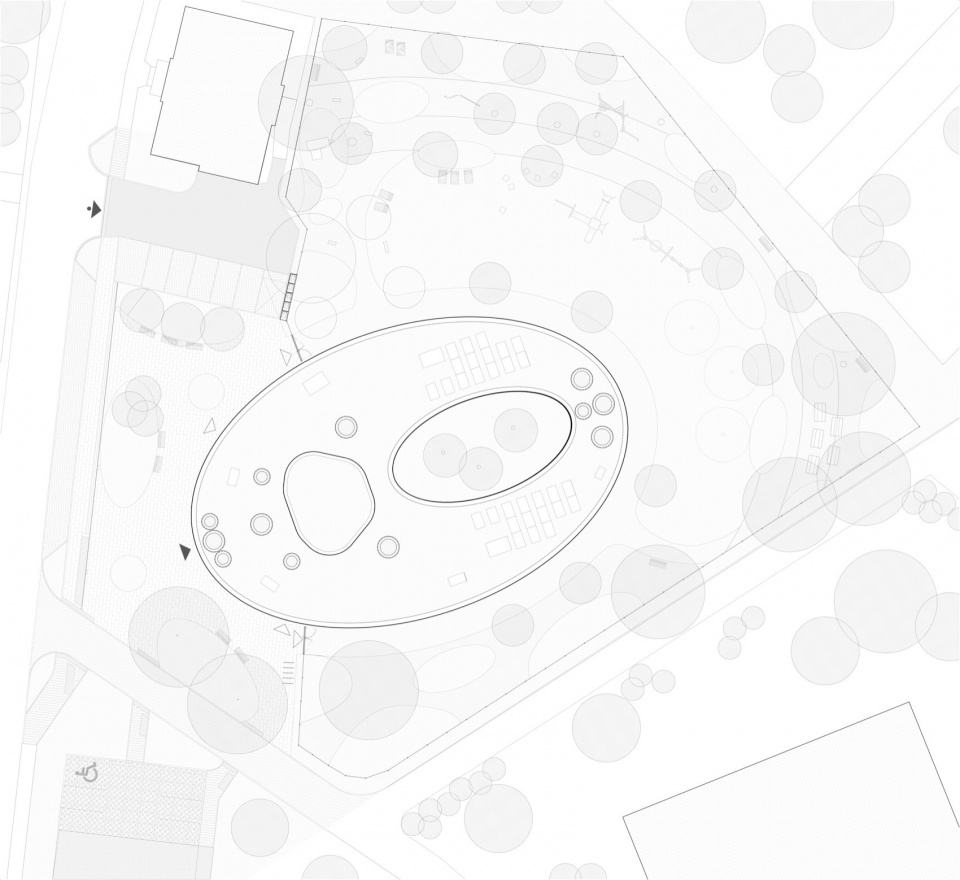

▼总平面图，master plan © RG architects studio

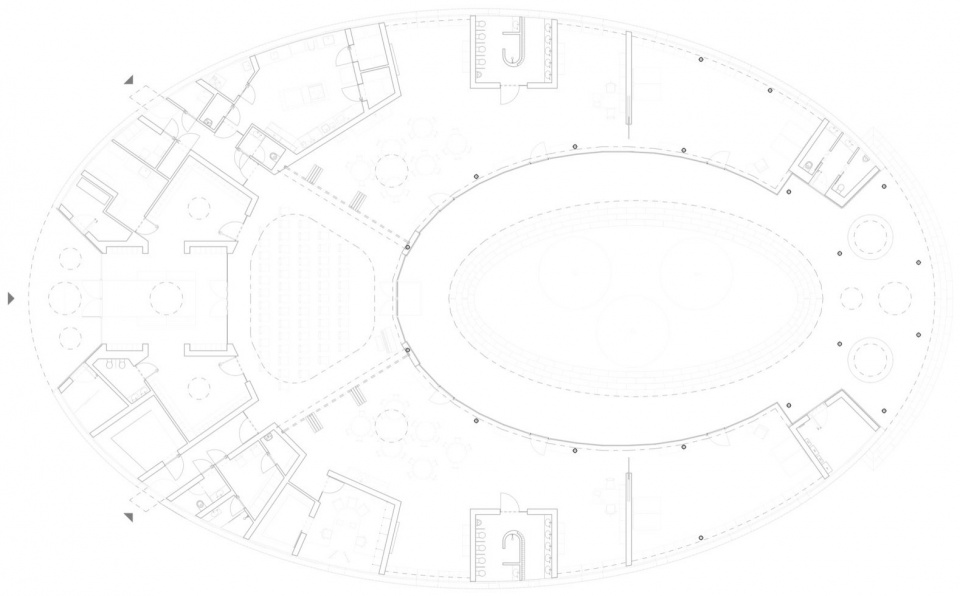

▼平面图，plan © RG architects studio

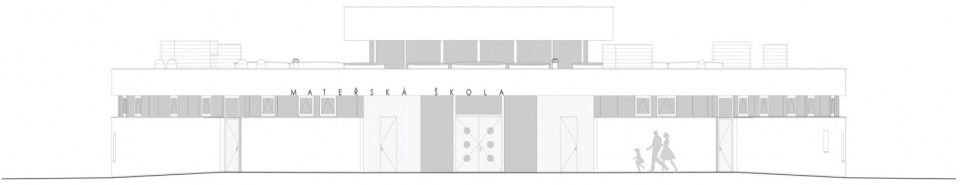

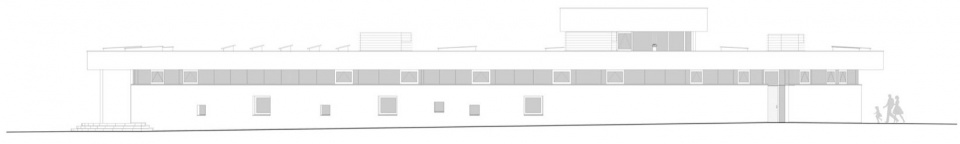

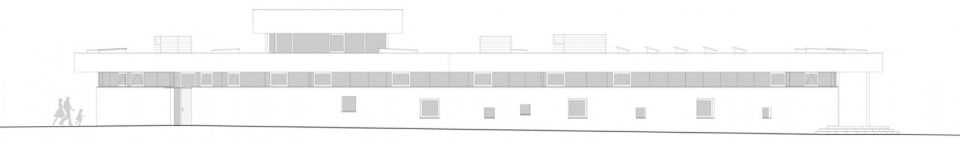

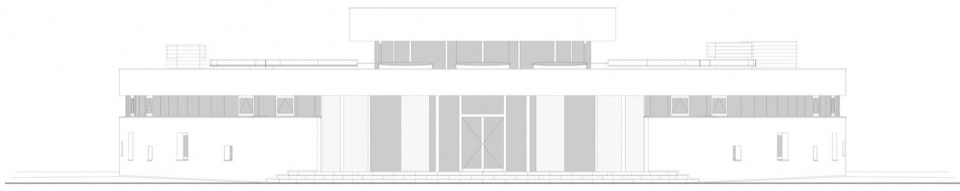

▼立面图，elevations © RG architects studio

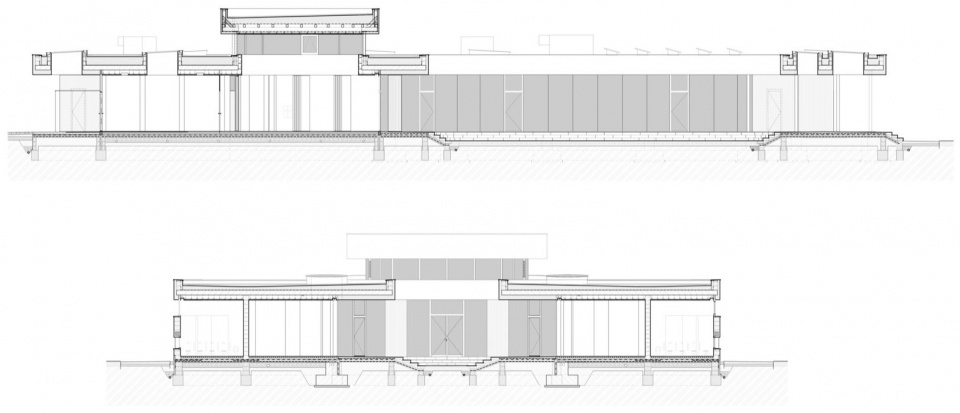

▼剖面图，sections © RG architects studio

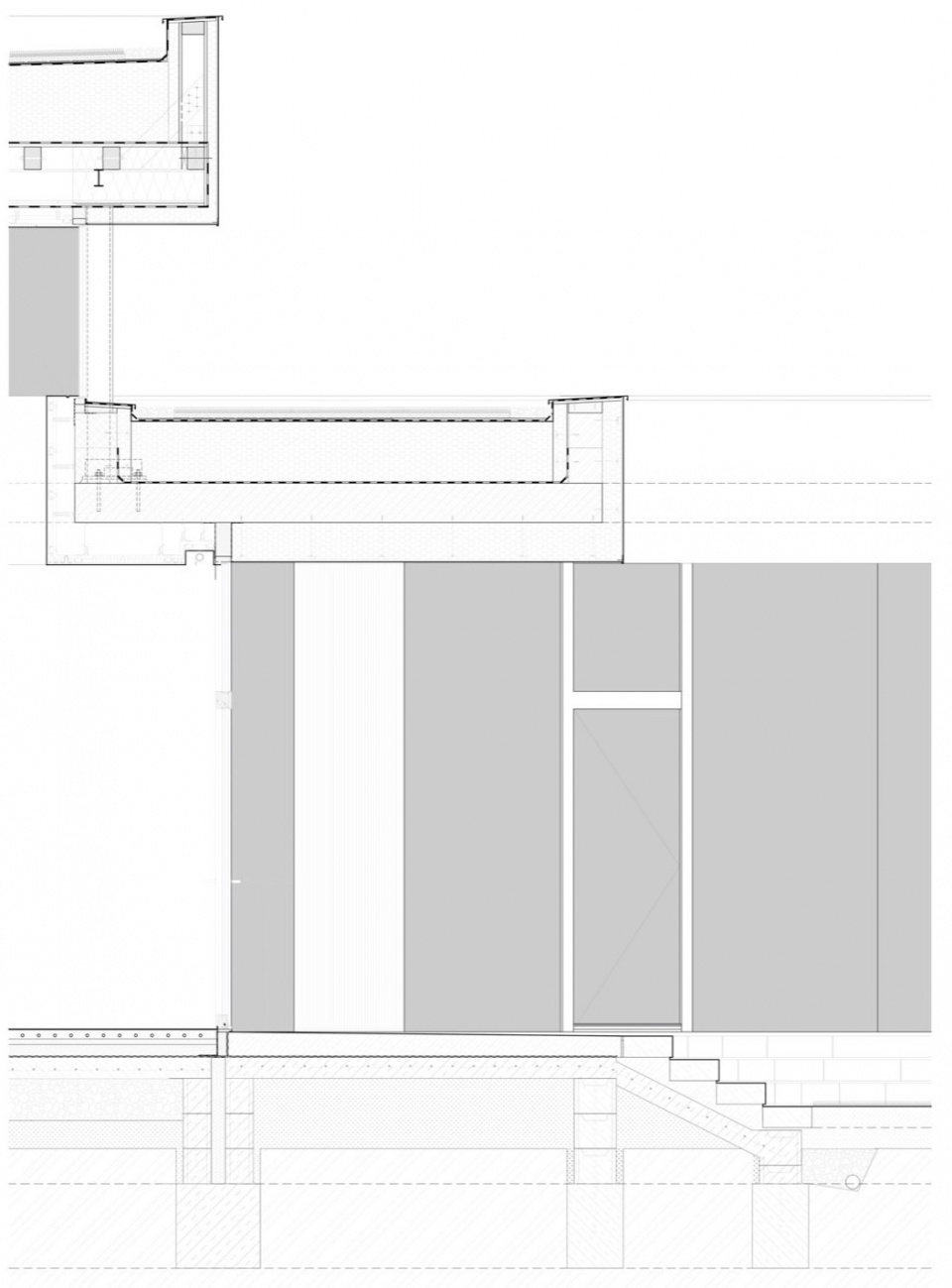

▼细部详图，construction details © RG architects studio

Studio RG architects studio
Principal architect: Radomír Grafek
E-mail grafek@rgarchitects.cz
Web http://www.rgarchitects.cz/
Social media FB: RG architects studio, Instagram: rg_ architects_ studio
YouTube : RG architects studio
Studio adress Čsl. letců 786, 407 47 Varnsdorf
Design team: Zdeněk Navrátil – HIP – chief engineer
Matěj Čunát – architecture – 1st design solution
Collaborators: Ing. Václav Moravec – construction part
Daniel Koloc – interior design
Miroslav Kudrna, Jan Saidl – 3D model, visualization, graphics
Ing. Jaroslava Křivohlavá – landscaping, garden play elements
Ing. Milan Hampl – statics
Ing. Petr Beneš – heating, HVAC
Ing. Michal Vodňanský – sanitary installations
Martin Müller – electric engineering
Leoš Miškovský – firesafety
Ing. Přemysl Břenek – gastro
Ing. Urban Ocilka – transport engineering
David Müller Dis.– garden irrigation
Ing. František Peterka – central heating relocation
Ing. Pavel Macháček – photovoltaics
Ing. Antonín Buchar – budget
Project adress Varnsdorf, Západní Street
Design year: 2014
Completion year: 2024
Built-up area – 1120 m2
Gross floor area – 790 m2
Usable floor area – 753 m2
Site area: 6188 m2
Size 50 m x 32 m / 1120 m2 / 5600 m3
Cost 84,5 mil. CZK without VAT
incl. demolition of the exchange station, expansion of the parking lot
Client Town of Varnsdorf
E-mail client jiri.sucharda@varnsdorf.cz
Web client http://www.varnsdorf.cz/
Web projekct http://www.rgarchitects.cz/
Photographs BoysPlayNice
Collaborators: Contractor: STAMO s.r.o. Děčín
Construction manager: Martin Machek
Foremen: Pavel Kalina, Jan Zajíc
Investor’s technical supervisor: Ing. Michal Ludvík
3L studio s.r.o. Česká Lípa
Professional consultations: Ing. Helena Grafková, Mgr. Veronika Strolená, Jitka Málková, Pavlína Nováková, Lenka Vopatová
Vision: Ing. Jan Rýdl – TOS Varnsdorf a.s.
Working committee: ThMgr. Rolland Solloch, Ing. Stanislav Horáček,
Josef Hambálek, Marian Čapek
Representatives of the Varnsdorf town administration: Jan Šimek, Jiří Sucharda,
Mgr. Jan Šišulák
Council: Ing. Jaroslav Beránek, Jana Puschová, Eva Kunčarová
