感谢 Orange Architects 予gooood分享以下内容。更多关于他们：Orange Architects on gooood。
Appreciation towards Orange Architects for providing the following description:

Jonas’这个名字所指的是乔纳斯与鲸鱼的故事。它既代表着冒险，也暗示了一个“庞大躯体”内部的保护与封闭。这座宏大的建筑拥有一颗温暖的心，其设计理念是关注居住者之间的联系。它的墙壁围合出一个真正的社区，包含了许多公共和社区空间，使居民们可以共享设施或一起活动。

The name Jonas’ refers to the story of Jonas and the Whale. It stands for adventure, but also for protection and enclosure inside a ‘big body’. An imposing building with a warm heart, and housing concept that focuses on connections. Within its walls, Jonas’ accommodates a real community as well as many public and community spaces where residents can share amenities or undertake things together.

▼项目概览，Overall view © Sebastian van Damme

▼楼梯通往水岸和庭院，stairs to the water and patio © Sebastian van Damme

Jonas’展现了一种新生活方式的缩影：自我意识、可持续性以及社会性。建筑包含273套住宅，其中190套是面向中端市场的可租赁公寓，另外83套供业主自住。这些户型中，既有布局紧凑的公寓，也有可以自由划分的顶楼套房。租赁公寓由Amvest负责管理。位于岛屿中心的Jonas’项目构成了IJburg港口周围的最后一块开发地。

Jonas’ epitomizes a new way of living: aware, sustainable and social. The 273 dwellings distributed throughout the building consist of 190 midmarket rental units and 83 owner-occupied units, varying from compact apartments to freely dividable lofts. Amvest will manage the 190 rental units. Jonas’ forms the final piece of development around the port of IJburg, located at the centre of the island.

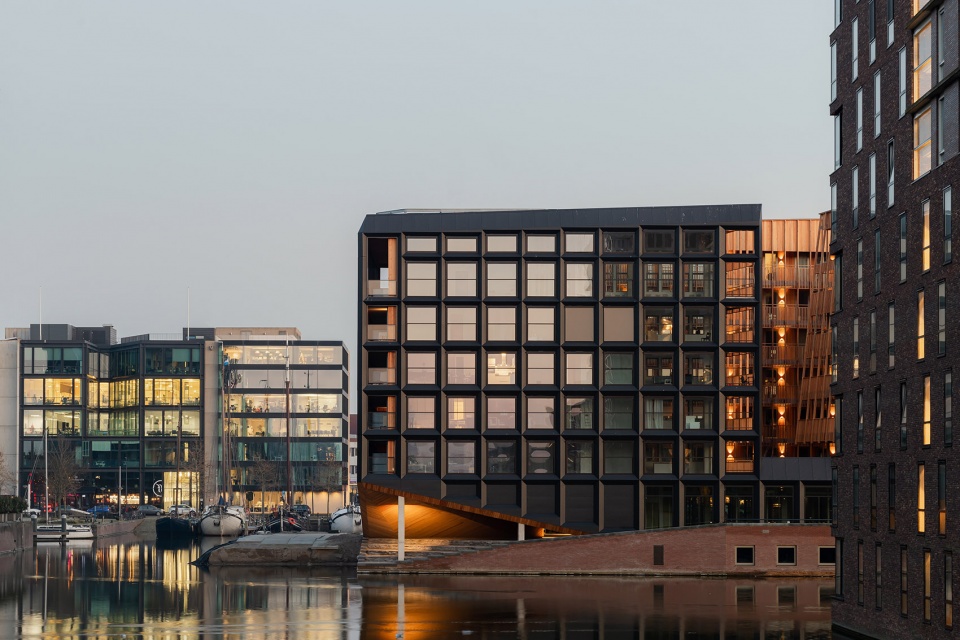

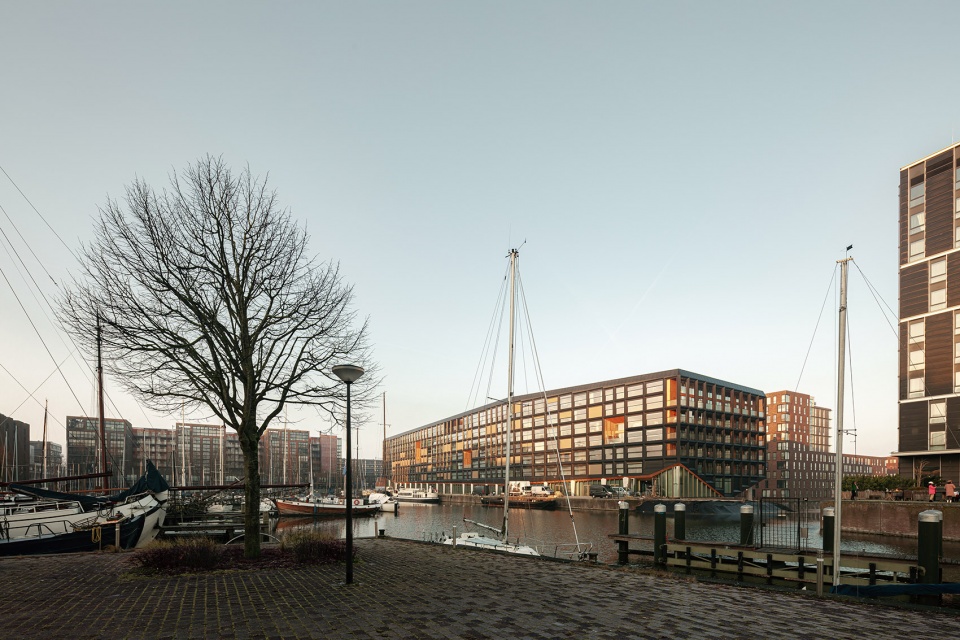

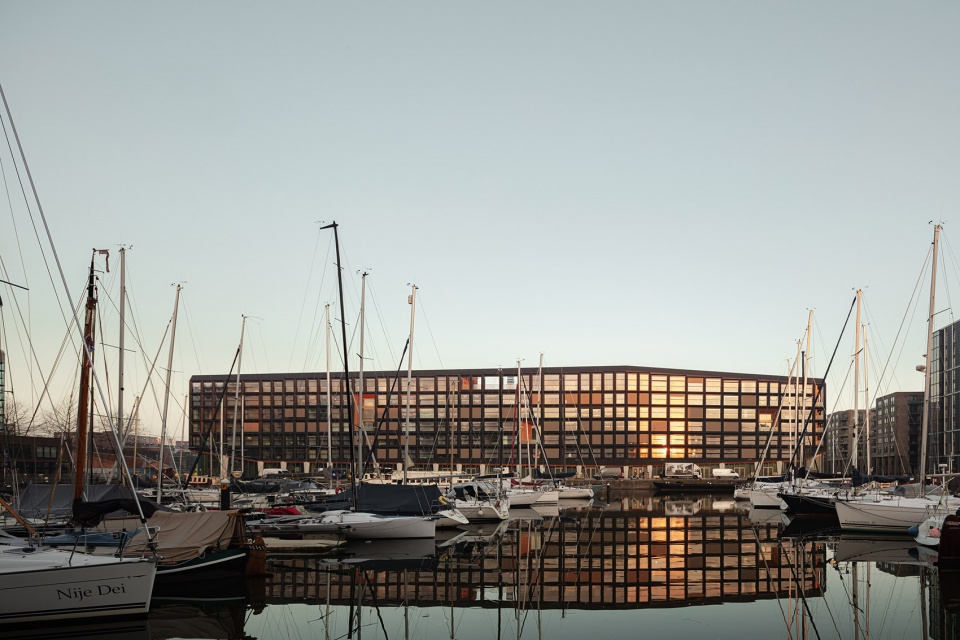

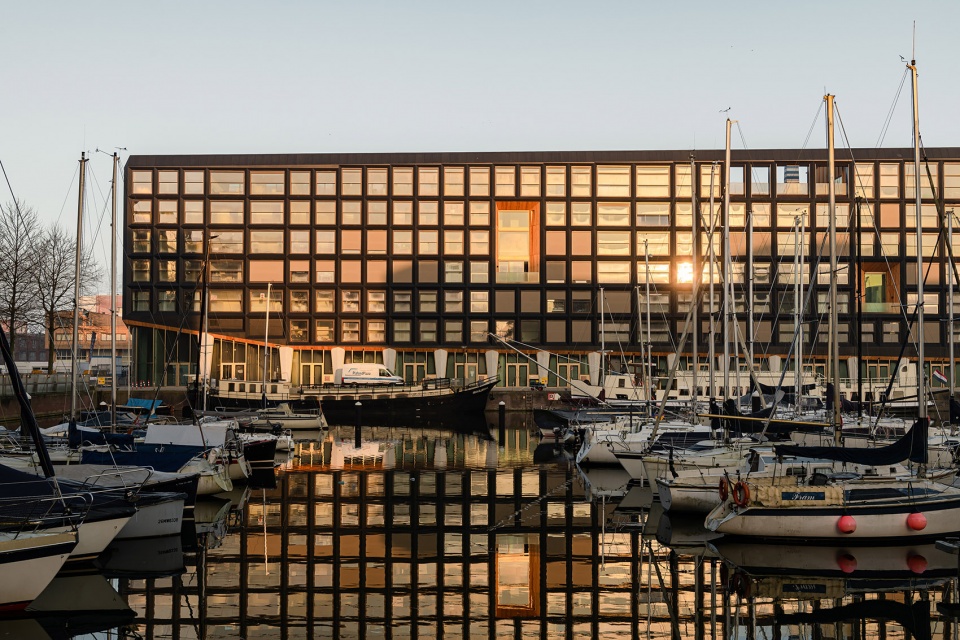

▼建筑与港口环境，Jonas’ at the harbour © Sebastian van Damme

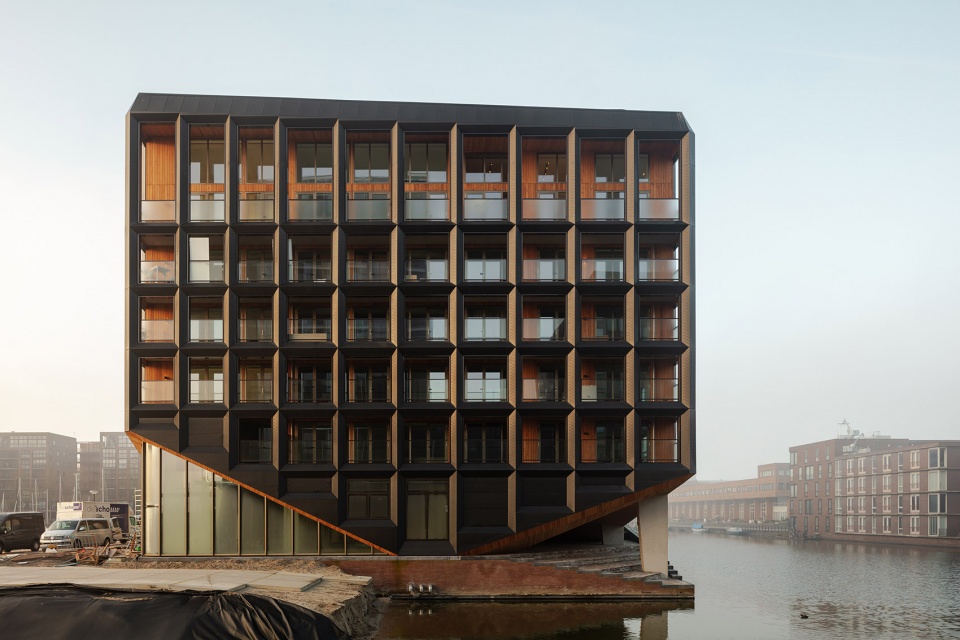

▼建筑外观，Exterior view © Sebastian van Damme

设计和景观
Design and landscape

Jonas’的建筑拥有引人注目的外观。从外部看，建筑给人以醒目和稳固的感觉，它以一种独特的方式展现了其所在场地的主题：水、码头以及造船工艺。不规则的开窗给外墙赋予了起伏的观感。立面材料并非石头，而是经过预先风化的深色锌板。外墙被抬升于地面，建筑体量是菱形而非矩形。这些特质使建筑变得熟悉又陌生，规整中带有雕塑般的观感，既易于识别，又具有新颖感。

The architecture of Jonas’ is remarkable. From the outside, the building has a striking and sturdy appearance. It expresses in a distinctive manner the themes of the site: the water, the quayside and the craft of shipbuilding. The irregular arrangement of openings creates the impression that the windows are slowly undulating across the facade. That makes Jonas’ a bit different. It is not faced in stone but in dark pre-weathered zinc. The facade does not touch the ground but is lifted clear of it. The volume is not rectangular but lozenge-shaped. These qualities make the building both familiar and foreign, rational yet sculptural, recognizable yet innovative.

▼立面材料使用了预先风化的深色锌板，The building is faced in dark pre-weathered zinc © Sebastian van Damme

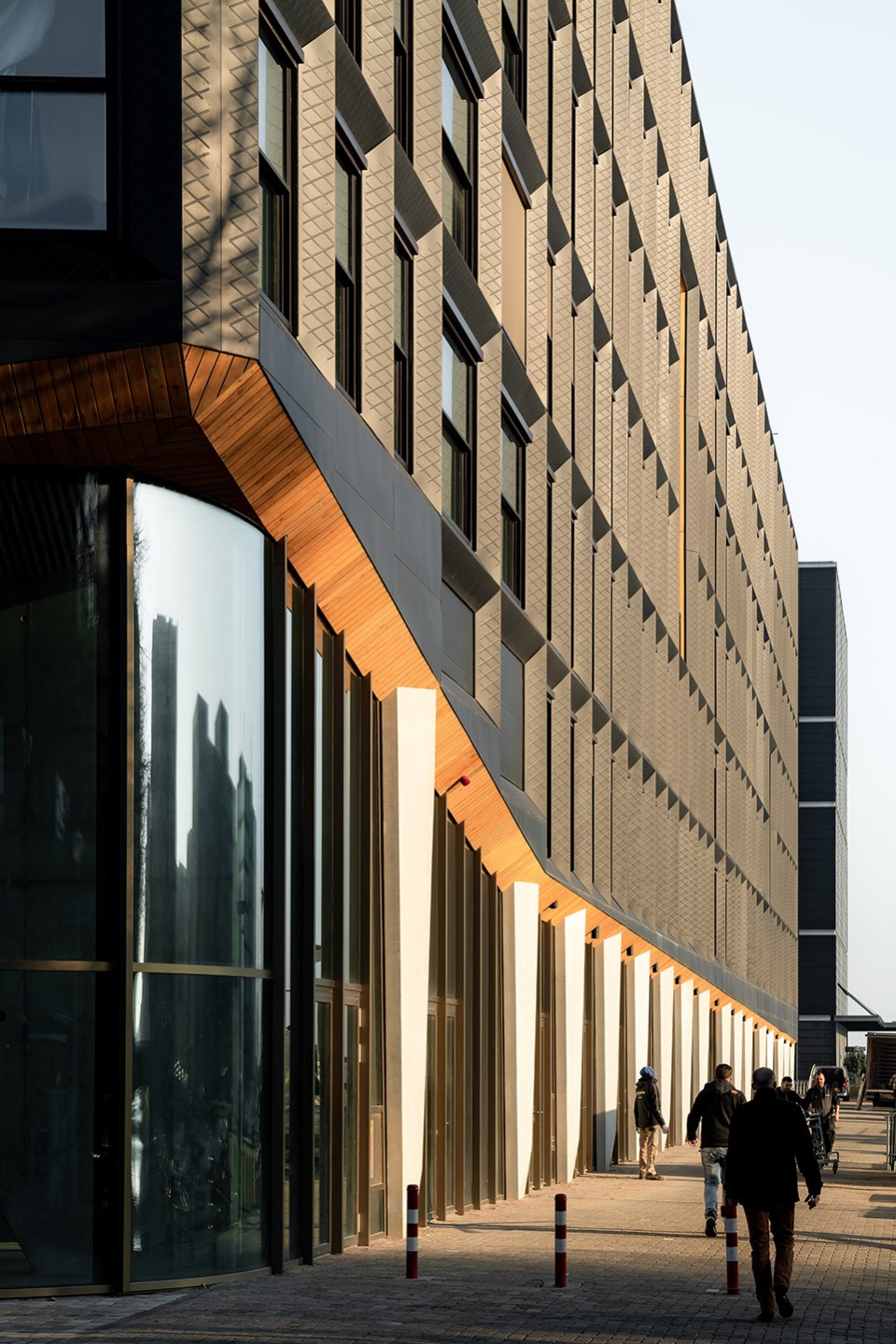

▼临街基座，Plinth facing the street © Sebastian van Damme

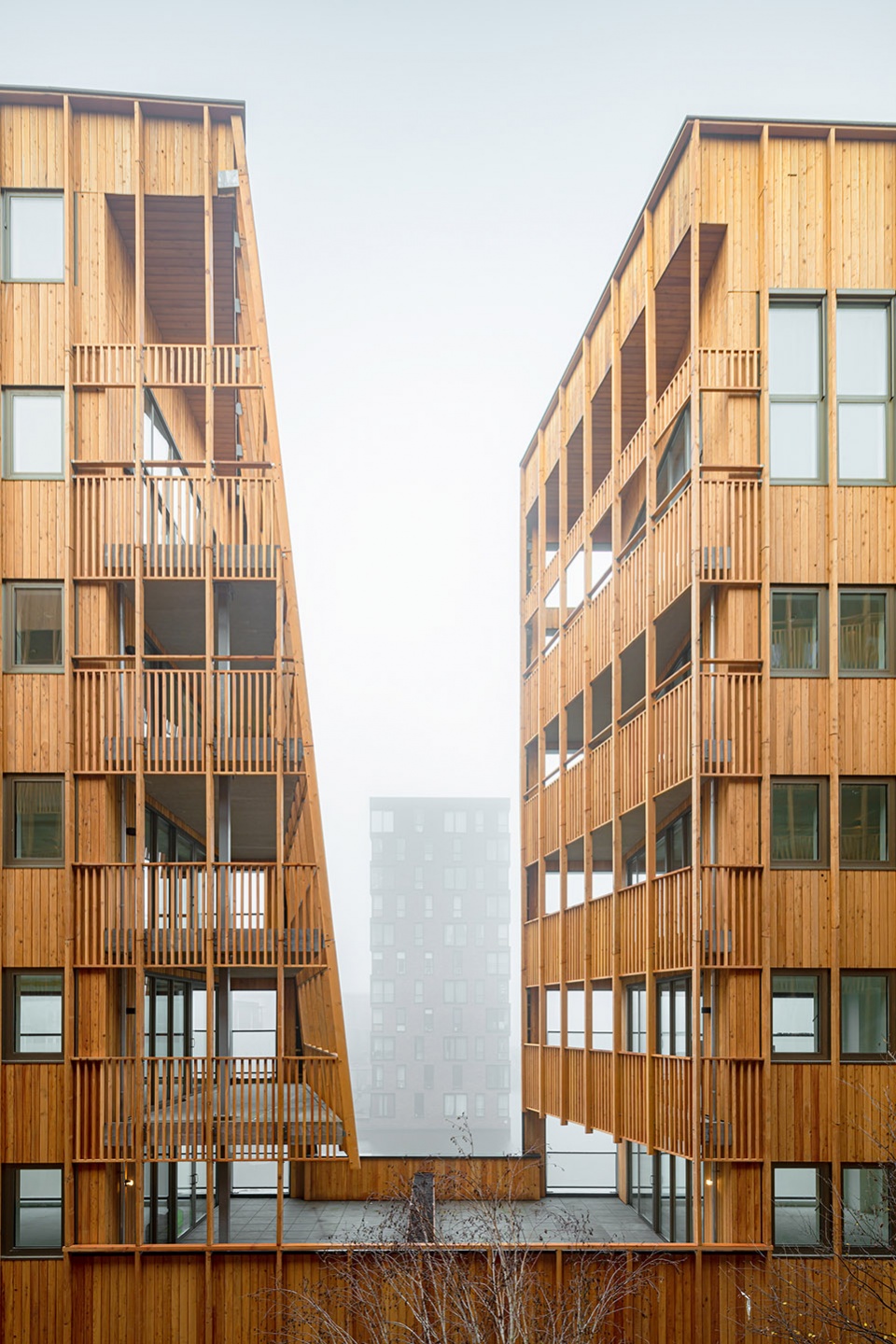

▼“切割”而出的庭院，Facade cut patio © Sebastian van Damme

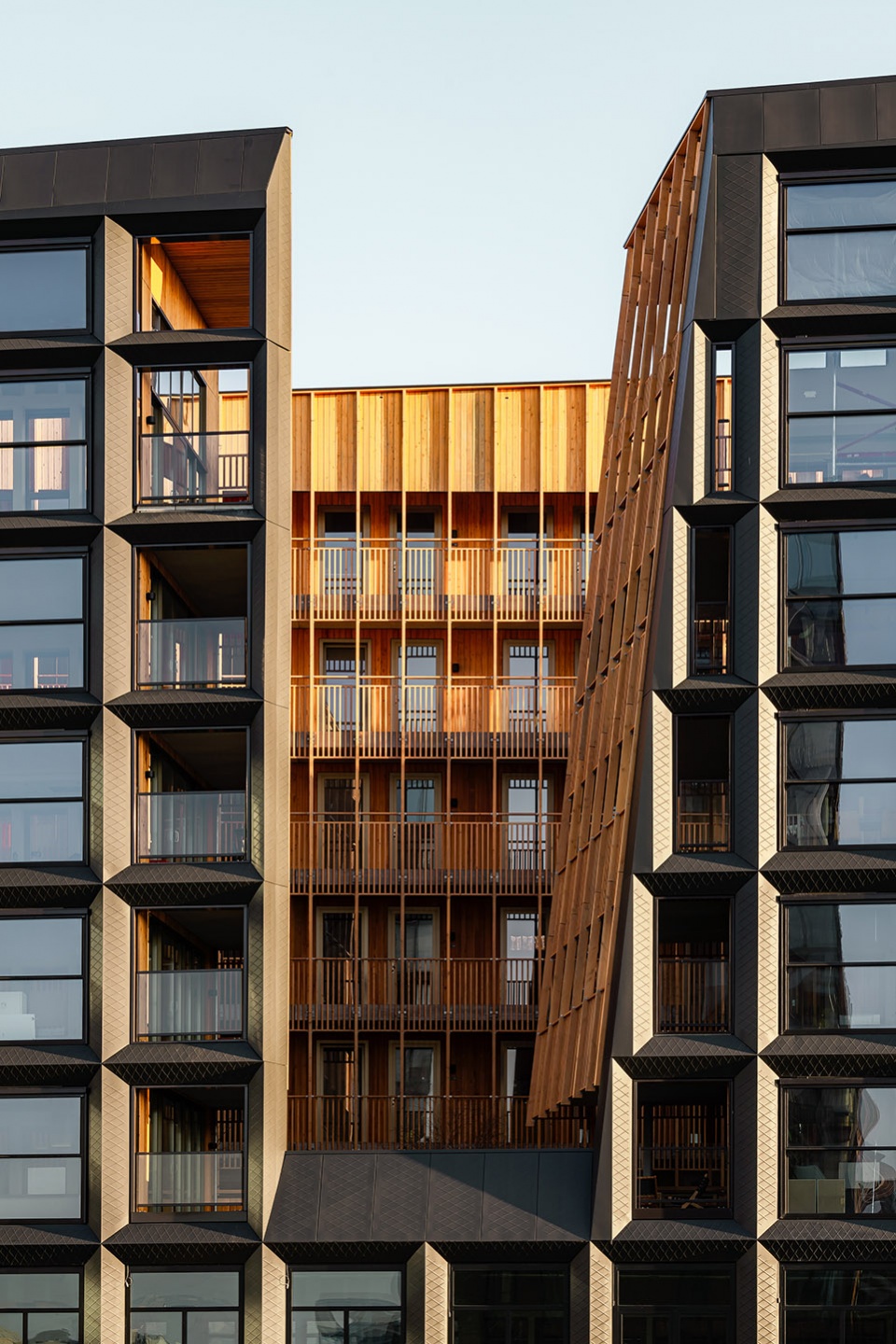

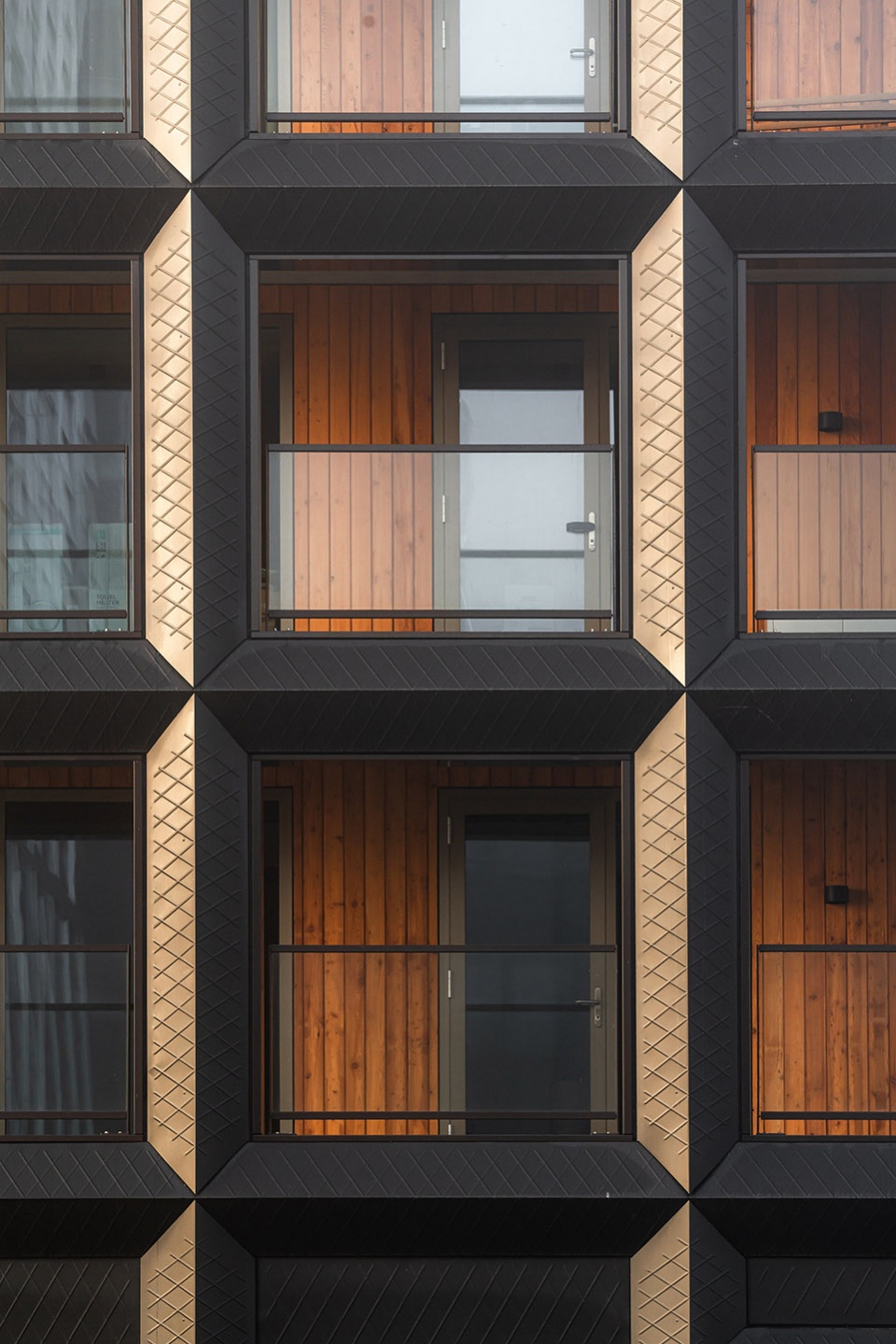

▼立面阳台近景，fragment facade balconies © Sebastian van Damme

真正的惊喜在于建筑的内部，一个诱人又温馨的空间，传达着现代且可持续的社区生活状态。室内空间是令人喜悦而又带有超现实主义色彩的：高大开阔的空间延伸至整个建筑的高度，内部完全铺设以自然色的木质板条，上方则覆盖以玻璃材质的屋顶，整个空间使人联想到峡谷中的风景。这处壮观的空间构成了建筑的主干，并将充满活力的基座部分（包括咖啡馆、办公室、电影院和共享客厅）与建筑的其他部分连接起来。

But the real surprise of Jonas’ awaits inside. This is inviting and warm and expresses a modern and sustainable community life. The interior is surprising and surrealistic. A tall space extending the full height of the building and topped by a glazed roof is completely finished in natural-coloured timber slats, evoking associations with a canyon. Grouped around it are the apartments and collective spaces with their entrances. This spectacular space forms the backbone of the building and connects the vibrant plinth – containing cafés, offices, cinema and shared living room – with the rest of the building.

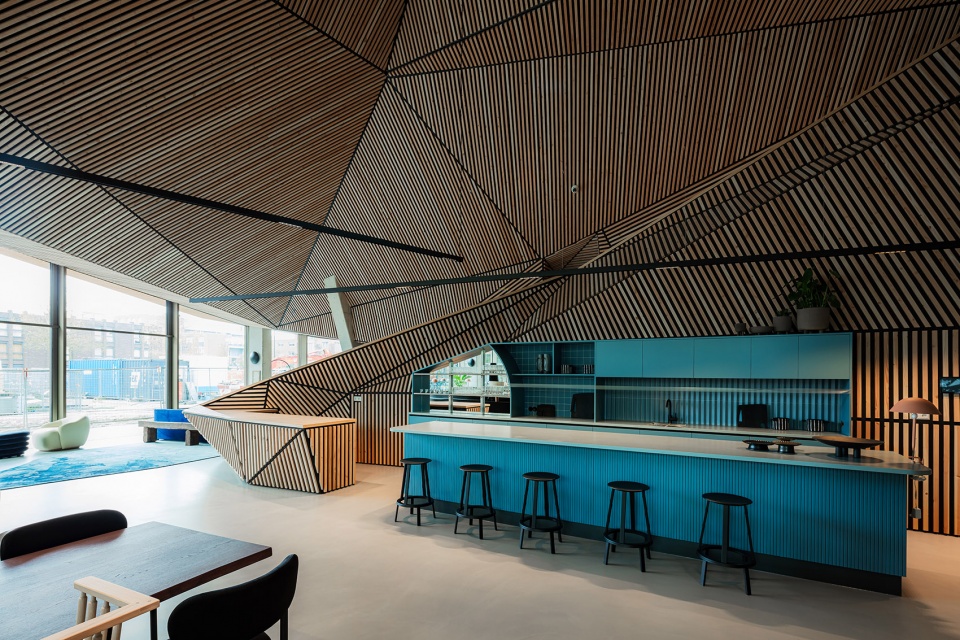

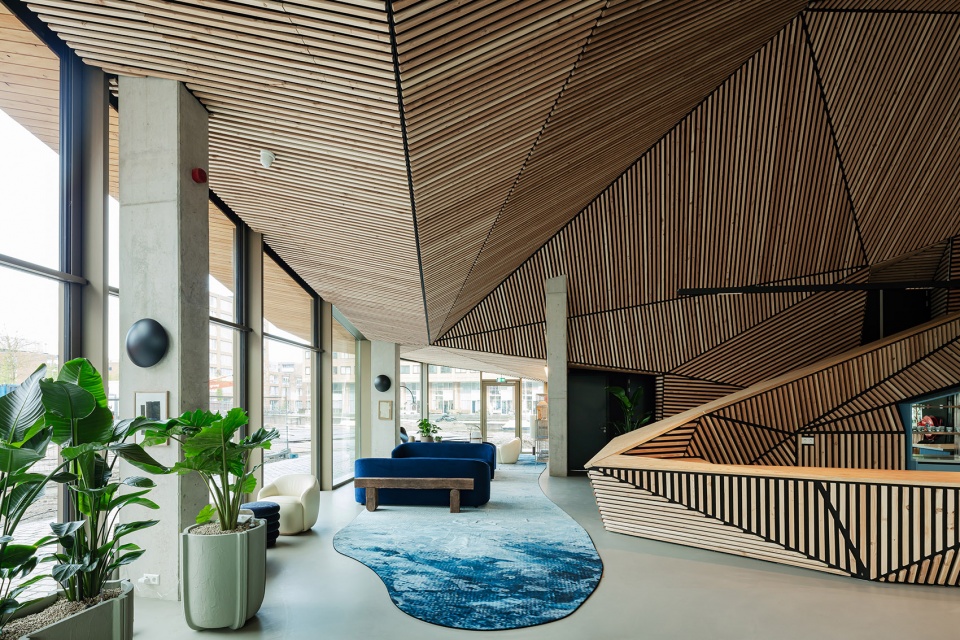

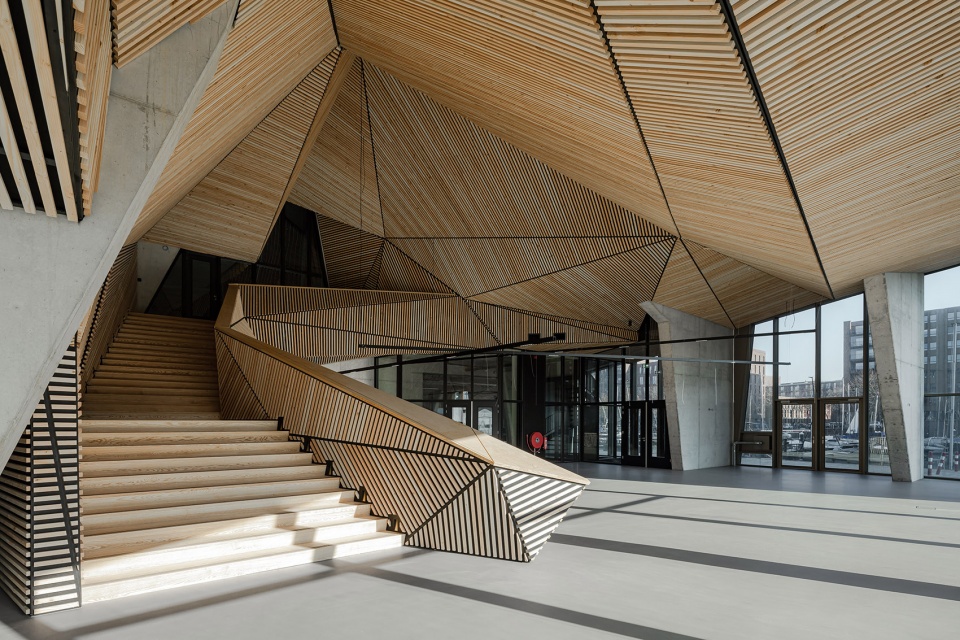

▼公共客厅，Public living room © Sebastian van Damme

▼摆放家具后的共享客厅，Public living room (with installation interior) © Sebastian van Damme

楼梯从客厅开始上升至二层，在这里，一条“山间道路”从建筑内穿过，抵达屋顶的“海滩”。玻璃屋顶上流淌着一层水，为户外空间创造出愉悦的氛围，同时还能在夏季为玻璃降温。

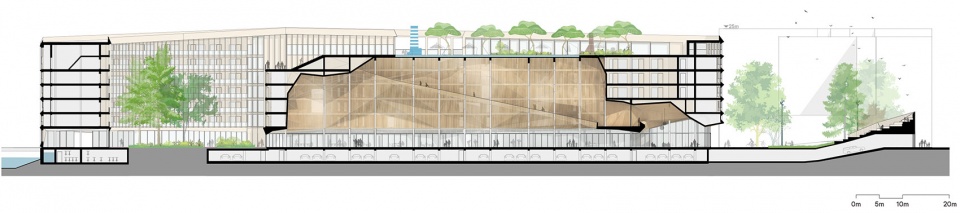

▼纵剖面图，Longitudinal section © Orange Architects

From the living room, a stairs rises to the first floor from where a ‘mountain pathway’ runs through the building to the roof-top beach. A layer of water that flows across the glazed roof above the canyon creates a pleasant ambiance in this outdoor space and cools the glass above the canyon in the summer.

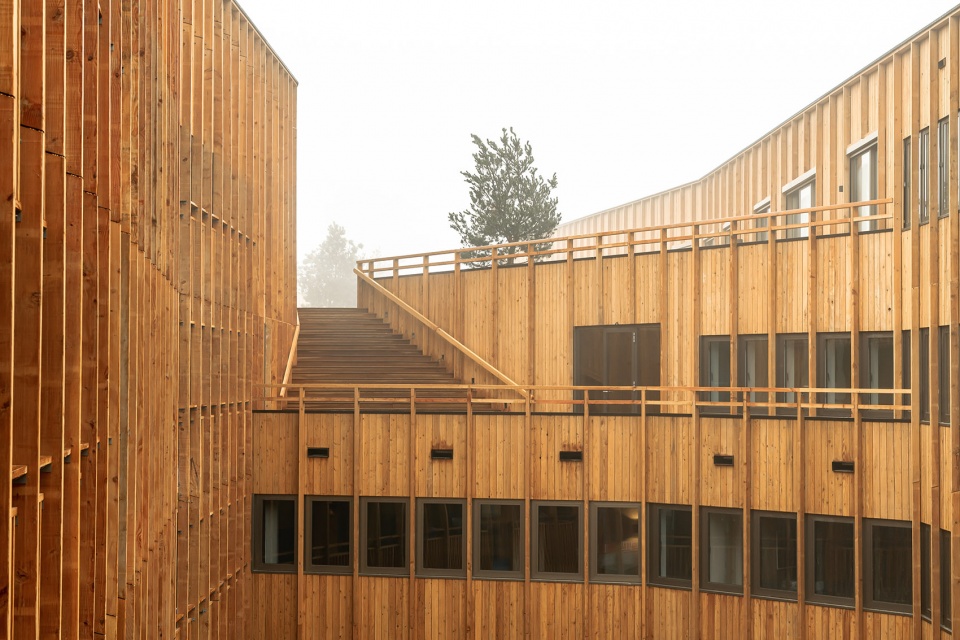

▼一条“山间道路”从建筑内穿过 © Sebastian van Damme
A ‘mountain pathway’ runs through the building

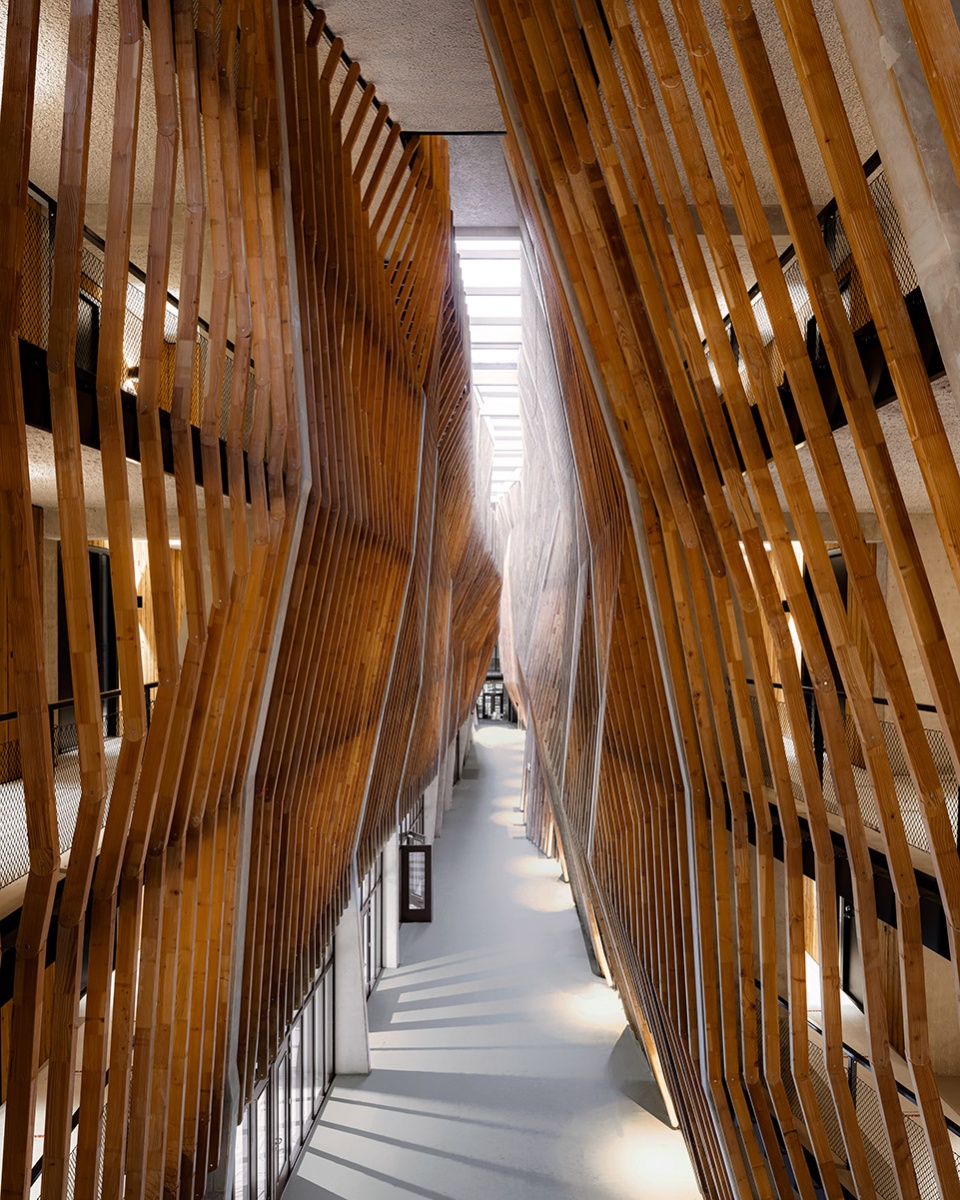

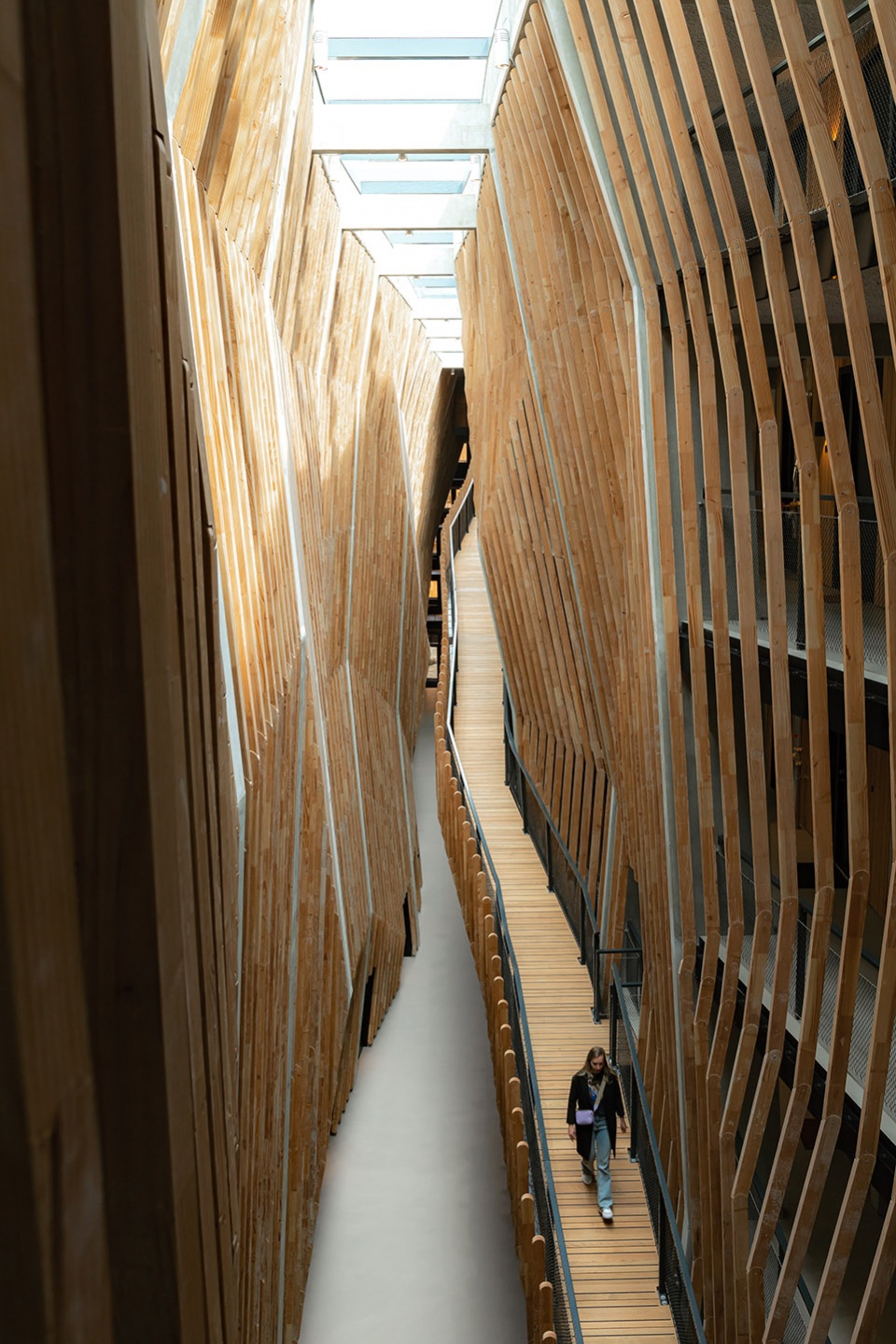

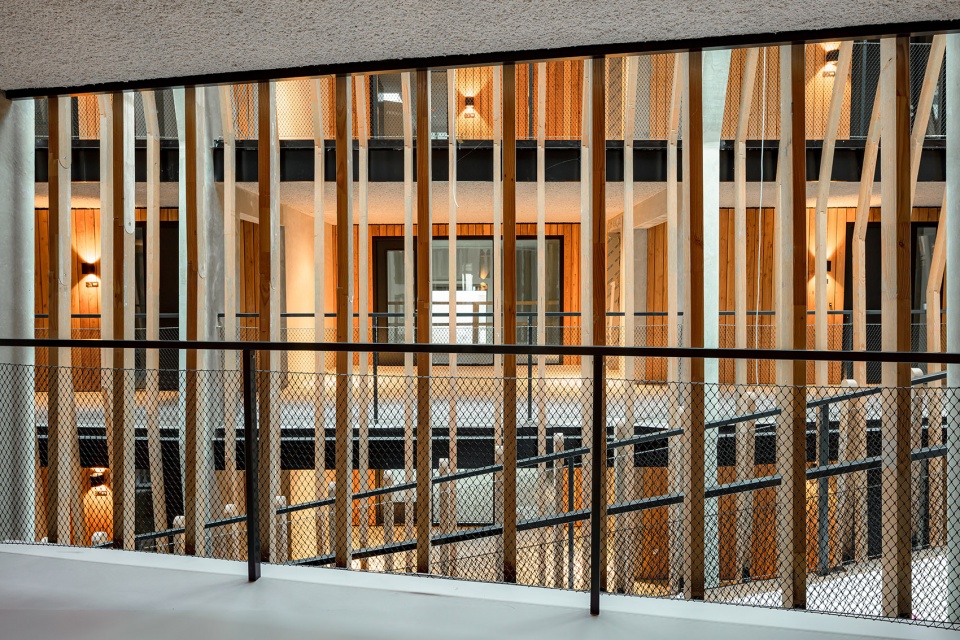

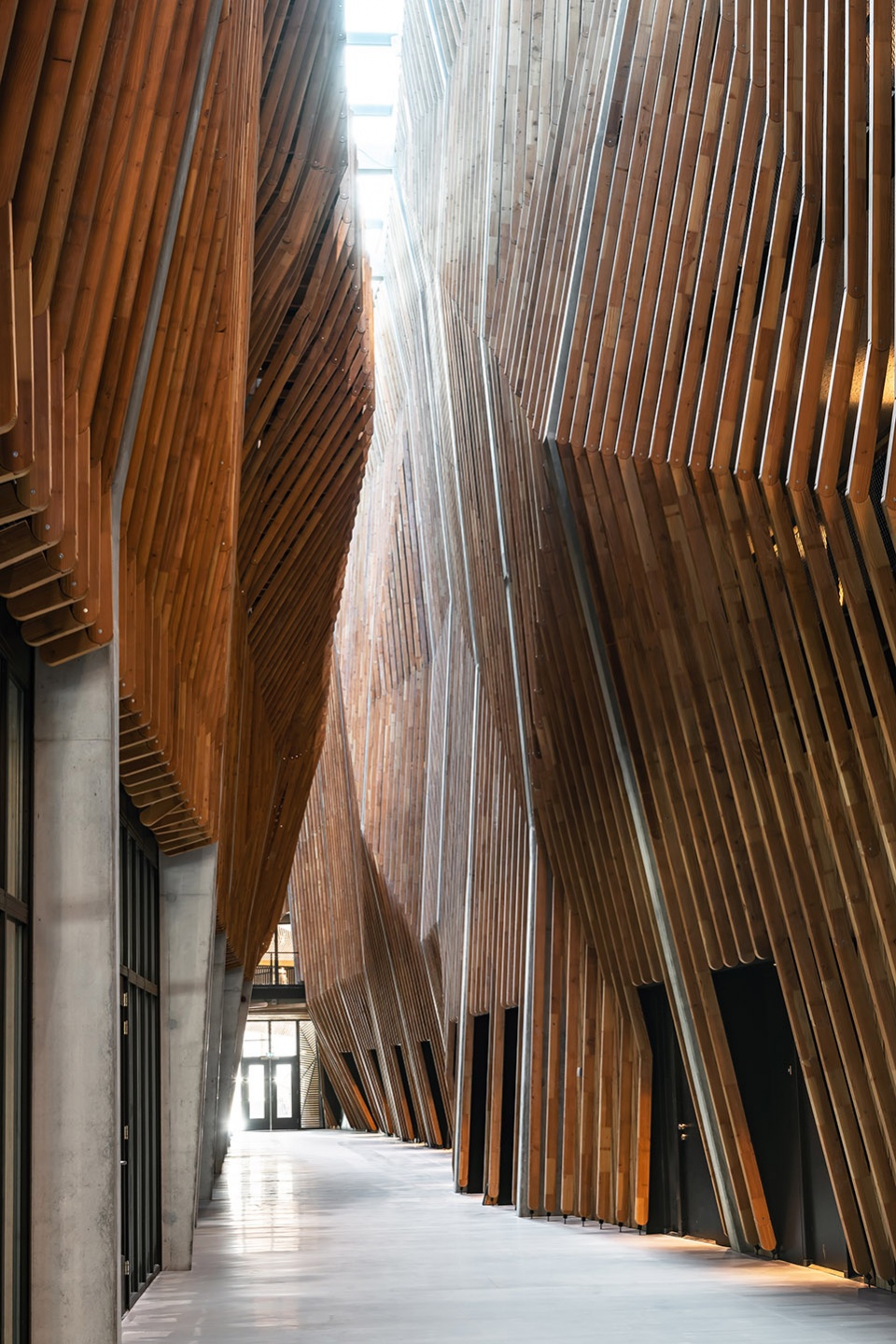

▼“峡谷”和走廊，Canyon and galleries © Sebastian van Damme

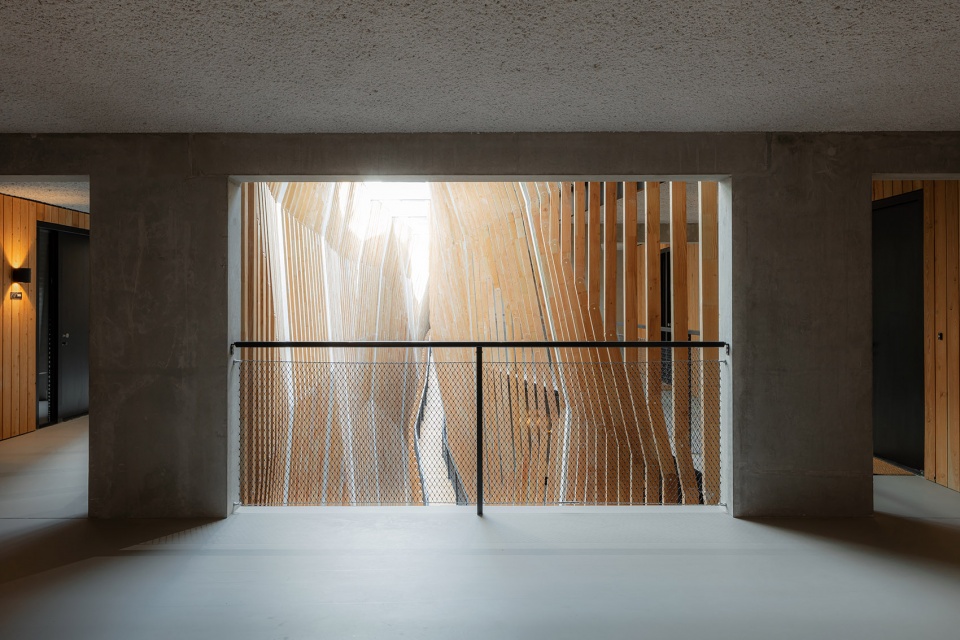

▼从公寓楼层望向“峡谷”，View to the Canyon from the apartment floor © Sebastian van Damme

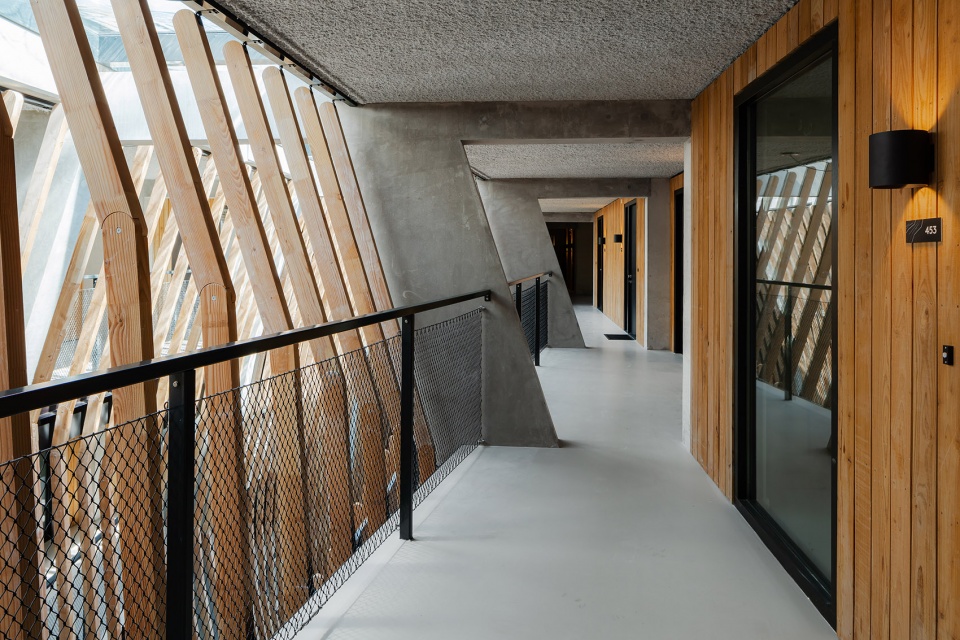

▼走廊，Corridor © Sebastian van Damme

▼楼梯间，Stair well © Sebastian van Damme

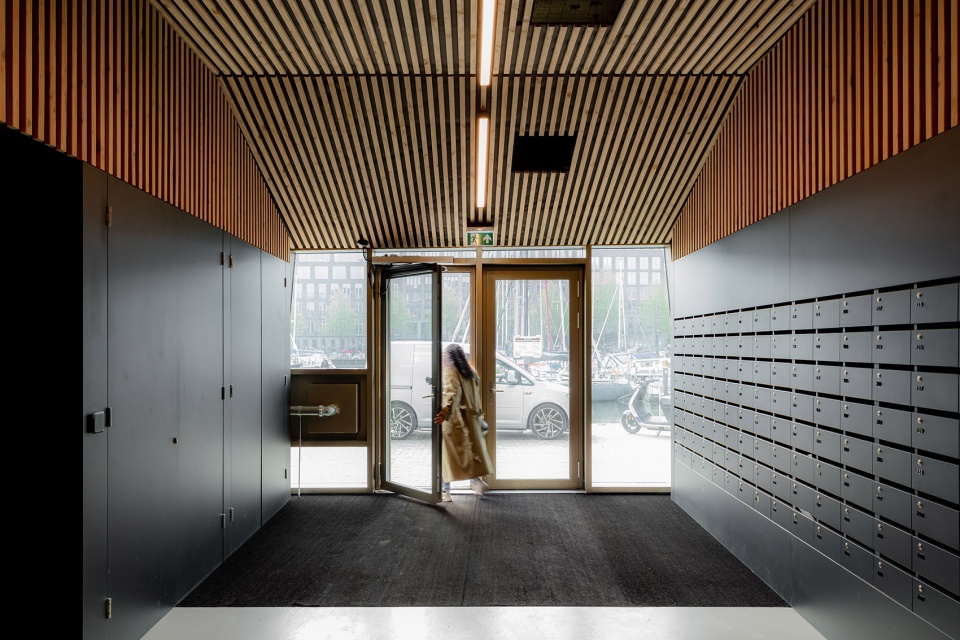

▼公寓入口，Entrance area © Sebastian van Damme

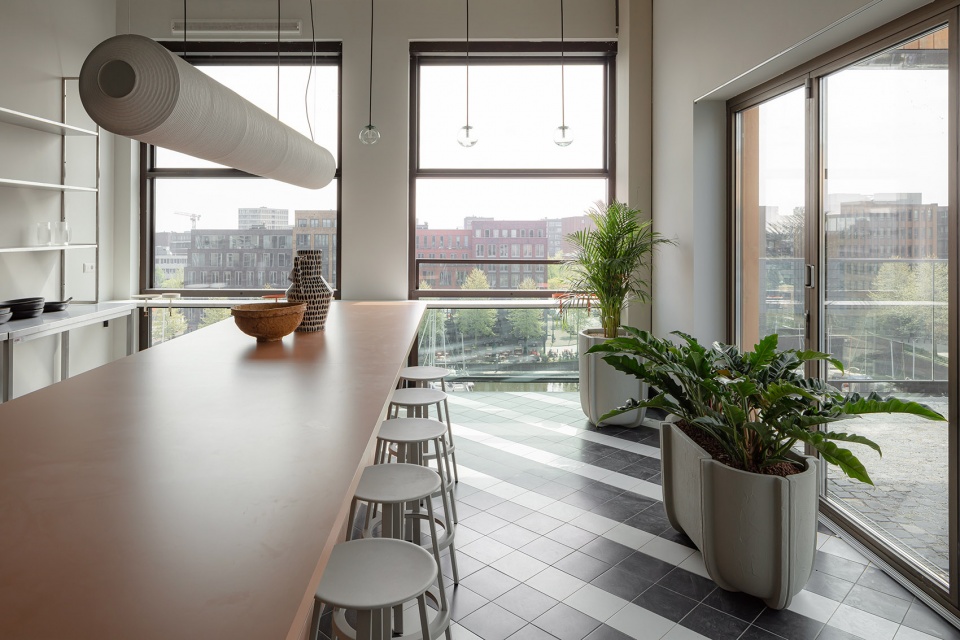

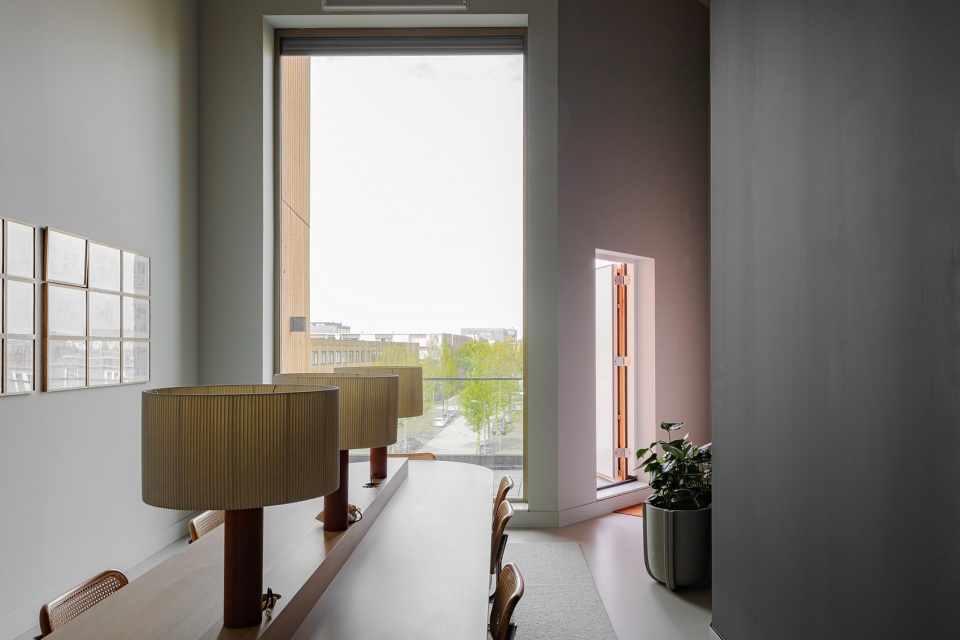

▼公寓室内，Apartment interior view © Sebastian van Damme

景观一路延伸至Jonas’大楼最远处的角落。建筑与周围环境共同构成了一幅“活的景观”，这一理念同时体现在项目的前院、水上游乐场、森林庭院和屋顶海滩。景观设计遵循了保持自然状态的原则，旨在加强该区域的生态价值。例如，选种的植物来自本地河岸，水体中引入了贻贝礁，作为改善水质和增加生物多样性的一种自然的方法。

The landscape extends deep into the furthest corners of Jonas’. Together with its surroundings, the building forms a genuine ‘living landscape’, which is visible in the design of the forecourt, the water playground, the forest patio and the roof-top beach. The landscape design is nature-inclusive and is aimed at strengthening the ecological values of the area. For example, planting is done with native riverside vegetation. Moreover, mussel reefs are created in the water as a natural way of improving water quality and increasing biodiversity.

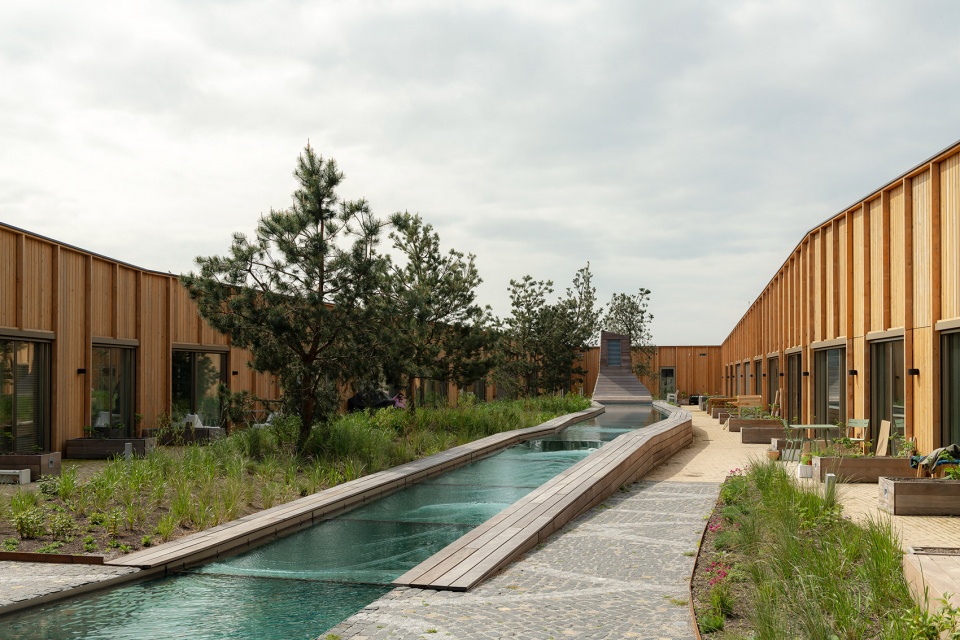

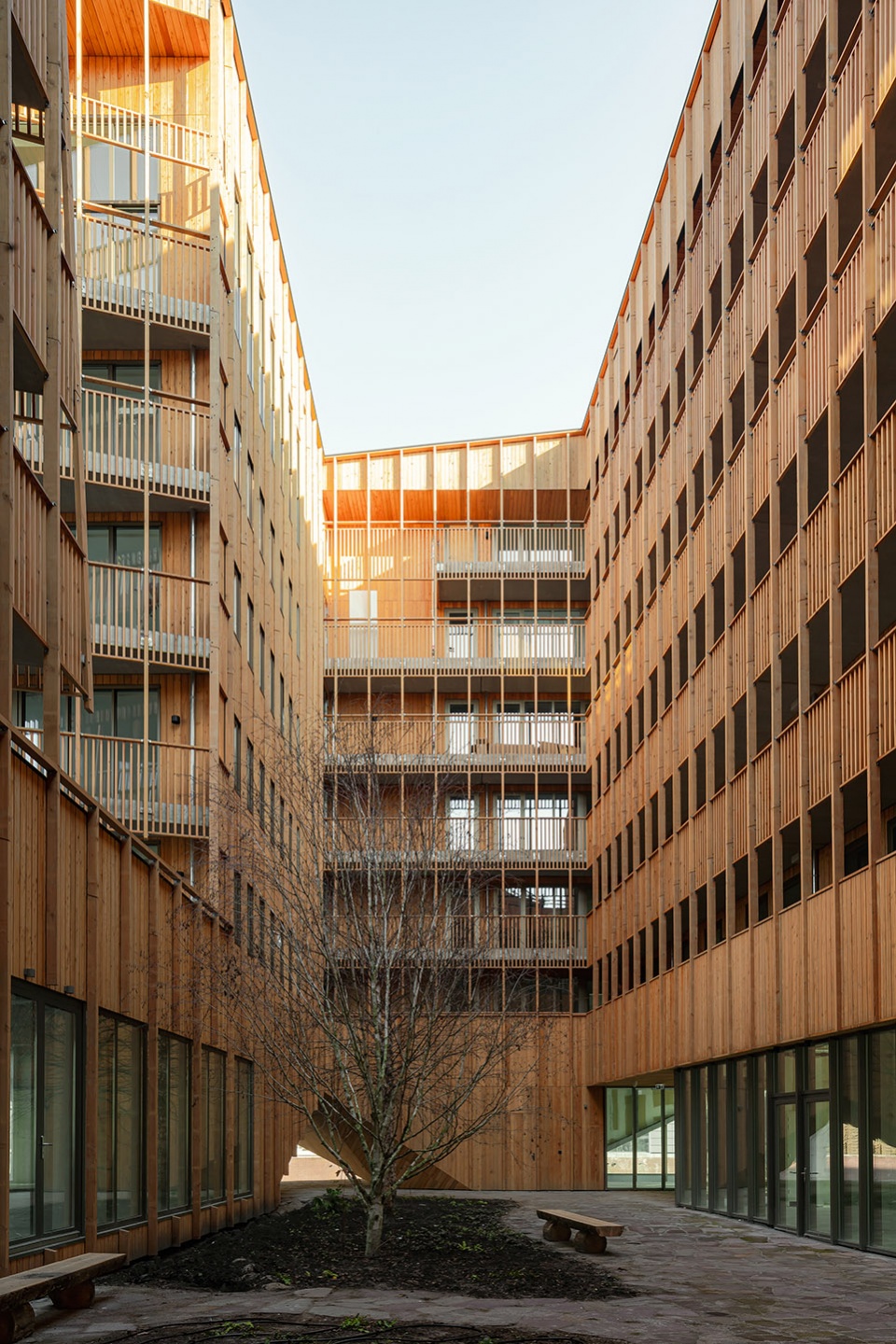

▼森林庭院，Forrest patio © Sebastian van Damme

▼户外平台，Outdoor terrace © Sebastian van Damme

▼屋顶露台，Roof terrace © Sebastian van Damme

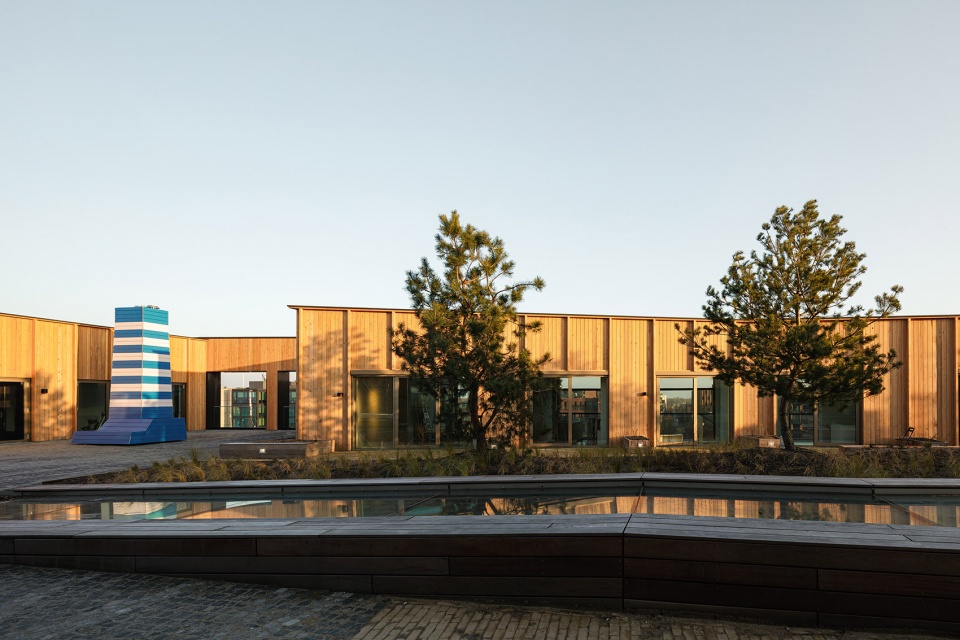

▼屋顶海滩，Rooftop beach © Sebastian van Damme

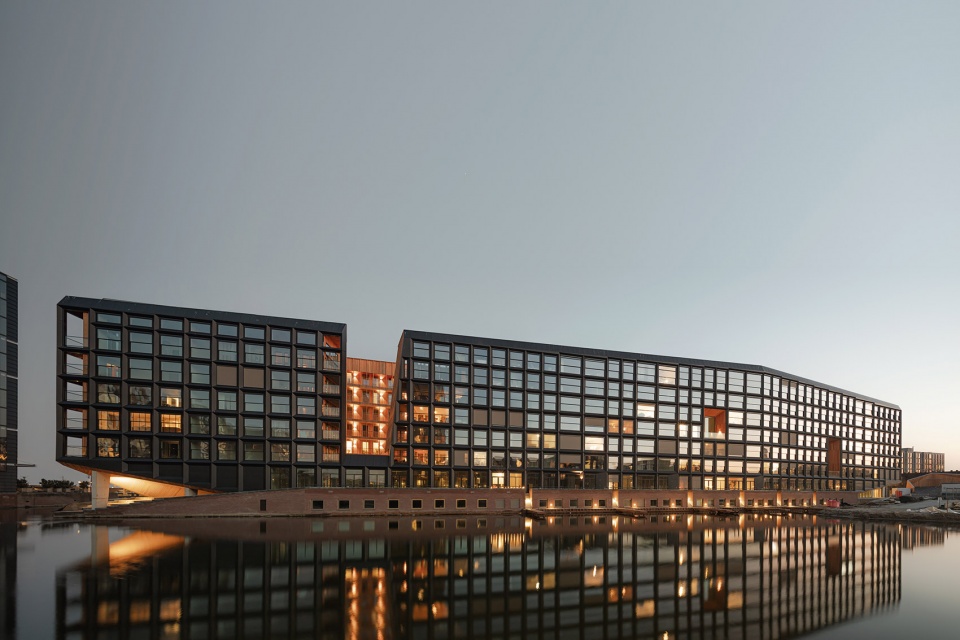

▼建筑夜景，Night view © Sebastian van Damme

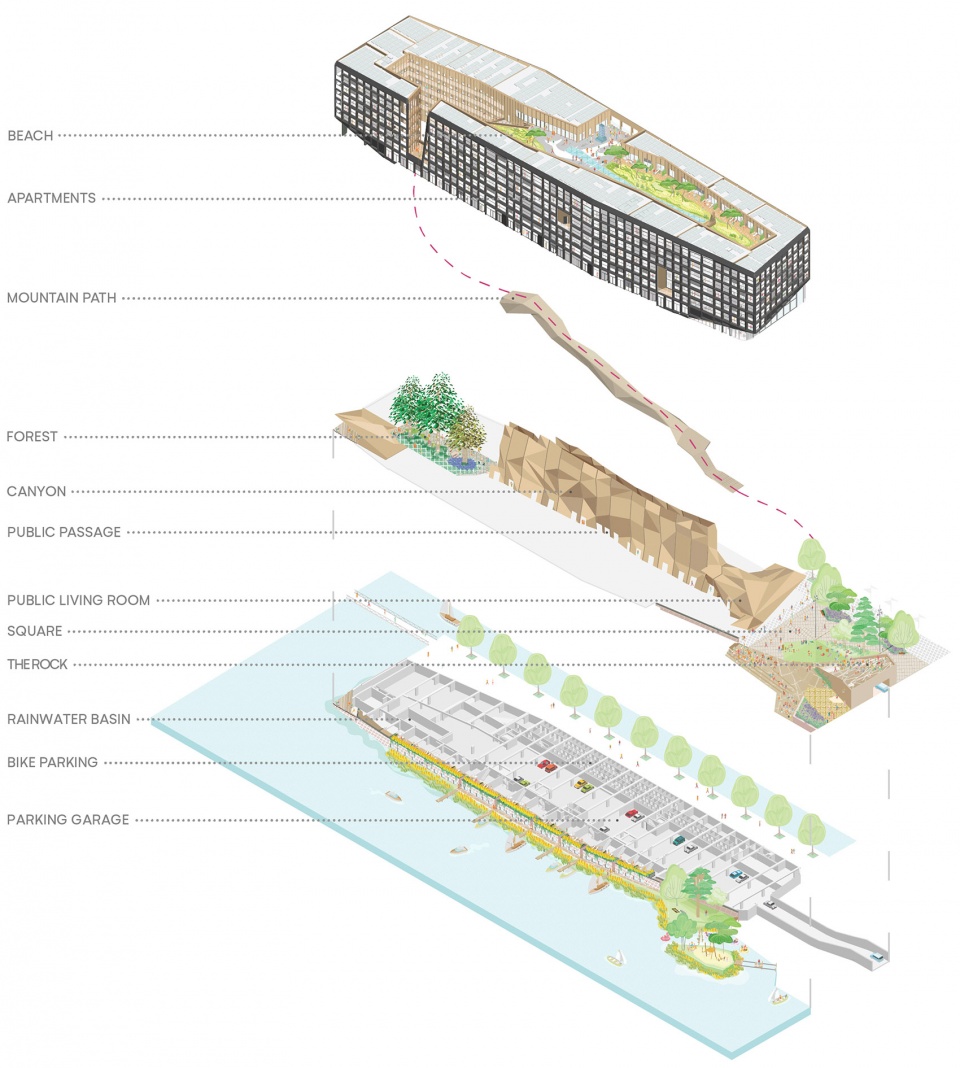

▼项目功能示意，Program © Orange Architects

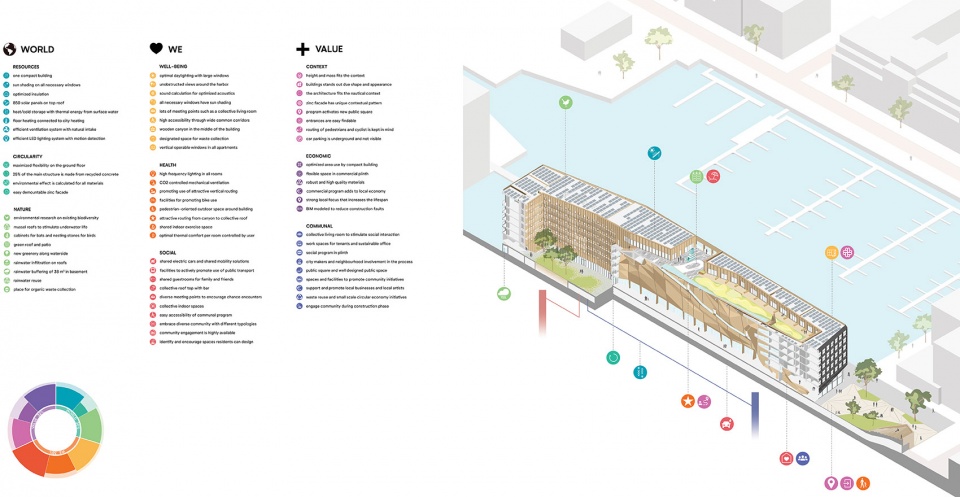

▼可持续示意，Sustainability scheme © Orange Architects

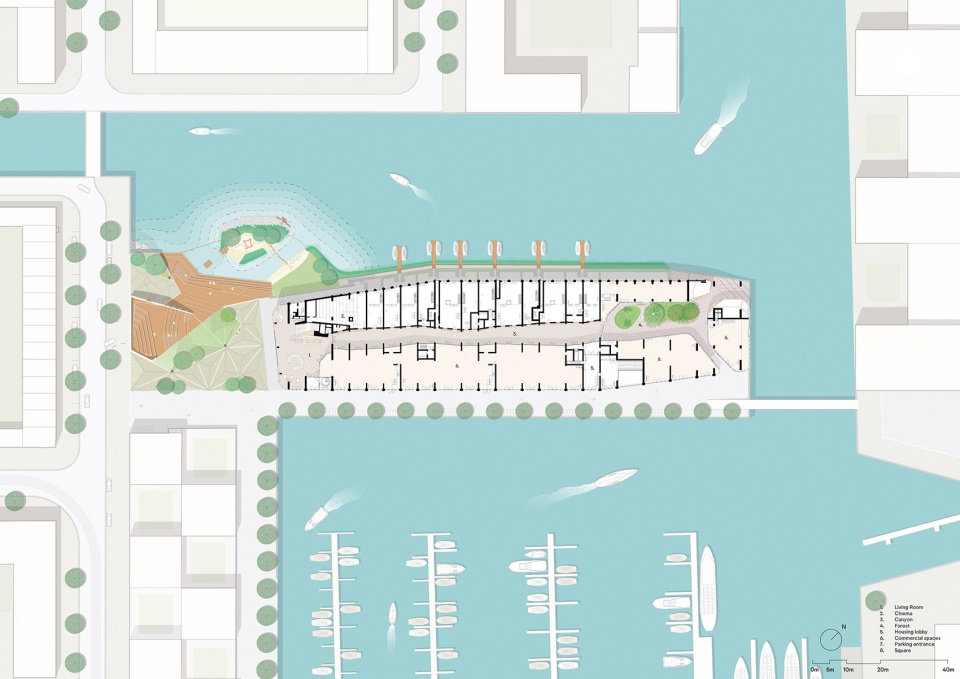

▼首层平面图，Ground floor plan © Orange Architects

▼四层平面图，Third floor plan © Orange Architects

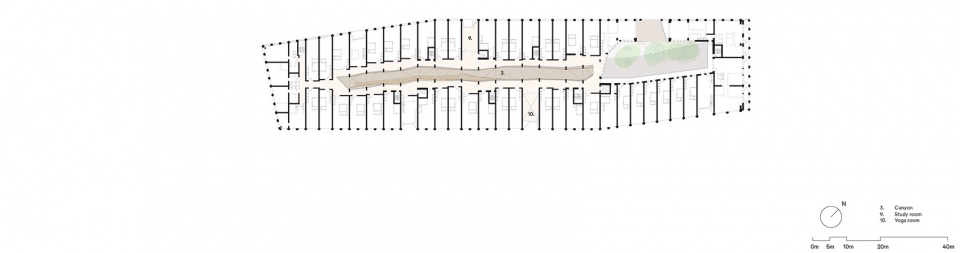

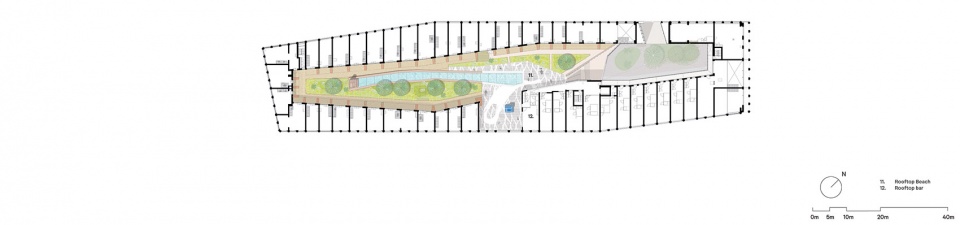

▼七层平面图，Sixth floor plan © Orange Architects

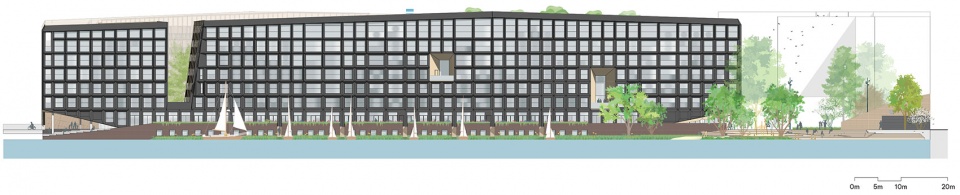

▼西立面图，West elevation © Orange Architects

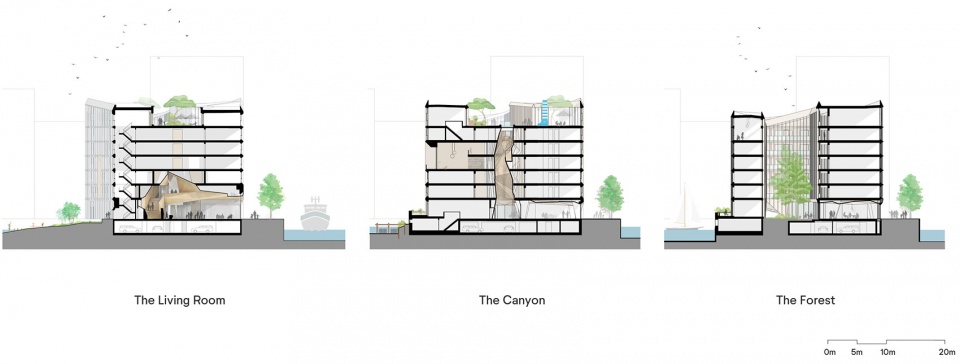

▼横剖面图，Cross section © Orange Architects

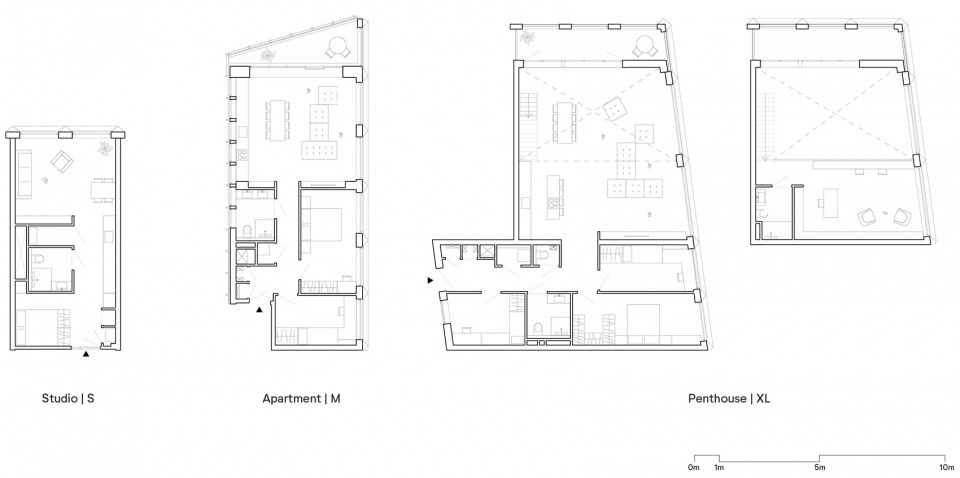

▼公寓类型，Apartment types © Orange Architects

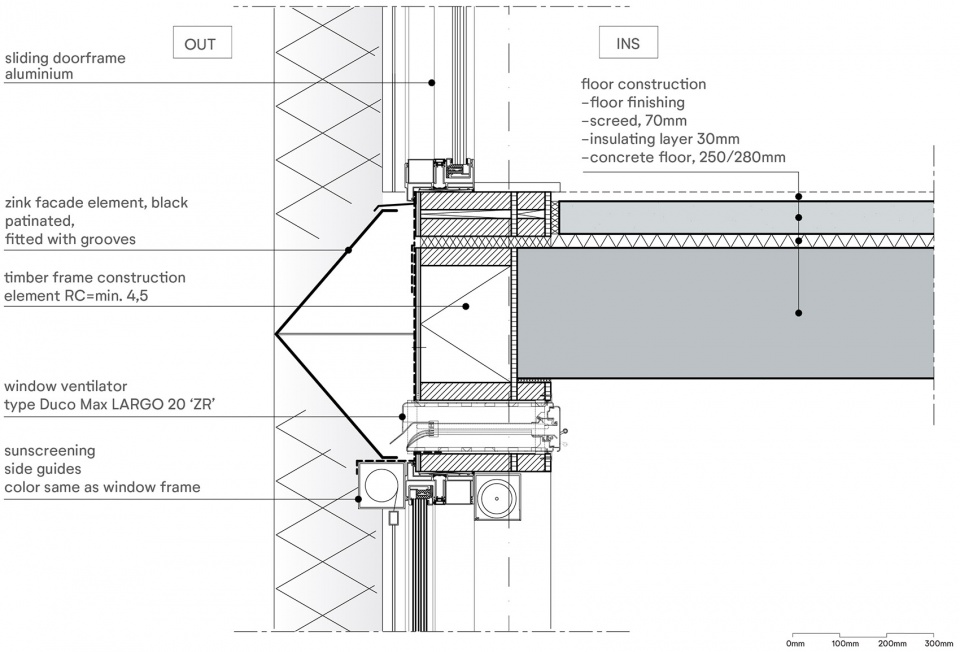

▼细部，Detail © Orange Architects

Location: Krijn Taconiskade 1 – 567, Eva Besnyöstraat 1-9, Amsterdam
Design: 2017
Realisation: 2022
Size: 29950 m2
Program: Mixed-use
Client: Amvest
Architect: Orange Architects
Team: Patrick Meijers, Jeroen Schipper, Paul Kierkels, Elena Staskute,
Florentine van der Vaart, Irina Vaganova, Athanasia Kalaitzidou,
Gloria Caiti, Luís Cardoso, Kapilan Chandranesan, Eric Eisma,
Filippo Garuglieri, Casper van Leeuwen, Francesco Mainetti,
Manuel Magnaguagno, Angela Park, Niek van der Putten,
Erika Ruiz, Ivan Shkurko
Contractor: Ballast Nedam West
Advisors: ABT, Felixx Landscape Architects, Bureau Stadsnatuur, Pubblik&Vos, Site Urban Development, JMJ Bouwmanagement, Floor Ziegler, SmitsRinsma
Subcontractors
and manufacturers:
Albeton Algemene Betonmaatschappij BV, Asona, Beeldwerk Signsupport, Blom Elektrotechniek, BPI Bouwplaatsinrichting, BPZ, Coors Interieurbouw, DBS Logipark BV, De Boom Bouw BV, De Kroon, Duracryl, EcoTec, Esbi, Faber Betonpompen BV, Facto Geo, Franki Grondtechnieken BV, Glasbergen, Glascentrale Midden Holland, Glasdesign, Harryvan Interieurbouw, Holterman Wapeningsstaal, IBA Consultants Dak- en geveladvies, IF Technology, Interplan Bouwsupport, JdB GWW BV, Kawneer, Klomp Technisch Buro BV, Konijn Houtbewerking, Kooy Baksteencentrum BV, Kwakman Tegels, Lo Minck, Lubristra kranen BV, Master Protection, MAT 25, Merford, Metaglas, MyPup, OBI, Orion, Reneco, Rollecate, Rots Maatwerk, Schindler Liften BV, Solarlux, Svedex, Trahecon, Van der Tol, Van Rooijen-Balk, Van Wanrooij, Versluys Groep BV, Vic Obdam, Vios, Warema, WVH Gevelprojecten BV, XAL, Zaanstad
Photography: Sebastian van Damme
Aerial:Orange Architects
