The compact and rich design layout.

Project Specs

Design Firm:

来自 H ARQUITECTES 对gooood的分享。更多关于:H ARQUITECTES on gooood
Appreciation towards H ARQUITECTES for providing the following description:

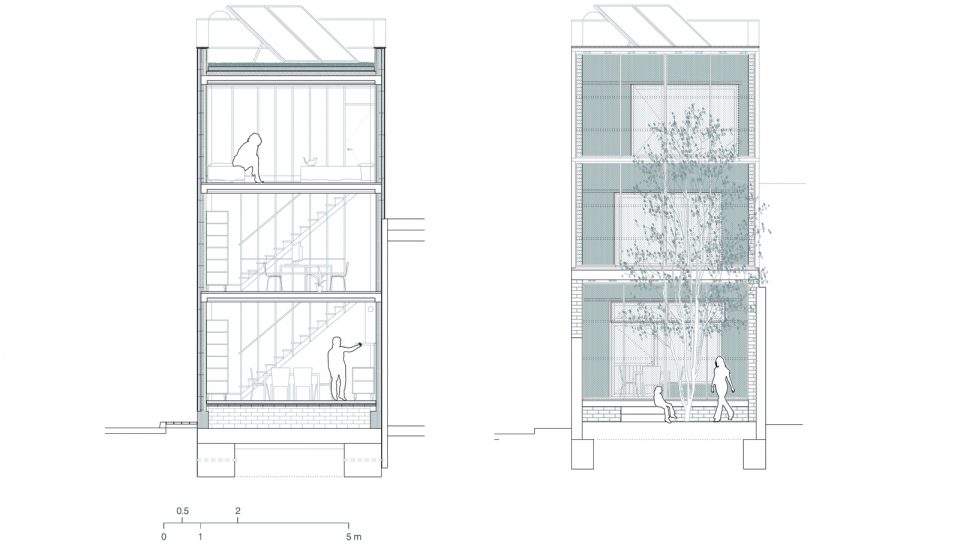

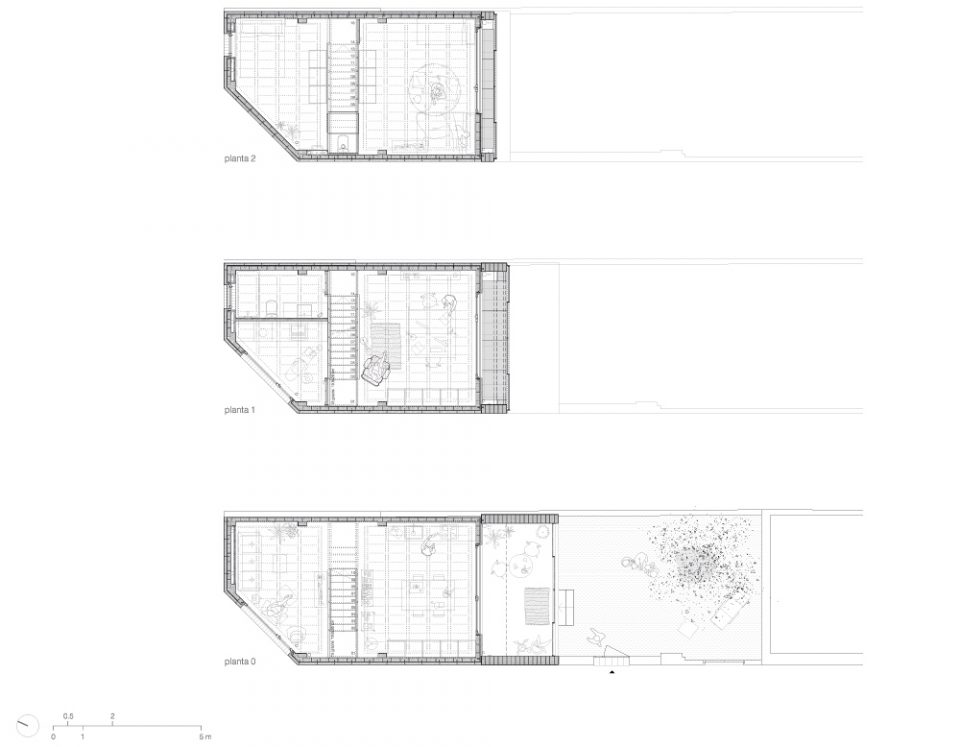

“A really small facing South plot, the result of Judith’s parent’s house segregation”This brief site description contains the main conditions to explain the project strategy: The size explains the height and number of floors (3) and the minimum occupation possible (40 m2).  Parents are the reason to concentrate the free space converting the garden into access and lobby of the house. The orientation explains how the south facade is the main source of light and views; it does so without any limit, using a set of large recycled windows.The overtures are complemented by a polycarbonate greenhouse gallery that performs as heat collector and sun protector. Only the north facade contains other windows to allow good cross ventilation. The stairs, single-section, transversal and reversible, acts as vertical circulation and distributor of the six resulting spaces, only the bathroom and laundry are specific to it’s function, the rest five assume in ambiguous way the domestic program awarded at the end by customers. The spaces are highly characterized in terms of geometry, material, and comfort but little in terms of function.

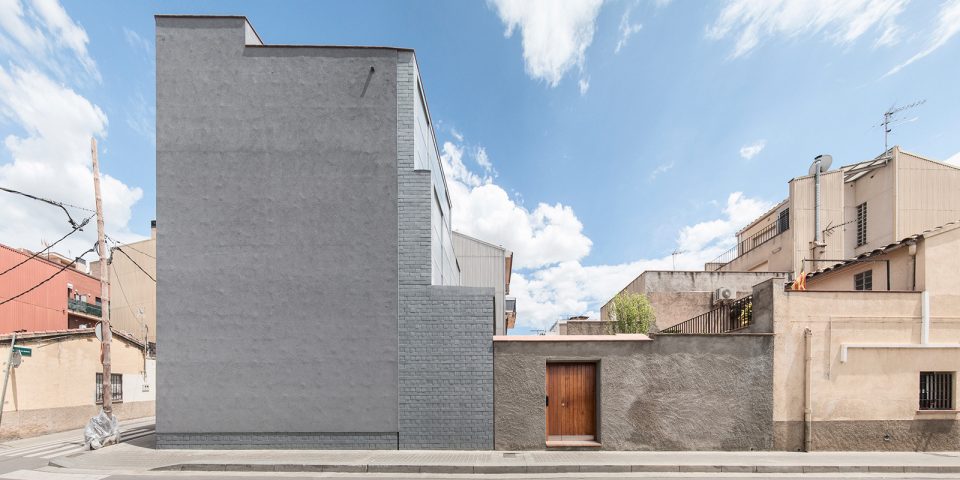

▼住宅外貌,exterior view

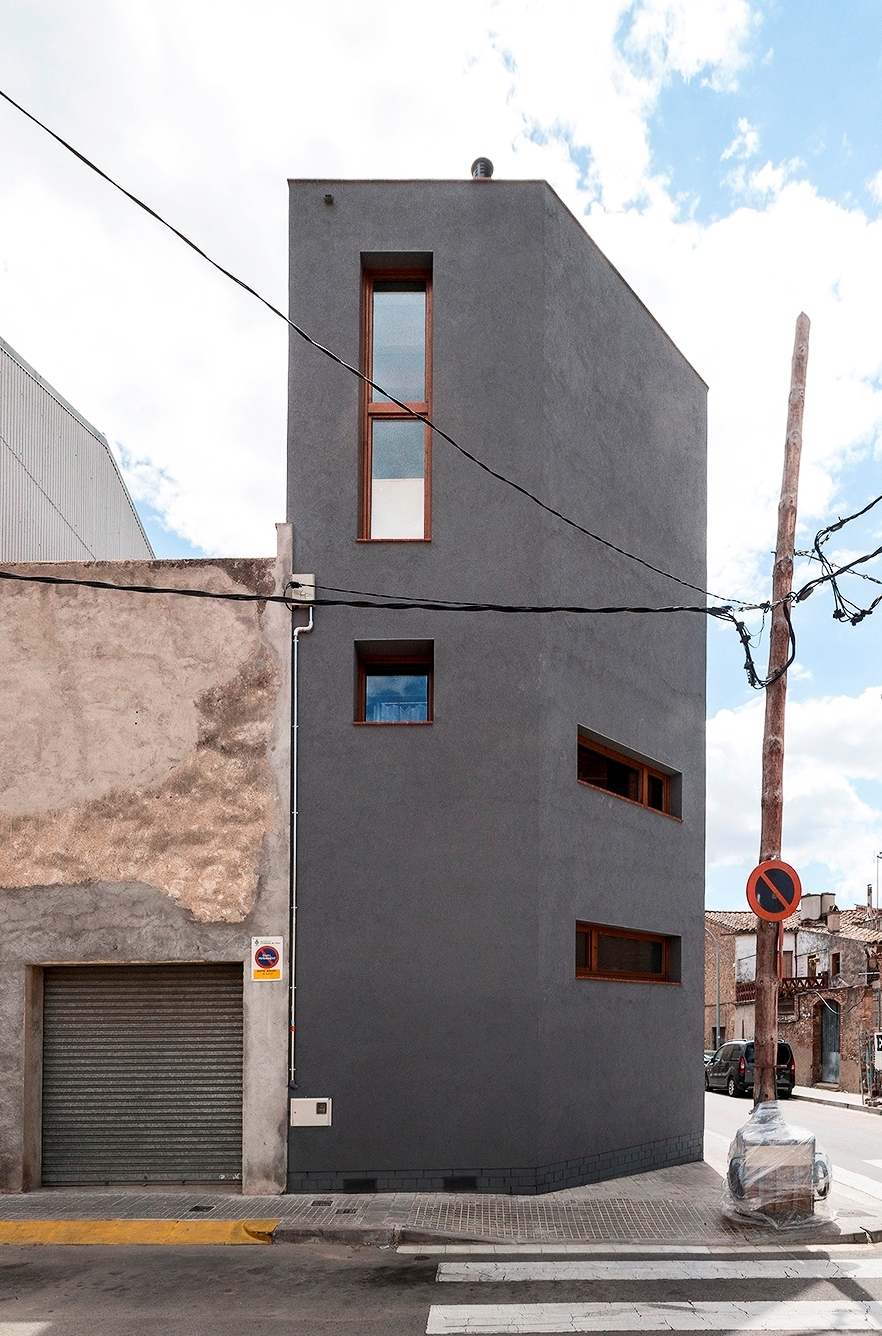

▼仅北侧预留普通的通风窗口,only the north facade contains other windows to allow good cross ventilation

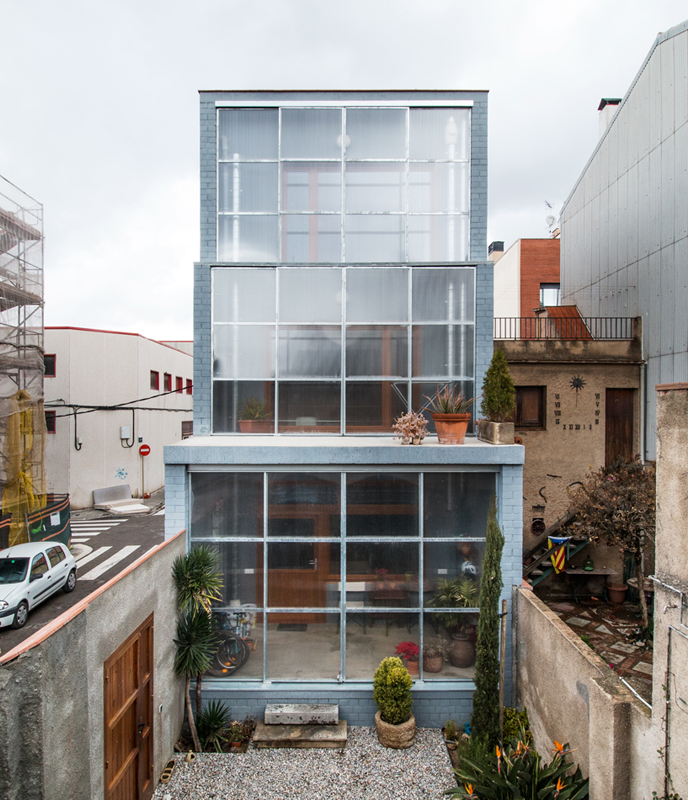

▼南侧大面积开窗迎接阳光,the south facade is the main source of light and views

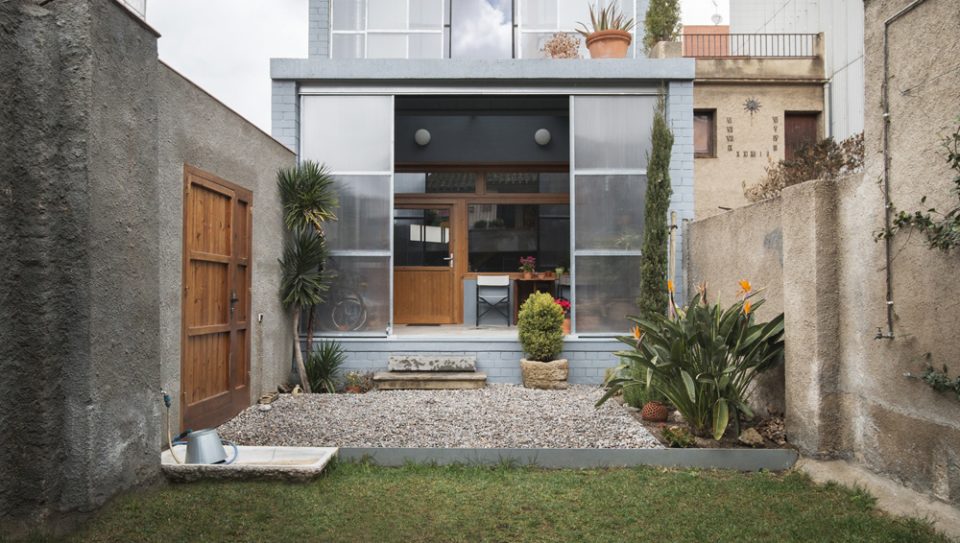

▼入口庭院,the courtyard

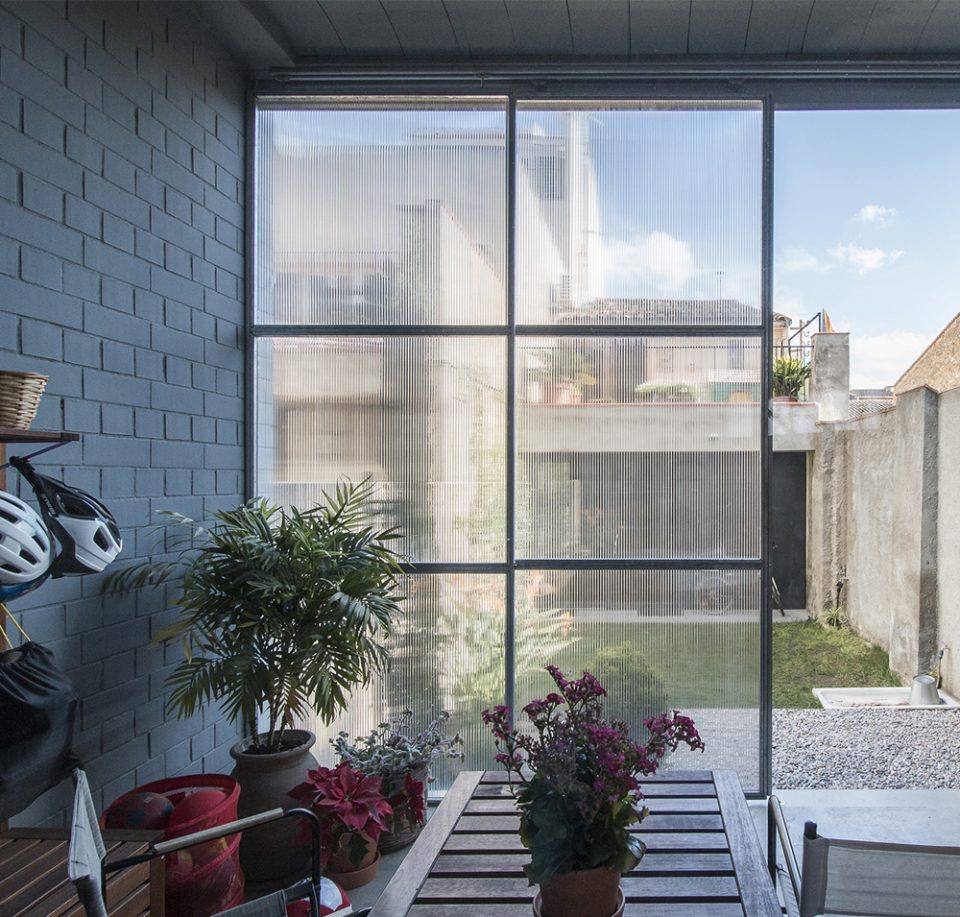

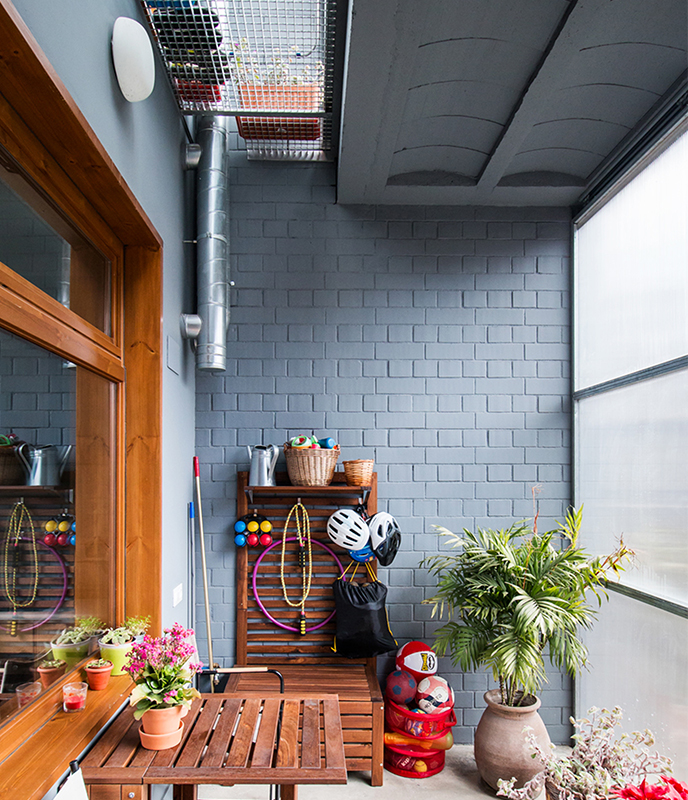

▼室内外的过渡空间,the transition space

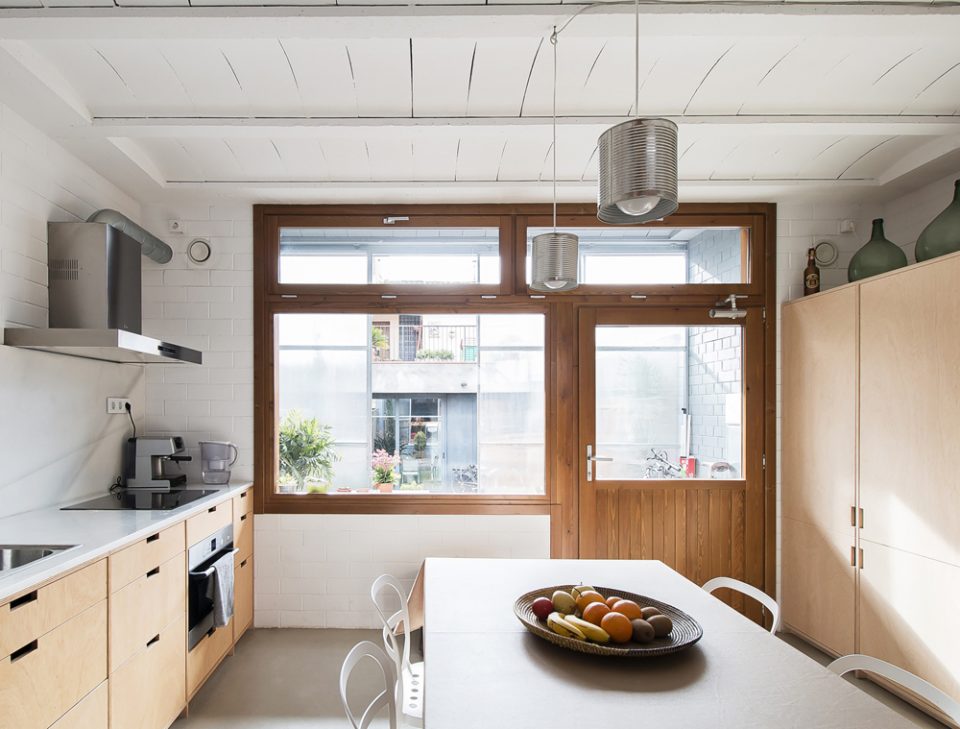

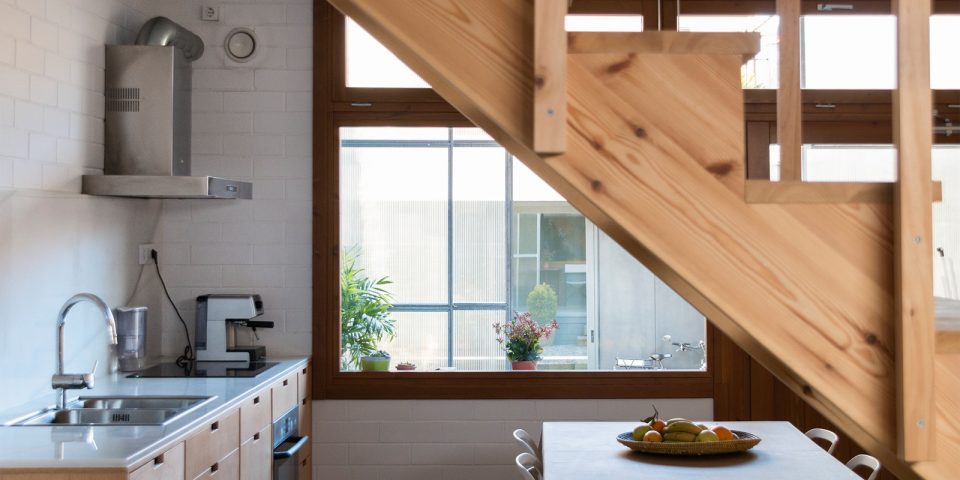

▼餐厅和厨房,kitchen and dining space

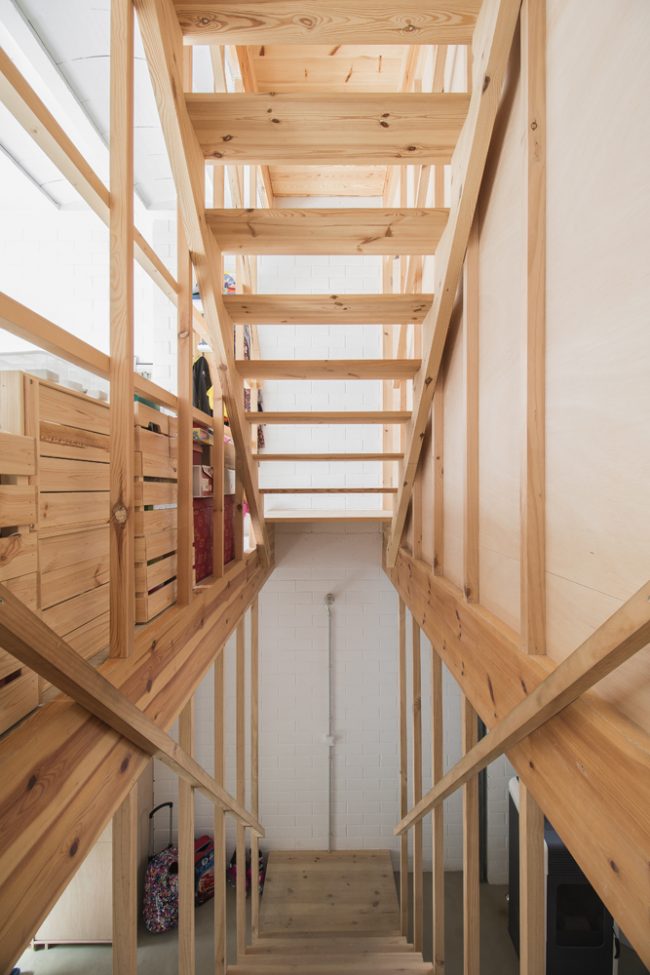

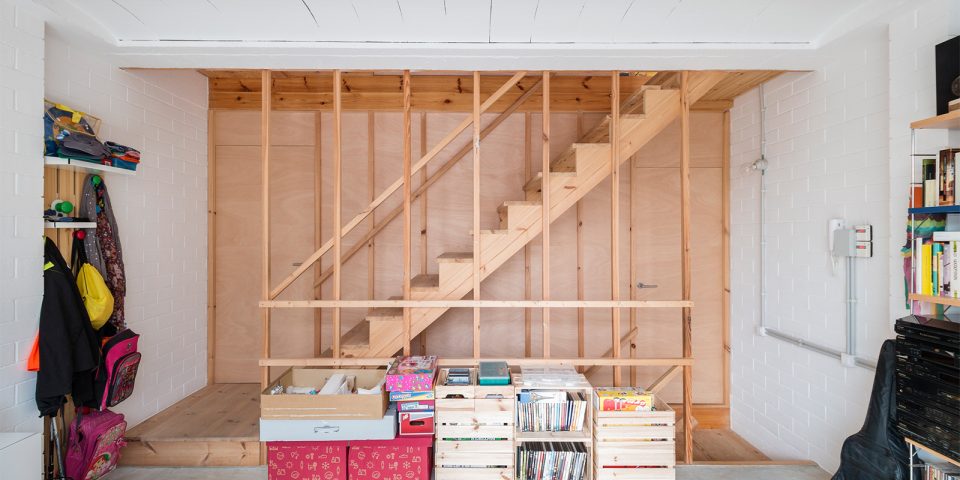

▼开放式楼梯间,the open staircase

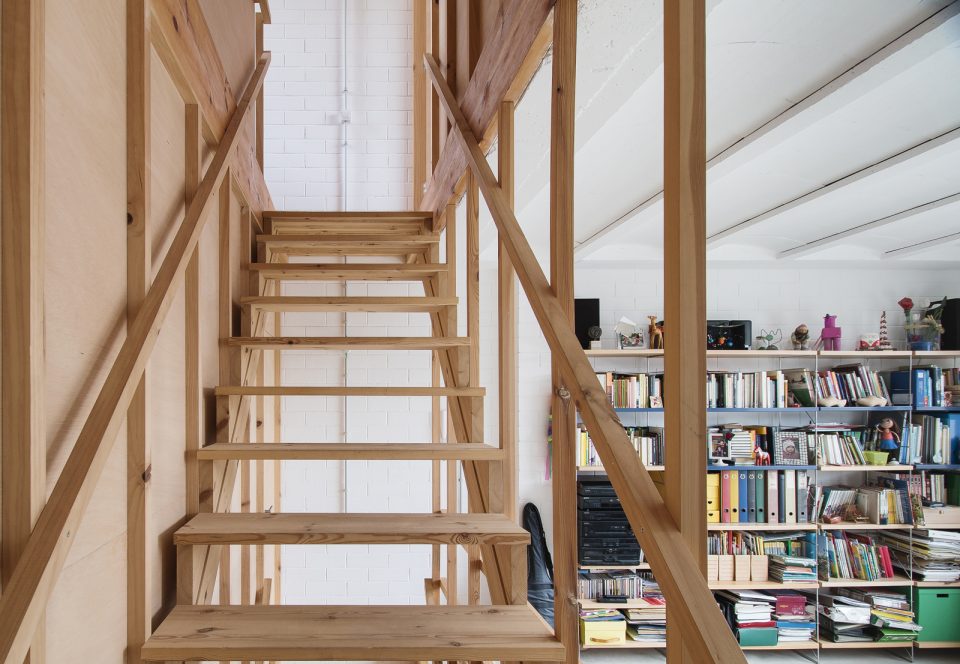

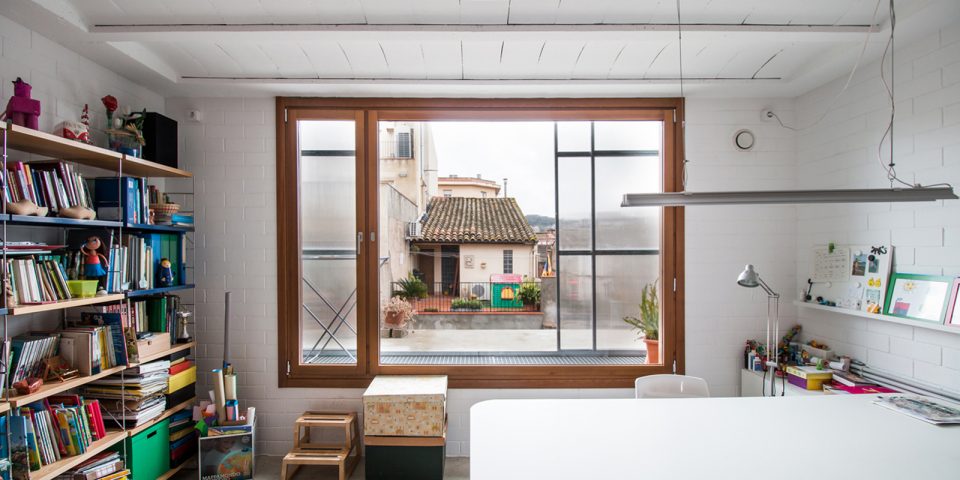

▼书房,study room



Site: Cerdanyola del Vallès, Barcelona
Architect: HARQUITECTES (David Lorente, Josep Ricart, Xavier Ros, Roger Tudó)
Collaborators: Blai Carrero , Montse Fornés, architects (HARQUITECTES)
Carla Piñol Moreno, quantity surveyor (HARQUITECTES)
Project year: 2011
Construction: 2014-15
Constructed surface: 120.00m2
Architect’s website:
Architect’s email:
Photographer: Didac Guxens
