感谢 Zaha Hadid Architects 予gooood分享以下内容。更多关于他们：Zaha Hadid Architects on gooood.
Appreciation towards Zaha Hadid Architects for providing the following description:

位于北京市中心的银河SOHO总面积有33万平方米，集办公，零售，娱乐为一体，成为城市生活的一个重要组成部分。设计灵感来自规模宏大的北京，5个连续流动的形体通过桥梁连接在一起，彼此协调，成为一个无死角的流动性组合。

内庭传承中国传统庭院气度，创造一个联系的开放空间。在这里，建筑不再是刚性的，而是柔性的，适应性的，流动性的。群体建筑拥有鲜明而强烈气场，在连贯的群体之中也拥有合理的私密空间。

底部三层是临河和娱乐功能，之上是办公场所，顶部是可以瞭望宏伟城市的酒吧，餐厅还有咖啡厅。这些不同的功能被天衣无缝的集结在一起，联通银河SOHO建筑本身，成为城市中一个重要地标。

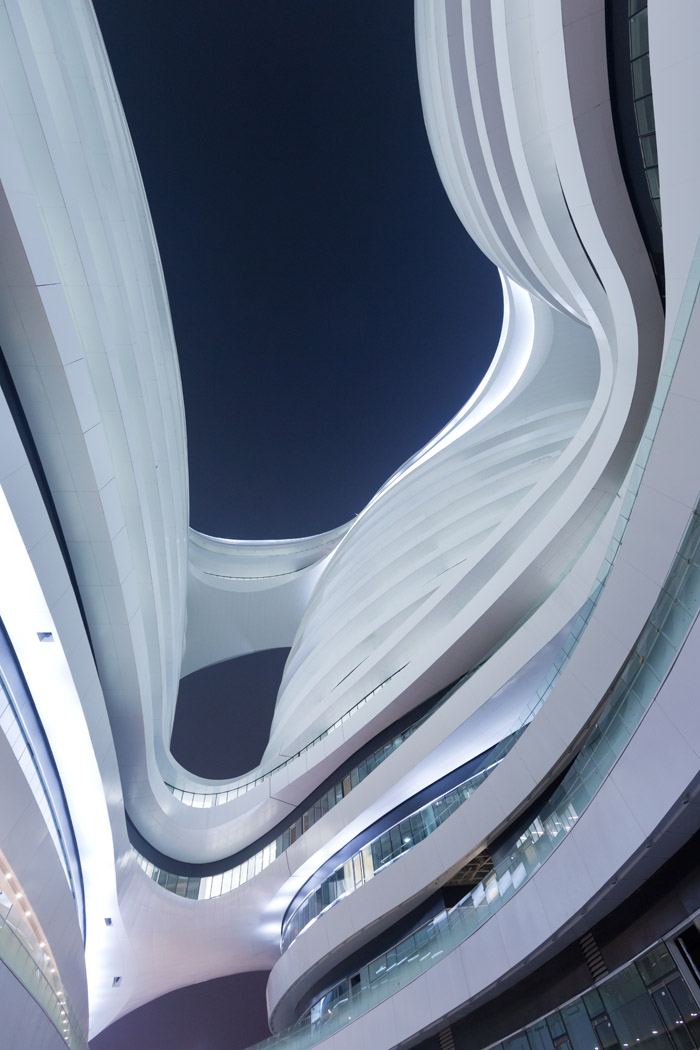

Photo © IWAN BAAN

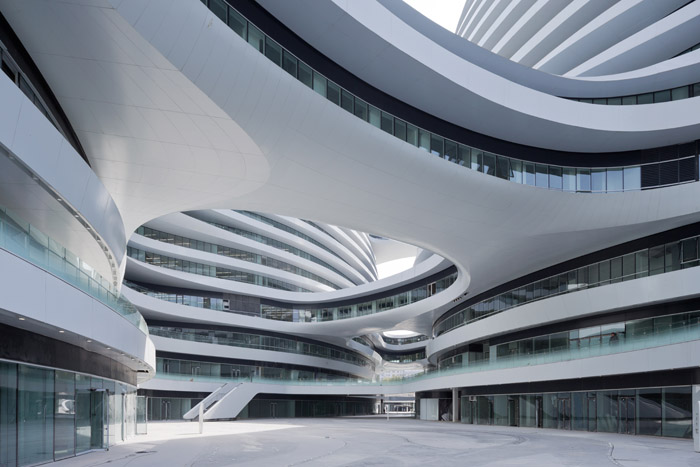

Photo © IWAN BAAN

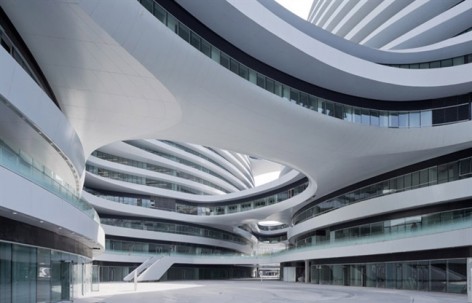

Photo © IWAN BAAN

The Galaxy SOHO project in central Beijing for SOHO China is a 330 000m2 office, retail and entertainment complex that will become an integral part of the living city, inspired by the grand scale of Beijing. Its architecture is a composition of five continuous, flowing volumes that are set apart, fused or linked by stretched bridges. These volumes adapt to each other in all directions, generating a panoramic architecture without corners or abrupt transitions that break the fluidity of its formal composition.

The great interior courts of the project are a reflection of traditional Chinese architecture where courtyards create an internal world of continuous open spaces. Here, the architecture is no longer composed of rigid blocks, but instead comprised of volumes which coalesce to create a world of continuous mutual adaptation and fluid movement between each building. Shifting plateaus within the design impact upon each other to generate a deep sense of immersion and envelopment. As users enter deeper into the building, they discover intimate spaces that follow the same coherent formal logic of continuous curvelinearity.

The lower three levels of Galaxy SOHO house public facilities for retail and entertainment. The levels immediately above provide work spaces for clusters of innovative businesses. The top of the building is dedicated to bars, restaurants and cafés that offer views along one of the greatest avenues of the city. These different functions are interconnected through intimate interiors that are always linked with the city, helping to establish Galaxy SOHO as a major urban landmark for Beijing.

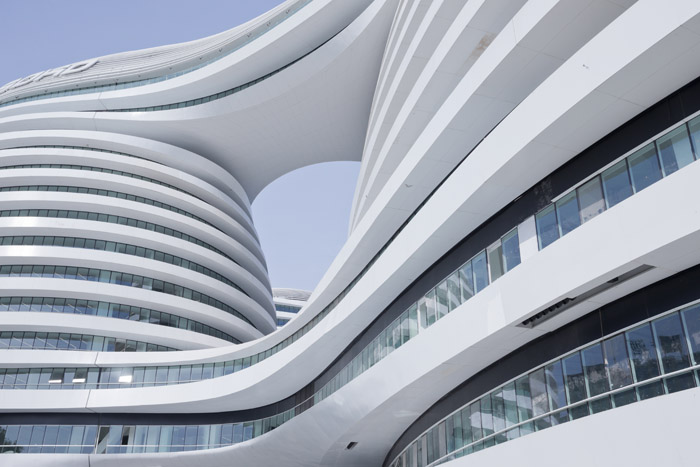

Photo © IWAN BAAN

Photo © IWAN BAAN

Photo © IWAN BAAN

Photo © IWAN BAAN

Photo © IWAN BAAN

Photo © IWAN BAAN

Photo © IWAN BAAN

Photo © IWAN BAAN

Photo © IWAN BAAN

Photo © SOHO China

Photo © SOHO China

Photo © SOHO China

Project Galaxy SOHO
Location Bejing, China
Date 2008 – 2012
Client SOHO China
Program Mixed-use Commercial Building (Office & Retail) Status
Completed Construction 2009 – 12 (30-months)

Design
Zaha Hadid with Patrik Schumacher Architect
Zaha Hadid Architects
Project Director
Satoshi Ohashi
Associate
Cristiano Ceccato
Project Architect
Yoshi Uchiyama
Project Team Stephan Wurster Michael Hill Samer Chamoun Eugene Leung Rita Lee Lillie Liu Rolando Rodriguez-Leal Wen Tao Tom Wuenschmann Seung-ho Yeo Shuojiong Zhang Michael Grau
Shu Hashimoto Shao-Wei Huang Chikara Inamura Lydia Kim Yasuko Kobayashi Wang Lin Yereem Park
Local Design Institute BIAD Beijing Institute of Architecture & Design
Plot area
46,965 m2
Total Floor Area
332,857 m2
Above Ground
4 Towers 15 Floors
(12 Office Floors and 3 Retail Floors)
Max Height
67 meters
Below Ground
B1 Floor Retail and B2, B3 Parking (1275 cars), MEP
Retail Floors
B1F,1F,2F,3F (90,000 m2)
Materials Skin
3mm Aluminum Exterior,Cladding, Insulated,Glass, Stone
Materials Interiors Glass, Terrazzo, GRG, Stainless Steel, Gypsum Board Painted
Structure
Standard Concrete
Structure (8.4m spans)
Floor to Floor Heights Retail floors 5.4m, office floors 3.5m

More：Zaha Hadid Architects，更多关于他们：Zaha Hadid Architects on gooood
