感谢 Spacecraft co.,ltd 予gooood分享以下内容。更多关于他们，请至：Spacecraft co.,ltd on gooood
Appreciations towards Spacecraft co.,ltd for providing the following description:

本项目始于业主Kaytita Chaisuksiri希望创造一家真正的绿色和可持续的社区概念咖啡厅的强烈热情与愿景。项目坐落于Kaytita所在的社区，这里同时也是曼谷最密集的居住区之一。在这个社区中，大多数的家庭人数都比较多，有的家庭还饲养了宠物。因此，Early BKK咖啡厅的目标就是成为一个所有人都可以来访并度过一段快乐时光的有形空间。

Early BKK started with a strong intension and passion of Kaytita Chaisuksiri, to create a community café with truly green and sustainable concept in her neighborhood. She found a site location in her village where is a strong living community in Bangkok. In this community, mostly big families with all generations including pets, therefore Early BKK aimed to be a tangible space where can be accessible for all.

▼项目概览，overall of the project ©Thanapol Jongsiripipat

与大多数以商业效益为主的咖啡厅与零售店铺不同，Early BKK概念咖啡厅意在向游客与邻居们宣传回收利用、绿色生态的生活方式。目前城市在垃圾管理方面仍存在着诸多问题，因此，将被忽视的材料回收再利用到本项目空间的建造中，成为了设计中重要的一环。

Unlike most of the café and retail business which always think about making profits. Early BKK, in the other hand, think about how to introduce recycle and green concept and lifestyle to the visitors and neighbors. Seeing many problems arising with regards to waste management these days, upcycling materials that have been overlooked are taken to important parts of the design.

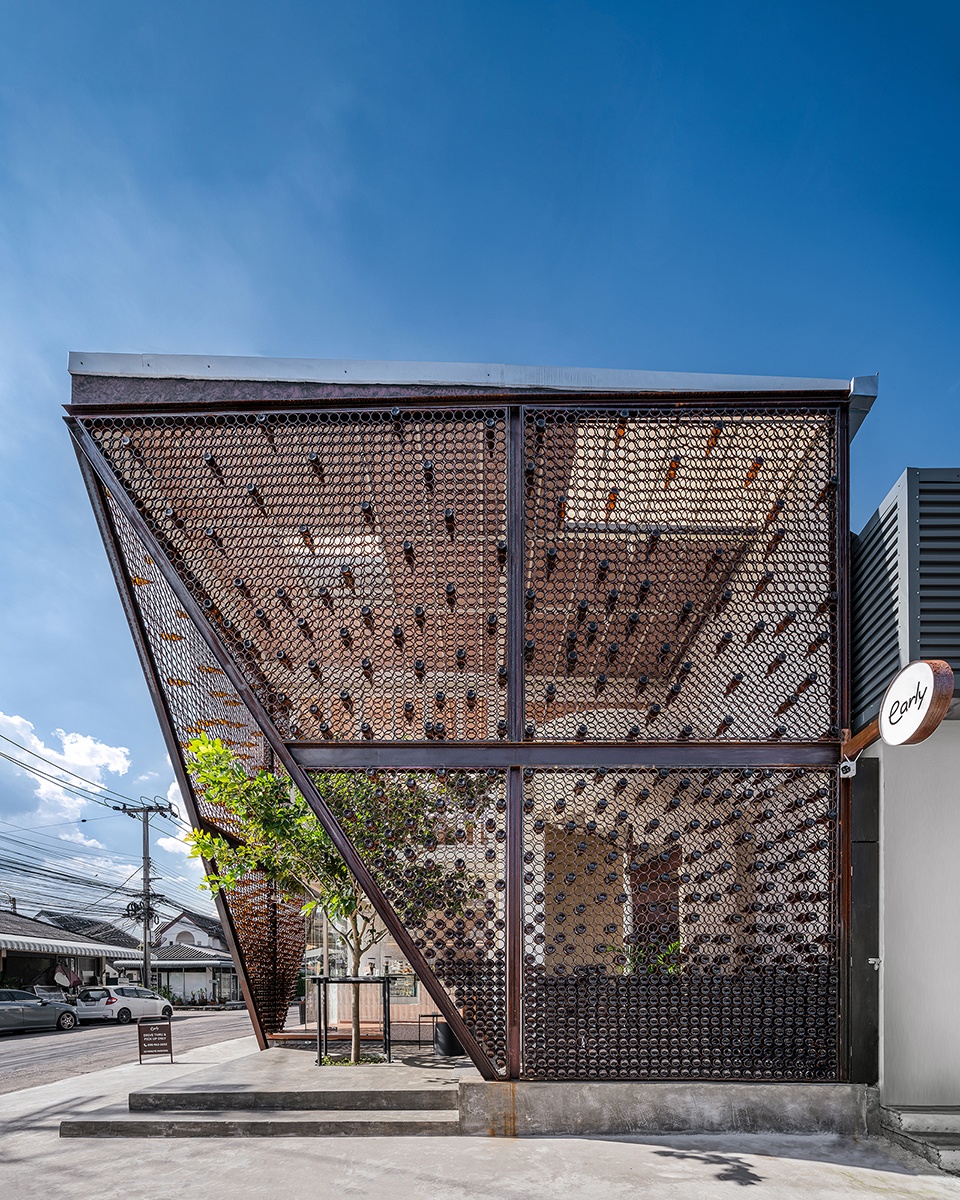

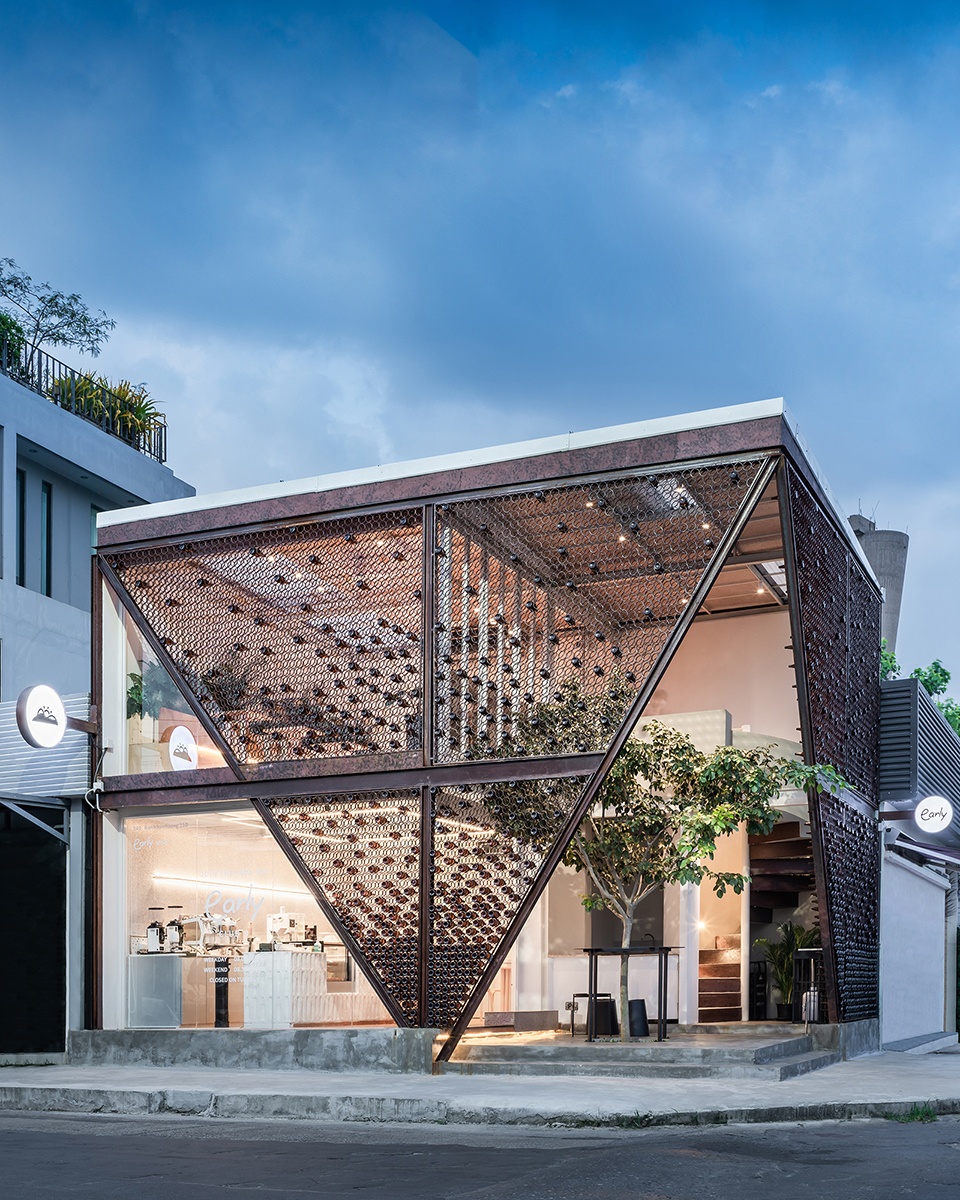

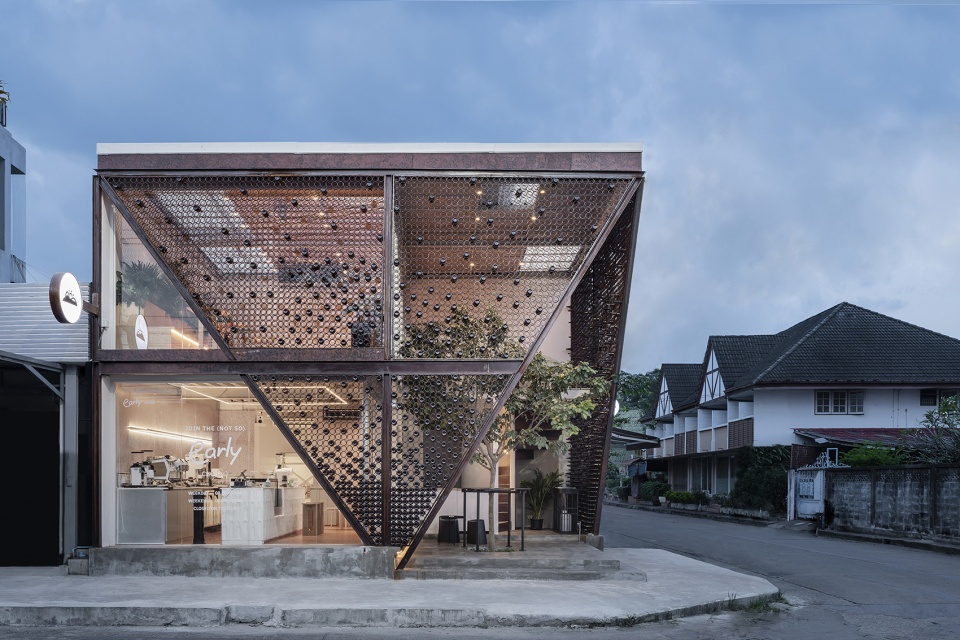

▼咖啡厅外观，exterior view of the cafe ©Thanapol Jongsiripipat

▼由金属网与废旧玻璃瓶组成的立面，
facade made of metal mesh and old glass bottles ©Thanapol Jongsiripipat

鉴于Early BKK咖啡厅的意图十分明确，Spacecraft事务所在项目之初就开始收集附近的可用垃圾，并研究如何对这些回收材料进行升级处理。在这个过程中，设计团队发现的最常见的可回收再利用材料，当属不同类型的容器，如牛奶盒和玻璃瓶等。因此，设计团队决定在项目中使用这些废弃容器作为主要材料，塑造建筑的外立面、室内装潢，甚至家具陈设。

Since statement of Early BKK is very clear, Spacecraft started to do the research about upcycling materials and trash around neighborhood. And found that the most familiar trash that can be recycle and reuse are different types of containers, such as milk cartons and glass bottles. We decided to use these waste containers as the main materials throughout the design, from architectural façade to interior finishing and furniture.

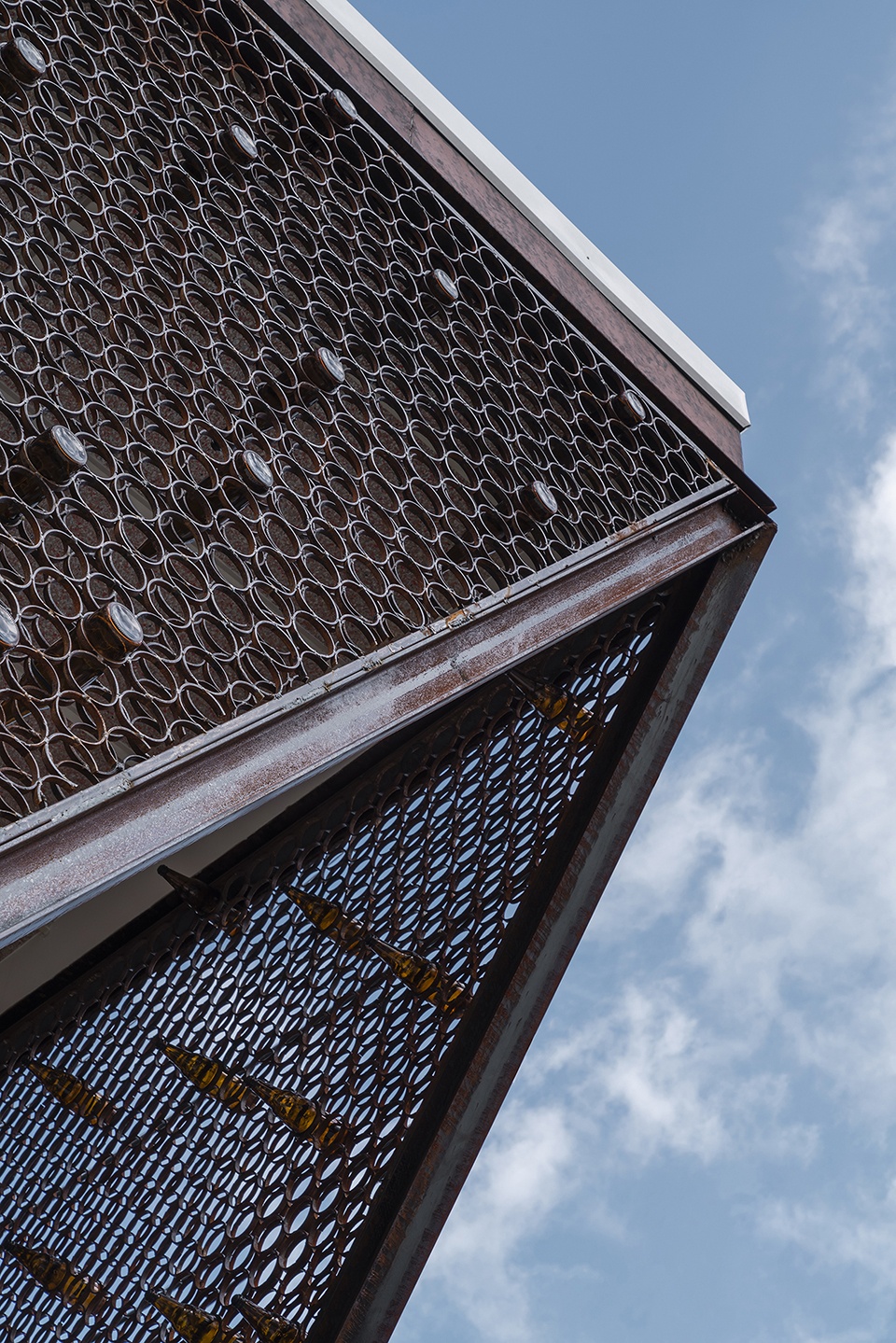

▼立面细部，detail of the facade ©Thanapol Jongsiripipat

Early BKK概念咖啡厅是一栋坐落于街角的二层建筑，位于建筑一角的主入口是一处具有双重功能的半室外庭院空间，庭院中种有一棵景观树，以及一处安置宠物的场地，郁郁葱葱的植物与宠物友好的理念营造出热情友好的氛围。底层空间主要为咖啡厅功能，包括摆放了一系列咖啡机的吧台以及慢吧，座位并不多。咖啡吧区后部设有零售货架，货架摆放有补充用品、家用咖啡设备、宠物用品，以及一些二手衣服。建筑的二层全部为座位区，两侧均设有大面积的开窗，空间氛围明亮通透、通风良好。灵活的布局使二层空间具有多重功能，可以作为工作室使用。

Early BKK is a small 2-storey building in the corner of road. The entrance at the corner is a small double space courtyard with a big tree and pet parking area, offering a welcoming and friendly vibe. 1st floor is a main coffee bar including coffee machines and slow bar, with few seats. Retails shelves for refill products, home coffee equipment, pet products and some second-hand clothes are in the back of coffee bar area. 2nd floor is all seating area, designing with large window on both sides for well ventilation. This room is designed for multipurpose uses, that can be transform into a workshop room.

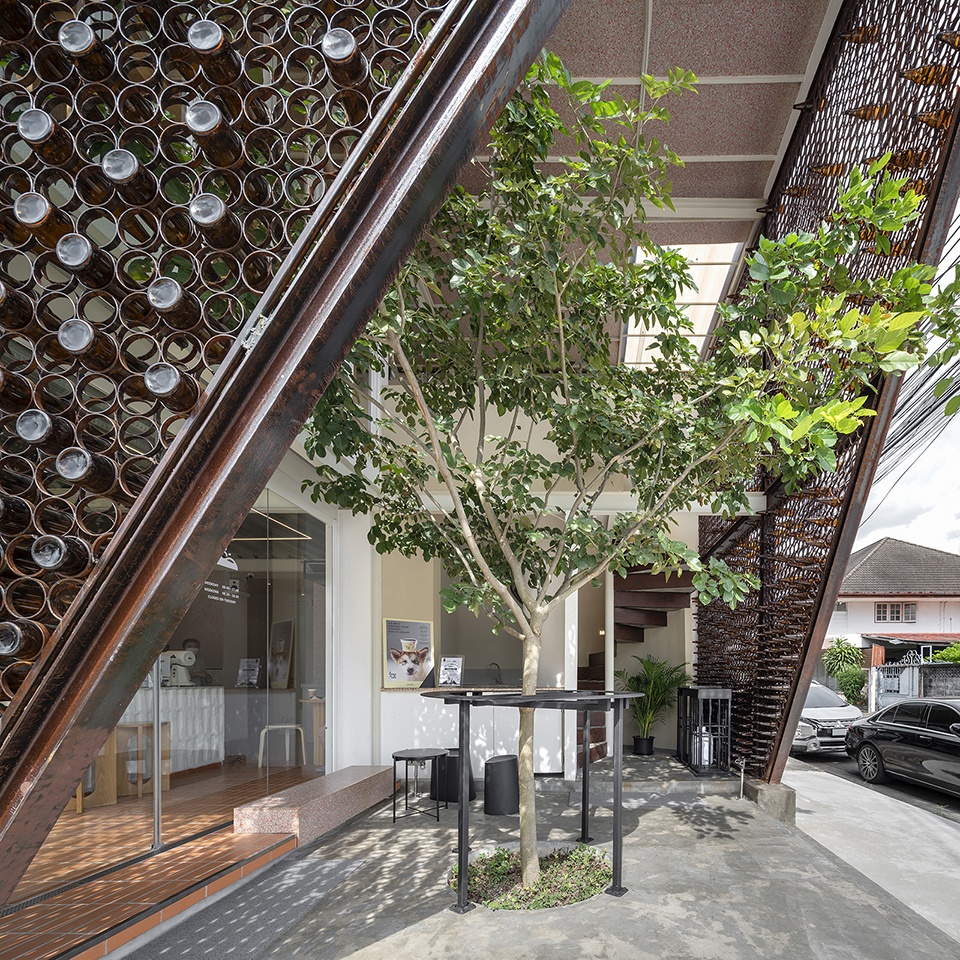

▼入口庭院，entrance courtyard ©Thanapol Jongsiripipat

▼由二层空间看入口庭院，viewing the entrance courtyard from the upper floor ©Thanapol Jongsiripipat

设计团队与一家工厂合作，开发了一种“再生板”（re-board’），这种板子100%由用过的牛奶盒的纸板碎片制成。室内空间如门、天花板、桌椅等大部分也采用了这种“再生板”。为了控制室内所有元素的配色，制作“再生板”的牛奶盒原材料都由设计团队精心挑选，只有橙色和暖色的牛奶盒才能入选，以和手工砖地板形成色彩上的呼应。

We worked together with a factory to produce a ‘re-board’ which is a board made from 100 percent of small cut pieces of used milk cartons. Re-board was used in most in the interior space such as door, ceiling, chairs and tables. To control over all color scheme, we carefully selected color of used milk cartons only in orange and warm colors scheme, to match with handmade brick tiles floor.

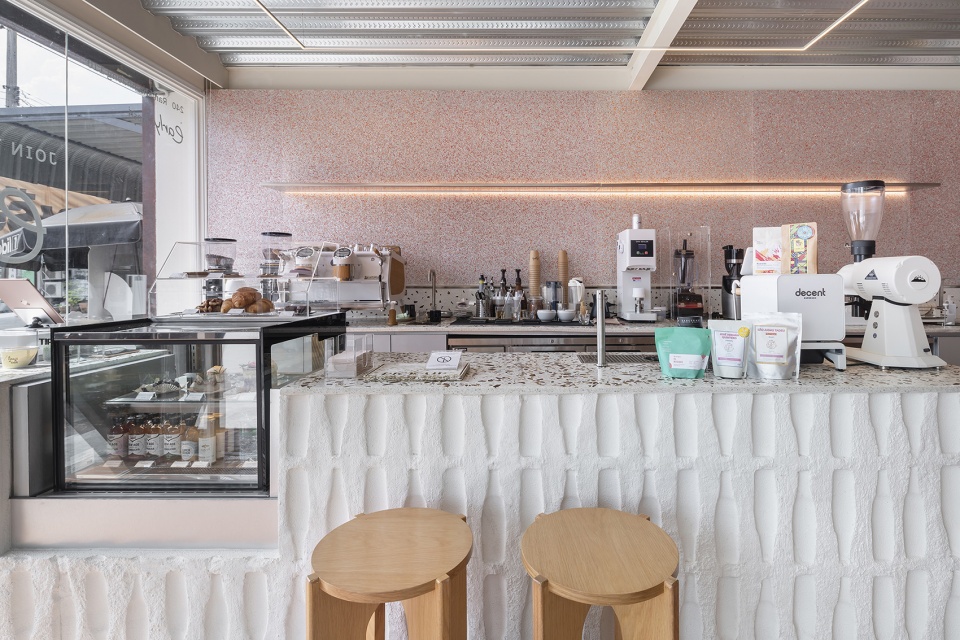

▼底层空间概览，overall of the ground floor ©Thanapol Jongsiripipat

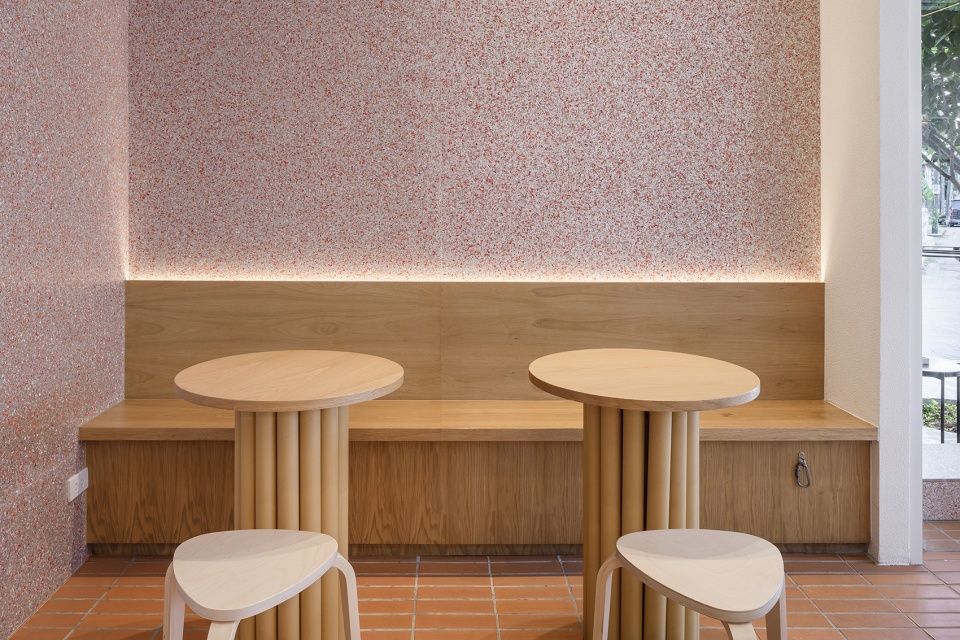

▼底层座位区，seating area on the ground floor ©Thanapol Jongsiripipat

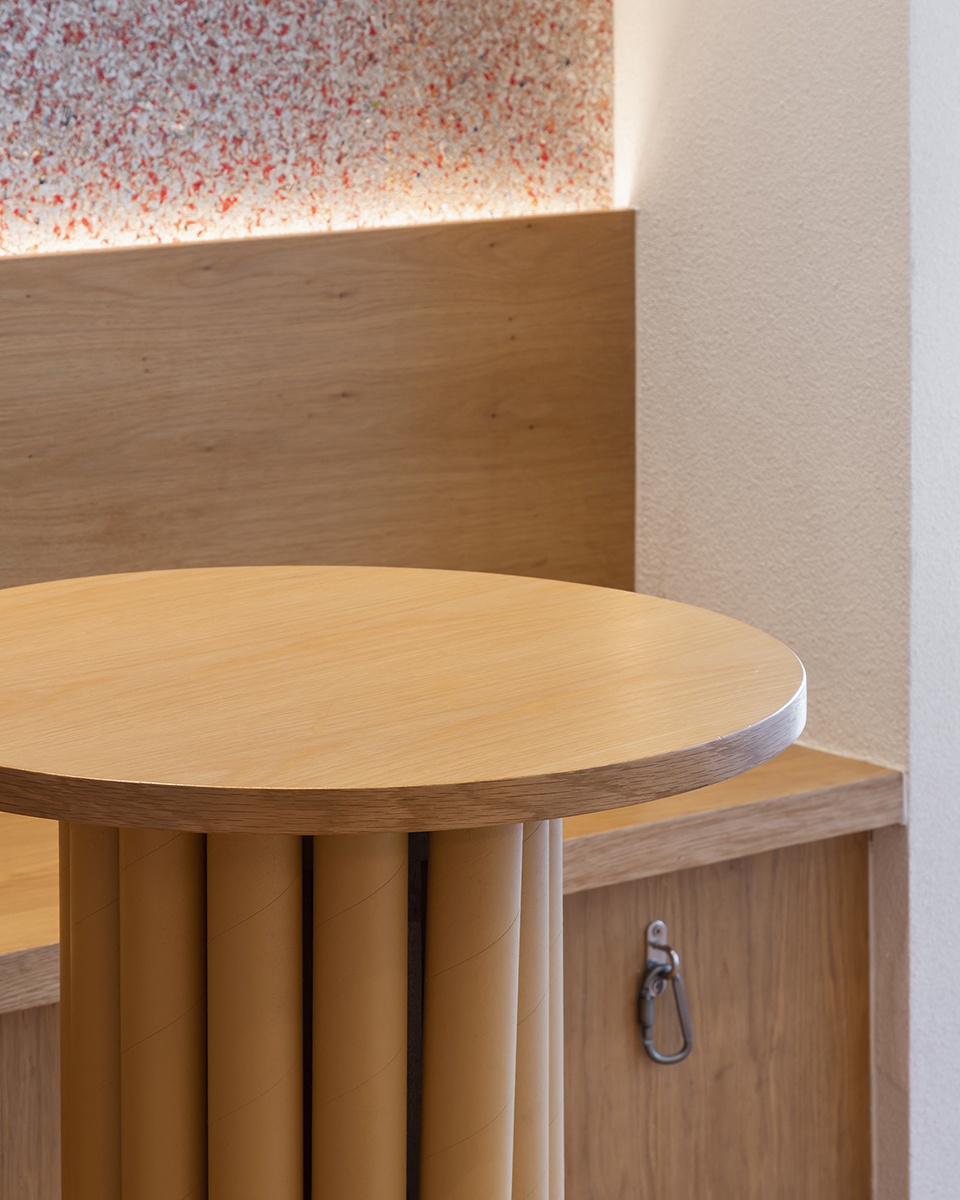

▼座椅由废纸制成的“再生板”制成，
seats are made of re-board made of waste paper ©Thanapol Jongsiripipat

项目中另一种以不同方式呈现出来的主要再利用材料为啤酒瓶。从外观上看，大约600个用过的啤酒瓶被放置在建筑的金属环结构中，形成了独特的立面效果。啤酒瓶立面在室内空间中创造了令人惊叹的光影效果，同时也从外观上清楚地阐述出Early BKK的目标。

Beer bottles are another main reused material we used in many different ways in this project. Obviously on the facade, around 600 used beer bottles were placed in the metal rings structure of the building. They created stunning effect of lights and shadow during days into an interior space, as well as tell good story of Early BKK’s objective from the exterior appearance.

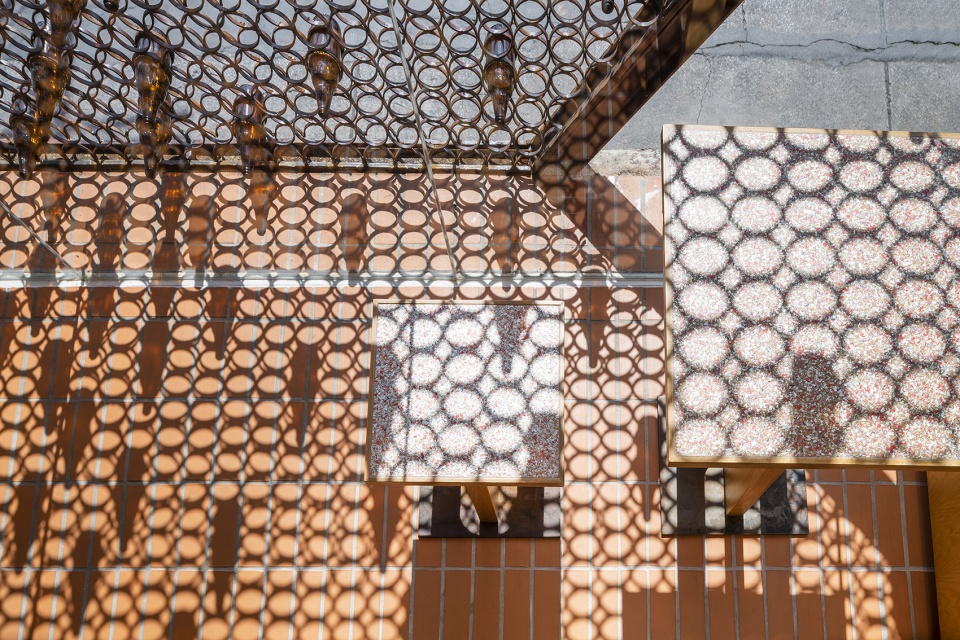

▼啤酒瓶立面在地面形成有趣的光影，the beer bottle facade creates interesting light and shadow on the ground ©Thanapol Jongsiripipat

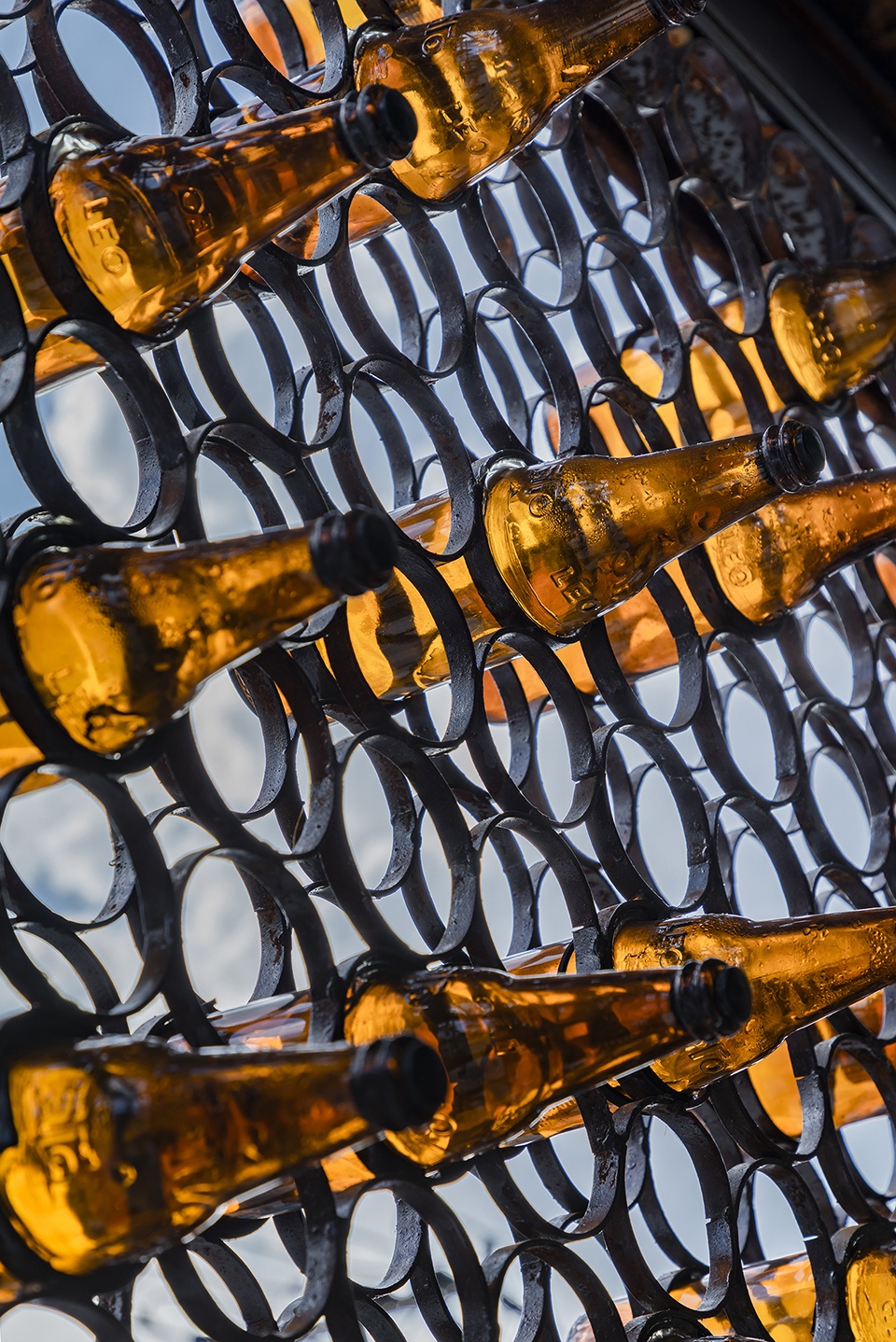

▼立面细部，detail of the bottle facade ©Thanapol Jongsiripipat

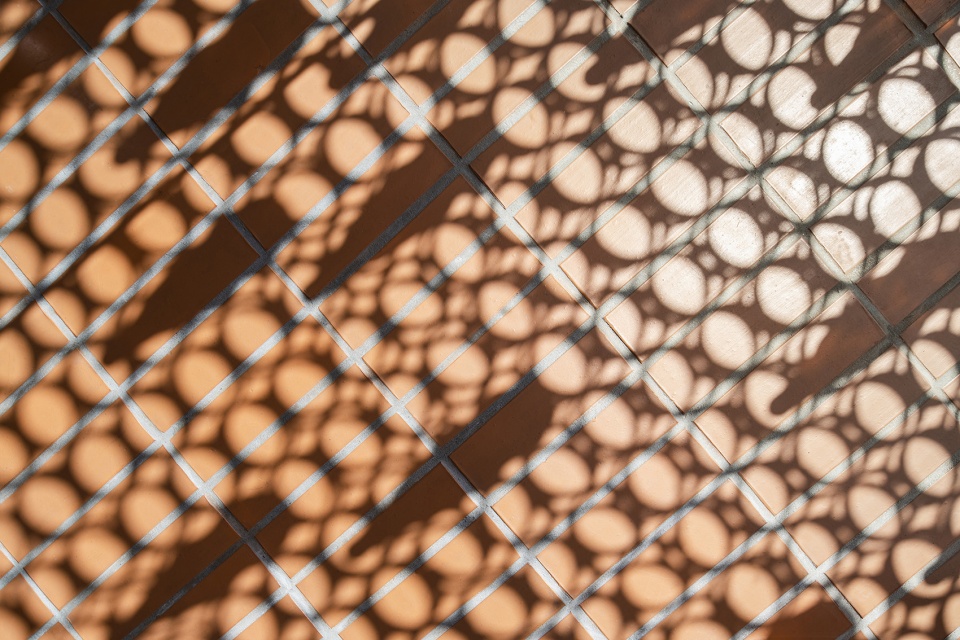

▼光影细部，light and shadow ©Thanapol Jongsiripipat

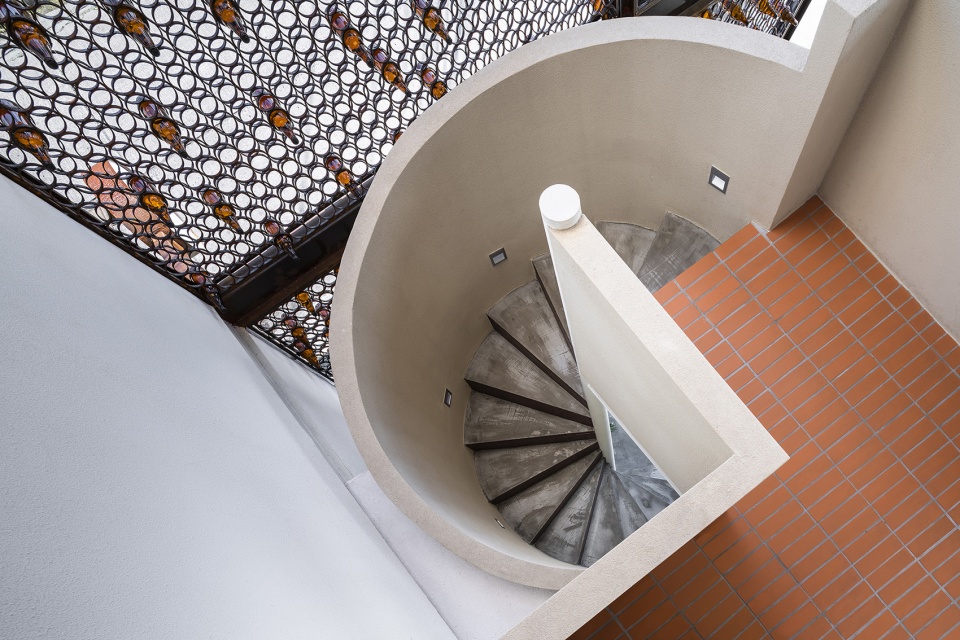

▼楼梯间，staircase ©Thanapol Jongsiripipat

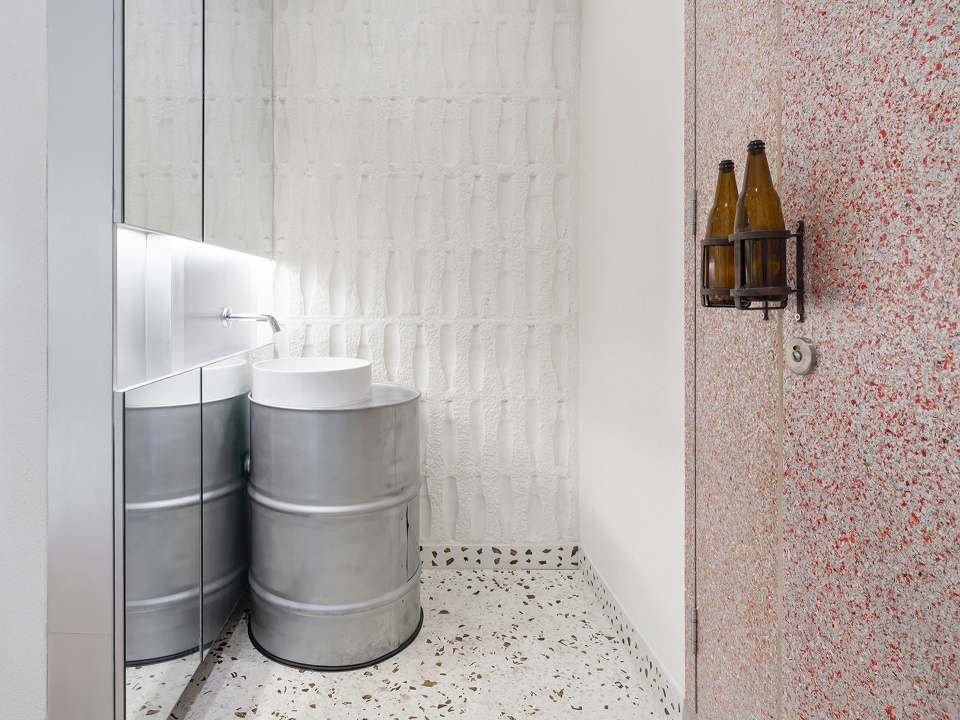

除立面装饰外，一些用过的啤酒瓶还被分解成碎片，并制成水磨石，作为柜台工作台面和厕所地面的主要材料。设计团队还用啤酒瓶为室内某些混凝土墙面添加了有趣的图案和纹理，并称这些图案为“瓶子化石”，因为瓶子在墙上留下的痕迹与化石的外观以及形成过程极为相似。此外，设计师还用回收材料为室内空间添加了一些小细节，如用过的镀锌铁油罐作为洗手台，用玻璃瓶作为门把手等。

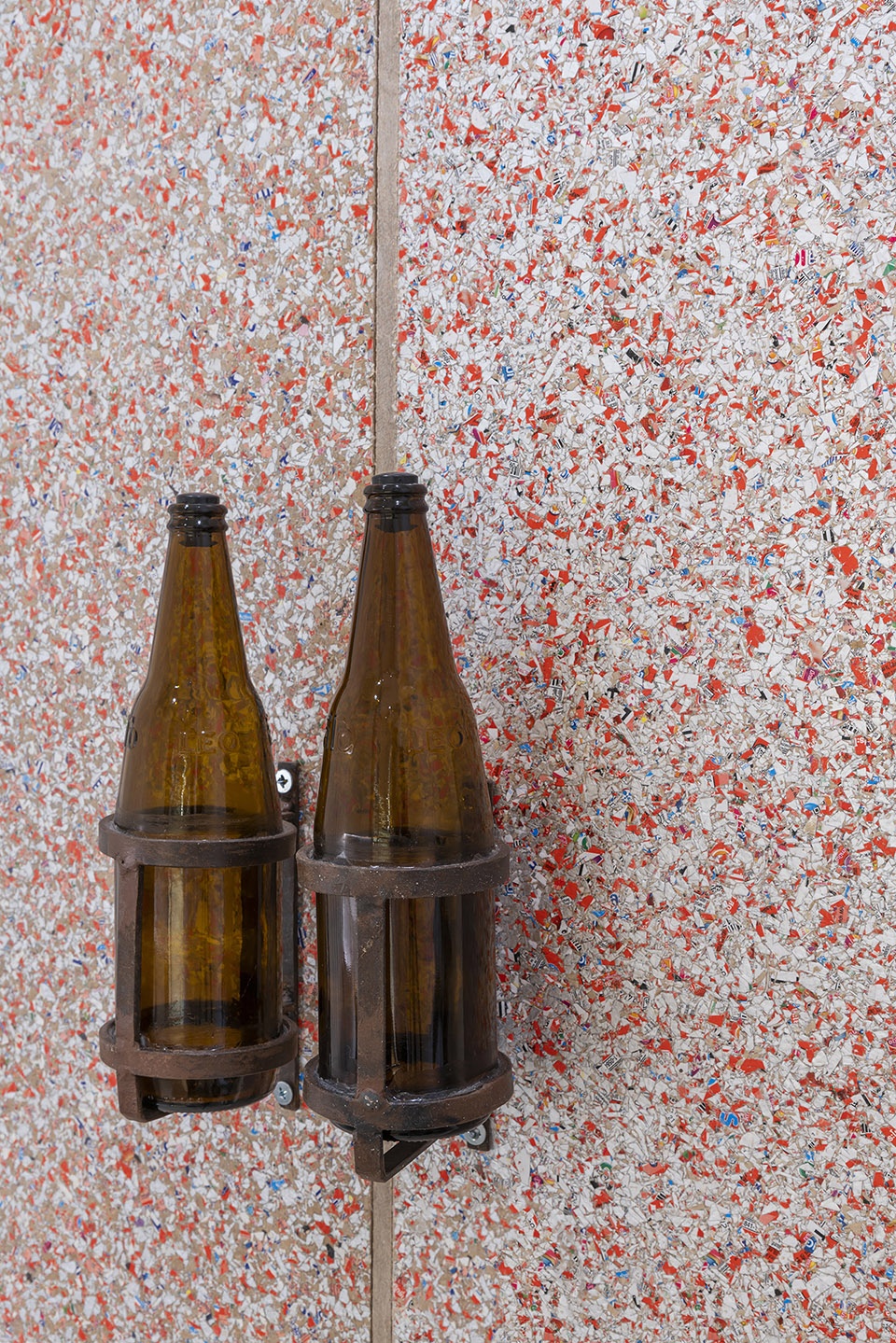

Some of used beer bottles are broke down into pieces, and used them as main component of terrazzo counter working top and toilet floor. Some walls are made by bumping bottles into concrete wall, creating interesting wall patterns and texture. We called this “Bottles fossil” since the production and final look is similar to the fossil by leaving traces on the wall. Moreover, we added some small details by using trash such as a used galvanized iron oil tank as a basin counter , and used glass bottles as a door knob.

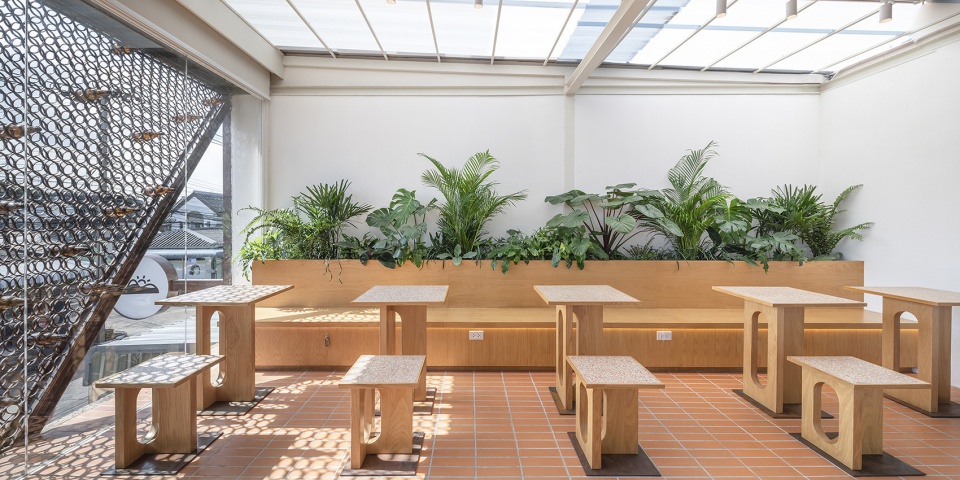

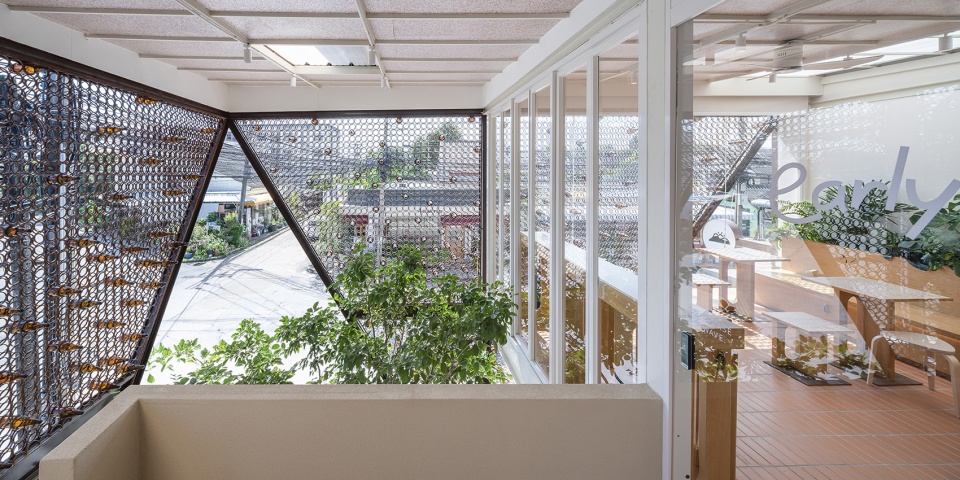

▼二层空间概览，overall of the upper floor ©Thanapol Jongsiripipat

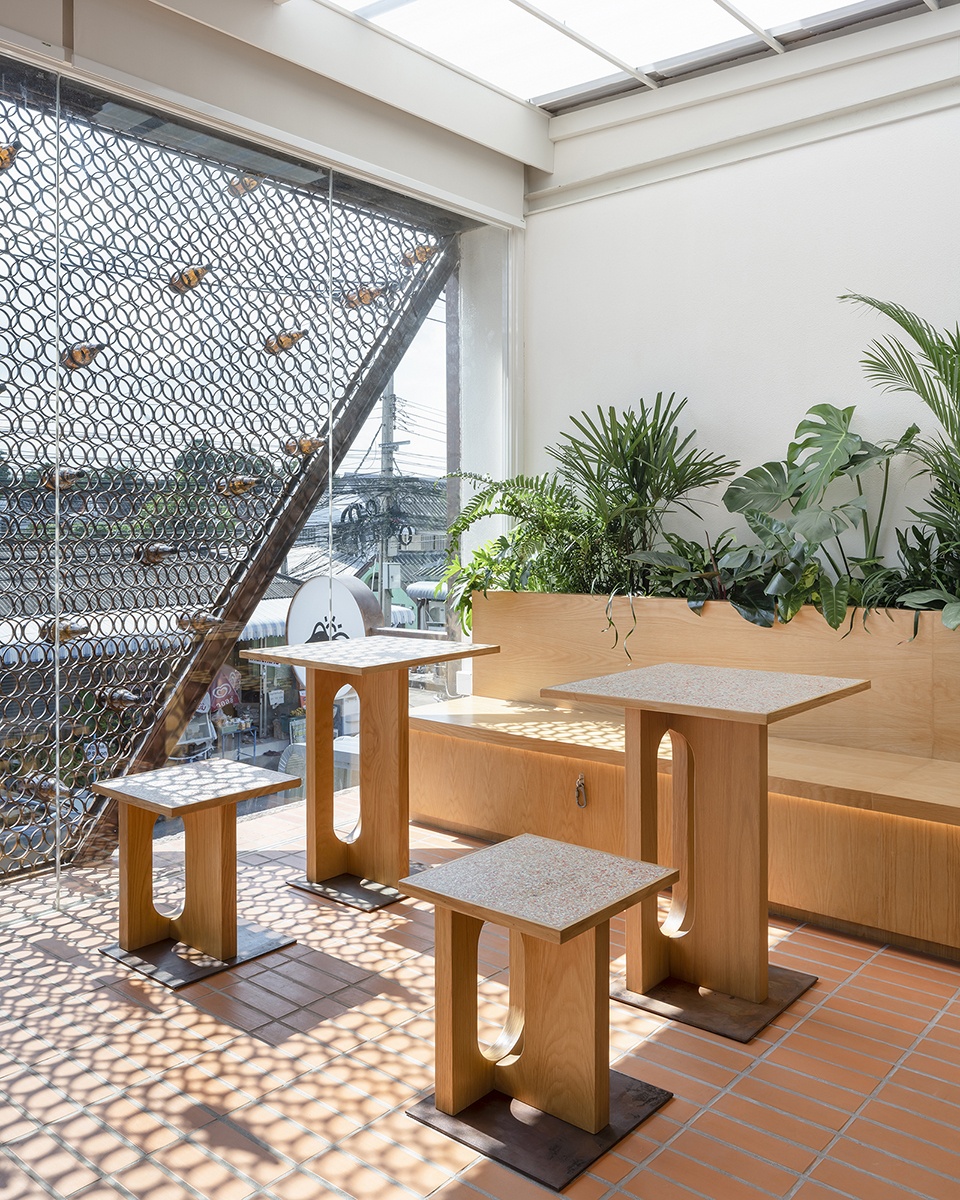

▼二层座位区，seating area on the upper floor ©Thanapol Jongsiripipat

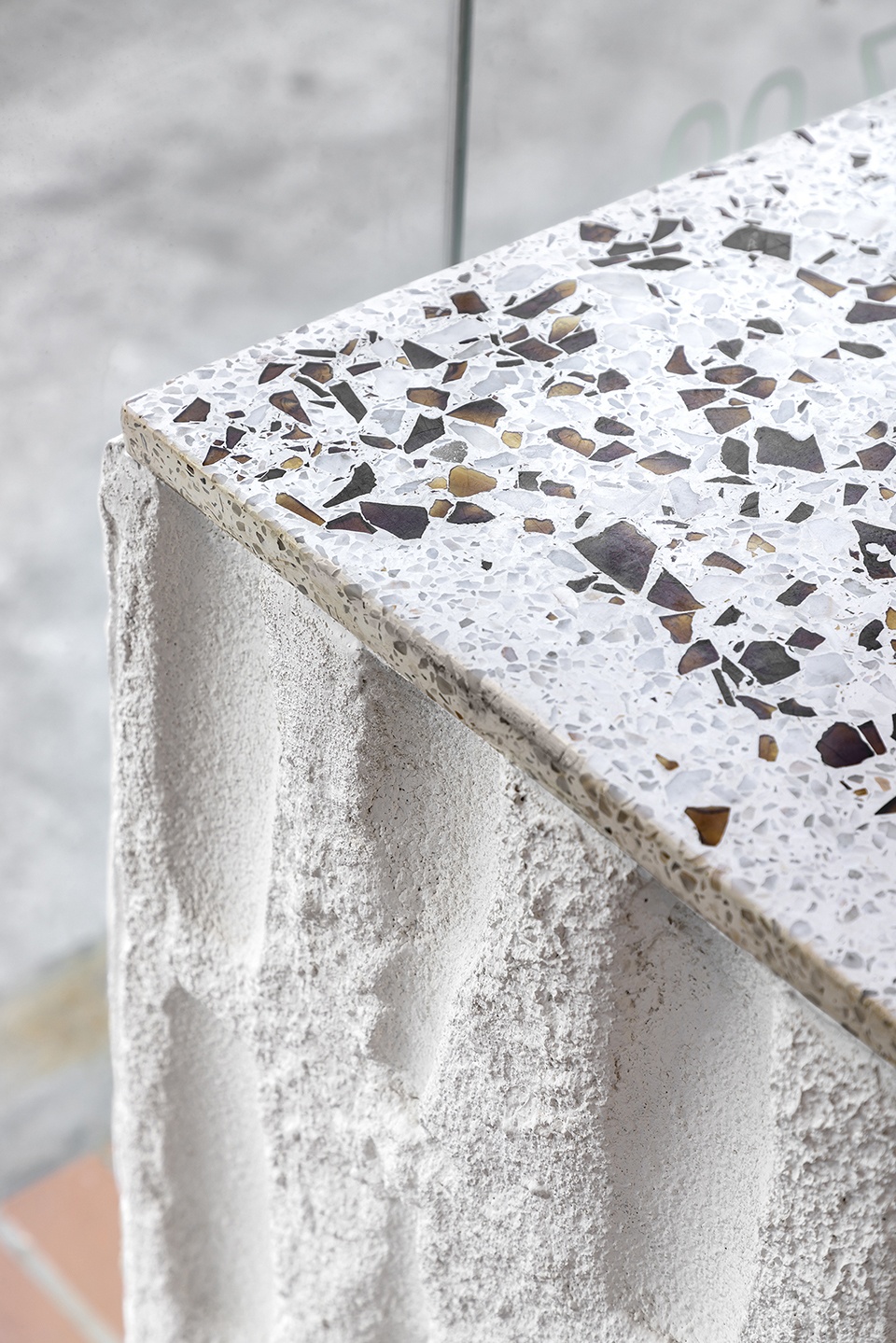

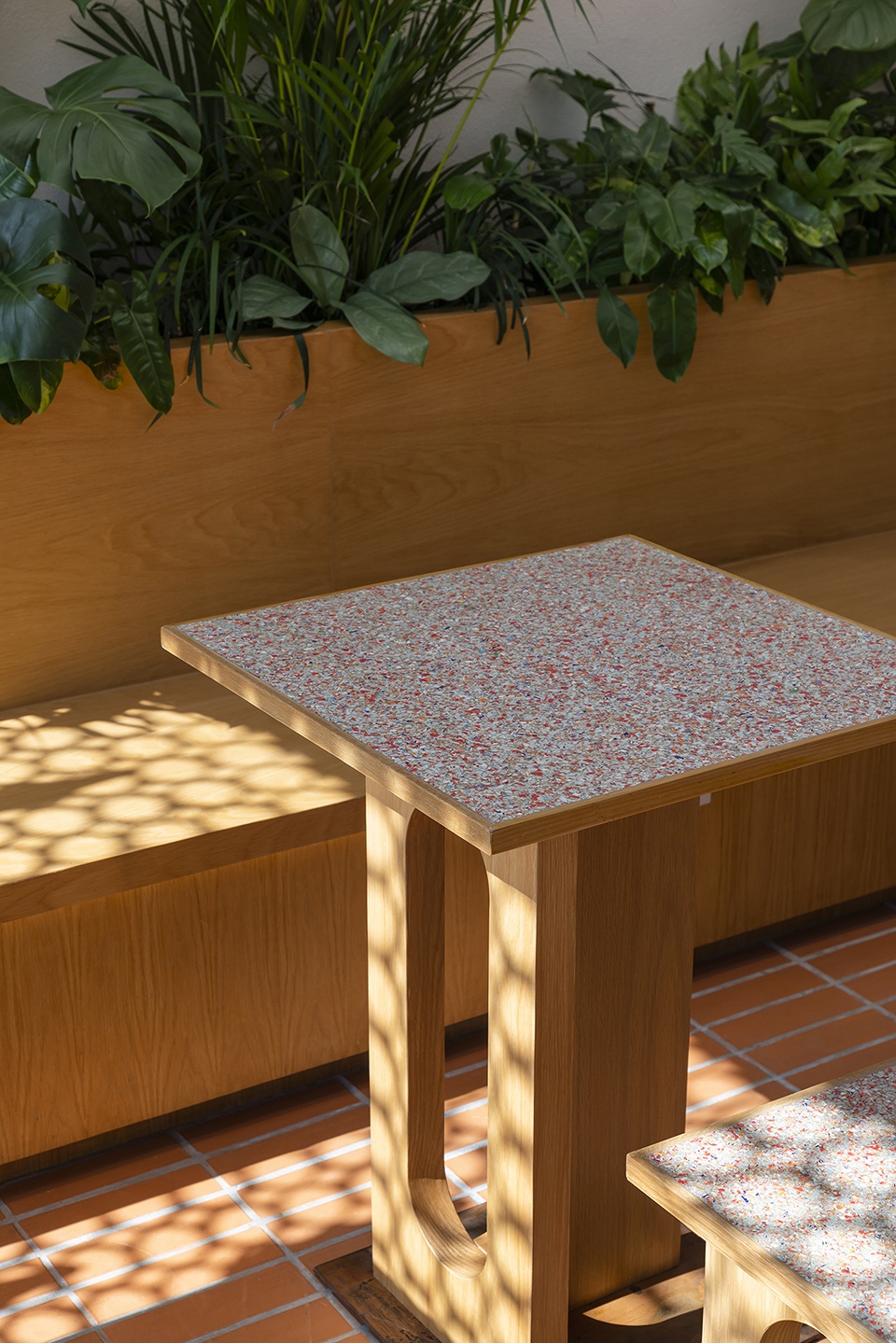

▼水磨石台面细部，terrazzo table details ©Thanapol Jongsiripipat

咖啡馆的管理完全基于绿色和可持续的理念，例如，“不使用吸管”，“不使用塑料杯”，“自带马克杯可享受折扣”，以及细致的垃圾分类处理等。屋顶上太阳能电池板成为了建筑的主要能量来源。Early BKK概念咖啡厅目标是减少浪费，对我们产生的任何碳足迹负责，并鼓励每个人加入到这个行列中。

The management of the cafe is completely based on green and sustainable concept. For example, “no straws”, “no plastic cup” , “bringing your mugs get discount”, and waste separation. Solar cells panels were installed on the roof as the main energy source. Early BKK aimed to create lesser waste and responsible for whatever carbon footprint we created and encouraged everyone to join this effort.

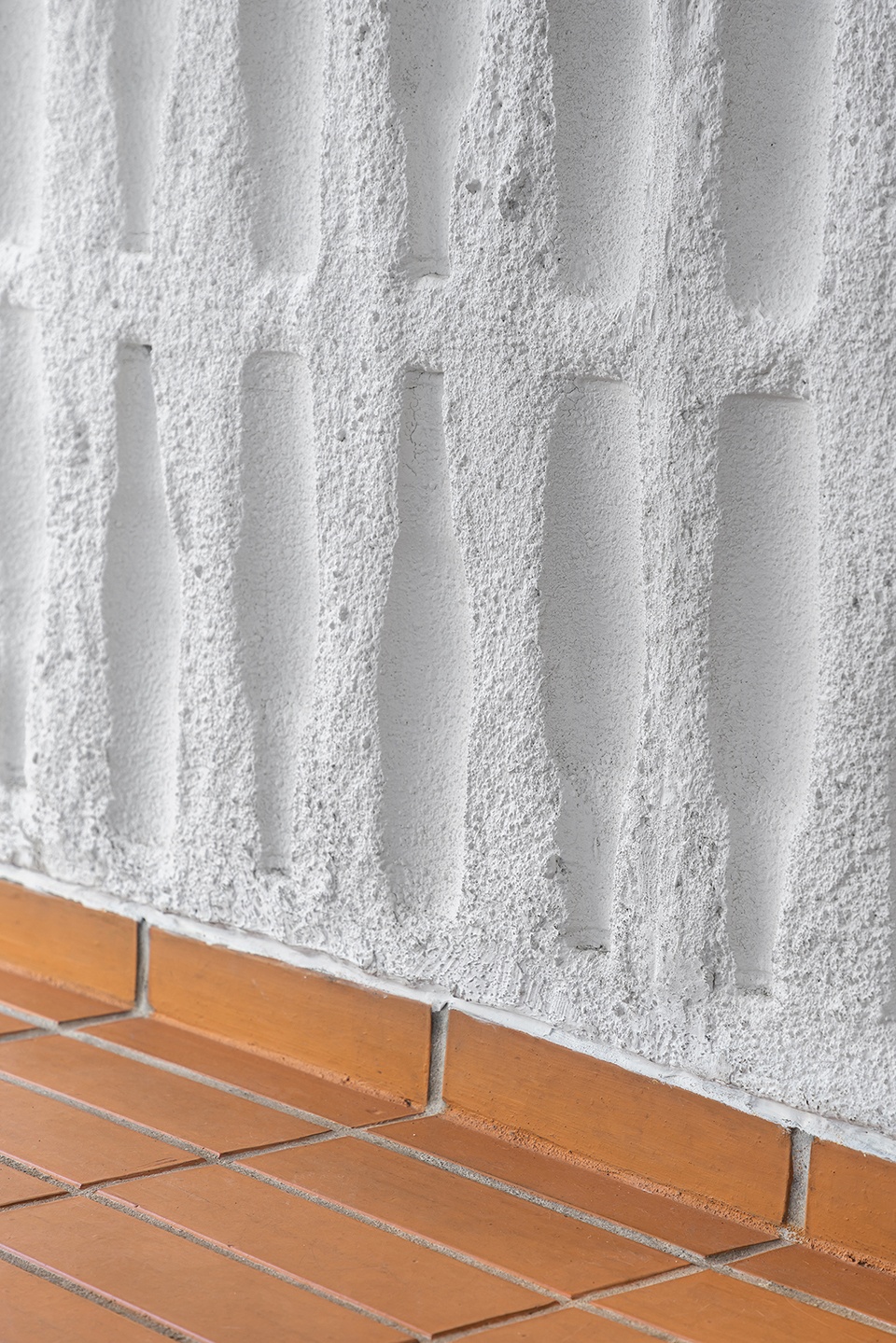

▼印有玻璃瓶纹理的墙面与玻璃瓶制成的灯具，glass textured walls and lamps made of glass bottles ©Thanapol Jongsiripipat

▼细部，details ©Thanapol Jongsiripipat

Early BKK概念咖啡厅的设计，以一种有趣且振奋人心的方式向大众展示出变废为宝的可能，人们最初可能只是来这里喝杯咖啡，但离开时，他们肯定会产生一些对废物和回收概念的新认知。咖啡厅主人与设计团队都相信“小的用心可以让世界变得更美好”，因此，Early BKK将为社会的变革作出一份贡献。

In the end, Early BKK are an inspiring showcase of how interesting upcycling and waste materials can finally created. People might come here for a coffee, but will definitely go back with some changes of their mindset about waste and recycle concept. Believing in small intension can make the world a better place, Early BKK prospected to be a small part of creating some changes in the society.

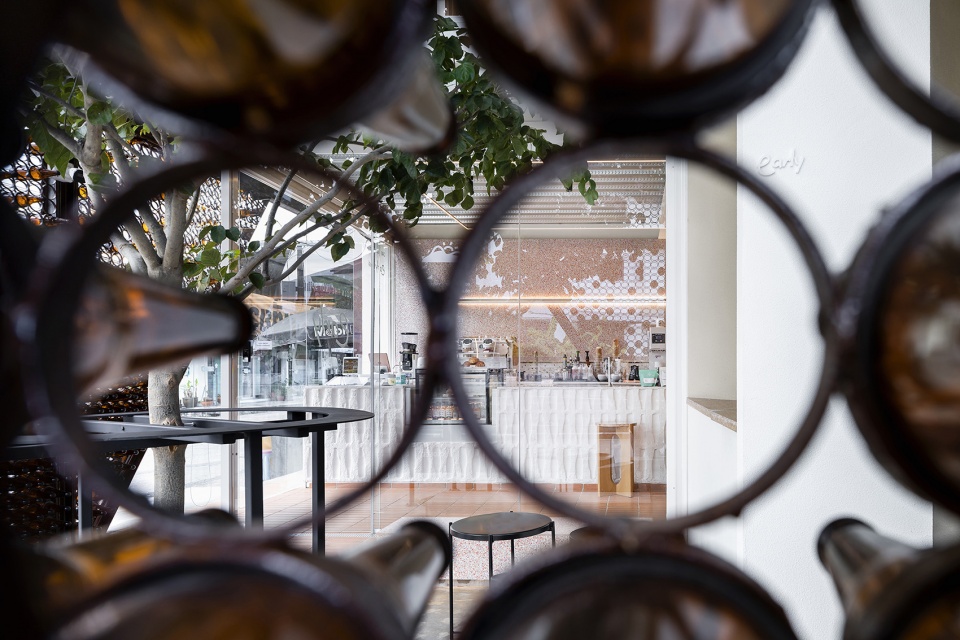

▼由立面缝隙看室内空间，viewing the interior space from the facade ©Thanapol Jongsiripipat

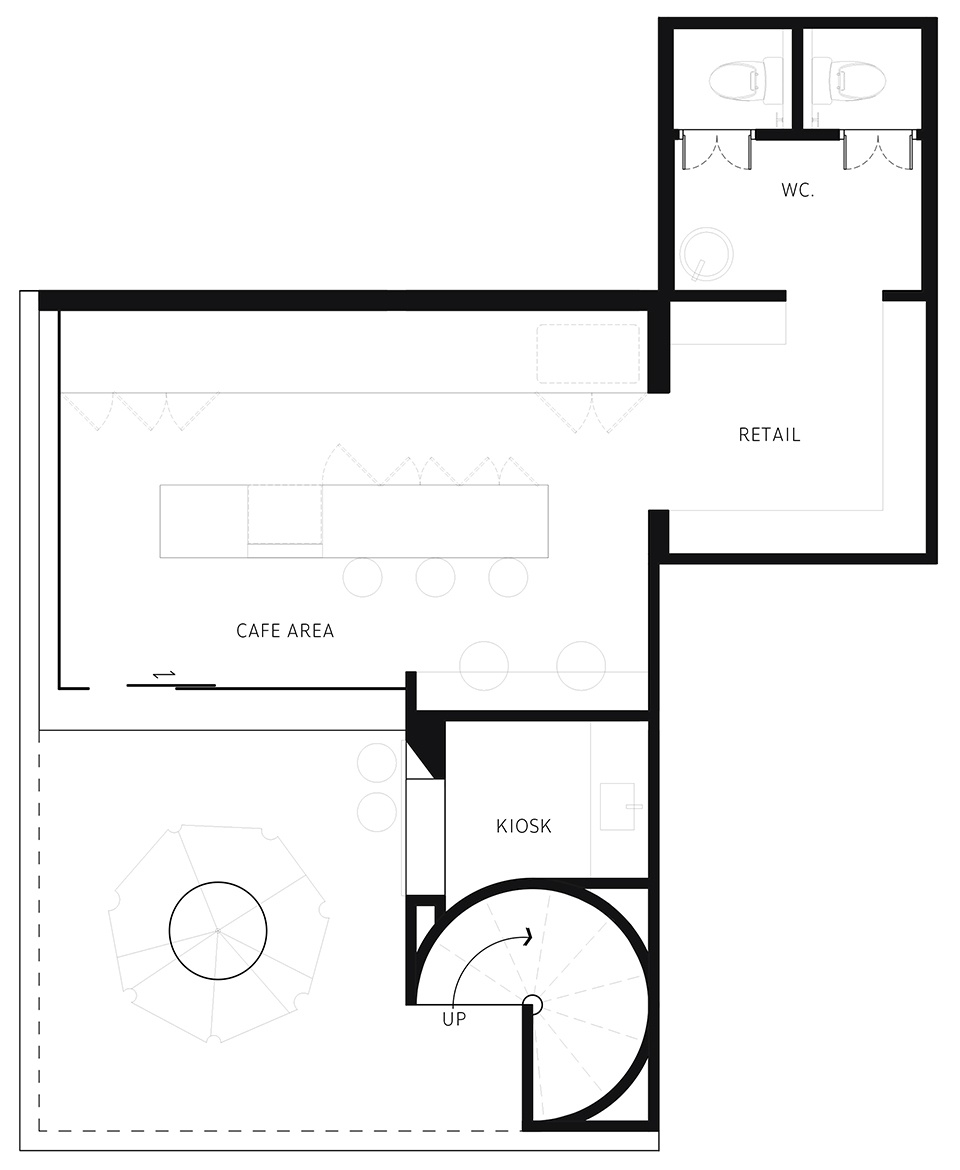

▼底层平面图，ground floor plan ©Spacecraft co.,ltd

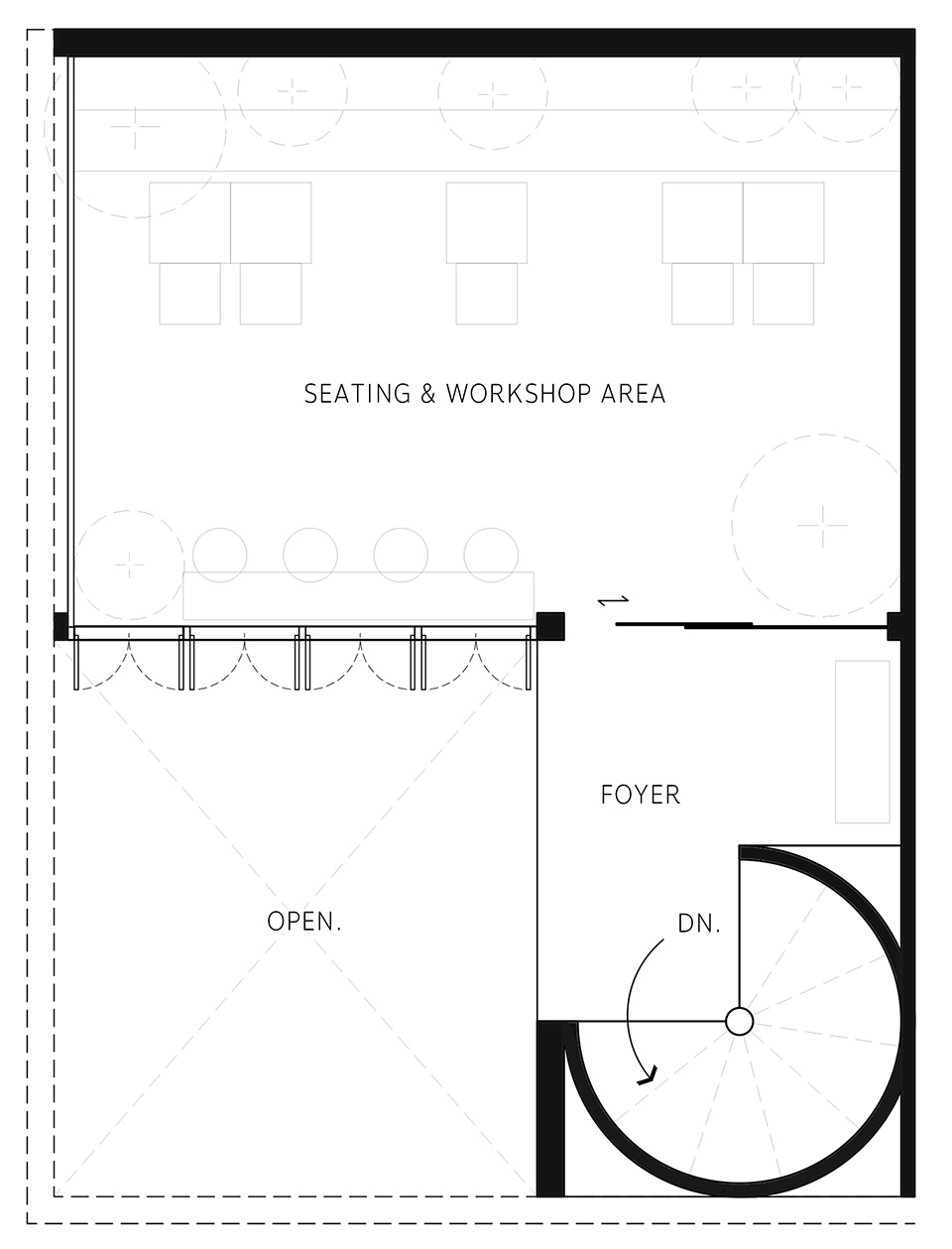

▼二层平面图，upper floor plan ©Spacecraft co.,ltd

Project : Early BKK
Interior architect : Spacecraft co.,ltd
Architect : Spacecraft co.,ltd
Structural Engineer : Aphichart Wongdee
Contact : spacecraft.bkk@gmail.com
www.spacecraftbkk.com
Location : Bangkok Thailand
Project Area: 120 SQ.M.
Project Year: 2022
Photographer : Thanapol Jongsiripipat
