起伏的顶篷在平面上与停靠在港口前沿的船只群相呼应，为人们提供了遮阳避雨的场所。

An undulating canopy, which in plan echoes the aggregation of boats docked along the harbour front, offers shading and rain shelter.

▼项目视频，video ©Rory Gardiner

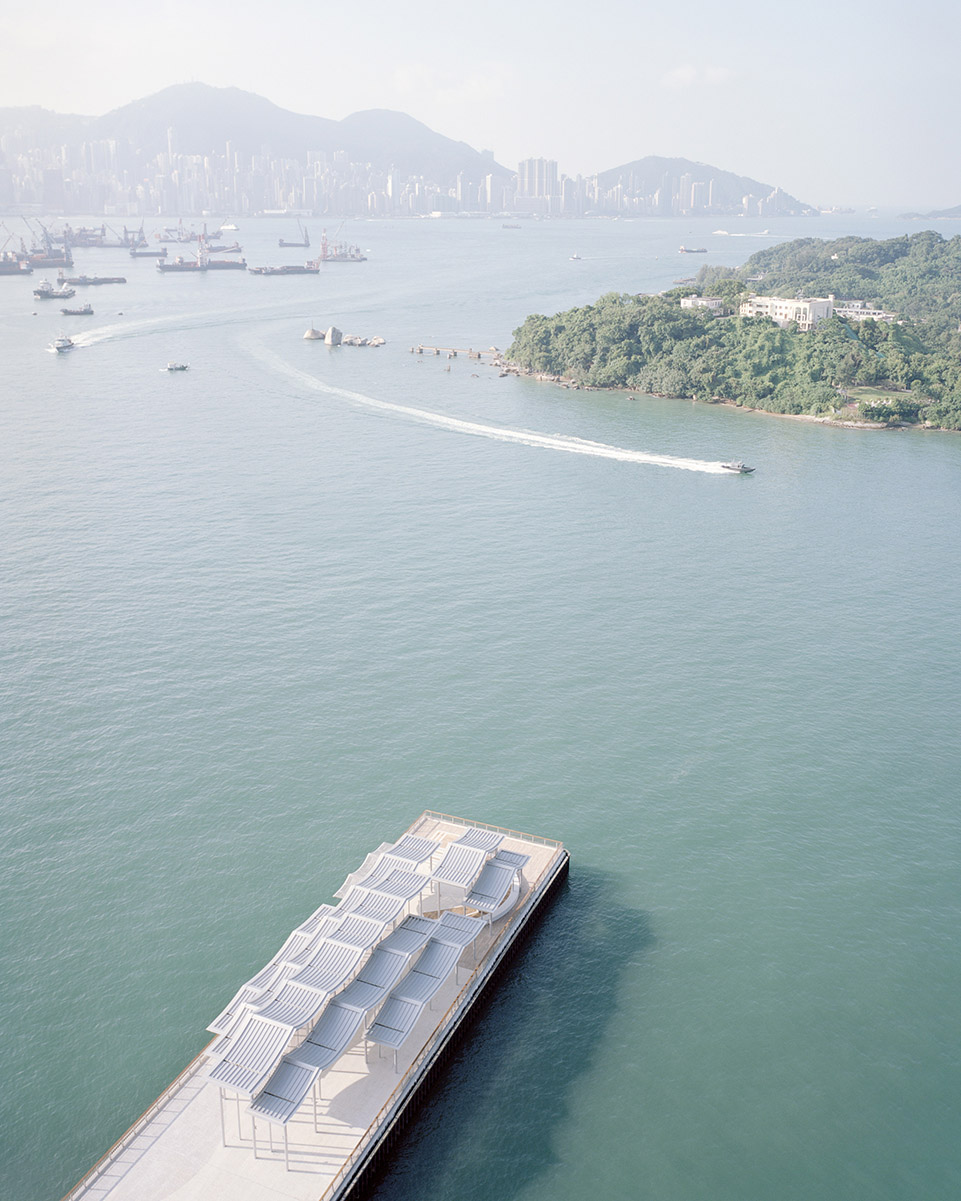

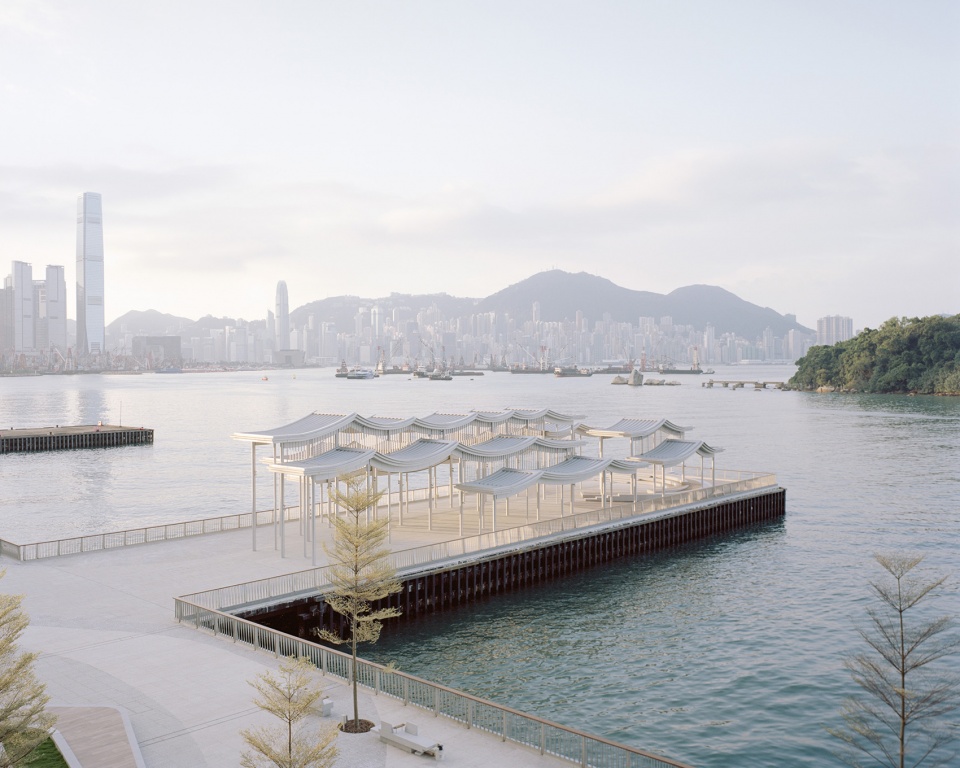

▼项目概览，project overview ©Rory Gardiner

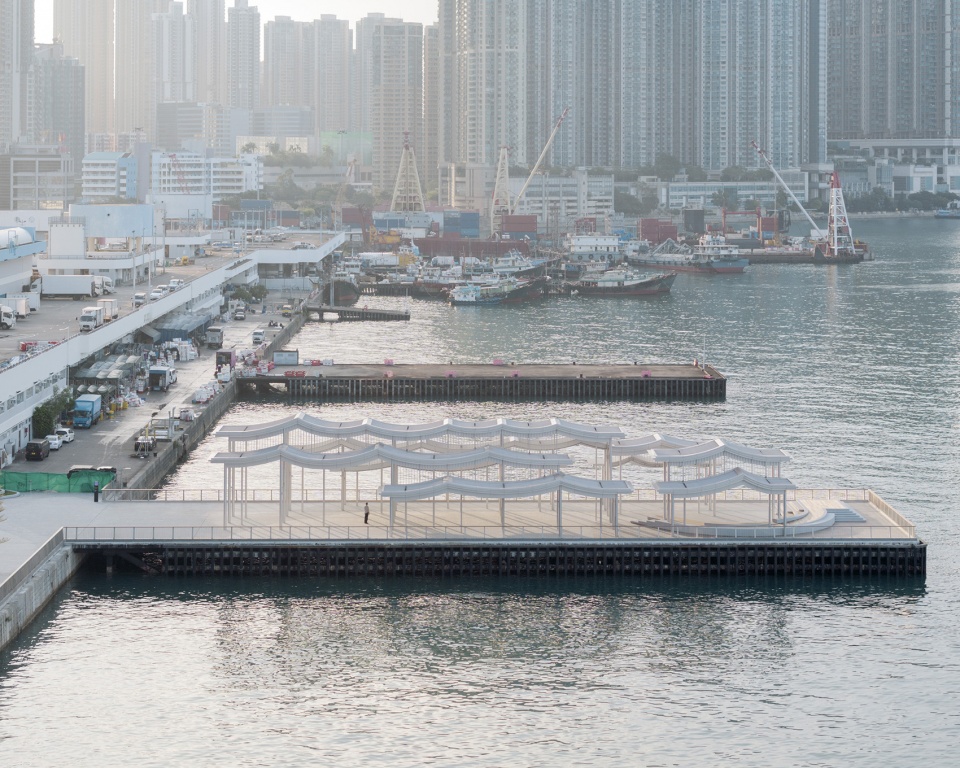

▼周围环境，surroundings ©Rory Gardiner

码头顶蓬坐落在长沙湾海滨长廊，位于九龙半岛西侧新翻修的滨水区。场地是一块新旧交替融合的地区，码头正好处于西北侧的新的商业和住宅卡发和东南侧的更工业化的食品批发市场之间。也是整个滨水景观更新项目的一部分。码头和海滨长廊通过三条道路连接城市肌理——一条宽敞的露天道路连接MTR车站，穿过毗邻的西九龙中央庭院的小径和通往住宅区的私人小路。码头的景观处理与海滨长廊沿线的阶梯式座椅和植物完美融合。

The pier canopy is located along the Cheung Sha Wan promenade, a newly refurbished stretch of waterfront in the west side of the Kowloon Peninsula. The site is a mix of old and new, with the pier
situated in between new residential and commercial development to the northwest and the more industrial wholesale food market to the southeast. It is also part of a larger waterfront landscape upgrade. The pier and promenade are connected back to the city fabric through three main routes – a generous open-air path connecting to the MTR station, a path through the adjacent Townplace West Kowloon’s central courtyard, and an intimate path next to the residential complex. The landscape treatment of the pier seamlessly integrates with the terraced seating and planting along the promenade.

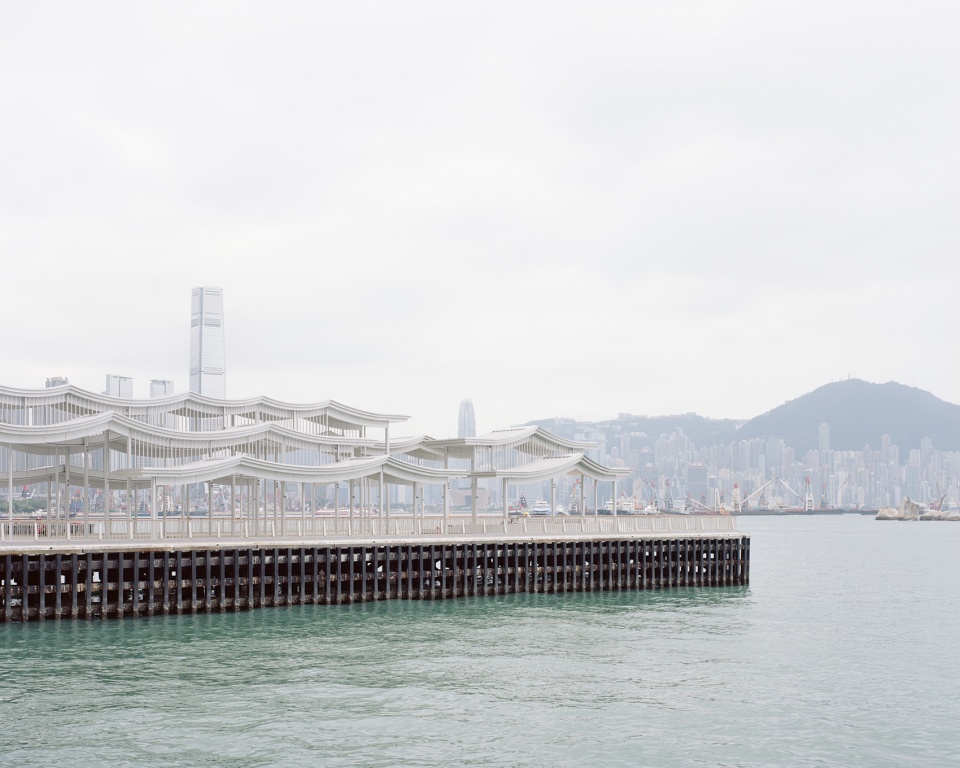

▼项目近景，closer view of the project ©Rory Gardiner

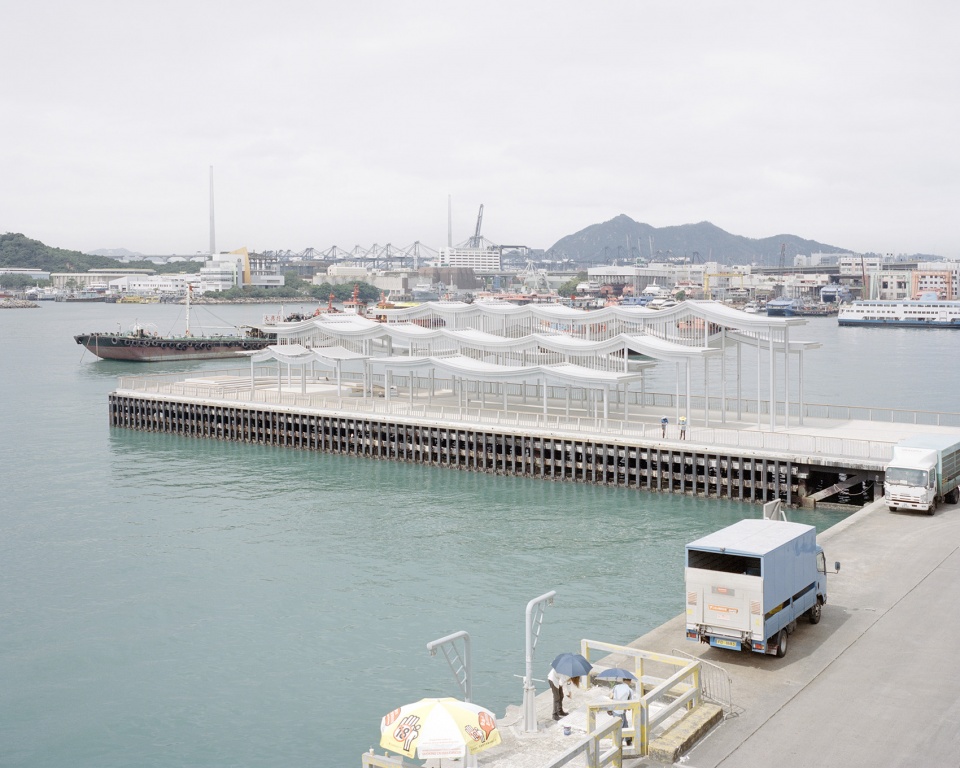

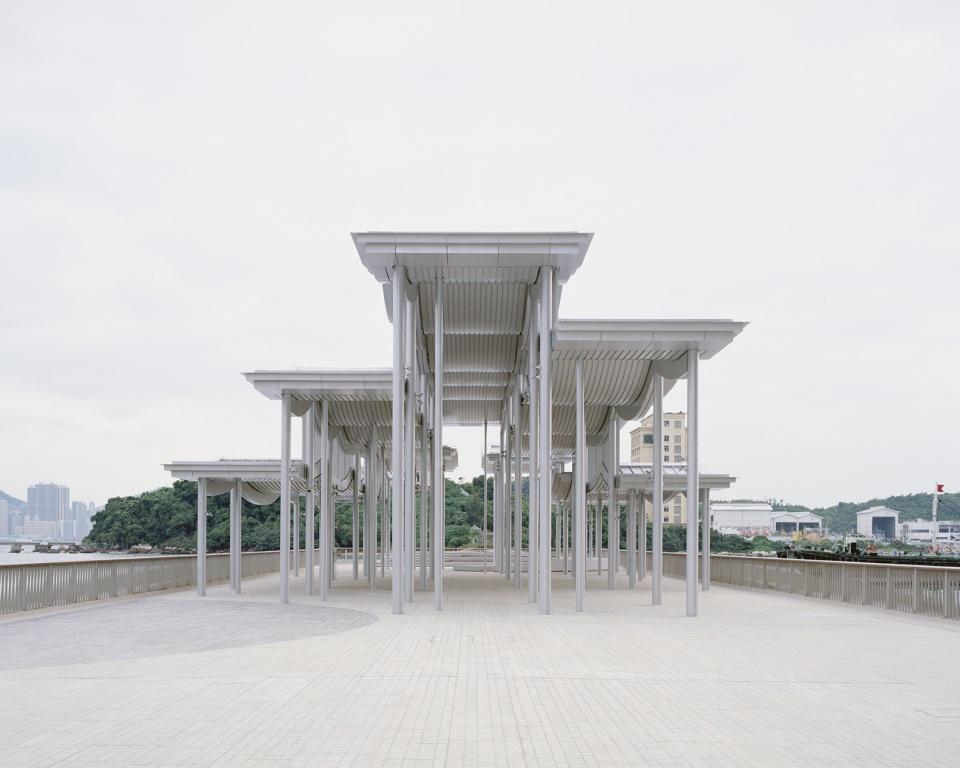

▼项目外观，exterior ©Rory Gardiner

设计概念
Design Concept

码头展亭的设计源于场地的两个重要因素——船只和水域。历史上，这片区域长期从货轮上卸货，停靠的船只看上去像是码头的延伸。屋顶的顶篷设计也参照了这种不规则的船坞聚集，同时打破屋顶的体量。在结构上，屋顶被分为五个条带，并在剖面和平面上都有变化，给屋檐下带来空间上的多元化。屋顶层次的多样也创造了可以进行被动冷却和交叉通风的空隙。阳光一整日都穿透屋顶，折射出光影之间的互相作用。在夜间，内部的光照穿过屋顶的缝隙，点亮水面上的独特形态。

▼1998年历史照片，historic photo from 1998 ©New Office Works

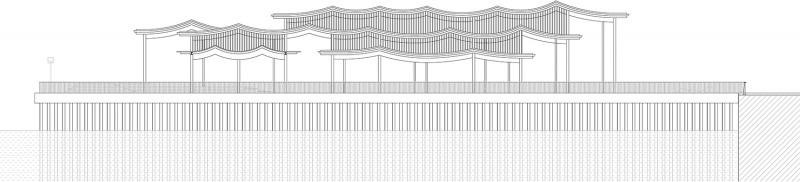

▼立面，elevation ©New Office Works

The design of the pier canopy stems from two key elements of the site – the boats and the water. Historically, this section of the waterfront was quite active in offloading cargo, with the docking of boats appearing like an extension of the pier itself. The design of the roof canopy makes reference to this informal pattern of aggregation, while also breaking up the mass of the roof. Structurally, the roof is divided into five strips that shift in planand section, giving spatial diversity to the space below. The variation in roof levels creates voids that allow for passive cooling and cross-ventilation.Throughout the day, sunlight penetrates the shelter creating an interplay of light and shadow. At night, interior light seeps through the gaps between the roofs, leaving a distinctive profile floating above the water.

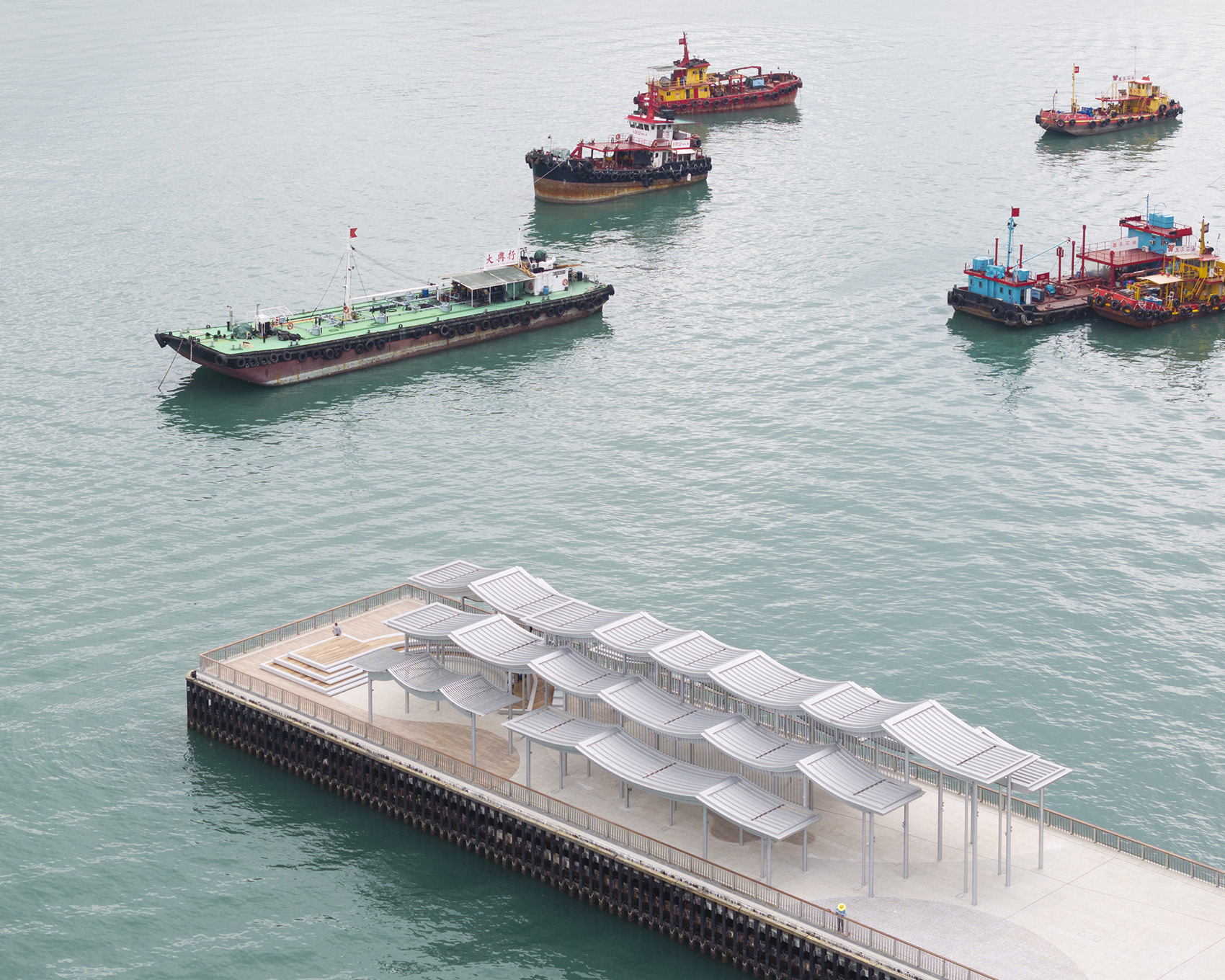

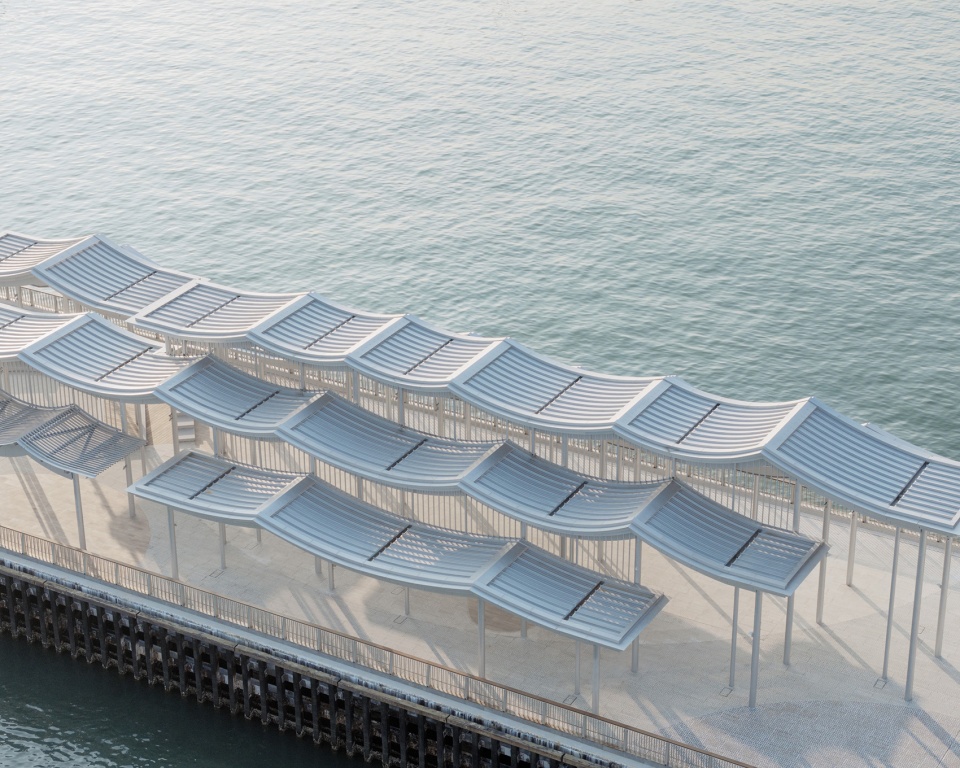

▼屋顶参照船坞的聚集，Roof resemblence of boat docking aggregations ©Rory Gardiner

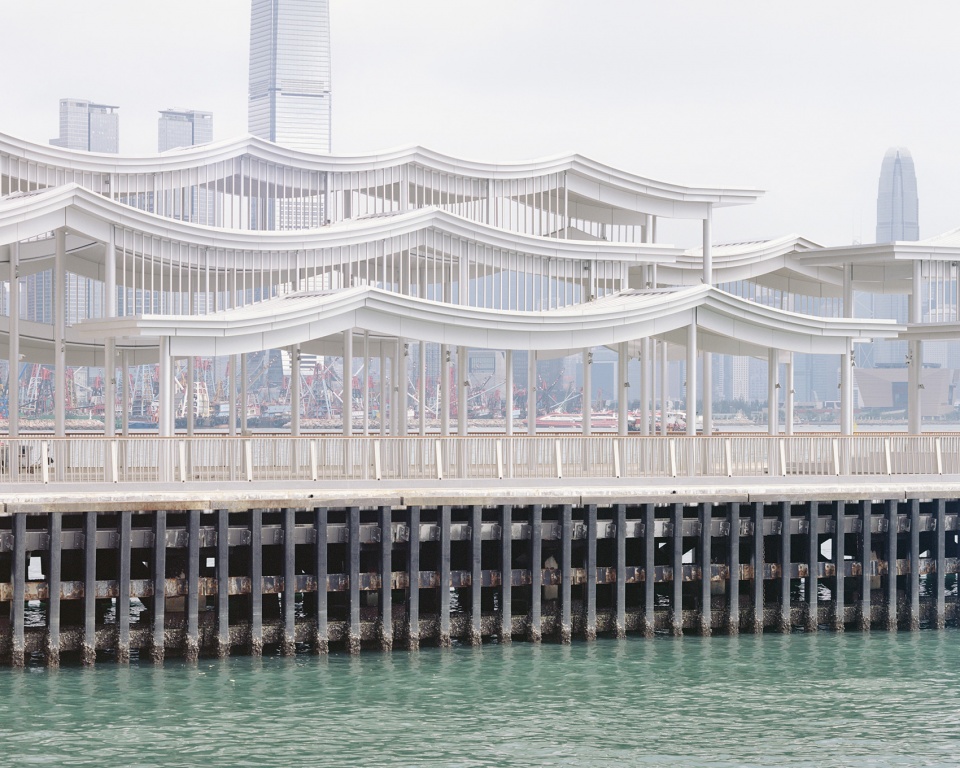

▼条带状的屋顶，Roof divided into stripes ©Rory Gardiner

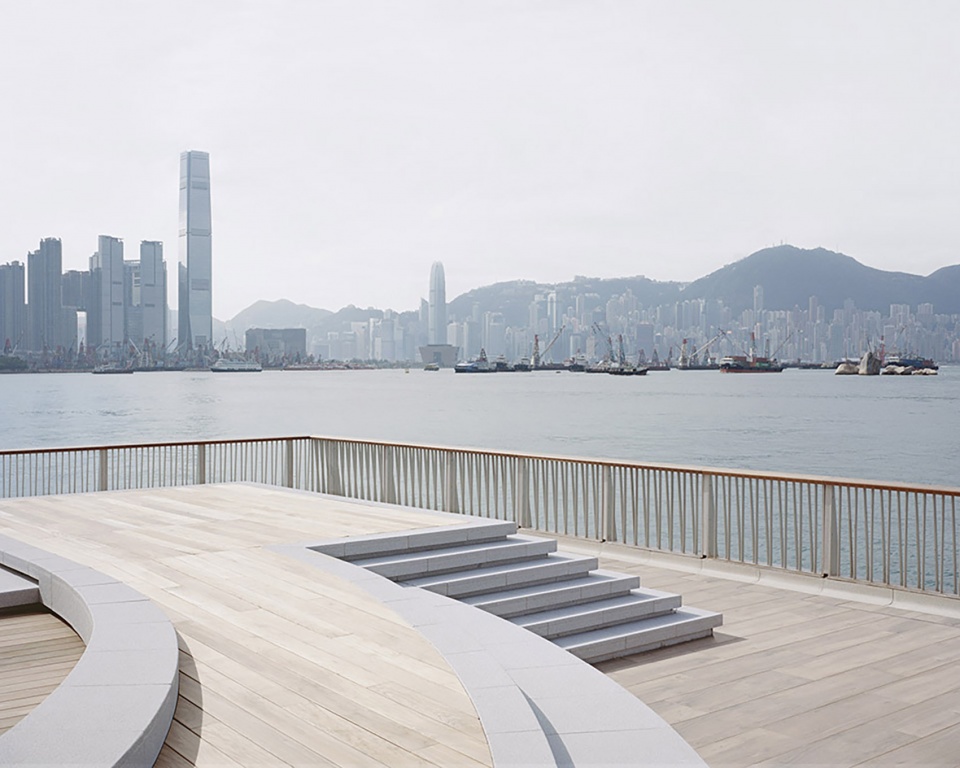

▼退台式阶梯，terraced stair ©Rory Gardiner

材料和细部
Material and Detail

展亭采用钢结构，由圆柱形立柱和弧形横梁组成。最高的屋面位于中间，从中间向两侧递减。屋顶边缘的柱子没有加倍，而是通过一系列悬挂杆将较低的屋顶悬挂在较高的屋顶上。顶部的屋顶采用了立缝屋顶，凹槽加强了屋顶的弧形轮廓，而缎面铝板则构成了下方的天花板，在其表面反射出波光粼粼的水面。

The canopy utilizes a steel structure composed of cylindrical columns and curved beams.The tallest roof strip is located in the middle and the roof level steps down on either side.Instead of doubling up the columns along the roof edge, the lower roof is hung from the higher roof through a series of suspension rods. A standing seam roof is used to clad the roof on the top, the grooves enhancing the curved roof profile, while satin aluminum panels form the ceiling below, reflecting the rippling water on its surface.

▼屋顶从中间向两侧依次递减，the roof level steps down on either side ©Rory Gardiner

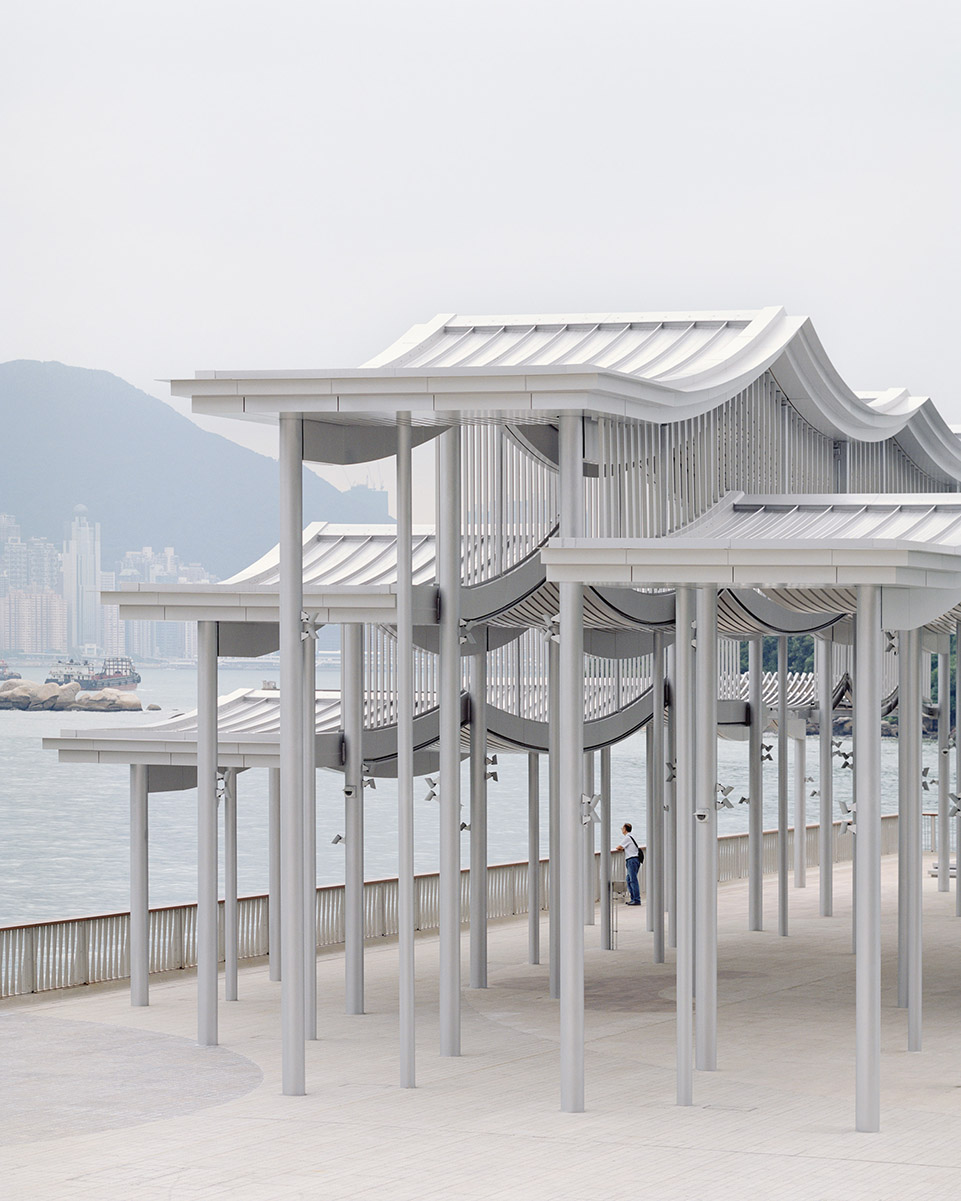

▼屋顶结构，the roof structure ©Rory Gardiner

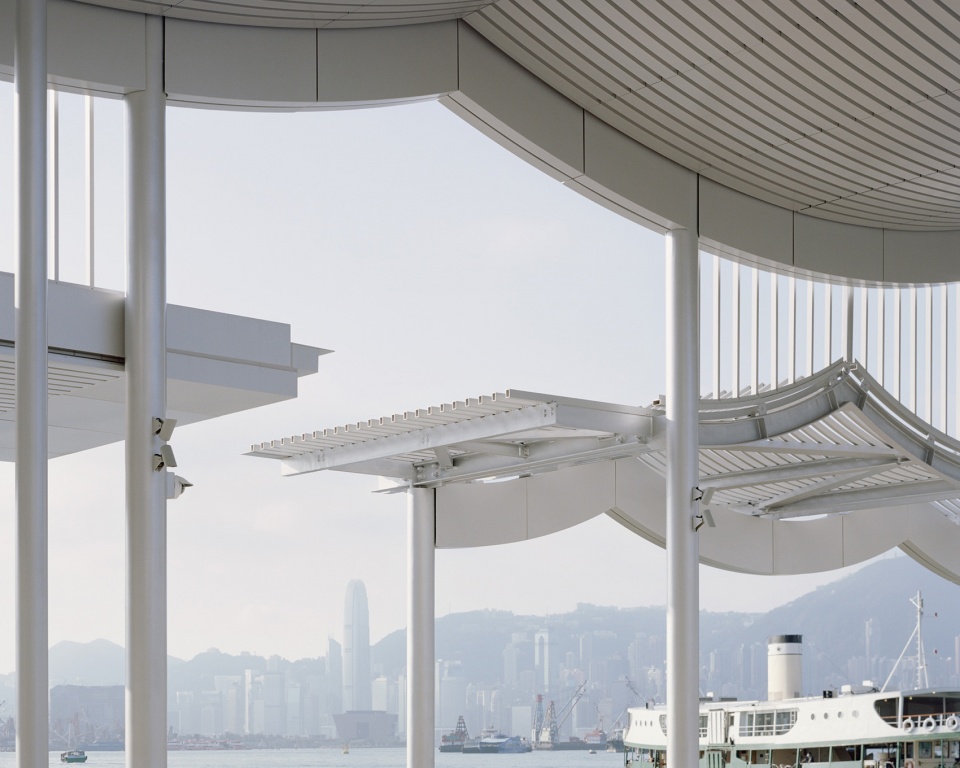

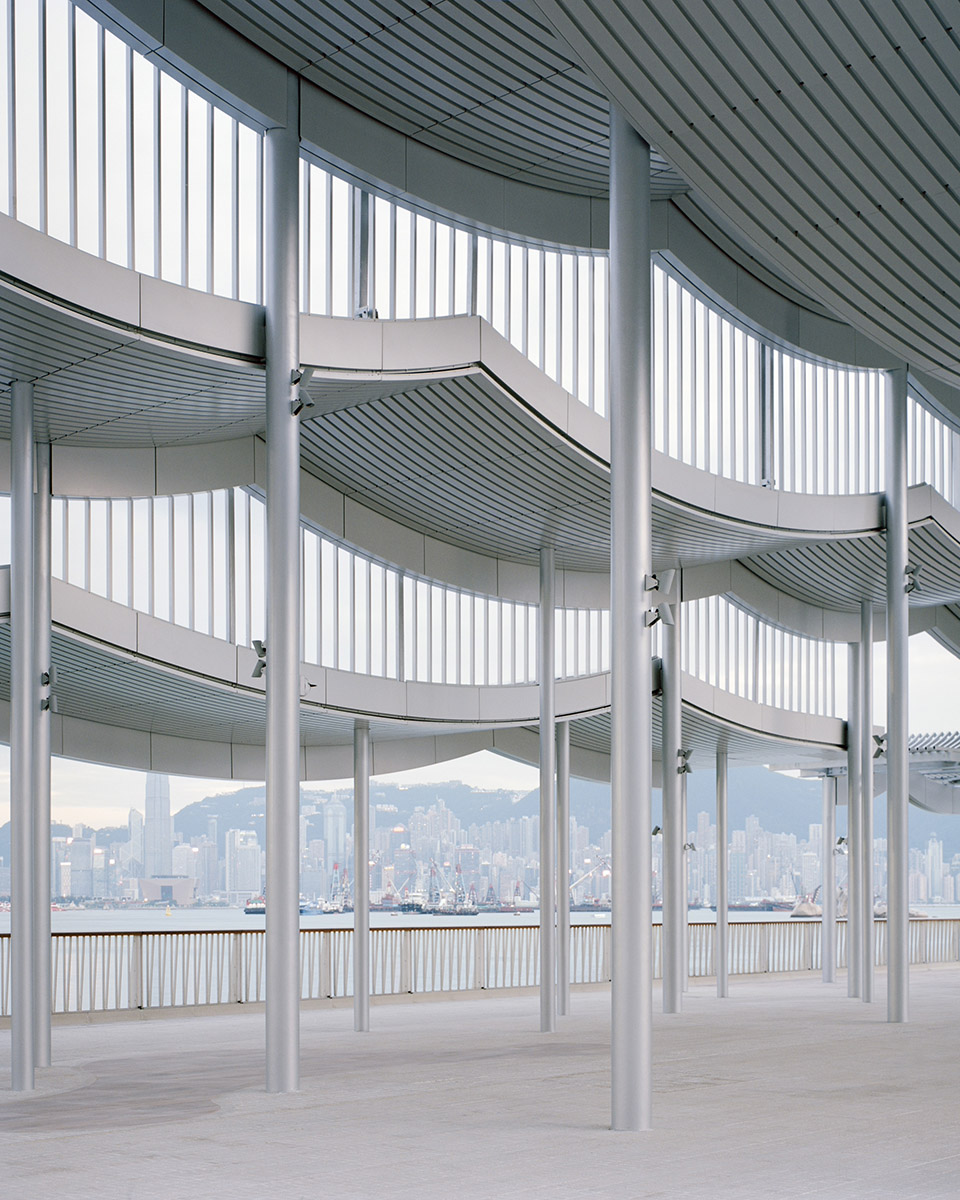

▼缎面铝板构成的天花板，satin aluminum panels form the ceiling ©Rory Gardiner

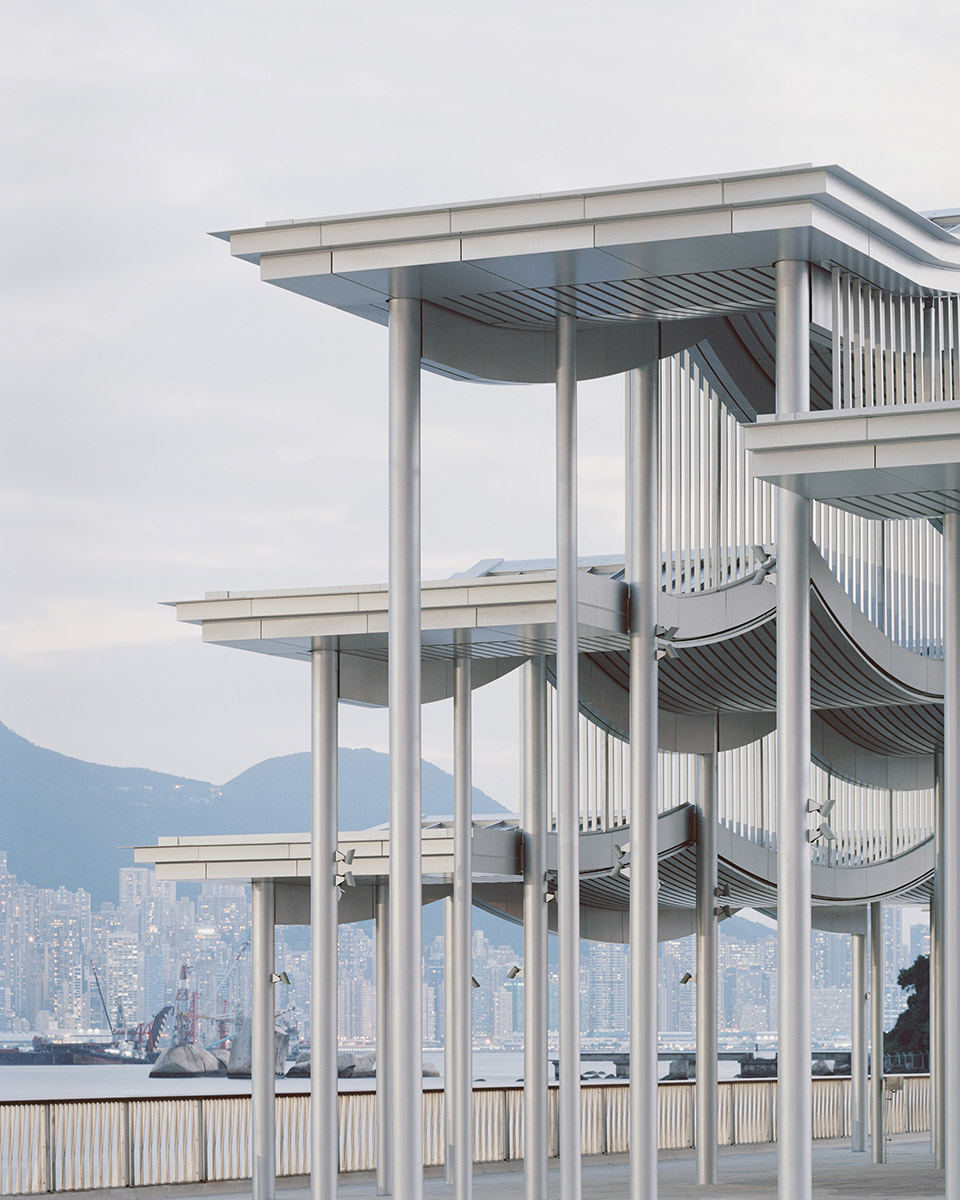

▼屋顶细部，roof detail ©Rory Gardiner

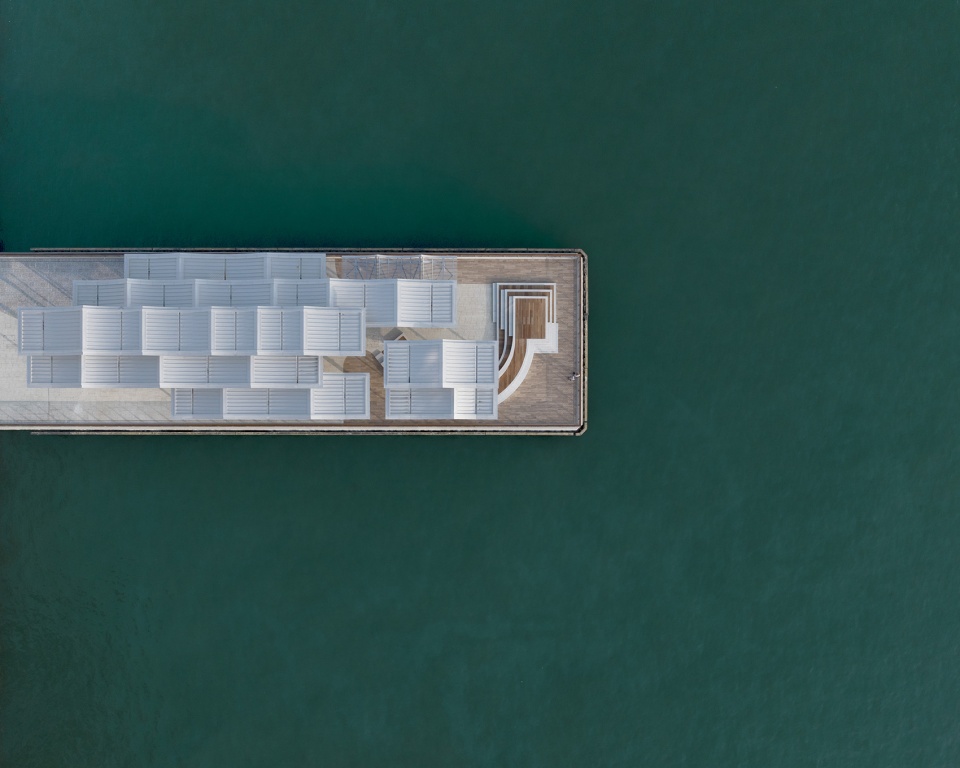

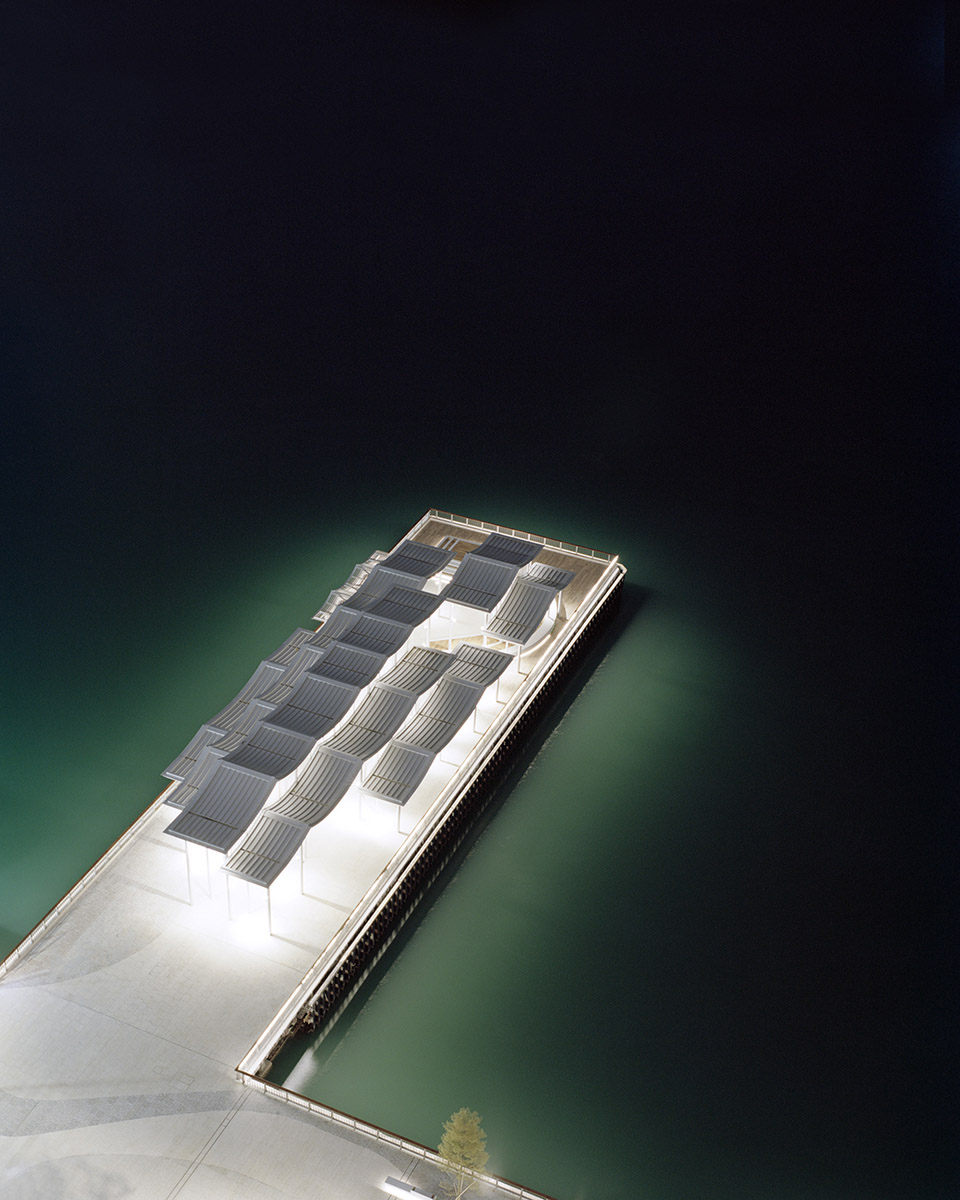

▼夜景，night view ©Rory Gardiner

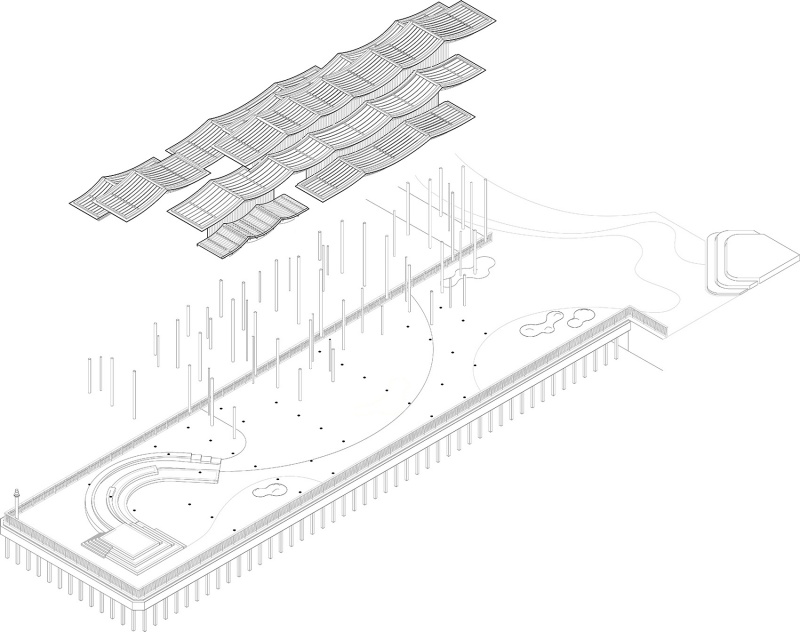

▼轴测，axon ©New Office Works

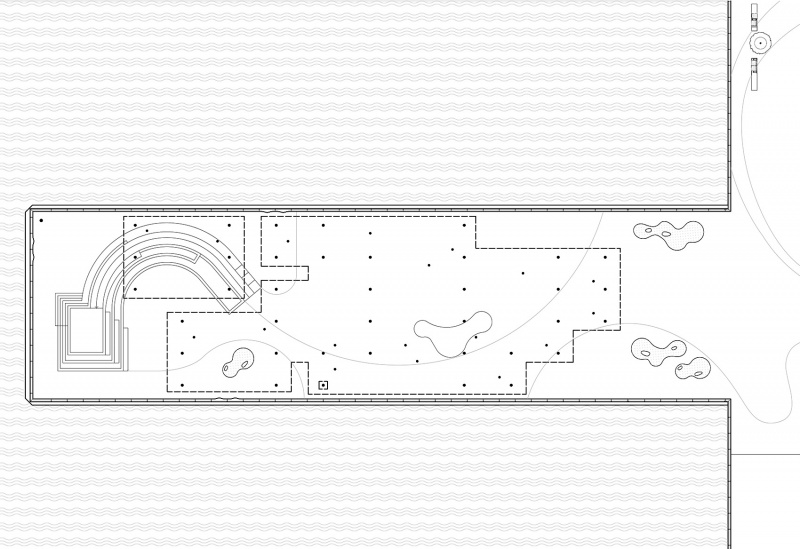

▼平面，plan ©New Office Works

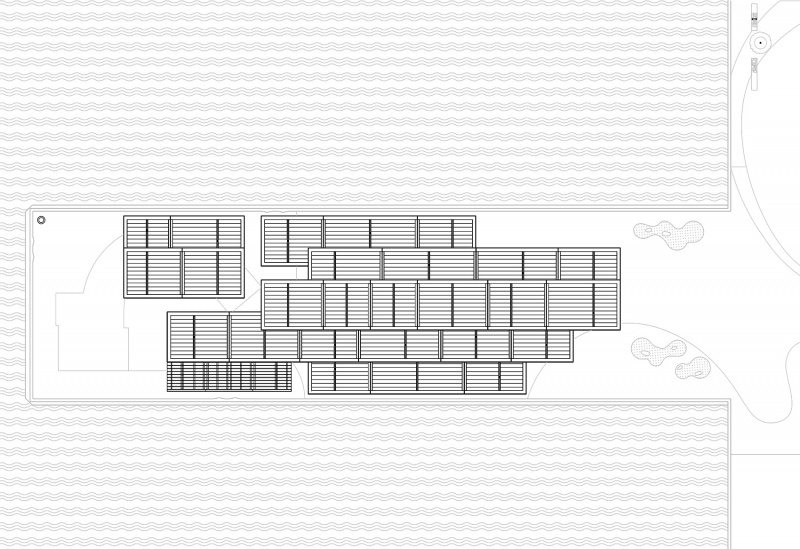

▼屋顶平面，roof plan ©New Office Works

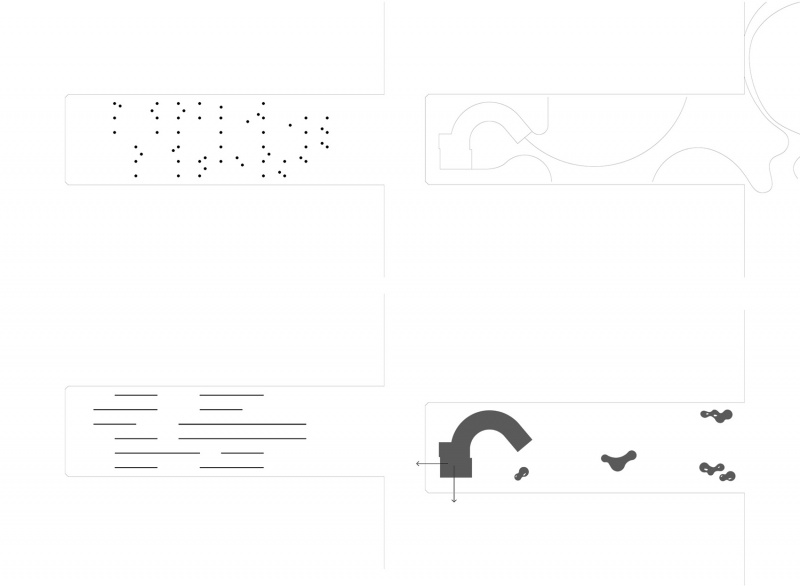

▼分析图，diagram©New Office Works

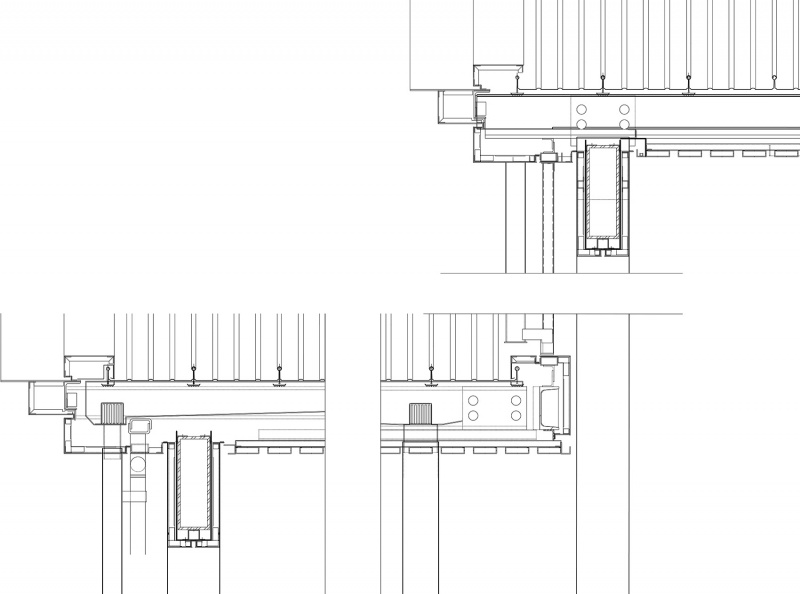

▼细部，derail ©New Office Works

Project Title：Cheung Sha Wan Pier Canopy
Location：Hong Kong, China
Client：Sun Hung Kai Properties
Design Architect：New Office Works
Local Architect： P&T Architects
Program：Pier Canopy
Area：610 sqm / 6,565 sq ft
Photographer：Rory Gardiner
