感谢 江苏中锐华东建筑设计研究院有限公司荣朝晖工作室 对gooood的分享。更多关于：ZRADI on gooood
Appreciation towards Rong Zhaohui Studio, ZRADI for providing the following description:

这是一个位于成都天府新区兴隆湖的工业项目，但高品质的规划要求建筑需要呈现更好的城市形象。工艺要求建筑是个封闭的空间状态，所以对建筑外立面的采光几乎没有要求。这就让建筑外立面的设计成为了一个纯粹的形式操作。

This is an industrial project located at Xinglong Lake in Tianfu New Area, Chengdu. However, the high-quality planning standards require the buildings to present a better urban image. The industrial requirements dictate that the buildings should be in a closed spatial state, resulting in almost no need for daylight on the building façades. This makes the design of the building façades purely a matter of formal operation.

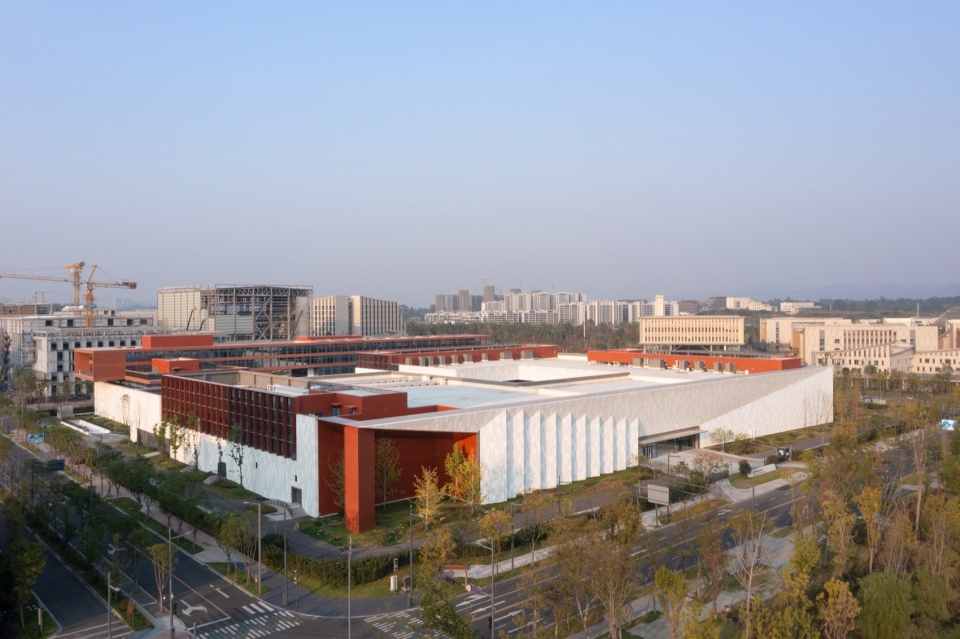

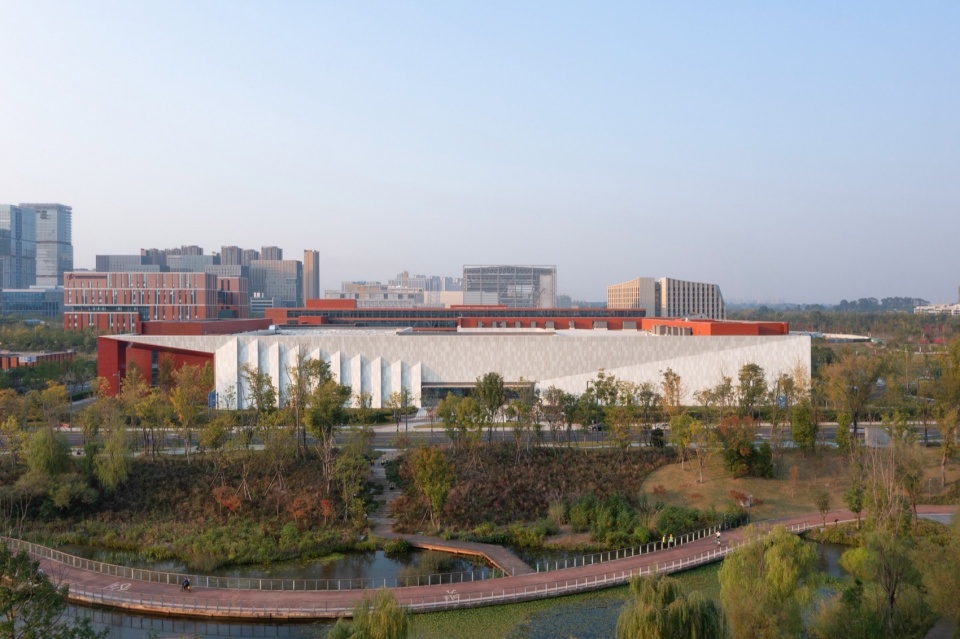

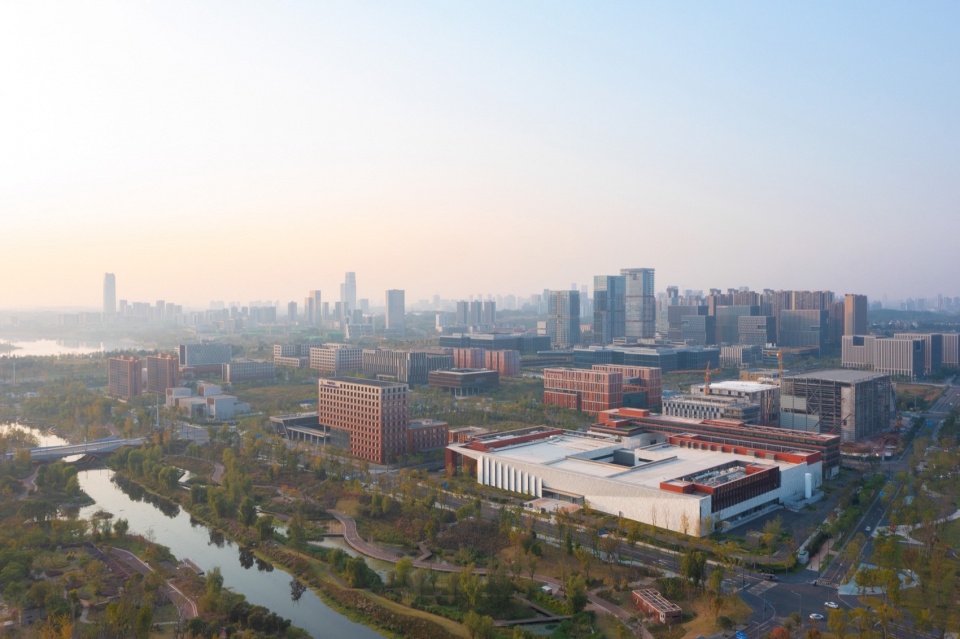

▼项目与周围环境鸟瞰，Aerial View of the site © 存在建筑摄影

▼项目鸟瞰，Aerial View © 存在建筑摄影

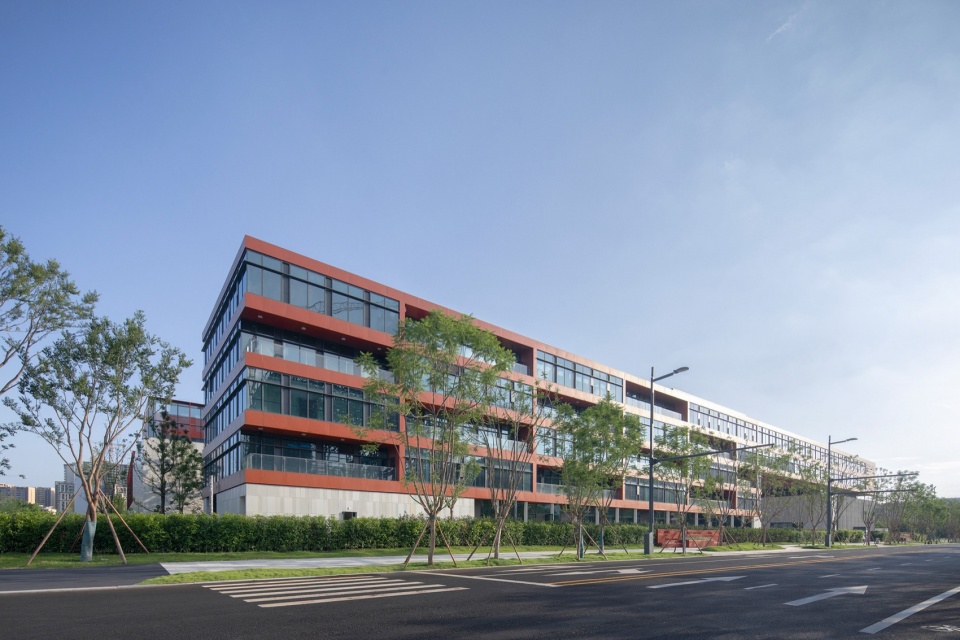

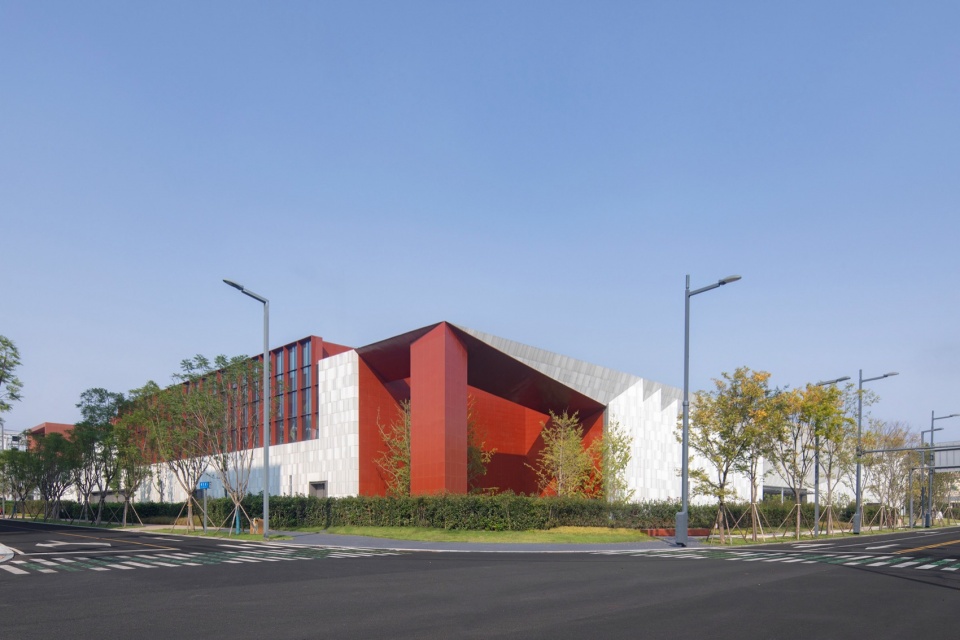

▼东北角人视，Northeast View © 存在建筑摄影

▼南侧人视，South View © 存在建筑摄影

层级
Hierarchy

立面失去了采光要求也就失去了“层”这个尺度标尺，但建筑师不希望建筑外皮是一个无尺度的覆盖。这样做存在一个悖论：连续表皮的极度形而上和表皮图案内的形而下呈现之间的矛盾。一个有层级区分的体块处理方式是对城市的尊重，也是在城市尺度日益扩大的背景下建筑师对人的关怀。

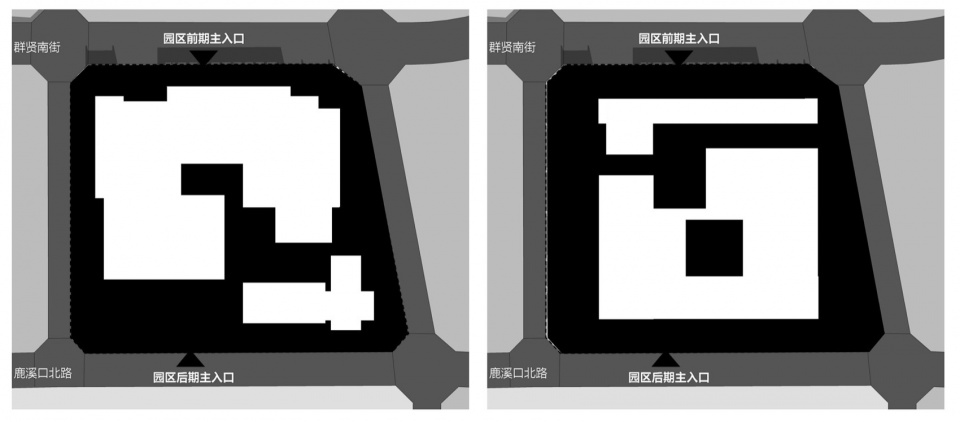

▼图底关系，Figure Ground © 荣朝晖工作室

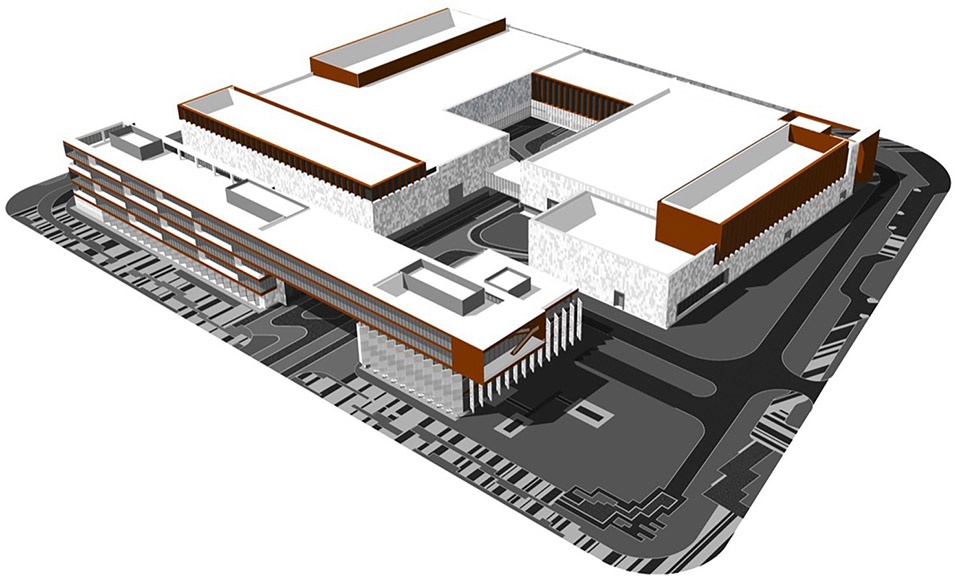

▼数字模型，Digital Model © 荣朝晖工作室

With the façade losing the requirement for daylight, it also loses the scale reference of “layers.” However, the architect does not want the building’s exterior to be a scale-less covering. This creates a paradox: the contradiction between the highly metaphysical nature of a continuous skin and the metaphysical presentation within the skin pattern. A hierarchical treatment of volumes shows respect for the city and reflects the architect’s concern for people in the context of the city’s ever-expanding scale.

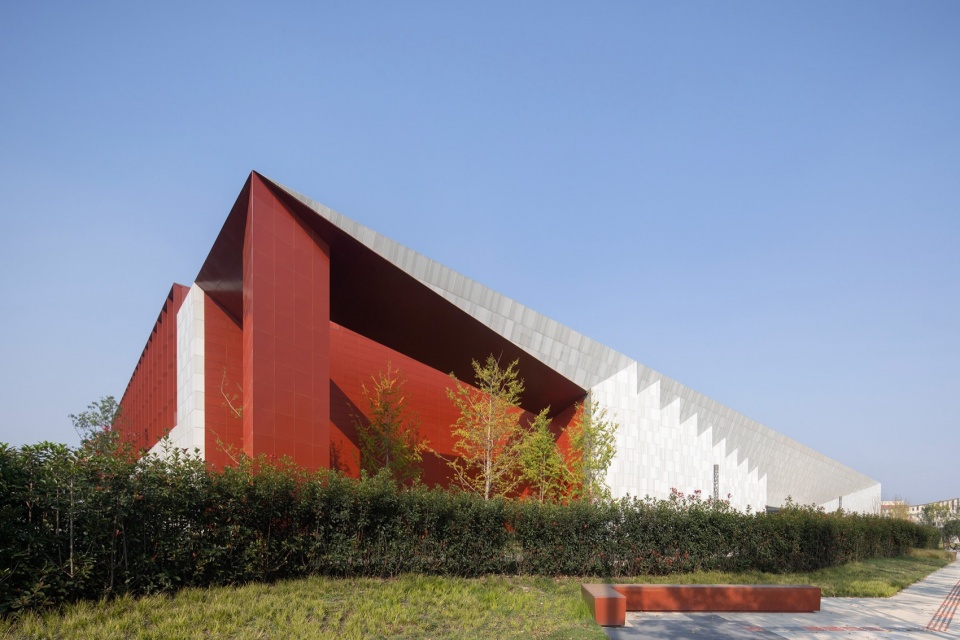

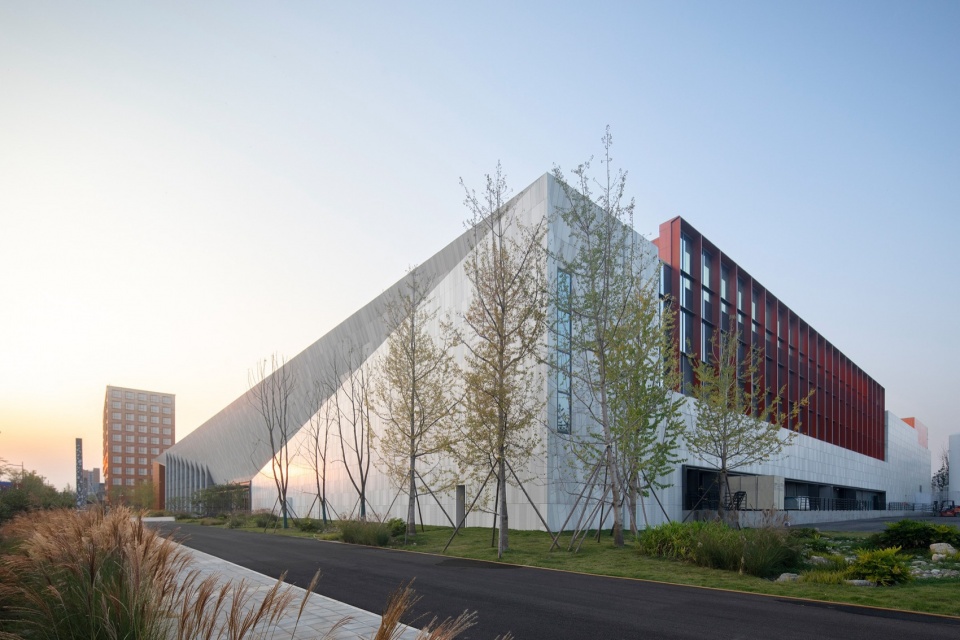

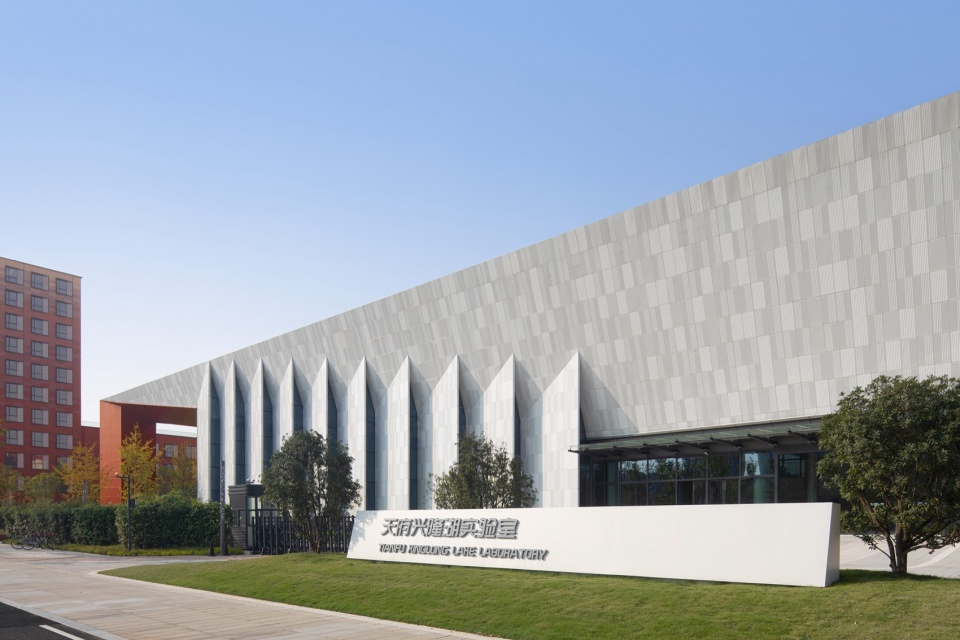

▼西南角人视，Southwest View © 存在建筑摄影

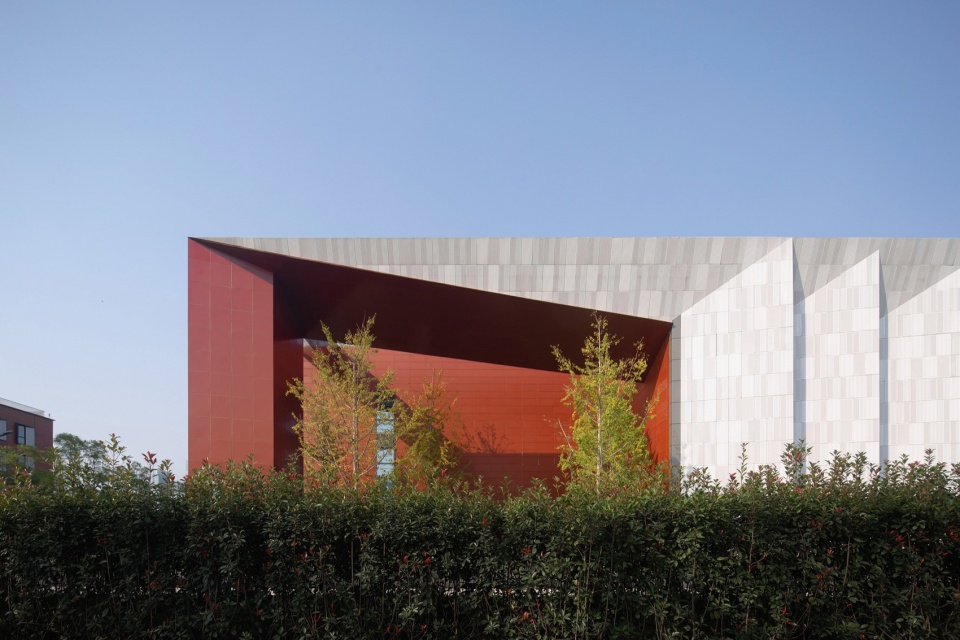

▼东南角人视，Southeast View © 存在建筑摄影

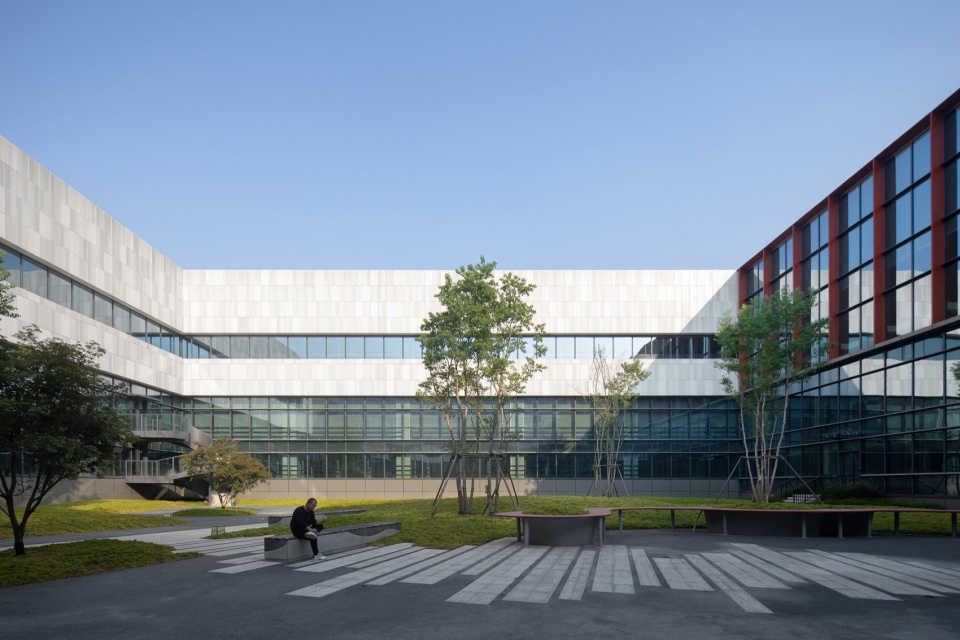

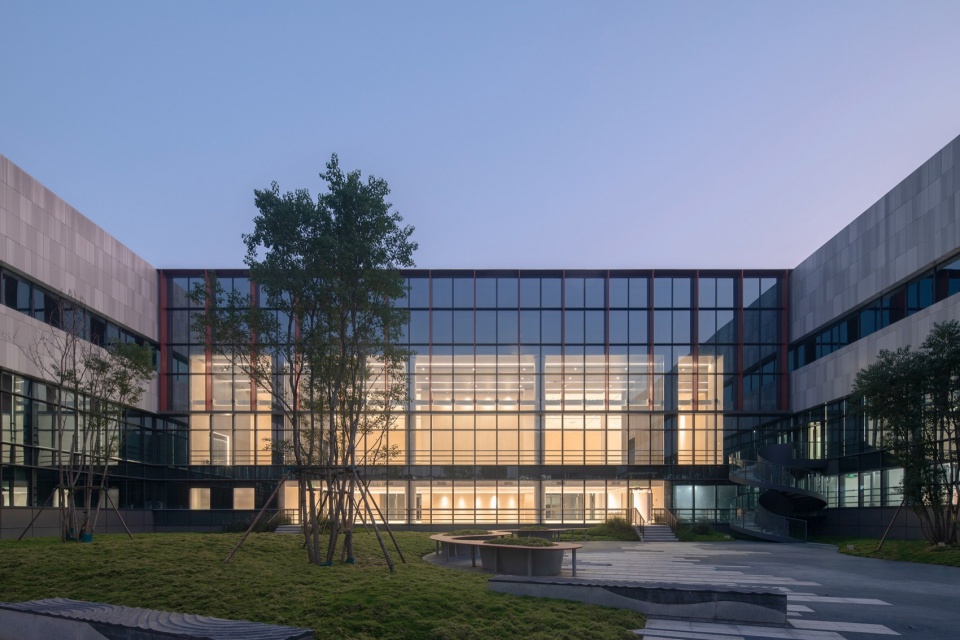

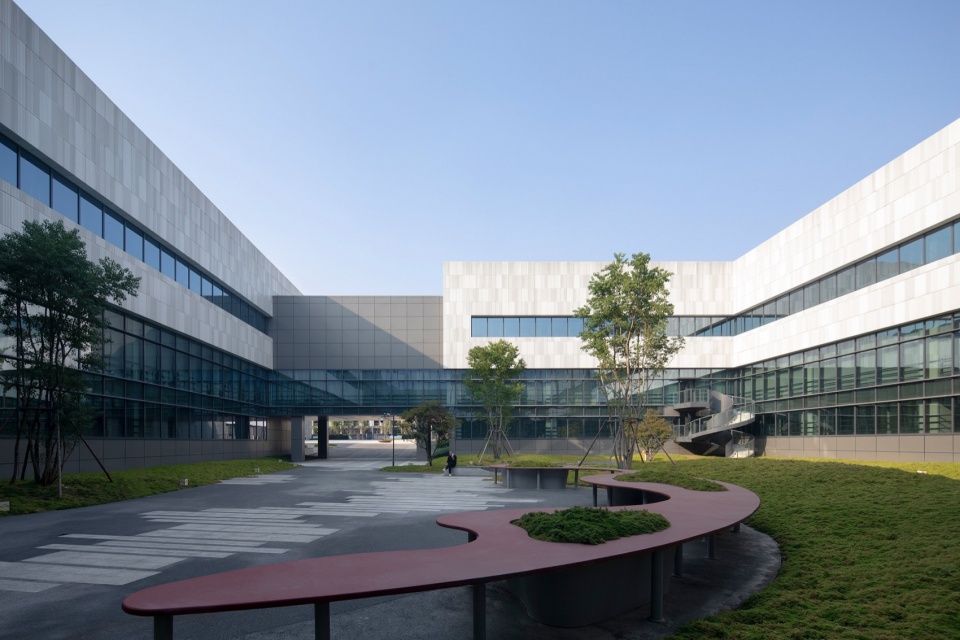

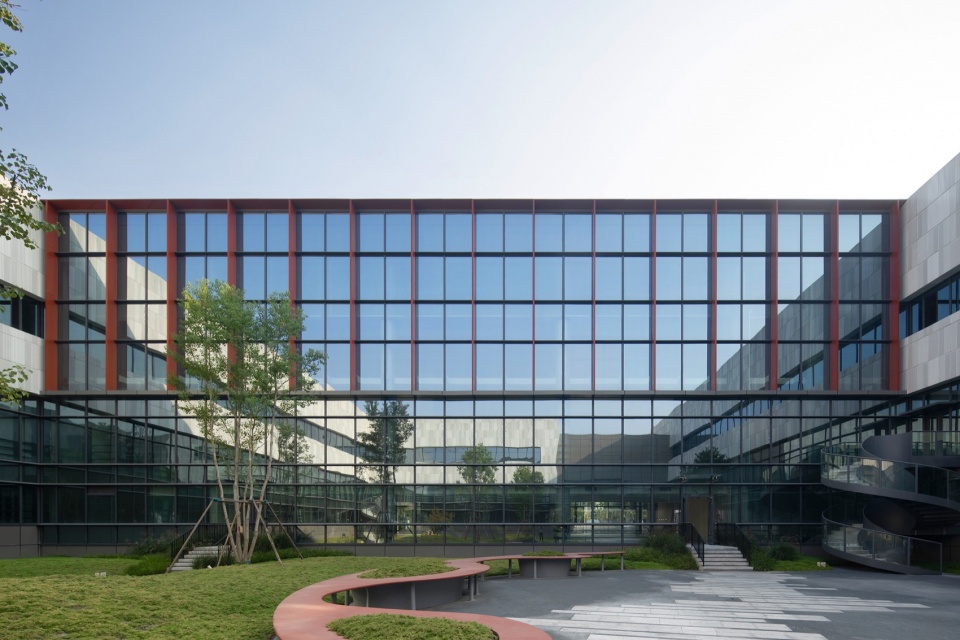

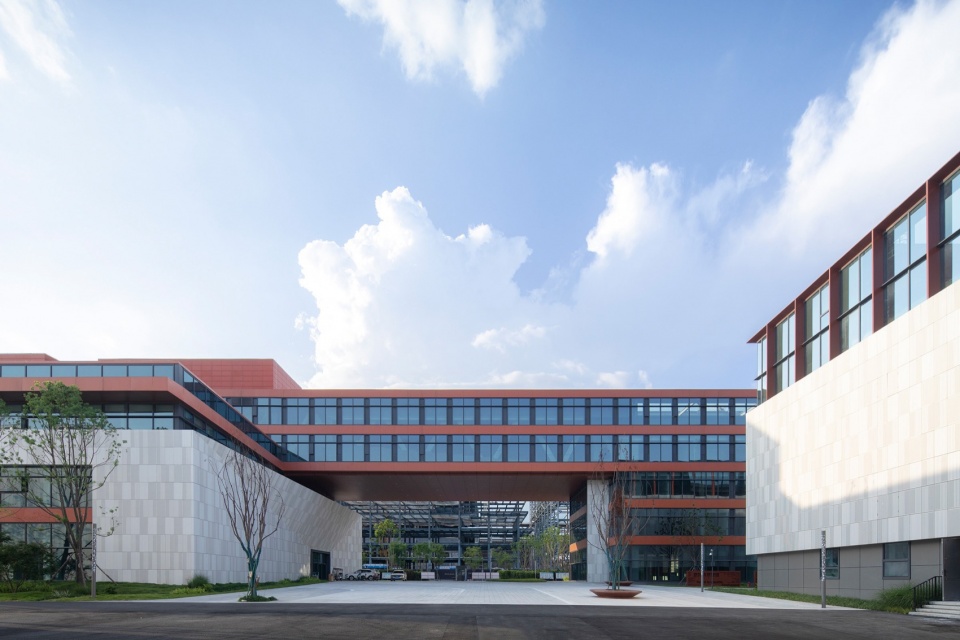

▼内院，Inner Courtyard © 存在建筑摄影

▼内院，Inner Courtyard © 存在建筑摄影

斜切
Oblique Cut

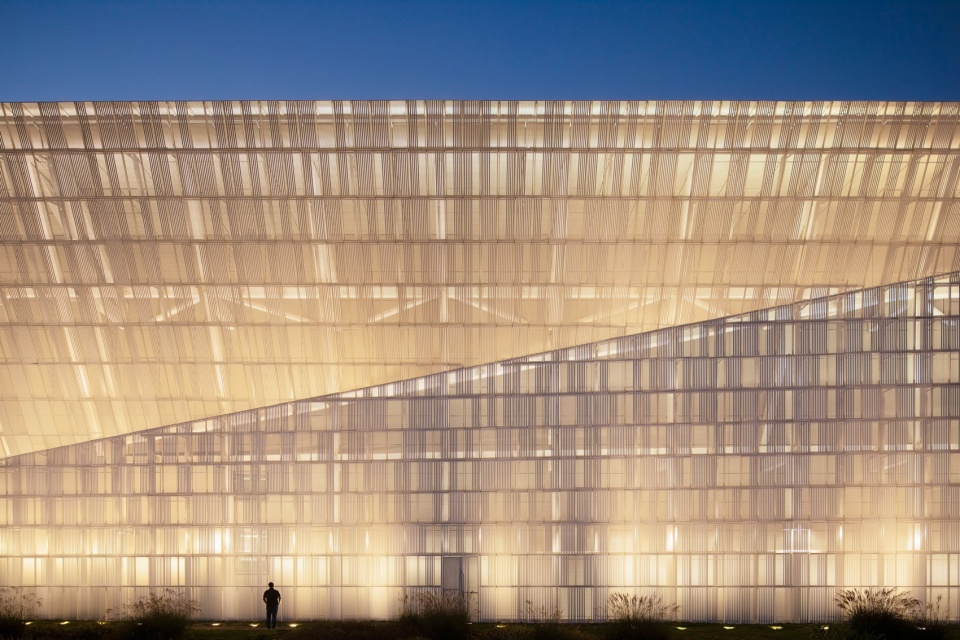

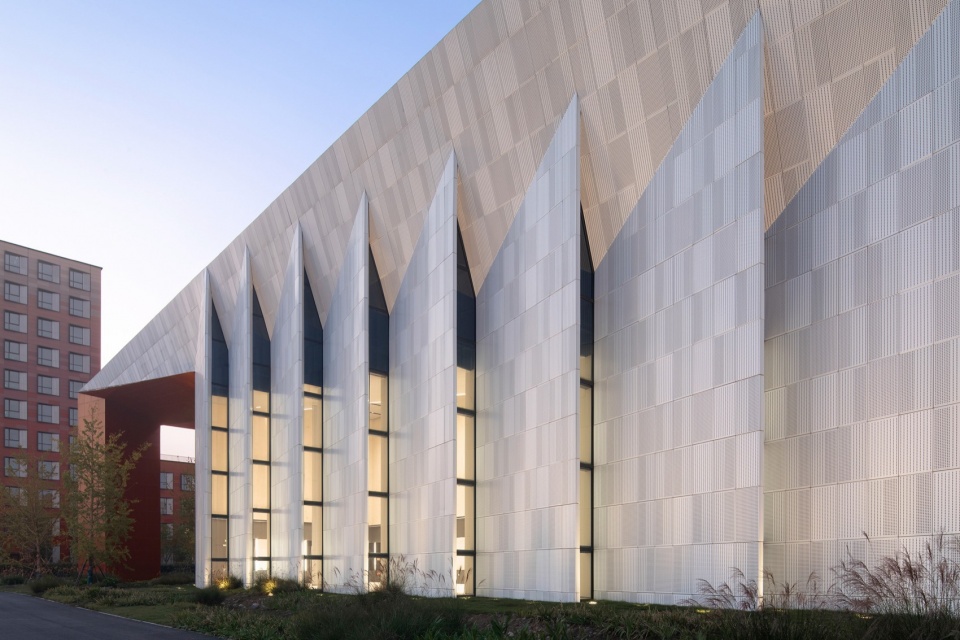

南侧主立面是一个连续平直的体量，入口是唯一可以提供尺度的参考物。通过斜切的处理，整个南立面呈现出内凹的状态，入口作为焦点在这个凹口的最低点。刻意压低的入口高度是为了让建筑有突出的尺度表达，而两侧折板的处理强化了这种对比。斜切处理让一个平直的体量有了更宏伟的力量呈现。

The main façade on the south side is a continuous, straight volume, with the entrance being the only reference point for scale. Through the use of an oblique cut, the entire south façade presents a concave state, with the entrance as the focal point at the lowest point of this indentation. The deliberately lowered height of the entrance aims to give the building a prominent scale expression, while the treatment of the folded panels on both sides enhances this contrast. The oblique cut imparts a more grandiose and powerful presentation to an otherwise straight volume.

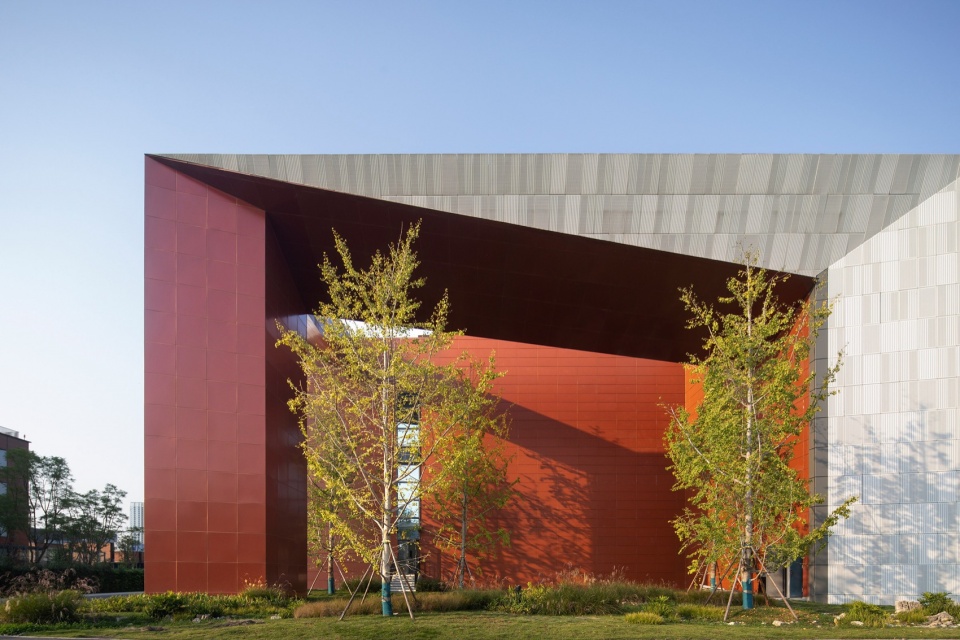

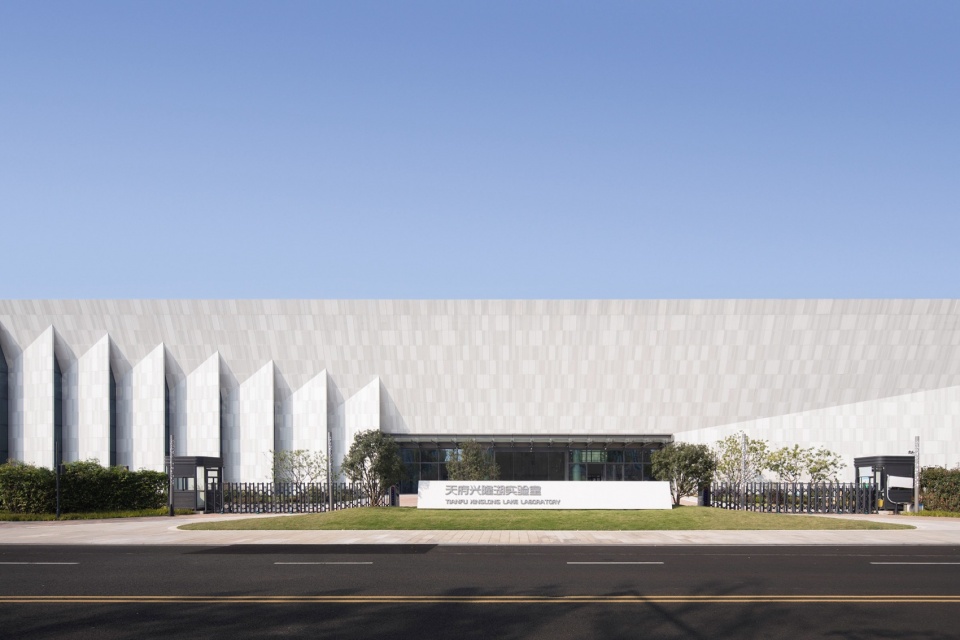

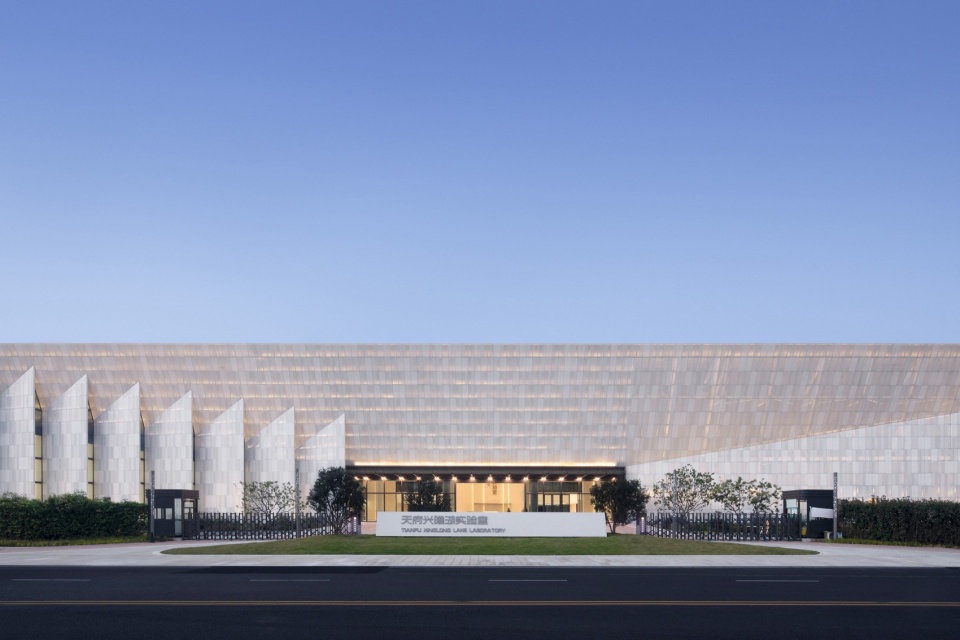

▼主立面，Main Facade © 存在建筑摄影

▼主立面，Main Facade © 存在建筑摄影

▼主立面，Main Facade © 存在建筑摄影

▼主立面，Main Facade © 存在建筑摄影

▼主立面细部，Main Facade © 存在建筑摄影

半透
Semi-transparency

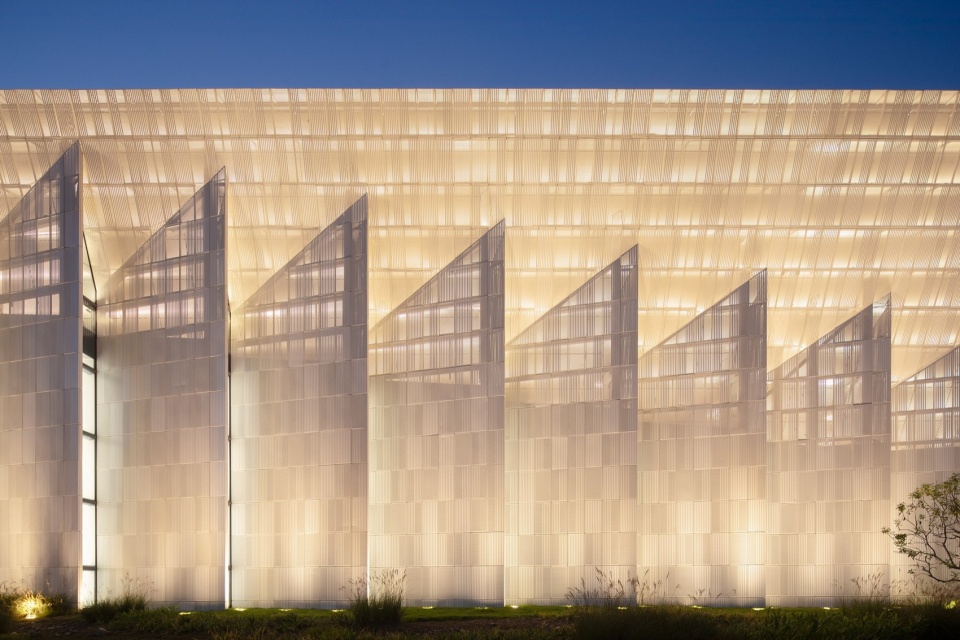

建筑南立面使用的双层铝板让建筑呈现了半透明的质感。外层铝板三种透明度的打孔处理让材料体现出更细腻的尺度变化和肌理质感。镶嵌在双层铝板中间的泛光照明则让建筑在晚上呈现出了玉石般的温润质感。

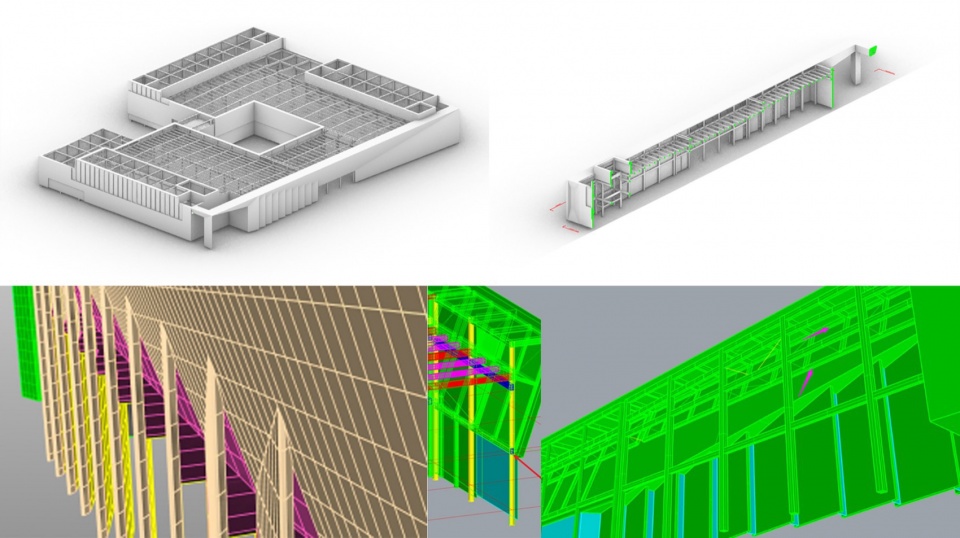

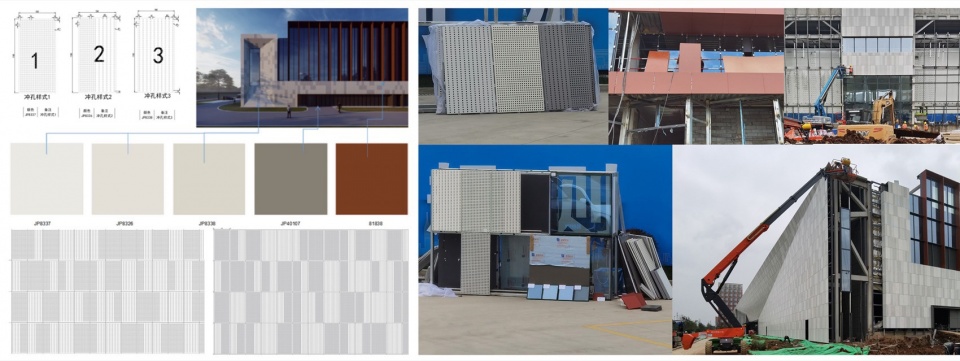

▼幕墙系统，Curtain Wall System © 荣朝晖工作室

▼幕墙系统，Curtain Wall System © 荣朝晖工作室

The south façade of the building uses double-layer aluminum panels to create a semi-transparent texture. The perforations in three different transparencies on the outer aluminum layer allow the material to exhibit a more refined scale variation and textural quality. The floodlighting embedded between the double-layer aluminum panels gives the building a jade-like, gentle texture at night.

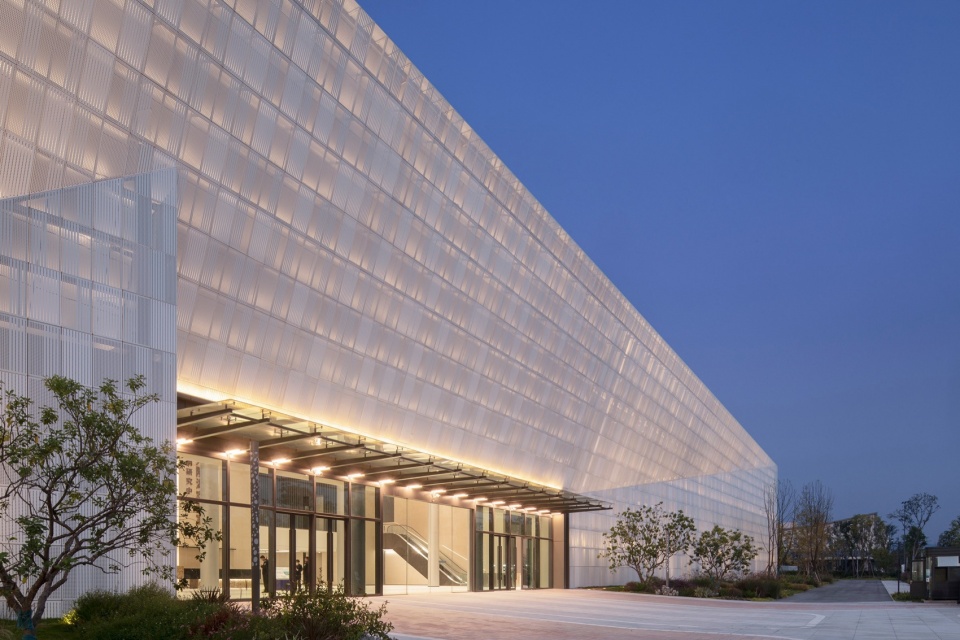

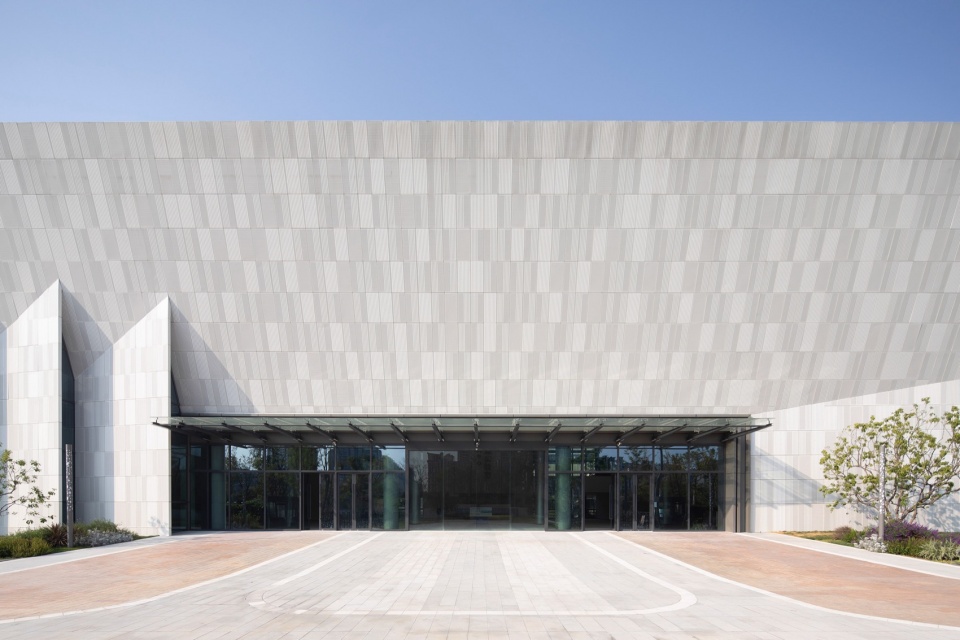

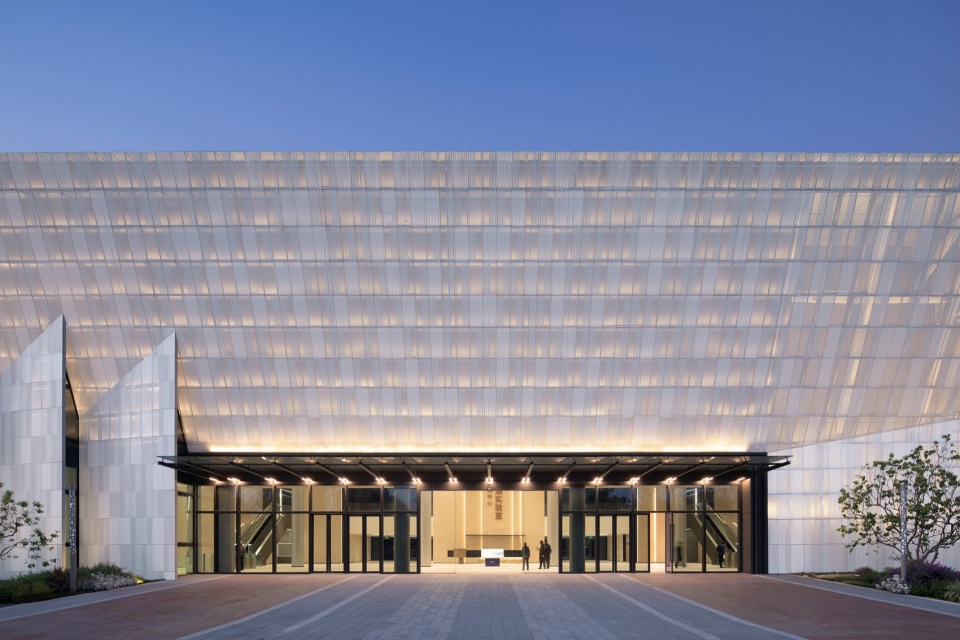

▼主入口，Main Entrance © 存在建筑摄影

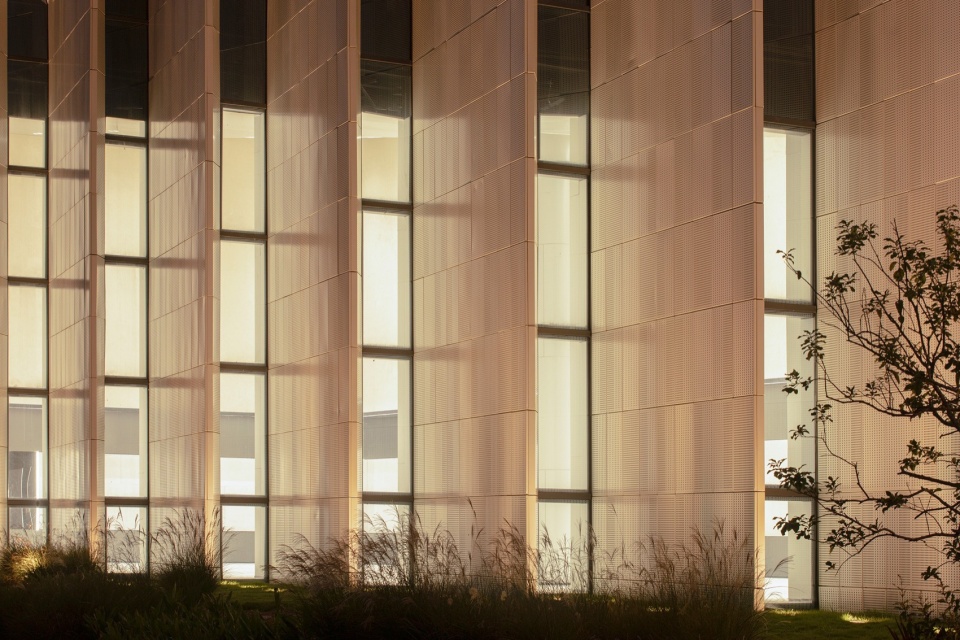

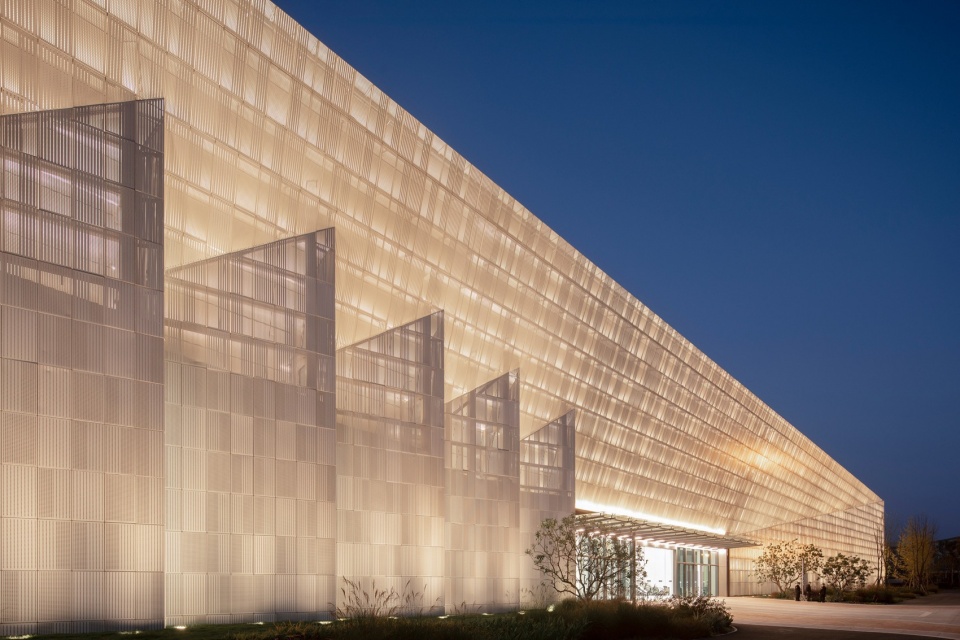

▼半透幕墙，Semi-transparent Curtain Wall © 存在建筑摄影

▼半透幕墙，Semi-transparent Curtain Wall © 存在建筑摄影

悬挑
Cantilever

北侧办公楼最大的特征是一个伸向城市近20m的悬挑。这是建筑面向城市的客厅，也是科研人员在日常工作后的休闲场所。悬挑的盒子内一个楼梯的设计让这个空间充满活力。

The most prominent feature of the office building on the north side is a cantilever extending nearly 20 meters towards the city. This serves as the building’s “living room” facing the city and as a recreational area for researchers after their daily work. The design of a staircase within the cantilevered box brings vitality to this space.

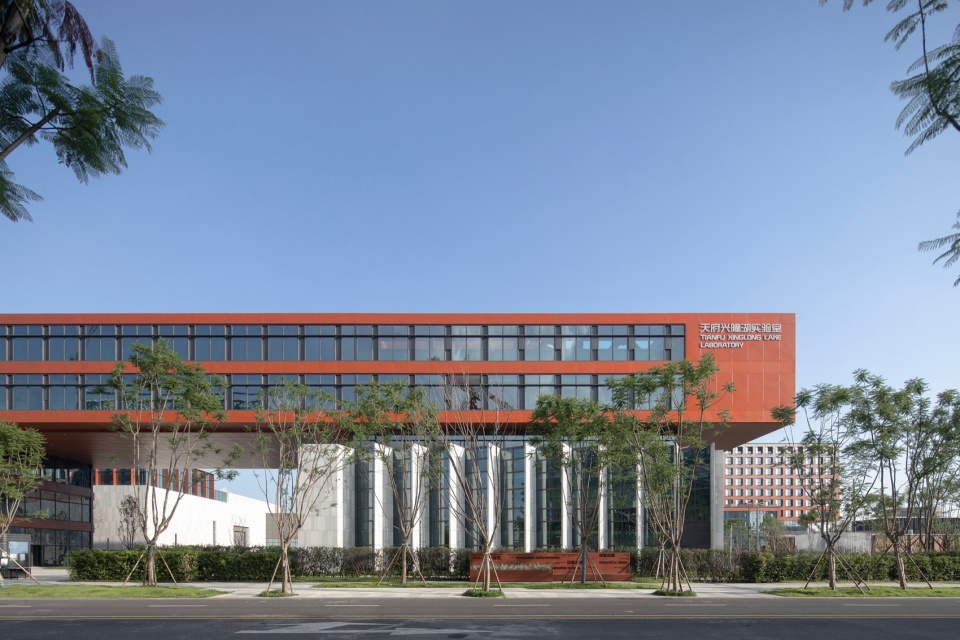

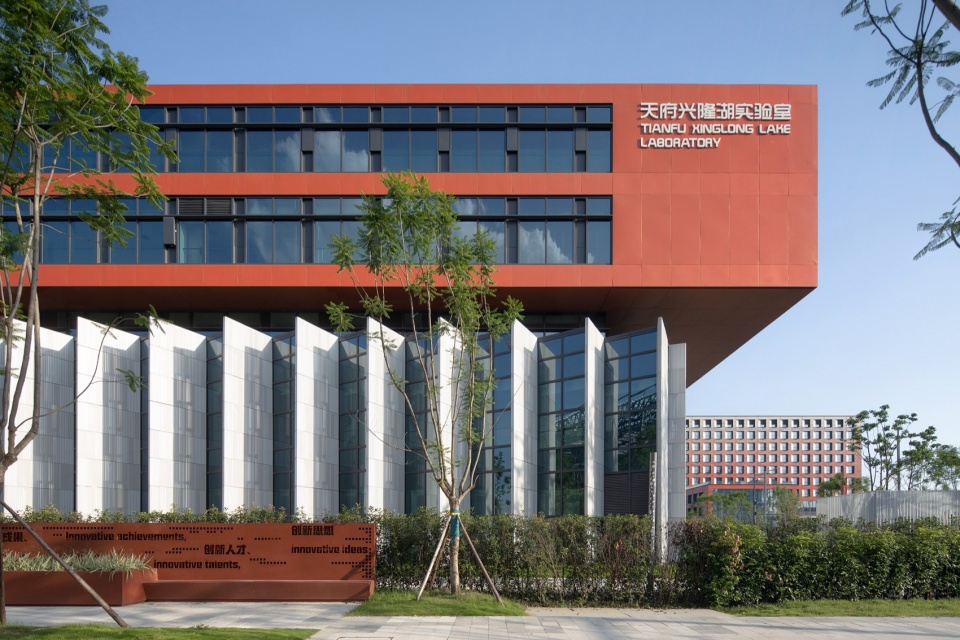

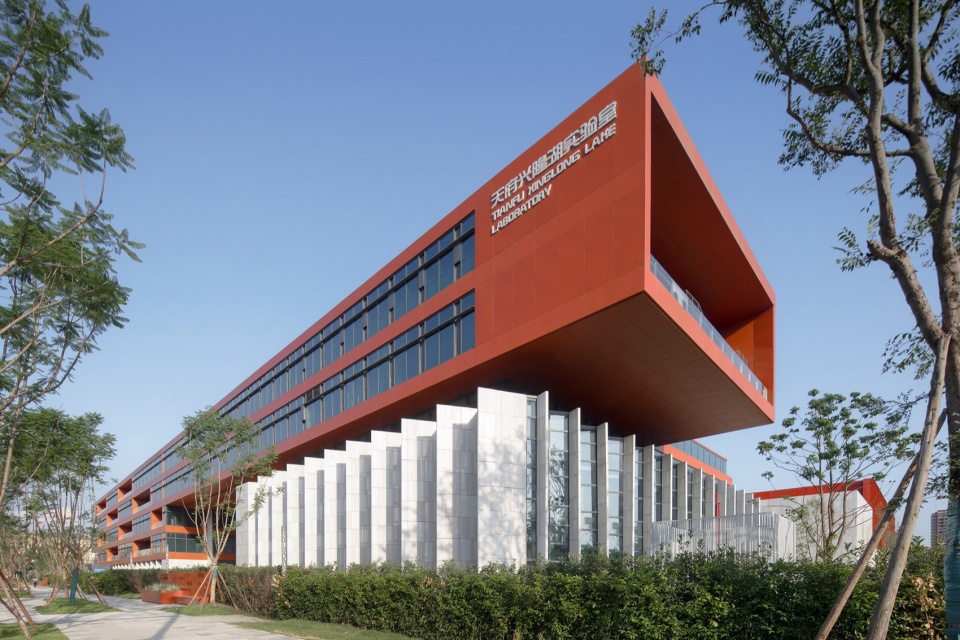

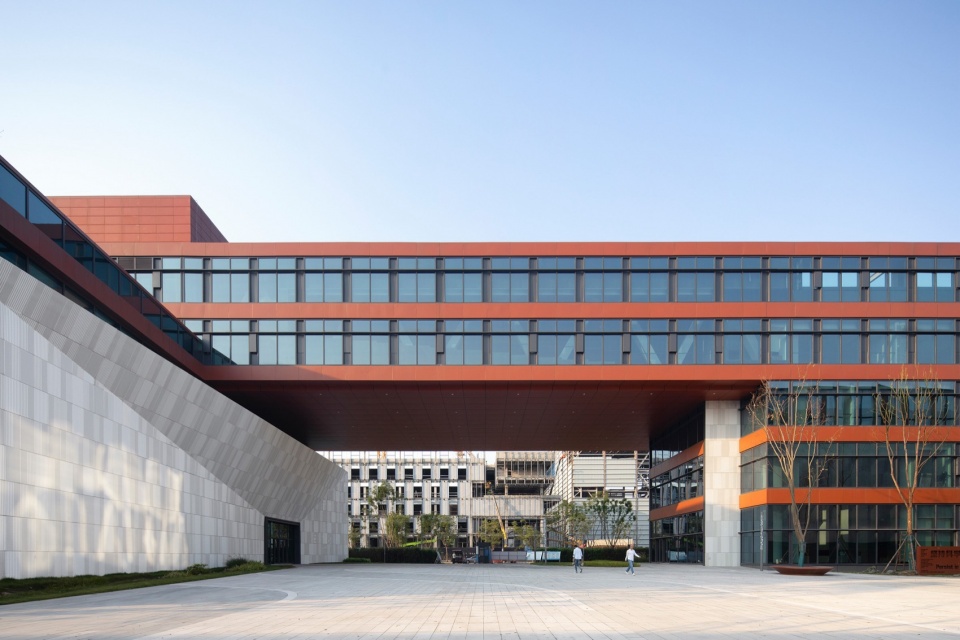

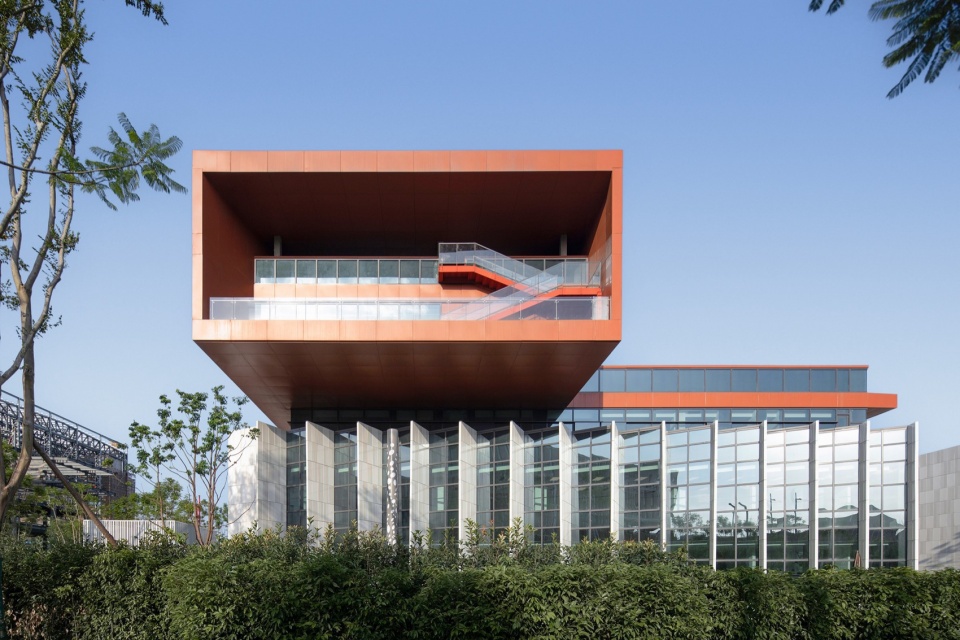

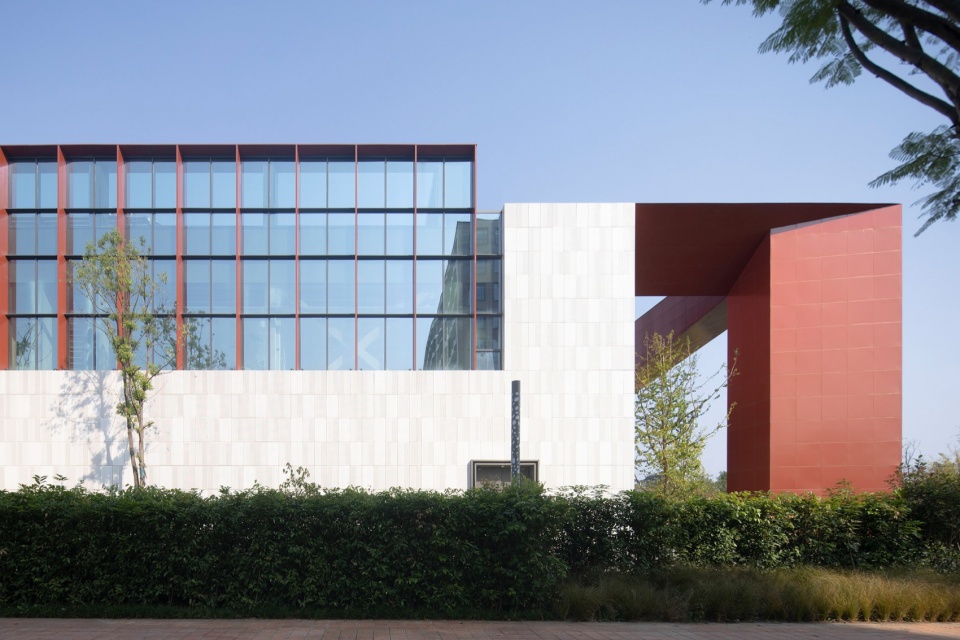

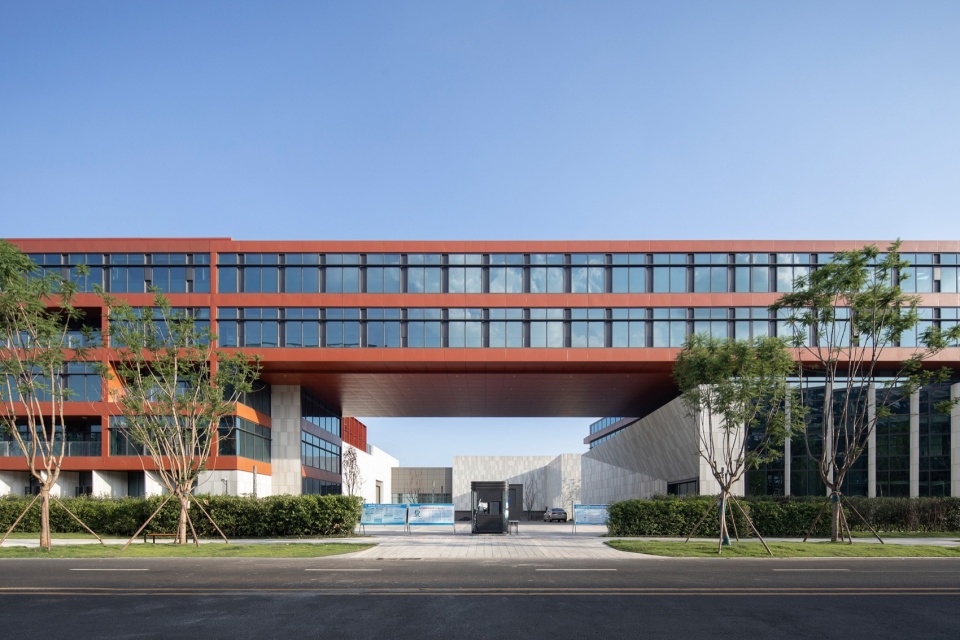

▼悬挑体块，Cantilevered Volume © 存在建筑摄影

▼悬挑体块，Cantilevered Volume © 存在建筑摄影

重复
Repetition

重复出现的手法让建筑更像一个公共建筑而不是一个封闭的厂房。北侧办公楼错动的阳台，底层不断出现的折线式造型，在不同面上穿插的玻璃体块……

The repeated design elements make the building resemble a public structure rather than a closed factory. The staggered balconies of the office building on the north side, the zigzag shapes that appear repeatedly on the ground floor, and the interspersed glass volumes on different faces…

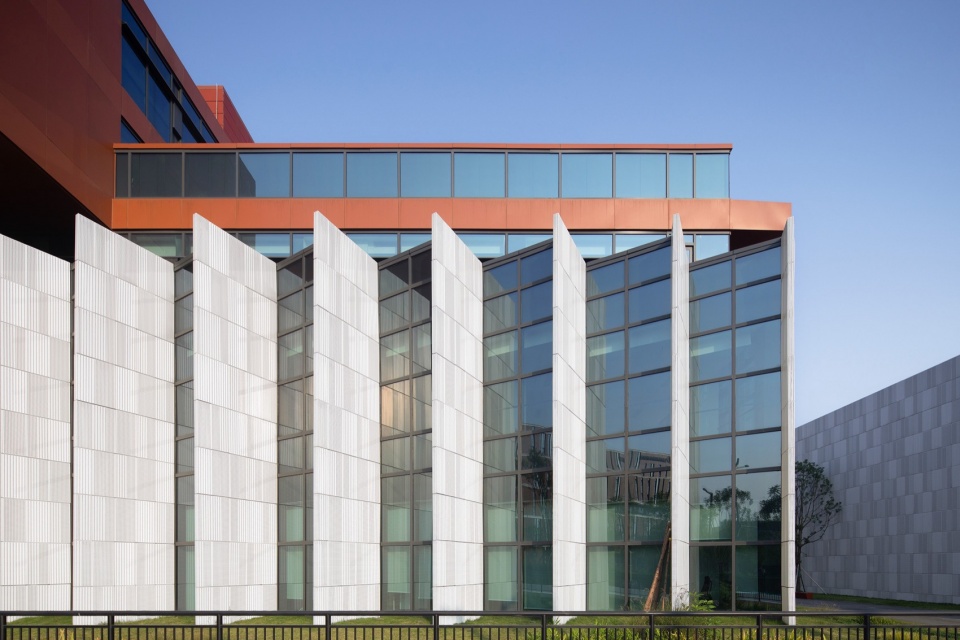

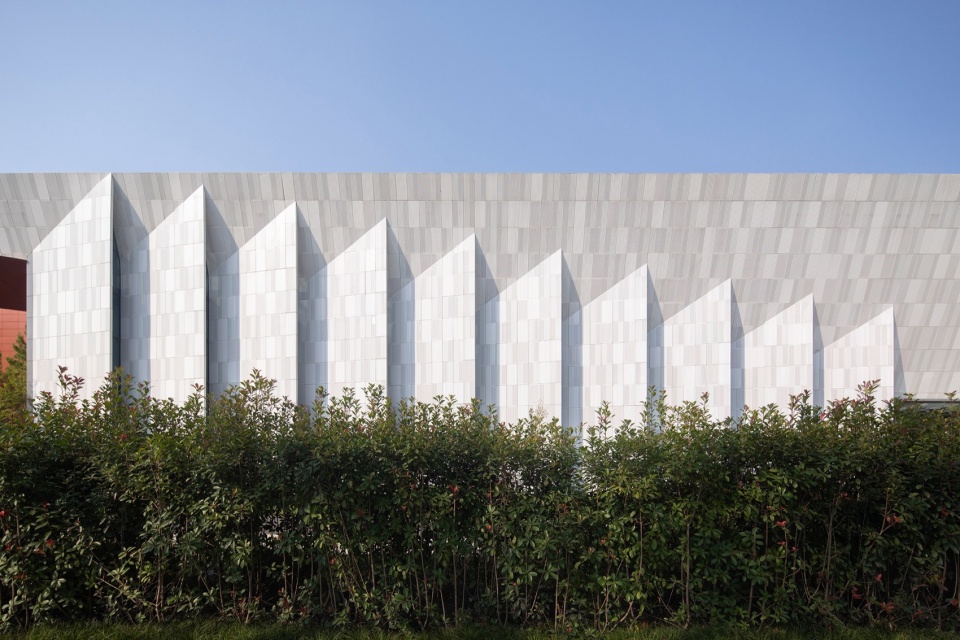

▼重复元素立面，Repetitive Facade © 存在建筑摄影

▼重复元素立面，Repetitive Facade © 存在建筑摄影

轻薄
Lightness

工业化和幕墙系统指向的美学就是轻薄。巨大的开口和铝板折边的锐角处理消减建筑的体量，附在玻璃幕墙外侧的金属构件宽度被压缩到40mm，让建筑表现出了极度的轻薄质感。

The aesthetics guided by industrialization and the curtain wall system emphasize lightness. The large openings and the sharp-edged treatment of the aluminum panels reduce the building’s volume. The width of the metal components attached to the exterior of the glass curtain wall is compressed to 40mm, giving the building an extremely lightweight texture.

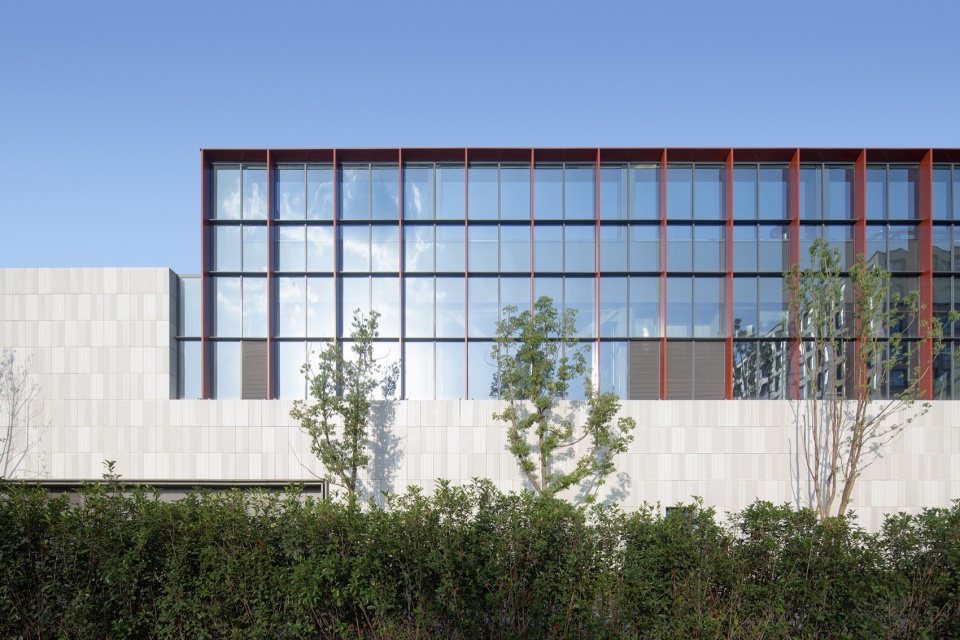

▼玻璃幕墙，Glass Curtain Wall © 存在建筑摄影

▼玻璃幕墙，Glass Curtain Wall © 存在建筑摄影

▼玻璃幕墙，Glass Curtain Wall © 存在建筑摄影

▼玻璃幕墙，Glass Curtain Wall © 存在建筑摄影

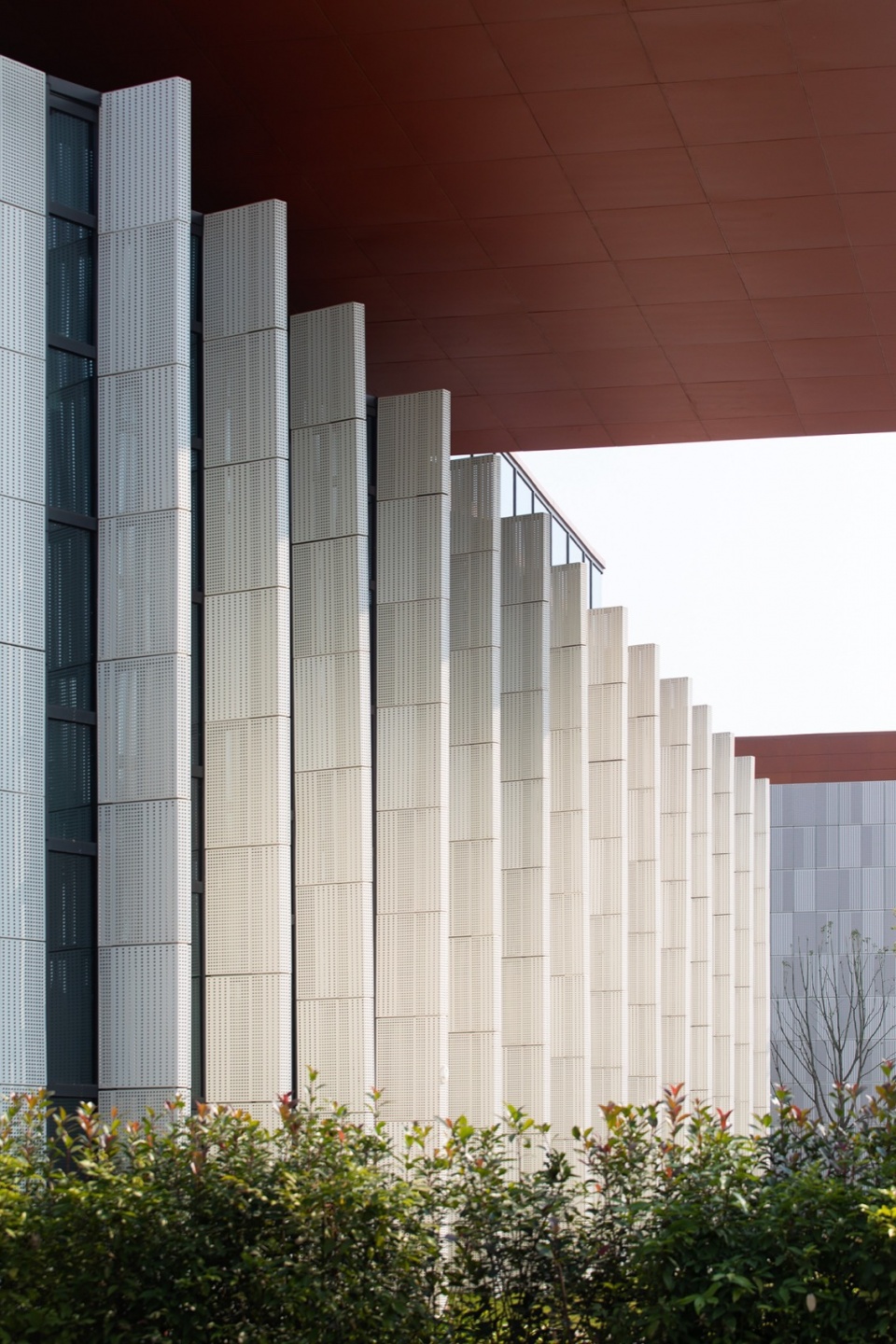

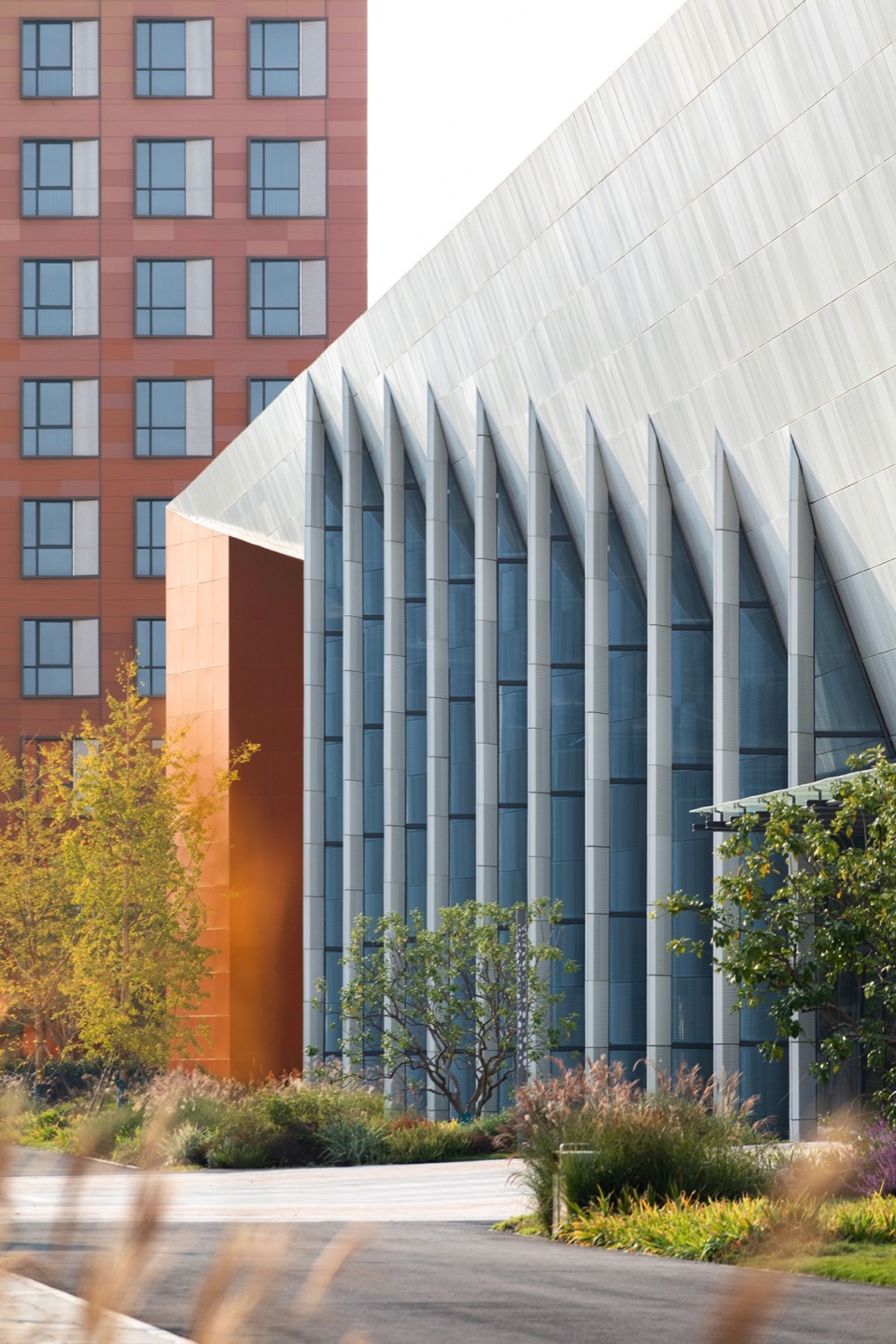

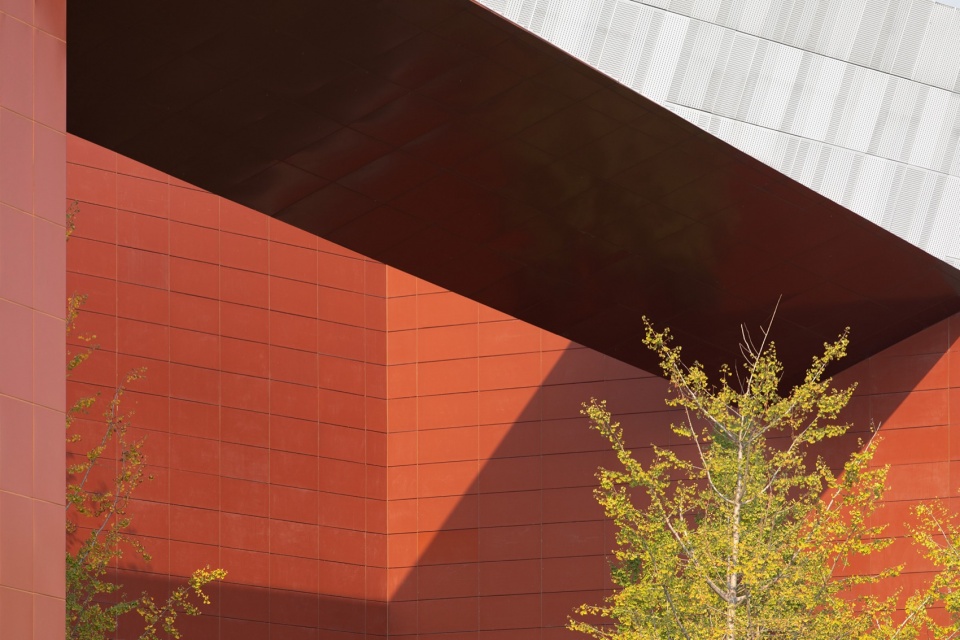

▼转角立面，Corner Facade © 存在建筑摄影

▼转角立面细部，Corner Facade © 存在建筑摄影

项目名称：成都天府兴隆湖实验室
项目类型：工业建筑
设计方：方案设计：江苏中锐华东建筑设计研究院有限公司-荣朝晖工作室/杭州心象建筑设计公司
公司网站：http://www.zradi.com/
联系邮箱：tianqicui93@qq.com
项目设计：2020
完成年份：2022
设计团队：荣朝晖宋鹏张帅
施工图设计：中国电子工程设计院股份有限公司
景观设计：中国建筑西南设计研究院有限公司
项目地址：四川成都
建筑面积：44501.74㎡
摄影版权：存在建筑
施工单位：中国建筑第五工程局有限公司
客户：成都天府新区投资集团有限公司
材料：穿孔铝板:四川合兴铝业，铝板:雅丽泰，铝合金:成都阳光铝业，玻璃:中国南玻集团

Project name: Chengdu Tianfu Xinglong Lake Laboratory
Project type: Industrial Architecture
Design: Jiangsu Provincial Zhongrui East China Institute of Architectural Design and Research Co.,Ltd. / Mind Studio
Website: http://www.zradi.com/
Contact e-mail: tianqicui93@qq.com
Design year: 2020
Completion Year: 2022
Leader designer & Team: Zhaohui Rong, Peng Song, Shuai Zhang
Construction Drawing: China Southwest Architectural Design and Research Institute Co., Ltd.
Landscape：China Southwest Architectural Design and Research Institute Co., Ltd.
Project location: Chengdu, Sichuan, China
Gross built area:44501.74㎡
Photo credit: Arch-Exist
Construction Company：China Construction Fifth Engineering Division Corp., Ltd.
Clients: Chengdu Tianfu New Area Investment Group Co., Ltd.
Materials:Perforated Aluminum Panels, Aluminum Panels, Glass
