Caulfield to Dandenong Level Crossing Removal by Cox Architecture

Elevated railways and stations and the new linear urban park

Project Specs


非常感谢 Cox Architecture 予gooood分享以下内容。更多关于他们:Cox Architecture on gooood.
Appreciations towards Cox Architecture for providing the following description:


The Caulfield to Dandenong Level Crossing Removal (CTD) project comprised the replacement of nine dangerous rail level crossings with five elevated railway stations along one of Melbourne’s busiest transport corridors. By elevating the line and stations, this project presented an opportunity to transform an extensive tract of land within Melbourne’s metropolitan zone into a new linear park.

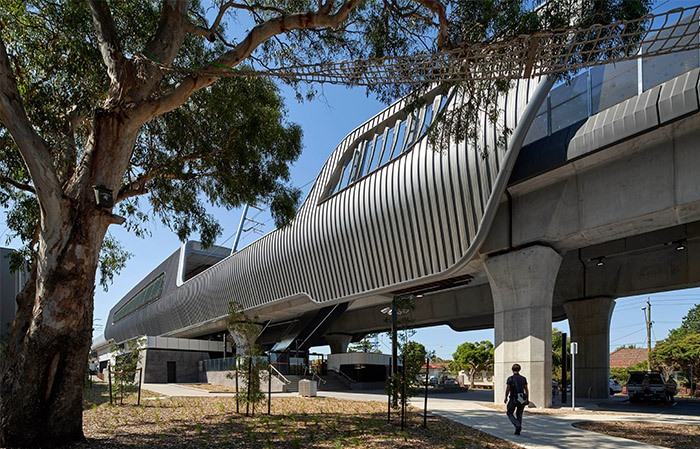

▼车站外观和高架桥局部,exterior view of the railway station and partial view of the rail viaduct

几十年来,这条铁路一直是城市渗透性的主要障碍,不仅加剧了道路交通的拥堵,更限制了郊区之间的联系和新铁路服务的引进。建筑事务所Cox Architecture负责新车站的建筑设计,并与ASPECT Studios合作,进行车站下方城市公园的设计。

▼车站及高架桥下方空间局部,增强了铁路两侧空间的连通性,partial view of the station, the rail viaduct and the space below them, increasing the connectivity between two sides of the rail viaduct

For decades, this rail corridor had acted as a major barrier to urban permeability, adding to road congestion, limiting links between suburbs and restricting the introduction of new rail services. Cox Architecture were engaged to lead the architectural design of the new stations and to work with ASPECT Studios on the urban design of the parks below.

▼高架桥下方线性公园局部,城市绿地为市民们增加了社交场地,partial view of the linear park below the rail viaduct, the urban park enhances the opportunity for social interaction

▼高架桥下方线性公园局部,增加了社区运动场地,partial view of the linear park below the rail viaduct, enhancing the opportunity for community sport

▼高架桥下方线性公园局部,增强了其两侧空间的连通性,partial view of the linear park below the rail viaduct, enhancing the cross-corridor connectivity of two sides of the rail viaduct


▼高架车站外观,exterior view of the elevated station

▼车站外观局部,天篷环绕着站台,partial view of the station, the distinctive canopy wraps the platform

Our design proposed an elevated viaduct with a consistent architectural expression across the five station precincts. Each was conceived as a unique community hub, consisting at ground level of an urban plaza and pod-like structures for information and bike storage. A distinctive canopy wraps each platform providing weather protection and framed views to the suburbs. Materials were selected to reflect the character of each station’s surrounds.

▼车站地面层空间,作为城市广场,the ground level of the station as an urban plaza

▼车站上层空间,天篷环绕着站台,为人们提供了气象保护,the upper level of the rail station, the distinctive canopy wraps the platform providing weather protection


The rail viaduct was designed as a ‘split’ solution, separating the tracks to reduce the visual bulk and to allow light and rainfall into the heart of the linear parks below. At ground plane, the project has transformed 22 hectares of open space into a green linear park and enhanced opportunity for community sport, retail, cross-corridor connectivity and social interaction.

▼项目夜景局部,partial night view

▼车站夜景,night view of the station

▼高架桥下方的社区运动场地夜景,night view of the community sports area below the rail viaduct

Architects: Cox Architecture
Location: Melbourne, Australia
Completion date: 2019
